Heat Pump Dryer
User manual
DV9*TA2****/DV8*TA2****/DV7*TA2****
DV9*TA0****/DV8*TA0****/DV7*TA0****
DV5000T_DC68-04209F-00_EN.indd 1 2020/9/8 14:05:01
2 English
Contents
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Critical installation warnings 9
Critical usage warnings 11
Usage cautions 12
Critical cleaning warnings 15
Instructions about the WEEE 16
Installation 17

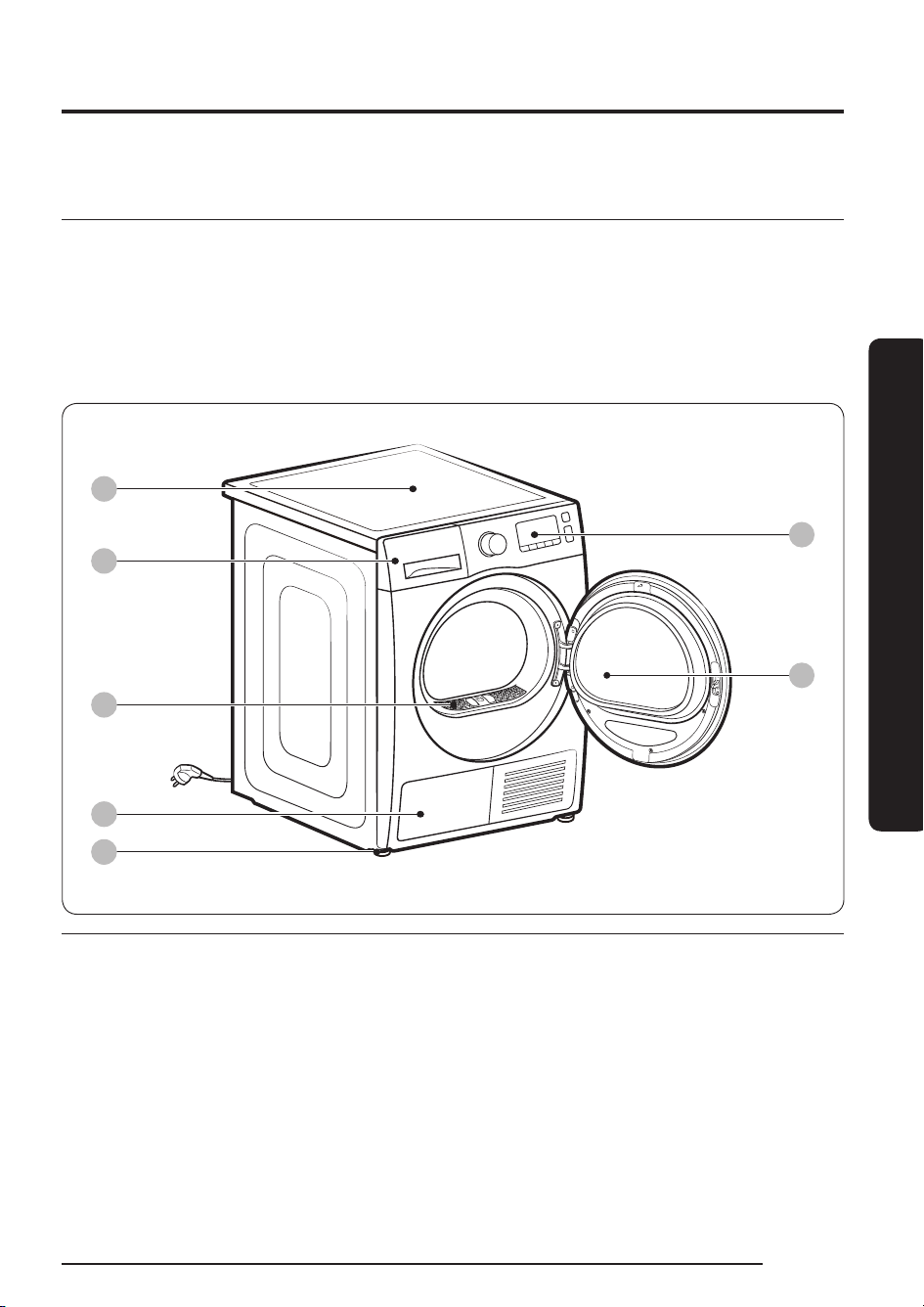

What’s included 17
Installation requirements 20
Levelling 23
Drain hose (if necessary) 24
Installation checklist 27
Before using the dryer 27
Door reversal (DV**TA***A*/DV**TA***T* only) 28
Operations 32
Control panel 32
Getting started 39
Special features 43
DV5000T_DC68-04209F-00_EN.indd 2 2020/9/8 14:05:01
English 3
Contents
Maintenance 44
Control panel 44
Exterior 44
Drum 44

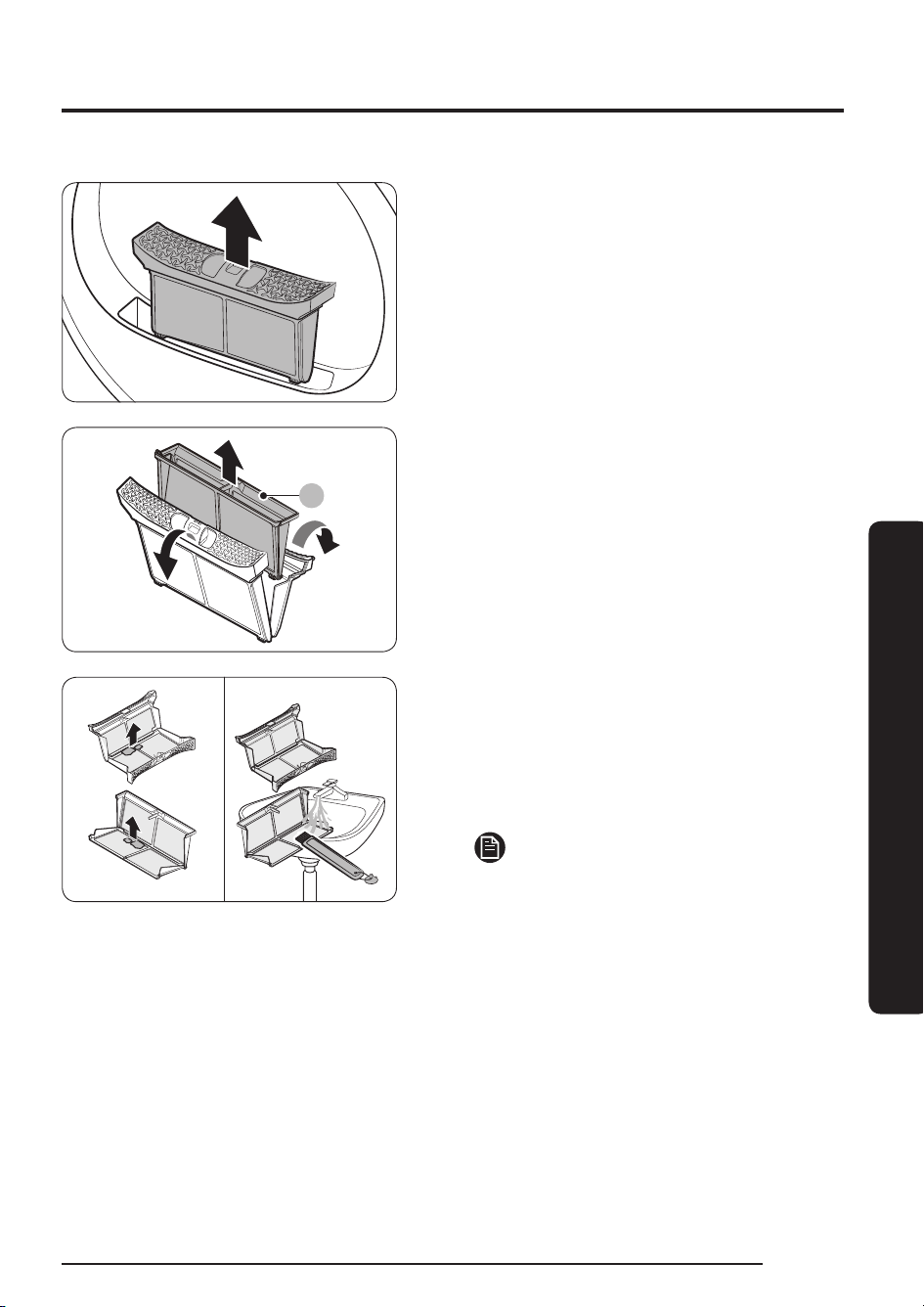

Lint lter 44
Water tank 47
Heat exchanger 48
Troubleshooting 50
Checkpoints 50
Information codes 52
Appendix 53
Fabric care chart 53
Protecting the environment 55
Specication 56
Consumption data 57
Specication sheet 60
DV5000T_DC68-04209F-00_EN.indd 3 2020/9/8 14:05:01
4 English
Safety information
Congratulations on your new Samsung dryer. This manual contains important
information on the installation, use, and care of your appliance. Please take the time
to read this manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common
sense, caution, and care when installing, maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not
understand.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property
damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
Read the instructions
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
Safety information
DV5000T_DC68-04209F-00_EN.indd 4 2020/9/8 14:05:03
English 5
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise
care when using it.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied technician.
• Install the clothes dryer according to the manufacturer’s instructions and
local codes.
• To reduce the risk of severe injury or death, follow all installation
instructions.
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons
when using your appliance, follow basic precautions, including
the following:
1. This appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
Safety information
DV5000T_DC68-04209F-00_EN.indd 5 2020/9/8 14:05:03
Safety information
6 English
2. For use in Europe: This appliance can be used by
children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
3. Children should be supervised to ensure that they do not
play with the appliance.
4. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
6. For appliances with ventilation openings in the base, that
a carpet must not obstruct the openings.
7. For use in Europe: Children of less than 3 years should
be kept away unless continuously supervised.
Safety information
DV5000T_DC68-04209F-00_EN.indd 6 2020/9/8 14:05:03
English 7
8. CAUTION: In order to avoid a hazard due to inadvertent
resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
9. The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
10. The lint trap has to be cleaned frequently, if applicable.
11. Lint must not to be allowed to accumulate around the
tumble dryer. (not applicable for appliances intended to
be vented to the exterior of the building)
12. Adequate ventilation has to be provided to avoid the
back ow of gases into the room from appliances
burning other fuels, including open res.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Safety information
DV5000T_DC68-04209F-00_EN.indd 7 2020/9/8 14:05:03
Safety information
8 English
15. Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows tted with foam rubber pads should not be dried
in the tumble dryer.
16. Fabric softeners, or similar products, should be used as
specied by the fabric softener instructions.
17. The nal part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.
18. Remove all objects from pockets such as lighters and
matches.
19. WARNING: Never stop a tumble dryer before the end of
the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
20. Exhaust air must not be discharged into a ue which is
used for exhausting fumes from appliances burning gas
or other fuels.
21. The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the tumble dryer, in such a way
that a full opening of the tumble dryer door is restricted.
Safety information
DV5000T_DC68-04209F-00_EN.indd 8 2020/9/8 14:05:03
English 9
22. WARNING: The appliance must not be supplied through
an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and
off by a utility.
Heat pump model only: The instructions shall also
include the substance of the following:
WARNING: In the appliance enclosure or in the built-in
structure, keep ventilation openings clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualied technician or
service company.
• Failure to do so may result in electric shock, re, an explosion, problems with the
product, or injury.
Plug the power cord into a wall socket and use the socket for this appliance only. In
addition, do not use an extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the
power cord may result in electric shock or re.
• Ensure that the power voltage, frequency and current are the same as those of
the product specications. Failure to do so may result in electric shock or re.
Failure Plug the power plug into the wall socket rmly.
Remove all foreign substances such as dust or water from the power plug terminals
and contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or re.
Safety information
DV5000T_DC68-04209F-00_EN.indd 9 2020/9/8 14:05:03
Safety information
10 English
Keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
• If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, re, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make
sure that it is in accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in electric shock or re.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer
or its service agent or a similar qualied technician in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug after
installation.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• This may result in electric shock or re.
Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or re.
This appliance must be properly grounded. Never plug the power cord into a
receptacle that is not grounded adequately and in accordance with local and national
codes. See installation instructions for grounding this appliance.
Install this appliance in a location with solid, level oor.
• Failing to do so may result in abnormal vibrations, noise or problems with the
product.
Safety information
DV5000T_DC68-04209F-00_EN.indd 10 2020/9/8 14:05:03
English 11
Since an ingredient in hair spray may degrade the hydrophile property of the heat
exchanger so that dew may appear on the outer surface of the appliance when the
cooling operation is running, do not install the appliance in a beauty salon.
This appliance should be positioned so that the power plug, the water supply taps,
and the drain pipes are accessible.
Critical usage warnings
WARNING
Do not let children or pets on or into the product. In addition, when disposing of this
product, disassemble the door lock (lever).
• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
• This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is dissipated.
Do not dry laundry contaminated by inammable materials such as gasoline,
kerosene, benzene, thinner, alcohol, etc.
• This may result in electric shock, re or explosion.
Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before
disposing of the product.
• Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
Safety information
DV5000T_DC68-04209F-00_EN.indd 11 2020/9/8 14:05:03
Safety information
12 English
• This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the
power cord, ventilate immediately.
• At this time, do not use the ventilating fan.
• A spark may cause an explosion or re.
Do not repair, replace, or attempt to service any part of the appliance unless
specically recommended in the user-repair instructions. You must also have the
skills necessary to service this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest
service center.
• Failure to do so may result in electric shock, re, problems with the product, or
injury.
The product you have purchased is designed for domestic use only.
The use for business purposes qualies as product misuse. In this case, the product
will not be covered by the standard warranty provided by Samsung and no
responsibility can be attributed to Samsung for malfunctions or damages resulting
from such misuse.
If the product generates strange noise, smells of something burning, or generates
smoke, immediately cut-off the power and contact the service center.
• Otherwise, it may cause an electric shock or re as a result.
Do not let children (or pets) play in or on your product. The product door does not
open easily from the inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
Do not stand on top of the appliance or place objects (such as laundry, lighted
candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
Safety information
DV5000T_DC68-04209F-00_EN.indd 12 2020/9/8 14:05:03
English 13
Do not touch the glass door and inside of the drum during or just after drying as it is
hot.
• This may result in burns.
The door glass becomes hot during washing and drying. Therefore, do not touch the
door glass.
Also, do not allow children to play around the washing machine or touch the door
glass.
• This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
• This may result in electric shock or injury.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
• If forming rubber is heated, it may start a re.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of
the oil will not be removed when washing the laundry. In addition, use the Cool Down
cycle so that the laundry is not heated.
• The oxidization heat of the oil may start a re.
Make sure that the pockets of all clothing to be dried are empty.
• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks
and eyelets, button-up covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie
belt , apron strings, and underwire bras which can dissolve or break during a cycle.
Dryer sheets are compatible with this model, and are recommended for better drying
performance.
Dryer sheets are also benecial in reducing the static electricity generated during a
drying cycle. Static electricity could lead to damage of laundry items and potentially
the appliance.
Do not use the dryer near dangerous powders such as coal dust, wheat our, etc.
• This may result in electric shock, re or an explosion.
Safety information
DV5000T_DC68-04209F-00_EN.indd 13 2020/9/8 14:05:03
Safety information
14 English
Do not place inammable materials near the product.
• This may result in toxic gases from the product, damage to parts, electric shock,
re or an explosion.
• The appliance should not be placed behind lockable doors etc.
Do not touch the rear side of the appliance during or immediately after drying is
complete.
• The appliance remains hot and may cause burns.
Contains uorinated greenhouse gases.
Hermetically sealed equipment.
Do not vent gases into the atmosphere.
Refrigerant (Type): R-134a (GWP = 1430)
Refrigerant (Charging)
• DV**TA2**** : 0.43kg, 0.615tCO2e
• DV**TA0**** : 0.37kg, 0.529tCO2e
Safety information
DV5000T_DC68-04209F-00_EN.indd 14 2020/9/8 14:05:03
English 15
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or re.
Before cleaning or performing maintenance, unplug the appliance from the wall
socket.
• Failure to do so may result in electric shock or re.
Clean the lter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service
engineer.
Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not
touch the heat exchanger with your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualied service personnel.
Safety information
DV5000T_DC68-04209F-00_EN.indd 15 2020/9/8 14:05:03
Safety information
16 English
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
For information on Samsung’s environmental commitments and product regulatory
obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via
www.samsung.com
Safety information
DV5000T_DC68-04209F-00_EN.indd 16 2020/9/8 14:05:04
English 17
Installation
What’s included
Carefully unpack the dryer. Keep all packaging materials away from children.
The parts and location of parts shown below may differ from your dryer. Before
installation, make sure the dryer has all the parts listed here. If the dryer and/or parts
are damaged or missing, contact the nearest Samsung customer service centre.
Dryer at a glance
01
02
07
06
03
05
04
01 Top cover 02 Water Tank
03 Lint lter 04 Heat exchanger
05 Levelling Leg 06 Door
07 Control Panel
Installation
DV5000T_DC68-04209F-00_EN.indd 17 2020/9/8 14:05:05
Installation
18 English
Accessories (supplied)
Hose guide Cable tie Hose connector
Long drain hose (2m) User manual Rack Dry (applicable
models only)
Cleaning brush
Accessories (not supplied)
Bracket-Stacking kit
(SK-DH, SK-DA, SKK-DF)
Stacking kit
(SKK-DD, SKK-DDX)
NOTE
• The stacking kit allows the dryer to be stacked on top of a washer. Please note
that the stacking kit can only be used with Samsung washers and dryers. To
purchase a bracket stacking kit (SK-DH, SK-DA, SKK-DF) or stacking kit (SKK-
DD, SKK-DDX), contact a Samsung service centre or local appliance retailer. The
stacking kit differs with the washer model.
Installation
DV5000T_DC68-04209F-00_EN.indd 18 2020/9/8 14:05:09
English 19
• For stacking instructions with the dryer, see the installation manual included in
the stacking kit.
• For information about model-specic availability of the stacking kit, see the
installation manual included in the stacking kit.
Installation
DV5000T_DC68-04209F-00_EN.indd 19 2020/9/8 14:05:09
Installation
20 English
Installation requirements
NOTE
This dryer must be installed by a qualied installer. If service is required due to poor
or faulty installation, it is considered the owner’s responsibility and may void the
warranty. Keep these instructions for future reference.
WARNING
• Do not plug the power cord into a wall outlet before the dryer is completely
installed.
• Have two or more persons help move the dryer.
• Do not let children or pets play in, on, or around the dryer. Proper supervision is
necessary at all times.
• Keep all packaging materials away from children.
• Do not replace a damaged power cord or power plug yourself. Have Samsung or a
qualied service technician replace a damaged power cord or power plug.
• Do not attempt to repair, disassemble, or modify the dryer. For any repairs,
contact the nearest Samsung service centre.
• Remove the door/lids from all discarded appliances to avoid children from
suffocating.
• If the dryer generates a strange noise, burning smells, or smoke, unplug the
power plug immediately and contact the nearest Samsung service centre.
• Do not unplug the dryer while it is operating.
• Do not place ammable objects near the dryer.
Installation
DV5000T_DC68-04209F-00_EN.indd 20 2020/9/8 14:05:09
English 21
Location requirements
Select a level, well-constructed surface that will withstand vibrations. Select a
location where a grounded, 3-prong outlet is easily accessible.
WARNING
• Install the dryer indoors only.
• Do not install the dryer in areas exposed to the weather.
• Do not install the dryer where the temperature may fall below 5 °C or rise above
35 °C.
• Do not install the dryer where gas may leak.
• Do not block the cooling grill’s air inlet located at the dryer front.
Alcove or closet installation
For alcove or closet installation, the dryer requires the following minimum
clearances:
Sides Top Front Rear
25 mm 25 mm 490 mm 51 mm
If installing the dryer with a washer, the front of the alcove or closet must have an
unobstructed air opening of at least 490 mm.
Electrical and grounding requirements
• The dryer requires an AC 220-240 V / 50 Hz electrical supply.
• The dryer must be properly grounded. If the dryer malfunctions or breaks
down, grounding reduces the risk of electric shock by providing a path of least
resistance for the electric current. The dryer comes with a power cord that has
a 3-prong grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and
ordinances.
• If you have any questions regarding the electrical or grounding requirements,
please contact Samsung or a qualied electrician.
Installation
DV5000T_DC68-04209F-00_EN.indd 21 2020/9/8 14:05:09
Installation
22 English
WARNING
• Plug into a grounded, 3-prong outlet.
• Do not use a damaged power plug, cord, or loose or damaged wall outlet.
• Do not use an adaptor or an extension cord.
• Improper connection of the equipment-grounding conductor may result in electric
shock. If you are unsure if the dryer is properly grounded, check with a qualied
electrician.
• Do not modify the power plug, power cord, or power outlet in any way.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water
pipes.
Installation
DV5000T_DC68-04209F-00_EN.indd 22 2020/9/8 14:05:09
English 23
Levelling
Before you install the dryer, make sure you have read Installation requirements on
page 20. Please note that the following instructions are for installation without using
a drain hose. For instructions for using a drain hose, see the next section, Drain hose
(if necessary). For convenience, consider installing the dryer next to your washer.
A
B
1. Gently slide the dryer into the
desired location.
2. Use a level (A) and check the
levelness of the dryer from side to
side and front to back.
3. If the dryer is not level, adjust the
levelling leg (B). Turning the leg
counter-clockwise retracts the leg.
Turning the leg clockwise extends
the leg.
4. Once the dryer is level, make sure
the dryer stands rmly on the oor.
5. Plug in the dryer.
C D
NOTE
• The dryer can be levelled using
either or both of the front and rear
legs of the dryer.
• To set the dryer to the same height
as the washer, fully retract (C)
the levelling legs by turning them
counter clockwise, then loosen (D)
the legs by turning them clockwise.
• Extend the levelling leg only as
much as necessary. Extending the
levelling leg more than necessary
can cause the dryer to vibrate.
Installation
DV5000T_DC68-04209F-00_EN.indd 23 2020/9/8 14:05:11
Installation
24 English
Drain hose (if necessary)
The dryer comes with a built-in water
tank. However, if you do not want to use
the water tank, you may install the drain
hose. The provided accessory hose (long
drain hose) can be used as an extension
to the drain hose.
B
A
1. Remove the drain hose from hole
(A), and insert it into hole (B).
Installation
DV5000T_DC68-04209F-00_EN.indd 24 2020/9/8 14:05:12
English 25
A
2. Insert one end of the accessory hose
(long drain hose) into hole (A).
3. Insert the other end (outlet) of the
accessory hose to the drainage
system in one of the following ways:
Over a wash basin:
A
CB
1. Make sure to place the end of the
accessory hose lower than 90 cm (*)
from the bottom of dryer.
2. To bend some point of the accessory
hose, use the supplied plastic hose
guide (B) and secure the guide to the
wall with a hook or to the tap with a
piece of string. Assemble the drain
hose (A) and the hose guide (B) and
x them with the cable-tie (C).
3. You can drain the condensed water
by connecting the accessory hose
(long drain hose) to the drain-outlet
directly.
CAUTION
Do not extend the drain hose. Water
may leak from the connected area. Use
a long drain hose.
Installation
DV5000T_DC68-04209F-00_EN.indd 25 2020/9/8 14:05:13
Installation
26 English
By using the drain pipe of the wash basin:
A
1. Assemble the hose connector
(A), and attach it to the end of the
accessory hose as shown.
CAUTION
To prevent water leak, make sure to
connect the hose and the connector
rmly.
2. Connect the hose adaptor directly to
the drain pipe of the wash basin.
Installation
DV5000T_DC68-04209F-00_EN.indd 26 2020/9/8 14:05:14
English 27
Installation checklist
• The dryer is plugged into a properly grounded outlet.
• All packaging material is completely removed and properly disposed.
• The dryer is level and standing rmly on the oor.
• Start the dryer to make sure that it runs, heats, and shuts off.
• Run a TIME DRY cycle for 20 minutes to see if the HC information code is
displayed. If this is the case, contact a local service centre.
• After installation, we recommend that you wait at least 1 hour before using the
dryer.
Before using the dryer
• Make sure no accessory remains inside the drum.
• Plug in the power cord just before operating the dryer.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inammable objects near the dryer and keep the surroundings clean.
• Keep the dryer level with the ground.
• Do not remove the adjustable levelling legs of the dryer. They are necessary to
keep the dryer level with the ground.
Installation
DV5000T_DC68-04209F-00_EN.indd 27 2020/9/8 14:05:15
Installation
28 English
Door reversal (DV**TA***A*/DV**TA***T* only)
You might want to reverse the direction of the door, depending on your site
conditions or to your needs.
WARNING
Make sure door reversal is performed by a qualied technician.
1. Open the door, and then remove the
two screws on the door hinge. While
holding the door with both hands,
slightly lift to remove it.
2. Use a thin object to remove the door
sealing.
3. Remove the upper 3 screws and the
lower 3 screws on the glass holder.
Installation
DV5000T_DC68-04209F-00_EN.indd 28 2020/9/8 14:05:16
English 29
4. Remove the glass holder, and
then rotate the door cover by 180
degrees.
5. Insert the glass holder into the new
position of the door cover. Make
sure the door hinge is in the same
position as in the gure.
6. Tighten the upper 3 screws and the
lower 3 screws on the glass holder.
NOTE
The screw shapes differ by dimension.
Make sure you tighten the correct
screw.
Installation
DV5000T_DC68-04209F-00_EN.indd 29 2020/9/8 14:05:18
Installation
30 English
7. Insert the door sealing in the correct
position.
8. Remove the 2 screws that remain
after removing the door hinge.
9. Remove the 4 screws on the door
lock. Remove the door lock, and then
reinsert it to the opposite side.
Installation
DV5000T_DC68-04209F-00_EN.indd 30 2020/9/8 14:05:19
English 31
10. Tighten the 2 screws that were
removed from step 8 on the hinge
frame at the opposite side. Note that
you must tighten them on the right
(top-right and bottom-right) of the
frame.
11. Remove the screw on the bottom of
the door hinge, and the fasten it on
the top of the door hinge.
12. Put the door hinge on the opposite
side, and then tighten the 2 screws
to x the door to the dryer.
NOTE
To return the door to the initial position, follow the steps again. Please note that the
door, hinges, and other parts would be in the opposite orientation as listed in these
steps.
Installation
DV5000T_DC68-04209F-00_EN.indd 31 2020/9/8 14:05:21
32 English
Operations
Control panel
DV9*TA*****/DV8*TA*****
01
11
12
03
04
05
06
07
09
10
02
DV7*TA*****
02
01
11
12
03
04
05
06
08
09
10
Operations
DV5000T_DC68-04209F-00_EN.indd 32 2020/9/8 14:05:24
English 33
01 Digital Graphic
Display
Displays all cycle information, including cycle time,
information codes, and dryer status. See the table below for
status details.
Drying Cooling
Heat-exchanger
clean alarm
Sound on/off
Child Lock Check lter alarm
Water Tank Full Delay End
Wrinkle Prevent Damp Alert
Smart Check
02 Cycle Selector
Turn the dial to select a cycle. See the Cycle overview on
page 35 for available cycles.
03
Wrinkle
Prevent
Adds approximately 3 hours of intermittent tumbling at
the end of the selected cycle to reduce wrinkles. A large
circle appears in display panel, and the drum rotates
intermittently. To activate, press
Wrinkle Prevent. The
corresponding indicator lights up.
04
Drying Level
Press to select the dryness level in the SHIRTS, COTTON,
MIXED LOAD, and SYNTHETICS cycles. The dryness can be
set in three levels (1-3). Level 1 is used to partially dry items
that lay at or hang to dry. Level 3 is the strongest and is
used to dry larger or bulk loads.
05
Time
Press to adjust the cycle time for TIME DRY, WARM AIR, and
COOL AIR cycles.
The following time options (unit: minute) are available: 30,
60, 90, 120, and 150.
• 120 minutes and 150 minutes are not available for WARM
AIR and COOL AIR cycles.
• The exact drying time differs depending on the humidity
of the load.
Operations
DV5000T_DC68-04209F-00_EN.indd 33 2020/9/8 14:05:32
Operations
34 English
06 Damp Alert
This alarm is available only with SHIRTS, COTTON, MIXED
LOAD, and SYNTHETICS cycle. If a load contains mixed
fabrics, the Damp Alert indicator (
) blinks when the
average dryness of the item is 80 % dry. This lets you take
items that you don’t want fully dried or that dry quickly out
of the dryer early while letting others continue to dry.
07
Lamp
(DV9*TA*****/
DV8*TA*****)
Press to turn on or off the interior lamp. The lamp stays
lit for 2 minutes after it has turned on, and then turns off
automatically.
08
Smart Check
(DV7*TA*****)
If the dryer has detected an issue, Smart Check allows you to
check the status of the dryer using a smart phone.
09
Sound On/
Off
Press to mute/unmute the alarm. The sound setting is
retained when you turn the dryer off and turn it on again.
10
Delay End
You can adjust the nish time of the selected cycle in 1-hour
increments all the way up to 24 hours.
11 Start/Pause
(Hold to Start)
Press to start or pause a cycle. If the dryer is running, press
the button once to pause the dryer. Press again to resume.
12
Power
Press to turn the dryer on/off. If the dryer turns on for
10 minutes without any button being pressed, the dryer
automatically turns off.
Operations
DV5000T_DC68-04209F-00_EN.indd 34 2020/9/8 14:05:34
English 35
Cycle overview
Optimal Dry
Cycle Description
Max load
(kg)
SHIRTS Use to quickly dry one item such as a shirt.
2
IRON DRY
This cycle nishes the drying process in a moist state,
which facilitates ironing.
4
DELICATES For items to be handled with care such as lingerie.
2
WOOL
For machine washable and tumble dryable wool only.
For best results, turn laundry inside out before drying.
1
TOWELS Use to dry loads such as bath towels.
4
BEDDING
For bulky items such as blankets, sheets, comforters,
and light duvets.
2
OUTDOOR
For outdoor wear such as skiwear and mountain
clothing, and also for fabrics such as spandex, stretch,
and microber. It is recommended to use this cycle after
you have washed your laundry using the OUTDOOR
cycle with your washing machine.
2
COTTON
For lightly cottons, bed linen, table linen, underwear,
towels, and shirts.
MAX
MIXED LOAD
For mixed loads consisting of cotton and synthetic
fabrics.
MAX
SYNTHETICS
For lightly soiled blouses, and shirts that are made of
polyester (Diolen, Trevira), polyamide (Perlon, nylon), or
other similar blends.
4
Operations
DV5000T_DC68-04209F-00_EN.indd 35 2020/9/8 14:05:36
Operations
36 English
Manual Dry
Cycle Description
Max load
(kg)
QUICK DRY
35'
For drying light cotton synthetics or items that needs
quick drying. The default Time is 35 minutes.
1
TIME DRY
Use to set a desired Time.
1. Turn the Cycle Selector to select TIME DRY.
2. Press
Time to set the drying time between 30
minutes and 150 minutes. Keep pressing Time
cycles through the available time options in 30-minute
increments.
NOTE
The actual cycle time may differ depending on the dryness
of items.
–
WARM AIR
For small, pre-dried items. The Time defaults to 30
minutes.
Timed cycle for all types of fabric except for wool and
silk. Dry laundry that is still slightly damp or has already
been pre-dried. Also suitable for the subsequent drying of
multi-layered, thick laundry that does not dry readily.
NOTE
This cycle is suitable for drying individual woollen fabrics,
sports shoes and soft toys. Only dry these using the
basket for woollens.
–
COOL AIR
All types of fabric. For freshening up or airing items of
laundry that have not been worn for long.
–
Operations
DV5000T_DC68-04209F-00_EN.indd 36 2020/9/8 14:05:36
English 37
Cycle chart
NOTE
For best results, follow the load size recommendations for each dry cycle.
•
Large load: Fill the drum to about ¾ full. Do not add items over this level as
they need to tumble freely.
• Medium load : Fill the drum to about ½ full.
• Small load : Fill the drum with 3-5 items, not more than ¼ full.
Cycle Recommended items Load size Drying Level
SHIRTS
Non-iron shirts or blouses made of cotton, linen,
synthetic bres or blended fabrics.
2
Available
IRON DRY
This cycle nishes the drying process in a moist
state, which facilitates ironing.
4
Unavailable
DELICATES Silk, ne fabrics and lingerie.
2
Unavailable
WOOL
For machine washable and tumble dryable wool
only.
1
Unavailable
TOWELS Use to dry loads such as bath towels.
4
Unavailable
BEDDING
For bulky items such as blankets, sheets,
comforters, and light duvets.
2
Unavailable
OUTDOOR
For outdoor wear such as skiwear and mountain
clothing, and also for fabrics such as spandex,
stretch, and microber.
2
Unavailable
COTTON
For lightly cottons, bed linen, table linen,
underwear, towels, and shirts.
MAX Available
MIXED LOAD
Mixed load consisting of cotton and synthetic
fabrics
MAX Available
SYNTHETICS Synthetic or blended fabrics.
4
Available
QUICK DRY 35' Synthetics and light cottons
1
Unavailable
Operations
DV5000T_DC68-04209F-00_EN.indd 37 2020/9/8 14:05:38
Operations
38 English
Cycle Recommended items Load size Drying Level
TIME DRY All types of fabric; time programme. – Unavailable
WARM AIR
Small Items & damp clothing Everyday items
suitable for heat drying
– Unavailable
COOL AIR
All types of fabric. For freshening up or airing
items of laundry that have not been worn for
long.
– Unavailable
Operations
DV5000T_DC68-04209F-00_EN.indd 38 2020/9/8 14:05:38
English 39
Getting started
Simple steps to start
1. Press Power to turn the dryer on.
2. Load the dryer and close the door.
3. Turn the Cycle Selector to select a cycle.
4. Change the cycle settings (
Drying Level, and Time ) as necessary.
5. Select necessary settings and options to your preference. (
Wrinkle Prevent,
Lamp, Damp Alert, and/or Delay End).
6. Press and hold
Start/Pause (Hold to Start). The dryer indicator lights up, and
the estimated cycle time appears on the display.
NOTE
The number of available settings and options differs with the cycle.
To change the cycle during operation
1. Press Start/Pause (Hold to Start) to stop operation.
2. Select a different cycle.
3. Press and hold Start/Pause (Hold to Start) to start new cycle.
Sorting and loading
• Put only one wash load in the dryer at a time.
• Avoid mixing heavy and lightweight items together.
• To increase drying efciency when drying one or two items, add a dry towel to the
load.
• For best results, untangle items before inserting into the dryer.
• Overloading restricts the tumbling process, resulting in uneven drying and
wrinkling.
• Unless recommended on the care label, avoid drying woollens or breglass items.
• Avoid drying unwashed items.
• Do not dry items soiled with oil, alcohol, gasoline, etc.
Operations
DV5000T_DC68-04209F-00_EN.indd 39 2020/9/8 14:05:38
Operations
40 English
Rack Dry (applicable models only)
Set the drying time up to 150 minutes according to the moisture and weight of
the items to dry. When drying laundry using the drying rack, the TIME DRY cycle is
recommended.
1. Position the drying rack in the
drum, inserting the front lips of
the rack into the holes of the door
diaphragm.
A
A. Rack dry
2. Place items on the rack, leaving
enough space where air can
circulate. For clothing items, fold
and place at on the rack. For shoes,
place shoes with their soles facing
down.
3. Close the door and press
Power.
Select TIME DRY, and then press
Time to select the drying time.
4. Press and hold
Start/Pause (Hold
to Start).
Operations
DV5000T_DC68-04209F-00_EN.indd 40 2020/9/8 14:05:40
English 41
Drying suggestions
Items (max 1.5 kg) Description
Washable sweaters (block to shape
and lay at on rack)
When drying the laundry using the rack,
fold and place the clothes on the rack
to prevent the clothing from becoming
wrinkled.
Stuffed toys (cotton or polyester
bre lled)
Stuffed toys (foam or rubber-lled)
Foam rubber pillows
Sneakers To dry sports shoes, place the shoes on
the rack so that the soles of the shoes are
facing downwards.
CAUTION
• Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the
items and lead to a re hazard.
• To prevent damage to shoes, use Rack Dry.
Operations
DV5000T_DC68-04209F-00_EN.indd 41 2020/9/8 14:05:40
Operations
42 English
Cycle guide
Always follow the care label when drying. If care label instructions are not available,
refer to the following table.
Bedspreads and
comforters
• Use the High temperature settings.
Blankets • For best results, dry only one blanket at a time.
Cloth diapers • Use the High temperature settings.
Down-lled items • Do not dry on a heat setting. Doing so may cause a
re hazard. Only use the COOL AIR cycle.
Foam rubber (rug backs,
stuffed toys, etc.)
• Do not dry on a heat setting. Doing so may cause a
re hazard. Only use the COOL AIR cycle.
Pillows • Add a few dry towels to help tumble and uff
items.
• Do not dry kapok or foam pillows with heat. Use
only the COOL AIR cycle.
Plastics (shower curtains,
outdoor furniture covers,
etc.)
• Use COOL AIR or TIME DRY.
CAUTION
Use caution when drying items that are not listed above.
Operations
DV5000T_DC68-04209F-00_EN.indd 42 2020/9/8 14:05:40
English 43
Special features
Delay End
You can set the dryer to complete a
selected cycle at your set time.
1. Select a cycle with necessary options.
2. Press the - or +
Delay End buttons
to set a time between 1 to 24 hours in
1-hour increment.
3. Press and hold
Start/Pause (Hold
to Start). The corresponding indicator
blinks, and the clock begins counting
down to the set time.
NOTE
To cancel the
Delay End settings,
restart the dryer using the Power
button.
Child Lock
Child Lock prevents children from
playing with the dryer. When Child Lock
is activated, all buttons except for the
Power button are disabled.
To activate/deactivate Child Lock,
simultaneously press and hold
Damp
Alert and Smart Control or Wrinkle
Prevent and Drying Level for 3
seconds.
NOTE
If Child Lock is activated, and the dryer is
turned off and then on again, Child Lock
remains activated.
Smart Check
If the dryer has detected an issue, Smart
Check allows you to check the status of
the dryer using a smartphone. Please note
that Smart Check can only be used for
Galaxy and iPhone series smartphones.
To use Smart Check, make sure you have
downloaded the Samsung Smart Washer/
Dryer app, and then follow the steps
below.
1. Press and hold
Time and Damp
Alert for 3 seconds or press Smart
Check. The LED’s on the display panel
rotate, and the Smart Check code is
displayed.
2. On the smartphone, open the
Samsung Smart Washer/Dryer app
and tap the Smart Check button.
3. Focus the smartphone’s camera on
the Smart Check code shown on the
display panel.
4. If the information code is recognised,
the app provides detailed information
for the issue and further instructions.
NOTE
• If the dryer reects light on the
display, the smartphone may fail to
recognise the information code.
• If the smartphone fails to
recognise the code, manually enter
the information code into the
smartphone.
Operations
DV5000T_DC68-04209F-00_EN.indd 43 2020/9/8 14:05:42
Maintenance
44 English
WARNING
• Do not clean the dryer by directly spraying water onto the dryer.
• Do not clean the dryer with benzene, thinner, alcohol, or acetone. This may cause
discoloration, deformation, damage, electric shock, or re.
• Before cleaning the dryer, be sure to unplug the power cord.
Control panel
Clean with a soft, damp cloth. Do not use abrasive cleaners. Do not spray cleaners
directly on the panel. Immediately wipe up any spills or liquids from the control
panel.
Exterior
Clean with a soft, damp cloth. Do not use abrasive cleaners. Avoid using or placing
sharp or heavy objects near/on the dryer. Keep detergent and laundry supplies on the
pedestal (sold separately) or in a separate storage container.
Drum
Clean with a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel.
Wipe remaining residue with a clean, dry cloth.
Lint lter
Clean the lint lter after each load.
Maintenance
DV5000T_DC68-04209F-00_EN.indd 44 2020/9/8 14:05:42
English 45
1. Open the door and pull the lint lter
upward to remove.
A
2. Open the outer lter and remove the
inner lter (A).
3. Unfold both the inner lter and the
outer lter.
4. Remove the lint from both lters,
and then clean the lters with the
cleaning brush.
NOTE
To clean the lters thoroughly, clean the
lters in running water, and then dry
them completely.
Maintenance
DV5000T_DC68-04209F-00_EN.indd 45 2020/9/8 14:05:43
Maintenance
46 English
5. Put the inner lter into the outer
lter, and then reinsert the lint lter
into the original position.
CAUTION
• Clean the lint lter after each load. Otherwise, the drying performance may
decrease.
• Do not operate the dryer without the inner lter inside the outer lter.
• Using the dryer with a wet lint lter may cause mold, bad odours, or a decrease in
drying performance.
Maintenance
DV5000T_DC68-04209F-00_EN.indd 46 2020/9/8 14:05:44
English 47
Water tank
To avoid leaks, empty the water tank after every load.
A
1. Using both hands, pull the water
tank (A) forward to remove.
B
2. Empty the water through the drain
hole (B) and place the water tank
back into place.
NOTE
If you empty the water tank and press
and hold
Start/Pause (Hold to Start),
the corresponding indicator turns off.
Maintenance
DV5000T_DC68-04209F-00_EN.indd 47 2020/9/8 14:05:46
Maintenance
48 English
Heat exchanger
Clean the heat exchanger at least once a month. (or When the Buzzer rings and the
heat exchanger indicator lights up on the display.)
A
1. Gently press the top part of the
outer cover (A) to open.
B
2. Unlock the xers (B).
C
3. Remove the inner cover (C).
Maintenance
DV5000T_DC68-04209F-00_EN.indd 48 2020/9/8 14:05:48
English 49
4. Clean the heat exchanger with the
provided cleaning brush or a vacuum
cleaner with a brush attachment.
Take care not to bend or damage the
heat exchanger ns when cleaning.
This may lead to a decrease in drying
performance.
CAUTION
• To avoid physical injury and burns,
do not touch or clean the heat
exchanger with bare hands.
• Do not use water to clean the heat
exchanger.
5. Clean the inner cover with a smooth,
damp cloth.
6. Reinsert the inner cover to its
original position, and then lock the
xers.
7. Close the outer cover.
NOTE
After cleaning, make sure the xers are
locked.
Maintenance
DV5000T_DC68-04209F-00_EN.indd 49 2020/9/8 14:05:50
50 English
Troubleshooting
Troubleshooting
Checkpoints
If you encounter an issue with the dryer, rst check the table below and try the
suggestions.
Symptom Action
Dryer does not run
• Make sure the door is completely closed.
• Make sure the power cord is plugged in.
• Check the home’s circuit breaker and fuses.
• Empty the water tank.
• Clean the lint lter.
Dryer does not heat
• Check the home’s circuit breaker and fuses.
• Select a heat setting other than COOL AIR.
• Check the lint lter and heat exchanger. Clean them
if necessary.
• Dryer may be in the cool-down phase of the cycle.
Dryer does not dry
Check the above, plus…
• Make sure the dryer is not overloaded.
• Sort light and heavy items separately.
• Reposition large, bulky items to ensure even drying.
• Check that the dryer is draining properly.
• For small loads, add a few dry towels.
• Clean the lint lter and heat exchanger.
Dryer is noisy
• Check for coins, buttons, lighters, etc.
• Make sure the dryer is level and standing rmly on
the oor.
• The dryer may hum due to air moving through the
drum and fan. This is normal.
Dries unevenly
• Seams, pockets, and other parts of clothing are
harder to dry than others. This is normal.
• Sort heavy and light items separately.
DV5000T_DC68-04209F-00_EN.indd 50 2020/9/8 14:05:50
English 51
Symptom Action
Dryer emits an odour
• The dryer may draw household odours in from
the surrounding air and then exhaust them. This is
normal.
Dryer turns off before the
load is dry
• Dryer load is too small. Add more items and restart
the cycle.
• Dryer load is too large. Remove items and restart
the cycle.
Lint on clothes
• Make sure the lint lter is clean before every load.
• Dry lint-producing items (fuzzy towels) separate
from lint trappers, such as black linen pants.
• Divide larger loads into smaller loads.
Items still wrinkled after
Wrinkle Prevent
• Small loads of 1-4 items work best.
• Load fewer items. Load similar type items.
Odours remain in items
after COOL AIR
• Make sure to thoroughly wash items with strong
odours.
Troubleshooting
DV5000T_DC68-04209F-00_EN.indd 51 2020/9/8 14:05:50
Troubleshooting
52 English
Troubleshooting
Information codes
If the dryer fails to operate, you may see an information code on the display. Check
the table below and try the suggestions.
Information
code
Meaning Action
tC
Air temperature sensor
issue
Clean the lint lter and/or heat
exchanger. If this continues, call for
service.
tC5
Compressor temperature
sensor issue
Wait 2-3 minutes. Turn the power on
and restart.
dC
Running the dryer with door
open
Close the door and restart.
If this continues, call for service.
HC Compressor overheat Call for service.
5C
Water tank full
Drain pump is out of order
Empty the water tank, turn the
power on, and restart. If this
continues, call for service.
AC6
Check communications
between the main and the
inverter PBAs.
• Depending on the state, the
dryer may automatically returns
to normal operation.
• Turn the dryer off and turn it on
again. Then, restart the cycle.
• If the information code continues
to appear, call for service.
3C
Check the motor for
operation.
• Try restarting the cycle.
• If the information code continues
to appear, call for service.
FIL+tEr
(Buzzer rings)
Heat exchanger needs to be
cleaned
Clean the heat exchanger.
For any codes not listed above, or if the information code continues to appear, call for
service.
DV5000T_DC68-04209F-00_EN.indd 52 2020/9/8 14:05:50
English 53
Appendix
Appendix
Fabric care chart
The following symbols provide garment
care direction. The Clothing care
labels include symbols for drying,
bleaching, drying and ironing, or dry
cleaning when necessary. The use of
symbols ensures consistency among
garment manufacturers of domestic
and imported items. Follow care label
directions to maximise garment life and
reduce laundering problems.
Wash cycle
Normal
Permanent Press / Wrinkle
Resistant / Wrinkle Control
Gentle / Delicates
Hand Wash
Water Temperature**
Hot
Warm
Cold
NOTE
** The dot symbols represent
appropriate wash water temperatures
for various items. The temperature
range for Hot is 41-52 °C, for Warm 29-
41 °C and for Cold 16-29 °C. (Wash water
temperature must be a minimum of 16
°C for detergent activation and effective
cleaning.)
DV5000T_DC68-04209F-00_EN.indd 53 2020/9/8 14:05:55
Appendix
54 English
Appendix
Bleach
Any Bleach (when needed)
Only Non-Chlorine (colour-
safe)
Bleach (when needed)
Tumble Dry Cycle
Normal
Permanent Press / Wrinkle
Resistant / Wrinkle Control
Gentle / Delicates
Special instructions
Line Dry / Hang to Dry
Drip Dry
Dry Flat
Heat setting
High
Medium
Low
Any Heat
No Heat / Air
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do Not Wash
Do Not Wring
Do Not Bleach
Do Not Tumble Dry
No Steam (added to iron)
Do Not Iron
DV5000T_DC68-04209F-00_EN.indd 54 2020/9/8 14:06:08
English 55
Appendix
Dry-clean
Dry-clean
Do Not dry-clean
Line Dry / Hang to Dry
Drip Dry
Dry Flat
Protecting the environment
This appliance is manufactured from recyclable materials. If you decide to dispose
of this appliance, please observe local waste disposal regulations. Cut off the power
cord so that the appliance cannot be connected to a power source. Remove the door
so that animals and small children cannot get trapped inside the appliance.
DV5000T_DC68-04209F-00_EN.indd 55 2020/9/8 14:06:10
Appendix
56 English
Appendix
Specication
B
A
D
E
C
DV9*TA2****, DV8*TA2****, DV7*TA2****
TYPE FRONT LOADING DRYER
DIMENSIONS
A 600 mm
B 850 mm
C 600 mm
D 650 mm
E 1100 mm
WEIGHT
50 kg
ELECTRICAL REQUIREMENTS
220-240 V / 50 Hz 780-800 W
ALLOWABLE TEMPERATURE
5-35 °C
DV5000T_DC68-04209F-00_EN.indd 56 2020/9/8 14:06:11
English 57
Appendix
DV9*TA0****, DV8*TA0****, DV7*TA0****
TYPE FRONT LOADING DRYER
DIMENSIONS
A 600 mm
B 850 mm
C 600 mm
D 650 mm
E 1100 mm
WEIGHT
Door Glass Type
49 kg
* Non Door Glass Type
48 kg
ELECTRICAL REQUIREMENTS
220-240 V / 50 Hz 600-650 W
ALLOWABLE TEMPERATURE
5-35 °C
NOTE
Non Door Glass Model’s: DV**TA***D*
Consumption data
Model Program Load (kg)
(1)
Energy
(kWh)
Max. Duration
(Minutes)
DV9*TA2****
COTTON
(2)
9.0 1.54 220
4.5 0.89 140
IRON DRY
(2)
9.0 0.95 140
SYNTHETICS
4.5 0.70 98
DV8*TA2****
COTTON
(2)
8.0 1.41 200
4.0 0.80 130
IRON DRY
(2)
8.0 0.90 130
SYNTHETICS
4.0 0.60 90
DV5000T_DC68-04209F-00_EN.indd 57 2020/9/8 14:06:11
Appendix
58 English
Appendix
Model Program Load (kg)
(1)
Energy
(kWh)
Max. Duration
(Minutes)
DV7*TA2****
COTTON
(2)
7.0 1.25 180
3.5 0.73 120
IRON DRY
(2)
7.0 0.85 120
SYNTHETICS
3.5 0.50 82
(1)
: Weight of dry laundry
(2)
: EN 61121:2013 test program
All data without a “star” against it was calculated using EN 61121:2013
Consumption data can vary from the nominal values given above depending in the
size of the load, types of textiles, residual moisture levels after spinning, uctuations
in the electricity supply and any extra options selected.
Model Program Load (kg)
(1)
Energy (kWh)
Max. Duration
(Minutes)
DV9*TA0****
COTTON
(2)
9.0 2.15 210
4.5 1.12 145
IRON DRY
(2)
9.0 1.05 130
SYNTHETICS
4.5 0.78 90
DV8*TA0****
COTTON
(2)
8.0 1.85 190
4.0 1.10 135
IRON DRY
(2)
8.0 0.95 120
SYNTHETICS
4.0 0.70 85
DV7*TA0****
COTTON
(2)
7.0 1.65 170
3.5 1.00 125
IRON DRY
(2)
7.0 0.90 110
SYNTHETICS
3.5 0.62 80
(1)
: Weight of dry laundry
(2)
: EN 61121:2013 test program
All data without a “star” against it was calculated using EN 61121:2013
DV5000T_DC68-04209F-00_EN.indd 58 2020/9/8 14:06:11
English 59
Appendix
Consumption data can vary from the nominal values given above depending in the
size of the load, types of textiles, residual moisture levels after spinning, uctuations
in the electricity supply and any extra options selected.
DV5000T_DC68-04209F-00_EN.indd 59 2020/9/8 14:06:11
Appendix
60 English
Appendix
Specication sheet
In accordance with applicable energy labelling regulations.
NOTE
“*” Asterisk(s) means variant model and can be varied (0-9) or (A-Z).
Samsung
Model Name DV9*TA2**** DV8*TA2**** DV7*TA2****
Capacity kg 9.0 8.0 7.0
Type Condenser Condenser Condenser
Energy Efciency
A+++ (highest efciency) to D (least efcient) A+++ A+++ A+++
Energy Consumption
Annual Energy Consumption (AE_C) (Energy
consumption is based on 160 drying cycles of
the standard cotton programme at full and
partial load, and the consumption of the low-
power modes. Actual energy consumption per
cycle will depend on how the appliance is used.)
kWh/yr 194.0 176.0 158.0
Automatic tumble drier Yes Yes Yes
Energy consumption (E_dry) standard cotton
programme at full load
kWh 1.54 1.41 1.25
Energy consumption (E_dry.1/2) standard
cotton programme at partial load
kWh 0.89 0.80 0.73
off mode and left-on mode
The power consumption off-mode (P_o) at
full load
W 0.50 0.50 0.50
The power consumption in left-on mode (P_l)
at full load
W 5.00 5.00 5.00
Duration of the left-on mode min 10 10 10
DV5000T_DC68-04209F-00_EN.indd 60 2020/9/8 14:06:11
English 61
Appendix
Programme to which the information on the label and
the Sheet relate (‘standard cotton programme’ used at
full and partial load is the standard drying programme to
which the information in the label and the che relates.
This programme is suitable for drying normal wet cotton
laundry and it is the most efcient programme in terms
of energy consumption for cotton. Consumption data can
vary from the nominal values given above depending on
the size of the load, types of textiles, residual moisture
levels after spinning, uctuations in the electricity supply
and any extra options selected.)
Cotton + Drying Level 2 +
(Wrinkle Prevent Off)
programme duration of the standard program
Weighted Programme time standard cotton
programme at full load and partial load
min 174 160 146
Programme Time (T_dry) standard cotton
programme at full load
min 220 200 180
Programme Time (T_dry.1/2) standard cotton
programme at partial load
min 140 130 120
condensation efciency class
A (most efcient) to G (least efcient) B B B
Average condensation efciency at full load % 87 87 87
Average condensation efciency at partial
load
% 87 87 87
Weighted condensation efciency % 87 87 87
Airborne noise emissions
Dry at full load
dB (A)
re 1 pW
65 65 65
DV5000T_DC68-04209F-00_EN.indd 61 2020/9/8 14:06:12
Appendix
62 English
Samsung
Model Name DV9*TA0**** DV8*TA0**** DV7*TA0****
Capacity kg 9.0 8.0 7.0
Type Condenser Condenser Condenser
Energy Efciency
A+++ (highest efciency) to D (least efcient) A++ A++ A++
Energy Consumption
Annual Energy Consumption (AE_C) (Energy
consumption is based on 160 drying cycles
of the standard cotton programme at full
and partial load, and the consumption of the
low-power modes. Actual energy consumption
per cycle will depend on how the appliance is
used.)
kWh/yr 258.0 235.0 211.0
Automatic tumble drier Yes Yes Yes
Energy consumption (E_dry) standard cotton
programme at full load
kWh 2.15 1.85 1.65
Energy consumption (E_dry.1/2) standard
cotton programme at partial load
kWh 1.12 1.10 1.00
off mode and left-on mode
The power consumption off-mode (P_o) at full
load
W 0.50 0.50 0.50
The power consumption in left-on mode (P_l)
at full load
W 5.00 5.00 5.00
Duration of the left-on mode min 10 10 10
Programme to which the information on the label
and the Sheet relate (‘standard cotton programme’
used at full and partial load is the standard drying
programme to which the information in the label and
the che relates. This programme is suitable for drying
normal wet cotton laundry and it is the most efcient
programme in terms of energy consumption for cotton.
Consumption data can vary from the nominal values
given above depending on the size of the load, types
of textiles, residual moisture levels after spinning,
uctuations in the electricity supply and any extra
options selected.)
Cotton + Drying Level 2 +
(Wrinkle Prevent Off)
programme duration of the standard program
Weighted Programme time standard cotton
programme at full load and partial load
min 173 159 144
Appendix
DV5000T_DC68-04209F-00_EN.indd 62 2020/9/8 14:06:12
Programme Time (T_dry) standard cotton
programme at full load
min 210 190 170
Programme Time (T_dry.1/2) standard cotton
programme at partial load
min 145 135 125
condensation efciency class
A (most efcient) to G (least efcient) B B B
Average condensation efciency at full load % 86 86 86
Average condensation efciency at partial load % 86 86 86
Weighted condensation efciency % 86 86 86
Airborne noise emissions
Dry at full load
dB (A)
re 1
pW
65 65 65
Appendix
DV5000T_DC68-04209F-00_EN.indd 63 2020/9/8 14:06:12
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
UK 0333 000 0333 www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
DC68-04209F-00
DV5000T_DC68-04209F-00_EN.indd 64 2020/9/8 14:06:13
