Samsung DV80M50103X/EU DV5000 Heat Pump Tumble Dryer A++, 8kg

User Manual

For DV80M50103X/EU. Additionally, the document applies to other Samsung models: DV9*M52****, DV8*M52****, DV7*M52****, DV9*M50****,  DV8*M50****, DV7*M50****, DV80M50103X

PDF File Manual, 56 pages, Read Online | Download pdf file

DV80M50103X/EU photo
background
Heat Pump Dryer
User manual
DV9*M52****/DV8*M52****/DV7*M52****/DV9*M50****/
DV8*M50****/DV7*M50****
Untitled-2 1 11/30/2018 5:58:20 PM
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...
Loading page 45...
Loading page 46...
Loading page 47...
Loading page 48...
Loading page 49...
Loading page 50...
Loading page 51...
Loading page 52...
Loading page 53...
Loading page 54...
Loading page 55...
Loading page 56...

User Manual - Transcript

  • Page 2 - English - : English2 Contents Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 Important safety precautions 5 Critical installation warnings 7 Critical usage warnings 9 Usage cautions 10 Critical cleaning warnings 12 Instructions about the WEEE 13 Installation 14 Whats included 14 Installation requirements 16 Dryer 18 Drain hose if necessary 19 Installation checklist 22 Before using the dryer 22 Door reversal 22 Operations 30 Control panel 30 Getting started 36 Special features 40 Maintenance 41 Control panel 41 Exterior 41 Drum 41 Lint lter 41 Water tank 43 Heat exchanger 44 Troubleshooting 46 Checkpoints 46 Information codes 47 Untitled2 2 11302018 55820 PM
  • Page 3 - English - : English 3 Contents Appendix 48 Fabric care chart 48 Protecting the environment 49 Specication 50 Consumption data 51 Sheet of household tumble driers 53 Untitled2 3 11302018 55820 PM
  • Page 4 - English - : English4 Safety information Congratulations on your new Samsung dryer This manual contains important information on the installation use and care of your appliance Please take the time to read this manual to take full advantage of your dryers many benets and features What you need to know about the safety instructions Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining or operating your dryer Always contact your manufacturer about problems or conditions you do not understand Important safety symbols What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury death andor property damage CAUTION Hazards or unsafe practices that may result in personal injury andor property damage NOTE Indicates that a risk of personal injury or material damage exists Read the instructions These warning signs are here to prevent injury to yourself and others Please follow them explicitly After reading this manual store it in a safe place for future reference Read all instructions before using the appliance As with any equipment that uses electricity and moving parts potential hazards exist To safely operate this appliance familiarize yourself with its operation and exercise care when using it WARNING Risk of Fire Clothes dryer installation must be performed by a qualied technician Install the clothes dryer according to the manufacturers instructions and local codes To reduce the risk of severe injury or death follow all installation instructions Safety information Untitled2 4 11302018 55821 PM
  • Page 5 - English - : English 5 Safety information Important safety precautions WARNING To reduce the risk of re electric shock or injury to persons when using your appliance follow basic precautions including the following 1 This appliance is not to be used by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety 2 For use in Europe This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision 3 Children should be supervised to ensure that they do not play with the appliance 4 If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualied persons in order to avoid a hazard 5 The new hosesets supplied with the appliance are to be used and that old hosesets should not be reused 6 For appliances with ventilation openings in the base that a carpet must not obstruct the openings Untitled2 5 11302018 55821 PM
  • Page 6 - English - : Safety information English6 Safety information 7 For use in Europe Children of less than 3 years should be kept away unless continuously supervised 8 CAUTION In order to avoid a hazard due to inadvertent resetting of the thermal cutout this appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility 9 The tumble dryer is not to be used if industrial chemicals have been used for cleaning 10 The lint trap has to be cleaned frequently if applicable 11 Lint must not to be allowed to accumulate around the tumble dryer not applicable for appliances intended to be vented to the exterior of the building 12 Adequate ventilation has to be provided to avoid the back ow of gases into the room from appliances burning other fuels including open res 13 Do not dry unwashed items in the tumble dryer 14 Items that have been soiled with substances such as cooking oil acetone alcohol petrol kerosene spot removers turpentine waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer 15 Items such as foam rubber latex foam shower caps waterproof textiles rubber backed articles and clothes or pillows tted with foam rubber pads should not be dried in the tumble dryer 16 Fabric softeners or similar products should be used as specied by the fabric softener instructions Untitled2 6 11302018 55821 PM
  • Page 7 - English - : English 7 Safety information 17 The nal part of a tumble dryer cycle occurs without heat cool down cycle to ensure that the items are left at a temperature that ensures that the items will not be damaged 18 Remove all objects from pockets such as lighters and matches 19 WARNING Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated 20 Exhaust air must not be discharged into a ue which is used for exhausting fumes from appliances burning gas or other fuels 21 The appliance must not be installed behind a lockable door a sliding door or a door with a hinge on the opposite side to that of the tumble dryer in such a way that a full opening of the tumble dryer door is restricted 22 WARNING The appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by a utility Heat pump model only The instructions shall also include the substance of the following WARNING In the appliance enclosure or in the builtin structure keep ventilation openings clear of obstruction WARNING Do not damage the refrigerant circuit Critical installation warnings WARNING The installation of this appliance must be performed by a qualied technician or service company Failure to do so may result in electric shock re an explosion problems with the product or injury Untitled2 7 11302018 55821 PM
  • Page 8 - English - : Safety information English8 Safety information Plug the power cord into a wall socket and use the socket for this appliance only In addition do not use an extension cord Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or re Ensure that the power voltage frequency and current are the same as those of the product specications Failure to do so may result in electric shock or re Failure Plug the power plug into the wall socket rmly Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis Unplug the power plug and clean it with a dry cloth Failure to do so may result in electric shock or re Keep all packaging materials well out of the reach of children as packaging materials can be dangerous to children If a child places a bag over its head it may result in suffocation This appliance must be properly grounded Do not ground the appliance to a gas pipe plastic water pipe or telephone line This may result in electric shock re an explosion or problems with the product Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes Do not install or keep the product exposed to the outdoor elements Do not use a damaged power plug damaged power cord or loose wall socket This may result in electric shock or re If the plug power supply cord is damaged it must be replaced by the manufacturer or its service agent or a similar qualied technician in order to avoid a hazard This appliance should be positioned to be accessible to the power plug after installation Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance This may result in electric shock or re Do not pull the power cord when unplugging the power plug Unplug the power plug by holding the plug Failure to do so may result in electric shock or re Untitled2 8 11302018 55821 PM
  • Page 9 - English - : English 9 Safety information This appliance must be properly grounded Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes See installation instructions for grounding this appliance Install this appliance in a location with solid level oor Failing to do so may result in abnormal vibrations noise or problems with the product Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew may appear on the outer surface of the appliance when the cooling operation is running do not install the appliance in a beauty salon This appliance should be positioned so that the power plug the water supply taps and the drain pipes are accessible Critical usage warnings WARNING Do not let children or pets on or into the product In addition when disposing of this product disassemble the door lock lever This may result in children falling and injuring themselves If children become locked in the product there is a danger of suffocation Do not try to access the inside of the product when the drum is rotating Do not sit on the product or lean against the door This may result in the product turning over and resulting in injury Dry the laundry only after it was spun by an appropriate washing machine Do not dry unwashed items in the tumble dryer Do not drink the condensed water Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated Do not dry laundry contaminated by inammable materials such as gasoline kerosene benzene thinner alcohol etc This may result in electric shock re or explosion Do not let pets chew or play with the dryer This may result in electric shock or injury When disposing of the product separate the door and the power cord before disposing of the product Failing to do so may result in damage to the power code or an injury Do not touch the power plug with wet hands This may result in electric shock Untitled2 9 11302018 55821 PM
  • Page 10 - English - : Safety information English10 Safety information When gas city gas propane gas LP gas leaks do not touch this appliance or the power cord ventilate immediately At this time do not use the ventilating fan A spark may cause an explosion or re Do not repair replace or attempt to service any part of the appliance unless specically recommended in the userrepair instructions You must also have the skills necessary to service this appliance Do not attempt to repair disassemble or modify the appliance yourself Do not use any fusesuch as cooper steel wire etc other than the standard fuse When repairing or reinstalling the appliance is required contact your nearest service center Failure to do so may result in electric shock re problems with the product or injury The product you have purchased is designed for domestic use only The use for business purposes qualies as product misuse In this case the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse If the product generates strange noise smells of something burning or generates smoke immediately cutoff the power and contact the service center Otherwise it may cause an electric shock or re as a result Do not let children or pets play in or on your product The product door does not open easily from the inside and children may be seriously injured if trapped inside Usage cautions CAUTION Do not stand on top of the appliance or place objects such as laundry lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance This may result in electric shock re problems with the product or injury Do not touch the glass door and inside of the drum during or just after drying as it is hot This may result in burns Do not press the buttons using sharp objects such as pins knifes ngernails etc This may result in electric shock or injury Do not dry laundry containing forming rubber latex or similar rubber textures If forming rubber is heated it may start a re Untitled2 10 11302018 55822 PM
  • Page 11 - English - : English 11 Safety information Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be removed when washing the laundry In addition use the Cool Down cycle so that the laundry is not heated The oxidization heat of the oil may start a re Make sure that the pockets of all clothing to be dried are empty Hard sharp objects such as coins safety pins nails screws or stones can cause extensive damage to the appliance Do not dry clothing with large buckles buttons or other heavy metal zippers hooks and eyelets buttonup covers If necessary use the laundry net for small and lightweight laundry such as fabric tie belt apron strings and underwire bras which can dissolve or break during a cycle Dryer sheets are compatible with this model and are recommended for better drying performance Dryer sheets are also benecial in reducing the static electricity generated during a drying cycle Static electricity could lead to damage of laundry items and potentially the appliance Do not use the dryer near dangerous powders such as coal dust wheat our etc This may result in electric shock re or an explosion Do not place inammable materials near the product This may result in toxic gases from the product damage to parts electric shock re or an explosion The appliance should not be placed behind lockable doors etc Do not touch the rear side of the appliance during or immediately after drying is complete The appliance remains hot and may cause burns Contains uorinated greenhouse gases Hermetically sealed equipment Do not vent gases into the atmosphere Refrigerant Type R134a GWP 1430 Refrigerant Charging DVM52 037kg 0529tCO2e DVM50 032kg 0458tCO2e Untitled2 11 11302018 55822 PM
  • Page 12 - English - : Safety information English12 Safety information Critical cleaning warnings WARNING Do not clean the appliance by spraying water directly onto it Do not use benzene thinner or alcohol to clean the appliance This may result in discoloration deformation damage electric shock or re Before cleaning or performing maintenance unplug the appliance from the wall socket Failure to do so may result in electric shock or re Clean the lter case before and after using the dryer Clean the inside of the product on a regular basis by asking an authorized service engineer Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month Do not touch the heat exchanger with your hand Otherwise it may cause an injury The interior of the dryer should be cleaned periodically by qualied service personnel Untitled2 12 11302018 55822 PM
  • Page 13 - English - : English 13 Safety information Instructions about the WEEE Correct Disposal of This Product Waste Electrical amp Electronic Equipment Applicable in countries with separate collection systems This marking on the product accessories or literature indicates that the product and its electronic accessories eg charger headset USB cable should not be disposed of with other household waste at the end of their working life To prevent possible harm to the environment or human health from uncontrolled waste disposal please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources Household users should contact either the retailer where they purchased this product or their local government ofce for details of where and how they can take these items for environmentally safe recycling Business users should contact their supplier and check the terms and conditions of the purchase contract This product and its electronic accessories should not be mixed with other commercial wastes for disposal For information on Samsungs environmental commitments and product specic regulatory obligations eg REACH visit samsungcomukaboutsamsung samsungelectronicscorporatecitizenshipdatacornerhtml Untitled2 13 11302018 55822 PM
  • Page 14 - English - : English14 Installation Whats included Carefully unpack the dryer Keep all packaging materials away from children The parts and location of parts shown below may differ from your dryer Before installation make sure the dryer has all the parts listed here If the dryer andor parts are damaged or missing contact the nearest Samsung customer service center Dryer at a glance 01 Top cover 02 Water Tank 03 Lint lter 04 Heat exchanger 05 Levelling Leg 06 Door 07 Control Panel Installation Untitled2 14 11302018 55822 PM
  • Page 15 - English - : English 15 Installation Accessories supplied Hose guide Cable tie Hose connector Long drain hose 2 m User manual Rack Dry applicable models only Cleaning brush Accessories not supplied BracketStacking kit Part SKDH SKDA SKK DF Stacking kit SKKDD SKKDDX NOTE The stacking kit allows the dryer to be stacked on top of a washer Please note that the stacking kit can only be used with Samsung washers and dryers To purchase a stacking kit Part SKDH SKDA SKKDF contact a Samsung service center or local appliance retailer The stacking kit differs with the model For stacking instructions with the dryer see the installation manual included in the stacking kit For information about modelspecic availability of the stacking kit see the installation manual included in the stacking kit Untitled2 15 11302018 55824 PM
  • Page 16 - English - : Installation English16 Installation Installation requirements NOTE This dryer must be installed by a qualied installer If service is required due to poor or faulty installation it is considered the owners responsibility and may void the warranty Keep these instructions for future reference WARNING Do not plug the power cord into a wall outlet before the dryer is completely installed Have two or more persons help move the dryer Do not let children or pets play in on or around the dryer Proper supervision is necessary at all times Keep all packaging materials away from children Do not replace a damaged power cord or power plug yourself Have Samsung or a qualied service technician replace a damaged power cord or power plug Do not attempt to repair disassemble or modify the dryer For any repairs contact the nearest Samsung service center Remove the doorlids from all discarded appliances to avoid children from suffocating If the dryer generates a strange noise burning smells or smoke unplug the power plug immediately and contact the nearest Samsung service center Do not unplug the dryer while it is operating Do not place ammable objects near the dryer Untitled2 16 11302018 55825 PM
  • Page 17 - English - : English 17 Installation Location requirements Select a level wellconstructed surface that will withstand vibrations Select a location where a grounded 3prong outlet is easily accessible WARNING Install the dryer indoors only Do not install the dryer in areas exposed to the weather Do not install the dryer where the temperature may fall below 5 C or rise above 35 C Do not install the dryer where gas may leak Do not block the cooling grills air inlet located at the dryer front Alcove or closet installation For alcove or closet installation the dryer requires the following minimum clearances Sides Top Front Rear 25 mm 25 mm 490 mm 51 mm If installing the dryer with a washer the front of the alcove or closet must have an unobstructed air opening of at least 490 mm Electrical and grounding requirements The dryer requires an AC 220240 V 50 Hz electrical supply The dryer must be properly grounded If the dryer malfunctions or breaks down grounding reduces the risk of electric shock by providing a path of least resistance for the electric current The dryer comes with a power cord that has a 3prong grounding plug The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances If you have any questions regarding the electrical or grounding requirements please contact Samsung or a qualied electrician WARNING Plug into a grounded 3prong outlet Do not use a damaged power plug cord or loose or damaged wall outlet Do not use an adapter or an extension cord Improper connection of the equipmentgrounding conductor may result in electric shock If you are unsure if the dryer is properly grounded check with a qualied electrician Do not modify the power plug power cord or power outlet in any way Do not connect the ground wire to plastic plumbing lines gas lines or hot water pipes Untitled2 17 11302018 55825 PM
  • Page 18 - English - : Installation English18 Installation Dryer Before you install the dryer make sure you have read Installation requirements on page 16 Please note that the following instructions are for installation without using a drain hose For instructions for using a drain hose see the next section Drain hose For convenience consider installing the dryer next to your washer A B 1 Gently slide the dryer into the desired location 2 Use a level A and check the levelness of the dryer from side to side and front to back 3 If the dryer is not level adjust the levelling leg B Turning the leg counterclockwise retracts the leg Turning the leg clockwise extends the leg 4 Once the dryer is level make sure the dryer stands rmly on the oor 5 Plug in the dryer C D NOTE To set the dryer to the same height as the washer fully retract C the levelling legs by turning them counter clockwise then loosen D the legs by turning them clockwise Extend the levelling leg only as much as necessary Extending the levelling leg more than necessary can cause the dryer to vibrate Untitled2 18 11302018 55826 PM
  • Page 19 - English - : English 19 Installation Drain hose if necessary The dryer comes with a builtin water tank However if you do not want to use the water tank you may install the drain hose The provided accessory hose long drain hose can be used as an extension to the drain hose A B 1 Remove the drain hose from hole A and insert it into hole B Untitled2 19 11302018 55826 PM
  • Page 20 - English - : Installation English20 Installation A 2 Insert one end of the accessory hose long drain hose into hole A 3 Insert the other end outlet of the accessory hose to the drainage system in one of the following ways Over a wash basin A CB 1 Make sure to place the end of the accessory hose lower than 90 cm from the bottom of dryer 2 To bend some point of the accessory hose use the supplied plastic hose guide B and secure the guide to the wall with a hook or to the tap with a piece of string Assemble the drain hose A and the hose guide B and x them with the cabletie C 3 You can drain the condensed water by connecting the accessory hose long drain hose to the drainoutlet directly CAUTION Do not extend the drain hose Water may leak from the connected area Use a long drain hose Untitled2 20 11302018 55828 PM
  • Page 21 - English - : English 21 Installation By using the drain pipe of the wash basin A 1 Assemble the hose connector A and attach it to the end of the accessory hose as shown CAUTION To prevent water leak make sure to connect the hose and the connector rmly 2 Connect the hose adapter directly to the drain pipe of the wash basin Untitled2 21 11302018 55828 PM
  • Page 22 - English - : Installation English22 Installation Installation checklist The dryer is plugged into a properly grounded outlet All packaging material is completely removed and properly disposed The dryer is level and standing rmly on the oor Start the dryer to make sure that it runs heats and shuts off Run a TIME DRY cycle for 20 minutes to see if the HC information code is displayed If this is the case contact a local service center After installation we recommend that you wait at least 1 hour before using the dryer Before using the dryer Make sure no accessory remains inside the drum Plug in the power cord just before operating the dryer Do not block the air inlet hole of the cooling grill at the front of the dryer Do not place inammable objects near the dryer and keep the surroundings clean Keep the dryer level with the ground Do not remove the adjustable levelling legs of the dryer They are necessary to keep the dryer level with the ground Door reversal You might want to reverse the direction of the door depending on your site conditions or to your needs WARNING Make sure door reversal is performed by a qualied technician Type 1 1 Open the door and then loosen the two screws on the door hinge While holding the door with both hands slightly lift to remove it Untitled2 22 11302018 55829 PM

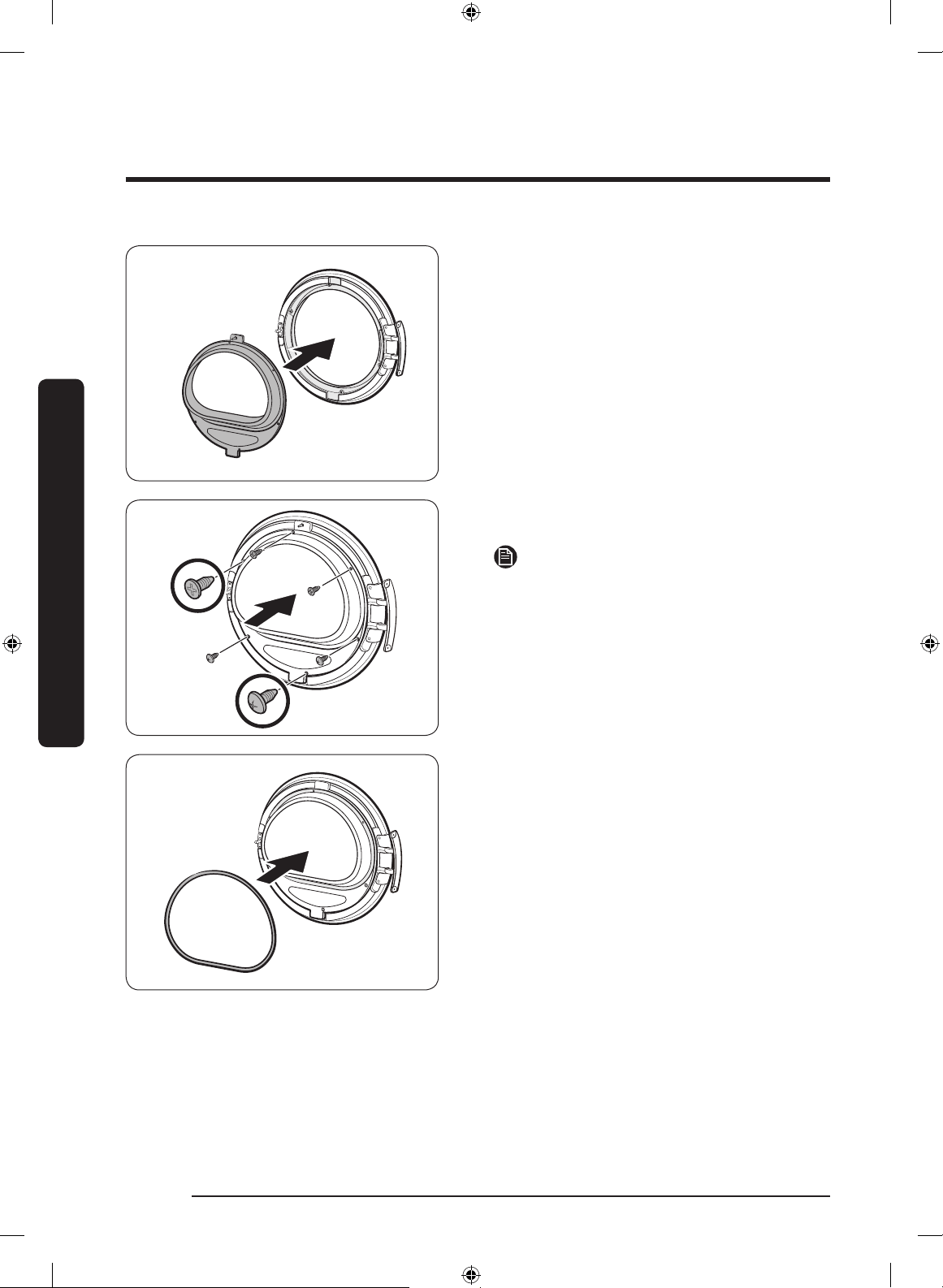

  • Page 23 - English - : English 23 Installation 2 Use a thin object to remove the door sealing 3 On the inside of the door remove the upper 3 screws and the lower 3 screws on the glass holder and then remove the glass holder 4 When complete rotate the door cover by 180 degrees Untitled2 23 11302018 55830 PM
  • Page 24 - English - : Installation English24 Installation 5 Insert the glass holder into the new position of the door cover Make sure the door hinge is in the same position as in the gure 6 Tighten the upper 3 screws and the lower 3 screws on the glass holder NOTE The screw shapes differ by dimension Make sure you tighten the correct screw 7 Insert the door sealing in the correct position Untitled2 24 11302018 55830 PM

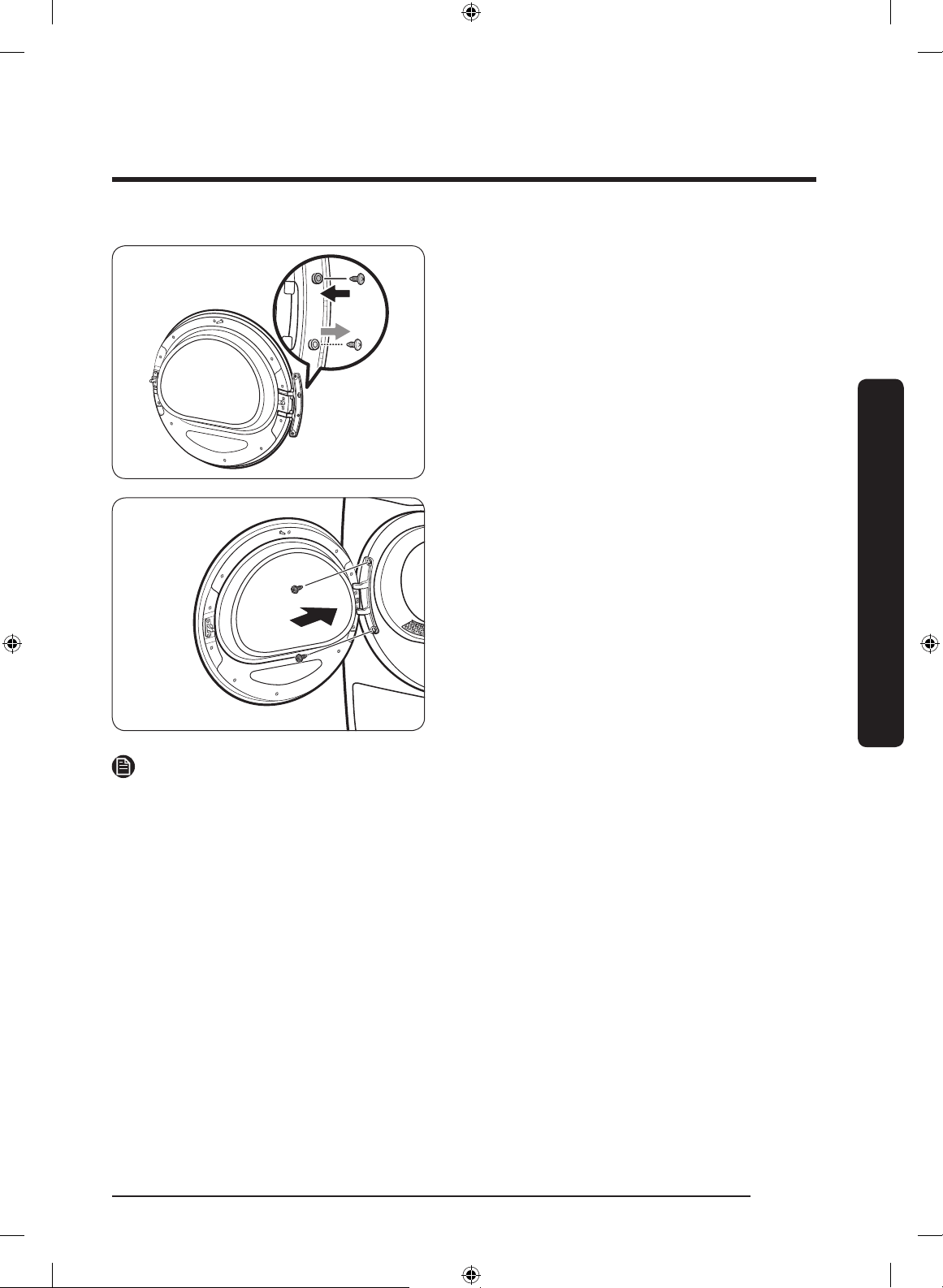

  • Page 25 - English - : English 25 Installation 8 Remove the 2 screws that remain after removing the door hinge 9 Loosen the 4 screws on the lever holder Remove the lever holder and then reinsert it to the opposite side 10 On the opposite hinge frame tighten the removed 2 screws in step 7 above Note that you must tighten them on the right topright and bottomright of the frame Untitled2 25 11302018 55831 PM
  • Page 26 - English - : Installation English26 Installation 11 Move the bottom screws of the door hinge to the upper side of the door hinge Then tighten the screws DVM 51DVM52DVM53 models only 12 Put the door hinge on the opposite side and then tighten the 2 screws to x the door to the dryer Type 2 DVM5K models 1 Remove the door hinge and then remove the door Remove 2 boltscrews on the door Untitled2 26 11302018 55832 PM
  • Page 27 - English - : English 27 Installation A 2 Remove 2 screws A from the door lever B 3 Remove 14 screws B from the inner holder 4 Remove the innerholder glass and then turn the door cover by 180 degrees Untitled2 27 11302018 55833 PM
  • Page 28 - English - : Installation English28 Installation 5 Insert the innerholder glass into the reversed door cover B 6 Tighten the 14 screws B on the inner holder CAUTION Make sure you tighten the screws B on the inner holder not the screws A A 7 Tighten the 2 screws A on the door lever CAUTION Make sure you tighten the screws A on the door lever not the screws B Untitled2 28 11302018 55834 PM
  • Page 29 - English - : English 29 Installation 8 Move the bottom screws of the door hinge to the upper side of the door hinge Then tighten the screws 9 Fix the door hinge on the opposite side Tighten the 2 boltscrews NOTE To return the door to the initial position follow the steps again Please note that the door hinges and other parts would be in the opposite orientation as listed in these steps Untitled2 29 11302018 55834 PM
  • Page 30: English30 Operations Control panel DV9M5DV8M5 05 06 DV7M5 05 06 Operations Untitled2 30 11302018 55835 PM
  • Page 31 - English - : English 31 Operations 01 Digital Graphic Display Displays all cycle information including cycle time information codes and dryer status See the table below for status details Drying in progress Child Lock activated deactivated Cooling in progress Wrinkle Prevent Stop Heatexchanger clean alarm Wrinkle Prevent in progress Sound onoff Check lter Mixed Load Bell Delay End Smart Check Empty the water tank 02 Cycle Selector Turn the dial to select a cycle See the Cycle overview on page 33 for available cycles 03 Wrinkle Prevent Adds approximately 2 hours of intermittent tumbling at the end of the selected cycle to reduce wrinkles A large circle appears in display panel and the drum rotates intermittently To activate press Wrinkle Prevent The corresponding indicator lights up 04 Dry Level Press to select the dryness level in the SHIRTS TOWELS COTTON MIXED LOAD and SYNTHETICS cycles The dryness can be set in three levels 13 Level 1 is used to partially dry items that lay at or hang to dry Level 3 is the strongest and is used to dry larger or bulk loads 05 Time Press to adjust the cycle time for TIME DRY WARM AIR and COOL AIR cycles The following time options unit minute are available 30 60 90 120 and 150 120 minutes and 150 minutes are not available for WARM AIR and COOL AIR cycles The exact drying time differs depending on the humidity of the load Untitled2 31 11302018 55838 PM
  • Page 32 - English - : Operations English32 Operations 06 Mixed Load Bell This alarm is available only with SHIRTS COTTON MIXED LOAD and SYNTHETICS cycle If a load contains mixed fabrics the Mixed Load Bell indicator blinks when the average dryness of the item is 80 dry This lets you take items that you dont want fully dried or that dry quickly out of the dryer early while letting others continue to dry 07 Lamp DV9M5 DV8M5 Press to turn on or off the interior lamp The lamp stays lit for 5 minutes after it has turned on and then turns off automatically 08 Smart Check DV7M5 If the dryer has detected an issue Smart Check allows you to check the status of the dryer using a smart phone 09 Sound OnOff Press to muteunmute the sound of the control panel The sound setting is retained when you turn the dryer off and turn it on again 10 Delay End You can adjust the nish time of the selected cycle in 1hour increments all the way up to 24 hours 11 StartPause Press to start or pause a cycle If the dryer is running press the button once to pause the dryer Press again to resume 12 Power Press to turn the dryer onoff If the dryer turns on for 10 minutes without any button being pressed the dryer automatically turns off Untitled2 32 11302018 55838 PM
  • Page 33 - English - : English 33 Operations Cycle overview Cycle Description Max load kg SHIRTS Use to quickly dry one item such as a shirt 4 IRON DRY This cycle nishes the drying process in a moist state which facilitates ironing DELICATES For items to be handled with care such as lingerie 2 WOOL For machine washable and tumble dryable wool only For best results turn laundry inside out before drying TOWELS Use to dry loads such as bath towels 6 BEDDING For bulky items such as blankets sheets comforters and light duvets OUTDOOR CARE For outdoor wear such as skiwear and mountain clothing and also for fabrics such as spandex stretch and microber It is recommended to use this cycle after you have washed your laundry using the OUTDOOR CARE cycle with your washing machine COOL AIR All types of fabric For freshening up or airing items of laundry that have not been worn for long WARM AIR For small predried items The dry time defaults to 30 minutes Timed cycle for all types of fabric except for wool and silk Dry laundry that is still slightly damp or has already been predried Also suitable for the subsequent drying of multilayered thick laundry that does not dry readily NOTE This cycle is suitable for drying individual woollen fabrics sports shoes and soft toys Only dry these using the basket for woollens Untitled2 33 11302018 55838 PM
  • Page 34 - English - : Operations English34 Operations Cycle Description Max load kg TIME DRY Use to set a desired dry time 1 Turn the Cycle Selector to select TIME DRY 2 Press Time to set the drying time between 30 minutes and 150 minutes Keep pressing Time cycles through the available time options in 30minute increments NOTE The actual cycle time may differ depending on the dryness of items QUICK DRY 35 For drying light cotton synthetics or items that needs quick drying The default dry time is 35 minutes SYNTHETICS For lightly soiled blouses and shirts that are made of polyester Diolen Trevira polyamide Perlon nylon or other similar blends MIXED LOAD For mixed loads consisting of cotton and synthetic fabrics Max COTTON For lightly cottons bed linen table linen underwear towels and shirts Max Untitled2 34 11302018 55839 PM
  • Page 35 - English - : English 35 Operations Cycle chart NOTE For best results follow the load size recommendations for each dry cycle Large load Fill the drum to about ¾ full Do not add items over this level as they need to tumble freely Medium load Fill the drum to about ½ full Small load Fill the drum with 35 items not more than ¼ full Cycle Recommended items Load size Dry Level SHIRTS Noniron shirts or blouses made of cotton linen synthetic bres or blended fabrics Available IRON DRY This cycle nishes the drying process in a moist state which facilitates ironing Unavailable DELICATES Silk ne fabrics and lingerie Unavailable WOOL For machine washable and tumble dryable wool only Unavailable TOWELS Use to dry loads such as bath towels Available BEDDING For bulky items such as blankets sheets comforters and light duvets Unavailable OUTDOOR CARE For outdoor wear such as skiwear and mountain clothing and also for fabrics such as spandex stretch and microber Unavailable COOL AIR All types of fabric For freshening up or airing items of laundry that have not been worn for long Unavailable WARM AIR Small Items amp damp clothing Everyday items suitable for heat drying Unavailable TIME DRY All types of fabric time programme Unavailable QUICK DRY 35 Synthetics and light cottons Unavailable SYNTHETICS Synthetic or blended fabrics Available MIXED LOAD Mixed load consisting of cotton and synthetic fabrics 7 8 9 Available COTTON For lightly cottons bed linen table linen underwear towels and shirts 7 8 9 Available Untitled2 35 11302018 55841 PM
  • Page 36 - English - : Operations English36 Operations Getting started Simple steps to start 1 Press Power to turn the dryer on 2 Load the dryer and close the door 3 Turn the Cycle Selector to select a cycle 4 Change the cycle settings Dry Level and Time as necessary 5 Select necessary settings and options to your preference Wrinkle Prevent Lamp Mixed Load Bell andor Delay End 6 Press StartPause The dryer indicator lights up and the estimated cycle time appears on the display NOTE The number of available settings and options differs with the cycle To change the cycle during operation 1 Press StartPause to stop operation 2 Select a different cycle 3 Press and hold StartPause to start new cycle Sorting and loading Put only one wash load in the dryer at a time Avoid mixing heavy and lightweight items together To increase drying efciency when drying one or two items add a dry towel to the load For best results untangle items before inserting into the dryer Overloading restricts the tumbling process resulting in uneven drying and wrinkling Unless recommended on the care label avoid drying woolens or berglass items Avoid drying unwashed items Do not dry items soiled with oil alcohol gasoline etc Untitled2 36 11302018 55841 PM
  • Page 37 - English - : English 37 Operations Rack Dry applicable models only Set the drying time up to 150 minutes according to the moisture and weight of the items to dry When drying laundry using the drying rack the TIME DRY cycle is recommended 1 Position the drying rack in the drum inserting the front lips of the rack into the holes of the door diaphram A A Rack dry 2 Place items on the rack leaving enough space where air can circulate For clothing items fold and place at on the rack For shoes place shoes with their soles facing down 3 Close the door and press Power Select TIME DRY and then press Time to select the drying time 4 Press StartPause Untitled2 37 11302018 55842 PM
  • Page 38 - English - : Operations English38 Operations Drying suggestions Items max 15 kg Description Washable sweaters block to shape and lay at on rack When drying the laundry using the rack fold and place the clothes on the rack to prevent the clothing from becoming wrinkled Stuffed toys cotton or polyester ber lled Stuffed toys foam or rubberlled Foam rubber pillows Sneakers To dry sports shoes place the shoes on the rack so that the soles of the shoes are facing downwards CAUTION Drying foam rubber plastic or rubber on a heat setting may cause damage to the items and lead to a re hazard To prevent damage to shoes use Dry Rack Untitled2 38 11302018 55842 PM
  • Page 39 - English - : English 39 Operations Cycle guide Always follow the care label when drying If care label instructions are not available refer to the following table Bedspreads and comforters Use the High temperature settings Blankets For best results dry only one blanket at a time Cloth diapers Use the High temperature settings Downlled items Do not dry on a heat setting Doing so may cause a re hazard Only use the COOL AIR cycle Foam rubber rug backs stuffed toys etc Do not dry on a heat setting Doing so may cause a re hazard Only use the COOL AIR cycle Pillows Add a few dry towels to help tumble and uff items Do not dry kapok or foam pillows with heat Use only the COOL AIR cycle Plastics shower curtains outdoor furniture covers etc Use COOL AIR or TIME DRY Set the dry level to lower or the lowest CAUTION Do not use the dryer to dry items that are not listed above Untitled2 39 11302018 55842 PM
  • Page 40 - English - : Operations English40 Operations Special features Delay End You can set the dryer to complete a selected cycle at your set time 1 Select a cycle with necessary options 2 Press Delay End repeatedly to set a time between 1 hours and 24 hours in 1hour increments 3 Press StartPause The corresponding indicator blinks and the clock begins counting down to the set time NOTE To cancel the Delay End settings restart the dryer using the Power button Child Lock Child Lock prevents children from playing with the dryer When Child Lock is activated all buttons except for the Power button are disabled To activatedeactivate Child Lock simultaneously press and hold Mixed Load Bell and Smart Control or Wrinkle Prevent and Dry Level for 3 seconds NOTE If Child Lock is activated and the dryer is turned off and then on again Child Lock remains activated Smart Check If the dryer has detected an issue Smart Check allows you to check the status of the dryer using a smartphone Please note that Smart Check can only be used for Galaxy and iPhone series smartphones To use Smart Check make sure you have downloaded the Samsung Smart Washer Dryer app and then follow the steps below 1 Press and hold Time and Mixed Load Bell for 3 seconds or press Smart Check The LEDs on the display panel rotate and the Smart Check code is displayed 2 On the smartphone open the Samsung Smart WasherDryer app and tap the Smart Check button 3 Focus the smartphones camera on the Smart Check code shown on the display panel 4 If the information code is recognized the app provides detailed information for the issue and further instructions NOTE If the dryer reects light on the display the smartphone may fail to recognize the information code If the smartphone fails to recognize the code manually enter the information code into the smartphone Untitled2 40 11302018 55843 PM
  • Page 41 - English - : English 41 Maintenance WARNING Do not clean the dryer by directly spraying water onto the dryer Do not clean the dryer with benzene thinner alcohol or acetone This may cause discoloration deformation damage electric shock or re Before cleaning the dryer be sure to unplug the power cord Control panel Clean with a soft damp cloth Do not use abrasive cleaners Do not spray cleaners directly on the panel Immediately wipe up any spills or liquids from the control panel Exterior Clean with a soft damp cloth Do not use abrasive cleaners Avoid using or placing sharp or heavy objects nearon the dryer Keep detergent and laundry supplies on the pedestal sold separately or in a separate storage container Drum Clean with a damp cloth with a mild nonabrasive cleaner suitable for stainless steel Wipe remaining residue with a clean dry cloth Lint lter Clean the lint lter after each load 1 Open the door and pull the lint lter upward to remove Maintenance Untitled2 41 11302018 55844 PM
  • Page 42 - English - : Maintenance English42 Maintenance A 2 Open the outer lter and remove the inner lter A 3 Unfold both the inner lter and the outer lter 4 Remove the lint from both lters and then clean the lters with the cleaning brush NOTE To clean the lters thoroughly clean the lters in running water and then dry them completely 5 Put the inner lter into the outer lter and then reinsert the lint lter into the original position CAUTION Clean the lint lter after each load Otherwise the drying performance may decrease Do not operate the dryer without the inner lter inside the outer lter Using the dryer with a wet lint lter may cause mold bad odors or a decrease in drying performance Untitled2 42 11302018 55845 PM
  • Page 43 - English - : English 43 Maintenance Water tank To avoid leaks empty the water tank after every load A 1 Using both hands pull the water tank A forward to remove B 2 Empty the water through the drain hole B and place the water tank back into place NOTE If you empty the water tank and press StartPause the corresponding indicator turns off Untitled2 43 11302018 55846 PM
  • Page 44 - English - : Maintenance English44 Maintenance Heat exchanger Clean the heat exchanger at least once a month As a reminder the heat exchanger indicator lights up on the display when the heat exchanger needs to be cleaned A 1 Gently press the top part of the outer cover A to open B 2 Unlock the xers B C 3 Remove the inner cover C Untitled2 44 11302018 55846 PM
  • Page 45 - English - : English 45 Maintenance 4 Clean the heat exchanger with the provided cleaning brush or a vacuum cleaner with a brush attachment Take care not to bend or damage the heat exchanger ns when cleaning This may lead to a decrease in drying performance CAUTION To avoid physical injury and burns do not touch or clean the heat exchanger with bare hands Do not use water to clean the heat exchanger 5 Clean the inner cover with a smooth damp cloth 6 Reinsert the inner cover to its original position and then lock the xers 7 Close the outer cover NOTE After cleaning make sure the xers are locked Untitled2 45 11302018 55847 PM
  • Page 46 - English - : English46 Troubleshooting Checkpoints If you encounter an issue with the dryer rst check the table below and try the suggestions Symptom Action Dryer does not run Make sure the door is completely closed Make sure the power cord is plugged in Check the homes circuit breaker and fuses Empty the water tank Clean the lint lter Dryer does not heat Check the homes circuit breaker and fuses Select a heat setting other than COOL AIR Check the lint lter and heat exchanger lter Clean them if necessary Dryer may be in the cooldown phase of the cycle Dryer does not dry Check the above plus Make sure the dryer is not overloaded Sort light and heavy items separately Reposition large bulky items to ensure even drying Check that the dryer is draining properly For small loads add a few dry towels Clean the lint lter and heat exchanger lter Dryer is noisy Check for coins buttons lighters etc Make sure the dryer is level and standing rmly on the oor The dryer may hum due to air moving through the drum and fan This is normal Dries unevenly Seams pockets and other parts of clothing are harder to dry than others This is normal Sort heavy and light items separately Dryer emits an odor The dryer may draw household odors in from the surrounding air and then exhaust them This is normal Dryer turns off before the load is dry Dryer load is too small Add more items and restart the cycle Dryer load is too large Remove items and restart the cycle Troubleshooting Untitled2 46 11302018 55847 PM
  • Page 47 - English - : English 47 Troubleshooting Symptom Action Lint on clothes Make sure the lint lter is clean before every load Dry lintproducing items fuzzy towels separate from lint trappers such as black linen pants Divide larger loads into smaller loads Items still wrinkled after Wrinkle Prevent Small loads of 14 items work best Load fewer items Load similar type items Odors remain in items after Cool Air Make sure to thoroughly wash items with strong odors Information codes If the dryer fails to operate you may see an information code on the display Check the table below and try the suggestions Information code Meaning Action tC Air temperature sensor issue Clean the lint lter andor heat exchanger lter If this continues call for service tC5 Compressor temperature sensor issue Wait 23 minutes Turn the power on and restart dC Running the dryer with door open Close the door and restart If this continues call for service HC Compressor overheat Call for service 9C2 Low voltage detected Check if the power cord is plugged in If this continues call for service 5C Water tank full Drain pump is out of order Empty the water tank turn the power on and restart If this continues call for service For any codes not listed above or if the information code continues to appear call for service Untitled2 47 11302018 55847 PM
  • Page 48 - English - : English48 Appendix Fabric care chart The following symbols provide garment care direction The Clothing care labels include symbols for drying bleaching drying and ironing or dry cleaning when necessary The use of symbols ensures consistency among garment manufacturers of domestic and imported items Follow care label directions to maximize garment life and reduce laundering problems Wash cycle Normal Permanent Press Wrinkle Resistant Wrinkle Control Gentle Delicates Hand Wash Water Temperature Hot Warm Cold NOTE The dot symbols represent appropriate wash water temperatures for various items The temperature range for Hot is 4152 C for Warm 2941 C and for Cold 1629 C Wash water temperature must be a minimum of 16 C for detergent activation and effective cleaning Bleach Any Bleach when needed Only NonChlorine colorsafe Bleach when needed Tumble Dry Cycle Normal Permanent Press Wrinkle Resistant Wrinkle Control Gentle Delicates Special instructions Line Dry Hang to Dry Drip Dry Dry Flat Heat setting High Medium Low Any Heat No HeatAir Appendix Untitled2 48 11302018 55852 PM
  • Page 49 - English - : English 49 Appendix Iron dry or steam temperatures High Medium Low Warning symbols for laundering Do Not Wash Do Not Wring Do Not Bleach Do Not Tumble Dry No Steam added to iron Do Not Iron Dryclean Dryclean Do Not dryclean Line Dry Hang to Dry Drip Dry Dry Flat Protecting the environment This appliance is manufactured from recyclable materials If you decide to dispose of this appliance please observe local waste disposal regulations Cut off the power cord so that the appliance cannot be connected to a power source Remove the door so that animals and small children cannot get trapped inside the appliance Untitled2 49 11302018 55855 PM
  • Page 50 - English - : Appendix English50 Appendix Specication B A D E C DV9M52 DV8M52 DV7M52 TYPE FRONT LOADING DRYER DIMENSIONS A 600 mm B 850 mm C 600 mm D 640 mm E 1095 mm WEIGHT 50 kg ELECTRICAL REQUIREMENTS 220240 V 50 Hz 550600 W ALLOWABLE TEMPERATURE 535 C Untitled2 50 11302018 55855 PM
  • Page 51 - English - : English 51 Appendix DV9M50 DV8M50 DV7M50 TYPE FRONT LOADING DRYER DIMENSIONS A 600 mm B 850 mm C 600 mm D 640 mm E 1095 mm WEIGHT 50 kg ELECTRICAL REQUIREMENTS 220240 V 50 Hz 750850 W ALLOWABLE TEMPERATURE 535 C Consumption data Model Program Load kg Energy kWh Max Duration Minutes DV9M52 COTTON 9 156 188 45 09 130 IRON DRY 9 11 130 SYNTHETICS 45 071 86 DV8M52 COTTON 8 143 169 4 08 120 IRON DRY 8 102 118 SYNTHETICS 4 065 80 DV7M52 COTTON 7 126 148 35 073 110 IRON DRY 7 094 108 SYNTHETICS 35 061 75 Weight of dry laundry EN 611212013 test program All data without a star against it was calculated using EN 611212013 Consumption data can vary from the nominal values given above depending in the size of the load types of textiles residual moisture levels after spinning uctuations in the electricity supply and any extra options selected Untitled2 51 11302018 55855 PM
