INSTRUCTION MANUAL
DIGITAL STILL CAMERA
PDR-M65
PDR-M61
INSTRUCTION MANUAL
DIGITAL STILL CAMERA
To ensure that you use the Toshiba PDR-M65 or PDR-M61
Digital Still Camera safely and correctly, read this
Instruction Manual carefully before you start using the
camera. Once you have finished reading this Instruction
Manual, keep it handy at all times.
PDR-M65
PDR-M61
- 1 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
For customers in the U.S.A.
DIGITAL STILL CAMERA
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
PDR-M65
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Change the direction of the radio or TV antenna.
Move the equipment or the radio or TV. For example, if the equipment is to the right of the TV, move it to the left of
the TV.
Or, move the equipment farther away from the radio or TV.
• Plug the equipment into a different outlet. Don’t plug your radio or TV into the same circuit as your equipment.
• Ensure that all expansion slots (on the back or side of the equipment) are covered.
Also, ensure that all metal retaining brackets are tightly attached to the equipment.
• If these suggestions don’t help, consult your equipment dealer or experienced radio/TV technician for help.
Attention
DIGITAL STILL CAMERA
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
PDR-M61
- 2 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
CAUTION
If you modify the camera in any way, without getting approval from Toshiba Corporation, your camera may violate
FCC regulations. Violation of FCC regulations may cause the FCC to void your right to use the modified camera.
TOSHIBA AMERICA INFORMATION SYSTEMS, INC.
Imaging Systems Division
9740 Irvine Boulevard,
Irvine, California 92618-1697
Phone Number: (800)288-1354
E-mail: [email protected]
For customers in Canada
CAUTION
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Attention (continued)
- 3 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Thank you for purchasing the Toshiba PDR-M65 or PDR-M61 Digital Still Camera.
To ensure that you use this camera safely and correctly, read this Instruction Manual carefully before you start using
the camera. Once you have finished reading this Instruction Manual, keep it handy at all times.
Trademark Information
• MS-DOS, Windows, Windows 98, Windows 2000,
Windows ME are registered trademarks of the
Microsoft Corporation of the U.S. registered in the
USA and other countries.
Windows is an abbreviated term referring to the
Microsoft Windows Operating System.
• Macintosh is a trademark of Apple Computer, Inc.
• Image Expert is a registered trademark of Sierra
Imaging, Inc.
• SmartMedia is a trademark of Toshiba Corporation.
• Other companies or product names are trademarks
or registered trademarks of the respective
companies.
Before Reading This Manual
IMPORTANT
• Indicates items or details that you should observe to
prevent loss of data, malfunction and impaired
performance. Also indicates information relating to
specifications and functions.
Memo
• Indicates extra useful information.
☞
Indicates another page to refer to for extra
information.
About OS Abbreviations
• Windows 98
This abbreviation stands for the Microsoft
®
Windows
®
98 operating system.
• Windows 95
This abbreviation stands for the Microsoft
®
Windows
®
95 operating system.
• Windows 2000
This abbreviation stands for the Microsoft
®
Windows
®
2000 operating system.
• Windows NT
This abbreviation stands for the Microsoft
®
Windows
®
NT Workstation 4.0 operating system.
• Windows ME
This abbreviation stands for the Microsoft
®
Windows
®
ME operating system.
Conventions Used In This Manual
- 4 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Contents
The name in parentheses ( ) is the function name on the PDR-M65 or PDR-M61.
Preface
■ Attention ................................................................1
■ Before Reading This Manual .................................3
■ Contents ................................................................4
■ Safety Precautions ................................................6
■ Using Your Camera Correctly ..............................12
■ Features...............................................................15
■ The Function Map................................................16
Getting Ready
■ Accessories .........................................................17
■ Names of Parts ....................................................18
■ Attaching the Strap ..............................................22
■ Installing the Batteries .........................................23
Loading the Batteries ...........................................23
Removing the Batteries ........................................25

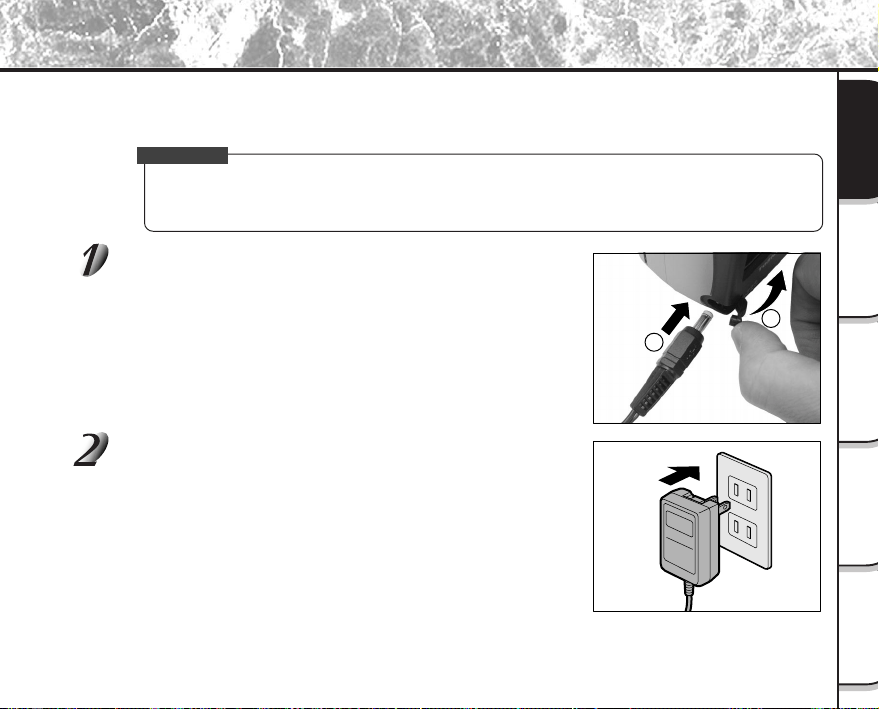

■ Using the Power Outlet ........................................ 27
■ About SmartMedia™ ...........................................28
Notes on SmartMedia™ .......................................28
Loading SmartMedia™.........................................29
Removing SmartMedia™ .....................................30
Write Protection ....................................................32
■ Turning the Power ON/OFF ................................. 33
Turning the Power ON ..........................................33
Turning the Power OFF.........................................33
■ LCD Monitor Display............................................34
In Photography Mode ...........................................34
In Playback Mode .................................................35
Basic Photography
■ How to Hold Your Camera....................................36
■ How to Press the Shutter Button .........................37
■ About the Color of the Viewfinder Lamp ..............39
■ Photography (Auto Photography) ........................ 40
Using the Viewfinder.............................................40
Using the LCD Monitor .........................................41
■ Setting the Image Size and Quality .....................43
■ Zoom Photography ..............................................45
■ Digital Zoom Photography ...................................46
■ Close-up Photography
(Macro Photography) ...........................................47
■ Photography Using the Self-timer
(Self-timer Photography)......................................48
■ Photography Using the Flash
(Flash Photography) ............................................49
■ Multi Image Photography
(Multi Photography) .............................................52
■ Long Exposure Photography
(Bulb Photography).............................................. 53
■ Taking Photographs Manually
(Manual Photography) .........................................54
W.B. (White Balance)............................................56
E.V. (Exposure Compensation).............................56
■ Changing the Preset Conditions
(REC MENU) .......................................................58
REC. MODE .........................................................59
PREVIEW .............................................................60
- 5 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Contents (continued)
ISO .......................................................................60
BULB ....................................................................61
SELF TIMER ........................................................61
LCD ......................................................................61
Playing Back/Erasing Images
■ Playing Back Photographed Images
(Single-Frame Playback) ..................................... 62
■ Enlarging Photographed Images
(Zoom Playback).................................................. 63

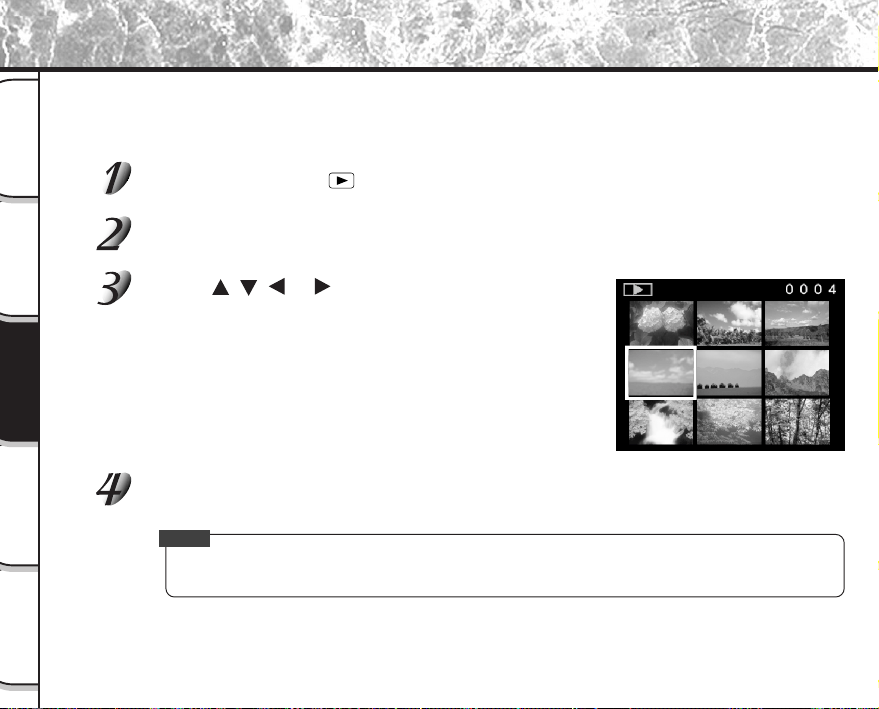

■ Displaying a List of Images
(Thumbnail Display).............................................64
■ Auto Playback (Slideshow) ..................................65
■ Reducing the Image Size (Resize) ......................66
■ Compressing Images (Quality) ............................68
■ Selecting the Folder to Play Back ........................70
■ Erasing Images (Erase Frame)............................ 72
■ Erasing All Images in a Folder (Erase All) ...........74
■ Formatting the SmartMedia™ ............................. 75
■ Protecting Images................................................76
Protecting an Image .............................................76
Removing the Protection ......................................78
Other Applications

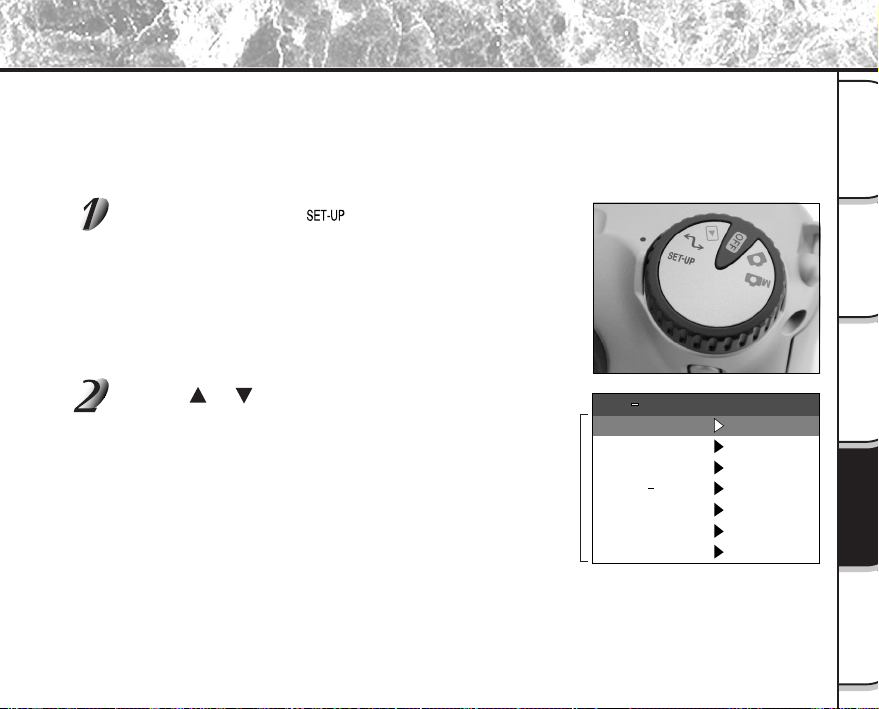

■ Basic Photographic Settings
(SET-UP mode)....................................................79
LANGUAGE..........................................................80
SOUND ................................................................80
TIME .....................................................................81
AUTO-OFF ...........................................................81
TV .........................................................................82
IMAGE No.............................................................82
DEFAULT ..............................................................83
■ Adjusting the LCD Monitor Brightness.................84
■ DISP Button and LCD Monitor Display ................85
■ Taking and Playing Back
Photographs on a TV (only M65) .........................86
■ Transferring Images to a PC ................................88

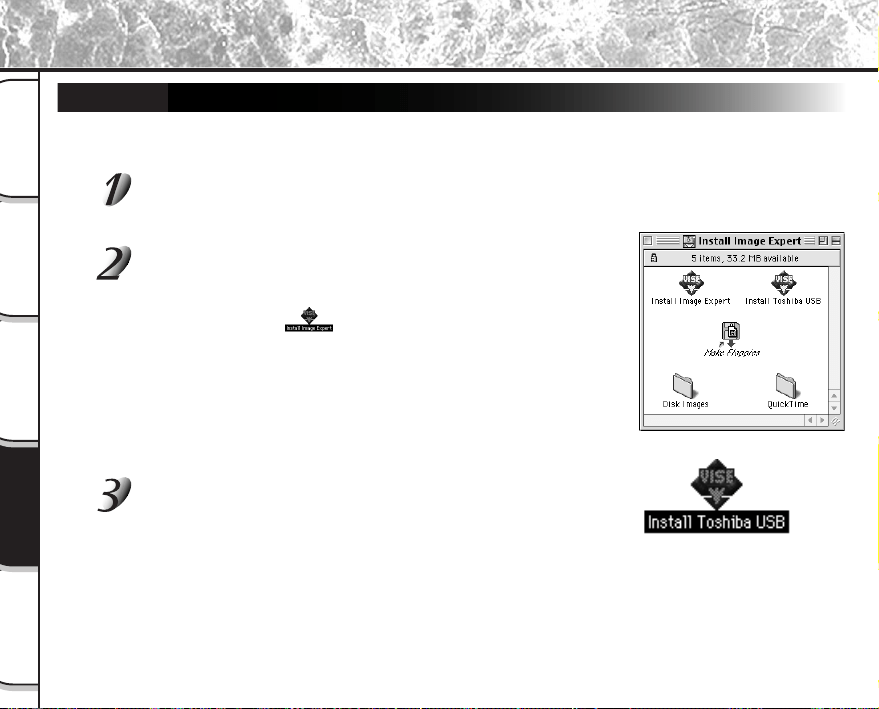

■ Installing the USB driver ......................................89
■ Separately Sold Accessories............................... 94
■ Connecting to Other Devices...............................95
Additional Information
■ Specifications ......................................................96
■ Warnings and Messages Displayed
on LCD Monitor .................................................101
■ Troubleshooting .................................................102
■ Glossary ............................................................105
■ Contact Numbers...............................................106
The name in parentheses ( ) is the function name on the PDR-M65 or PDR-M61.
- 6 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Safety Precautions
Indication definitions
Read these safety precautions carefully before using the PDR-M65 or PDR-M61. These instructions contain
valuable information on safe and proper use that will prevent harm and damage to the operator and other persons.
Make sure that you fully understand the following details (indications) before proceeding to the main descriptions in
this manual.
*1: “Bodily injury” means injuries, burns, and shock which
does not require hospitalization or prolonged treatment.
*2: “Physical damage” means extended harm to home,
household effects, domesticated animals, and pets.
Graphic symbol definitions
Indication Meaning
This indicates the existence of a
hazard that could result in death or
serious bodily injury, if the safety
instruction is not observed.
This indicates the existence of a
hazard that could result in bodily
injury, if the safety instruction is not
observed.
This indicates the existence of a
hazard that could result in bodily
injury
*1
or property damage
*2
.
Graphic symbol Meaning
Indicates a prohibited action that must
not be carried out.
The actual prohibited action is
indicated in the symbol or nearby
graphically or described in text.
Indicates a necessary action that must
be carried out.
The actual necessary action is
indicated in the symbol or nearby
graphically or described in text.
DANGER
WARNING
CAUTION
- 7 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Exemption Clauses
• Toshiba Corporation bears no responsibility in the case of
damages arising from earthquakes, fire not liable to
Toshiba Corporation, operating by third parties, other
accidents, or use under abnormal conditions including
erroneous or improper operation and other problems.
• Toshiba Corporation bears no responsibility for incidental
damages (lost profit, work interruption, corruption or loss
of the memory contents, etc.) arising from the use of or
the inability to use this unit.
• Toshiba Corporation accepts no liability whatsoever for
any damages arising from not having followed the
descriptions in this Instruction Manual.
• Toshiba Corporation accepts no liability whatsoever for
any damages arising from malfunctions arising from
combination with equipment or software that is not
related to Toshiba Corporation.
Safety Precautions (continued)
Do not heat, disassemble or throw the
batteries into fire or water.
Doing this might cause it to rupture, ignite or heat
up, resulting in fire or major injury.
Do not strike the batteries with a hammer,
or step on, drop, or subject the battery to
strong impact.
Doing so might cause it to rupture, ignite or heat
up, resulting in fire or major injury.
DANGER
- 8 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Safety Precautions (continued)
Should you ever notice smoke, a strange
odor or excessive heat coming from the
camera, immediately turn OFF the power
and remove the batteries and AC adapter.
Continued use in this state might cause fire,
electric shock or burns. For details on repair,
consult the store of purchase, or please contact
the technical support number.
If foreign objects or water have entered the
camera, immediately turn the power OFF
and remove the batteries and AC adapter.
Continued use in this state might cause fire or
electric shock. For details on repair, consult the
store of purchase, or please contact the
technical support number.
If the camera has fallen or its case is
damaged, immediately turn the power OFF
and remove the batteries and AC adapter.
Continued use in this state might cause fire or
electric shock. For details on repair, consult the
store of purchase, or please contact the
technical support number.
Do not place the camera on wobbly,
inclined or unstable surfaces.
This might cause the camera to fall or tilt over.
Do not use in areas near water.
This might cause fire or electric shock. Take
special care during rain, snow, on the beach or
near the shore.
Do not use the camera in the bath or
shower.
This might cause a fire or electric shock.
Do not allow metallic objects or other
flammable foreign matter inside the
camera.
This might cause a fire or electric shock. Do not
open the SmartMedia™ cover, and insert or allow
such objects to fall inside.
(continued)
WARNING
WARNING
- 9 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Safety Precautions (continued)
Do not disassemble, change or repair the
camera.
This might cause fire or electric shock. For
details on repair and internal inspection, consult
the store of purchase, or please contact the
technical support number.
Do not touch power or TV antenna cords
during a thunderstorm.
This might cause electric shock.
Do not use the camera while you are
walking, driving or riding a motorcycle.
This might cause you to fall over or result in a
traffic accident.
Use only the specified batteries or the
specified AC adapter.
Use of a battery or AC adapter other than
specified, might cause fire, defects or
malfunctions.
Keep the batteries out of the reach of
children.
If a child swallows a battery, this might result in
poisoning. If a child swallows a battery,
immediately consult a physician.
If battery fluid enters the eyes, immediately
rinse with fresh water and consult with a
physician to receive treatment.
If left untreated, damage to the eye could be
permanent.
Use the AC adapter only with the indicated
power supply voltage
(100 to 120V, 230V AC).
Use with any other power supply voltage might
cause fire or electric shock.
(continued)
WARNING
(continued)
WARNING
- 10 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Safety Precautions (continued)
If you want to use the camera on an
airplane, consult with the airline and follow
their instructions.
Use of this camera is sometimes restricted due
to potential radio interference.
Do not use the camera in humid, steamy,
smoky or dusty places.
This might cause fire or electric shock.
Do not leave the camera in places where
the temperature may rise significantly, such
as inside a car.
This might adversely affect the case or the parts
inside, resulting in fire.
Do not place or wrap the camera in cloth or
blankets.
This might cause heat to build up and deform the
case, resulting in fire. Use the camera in a well-
ventilated place.
Before you move the camera, disconnect
cords and cables.
Failure to do this might damage cords and
cables, resulting in fire or electric shock.
Do not drop or subject the camera to strong
impact.
This might cause fire, electric shock or
malfunctions.
Before you carry out maintenance on the
camera, remove the batteries and AC
adapter.
Leaving these attached might cause electric
shock.
Remove the batteries and AC adapter if
you plan not to use the camera for a long
time.
This might cause fire.
Insert the batteries paying careful attention
to the polarity (+ or –) of the terminals.
Inserting the batteries with polarities inverted
might cause fire and injury, or damage the
surrounding areas.
CAUTION CAUTION
(continued)
- 11 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Safety Precautions (continued)
Do not look at the sun through the camera
viewfinder.
This may cause injury of the eyes.
Do not use the flash close to eyes.
This might cause temporary damage to the
eyesight.
Do not walk around with the camera
swinging from the strap.
This might subject the camera to shock as it
bumps into a person or an object, damaging the
camera or causing an injury.
Before you store or dispose of used
batteries tape the plus (+) and (–) terminals
with insulating tape.
If stored or disposed of without doing this, the
batteries may make contact with metal objects,
resulting in fire or injury due to leaking of battery
fluid, overheating or bursting of the battery.
Do not subject the status display to impact.
If the status display is impacted, the glass on the
screen may be broken and internal fluid may
leak.
If the internal fluid enters your eyes or sticks to
your body or clothes, immediately rinse with
fresh water. If the internal fluid enters your eyes,
immediately consult a physician to receive
treatment.
Consult your dealer regarding the internal
cleaning of the camera once every two
years.
If dust is allowed to accumulate inside the
camera for a long time, this might result in fire or
defects. Consult your dealer regarding the
cleaning costs.
CAUTION
(continued)
CAUTION
(continued)
- 12 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Using Your Camera Correctly
Notes On Handling Your Camera
When you use your camera, carefully read and strictly observe the Safety Precautions from page 6 onwards and
the notes described below.
● Avoid using or storing the camera in the following places:
• Places subject to humidity, dust and dirt
• Places subject to direct sunlight
• Places subject to high or low temperature
• Places filled with highly flammable gas
• Places near gasoline, benzene or paint thinner
• Places subject to strong vibrations
• Places subject to smoke or steam
• Places subject to strong magnetic fields (such as near motors, transformers or magnets)
• Places contacting chemicals such as pesticides or next to rubber or vinyl products for long periods
● Do not expose the camera to sand.
The PDR-M65 or PDR-M61 is particularly sensitive to sand. If the camera comes into contact with sand,
not only will the camera become damaged, it will also no longer be repairable.
Pay special attention when using the camera at the beach or where sand or sand dust is likely to be
present.
● Notes On Condensation
Due to a sudden change in temperature, such as when you move the camera from a cold location to a
warm one, water droplets (condensation) may form on the inside of the camera or on the lens. When this
occurs, switch the camera OFF, and wait an hour before using the camera. Condensation may also form
on the SmartMedia™ card. If this happens, remove the SmartMedia™, wipe off any water droplets and
wait a short time before using it again.
- 13 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
● Carrying Out Maintenance on Your Camera
• To prevent the lens, surface of the status display or viewfinder from being scratched, blow off any dust
on these parts with a blower brush and lightly wipe with a soft dry cloth.
• Clean the body of the camera with a soft dry cloth. Do not use volatile liquids such as paint thinner,
benzene or insecticide, as these may react with the camera body and cause deformation or remove
the coating.
Using Your Camera Correctly (continued)
- 14 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Using Your Camera Correctly (continued)
Notes On Handling the AC Adapter
Be sure to use only the specified AC adapter (sold separately). Using a different AC adapter might cause the
camera to malfunction.
When you use the AC adapter, carefully read and strictly observe the Safety Precautions from page 6 onwards and
the notes described below.
• Use the AC adapter with the rating of the country/region where the camera is used.
• Be sure that you do not allow the AC adapter to contact any other metal object as this might cause a
short circuit.
• To connect the AC adapter, firmly insert the plug on the end of the cable into the DC IN 5V terminal. Do
not insert the plug into other terminals. This might cause the camera to malfunction.
• Before you disconnect the connector cable, turn the camera OFF and then disconnect the cable
holding it by its plug. Do not disconnect the connector cable by pulling the actual cable.
• Do not drop the AC adapter or subject it to strong impacts.
• Do not use the AC adapter in very hot and humid locations.
• Do not plug in the AC adapter while you are using the battery. Switch the camera OFF first.
• The AC adapter is for indoor use only.
• Use only the specified AC adapter. Do not use other AC adapters.
• The AC adapter may sometimes become warm during use. This is normal and not a malfunction.
• Buzzing or whirring noises may come from inside the camera. This is normal and not a malfunction.
• Do not use the AC adapter near a radio as it could interfere with radio signal reception.
• If you remove the battery or AC adapter while the camera is in operation, the date may be lost from
memory. If this happens, reset the date.
- 15 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Features
● 3X zoom lens
● USB interface compatible
● High definition 3.3 (M65)/2.3 (M61) million pixels
● Extensive photographic functions
• Auto/Flash/Macro/Self-timer
• Multi mode (16 continuous images in one frame)
• Bulb mode for night and creative photography
• Color/Black-and-white photography etc.
● Image size and quality easily selectable
• Size (M65: 2048 x 1536 or 1024 x 768 pixels)
(M61: 1792 x 1200 or 896 x 600 pixels)
• Quality (FINE/NORMAL/BASIC)
● Status display
• Settings can be verified even when LCD monitor is OFF.
● SmartMedia™
• Expandable up to 64MB (128MB: apply to the update version of the firmware)
● Compatibility
• Image recording method compliant with DCF.
- 16 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Read these pages first.
Let's get ready to use the PDR-M65 or PDR-M61.
(P.17 – 35)
Let's learn about basic operation.
First, let's learn about the basic way of using the
PDR-M65 or PDR-M61.
Photography (P.40)
Playing Back Photographed Images (P.62)
Erasing Images (P.72)
Zoom Photography (P.45)
Digital Zoom Photography (P.46)
Close-up Photography (P.47)
Photography Using the Self-timer (P.48)
Photography Using the Flash (P.49)
Multi Image Photography (Multi Photography) (P.52)
Long Exposure Photography (Bulb Photography) (P.53)
Utilizing the various photography modes.
You can choose various photography modes on the
PDR-M65 or PDR-M61.
Enlarging Photographed Images
(P.63)
Auto Playback
(P.65)
Playing back your photographed images
You can choose various ways of playing back images
on the LCD monitor.
Setting the Image Size and Quality
(P.43)
Manually setting the PDR-M65 or PDR-M61
(P.54)
Changing the Preset Conditions
(P.58)
Changing the photography settings.
You can change the settings for the image that you are
going to take according to your particular requirements,
location and other conditions.
You can also do this.
The PDR-M65 or PDR-M61 also has lots of other features.
Displaying a List of Images
(P.64)
Changing the size of Images
(P.66)
Compressing Images
(P.68)
Erasing All Images at once
(P.74)
Protecting Images
(P.76)
Changing PDR-M65 or PDR-M61 camera Settings
(P.79)
Taking and Playing Back Photographs on a TV (only M65)
(P.86)
Transferring Images to a PC
(P.88)
The Function Map
It is suggested that you look at the function map, below before using the PDR-M65 or PDR-M61.
- 17 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Accessories
Make sure that you have all of the items below before you start using your camera.
Sold separately
• AC adapter
• Soft case
Batteries (4 size AA)
Alkaline
SmartMedia™
(8MB, 3.3V) (1)
• Anti-static case (1)
• Index labels (2)
• Write-protect stickers (4)
USB cable
Neck strap (1)
Video cable (1)
(only M65)
CD-ROM
• Instruction Manual
• Software Manual
• Software application
•ImageExpert
•USB driver
PDR-M65-01
Quick Reference Guide
- 18 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

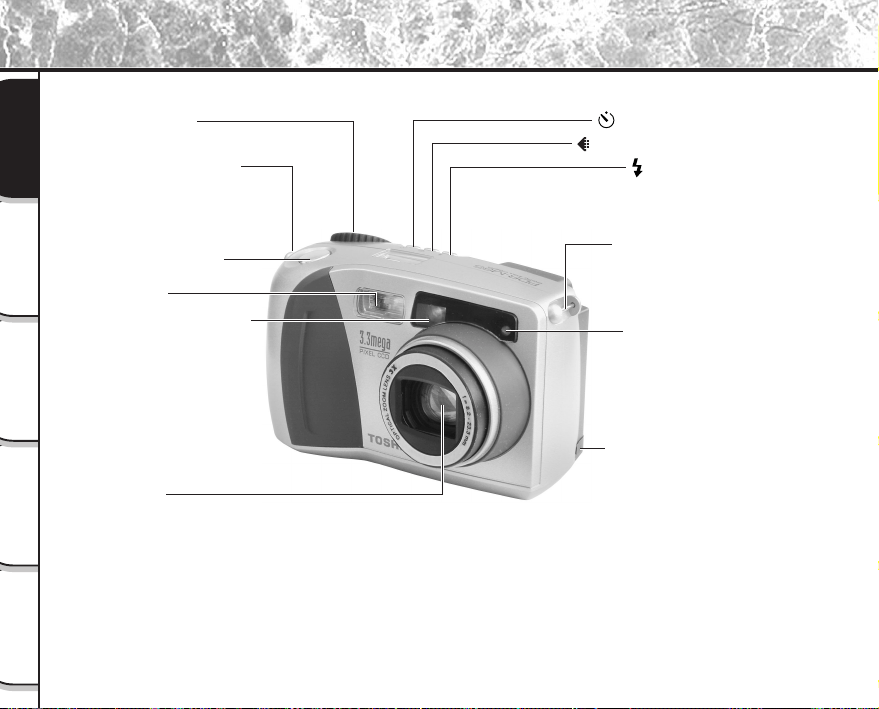

Names of Parts
Mode dial
For enlarged view (
➲
P. 20)
Self-timer lamp (
➲
P. 48)
Lens
Viewfinder window
Flash
Shutter button
(
➲
P. 37)
Strap attachment (
➲
P. 22)
Strap attachment
(
➲
P. 22)
Flash button (
➲
P. 49)
Self-timer button (
➲
P. 48)
Image Quality button (
➲
P. 43)
DC IN 5V terminal (
➲
P. 27)
- 19 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

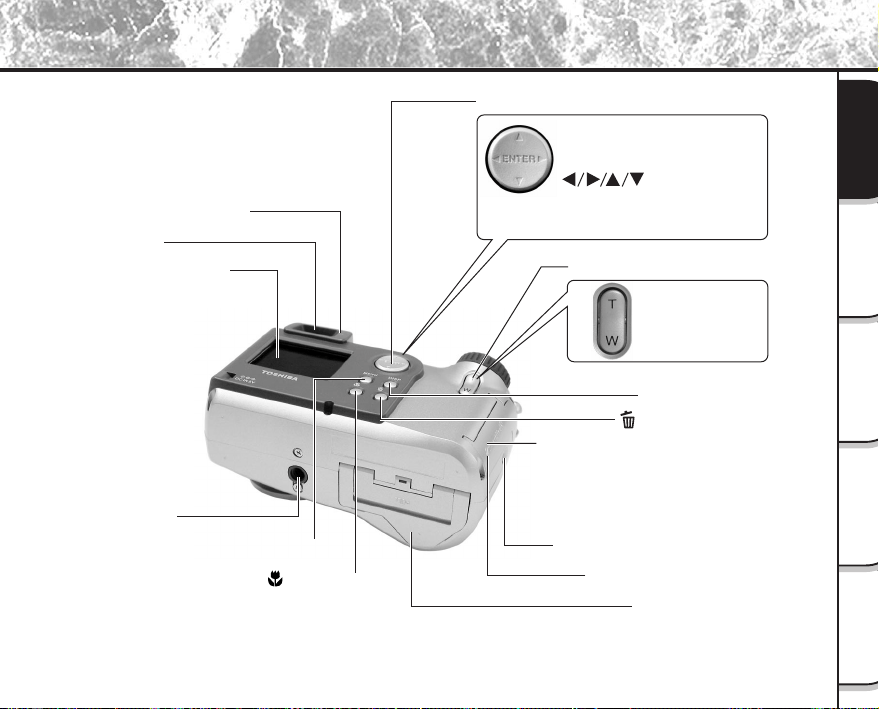

Names of Parts (continued)
Function button
Zoom key
(
➲
P. 45)
SmartMedia™ cover
(
➲
P. 29)
SmartMedia™ cover release knob
Battery cover
(
➲
P. 23)
Tripod mount
DISP button
(
➲
P. 85)
LCD monitor
(
➲
P. 34)
Macro button
(
➲
P. 47)
MENU button
Erase button
(
➲
P. 72)
ENTER button
Press the center of the button.
(Use this button to fix a selection.)
(cross pad) button
Press the button on the required side.
(Use these buttons to select an item
or an image.)
Telephoto (zoom)
Press "T".
Wide
Press "W".
Viewfinder
Viewfinder lamp
(
➲
P. 39)
Terminal cover
• DIGITAL terminal
(
➲
P. 89)
• VIDEO terminal (only M65)
(
➲
P. 86)
- 20 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Names of Parts (continued)

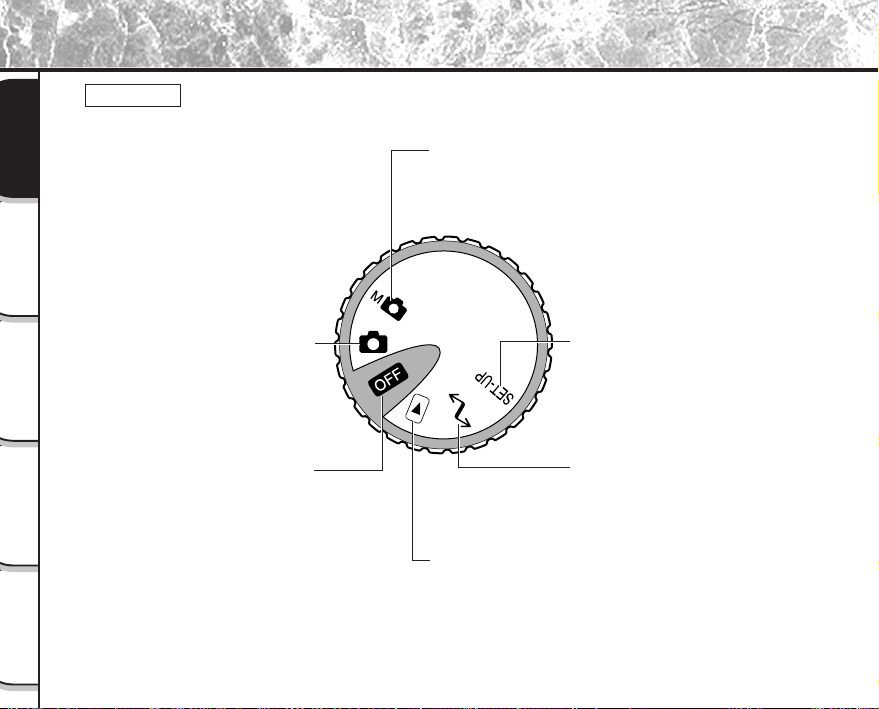

Mode dial
Power OFF (
➲
P. 33)
Switches the power OFF.
Auto Photography mode (
➲
P. 40)
This is the most commonly used
photography mode.
In this mode, exposure
(combination of shutter speed and
aperture) is automatically
controlled to facilitate
photography.
Manual mode (
➲
P. 54)
Manually sets white balance, and
exposure.
SET-UP mode (
➲
P. 79)
Sets basic camera settings
(power OFF time, sound, time,
display language, image number
and reset).
PC mode (
➲
P. 88)
Transfers images to a PC.
For details, refer to the Manual
for the Software Application.
Playback mode (
➲
P. 62)
Selects the image playback or
protect mode, resize,
compression and other settings.
- 21 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Names of Parts (continued)
Status display
This display indicates the camera’s status. You can verify the camera’s status even if the LCD monitor is
not on.
The text, numbers and icons that are displayed in the status display vary according to the setting.
: SmartMedia™ loaded symbol (
➲
P. 28)
Image size (
➲
P. 43)
PDR-M65; HALF: 1024 x 768 pixels FULL: 2048 x 1536 pixels
PDR-M61; HALF: 896 x 600 pixels FULL: 1792 x 1200 pixels
Image quality (
➲
P. 43)
★★★: FINE
★★: NORMAL
★: BASIC
Self-timer photography (
➲
P. 48)
Macro photography (
➲
P. 47)
Remaining battery power (
➲
P. 26)
Multi photography (
➲
P. 52)
Example of counter display
(The display varies according to the mode dial setting.)
Time display (in [ ] or [ ] mode)
Possible number of shots
(in [ ] or [ ] mode: during
image photography)
PC indication (in [ ] mode)
Flash photography (
➲
P. 49)
No indication: Auto
: Slow synchro
: Red-eye reduction
: Suppressed flash
: Forced flash
- 22 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

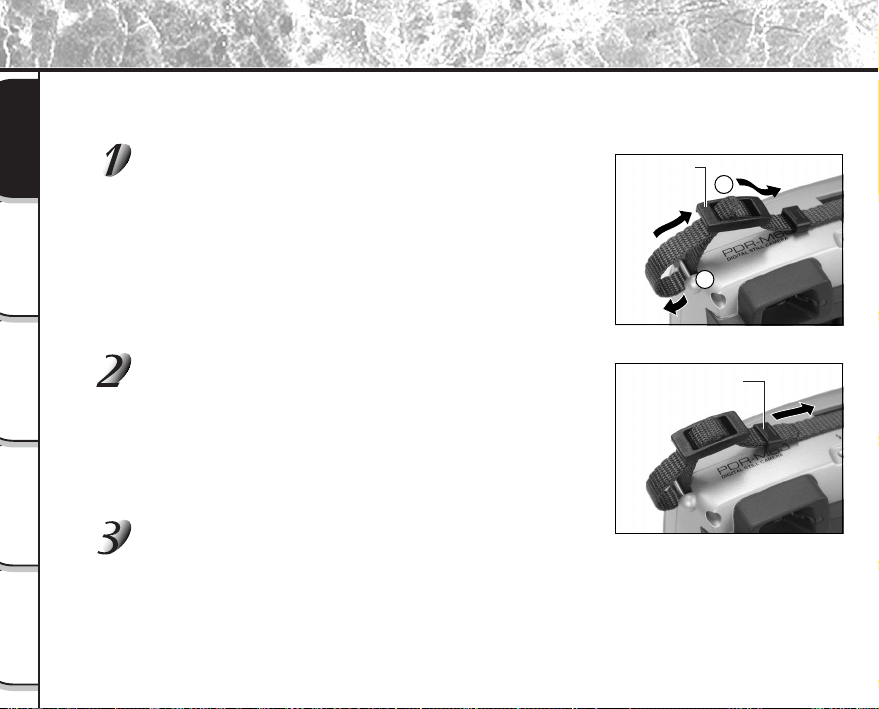

Attaching the Strap
This strap is handy for carrying your camera around.
To prevent your camera from dropping during photography, hang the strap around your neck.
Pass the leading end of the strap through the strap
attachment
1
, and then pass through both ends of
the strap adjuster
2
.
Pass the leading end through the fastener and pull
tight.
Attach the strap in the same way on the strap
attachment on the opposite side of the camera.
Strap adjuster
2
1
Fastener
- 23 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

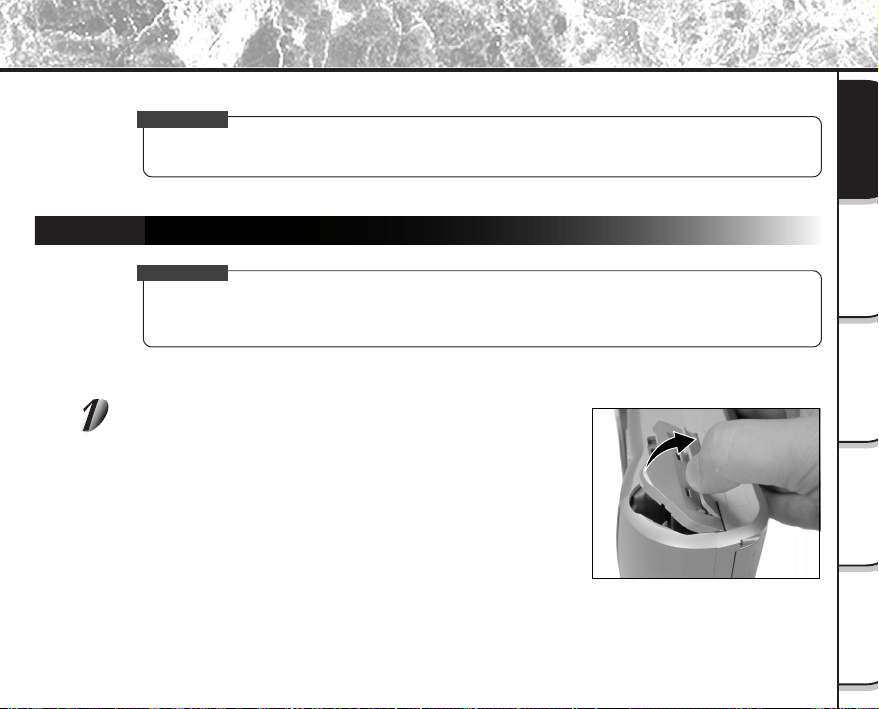

Installing the Batteries
This camera uses four (4) size AA batteries.
IMPORTANT
• This camera uses alkaline, nickel-metal hydride or lithium-ion batteries.
• You can not use manganese dry battery in this camera.
Loading the Batteries
IMPORTANT
• Before you load or remove the batteries, be sure to turn the camera OFF.
• The lock of the battery door may be hard to open depending on the batteries loaded, be very careful
when opening it.
Pull open the battery door as shown.
- 24 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Installing the Batteries (continued)
Load the batteries in the battery compartment making
sure they are loaded in their correct direction as
shown in the figure on the right.
Close the battery door.
Make sure that the battery door is firmly closed.
IMPORTANT
• Close the battery door firmly, otherwise, it may be very hard to open.
- 25 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Installing the Batteries (continued)
Removing the Batteries
Reverse the procedure for “Loading the Batteries” and remove the batteries.
IMPORTANT
• The lock of the battery door may be hard to open depending on the batteries loaded, be very careful
when opening it.
• When removing the batteries, take care not to drop the camera by mistake.
- 26 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Installing the Batteries (continued)

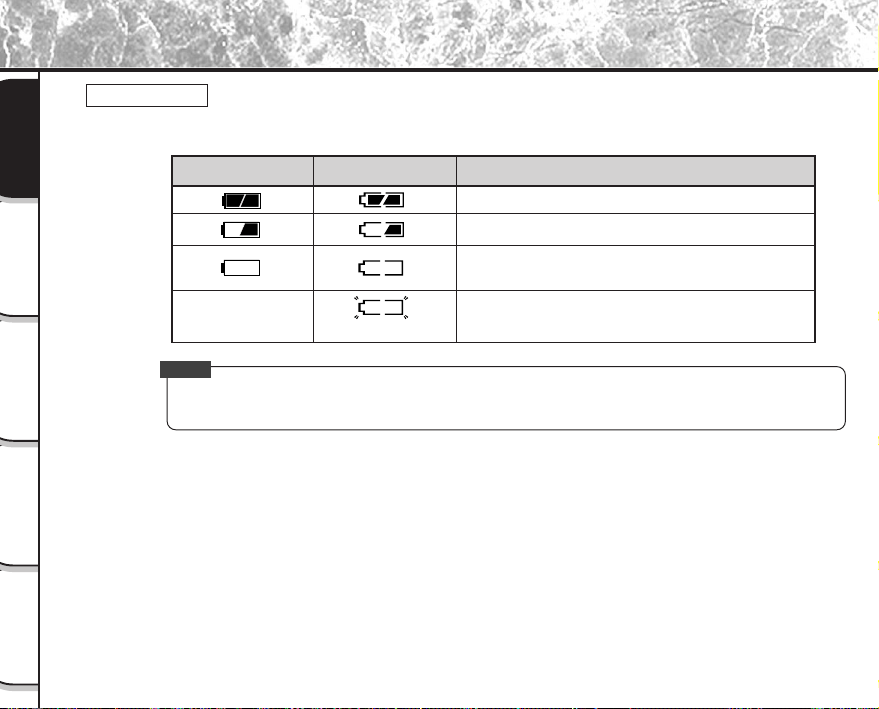

Battery Wear
When the power is ON, the remaining battery power is displayed on the LCD monitor and the status
display.
Memo
• When you use the camera for the first time or if you have left the camera for a long time without the
battery loaded, set the date (
➲
Page 81).
Remaining Battery Power
Sufficient battery power
Half battery power or less
Little battery power left (Power is cut.)
Replace with new batteries.
No battery power left (Power does not turn ON.)
Replace with new batteries.
LCD Monitor
Status Display
Blinks twice
No indication
- 27 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
If you use the AC adapter in a room with a power outlet, you can take photographs for an extended period of time.
This also prevents failed photographs due to battery wear or failed transfer of data to a PC. For details on handling
the AC adapter, be sure to read page 14.
IMPORTANT
• Before you connect or disconnect the AC adapter, be sure to turn the camera OFF. If the AC adapter is
connected or disconnected with the power ON, the camera may malfunction or the recorded data may
be erased (destroyed) even if the batteries are loaded.
Open the terminal cover
1
, and insert the AC adapter
connector plug into the DC IN 5V terminal on the
camera
2
.
Insert the AC adapter power plug into the power
outlet.
Using the Power Outlet
2
1
- 28 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
About SmartMedia™
“SmartMedia™” is a storage medium for saving images that you have photographed. Even if the camera’s power is
turned OFF, the images saved on the SmartMedia™ are not erased. SmartMedia™ can be repeatedly read and
written.
SmartMedia™ having the following storage capacity can be used on your camera.
2MB/4MB/8MB (standard accessory)/16MB/32MB/64MB (all 3.3 V types)
(For 128MB, it apply to the update version of the firmware.)
You can also connect the PC card adapter (sold separately) or floppy disk adapter (sold separately) (
➲
Page 95) to
transfer images to a PC.
Notes on SmartMedia™
• Recorded data may be erased (destroyed) in the situations listed below. Note that Toshiba Corporation
accepts no responsibility whatsoever for the loss (destruction) of recorded data in these situations:
- When the SmartMedia™ is used incorrectly by the user or a third party
- When the SmartMedia™ is exposed to static electricity or electrical noise
- When the SmartMedia™ is removed or the camera is then switched OFF during data recording,
data erasing, frame advance when images are being played back or during formatting of the
SmartMedia™.
• We recommend copying and saving important data onto another storage medium (floppy disk, hard
disk, MO disk, etc.).
• Never remove the SmartMedia™ or switch the camera OFF during data recording or during data
erasing (SmartMedia™ formatting). These actions might damage the SmartMedia™.
• Use only the SmartMedia™ specified for use with the PDR-M65 or PDR-M61. The use of other
SmartMedia™ could damage the camera.
• SmartMedia™ are precision electronic devices. Do not bend, drop, or subject SmartMedia™ to
excessive shocks. Also, do not carry SmartMedia™ in locations such as a trouser pocket. This might
subject the SmartMedia™ to excessive force when you sit down, damaging the SmartMedia™.
• Do not use or store SmartMedia™ in environments likely to be affected by strong static electricity or
electrical noise.
• Do not use or store SmartMedia™ in very hot, humid or corrosive environments.
- 29 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
• Take care not to touch the SmartMedia™’s electrodes (metal contacts) or allow the electrodes to
become soiled. Use a dry lint-free cloth to wipe away any dirt.
• To avoid damage caused by static electricity during transportation or storage, always use the special
static-free case provided.
• If you are not using the camera for a long period of time, remove the SmartMedia™ and store it in a
safe place.
• Inserting a SmartMedia™ that is charged with static electricity into your camera may cause it to
malfunction. If this occurs, switch the camera OFF and then ON again.
• The SmartMedia™ may feel warm when it is removed from the camera after the camera is used for a
long time. This is normal and not a malfunction.
• The SmartMedia™ has a limited service life. If images can no longer be written or erased, buy a new
SmartMedia™.
• Use the index labels provided with the camera. If you attach a commercially available label, it may
cause a malfunction when the SmartMedia™ is loaded or removed.
Loading SmartMedia™
Set the mode dial to [ ].
Slide the SmartMedia™ cover release knob in the
direction of the arrow
1
to open the cover
2
.
About SmartMedia™ (continued)
2
1
- 30 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
About SmartMedia™ (continued)

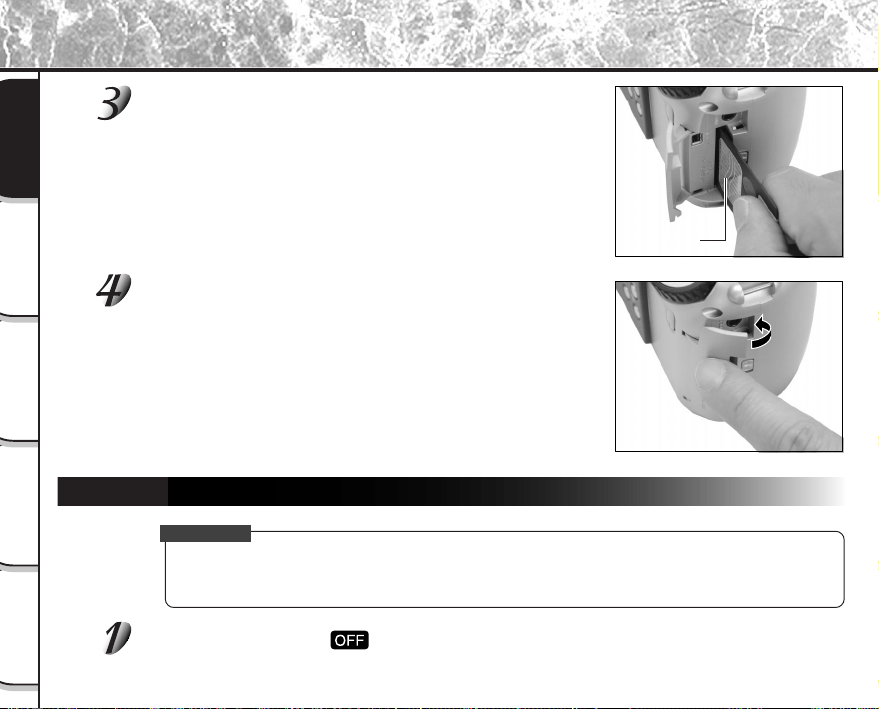

Gently insert the SmartMedia™ as far as it can go
with the SmartMedia™ electrodes (metal contacts)
facing the rear of the camera.
Close the SmartMedia™ cover.
Before you use a new SmartMedia™, be sure to format the
SmartMedia™ (
➲
Page 75).
Removing SmartMedia™
IMPORTANT
• Never open the SmartMedia™ cover or remove the SmartMedia™ while data is being recorded to the
SmartMedia™ (viewfinder is lit red). This might damage the SmartMedia™ or corrupt the data on the
SmartMedia™.
Set the mode dial to [ ].
Electrodes
- 31 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
About SmartMedia™ (continued)

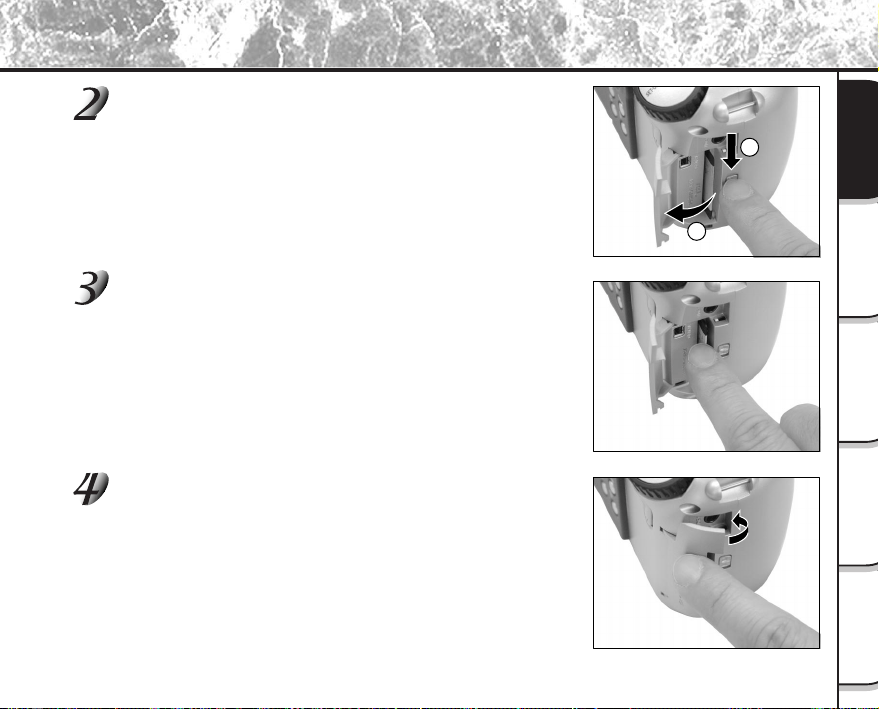

Slide the SmartMedia™ cover release knob in the
direction of the arrow
1
to open the cover
2
.
Push the SmartMedia™ in as far as it can go, and pull
it out with your fingers.
If you push SmartMedia™ once in as far as it can go, it will protrude
slightly. Pull it out with your fingers.
Close the SmartMedia™ cover.
2
1
- 32 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
About SmartMedia™ (continued)

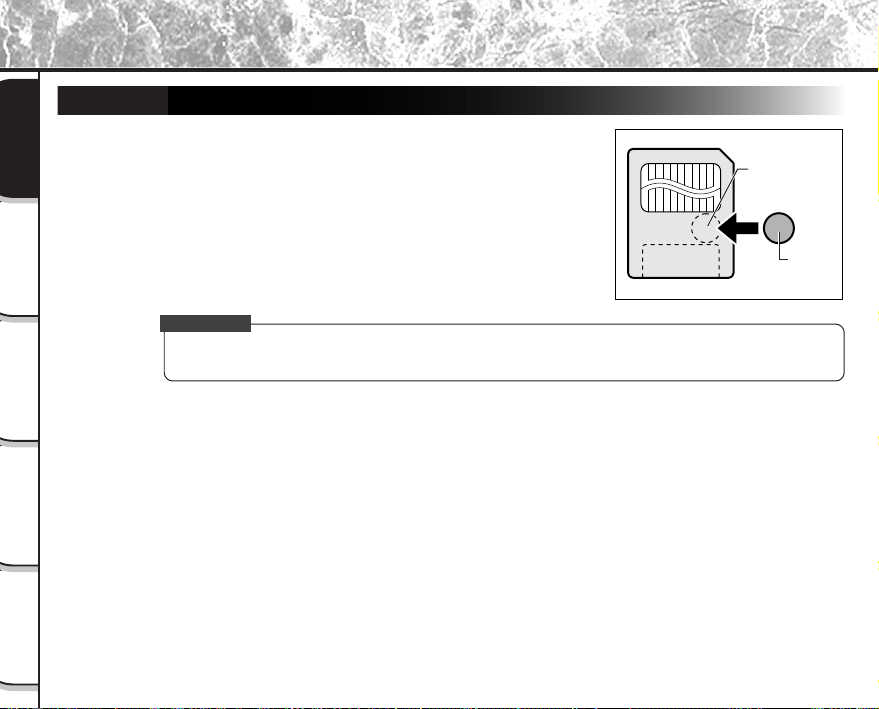

Write Protection
To prevent valuable data from being erased inadvertently, attach the
write-protect sticker at the write-protect area. Data can no longer be
recorded or erased from SmartMedia™. To write or erase data from
SmartMedia™, peel off the sticker.
IMPORTANT
• The write protection may not function if the write-protect sticker becomes dirty. Use a soft dry cloth to
wipe away any dirt. Once a sticker is peeled off it cannot be used again.
Write-protect
area
Sticker
- 33 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Turning the Power ON
Make sure that the SmartMedia™ is correctly loaded. (
➲
Page 29)
Set the mode dial to the desired mode.
In the [ ] or [ ] modes, the lens extends from the camera
body.
When the camera is turned ON, the Auto Power OFF function starts
to work.
IMPORTANT
• If no operation is carried out for a fixed amount of time (default: about 1 minute), the power is turned
OFF to prevent battery wear. This is called “Auto Power OFF”. To return to the normal state, either
change the mode dial or press the shutter down fully (
➲
Page 37).
☞
About the Auto Power OFF Function
➲
AUTO-OFF (page 81)
Turning the Power OFF
Set the mode dial to [ ].
The power is turned OFF, and the lens returns to its original position
in the body.
Turning the Power ON/OFF
- 34 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

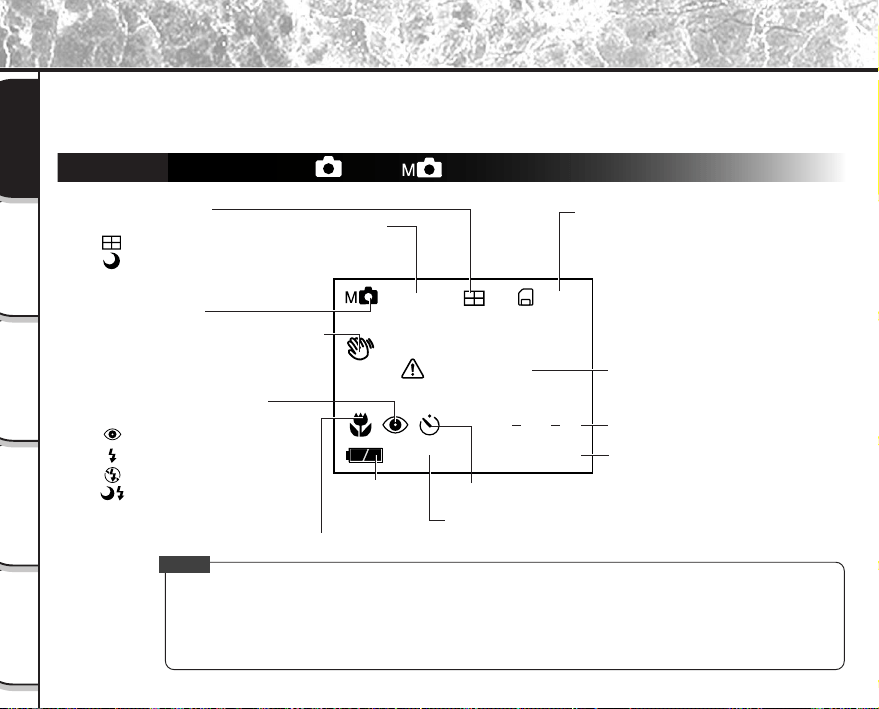

The text, numbers and icons that are displayed on the LCD monitor vary according to the current settings.
To erase text currently displayed on the LCD monitor, press the DISP button (
➲
Page 85).
The LCD monitor automatically turns ON if necessary even if it is set to OFF.
In Photography Mode ( [ ] or [ ] )
LCD Monitor Display
Memo
• The size of the data to be recorded varies according to the amount of detail in the subject image. So,
the number of images that can be photographed after an image is recorded decreases. Sometimes this
amount decreases by two images.
• The display is momentarily disrupted after recording an image or the mode is switched. This does not
affect photography.
NO CARD
ZOOM
01 10 01
13:22
0I
SO
200 024
Possible number of shots (
➲
P. 96)
(at currently preset size and quality)
Date (month/day/year) (
➲
P. 81)
Time (24-hour-format) (
➲
P. 81)
Self-timer photography (
➲
P. 48)
Digital zoom photography (
➲
P. 46)
Remaining
battery power
(
➲
P. 26)
Macro photography (
➲
P. 47)
Flash photography (
➲
P. 49)
Mode dial setting
Photography mode
Message (
➲
P. 101)
Photographic
sensitivity
(
➲
P. 60)
No indication: 1 shot
: Multi Photography (
➲
P. 52)
: Bulb Photography (
➲
P. 53)
No indication: Auto
: Red-eye reduction
: Forced flash
: Suppressed flash
: Slow synchro
Slow shutter speed warning (
➲
P. 51)
Display when shutter speed slows
down and image is vulnerable to
blur caused by shaking.
- 35 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
In Playback Mode ([ ])
LCD Monitor Display (continued)
NO IMAGE
Mode dial setting (
➲
P. 20)
Protected image (
➲
P. 76)
Image size
Date (month/day/year) (
➲
P. 81)
Message (
➲
P. 101)
Image number (
➲
P. 82)
Folder number (
➲
P. 82)
Time (24-hour-format) (
➲
P. 81)
Slideshow (
➲
P. 65)
1536
2048
01 10 01
13:22
0003
100
- 36 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
How to Hold Your Camera
When taking a photograph, hold the camera firmly and prevent your finger or neck strap from covering the lens,
flash or flash sensor.
Right
Camera held with both hands with your arms
firmly held against the sides of your chest
Wrong
Fingers held over the lens
- 37 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
How to Press the Shutter Button
The shutter button can be pressed down in two stages: half way down and fully down. When pressed half way down,
AF (auto-focus) and AE (auto exposure) are carried out. When pressed fully down, the camera takes a picture.
Press the shutter button down half way
1
.
AF (auto-focus) and AE (auto exposure) (
➲
Additional Information,
Glossary (Page 105)) start to function.
When AF or AE are locked, the beep tone (
➲
Page 80) sounds and
the viewfinder lamp lights or blinks in green. (
➲
Page 39)
Press and hold the shutter button down fully
2
.
The camera takes a picture.
The viewfinder lamp turns red while image data is being recorded
onto the SmartMedia™.
IMPORTANT
• Never open the SmartMedia™ cover or remove the SmartMedia™ while an image is being recorded.
This may corrupt the data on the SmartMedia™ or damage the SmartMedia™ itself.
Press down
half way.
Press down
fully.
1
2
- 38 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Memo
• If the shutter button is pressed all the way down, photographs cannot be taken until AF and AE are
locked.
• The image in the LCD monitor sometimes darkens from the time that the shutter button is pressed down
half way until the image becomes focused.
• To focus or expose a position outside the center of the screen frame, move the subject you are taking to
the center of the screen frame, and press down the shutter button half way and hold it until the camera
beeps. Now, with the shutter button held down, return to the original picture that you composed and
press the shutter button down fully. Moving the camera as you press the shutter button will result in a
blurred image.
• The PDR-M65 or PDR-M61 uses an accurate auto focus mechanism. However, the PDR-M65 or PDR-
M61 may have difficulty focusing or not be able to focus at all for subjects and situations such as the
following:
• If the image cannot be focused, the focus is automatically fixed to infinity. When the flash is necessary
at this time, it is simultaneously fixed to illuminate objects five feet (1.5 meters) away.
- Subjects moving at high speed
- Very shiny subjects such as a mirror or car
body
- Extremely low contrast subjects
- Subjects that have low contrast and merge
into the background (such as white walls or
subjects dressed in the same color as the
background)
- When the subject is distant and dark
- When there are objects in front of or behind the
subject (such as an animal in a cage or a person
in front of a tree)
- Subjects with little reflection, such as a hair or fur
- Subjects with no solidity, such as smoke or flames
- Subjects viewed through glass
How to Press the Shutter Button (continued)
- 39 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready

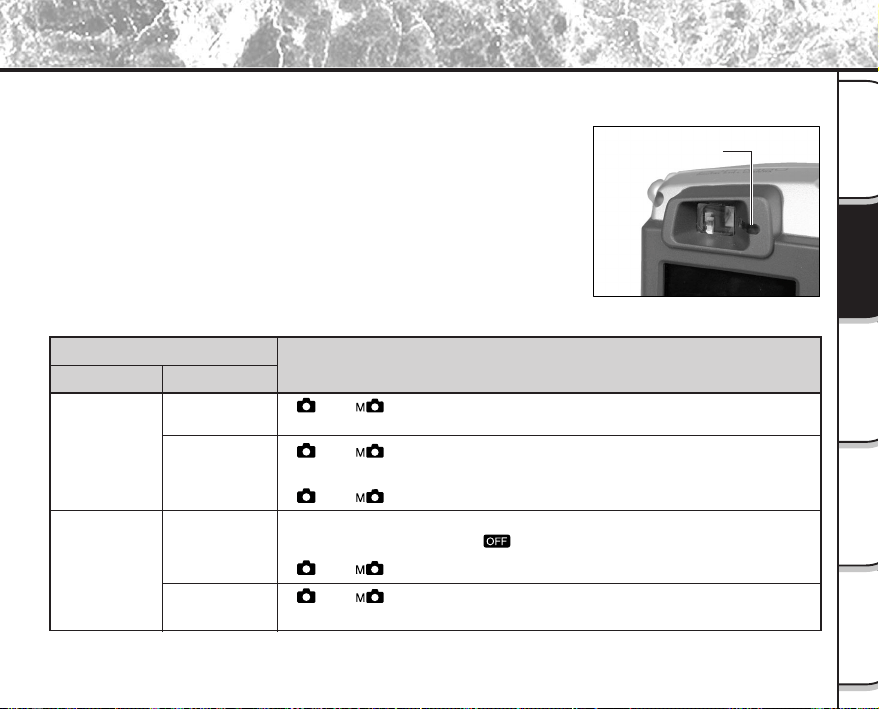

About the Color of the Viewfinder Lamp
The color of the viewfinder lamp indicates the state of the camera. The meaning of the lamp color may differ
according to the mode dial setting.
Viewfinder Lamp
Color
State
Meaning
Green
ON
[ ] or [ ] AE or AF are locked with the shutter button held half down
(Slow shutter speed warning: No indication)
[
] or [ ] AE or AF are locked with the shutter button held half down
(Slow shutter speed warning: Indication)
[
] or [ ] Self-timer in operation
[Power ON] Writing to SmartMedia™ in progress
Do not set the mode dial to [
].
[
] or [ ] Lens cannot work because of obstacle.
[
] or [ ] Over- or under-exposure on preset aperture value
When the image is not in focus
Blinking
Red
ON
Blinking
Viewfinder Lamp
- 40 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Photography (Auto Photography)
This is the most commonly used photography mode.
In this mode, exposure (combination of shutter speed and aperture) is automatically controlled to facilitate
photography. There are two ways of taking photographs in this mode: using the viewfinder and using the LCD
monitor.
Using the Viewfinder
Get ready to take the photograph.
Load the batteries (
➲
Page 23) and the SmartMedia™ (
➲
Page 29) into the camera.
Set the mode dial to [ ].
Press the DISP button to turn the LCD monitor OFF.
To reduce the amount of battery wear, we recommend turning the
LCD monitor display OFF, and using the viewfinder to take
photographs.
- 41 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
Photography (Auto Photography) (continued)
Look through the viewfinder to compose the picture.
Press the shutter button down half way
1
, and press
it down fully
2
.
• Pressing the shutter button down half way adjusts the exposure,
and pressing the shutter button down fully takes the shot.
• When the focus and exposure are adjusted, the viewfinder lamp
lights or blinks in green. (
➲
Page 39)
• If you shoot a picture, when preview is set to ON (
➲
Page 60), a
preview image is displayed on screen for about two seconds.
• The viewfinder lamp turns red while image data is being recorded
onto the SmartMedia™.
Using the LCD Monitor
Get ready to take the photograph.
Load the batteries (
➲
Page 23) and the SmartMedia™ (
➲
Page 29) into the camera.
Press down
half way.
Press down
fully.
1
2
- 42 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Photography (Auto Photography) (continued)
Set the mode dial to [ ].
Look at the image on the LCD monitor to compose the picture.
☞
To adjust the brightness of the LCD monitor
➲
Page 84
Press the shutter button down half way
1
, and press
it down fully
2
.
• Pressing the shutter button down half way adjusts the exposure,
and pressing the shutter button down fully takes the shot.
• When the focus and exposure are adjusted, the viewfinder lamp
lights or blinks in green. (
➲
Page 39)
• If you shoot a picture, when preview is set to ON (
➲
Page 60), a
preview image is displayed on screen for about two seconds.
• The viewfinder lamp turns red while image data is being recorded
onto the SmartMedia™.
Memo
•The LCD monitor sometimes displays bright, dark or colored spots at all times. This is not a malfunction.
These spots do not appear in the photographed image.
•The image is not displayed on the LCD monitor while the shutter button is pressed down fully.
Press down
half way.
Press down
fully.
1
2
- 43 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
Setting the Image Size and Quality
Set the (number of pixels) and quality (compression ratio) of the image to be photographed.
Change the setting according to how the image is to be used and the remaining amount of space in the
SmartMedia™.
Set the mode dial to [ ] or [ ].
Press the image quality button to set the required
quality and size while viewing the image on the status
display.
Pressing the image quality button displays the available qualities and
sizes in order. Select from the available combinations of quality and
size.
<Quality> [★★★] FINE : Low compression
[★★★] NORMAL : Middle compression
[★★★] BASIC : High compression
The more stars there are, the better image quality becomes. Higher quality images,
however, take up more memory space, reducing the number of images that can be taken.
<Size> M65: [FULL] 2048 x 1536 pixels, [HALF] 1024 x 768 pixels
M61: [FULL] 1792 x 1200 pixels, [HALF] 896 x 600 pixels
The FULL setting improves the quality of the image. Higher quality images, however, take up
more space, reducing the number of images that can be taken.
★★FULL (default) ★★★FULL ★FULL★★★HALF★★HALF★HALF
- 44 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Setting the Image Size and Quality (continued)
Take the photograph.
☞
For details on how to take photographs
➲
Page 40
Memo
• To make the image smaller, it is more effective to reduce the size and then reduce image quality.
• After you have taken a photograph, you can change its size (
➲
Page 66) and quality (
➲
Page 68).
• The memory size of the image varies according to the subject.
• The compression ratio is given for reference only.
• The settings are not canceled even if the camera is turned OFF or the Auto Power OFF function is
activated.
• The settings are canceled when you remove or insert the batteries or disconnect or connect the AC
adapter.
- 45 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready

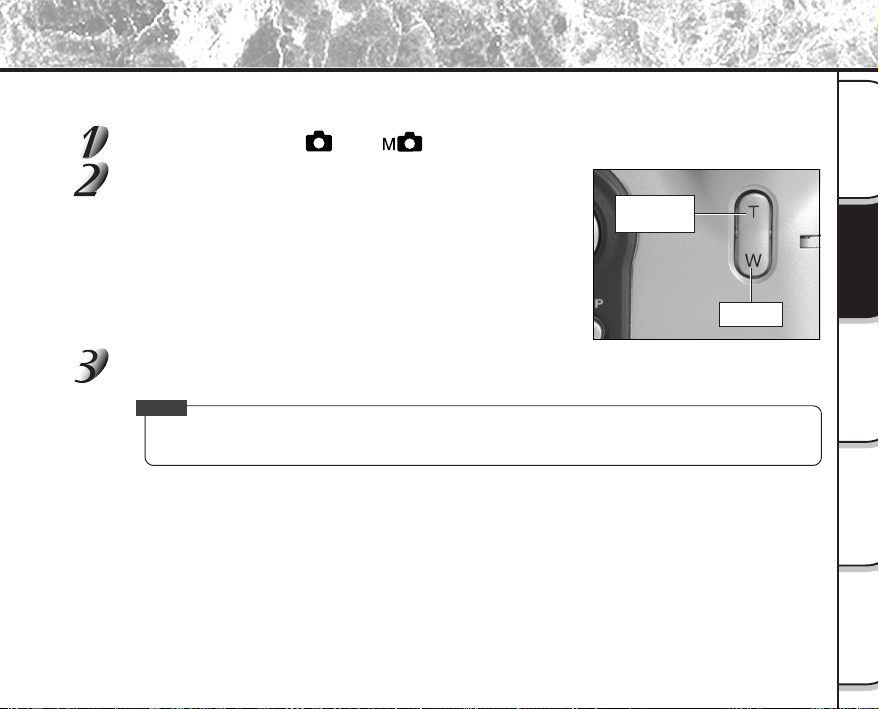

Zoom photography allows you to take zoom shots and wide angle shots.
Set the mode dial to [ ] or [ ].
Compose the picture using the Zoom key.
• Pressing the Telephoto (zoom) key zooms in on the subject, and
enlarges the subject on the LCD monitor.
• Pressing the Wide key provides a wider angle picture.
• The lens position moves according to the Zoom key setting.
Press the shutter button down half way, and press it down fully.
➲
Page 37
Memo
• The Zoom key setting is automatically canceled by either turning the camera OFF or by activation of the
Auto Power OFF function.
Zoom Photography
Telephoto
(zoom) key
Wide key
- 46 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Digital Zoom Photography
This function enlarges the center of the image displayed on the screen so that it appears that the photographed
image is enlarged twice its size.
The LCD monitor automatically turns ON in this mode. Take pictures while viewing the image in the LCD monitor.
Set the mode dial to [ ] or [ ].
In the Manual Photography mode, press the ENTER button to set the manual setup screen to non-display.
➲
Page 54
Press the button.
[ZOOM] is displayed in the LCD monitor and the center of the screen is enlarged at twice the original
size.
Look at the image on the LCD monitor to compose the picture.
☞
Using the LCD Monitor
➲
Page 34
Press the shutter button down half way, and press it down fully.
➲
Page 37
To cancel digital zoom photography, press the button.
Memo
• The image size is fixed to HALF (M65: 1024 x 768 pixels, M61: 896 x 600 pixels) in the Digital Zoom
Photography mode. However, in the MULTI mode, you can take pictures even at FULL (M65: 2048 x
1536 pixels, M61: 1792 x 1200 pixels). (
➲
Page 52)
• Digital zoom photography is automatically canceled by either turning the camera OFF or by activation
of the Auto Power OFF function.
- 47 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready

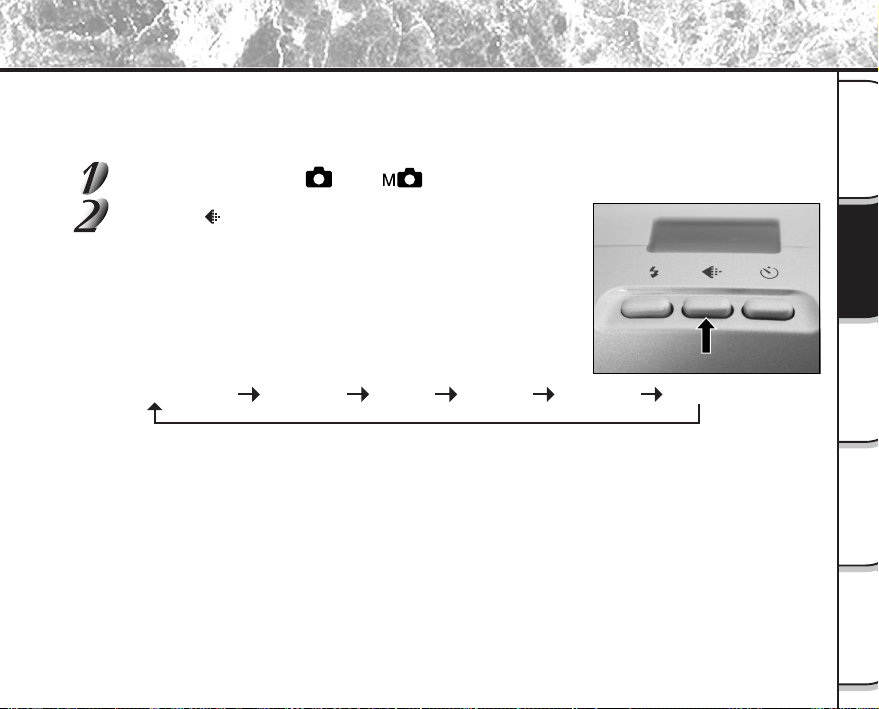

Close-up Photography (Macro Photography)
The macro photography mode is used when the distance to the subject is between 2 in. (5 cm) at wide to
20 in. (50 cm).
This camera cannot focus on subjects within 2 in. (5 cm) at wide to 20 in. (50 cm) unless in the macro photography
mode. Do not use the macro photography mode for subjects outside of this range.
In the macro photography mode, the LCD monitor automatically turns ON. Take the photograph while viewing the
LCD monitor.
Set the mode dial to [ ] or [ ].
Press the macro button.
[ ] is displayed on the LCD monitor and the status display.
In the Manual Photography mode, [
] is not displayed on the LCD
monitor when the manual setup screen is displayed.
Press the ENTER button to set the manual setup screen to
non-display.
➲
Page 54
Look at the image on the LCD monitor to compose the picture.
☞
Using the LCD Monitor
➲
Page 34
Press the shutter button down half way, and press it down fully.
➲
Page 37
To cancel macro photography, press the macro button again.
Memo
• Macro photography is not canceled even if the camera is turned OFF or the Auto Power OFF function is
activated.
• Only the [ ] Suppressed Flash and [ ] Forced Flash modes can be set for flash photography.
• The settings are canceled when you remove or insert the batteries or disconnect or connect the AC
adapter.
- 48 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

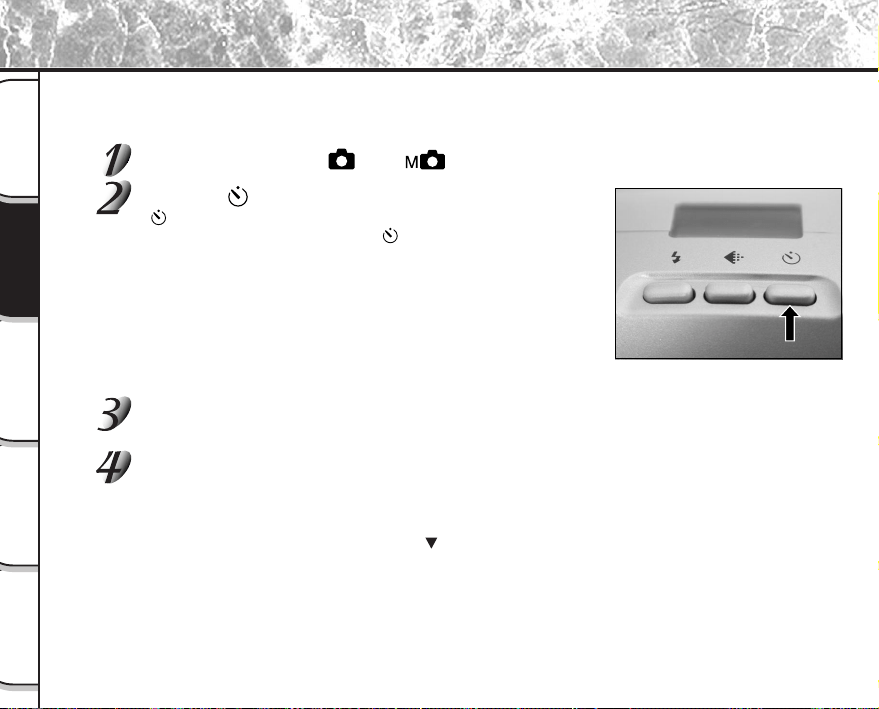

When the self-timer is used, the shutter automatically closes after the preset time (two or ten seconds).
☞
Changing the set time until photography
➲
Page 61
Set the mode dial to [ ] or [ ].
Press the self-timer button.
[ ] is displayed on the LCD monitor and the status display.
In the Manual Photography mode, [
] is not displayed on the LCD
monitor when the manual setup screen is displayed.
Press the ENTER button to set the manual setup screen to
non-display.
➲
Page 54
Compose the picture.
Press the shutter button down half way, and press it down fully.
➲
Page 37
The self-timer lamp blinks (in red) after lighting in red, and the viewfinder lamp blinks in green. The
photograph is then taken after the preset time (two or ten seconds).
When photographs are taken using the LCD monitor, the count down is displayed.
To cancel photography midway, press the
button.
After you have set the self-timer, the setting is not canceled even if the camera is turned OFF or the Auto
Power OFF function is activated.
The setting is canceled when you execute the self-timer photography, remove or insert the batteries or
disconnect or connect the AC adapter.
Photography Using the Self-timer (Self-timer Photography)
- 49 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready

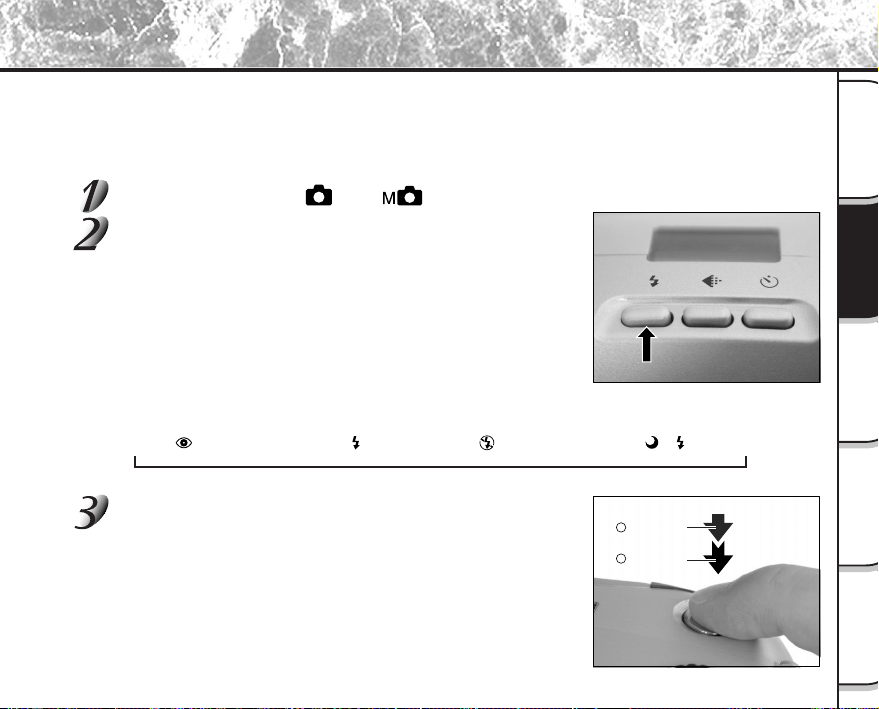

Photography Using the Flash (Flash Photography)
➔
In the default setting, the flash will be automatically set to function in dark places. No special setting is needed to
set off the flash. The flash firing mode can be set to suit the conditions where the flash is to be fired.
The effective firing distance of the flash is approximately 1.3 ft (0.4 m) to 10 ft (3 m).
Set the mode dial to [ ] or [ ].
Press the flash button to set to the desired mode
while viewing the image on the LCD monitor or the
status display.
Pressing the flash button displays the available flash modes in order.
The icon for the mode that you selected is displayed in the LCD
monitor or the status display.
In the Manual Photography mode, the icon for the mode that you
selected is not displayed on the LCD monitor when the manual setup
screen is displayed.
Press the ENTER button to set the manual setup screen to non-display.
➲
Page 54
Auto ➔ [ ] Red-Eye Reduction ➔ [ ] Forced Flash ➔ [ ] Suppressed Flash ➔ [ ] [ ] Slow Synchro
Compose the picture. Press the shutter button down
half way
1
, and press it down fully
2
.
Press down
half way.
Press down
fully.
1
2
- 50 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Auto
In this mode, the flash fires automatically according to the photography conditions. This mode is ideal for
general photography where you are not trying to achieve any particular effect (when using macro photography,
the flash does not fire).
[ ] Red-Eye Reduction
Use this mode to avoid the red-eye effect (
➲
Additional Information, Glossary (Page 105)) when
photographing people in low-light conditions.
The flash emits a pre-flash just before the picture is taken and then flashes again to take the actual picture.
Red-eye is reduced more effectively if the camera is pointed at the line of sight of the subject at as close a
distance as possible.
[ ] Forced Flash
In this mode, the flash always fires. Use the Forced Flash mode to shoot pictures in artificial light (backlighting,
fluorescent lighting, etc.).
The flash also fires during macro photography.
[ ] Suppressed Flash
Use the Suppressed Flash mode when you are taking pictures in indoor lighting at distances too great for the
flash to have any effect, such as theater performances or indoor sporting events.
[ ] [ ] Slow Synchro
The flash is fired at a slower shutter speed.
Photography Using the Flash (Flash photography) (continued)
- 51 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
Photography Using the Flash (Flash photography) (continued)
Memo
• If you take a photograph in the [ ] [ ] Slow Synchro mode at a place with a dark background or in the [ ]
Suppressed Flash mode at a dark place, the shutter speed slows down, and the slow shutter speed warning is
displayed. (When the shutter is pressed half way down, the viewfinder lamp blinks green and the slow shutter
speed mark [
] is displayed in the LCD monitor.) We recommend using a tripod to prevent blurred image
caused by shaking.
• Using the flash during multi photography and bulb photography is not possible.
• The flash setting is not canceled even if the camera is turned OFF or the Auto Power OFF function is activated.
• The settings are canceled when you remove or insert the batteries or disconnect or connect the AC adapter.
• It may take a few seconds to charge the flash. Photography by using the flash is not possible while the charging
is in progress. So wait until the charging is completed.
- 52 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
This mode takes 16 shots continuously at 0.25 second intervals. The 16 photographed images are saved as one
image.
This mode is effective for continuously photographing moving subjects.
Set the mode dial to [ ] or [ ].
Set the REC. mode to [MULTI].
1
Press the MENU button.
2
Use the
or buttons to select [REC.MODE] and press the button.
3
Use the
or buttons to select [MULTI] and press the ENTER button.
4
Press the MENU button.
☞
For details on the REC. mode,
➲
Page 59.
[
] is displayed in the LCD monitor or the status display.
In the Manual Photography mode, [
] is not displayed on the LCD monitor when the manual setup
screen is displayed.
Press the ENTER button to set the manual setup screen to non-display.
➲
Page 54
Compose the picture, press the shutter button down half way, and press it down
fully.
➲
Page 37
The shutter is opened and closed 16 times.
Memo
• The photography interval changes according to the photographic conditions.
• Flash photography is not possible.
• The settings are not canceled even if the camera is turned OFF or the Auto Power OFF function is
activated.
• The settings are canceled when you remove or insert the batteries or disconnect or connect the AC
adapter.
Multi Image Photography (Multi Photography)
- 53 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
This mode is used for taking subjects that require several seconds to photograph such as firework displays at
night. When using this mode, be sure to use a tripod to keep the camera stable and prevent distorted images.
Set the mode dial to [ ] or [ ].
Set the REC. mode to [BULB].
1
Press the MENU button.
2
Use the
or buttons to select [REC.MODE] and press the button.
3
Use the
or buttons to select [BULB] and press the ENTER button.
4
Press the MENU button.
☞
For details on the REC. mode
➲
Page 59
[
] and [ ] are displayed in the LCD monitor or the status display.
In the Manual Photography mode, [
] and [ ] are not displayed on the LCD monitor when the
manual setup screen is displayed.
Press the ENTER button to set the manual setup screen to non-display.
➲
Page 54
Compose the picture, press the shutter button down half way, and press it down
fully.
➲
Page 37
The camera takes the picture at the set exposure time.
During the exposure, the viewfinder lamp turns red.
It takes about twice the set time to complete taking the photograph due to processing of the captured
image.
☞
Changing the exposure time
➲
Page 61
Memo
• Flash photography is not possible.
• The settings are not canceled even if the camera is turned OFF or the Auto Power OFF function is
activated.
• The settings are canceled when you remove or insert the batteries or disconnect or connect the AC
adapter.
Long Exposure Photography (Bulb Photography)
- 54 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
You can manually adjust conditions such as white balance and exposure compensation, and take photographs at
these conditions. This is called “manual photography.” Settings made in this mode are saved even if the camera is
turned OFF.
IMPORTANT
• If you remove or insert the batteries or disconnect or connect the AC adapter, the manual photography
settings will return to their defaults. If this happens, manually set the conditions again.
• The settings are not canceled even if the camera is turned OFF or the Auto Power OFF function is
activated.
Set the mode dial to [ ].
The manual setup screen is displayed.
Display or non-display of the manual setup screen is toggled at each
press of the ENTER button.
☞
If the LCD monitor is difficult to view
➲
Page 84
Press the or buttons to select the setting item
and the
or buttons to select the set value.
☞
[W.B.] White balance
➲
Page 56
[E.V.] Exposure compensation
➲
Page 56
Taking Photographs Manually (Manual Photography)
Setting items
Set values
W.B.
E.V.
+0.3
0.3
AUTO
0
- 55 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
Taking Photographs Manually (Manual Photography) (continued)
Press the ENTER button.
This fixes the setting.
The camera is ready to take photographs.
Compose the picture, press the shutter button down half way, and press it down
fully.
➲
Page 37
The camera takes the picture.
Memo
• Photography is also possible with the manual setup screen displayed.
- 56 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
W.B. (White Balance)
☞
White Balance
➲
Additional Information, Glossary (Page 105)
The camera determines the white balance by averaging the various kinds of light that enters the lens.
This setting allows you to set the white balance when taking photographs under specific lighting
conditions.
This setting does not function when the flash is used to take photographs.
[AUTO]
: Automatic adjustment (default)
[
] : Photography outdoors
[
] : Photography in cool white fluorescent light
[
] : Photography in standard fluorescent light
[
] : Photography in incandescent light
E.V. (Exposure Compensation)
☞
E.V. (Exposure Compensation)
➲
Additional Information, Glossary (Page 105)
This setting allows you to lighten or darken the entire screen. Use this setting when the optimum
brightness (exposure) cannot be obtained, for example, when there is a lot of contrast between the
subject and the background or when the subject to photograph occupies only an extremely small part of
the screen. Increasing E.V. lightens the screen, while decreasing E.V. darkens the screen.
[+1.5/+1.2/+0.9/+0.6/+0.3/0 (default)/–0.3/–0.6/–0.9/–1.2/–1.5]
The ideal brightness sometimes cannot be obtained even if a large E.V. value is set in dark photographic
conditions.
Also, the brightness of moving images before they are photographed sometimes does not change if the
subject itself is dark. In this case, press the shutter button, and check the brightness in the preview
image (photographed image).
(preview photography
➲
Page 60)
Taking Photographs Manually (Manual Photography) (continued)
- 57 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
Taking Photographs Manually (Manual Photography) (continued)
Effective Subjects and Set Values
● Positive (+) Compensation
• Copying of printed text (black characters on white paper) (+1.5)
• Backlit portraits (+0.6 to +1.5)
• Very bright scenes (such as snowfields) and highly reflective subjects (+0.9)
• Shots made up predominantly of sky (+0.9)
● Negative (–) Compensation
• Spotlit subjects, particularly against dark backgrounds (–0.6)
• Copying of printed text (white characters on black paper) (–0.6)
• Scenes with low reflectivity, such as shots of green or dark foliage (–0.6)
- 58 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Changing the Preset Conditions (REC MENU)
This menu is for setting the basic settings to be used for photography in the [ ] automatic photography and
[
] manual photography mode.
The settings are not canceled even if the camera is turned OFF or the Auto Power OFF function is activated. The
settings (except the LCD monitor brightness) are canceled when you remove or insert the batteries or disconnect
or connect the AC adapter.
Set the mode dial to [ ] or [ ].
Press the MENU button.
The REC MENU is displayed.
Use the or buttons to select the desired
setting item
1
and press the [
] button.
The tab menu
2
is displayed.
The image before the photograph is taken is displayed
on the LCD monitor when selecting [LCD].
☞
REC. MODE
➲
Page 59
PREVIEW
➲
Page 60
ISO
➲
Page 60
BULB
➲
Page 61
SELF TIMER
➲
Page 61
LCD
➲
Page 61
Use the or buttons to select the desired setting from the tab menu
2
, and
press the ENTER button.
This saves the settings, and returns the display to the REC MENU.
2
Tab menu
1
Setting item
PREVIEW
ISO
LCD
BULB
SELF TIMER
10 SEC
SET
MULTI
BULB
1
SHOT
REC MENU
REC.
MODE
1
SHOT
- 59 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
To quit the REC MENU, press the MENU button.
The camera is now ready to take photographs.
REC. MODE
Select from the following photography modes:
[1SHOT], [MULTI] and [BULB] are modes for photographing images.
[1SHOT] :Regular photography, one shot at a time (default)
➲
“Taking Photographs (page 40)”
[MULTI] :Continuously taking 16 photographs as a single image
➲
“Multi Image Photography (page 52)”
[BULB] :Taking photographs at a longer exposure time
➲
“Long Exposure Photography (page 53)”
Photography Mode and Functions
You can combine photography modes and the various functions for extra flexibility.
The following table shows the possible combinations of photography mode functions:
Changing the Preset Conditions (REC MENU) (continued)
1SHOT
MULTI
BULB
O : Possible
X : Not possible
Macro
O
O
O
Self-timer
O
O
O
Digital zoom
O
O
O
Flash
O
X
X
Photography
Mode
- 60 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Changing the Preset Conditions (REC MENU) (continued)
PREVIEW
This setting allows you to display a photographed image on the LCD monitor for two seconds
immediately after you have taken the shot.
This allows you check the composition and brightness of the photographed image.
[ON] : Display preview (default)
[OFF] : Do not display preview
ISO
Sets the color mode and photographic sensitivity at which the image is to be recorded.
Warning: Noise increases when the ISO is changed to a higher setting.
[ISO100] : Equivalent to color ISO100 (default)
[ISO200] : High-sensitive photography equivalent to color ISO200
[ISO400] : High-sensitive photography equivalent to color ISO400
[B&W] : Black and white
- 61 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Basic
Photography
Getting Ready
Changing the Preset Conditions (REC MENU) (continued)
BULB
Sets the exposure time when taking pictures in the bulb photography mode (
➲
Page 53).
[1
SEC] : Opens shutter for about 1 second (default)
[2
SEC] : Opens shutter for about 2 seconds
SELF TIMER
Sets the delay time for when the photograph is taken after the shutter button is pressed during self-timer
photography (
➲
Page 48).
[10
SEC] : Picture taken after a 10-second delay (default)
[2
SEC] : Picture taken after a 2-second delay
LCD
Adjusts the brightness of the LCD monitor. This adjustment does not adjust the brightness of the image
to be recorded.
[-5] to [+5]
☞
To adjust the brightness of the LCD monitor
➲
Page 84
- 62 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Playing Back Photographed Images (Single-Frame Playback)
Play back photographed images one image at a time.
Set the mode dial to [ ].
The last image frame appears on the LCD monitor.
☞
To adjust the brightness of the LCD monitor
➲
Page 84
Changing the LCD monitor display
➲
Page 85
Press the or buttons to move forward and reverse.
Frame reverse/ Frame forward
Holding down the
or buttons moves forward or reverse continuously one frame at a time.
Memo
• Pressing the button at the last image displays the first image, and pressing the button at the first
image displays the last image.
- 63 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

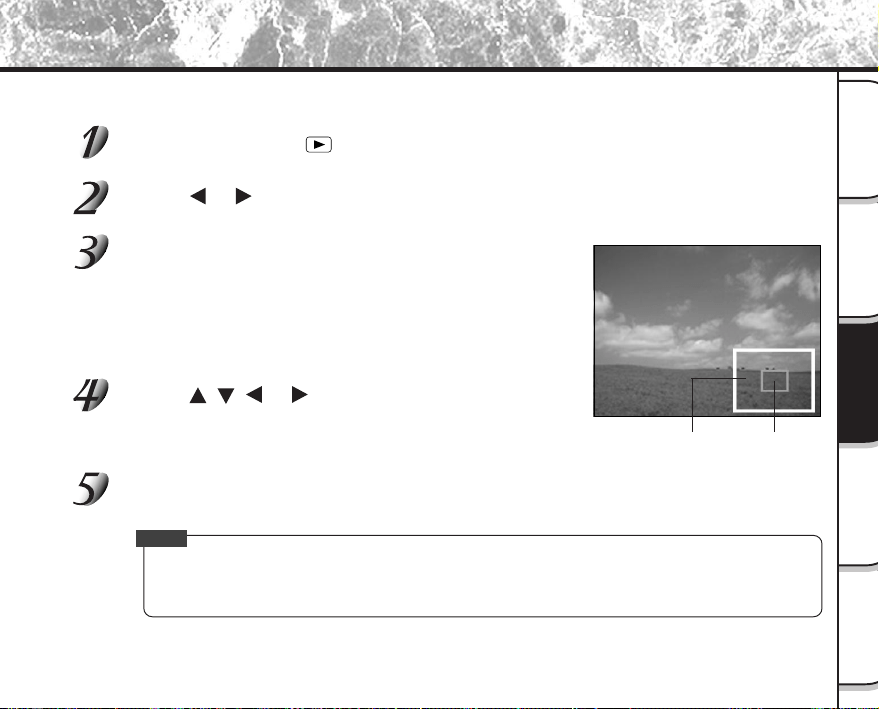

Enlarging Photographed Images (Zoom Playback)
Enlarges selected portions of images being played back 3 times actual size. Images can be displayed enlarged
when being played back one image at a time.
Set the mode dial to [ ].
The last image frame appears on the LCD monitor.
Use the or buttons to select the frame you want to enlarge.
You can also select the image by the same operation as for thumbnail playback (
➲
Page 64).
Enlarge the image by using the Zoom key.
Pressing the Telephoto (zoom) key zooms to 3X.
The image is displayed enlarged, and a white frame and green frame
are displayed on the LCD monitor.
The white frame indicates the entire image, while the green frame
shows the location of the currently enlarged area.
Use the , , or buttons to select the area to
enlarge.
Adjust the display area to enlarge while viewing the white and green
frames.
To return to the regular display, press the ENTER button.
Memo
• Not support Zoom Playback function on TV (only M65).
• The Zoom Playback function is automatically canceled by either turning the camera OFF or by
activation of the Auto Power OFF function.
Entire image
Current
position of
enlargement
- 64 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Displaying a List of Images (Thumbnail Display)
Nine reduced images are simultaneously displayed on the LCD monitor. This manual calls this display “thumbnail
display.”
This feature is useful, for example, when there are many images. After you have displayed the thumbnail display,
you can select the desired image and display it in the regular display.
Set the mode dial to [ ].
The last image frame appears on the LCD monitor.
Press the ENTER button.
Nine images are displayed simultaneously.
Use the , , or buttons to move the cursor to
select the image to be displayed at regular size.
The cursor lies on top of the image surrounded by a frame.
Pressing the buttons continuously moves the cursor continuously.
Press the ENTER button.
The selected image is displayed at its regular size.
Memo
•
The Thumbnail Display
function is automatically canceled by either turning the camera OFF or by
activation of the Auto Power OFF function.
- 65 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Auto Playback (Slideshow)
Automatically play back one image at a time in order.
Set the mode dial to [ ].
The last image frame appears on the LCD monitor.
Press the MENU button.
The PLAY MENU is displayed.
Use the or buttons to select [SLIDE] and
press the
button.
The slideshow begins and [ ] is displayed on the LCD monitor.
The next image is displayed every three seconds.
To quit the slideshow, press the ENTER button.
The slideshow is repeated until the ENTER button is pressed.
The LCD monitor displays the image when the ENTER button is pressed.
Memo
• The Auto Power OFF function does not operate during automatic playback.
➡
SLIDE
PROTECT
LCD
RESIZE
QUALITY
SET
PLAY MENU
FOLDER
SET
SET
SET
SET
SET
- 66 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Reducing the Image Size (Resize)
Changes the size of FULL size (M65: 2048 x 1536 pixels, M61: 1792 x 1200 pixels) images to half the size
(M65: 1024 x 768 pixels, M61: 896 x 600 pixels) in the horizontal and vertical directions, and overwrites the old
FULL size image with the new size image. This is called “resizing” in this manual.
Resizing a previously saved image when the SmartMedia™ has run out of storage space during photography
increases space on SmartMedia™ so that you can continue taking photographs.
The following images cannot be resized:
• HALF size images
• Images taken with another camera
• Protected images (
➲
Page 76)
• Images cannot also be resized when the SmartMedia™ is write-protected.
Set the mode dial to [ ].
The last image frame appears on the LCD monitor.
Press the MENU button.
The PLAY MENU is displayed.
Memo
• Only FULL size (M65: 2048 x 1536, M61: 1792 x 1200 pixels) images can be reduced. Further
reduction of HALF size (M65: 1024 x 768, M61: 896 x 600 pixels) images is not possible.
- 67 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

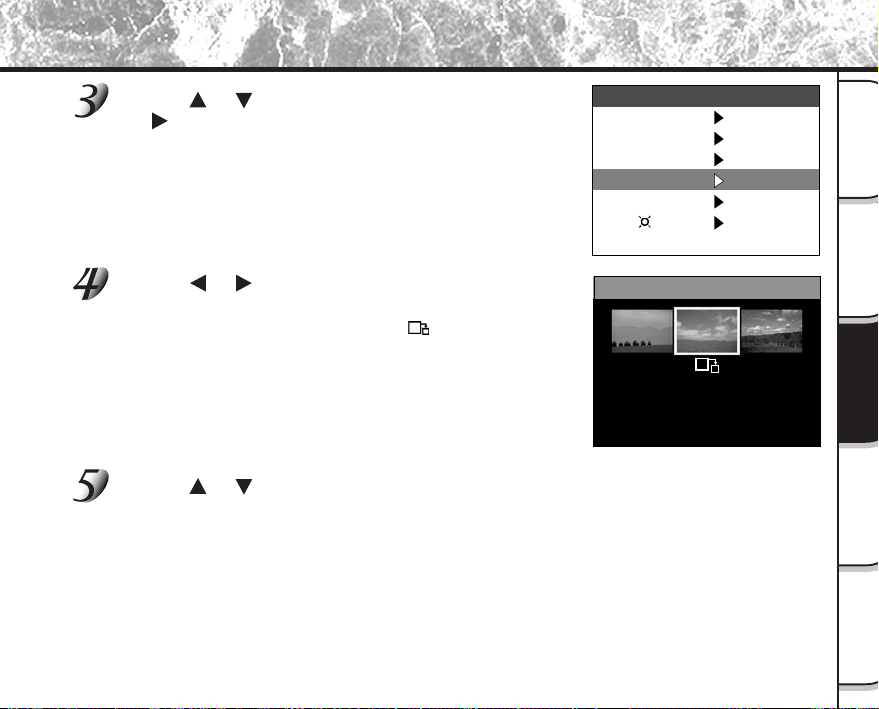

Reducing the Image Size (Resize) (continued)
Use the or buttons to select [RESIZE] and press
the
button.
The RESIZE menu is displayed.
If there are no images that can be resized, a message
appears on screen and the screen returns to the PLAY MENU.
Use the or buttons to select the image and press
the ENTER button.
This fixes the image to be displayed, and [ ] is displayed under
the image.
To cancel the selection, press the ENTER button again.
If you want to resize two or more images, repeat the procedure for
each image.
Use the or buttons to select [EXEC], and press the ENTER button.
The screen indicating that the image is being resized appears.
To quit resizing, select [CANCEL].
When resizing ends, the screen returns to the PLAY MENU.
To quit the PLAY MENU, press the MENU button.
➡
RESIZE
CANCEL
EXEC
SLIDE
PROTECT
LCD
RESIZE
QUALITY
SET
PLAY MENU
FOLDER
SET
SET
SET
SET
SET
- 68 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Compressing Images (Quality)
Compresses images to half their size, and overwrites the old size image with the new compressed image.
Compressing a previously saved image when the SmartMedia™ has run out of storage space during photography
increases space on SmartMedia™ so that you can continue taking photographs.
The following images cannot be compressed:
•[★] (BASIC) image quality images
• Images taken with another camera
• Protected images (
➲
Page 76)
• Images cannot also be compressed when the SmartMedia™ is write-protected.
Set the mode dial to [ ].
The last image frame appears on the LCD monitor.
Press the MENU button.
The PLAY MENU is displayed.
Memo
• Compression of images can be accomplished only in the following order:
★★★(FINE) ➔ ★★(NORMAL) ➔ ★(BASIC).
The reverse is not possible.
- 69 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Compressing Images (Quality) (continued)
Use the or buttons to select [QUALITY], and
press the
button.
The QUALITY menu is displayed.
If there are no images that can be compressed, a message
appears on screen and the screen returns to the PLAY MENU.
The current compression ratio (quality) is displayed
under the image.
Each press of the ENTER button changes the number of stars as
follows:
[★★★] : FINE
[★★] : NORMAL
[★] : BASIC
☞
Details of quality setting
➲
Page 43
If you want to compress two or more images, repeat the procedure
for each image.
Use the or buttons to select [EXEC], and press
the ENTER button.
The screen indicating that the image is being compressed appears.
To quit compression, select [CANCEL].
When compression ends, the screen returns to the PLAY MENU.
To quit the PLAY MENU, press the MENU button.
➡
SLIDE
PROTECT
LCD
RESIZE
QUALITY
SET
PLAY MENU
FOLDER
SET
SET
SET
SET
SET
QUALITY
CANCEL
EXEC
- 70 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Select the folder to play back when the currently loaded SmartMedia™ contains two or more folders.
Set the mode dial to [ ].
The last image frame or the thumbnail display appears on the LCD monitor.
Press the MENU button.
The PLAY MENU is displayed.
Use the or buttons to select [FOLDER], and
press the
button.
The names of the folders in the currently loaded SmartMedia™
are displayed.
Use the or buttons to select the folder to be displayed, and press the ENTER
button.
Selecting the Folder to Play Back
➡
SLIDE
PROTECT
LCD
RESIZE
QUALITY
SET
PLAY MENU
FOLDER
SET
SET
SET
SET
SET
- 71 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Selecting the Folder to Play Back (continued)
Memo
About Folder Names
Images photographed on this camera are recorded to a folder. You cannot choose in which folder to
store images. The [100] folder is created when you have photographed images. When the number of
images reaches the largest number (9999), a new folder [101] is created.
When there are two or more folders, the playback folder default is the one whose folder number is larger.
• When you use SmartMedia™ on your PC, a folder [xxxTOSHI] is created.
- 72 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

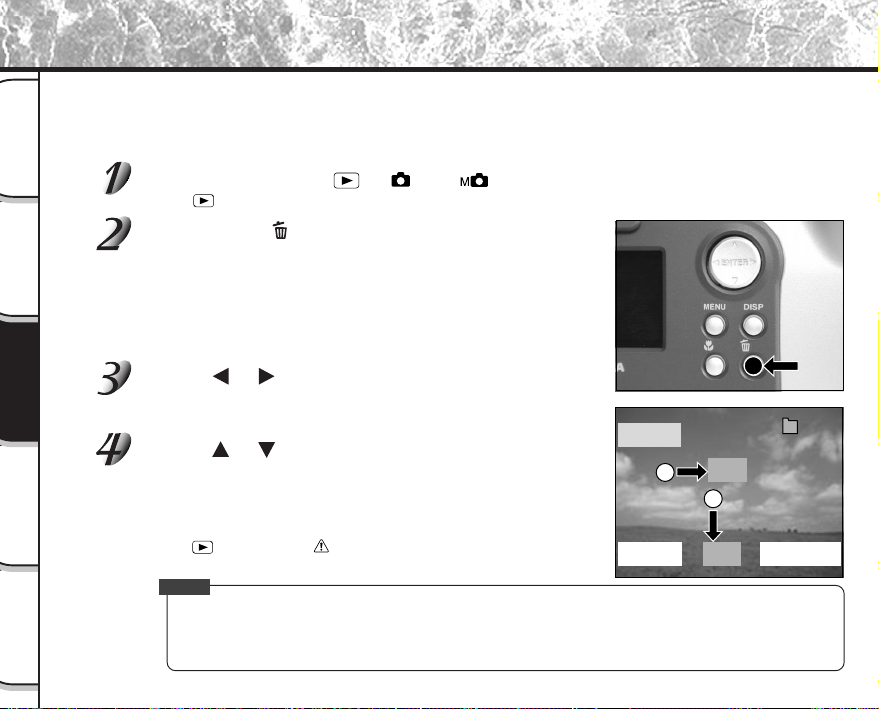

Erases one image at a time.
Note, however, that images cannot be erased when they are protected (
➲
Page 76) or the SmartMedia™ is write-
protected (
➲
Page 32).
Set the mode dial to [ ], [ ] or [ ].
When [ ] is selected, the last image frame appears on the LCD monitor.
When [ ] is selected, use the or buttons to select the image to be erased.
When [ ] or [ ] is selected, the last image is selected.
Press the erase button.
[FRAME] or [LAST] is displayed at the bottom left of the screen.
Use the or buttons to select [YES], and press the
ENTER button.
This erases the image and returns to the previous mode.
To cancel erasing of image data, select [NO], and press the ENTER
button.
Erasing Images (Erase Frame)
ERASE
FRAME
YES
100
0004
NO
- 73 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
To continue erasing images, repeat the above procedure from step 2.
Memo
• When [ PROTECT ] is displayed on the LCD monitor, cancel the protection (
➲
Page 76).
• If you take a photograph after erasing an image, a number continuing from the last photographed
image is assigned as the image number.
Erasing Images (Erase Frame)
- 74 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Erases all images within the currently selected folder.
For details on folders, see “Selecting the Folder to Play Back” (
➲
Page 70).
Note, however, that images cannot be erased when they are protected (
➲
Page 76) or when the SmartMedia™ is
write-protected (
➲
Page 32).
Set the mode dial to [ ], [ ] or [ ].
When [ ] is selected, the last image frame appears on the LCD monitor.
Hold down the erase button for two seconds.
The ERASE menu is displayed.
Use the or buttons to select [ALL]
1
.
Make sure that [ALL] at the bottom center of the image is displayed
in yellow.
Use the or buttons to select [YES]
2
, and press
the ENTER button.
This erases the images and returns to the previous mode.
To cancel erasing of image data, select [NO], and press the ENTER
button.
When [
] is selected, [ NO IMAGE] is displayed after the images
are erased (unless the SmartMedia™ contains protected images).
Memo
• The folder is not erased even if you execute ERASE ALL. PDR-M65 or PDR-M61 does not display the
folder not containing any image.
• To erase the images in another folder, specify the folder by [FOLDER] and then erase the images.
(
➲
Page 70)
Erasing All Images in a Folder (Erase All)
ERASE
FRAME
ALL
FORMAT
YES
100
0004
NO
2
1
- 75 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Formatting erases all images currently recorded on the SmartMedia™ loaded on your camera. Protected images
(
➲
Page 76) are also erased. SmartMedia™ cannot be formatted if it is write-protected (
➲
Page 32).
IMPORTANT
• The SmartMedia™ must be formatted on the camera before use.
Set the mode dial to [ ], [ ] or [ ].
When [ ] is selected, the last image frame appears on the LCD monitor.
Hold down the erase button for two seconds.
The ERASE menu is displayed.
Use the or buttons to select [FORMAT]
1
.
Make sure that [FORMAT] is displayed in yellow at the bottom right of
the screen.
Use the or buttons to select [YES]
2
, and press
the ENTER button.
To cancel formatting, select [NO], and press the ENTER button.
To reset the image number, use the or buttons to
select [YES], and press the ENTER button.
To cancel resetting of image numbers, select [NO], and press the
ENTER button.
Formatting the SmartMedia™
ERASE
FRAME
ALL
FORMAT
YES
100
0004
NO
2
1
- 76 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

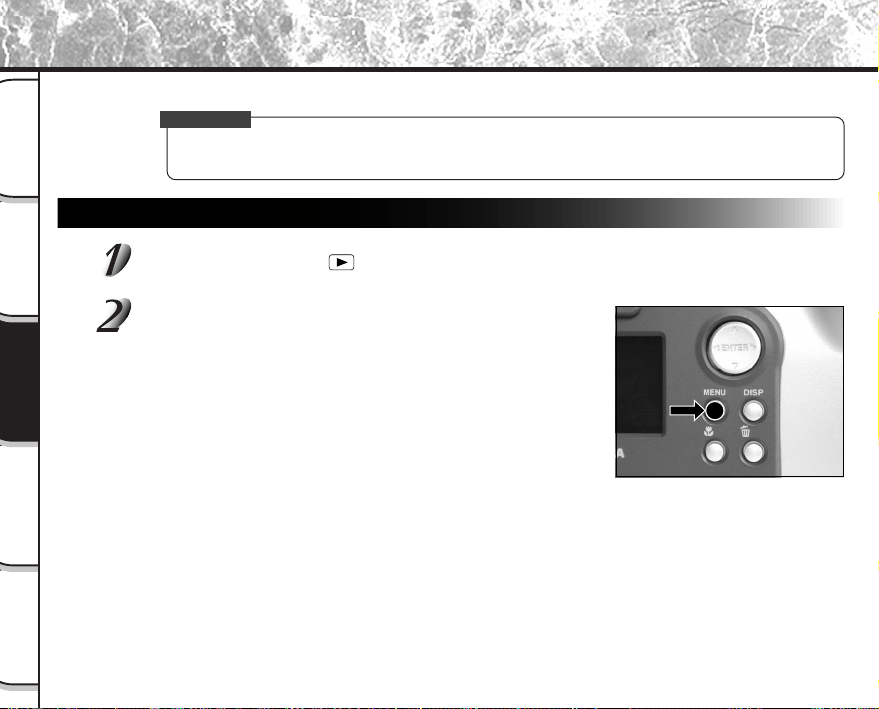

This feature prevents images from being erased.
IMPORTANT
• Formatting erases all the images on a SmartMedia™, regardless of whether they are protected or not.
• To protect the entire SmartMedia™, see “Write Protection” (
➲
Page 32).
Protecting an Image
Set the mode dial to [ ].
The last image frame appears on the LCD monitor.
Press the MENU button.
The PLAY MENU is displayed.
Protecting Images
- 77 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Use the or buttons to select [PROTECT] and
press the
button.
The PROTECT menu is displayed.
Use the or buttons to select the desired image to
protect, and press the ENTER button.
This fixes the image to be protected, and [ ] is displayed under
the image.
To cancel the selection, press the ENTER button again.
To write-protect two or more images, repeat this procedure for each
image.
Use the or buttons to select [EXEC], and press the ENTER button.
To quit write-protection, select [CANCEL].
When write-protection ends, the screen returns to the PLAY MENU.
To quit the PLAY MENU, press the MENU button.
Memo
• When the PROTECT setup screen is displayed again, [ ] is displayed under protected images.
• To cancel write-protection for an image, write-protection is simultaneously canceled if set at step 4.
Protecting Images (continued)
PROTECT
CANCEL
EXEC
➡
SLIDE
PROTECT
LCD
RESIZE
QUALITY
SET
PLAY MENU
FOLDER
SET
SET
SET
SET
SET
- 78 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

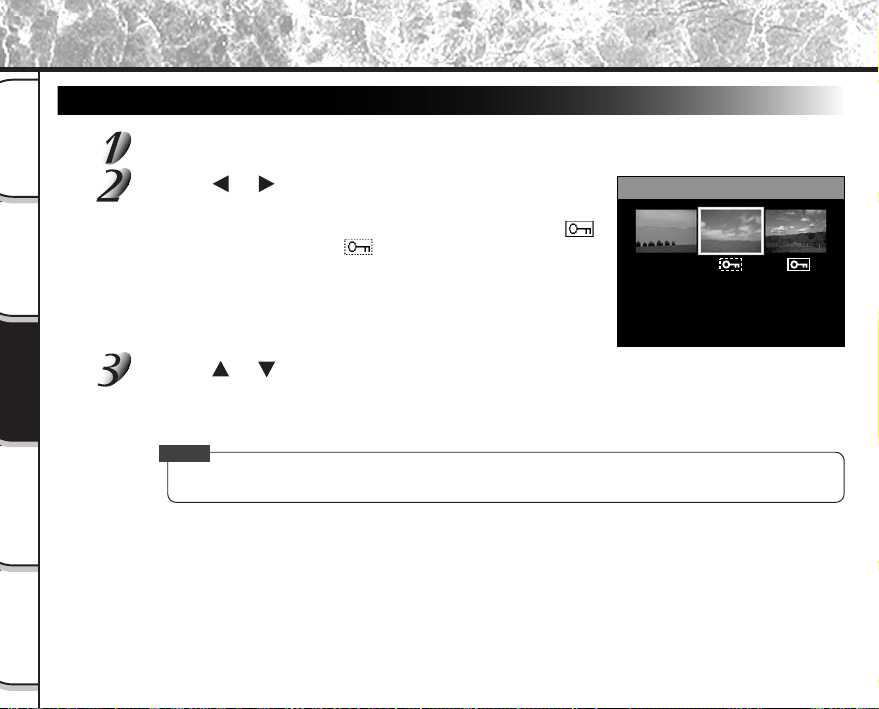

Removing the Protection
Carry out steps 1 to 3 in “Protecting An Image”.
Use the or buttons to select the image to
unprotect, and press the ENTER button.
This fixes the images whose protection is to be removed, and [ ]
under the image changes to [
].
To unprotect an image, press the ENTER button again.
To remove the protection from two or more images, repeat this
procedure for the necessary number of images.
Use the or buttons to select [EXEC], and press the ENTER button.
To quit write-protection, select [CANCEL].
When write-protection ends, the screen returns to the PLAY MENU.
To quit the PLAY MENU, press the MENU button.
Memo
• To protect an image again, write-protection is simultaneously carried out if set at step 2.
Protecting Images (continued)
PROTECT
CANCEL
EXEC
- 79 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic Photographic Settings (SET-UP mode)
This feature allows you to set up the environment for using your camera in addition to image-related settings. This is
called “setup”. The following items can be changed in the SET-UP mode:
LANGUAGE/SOUND/TIME/AUTO-OFF/TV (only M65) /IMAGE No./DEFAULT
The details set here are held in memory even if the camera is turned OFF.
Set the mode dial to [ ].
The SET-UP menu appears.
Use the or buttons to select the item you want to
set.
☞
LANGUAGE
➲
Page 80
SOUND
➲
Page 80
TIME
➲
Page 81
AUTO-OFF
➲
Page 81
TV (only M65)
➲
Page 82
IMAGE No.
➲
Page 82
DEFAULT
➲
Page 83
Setting item
SOUND
TIME
IMAGE No.
DEFAULT
AUTO OFF
TV (only M65)
NTSC
SET
SET UP
LANGUAGE
ON
SET
SET
1MIN
English
- 80 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic Photographic Settings (SET-UP mode) (continued)
Press the button.
The tab menu is displayed.
☞
How to set the time
➲
Page 81
Use the or buttons to change the setting in
the tab menu, and press the ENTER button.
To cancel changing of settings, press the button.
To quit the SET-UP menu, change the mode dial setting.
LANGUAGE
Sets the display language for menus displayed on the LCD monitor.
[English] (default) : English
[Deutsch] : German
[Français] : French
[Español] : Spanish
[
] : Japanese
SOUND
Sets whether or not to sound the beep tone.
[ON] (default) : Sounds the beep tone according to the operating state or operation.
[OFF] : Does not sound the beep tone in any state.
Tab menu
SOUND
TIME
IMAGE No.
DEFAULT
TV
Español
LANGUAGE
English
Deutsch
Français
English
SET
AUTO OFF
SET UP
- 81 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic Photographic Settings (SET-UP mode) (continued)
TIME
Sets the date and time.
Seconds cannot be set.
Using the or buttons to select the item you want
to set, and use the
or buttons to set the value for
each item.
Pressing the button advances the selection in the following order:
Month ➔ Day ➔ Year ➔ Hour ➔ Minute ➔ SET ➔ CANCEL
Select [SET] and press the ENTER button.
To quit setting, select [CANCEL].
AUTO-OFF
If no operation is carried out for a fixed amount of time (default: about one minute), power consumption
is set to its minimum state (power almost turned OFF) to prevent battery wear. This is called the Auto
Power OFF mode. This setting allows you to set the time until the camera is set to the Auto Power OFF
mode. This function is not activated during automatic playback (
➲
Page 65) or in the [ ] PC mode. To
return to the normal state from the Auto Power OFF mode, either change the mode dial or press the
shutter down fully (
➲
Page 37).
[1 MIN] (default)
[2 MIN]
[3 MIN]
200101 10
::
005512
CANCELSET
TIME
- 82 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic Photographic Settings (SET-UP mode) (continued)
TV (only M65)
Sets the video output format.
[NTSC] : NTSC video format (US, CANADA, JAPAN)
[PAL] : PAL video format (EUROPE)
IMAGE No.
Sets whether or not to reset the image number when you take photographs.
[CANCEL] : Does not reset the image number.
[RESET] : Reset the image number.
About Image Numbers and Folder Numbers
• When the image number is reset, a number starting from 0001 is assigned to an empty folder having
the smallest number of the SmartMedia™ that is inserted.
The folder number varies according to the state of the inserted SmartMedia™. To also reset the folder
number, format the SmartMedia™ first and reset the image number.
• A consecutive number continuing from the last photographed image is assigned as the image number
regardless of whether or not only one image or all images were erased.
• The largest image number is 9999. When this number is reached, a new folder is created, and the
image number is assigned starting from 0001.
☞
Selecting the FOLDER
➲
Page 70
• The largest folder number is 999. When the folder number reaches 999, format the SmartMedia™.
• When you use SmartMedia™ that was used for taking photographs on another camera, or swap
between two or more SmartMedia™, the data held by this camera is given priority as the image
number. The folder number is assigned according to the state of your camera or the SmartMedia™.
- 83 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic Photographic Settings (SET-UP mode) (continued)
DEFAULT
Sets whether or not to return the settings (except TIME, LANGUAGE, TV (video output format) (only M65)
and the LCD monitor brightness) to their defaults.
[CANCEL] : Does not return settings to their defaults.
[OK] : Returns settings to their defaults.
- 84 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Adjusting the LCD Monitor Brightness
This adjustment adjusts the brightness of the LCD monitor and not the brightness of the recorded image.
Set the mode dial to [ ], [ ] or [ ].
Press the MENU button.
The REC MENU or PLAY MENU is displayed.
You can set the LCD monitor brightness in either of these menus.
Use the or buttons to select [LCD] and press the button.
The image and the LCD menu are displayed.
Use the or buttons to adjust the brightness.
Press the button to darken (–) the LCD monitor, or the button to
lighten (+) the LCD monitor.
The LCD monitor can be adjusted within the range [–5] to [+5].
(Default is 0.)
Press the ENTER button.
This returns the camera to the previous mode.
LCD
o
- 85 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

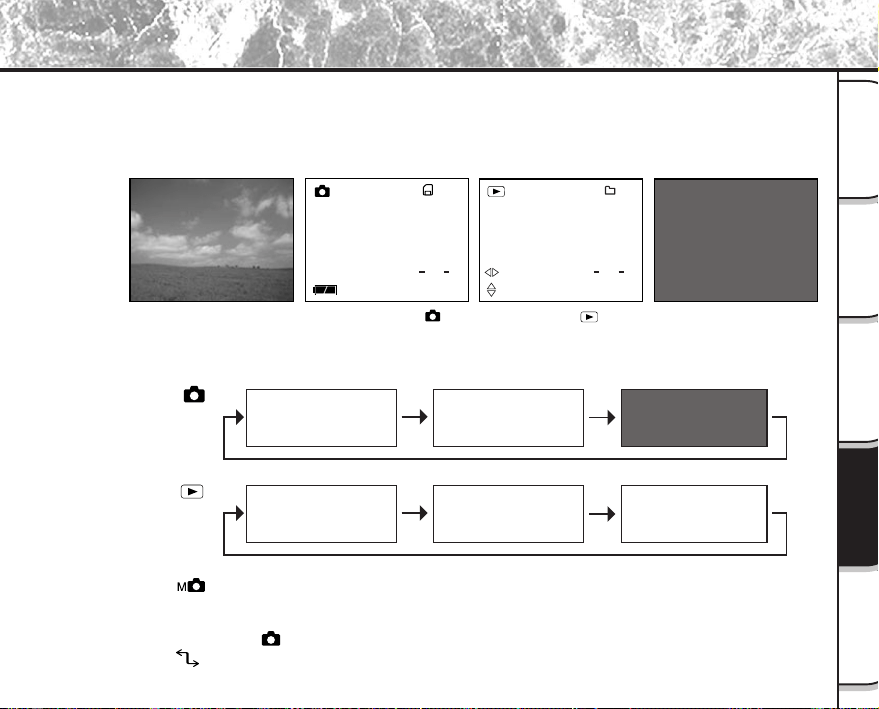

DISP Button and LCD Monitor Display
By pressing the DISP button, the LCD monitor and the on-screen display can be turned on and off. (
☞
LCD monitor display
➲
Page 34)
Each press of the DISP button switches the display in the following order (* indicates default):
• With [
], the manual setting screen is displayed (default). When this screen is displayed,
pressing the DISP button does not change the indication on the LCD monitor. Press the ENTER
button to set the manual setting screen to a non-display state. In this state, the display will change in
the same way as [
].
• With [
], the LCD monitor is blank.
OFF
(monitor is blank)
Live image
(image before photography)
On-screen display (Detail/Simplified)
(letters and icons are displayed)
In photography mode ( )
In playback mode ( )
01 10 01
13:22
0024
01 10 01
13:22
1536
2048
100
0003
[ ]
[ ]
*
*
Live image
+
On-screen display (Detail)
Live image only
Playback image
+
On-screen display (
Detail
)
Playback image
+
On-screen display (Simplified)
Playback image only
- 86 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Taking and Playing Back Photographs on a TV (only M65)
Television sets can be used to compose images for photography or playback. To do this, the camera must first be
connected to the TV. We recommend using the AC adapter on an indoor power outlet when available.
IMPORTANT
• Before you connect your camera to other equipment, be sure to turn all other connected equipment
OFF. If you connect your camera to other equipment with the power still ON, the screen may flicker or
the image may not be displayed normally.
Connect the plug of the video cable (provided) to the
VIDEO terminal on the camera.
Connect the video cable plug to the VIDEO IN terminal
on the TV.
- 87 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Taking and Playing Back Photographs on a TV (only M65) (continued)
Take photographs or play them back.
Details of operation are the same as taking photographs and playing them back on the LCD monitor.
☞
How to take photographs
➲
Page 40
How to play back images
➲
Page 62
Memo
• Nothing is displayed on the TV when the LCD monitor is set to OFF by the DISP button.
• Live images (moving image before photography) are less clear than playback images. (This is because
they are displayed at a lower resolution.)
- 88 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Transferring Images to a PC
You can transfer images photographed on your camera to a PC using the packaged CD-ROM and cable set.
Images recorded on SmartMedia™ can also be transferred to a PC using the PC card adapter (sold separately) or
floppy disk adapter (sold separately). (
➲
Page 94)
To transfer images to a PC, software must be installed and special cables connected.
For details, refer to the Software Manual and the User’s Guides for your PC.
Using SmartMedia™ on a PC
• Format the SmartMedia™ only on your camera.
- 89 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
For Windows 98, Windows 2000 or Windows ME
Install this driver when the USB cable is used.
Connect the small end of the USB cable to the
DIGITAL terminal on the PDR-M65 or PDR-M61.
Connect the large end of the USB cable to the USB
port on your personal computer.
Connect the USB cable with Windows already booted up.
Set the mode dial to [ ].
The Add New Hardware Wizard screen appears.
Click the Next button.
Installing the USB Driver
- 90 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Select “Search for the best driver for your device.
(Recommended)”, and click the Next button.
The next screen appears.
Insert the CD-ROM into the CD-ROM drive, check the
“CD-ROM drive” check box, and click the Next button.
Follow the on-screen instructions to install the driver.
When installation is completed, the Add New Hardware Wizard
screen appears again.
Click the Next button.
Installing the USB Driver (continued)
- 91 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Select “Search for the best driver for your device.
(Recommended)”, and click the Next button.
Check the “CD-ROM drive” check box, and click the Next button.
Follow the on-screen instructions to install the drivers.
This completes installation of the required drivers.
From here on, the PDR-M65 or PDR-M61 is automatically recognized simply by connecting the USB
cable.
Installing the USB Driver (continued)
- 92 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Installing the USB Driver (continued)
For Macintosh (for MAC OS 9.0 or higher)
PDR-M65 or PDR-M61 does not conform with USB Mass Storage Class. Install the USB driver provided in the CD-
ROM supplied with the PDR-M65 or PDR-M61.
Insert the CD-ROM supplied with the PDR-M65 or PDR-M61 into the CD-ROM
drive.
A window will open, that contains two icons, “Install
Image Expert” and “Install Toshiba USB” icon.
Double-click on
“Install Image Expert” icon to
install the Image Expert.
After the Image Expert installation is complete,
double-click on the “Install Toshiba USB” icon.
The screen for selecting the display language appears.
- 93 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

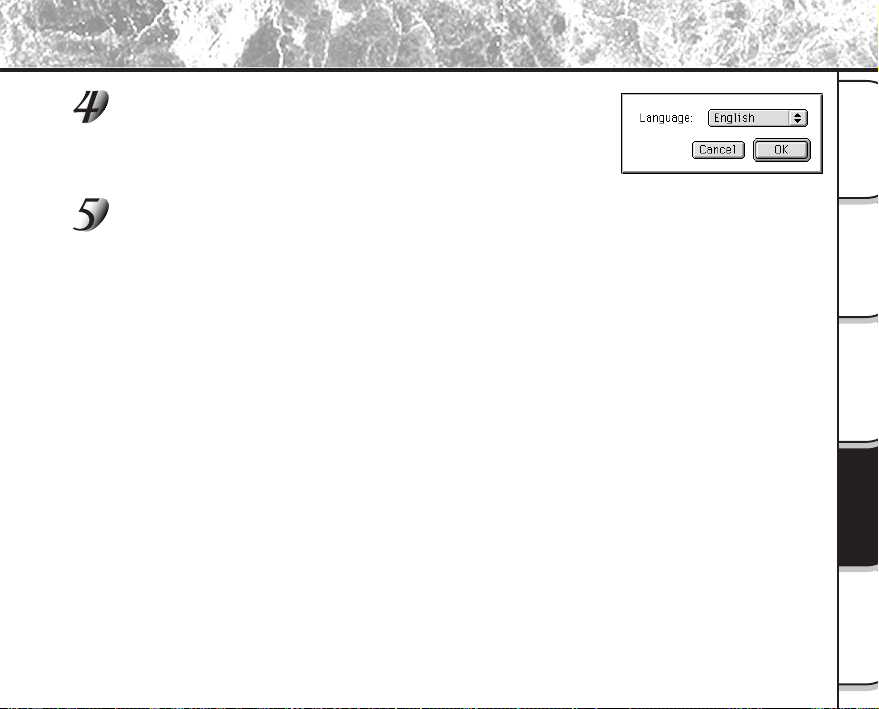

Installing the USB Driver (continued)
Select “English” and click OK.
Follow the on-screen instructions to continue the setup.
After the USB setup has completed, the system will restart.
- 94 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Separately Sold Accessories
The following items are also available as separately sold items.
☞
Relationship between your camera and accessories
➲
“Connecting to Other Devices” (page 95)
For details on these accessories, refer to the Instruction Manual for the accessory you are using. (information
current as of June 2000)
To purchase above accessories within the United States, please visit our website at
http://www.toshiba.com/taisisd/dsc
● Soft case (PDR-CM1A)
This case is for carrying and storing your camera.
● AC Adapter
PDR-ACM1A (for U.S.A. and Canada)
PDR-ACM1E (for European Continent)
PDR-ACM1U (for U.K.)
- 95 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready

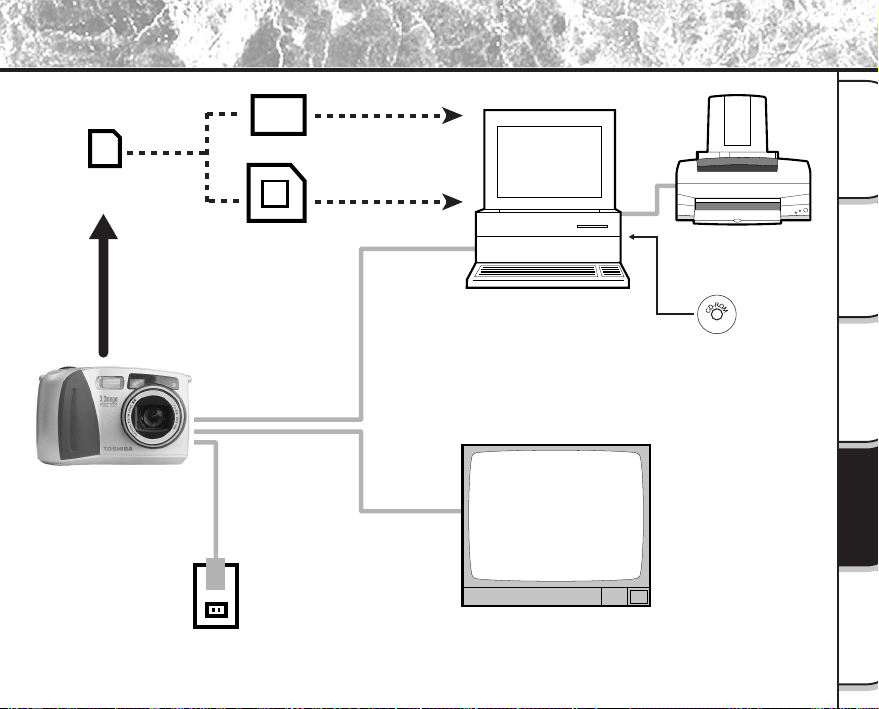

SmartMedia™
(provided)
Floppy disk adapter
PC card adapter
PC
Printer
Software application
(CD-ROM) (provided)
USB cable
(provided)
Video cable
(provided)
(only M65)
AC adapter (sold separately)
Plug socket
TV monitor
(Connect only when using M65)
PDR-M65
PDR-M61
Connecting to Other Devices
- 96 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Toshiba Digital Still Camera PDR-M65
SmartMedia™ (3.3V) 2/4/8/16/32/64MB compatible (128MB: apply to the update
version of the firmware)
JPEG-compliant
Exif Ver.2.1-compliant
DCF Ver. 1.0-compliant
Quality
Mode
★★★
FINE
★★
NORMAL
★
BASIC
Specifications
Camera Body
Model
Recording medium
Compression system
Image file format
Number of frames
FULL size:
2048 x 1536 pixels
HALF size:
1024 x 768 pixels
Conversion rules
File Size
Approx. 1.1MB
Approx. 300KB
Approx. 650KB
Approx. 160KB
Approx. 400KB
Approx. 100KB
4MB
3
13
6
25
10
40
8MB
7
27
12
51
20
81
16MB
14
54
25
102
40
163
32MB
29
109
50
204
81
327
Compression
Ratio
1/6
1/10
1/16
Size
FULL
HALF
FULL
HALF
FULL
HALF
64MB
59
218
100
409
163
655
2MB
1
6
3
12
5
20
Memo
• The size of the data to be recorded varies according to the amount of detail in the subject image. So,
the number of images that can be photographed after an image is recorded decreases. Sometimes this
amount decreases by two images.
- 97 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic
Photography
Camera Body
Memo
• The size of the data to be recorded varies according to the amount of detail in the subject image. So,
the number of images that can be photographed after an image is recorded decreases. Sometimes this
amount decreases by two images.
Specifications (continued)
Toshiba Digital Still Camera PDR-M61
SmartMedia™ (3.3V) 2/4/8/16/32/64MB compatible (128MB: apply to the update
version of the firmware)
JPEG-compliant
Exif Ver.2.1-compliant
DCF Ver. 1.0-compliant
Quality
Mode
★★★
FINE
★★
NORMAL
★
BASIC
Model
Recording medium
Compression system
Image file format
Number of frames
FULL size:
1792 x 1200 pixels
HALF size:
896 x 600 pixels
Conversion rules
File Size
Approx. 1.01MB
Approx. 278KB
Approx. 557KB
Approx. 131KB
Approx. 281KB
Approx. 70KB
4MB
3
14
7
28
14
55
8MB
7
29
14
58
29
112
16MB
15
60
30
111
60
225
32MB
32
121
61
236
121
453
Compression
Ratio
1/4
1/8
1/16
Size
FULL
HALF
FULL
HALF
FULL
HALF
64MB
65
243
122
475
243
907
2MB
1
7
3
14
7
29
- 98 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
1/2" CCD sensor (total number of pixels: approx. 3.3 (M65)/2.3 (M61) million)
Equivalent to ISO 100/200/400
3X zoom lens F2.8 – F3.2
f=8.2 mm – 23.3 mm (equivalent to 38 mm – 114 mm on a 35 mm camera)
Real image type zoom finder
TTL system AF, focus adjusting range: approximately 2 in. (5 cm) at
wide to infinity
Detection system: Contrast detection system
TTL metering by image capture system
Program AE (exposure compensation available in Manual mode)
1/500 to 1 sec.
Auto selected
Selectable in manual photography mode (outdoors, standard/cool white
fluorescent light, incandescent light)
Approx. 19.7 in. (50 cm) to infinity
Approx. 2 in. (5 cm) at wide – 19.7 in. (50 cm)
2 seconds/10 seconds selectable
Auto, Red-Eye Reduction, Forced Flash, Suppressed Flash, Slow
Synchro
Automatic
Approx. 1.3 ft. (0.4 m) – 10 ft. (3.0 m)
Pickup elements
Sensitivity
Lens
Focal length
Viewfinder
Auto-focus
Metering system
Exposure control
Shutter
White balance
Focal range
Standard
Macro
Self-Timer
Modes
Flash
Flash intensity control
Effective range
Specifications (continued)
- 99 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic
Photography
Type Image memory card for digital cameras (SmartMedia
TM
)
Type of memory NAND flash memory
Operating voltage 3.3V
Operating conditions Temperature +32°F (0°C) to +104°F (+40°C)
Humidity 80% or less (no condensation)
Dimensions
1-
4
/
9
in. (37 mm) (W) x
3
/
100
in. (0.76 mm) (H) x 1-
7
/
9
in. (45 mm) (D)
Accessories Anti-static case (x1), index labels (x2), write-protect stickers
(x4)
SmartMedia™ (sold separately)
Specifications (continued)
Simultaneously recorded to image data (Exif file format)
Automatically adjusted until the year 2038
1.8" amorphous silicon TFD (71,760 pixels)
DC 5 V
USB
NTSC or PAL system (only M65)
4 x AA (alkaline, nickel-metal hydride or lithium-ion) battery (
*2
) or AC
adapter (sold separately)
+41°F (+5°C) to +104°F (+40°C) (during operation)/–4°F (–20°C) to
+140°F (+60°C) (during storage)
30 to 80% (during operation) no condensation
4.76
in. (121 mm) (W) x 2.95
in. ( 75 mm) (H) x 2.4
in. (62 mm) (D)
(excluding protrusions)
Approx. 10.8 oz (305 g) (excluding accessories, battery and SmartMedia™)
Date/Time
Automatic calendar function
LCD monitor (
*1
)
I/O terminal
DC IN terminal
DIGITAL terminal
VIDEO terminal
Power supply
Operating
conditions
Camera dimensions
Weight
*1
The LCD monitor on your digital camera is manufactured using advanced high-precision technology.
Though fine spots may appear on the LCD monitor, this is not a malfunction. The LCD monitor can be used
as it is.
*2
You can not use manganese dry battery in this camera.
Temperature
Humidity
- 100 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Specifications (continued)
AC adapter (PDR-ACM1A) (sold separately)
Power supply AC120V 50/60Hz
Rated Input Capacity 18VA
Rated Output DC5V 1.5A
Operating temperature +32°F (0°C) ~ +104°F (+40°C)
Storage temperature +14°F (–10°C) ~ 158°F (+70°C)
Dimensions 1-
8
/
9
” (48 mm) (W) x 1-
1
/
4
” (26 mm) (H) x 2-
3
/
4
” (70 mm) (D)
Weight Approx. 3.5 oz (100 g)
Connector Cable Length Approx. 6.6 ft (2 m)
Power supply AC230V 50Hz
Rated Input Capacity 120 mA
Rated Output DC5.0V 1.5A
Operating temperature 0°C ~ +40°C
Storage temperature –10°C ~ +70°C
Dimensions 49.5 mm (1.9”) (W) x 60.5 mm (2.4”) (H) x 76 mm (3.0”) (D)
Weight Approx. 130 g (4.5 oz)
Connector Cable Length Approx. 2 m (6.6 ft)
AC adapter (PDR-ACM1U) (sold separately)
Power supply AC230V 50Hz
Rated Input Capacity 120 mA
Rated Output DC5.0V 1.5A
Operating temperature 0°C ~ +40°C
Storage temperature –10°C ~ +70°C
Dimensions 49.5 mm (1.9”) (W) x 66.5 mm (2.6”) (H) x 76 mm (3.0”) (D)
Weight Approx. 130 g (4.5 oz)
Connector Cable Length Approx. 2 m (6.6 ft)
AC adapter (PDR-ACM1E) (sold separately)
These specifications are subject to change without notice.
- 101 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic
Photography
Warnings and Messages Displayed on LCD Monitor
The following warnings, messages and icons are displayed on the LCD monitor and the status display.
LCD monitor
NO CARD
CARD FULL
NO IMAGE
UNFORMATED CARD
CARD ERROR
PROTECTED CARD
FRAME ERROR
UNMATCHED DATA
FRAME No. FULL
PROTECT
FOLDER No. ERROR
IMAGE No. ERROR
Meaning
Remaining battery power half or less
No battery power left
No SmartMedia™ is loaded
SmartMedia™ is loaded incorrectly
No more space on the SmartMedia™.
Recording is not possible.
Nothing is recorded to the SmartMedia™.
The SmartMedia™ is not formatted. (A
message prompting you to format the
SmartMedia™ is displayed.)
The SmartMedia™ is damaged.
The SmartMedia™ format is incorrect.
The SmartMedia™ is write-protected.
An attempt was made to playback incorrectly
recorded data.
An attempt was made to playback a frame not
recorded on this camera.
The frame number has reached 999-9999.
An attempt was made to erase a protected
image.
There already exists a folder with the same
number.
There already exists an image with the same
frame number in the folder.
Status display
/ (Flashing)
Flashing (photography mode)
Nothing displayed (playback
mode)
Flashing (photography mode)
Number of image display 0
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Display
- 102 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Troubleshooting
First check the warning displayed on the LCD monitor (
➲
Page 101) and the color of the viewfinder lamp (
➲
Page
39). Then check the following items.
Remedy
Replace with new batteries.
Plug the adapter back in.
Change the mode dial to the correct
setting.
Replace with new batteries.
Put the battery in your pocket or another
warm place to heat it and then load it into
the camera just before you take a picture.
Wipe the battery terminals with a clean, dry
cloth.
Replace with new batteries.
Load a SmartMedia™.
Load the SmartMedia™ correctly.
• Load a new SmartMedia™.
• Erase photographed images or change
the size and quality to increase space on
the SmartMedia™.
Remove the write-protection or replace with
a new SmartMedia™.
Format the SmartMedia™.
Load a new SmartMedia™.
Either press the shutter button fully down,
or change the mode dial setting.
Causes
The batteries are exhausted.
The AC adapter plug has come
out of the power outlet.
The mode dial is set incorrectly.
The batteries are exhausted.
You are using the camera in
extremely cold conditions.
The terminals are dirty.
The battery has reached its
effective life.
No SmartMedia™ is loaded.
The SmartMedia™ is loaded
incorrectly.
Not enough space on the
SmartMedia™
The SmartMedia™ is write-
protected.
The SmartMedia™ is not formatted.
The SmartMedia™ is damaged.
The Auto Power OFF function is
activated.
Problem
No power supply
The camera turns OFF
during operation.
The battery runs out
quickly.
No photograph is taken
when the shutter button
is pressed.
See Page
P.23
P.27
P.33
P.23
–
–
P.23
P.29
P.29
P.29
P.66
P.68
P.32
P.75
P.29
P.37
P.81
- 103 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic
Photography
Troubleshooting (continued)
Causes
The mode dial has been changed
to another setting.
The flash is set to Suppressed
Flash mode.
You pressed the shutter button
while the flash was charging.
The camera is set to Suppressed
Flash mode.
The batteries are exhausted.
No images in selected folder.
The subject is too far away.
The lens is not clean.
The image is out of focus.
The SmartMedia™ is
write-protected.
The frame is protected.
The SmartMedia™ is
write-protected
Camera malfunction.
The mode dial is not at the correct
position.
The camera is in the Auto Power
OFF mode.
See Page
P.33
P.49
P.51
P.49
P.23
P.70
P.49
–
P.47
P.32
P.78
P.32
–
–
P.37
P.81
Remedy
Set the mode dial to the correct setting.
Set the flash to Auto, Red-Eye Reduction or
Forced Flash mode.
Wait until charging is completed before
pressing the shutter button.
Set the flash to Auto, Red-Eye Reduction or
Forced Flash mode.
Replace with new batteries.
Select a different folder to play back.
Move closer to the subject.
(Approx. 1.3ft.(0.4m)-10ft.(3.0m))
Clean the lens.
Set macro photography to ON or OFF
according to the distance up to the subject.
Remove the write-protection.
Remove the write-protection.
Remove the write-protection.
Turn the power OFF and remove the
batteries once, and try again.
Set the mode dial to the correct setting.
Either press the shutter button fully down,
or change the mode dial setting.
Problem
I cannot use the flash to
take pictures.
The flash will not charge.
Images cannot be
played back.
The playback image is
too dark even though I
used the flash.
The playback image is
blurred.
I cannot format the
SmartMedia™.
I cannot erase all the
frames.
Nothing happens when I
use the buttons and
switches.
- 104 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Troubleshooting (continued)
Causes
The camera is in the PC mode.
Both the batteries and AC adapter
are removed with the power still ON.
Problem
Nothing is displayed
even through the LCD
monitor is set to ON.
The set date and time
disappears.
See Page
P.40
P.62
P.81
Remedy
Change the camera to the photography or
playback mode.
Set the date and time again.
- 105 -
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
Basic
Photography
Glossary
●AF/AE
AF (auto-focus) ··· A function for automatically
focusing your camera.
AE ··· A function for automatically setting your
camera’s exposure.
AF/AE lock ··· Locking of the focus and exposure
settings.
●DCF (Design rule for Camera File System)
A file system standard defined by the JEIDA (Japan
Electronic Industry Development Association) that is
required for exchanging data between digital still
cameras or a digital camera and a printer. This
standard defines the hierarchy and file names used
when storing image files on memory cards or other
recording medium.
●Exif File Format (Exchangeable Image File Format)
A color still image format for digital still cameras
approved by the JEIDA (Japan Electronic Industry
Development Association). JPEG-compliant, this
format is compatible with TIFF and JPEG and can be
used in image processing software for most personal
computers.
●JPEG
A file format used for compressing and saving color
images. The compression ratio can be selected, but
the higher the compression ratio, the worse image
quality becomes. This format is widely used in the
paint software for PCs and on the Internet.
●PC Card
A generic term for cards that meet the PC Card
Standard.
●Red-Eye Effect
The phenomenon where people’s eyes sometimes
appear red in the picture when you use a flash to
photograph them in low-light conditions. This is
caused by the light of the flash reflecting off the
inside of the eye.
●White Balance
When the brightness of the light changes, the human
eye adapts so that a white object still looks white. On
the other hand, devices such as digital still cameras
see a white subject as white by first adjusting the
balance to suit the color of the ambient light around
the subject. This adjustment process is referred to as
matching the white balance.
●SmartMedia™
Name of a recording medium defined by the SSFDC
Forum. This recording medium can be used over and
over again.
●Formatting
Transforming the contents of the SmartMedia™ to a
recordable state. (This is sometimes called
“initialization”.)
●Exposure Compensation
When the screen contains an extremely bright or dark
object, the camera automatically adjusts the
brightness, resulting in the subject being reproduced
darker or lighter. Exposure compensation adjusts for
this.
- 106 -
Basic
Photography
Playing Back/
Erasing Images
Other
Applications
Additional
Information
Getting Ready
website
www.toshiba.co.uk
www.toshiba.de/consumer
www.toshiba.it/
www.toshiba.fr/produits/video/index.htm
www.toshiba.ch/
www.cp.toshiba.com.sg
www.toshiba.com.hk
For customers outside of the United States and Canada, please contact the nearest Toshiba company for assistance.
Country/Region
United Kingdom
Germany
Italy
France
Switzerland
Singapore
China Hong Kong
Company name
Toshiba (UK) Ltd.
Toshiba Europe Gmbh
Toshiba Consumer Products (Italia)
Toshiba Systems (France)
Toshiba Europe Gmbh Swiss Branch
Toshiba Singapore Pte
Toshiba Hong Kong Ltd
Phone number
for inquiry
(01932) 828828
(02131) 158 01
(039) 6099342
01 47 28 28 50
01-946 07 77
270-7776
2956-0222
e-mail address for inquiry
NA
NA
Contact Numbers
For technical support, please contact:
(800)829-8318
5:00 a.m. to 5:00 p.m. PST, Monday to Friday except holidays,
or e-mail us at: [email protected]
TOSHIBA DIGITAL STILL CAMERA
* Address and telephone number are subject to change without notice.
23563841
65
61
Toshiba America Information Systems, Inc.
Imaging Systems Division
9740 Irvine Boulevard, Irvine, California 92618-1697
