OWNER’S MANUAL
FRONT LOADING
WASHER DRYER
Read this Manual
Read all instructions and explanations for the
installation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
MODEL:
TWD-T21BU140UWM(MG)
CONTENTS
1
SAFETY INSTRUCTIONS
Safety Instructions .....................................................................
INSTALLATION
Product Description ..................................................................
Installation ...................................................................................
OPERATIONS
Quick Start ....................................................................................
Before Each Washing .................................................................
Detergent Dispenser .................................................................
Control Panel ................................................................................
Programs........................................................................................
Option..............................................................................................
Other Functions...........................................................................
Instructions to Connection with the TSmartLife App....
MAINTENANCES
Cleaning and Care ......................................................................
Trouble Shooting ........................................................................
Customer Service .......................................................................
2
11
12
16
17
18
19
20
24
26
29
31
35
Washing Programs Table................................................
30
36
Technical Specifications ...........................................................
37
ELECTRIC SHOCK HAZARD
SAFETY INSTRUCTIONS
Safety Instructions
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
2
Warning!
Caution!
Warning!
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
its service agent or similarly qualified persons in order to avoid a hazard.
If the machine is damaged, it must not be operated unless repaired by
the manufacturer, its service agent or similarly qualified persons. Risk of
electric shock!
•
•
If the supply cord is damaged, it must be replaced by the manufacturer,
SAFETY INSTRUCTIONS
3
• Before maintenance, unplug the appliance.
• This appliance must be grounded. In the event of Malfunction or
breakdown , grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
• This appliance is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
• Improper connection for the appliance when using ungrounded outlet
or when GND terminal of outlet is not suitable with GND terminal of
power plug, can result in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
appliance is properly grounded.
• Do not modify the plug provided with the appliance. If it does not
fit into the outlet , have a proper outlet installed by a qualified electrician.
• Make sure that the water and electrical devices must be connected by
a qualified technician in accordance with the manufacturer's
instructions and local safety regulations.
•
•
•
Pull out its plug from the power socket before cleaning or maintenance.
Do not use a socket with rated current less than that of appliance.
Never pull out power plug with wet hand.
Please remember to disconnect water and power supply immediately
after the clothes are washed.
SAFETY INSTRUCTIONS
4
RISK TO CHILDREN
• Children of less than 3 years should be kept away unless continuously
supervised.
• by Cleaning and user maintenance shall not be made children
without supervision.
• Animals and children may climb into the machine. Check the machine
before every operation.
• The glass door may be very hot during the operation. Keep
children and pets far away from the machine during the
operation .
The appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety.
• Children should be supervised to ensure that they do not play with
the appliance.
For use in EU contries:
INSTALLATION LOCATION AND SURROUNDING
• All washing and additional substances are to be kept in a safe
place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of
the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight
to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms
containing explosive or caustic gas. In case of water leakage or
water splashes let the appliance dry in the open air.
• The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the washer dryer.
• Do not operate the machine in rooms with a temperature of
below 5°C. This can cause damages to parts of it. If it is
unavoidable, make sure to drain the water completely from
the appliance after every use (see „Maintenance - Cleaning of
drain pump filter“) to avoid damages caused by frost.
• Never use flammable sprays or substances in the immediate
proximity of the appliance.
SAFETY INSTRUCTIONS
RISK OF EXPLOSION
5
• For appliance with ventilation openings in the base, a carpet
must not obstruct the openings.
• Do not wash articles that have been cleaned in, washed in, soaked in,
or spotted with combustible or explosive substances (such as wax, oil,
paint, gasoline, degreasers,dry-cleaning solvents, kerosene, etc.)
This may result in fire or explosion.
• The washer is not to be used if industrial chemicals have been used
for cleaning.
SAFETY INSTRUCTIONS
INSTALLATION
• Remove all packaging material and transport bolts before
using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can
be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be
operated once throughout all the procedures without any
clothes inside.
• Before using the washer dryer, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like
water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used
and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa.
Min. inlet water pressure 0.05 MPa.
ELECTRICAL CONNECTION
• Make sure the supply cable is not trapped by the machine, it can get
damaged.
• Connect the product to a grounded outlet protected by a fuse
complying with the values in the “ Technical specifications“ table.
The grounding installation has to be made by a qualified electrician.
Ensure that the machine is installed in accordance with the local
regulations.
6
• Water and electrical connections must be carried out by a qualified
technician in accordance with the manufacturer‘s instructions and
local safety regulations.
• Don’t use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a
timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable
gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
• Always unplug the appliance if it is not being used.
•
exhausting fumes from appliances burning gas or other fuels (this
instruction is not required if the drying function discharges the air into
the room).
Exhaust air must not be discharged into a flue that is used for
SAFETY INSTRUCTIONS
WATER CONNECTIONS
• Check the connections of the water inlet hose, the water tap and
the outlet hose for possible problems due to changes of water
pressure. If the connections loosen or leak close the water tap and
get it repaired. Do not use the appliance before the pipes and
hoses are installed properly by qualified persons.
• The water inlet and outlet hoses have to be safely installed and
remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the
appliance. Big quantities of water can leak out, and there is a risk of
scalding due to hot water.
7
RISK OF DAMAGING APPLIANCE
• Your product is only for home use and is only designed for the textiles
suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Please do not close the door with excessive forces. If it is found difficult
to close the door, please check if clothes are put in or distributed well.
• It is forbidden to wash carpets.
SAFETY INSTRUCTIONS
OPERATION AND MAINTENANCE
• Never stop the washer dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat
can dissipate.
• The washer dryer is not to be used if industrial chemicals have been
used for cleaning. Risk of explosion.
• Never use any flammable, explosive or toxic solvents. Do not use
gasoline and alcohol etc. as detergents. Only select detergents
that are suitable for washer dryer.
• Make sure that all pockets are emptied. Sharp and rigid items such
as coins, brooches, nails, screws, stones etc. may cause serious
damages to this machine.
• Remove all objects from pockets such as lighters and matches
before use the appliance.
• Do not dry unwashed items in the appliance.
• Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax
and wax removers should be washed in hot with an extra amount
of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water
proof textiles, rubber backed articles and clothes or pillows fitted
with foam rubber pads should not be dried in the machine
• Fabric softeners or similar products should be used as
recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly
after the end of a cycle.
• Please do not close the door with excessive force. If it is found
difficult to close the door, please check if the clothes are properly
inserted and distributed.
8
• Hands shall not be inserted into running drums.
• Before washing the clothes at first time, the product shall be operated
in one round of the whole procedures without the clothes inside.
The suggested program is “DRUM CLEAN”.
• Please check whether the water inside the drum has been drained before
opening its door.Please do not open the door if there is any water visible.
• Be careful of burning when the product drains hot washing water.
• Never refill the water by hand during washing.
• After program is completed, Please wait for two minutes to open the door.
SAFETY INSTRUCTIONS
• Always unplug the appliance and close the water tap before
cleaning and maintenance and after each use.
• Never pour water over the appliance for cleaning purpose. Risk of
electric shock!
• Repairs shall only be carried out by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard. The
producer will not be responsible for damages caused by the
intervention of not authorized persons.
TRANSPORT
• Before Transport:
-.Bolts shall be reinstalled to the machine by a specialized person
-.Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any
protruding part of the machine when lifting. The machine door
cannot be used as a handle.
INTENDED USE
• The product is intended only for home use and for textiles in
household amounts suitable for machine washing and drying. This
appliance is for indoor use only and not intended for built in use.
Only use according to these instructions. The appliance is not
intended for commercial use.
• Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
• This appliance is intended to be used in household and similar
applications such as:
-.Staff kitchen areas in shops, offices and other working environments;
-.Farm houses;
-.By clients in hotels, motels and other residential type environments;
-.Bed and breakfast type environments;
-.Areas for communal use in blocks of flats.
9
SAFETY INSTRUCTIONS
10
ENVIRONMENT
For use in EU contries
This appliance is labelled in accordance with the European Directive 2012/19/EU on
waste electrical and electronic equipment (WEEE). The directive provides the framework
for the EU-wide take-back and recycling of waste equipment.
Disposal of old appliances
The devices marked with this symbol
must not be disposed of in household waste!
For use in other contries
This appliance doesn’t have symbol above. If you want to dispose your appliance,
please contact your local authority or retailer for futher information on collection
and disposal.
Accessories

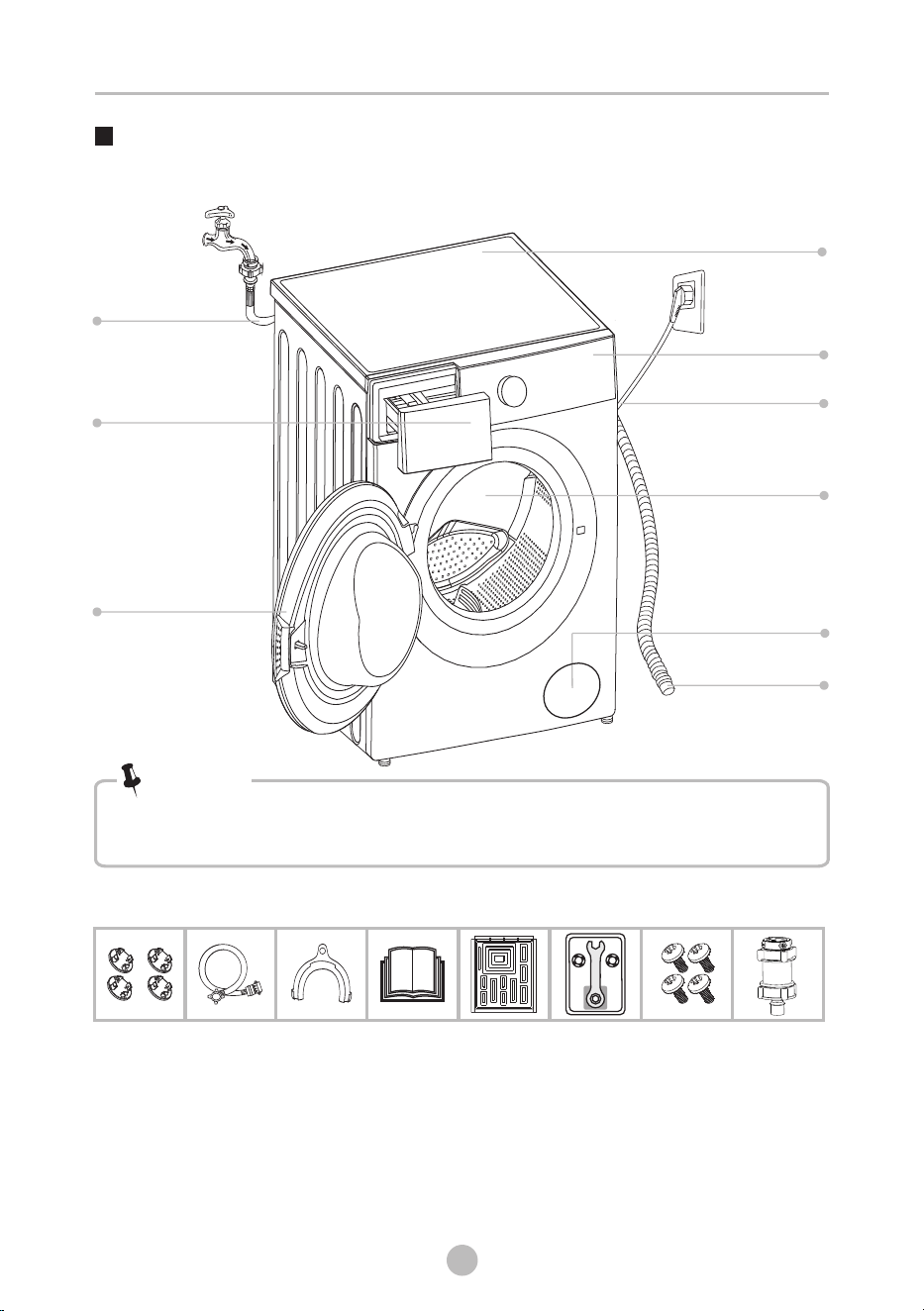

Product Description
• The product line chart is for reference only, please refer to real product
as standard.
Note!
Drum
Power supply cord
Control panel
Drain pump filter
Door
Top cover
Drain hose
INSTALLATION
11
Water inlet hose
Detergent dispenser
Transport
hole plug
Water inlet hose
cold water
Drain hose
support
(optional)
Owner’s manual
Screw
(optional)
Rat resistance
panel(optional)
Spanner assembly
(optional)
Water Filter
(optional)
Installation
Before installing the machine, the location characterized
as follows shall be selected:
1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Room temperature is above 5 °C
4. Keep far away from the heat resources such as coal or gas.

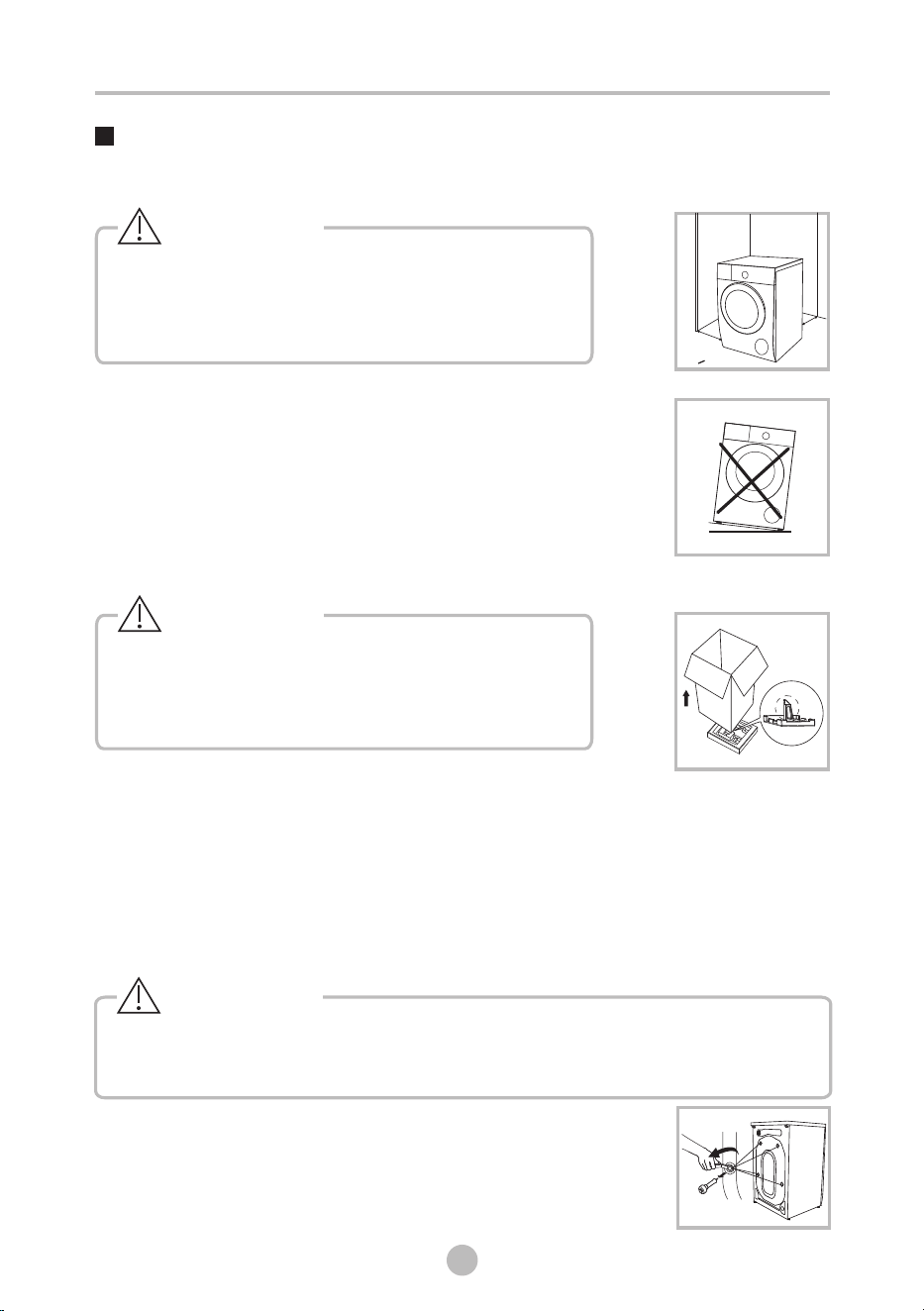

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the water inlet hose from the drum.
Please take the following steps to remove the bolts:
1. Loosen 4 bolts with spanner and then remove them.
2. Cover the hole with transport hole plugs.
3. Keep the transport bolts properly for future use.
Remove transport bolts
• Stability is important to prevent the product from
wandering!
• Make sure that the product should not stand on
the power cord.
Warning!
• Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation! Keep all packaging
well away from children.
Warning!
• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the product , so make sure
you keep them in a safe place.
Warning!
w
w
W 20mm>
Installation area
12
INSTALLATION
13
INSTALLATION
Levelling the Washer Dryer

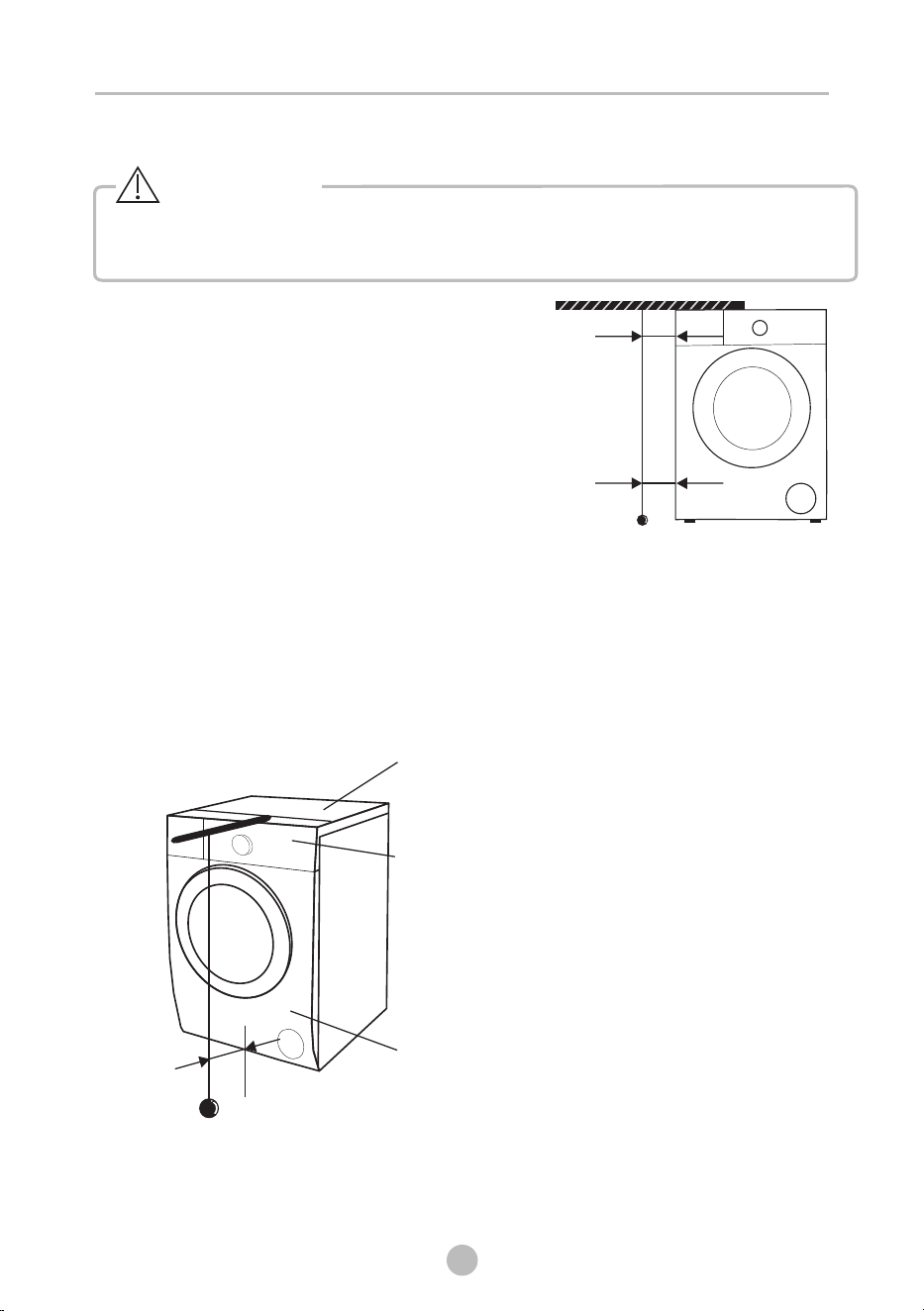

• Check with the gradienter if the machine placement is balanced and steady.
• If there is no gradienter, check the balance as per the following method.
Warning!
b
a
c
Front Cover
Control Panel
Top Cover
1. If it’s balanced from left to right.
• Take a long stick, and tie a rope at the end of it.
Bind a heavy object at the end of the rope.
• Hang the rope from the top cover of the
machine. Adjust the legs till the difference
between ‘a’ and ‘b’ is less than 1cm.
2. If it’s balanced from front to back
• Put the stick at the middle of the control panel, and hang the rope in front
of themachine.
• Keep 10cm away from the rope end to the control panel edge. Adjust the legs
till ‘c’ is 3.5~4.5cm (‘c’ is the distance from rope to bottom of front cover ).
14
INSTALLATION
1. Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions and tighten the nuts.
2. Loosen the lock nut and turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the Washer Dryer
• The lock nuts on all four feet must be screwed tightly against the housing.

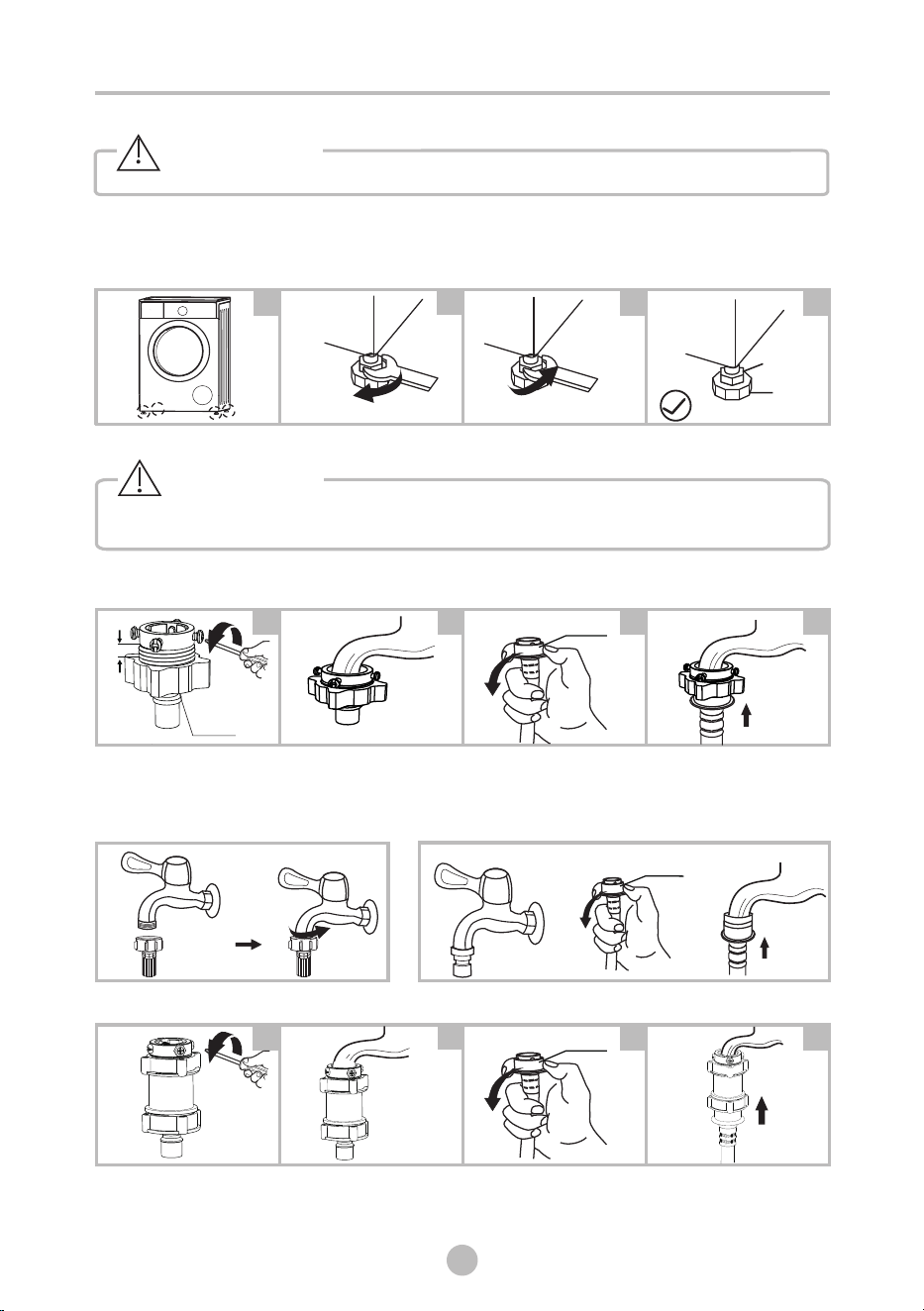

Connect Water Inlet Hose
• To prevent leakage or water damage, follow the instructions in this chapter!
• Do not kink, crush, or modify water inlet hose.
2
3
4
1
Raise
Lower
Lock nut
Foot
Warning!
Warning!
Loosen clamp nut and
four bolts
Press the tap end
tightly
to the rubber ring
inside the clamp, and
then, tighten the 4 bolts
Press slide bushing,
insert water inlet hose
into connecting base
Slide bushing
2
3
41
Connection finished
Tap with threads and water inlet hose
Special tap for washing machine
Slide bushing
Connect the water inlet hose as indicated, there are ways to connect the
inlet hose.
three water
1. Connection between ordinary tap and water inlet hose.
Clamp nut
5mm
2. Connection between screw tap and water inlet hose.
Slide bushing
2
3
41
3. Connection between ordinary tap and water inlet hose with water filter.
Loosen clamp nut and
four bolts
Press the tap end
to the rubber ring
inside the clamp, and
then, tighten the 4 bolts
tightly Press slide bushing,
into connecting base
insert water inlet hose
Connection finished
15
INSTALLATION
Warning!

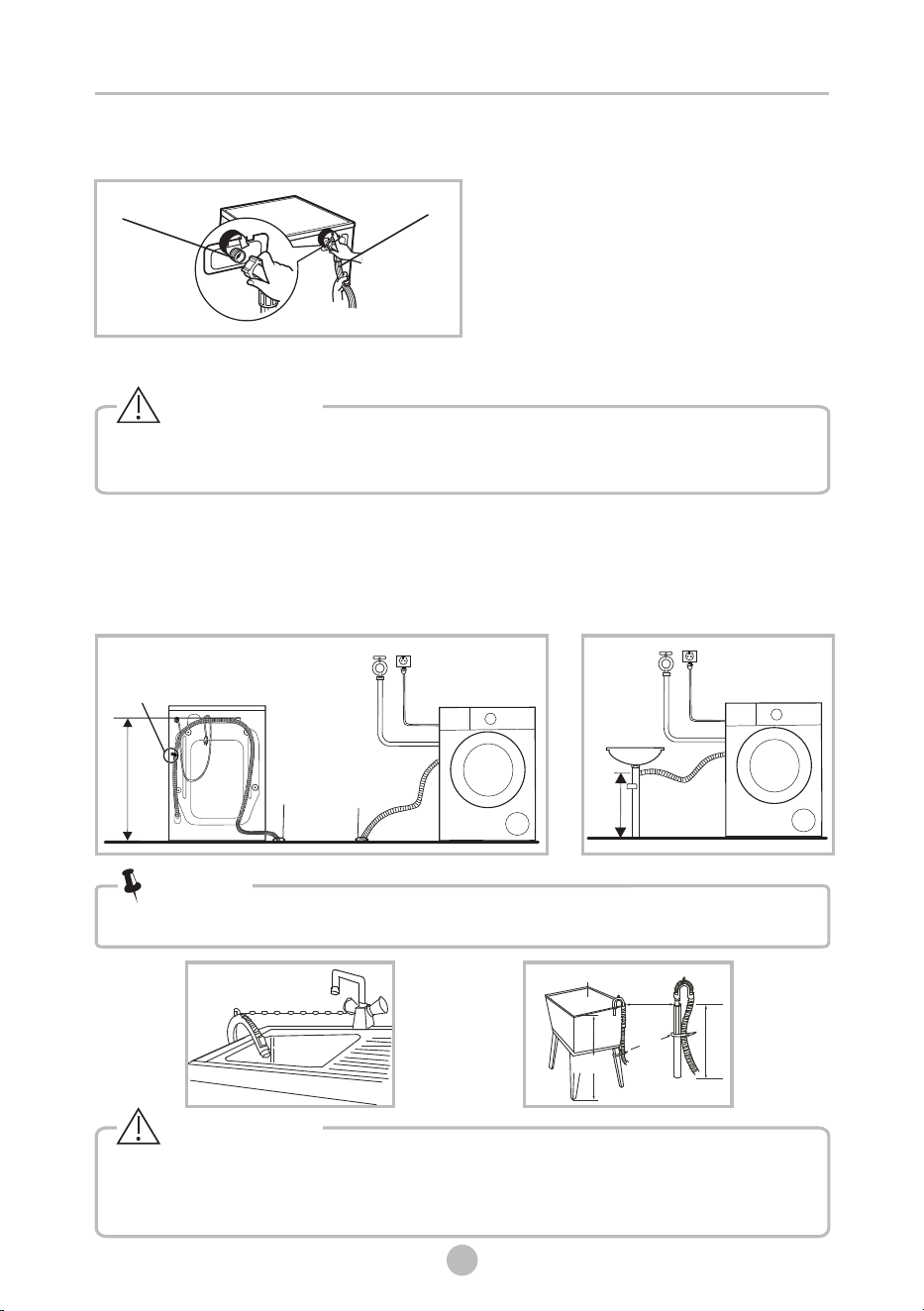

Drain Hose
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly, otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Trough
Hose Retainer
Bin
d
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has
• drain hose support, please install it like the following .
Warning!
Note!
Water inlet hose
Water inlet valve
Connect the other end of water inlet hose to the inlet valve at the backside of
product and fasten the hose tightly clockwise.
There are two ways to place the end of drain hose:
1. Put it into the drain port.If the drain hose is put
into the drain hole on the floor, fix the drain hose
on the back of the appliance to prevent water
overflow from the drum.
2. Connect it to the branch
drainhose of the trough.
Max
. 100cm
Drain port
Do not unscrew
the screw
Drain port
Min.
60cm
Max
. 100cm
M
in.
60cm

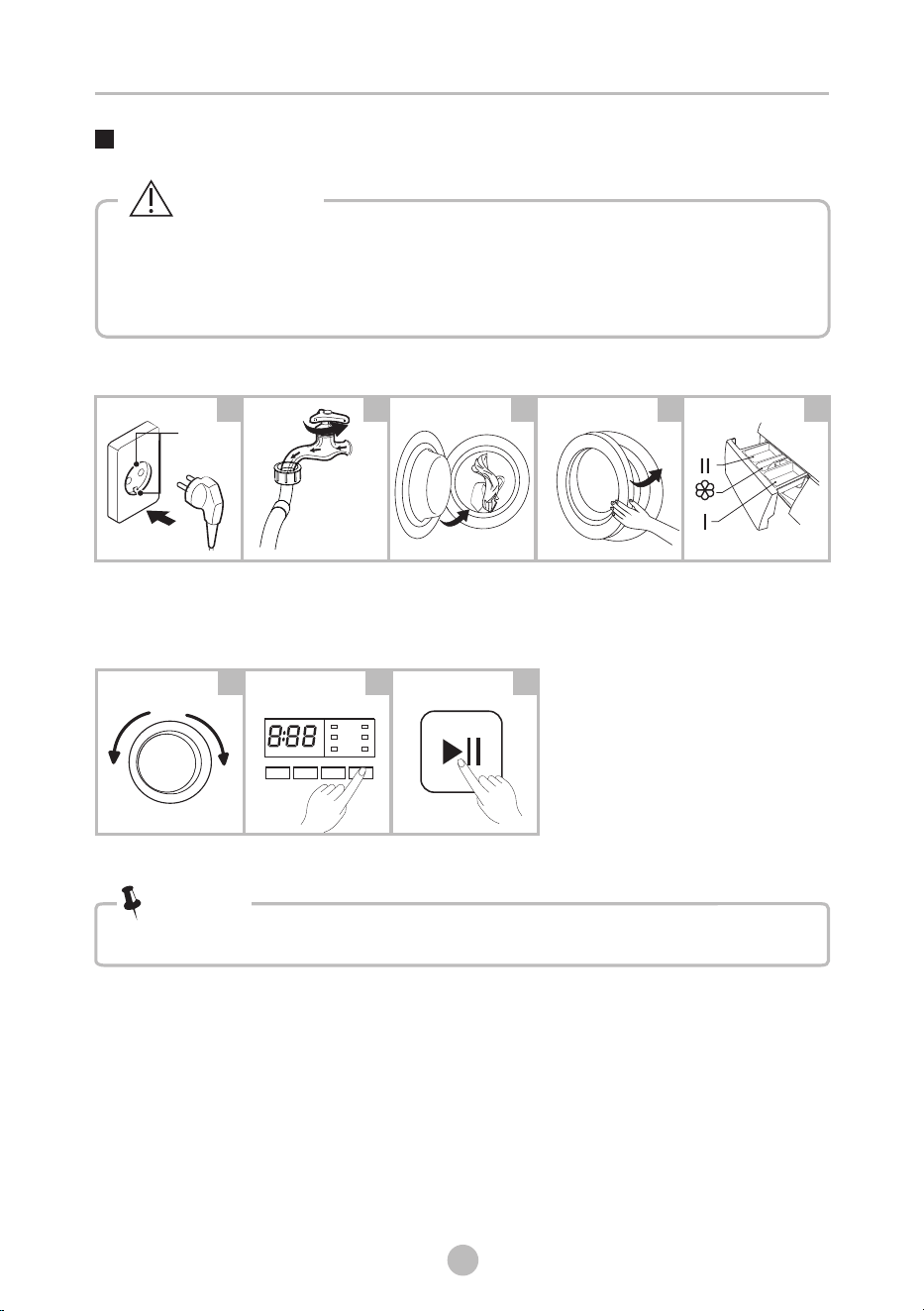

Quick Start
OPERATIONS
16
• Before washing, please make sure it’s installed properly.
• Before washing at first time, the washer dryer shall be operated
in one round of the whole procedures without clothes in as
follows. The suggested program is “DRUM CLEAN”.
Caution!
1. Before Washing
Open tap
Load
Close door
Plug in
1 2 3 4
Earth
terminal
Add detergent
5
Main
wash
Prewash
Softener
Buzzer beep or “End” on display.
3. After Washing
2. Washing
Select Program
Select function
or default
Start up
1 2 3
• If default is selected, step 2 can be skipped.
Note!
OPERATIONS
17
Knot the longstrips, zip or
button
• When washing a single clothes, it may easily cause great imbalance and give
alarm. Therefore it is suggested to add one or two more clothes to be washed
together so that washing process can be done smoothly.
• Don’t wash the clothes soaked in kerosene, gasoline, alcohol and other
flammable materials.
• The working condition of the washer dryer should be 5°C-40°C. If used under 0°C,
the inlet valve and draining system may be damaged. If the machine is placed
under condition of 0°C or less, then it should be transferred to normal ambient
temperature to ensure the water inlet hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergentsuitable forwashingmachine properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label

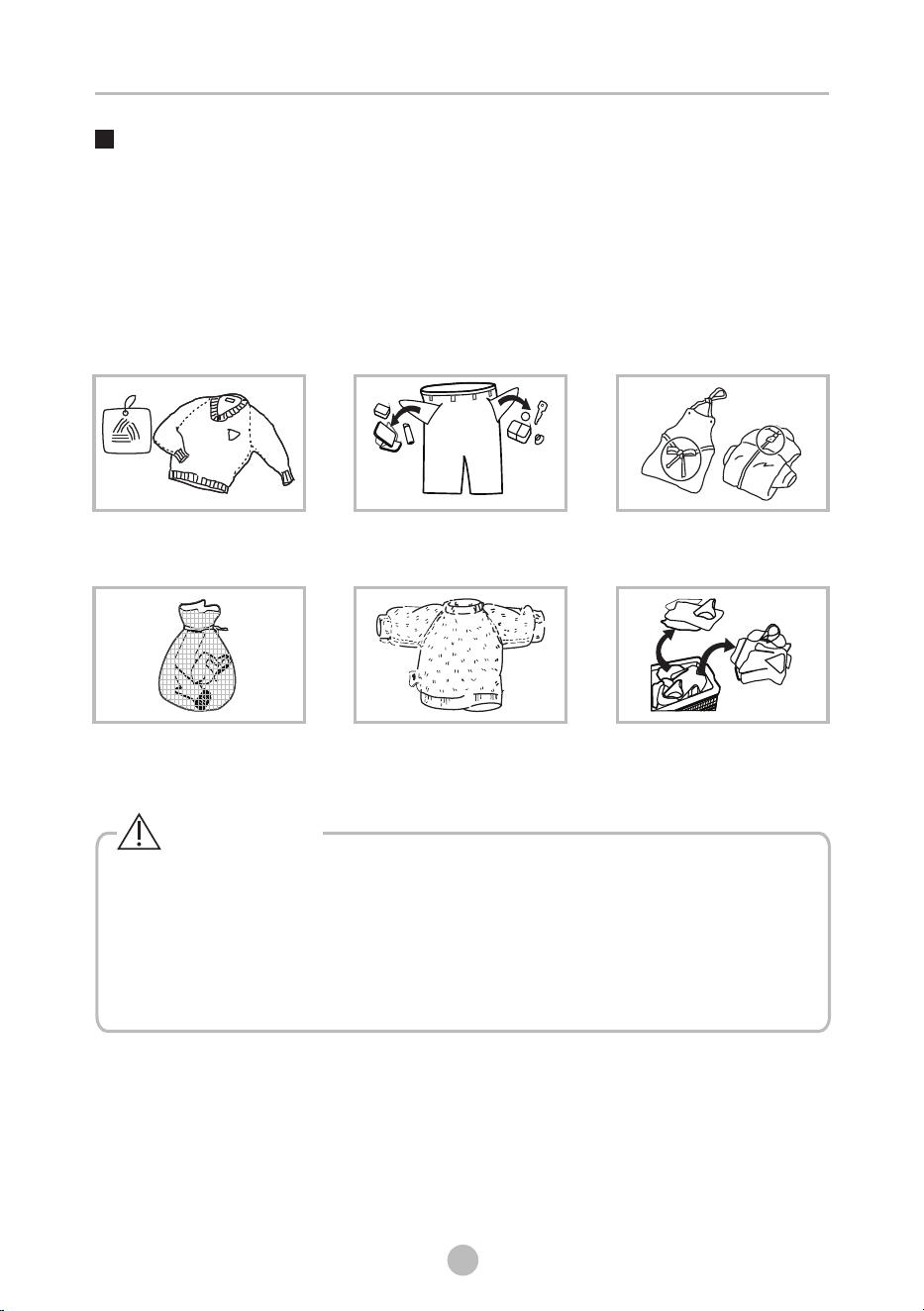

Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
• Do not wash, spin, or dry water-proof seats, mats, or clothing.
OPERATIONS

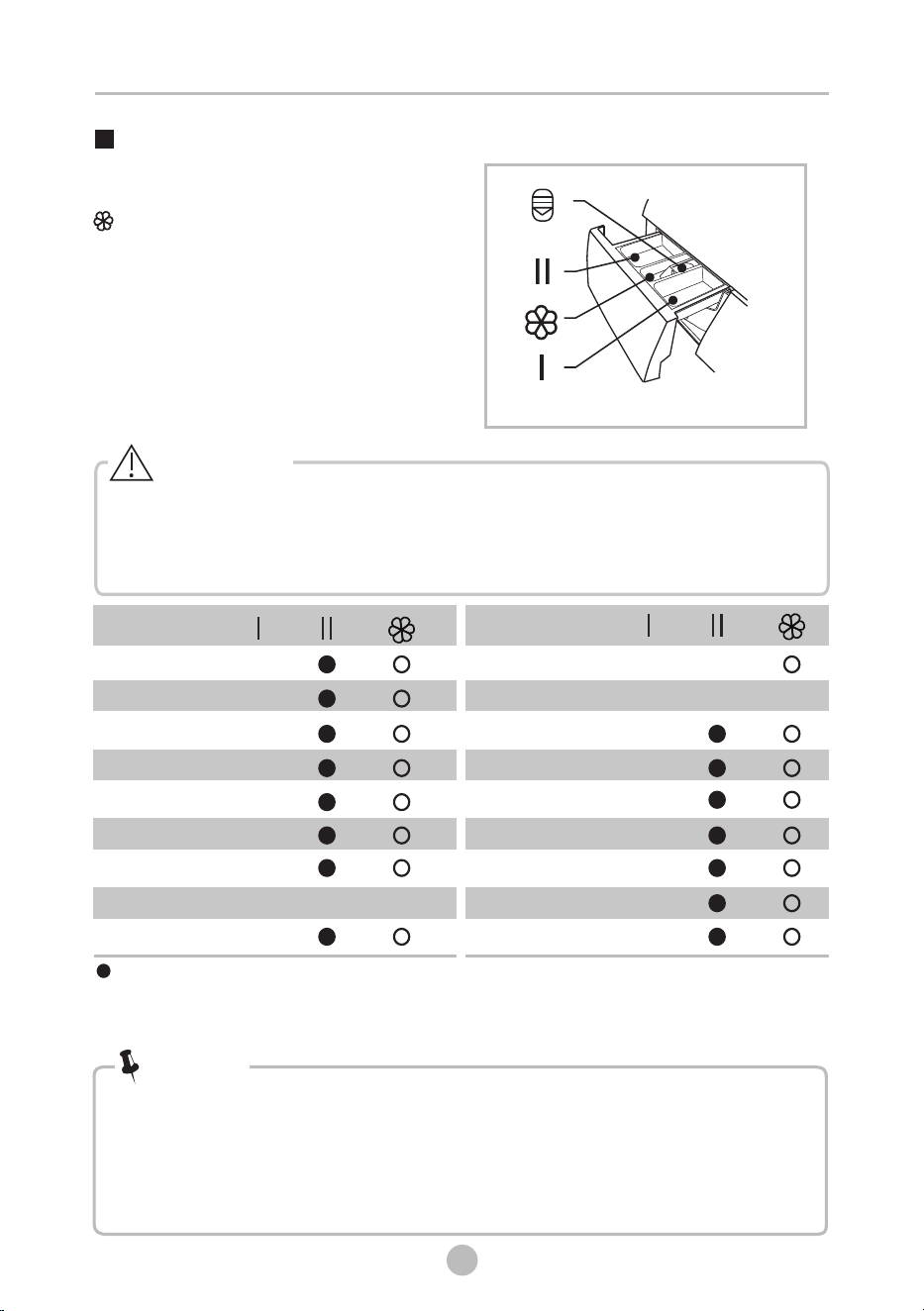

Detergent Dispenser
• Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
• Use dry powder detergent to prevent clogging, and clean the dispenser
regularly especially when the washing machine is not used for long
periods of time.
Note!
18
Program
COTTON
QUICK 15’
MIX 45’
WASH&DRY
DELICATE
WOOL
DRY ONLY
DRUM CLEAN
DOWNLOAD CYCLES
Program
RINSE&SPIN
SPIN ONLY
BEDDING
STEAM HYGIENE
COLOR ALIVE
WHITE
JEANS
BABY CARE
SYNTHETIC
Pre wash detergent
Main wash detergent
Softener
II
I
Pull out the dispenser
Caution!
• Detergent only need to be added in “case I after selecting pre-washing
for machines with this function.
”
• To prevent powder detergent from remaining in the dispenser under low water
pressure, add the powder detergent into the drum.
Means must Means optional ○
*DOWNLOAD CYCLES default program is BABY CARE .
The programs (BABY CARE/JEANS/SYNTHETIC) can only be selected by
App on mobile phones.
TSmartLife
Control Panel

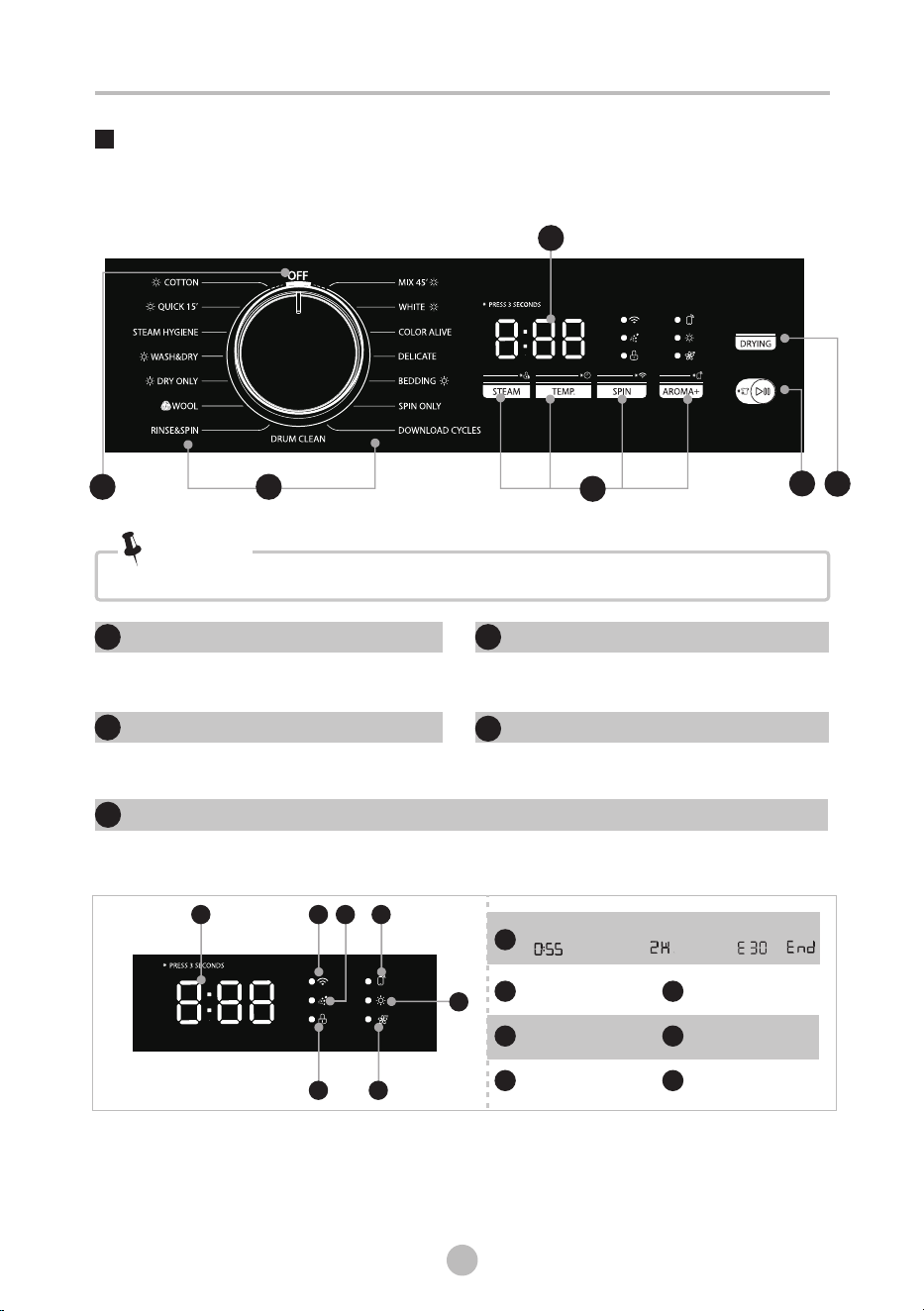

OPERATIONS
19
OFF
Product is switched off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programs
Available according to the laundry type.
Option
This allows you to select an additional
function .
Note!
• The chart is for reference only, please refer to real product as standard.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status
messages for your washer. The display will remain on through the cycle.
5
A
B
D
F
Wash Time Delay End Time
Error End
Door lock
Dry
A B C
D
E
G
F
Wireless Network
C
UFB
E
Remote control
G
Aroma+
3
2
3
5
41
Option
OPERATIONS
24
10
20
AROMA+
fibers to absorb softener more efficiently. As a result, with dosing the same
amount of softener, we can achieve better fragrance left on the clohtes.
The function helps to modify the water flow mode and time. Then help the
DELAY END
Set the Delay end function:
1. Select a program
2.Press the to choose the time (the delaying end time is 0-24 H.) [ TEMP. ] 3 seconds
3.Press Start/Pause to commence the delay operation[ ]
Choose the Program
StartSetting time
TEMP.
Cancel the Delay function:
Press the [TEMP.]button until the display be 0H.It should be pressed before
starting the program. If the program already started, should turn off the
machine.
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected program and when the power is restarted,
the selected program will continue running.
STEAM function can penetrate the fiber,which effectively eliminate bacterias
and germs, preventing odors .
STEAM function can be selected with “COTTON”,
“DOWNLOAD CYCLES“, “BEDDING“, “STEAM HYGIENE“, “JEANS“, “SYNTHETIC” and
“BABY CARE” .
“ MIX 45’ “ , “WASH & DRY“,
STEAM
STEAM
*DOWNLOAD CYCLES default program is BABY CARE .
The programs (BABY CARE/JEANS/SYNTHETIC) can only be selected by
App on mobile phones.
TSmartLife
DRYING
Press the Drying button continuously to choose the dry level:
1. Normal Dry ( Display d-2 )
2. Strong Dry ( Display d-3 )
3. Low Temperature Dry ( Display d-1 )
Timed Dry: Drying your laundry and finish within given time
(30/60/90/120/180 minutes)
OPERATIONS
• Drying hints
- Thoroughly spin you laundry before drying.
- To ensure proper drying, please sort your laundry according to the fabric
type and drying temperature.
•
• Clothes not suitable for drying
- Particularly delicate items such as synthetic curtains,woolen and silk,
clothes with metal inserts,nylon stockings,bulky clothes,such as anoraks,
bedcovers,quilts,sleeping bags and duvets must not be dried.
- Clothes padded with foam-rubber or materials similar to foam-rubber must
not be machine dried.
- Fabrics containing residues of setting lotions or hair sprays, nail solvents or
similar solutions must not be machine dried in order to avoid the formation
of harmful vapours.
• When drying a small amount of clothes about 1kg, it is not appropriate to use
clothes that are not easy to dry, such as:
sweaters, wool pants, small padded clothes and so on.
Note!
Check care labels of clothes and follow their insturuction.
Tumble dry is available.
Tumble dry with Low temparature
Tumble dry with medium temparature
Tumble dry is prohibited
21
4. Timed Dry
This dry mode have lower temperature about 60℃,especially care for
clothing, this dry level suggestion cloth weight is 2kg
OPERATIONS
22
duration (30min, 60 , 90 , 120 ), suitable for different loading
1kg, 1.5kg, 2kg, ). This program contains 10 minutes of default
dehydration so the actual display time is 40min, 70min, 100min, 130min
.
• For “ ” program, the default display time can be different from actual
time. Because actual time will be adjusted automatically by load or texture.
Drying time for reference:
• The parameters in this table are only for user’s reference. The actual parameters
maybe different with the parameters in above mentioned table.
• In the program “ DRY ONLY”, you can touch DRYING button to change drying
min min min, 180min
(0.5kg, 3kg
time, ,
190min
DRY ONLY
Cotton fabric(kg)
Estimated time(min.)
3kg 4kg 5kg 6kg
180' 220' 250' 290'
Note!
OPERATIONS
23
Program Option
AROMA+
STEAM
DELAY END
DRYING
○ Means optional
*DOWNLOAD CYCLES default program is BABY CARE .
COTTON
QUICK 15’
MIX 45’
WASH&DRY
DELICATE
WOOL
DRY ONLY
DRUM CLEAN
DOWNLOAD CYCLES
RINSE&SPIN
SPIN ONLY
BEDDING
STEAM HYGIENE
COLOR ALIVE
WHITE
JEANS
BABY CARE
SYNTHETIC
The programs (BABY CARE/JEANS/SYNTHETIC) can only be selected by App on
mobile phones.
TSmartLife
OPERATIONS
• Don’t use the Reload function when the water level is over the lower edge of the door or
the water temparature is high.
Caution!
CHILD LOCK
To avoid mis operation by children.
Other Functions
RELOAD
Cloths can be added after strating washing process.
Please follow the steps as bellow:
1. Press [ ] for 3 seconds.
2. Wait until the drum stops rotation.
3. The door is unlocked.
4. Add cloths into drum.
5. Close the door and Press [ ] .
Start/Pause
Press[Start/Pause]3sec.
Reload the clothes
Caution!
When the Child Lock is activated, the display will alternately show “CL” and the remaining time.
Pressing any other button will cause the Child Lock indicator to flash.
When the program ends, “CL” and “End” will alternate on the display.
The Child Lock deactivates the function of all buttons except the On/Off button and the Child
lock button!
Only the simultaneous pressing of the button [STEAM] can deactivate the Child Lock!
Please deactivate the Child Lock before selecting a new program!
Press [ STEAM] for 3 sec. till buzzer beep.
24
10
24
TEMP.
Press the button to change water temperature.
The display show “--” means the temperature is cold.
Temp.:Cold,20°C ,30°C, 40°C, 60°C, 90°C .
TEMP.
STEAM
Start/Pause
Choose the Program
SPIN SPEED
Press the [SPIN] button to change the spin speed.
Speed:0-400-600-800-1000-1200-1400
OPERATIONS
SPIN
25
Wireless Network
Remote Control
This is the switch of remote control, if you want to use your smartphone to
control the machine remotely, you need to hold [ ] 3 seconds.
Considering the safe operation of machine, the smartphone remote
control should meet the following conditions:
1. The appliance should connect to the internet;
2. The door of drum should be closed.
Remark:
-. If the door is open in anytime, the remote control function will be failure.
-. The remote control function is turned off at the end of each cycle automatically,
if you want to use remote control function again, you need turn on it again.
AROMA+
Methods to turn on the Wireless Network function
1. Press to turn on the Wireless Network function,
it can also configure the network or reset the network.
Methods to turn off the Wireless Network function
1. Press TEMP. [SPIN] 3 seconds to turn off the Wireless
Network function.
2. Or unplug the appliance.
[ ] button for 3 seconds
[ ] and buttons for
SPIN
Program Default Spin Speed(rpm)
SPIN ONLY
BEDDING
STEAM HYGIENE
COLOR ALIVE
WHITE
JEANS
BABY CARE
SYNTHETIC
RINSE&SPIN
Program Default Spin Speed(rpm)
COTTON
QUICK 15’
MIX 45’
WASH&DRY
DELICATE
WOOL
DRY ONLY
DRUM CLEAN
DOWNLOAD CYCLES
1000
800
800
--
600
600
1400
--
1000
800
1000
800
800
1000
800
800
1000
1000
UFB Function
-.Ultra Fine Bubble (UFB) is an invisibly small Nano size air bubble that is
smaller than a fiber gap of cotton.
-.UFB deliver surfactants to stains deep inside the cloth. Thus UFB promotes
the easy removing stains.
*DOWNLOAD CYCLES default program is BABY CARE .
The programs (BABY CARE/JEANS/SYNTHETIC) can only be selected by App on
mobile phones.
TSmartLife
OPERATIONS
26
1. Your smartphone is connected to home Wireless Network, and you know the
network password.
2. Make sure you are near the home appliance.
3. The 2.4GHz band wireless signal is enabled on your wireless router.
Follow the below steps to enter the remote control state
Before you start, make sure that:
Instructions to Connection with the TSmartLife App
Download the TSmartLife App
On an app market (Google Play Store, Apple App Store), search for
“TSmartLife” and find the TSmartLife app. Download and install it on
your phone. You can also download the app by scanning the QR code
below.
Register and log in
Open the TSmartLife app, and create a new account to start (you can
also register through a third-party account). If you already had an
existing account, use the account to log in.
Connect your devices to TSmartLife
1. Please make sure your mobile phone is connected to Wireless Network.
If not, go to Settings and turn on the wireless connection, select and
connect to a Wireless Network. Also please turn on the Bluetooth on
your phone. If not, go to Settings and turn it on.
2. Please power on your devices.
3. Open TSmartLife app on your phone.
OPERATIONS
27
4. If a message of “Smart devices discovered nearby” appears, click to
add.
5. If no message appears, select “+” on the page and select your device
in the list of nearby devices available If your device is not listed,
please add your device manually by the device category and device
model.
8: 88
6. Connect your device to Wireless Network according to the instructions
on app. If the connection fails, please follow the instructions provided
by the app to continue with the operation.
OPERATIONS
28
Wireless Network Status Light
Slowly flashing
Waiting for connection
Quickly flashing
Connecting
Quickly flashing solid
Connected to your wireless router
Make sure your devices are powered on.
Keep your mobile phone close enough to your device when you
are connecting network to your device.
Connect your mobile phone to the wireless network at home, and
make sure you know the password of the Wireless Network.
Check if your router supports 2.4 GHz Wireless Network band and
turn it on. If you are not sure whether the router supports 2.4 GHz
band, please contact the router manufacturer.
The device cannot connect to the Wireless Network that requires
authentication, and it usually appears in public area such as
hotels, restaurants, etc. Please connect to a Wireless Network that
does not require authentication.
It is recommended to use a Wireless Network name that only
contains letters and numbers. If your Wireless Network name
contains special characters, please modify it in the router.
Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of
your mobile phone when connecting network to your devices.
In the case that your device connected to Wireless Network
before but it needs to reconnect, please click “+” on app Home
page, and add your device again by the device category and
model according to the instructions on app.
Wireless Network INFORMATION
Working Frequency 2.4G
Extreme Temperature Range -20°C~85°C
Max RF Power Output : E.I.R.P 18dBm BT: 8dBmWireless Network
Note!
Programs
OPERATIONS
26
29
QUICK 15’
WOOL
Hand or machine washable wool or richwool textiles Especially
gentle wash program to prevent shrinkage longer program
pauses
- .
,
.
COTTON
Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
SPIN ONLY
Spin with selectable spin speed.
BEDDING
MIX 45’
This procedure is suitable for washing few and not very dirty clothes
quickly.
Mixed load consisting of textiles made of cotton and synthetics.
DELICATE
For delicate washable textiles e.g. made of silk, satin synthetic
fibres or blended fabrics.
, , , ,
DRUM CLEAN
This program is specially set in this machine to clean the drum
and It applies high temperature water to make the drum
and tub. When this procedure is performed, the clothes can not be
added. When proper amount of chlorine bleaching agent is put in,
the drum cleaning effect will be better. The customer can use this
procedure regularly according to the need.
tub.
WASH & DRY
Continuous washing and drying program.
Programs are available according to the laundry type.
This program is specially designed for washing Bedding.
STEAM HYGIENE
Washing machine can kill some bacterium, and achieve hygiene
effect.
COLOR ALIVE
Washing brightly colored clothes, it can protect the colors better.
WHITE
Specially cycle for white clothes.
JEANS
Specially cycle for jeans.
BABY CARE
Washing the baby’s clothes, it can make the baby’s wear cleaner and
make the rinse performance better to protect the baby skin.
DRY ONLY
This program is to dry clothes for the time set automatically based
on the load.
DOWNLOAD CYCLES
By using , you can download addtional cycles to your
washing machine,we have limited cycle numbers on the panel, but
we have more cycles in the app, and we can choose one via the app,
and the by controlling the knob, we can apply the app cycle to the
machine.
TSmartLife App
The programs (BABY CARE/JEANS/SYNTHETIC) can only be selected by App on mobile phones.TSmartLife
SYNTHETIC
Wash synthetic articles, for example: shirts, coats, blending. While
washing the knitting textiles, detergent quantity shall be reduced
due to its loose string construction and easily forming bubbles.
RINSE&SPIN
Rinses and then spins the laundry, and then drains the water.
The wool wash cycle of this machine has been tested and approved by The Woolmark
Company for the washing of machine washable wool products provided that the
products are washed according to the instructions on the garment label and those
issued by the manufacturer of this washing machine.
M2433
OPERATIONS
• The parameters in this table are only for user’s reference. The actual parameters
maybe different with the parameters in above mentioned table.
Note!
30
Program
Washing /Drying Load(kg) Default Time
13.0/8.0
*DOWNLOAD CYCLES default program is BABY CARE .
Default
Temp.(°C)

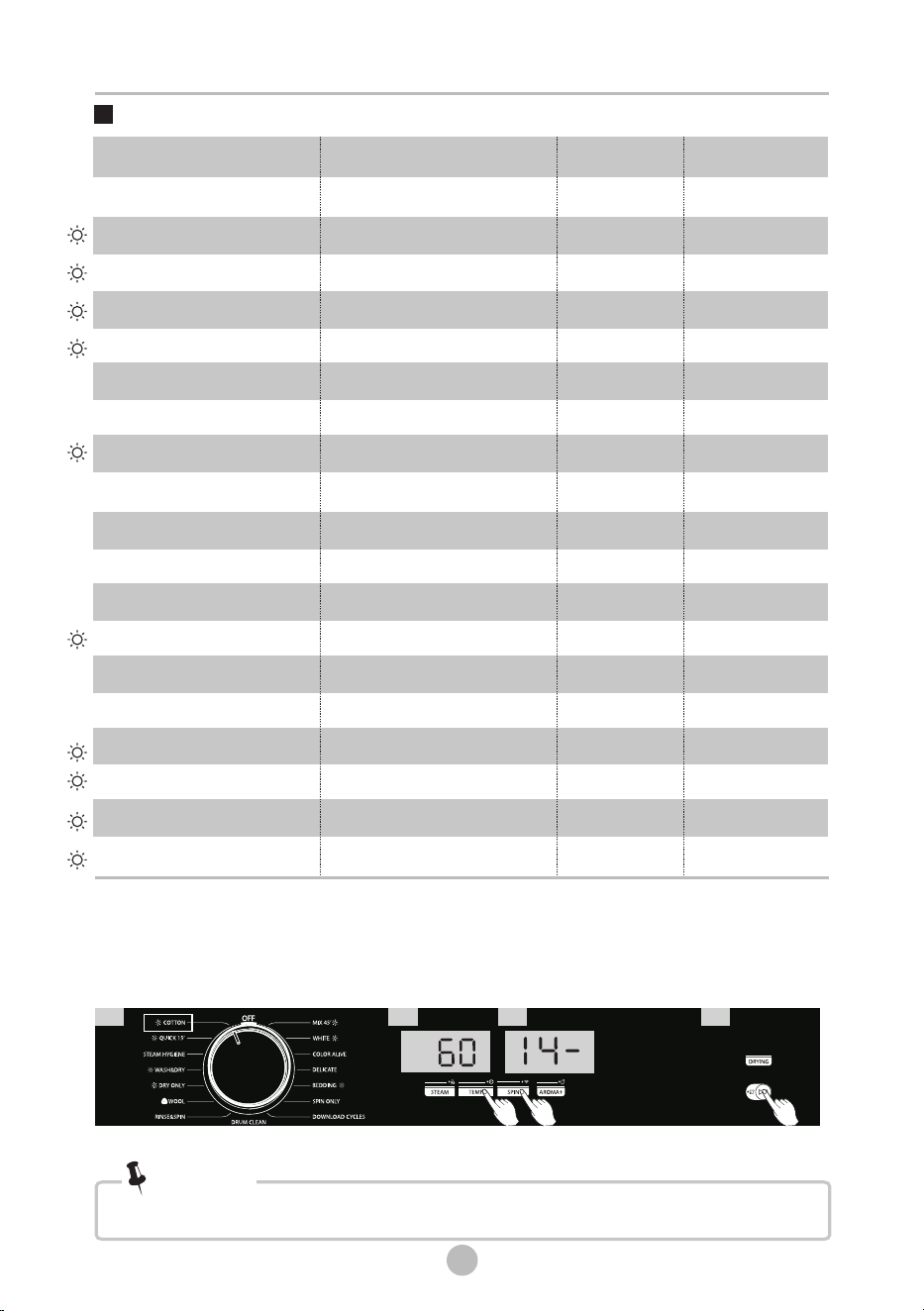

Washing Programs Table
COTTON
QUICK 15’
MIX 45’
WASH&DRY
DELICATE
WOOL
DRY ONLY
DRUM CLEAN
DOWNLOAD CYCLES
RINSE&SPIN
SPIN ONLY
BEDDING
STEAM HYGIENE
COLOR ALIVE
WHITE
JEANS
BABY CARE
SYNTHETIC
13.0/8.0
2.0/1.0
6.5/6.5
8.0/8.0
3.0/--
2.0/--
--/8.0
--
13.0/8.0
13.0/--
13.0/--
13.0/8.0
6.5/--
6.5/--
6.5/6.5
13.0/8.0
13.0/8.0
6.5/6.5
1:18
0:15
0:45
4:07
0:50
1:07
3:00
1:18
2:05
0:20
0:12
1:48
2:39
1:03
1:09
1:35
2:05
1:03
40
Cold
30
40
30
40
--
90
60
--
--
40
--
Cold
30
30
60
40
* °C
Speed : 1400rpm; other as the default.
Energy test program for TH / MY / SG for washing : COTTON ; Temp. : 60 ;
Press button “TEMP.” to 60 ℃
Press button “SPIN” to 1400
How to select the Water Efficiency test program for SG
Select COTTON program
Press Start/Pause
1 2 3 4
The programs (BABY CARE/JEANS/SYNTHETIC) can only be selected by App on mobile phones.TSmartLife
* default.Energy test program for VN for washing : COTTON ; Temp. : Cold ; other as the
• Before your maintenance starts, please unplug the machine and close the tap.

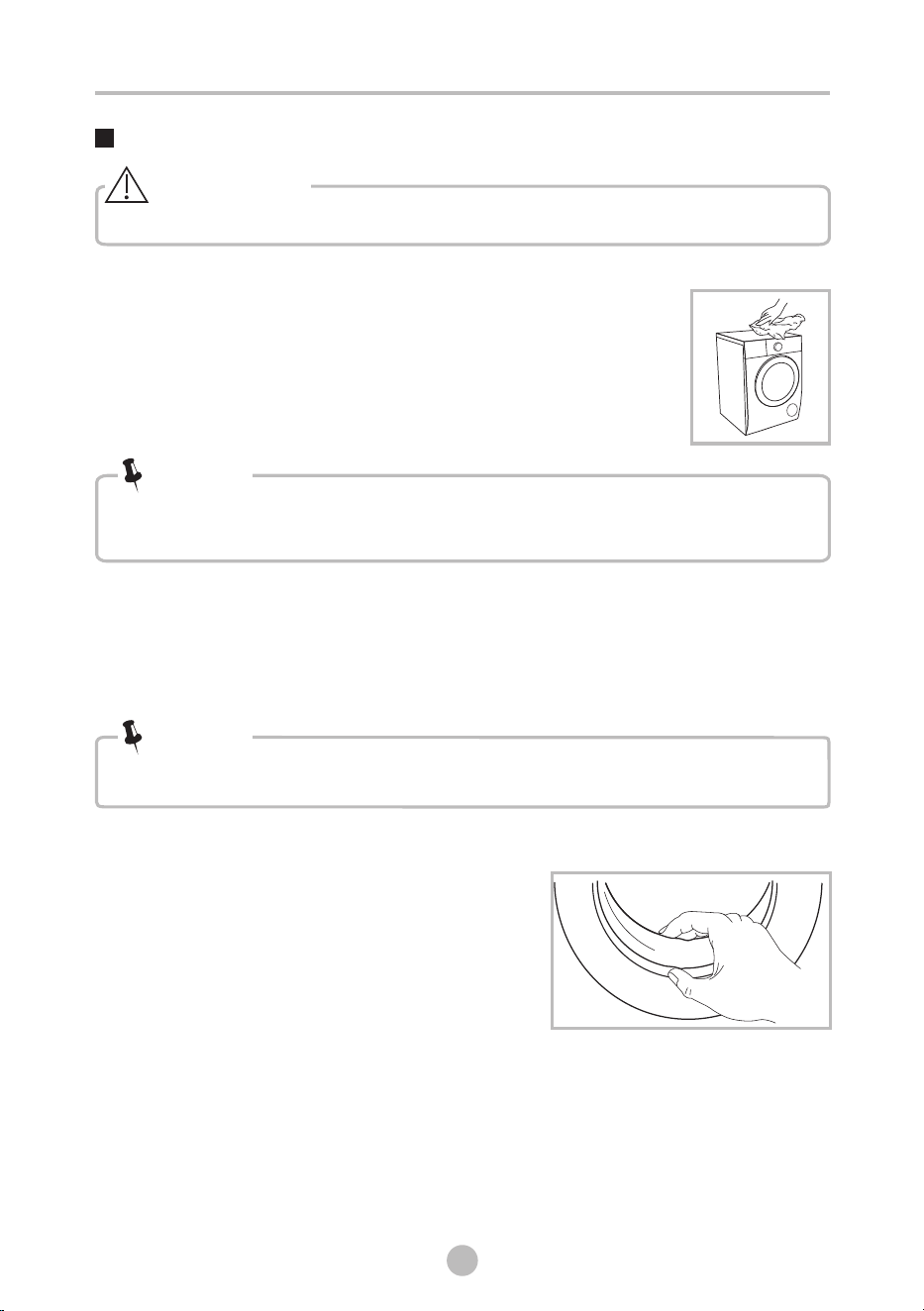

Cleaning the Cabinet
Cleaning the Drum
• Formic acid and its diluted solvents or equivalent are forbidden, such as
alcohol, solvents or chemical products,etc.
• Don’t put laundry in the washing machine during the drum cleaning.
Cleaning the Gasket and Glass
Warning!
Note!
Note!
Cleaning and Care
The rusts left inside the drum by the metal articles shall be removed immediately
with chlorine-free detergents.
Never use steel wool.
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the dry cloth to wipe it off immediately.
No sharp items are allowed.
Wipe the glass and gasket after each wash
to remove lint and stains. If lint builds up it
can cause leaks.
Remove any coins, buttons and other objects
from the gasket after each wash.
MAINTENANCES
31
Clean the Door Seal and Glass every month
to ensure the normal operation of the
appliance.
MAINTENANCES
Clean the Detergent Dispenser
• Do not use alcohol,solvents or chemical products to clean the machine.
Note!
1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
3. Restore the softener cover and push the drawer into position.
32
• Clean the detergent dispenser every 3 months to ensure the normal
operation of the appliance.
Press the release and
remove the dispenser
drawer
Clean the dispenser
drawer and the softener
cover under water
Clean the recess with
an soft brush
Insert the dispenser
drawer
1
3
4
2

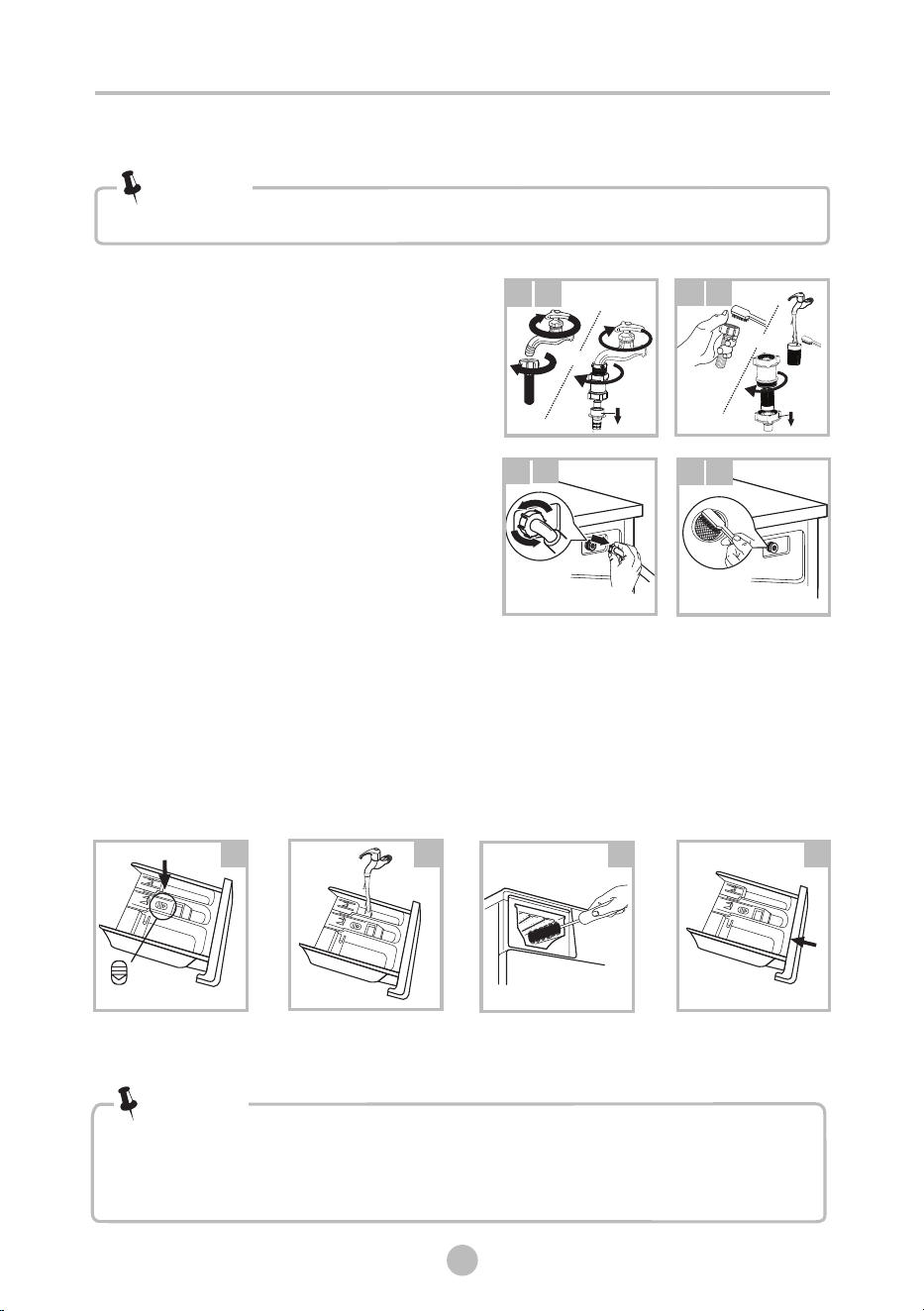

Cleaning the Inlet Filter
• Inlet filter must be cleaned if water reduces than before.
Note!
5. Clean the Inlet filter every 3 months to ensure
the normal operation of the appliance.
1
1
2
2
3
3
4
4
Washing the filter in the water inlet hose
1. Close the tap.
2. Remove water inlet hose
from the tap.
or water filter
3. and clean the filter.Disassembly
4. Reconnect the water inlet hose.
Washing the filter in washing machine:
1.
2 . Pull out the filter with long nose pliers
and reinstall it back after being washed.
3. Use the brush to clean the filter.
4. Reconnect the water inlet hose.
Screw off the water inlet hose from the
of the machine.backside
or
or

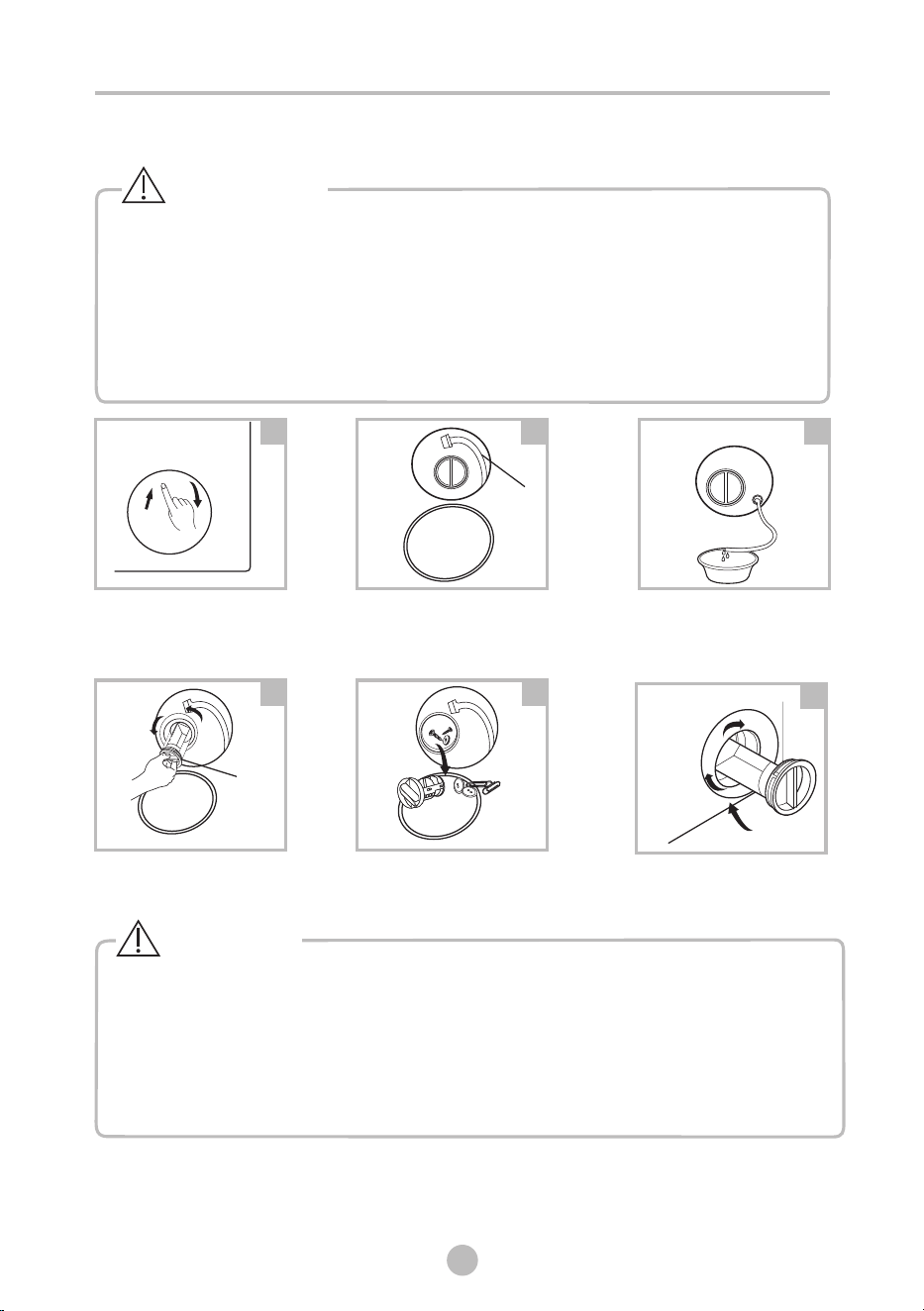

Cleaning the Drain Pump Filter
Open the lower cover cap Pull out the emergency drain
hose, and take off the hose cap
Open the filter cap by turning
to the counter clockwise
Remove extraneous matter
1
2
3
Close the filter cap and the
lower cover cap
6
Emergency
drain hose
After water runs out,
reset the drain hose
Caution!
MAINTENANCES
5
4
Filter cap
•
• Wait until the water cools down.
• Unplug the machine to avoid electrical shock before maintenance.
• Drain pump filter can filter the lints and small foreign matters from the
washing.
• Clean the filter periodically ev to ensure the normal operation ery 3 months
machine.of
Be careful of the hot water!
Warning!
33
• Make sure that filter cap and emergency drain hose are reinstalled properly, filter cap
should be inserted aligning to hole plates otherwise water may leak.
• When the appliance is in use and depending on the program selected there can be
hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the filter
cap, ensure it is securely re-tightened.
1. Open filter door.
2. In case of power failure,
open the filter door to
drain the cooled water
in the drum.

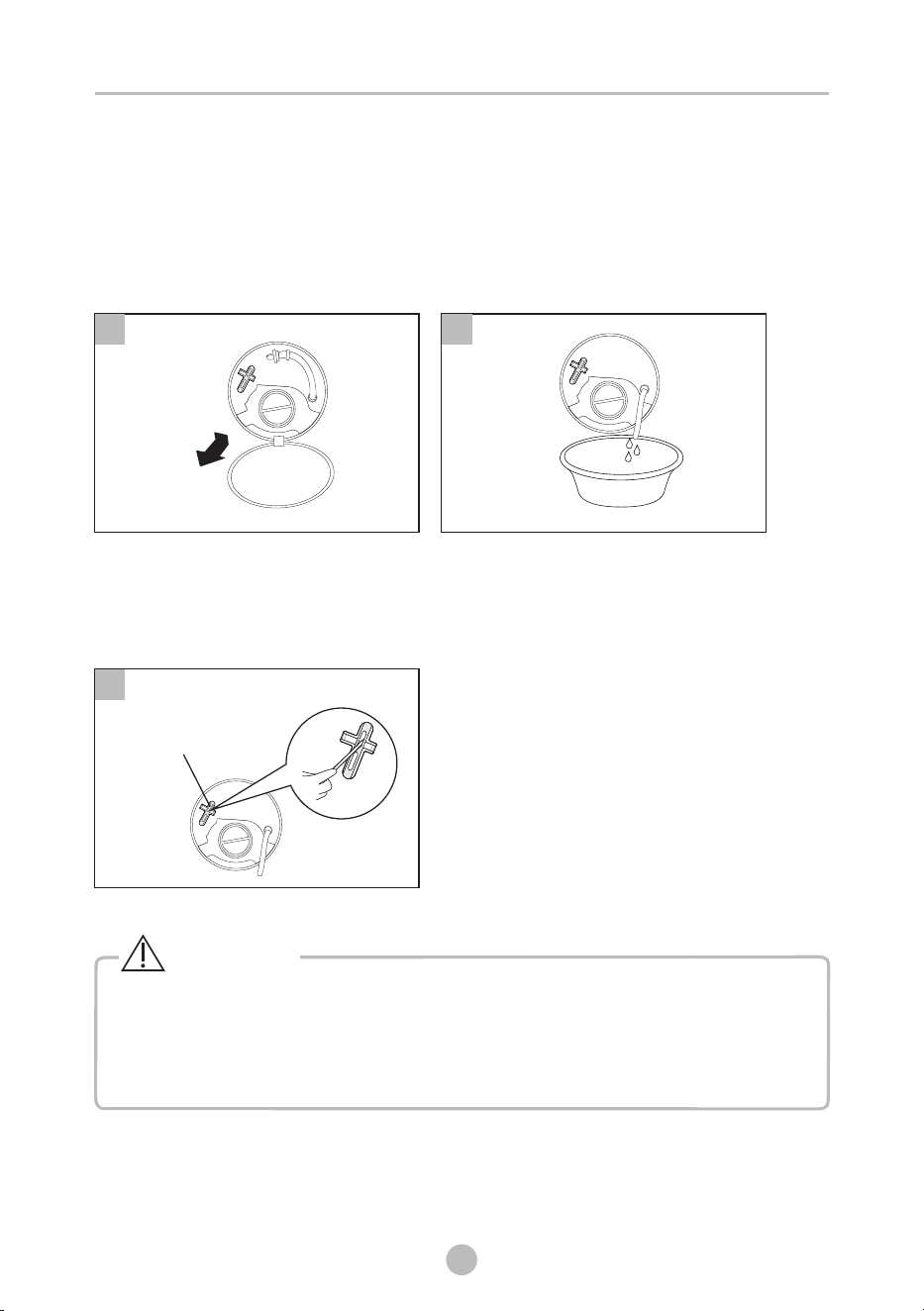

Emergency Door Release
In case of power failure or other circumstances and door cannot be opened.
If it is necessary to open the door under this circumstances, please pull
down the pull cord inside emergency door and restore the pull cord after
opening the door.
The machine is not allowed to use the emergency switch pull cord during
washing. If need to run machine urgently, it is recommended to open door
after water is cooled, to avoid getting burn caused by high temperature
residual water outflow from the machine tub.
1
2
3
MAINTENANCES
34
Warning!
3. Insert the tool into the pull
ring and pull it downward to
unlock the door of the
machine
Emergency door
opening pull cord
MAINTENANCES
Trouble Shooting
The start of the appliance does not work or it stops during operation.
First try to find a solution to the problem, if not, contact the service centre.
Description
Reason
Solution
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
Door can’t be
opened
Safety protection design
is working
Disconnect the power, restart
the product
Water leakage
Connection of water inlet
hose or drain hose is not
proper.
Check connection of water inlet
hose and drain hose.
Clean and wipe the detergent
box
Abnormal noise
Check if the fixing (bolts) have
been removed
Check it’s installed on a solid
and level floor
Indicator or display
does not light
Electrical power cord may
not be plugged in or
connection may be loose.
Make sure plug fits tightly in
wall outlet. Check the power
plug is connected correctly.
Washing machine
can not start up
Detergent residues
in the box
Detergent is dampened
or agglomerated
shows other alarm codes again, contact the service.
After the check, activate the appliance. If the problem occurs or the display
Note!
Description
Reason
Solution
Check if the water pressure is
too low
Straighten the water inlet hose
Check if the inlet valve filter is blocked
Check if the drain hose is blocked
Water supply duration is
too long
Water drain duration is too
long
Try operation again. If the same
trouble continues, call for service.
Others
Water overflow
Stop using the washing machine
and call the service centre for repair
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
35
10
24
1036
MAINTENANCES
Customer Service
In case of questions please contact our local service.
Risk of electric shock
• Never try repair an appliance which is defective of presumed to be defective.
You may put your own and future users' lives in danger. Only authorised specialists are
allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!
Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see “Maintenance Cleaning the
drain pump filter”)
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door cannot be used as a handle.
Unplug the appliance and close the water inlet tap.
Warning!

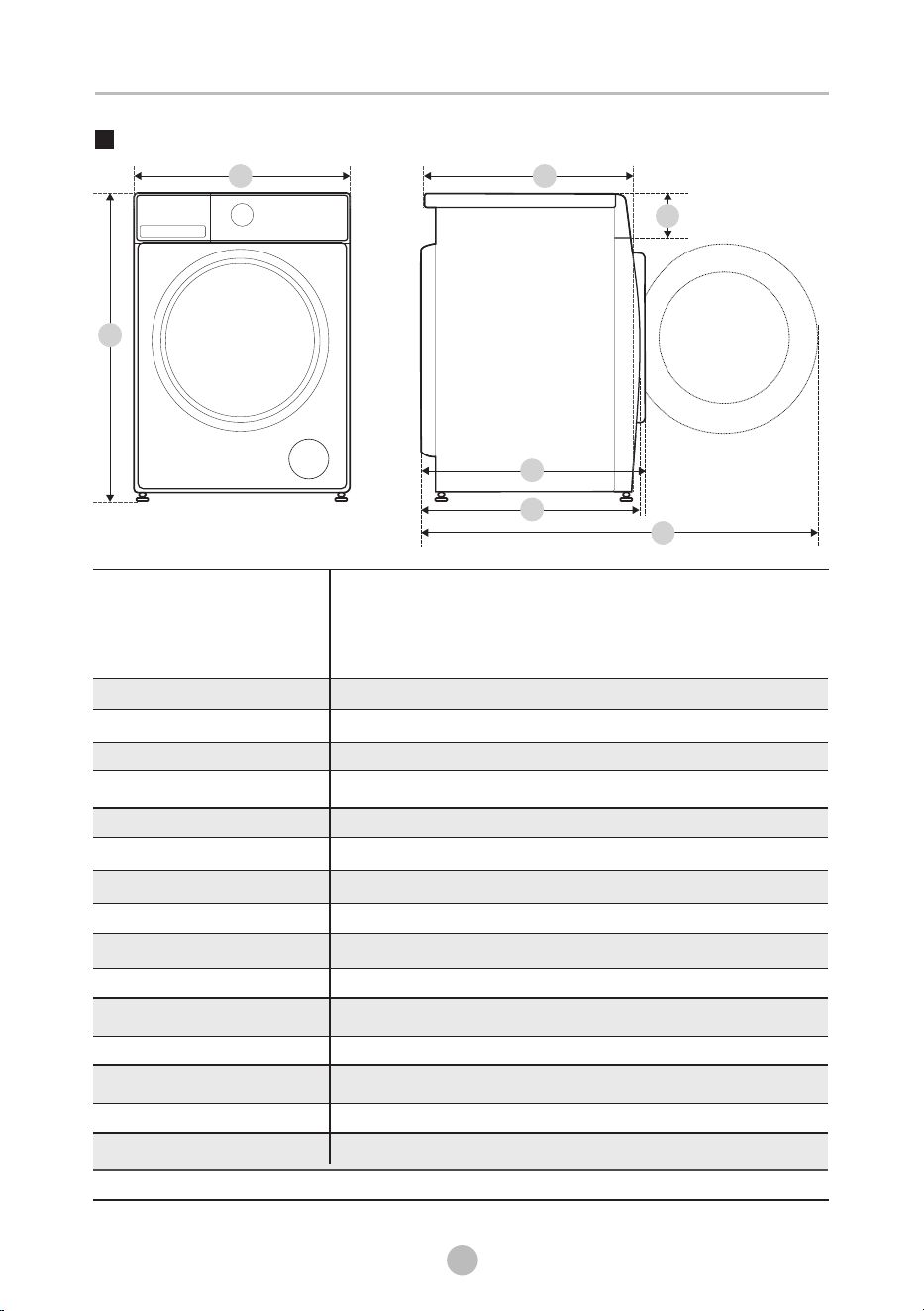

Technical Specifications
Model
A
B
E
F
D
G
C
Washing / Drying Capacity
Dimension
A
B
C
Weight
Rated Power/Dry Power
Reference Dimension
D
E
F
G
MAX. Current
Standard Water Pressure
Power Supply
220-240V~, 50Hz
0.05MPa~1MPa
10A
13.0/8.0kg
595 mm
850 mm
595 mm
71kg
2000 /1350 W
685 mm
625mm
1140 mm
135mm
MAINTENANCES
37
TWD-T21BU140UWM(MG)
* When using in a low water pressure environment, product may occur some error and
not guarantee performance.
Lower Water Pressure*
0.01 MPa
