FRONT LOADING
WASHER DRYER
OWNER’S MANUAL
MODEL
TWD-BH90W4H
Read This Manual
Use all instrucons and explanaons of
the installaon before use. Follow the
instrucons carefully. Keep the operaon
instrucons handy for later use. If the
applicaon is sold or passed on then ensure
that the new owner always receives those
operaon instrucons.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
1
CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions
..................................................... 2
INSTALLATION
Product Description
................................................. 10
Installation
............................................................... 11
OPERATIONS
Quick Start
............................................................... 15
Before Each Washing
................................................ 17
Detergent Dispenser
................................................ 18
Control Panel
.............................................................. 19
Option
...................................................................... 20
Other Functions
....................................................... 23
Programmes.
............................................................ 24
Washing Programmes Table
......................................... 25
MAINTENANCES
Cleaning And Care
.................................................... 26
Trouble Shooting
...................................................... 29

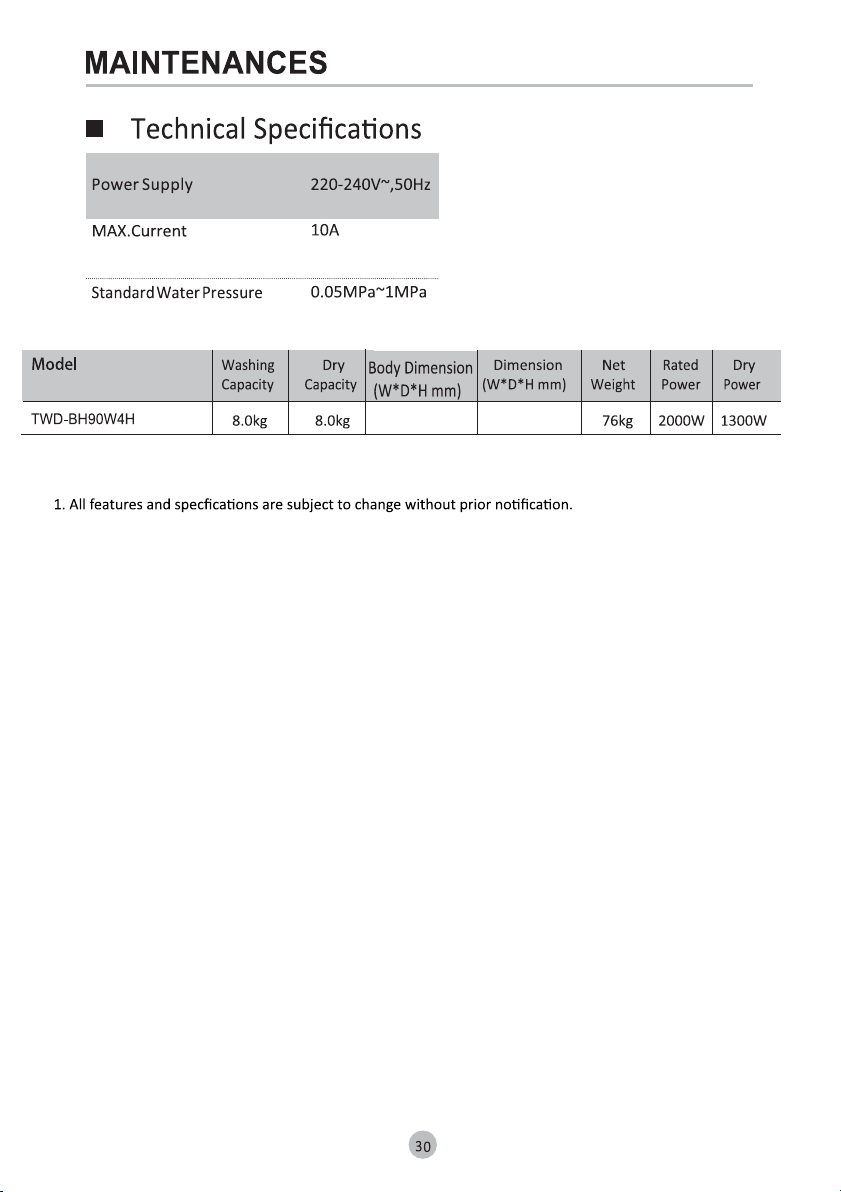

Technical Specifications
........................................... 30
2
SAFETY INSTRUCTIONS
Safety Instructions
• This appliance is not intended for use by
persons(includingchildren) with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
•
Children should be supervised to ensure that they do
not play with the appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
•
The new hose-sets supplied with the appliance are to
be used and that old hose-sets should not be reused.
•
The openings must not be obstructed by a carpet.
•
This appliance is intended to be used in household
and similar applications such as:
−
staff kitchen areas in shops, offices and other
working environments;
−
farm houses;
−
by clients in hotels, motels and other residential type
environments;
−
bed and breakfast type environments;
−
areas for communal use in blocks of flats or in
launderettes.
•
The maximum permissible inlet water pressure, 1 MPa,
for appliances intended to be connected to the water mains.
The minimum permissible inlet water pressure,0.05 MPa, if
this is necessary for the correct operation of the appliance.
3
SAFETY INSTRUCTIONS
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
！
Warning!
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
！
Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
The electric shock!
4
SAFETY INSTRUCTIONS
•
The new hose-sets supplied with the appliance must
be used and the old hose-sets must not be used.
•
Before maintenance, unplug the appliance.
• Always unplug the machine and turn off the water
supply after
use.
The standard inlet water pressure:
0.05MPa~1MPa.
• This appliance must be grounded. In the event of
malfunction or breakdown , grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
• This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug.
The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
•
Improper connection for the appliance when using
not grounded outlet or when GND terminal of outlet
is not suitable with GND terminal of power plug, can
result in risk of electric shock.. Check with a qualified
electrician or service person if you are in doubt as to
whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance. If it
does not fit the outlet , have a proper outlet installed
by a qualified electrician.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
5
SAFETY INSTRUCTIONS
• Pull out its plug from the power socket before cleaning or
maintenance.
• Do not use any socket with rated current less than that of
appliance. Never pull out power plug with wet hand.
•
Please remember to disconnect water and power supply
immediately after the clothes are washed.
• The appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•
Children of less than 3years should be supervised to
ensure that they do not play with appliance.
•
Animals and children may climb into the machine. Check
the machine before every operation.
• Children should be supervised that they do not play with
the appliance.
• Glass door may be very hot during the operation. Keep
children and pets far away from the machine during the
operation .
•
Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
•
Plug must be accessible after installation.
Risk to children!
6
SAFETY INSTRUCTIONS
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or spotted with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
• The washer dryer is not to be used if industrial chemicals
have been used for cleaning.
• The exhaust air must not be discharged into a flue which
is for exhausting fumes from appliances burning gas or
other fuels.
•
Rinse the articles thoroughly by hand before putting them
in the appliance.
Caution!
•
The appliance is for indoor use only.
• It isn't intended to be built-in using.
•
The openings must not be obstructed by a carpet.
• The appliance shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or explosive and corrosive gases.
• The appliance with single inlet valve only can be
connected to the cold water supply.
•
Plug must be accessible after installation.
• The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the opposite
side to that of the washer dryer.
• The appliance shall not be installed at a humid place.
•
The household appliance isn't intended to be built-in.
Risk of explosion!
Installing the product!
7
SAFETY INSTRUCTIONS
•
Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
•
Do not lean against machine door.
•
Cautions during Handling Machine:
1.
Transport bolts shall be reinstalled to the machine by
a specialized person.
2.
The accumulated water shall be drained out of the
machine.
3.
Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.
This appliance is heavy. Transport with care.
5.That the hands shall not be inserted into running
water extracting tub.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
•
It is forbidden to wash carpets.
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.The suggested program is
“DRUM CLEAN”.
•
Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for front load washing machine.
Risk of damaging appliance!
Operating the appliance!
8
SAFETY INSTRUCTIONS
•
Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
•
Be careful of burning when the product drains hot
washing water.
•
Never refill the water by hand during washing.
•
After the program is completed, Please wait for two
minutes to open the door.
• If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care
products. it be placed in a tumble dryer they should first
be washed in hot water with extra detergent , this will
reduce, but not eliminate, the hazard.
• Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliances burning other
fuels, including open fires.
•
Do not dry unwashed items in the appliance.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot with an extra amount of detergent
before being dried in the appliance.
•
Items such as foam rubber (latex foam), shower caps, water
proof textiles, rubber backed articles and clothes or pillows
fitted with foam rubber pads should not be dried in the
machine.
9
SAFETY INSTRUCTIONS
•
Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
•
The machine whose lid can be opened during water
extraction , that it takes 15s or more for complete
stop of water extracting chamber tub.
• The final part of a washer dryer cycle occurs
without heat (cool down cycle) to ensure that the
items are left at a temperature that ensures that
the items will not be damaged.
•
Remove all objects from pockets such as lighters
and matches before use the appliance.
• WARNING: Never stop a washer dryer before the
end of the drying cycle unless all items are quickly
removed and spread out so that the heat is
dissipated.
Packaging
/
Old appliance
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU
.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle it
responsibly to promote the sustainable reuse of
material resources
.
To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
INSTALLATION
10
Product Description
Accessories
Transport
hole plug
Supply hose
cold water
Drain hose
support
(optional)
Owner’s manual
Rat resistance
panel(optional)
Spanner assembly
(optional)
Screw(optional)
Top cover
Water supply hose
Control panel
Detergent dispenser
Power supply cord
Drum
Door
Drain pump filter
Drain hose
Note!
•
The product line chart is for reference only, please refer to real product as
standard.
INSTALLATION
11
Installation
Installation area
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.
Room temperature is above 0
°
C
5.
Keep far away from the heat resources such as coal or gas.
Unpacking the washing machine
1.
Remove the cardboard box and styrofoam packing.
2.
Lift the washing machine and remove the base packing.Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
3.
Remove the tape securing the power supply cord and drain hose.
4.
Remove the inlet hose from the drum.
Remove transport bolts
！
Warning!
•
Stability is important to prevent the product from
wandering!
• Make sure that the product should not stand on
the power cord.
w
W> 20mm
w
！
Warning!
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation ! Keep all packaging
well away from children.
！
Warning!
•
You must remove the transport bolts from the backside before using the product.
•
You’ll need the transport bolts again if you move the product , so make sure
you keep them in a safe place.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Cover the hole with transport hole plugs.
3.Keep the transport bolts properly for future use.
INSTALLATION
12
2
Levelling the washing machine
1.
If it’s balanced from le to right
• Take a long sck, and e a rope at the end of it.
Bind a heavy object at the end of the rope.
• Hang the rope from the top cover of the
machine. Adjust the legs ll the difference
between ‘a’ and ‘b’ is less than 1cm.
2.
If it’s balanced from front to back
• Put the sck at the middle of the control panel, and hang the rope in front of the
machine
.
• Keep 13cm away from the rope end to the control panel edge( c ). Adjust the legs
ll ‘d’ is 5.5-6.5cm (‘d’ is the distance from rope to boom of front cover).
！
Warning!
•
Check with the gradienter if the machine placement is balanced and steady.
•
If there is no gradienter, check the balance as per the following method.
c
Control Panel
d
Front Cover
a
b
INSTALLATION
13
3
Levelling the washing machine
1.
Check if the legs are closely aached to the cabinet. If not, please turn them to
their original posions ghten the nuts.
2.
Loosen the lock nut turn the feet unl it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.
Connecon between ordinary tap and inlet hose.
Loosen clamp nut and
four bolts
Press the tap end
ghtly to the rubber
ring inside the clamp,
and then, ghten the
4 bolts
Press slide bushing,
insert inlet hose into
connecng base
Connecon finished
2.
Connecon between screw tap and inlet hose.
Tap with threads and inlet hose
Special tap for washing machine
1
2
slide bushing
3
4
clamp nut
！
Warning!
• To prevent leakage or water damage, follow the instrucons in this chapter!
• Do not kink, crush, modify or sever water inlet hose.
！
Warning!
•
The lock nuts on all four feet must be screwed ghtly against the housing.
1
2
3
4
Raise
Lower
Lock nu
t
foot
slide bushing
INSTALLATION
14
4
！
Warning!
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe ghtly clockwise.
Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the drain port. 2.Connect it to the branch drain pipe of
the trough.
！
Warning!
•
When installing drain hose, fix it properly with a rope.
•
If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
！
Warning!
• Do not kink or protract the drain hose.
• Posion drain hose properly ,otherwise damage might result of water leakage.
water Inlet valve
water supply hose
Drain port
Note!
• If the machine has drain hose support, please install it like the following .
Trough
Hose Retainer
Max.100cm
Min.60cm
M
ax
.
100
c
m
M
i
n
.
60
c
m
Min.60 c
m
Ma
x
.100c
m
15
5
OPERATIONS
Quick Start
1.
Before Washing
Plug in
Open tap Load
Close door
Add detergent
2.
Washing
1
2
3
4
Power On
Select Programme
Select funcon or
default(see next page
for details)
Start up
3.
Aer Washing
Buzzer beep or “END” on display.
Note!
• If default is selected, step 3 can be skipped.
• When the machine is working, you can slide the sense bar to lighten the screen
and lamp.
Note!
• Add detergent or soener when the display shows note like this “Detergent
and Soener have run out, please add!”
1
2
3
4
5
DETERGENT SOFTENER
Caution!
•
Before washing, please make sure it’s installed properly.
•
Before washing at first me, the washing machine shall be operated in one
round of the whole procedures without clothes in as follows.The suggested
program is “DRUM CLEAN”.
16
6
OPERATIONS
Select func on or default
•
TEMP./ SPIN/ RINSE/SENSEDOSE
Press the bu on (TEMP./ SPIN/ RINSE/SENSEDOSE) to adjust the parameter.
•
DELAY END/ FAST WASH/ DRYING
Op ons:
Step1: Press the bu on( DELAY END/ FAST WASH/
DRYING)
Step2: Slide and touch OK to select different level as
you need. A
er selec ng, the display will highlight
corresponding icons.
Step3:To cancel a selected func
on-Slide to CANCEL
and touch OK.
DELAY END (single choice):CANCEL, 1hour, 2hours, 3hours, 4hours, 5hours…24hours. FAST
WASH (single choice):CANCEL, FAST, FASTER, FASTEST.
DRYING (single choice):CANCEL, LESS, STANDARD, EXTRA.
•
FUNCTION(mul ple choice)
Available fun ons: ECO, PREWASH,EASY IRON, SOAK, CONFIRM
Step1: Press the bu on (FUNCTION)
Step2: Slide and touch OK to select a func
on. This step can be repeated to select several
fun ons. The selected fun ons will be highlighted.
Step3: To cancel a selected func
on - Slide to a selected func on and touch O ll it’s not
highlighted.
Step4: A
er selec ng, slide to CONFIRM and touch OK, the display will show corresponding
icons.
Note!
• The you select in DELAY END must be more than the of the current
program and the display will show the me that you can select.
•
If you press the same bu on (DELAY END/ FAST WASH/ DRYING/ FUNCTION) twice,
the display will switch to the program interface. During sele ng, if you press other
bu
on (DELAY END/ FAST WASH/ DRYING/ FUNCTION), the display will switch to
other corresponding selec on interface.
OPERATIONS
17
Before Each Washing
• The working condion of the washer should be(0-40)°C.If used under 0°C,the
inlet valve and draining system may be damaged. If the machine is placed under
condion of 0°Cor less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanaon of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Check the label
Put small clothes into the
pillow slip
Take out the items out of
the pockets
Turn easy-pilling and
long-pile fabric inside out
Knot the long strips,zip or
buon
Separate clothes with
different textures
！
Warning!
• When washing a single clothes, it may easily cause great imbalance and give
alarm. Therefore it is suggested to add one or two more clothes to be washed
together so that washing process can be done smoothly.
• Don't wash the clothes soaked in kerosene, gasoline, alcohol and other
flammable materials.
OPERATIONS
18
Detergent Dispenser
Li
qu
i
d
d
e
t
e
r
g
e
n
t
(
M
A
X
:
≈
810
m
l
)
S
of
t
e
n
e
r
(
M
A
X
:
≈
440
m
l
)
If you want to use powder detergent
,you can add it directly into the drum
with clothes by using the container.
Please put the container on the top of
the load to make powder well dissolved.
Don’t choose “Auto”or” ”in
SENSEDOSE, when using powder
detergent.
Pull out the dispenser
DOWN JACKET
SPORTSWEAR
ANTI-ALLERGY
WOOL
DELICATE
COLORALIVE
COTTON ECO
COTTON
SYNTHETIC
MIX
45' TO WEAR
10' SUPER FAST
BEDLINEN
AUTO DRY TIME
DRY
SPIN ONLY
DRUM CLEAN
Means must ○ Means oponal
Programme
Programme
Note!
•
As for the agglomerated or ropy detergent or addive, before they are
poured into the detergent box, it is suggested to use some water for
diluon to prevent the inlet of detergent box from being blocked and
overflowing while filling water.
• Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumpon.
•
Pay aenon to whether the detergent is dry, and clean the dispenser
regularly especially when the washing machine is not used for long
periods of me.
OPERATIONS
1 9
Control Panel
Product is switched on or off.
Option
This allows you to select an addional
funcon and will light when selected.
Press the buon to start or pause the
washing cycle.
Slider
Available to select or confirm the
programme and funcon
Display
The display shows the sengs, esmated me remaining, opons, and status messages
for your washer. The display will remain on through the cycle.
B
1:18
C
W
Cotton Fabric
m
ashing Progra
D
E
A
COTTON
A
B
PROGRAMME
WASH TIME
C
PROGRAMME DESCRIPTION
D
E
WATER CONSUMPTION
POWER CONSUMPTION
2
S
t
ar
t
/
P
a
u
s
e
1
On
/
O
ff
1:18
MEMORY
COLORALIVE
COTTON ECO
Cotton Fabric
Washing Program
COTTON
SYNTHETIC
MIX
45' TO WEAR
3
5
4
2
1
Note!
•
The chart is for reference only, Please refer to real product as standard.
3
4
5
OPERATIONS
2
0
Op on
RINSE
The laundry will undergo extra rinse once a er you select it.
FAST WASH
The func on can decrease the washing me.
DRYING
It is suitable for different level of drying (from LESS to EXTRA)
The default level is STANDARD ,would increase washing time when choose extra
drying level.
Note!
•
Drying hints
-
Clothes could be dried a er spinning
-
To ensure quality dry the tex les,please classify them according to their
kinds and the drying temperature.
-
Synthe c should be set the proper drying me .
-
If you want to iron the clothes a er drying,please put them for a while.
•
Clothes not suitable for drying
-
Par cularly delicate items such as synthe c curtains,woolen and silk,
clothes with metal inserts,nylon stockings,bulky clothes,such as
anoraks,bedcovers,quilts,sleeping bags and duvets must not be dried.
-
Clothes padded with foam-rubber or materials similar to foam-rubber
must not be machine dried.
-
Fabrics containing residues of se ng l ons or hair sprays, nail
solvents or similar solu
ons must not be machine dried in order to avoid
the forma on of harmful vapours.
OPERATIONS
2 1
DELAY END
Set the Delay funcon:
1.
Select a programme
2.
Press the DELAY END buon to choose the me(the delaying me is 1-24 H.)
3.Press
[
START/PAUSE
]
to commence the delay operaon
ON/OFF
Choose the Programme
Seng me Start
Cancel the Delay funcon:
Press the [DELAY END]buon,Use SLIDER to select CANCEL.It should be pressed
before starng the programme. If the programme already started, should press the
[ON/OFF]
buon to reset the programme.
RELOAD
This operaon can be executed during the washing process. When the drum is
sll rolling and there is large amount of water with high temperature in the drum.
The state is unsafe and the door cannot be opened forcefully. To press
[START/PAUSE] for 3 sec. to reload, and small amount of clothes can be added during
washing process. Please follow the steps as bellow:
1.Wait unl the drum stops rotaon.
2.
The door lock is unlocked.
3.
Open the door , add clothes to the drum, and close the door. Then press the
[START/PAUSE] buon.
Press
[
START
/
PAUSE
]
3sec.
Add clothes
START/PAUSE
MEMORY
Memorizes the frequently used program.
Select program and opons and Press [TEMP.] 3 sec,then the display will show
“Save success as Memory”.The default is COTTON.The program aer selecon will
cover the previous program.
Caution!
• Don't use the Reload funcon when the water level over the edge of the
inner tub or the temperature is higher.
DELAY
END
Caution!
• If there is any break in the power supply while the machine is operang,
a special memory stores the selected programme and when the power is
restarted, the machine will run the previous program automacally.
• While the machine is delaying, If there is any break in the power supply ,the
machine can’t start up operaon automacally. You should set it again.
OPERATIONS
2 2
Caution!
• Aer Mung the buzzer funcon, the sounds will not be acvated any
more.
CHILD LOCK
To avoid mis operaon by children.
ON/OFF START/PAUSE Slide the bar
Press
[
SPIN]3 sec.
ll buzzer beep.
SPIN
SPIN
Press the buon to change the spin speed.
Programme
Default
Speed(rpm)
Programme
Default Speed(rpm)
DOWN JACKET
800
MIX
800
SPORTSWEAR
800
45' TO WEAR
1400
ANTI-ALLERGY
800
10'SUPER FAST
800
WOOL
800
BEDLINEN
800
DELICATE
600
AUTO DRY
1400
COLORALIVE
1000
TIME DRY
1400
COTTON ECO
800
SPIN ONLY
1000
COTTON
800
SYNTHETIC
800
TEMP
.
TEMP.
Press the buon to regulate the temperature(20
°
C
,
30
°
C, 40
°
C
,
60
°
C
,
90
°
C
)
All the lights are off means the water temp. is cold.
Mute the buzzer
Press the [RINSE] buon for 3sec.,the buzzer is mute.
To act the buzzer funcon, press the buon again for 3 seconds. The seng
will be kept unl the next reset.
Caution!
• Press the [SPIN] 3 sec. to cancel the funcon.
• The “CHILD LOCK” will lock all buons except [ ON/OFF ].
• Cut off the power supply , the kid’s protecon is to be released.
SPIN
Caution!
• When the lights of spin speed (600,800,1000,1200,1400) is off, it means
no spin process.
OPERATIONS
2 3
Other Funcons
SENSEDOSE
SENSEDOSE
This operaon can be executed to decide the way of detergent/soener delivery.
“Auto”means pung both detergent and soener
”means only
pung detergent
”means only pung soener automacally.
None icons lighten means pung neither detergent nor soener automacally.
PREWASH
The PREWASH funcon can get an extra wash before main wash,it is suitable for
washing the dust rises to surface of the clothe.
EASY IRON
The EASY IRON can make the clothes fluffy.
SOAK
In the main wash can get the SOAK funcon.
ECO
The ECO funcon can achieve the energy saving performance.
Programme Opon
DELAY END
FAST WASH
RINSE ECO SOAK
PRE WASH
EASY IRON
DRYING
DOWN JACKET
SPORTSWEAR
ANTI-ALLERGY
WOOL
DELICATE
COLORALIVE
COTTON ECO
COTTON
SYNTHETIC
MIX
45' TO WEAR
10' SUPER FAST
BEDLINEN
AUTO DRY
TIME DRY
SPIN ONLY
DRUM CLEAN
○
Means oponal
OPERATIONS
2 4
Programmes
Programmes are available according to the laundry type.
COTTON
Hard-wearing texles, heat-resistant texles made of coon or linen.
SYNTHETIC
Wash synthec arcles, for example: shirts, coats, blending.
While washing the kning texles, detergent quanty shall be
reduced due to its loose string construcon and easily forming
bubbles.
MIX
Mixed load consisng of texles made of coon and synthecs.
COLORALIVE
Washing brightly colored clothes, it can protect the colors beer.
COTTON ECO
This is program is designed for energy and washing me saving.
MEMORY
To memorize the frequently used program by pressing [TEMP.]
3 sec. The default seng is COTTON.
45’ TO WEAR
10' SUPER FAST
Wash and Dry a small load within 45 minutes.Clothes is less than 0.5kg.
This procedure is suitable for washing few and not very dirty clothes
quickly.Clothes is less than 0.5kg.
SPIN ONLY
Extra spin with selectable spin speed
.
WOOL
Hand or machine
-
washable wool or richwool texles
.
Especially
gentle wash programme to prevent shrinkage
,
longer programme
pauses (texles rest in wash liquor).
BEDLINEN
This program is specially designed for washing Bedlinen.
DRUM CLEAN
This program is specially set in this machine to clean the drum
and tub. It applies 90℃ high temperature water to sterilize the
drum and tub. When this procedure is performed, the clothes
must not be put in the drum. When proper amount of chlorine
bleaching agent is put in, the cleaning effect will be beer. The
customer can use this procedure regularly according to
theneed.
ANTI-ALLERGY
This program applies 60
℃
high temperature water to achieve
an-allergy effect.
DELICATE
For delicate , washable texles ,e.g. made of silk , san , synthec ,
fibres or blended fabrics.
DOWN JACKET
Special care program for down jacket.
SPORTSWEAR
Special care program for sports wear.
AUTO DRY
This program is designed for drying clothes automacally to
achieve the best dry performance.
TIME DRY
Can select drying as set me.
OPERATIONS
2 5
Washing Programmes Table
Programme
Load(kg)
Default Temp.
(
°
C
)
Default Time
DOWN JACKET
2.0 40 1:27
SPORTSWEAR 2.0 20 0:45
ANTI-ALLERGY 5.0 60 4:31
WOOL
2.0 40 0:59
DELICATE
2.5 30 0:50
COLOR ALIVE
5.0 Cold 1:03
COTTON ECO
8.0 30 0:55
COTTON 8.0 40 1:18
SYNTHETIC
5.0 40 1:03
MIX
5.0 40 1:10
45' TO WEAR
0.5 Cold 0:45
10' SUPER FAST
0.5 Cold 0:10
BEDLINEN
7.0 40 1:48
AUTO DRY
8.0 -- 2:00
TIME DRY
0.5 -- 0:40
SPIN ONLY
8.0 -- 0:12
DRUM CLEAN
-- 90 1:10
Note!
•
In the program “ TIME DRY", you can touch DRYING buon to change drying
duraon (00:30, 01:00, 01:30, 02:00), suitable for different loading (0.5kg,
1kg, 1.5kg, 2kg).This program contains 10 minutes of default dehydraon me,
so the actual display me is 00:40, 01:10, 01:40, 02:10.
•
For “AUTO DRY” program,the default display me is 2:00.
but actual me will be adjusted automacally by load or texture.
Drying me for reference:
Coon fabric(kg)
3kg 4kg 5kg 6kg 7kg 8kg
Esmated me(min.)
150' 200' 230' 270' 300'
330'
•
The parameters in this table are only for user's reference. The actual parameters
maybe different with the parameters in above menoned table.
MAINTENANCES
26
Cleaning And Care
Cleaning The Cabinet
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the dry cloth to wipe it off immediately.
No sharp items are allowed.
Cleaning The Drum
The rusts le inside the drum by the metal arcles shall be removed immediately
with chlorine
-free detergents.
Never use steel wool.
Cleaning The Gasket And Glass
Wipe the glass and gasket aer each wash
to remove lint and stains. If lint builds up it
can cause leaks.
Remove any coins, buons and other objects
from the gasket aer each wash.
！
Warning!
•
Before your maintenance starts, please unplug the machine and close the tap.
Note!
•
Formic acid and its diluted solvents or equivalent are forbidden, such as
alcohol, solvents or chemical products,etc.
Note!
• Don’t put laundry in the washing machine during the drum cleaning.
MAINTENANCES
2 7
Cleaning The Inlet Filter
Washing the filter in the water supply hose
1.Close the tap.
2.Remove the water supply hose from the tap.
3.clean the filter.
4.Reconnect the water supply hose.
Washing the filter in washing machine:
1.
Screw off the inlet pipe from the backside
of the machine.
2.
Pull out the filter with long nose pliers
and reinstall it back aer being washed.
3.
Use the brush to clean the filter.
4.Reconnect the inlet pipe.
Clean The Detergent Dispenser
1.Press down the locaon on soener cover as indicated in Figure 1,arrow A.
2.Li the clip up and take out soener cover and wash all grooves with water.
3.Clean inside the recess with a suitable brush such as an old toothbrush.
4.Restore the cover and push the drawer into posion.
Pull out the dispenser
drawer with press the A
Clean the dispenser
drawer under water
Clean inside the recess
with an old toothbrush
Insert the dispenser
drawer
Note!
• Do not use alcohol,solvents or chemical products to clean the machine.
4
3
2
A
1
Note!
•
Inlet filter must be cleaned if there is less water.
Step:1 & 2
Step:3 & 4
Step:1 & 2 Step:3 & 4
MAINTENANCES
2 8
Cleaning The Drain Pump Filter
Open the lower cover cap
Pull out the emergency drain
hose,and take off the hose cap.
Aer water runs out,reset
the drain hose
Open the filter cap by turning
to the counter clockwise
Remove extraneous maer
Close the filter cap and the
lower cover cap.
Caution!
•
Make sure that filter cap and emergency drain hose are reinstalled properly, filter
cap should be inserted aligning to hole plates otherwise water may leak.
•
When the appliance is in use and depending on the programme selected there can
be hot water in the pump
.
Never remove the pump cover during a wash cycle
,
always
wait unl the appliance has finished the cycle
,
and is empty
.
When replacing the
filter cap
,
ensure it is securely re-ghtened
.
6
5
4
Filter cap
3
2
Emergenc
y
drain hose
1
！
Warning!
• Be careful of the hot water!
• Allow the water to cool down.
•
Unplug the machine to avoid electrical shock before maintenance.
• Drain pump filter can filter the lints and small foreign maers from the
washing.
•
Clean the filter periodically to ensure the normal operaon of washing
machine.
MAINTENANCES
2 9
Trouble Shoong
The start of the appliance does not work or it stops during operaon.
First try to find a soluon to the problem, If not, contact the service centre.
Washing machine
cannot start up
Door can’t be
opened
Door is not closed properly
Washer's safety
protecon design is working
Restart aer the door is closed
Check if the clothes is stuck
Disconnect the power, restart
the product
Water leakage
The connecon between inlet
pipe or outlet hose is not ght
Check and fast
en water pipes
Check outlet hose
Detergent residues
in the box
Indicator or display
does not light
Abnormal noise
Detergent is dampened
or agglomerated
Electrical power cord may
not beplugged in or
connecon may be loose.
Clean and wipe the detergent
box
Make sure plug fits ghtly in
wall outlet.Check the power
plug is connected correct.
Check if the fixing (bolts) have
been removed
Check it’s installed on a solid
and level floor
Door is not closed properly
Water injecng
problem while
washing
Overme water draining
Restart aer the door is closed
Check if the clothes is stuck
Check if the water pressure is
too low
Straighten the water pipe
Check if the inlet valve filter is blocked
Check if the drain hose is blocked
Water overflow
Stop using the washing machine
and call the service center for repair
Please try again first, call up
Others
service line if there are sll
troubles
Note!
• Aer the check, acvate the appliance. If the problem occurs or the display
shows other alarm codes again, contact the service.
Description
Reason
Solution
Description
Reason
Solution
595* 635*850
Includes door frame, knob and the curving part of the front panel.
2. Images are for reference only. Please refer to the actual product.
595*597*850
V1.0
1613810000XXX
t07
-
PM01
