USER GUIDE
NZ AU GB IE HK SG IN US
ACTIVESMART™
INTEGRATED REFRIGERATOR
RS90A, RS9120W,
RS6A72, RS6A80 & RS6W80 models
1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to our
website fisherpaykel.com or contact your
local Fisher & Paykel dealer.
Note that the word ‘refrigerator’, throughout
this user guide, refers to the combination of
refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Storage features 10
RS90, RS36A72 and RS36A80 models 10
RS9120W and RS36W80 models 12
ActiveSmart™ special features 14
Control panel 14
External display (Ice & Water models only) 15
Humidity control system 16
Fast Freeze 17
Ice On/Off 17
Ice Boost 17
Bottle Chill 17
Operating instructions 18
Cleaning care 23
Food care 28
User warnings and sounds 29
Troubleshooting 30
European Directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE) 34
Service & Warranty 35
3
INTRODUCTION
Thank you for buying this Fisher & Paykel integrated refrigerator.
Introducing the next generation in Fisher & Paykel refrigeration. With new flush-fit
design and the ability to easily slide into existing kitchen spaces or be integrated behind
kitchen cabinetry, these family-sized fridges offer a seamless look to the kitchen while
providing excellent food care with ActiveSmart™ technology.
As your life changes, so can your refrigerator. This book explains the features and
functions, and will help you get the most out of your refrigerator.
We hope you enjoy your new integrated refrigerator.
Note: Not all models are available in all countries.
RS9120W/RS36W80J
RS9120WU/RS36W80URS36A80U
RS36A80J
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin)
RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS90AU/RS36A72U
RS90A/RS36A72J
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin)
RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin)
RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin)
RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
4
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
Failure to do so can result in death, electric
shock, fire or injury to persons.
R600a
This refrigerator may contain flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose
as described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic
safety precautions including the following:
• This appliance is not intended for use by persons
(including children under the age of 8 years) with
reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Young children should be supervised to ensure
they do not play with the appliance.
• The manufacturer’s installation instructions
for product and cabinetry ventilation must be
followed when installing the appliance.
5
SAFETY AND WARNINGS
• To avoid hazard due to instability of the
appliance,it must be fixed in accordance with
installation instructions.
• Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit,
ventilate the area by opening all windows. Do
not operate electrical equipment or any other
equipment that may produce arcs, sparks or flames
in the area. Contact your Fisher & Paykel Authorized
Repairer immediately to arrange for the appliance
to be repaired.
• It is hazardous for anyone other than an authorized
service person to service this appliance. In
Queensland, the authorized service person must
hold a gas work license or authorization for
hydrocarbon refrigerants to carry our service or
repairs which involve removal of covers.
• Connect to potable water supply only.
Electrical
• This appliance must be installed in accordance with
the installation instructions beforeuse.
• To allow disconnection of the appliance from
thesupply after installation, incorporate a switch in
the fixed wiring in accordance with thewiringrules.
•
Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.
6
SAFETY AND WARNINGS
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion along its length or at either the plug or
appliance end.
• If the power supply cord is damaged, it must only
be replaced by your Fisher & Paykel Authorized
Repairer because special purpose tools are
required.
• When moving your appliance away from the wall,
be careful not to roll over or damage the power
cord.
• Do not use electrical appliances inside the food
storage compartments of the appliance.
IMPORTANT!
Your refrigerator is designed to operate for
many years without the need for service checks.
However, if your refrigerator is malfunctioning,
have it attended to by your Fisher & Paykel
Authorized Repairer as soon as possible.
All electrical repairs must be carried out by
an adequately trained service technician or
qualifiedelectrician.
Cleaning
•
Many commercially available cleaning products
contain solvents that may attack the plastic
components of your refrigerator and cause them
tocrack.
7
SAFETY AND WARNINGS
• Avoid using anti-bacterial cleaning products on
either the interior or exterior of the cabinet as
they may cause rusting of metal components and
cracking of plastic components.
• Please refer to the ‘Cleaning care’ section of this
user guide for further information.
Disposal
• Extreme care must be taken when disposing of
your old appliance to avoid hazards:
– The flammable refrigerant gas must be safely
removed.
– The thermal insulation foam in this appliance
contains flammable insulation blowing gases,
any exposed foam may be highly flammable
and must be carefully treated during disposal.
– The doors and panels should be removed and
the shelves left in place so that children may
not easily climb inside.
• Your Fisher & Paykel Authorized Repairer will be
able to give advice on environmentally friendly
methods of disposing of your old refrigerator or
freezer.
Storing food and drinks
• Do not store explosive substances such as
aerosol cans with a flammable propellant in this
appliance.
•
Never store volatile or flammable materials in
your refrigerator as they may explode.
• Never freeze liquids in glass containers. Liquid
expands during freezing, which may cause the
container to explode.
8
SAFETY AND WARNINGS
• Never freeze carbonated drinks. They may explode.
• Do not consume food if it is too cold. Food
removed from the freezer compartment may be
cold enough to cause damage when brought into
contact with bare skin, egfrozen ice cubes.
Power failure – food safety
• Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
– Ice crystals still visible – food may be refrozen
but should be stored for a shorter period than
recommended.
– Thawed but refrigerator cold – refreezing
generally not recommended. Fruits and some
cooked food can be refrozen but use as soon
aspossible.
Meat, fish, poultry – use immediately or cook
then refreeze.
Vegetables – discard as they usually go limp
and soggy.
– Thawed and warmer than 5°C – discard all food.
9
SAFETY AND WARNINGS
Ice making
IMPORTANT!
• Avoid contact with the moving parts of the ice maker
ejector mechanism, and do not place your fingers
on the automatic ice-making mechanism while the
appliance is inoperation.
• Do not use ice cubes that may have become
discolored, usually with a green-blue color. If such
discoloration is noted, discard the ice cubes and
contact your Fisher&Paykel trained and supported
service technician.
10

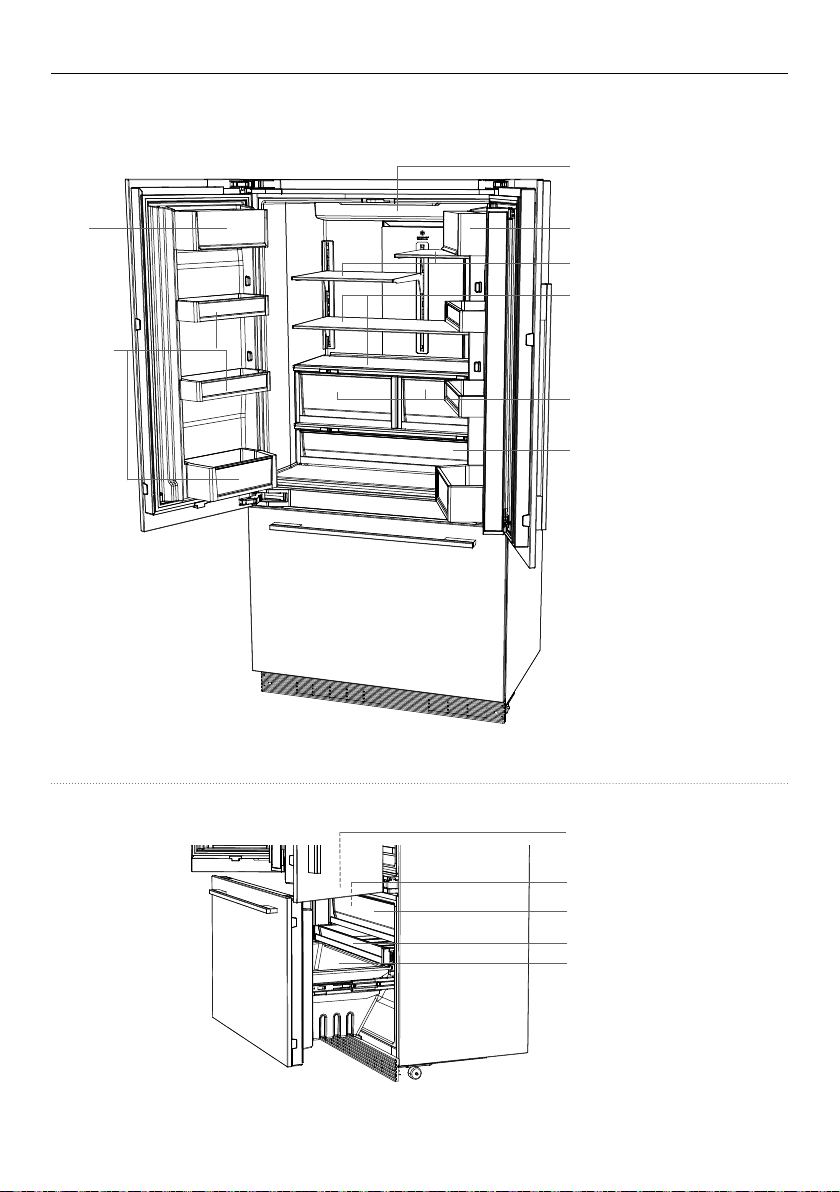

STORAGE FEATURES
Accessories (not shown)
Single bottle holders
Freezer compartment
Acessories (not shown)
Manual ice tray with lid (non-Ice & Water models only)
Ice maker (top left of freezer)
(Ice & Water models only)
Ice storage bin with scoop
Mid tray
Large bottom bin
Top bin
RS90, RS36A72 and RS36A80 models
Refrigerator compartment
Full-width cantilever glass shelves
Half-width cantilever glass shelves
Fruit and vegetable bins
with humidity control lids
Slim bin with humidity control lid
Water tank
(Ice & Water models only)
Dairy
shelf
Door
shelves
Dairy shelf
11
STORAGE FEATURES
RS90, RS36A72 and RS36A80 models
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
Store all fruits and vegetables in separate bins without
external packaging.
Separate the fruits and vegetables to prevent ethylene-
sensitive produce from ripening too quickly, and help
extend their storage life.
Slim bin with humidity
control lid
The slim bin stores long vegetables which cannot fit in
the fruit and vegetable bins.
Also used for storing deli items and beverages, or for
defrosting foods.
Cantilever glass shelving
Heat treated safety glass.
Can be removed and positioned at heights to suit your
storage requirements.
The half-width shelves can be positioned side by side,
best when storing large items such as platters.
Maximize the storage space when storing items of
varying heights by positioning the half-width shelves at
different levels.
Dairy shelf and door
shelves
The top shelves are dairy compartments, designed to
store butter and cheeses.
The middle shelves are designed for general items,
condiments and drinks.
The bottom shelves are designed to store large drinks or
those drinks you require frequent access to.
Clear windows give ultimate visibility to what is being
stored in the door shelves.
Adjustable door shelves with dividers.
Single bottle holders
(not shown)
Placed along the length of any shelf to store a variety of
bottles.
Store bottles with the neck facing the front of the
refrigerator.
Unused bottle holders can be stacked up on top of one
another to maximize shelf space.
FREEZER COMPONENTS
Shelving
Selectable shelf heights.
Heat treated safety glass.
Adjustable door shelf dividers.
Ice maker (Ice & Water
models only)
Removable ice container.
Hygienic ice scoop.
Freezer bins
Allow for easy storage of frozen food items.
12
STORAGE FEATURES
Accessories (not shown)
Single bottle holders
Water tank
(Ice & Water model only)
Large aluminum
extrusion door shelf
Fruit and vegetable
bins with humidity
control lids
Cantilever glass
shelving
Door shelves
Bottle divider
Slim bin with
humidity control lid
Dairy shelf
Ice storage bin and scoop
Freezer compartment
Ice maker (top left of freezer)
Ice storage bin with scoop
Top bin
Mid tray
Large bottom bin
RS9120W and RS36W80 models
Refrigerator compartment
13
STORAGE FEATURES
RS9120W and RS36W80 models
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
Store all fruits and vegetables in separate bins without
external packaging.
Separate the fruits and vegetables to prevent ethylene-
sensitive produce from ripening too quickly, and help
extend their storage life.
Slim bin with humidity
control lid
The slim bin stores long vegetables which cannot fit in
the fruit and vegetable bins.
Also used for storing deli items and beverages, or for
defrosting foods.
Cantilever glass shelving
Heat treated safety glass.
Can be removed and positioned at heights to suit your
storage requirements.
The half-width shelves can be positioned side by side,
best when storing large items such as platters.
Maximize the storage space when storing items of
varying heights by positioning the half-width shelves at
different levels.
Dairy shelf and door
shelves
The top shelves are dairy compartments, designed to
store butter and cheeses.
The middle shelves are designed for general items,
condiments and drinks.
The bottom shelves are designed to store large drinks or
those drinks you require frequent access to.
Clear windows give ultimate visibility to what is being
stored in the door shelves.
Adjustable door shelves with dividers.
Single bottle holders
(not shown)
Placed along the length of any shelf to store a variety of
bottles.
Store bottles with the neck facing the front of the
refrigerator.
Unused bottle holders can be stacked up on top of one
another to maximize shelf space.
FREEZER COMPONENTS
Shelving
Selectable shelf heights.
Heat treated safety glass.
Adjustable door shelf dividers.
Ice maker (Ice & Water
models only)
Removable ice container.
Hygienic ice scoop.
Freezer bins
Allow for easy storage of frozen food items.
14
ACTIVESMART™ SPECIAL FEATURES
Control panel
The control panel enables
you to view and modify all
the features and options of
yourrefrigerator.
Control panel
for Ice & Water models
Control panel
for non-Ice & Water models
SmartTouch™ CONTROL PANEL FEATURES
Compartment Allows you to select which compartment to adjust the
temperature.
Alarm mute Deactivates the door alarm for 20minutes.
Colder Reduces the temperature of compartments.
Warmer Increases the temperature of compartments.
Fast Freeze Boosts the freezing speed by dropping the freezer to its
coldest temperature for 12hours.
Bottle Chill Allows you to rapidly chill your beverage for a set time of
15minutes.
Ice On/Off Indicates when automatic ice maker is on or off.
Ice Boost Increases ice production up to 30% from standard ice
making, and deactivates automatically after 24hours.
Key lock Allows you to disable the buttons on the control panel.
Faults Indicates when an error occurs after you open the fresh
food compartment door.
Filter change
indicator
Icon will illuminate indicating that water filter requires
changing.
Sabbath mode All alarms, lights and displays are deactivated for
80hours.
Key mute Allows you to silence all button presses.
15
ACTIVESMART™ SPECIAL FEATURES
External display (Ice & Water models only)
The external display enables you to lock the water dispenser, indicates to you when
‘Bottle Chill’ is activated and when your water filter requires changing.
EXTERNAL DISPLAY FEATURES
Dispenser lock button
and LED light
Locks/unlocks the water dispenser.
When locked the LED above the button will
illuminate.
Bottle Chill indicator Icon will illuminate indicating when ‘Bottle Chill’ is
activated and flashes when beverage is ready.
Filter change
indicator
Icon will illuminate indicating when water filter
requires changing.
16
ACTIVESMART™ SPECIAL FEATURES
Humidity control system
Humidity control lids
The control lids are fitted to the fruit and vegetable bins and slim bin of your refrigerator.
These lids seal the bins and provide a humid microclimate to extend the storage times
of fruit and vegetables.
The lids have specially designed grooves that retain moisture to prevent condensation
from dripping onto the fruits and vegetables at times of high humidity.
Humidity slide
Each bin has an adjustable humidity slide that enables you to choose a fruit or
vegetable setting depending on your storage needs.
If there is too much water in the bins (due to high humidity), the control can be
adjustedtowards the fruit setting to reduce drips of water and/or wipe the water
dry (if required).
Be aware that a small amount of water in the bins is beneficial for fruit and vegetable
storage.
We recommend using the vegetable setting when you store ethylene-sensitive
vegetables such as lettuce, spinach, broccoli, cabbage, carrots.
We recommend using the fruit setting when you store high-ethylene fruits such as
citrus fruits, stone fruits and some tropical fruits.
We recommend adjusting the humidity slide to the center when you store both fruits
and vegetables.
We recommend storing all fruits and vegetables without external packaging and in
separate bins.
– Separating the fruits and vegetables prevent ethylene-sensitive produce from
ripening too quickly, and help extend their storage life.
Humidity control graphic
17
ACTIVESMART™ SPECIAL FEATURES
Fast Freeze
‘Fast Freeze’ boosts the freezing speed by dropping the freezer to its coldest temperature
for 12hours. This helps retain the freshness, texture and taste during the freezing process.
To activate, press on the control panel. The light above illuminates to indicate this
feature is activated.
Ice On/Off
The ice maker is off when you turn on your refrigerator for the first time after installation.
To activate your automatic ice maker, press once. The light above illuminates to
indicate the Ice maker is on.
Ice Boost
Increases ice production by up to 30%, and deactivates automatically after 24hours.
The ‘Ice Boost’ feature is off when you turn on your ice maker for the first time.
To activate, press . The light above will illuminate when the ‘Ice Boost’ feature is on.
To deactivate ‘Ice Boost’ feature manually, press again. The light above button will
not illuminate.
Activating the ‘Ice Boost’ feature will automatically turn on the ice maker.
Deactivating the ice maker automatically deactivates the ‘Ice Boost’ feature.
Bottle Chill
This feature allows you to rapidly chill your beverage for 15minutes. The time taken to
chill depends on the size of your beverage. If your beverage is not cold enough, return it
to the freezer and reset the ‘Bottle Chill’ feature.
To activate, press . The light above will illuminates to indicate this feature is activated.
For Ice & Water model, the icon will illuminate on the external display.
An alarm will sound after 15minutes to remind you to remove your beverage from
thefreezer.
To silence the alarm—Automatic ice model
Open the fresh food compartment door and press the button on the controlpanel.
To silence the alarm—Ice & Water model:
Open the fresh food compartment door and press the button on the controlpanel, or
press the button once on the external display.
When ‘Bottle Chill’ is deactivated, the light above will not illuminate and the icon is not
visible on the external display (Ice & Water model only).
18
OPERATING INSTRUCTIONS
Temperature control
Once you turn on your refrigerator for the first time, the cooling system will
automatically cool all compartments to their set temperatures.
This will take between 2–3 hours
The control panel enables you to change and control the temperatures of both
compartments accurately and independently regardless of the temperature or humidity
of the surroundings whether it is summer or winter.
We recommend checking the operation of your refrigerator once every 4hours for the
first 24hours.
If at any time you notice that the refrigerator is not cooling properly, call your installer/
Fisher & Paykel trained and supported service technician to verify the unit is operating
properly. Take immediate steps to prevent food from spoiling by storing in another
refrigerator or freezer.
Adjusting the fresh food compartment temperature
When the fresh food compartment door is opened, the interior light automatically
illuminates. The temperature for this compartment will show as a series of lights.
To increase the temperature, press . This will increase the number of lights.
To decrease the temperature, press . This will decrease the number of lights.
Fewer lights illuminated indicates a colder temperature for the compartment selected.
Adjusting the freezer compartment temperature
Press once, the freezer compartment light will be illuminated.
To increase the temperature, press . This will increase the number of lights.
To decrease the temperature, press . This will decrease the number of lights.
Fewer lights illuminated indicates a colder temperature for the compartment selected.
Note: successively pressing will automatically scroll between compartments. When
the door is re-opened the control panel will return automatically to the fresh food
compartment setting.
19
OPERATING INSTRUCTIONS
Door alarms
If the fresh food compartment door is left open, the alarm will beep after 90seconds, if
the freezer door is left open, the alarm will beep after 60seconds.
If either of the doors remains open, subsequent beeps will sound every 30seconds for
5minutes
If either door remains open for 5minutes or longer, an alarm will sound continuously
and the interior compartment light(s) will turn off. The alarm will stop only when the
door(s) is closed.
Alarm Mute
To activate, press once.
The light above will illuminate to indicate the appliance is muted.
If the doors are left open for 5minutes or more, the compartment light turns off
andnormal door alarms are suspended.
‘Alarm Mute’ will deactivate after 20minutes.
To deactivate manually, press again.
Closing the door also deactivates the ‘Alarm Mute’.
Key mute
Key mute allows you to silence all button presses.
To activate key mute, press for 4seconds.
The icon on the control panel illuminates.
Once key mute is activated, all key sounds are silenced.
Door alarms and ‘Bottle Chill’ alarm are still operational.
To deactivate, press for 4seconds. The icon will no longer illuminate.
Key lock
‘Key Lock’ allows you to disable the buttons on the control panel. This is useful when
cleaning your appliance.
To activate key lock, press and together for 4seconds.
The icon on the control panel will illuminate.
Pressing any buttons will sound several beeps to let you know they are disabled.
To deactivate, press and together for 4seconds.
The icon will not illuminate.
Sabbath mode
When activated — the display, all alarms and lights are deactivated for 80 hours.
To activate Sabbath mode, press , and together for 4 seconds.
The icon on the control panel will illuminate.
To deactivate manually, press , and together for 4seconds.
Note: If you turn off your appliance while in Sabbath mode, it will resume
automaticallyonce the appliance is switched on again.
20
OPERATING INSTRUCTIONS
Before you start using the Ice & Water or automatic ice
Ensure your ice and water system is correctly installed by following the installation guide
supplied with your appliance.
Check your refrigerator is switched on.
Allow at least 2hours for your refrigerator to cool before use.
Complete all the flushing steps detailed in the this user guide to ensure optimum
performance of your water filter.
Water dispenser (Ice & Water model only)
Flushing out the water filtration system
Press the water dispenser pad to dispense 1 gal (4L) of water.
– There may be carbon residue dispensed together with
water. This is not harmful, and normal during flushing
process.
Wait for 4 minutes before dispensing again.
Dispense another 1 gal (4L) of water. Your water dispenser is
now ready for use.
Water will continue to drip from the dispenser for a few more
days after installation to clear remaining trapped air in the
dispenser.
Dispensing
Your water dispenser is designed for one-handed operation.
To dispense water, gently press the dispensing pad with a glass or container.
To stop the flow of water, simply pull your glass away from the dispensing pad.
Pressing hard against the dispensing pad will not increase the flow or dispense
morewater.
IMPORTANT!
To avoid damage to property or personal injury do not put hands, fingers or objects
up the dispenser opening.
Dispenser lock
The dispenser lock is located on the external display and can
be activated to prevent water from being dispensed. This is
useful when you are cleaning the external display or when
there are small children around.
To activate dispenser lock, press for 4seconds. The light
above will illuminate.
When the dispenser pad is pressed, several beeps will sound to
alert the user that water cannot be dispensed.
To deactivate dispenser lock and dispense water, press for
4seconds. The LED above
will not illuminate.
Water dispenser
Dispenser lock
21
OPERATING INSTRUCTIONS
Automatic ice maker
Before turning on your automatic ice maker, the water
filter must be installed (refertoyour installation guide)
and flushed to remove any impurities or trappedair
inthe filter system.
1 To activate your automatic ice maker, press once.
The light above illuminates to indicate the ice maker
is on.
2 Press the , and together for 4seconds then
close the doors. The ice tray will empty the water into
the bin below. The ice tray will only empty after the
doors are closed.
3 Repeat step
2
to remove dust in the ice tray collected
during manufacture and transport.
4 Empty the water, dry the bin and return it correctly.
5 Once your ice maker is turned on the first bin of ice may be discolored, this is not
harmful and normal during the flushing process. Discard the first full bin of ice made.
Your ice maker is now ready for use.
– For Ice & Water only models, the water filter will reach optimum performance after
two to three full bins of ice.
– For Ice only models, the water filter will reach optimum performance after four to
five full binsof ice.
Turn the ice maker off if:
There is no water supply for several hours.
You are removing the ice storage bin for a period of time.
You are going on holiday/vacation.
Collecting ice
Your automatic ice maker produces approximately eight cubes of ice every 3–4 hours,
depending on the freezer compartment temperature and the number of times the door
is opened.
The ice cube tray is filled with filtered water.
Frozen ice cubes are dispensed from the ice tray and into the ice storage bin below.
Ice making will continue until the storage bin is full, and only resumes once you start to
use the stored ice.
When the ‘Ice Boost’ feature is activated, ice production will increase up to 30% from
standard ice making. This function automatically deactivates after 24 hours.
If large amounts of ice are needed, remove the ice storage bin and allow ice to fill the
top freezer bin.
For maximum ice storage, level the stored cubes with the ice scoop.
If ice is not used often, the quality of ice cubes will deteriorate. Empty the ice storage
bin periodically and wash in lukewarm water. Dry thoroughly and place back into the
correct position.
IMPORTANT!
Avoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice making mechanism while the refrigerator is
inoperation.
Turning ice maker on
22
OPERATING INSTRUCTIONS
Water filter
The water supplied to your appliance for ice making is filtered to remove impurities
through a filter located the bottom front of your appliance. Replace your filter
cartridgeevery 6months.
There is a replacement indicator icon on the control panel which will appear when
the filter needs replacing.
Replacement filter cartridges can be purchased online from fisherpaykel.com or by
calling Fisher & Paykel Customer Care. Details of the replacement filter cartridge are
labeled on the cartridge. Instructions on how to install your replacement water filter are
provided with the filter.
To reset indicator:
Press and together for 4 seconds.
The on the control panel will turn off when reset.
IMPORTANT!
We recommend the water filter to be used from the time of installation.
Do not reset indicator before filter is changed or filter monitoring will be inaccurate.
To disable the filter indicator:
When no filter is fitted, you can disable the filter indicator.
To disable filter indicator, press , and together for 4seconds to turn it off. The
will flash once on the internal and external displays.
To turn on the filter indicator again, press , and together for 4seconds, The on
the control panel and external display will flash twice.
23
CLEANING CARE
Exterior
Stainless exterior doors
Clean the exterior door with liquid dishwashing detergent dissolved in warm water and
a soft cloth.
Dry the door with a lint-free cloth.
Do NOT use any abrasive, stainless steel cleaners or solvents on the door surface.
Other exterior surfaces
Clean all other exterior surfaces with a mix of warm water and liquid dishwashing
detergent, and a soft cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
For custom door panels follow manufacturers cleaning instructions
Door gasket
We recommend you clean the magnetic door gasket every three months with a
toothbrush, and liquid detergent dissolved in warm water.
External display and water dispenser (Ice & Water models only)
Activate the ‘Lock’ function to prevent water from dispensing when cleaning, refer to
‘Dispenser lock’. Clean the pad and interface panel with a damp, soft lint-free cloth.
Drip tray (Ice & Water models only)
To clean, remove the drip tray from
thedispenser panel (A).
Pull the two halves of the tray apart (B).
Clean with liquid detergent dissolved
inwater and a soft lint-free cloth.
Rinse with clean water and dry with a
clean, lint-free cloth.
Securely clip the two halves together.
Re-insert the drip tray back into the
dispenser panel.
Cleaning the drip tray
A
B
24
CLEANING CARE
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
Replacing top toe kick grille
D
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
E
Replacing air flow divider
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
B
4
Removing top toe kick grille

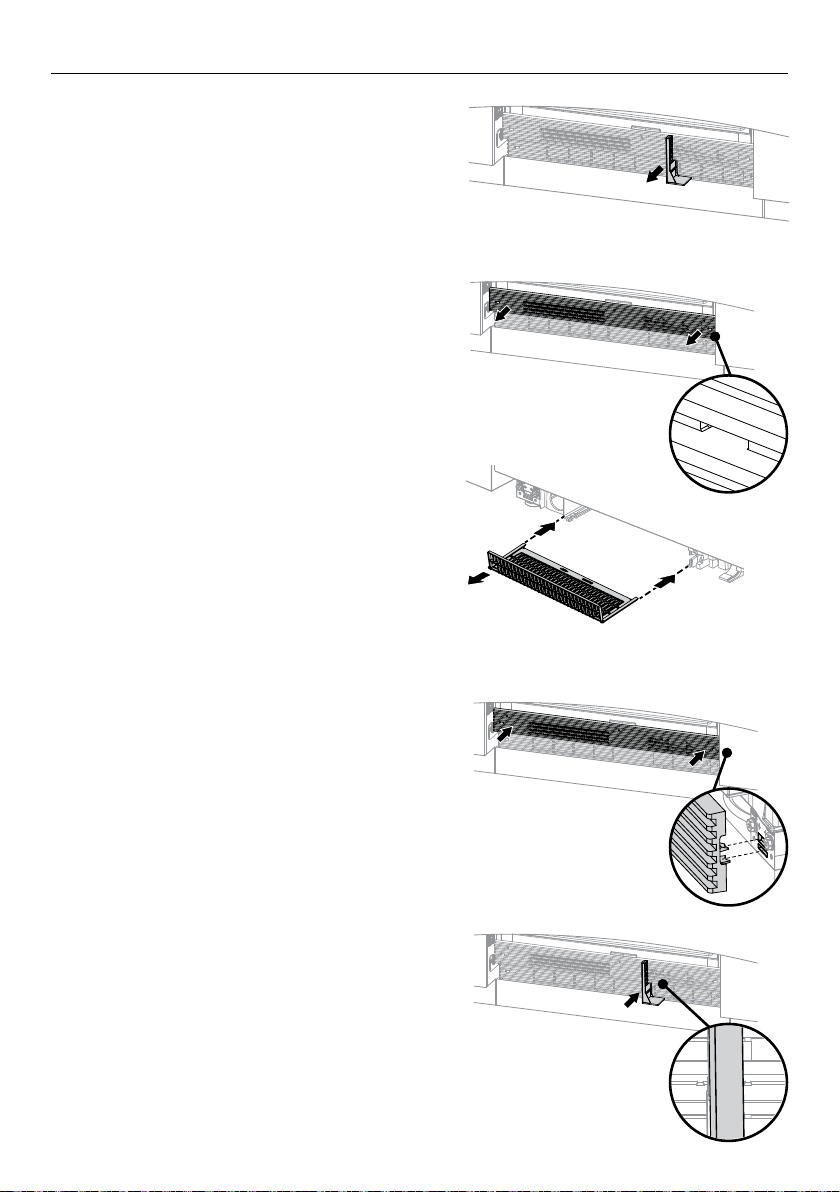

Toe kick grilles and filter (all models)
Your refrigerator is fitted with a toe kick
grille and filter to protect the internal
working components. We recommend
cleaning the grille and filter in conjunction
with changing your water filter cartridge
(every 6months).
To maximize operating efficiency, keep
ventilation openings clear of obstructions
by regularly vacuuming the flooring in front
of your appliance.
More frequent cleaning may be necessary
for dusty homes or those with pets
sheddinghair.
To clean the top toe kick grille and filter
(RS90, RS91, RS36A80 and RS36W80
models only):
1
Remove the air flow divider by pulling
towards you (A).
2
To remove the top toe kick grille, insert
fingers into the left and right square
openings on the grille. Pull towards you(B).
3
To remove toe kick filter, insert fingers into
the left and right square openings on the
filter. Pull towards you (C).
4
Clean both components with liquid
detergent dissolved in warm water and a
soft lint-free cloth.
5
Rinse with clean water and dry with a
clean, lint-free cloth.
To replace toe kick filter and grille:
1
To replace toe kick filter, align filter tabs
onto the rails and push to the rear until it
clips securely.
2
To replace top toe kick grille, align securing
hooks then firmly push grille onto product
until it clips securely (D).
3
To replace air flow divider, align the divider
underneath the grille tabs indicator and
clip onto the vanes of the bottom grille(E).
D
Removing toe kick filter
C
A
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
Removing air flow divider
25
CLEANING CARE
To clean the toe kick grille and filter
(RS36A72 models only):
1
Remove the toe kick grille by
inserting fingers into the left and
right square openings on the grille.
Pull towards you (A).
2
To remove toe kick filter, insert
fingers into the left and right square
openings on the filter. Pulltowards
you (B).
3
Clean both components with liquid
dishwashing detergent dissolved in
warm water and a soft lint-free cloth.
4
Rinse with clean water and dry with
a clean, lint-free cloth.
To replace toe kick filter and grille:
1
To replace toe kick filter, align filter
tabs onto the rails and pushto the
rear until it clips securely (C).
2
To replace toe kick grille, ensure
spacers on the inside of the toe
kick are positioned correctly. Align
securing hooksthen firmly push
grille onto product until it clips
securely (D).
Removing and replacing toe kick filter
B
C
A
Removing toe kick grille
4
Replacing toe kick grille
D
26
CLEANING CARE
Interior
It is important to keep the interior of the refrigerator clean to help prevent food from
becoming contaminated during storage.
The amount and types of food stored determines how often cleaning should be carried
out in the refrigerator (ideally once every 1–2 weeks).
For ease of cleaning, empty the refrigerator first and remove all glass shelves, door
shelves and storage bins.
Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated
detergents, solvents or abrasive scouring pads on any part of your appliance.
Someofthese chemicals may damage your appliance.
Clean all surfaces with a mild liquid detergent dissolved in warm water and a soft cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
Cantilever glass shelves
Clean with liquid detergent dissolved in warm water and a soft lint-free cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
1
To remove glass shelves, hold the front and back edge of the shelf firmly.
2
Push the shelf up vertically to dislodge from back support lugs.
3
Pull the shelf towards you.
Single bottle holders
Clean with liquid detergent dissolved in warm water and a soft lint-free cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
Humidity control system
We recommend to use only liquid detergent dissolved in warm water and a soft lint-free
cloth when you clean the glass shelf above the fruit and vegetable bins.
Rinse with clean water and dry with a clean, lint-free cloth.
You don’t need to disassemble the parts when cleaning the humidity control lid that is
attached to the underside of the glass shelf.
Clean the lid by simply wiping the grooves with a damp, lint free cloth.
27
CLEANING CARE
Fruit and vegetable bins and slim bin
When cleaning, use only liquid detergent dissolved in warm water and a soft lint-free
cloth. Rinse with clean water and dry with a clean, lint-free cloth.
1
To remove a bin, extend the bin on its runners, and make sure you empty the bin.
2
Hold both sides of the bin corners and push the bin firmly upwards to dislodge from the
securing tabs.
3
Pull the bin towards you to remove. Push both runners back into the refrigerator.
4
To return the bin, extend the runners and place the bin on top of the runners.
5
Push the bin slowly onto of the runners until you feel it clip onto the runners. Ensure the
bin tabs are clipped securely onto the runners before use.
IMPORTANT!
The runners are pre-lubricated to help opening and closing the bins. They do not need
to be lubricated again. Do not remove the grease from the runners to maintain its
smooth function. Do not immerse the runners in water.
Freezer bins and freezer tray
Removing the freezer bins and tray when cleaning is not necessary. Simply wipe clean
with a soft lint-free cloth.
Ice storage bin
We recommend that you clean your ice bin and discard any old ice in the bottom of the
bin(s) regularly.
Use only liquid detergent dissolved in warm water and a soft lint free cloth when
cleaning. Rinse with clean water and dry with a clean, lint-free cloth.
Ensure that the ice scoop is always placed in front of the bin.
It is important to regularly clean your ice bin and discard any old ice in the bottom of
the bin(s). Cleaning the ice maker components is not necessary.
We recommend that you turn off the ice maker before you leave for a vacation/holiday.
Refer to ‘Automatic ice maker’ section.
On your return, turn on the automatic ice maker and discard the first full bin of ice.
Refer to ‘Automatic ice maker’ section.
Holiday/Vacation
Leave your refrigerator operating while you are on holiday/vacation.
For Ice & Water models
Turn the ice maker off on the control panel.
Shut off the water supply to the refrigerator.
On your return, turn on the water supply to the refrigerator.
Dispense 1gal (4L) of water and discard to ensure the water tank is refilled with
freshwater.
Turn on the ice maker.
Discard the first full bin of ice.
28
FOOD CARE
For best food care
Store only high-quality, fresh food in your appliance.
Store perishable foods in the appliance immediately after purchase. Storingatroom
temperature increases the rate of deterioration and can allow harmfulmicrobialgrowth.
Foods such as meat, poultry and seafood should be well wrapped or sealed in
suitablepackaging to prevent dehydration, color deterioration, loss of flavor, and
transfer ofodor.
– We recommend storing these foods on the bottom shelf of your appliance
orinone of the bins to prevent potential spills and cross-contamination with
otherfoods.
Ensure hot foods and beverages are cooled sufficiently before placing them into
theappliance. Hot items may cause other foods to warm to unsafe temperatures.
Itmayalso cause sealed items to sweat/condensate — which is undesirable.
Beverages are best stored standing upright in the door shelves or on the bottle
racksprovided.
Ensure raw and cooked foods are stored separately to avoid cross-contamination.
Consume food items within the recommended storage times. Discard foods that
showsign of spoilage.
Keep door openings to a minimum to maintain optimum storage temperatures inside
your appliance.
We recommend using ‘Fast Freeze’ when you are adding food items toyour freezer,
such as after grocery shopping. This feature will ensure the food isfrozen within the
shortest period of time, locking in the freshness andextending the shelf life of your
food.
Items stored in your refrigerator
Dairy items such as butter and cheeses should be stored in the covered door shelf
tominimize any transfer of odor or odor absorption from other foods.
Eggs should be stored in their carton to avoid absorption of strong odors through
theirporous shell structure.
Items stored in your freezer
We recommended cooling carbonated beverages only when the ‘Bottle Chill’ function
isactive.
– Do not store carbonated drinks without this function in the freezer.
Failuretoremove beverages could lead to freezing liquid and the likelihood
ofbottle/canexplosion.
Ensure air is removed from packaging to avoid large formation of ice crystals and
prevent freezer burn.
To maintain freshness and quality, we recommend defrosting foods in the refrigerator.
Ensure partially or fully defrosted foods are never re-frozen — cook immediately.
29
USER WARNINGS AND SOUNDS
User warnings
Faults
If a fault occurs when you open the fresh food compartment door, the icon will
illuminate on the internal control panel and an alarm will sound.
Please count the number of beeps made when the fresh food compartment door is
opened.
Please record the number and sequence of temperature lights displayed on the internal
control panel and contact a Fisher & Paykel trained and supported service technician
in order to repair the fault. You can do this by going online to fisherpaykel.com or by
contacting our Customer Care Centre.
To silence the fault alarm press any button on the internal control panel. The icon will
remain illuminated until the fault is corrected.
Normal refrigerator sounds
ActiveSmart™ refrigerators are designed to have excellent energy ratings and
cooling performance. As a result, it can produce sounds somewhat different to your
old refrigerator.
Normal operational sounds include:
Fan air flow sound. ActiveSmart™ refrigerators have fans which change speed
depending on demand. During cooling periods, such as after frequent door openings,
fans circulate the cold air in the refrigerator and freezer compartments producing some
air flow sound. This is quite normal.
Cracking or popping sounds. This may occur when the automatic defrost function is
operating.
Running water sound. This is the liquid refrigerant in the system and can be heard as a
boiling or gurgling noise.
An audible hissing sound after closing the freezer door. This is due to the pressure
difference between the warm air that has entered the cabinet and suddenly cooled, and
the outside airpressure.
Humming sounds. This is the compressor running and is quite normal.
Gasket noises which can normally occur over time due to a build up of dirt and/or
grime. See ‘Cleaning Care’ section.
Ice maker and water dispenser sounds:
– Motor operation (low humming).
– Running water as the ice maker and/or water tank fills.
– Water valve opening and closing (hissing sound).
– Ice being loosened from the ice molding tray (cracking).
– Ice dropping into bin (clunking).
Other sounds may be heard for the following reasons:
– Cabinet not level
–
Floor uneven or weak
– Bottles or jars rattling on shelves
30
TROUBLESHOOTING
If there is a problem with your appliance, please check the following points before
contacting your local Fisher & Paykel Authorized Repairer or the Customer Care Centre.
Product parts and accessories can be purchased through Fisher & Paykel Customer Care
Centre or online at fisherpaykel.com (this service is available to selected markets only).
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Appliance does
not operate.
No electricity at power
outlet.
Check that the plug is correctly
connected and power switched on.
Check another appliance at the same
outlet.
Check house fuse.
Light not
working.
Light not functioning. The light cannot be serviced by the user.
Contact your Fisher & Paykel Dealer or
Fisher & Paykel Authorized Repairer.
Refrigerator not working. Check refrigerator is turned on at the
wall or at the isolating switch.
Motor operates
for long
periods.
Hot weather. Minimize door openings to allow
temperature to stabilize.
Frequent door openings.
Large amount of food
recentlyadded.
Temperature control set
too low.
See ‘Operating instructions’ section.
Doors not sealing
properly.
Check that cabinet is level and gasket
seals are clean. See ‘Cleaning Care’
section.
Storage
compartments
too warm.
Temperature setting not
correct.
See ‘Operating instructions’ section.
Frequent door openings. Minimize door openings to allow
temperature to stabilize.
Large amount of food
recentlyadded.
Food freezing
in the fridge
compartment.
Temperature setting not
correct.
See ‘Operating instructions’ section.
Food placed directly in
front of air outlets.
Move chill sensitive foods away from the
center back of the shelves.
Unfamiliar
noises.
Cabinet not stable or level. See ‘Installation instructions’ booklet.
Freezer is defrosting. This is normal.
31
TROUBLESHOOTING
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Fault icon
illuminates on the
internal control
panel and an
alarm sounds
when the fresh
food compartment
door is opened.
– Count the number of beeps
made, and record the number and
sequence of temperature lights
displayed on the internal control
panel.
Contact Customer Care Center.
Water in the
vegetable bins.
Condensation is formed by
the water produced by fruit
and vegetables.
A small amount of condensation is
beneficial for fruit and vegetable
storage.
Wipe out water with a cloth.
Exterior of cabinet
is warm.
This is normal. –
Condensation
on outside of
refrigerator/
freezer.
Not unusual during periods
of high humidity.
Wipe dry.
Condensation
inside fridge
compartment.
Frequent or long door
openings.
Minimize door openings.
Door gasket leaking. Check that gasket is sitting flat and
sealing tightly.
Not unusual during periods
of high humidity.
Wipe dry.
Tray/bin does not
slide in and out
evenly.
Packaging trapped. Check to ensure no food or
packaging is trapped behind the
tray/bin.
Ice cubes taste
tainted.
Unsealed packages may be
transmitting odor/taste.
Discard ice cubes and clean ice
storage bin. See ‘Cleaning Care’
section.
Wrap or cover strong smelling
foods.
Excessive gasket
noise.
May be due to a build up of
dirt and/or grime.
See ‘Cleaning Care’ section.
Door not closing. An obstruction is blocking
door closing.
Move obstruction.
32
TROUBLESHOOTING
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Automatic ice
maker does
notwork.
Ice maker has not been
turned on.
Switch on ice maker, see ‘Using your
ice maker’ section.
Water supply turned off or
not connected.
Connect water supply.
Freezer compartment not
working.
Contact Customer Care Center.
Water pressure too low. Check water pressure.
Water line kinked/squashed. Check water line for kinks/squashing.
Filter clogged. Water filter may need replacing.
Ice cubes stick in ice bin. Remove ice bin, loosen cubes and
remove clumped ice. Refit ice box.
Ice cubes taste
tainted.
Unsealed packages may be
transmitting odor/taste.
Discard ice cubes and clean ice
storage bin. See ‘Cleaning Care’
section.
Wrap or cover strong smelling foods.
Poor taste from incoming
water.
Replacement filter cartridges can be
purchased online from fisherpaykel.com
or by calling Fisher & Paykel Customer
Care.
Slow ice cube
freezing.
Door may have been left
ajar.
Close door.
Freezer compartment set
too warm.
Turn temperature to a colder setting.
(See ‘Operating instructions’ section).
Wet ice/
iceclumping.
Low water pressure. Check water pressure.
Filter blocked. Replace filter cartridge. Replacement
filter cartridges can be purchased
online from fisherpaykel.com or by
calling Fisher & Paykel Customer Care.
Instructions on how to install your
replacement water filter are provided
with the filter.
Long freezer door
openings.
Gently tap ice to unstick or, if large
clumps occur, empty ice bin and make
new ice.
High ambient temperature.
Ice bin left out of freezer
compartment for a length
of time.
Ice will stick together over
time.
33
TROUBLESHOOTING
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Water has poor
taste/odor.
Refrigerator not used for an
extended period.
Flush the water filtration system.
Dispense and discard 1 gal (4L) of
water, this will ensure the water tank is
refilled with fresh water.
Water dispenser
does not work.
Water supply turned off or
not connected.
Turn water on.
Supply line may be blocked. Check supply for kinks or leaks.
On first installation there
may be air in water system.
To remove air, run 1 gal (4L) of water
through the dispenser.
Filter may be blocked and
needs replacing.
Replace filter cartridge. Replacement
filter cartridges can be purchased
online from fisherpaykel.com or by
calling Fisher & Paykel Customer Care.
Water frozen in tank. Increase temperature to a warmer
setting in fresh food compartment
andfreezer.
Water in first
glass is warm.
Water dispenser not used
for extended period.
Discard first glass of water dispensed.
Tank capacity used recently. Allow water time to cool.
Drips overflow
drip tray.
Air trapped in tank. Flush the water filtration system.
Dispense and discard 1 gal (4L) of
water, then rest the dispenser pad for
a further 2minutes.
Dispense and discard a further 1gal
(4L) of water. This will displace trapped
air in the water tank and filter system.
New filter installed.
Water flow rate
has slowed
down.
Filter cartridge is restricted.
Check if filter icon is
illuminating.
Replace filter cartridge. Replacement
filter cartridges can be purchased
online from fisherpaykel.com or by
calling Fisher & Paykel Customer Care.
Ice buildup
inside freezer
compartment.
Freezer door not closing
tightly.
Arrange items in freezer so door can
close tightly.
Check and clean door gasket seal.
Ice maker
sounds.
Normal ice maker
operation.
See ‘User warnings and sounds’
section.
Small or large
ice cubes.
Insufficient or excessive
water pressure.
Check water pressure.
34
EUROPEAN DIRECTIVE 2012/19/EU ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
EU This appliance is marked according to the European Directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate handling of this
product.
The symbol marked on the serial plate, or on the documents accompanying the
product, indicates that this appliance cannot be treated as household waste. It shall
be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. Disposal of the appliance shall be carried out in accordance with
the local environment regulations for waste disposal and ensure the refrigerant circuit is
not damaged.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or your
Fisher & Paykel retailer/dealer from whom you purchased this product.
35
SERVICE & WARRANTY
For details of your manufacturer’s warranty and contacts for servicing, refer to your
separate service and warranty book provided with your appliance.
This product has been designed for use in a normal domestic (residential environment).
This product is not designed for any commercial use. Any commercial use by the
customer will affect this products manufacturer’s warranty
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
City
State
Zip
Country
NZ AU GB IE HK SG IN US
849754A 07.18
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2018. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
