SPECIFICATION GUIDE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 4PLANNING GUIDE REFRIGERATION - VERSION A - NOVEMBER 202390003315A © FISHER & PAYKEL LIMITED 2023
OVERVIEW
Designed to fit flush with cabinetry with minimal 3mm gaps,
this Integrated Refrigerator can be installed individually or
paired with other Integrated models. For true design
freedom, it can be installed with stainless steel or custom
door panels. ActiveSmart™ Foodcare helps keep food
fresher for longer, while the Variable Temperature Drawer
can be adjusted to Chill, Fridge, or Pantry modes, to suit
dierent types of food.
PRODUCTS
RS9121WRUVK5 Integrated Refrigerator Freezer, 91.4cm,
Ice & Water, Right Hand Hinge
(All models can achieve opposite hinge location using the
supplied parts)
RS9121WLUVK5 Integrated Refrigerator Freezer, 91.4cm,
Ice & Water, Left Hand Hinge
(All models can achieve opposite hinge location using the
supplied parts)
FEATURES
1 Fits with stainless steel or custom door panels
2 Independent Variable Temperature Drawer can change
between Chill, Fridge, or Pantry modes to suit different
foods
3 Flush fit with 3mm gaps and custom height installation
4 Automatic ice maker and internal water dispenser
5 ActiveSmart™ Foodcare helps keep food fresher for longer
6 Easy to use touch-control panel and WiFi capability
7 LED-lit and adjustable cantilevered shelving
8 Stainless steel interior lining with robust hinges
9 Perfectly pairs with other integrated models for flexible
configurations
SPECIFICATION GUIDE | INTEGRATED REFRIGERATOR FREEZER, 91.4CM, ICE & WATER
Specification Guide - Refrigerator Freezer 91 cm
RS9121WLUVK5 - with Stainless Steel Door Panel
RS9121WRUVK5 - with Custom Door Panel
RS9121WRUVK5 | RS9121WLUVK5
SERIES
Series 11
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 5PLANNING GUIDE REFRIGERATION - VERSION A - NOVEMBER 202390003315A © FISHER & PAYKEL LIMITED 2023
SPECIFICATIONS
Model No. RS9121WRUVK5, RS9121WLUVK5
Product
Dimensions
H 214mm W 908mm D 610mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A

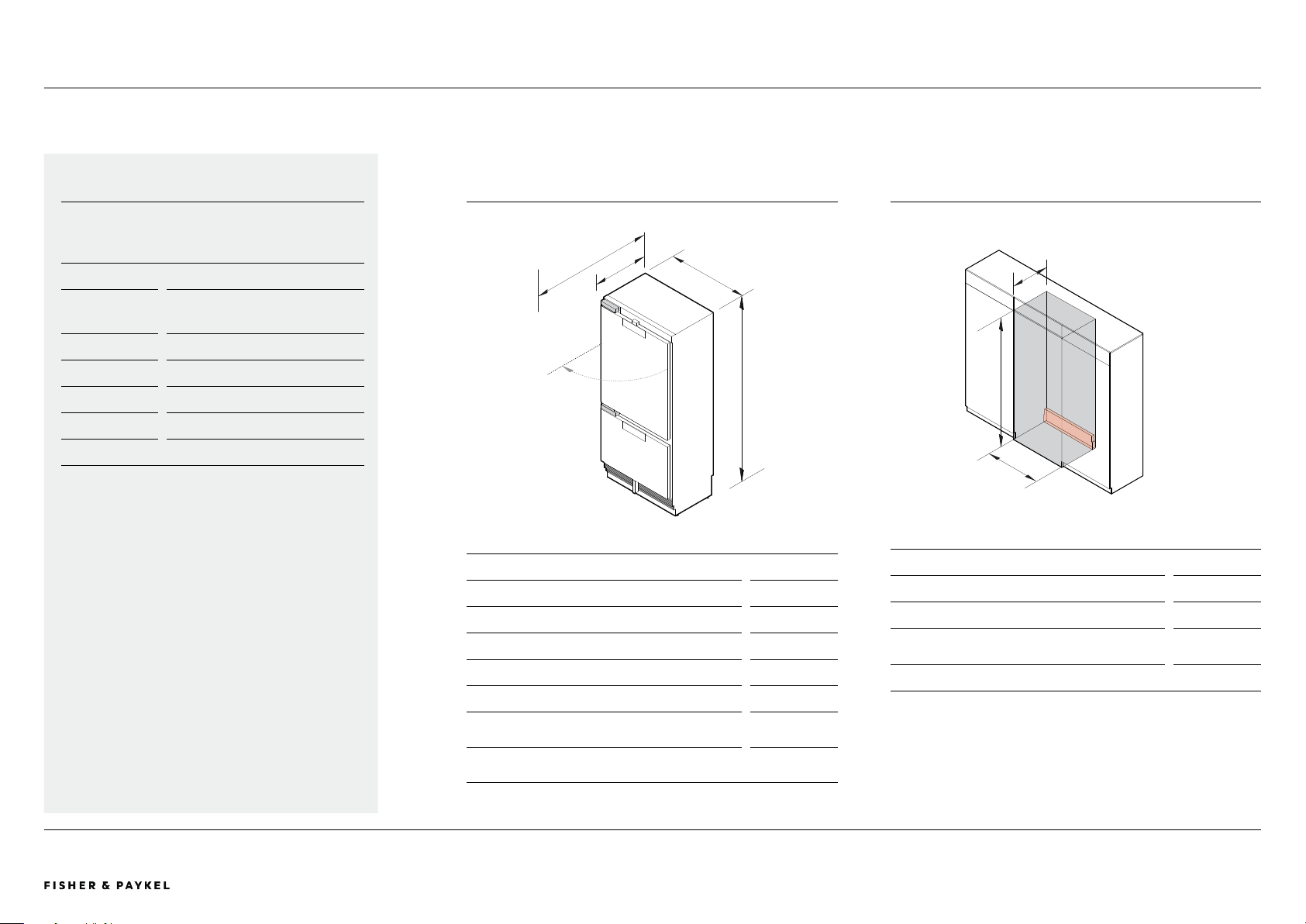

PRODUCT DIMENSIONS
mm
A Overall height 214
B Overall width 908
C Overall depth* 610
D Overall depth with the door open* 1570
E Overall depth with drawer open* 1004
Height from floor to bottom of bottom door
panel**
15-150
Depth of toe kick (excl. front door and toe kick
panels)**
50-100
*Excluding handle and door panel
**Applies to custom door panels
C
d
A
B
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Height 214
B Minimum width 914
C Minimum overall cavity depth with
service to the side*
65
Service area H229mm x W914mm x D25mm
*Assumes a door panel thickness of 19mm
A
B
C
RS9121WRUVK5 | RS9121WLUVK5SPECIFICATION GUIDE | INTEGRATED REFRIGERATOR FREEZER, 91.4CM, ICE & WATER
<CONTENT
© FISHER & PAYKEL LIMITED 2023 PAGE 690003315A PLANNING GUIDE REFRIGERATION - VERSION A - NOVEMBER 2023
PLATFORM OVERVIEW
PAGE 790003315A PLANNING GUIDE REFRIGERATION VERSION A - NOVEMBER 2023 © FISHER & PAYKEL LIMITED 2023
PLATFORM OVERVIEW | INTEGRATED COLUMNS
REFRIGERATOR/FREEZER
1 RS9121WRUVK
2 RS7621WRUK
3 RS6121WRUK
4 RS9121WLUVK
5 RS7621WLUK
6 RS6121WLUK
FREEZER
7 RS7621FRJK
8 RS6121FRJK
9 RS4621FRJK
"0 RS7621FLJK
"1 RS6121FLJK
"2 RS4621FLJK
REFRIGERATOR
"3 RS7621SRHK
"4 RS6121SRHK
"5 RS7621SLHK
"6 RS6121SLHK
WINE
"7 RS6121VR2K
"8 RS6121VL2K
*Any model can be installed adjacent to one
another
REFRIGERATOR/FREEZER
RIGHT HINGE
FREEZER
RIGHT HINGE
REFRIGERATOR
RIGHT HINGE
WINE
RIGHT HINGE
LEFT HINGE LEFT HINGE
LEFT HINGE
1 2 3
4 5 6
7 8
"0
"3 "4 "7
91.4cm 76.2cm 60.3cm
91.4cm 76.2cm 60.3cm
76.2cm 60.3cm 60.3cm
60.3cm
76.2cm 60.3cm45.7cm
9
"8
Platform Overview - Integrated Columns
"1 "2
"5 "6
60.2cm 45.7cm76.2cm
76.2cm
60.3cm
All models can be installed side by side but hinge consideration is advised
All models have stainless steel door panels, handles, toe kicks and joiner kits accessories available
<CONTENT
PAGE 890003315A PLANNING GUIDE REFRIGERATION VERSION A - NOVEMBER 2023 © FISHER & PAYKEL LIMITED 2023
DESIGN CHOICES | INTEGRATED COLUMNS
Accessory Handles
Custom Handle
No handle
Stainless Steel Panels
Custom Door Panels
Custom Door Panels and
Assisted Opening Accessory
Single Installation
Dual Installation
Triple Installation
++ ++
Stainless Steel Toe Kick
Custom Toe Kick
1
MODELS
2
DOOR STYLE
3
HANDLES
4
TOE KICK
++
1 2 3 4 5
Design Choices - Integrated Columns
<CONTENT
PAGE 990003315A PLANNING GUIDE REFRIGERATION VERSION A - NOVEMBER 2023 © FISHER & PAYKEL LIMITED 2023
MODELS
STAINLESS STEEL
DOOR PANEL
ASSISTED OPENING
ACCESSORIES
HANDLE
SQUARE FINE
HANDLE
SQUARE FINE
BLACK
HANDLE
ROUND
HANDLE
PROFESSIONAL
HANDLE
CLASSIC
REFRIGERATOR/FREEZER
1 RS9121WRUK - 91.4cm - Right Hinge RDW9121WRD
OPIN1EX1RSW
AHD5RD9121W AHD5RD9121WB
AHSRD9121W AHPRD9121W AHCLRD9121W
2 RS7621WRUK - 76.2cm - Right Hinge
RDW7621WRD
OPIN1EX1RSW
AHD5RD7621W AHD5RD7621WB
AHSRD7621W AHPRD7621W AHCLRD7621W
3 RS6121WRUK - 60.3cm - Right Hinge RDW6121WRD
OPIN1EX1RSW
AHD5RD6121W AHD5RD6121WB
AHSRD6121W AHPRD6121W AHCLRD6121W
4 RS9121WLUK - 91.4cm - Left Hinge
RDW9121WLD
OPIN1EX1RSW
AHD5RD9121W AHD5RD9121WB
AHSRD9121W AHPRD9121W AHCLRD9121W
5 RS7621WLUK - 76.2cm - Left Hinge
RDW7621WLD
OPIN1EX1RSW
AHD5RD7621W AHD5RD7621WB
AHSRD7621W AHPRD7621W AHCLRD7621W
6 RS6121WLUK - 60.3cm - Left Hinge
RDW6121WLD
OPIN1EX1RSW
AHD5RD6121W AHD5RD6121WB
AHSRD6121W AHPRD6121W AHCLRD6121W
FREEZER
7 RS7621FRJK - 76.2cm - Right Hinge
RD7621R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
8 RS6121FRJK - 60.3cm - Right Hinge
RD6121R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
9 RS4621FRJK - 45.7cm - Right Hinge
RD4621R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
"0 RS7621FLJK - 76.2cm - Left Hinge
RD7621L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
"0 RS6121FLJK - 60.3cm - Left Hinge
RD6121L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
"0 RS4621FLJK - 45.7 cm - Left Hinge
RD4621L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
REFRIGERATOR
"1 RS7621SRHK - 76.2cm - Right Hinge
RD7621R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
"2 RS6121SRHK - 60.3cm - Right Hinge
RD6121R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
"0 RS7621SLHK - 76.2cm - Left Hinge
RD7621L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
"0 RS6121SLHK - 60.3cm - Left Hinge
RD6121L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
WINE
"3 RS6121VR2K - 76.2cm - Right Hinge
RD6121VR4 OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
"4 RS6121VL2K - 76.2cm - Left Hinge
RD6121VL4 OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHPRDSF AHCLRDSF
ACCESSORIES OVERVIEW | INTEGRATED COLUMNS
Accessories Overview - Door Panels, Handles
Custom door panels and toe kicks to be manufactured by joiner/cabinetmaker
<CONTENT
PAGE 1090003315A PLANNING GUIDE REFRIGERATION VERSION A - NOVEMBER 2023 © FISHER & PAYKEL LIMITED 2023

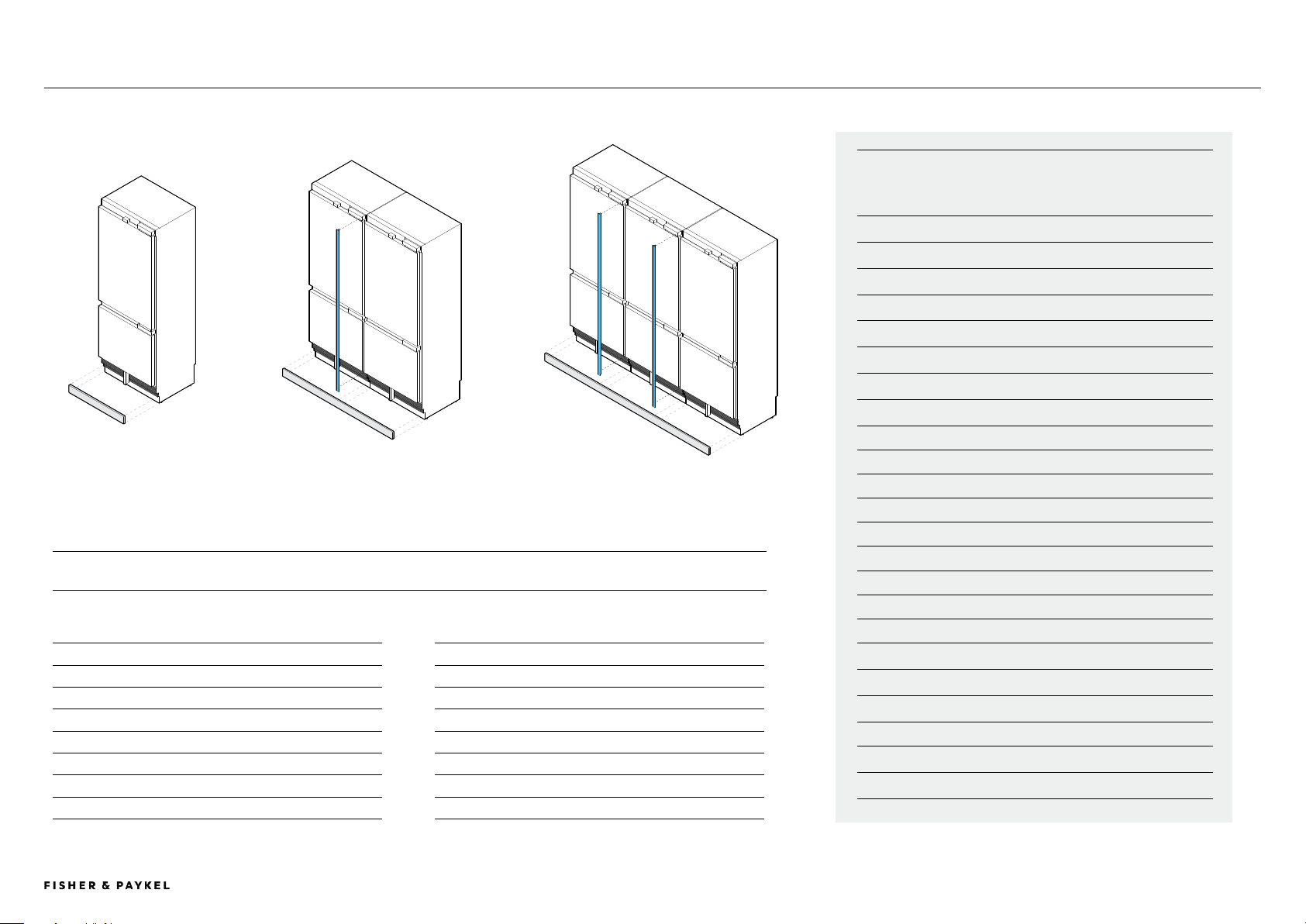

STAINLESS STEEL TOE KICK
SINGLE INSTALLATION
All 45.7cm models AKRS4621
All 60.3cm models AKRS6121
All 76.2cm models AKRS7621
All 91.4cm models AKRS9121
DUAL INSTALLATION
45.7cm + 60.3cm AKRS10710
45.7cm +76.2cm AKRS12210
45.7cm + 91.4cm AKRS1710
60.3cm + 60.3cm AKRS12210
60.3cm + 76.2cm AKRS1710
60.3cm + 91.4cm AKRS15210
76.2cm + 76.2cm AKRS15210
76.2cm + 91.4cm AKRS16810
91.4cm + 91.4cm AKRS1810
TRIPLE INSTALLATION
45.7cm + 60.3cm + 60.3cm AKRS16810
60.3cm + 60.3cm + 60.3cm AKRS18310
76.2cm + 60.3cm + 60.3cm AKRS19810
76.2cm + 76.2cm + 60.3cm AKRS21310
ACCESSORIES OVERVIEW | INTEGRATED COLUMNS
Single installation
No Joiner Kit required
Dual installation
1 Joiner Kit required
Triple installation
2 Joiner Kits required
Accessories Overview - Toe Kicks, Joiner Kits
1x Joiner Kit (AJ-RS21LR) supplied with the following Freezer and
Wine Models.
FREEZER
RS7621FRJK, RS7621FLJK
RS6121FRJK, RS6121FLJK
RS4621FRJK, RS4621FLJK
WINE
RS6121VR2K, RS6121VL2K
No Joiner Kit supplied with the following Refrigeration/Freezer
and Refrigerator Models.
REFRIGERATOR/FREEZER
RS9121WRUK, RS9121WLUK
RS7621WRUK, RS7621WLUK
RS7621WRUK, RS6121WLUK
REFRIGERATOR
RS7621SRHK, RS7621SLHK
RS6121SRHK, RS6121SLHK
Additional Joiner Kits, AJ-RS21LR available
Additional Joiner Kits, AJ-RS21LR available
JOINER KIT INFORMATION
<CONTENT
