PLANNING GUIDE
INTEGRATED REFRIGERATOR FREEZER, 91.4CM, ICE & WATER
RS9121WRUVE1 I RS9121WLUVE1
PAGE 290003315C PLANNING GUIDE REFRIGERATION VERSION C - MAY 2024 © FISHER & PAYKEL LIMITED 2024
PLANNING GUIDE | INTEGRATED REFRIGERATOR FREEZER, 91.4CM, ICE & WATER RS9121WRUVE1 | RS9121WLUVE1
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
Specification Guide 3
Specification Guide - Refrigerator Freezer 91 cm 4
Platform Overview 6
Design Choices - Integrated Columns 7
Accessories Overview - Door Panels, Handles 8
Accessories Overview - Toe Kicks, Joiner Kits 9
CONTENTS
Planning Guide information for Developed and
Detailed Design available in Q3 2024
Data Sheet 10
RS9121WRUVE1, RS9121WLUVE1 11

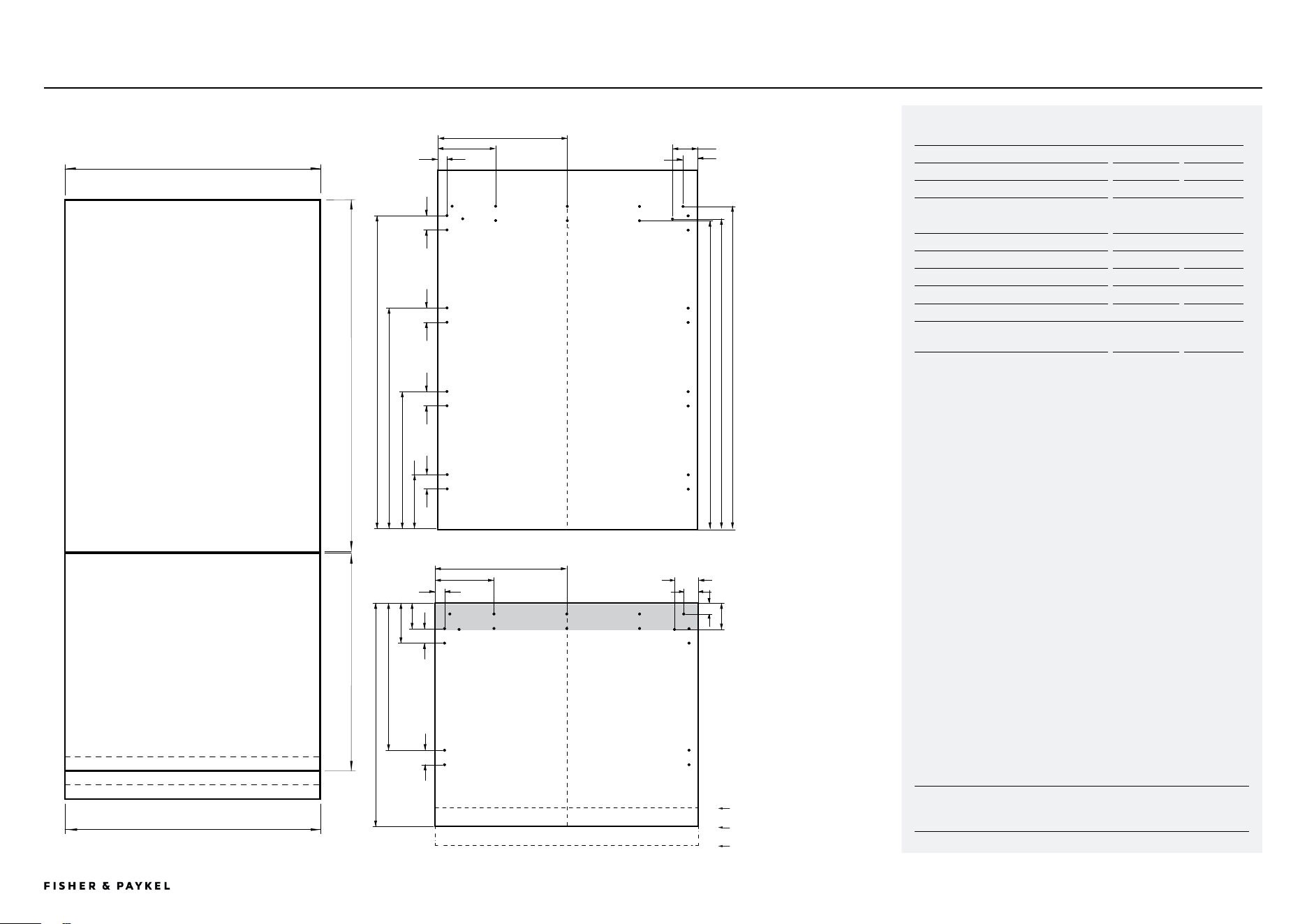

Panel preparation 12
i
High-level product information
for the initial stages of
conceptualising and refining
your design.
i
Detailed information, including
product specs and dimensions,
to support you in the advanced
design stages.
© FISHER & PAYKEL LIMITED 2024 PAGE 390003315C PLANNING GUIDE REFRIGERATION - VERSION C - MAY 2024
SPECIFICATION GUIDE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 4PLANNING GUIDE REFRIGERATION - VERSION C - MAY 202490003315C © FISHER & PAYKEL LIMITED 2024
OVERVIEW
Designed to fit flush with cabinetry with minimal 3mm gaps,
this Integrated Refrigerator can be installed individually or
paired with other Integrated models. For true design
freedom, it can be installed with stainless steel or custom
door panels. ActiveSmart™ Foodcare helps keep food
fresher for longer, while the Variable Temperature Drawer
can be adjusted to Chill, Fridge, or Pantry modes, to suit
dierent types of food.
PRODUCTS
RS9121WRUVE1 Integrated Refrigerator Freezer, 91.4cm,
Ice & Water, Right Hand Hinge
(All models can achieve opposite hinge location using the
supplied parts)
RS9121WLUVE1 Integrated Refrigerator Freezer, 91.4cm,
Ice & Water, Left Hand Hinge
(All models can achieve opposite hinge location using the
supplied parts)
FEATURES
1 Fits with stainless steel or custom door panels
2 Independent Variable Temperature Drawer can change
between Chill, Fridge, or Pantry modes to suit different
foods
3 Flush fit with 3mm gaps and custom height installation
4 Automatic ice maker and internal water dispenser
5 ActiveSmart™ Foodcare helps keep food fresher for longer
6 Easy to use touch-control panel and WiFi capability
7 LED-lit and adjustable cantilevered shelving
8 Stainless steel interior lining with robust hinges
9 Perfectly pairs with other integrated models for flexible
configurations
SPECIFICATION GUIDE | INTEGRATED REFRIGERATOR FREEZER, 91.4CM, ICE & WATER

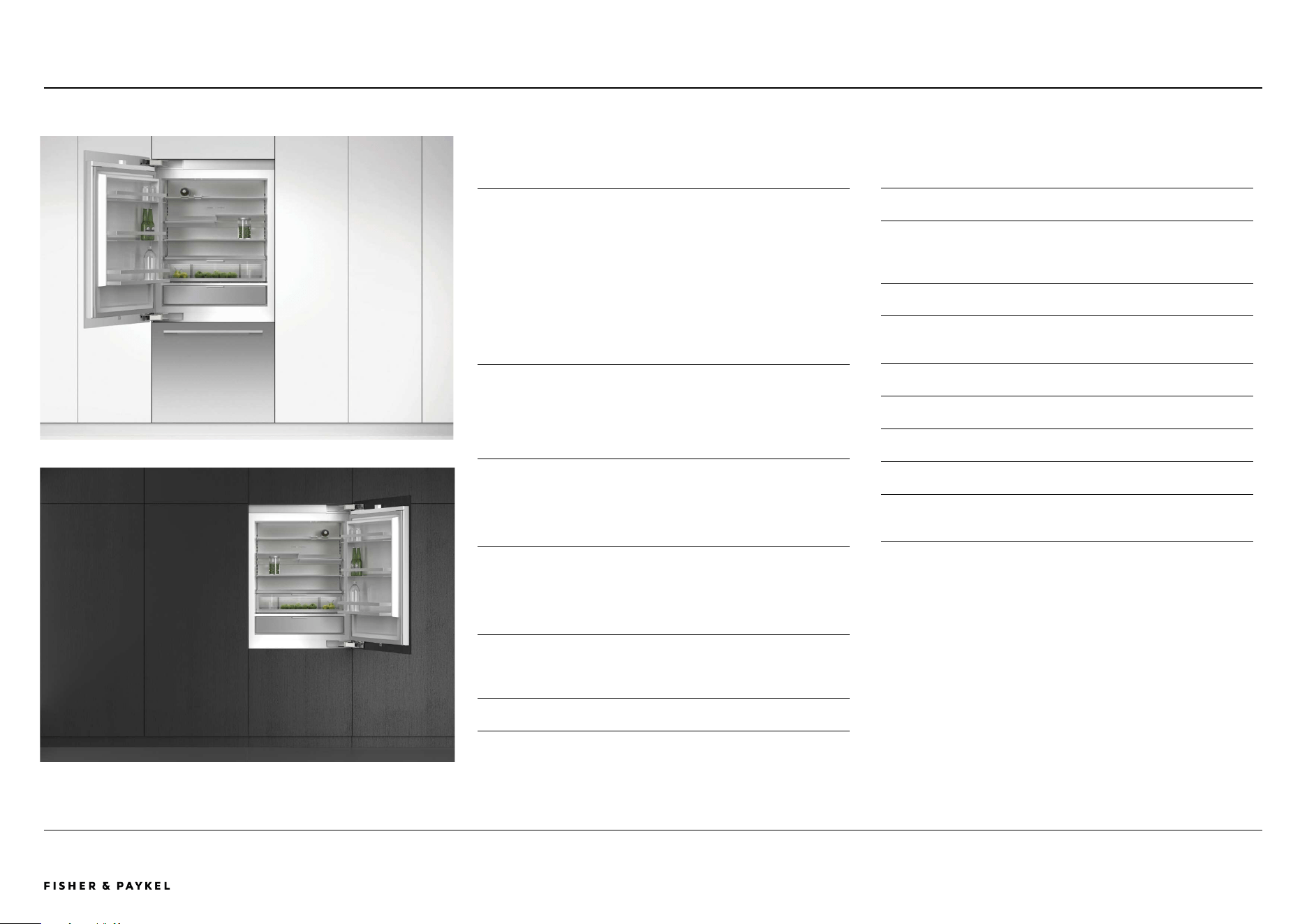

RS9121WLUVE1 - with Stainless Steel Door Panel
RS9121WRUVE1 - with Custom Door Panel
RS9121WRUVE1 | RS9121WLUVE1
SERIES
Series 11
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 5PLANNING GUIDE REFRIGERATION - VERSION C - MAY 202490003315C © FISHER & PAYKEL LIMITED 2024
SPECIFICATIONS
Model No. RS9121WRUVE1, RS9121WLUVE1
Product
Dimensions
H 2134mm W 908mm D 610mm
Electrical
Supply 220 – 240 V, 50 Hz
Service 10 A

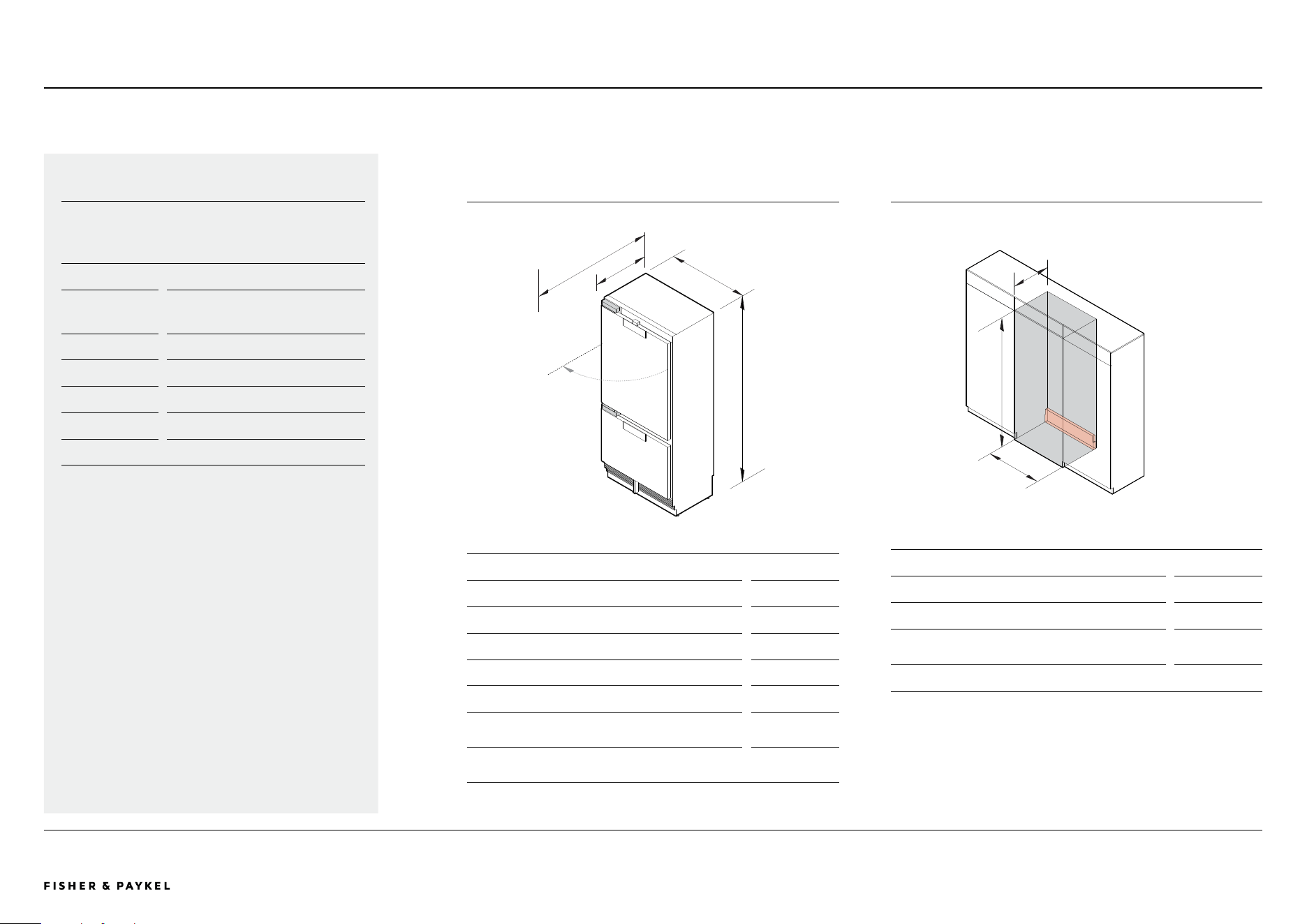

PRODUCT DIMENSIONS
mm
A Overall height 2134
B Overall width 908
C Overall depth* 610
D Overall depth with the door open* 1570
E Overall depth with drawer open* 1004
Height from floor to bottom of bottom door
panel**
15-150
Depth of toe kick (excl. front door and toe kick
panels)**
50-100
*Excluding handle and door panel
**Applies to custom door panels
C
d
A
B
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Height 2134
B Minimum width 914
C Minimum overall cavity depth with
service to the side*
635
Service area H229mm x W914mm x D25mm
*Assumes a door panel thickness of 19mm
A
B
C
RS9121WRUVE1 | RS9121WLUVE1SPECIFICATION GUIDE | INTEGRATED REFRIGERATOR FREEZER, 91.4CM, ICE & WATER
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 690003315C PLANNING GUIDE REFRIGERATION - VERSION C - MAY 2024
PLATFORM OVERVIEW
PAGE 790003315C PLANNING GUIDE REFRIGERATION VERSION C - MAY 2024 © FISHER & PAYKEL LIMITED 2024

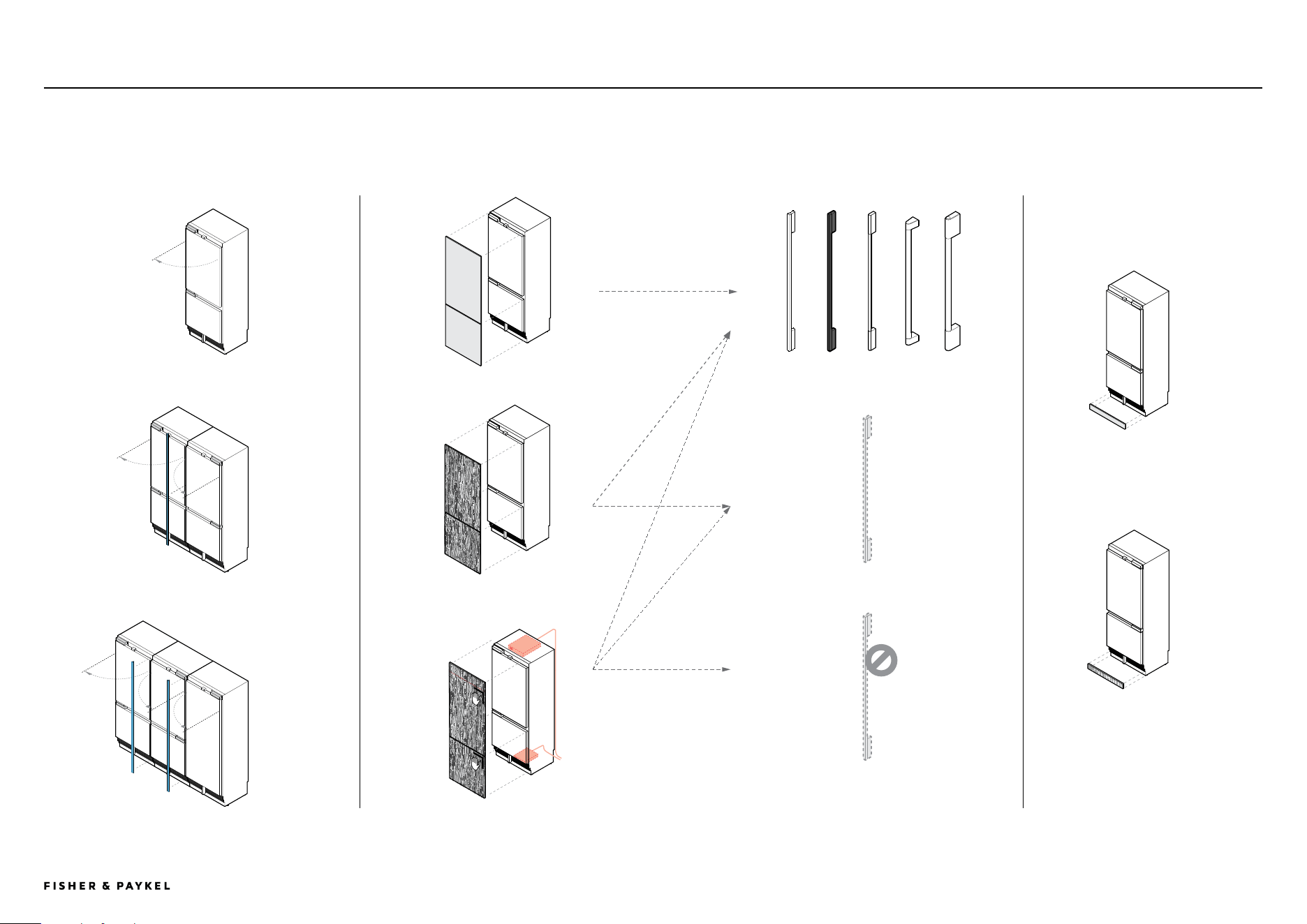

DESIGN CHOICES | INTEGRATED COLUMNS
Accessory Handles
Custom Handle
No handle
Stainless Steel Panels
Custom Door Panels
Custom Door Panels and
Assisted Opening Accessory
Single Installation
Dual Installation
Triple Installation
++ ++
Stainless Steel Toe Kick
Custom Toe Kick
1
MODELS
2
DOOR STYLE
3
HANDLES
4
TOE KICK
++
1 2 3 4 5
<< CONTENTS
PAGE 890003315C PLANNING GUIDE REFRIGERATION VERSION C - MAY 2024 © FISHER & PAYKEL LIMITED 2024

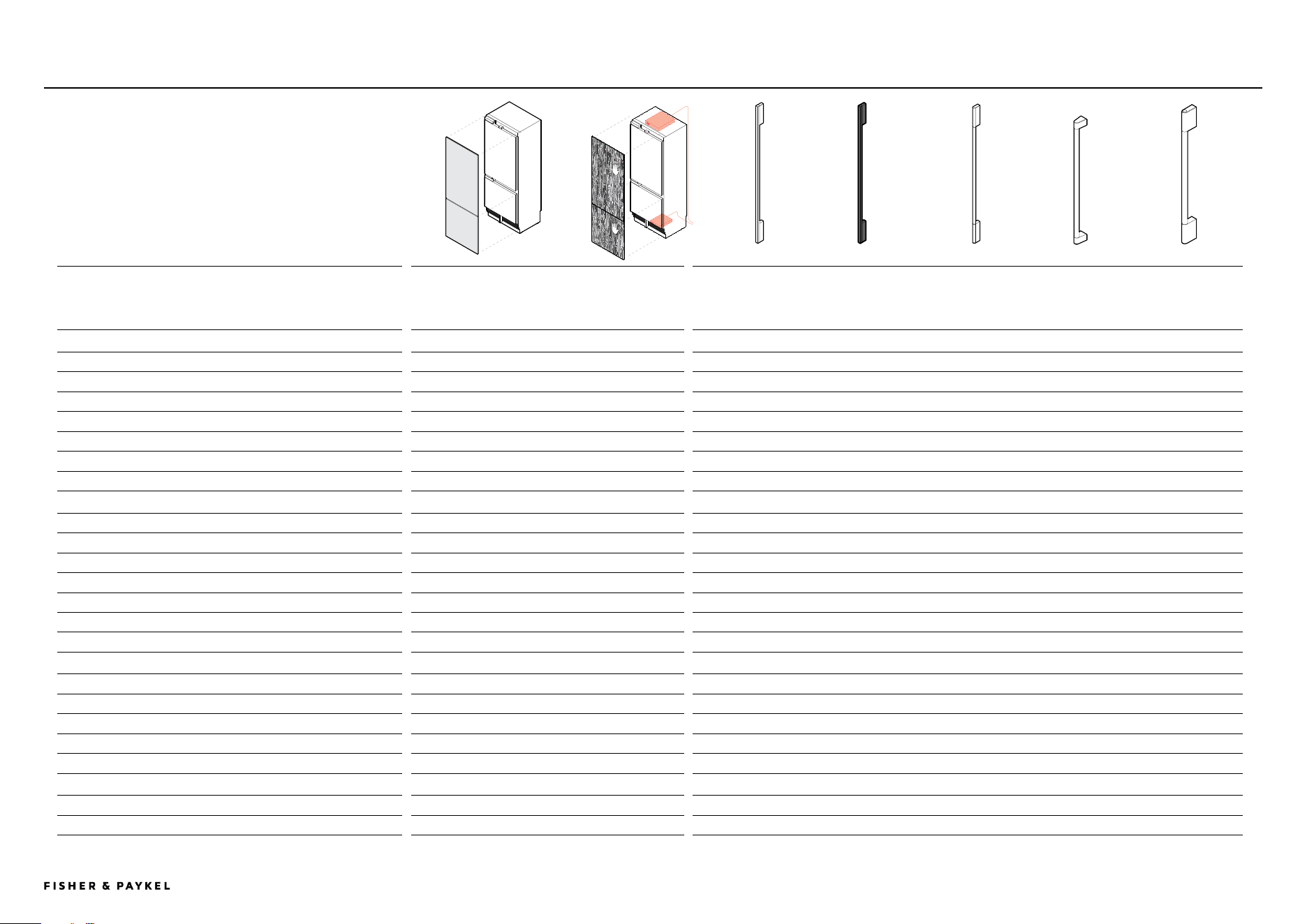

MODELS
STAINLESS STEEL
DOOR PANEL
ASSISTED OPENING
ACCESSORIES
Availability Q2 2025
1
HANDLE
SQUARE FINE
2
HANDLE
SQUARE FINE
3
HANDLE
ROUND
4
HANDLE
PROFESSIONAL
5
HANDLE
CLASSIC
REFRIGERATOR/FREEZER
1 RS9121WRUVE1 - 91.4cm - Right Hinge RDW9121WRD
OPIN1EX1RSW
AHD5RD9121W AHD5RD9121WB
AHSRD9121W AHP3RD9121W AHCLRD9121W
2 RS7621WRUK1 - 76.2cm - Right Hinge
RDW7621WRD
OPIN1EX1RSW
AHD5RD7621W AHD5RD7621WB
AHSRD7621W AHP3RD7621W AHCLRD7621W
3 RS6121WRUK1 - 60.3cm - Right Hinge
RDW6121WRD
OPIN1EX1RSW
AHD5RD6121W AHD5RD6121WB
AHSRD6121W AHP3RD6121W AHCLRD6121W
4 RS9121WLUVE1 - 91.4cm - Left Hinge
RDW9121WLD
OPIN1EX1RSW
AHD5RD9121W AHD5RD9121WB
AHSRD9121W AHP3RD9121W AHCLRD9121W
5 RS7621WLUK1 - 76.2cm - Left Hinge
RDW7621WLD
OPIN1EX1RSW
AHD5RD7621W AHD5RD7621WB
AHSRD7621W AHP3RD7621W AHCLRD7621W
6 RS6121WLUK1 - 60.3cm - Left Hinge
RDW6121WLD
OPIN1EX1RSW
AHD5RD6121W AHD5RD6121WB
AHSRD6121W AHP3RD6121W AHCLRD6121W
FREEZER
7
RS7621FRJK1 - 76.2cm - Right Hinge
RD7621R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
8
RS6121FRJK1 - 60.3cm - Right Hinge
RD6121R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
9
RS4621FRJK1 - 45.7cm - Right Hinge
RD4621R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
"0
RS7621FLJK1 - 76.2cm - Left Hinge
RD7621L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
"1
RS6121FLJK1 - 60.3cm - Left Hinge
RD6121L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
"2
RS4621FLJK1 - 45.7 cm - Left Hinge
RD4621L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
REFRIGERATOR
"3 RS7621SRHK1
- 76.2cm - Right Hinge
RD7621R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
"4 RS6121SRHK1
- 60.3cm - Right Hinge
RD6121R10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
"5
RS7621SLHK1 - 76.2cm - Left Hinge
RD7621L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
"6
RS6121SLHK1 - 60.3cm - Left Hinge
RD6121L10D OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
WINE
"7 RS6121VR2K1
- 60.3cm - Right Hinge
RD6121VR4 OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
"8 RS6121VL2K1 - 60.3cm - Left Hinge
RD6121VL4 OPEX1 AHD5RDSF AHD5RDSFB AHSRDSF
AHP3RDSF AHCLRDSF
ACCESSORIES OVERVIEW | INTEGRATED COLUMNS
Custom door panels and toe kicks to be manufactured by joiner/cabinetmaker
<< CONTENTS
PAGE 990003315C PLANNING GUIDE REFRIGERATION VERSION C - MAY 2024 © FISHER & PAYKEL LIMITED 2024

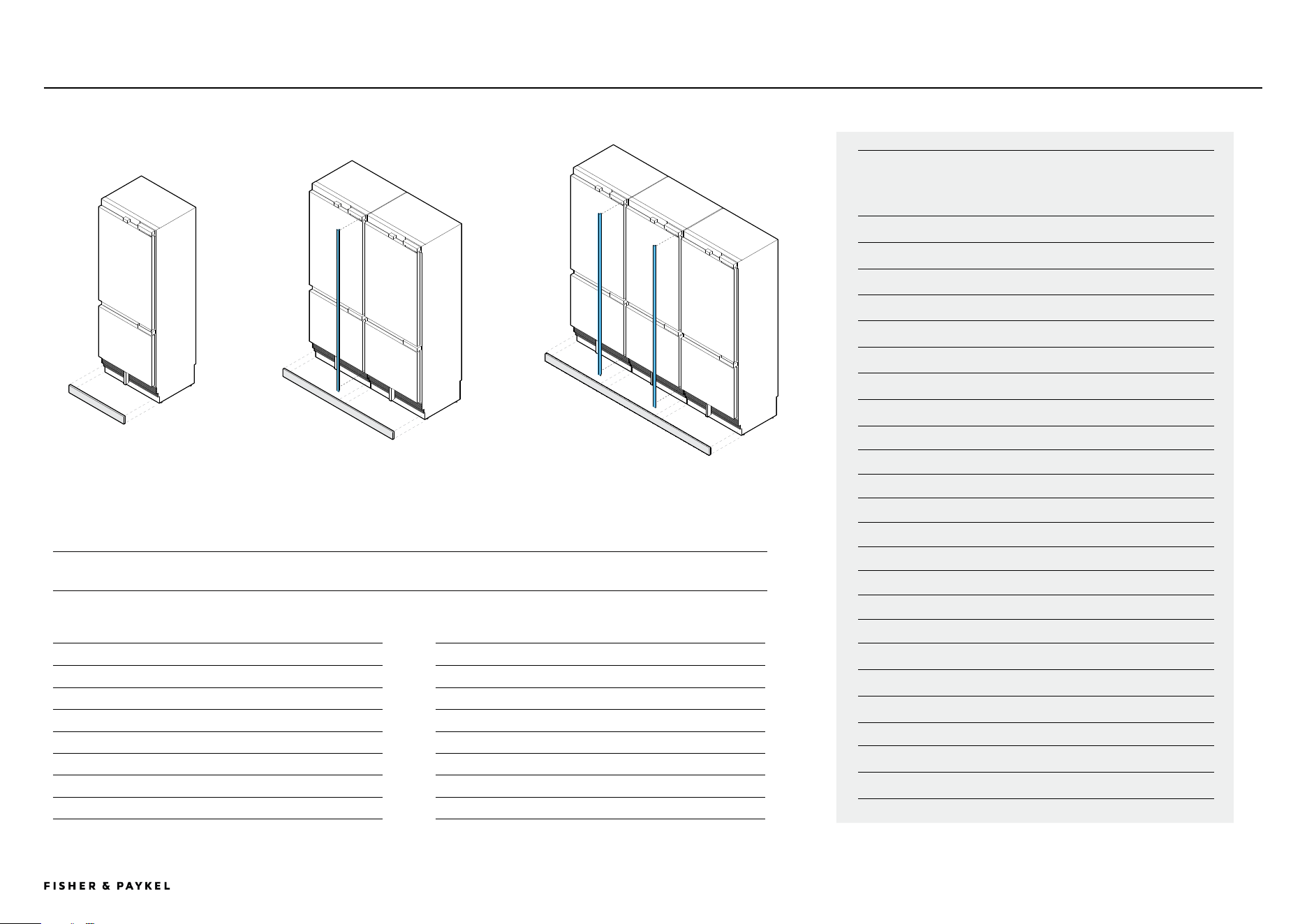

STAINLESS STEEL TOE KICK
SINGLE INSTALLATION
All 45.7cm models AKRS4621
All 60.3cm models AKRS6121
All 76.2cm models AKRS7621
All 91.4cm models AKRS9121
DUAL INSTALLATION
45.7cm + 60.3cm AKRS10710
45.7cm +76.2cm AKRS12210
45.7cm + 91.4cm AKRS13710
60.3cm + 60.3cm AKRS12210
60.3cm + 76.2cm AKRS13710
60.3cm + 91.4cm AKRS15210
76.2cm + 76.2cm AKRS15210
76.2cm + 91.4cm AKRS16810
91.4cm + 91.4cm AKRS18310
TRIPLE INSTALLATION
45.7cm + 60.3cm + 60.3cm AKRS16810
60.3cm + 60.3cm + 60.3cm AKRS18310
76.2cm + 60.3cm + 60.3cm AKRS19810
76.2cm + 76.2cm + 60.3cm AKRS21310
ACCESSORIES OVERVIEW | INTEGRATED COLUMNS
Single installation
No Joiner Kit required
Dual installation
1 Joiner Kit required
Triple installation
2 Joiner Kits required
1x Joiner Kit (AJ-RS21LR) supplied with the following Freezer and
Wine Models.
FREEZER
RS7621FRJK1, RS7621FLJK1
RS6121FRJK1
, RS6121FLJK1
RS4621FRJK1
, RS4621FLJK1
WINE
RS6121VR2K1, RS6121VL2K1
No Joiner Kit supplied with the following Refrigeration/Freezer
and Refrigerator Models.
REFRIGERATOR/FREEZER
RS9121WRUVE1, RS9121WLUVE1
RS7621WRUK1, RS7621WLUK1
RS6121WRUK1, RS6121WLUK1
REFRIGERATOR
RS7621SRHK1, RS7621SLHK1
RS6121SRHK1, RS6121SLHK1
Additional Joiner Kits, AJ-RS21LR available
Additional Joiner Kits, AJ-RS21LR available
JOINER KIT INFORMATION
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 1090003315C PLANNING GUIDE REFRIGERATION - VERSION C - MAY 2024
DATA SHEET
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 1190003315C PLANNING GUIDE REFRIGERATION - VERSION C - MAY 2024 © FISHER & PAYKEL LIMITED 2024
Model no:
RS9121WRUVE1, RS9121WLUVE1
Product Dimensions
in
mm
a Overall height
84"
2134
B Overall width
35 3/4"
908
c Overall depth (excluding door panels)
24"
610
D Floor to bottom of door
4"
102
E Depth of toe-kick (excluding panels)
2 ⅞ - 4
73 - 102
F Height of toe-kick
2 - 6"
50 - 152
G Width of toe-kick
35 7/8"
910
Door/Drawer Opening Dimensions*
H Minimum door clearance** to adjacent wall*
(90° – reduced internal access)*
4 5/16"
110
I Minimum door clearance** to adjacent wall*
(115° – full internal access)
17 1/8"
435
J Depth of door (90° open) measured from
front of door
38 1/16"
967
K Depth of drawer (open) measured from front
of drawer *
15 3/4
400
Clearance Dimensions*
Minimum cabinetry gap clearance from edge of
door panel
1/8
3
Cavity overall height
84"
2134
Cavity overall width (single)
36"
914
Cavity overall width (double)
72"
1829
Minimum overall depth (shallow) of cavity when
services are located outside of cavity****
Minimum overall depth (deep) of cavity when
services are located at rear of cavity****
25
635
25 5/8
650
* Custom panels to be manufactured & fitted by cabinetmaker
** 3 15/16" (100mm) tall stainless steel toe-kick panel available. Adjust
the height of the door panel accordingly
*** Door handle kit is available as an optional accessory.
****Assumes a door panel depth of 3/4" (19mm).

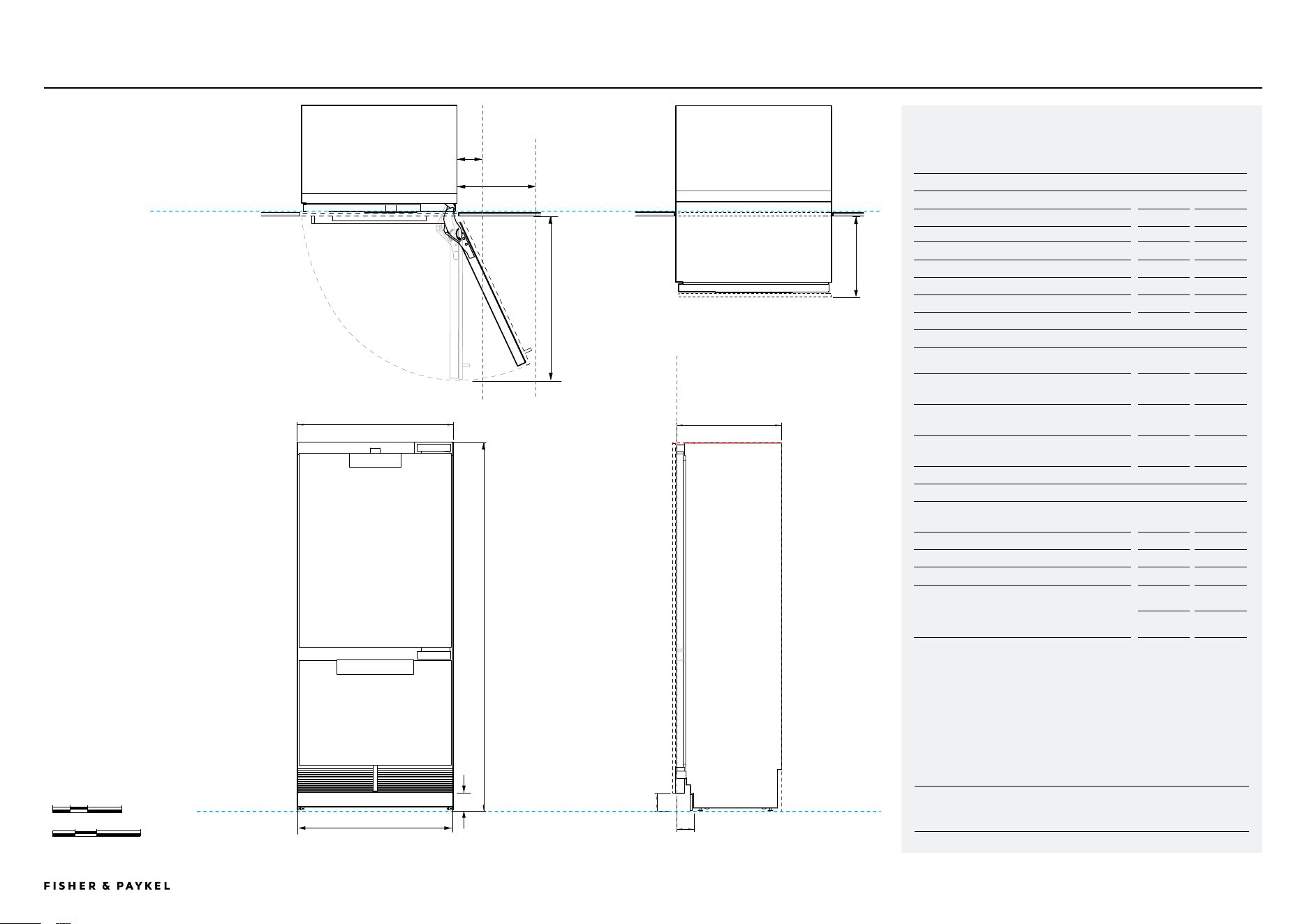

DATA SHEET | 91CM REFRIGERATION RS9121WRUVE1, RS9121WLUVE1
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
DATUM :
FLOOR (LEVEL)
0 100 200 400
millimetres
0
5 10 20
inches
C
A
B
F
D
I
H
J
PROFILE VIEWFRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
CLEARANCE: DOOR AT 115⁰
CLEARANCE: DOOR AT 90⁰
2134
908
E
G
910
K
<< CONTENTS
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 1290003315C PLANNING GUIDE REFRIGERATION - VERSION C - MAY 2024 © FISHER & PAYKEL LIMITED 2024
Model no: RS9121WRUVE1, RS9121WLUVE1
Custom Panel Dimensions
in
mm
A Height of door panel refrigerator
49 ⅜"
1254
B Height of drawer panel freezer
28 ⅜ - 32 ⅜"
721 - 822
C Width of single panel
35 ¾"
908
Width of dual/multiple panels
35 13/16"
910
D Width of toe-kick
35 ⅞"
911
E Toe-kick** height
2 - 6"
50 - 152**
Panel thickness
min ¾"
min 19mm
Clearance Dimensions*
Minimum cabinetry gap clearance from edge
of door panel
⅛"
3
*Custom door panels, toe kick and handles to be manufactured / fitted by a
cabinetmaker.**
SPECIFICATONS | CUSTOM PANEL DETAILS
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
A
D
B
C
RS9121WRUVE1, RS9121WLUVE1
Dimensions apply for the preparation and installation of Custom door panels.
For Dwg and Dxf files of the below panel preparation, download the folder
from http://thekitchentools.fisherpaykel.com.
The thickness of the custom door panel can vary provided that the screws
do not penetrate beyond the full depth of the door panel.
50
50
50 50
187
480
772
1095
33
203
454
51
88
1077
1083
1127
89
139
508
772
38
91
50
50
33
203
454
51
83
10x Pilot holes recommended
for bracket attachment.
(Do not penetrate front
surface).
Ensure handle is mounted
65mm from edge of panel
to the centre — this will avoid
interference with bracket.
Cutouts in the hanging bracket
are applicable for Fisher and
Paykel handles only.
If locating a custom handle in
the shaded area shown above,
ensure handle screw headsare
countersunk into the back
of the door panel to avoid
interference with the hanging
bracket.
Toe kick height 152"
Toe kick height 102"
Toe kick height 50"
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 1390003315C PLANNING GUIDE REFRIGERATION - VERSION C - MAY 2024
