OVERVIEW
Crafted for sophistication and durability, the Professional
Style Handles and Dials are available in Brass, Dark Copper,
and sleek Stainless Steel. These stylish options are designed
to complement Fisher & Paykel's Professional style
appliances and kitchen cabinetry, adding a refined touch to
the space.
FEATURES
1 Brass adds a warm, classic touch to both light and dark
kitchens, complementing wood and marble countertops
alike
2 Dark Copper offers a rich, deep hue, standing out in
monochromatic schemes or against stone countertops
3 Stainless Steel brings a modern, timeless look, seamlessly
integrating with contemporary kitchen designs
4 Dials and handles are PVD coated
1
2
1 2
SPECIFICATION GUIDE | PROFESSIONAL STYLE, DIAL AND HANDLE ACCESSORIES
3
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 5PLANNING GUIDE ProfEssIoNAL AccEssorIEs - VErsIoN A - DEcEMBEr 202390003321A © fIsHEr & PAYKEL LIMITED 2023
Optional Accessories:
Dial - Brass (Bezel - Gun Metal)
Handle O-stands - Brass (Handle bar - Stainless)
Optional Accessories:
Dial - Dark Copper (Bezel - Gun Metal)
Handle O-stands - Dark Copper (Handle bar - Stainless)
Product comes with:
Dial and Bezel - Gun Metal
Handle - Stainless Steel
RDV3-485GD-L RDV3-485GD-L RDV3-485GD-L
SPECIFICATION GUIDE | PROFESSIONAL STYLE, DIAL AND HANDLE ACCESSORIES
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 6PLANNING GUIDE ProfEssIoNAL AccEssorIEs - VErsIoN A - DEcEMBEr 202390003321A © fIsHEr & PAYKEL LIMITED 2023
Optional Accessories:
Handle O-stands - Brass (Handle bar - Stainless)
Optional Accessories:
Handle O-stands - Dark Copper (Handle bar - Stainless)
Product comes with:
Handle - Stainless Steel
OB30DPPTX OB30DPPTX OB30DPPTX
SPECIFICATION GUIDE | PROFESSIONAL STYLE, DIAL AND HANDLE ACCESSORIES
<< CONTENT
© fIsHEr & PAYKEL LIMITED 2023 PAGE 790003321A PLANNING GUIDE ProfEssIoNAL AccEssorIEs - VErsIoN A - DEcEMBEr 2023
PROFESSIONAL STYLE ACCESSORIES
MODELS OVERVIEW
PAGE 890003321A PLANNING GUIDE ProfEssIoNAL AccEssorIEs VErsIoN A - DEcEMBEr 2023 © fIsHEr & PAYKEL LIMITED 2023

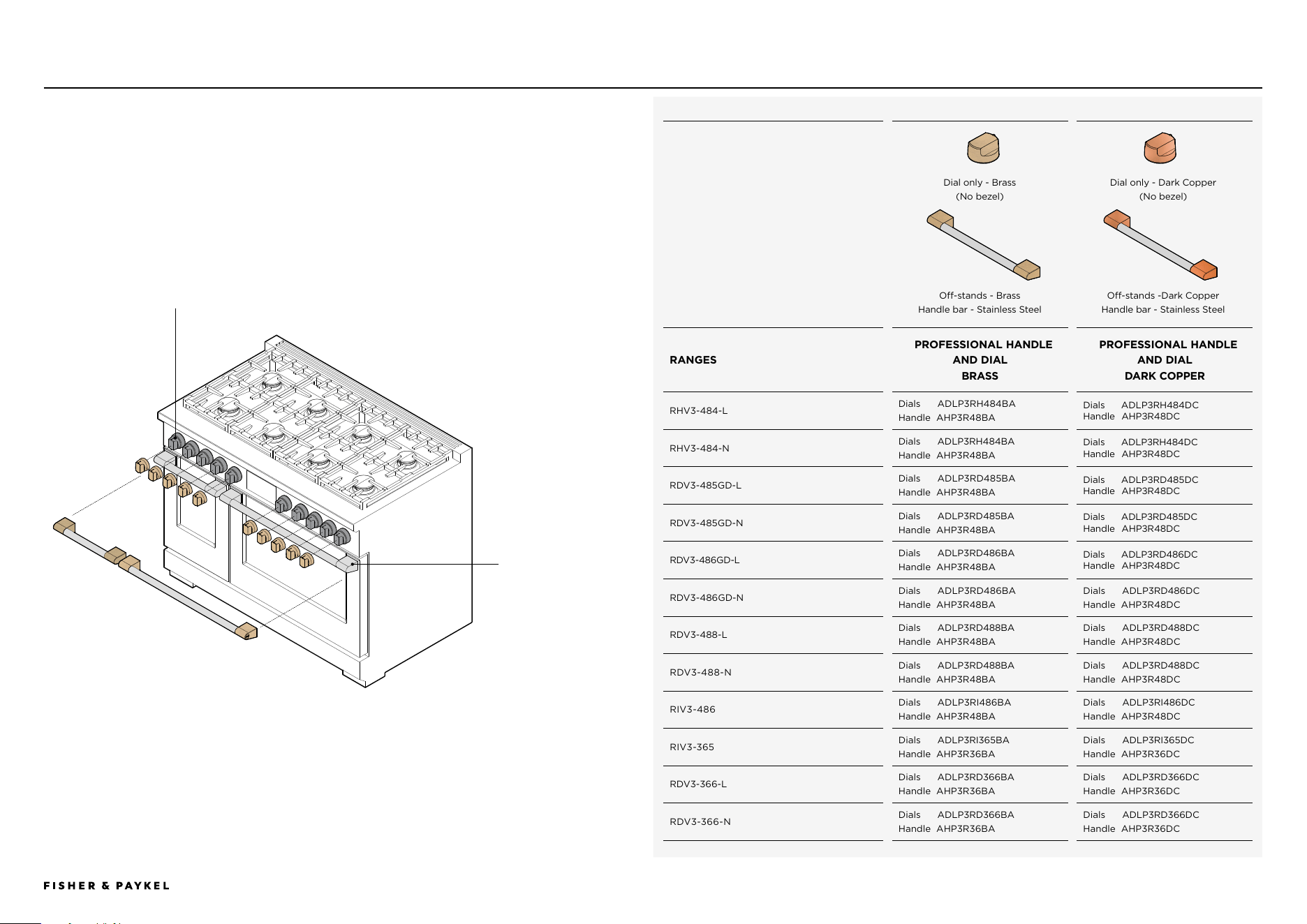

RANGES
PROFESSIONAL HANDLE
AND DIAL
BRASS
PROFESSIONAL HANDLE
AND DIAL
DARK COPPER
RHV3-484-L
Dials ADLP3RH484BA
Handle AHP3R48BA
Dials ADLP3RH484DC
Handle AHP3R48DC
RHV3-484-N
Dials ADLP3RH484BA
Handle AHP3R48BA
Dials ADLP3RH484DC
Handle AHP3R48DC
RDV3-485GD-L
Dials ADLP3RD485BA
Handle AHP3R48BA
Dials ADLP3RD485DC
Handle AHP3R48DC
RDV3-485GD-N
Dials ADLP3RD485BA
Handle AHP3R48BA
Dials ADLP3RD485DC
Handle AHP3R48DC
RDV3-486GD-L
Dials ADLP3RD486BA
Handle AHP3R48BA
Dials ADLP3RD486DC
Handle AHP3R48DC
RDV3-486GD-N
Dials ADLP3RD486BA
Handle AHP3R48BA
Dials ADLP3RD486DC
Handle AHP3R48DC
RDV3-488-L
Dials ADLP3RD488BA
Handle AHP3R48BA
Dials ADLP3RD488DC
Handle AHP3R48DC
RDV3-488-N
Dials ADLP3RD488BA
Handle AHP3R48BA
Dials ADLP3RD488DC
Handle AHP3R48DC
RIV3-486
Dials ADLP3RI486BA
Handle AHP3R48BA
Dials ADLP3RI486DC
Handle AHP3R48DC
RIV3-365
Dials ADLP3RI365BA
Handle AHP3R36BA
Dials ADLP3RI365DC
Handle AHP3R36DC
RDV3-366-L
Dials ADLP3RD366BA
Handle AHP3R36BA
Dials ADLP3RD366DC
Handle AHP3R36DC
RDV3-366-N
Dials ADLP3RD366BA
Handle AHP3R36BA
Dials ADLP3RD366DC
Handle AHP3R36DC
Product comes with:
O-stands - Stainless Steel
Handle bar - Stainless Steel
O-stands - Brass
Handle bar - Stainless Steel
O-stands -Dark Copper
Handle bar - Stainless Steel
Dial only - Dark Copper
(No bezel)
Dial only - Brass
(No bezel)
Product comes with:
Dial - Gun Metal
Bezel - Gun Metal
RANGES
Ranges
PLANNING GUIDE | PROFESSIONAL STYLE, DIAL AND HANDLE ACCESSORIES
<< CONTENT
PAGE 990003321A PLANNING GUIDE ProfEssIoNAL AccEssorIEs VErsIoN A - DEcEMBEr 2023 © fIsHEr & PAYKEL LIMITED 2023

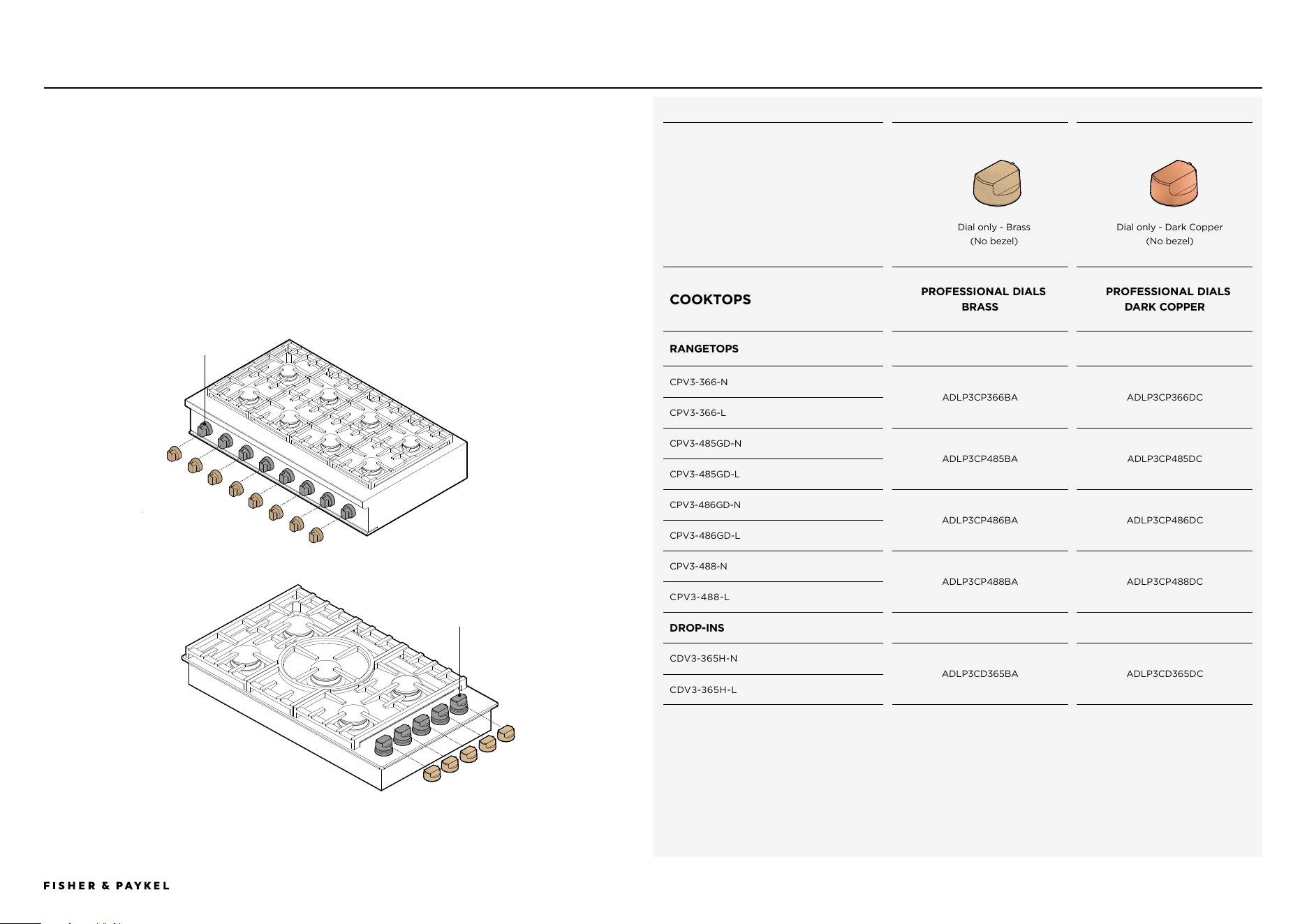

COOKTOPS
PROFESSIONAL DIALS
BRASS
PROFESSIONAL DIALS
DARK COPPER
RANGETOPS
CPV3-366-N
ADLP3CP366BA ADLP3CP366DC
CPV3-366-L
CPV3-485GD-N
ADLP3CP485BA ADLP3CP485DC
CPV3-485GD-L
CPV3-486GD-N
ADLP3CP486BA ADLP3CP486DC
CPV3-486GD-L
CPV3-488-N
ADLP3CP488BA ADLP3CP488DC
CPV3-488-L
DROP-INS
CDV3-365H-N
ADLP3CD365BA ADLP3CD365DC
CDV3-365H-L
Dial only - Brass
(No bezel)
Dial only - Dark Copper
(No bezel)
Product comes with:
Dial - Gun Metal
Bezel - Gun Metal
COOKTOPS
Cooktops
PLANNING GUIDE | PROFESSIONAL STYLE, DIAL AND HANDLE ACCESSORIES
Product comes with:
Dial - Gun Metal
Bezel - Gun Metal
<< CONTENT
PAGE 1090003321A PLANNING GUIDE ProfEssIoNAL AccEssorIEs VErsIoN A - DEcEMBEr 2023 © fIsHEr & PAYKEL LIMITED 2023

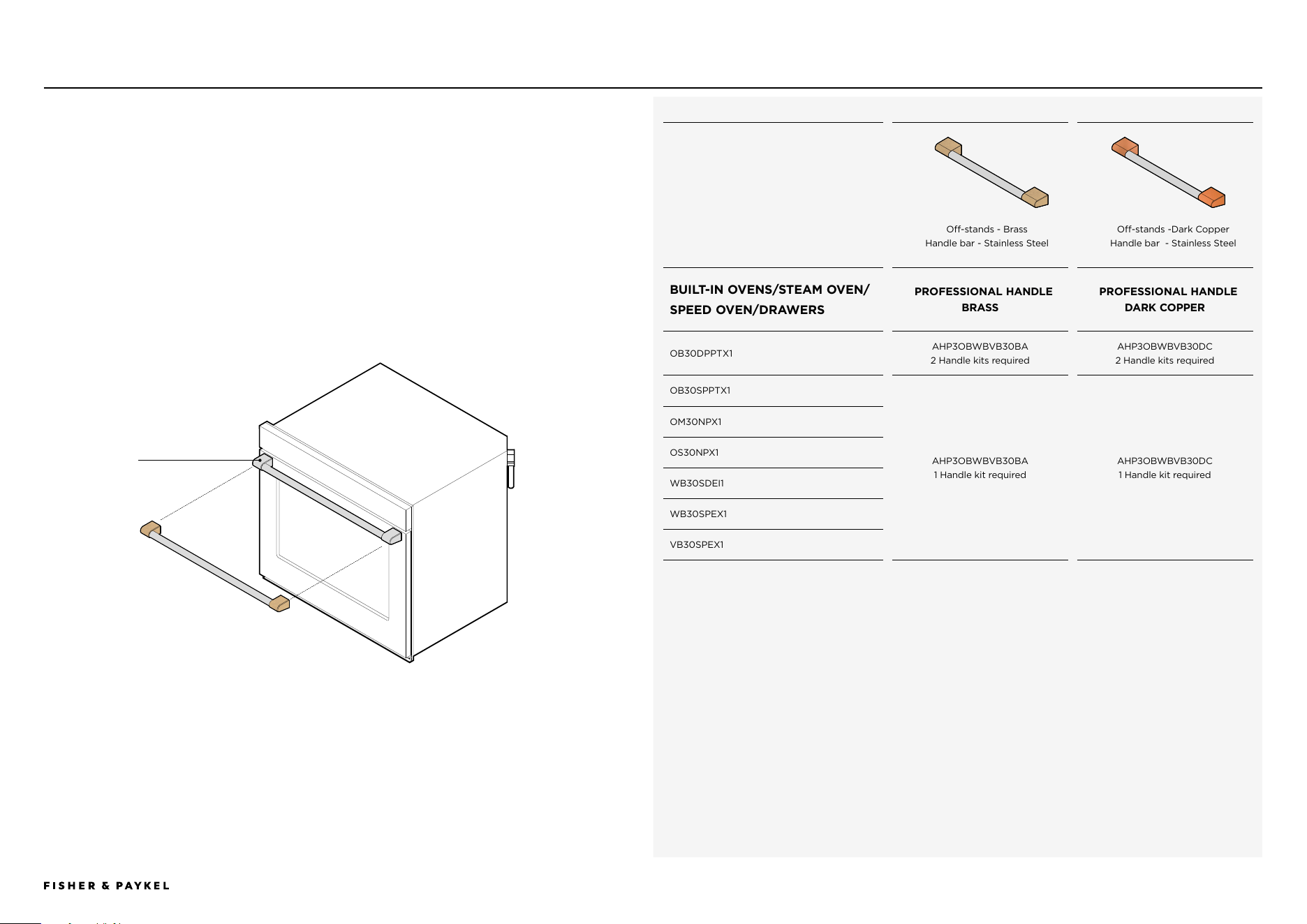

BUILT-IN OVENS/STEAM OVEN/
SPEED OVEN/DRAWERS
PROFESSIONAL HANDLE
BRASS
PROFESSIONAL HANDLE
DARK COPPER
OB30DPPTX1
AHP3OBWBVB30BA
2 Handle kits required
AHP3OBWBVB30DC
2 Handle kits required
OB30SPPTX1
AHP3OBWBVB30BA
1 Handle kit required
AHP3OBWBVB30DC
1 Handle kit required
OM30NPX1
OS30NPX1
WB30SDEI1
WB30SPEX1
VB30SPEX1
Product comes with:
O-stands - Stainless Steel
Handle bar - Stainless Steel
O-stands - Brass
Handle bar - Stainless Steel
O-stands -Dark Copper
Handle bar - Stainless Steel
BUILT-IN OVENS
Built-in Ovens
PLANNING GUIDE | PROFESSIONAL STYLE, DIAL AND HANDLE ACCESSORIES
<< CONTENT
PAGE 1190003321A PLANNING GUIDE ProfEssIoNAL AccEssorIEs VErsIoN A - DEcEMBEr 2023 © fIsHEr & PAYKEL LIMITED 2023

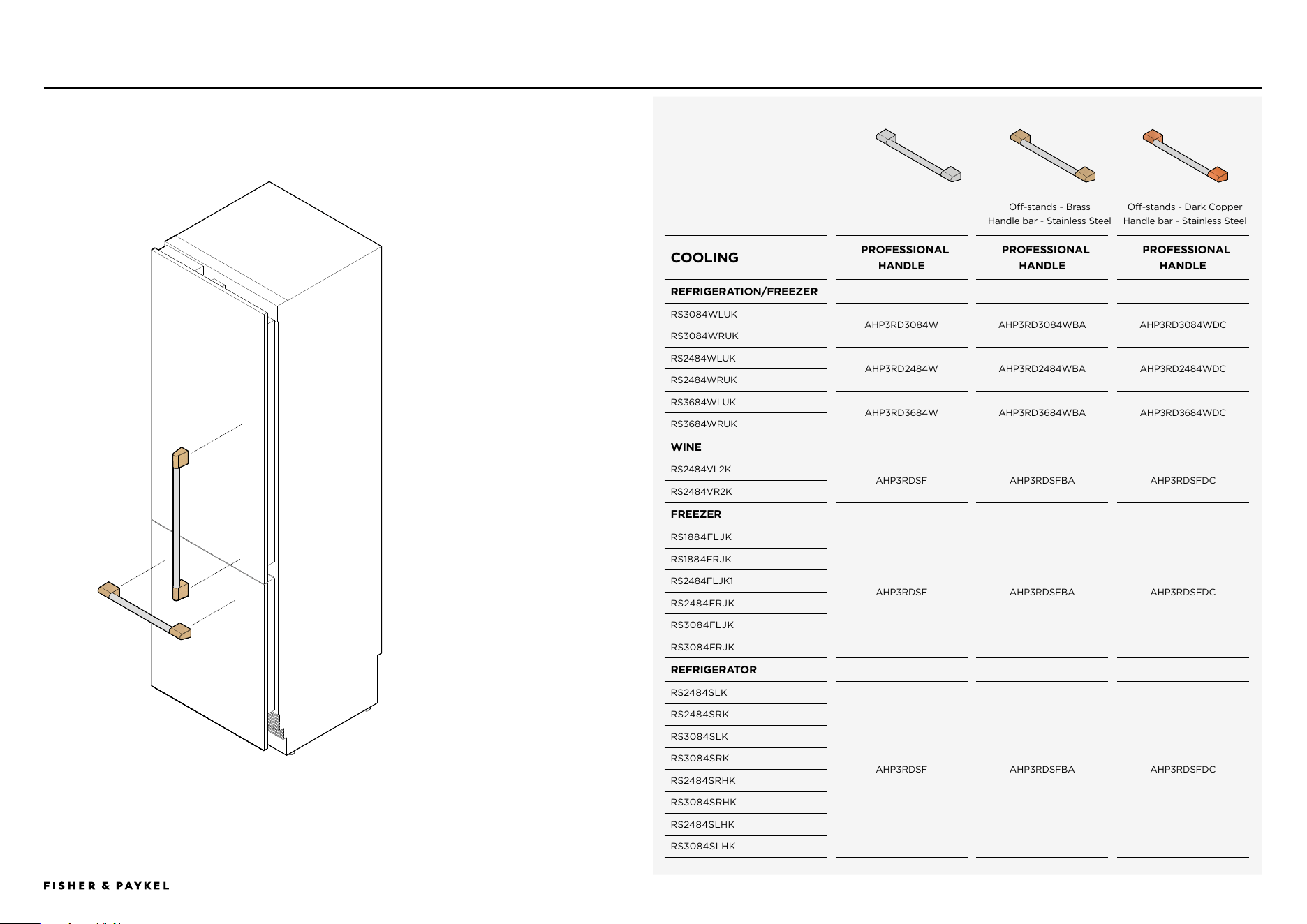

COOLING
PROFESSIONAL
HANDLE
PROFESSIONAL
HANDLE
PROFESSIONAL
HANDLE
REFRIGERATION/FREEZER
RS3084WLUK
AHP3RD3084W AHP3RD3084WBA AHP3RD3084WDC
RS3084WRUK
RS2484WLUK
AHP3RD2484W AHP3RD2484WBA AHP3RD2484WDC
RS2484WRUK
RS3684WLUK
AHP3RD3684W AHP3RD3684WBA AHP3RD3684WDC
RS3684WRUK
WINE
RS2484VL2K
AHP3RDSF AHP3RDSFBA AHP3RDSFDC
RS2484VR2K
FREEZER
RS1884FLJK
AHP3RDSF AHP3RDSFBA AHP3RDSFDC
RS1884FRJK
RS2484FLJK1
RS2484FRJK
RS3084FLJK
RS3084FRJK
REFRIGERATOR
RS2484SLK
AHP3RDSF AHP3RDSFBA AHP3RDSFDC
RS2484SRK
RS3084SLK
RS3084SRK
RS2484SRHK
RS3084SRHK
RS2484SLHK
RS3084SLHK
O-stands - Brass
Handle bar - Stainless Steel
O-stands - Dark Copper
Handle bar - Stainless Steel
COOLING
Cooling
O-stands - Stainless Steel
Handle bar - Stainless Steel
PLANNING GUIDE | PROFESSIONAL STYLE, DIAL AND HANDLE ACCESSORIES
<< CONTENT
PAGE 1290003321A PLANNING GUIDE ProfEssIoNAL AccEssorIEs VErsIoN A - DEcEMBEr 2023 © fIsHEr & PAYKEL LIMITED 2023

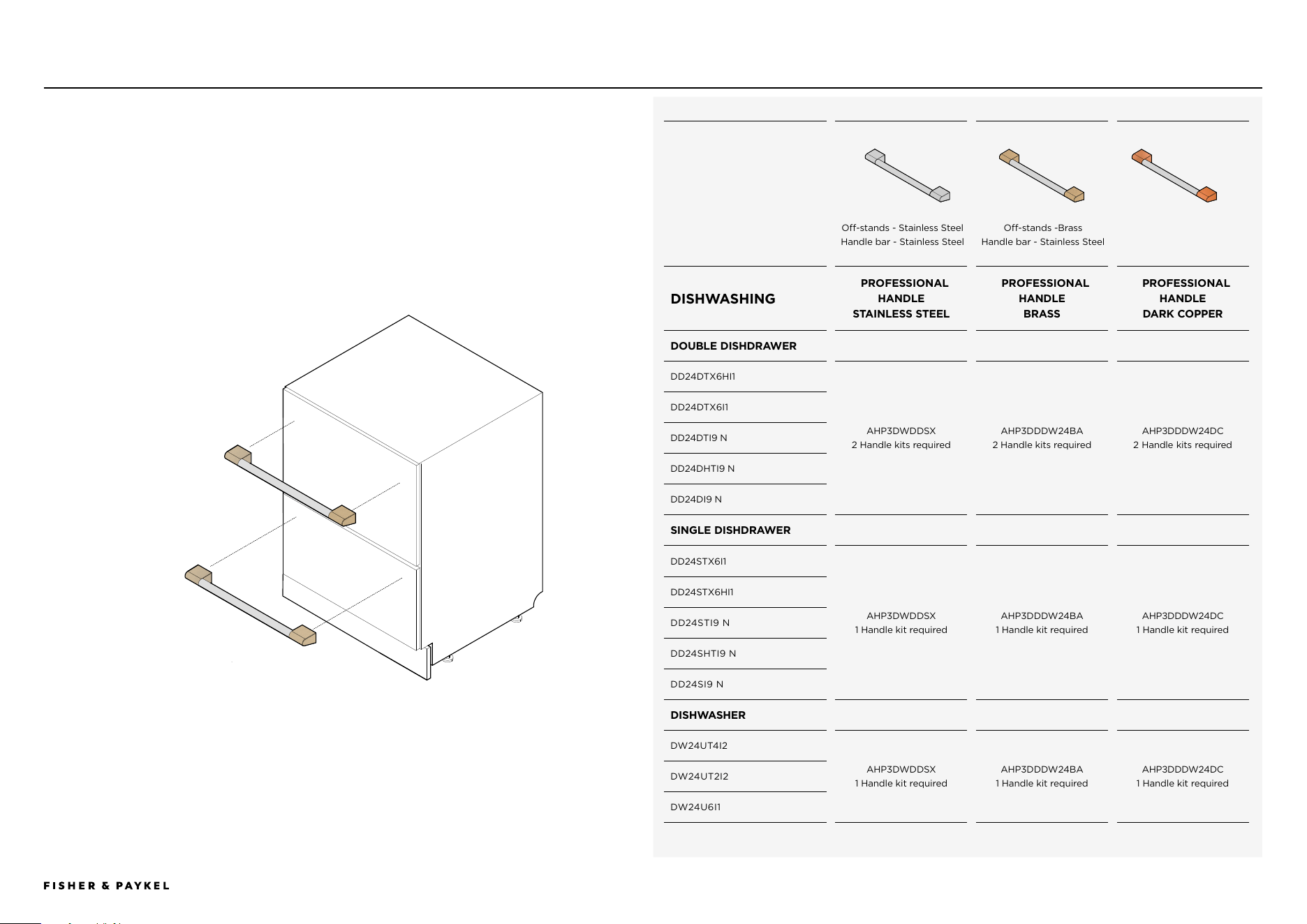

DISHWASHING
