Ed : 09/17 Rev : 00
INSTRUCTION
- 5 -
PARTS LIST
PART NO
PART NAME
Q'TY

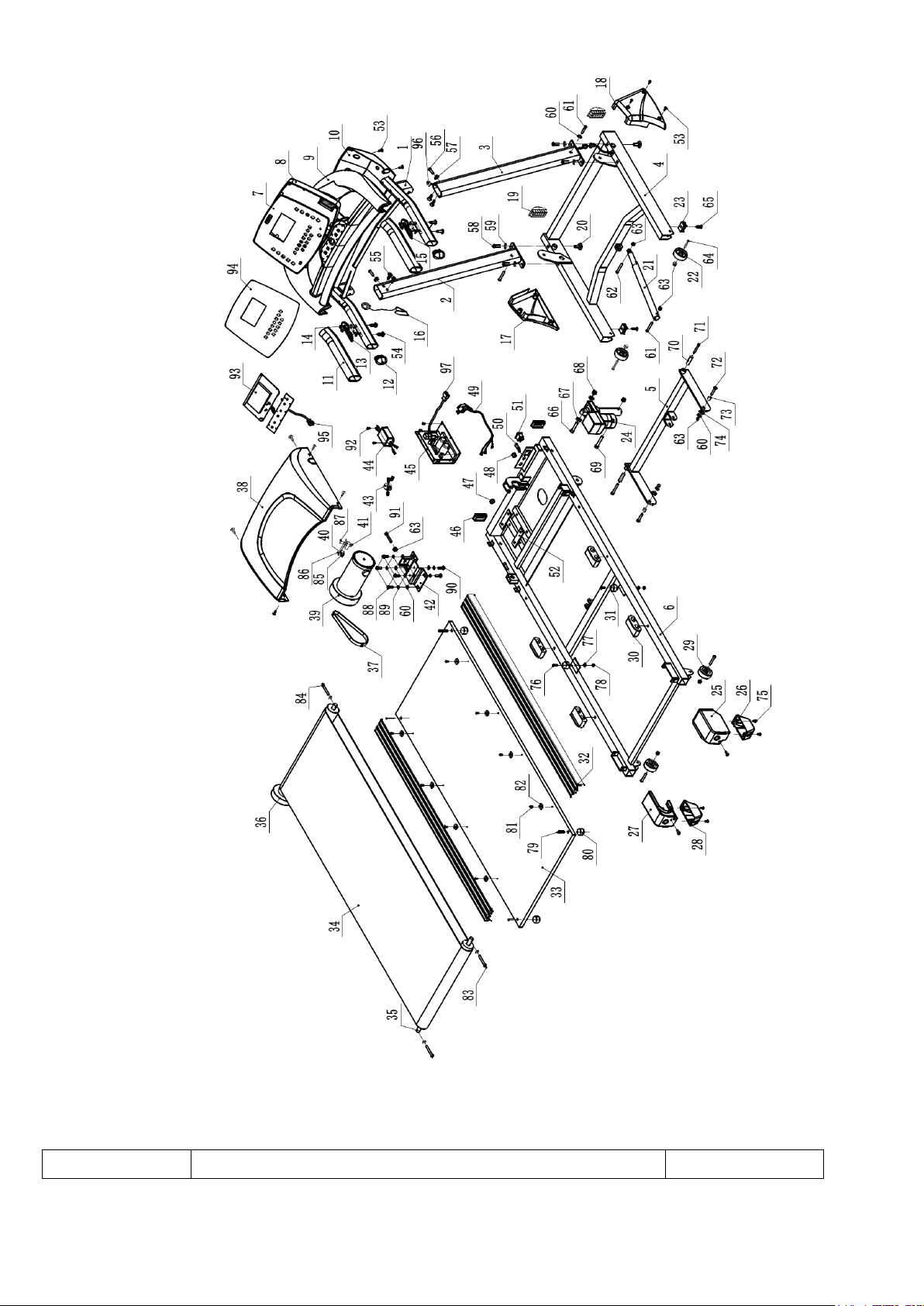

EXPLODED DRAWING
- 6 -
1 1
Computer frame
1
2
Left upright
1
3
Right upright
1
4
Base frame
1
5
Incline frame
1
6
Running platform
1
7
Computer panel
1
8
Down cover of Computer panel
1
9
Up cover of computer
1
10
Back cover of computer
1
11
Foam
2
12
30*60 Elliptical tube plug
2
13
Fixed base of incline shortcut key
1
14
Button of shortcut key
4
15
Fixed base of speed shortcut key
1
16
Safety key
1
17
Left protective cover of upright
1
18
Right protective cover of upright
1
19
40*80 Rectangle plug
2
20
Level frame
2
21
Damper
1
22
Move wheel
2
23
Rubber washer
2
24
Incline motor
1
25
Right end cap
1
26
Right move wheel cover
1
27
Left end cap
1
28
Left move wheel cover
1
29
Supportive wheel of running platform
2
30
Rubber cushion of running deck
4
31
Limit cushion of running deck
2
32
Side rail
2
33
Running deck
1
34
Running belt
1
35
Rear roller
1
36
Front roller with fly wheel
1
37
Motor belt
1
38
Motor cover
1
- 7 -
39
Motor
1
40
Frame of speed sensor
1
41
Speed sensor
1
42
Fix base of motor
1
43
Magnet ring
1
44
Filiter
1
45
Motor control board
1
46
40*40 rectangle tube plug
2
47
∮24 stopple plug
1
48
Power wire cushion
1
49
Power wire
1
50
Fuse
1
51
Power switch
1
52
Rubber cushion of motor
2
53
4.2*15 Screw
16
54
4.2*60 Screw
4
55
M8*20 Allen head bolt
4
56
M8*30 Allen head bolt
2
57
Ф8 Arc Washer
2
58
M10*20 Allen head bolt
4
59
Ф10 Washer
4
60
Ф8 Washer
15
61
M8*45 Allen head bolt
3
62
M8*35 Allen head bolt
1
63
M8 Nylon nut
7
64
M8*40 Allen head bolt
4
65
4.8*15 Screw
7
66
M10*50 Allen head bolt
1
67
∮12 Plastic washer
2
68
M10 Nylon nut
2
69
M10*60 Allen head bolt
1
70
∮13 Connective shaft sleeve of running platform
2
71
M8*50 Allen head bolt
2
72
M8*25 bolt
2
73
∮12 Connective shaft sleeve
2
74
∮10 Plastic washer
2
75
4.2*20 Screw
4
76
M6*22 Allen head bolt
2
- 8 -
77
Ф6 washer
2
78
M6 Nylon nut
2
79
M8*65 Allen head bolt
4
80
Support cushion of running deck
4
81
4.2*15 Screw
8
82
Side rail cushion
8
83
M8*85 Allen head bolt
2
84
M8*50 Allen head bolt
1
85
∮5 washer
2
86
M5*10 bolt
2
87
2.9*6 Screw
2
88
M8*20 Allen head bolt
4
89
Ф8 Spring washer
6
90
M8*12 bolt
2
91
M8*60 Allen head bolt
1
92
4.2*12 Screw
6
93
Computer display board
1
94
Overlay
1
95
Control wire of computer
1
96
Control wire of upright
1
97
Control wire of base frame
1

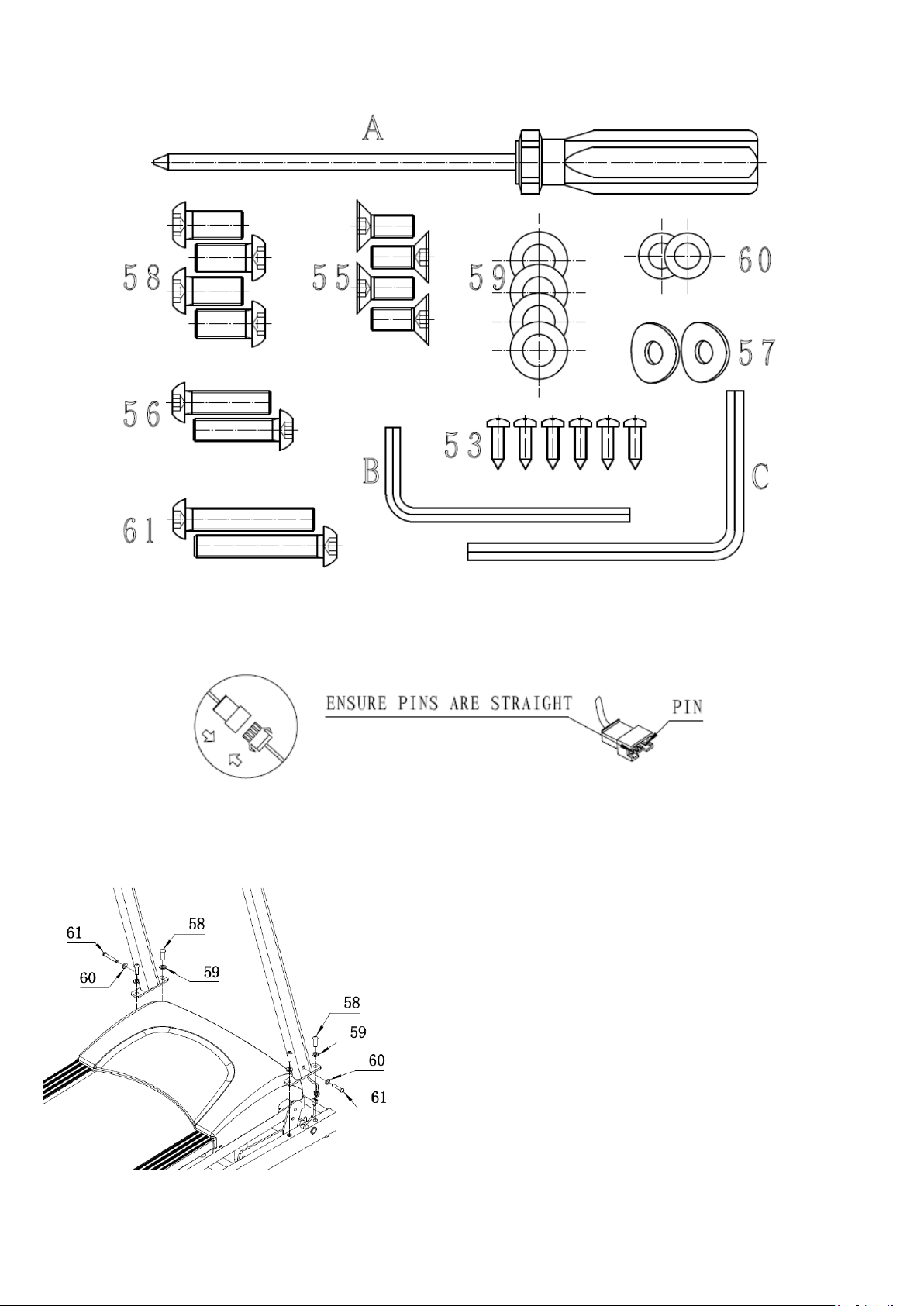

HARDWARE COMPARISON CHART
For your convenience, we have identified the hardware used in the assembly of this product. The chart below is
provided to help you to identify items that may be unfamiliar to you.
NO.
DESCRIPTION
Q'TY
53
4.2*15 Screw
6
55
M8*20 Allen head bolt
4
56
M8*30 Allen head bolt
2
57
Ф8 Arc Washer
2
58
M10*20 Allen head bolt
4
59
Ф10 Washer
4
60
Ф8 Washer
2
61
M8*45 Allen head bolt
2
A
SCREWDRIVER
1
B
5mm SOCKET HEAD WRENCH
1
C
6mm SOCKET HEAD WRENCH
1
- 9 -
ASSEMBLY INSTRUCTIONS:
WARNING: Please put on all the screws, washers and bolts then tighten them.
ATTENTION: Be careful when you connect the two console-controller wires. There are pins
inside connector, the pins must be straight, and otherwise it will cause problems.
STEP1:
First make sure to connect the
Emergency Wires.
Then fix the uprights on the base frame
withФ8 Washer 60、M8*45 Allen head bolt
61、M10*20 Allen head bolt 58 and Ф10
Washer 59.
- 10 -
STEP2:
1. First make sure to connect the
Computer Control wire and Control
wire of upright.
2. Then fix the computer on the
uprights with M8*20 Allen head bolt
55、M8*30 Allen head bolt 56 andФ8
Arc Washer 57.

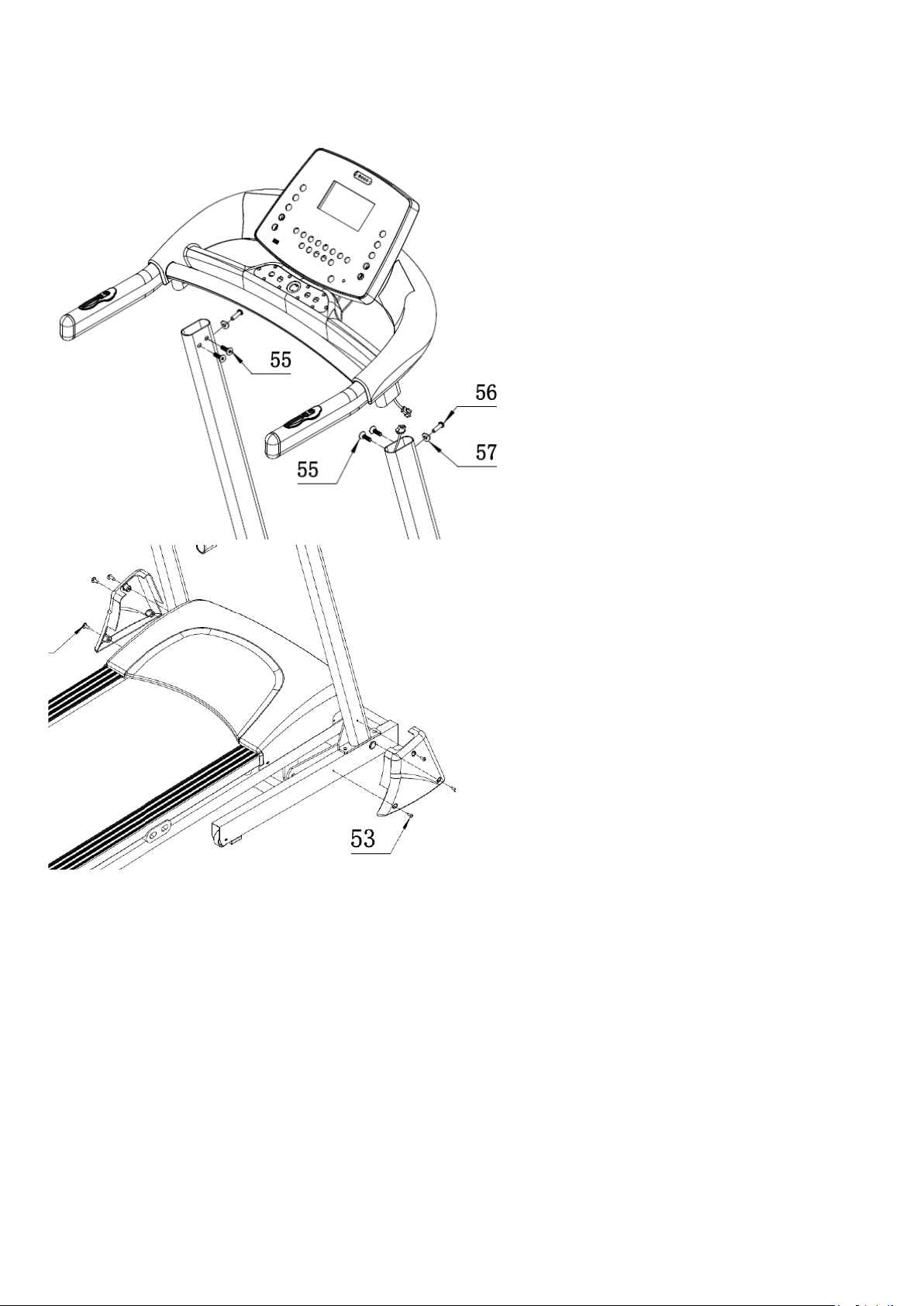

STEP3:
Fix the left and right protective cover onto
uprights with 4.2*15 Screw 53.
Note: 4.2*15 Screw have fixed onto the base
frame and uprights already.
- 11 -
COMPUTER OPERATION

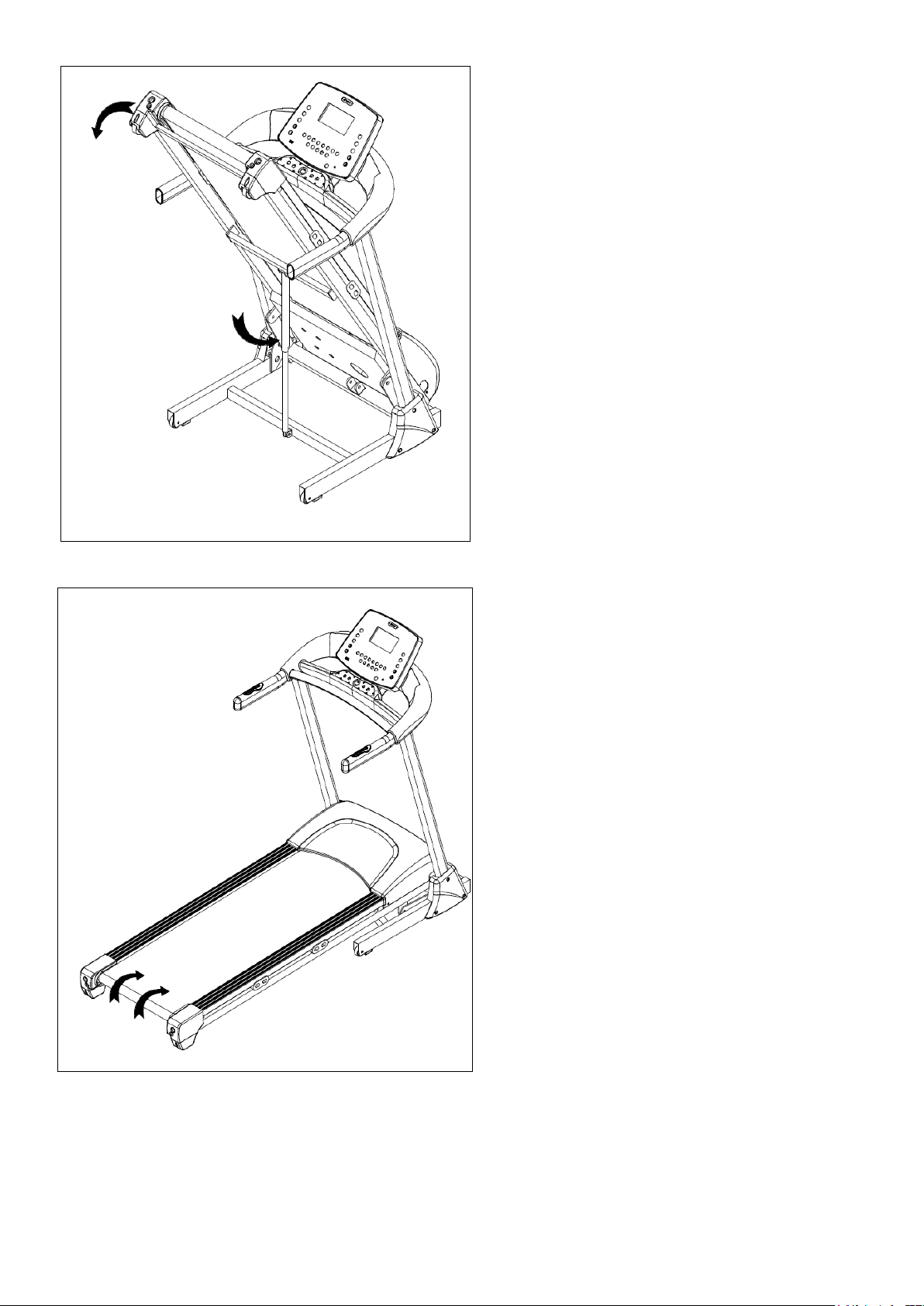

To unfold the treadmill:
1. Strike the damper by feet. (as shown by
the arrow on the left side).
2. Hold the top end covers (as shown by the
arrow on top left) and pull the treadmill
slowly down onto the ground.
To fold up the treadmill:
Hold the bottom end covers (arrows showing in
the left and right side) and lift the treadmill.
- 12 -
Panel layout
OPERATION INSTRUCTION
KEY INSTRUCTION：
START: Press this key to start treadmill.
STOP: Press this key to stop treadmill.
MODE: Press this key to choose the manual, countdown of time or the countdown of distance or
the countdown of calories or P1-P2…..-P12 cycle selection.
SPEED+: Press this key to increase speed or time or distance or calorie value.
SPEED-: Press this key to decrease speed or time or distance or calorie value.
INCLINE+: Press this key to increase incline value.
INCLINE-: Press this key to decrease incline value.
SAFETY KEY INSTRUCTION
When the motor is running, take off the safety key, the motor stop and the console prohibit start.
HEART RATE INSTRUCTION
- 13 -
In the case of a powered treadmill, his hands holding the steel disc of left &right handrail, in order
to obtain more accurate heartbeat value, standing on the treadmill and when the treadmill stop to
measurement, and holding time is not less than 30 seconds. Display range: 50-200 beats / min.
This data is for reference only, not as medical data
PROGRAM
TURN OFF TREADMILL
At any time by turning off the power switch to turn off the treadmill, this does not damage the
treadmill.
SECTION
PROGRAM
1
2
3
4
5
6
7
8
9
10
P1
SPEED
1
2
2
3
3
3
3
2
2
1
INCLINE
0
0
1
1
2
2
1
1
0
0
P2
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
2
3
4
4
3
2
0
0
P3
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
3
7
4
4
7
3
0
0
P4
SPEED
1
2
2
3
3
3
3
2
2
1
INCLINE
0
0
3
7
4
4
7
2
0
0
P5
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
2
4
6
8
4
2
0
0
P6
SPEED
1
2
2
4
4
6
4
2
2
1
INCLINE
0
0
3
4
5
7
7
3
0
0
P7
SPEED
2
3
4
6
6
9
6
4
4
2
INCLINE
0
0
2
4
4
6
4
2
0
0
P8
SPEED
1
2
2
4
4
9
9
9
8
4
INCLINE
0
0
2
4
8
9
9
2
0
0
P9
SPEED
2
3
3
6
6
9
6
3
3
2
INCLINE
0
0
9
9
8
4
3
3
0
0
P10
SPEED
1
2
2
4
4
4
4
6
4
3
INCLINE
0
0
2
2
4
9
9
9
0
0
P11
SPEED
2
4
4
6
6
6
6
9
4
1
INCLINE
0
0
9
9
9
3
4
3
0
0
P12
SPEED
1
3
3
6
9
6
9
9
6
4
INCLINE
0
0
9
9
9
9
9
8
0
0
