INTEGRATED
REFRIGERATOR FREEZER
RB60V18 model
INSTALLATION GUIDE / USER GUIDE
NZ AU GB IE EU HK IN SG CN
3
CONTENTS
Introduction 5
Safety and warnings 6
Moving or storing your refrigerator 32
Operating instructions 33
Interior features 38
Maintenance 40
Cleaning care — interior/exterior 41
Storing food in your refrigerator 42
Storing food in your refrigerator compartment and variable-temperature drawer 43
Storing food in your freezer 45
Troubleshooting 47
Wiring diagram 49
Manufacturer’s warranty — NZ AU GB IE EU HK IN SG 50
Customer care — NZ AU GB IE EU HK IN SG 52
Customer care —CN 54
European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) 55
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to our
website www.fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Note that the word ‘refrigerator’, throughout
this user guide, refers to the combination of
refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
5
INTRODUCTION
Thank you for buying this Fisher & Paykel refrigerator.
Introducing the next generation in Fisher & Paykel refrigeration. With new flush-fit
design and the ability to easily slide into existing kitchen spaces or be integrated behind
kitchen cabinetry, these fridges offer a seamless look to the kitchen while providing
excellent food care.
As your life changes, so can your refrigerator. This book explains the features and
functions, and will help you get the most out of your refrigerator.
We hope you enjoy your new refrigerator.
RB60V18 refrigerator
(Shown with door panels)
6
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
Failure to do so can result in death, electric
shock, fire or injury to persons.
R600a
This refrigerator contains flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose as
described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic
safety precautions including the following:
• This appliance is not intended for use by persons
(including children under the age of 8 years) with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Young children should be supervised to ensure they
do not play with the appliance.
• The manufacturer’s installation instructions for
product and cabinetry ventilation must be followed
when installing the appliance.
7
SAFETY AND WARNINGS
• To avoid hazard due to instability of the appliance,
it must be fixed in accordance with installation
instructions.
• Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit, ventilate
the area by opening all windows. Do not operate
electrical equipment or any other equipment that may
produce arcs, sparks or flames in the area. Contact
your Fisher & Paykel trained and supported service
technician immediately to arrange for the appliance
to be repaired.
• It is hazardous for anyone other than an authorised
service person to service this appliance. In
Queensland the authorised service person must hold
a gas work licence or authorisation for hydrocarbon
refrigerants to carry our service or repairs which
involve removal of covers.
Electrical
• This appliance must be installed in accordance with
the installation instructions beforeuse.
• To allow disconnection of the appliance from the
supply after installation, incorporate a switch in the
fixed wiring in accordance with the wiring rules.
• Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.
8
SAFETY AND WARNINGS
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion along its length or at either the plug or
appliance end.
• If the power supply cord is damaged, it must only
be replaced by your Fisher & Paykel trained and
supported service technician because special
purpose tools are required.
• When moving your appliance away from the wall, be
careful not to roll over or damage the power cord.
• Do not use electrical appliances inside the food
storage compartments of the appliance.
IMPORTANT!
Your refrigerator is designed to operate for many
years without the need for service checks. However, if
your refrigerator is malfunctioning, have it attended
to by your Fisher & Paykel trained and supported
service technician as soon as possible. All electrical
repairs must be carried out by an adequately trained
service technician or qualified electrician.
Cleaning
• Many commercially available cleaning products
contain solvents that may attack the plastic
components of your refrigerator and cause them
tocrack.
• Avoid using anti-bacterial cleaning products on
either the interior or exterior of the cabinet as they
may cause rusting of metal components and cracking
of plastic components.
• Please refer to the ‘Cleaning care’ section of this
user guide for further information.
9
SAFETY AND WARNINGS
Disposal
• Extreme care must be taken when disposing of your
old appliance to avoid hazards:
– The flammable refrigerant gas must be safely
removed.
– The thermal insulation foam in this appliance
contains flammable insulation blowing gases, any
exposed foam may be highly flammable and must
be carefully treated during disposal.
– The doors and panels should be removed and
the shelves left in place so that children may not
easily climb inside.
• Your Fisher & Paykel trained and supported
service technician will be able to give advice on
environmentally friendly methods of disposing of
your old refrigerator or freezer.
Storing food and drinks
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Never store volatile or flammable materials in your
refrigerator as they may explode.
• Never freeze liquids in glass containers. Liquid
expands during freezing, which may cause the
container to explode.
• Never freeze carbonated drinks. They may explode.
• Do not consume food if it is too cold. Food removed
from the freezer compartment may be cold enough
to cause damage when brought into contact with
bare skin, egfrozen ice cubes.
10
SAFETY AND WARNINGS
Power failure — food safety
• Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
– Ice crystals still visible — food may be
refrozen but should be stored for a
shorter period than recommended.
– Thawed but refrigerator cold — refreezing
generally not recommended.
Fruits and some cooked food can be
refrozen butuse as soon as possible.
Meat, fish, poultry — use immediately
or cook then refreeze.
Vegetables — discard as they usually
go limp andsoggy.
– Thawed and warmer than 5°C — discard all food.
11
INSTALLATION INSTRUCTIONS — GENERAL
Please follow the steps for installation to ensure your appliance operates correctly.
Location
Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
Power
●
To ensure that the appliance is not accidentally switched off, connect your refrigerator
to its own power point. Do not plug in any other appliance at this power point or use
extension cords and double adaptors, as the combined weight of both power cords can
pull the double adaptor from a wall outlet socket.
●
For power requirements, refer to the information on the serial plate located inside the
refrigerator compartment.
●
It is essential that the appliance be properly grounded (earthed).
Energy saving tips
There are many simple things that can be done to save energy.
During installation
●
Locate refrigerator to the coolest part of the room. Avoid areas of direct sunlight, or
near heating ducts, registers, or other heat producing appliances.
●
Ensure your refrigerator has adequate ventilation as shown in the installation
instructions.
During use
●
Avoid overcrowding shelves, as this reduces airflow.
●
Do not use anything (such as aluminium foil, wax paper, or paper towelling) as a shelf
liner, as this reduces airflow.
●
Avoid loading too much warm food in at once and allow good clearances in front of the
air ducts within the cabinet for maximum cold air distribution.
●
Your refrigerator is most efficient when it is two thirds full.
●
Do not leave the door open for any longer than is necessary and organise items in the
refrigerator to reduce the time that the door is open.
Before placing food in the fresh food or freezer compartments
●
Remove all packaging found inside the compartments eg tape, polystyrene etc.
●
Clean the inside of the appliance with a mixture of warm water and a little liquid
detergent to remove manufacturing and transportation dust.
●
The appliance may have an odour on its initial operation, but this will go when the
refrigerator has cooled sufficiently.
●
Allow the refrigerator to run empty for 2–3 hours to allow each compartment to cool
to the appropriate temperature.
12

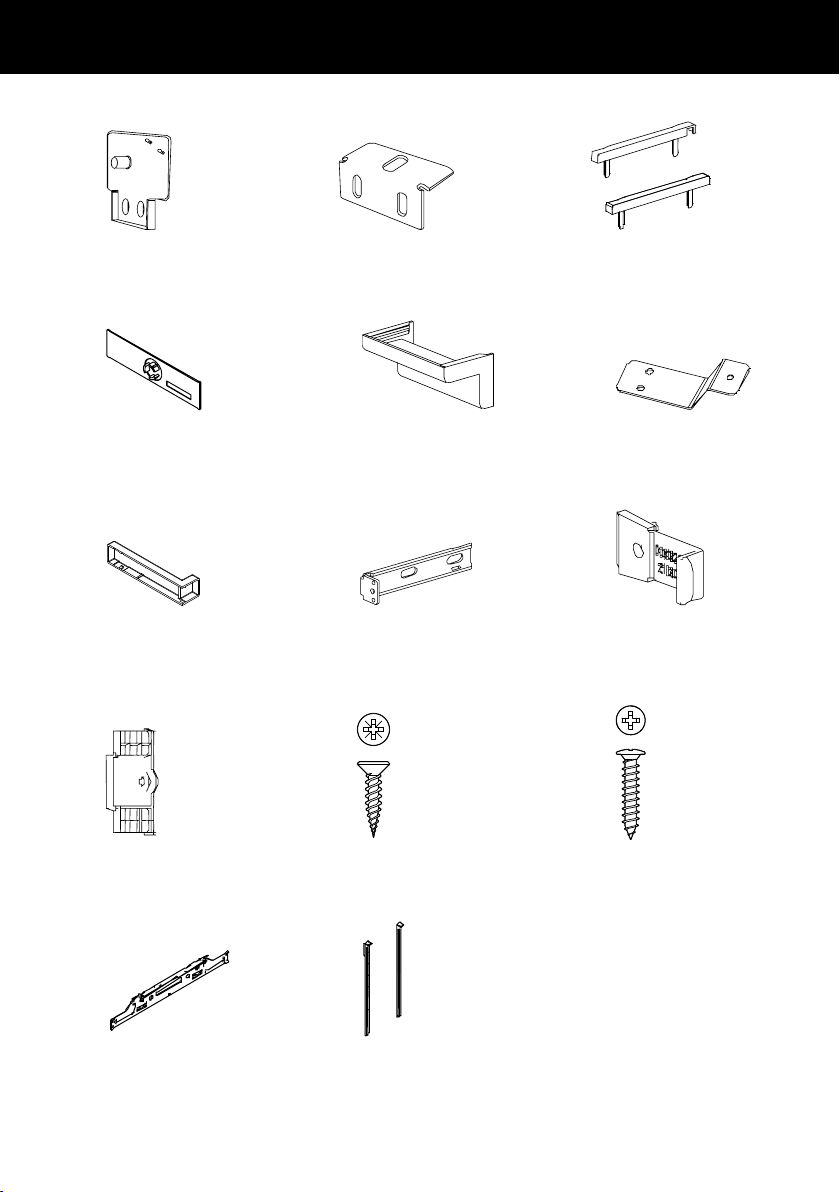

Components list — Refrigerator installation
15mm to 18mm kitchen cabinet thickness can be used.
2
Bottom attachment bracket
H0060106782
(4)
1
Clearance adjustment plate
H0060212285
(4)
3
Top attachment bracket cover
H0060222453
(2 installed)
4
Hinge cover
(4 installed)
5
Bottom attachment
bracket cover
H0060210289
(4)
6
Upper fastenings
H0060113353
(2)
7
Cabinet attachment
bracket cover
H0060222991
(1)
8
Cabinet attachment bracket
H0060113352
(1)
9
Position adjustment plate
H0060222989
(1)
!0
Door gasket baffle
H0060223016
(2)
!1
Wood screw
0130100516
(32)
!2
Bottom attachment
bracket screw
0060802014
(4)
!3
Top attachment bracket
H0060210200
(2 installed)
!4
Top attachment ruler
H0060817710
(2 installed)
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 5/8
Pan Head
Philips Screw
#8 x 5/8
Pan Head
Philips Screw
INSTALLATION INSTRUCTIONS — REFRIGERATOR
13
INSTALLATION INSTRUCTIONS — REFRIGERATOR

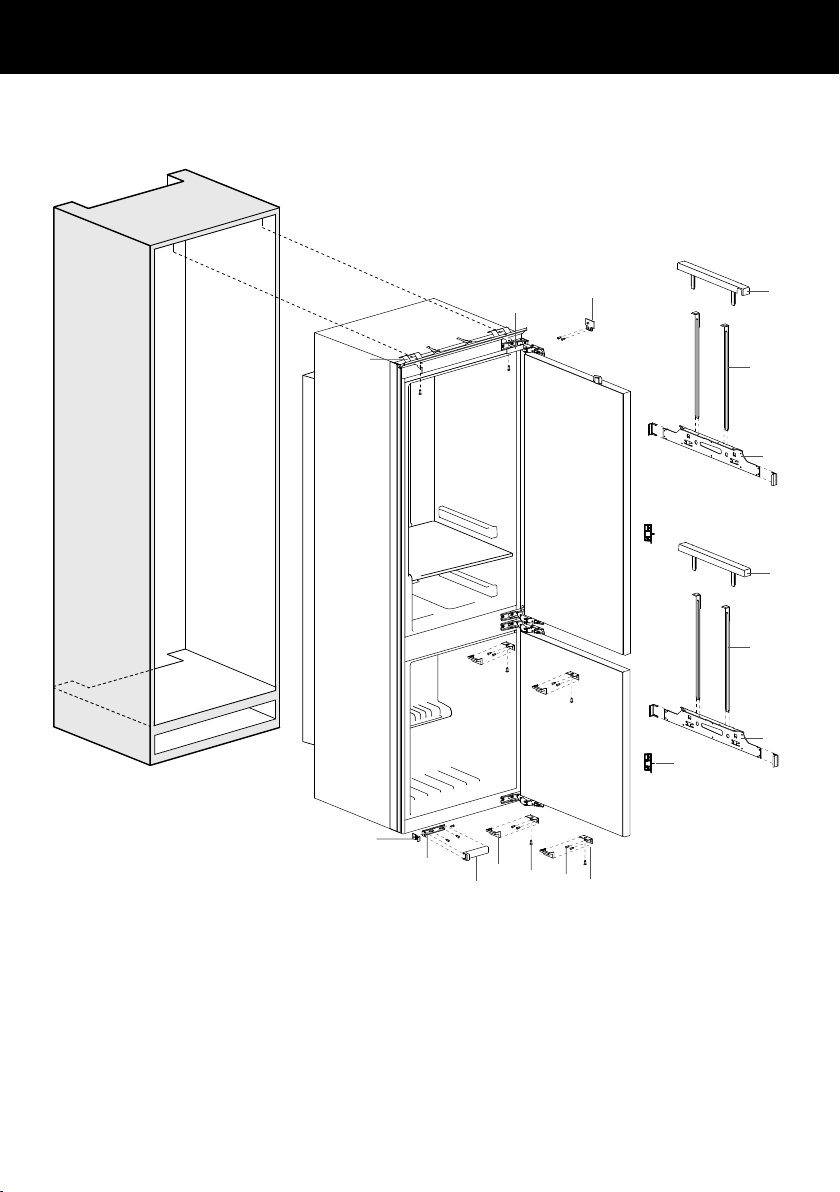

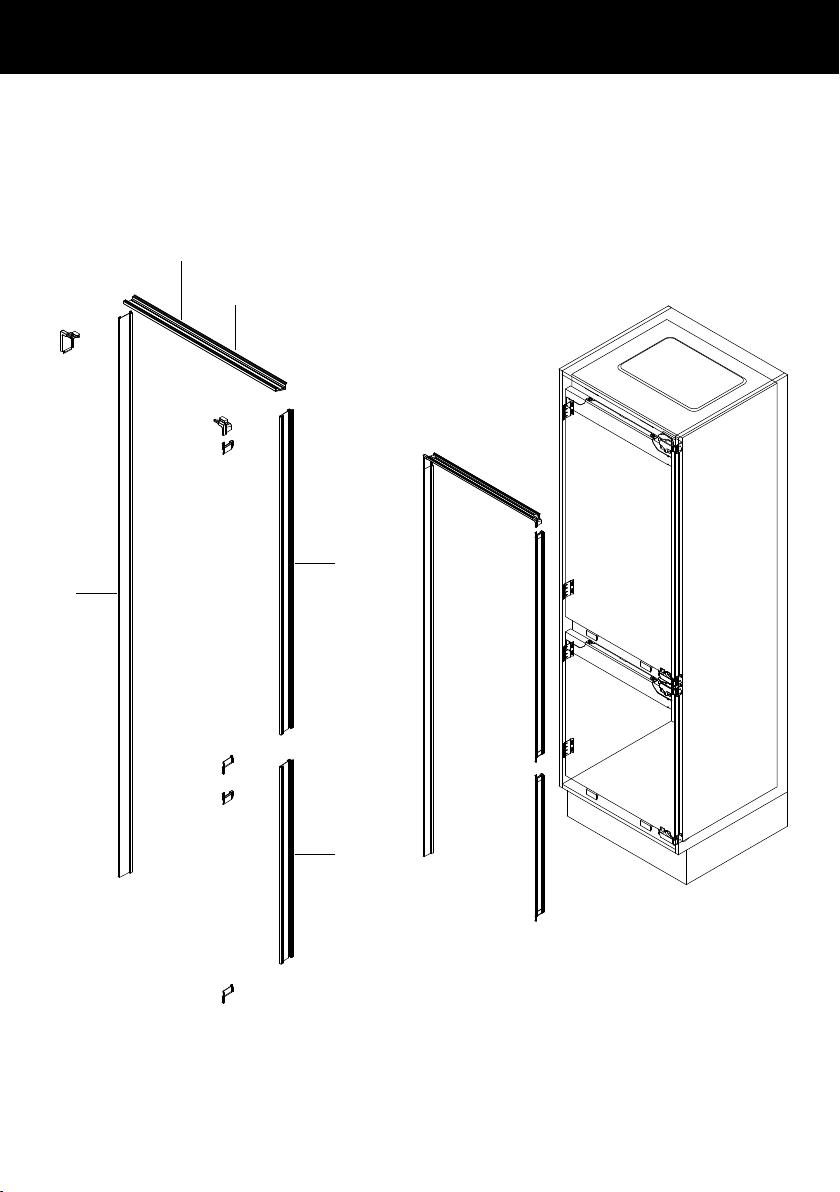

Exploded view
1
4
3
!0
2
!1
!2
5
7
8
9
6
3
!3
!4
!4
!3
14
INSTALLATION INSTRUCTIONS — REFRIGERATOR
Product dimensions
PRODUCT DIMENSIONS mm
A
Overall height 1773
B
Overall width 555
C
Overall depth 540
D
Top door height 1066
E
Hinge gap height 12
F
Bottom door height 692
SIDE VIEW
A
c
F
D
E
B
FRONT VIEW
15
INSTALLATION INSTRUCTIONS — REFRIGERATOR
Cabinetry dimensions
CABINETRY DIMENSIONS (including minimum clearances)
mm
G
Inside height 1782 – 1786
H
Inside width 564 – 570
I
Overall depth min. 550
MINIMUM CLEARANCES cm
2
J
Minimum inlet vent area 200cm
2
K
Minimum outlet vent area 280cm
2
The top of the cabinet needs to
be vented into the room.
There should be enough space at
the rear of the cabinet to allow cool
air to be drawn over the condenser.
I
K
H
G
J
J
16
INSTALLATION INSTRUCTIONS — REFRIGERATOR

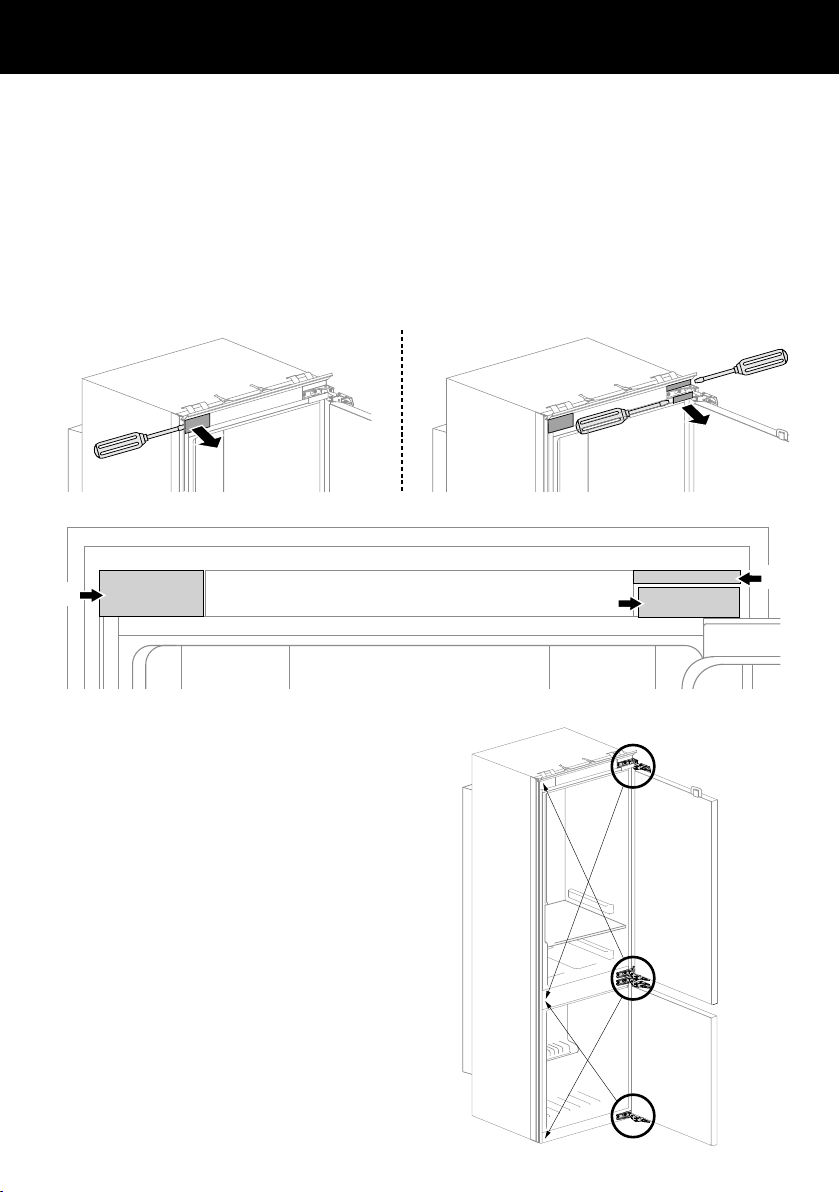

1. Preparations before installation
1
Door hinge
This model is right-hand hinged, with a left-hand door opening. If required, you can
change this model to left-hand hinged and right-hand door opening.
To do this, use a flat-head screwdriver to remove the covers to the left and right of
the control panel.
Lever the left and right hand covers from the outer edge (A) as levering from the
inner edge may cause damage the to the trim and the control panel.
Lever the hinge cover from the inner edge (B).
C
28
Shelves
Your refrigerator is tted with shelves specially
designed to retain spills, making clean up easier.
The shelves can be repositioned at dierent heights
to accommodate dierent food storage container
To remove the shelf, use the front edge to pull the
shelf forward (Fig.17).
Fruit and vegetable bin
The fruit and vegetable bin provides a humid environment for your produce ensuring moisture
is retained, nutrients are locked in and your fruit and vegetables are kept fresher for longer.
To remove the bin, pull it out until it stops, then lift and continue to slide the bin until it is fully
extended.
Fruit and vegetable bin humidity slide
The bin has a humidity control slide that can be
adjusted to fruit or veget
able setting depending
on what is being stored in the bins.
■ ■
If you are storing fruit, set the humidity slide to the fruit setting.
■ ■
If you are storing vegetables, set the humidity slide to the vegetable setting.
■ ■
If you are storing a mixture of fruit and vegetables, position the humidity slide in the centre.
Humidity mat
The humidity mat is designed to hold your fruit and vegetables o the base of the bin.
Increased air ow around your produce prevents rotting.
Door shelves
Door shelves can be moved to meet individual storage
needs.
To remove the door shelf, lift the shelf up and pull
straight out (Fig.18).
To install place shelf in desired door liner retainer, push
down gently until shelf stops.
Interior features
Fig.17 Shelf removal
1
2
1
2
Fig.18 Door shelves
Fig.X Humidity Control graphic
Toni to get layout of this page working a
bit better once content is nal
Bullet
point?
Bullet
point?
Bullet
point?
Bullet
point?
Bullet
point?
Left hand cover
Right hand cover
Hinge cover
Control panel
A
A
B
17
INSTALLATION INSTRUCTIONS — REFRIGERATOR
2

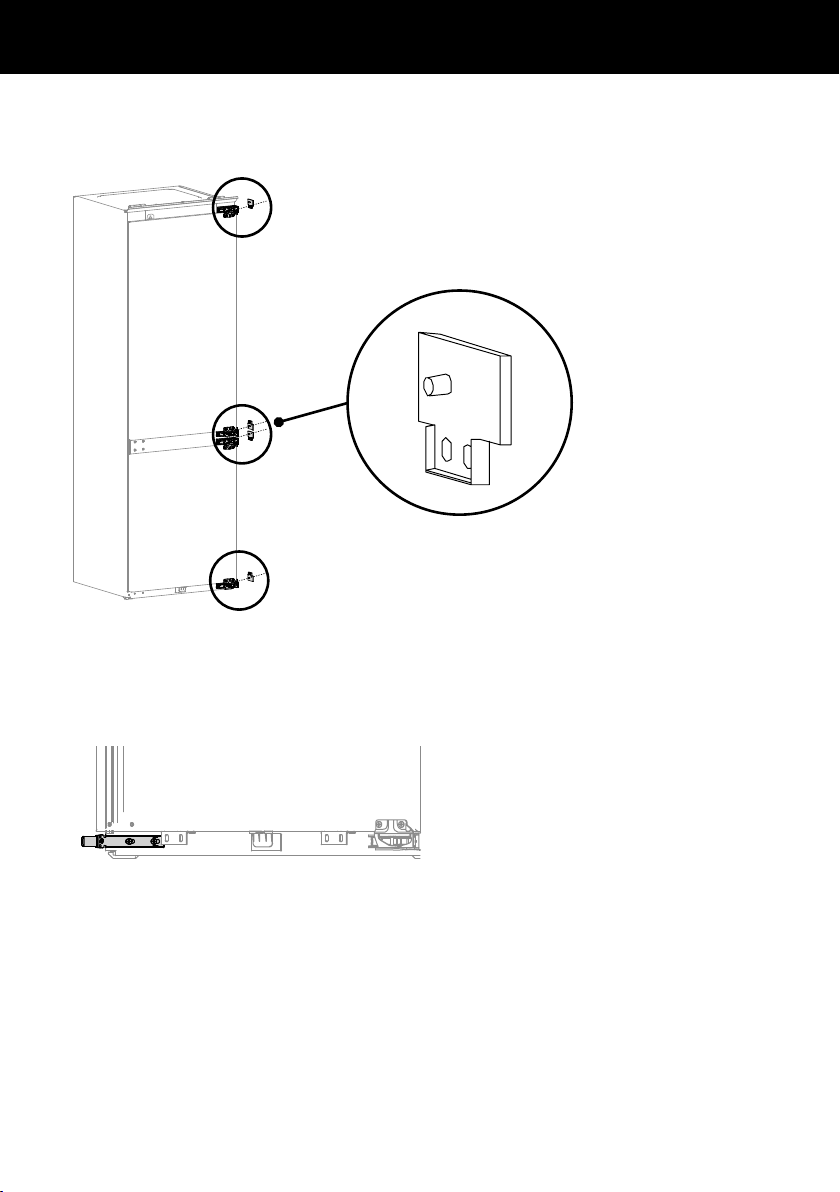

Clearance adjustment plate/sheet
If 18mm cabinet is used, clearance adjusting plate is not needed.
If 15mm cabinet is used, clearance adjusting plate is needed.
3
Cabinet attachment bracket and clearance adjustmentplate
Fix the cabinet attachment bracket to the refrigerator with the screws provided. Then
lock the clearance adjustment plate to the left side of thecabinet attachment bracket.
Installation of cabinet attachment bracket and clearance adjustment plate
Hinge exchange and enlarged view
of clearance adjustment plate
18
INSTALLATION INSTRUCTIONS — REFRIGERATOR
4

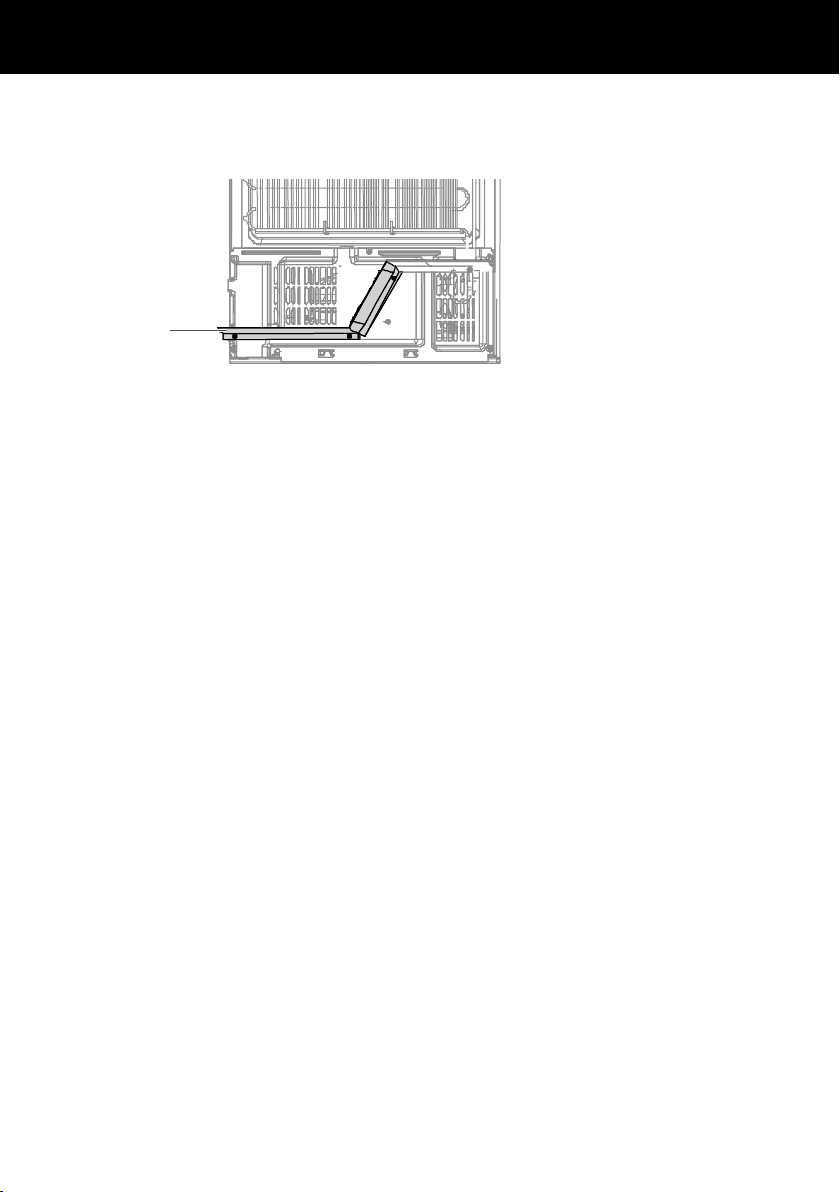

Air flow stops
The air flow stops are located on the back cover of the compressor. Adjust these air flow
stops to ensure they make contact with the cabinet.
Adjusting the air flow stops
Air flow stops
5
Door gasket baffle
Remove the door gasket baffle from the door and then store for future transportation.
19
INSTALLATION INSTRUCTIONS — REFRIGERATOR
2. Placing the refrigerator into the cabinet
1
Pull the power cord through the hole at the back of the cabinet or if the power socket is
inside the cabinet, plug in the refrigerator before installing it into the cabinet.
Take care not to kink or bend the power cord as a damaged cord is a fire risk.
For safety reasons, only turn on the refrigerator once installation is complete.
2
Move the refrigerator into the cabinet and adjust its position to ensure that the
clearance adjustment plate is attached to the bottom end of the cupboard side panel
and the door gasket is attached to the front end of the cupboard side panel.
Installation of cabinet
Top view
cross section
Top attachment
bracket
End surface
of clearance
adjusting plate
Refrigerator door
Kitchen cabinet
side panel
Front line of sidesurface
3
Make sure the left and right side clearances between the refrigerator and cabinet are
the same.
4
Fasten the side surfaces of the hinge with screws. Fix one screw to the top hinge and
one screw to the bottom hinge. Then fix all other screws to the remaining hinges.
Fastening of hinge screws
20
INSTALLATION INSTRUCTIONS — REFRIGERATOR

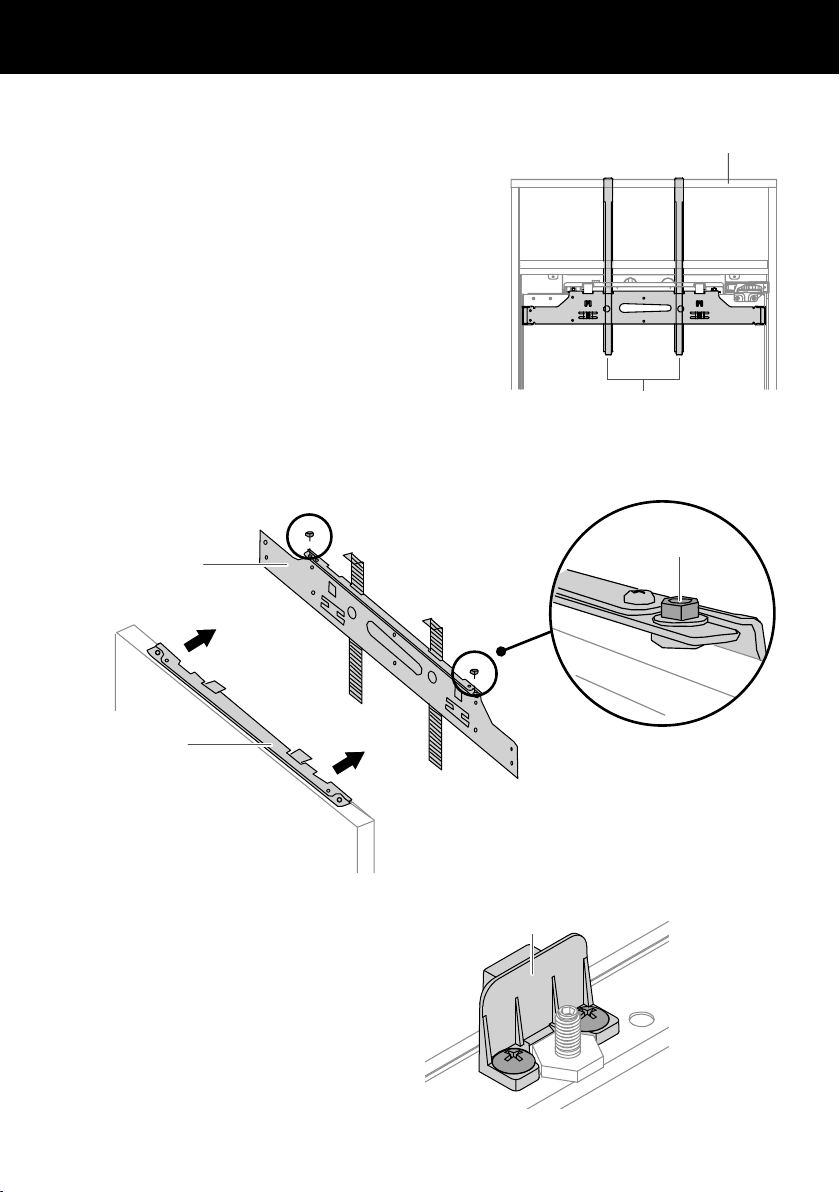

3. Dismantling the top attachment brackets
1
Open the refrigerator door and remove the top
attachment bracket cover by drawing it upwards.
Do the same for the freezer.
2
Move the rulers vertically so the top of the rulers
latch onto the cabinet above.
3
Loosen the two hexagonal nuts on the top
attachment bracket (A) and then remove the top
attachment bracket and rulers together. Do the
same for the freezer door.
Both attachment brackets are required for
refrigerator installation. Go to page 19 if you
are now installing the refrigerator. If you do not
intend to install the refrigerator at this time,
store the brackets for later use.
Top of kitchen cabinet
Ruler
Latching the rulers onto the cabinet
Magnet
Top attachment bracket
(disassembled status)
Top attachment bracket
(assembled status)
Refrigerator door
A
Dismantling the top attachment bracket
IMPORTANT!
Do not remove the door magnet.
21
INSTALLATION INSTRUCTIONS — REFRIGERATOR
4. Attaching the top attachment bracket to the upper cabinet door
1
Lay the upper cabinet door (face down) onto a clean floor.
2
Attach the top attachment bracket to the top of the cabinet door.
3
Adjust to ensure the centre line of the top attachment bracket aligns with the centre of
the cabinet door. The rulers should latch onto the top of the cabinet door.
4
Once aligned, screw the wood screws in to attach the top attachment bracket to the
cabinet door.
5
Pull out the rulers on the top attachment bracket.
Backside of the cabinetdoor
Upper cabinet door
Centre line
Attaching the top attachment bracket to the upper cabinet door
Side view
Cabinetdoor
Ruler
22
INSTALLATION INSTRUCTIONS — REFRIGERATOR

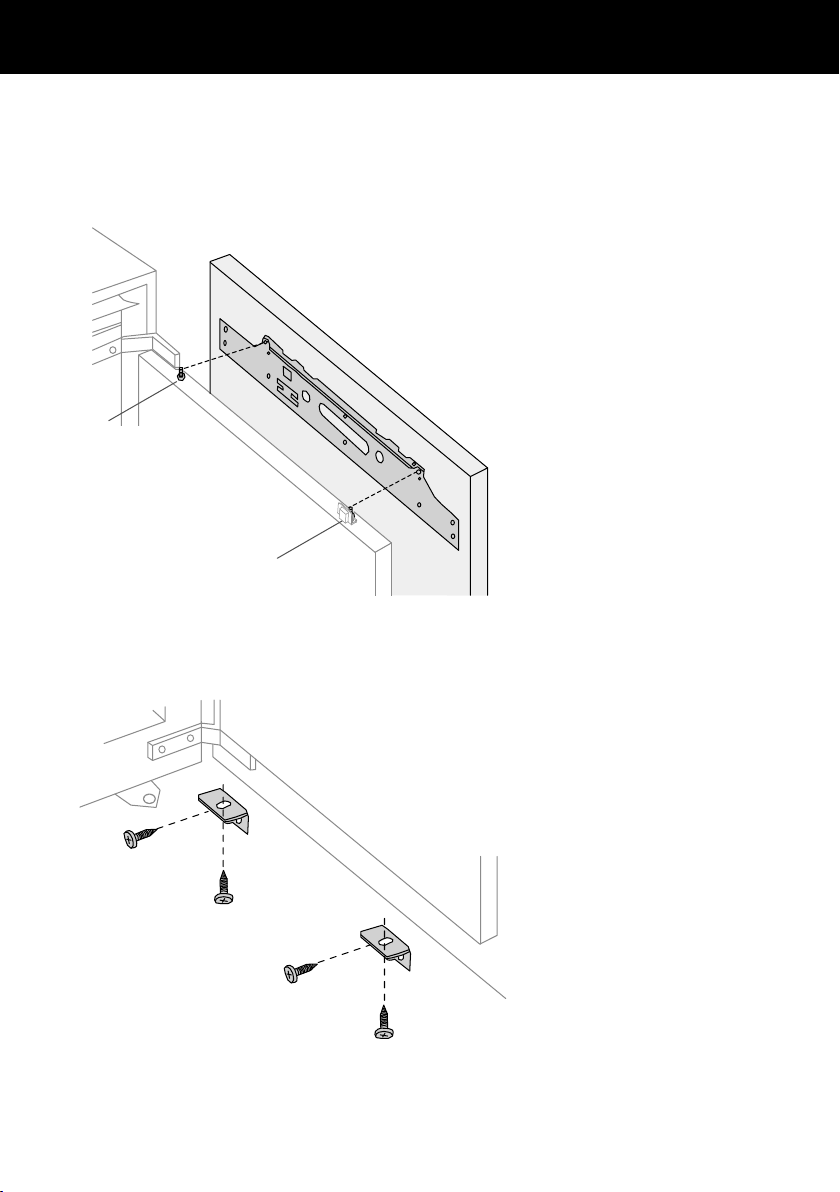

5. Attaching the upper cabinet door
1
Open the refrigerator door, hang the upper cabinet door onto the height adjustment
screws (at the upper sides of the refrigerator) and fix with hex screws.
Do not fasten the screws too tightly as to allow for some horizontal movement of the
cabinet door.
Hanging the upper cabinet door
on the height adjustment screws
of the refrigerator door
Height adjustment
screw
Height adjustment
screw
2
Adjust cabinet doors as per the adjustment method (page 22). After adjustment use the
bottom attachment brackets to fix the upper cabinet door to the refrigerator door.
Anchoring the bottom
attachment brackets
Wood screw
Bottom attachment
bracket screw
Wood screw
Bottom attachment
bracket screw
23
INSTALLATION INSTRUCTIONS — REFRIGERATOR
6. Attaching the top attachment bracket to the lower cabinet door
1
Lay the lower cabinet door (face down) onto a clean floor.
2
Attach the top attachment bracket to the top of the cabinet door.
3
Adjust to ensure the centre line of the top attachment bracket aligns with the centre of
the cabinet door. The rulers should latch onto the top of the cabinet door.
4
Once aligned, screw the wood screws in to attach the top attachment bracket to the
cabinet door.
5
Pull out the rulers on the top attachment bracket.
Backside of the cabinetdoor
Lower cabinet door
Centre line
Attaching the top attachment bracket to the lower cabinet door
Side view
Cabinetdoor
Ruler
24
INSTALLATION INSTRUCTIONS — REFRIGERATOR

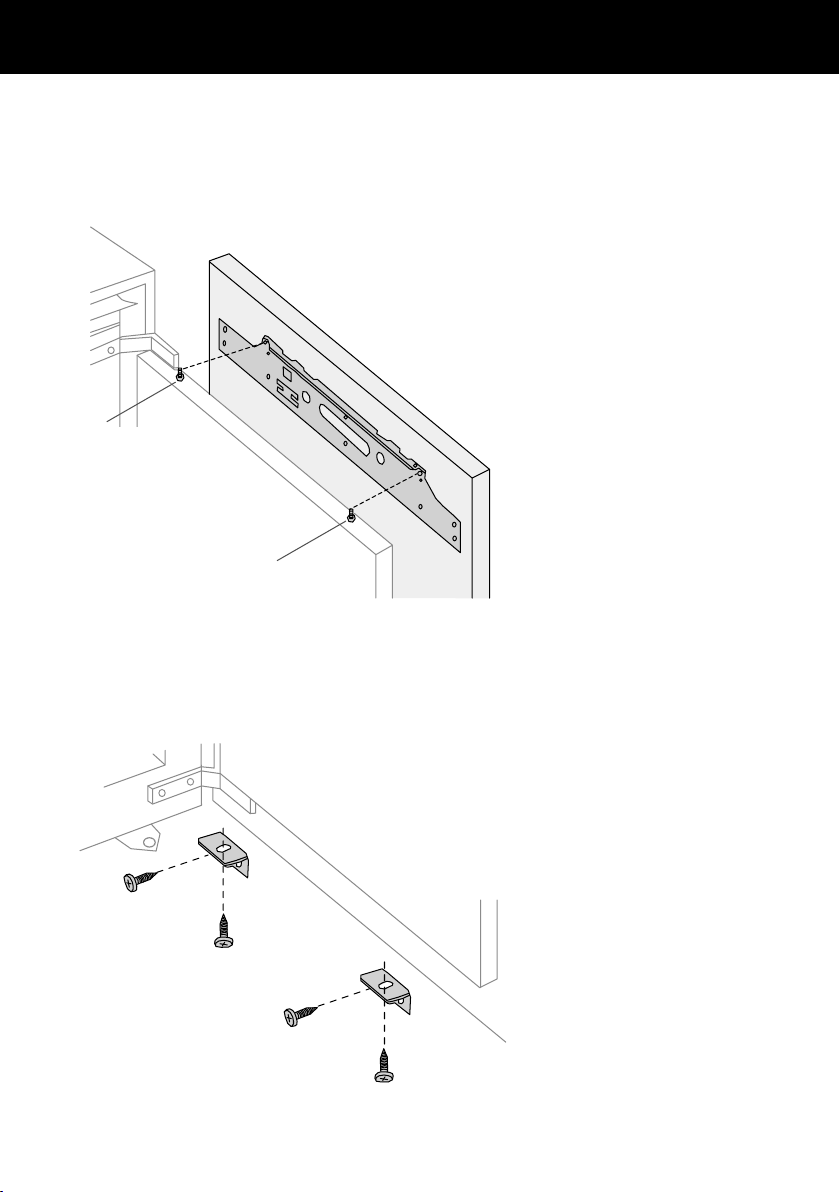

7. Attaching the lower cabinet door
1
Open the freezer door, hang the cabinet door onto the height adjustment screws and fix
with a hexscrew.
Do not fasten the screws too tightly, allow for some horizontal movement of the
cabinet door.
Hanging the lower cabinet door on
the height adjusting screws of the
freezer door
Height adjustment
screw
Height adjustment
screw
2
Close the door, the screw should not be tightened. Adjust the left and right clearance of
the upper end.
3
Adjust the cabinet doors as per the adjustment method (page 23). Then use the bottom
attachment brackets to fix the lower cabinet door to the freezer door.
Anchoring the bottom
attachment brackets
Wood screw
Bottom attachment
bracket screw
Wood screw
Bottom attachment
bracket screw
25
INSTALLATION INSTRUCTIONS — REFRIGERATOR

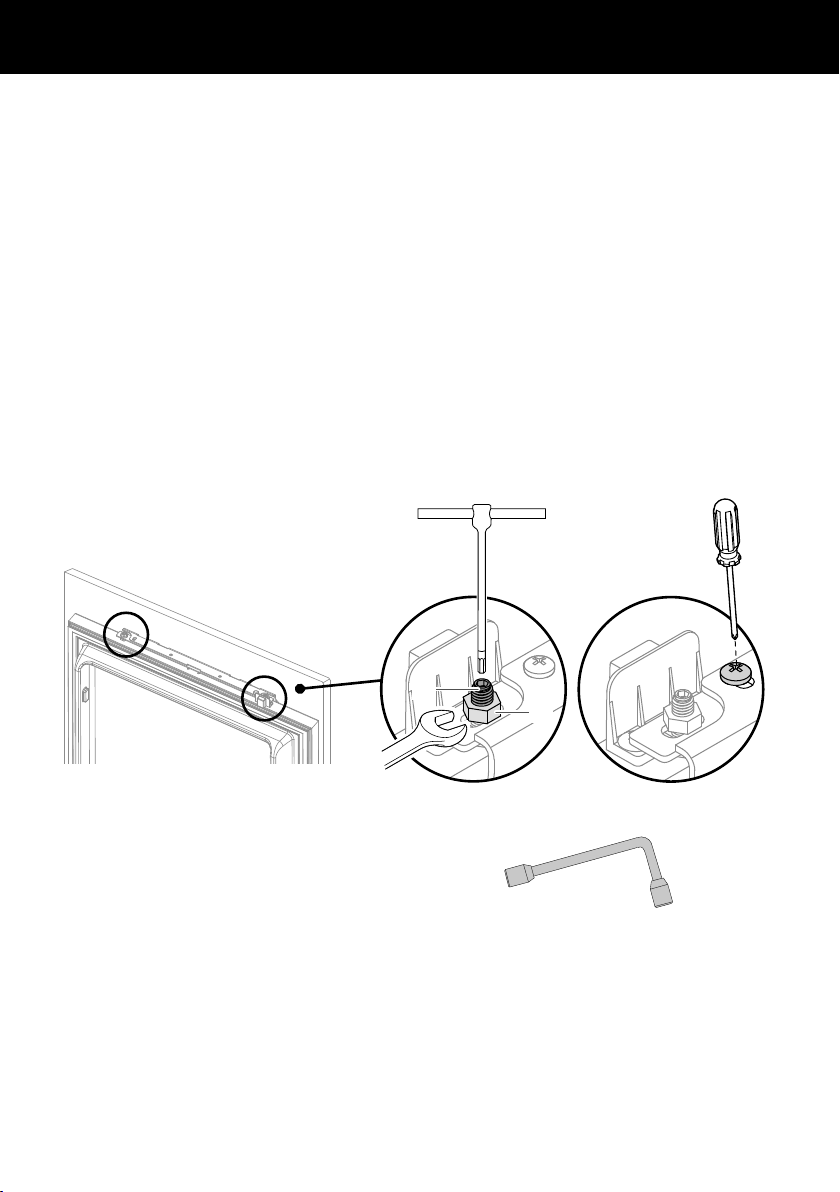

8. Top adjustment of the cabinet doors
Height adjustment of the cabinet door
1
Turn the height adjustment nuts (A) with a hex key.
We recommend to use a T-handle hex key so that the height adjustment nuts can be
turned easily without being blocked by the magnet sensor.
If the height adjustment nuts cannot be adjusted, check the left and right clearances of
the top hanging bracket.
Side adjustment of the door panel
2
Loosen the side adjustment nuts (B) and move the door panel slightly sideways to
adjust the side alignment.
We recommend to use socket spanner to loose or tighten the nuts N so that it can be
turned easily without being blocked by the magnet sensor and cabinet door.
Depth adjustment of the door panel
3
Loosen the depth adjustment nuts (C) and move the door panel forward/backward to
adjust the depth position.
4
Tighten the nuts fully after you are satisfied with the adjustments.
Socket spanner
SCALE 2:1
C
A
B
IMPORTANT!
We recommend to use a socket spanner to loose
or tighten the nut (A) in case of interference.
Adjusting top of cabinet door
26
INSTALLATION INSTRUCTIONS — REFRIGERATOR
9. Bottom adjustment of the cabinet doors
1
Loosen the screws slightly, adjust the depth (A) and then tighten the screws.
2
Insert the wood screws into the remaining holes in the bottom adjustment bracket after
adjusting the horizontal positioning of the cabinet door.
Fixed screw
Side view
Depth adjustment
A
Cabinet door
Adjusting bottom of cabinet door
Fixed screw
Further
fixing
A
27
INSTALLATION INSTRUCTIONS — REFRIGERATOR
10. Finishing work
Positions of final adjustments
4
1
1
2
3
3
3
28
INSTALLATION INSTRUCTIONS — REFRIGERATOR

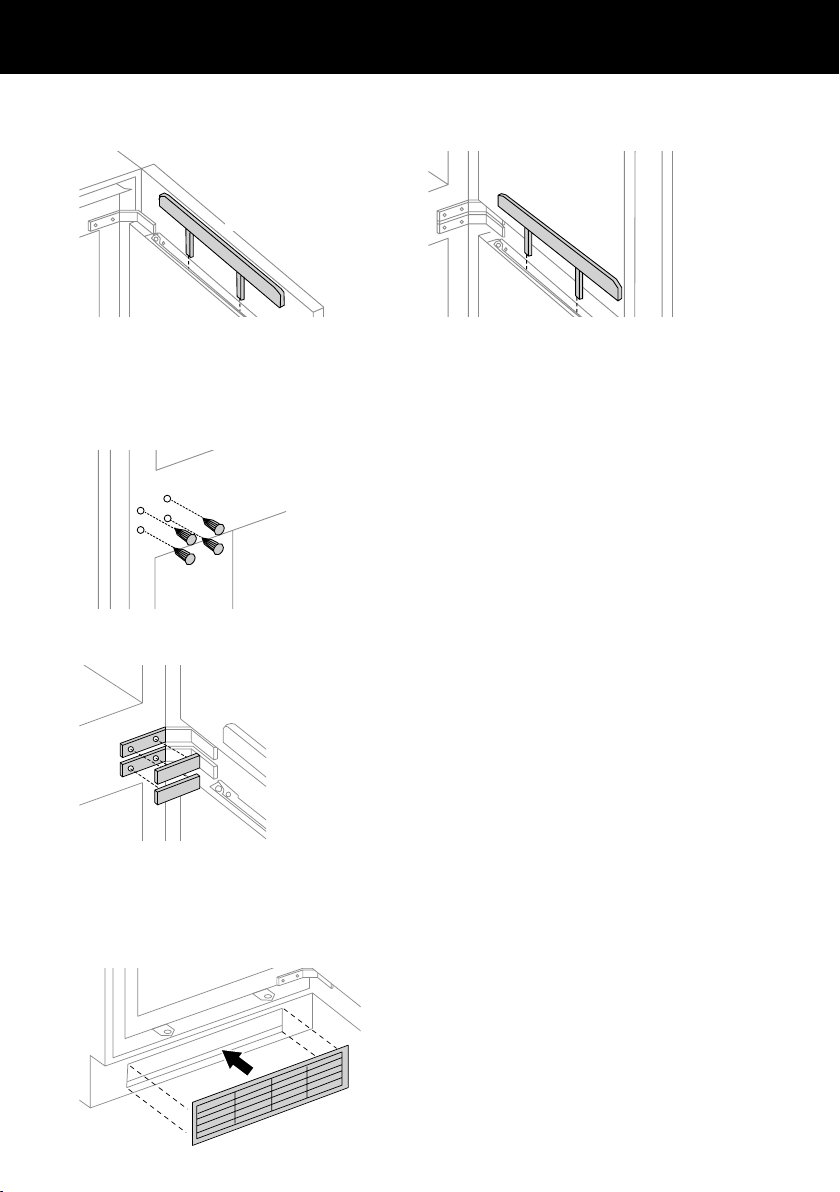

1
Insert the top adjustment bracket cover onto the top adjustment bracket (2 places,
referto A).
Upper door
A
Lower door
A
2
When changing the hinge position, remember to insert hinge hole sheets (4 places,
referto B).
For left-opening door, take off the hinge hole sheets and change the position of the
hinge. Insert hinge hole sheets to the hinge fixing holes on the opposite side.
B
3
Insert the hinge cover (4 places, refer to C).
C
4
Install the ventilation grill at the kick strip section of the refrigerator cabinet (refer to D).
Fix the ventilation grill into the kick strip.
Grille can be purchased as an optional accessory. Go through spare parts (selected
markets only) or your authorised retailer. Part number 873917.
D
29
INSTALLATION INSTRUCTIONS — REFRIGERATOR

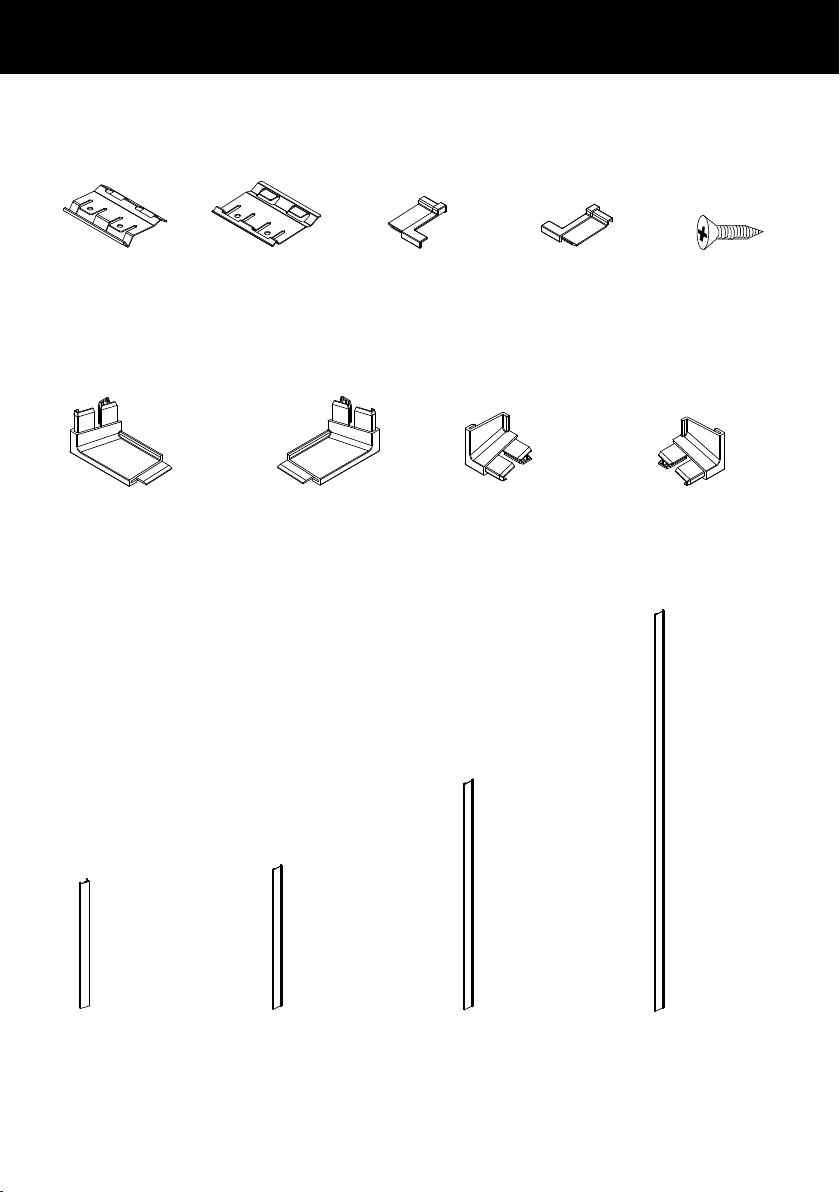

Components list — Trim kit installation
!6
Side trim clip
H0060114629
(8)
!5
Top trim clip
H0060114628
(2)
!7
Trim end LH
H0060224901
(2)
!8
Trim end RH
H0060224901A
(2)
!9
Screw
H0130100516
(20)
@2
Top trim
H0060114625
(1)
@3
Side trim bottom
compartment
hinged side
H0060114626B
(1)
@4
Side trim top
compartment
hinged side
H0060114626A
(1)
@5
Side trim non
hinged side
H0060114626
(1)
@1
A
Top corner
hinged LH
H0060224900
(1)
@0
B
Top corner
non hinged LH
H0060224899A
(1)
@0
A
Top corner
non hinged RH
H0060224899
(1)
@1
B
Top corner
hinged RH
H0060224900A
(1)
30
INSTALLATION INSTRUCTIONS — REFRIGERATOR
Mounting the trim clips to the cabinetry
Attach brackets at ‘Installation Instructions — Refrigerator’, ‘1. Preparations before
installation’.
Drill hole 15mm back from front
edge of cabinet for side trim clips
130mm 130mm
15mm
1600mm
820mm
550mm
130mm
!5
!6
!6
!6
!6
!6
!6
!6
!6
!6
31
INSTALLATION INSTRUCTIONS — REFRIGERATOR
Installation of trim kit
Attach trims at ‘Installation Instructions — Refrigerator’, ‘10. Finishing work’.
Note: top trim (
@2
) is correct length
for cabinets with 16mm wall thickness.
For 18mm wall thickness, 4mm will
need to be cut off the top trim
@2
@4
@3
!8
!7
!8
!7
@1
A/B
@0
A/B
@5
32
MOVING OR STORING YOUR REFRIGERATOR
If your refrigerator is turned off for any reason, wait 10minutes before turning it back
on. This will allow the refrigeration system pressures to equalise before restarting.
Moving your refrigerator
Turn off the appliance by pressing the button for 3seconds, turn it off at the wall
and unplug it from the power point. Remove all food inside.
Relocate and install. The inclination during transportation shall be less than 45° to
ensure no damage to the cooling system occurs.
Storing your refrigerator
When storing your cleaned appliance, leave the door(s) open. This allows air to circulate
and prevents the build up of bacteria and moulds.
Before using again, clean well using a mixture of warm water and baking soda (add 1tsp
of baking soda to each 500ml of water). Rinse with clean water.
Holiday time
We recommend you leave your refrigerator operating on ‘Holiday Mode’ (see page33)
while you are on holiday.
For extended time away from home, remove all food and unplug the power plug. Clean
the refrigerator and open all doors to ensure undesirable odours do not develop.
33
OPERATING INSTRUCTIONS
Control panel
Control panel
1 2 3 4 5 6 7
Note: control panel shows all icons and options available on the control panel where in
fact icons and options will only be visible when they have been selected or interacted with.
1
Power Off/On
Press to turn the appliance off or on.
To turn the refrigerator off hold the button for 3seconds, the control panel will
not function.
To turn the refrigerator on hold the button for 3seconds, the control panel will
function as normal.
2
Compartment select button
Press this button to scroll through the refrigerator, variable-temperature drawer
and freezer compartments. The Compartment icon (
3
) will illuminate each of the
compartments successively with each press of the button (
2
).
4
Temperature select button
Press this button to scroll through the temperatures available for each of the
compartments. The Temperature display (
5
) will show each of the available
temperatures successively with each press of the button (
4
).
6
Menu select button
Press this button to scroll through the special functions: Fast Freeze , Max Cool ,
Holiday Mode and Fridge Off . Each of the special functions icons (
7
) will
illuminate with each press of the button (
6
).
34
OPERATING INSTRUCTIONS
Setting/changing the temperature of a compartment
1
Press the ‘Compartment’ select button to scroll through the compartments indicated on
the compartment icon. Stop when the compartment you wish to set is illuminated eg
the refrigerator compartment.
Selecting the refrigerator compartment
2
Press the ‘Temperature’ select button to scroll through the available temperatures for
that compartment. Stop when your desired temperature is displayed eg 3°C.
Setting the refrigerator compartment temperature
●
The selected temperature and compartment will flash and then the temperature display
will revert back to the actual measured temperature.
Available refrigerator compartment temperatures:
2°C, 3°C, 4°C, 5°C, 6°C, 7°C, 8°C
Available variable-temperature drawer temperatures:
-5°C, -4°C, -3°C, -2°C, -1°C, 0°C, 1°C, 2°C, 3°C
Available freezer compartment temperatures:
-24°C, -23°C, -22°C, -21°C, -20°C, -19°C, -18°C, -17°C, -16°C, -15°C
35
OPERATING INSTRUCTIONS
Setting a special function
Fast Freeze
This function helps you get the best possible results when freezing fresh food. ‘Fast
Freeze’ boosts the freezing speed by dropping the freezer compartment to a colder
temperature for a preset time to ensure freshness, texture and taste are retained during
the freezing process.
To activate and deactivate ‘Fast Freeze’:
To activate the ‘Fast Freeze’ press the ‘Menu’ select button
once. The icon will start to flash. After 5 seconds the
icon will stop flashing and remain illuminated indicating that
‘Fast Freeze’ has been activated.
‘Fast Freeze’ will automatically deactivate. However if you
wish to manually deactivate ‘Fast Freeze’ press the ‘Menu’
select button once. The icon will flash then turn off and
the freezer compartment will return to its previously set
temperature.
IMPORTANT!
For best results we recommend that you activate this function before it is required.
Max Cool
Having the refrigerator door open for long periods of time or loading the refrigerator
full of warm food (such as after a trip to the supermarket) will raise the temperature of
the compartment. ‘MaxCool’ boosts the cooling power by dropping the refrigerator to a
colder temperature for a preset time, thereby ensuring vital nutrients, freshness, texture
and taste are retained.
To activate and deactivate ‘Max Cool’:
To activate ‘Max Cool’ press the ‘Menu’ select button twice.
The icon will start to flash. After 5seconds the icon will
stop flashing and remain illuminated indicating that ‘MaxCool’
has been activated.
‘Max Cool’ will automatically deactivate. However if you wish
to manually deactivate ‘Max Cool’ press the ‘Menu’ select
button twice. The icon will flash then turn off and the
refrigerator compartment will return to its previously set
temperature.
IMPORTANT!
For best results we recommend that you activate this function approximately 2hours
before it is required. Alternatively activate this function when placing a load of fresh
food into the refrigerator compartment.
Activating and deactivating
‘Fast Freeze’
Activating and deactivating
‘Max Cool’
36
OPERATING INSTRUCTIONS
Holiday Mode
This function allows your refrigerator to run at an efficient state to save you energy
when you are away. Be sure to remove any perishable food items or items close to their
expiry dates before activating the ‘Holiday Mode’.
To activate and deactivate ‘Holiday Mode’:
To activate ‘Holiday Mode’ press the ‘Menu’ select
button three times. The icon will start to flash.
After 5seconds the icon will stop flashing and
remain illuminated indicating that the ‘Holiday Mode’
has been activated.
‘Holiday Mode’ will not deactivate automatically.
Once you return from holiday, press the ‘Menu’ select
button three times. The icon will flash then turn off and the appliance will return to
normal operation.
Fridge Off
This function turns the refrigerator compartment and variable-temperature drawer off
while the freezer compartment operates as normal. Be sure to remove all items from the
refrigerator and variable-temperature drawers before activating ‘Fridge Off’.
To activate and deactivate ‘Fridge Off’:
To activate ‘Fridge Off’ press the ‘Menu’ select
button four times. The icon will start to flash.
After 5seconds the icon will stop flashing and
remain illuminated indicating that ‘Fridge Off’ has
been activated.
‘Fridge Off’ will not deactivate automatically.
Once you require your refrigerator compartment
and variable-temperature drawer to cool, press
the ‘Menu’ select button four times. The icon
will flash then turn off and the refrigerator and
variable-temperature drawer will return to their
previously set temperatures.
Activating and deactivating ‘Fridge Off’
Activating and deactivating
‘Holiday Mode’
37
OPERATING INSTRUCTIONS
IMPORTANT!
The ‘POWER’ button is not equivalent to turning off the power at the wall.
For cleaning and maintenance, the appliance must be disconnected from the power
supply at the wall socket.
Display screen
The display screen will remain illuminated while the refrigerator door is open.
Power failure memory function
The fridge will keep its original settings when power is restored after a power failure.
Additionally it will automatically recall and reset the process of quick cooling in the
refrigerator, variable temperature drawer and freezer compartments.
Using your refrigerator
When switched on, the refrigerator will take several hours to cool.
You can start to store food in it 2–3 hours after it has been turned on.
The refrigerator and variable-temperature drawer compartment temperatures will
automatically default to settings suitable for the storage of fresh food items and the
freezer compartment will default to a setting suitable for frozen food items. To change
these settings refer to ‘Operating instructions’ section.
After placing food in the refrigerator, leave it to stabilise for 24hours. After this time
you may wish to alter the temperature.
Loading the refrigerator with food
Do not store too much food in the freezer. It is recommended not to exceed the load
line of the drawers.
The total weight of the food per shelf should not exceed 24kg in the fridge
compartment.
Door alarm
If the refrigerator door has been left open for more then 60seconds, an alarm will
sound to alert the user to close the door.
38
INTERIOR FEATURES
Variable-temperature drawer
This drawer is controlled by a separate system to the refrigerator and freezer
compartments to provide you with greater flexibility of food storage.
Different foods require different storage temperatures so we have designed this drawer
to operate from -5°C to 3°C. This enables you to set the perfect temperature based on
what you are storing in the drawer.
The variable-temperature drawer is suitable for storing fruit and vegetables as well as
dairy products, deli products and fresh meats.
The 3°C setting is suitable for most fresh, perishable food items such as fruit and
vegetables, dairy products and deli items.
If you are storing fruit and vegetables, keep the drawer set at 3°C and loosely wrap
your produce in plastic bags. This will reduce moisture loss and prevent excess moisture
build-up.
To store fresh meat, adjust the temperature to a lower (colder) setting eg -1°C. Ensure
the meat is fresh when purchased and covered or wrapped-well during storage.
The variable-temperature drawer
39
INTERIOR FEATURES
Shelves
Your refrigerator is fitted with shelves specially
designed to retain spills, making clean up
easier.
The shelves can be repositioned at different
heights to accommodate different food
storage container sizes andheights.
To remove the shelf, use the front edge to pull
the shelf forward (A).
Fruit and vegetable bin
The fruit and vegetable bin provides a humid environment for your produce ensuring
moisture is retained, nutrients are locked in and your fruit and vegetables are kept
fresher for longer.
To remove the bin, pull it out until it stops, then lift and continue to slide the bin until it
is fully extended.
Fruit and vegetable bin humidity slide
The bin has a humidity control slide that
can be adjusted to fruit or vegetable
setting depending on what is being stored
in the bins.
If you are storing fruit, set the humidity slide to the fruit setting (left side).
If you are storing vegetables, set the humidity slide to the vegetable setting (right side).
If you are storing a mixture of fruit and vegetables, position the humidity slide in the
centre.
Humidity mat
The humidity mat is designed to hold your fruit and vegetables off the base of the bin.
This increases air flow around your produce thereby preventing rotting.
Door shelves
Door shelves can be moved to meet individual
storage needs.
To remove the door shelf, lift the shelf up (B)
and pull straight out (C).
To install, place shelf into desired door liner
retainer, push down gently until shelf stops.
Humidity Control graphic
Door shelves
B
C
Shelf removal
A
40
MAINTENANCE
Replacement of the interior light
The LED lighting in your refrigerator saves energy and has a long lifetime. However,
if replacement of an LED is required, simply call your Fisher & Paykel trained and
supported service technician and they will replace it for you.
Interior light: 12V, max 2.5W.
IMPORTANT!
Your refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
41
CLEANING CARE — INTERIOR/EXTERIOR
Interior
It is important to keep the interior of the refrigerator and freezer clean to help prevent
food from becoming contaminated during storage.
The amount and types of food stored determines how often cleaning should be carried
out (ideally once every 1 to 2 weeks) in the refrigerator.
Remove the shelves, door shelves and bins and rinse these parts in a mixture of warm
water and liquid dishwashing detergent. Rinse and dry the shelves and bins thoroughly
before replacing them into the refrigerator.
Wipe over the interior surfaces with a mixture of warm water and liquid dishwashing
detergent or baking soda dissolved in warm water (add 1tsp of baking soda to each
500mls of water). Rinse with clean water.
To help remove “old stale refrigerator” smells add a few drops of vanilla essence or
vinegar to the water before cleaning.
Do not use harsh, abrasive cloths or cleaners or highly perfumed, strong smelling
cleaners or solvents on any part of the refrigerator as they can cause damage.
Glass shelves
Clean with warm water and detergent or a glass cleaner. If cleaning the shelves without
removing from the cabinet, use only warm water and detergent as a glass cleaner can
damage the plastic components of your refrigerator.
Exterior surfaces
Clean exterior surfaces with warm water and detergent only.
If necessary, clean the magnetic door gasket with an old toothbrush, and a mixture of
warm water and liquid dishwashing detergent.
42
STORING FOOD IN YOUR REFRIGERATOR
COMPONENTS
Humidity controlled bin This bin helps to provide a humid microclimate to
extend the storage times of fruit and vegetables.
Shelving
●
Selectable shelf heights.
●
Heat treated safety glass.
●
Adjustable door shelves.
Variable temperature compartment This compartment enables you to set the perfect
temperature between 23°F–37°F (-5°C–3°C)
based on what you are storing.
Freezer bins Allows for easy storage of frozen items.
There are recommended storage areas for various foods. As cold air circulates inside
the refrigerator, there is a temperature difference within both the fresh food and
freezer compartments.
Variable
temperature
compartment
Humidity
controlled bin
Shelving
Freezer bins
Door
shelves
Refrigerator
compartment
Variable temperature
compartment
Freezer compartment
43
STORING FOOD IN YOUR REFRIGERATOR COMPARTMENT
AND VARIABLE-TEMPERATURE DRAWER
Storing fresh, perishable foods in your refrigerator helps to extend storage times. The
cold temperatures slow down the major causes of food spoilage — possible growth of
bacteria, moulds and yeasts, and microbial chemical and physical reactions.
Fresh food care
IMPORTANT!
The quality of food before it is placed in the refrigerator is critical to successful storage.
For best results:
Select foods that are very fresh and of good quality.
Buy only the amount that you will use within the recommended storage time. If you buy
extra, plan to freeze it.
Ensure that food is well wrapped or covered before it is stored. This will prevent food
from dehydrating, deteriorating in colour or losing taste and will help maintain freshness.
It will also prevent odour transfers. Vegetables and fruit do not need to be wrapped
provided they are stored in the vegetable bins of the refrigerator.
Make sure that strong smelling foods are wrapped or covered and stored away from
foods such as butter, milk and cream which can be tainted by strong odours.
Refrigerate fresh, perishable foods as soon as possible after purchase. If left at room
temperature for any length of time the rate of deterioration will be accelerated.
Avoid placing food directly in front of air outlets, as it may freeze. Cold air needs to
circulate to maintain safe food storage. Do not open the refrigerator door unnecessarily.
Cool hot foods down before placing them in the refrigerator. This should be done
quickly. It can be aided by placing the container of food in a bowl of ice and water;
renew the ice as necessary. (Note: hot containers may damage shelves and walls of the
refrigerator).
Store raw and cooked foods in separate containers or packaging to prevent cross
contamination.
In addition:
Keep the refrigerator clean. Wipe the inside walls and shelves frequently (refer to
‘Cleaning care’ on page41) and place only clean containers in the refrigerator.
Keep a close check on the quality of food in your refrigerator. Discard any food that
shows signs of spoilage. Pay particular attention to meat, fish and poultry, as these
foods are highly perishable. Use food within the recommended storage times.
44
STORING FOOD IN YOUR REFRIGERATOR COMPARTMENT
AND VARIABLE-TEMPERATURE DRAWER
Dairy foods and eggs
Most pre-packed dairy foods have a recommended ‘use by/best before/best by’ date
stamped on them. Store them in the refrigerator and use within the recommended time.
Butter can become tainted by strong smelling foods so it is best stored in a sealed
container.
Eggs should be stored in the refrigerator. For best results, especially when baking,
remove the eggs from the refrigerator two hours before use.
Red meat
Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
Store cooked and raw meat on separate plates. This will prevent any juices lost from the
raw meat from contaminating the cooked product.
Delicatessen meats should be used within the recommended storage time.
Poultry
Fresh whole birds should be rinsed inside and out with cold running water. Dry and
place on a plate. Cover loosely with plastic wrap or foil.
Poultry pieces should also be stored this way. Whole poultry should never be stuffed
until just before cooking, otherwise food poisoning mayresult.
Cool and refrigerate cooked poultry quickly. Remove stuffing from poultry and store
separately.
Fish and seafood
Whole fish and fillets should be used on the day of purchase. Until required, refrigerate
on a plate loosely covered with plastic wrap, waxedpaper or foil.
If storing overnight or longer, take particular care to select very fresh fish. Whole fish
should be rinsed in cold water to remove loose scales and dirt and then patted dry with
paper towels. Place whole fish or filletsin a sealed plastic bag.
Keep shellfish chilled at all times. Use within 1–2 days.
Precooked foods and leftovers
These should be stored in suitable covered containers so that the food will not dry out.
Keep for only 1–2 days.
Reheat leftovers only once and until steaming hot.
Fruit and vegetable bins
Although most fruit and vegetable varieties store best at low temperatures, take care
not to store the following at temperatures of lessthan 7°C for long periods:
Citrus fruit, melons, eggplant, pineapple, paw paw, courgettes, passionfruit, cucumber,
peppers, tomatoes.
Undesirable changes will occur at low temperatures such as softening ofthe flesh,
browning and/or accelerated decaying.
Do not refrigerate avocados (until they are ripe), bananas, mangoes or pepinos. If
possible store fruit and vegetables separately, ie fruit in one bin and vegetables in
theother.
45
STORING FOOD IN YOUR FREEZER
The use of temperatures of -18°C or colder to store food means that the food can be
kept for longer periods than when refrigeration temperatures are used. This is because
the growth of bacteria, moulds and yeasts are stopped, and microbial chemical and
physical reactions are severely restricted at very low temperatures.
Frozen food care
For best results:
Choose only high quality foods that freeze well.
Store at -18°C or colder. Take care to maintain this low storage temperature, eg try to
avoid opening the freezer door unnecessarily. If your ice cream is soft you are running
your freezer too warm.
Leave space at the top of containers, glass jars or plastic bags containing liquids or
semi-solid foods as they expand during freezing. Usually 20–50mm head space is
recommended. Seal well. Ideally, remove all the air from the package after food is
frozen.
Packages or containers of solid foods should have the air removed from them and be
sealed tightly before freezing.
Freeze immediately and as quickly as possible. Freeze only small quantities of food at
any one time. For best results we recommend that only 1kg of food be frozen per 25L
freezer capacity. (About 3kg in small freezers and 4kg in larger freezers).
Do not pile frozen food around the fan cover. This can prevent adequate air circulation.
Thaw foods preferably in a refrigerator, or using a microwave oven or multifunction
oven.
Keep a constant turnover of food. Use older items of food first. Do not exceed
recommended storage times.
Use good quality freezer proof packaging to maintain food quality.
If food is only covered in plastic film place inside a freezer-proof plastic bag.
Recommended freezer storage times
These times should not be exceeded.
MONTHS TYPE OF FOOD STORED
1 Bacon, casseroles, milk
2 Bread, ice cream, sausages, pies — (meat and fruit), prepared shellfish,
oily fish
3 Non-oily fish, shellfish, pizza, scones and muffins
4 Ham, cakes, biscuits, beef and lamb chops, poultry pieces
6 Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish,
minced meat (raw), pork (raw)
12 Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb
(raw), fruit cakes
46
STORING FOOD IN YOUR FREEZER
Meat, poultry and game
Do not try to freeze more than 1kg meat per 25L freezer capacity. Meatmust be frozen
quickly in order to maintain its texture.
Do not stuff poultry before freezing.
Red meat can be cooked from frozen, or from the partly or completely thawed states.
Remember to allow extra cooking time if cooking fromfrozen.
Always thaw poultry completely before cooking.
Fish
Fish is best frozen commercially. If, however, you do want to freeze fish at home, make
sure the fish is very fresh and of high quality.
Clean, scale and preferably leave whole. All fish should be wrapped in two layers
of packaging as depending on the type of fish, odours and flavours can be readily
transferred either to or from it. Seal well.
For best results, cook from either the frozen or partly thawed state.
Vegetables
Most vegetables freeze well, although ‘salad’ vegetables lose their crispness. Other
vegetables, eg celery, onion and tomatoes, should only be used in cooked dished as
they soften on freezing.
Freeze only high quality, mature, ready-to-eat vegetables.
Sort and discard any that are damaged.
It is necessary to blanch most raw vegetables prior to freezing.
Blanching involves a short cooking period during which vegetable enzymes are
destroyed. If these enzymes are not destroyed they cause undesirable physical and
chemical changes during freezer storage.
Vegetables can be blanched in boiling water, steam or in a microwave oven. Ifusing
boiling water, boil vegetables for 2–4 minutes and cool quickly.
In general frozen vegetables are best cooked from their frozen state.
Prepared and cooked foods
Most cooked foods can be frozen but it is not recommended to freeze thefollowing:
Cooked egg white, custards, cream fillings and milk puddings, gelatine or jelly-like
dishes, mayonnaise and similar salad dressings, meringue toppings. These tend to
separate on thawing.
Fruit
Choose high quality, mature, and ready-to-eat fruit. Preferably select varieties
recommended for freezing.
Avoid unripe and over-ripe fruit.
The way fruit is packed depends on how it is to be used. Fruits packed in syrup are ideal
for desserts, whereas fruits packed without sugar are better used for cooking. Most
fruits can be stored for 8–12 months.
47
TROUBLESHOOTING
If there is a problem with your appliance, please check the following points before
contacting your local Fisher & Paykel trained and supported service technician or the
Customer Care Centre.
Product parts and accessories can be purchased through Fisher&Paykel Customer Care
Centre or online at www.fisherpaykel.com (this service is available to selected markets only).
PROBLEM POSSIBLE CAUSE WHAT TO DO
Appliance does
not operate.
No electricity at power
outlet.
Check that the plug is correctly
connected and power switched on.
Check another appliance at the
sameoutlet.
Check house fuse.
The refrigerator is in the
defrosting cycle.
This is normal for an automatic
defrosting refrigerator.
The refrigerator is turned
off.
Press the
button for 3seconds to
start the refrigerator.
Light not working. Light not functioning. The light cannot be serviced by the
user. Contact your Fisher & Paykel
Dealer or Fisher & Paykel trained and
supported service technician.
Refrigerator not working. See previous section above.
Motor operates for
long periods.
Hot weather. Minimise door openings to allow
temperatures to stabilise.
Frequent door openings.
Large amount of food
recentlyadded.
Temperature control set
too low.
See ‘Operating instructions’ section on
page31.
Doors not sealing
properly.
Check that the cabinet is levelled and
gasket seals are clean.
Storage
compartment(s)
too warm.
Temperature setting not
correct.
See ‘Operating instructions’ section on
page31.
Frequent door openings. Minimise door openings to allow
temperatures to stabilise.
Large amount of food
recentlyadded.
Food freezing in
the refrigerator.
Temperature setting not
correct.
See ‘Operating instructions’ section on
page31.
Food placed directly in
front of air outlets.
Move chill sensitive foods away from
the centre back of the shelf. Refer
to ‘Storing food in your refrigerator
compartment and variable-
temperature drawer’ on page43.
48
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
Unfamiliar noises. Cabinet not stable or level. Ensure cabinet is on even flooring.
Freezer is defrosting. This is normal.
Water in the
vegetable bins.
Condensation is formed
by the water produced by
fruit and vegetables.
A small amount of condensation is
beneficial for fruit and vegetable
storage.
If there is too much water, store fruit
and vegetables loosely wrapped in
plasticbags.
Wipe out water with a cloth.
Condensation
inside fresh food
compartment.
Frequent or long door
openings.
Minimise door openings.
Door gasket leaking. Check that gasket is sitting flat and
sealing tightly.
Not unusual during
periods of high humidity.
Wipe dry.
Ice buildup
inside freezer
compartment.
Freezer door not closing
tightly.
Move items in the freezer so that the
door can closetightly.
Check and clean door gasket seal.
PROBLEM
If you hear...
POSSIBLE CAUSE WHAT TO DO
Abnormal sound. The refrigerator is not
located either in a
levelled cabinet or on
level flooring.
Ensure cabinet is on even flooring.
The refrigerator touches
some object(s) around it.
Remove objects around it. Refer
to ‘Installation instructions’ on
page12.
Slight sound
similar to that of
flowing water.
This is the sound of the
refrigerating system.
This is normal.
49
WIRING DIAGRAM
A Power cord plug
B FC Fan
C Cooling Fan
D PC Damper
E Display Panel
SW PC Door switch
SNR1 PC Temperature sensor
SNR2 FC Temperature sensor
SNR3 Ice Temperature sensor
SNR4 Defrost sensor
F Main control board
L1 PC Light
L2 Variable temperature compartment light
H Compressor
I VCC board
J Fuse 1
K Fuse 2
M Defrost heating element
50
MANUFACTURER’S WARRANTY — NZ AU GB IE EU HK IN SG
You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this
refrigeratorcovering parts and labour for servicing within the country of purchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour
any part of the product, the serial number of which appears on the product, which is
found to be defective within TWO YEARS of the date of purchase.
Note: this Manufacturer’s Warranty is an extra benefit and does not affect your legal rights.
This Manufacturer’s Warranty DOES NOT cover
A
Service calls which are not related to any defect in the product. The cost of a service
call will be charged if the problem is not found to be a product fault. For example:
1
Correcting the installation of the product.
2
Instructing you how to use the product.
3
Replacing house fuses or correcting house wiring or plumbing.
4
Correcting fault(s) caused by the user.
5
Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration
noises oruserwarning beeps.
6
Correcting damage caused by pests, eg rats, cockroaches, etc.
7
Replacement light bulbs.
B
Defects caused by factors other than:
1
Normal domestic use; or
2
Use in accordance with the product’s user guide.
C
Defects to the product caused by accident, neglect, misuse or ‘act of God’.
D
The cost of repairs carried out other than by a Fisher & Paykel trained and supported
service technician or the cost of correcting such repairs.
E
Normal recommended maintenance as set out in the product’s user guide.
F
Repairs when the appliance has been dismantled, repaired or serviced by other than a
Fisher&Paykel trained and supported service technician or the selling dealer.
G
Pick-up and delivery.
H
Transportation or travelling costs involved in the repair when the product is installed
outside the Fisher&Paykel trained and supported service technician’s normal service area.
I
Filter replacement except in the case of faulty parts or materials within the filter
cartridge.
J
Damage (including water damage) caused by faulty installation or plumbing.
Nothing in this Manufacturer’s Warranty is intended to, or does limit, any rights you may
have under law to recover the costs of inspecting or returning the goods to us.
This product has been designed for use in a normal domestic (residential) environment.
This product is not designed for any commercial use (whatsoever). Any commercial use
by acustomer will affect this product’s Manufacturer’s Warranty.
51
MANUFACTURER’S WARRANTY — NZ AU GB IE EU HK IN SG
Service under this Manufacturer’s Warranty must be provided by a Fisher&Paykel
trained and supported service technician (refer to the ‘Customer Care’ section at the
back of this book). Such service shall be provided during normal business hours. This
Manufacturer’s Warranty certificate should be shown when making any claim.
For Australian Customers
This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Please keep this user guide in a safe place.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
52
CUSTOMER CARE — NZ AU GB IE EU HK IN SG
Before you call for service or assistance...
Check the things you can do yourself. Refer to the installation instructions and your user
guide and check that:
1
Your product is correctly installed.
2
You are familiar with its normal operation.
3
You have read the ‘Troubleshooting’ section at the back of the book.
If after checking these points you still need assistance or parts, please refer to your
nearest Fisher & Paykel trained and supported service technician, Customer Care, or
contact us through our website www.fisherpaykel.com.
In New Zealand if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Toll Free: 0800 FP CARE or 0800 372 273
Fax: (09) 273 0656
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service
technicians that can carry out any service necessary on your appliance. Our Customer
Care Centre can recommend a Fisher & Paykel trained and supported service technician
in your area.
In Australia if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Toll Free: 1300 650 590
Fax: (07) 3826 9298
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Australia Pty Ltd, PO Box 798, Cleveland
QLD 4163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service
technicians that can carry out any service necessary on your appliance. Our Customer
Care Centre can recommend a Fisher & Paykel trained and supported service technician
in your area.
In the United Kingdom if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Phone: 08000 886 605
Fax: 08000 886 606
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, Maidstone Road, Kingston, Milton
Keynes, Buckinghamshire, MK10 0BD
53
CUSTOMER CARE — NZ AU GB IE EU HK IN SG
In Ireland if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Phone: 1800 625 174 or 01-8077960
Fax: 1800 635 012
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances, Unit D2, North Dublin Corporate Park,
Swords, Co. Dublin
In Singapore if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Phone: 6741 0777
Fax: 6547 0123
Website: www.fisherpaykel.com
Postal address: 150 Ubi Avenue 4, Sunlight Building #03-01A, Singapore 408825
For rest of the world…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Phone: +64 9 273 0660
Fax: +64 9 273 0580
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163,
New Zealand
*If you call, write or contact us via our website please provide: your name and address,
model number, serial number, date of purchase and a complete description of the
problem. This information is needed in order to better respond to your request for
assistance.
Product details can be found on the serial plate located inside the refrigerator
compartment.
Registration
Register your product with us so we can provide you with the best service possible.
To register your product visit our website: www.fisherpaykel.com
54
CUSTOMER CARE —CN
Before you call for service or assistance...
Check the things you can do yourself. Refer to the installation instructions and your user
guide and check that:
1
Your product is correctly installed.
2
You are familiar with its normal operation.
3
You have read the ‘Troubleshooting’ section at the back of the book.
If after checking these points you still need assistance or parts, please refer to your
nearest Fisher & Paykel trained and supported service technician, Customer Care, or
contact us through our website www.fisherpaykel.com.
Manufactured for:
Fisher & Paykel Appliances Ltd
78 Springs Rd
East Tamaki
Auckland 2013
New Zealand
Manufactured by:
Qingdao Haier Joint Stock Co.ltd
Haier Industrial Park
Haier Road
Qingdao 266101
P.R. China
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
55
EUROPEAN DIRECTIVE 2012/19/EU ON WASTE ELECTRICAL
AND ELECTRONIC EQUIPMENT (WEEE)
GB This appliance is marked according to the European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate handling of this
product.
The symbol marked on the serial plate, or on the documents accompanying the
product, indicates that this appliance cannot be treated as household waste. It shall
be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. Disposal of the appliance shall be carried out in accordance with
the local environment regulations for waste disposal and ensure the refrigerant circuit is
not damaged.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or your
Fisher & Paykel retailer/dealer from whom you purchased this product.
NZ AU GB IE EU HK IN SG CN
846684E 10.19
FISHERPAYKEL.COM
© Fisher&Paykel Appliances 2019. All rights reserved.
The product specifications in this document apply to the specific
products and models described at the date of issue. Under our policy
of continuous product improvement, these specifications may change
at any time. You should therefore check with your Dealer to ensure this
document correctly describes the product currently available.
