1
English
SETUP | Audio Settings ..................... 43

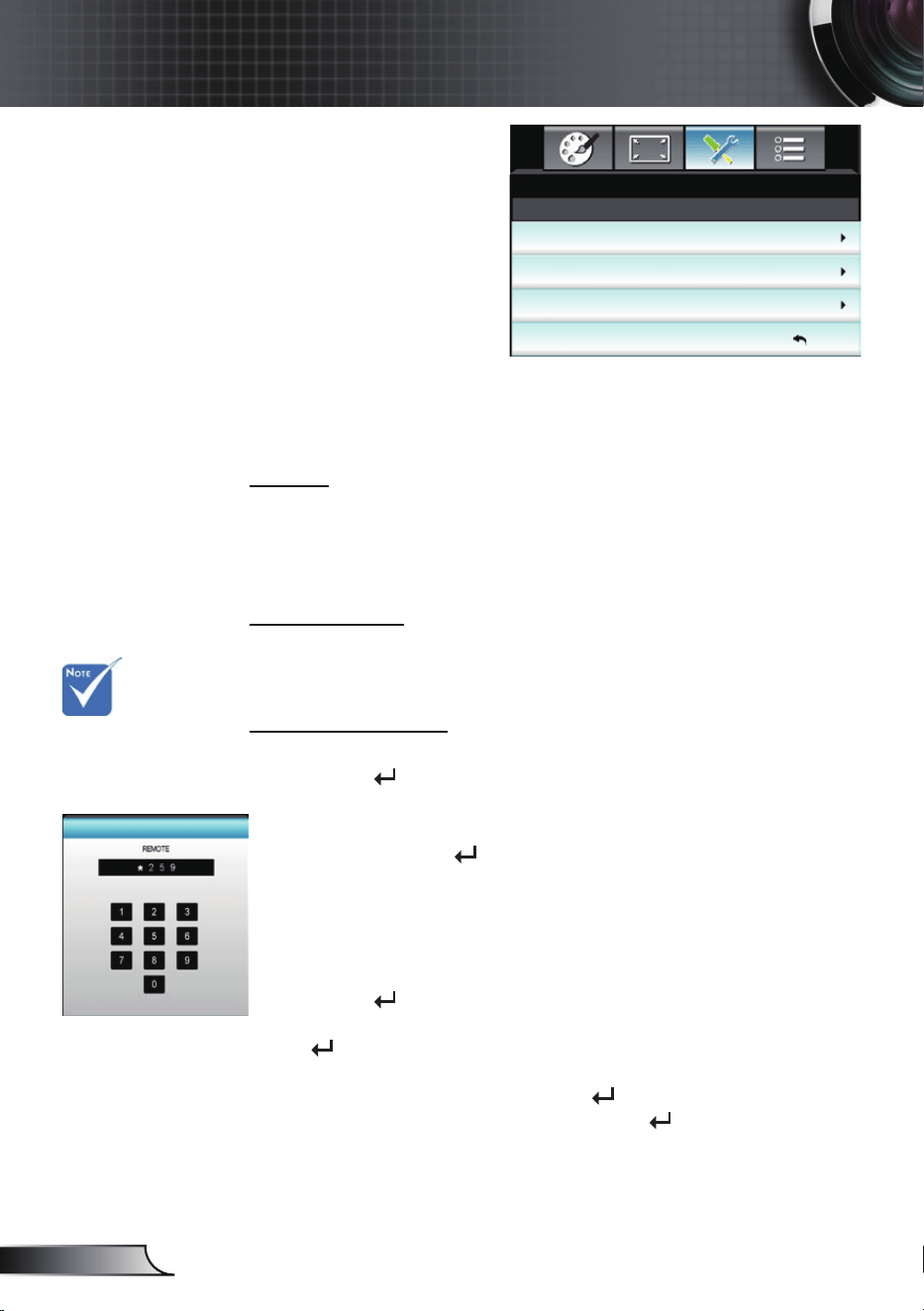

SETUP | Security ............................... 44
SETUP | Advanced ............................ 45
OPTIONS ........................................... 46
OPTIONS | Lamp Settings ................. 49

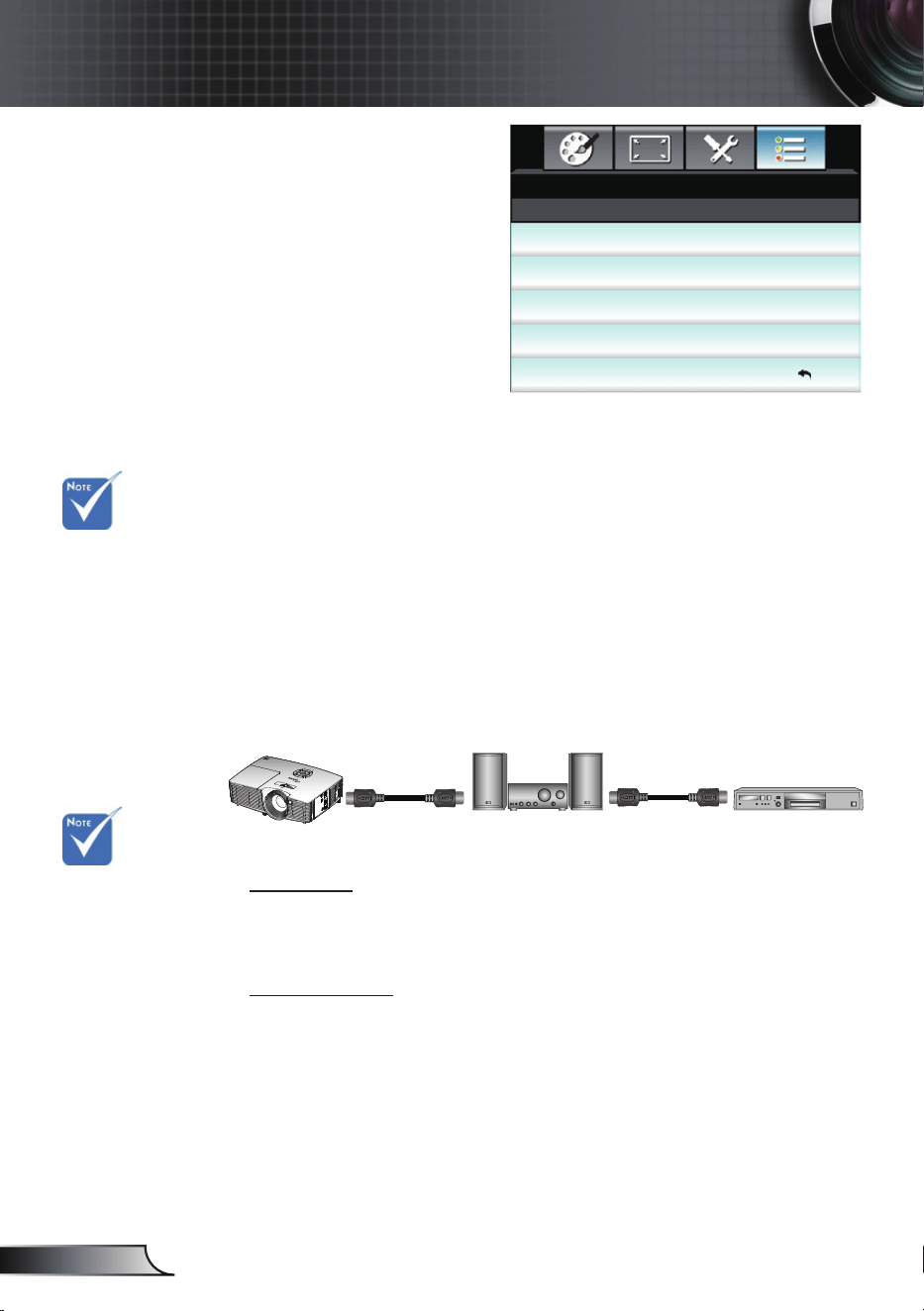

OPTIONS | HDMI Link Settings ......... 50
OPTIONS | Remote Settings ............. 52

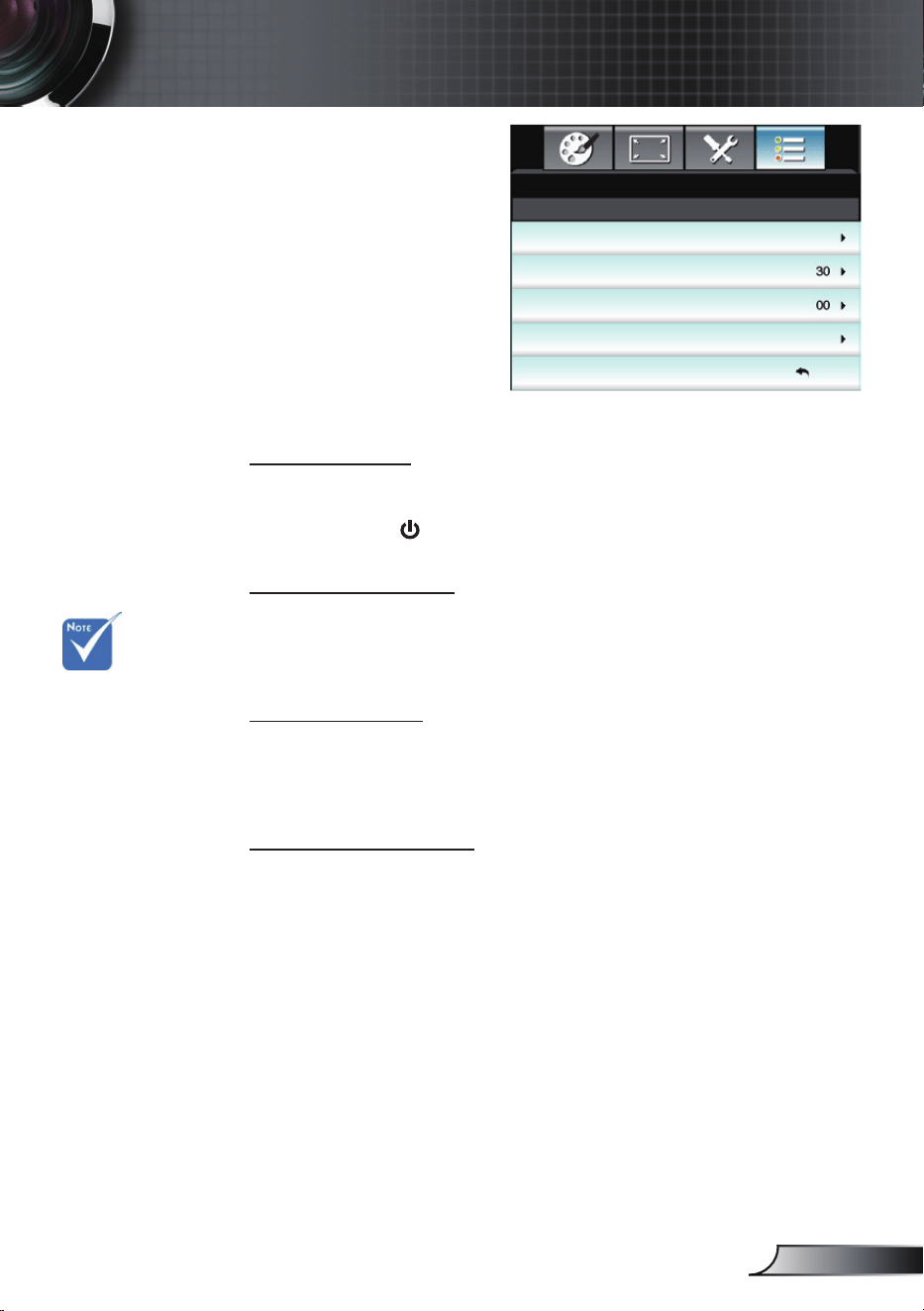

OPTIONS | Advanced ........................ 53
Appendices.....................................54
Troubleshooting ................................54
Image Problems ................................. 54
Other Problems .................................. 56
Remote Control Problems ................. 56

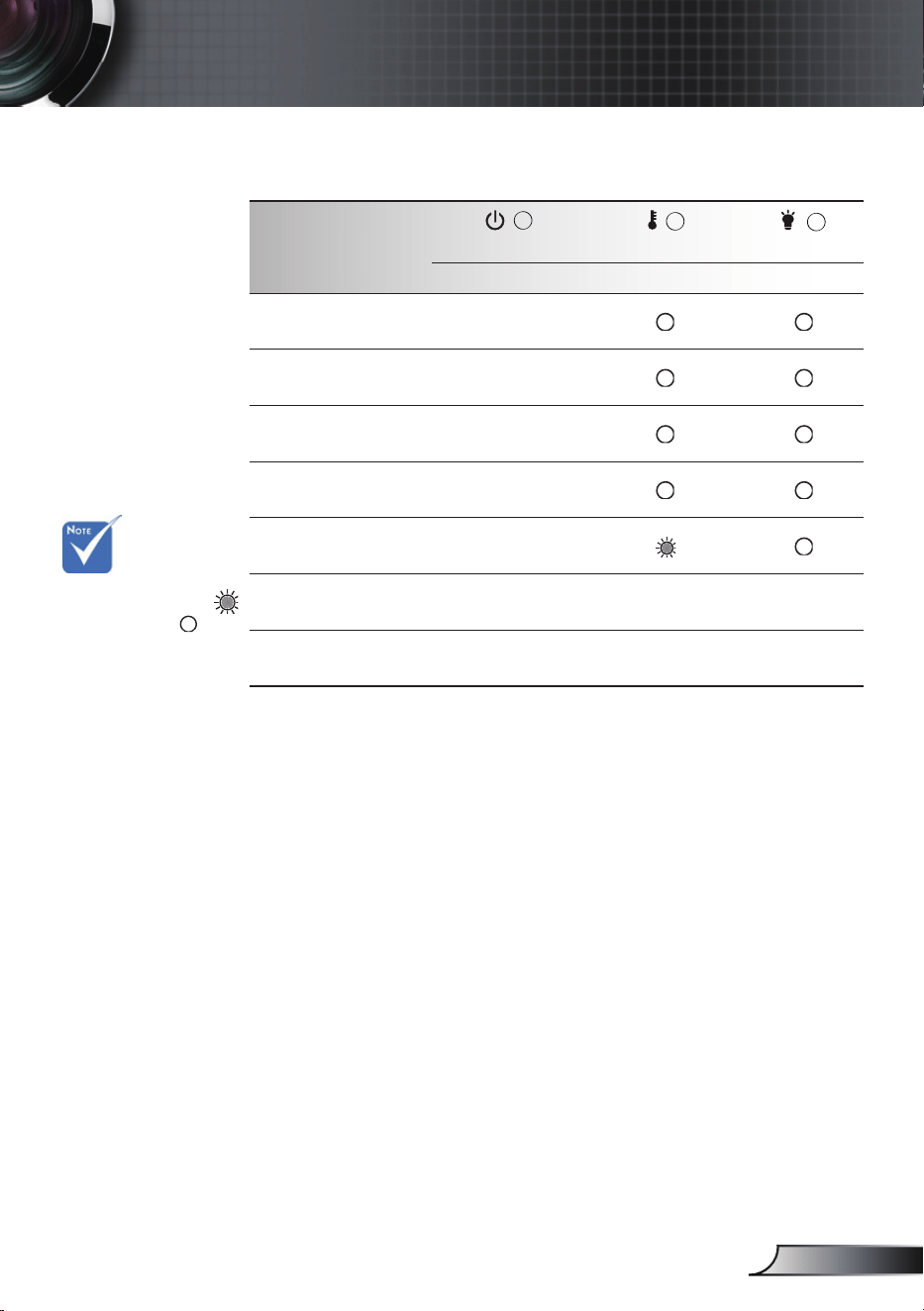

LED Lighting Messages ..................... 57
On Screen Messages ........................ 58
Replacing the Lamp ..........................59

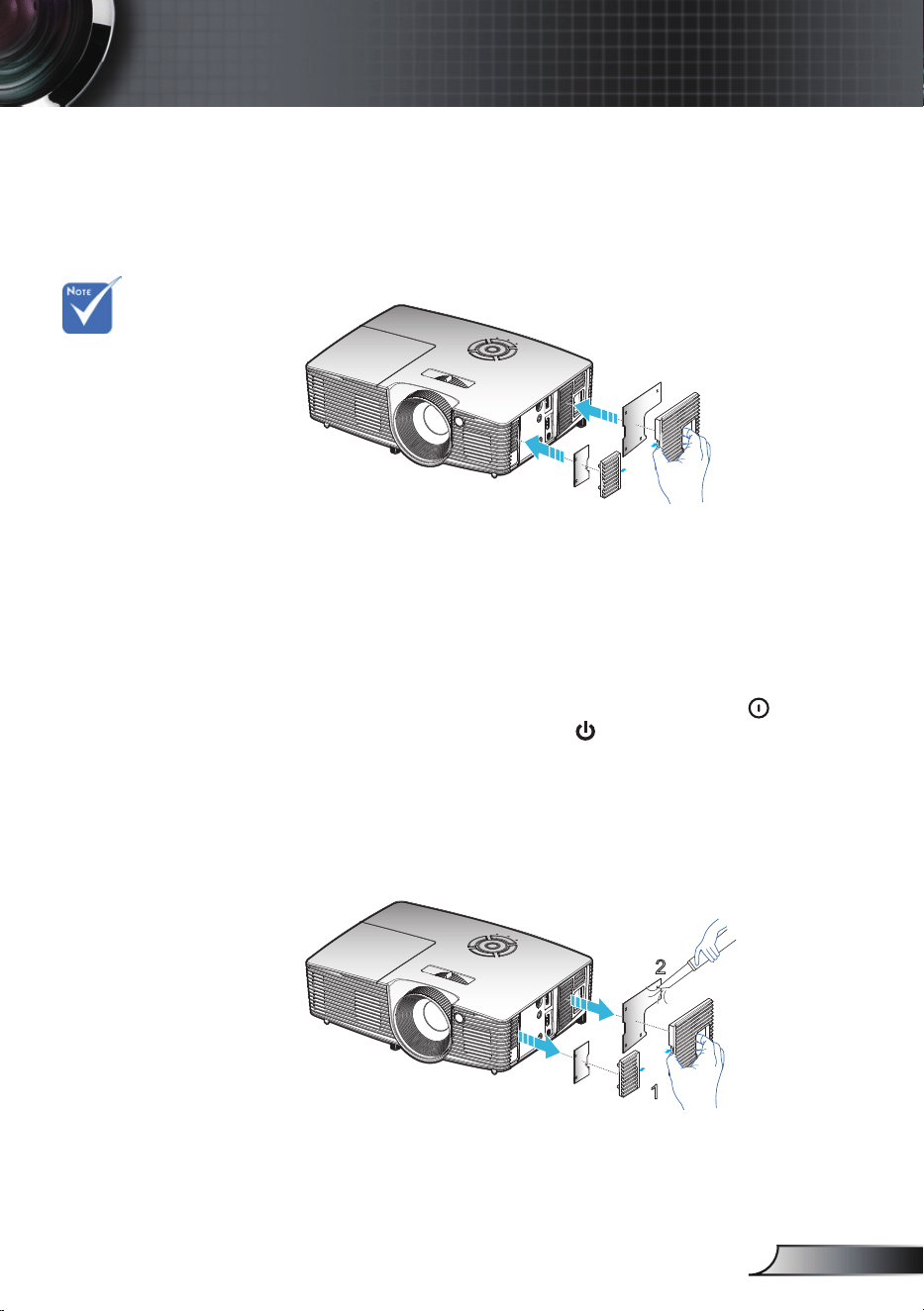

Installing and Cleaning the Dust Filter 61
Compatibility Modes .........................62

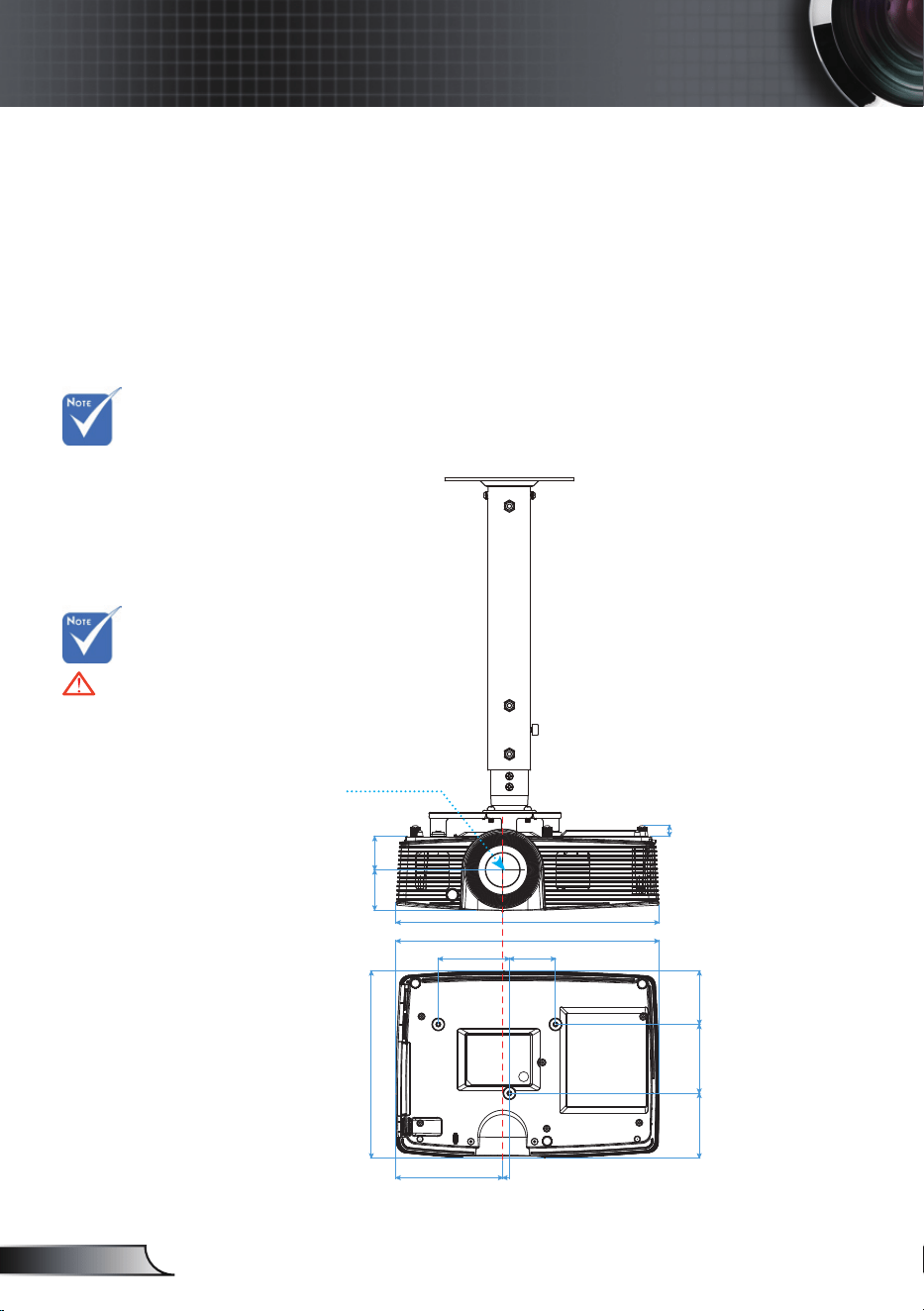

Ceiling Mount Installation ..................64
Optoma Global Ofces .....................65
Regulation & Safety Notices .............67
FCC Notice ........................................ 67
Declaration of Conformity for EU coun-
tries .................................................... 68
Table.of.Contents.............................1
Usage.Notice
....................................2
Safety Information ...............................2
Precautions .........................................3
Eye Safety Warnings ..........................6
Introduction.......................................7

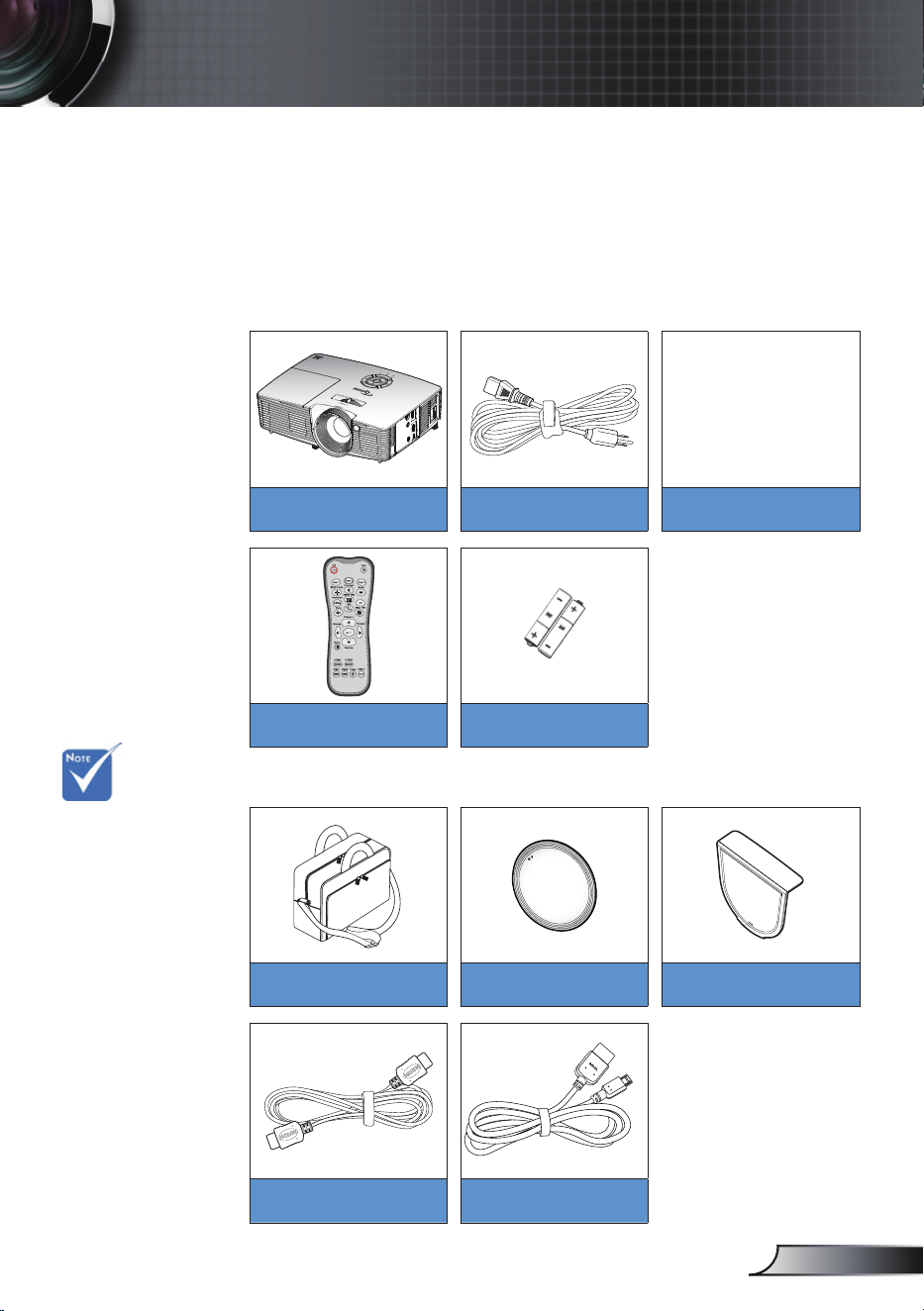

Package Overview ..............................7
Product Overview ...............................8

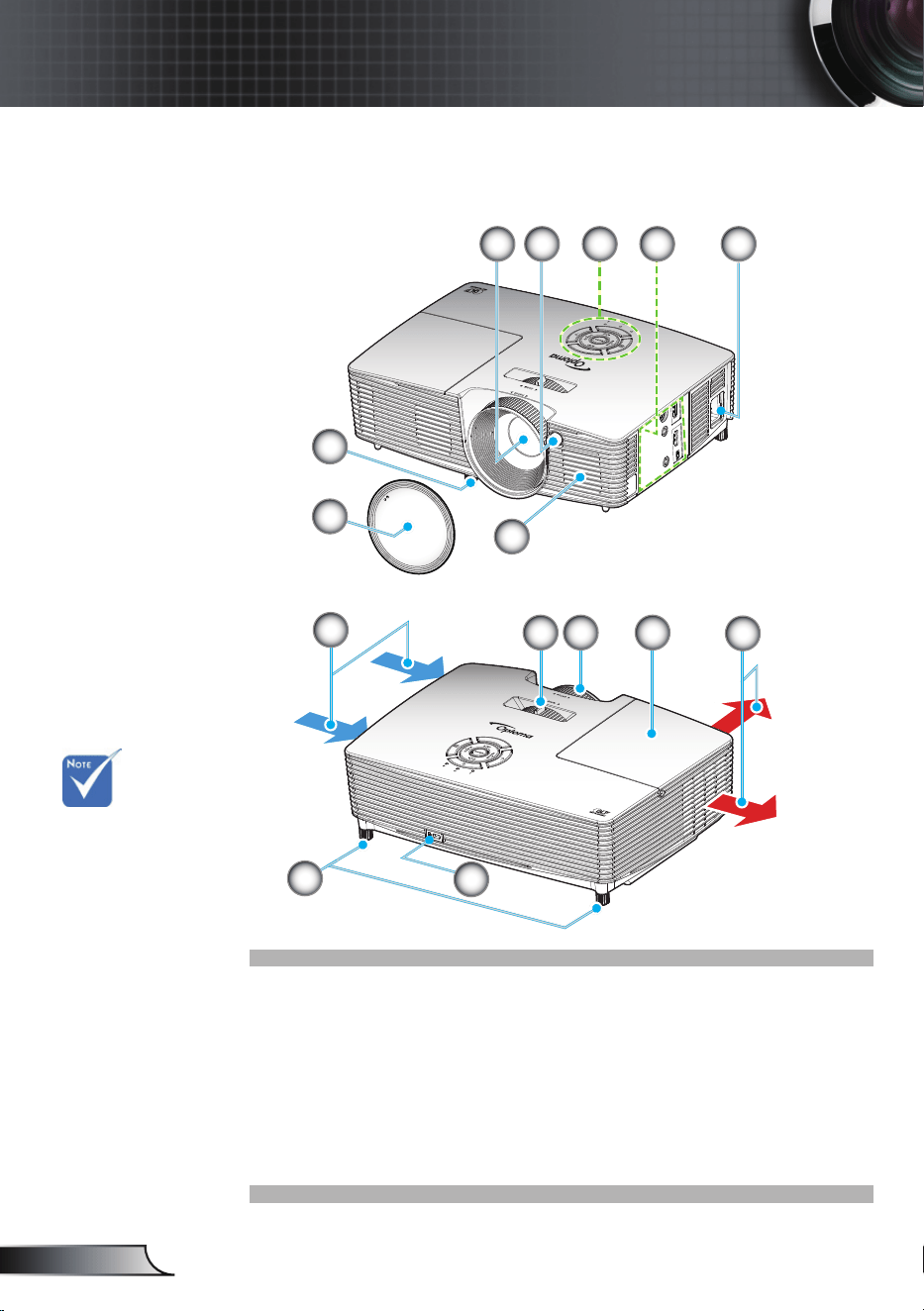

Main Unit .............................................. 8

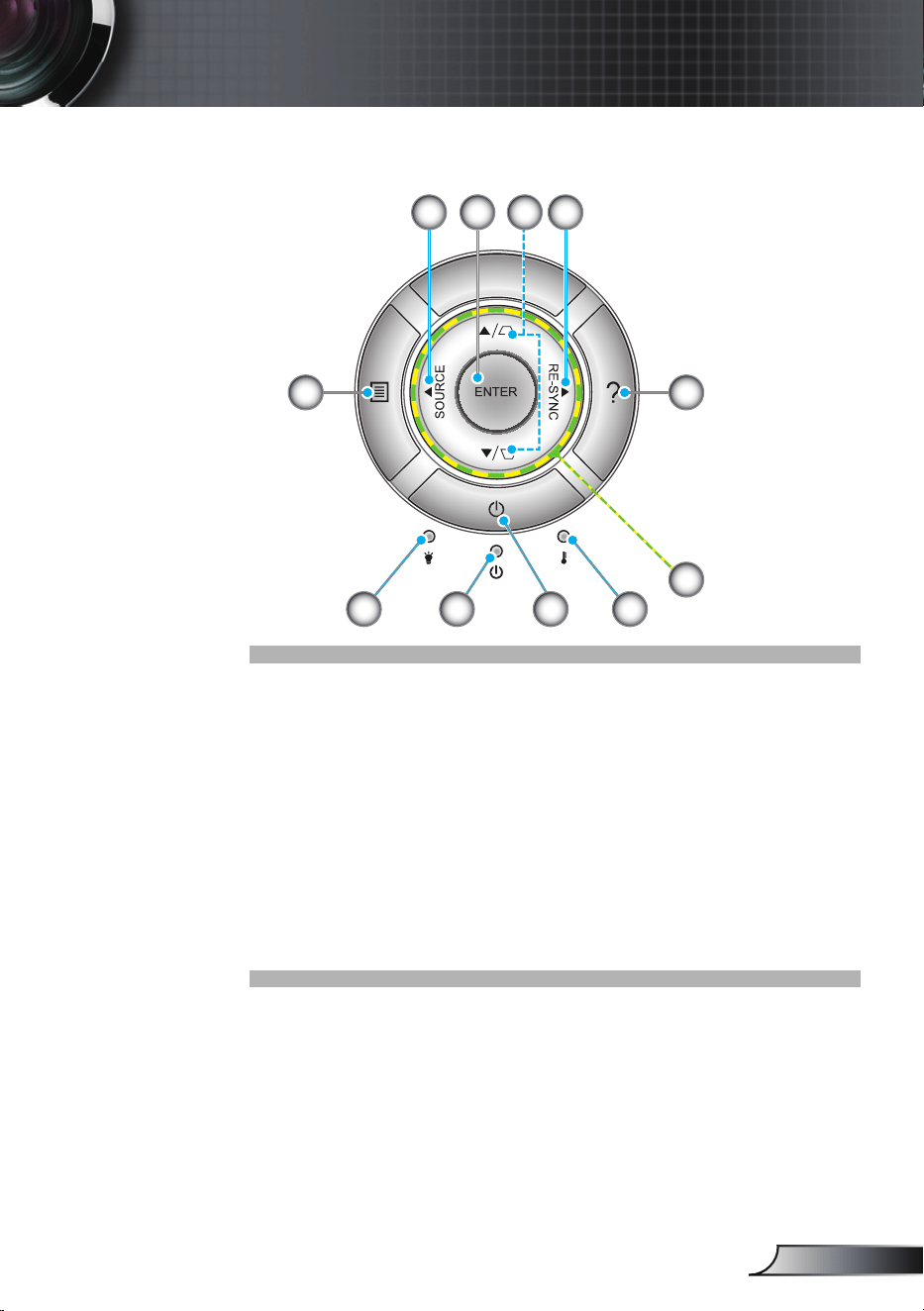

Keypad ................................................. 9

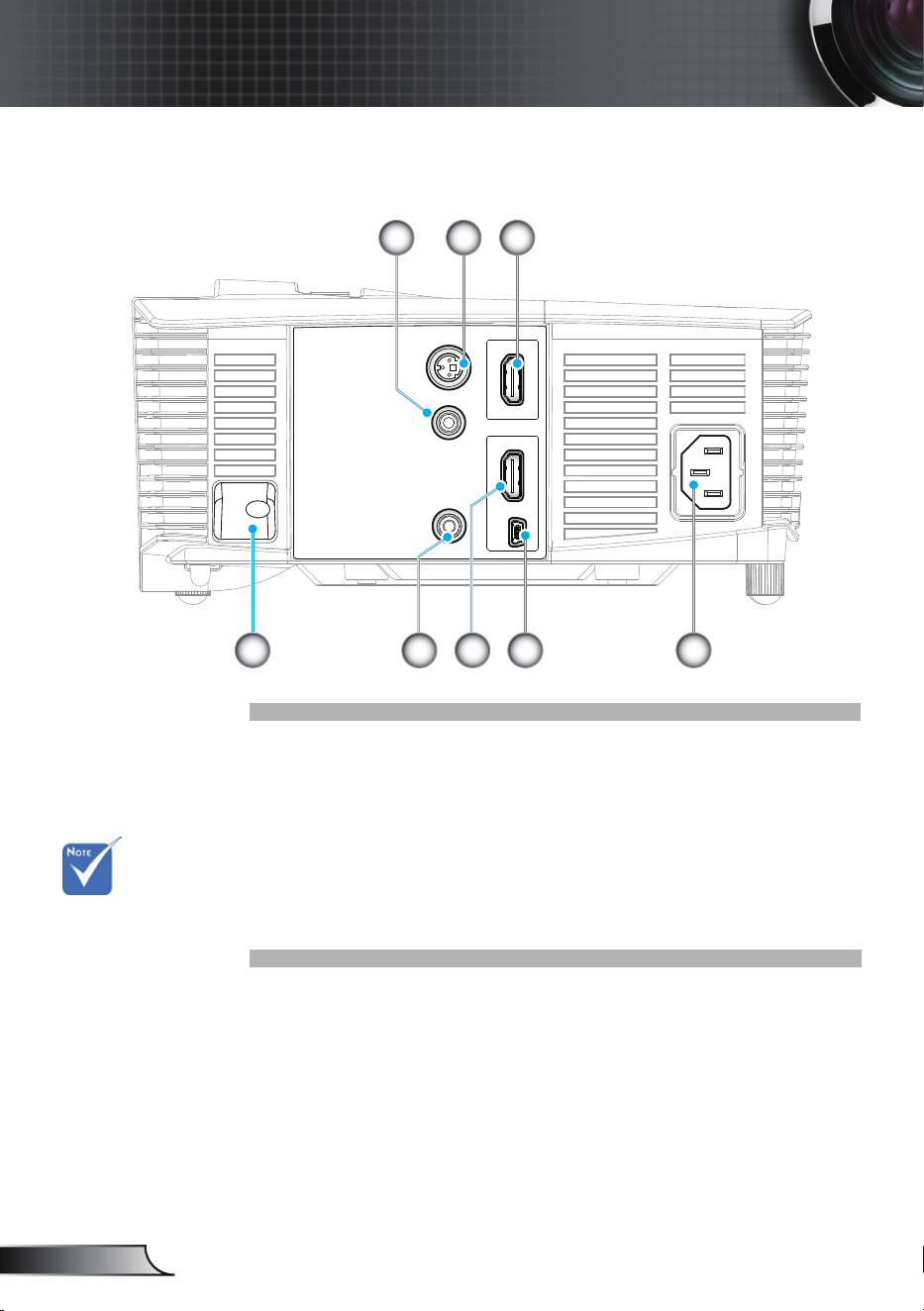

Input/Output Connections .................. 10
Remote Control .................................. 11
Installation......................................12
Connecting to the Projector ..............12

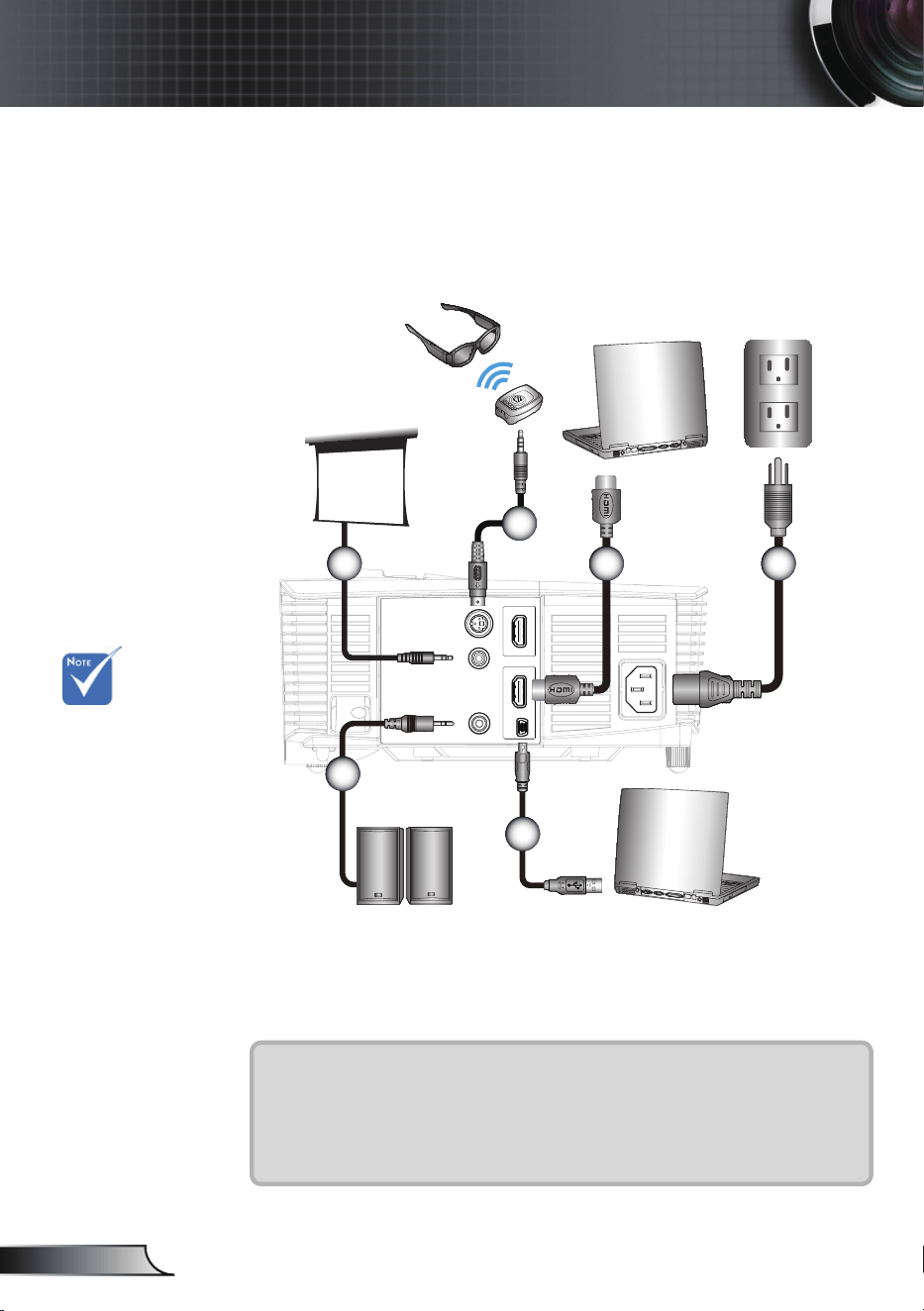

Connecting a Computer/Notebook .... 12
Connecting a Video source ................ 13

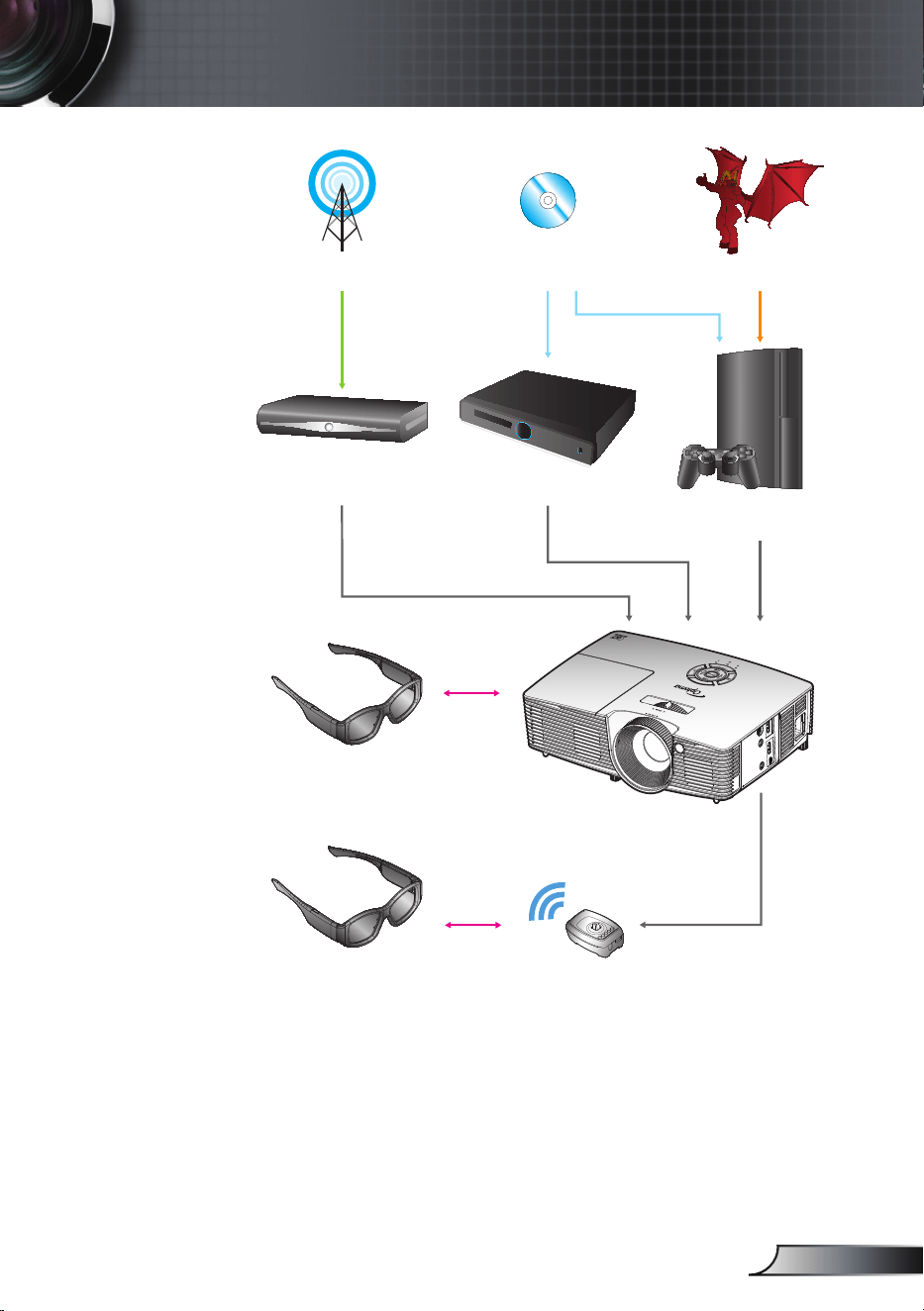

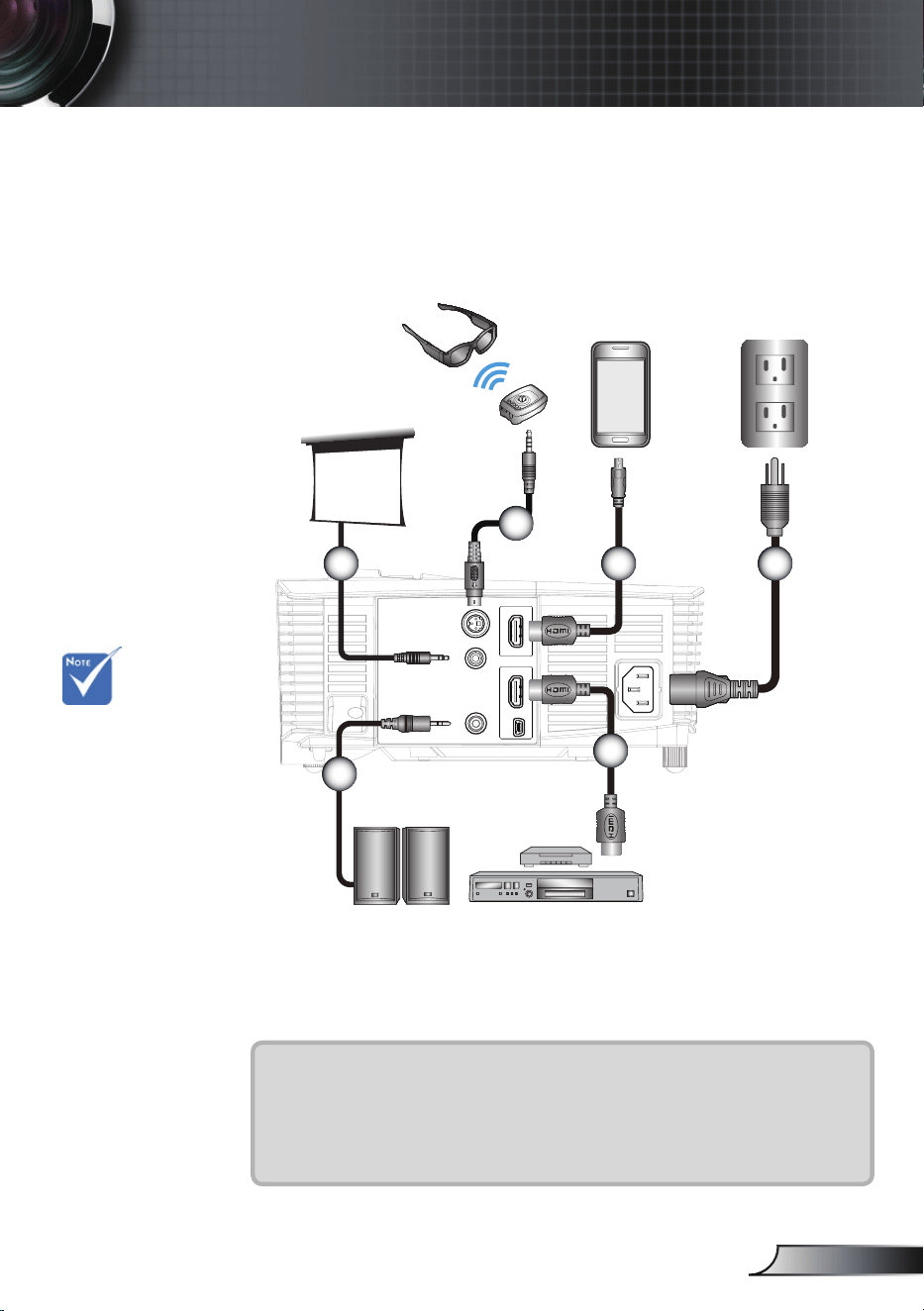

Connect to 3D Video Devices ...........14
Using the 3D glasses ........................16
Powering On/Off the Projector ..........17

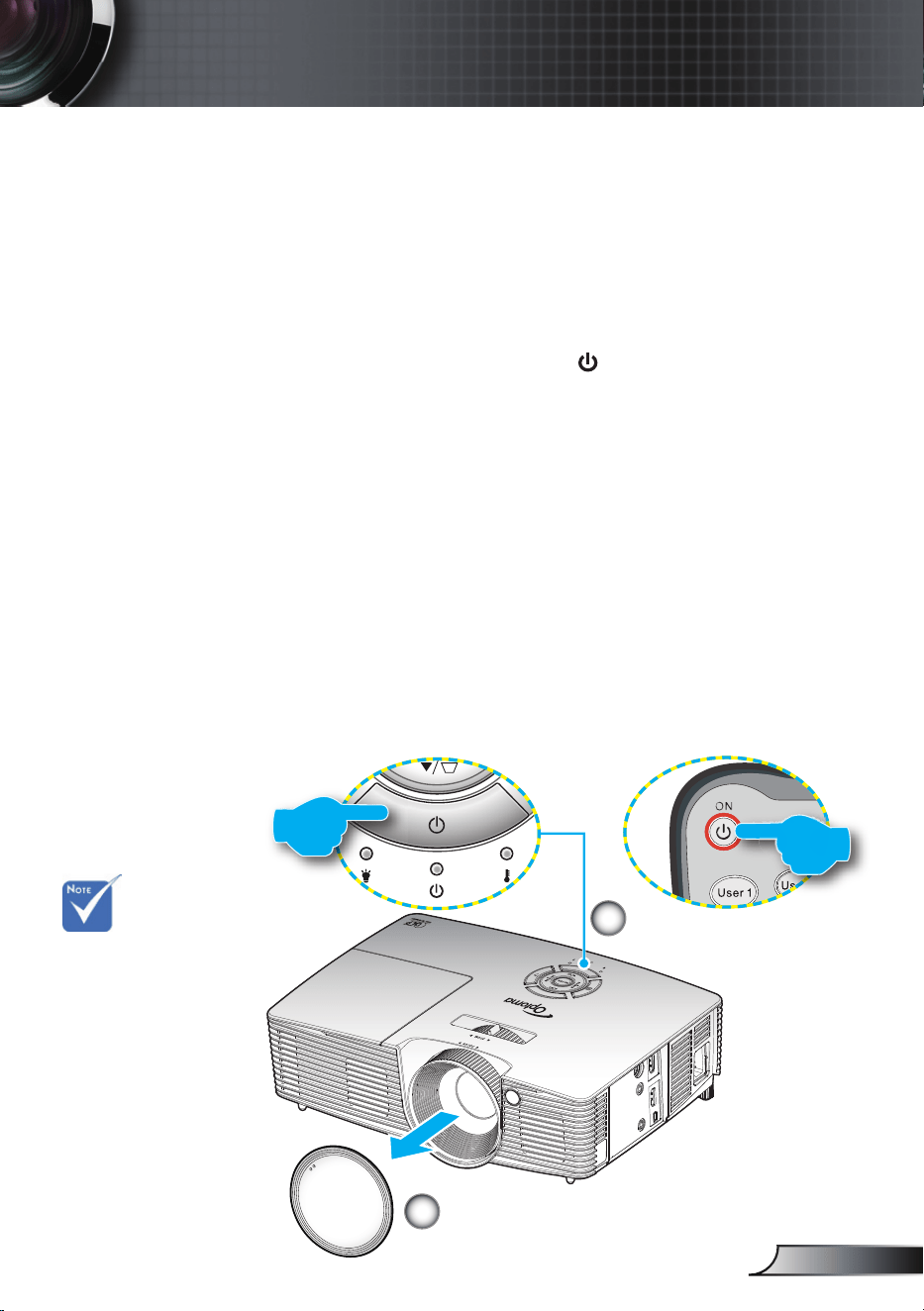

Powering On the Projector ................. 17
Powering Off the Projector ................. 18
Warning Indicator ............................... 19
.......................................................... 19

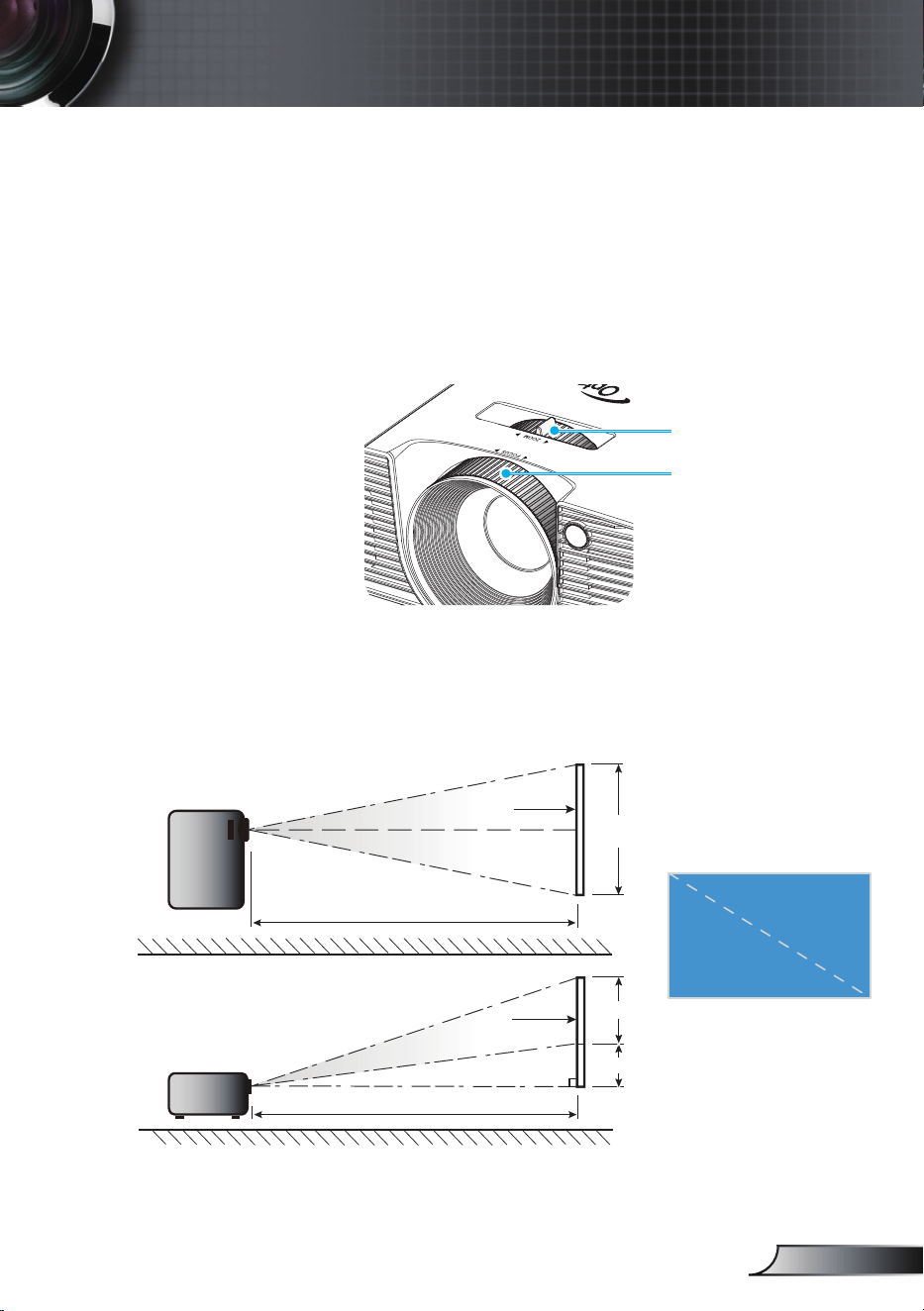

Adjusting the Projected Image ..........20

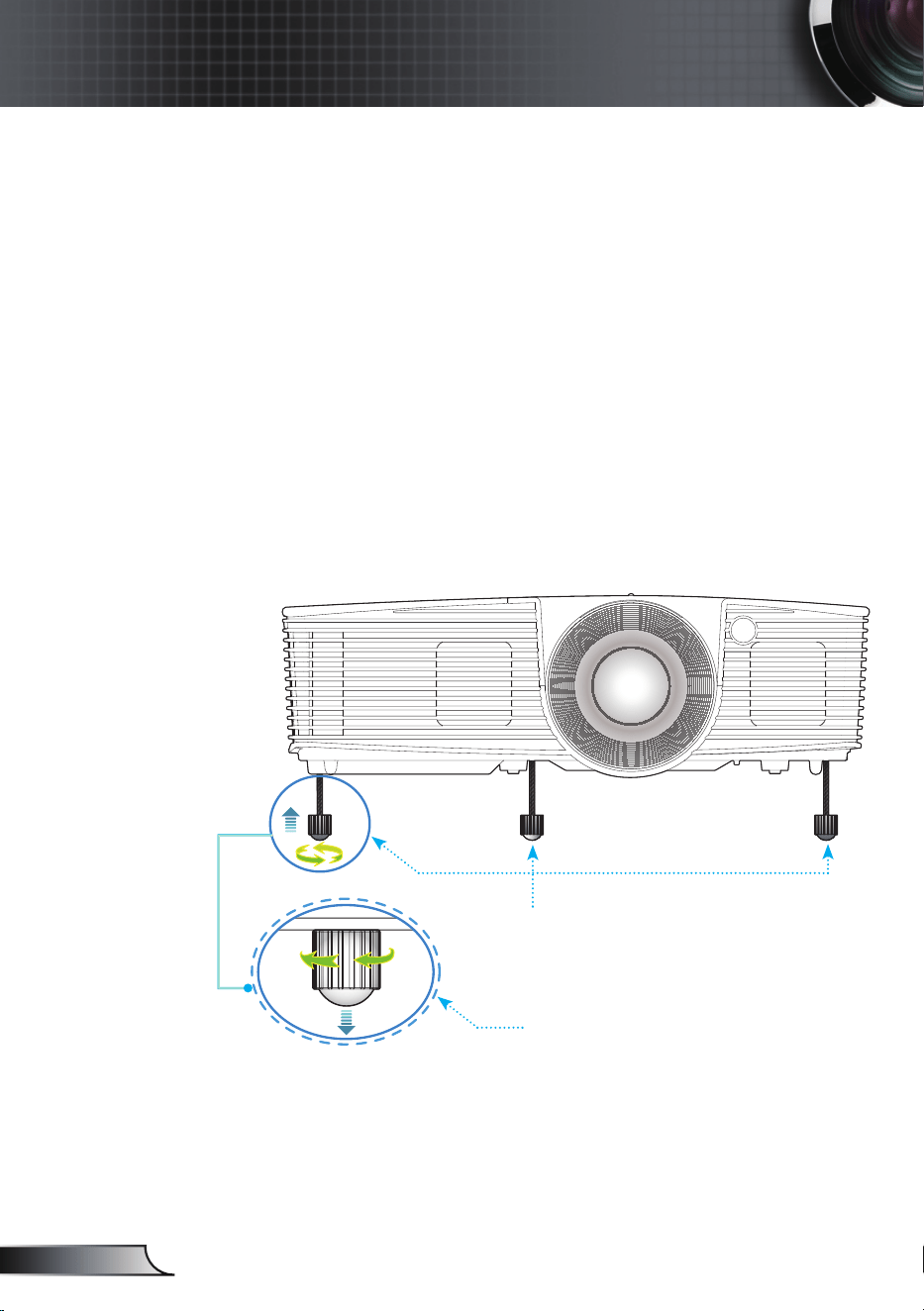

Adjusting the Projector’s Height ........ 20
Adjusting the Projector’s Zoom / Focus 21
Adjusting Projection Image Size ........ 21
User.Controls.................................23
Keypad & Remote Control ................23

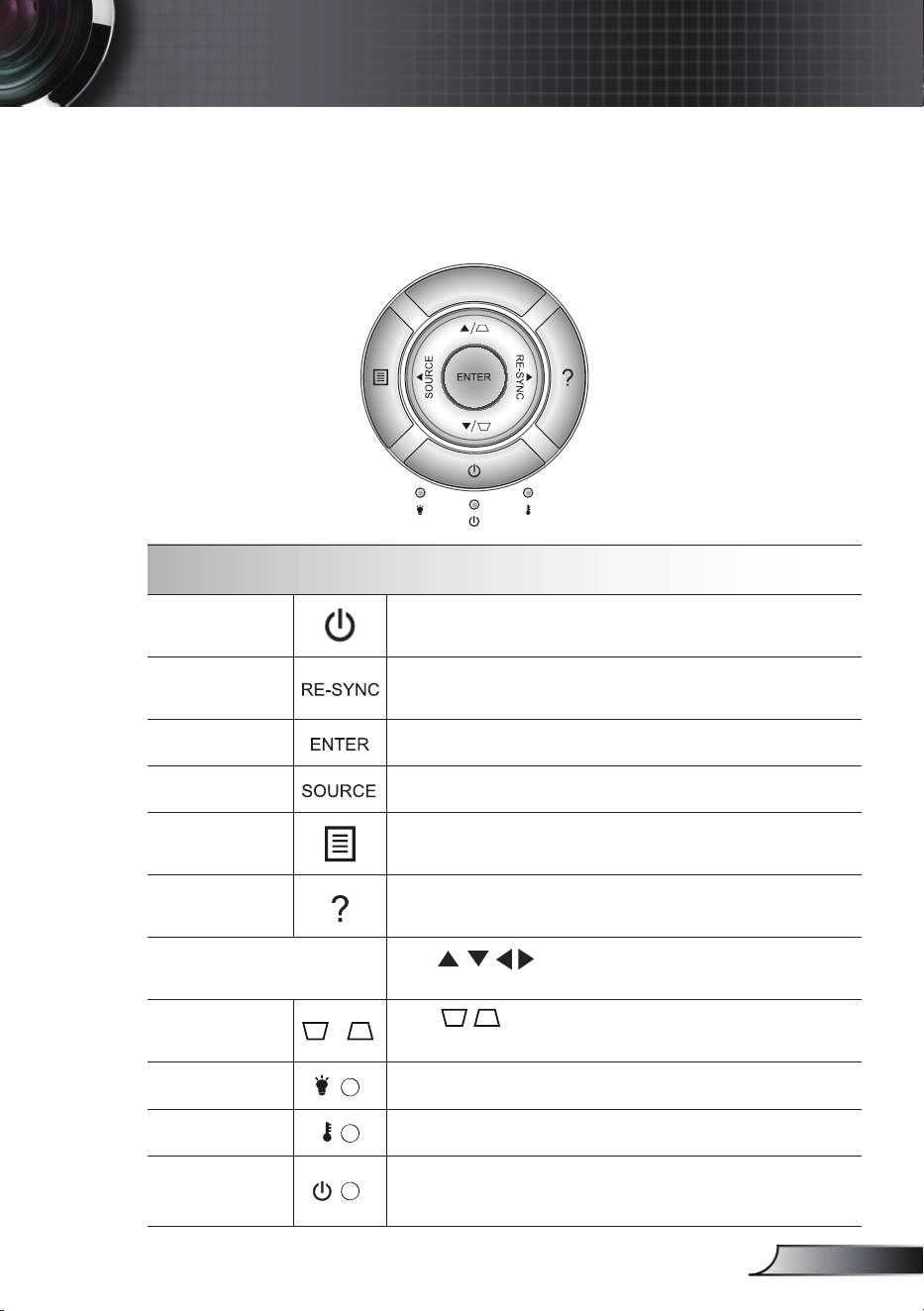

Keypad ............................................... 23

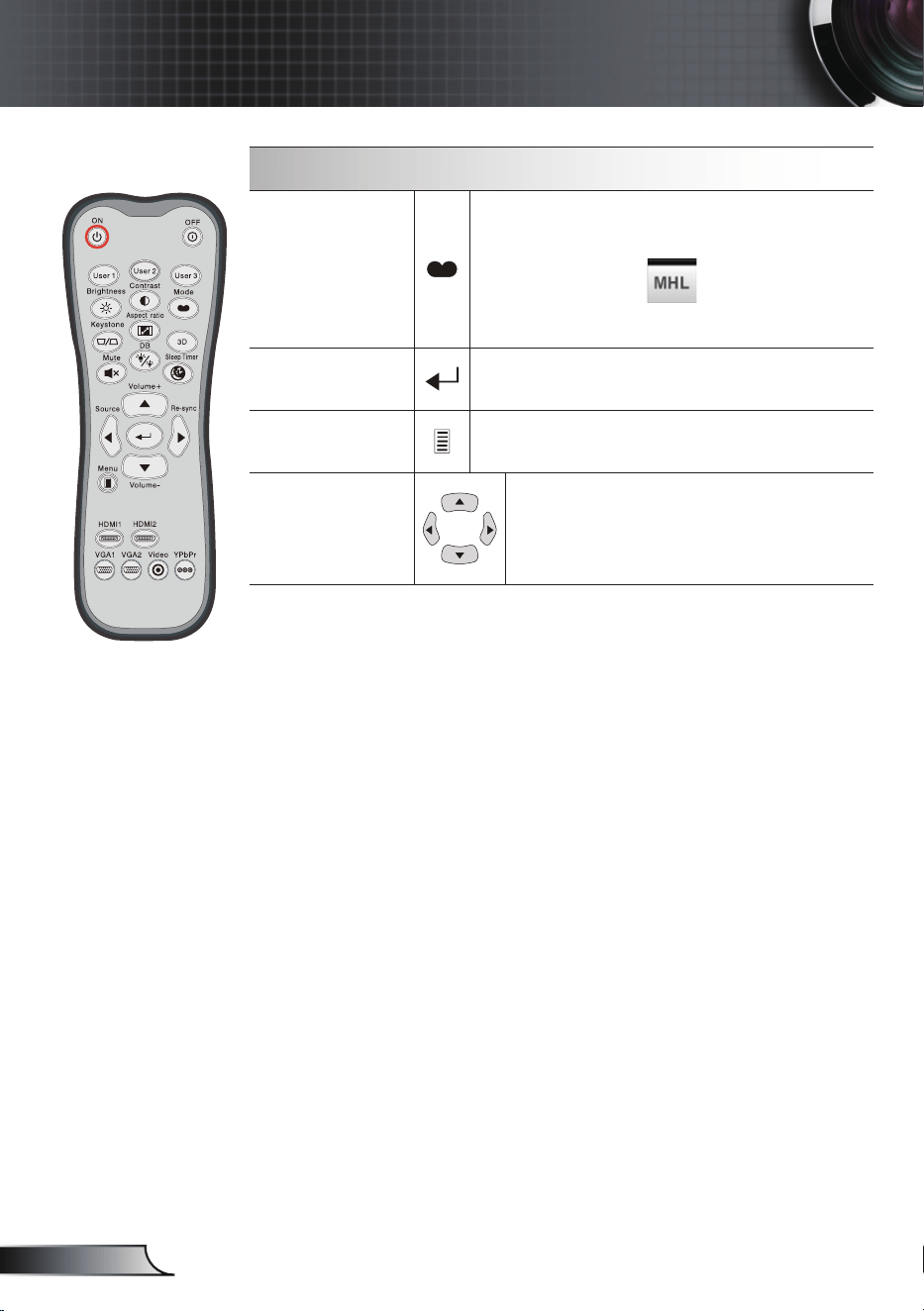

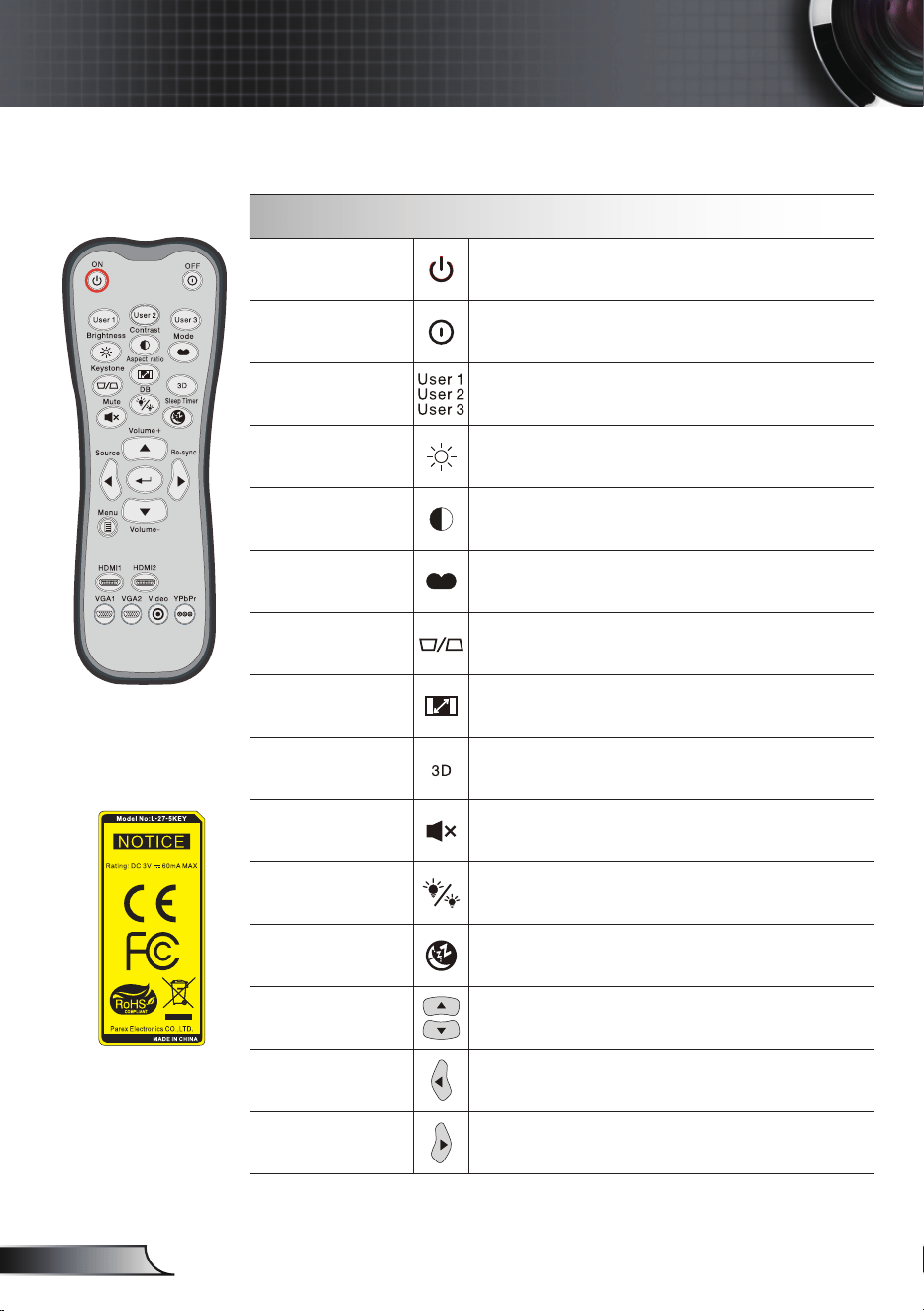

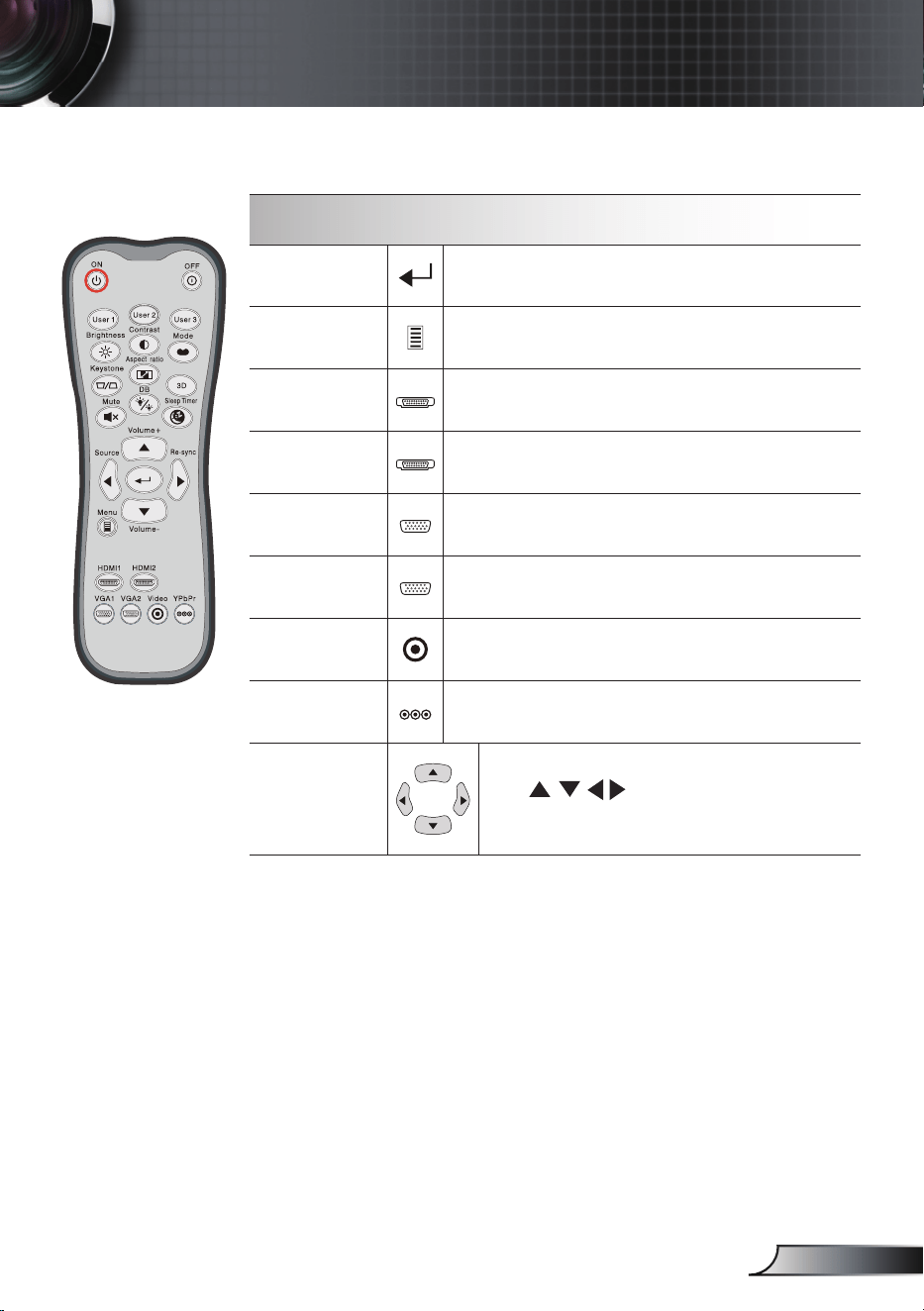

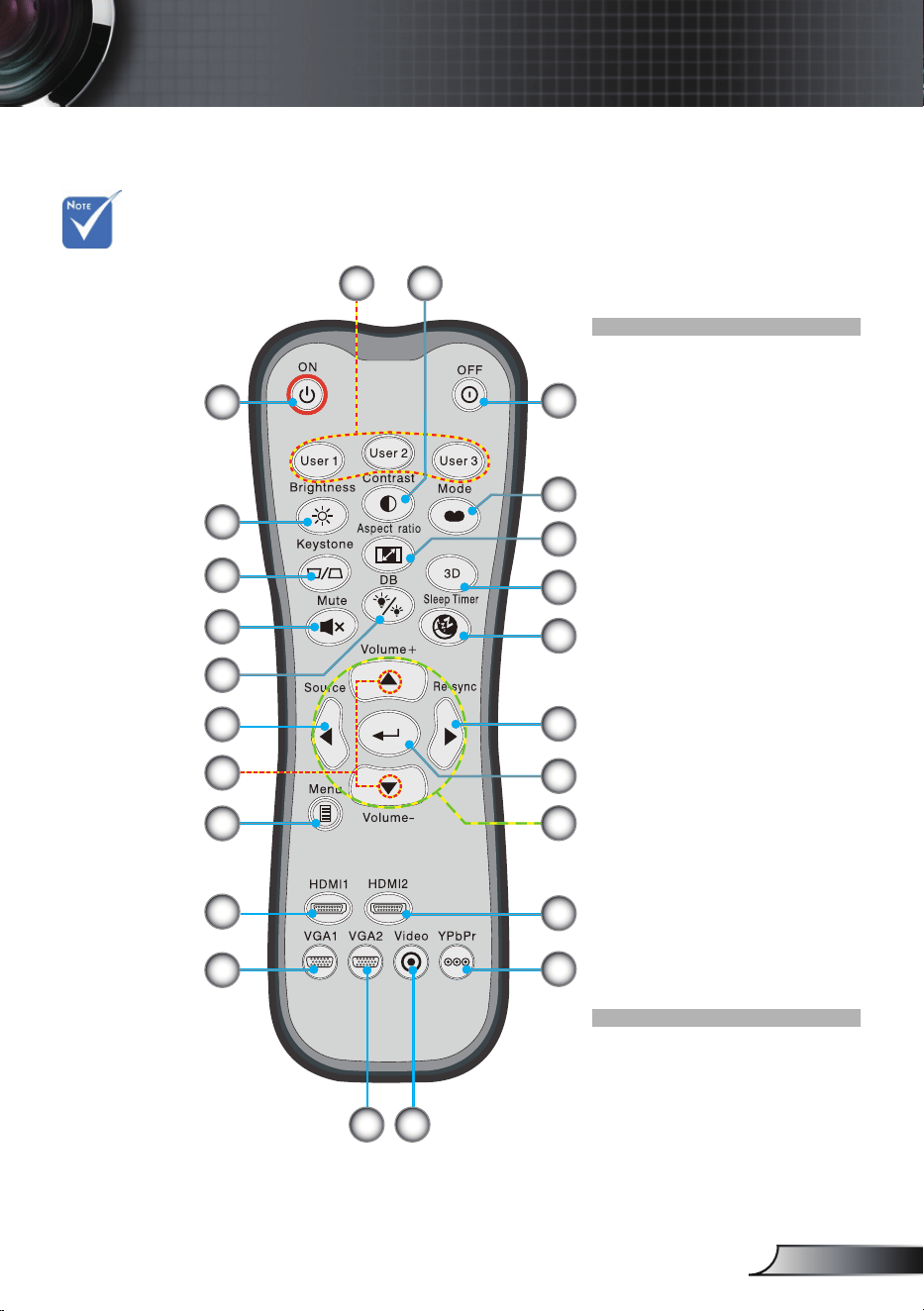

Remote Control .................................. 24
On-screen Display Menus ................31
How to operate .................................. 31
Menu Tree .......................................... 32

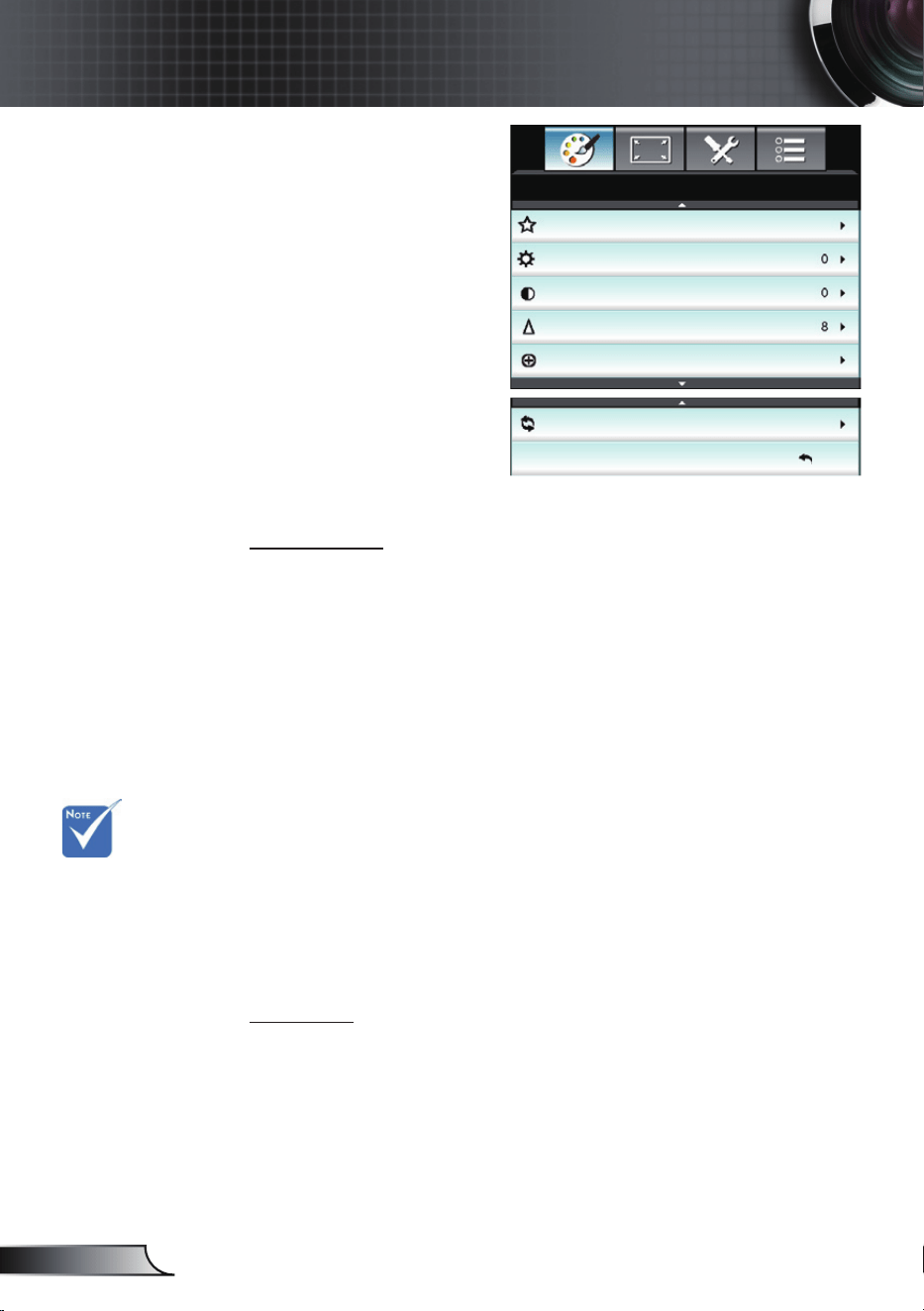

IMAGE ............................................... 34

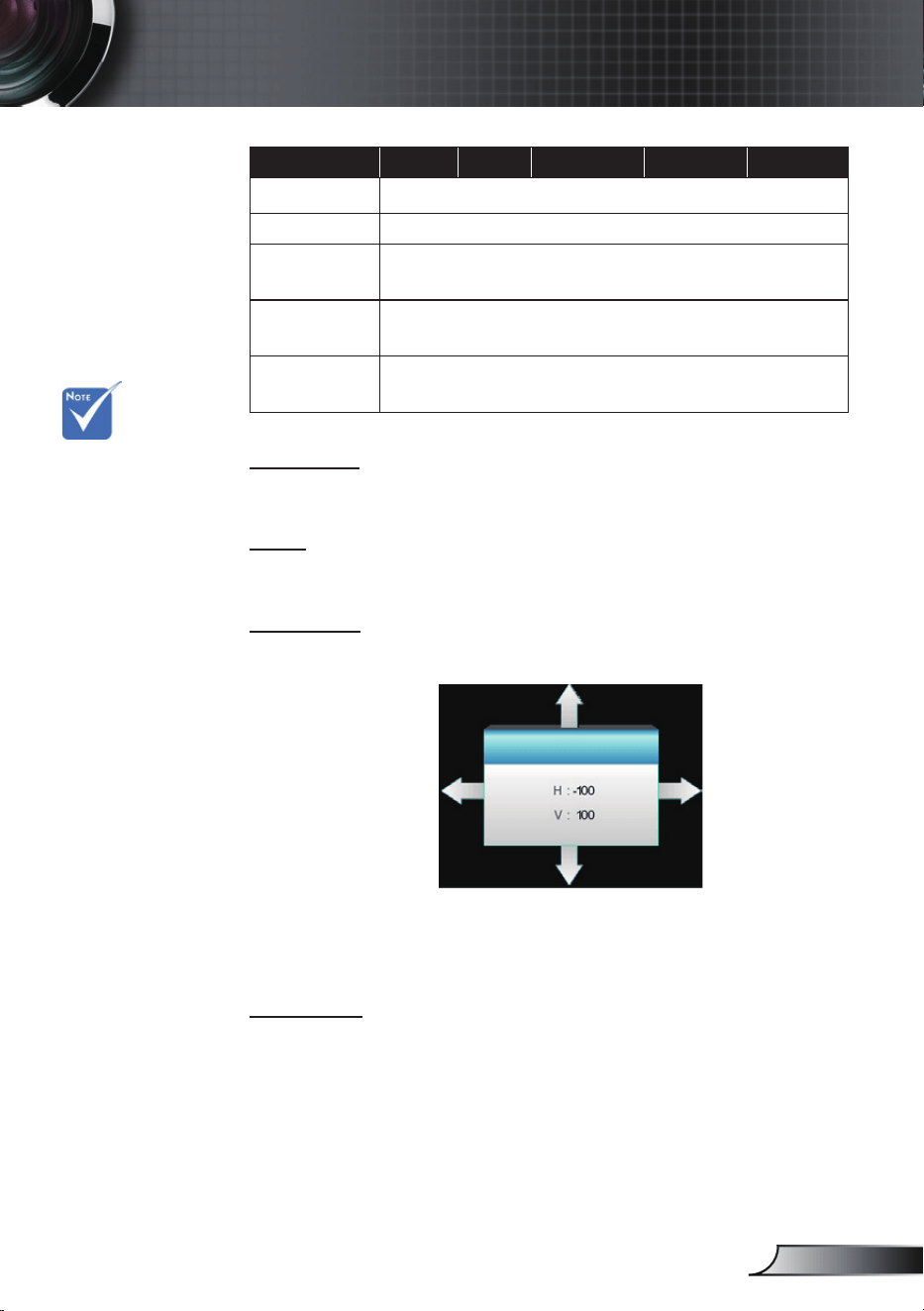

IMAGE | Advanced ............................ 36
DISPLAY ............................................ 38
DISPLAY | 3D ................................... 40
SETUP ............................................... 41
Table of Contents
2
English
Usage Notice
The lightning ash with arrow head within an equilateral triangle is
intended.to.alert.the.user.to.the.presence.of.uninsulated.“dangerous.volt
-
age” within the product’s enclosure that may be of sufcient magnitude to
constitute.a.risk.of.electric.shock.to.persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (servic-
ing) instructions in the literature accompanying the appliance.
WARNING: TO.REDUCE.THE.RISK.OF.FIRE.OR.ELECTRIC.SHOCK,.DO.NOT.
EXPOSE.THIS.APPLIANCE.TO.RAIN.OR.MOISTURE..DANGEROUS.HIGH.
VOLTAGES.ARE.PRESENT.INSIDE.THE.ENCLOSURE..DO.NOT.OPEN.THE.
CABINET..REFER.SERVICING.TO.QUALIFIED.PERSONNEL.ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Inter-
ference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of the
projector and to protect from over heating, it is recommended to install the
projector in a location that does not block ventilation. As an example, do
not place the projector on a crowded coffee table, sofa, bed, etc. Do not
put.the.projector.in.an.enclosure.such.as.a.book.case.or.a.cabinet.that.
restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk of re
and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any
other apparatus such as ampliers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specied by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical
damage/abuse would be (but not limited to):
Unit.has.been.dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch danger-
ous voltage points and short out parts that could result in re or electric
shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
-
-
-
-
-
Safety Information
3
English
Usage Notice
Please follow all warnings, precautions and mainte-
nance as recommended in this user’s guide.

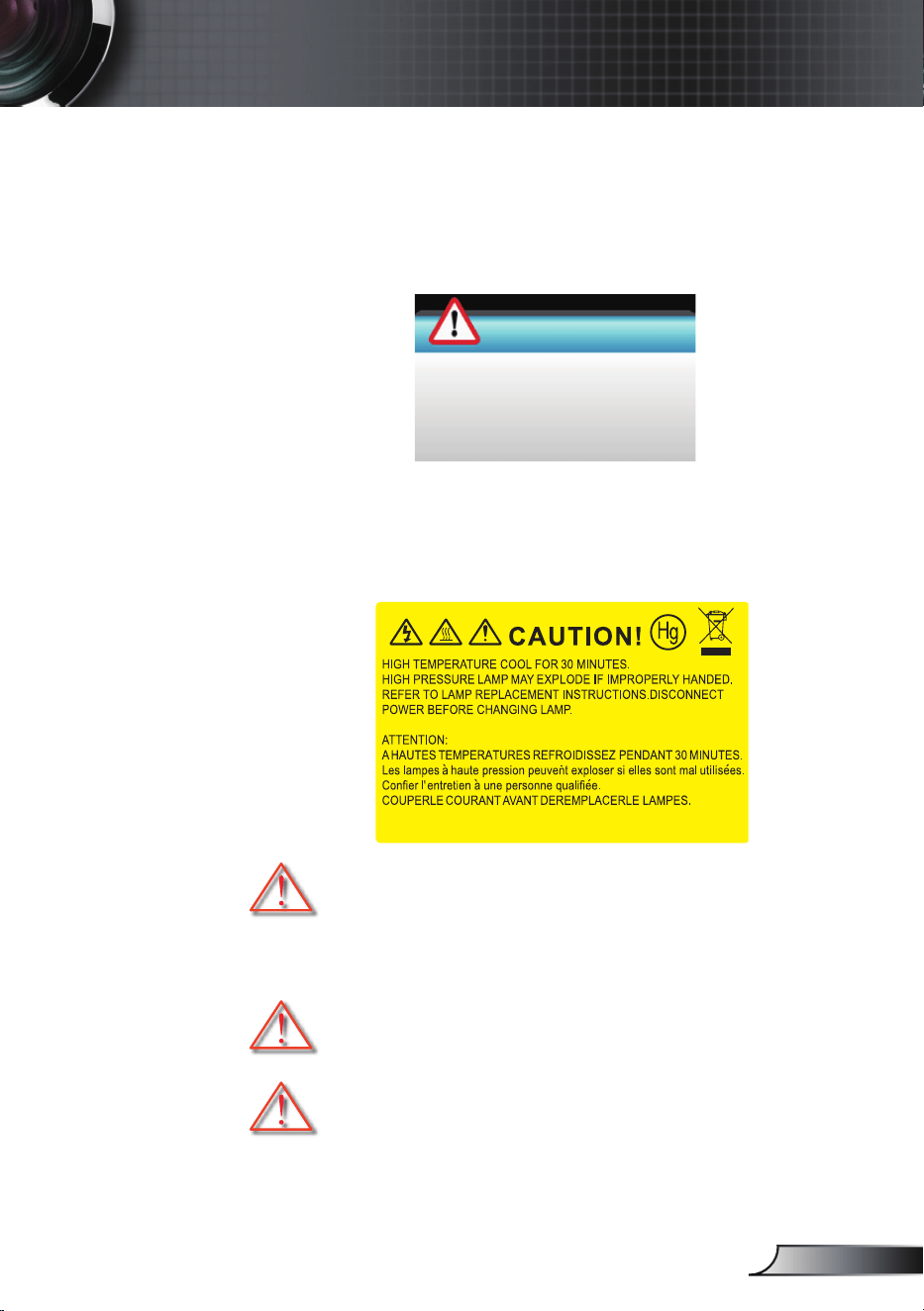

When the lamp
reaches.the.end.
of.its.life,.the.
projector will not
turn.back.on.until.
the lamp module
has.been.replaced..
To.replace.the.
lamp, follow the
procedures.listed.

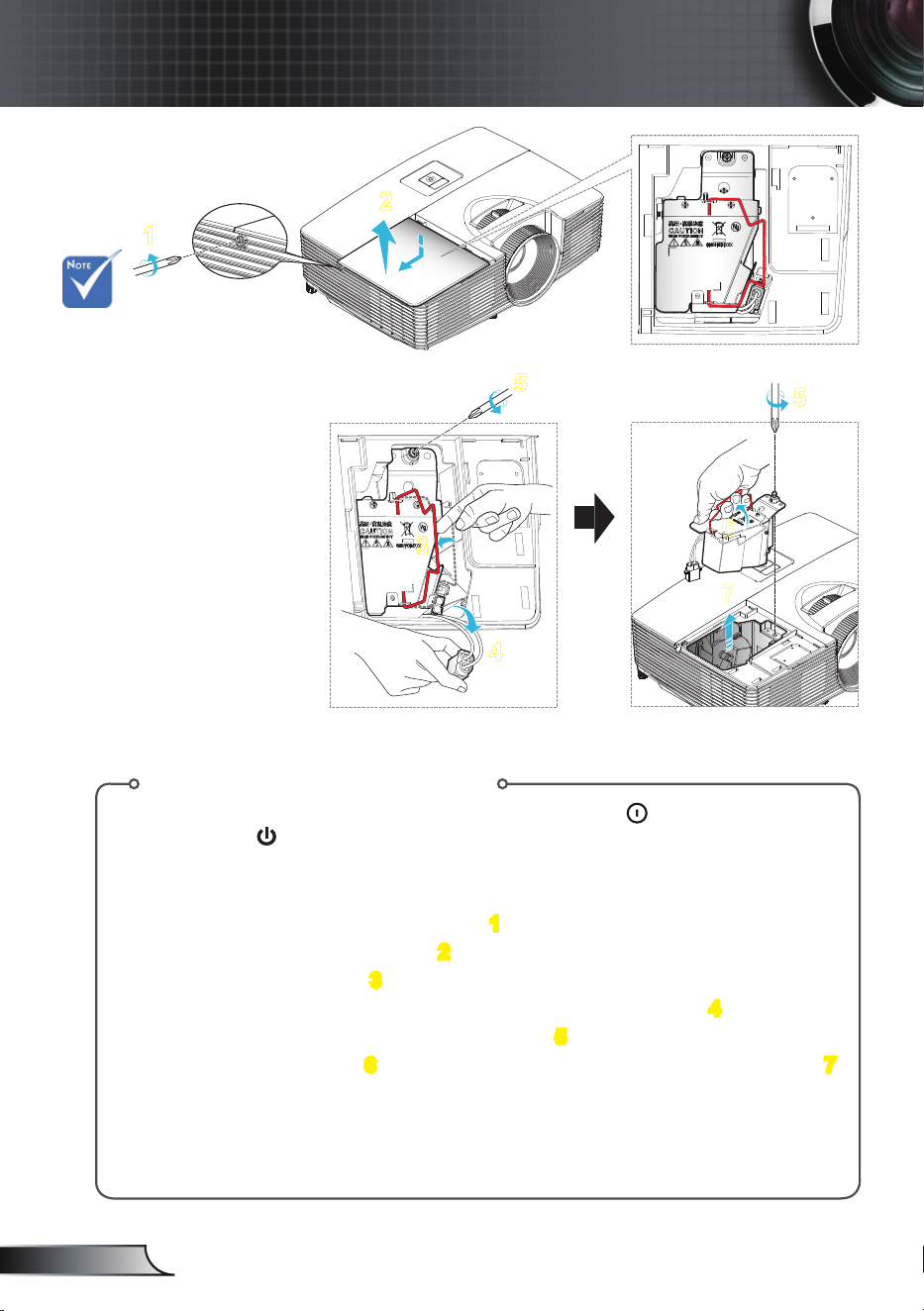

under.“Replacing.
the Lamp” section
on.pages.59-60..
▀■.Warning-
Do not look into the projector’s lens when the
lamp is on. The bright light may hurt your eyes.
▀■.Warning-
To reduce the risk of re or electric shock, do
not expose this projector to rain or moisture.
▀■.Warning-
Please do not open or disassemble the projec-
tor as this may cause electric shock.
▀■.Warning-
When replacing the lamp, please allow the unit
to cool down. Follow instructions as described
on.pages.59-60.
▀■.Warning-
This projector will detect the life of the lamp
itself. Please be sure to change the lamp when
it shows warning messages.
▀■.Warning-
Reset the “Lamp Reset” function from the on-
screen display “Options|Lamp Settings” menu
after replacing the lamp module (refer to page
49).
▀■.Warning-
When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■.Warning-
Do not use lens cap when projector is in opera-
tion.
▀■.Warning-
When the lamp is approaching to the end of its
life time, the message “Lamp life exceeded.”
will show on the screen. Please contact your
local.reseller.or.service.center.to.change.the.
lamp as soon as possible.
Precautions
4
English
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning.the.product.
Use a soft dry cloth with mild detergent to clean the display hous-
ing.
Disconnect the power plug from AC outlet if the product is not be-
ing used for a long period of time.
Do not:
Block.the.slots.and.openings.on.the.unit.provided.for.ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within 5°C ~
40°C
Relative humidity is 10% ~ 85%
In.areas.susceptible.to.excessive.dust.and.dirt.
Near any appliance generating a strong magnetic eld.
In.direct.sunlight.
Viewing 3D projection using the 3D function
IMPORTANT SAFETY INFORMATION. READ THE FOLLOWING WARN-
INGS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.
Warning
Children and teenagers may be more susceptible to health issues
associated with viewing in 3D and should be closely supervised
when viewing these images.
Photosensitive Seizure Warning and Other Health Risks
Some viewers may experience an epileptic seizure or stroke when
exposed to certain ashing images or lights contained in certain
Projector pictures or video games. If you suffer from, or have a
family history of epilepsy or strokes, please consult with a medical
specialist.before.using.the.3D.function.
Even those without a personal or family history of epilepsy or
stroke may have an undiagnosed condition that can cause photo-
sensitive epileptic seizures.
-
-
-
-
5
English
Usage Notice
Pregnant women, the elderly, sufferers of serious medical condi-
tions, those who are sleep deprived or under the inuence of
alcohol should avoid utilizing the unit’s 3D functionality.
If you experience any of the following symptoms, stop viewing 3D
pictures immediately and consult a medical specialist: (1) altered
vision; (2) light-headedness; (3) dizziness; (4) involuntary move-
ments such as eye or muscle twitching; (5) confusion; (6) nausea;
(7) loss of awareness; (8) convulsions; (9) cramps; and/ or (10)
disorientation. Children and teenagers may be more likely than
adults to experience these symptoms. Parents should monitor
their children and ask whether they are experiencing these symp-
toms.
Watching 3D projection may also cause motion sickness, percep-
tual after effects, disorientation, eye strain and decreased postural
stability. It is recommended that users take frequent breaks to
lessen the potential of these effects. If your eyes show signs of
fatigue or dryness or if you have any of the above symptoms, im-
mediately discontinue use of this device and do not resume using
it for at least thirty minutes after the symptoms have subsided.
Watching 3D projection while sitting too close to the screen for
an extended period of time may damage your eyesight. The
ideal viewing distance should be at least three times the screen
height. It is recommended that the viewer’s eyes are level with the
screen.
Watching 3D projection while wearing 3D glasses for an extended
period of time may cause a headache or fatigue. If you experience
a headache, fatigue or dizziness, stop viewing the 3D projection
and.rest.
Do not use the 3D glasses for any other purpose than for watch-
ing 3D projection. Wearing the 3D glasses for any other purpose
(as general spectacles, sunglasses, protective goggles, etc.) may
be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some view-
ers. Accordingly, DO NOT place your 3D PROJECTOR near open
stairwells, cables, balconies, or other objects that can be tripped
over, run into, knocked down, broken or fallen over.
6
English
Usage Notice

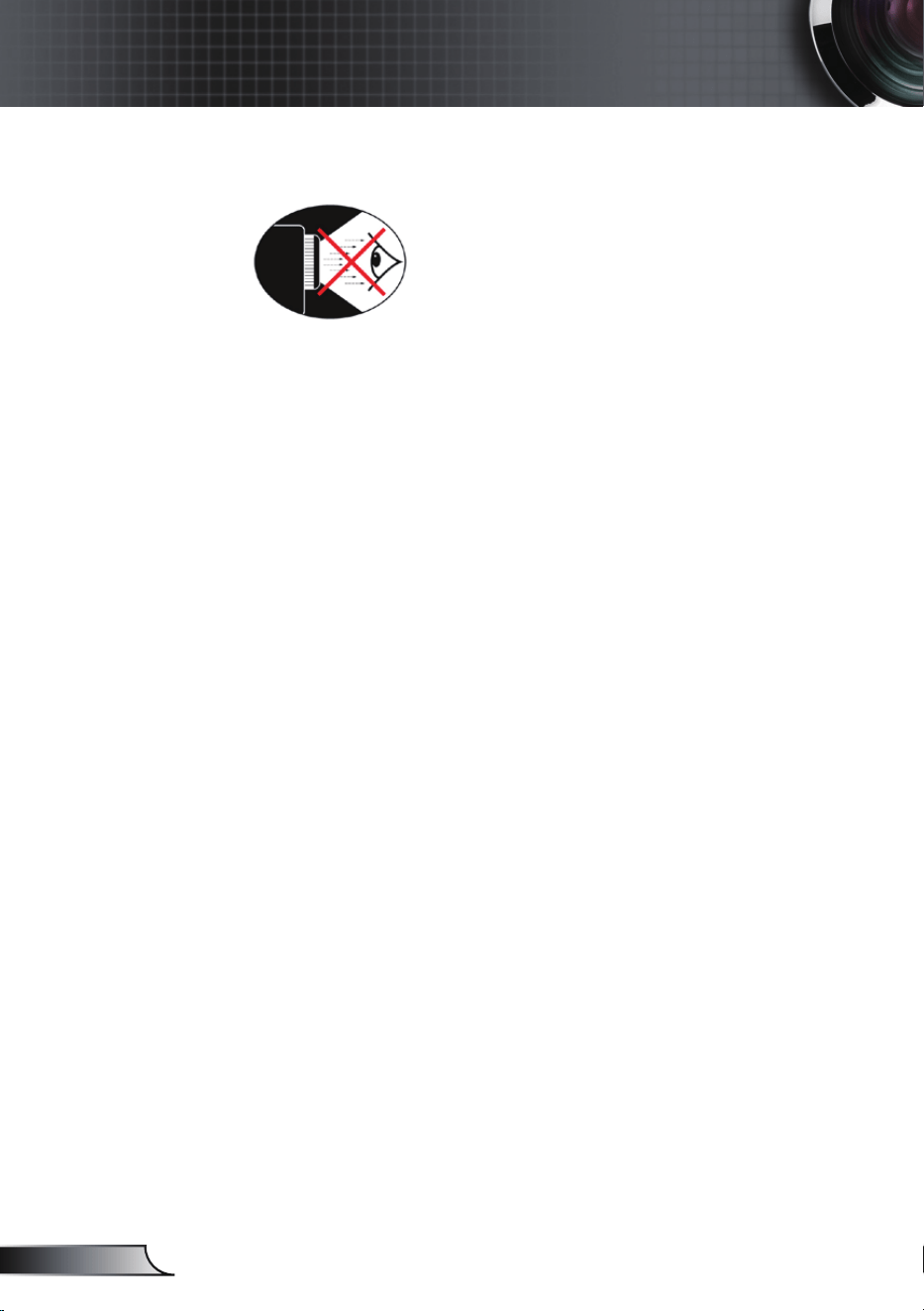

▀■. Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■. When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■. In order to minimize the lamp power, use room blinds to re-
duce ambient light levels.
Eye Safety Warnings
7
English
Introduction
Optional.
accessories vary
depending.on.
model, speci ca-
tion.and.region.
Unpack and inspect the box contents to ensure all parts listed
below are in the box. If something is missing, please contact
Optoma customer service.
Package Overview
Standard Accessories
CD.User.Manual
Warranty Card
Quick.Start.Card
WEEE.Card.
.
(for EMEA only)
Projector Power Lead Documentation
Remote .2.×.AAA.Batteries
Optional Accessories
Carry Bag Lens.Cap Lens.Cap
HDMI.Cable MHL.Cable
8
English
Introduction
Product Overview
Main.Unit
Do.not.block.
projector.in/out.air.
vents.
(*) Optional.
accessory..
.Lens
IR.Receiver
Keypad
Input./.Output.
Connections
Power Socket
Tilt-Adjustment Feet
Lens.Cap.(
*
)
1.
2.
3.
4.
5.
6.
7.
Speaker
Zoom Lever
Focus.Ring
Lamp Cover
Ventilation (inlet)
Ventilation (outlet)
Kensington
TM
.Lock.Port.
8.
9.
10.
11.
12.
13.
14.
8
6
7
1 32 54
109 11
13
12
6
14
9
English
Introduction
.Keypad
11
1 3
10
5
Source
Enter
Keystone Correction
Re-Sync
Menu
Help
Lamp LED
On/Standby LED
Power
Temp LED
Four Directional Select Keys
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
6
7
2 4
8 9
10
English
Introduction
Input/Output Connections
AUDIO-OUT
12V OUT
Out (5V)
3D SYNC
HDMI 1/ MHL
HDMI 2
USB

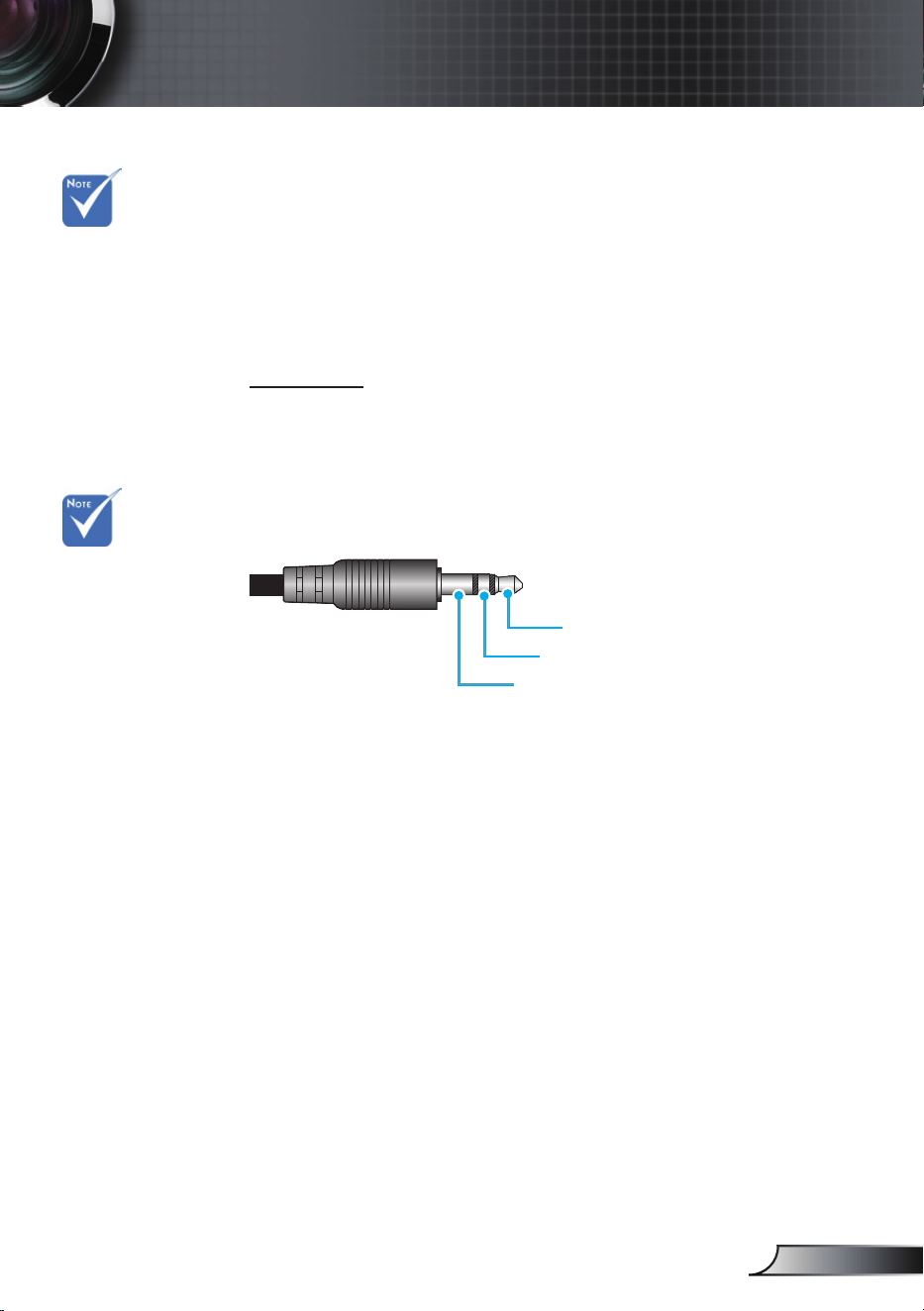

12V Trigger Relay (12V, 250mA, 3.5mm mini jack)
3D Sync Out (5V) connector
HDMI.1/.MHL.connector
Security Bar
Audio Out connector (3.5mm mini jack)
HDMI.2.connector
USB-B mini connector (Firmware upgrade)
Power Socket
1.
2.
3.
4.
5.
6.
7.
8.
2 31
4 7 86
5
Remote mouse
requires special
remote.
11
English
Introduction
Remote Control
Power On
Power Off
User.1/User.2/User.3
Contrast
Brightness
Display mode
Aspect.ratio
Keystone
3D
Mute
Sleep timer
Dynamic black
Source
Re-sync
Volume+/-
Enter
Menu
Four.directional.select.
keys
HDMI1
HDMI2
VGA1
YPbPr
VGA2
Video
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
2
6
9
11
20
22
19
10
8
5
21
23
14
13
17
12
16
18
24
3
15
7
4
1
Some keys may
have.no.function.
for models which
do.not.support.
these.features.
12
English
Installation
AUDIO-OUT
12V OUT
Out (5V)
3D SYNC
HDMI 1/ MHL
HDMI 2
USB
MOLEX
5
1
2
Audio.output
3D.glasses
3
4
6
Connecting a Computer/Notebook
Connecting to the Projector
Due.to.the.
difference.in.
applications.for.
each country,
some regions may
have.different.
accessories.
(*) Optional.
accessory.
1.................................................................................................*12V DC plug
2........................................................................................... *3D emitter cable
3...................................................................................................*HDMI cable
4.....................................................................................................Power cord
5............................................................................................ *Audio out cable
6.................................................................................................... *USB cable
13
English
Installation
Connecting a Video source
Due.to.the.
difference.in.
applications.for.
each country,
some regions may
have.different.
accessories.
(*) Optional.
accessory.
AUDIO-OUT
12V OUT
Out (5V)
3D SYNC
HDMI 1/ MHL
HDMI 2
USB
MHL
5
1
2
Audio.output
3D.glasses
3
4
6
DVD player,
Set-top.box,.
HDTV.receiver
1.................................................................................................*12V DC plug
2........................................................................................... *3D emitter cable
3.................................................................. *MHL cable (MicroUSB to HDMI)
4.....................................................................................................Power cord
5............................................................................................ *Audio out cable
6...................................................................................................*HDMI cable
DVD player, Blu-ray player, Set-top box,
HDTV receiver, Games console
14
English
Installation
Connect to 3D Video Devices
The.3D.video.
source.device.
must be
powered on
before.the.3D.
projector.
If.input.video.
is normal 2D,
please.press.
“3D Format”
and switch to
“Auto”.
If.“SBS.Mode”.
is.active,.2D.
video.content.
will not display
correctly.
Once you have connected your devices together with HDMI
cables, as shown in the diagram, you are ready to begin.
Power ON your 3D video source and your 3D projector.
PlayStation
®
3 Games
Make sure that you have updated your console to the latest soft-
ware version.
Go to the “Settings menu -> Display settings -> Video output ->
HDMI”. Select “Automatic” and follow the on-screen instructions.
Insert your 3D game disc. Alternatively you can download games
(and 3D updates) via the PlayStation
®
network.
Launch the game. In the in-game menu, select “Play in 3D”.
Blu-ray 3D™ Player
Make sure that your player can support 3D Blu-ray™ disc and that
3D.output.is.enabled.
Insert the 3D Blu-ray™ disc into the player, press “Play”.
3D TV (e.g. SKY 3D, DirecTV)
Contact your TV service provider to enable any 3D channels on
your channel package.
Once enabled, switch to the 3D channel.
You should see two images side-by-side.
Switch to the “SBS Mode” of the 3D projector. The option is lo-
cated in the “Display” section of the projector OSD menu.
3D Device (e.g. 3D DV/DC) with 2D 1080i side by side signal
output
Connect your 3D device and switch to out 3D content with 2D
side-by-side output to 3D Projector.
You should see two images side-by-side.
Switch to the “SBS Mode” of the 3D projector. The option is lo-
cated in the “Display” section of the projector OSD menu.
If watching 3D content from an HDMI 1.4a source (e.g. 3D Blu-ray)
your 3D glasses should always be in sync. If watching 3D content
from an HDMI 1.3 source (e.g. 3D broadcast using SBS mode) it may
be necessary to use the projector’s 3D Sync-Invert option to optimize
your 3D experience. The option is located in the “Display ->3D” sec-
tion of the projector OSD menu.
-
15
English
Installation
3D.Broadcast 3D Blu-ray™ Disc 3D Console Games
SKY+HD, cable/satellite
box
3D Blu-ray™ Player
PlayStation
®
.3
3D.DLP
®
Link™ Glasses
Full.3D.1080p.DLP
®
.Projector
3D.RF.Glasses 3D Emitter
16
English
Installation
To.turn.ON.3D.glasses.
Verify that 3D content is being sent to the projector and
signal is compatible with projector specications.
Turn on the “3D Mode” (Off/DLP-Link/VESA 3D - depend-
ing on which type of glasses you are using) of the 3D
projector. The option is located in the “Display” section of
the projector OSD menu.
Turn on 3D glasses and verify image appears in 3D with-
out eyestrain.
If the image does not appear in 3D, please check 3D
device set up correctly to send out 3D image or not. Or
“SBS Mode” should turn on when input signal is 2D 1080i
side-by-side and repeat previous steps 1 ~ 4.
It may be necessary to use projector’s “3D Sync-Invert”
option to optimize your 3D experience. The option is
located in the “Display” section of the projector OSD menu.
To turn OFF 3D glasses: Press the “Power” button and
hold until the LED switches off.
For more detailed information, please refer to the 3D
glasses user’s guide, or manufacturer's Website.
1.
2.
3.
4.
5.
6.
7.
8.
Using the 3D glasses
For more de-
tailed informa-
tion,.please.
refer.to.3D.
glasses user’s
guide.
17
English
Installation
Powering On/Off the Projector
Turn.on.the.
projector rst and
then.select.the.
signal.sources.
(*) Optional
accessory
Powering On the Projector
1. Remove the.lens.cap..
2.. Securely connect the power cord and signal cable. When
connected, the On/Standby LED will turn Amber..
3. Turn on the lamp by pressing “ ”.button.either.on.the.top.of.
the projector or on the remote. The On/Standby LED will now
turn.Green..
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.
4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make.sure.that.the.“Source.Lock”.has.been.set.to.“Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the Keypad or direct source keys on
the remote control to switch between inputs.
.Lens.Cap.
(
*
)
.
1
Power
2
or
18
English
Installation
Powering Off the Projector
1...Press.the.“ ” button on the remote control or “ ”.on.the.
Keypad to turn off the projector. The following message
will be displayed on the screen.
Power Off?
Press Power again
.. Press.the.“ ” button again to conrm otherwise the
message will disappear after 15 seconds. When you
press.the.“ ” button for the second time, the projector will
display countdown timer and will shut down.
2.. The.cooling.fans.continue.to.operate.for.about.10.seconds.
for cooling cycle and the On/Standby LED will Flash.
Green..When.the.On/Standby LED lights solid Amber, the
projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply
press.“ ”.button.to.restart.the.projector.
3. Disconnect the power cord from the electrical outlet and
the.projector.
4. Do not turn on the projector immediately following a power
off.procedure.
19
English
Installation
Contact.the.
nearest.service.
center.if.the.
projector displays
these symptoms.
See.pages.
65-66 for more
information.
Warning Indicator
When the warning indicators (see below) come on,
the projector will automatically shutdown:
.
“LAMP” LED indicator is lit red and if “On/Standby” indicator
ashes amber.
“TEMP” LED indicator is lit red and if “On/Standby”
indicator ashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be
switched back on.
“TEMP” LED indicator ashes red and if “On/Standby” .
indicator ashes amber.
.
.Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please
contact your nearest service center for assistance.
20
English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting
the image height.
1. Locate the adjustable foot you wish to modify on the
underside.of.the.projector..
2. Rotate the adjustable ring clockwise to raise the projector
or counter clockwise to lower it. Repeat with the remaining
feet.as.needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
21
English
Installation
Adjusting the Projector’s Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the im-
age, rotate the focus ring until the image is clear.
.
Standard throw series: The projector will focus at distances
from 3.53 to 33.00 feet (1.08 to 10.06 meters).
.
Short throw series: The projector will focus at distances from
1.09 to 11.13 feet (0.33 to 3.39 meters).
Adjusting Projection Image Size
.
Projection Image Size from 30.0” to 307.0” (0.76 to 7.80
meters).
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
Focus.Ring
Zoom Lever
22
English
Installation
.This table is for user’s reference only.
Diagonal.length.
(inch) size of
16:9 Screen
Screen Size W x H Projection Distance (D)
Offset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
30.0 0.66. 0.37. 26.15 14.71. 0.98 1.08 3.22 3.53 0.06 2.35
40.0 0.89. 0.50. 34.86 19.61 1.31 1.43 4.30 4.71 0.08 3.14
60.0 1.33. 0.75.
52.29 29.42 1.97 2.15 6.45 7.06 0.12 4.71
70.0 1.55. 0.87. 61.01 34.32 2.29 2.51 7.52 8.24 0.14 5.49
80.0 1.77. 1.00. 69.73
39.22 2.62 2.87 8.60 9.41 0.16 6.28
90.0 1.99. 1.12. 78.44 44.12 2.95 3.23 9.67 10.59 0.18 7.06
100.0 2.21. 1.25. 87.16
49.03 3.28 3.59 10.75 11.77 0.20 7.84
120.0 2.66. 1.49. 104.59 58.83
3.93 4.30 12.90 14.12 0.24 9.41
150.0 3.32. 1.87. 130.74
73.54 4.91 5.38 16.12 17.65 0.30 11.77
180.0 3.98. 2.24. 156.88 88.25
5.90 6.46 19.36 21.18 0.36 14.12
250.0 5.53. 3.11. 217.89 122.57 8.19 8.97 26.87 29.42 0.50 19.61
300.0 6.64 3.74 261.47 147.08 9.83 10.76 32.25 35.30 0.60 23.53
307.0 6.80. 3.82. 267.57 150.51 10.06 11.01 33.00 36.12 0.61 24.08
Standard throw
.This table is for user’s reference only.
Diagonal.length.
(inch) size of
16:9 Screen
Screen Size W x H Projection Distance (D)
Offset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
30.0 0.66. 0.37. 26.15 14.71. 0.33 0.33 1.09 1.09 0.06 2.35
40.0 0.89. 0.50. 34.86 19.61 0.44 0.44 1.45 1.45 0.08 3.14
60.0 1.33. 0.75.
52.29 29.42 0.66 0.66 2.17 2.17 0.12 4.71
70.0 1.55. 0.87. 61.01 34.32 0.77 0.77 2.54 2.54 0.14 5.49
80.0 1.77. 1.00. 69.73
39.22 0.88 0.88 2.90 2.90 0.16 6.28
90.0 1.99. 1.12. 78.44 44.12 0.99 0.99 3.26 3.26 0.18 7.06
100.0 2.21. 1.25. 87.16
49.03 1.10 1.10 3.62 3.62 0.20 7.84
120.0 2.66. 1.49. 104.59 58.83 1.33 1.33
4.35 4.35 0.24 9.41
150.0 3.32. 1.87. 130.74
73.54 1.66 1.66 5.44 5.44 0.30 11.77
180.0 3.98. 2.24. 156.88 88.25 1.99 1.99 6.52 6.52 0.36 14.12
250.0 5.53. 3.11. 217.89 122.57 2.76 2.76 9.06 9.06 0.50 19.61
300.0 6.64 3.74 261.47 147.08 3.31 3.31 10.87 10.87 0.60 23.53
307.0 6.80. 3.82. 267.57 150.51 3.39 3.39 11.13 11.13 0.61 24.08
Short throw
23
English
User Controls
Keypad
Keypad & Remote Control
Using the Keypad
POWER
Refer to the “Power On/Off the Projector” section on
pages.17-18.
RE-SYNC
Automatically synchronize the projector to the input
source.
ENTER
Con rm your item selection.
SOURCE
Press.“SOURCE”.to.select.an.input.signal.
Menu
Press “Menu” to launch the on-screen display
(OSD) menu. To exit OSD, Press “Menu”.again.
Help
Help Menu (only available when OSD menu is not
shown).
Four.Directional.
Select Keys
Use. . . . to select items or make adjust-
ments to your selection.
Keystone
./.
Use. . to adjust image distortion caused
by tilting the projector. (±40.degrees)
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
On/Standby.
LED
Indicate the projector’s status.
24
English
User Controls
Remote Control
Using the Remote Control
Power On
Turn.on.the.projector.
Power Off
Turn.off.the.projector.
User1/User2/
User3
User dened keys. Please see page 52 to
setup.
Brightness
Adjust the brightness of the image.
Contrast
Control the degree of difference between
the.lightest.and.darkest.parts.of.the.picture.
Mode
Select a display mode for optimised settings
for different applications. (refer to page.34)
Keystone
Adjust image distortion caused by tilting the
projector.
Aspect.ratio
Press to change aspect ratio of a displayed
image.
3D
Manually select a 3D mode that matches
your 3D content.
Mute
Momentarily turns off / on the audio.
DB.
(Dynamic Black)
Automatically adjusts the picture brightness
to give optimum contrast performance.
Sleep timer
Sets the countdown timer interval.
Volume+ /
Volume-
Adjust to increase / decrease the volume.
Source
Press.“Source”.to.select.an.input.signal.
Re-sync
Automatically synchronizes the projector to
the.input.source.
25
English
User Controls
Enter
Con rm your item selection.
Menu
Display or exit the on-screen display menus
for.projector.
HDMI1
Press “HDMI1” to choose source from
HDMI.1/.MHL.connector.
HDMI2
Press “HDMI2” to choose source from
HDMI.2.connector.
VGA1
No.function.
VGA2
No.function.
Video
No.function.
YPbPr
No.function.
Four.
directional.
select keys
Use. . . . to select items or make
adjustments to your selection.
Using the Remote Control
26
English
User Controls
MHL (Mobile High-De nition Link) Control
Mode
Press.“Mode” button for more than one
second to activate the MHL remote control
mode..
To.exit,.press.the.“Mode”.button.again..
Select
To select the le.
Menu
Press to launch the root menu.
Four.
directional.
select keys
Use up, down, left, right buttons to
select items or make adjustments to
your selection.
27
English
User Controls

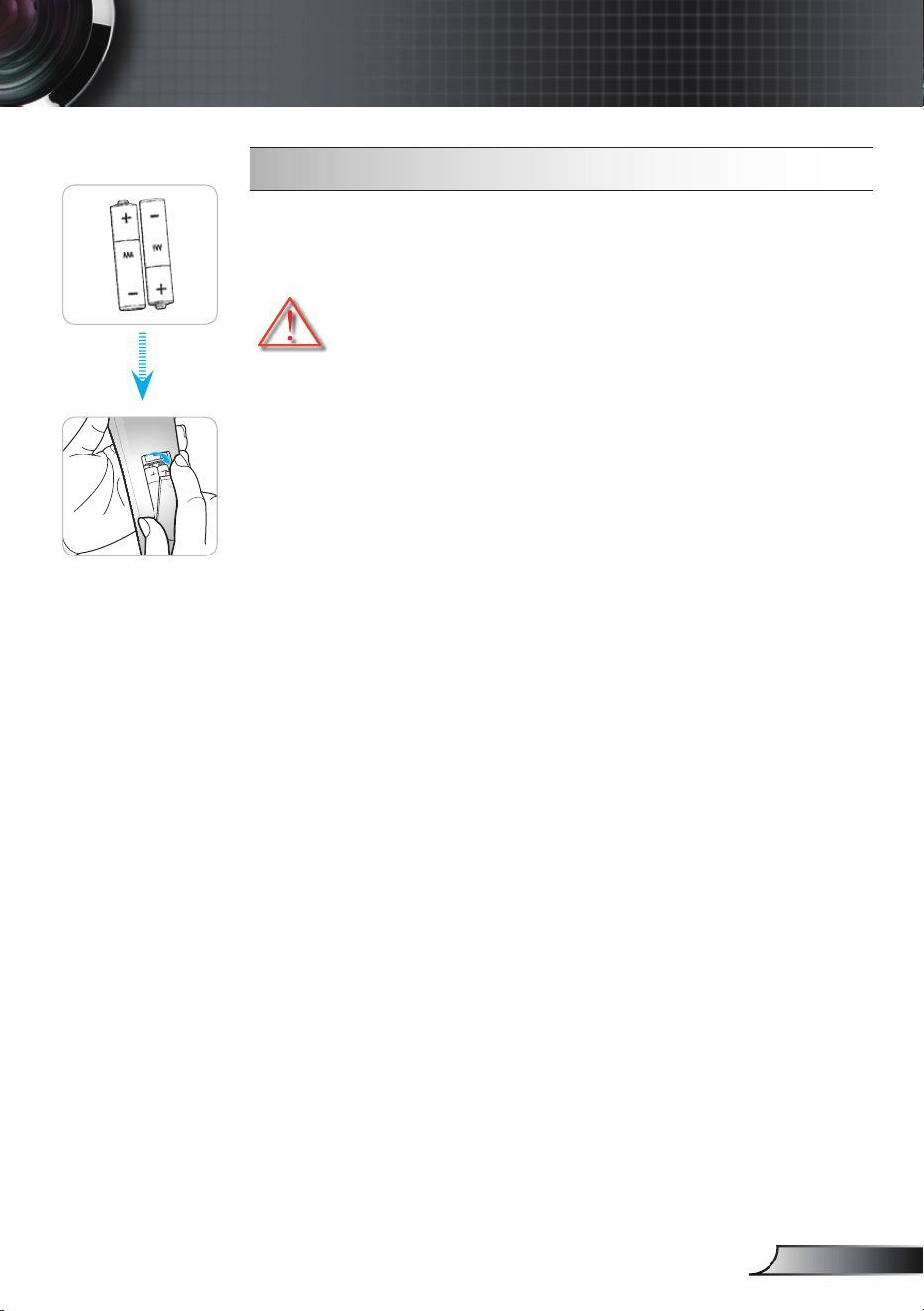

Installing.Batteries
Two size AAA batteries are supplied for Remote Control.
Replace only with the same or equivalent type recommended by the
manufacturer.
CAUTION
Improper use of batteries can result in chemical leakage or explo-
sion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries
have.different.characteristics.
Do not mix old and new batteries. Mixing old and new batteries can
shorten the life of new batteries or cause chemical leakage in old
batteries.
Remove batteries as soon as they are worn out. Chemicals that leak
from batteries that come in contact with skin can cause a rash. If you
nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life ex-
pectancy due to storage conditions.
If you will not be using the remote control unit for an extended period
of time, remove batteries from it.
When you dispose of the battery, you must obey the law in the rela-
tive area or country.
28
English
User Controls

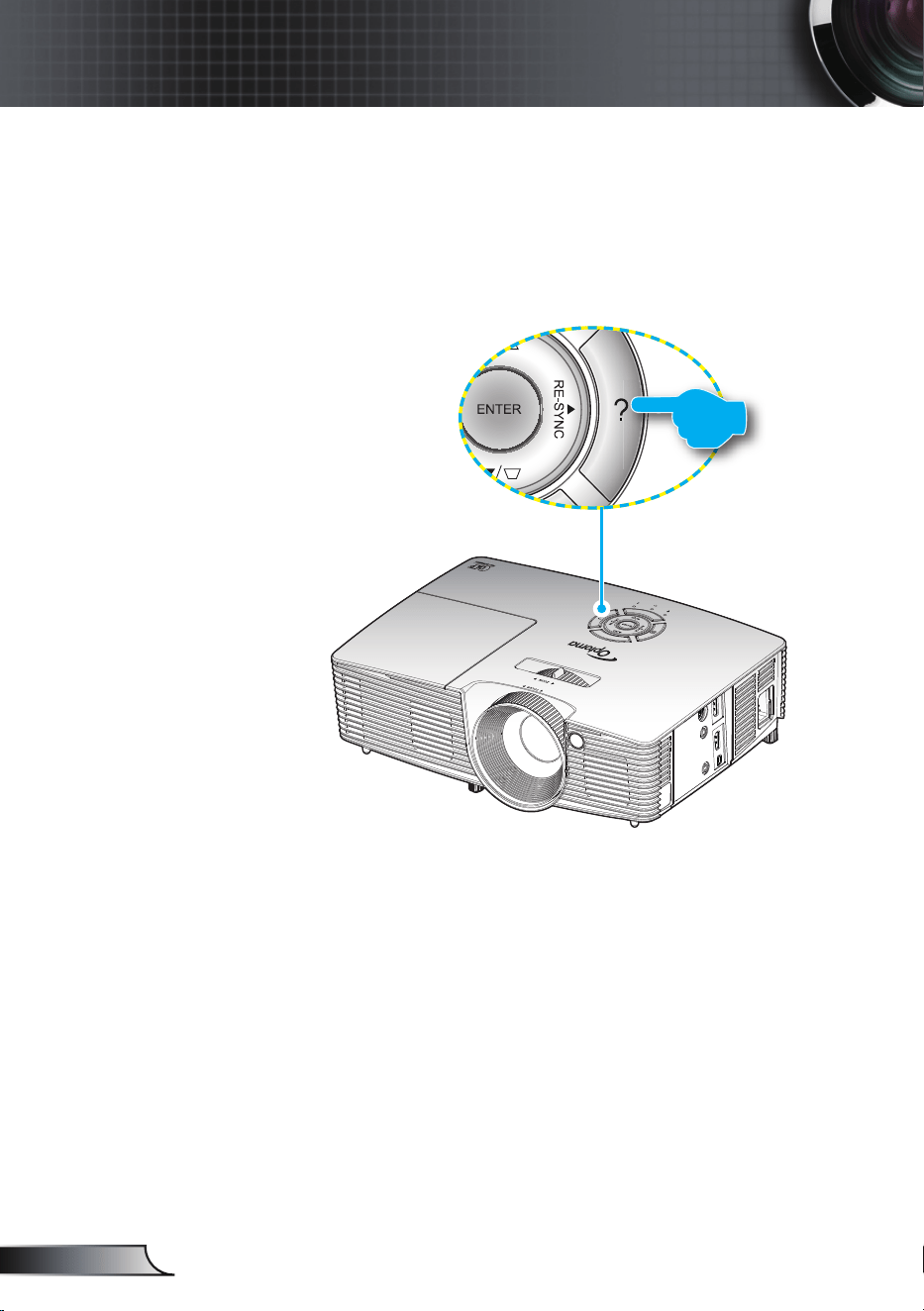

. Using.the.HELP.button
The.HELP.function.ensures easy setup and operation..
.Press the “?” button on the Keypad to open the Help Menu.
29
English
User Controls
Please.refer.to.the.
“Troubleshooting”.
section.on.pages.
54~56.for more
details.

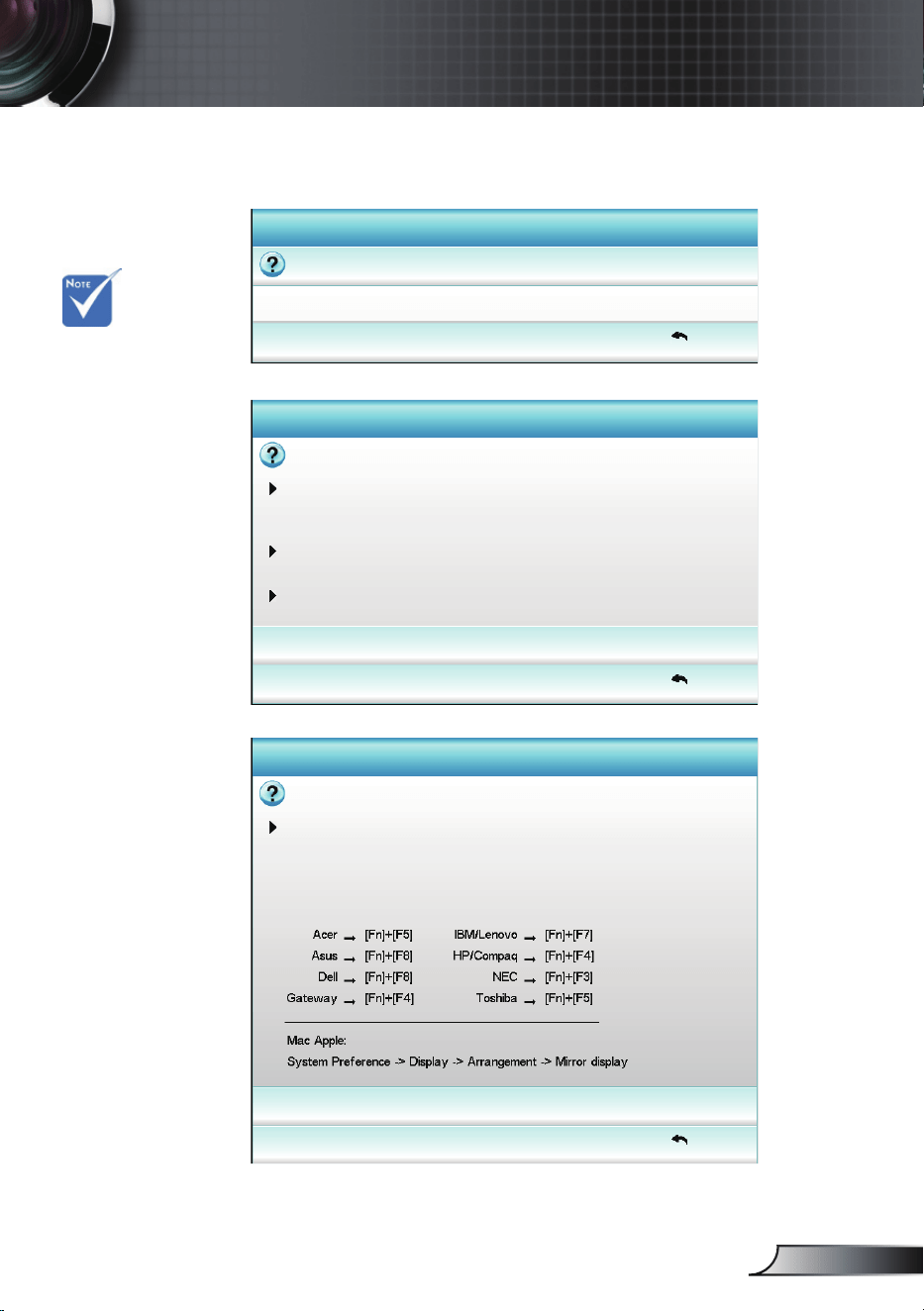

.Help menu button functions only when no input source
is.detected.
.. ..Exit
No Image appears on-screen
HELP
HELP
.. ..Exit
No Image appears on-screen
Ensure all the cables and power connections are correctly and securely
connected as described in the Installation section of User’s Manual.
. Ensure.all.the.pins.of.connectors.are.not.bent.or.broken.
. Ensure.that.the.[AV.MUTE].feature.is.not.turned.on.
[Next]
No Image appears on-screen
HELP
.. ..Exit
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the computer.
2. Press the toggle output settings. Example: [Fn]+[F4]
[Prev]
30
English
User Controls
.If.input.source.is.detected.and.help.button.is.pressed,.the.
following pages will appear to help diagnose any problems.
HELP
Image has slanted sides
Image is too small or too large
There is no audio heard or the volume is too low
.. ..Exit
.. ..Exit
Image has slanted sides
HELP
. If.possible,.reposition.the.projector.so.that.is.centered.on.the.screen.and.
below the bottom of the screen.
Press [KEYSTONE + / -] button until the sides are vertical on the remote
control.
[KEYSTONE + / -]
HELP
Image is too small or too large
Adjust the Zoom Ring on the top of projector.
Move the projector closer to or further from the screen.
Press [MENU] button on the remote control or projecotr panel, go to
DISPLAY | Format and try the different settings.
[DISPLAY | Format]
.. ..Exit
31
English
User Controls
Display Mode
Brightness
Contrast
Sharpness
Advanced
Cinema
Sub.Menu
Settings
Main.Menu
The Projector has multilingual On-screen Display menus that
allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Keypad.
2 When OSD is displayed, use ◄► keys to select any item in the
main menu. While making a selection on a particular page, press
▼ or “Enter” key to enter sub menu.
3. Use ▲▼ keys to select the desired item in the sub menu and then
press ► or “Enter” key to view further settings. Adjust the settings
by ◄► key.
4. Select the next item to be adjusted in the sub menu and adjust as
described.above.
5. Press “Enter” or “Menu” to conrm, and the screen will return to
the main menu.
6. To exit, press “Menu” again. The OSD menu will close and the
projector will automatically save the new settings.
On-screen Display Menus
32
English
User Controls
Menu Tree
Main.Menu Sub.Menu
Display Mode Cinema / Reference / Vivid / Bright / 3D
/
.User.
/
.ISF.Da
y
./.ISF.Ni
g
ht / Game
Brightness -50~50
Contrast -50~50
#1
Saturation -50~50
#2
Tint -50~50
Sharpness 1~15
Advanced Noise Reduction 0~10
Gamma Film / Video / Graphics / Standard
BrilliantColor™ 1~10
Dynamic Black Off / On
Color Temp. Warm / Standard / Cool / Cold
Color.Settings Red./.Green./.
Blue / Cyan /
Ma
g
enta / Yellow /
Hue./.Saturation./.Gain
White Red./.Green./.Blue
Reset.
Exit
Color Space Auto / RGB (0-255) / RGB (16-235) /
Exit
Reset
Exit
Format 4:3 / 16:9 / LBX / Native / Superwide
Edge Mask 0~5
Zoom 0~10
Image Shift H -100~100
V -100~100
V Keystone -40~40
3D 3D.Mode Off./.DLP-Link./.VESA.3D
3D Format Auto / SBS / Top and Bottom /
Frame Sequential
3D.Ш.2D
3D./.L./.R
#3
3D Sync. Invert On / Off
Exit
Exit

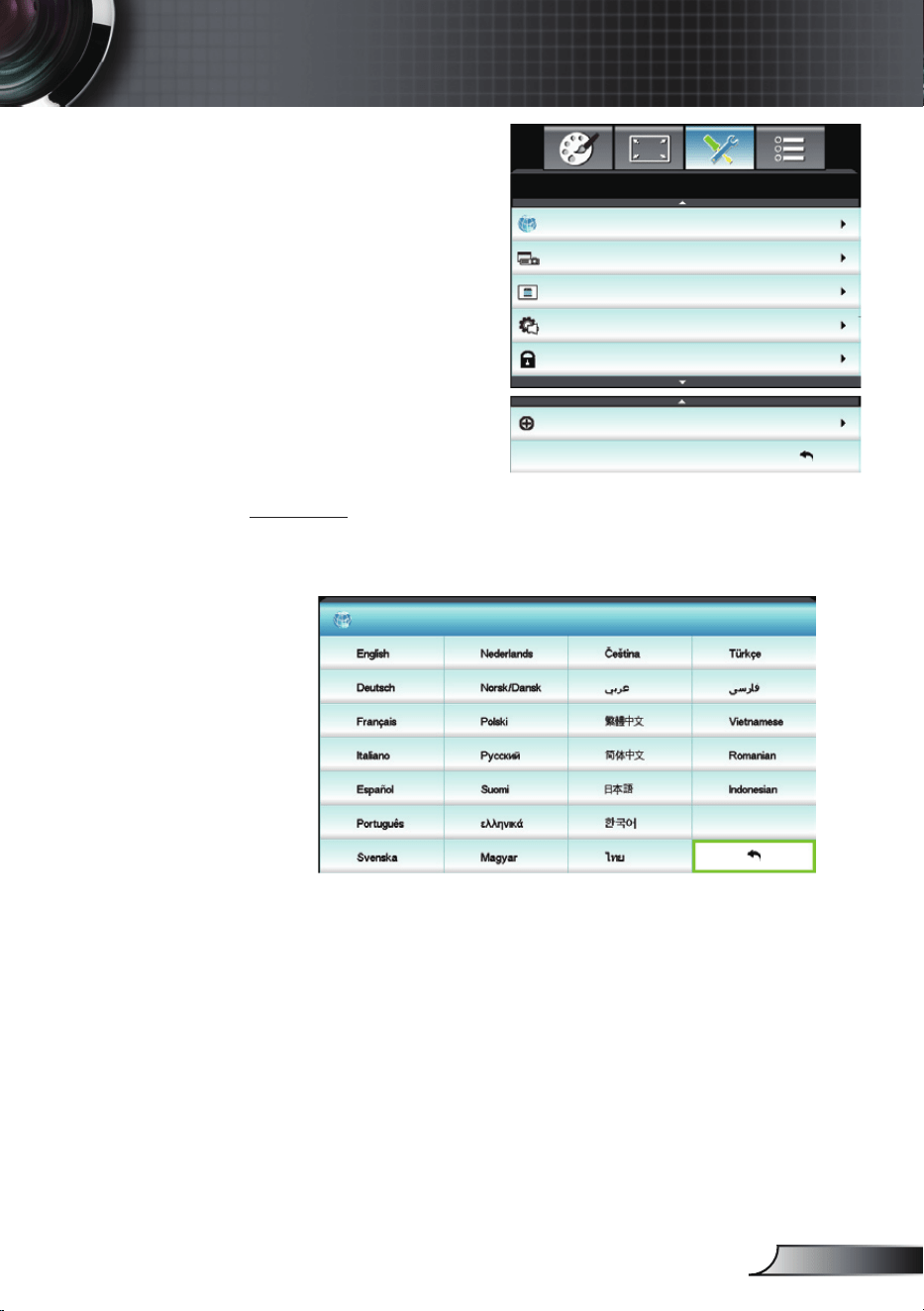

Language English / Deutsch / Français / Italiano
/ Español / Português / Svenska /
Nederlands / Norsk/Dansk / Polski /
Suomi / Ɋɭɫɫɤɢɣ / İȜȜȘȞȚțȐ / Magyar
/ ýeština / γέΎϓ / ϲΑήϋ /᧯խ֮ʳ/
亞խ֮ʳ/ ֲء!0ᾂ᱑ʳ/ ࡷࡎ࡙/
Türkçe / ViӋt / Bahasa Indonesia /
Română
Projection
Menu.Location
Audio.Settings Internal.Speaker On./.Off
Mute On./.Off
Volume 0~10
Exit
Settings
Display
Setup
HD26 OSD Menu Tree.xls
33
English
User Controls
Please note that the on-screen display (OSD) menus vary according to the
signal type selected and the projector model you are using.
(#1,.#2).“Saturation”.and.“Tint”.options.are.available.in.HDMI.YUV,.not.in.
HDMI.RGB.
(#3) “3D Sync Invert” is only available when 3D is enabled.
Main.Menu Sub.Menu
Settings
Security Security On / Off
Security Timer Month / Day / Hour
Change Password
Exit
Advanced Logo Default./.Neutral./.User
Logo.Capture
Exit
Exit
Input.Source HDMI1/MHL./.HDMI2
Source.Lock On./.Off
High.Altitude On./.Off
Information Hide On / Off
Keypad Lock On / Off
Test.Pattern None./.Grid./.White.Pattern
IR.Function All./.Front./.Top./.Off
12V.Trigger Off./.On./.Auto.3D
Background.Color Black./.Red./.Blue./.Green./.White
Lamp Settings Lamp Hours
Lamp Reminder On / Off
Lamp Mode Bright / Eco / Dynamic
Lamp Reset Yes / No
Exit
HDMI.Link.Settings HDMI.Link Off./.On
Inclusive.of.TV Yes./.No
Power On Link
Mutual / PJ Ш.Device./.Device.Ш PJ
Power Off Link Off / On
Exit
Remote Settings USER1/USER2/
USER3
Color Settings /ColorTemp/Gamma/
HDMI.Link/Test.Pattern/AV.Mute
Exit
Advanced Direct Power On On / Off
Auto Power Off (min.) 0~180
Sleep Timer (min.) 0~990
Power Mode (Standby) Active / Eco
Exit
Reset Current Cancel./.Yes
All Cancel./.Yes
Exit
Options
Setup
HD26 OSD Menu Tree.xls
34
English
User Controls
Display Mode
There are many factory presets optimized for various types of
images.
Cinema: For home theater.
Reference: This mode is intended to reproduce, as close as
possible, the image the way the movie director intended. Color,
color temperature, brightness, contrast and gamma settings are
all con gured to standard reference levels.
Vivid: Optimized to produce strikingly bright colorful images.
Bright: Maximum brightness from PC input.
3D: Recommended setting for 3D mode enabled. Any further
adjustments by the user in 3D will be saved in this mode for
further.use.
User: User’s settings.
ISF Day: Optimize the image with the ISF Day mode to be
perfectly calibrated and high picture quality.
ISF Night: Optimize the image with the ISF Night mode to be
perfectly calibrated and high picture quality.
Game: For game content.
Brightness
Adjust the brightness of the image.
Press the ◄ to darken image.
Press the ► to lighten the image.
Display Mode
Brightness
Contrast
Sharpness
Advanced
Cinema
“ISF Night” will
not be shown
when the ISF
modes have not
been.calibrated.
Reset
.. ..Exit
35
English
User Controls
Contrast
The contrast controls the degree of difference between the lightest
and.darkest.parts.of.the.picture..
Press the ◄ to decrease the contrast.
Press the ► to increase the contrast.
Sharpness
Adjust the sharpness of the image.
Press the ◄ to decrease the sharpness.
Press the ► to increase the sharpness.
Reset
Choose “Yes” to return the factory default settings for “IMAGE”.
36
English
User Controls
IMAGE | Advanced
Noise.Reduction
The Noise Reduction reduces the amount of visible noise inter-
laced signals. The range is from “0” to “10”. (0: Off)
Gamma
This allows you to set up gamma curve type. After the initial setup
and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
Film: for home theater.
Video: for video or TV source.
Graphics: for PC / Photo source.
Standard: for standardized setting.
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and
enhancements to enable higher brightness while providing true,
more vibrant colors in picture. The range is from “1” to “10”. If you
prefer a stronger enhanced image, adjust toward the maximum
setting. For a smoother, more natural image, adjust toward the
minimum setting.
Dynamic Black
Dynamic Black enables the projector to automatically optimize the
the brightness of the display during dark/light movie scenes to be
shown in incredible detail.
Color Temp.
Select a color temperature from Warm, Standard, Cool and Cold.
Noise.Reduction
Gamma
BrilliantColor™
Dynamic Black
Color Temp.
Color.Settings
Film
Low
Medium
Advanced
Color.Space
Exit
Auto
37
English
User Controls

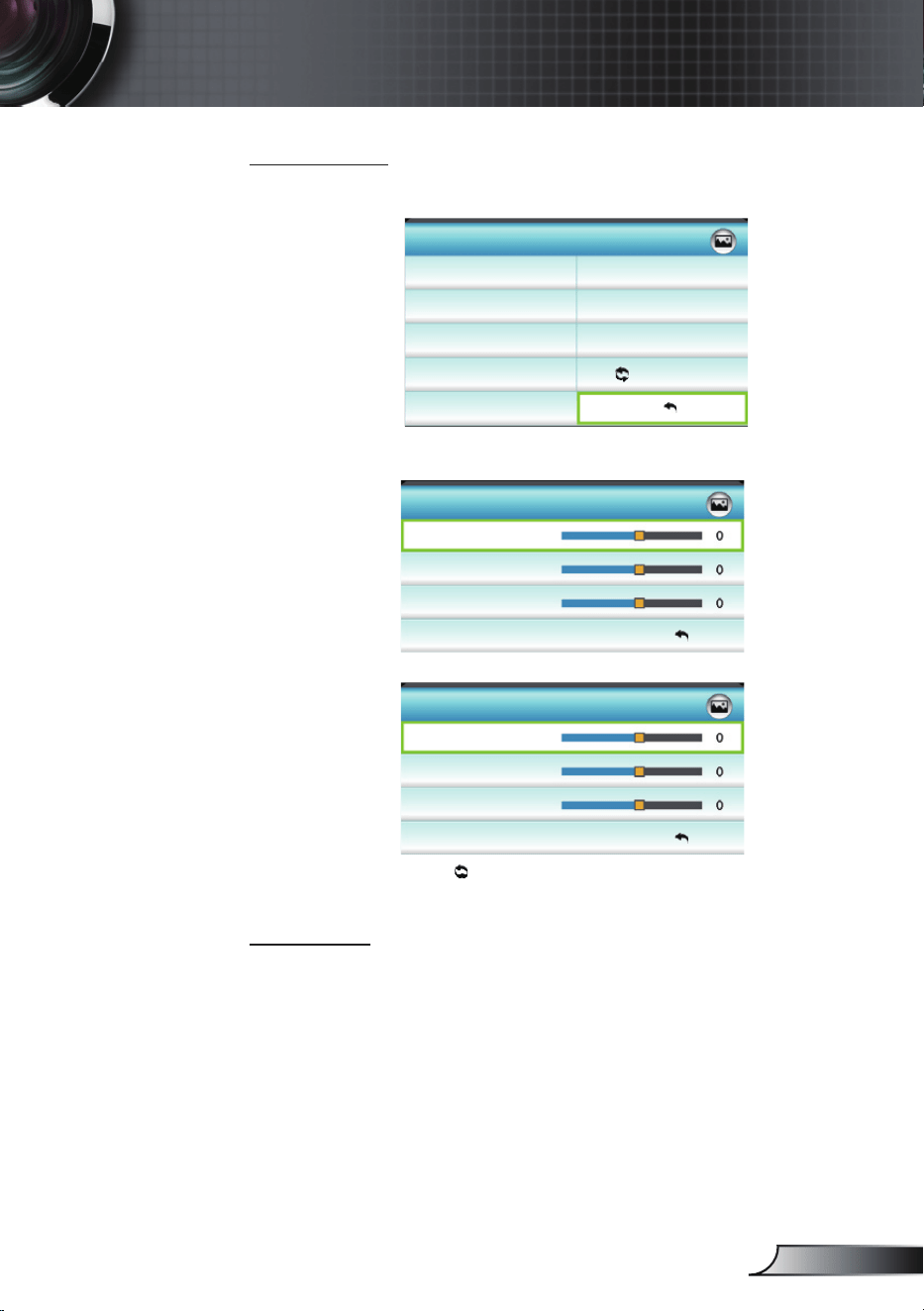

Color.Settings
Press ► into the next menu and then use ▲ or ▼ or ◄ or ►to
select item.
Color.Settings
Red
Green
Blue
White
Cyan
Magenta
Yellow
.....Reset.
.Exit
Red/Green/Blue/Cyan/Magenta/Yellow: Use ◄ or ►.to.select.
Hue,.Saturation.and.Gain.Colors.
Red
Hue
.Exit
Saturation
Gain
White: Use ◄ or ►.to.select.Red,.Green.and.Blue.Colors.
White
Red
.Exit
Green
Blue
Reset: Choose “ Reset” to return the factory default settings
for color adjustments.
Color.Space
Select an appropriate color matrix type from Auto, RGB(0-255),
RGB(16-235) or YUV.
38
English
User Controls

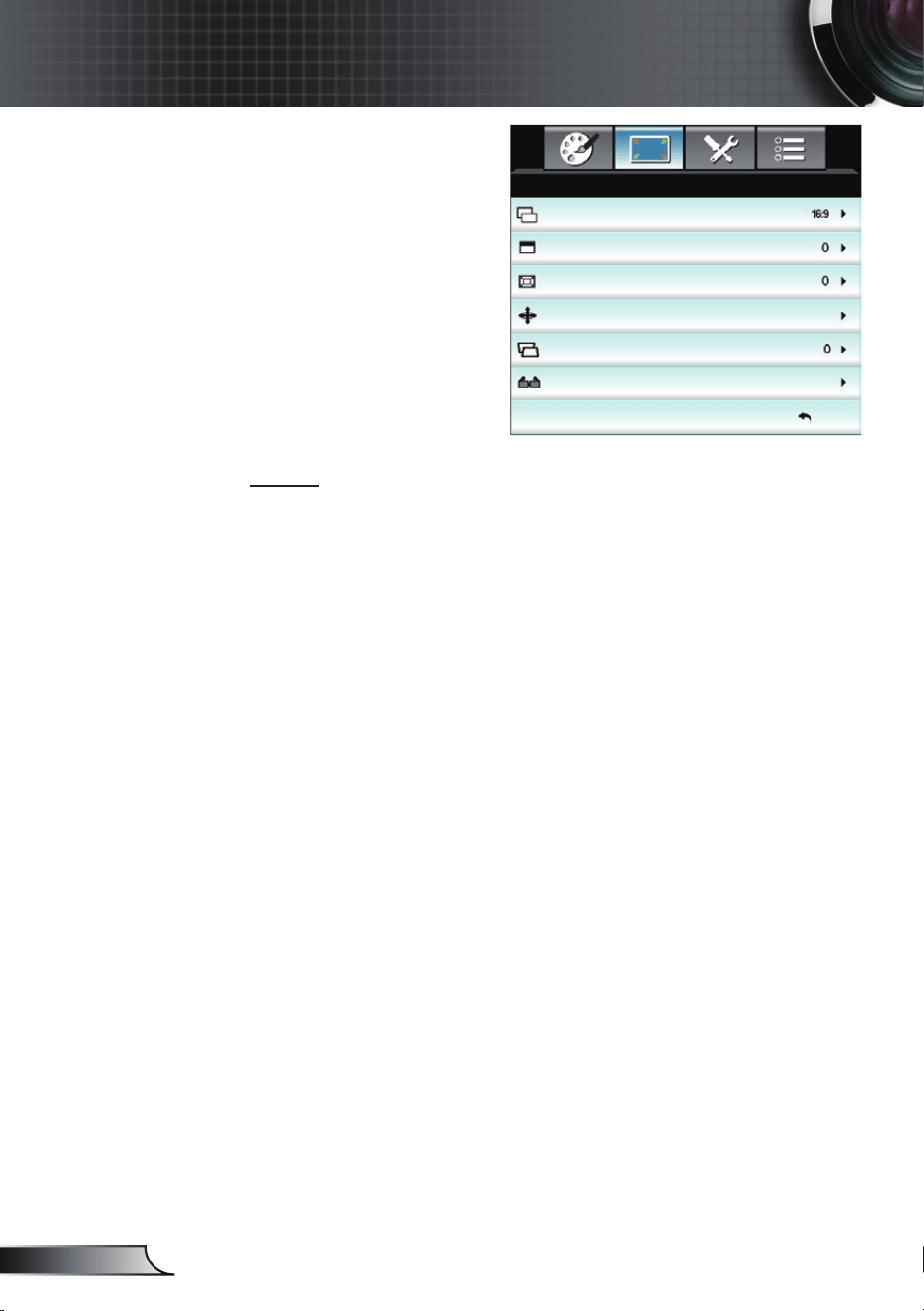

DISPLAY
Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4x3 input sources.
16:9: This format is for 16x9 input sources, like HDTV and
DVD.enhanced.for.Widescreen.TV.
LBX: This format is for non-16x9, letterbox source and for us-
ers who use external anamorphic lens to display 2.35:1 aspect
ratio.using.full.resolution..
Native: This format displays the original image without scaling.
Superwide: This mode scales 2.35:1 sources to ll 100% of
image height to remove black bars. (the left and right side of
image will be cropped).
Detail informations about LBX mode:
Some Letter-Box Format DVDs are not enhanced for 16x9
TVs. In this situation, the image will not look right when dis-
played in 16:9 mode. In this situation, please try to using the
4:3 mode to view the DVD. If the content is not 4:3, there will
be black bars around the image in 16:9 display. For this type
of content, you can use LBX mode to ll the image on the 16:9
display.
If you use an external anamorphic lens, this LBX mode also
allows you to watch a 2.35:1 content (include Anamorphic
DVD and HDTV lm source) that support anamorphic wide
is enhanced for 16x9 Display in a wide 2.35:1 image. In this
case, there are no black bars. Lamp power and vertical resolu-
tion are fully utilized.
1.
2.
Format
Edge.Mask
Zoom
Image Shift
V Keystone
3D
DISPLAY
.. ..Exit
39
English
User Controls
Each.I/O.has.differ-
ent.setting.of.“Edge.
Mask”.
“Edge.Mask”.and.
“Zoom” can’t work
at same time.
16:9 Screen 480i/p 576i/p 1080i/p 720p PC
4:3 1440.x.1080.center
16:9 1920.x.1080.center
LBX
1920.x.1440.center,.then.get.the.central.1920.x.1080.
image to display
Native
No resize image, 1:1 mapping and centered. This format
shows original image without scaling.
Superwide
Scale to 2534 x 1426 (132% Enlarge ), then get the
central 1920x1080 image to display.
Edge.Mask
Edge mask the image to remove video encoding noise on the
edge.of.video.source.
Zoom
Press the ◄ to reduce the size of an image.
Press the ► to magnify an image on the projection screen.
Image Shift
Press ► into the next menu as below and then use ▲ or ▼or ◄
or ►to select item.
Image Shift
H: Press the ◄ ► to shift the projected image position
horizontally.
V: Press the ▲ ▼ to shift the projected image position verti-
cally.
V Keystone
Press the ◄ or ► to adjust image distortion vertically and make a
squarer image.
40
English
User Controls
3D Format is only
supported.on.3D.
Timing on page
63.
“3D Format” is
only supported on
non-HDMI.1.4a.3D.
timing.
DISPLAY | 3D
3D.Mode
Off: Select “Off” to turn off 3D mode.
DLP-Link: Select “DLP-Link” to use optimized settings for DLP
Link 3D Glasses. (refer to page 16).
VESA 3D: Select “VESA 3D” to use optimized setting for VESA
3D Glasses. (refer.to.page.16)..
3D Format
Auto: When a 3D identi cation signal is detected, the 3D for-
mat is selected automatically.
SBS: Display 3D signal in “Side-by-Side” format.
Top and Bottom: Display 3D signal in “Top and Bottom” format.
Frame Sequential: Display 3D signal in “Frame Sequential”
format.
3D -> 2D
3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.
3D Sync. Invert
Press the “On” to invert left and right frame contents.
Press the “Off” for default frame contents.
3D.Mode
3D -> 2D
3D Sync. Invert
DISPLAY
Off.
.. ..Exit
3D
3D
Off
3D Format Auto
41
English
User Controls
SETUP
Language
Choose the multilingual OSD menu. Press ► into the sub menu
and then use the ▲ or ▼ or ◄ or ► key to select your preferred
language. Press “Enter” to nalize the selection.
Language
.Exit
Language
Projection
Menu.Location
Audio.Settings
Security
SETUP
English
Advanced
.. ..Exit
42
English
User Controls
Rear-Desktop.and.
Rear-Ceiling.are.
to be used with a
translucent.screen.

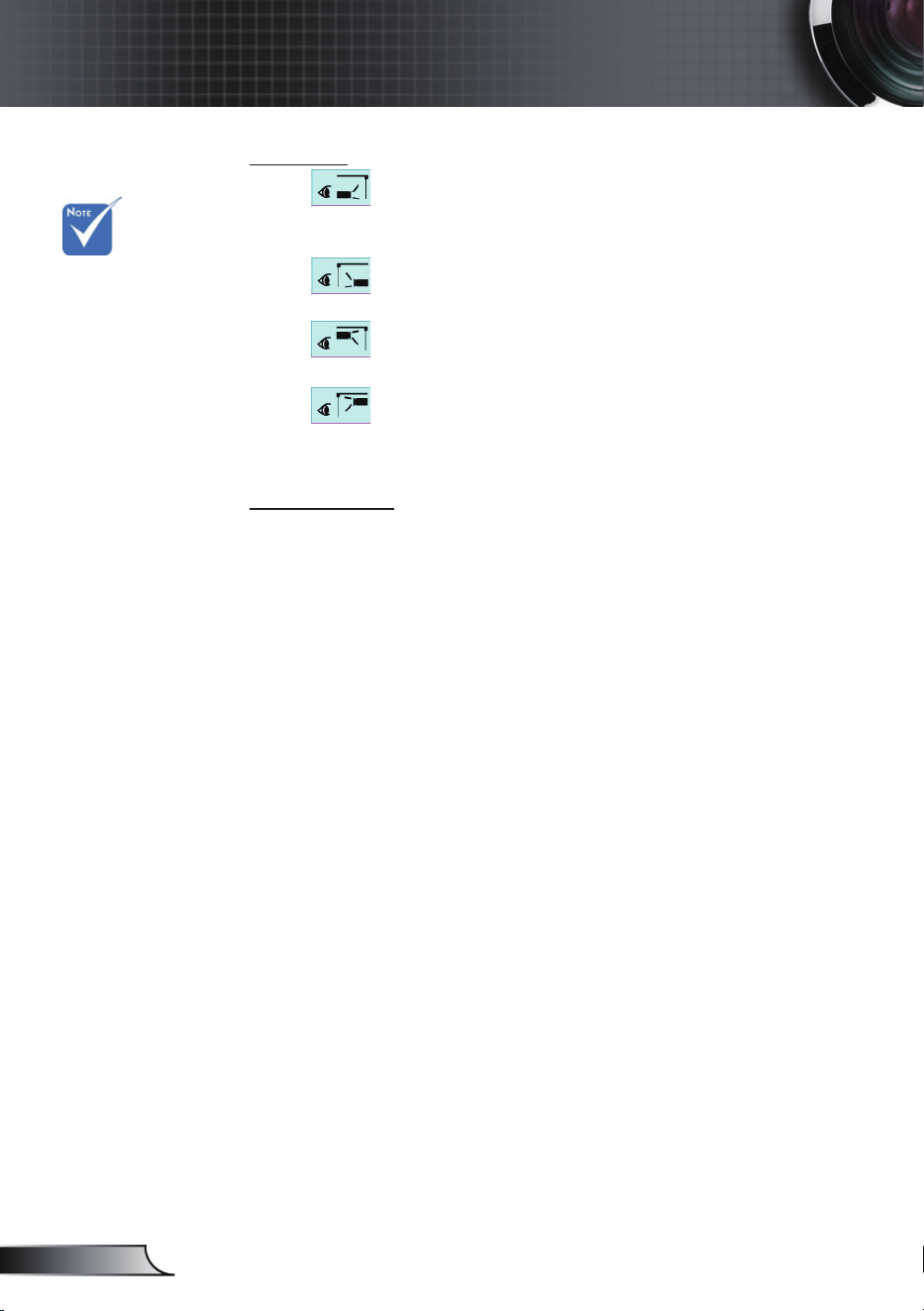

Projection
. Front-Projection
This is the default selection. The image is projected straight on
the.screen.
. Rear-Desktop
When selected, the image will appear reversed.
. Front-Ceiling
When selected, the image will turn upside down.
. Rear-Ceiling
When selected, the image will appear reversed in upside down
position
Menu.Location
Choose the menu location on the display screen.
43
English
User Controls
SETUP |

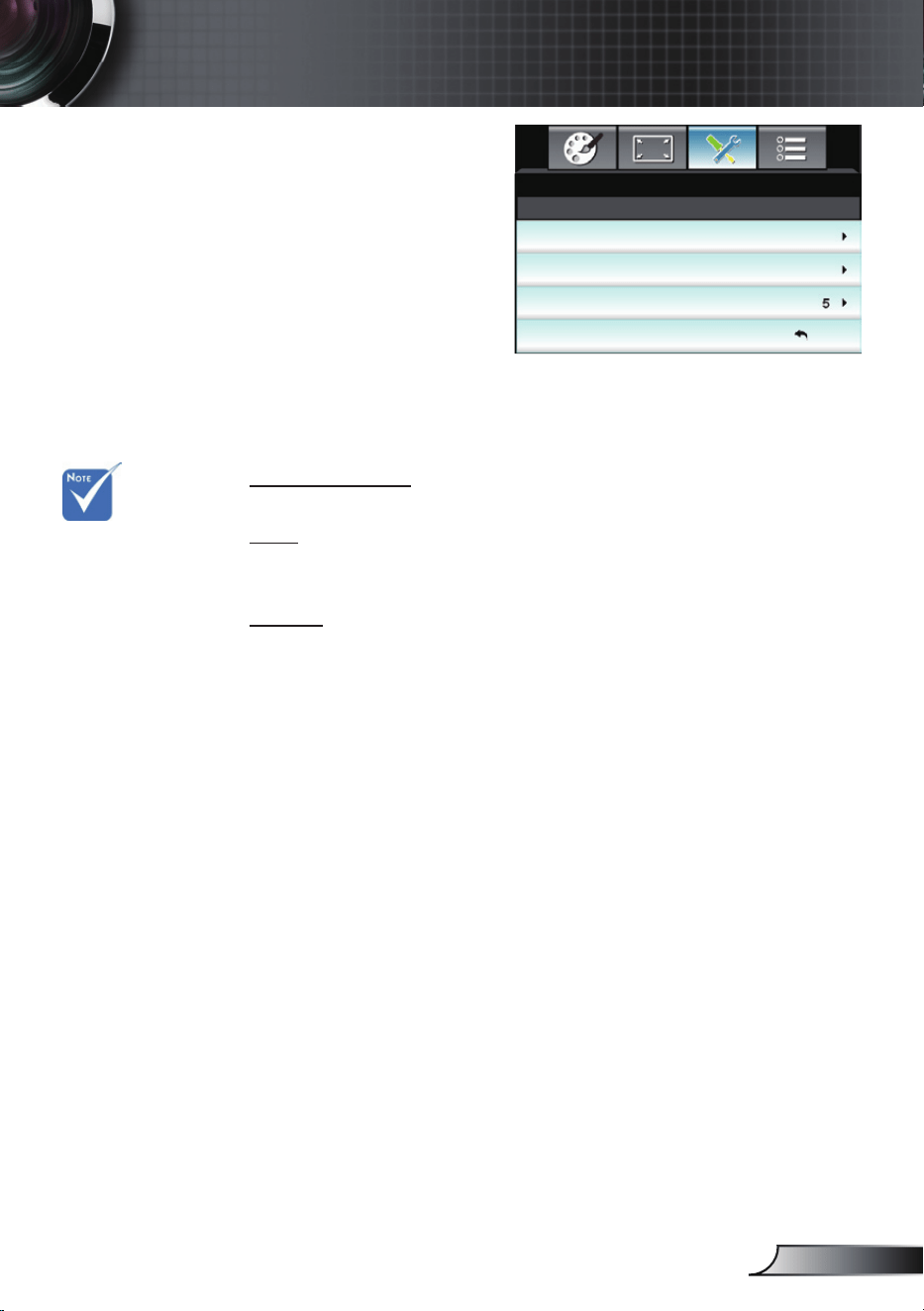

Audio Settings
Internal.Speaker
Choose.the.“On”.or.“Off”.to.turn.on.or.off.the.internal.speaker.
Mute
Choose the “On” to turn mute on.
Choose the “Off” to turn mute off.
Volume
Press the ◄ to decrease the volume.
Press the ► to increase the volume.
Internal.Speaker
Mute
Volume
SETUP
Off
.. ..Exit
Audio.Settings
Off
“Mute”.function.
affects.both.inter-
nal.and.external.
speaker volume.
44
English
User Controls
SETUP | Security
Security
On: Choose “On” to use security veri cation when the turning
on.the.projector.
Off: Choose “Off” to be able to switch on the projector without
password veri cation.
Security Timer
Can be select the time (Month/Day/Hour) function to set the
number of hours the projector can be used. Once this time has
elapsed you will be requested to enter your password again.
Change Password
First time:
Press.“ ” to set the password.
The password has to be 4 digits.
Use number button on the remote to enter your new password
and.then.press.“ ” key to con rm your password.
Change Password:
(If your remote does not have a number keypad, please use
the up/down arrows to change each digit of the password,
then press enter to con rm)
Press.“ ” to input old password.
Use number button to enter current password and then press “
” to con rm.
Enter new password (4 digits in length) using the number but-
tons on the remote, then press “ ” to con rm.
Enter new password again and press “ ” to con rm.
.
If the incorrect password is entered 3 times, the projector will
automatically shut down.
If you have forgotten your password, please contact your local
of ce for support.
1.
2.
3.
1.
2.
3.
4.
Pass-code.default.
value is “1234” ( rst
time).
Security
Security Timer
Change Password
SETUP
Off
.. ..Exit
Security
Enter Current Security Code (4 digits)
Incorrect security code. Re-enter again. (Last Try)
45
English
User Controls
SETUP |
Advanced
Logo
Use.this.function.to.set.the.desired.startup.screen..If.changes.are.
made they will take effect the next time the projector is powered
on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
User: Use stored picture from “Logo Capture” function.
Logo.Capture
Press.► to capture an image of the picture currently displayed on
screen.
Logo
Logo.Capture
SETUP
.. ..Exit
Advanced
Default
For.a.successful.
logo.capture,.
ensure.that.the.
on-screen image
does.not.exceed.
the.projector.
native.resolution..
(1080p: 1920 x
1080).
46
English
User Controls
Input.Source
Use.this.option.to.enable/disable.input.sources..Press.►.to.enter.
the sub menu and select which sources you require. Press “Enter”
to finalize the selection. The projector will only search for inputs
that.are.enabled.
Source.Lock
On: The projector will only search current input connection.
Off: The projector will search for other signals if the current
input.signal.is.lost..
High.Altitude
When “On” is selected, the fans will spin faster. This feature is
useful in high altitude areas where the air is thin.
Information Hide
On: Choose “On” to hide the info message.
Off: Choose “Off” to show the “searching” message.
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked
however, the projector can be operated by the remote control. By
selecting “Off”, you will be able to reuse the Keypad.
Test.Pattern
Display a test pattern. There are Grid, White Pattern and None.
IR.Function
OPTIONS
Input.Source
Source.Lock
High.Altitude
Information Hide
Keypad Lock
Test.Pattern
OPTIONS
Off
IR.Function
Off
Off
Off
None
All
12V.Trigger Off
47
English
User Controls
All: Choose “All”, the projector can be operated by the remote
control from front or top IR receiver.
Front: Choose “Front”, the projector can be operated by the
remote control from front IR receiver.
Top: Choose “Top”, the projector can be operated by the re-
mote control from top IR receiver.
Off: Choose “Off”, the projector can’t be operated by the
remote control from front or top IR receiver. By selecting “Off”,
you will be able to use the Keypad keys.
12V.Trigger
Off: Choose “Off” to disable the trigger.
On: Choose “On” to enable the trigger.
Auto 3D: When “Auto 3D” is enabled, the projector will auto-
matically detect when a 3D image is shown and will activate
the.trigger.on.this.port..
“Front”.and.“Top”.
can’t be selected
under.standby
mode.
12V.Trigger.A.
Relay Connec-
tor.support.12V,.
250mA. 3.5mm
Mini Jack.
Reserved
IR_IN.&.detect
GND
48
English
User Controls
Background.Color
Lamp Settings
HDMI.Link.Settings
Remote Settings
Advanced
Reset
OPTIONS
Background.Color
Use this feature to display a “Black”, “Red”, “Blue”, “Green” or
“White”, screen when no signal is available.
Reset
Current: Choose “Yes” to return the display parameters on this
menu to the factory default settings.
All: Choose “Yes” to return the display parameters on all
menus to the factory default settings.
Black
.. ..Exit
OPTIONS
49
English
User Controls
OPTIONS |
Lamp Settings
Lamp Hours
Display the projection time.
Lamp Reminder
Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement
of lamp.
Lamp Mode
Bright: Choose.“Bright”.to.increase.the.brightness.
Eco.: Choose “Eco.” to dim the projector lamp which will lower
power consumption and extend the lamp life.
Dynamic: Choose “Dynamic” to dim the lamp power which will
be based on brightness level of the content and adjust lamp
power consumption between 100% and 30% dynamically. The
lamp life will be extended.
Lamp Reset
Reset the lamp hour counter after replacing the lamp.
When ambient
temperature is
over 40°C in
operating,.the.
projector will
switch to Eco
automatically.
“Lamp Mode” can
be indipendently
set.for.2D.and.
3D.
Lamp Hours
Lamp Reminder
Lamp Mode
Lamp Reset
OPTIONS
On
.. ..Exit
Lamp Settings
Bright
50
English
User Controls
OPTIONS | HDMI
Link Settings
HDMI.Link
Inclusive.of.TV
Power On Link
OPTIONS
Off
.. ..Exit
Advanced
Power Off Link Off
Using.HDMI.Link
When you connect HDMI CEC-compatible devices to the projec-
tor with HDMI cables, you can control them on same Power On
or Power Off status using the HDMI Link control feature on the
projector’s OSD.
This lets one device or multiple devices in a group Power On or
Power Off via HDMI Link Feature.
In a typical con guration, your DVD player may be connected to
the projector through an ampli er or home theater system.
When standby
mode is <0.5W
HDMI.Link.fea-
ture will not work.
HDMI.Link
Enable/Disable the HDMI Link function. The Inclusive TV, Power
on Link, and Power off Link options will only be available if the
setting.is.set.to.On.
Inclusive.of.TV
If the setting is set to “Yes”, both TV and projector will be auto-
matically turned off at the same time. To prevent both devices to
be turned off at the same time, set the setting to “No”.
Some HDMI
Link.functions.
may not operate,
depending.on.
the.connected.
product’s design
and compliance
with the HDMI
CEC.standard.
HDMI
Ampli er
DVD Player
HDMI
No
Mutual
51
English
User Controls
Power On Link
CEC power on command.
Mutual: Both projector and CEC device will be turned on
simultaneously.
PJ -> Device: The CEC device will be turned on only after the
projector is switched on.
Device -> PJ: The projector will be switched on only after the
CEC.device.is.turned.on..
Power Off Link
If the setting is set to “On”, both HDMI Link and projector will be
automatically turned off at the same time. Set to “Off”, both HDMI
Link and projector will be not automatically turned off at the same
time.
52
English
User Controls
USER.1
The.default.value.is.Color.Settings.
USER.1
......Color.Settings......
Press ► into the next menuand then use ◄ or ►to select “Color.
Settings”, “ColorTemp”, “Gamma”, “HDMI Link”, “Test Pattern” or
“AV.Mute” item.
USER.2
The default value is Color Temp.
USER.2
Color Temp.
Press ► into the next menuand then use ◄ or ►to select “Color.
Settings”, “ColorTemp”, “Gamma”, “HDMI Link”, “Test Pattern” or
“AV.Mute” item.
USER.3
The default value is Gamma.
USER.3
Gamma
Press ► into the next menuand then use ◄ or ►to select “Color.
Settings”, “ColorTemp”, “Gamma”, “HDMI Link”, “Test Pattern” or
“AV.Mute” item.
OPTIONS | Remote
Settings
USER.1
USER.2
USER.3
OPTIONS
Color.Settings
.. ..Exit
Remote Settings
Color Temp.
Gamma
53
English
User Controls
OPTIONS |
Advanced
Direct Power On
Choose “On” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without
pressing.the.“ ” key on the projector Keypad or on the remote
control.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start,
when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Sleep Timer (min)
Sets the countdown timer interval. The countdown timer will start,
with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Power Mode (Standby)
Eco.: Choose “Eco.” to save power dissipation further < 0.5W.
Active: Choose “Active” to return to normal standby.
.
The.value.of.
sleep timer will
be reset to zero
after.the.projector.
power off.
Direct Power On
Auto Power Off (min)
Sleep Timer (min)
OPTIONS
On
.. ..Exit
Advanced
Power Mode (Standby) Active
54
English
Appendices
Troubleshooting
If you experience a problem with your projector, please refer to
the following information. If a problem persists, please contact
your local reseller or service center.
Image Problems
No image appears on-screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure.the.pins.of.connectors.are.not.crooked.or.broken.
Check if the projection lamp has been securely installed.
Please refer to the “Replacing the Lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
.Ensure.that.the.“AV.Mute”.feature.is.not.turned.on.
Image is out of focus
Make sure the Lens cap is removed.
Adjust.the.Focus.Ring.on.the.projector.lens...
Make sure the projection screen is between the required dis-
tance from the projector. (refer to pages 21-22)
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector
will show the best image in 16: 9 format on projector side.
If you play the LBX format DVD title, please change the format
as.LBX.in.projector.OSD.
If you play 4:3 format DVD title, please change the format as
4:3 in projector OSD.
If the image is still stretched, you will also need to adjust the
aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio
type on your DVD player.
Image is too small or too large
Adjust the zoom lever on the top of the projector.
Move the projector closer to or further from the screen.
Press “Menu” on the projector panel, go to “Display-->Format”.
Try the different settings.
55
English
Appendices
Image has slanted sides:
If.possible,.reposition.the.projector.so.that.it.is.centered.on.the.
screen and below the bottom of the screen.
Use “Display-->V Keystone” from the OSD to make an adjust-
ment.
Image is reversed
Select “Setup-->Projection” from the OSD and adjust the pro-
jection.direction.
Blurry double image
Press “3D Format” button and switch to “Off” to avoid normal
2D image is blurry double image.
Two images, side-by-side format
Press “3D Format” button and switch to “SBS” for input signal
is HDMI 1.3 2D 1080i side-by-side.
Image does not display in 3D
Check if the battery of 3D glasses is drained.
Check.if.the.3D.glasses.is.turned.on.
When the input signal is HDMI 1.3 2D (1080i side-by-side
half), press “3D Format” button and switch to “SBS”.
56
English
Appendices
Other Problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord
and wait at least 20 seconds before reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector
will not turn on until the lamp module has been replaced. To
replace the lamp, follow the procedures in the “Replacing the
Lamp” section.
Remote Control Problems
If the remote control does not work
Check the operating angle of the remote control is within ±15°
both horizontally and vertically of on of the IR receivers on the
projector.
Make sure there are not any obstructions between the remote
control and the projector. Move to within 6 m (20 ft) of the
projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
57
English
Appendices
Steady light
. .
No.light.
.
Message
On/Standby LED
Temp-LED
Lamp-LED
(Green/Amber) (Red) (Red)
Standby state
(Input power cord)
Amber
Power on (Warming)
Flashing
Green
Lamp lighting Green
Power off (Cooling)
Flashing
Green
Error (Over temp.)
Flashing
Amber
Error (Fan fail)
Flashing
Amber
Flashing
Error (Lamp fail)
Flashing
Amber
＊. On/Standby LED be ON when OSD appears, be OFF when OSD disappears..
LED Lighting Messages
58
English
Appendices
Power off:
Power Off?
Press Power again.
Lamp warning:
Lamp Warning
Lamp life exceeded.
Temperature warning:
Please:
1..Make.sure.air.in.and.outlets.are.not.blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please.contact.a.service.centre.for.repair.
Warning!.TEMPERATURE.TOO.HIGH
Fan failed:
Warning!.FAN.LOCKED
The projector will switch off automatically.
Please.contact.a.service.centre.for.repair.
Out of display range:
Out.of.range
On Screen Messages
59
English
Appendices
The projector automatically detects the lamp life. When the
lamp life is nearing the end of use, you will receive a warning
message.
Lamp Warning
Lamp life exceeded.
When you see this message, please contact your local reseller or
service center to change the lamp as soon as possible. Make sure
the projector has been cooled down for at least 30 minutes before
changing the lamp.
Warning: If ceiling mounted, please use caution when open-
ing the lamp access panel. It is recommended to wear safety
glasses if changing the bulb when ceiling mounted. “Caution
must be used to prevent any loose parts from falling out of
projector.”
Warning: Lamp compartment is hot! Allow it to cool down
before changing lamp!
Warning: To reduce the risk of personal injury, do not drop
the lamp module or touch the lamp bulb. The bulb may shat-
ter and cause injury if it is dropped.
Replacing the Lamp
60
English
Appendices
Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button on the remote
control.or.“
” on the Keypad of the projector.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the one screw on the cover.
1
5. Push up and remove the cover.
2
6.
.Lift up the lamp handle. 3
7. Press on the both sides then lift up and remove the lamp cord.
4
8. Unscrew the one screw on the lamp module.
5
9. Lift up the lamp handle
6.and remove the lamp module slowly and carefully. 7
To replace the lamp module, reverse the previous steps.
10. Turn on the projector and reset the lamp timer.
Lamp Reset: (i) Press “Menu” (ii) Select “OPTIONS” (iii) Select .
“Lamp Settings”
.(iv) Select “Lamp Reset”
(v) Select “Yes”.
The screw on the
lamp cover and the
lamp cannot be
removed.
The.projector.
cannot.be.turned.
on if the lamp
cover.has.not.been.
placed.back.on.the.
projector..
Do.not.touch.the.
glass.area.of.the.
lamp. Hand oil can
cause the lamp to
shatter. Use a dry
cloth.to.clean.the.
lamp module if it
was accidentally
touched.
1
2
7
5
6
3
4
5
61
English
Appendices
Installing and Cleaning the Dust
Filter
Dust lters are
only required/sup-
plied.in.selected.
regions with
excessive.dust.
Cleaning the Dust Filter
We recommends cleaning the dust lter every three
months; clean it more often if the projector is used in a
dusty environment.
Procedure:
Switch off the power to the projector by pressing the.“
” button on the remote control or “ ” on the Keypad.of.the.
projector..
Disconnect the power cord.
Remove the dust lter slowly and carefully.
Clean or replace the dust lter.
To install the dust lter, reverse the previous steps.
1.
2.
3.
4.
5.
1
2
Installing the Dust Filter
62
English
Appendices
HDMI/DVI-D Compatibility
Compatibility Modes
Digital
B0/Established timing B0/Standard timing B0/Detail timing:
720 x 400 @ 70Hz
640 x 480 @ 60Hz
640 x 480 @ 67Hz
640 x 480 @ 72Hz
640 x 480 @ 75Hz
800 x 600 @ 56Hz
800 x 600 @ 60Hz
800 x 600 @ 72Hz
800 x 600 @ 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz
1024 x 768 @ 70Hz
1024 x 768 @ 75Hz
1280 x 1024 @ 75Hz
1152 x 870 @ 75Hz
1280 x 720 @ 60Hz
1280 x 800 @ 60Hz
1280 x1024 @ 60Hz
1400 x 1050 @ 60Hz
1600 x 1200 @ 60Hz
1440 x 900 @ 60Hz
1280 x 720 @ 120Hz
1024 x 768 @ 120Hz
Native timing:
XGA: 1024 x 768 @ 60Hz
WXGA: 1280 x 800 @ 60Hz
1080P: 1920 x 1080 @ 60Hz
B1/Video mode B1/Detail timing:
640 x 480p @ 60Hz
720 x 480p @ 60Hz
1280 x 720p @ 60Hz
1920 x 1080i @ 60Hz
720(1440) x 480i @ 60Hz
1920 x 1080p @ 60Hz
720 x 576p @ 50Hz
1280 x 720p @ 50Hz
1920 x 1080i @ 50Hz
720(1440) x 576i @ 50Hz
1920 x 1080p @ 50Hz
1920 x 1080p @ 24Hz
1920 x 1080p @ 30Hz
720 x 480p @ 60Hz
1280 x 720p @ 60Hz
1366 x 768 @ 60Hz
1920 x 1080i @ 50Hz
1920 x 1080p @ 60Hz
63
English
Appendices
3D Input Video Compatibility
Input.
resolution
Input timing
HDMI.1.4a.3D.
Input
1280 x 720p @ 50Hz Top-and-Bottom
1280 x 720p @ 60Hz Top-and-Bottom
1280 x 720p @ 50Hz Frame packing
1280 x 720p @ 60Hz Frame packing
1920 x 1080i @ 50 Hz Side-by-Side (Half)
1920 x 1080i @ 60 Hz Side-by-Side (Half)
1920 x 1080p @ 24 Hz Top-and-Bottom
1920 x 1080p @ 24 Hz Frame packing
HDMI.1.3.3D.
Content
1920 x 1080i @ 50Hz
Side-by-Side
(Half)
While 3D Format is
“SBS”
1920 x 1080i @ 60Hz
1280 x 720p @ 50Hz
1280 x 720p @ 60Hz
1920 x 1080i @ 50Hz
Top-and-Bottom
While 3D Format is
“Top and Bottom”
1920 x 1080i @ 60Hz
1280 x 720p @ 50Hz
1280 x 720p @ 60Hz
480i
HQFS
While 3D Format is
“Frame sequential”
64
English
Appendices
Please.note.that.
damage resulting
from incorrect
installation will void
the warranty.
Ceiling Mount Installation
1. To prevent damage to your projector, please use the
Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attach a mount to the projector
meet the following specifications:
.
.Screw type: M4*3
..
Minimum screw length: 10mm
.Warning:
1. If you buy a ceiling
mount from another
company, please
be.sure.to.use.the.
correct screw size.
Screw size will vary
depending.on.the.
thickness.of.the.
mounting plate.
2..Be.sure.to.keep.
at least 10 cm gap
between the ceiling
and the bottom of the
projector.
3..Avoid.installing.the.
projector.near.a.heat.
source..
63.90
77.30
82.30
314.10
85.00
55.00
223.50
8.00
127.45
186.65127.45
47.95 39.88
13.50
Unit: mm
Lens
65
English
Appendices
Optoma Global Ofces
For service or support please contact your local ofce.
USA
3178 Laurelview Ct. .888-289-6786
Fremont, CA 94538, USA .510-897-8601
Canada
3178 Laurelview Ct. .888-289-6786
Fremont, CA 94538, USA .510-897-8601
Latin America
3178 Laurelview Ct. .888-289-6786
Fremont, CA 94538, USA .510-897-8601
Europe
42 Caxton Way, The Watford Business Park
Watford,.Hertfordshire,..
WD18.8QZ,.UK. +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Benelux BV
Randstad.22-123. +31 (0) 36 820 0253
1316 BW Almere +31 (0) 36 548 9052
The.Netherlands.
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83.avenue.Edouard.Vaillant... +33 1 41 46 94 35
92100.Boulogne.Billancourt,.France.. .[email protected]
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06
28522.Rivas.VaciaMadrid,. +34 91 670 08 32
Spain..
66
English
Appendices
Deutschland
Wiesenstrasse 21 W +49 (0) 211 506 6670
D40549 Düsseldorf, +49 (0) 211 506 66799
Germany [email protected]
Scandinavia
Lerpeveien 25 +47 32 98 89 90
3040 Drammen +47 32 98 89 99
Norway [email protected]
PO.BOX 9515
3038 Drammen
Norway
Korea
WOOMI TECH.CO.,LTD.
4F,Minu Bldg.33-14, Kangnam-Ku, +82+2+34430004
seoul,135-815, KOREA +82+2+34430005
Japan
東京都足立区綾瀬3-25-18
株式会社オーエス [email protected]
コンタクトセンター:0120-380-495 www.os-worldwide.com
Taiwan
12F., No.213, Sec. 3, Beixin Rd., +886-2-8911-8600
Xindian Dist., New Taipei City 231, +886-2-8911-6550
Taiwan, R.O.C. [email protected]
www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street, +852-2396-8968
Cheung Sha Wan, +852-2370-1222
Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., +86-21-62947376
Changning District +86-21-62947375
Shanghai, 200052, China www.optoma.com.cn
67
English
Appendices
Regulation & Safety Notices
This appendix lists the general notices of your projector.
FCC Notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This device generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
Reorient.or.relocate.the.receiving.antenna..
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which
the.receiver.is.connected..
Consult.the.dealer.or.an.experienced.radio/television.technician.for.help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded
cables to maintain compliance with FCC regulations.
Caution
Changes or modications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
This device may not cause harmful interference and
This device must accept any interference received, including interference
that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du
Canada.
1.
2.
68
English
Appendices
Declaration of Conformity for EU countries
EMC Directive 2004/108/EC (including amendments)
Low Voltage Directive 2006/95/EC
R & TTE Directive 1999/5/EC (if product has RF function)
Do not throw this electronic device into the trash when
discarding. To minimize pollution and ensure utmost
protection of the global environment, please recycle it.
Disposal instructions
