OperatingInstructions

RotaryIron

HM16-80

Topreventaccidents

andmachinedamage

readtheseinstructions

before

installationoruse.

M.-Nr. 10232672

Preparingtheworkarea ............................................ 13

Preparingthelaundry .............................................. 13

Testingthefingerguard ............................................ 14

Steamsetting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Fillingthewaterreservoir............................................ 15

Emptyingthewaterreservoir ......................................... 16

Ironing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Turningonandoff ................................................. 17

Selectingtheironingtemperature(operationwithoutsteam) ................ 17

Selectingtheironingtemperature(operationwithsteam)................... 18

Powerfailure ..................................................... 22

IroningTips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Towels,dishcloths,handkerchiefs,napkins,etc. ......................... 23

Tablecloths ...................................................... 23

Sheetsandbedspreads ............................................ 23

Duvetcovers ..................................................... 24

Pillowcases ...................................................... 24

Shirts ........................................................... 25

Smock-typeaprons ................................................ 27

Apronswithties ................................................... 27

Ironingcover ..................................................... 29

Frequentlyaskedquestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Aftersalesservice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Electricalconnection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Technicaldata . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Helpprotectourenvironment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Readtheoperatinginstructions

carefullybeforeusingthisappliance

forthefirsttime.Theycontain

importantinformationaboutthesafe

forreference,andpassthemonto

anyfutureuser.

Useapplianceonlyforitsintended

use.

Useonlyasdescribedinthis

Operatingmanual.

ormentalabilitiesorexperiencewith

theapplianceshouldnotuseitwithout

supervisionorinstructionbya

responsibleperson.

Installation,repairandmaintenance

workshouldbeperformedbyaMiele

authorizedservicetechnicianin

accordancewithnationalandlocal

persons could be dangerous and may

void the warranty.

Repairsshouldonlybeperformed

byaMieleauthorizedtechnician.Faulty

componentsshouldbereplacedusing

Mieleoriginalpartsonly.Onlyoriginal

replacementpartsguaranteethesafety

oftheappliance.

checkforanyvisibledamage.

Donotinstalloruseadamaged

appliance.

Donotoperateappliancewitha

damagedcord,oriftheappliancehas

beendroppedordamaged.

Adamagedapplianceisdangerous.

Turnofftherotaryiron,unplugfromthe

Beforeconnectingtheappliance,

ensurethattheconnectiondataonthe

overload,donotoperateanotherhigh

wattageapplianceonthesamecircuit.

Donotmodifythemachinepower

cordorplug.

Toreducetheriskofelectricshock,

donotimmersetheapplianceinwater

orotherliquids.

Donotuseanextensioncordto

connectthisappliancetoelectricity.

Turntheapplianceoffbefore

removingtheplugfromtheelectrical

outlet.

Pullonlyontheplugandnotonthe

powercord.

Donotlaythepowercordoverthe

heaterplatewhenitisheated.This

surfaces.Letappliancecollcompletely

beforeputtingaway.Loopcordloosely

aroundappliancewhenstoring.

Donotstoretheironinaroom

wherethereisariskoffrostoccurring.

Frozenwaterinthereservoirandsteam

linecandamagetheappliance.

Pulloutthetransportstrut.

Keepthestrutinasafeplace.Itwill

needtobeattachedeachtimeyou

transporttheappliance.

damagecausedbystandingexposure

tosuchelementsinthewateras

chlorine,calcium,andcopper.

^

Unscrewthecap.

^

Thefunnelcanbescrewedintoplace

foreasieremptying.

^

Slowlyflipopentherollerwhile

Afteruse,returnthefunneltoits

placeinthecordreceptacle.

Usethe I-0 buttontoturntherotaryiron

onandoff.

Toturnon

^ Pressthebuttonin.

Theindicatorlightcomeson.

Toturnoff

^

Pressandreleasethebutton.

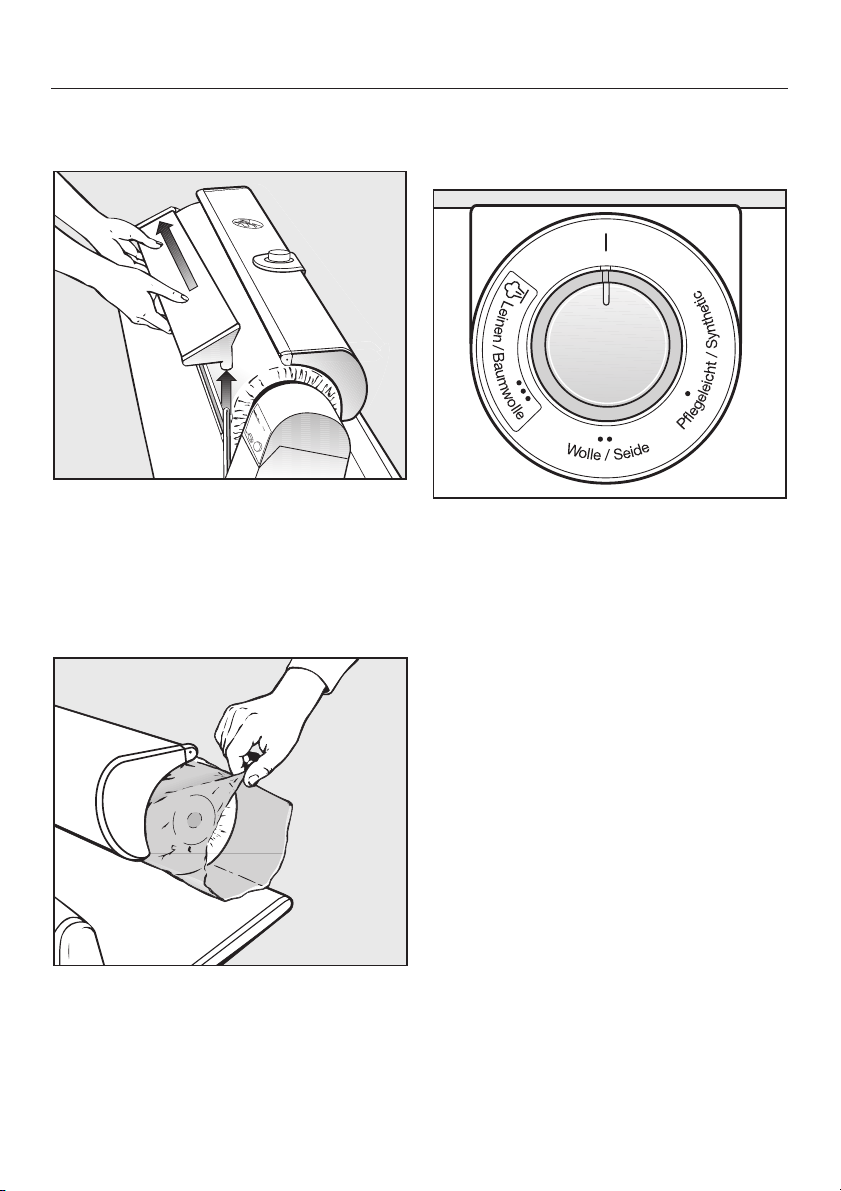

Thetemperaturerangeismarkedby

dotsontheringaroundthetemperature

selector.Thesecorrespondwiththe

internationalfabriccaresymbolsfor

ironing.

upwhiletherollerisheatingup.

Thelightwillgooutwhenthedesired

temperatureisreached.

Whenironingafabricblend(such

aspoly-cottons),themoredelicate

fiberdeterminestheironing

temperature.Forexample,items

madeofpoly-cottonblendsshould

beironedatthe ßß settingfor

Turnthetemperatureselectortothe

Ifthetemperatureselectorissetto ß

or ßß ,nosteamwillbeavailable.

Beforeturningonthesteamsetting,you

willneedtoturnthetemperature

selectortothe ßßß setting.

^

Usethe Q buttonfor"Steam"toturn

buttonwillcomeon.

Ifthewaterreservoirrunsoutwhile

theironisinoperation,theindicator

light Q for"Steam"willgooutand

thelight a "Waterempty"willturn

red.

Ifthesteamsettingisonandyoudo

notre-fillthewaterreservoir,the

indicatorlights Q "Steam"and

goesout.

tohigh15ft/min.[4.5m/min]).

Alowerrollerspeedmakesiteasierto

ironcomplicatedarticles,suchasshirts

andblouses.Itisalsobesttoselecta

lowrollerspeedwhenironinglayered

orfoldeditems,whichmayrequire

morethanonepassthroughtherotary

irontogetthemsmoothanddry.

Thinner,single-thicknessarticles,such

ashandkerchiefsordishcloths,canbe

ironedatahigherrollerspeed.

^

Settherollerspeedselectortothe

reservoirandsteamlinecan

damagetheappliance.

Ifthereisapowerfailurewhiletheiron

isinuse,theheaterplaywillstay

pressedontotheroller.Theitembeing

ironedwillbeheldthere,andcan

becomescorched.

Tofreeatrappeditem:

^

Pulltheemergencyreleaseleverup.

^

Laytheitemwiththestraightgrainof

thefabrictothefeedboard.

Thiswillpreventitfromlosingitsshape

andwillbeeasiertofold.

Passhandkerchiefsdiagonallythrough

therotaryironand,ifnecessary,fold

themandthenironagain.

^

Laythetableclothcrossways,sothat

theendshangovertotheleftand

right.

^

Ironthemiddlesectionfirst.

^

Foldinhalflengthwise.

^

Foldinhalfwithunironededges

togetherandplaceovertheleftend

thetableclothisfolded.

Sheetsmaybeironedliketablecloths,

orifalengthwisefoldisacceptable,

foldthesheettogetherlengthwiseand

ironitonbothsides.

Toaccentuateembroideryandraised

patternsonbedspreads,ironfirstin

onedirectionandthenintheother.

Iftheduvetcoverhasbuttonsatthe

roller,takingcarenottodamageany

buttons.

^

Itisbesttoironthecoverintworuns

lengthwise.

^

Laythepillowcaseonthefeeder

plate,positionundertheheaterplate

andironinonestep.

rollerandsmoothout.

^ Hotpresstheyoke.

2.Collar

Thecollarisironedonbothsidesusing

thelefthandendoftheroller.Stop

ironingwhenthebuttoncomestothe

heaterplate.

^

Thenturndownthecollarandpress

lightly,holdingtaut.

^

Nowmovetheshirtoutandironpast

thearmholetothesideseam.

^

Ironthebuttonsideinsideoutsothe

buttonsarepressedintothe

cushionedsurfaceoftheroller.

responsibleforunauthorizedwork.

Thistendstohappenwhenironing

delicateitemswithanewmachine.

Continueironing,theissueisusually

resolvedafter5-10minutesofironing.

Newironcover Anewrotaryironcovershouldbe

washedat140°F(60°C)forthelaundry

tobeideallypulledin.

Limeorstarchdepositsontheheater

plate.

Cleanwithhouseholdcleanersor

dishwasherdetergent.

Creases/Foldsoccur

Possiblefault Solution

Theheaterplateissoiled(lime

Cleantheheaterplatewithhousehold

Theheaterplatedoesnotpressontheroller.

Possiblefault Solution

Theemergencyreleasewasactivated. Presstheemergencyreleasedown

(see"Powerfailure").

Nosteamisbeingproduced.

Theindicatorlight Q for"Steam"goesoutwhileironing.

Possiblefault Solution

Theirontemperatureistoolowfor

steamproduction.

Setthetemperatureselectorto ßßß and

waituntilthedisplaylightcomeson.

Nosteamisbeingproduced.

Cleantapwaterwasnotused. Emptythesteamreservoir,rinseitout,then

fillwithtapwater(see"CleaningandCare").

Thesteamnozzlesarenotreleasingenoughwater.

Solution Solution

Therearelimedepositsinthewater

reservoir,fromhardwater.

Toremovetheselimedeposits,rinsethe

reservoirundertapwater(see"Cleaning

andCare").

Intheeventofafaultwhichyoucannot

easilyfixyourself,pleasecontactthe

WhencontactingtheTechnicalService

Department,pleasequotethemodel

andserialnumberofyouappliance

Thewiringdiagramislocatedunderthe

rightsideoftheironingtable.

Theapplianceissuppliedwithapower

cordandNEMA6-20Pplugreadyfor

powercordorplug,themachineis

approvedforUSandCDN.

Allelectricalworkshouldbecarried

outbyaqualifiedelectricianin

accordancewithlocalandnational

WARNING

THISAPPLIANCEMUSTBE

GROUNDED

Height 37

/

"(folded41

/

Width 38

/

"(folded19

/

Depth 15"[38cm]

Weight 86lbs(39kg)

ofthereachofchildren.

Dangerofsuffocation!

Disposalofanoldappliance

Oldappliancescontainmaterialsthat

canberecycled.Pleasecontactyour

localrecyclingauthorityaboutthe

possibilityofrecyclingthesematerials.

Beforediscardinganoldappliance,

disconnectitfromtheelectricalsupply

andcutoffthepowercorddirectly
