GAS RANGE KICKPLATE
1 Kickplate
4 Screw, #8 x
3
/8"
6 Screw, #10 x
1
/2"
1 Instructions
Kickplate Installation
Remove the door valance by extracting the side panel
screws and valance screws, then set valance aside. Refer to
the illustration below.
Position the top of the kickplate behind the lower front
support, then rotate into position.
Insert two #10 x
1
/2" screws (four for 48" and 60" models)
into the top of the kickplate, then reinstall the two #8 x
3
/8"
side panel screws. Refer to the illustration below.
To reinstall the valance, place the valance supports behind
the shoulder screws, then reinstall the valance screws. Refer
to the illustration below.
Gas Range Kickplate Installation
wolfappliance.com 800.222.7820
page 1 of 1
821271 REV-A 11/2012
VALANCE
SIDE PANEL
SCREW
VALANCE SCREW
KICKPLATE
LOWER
FRONT SUPPORT

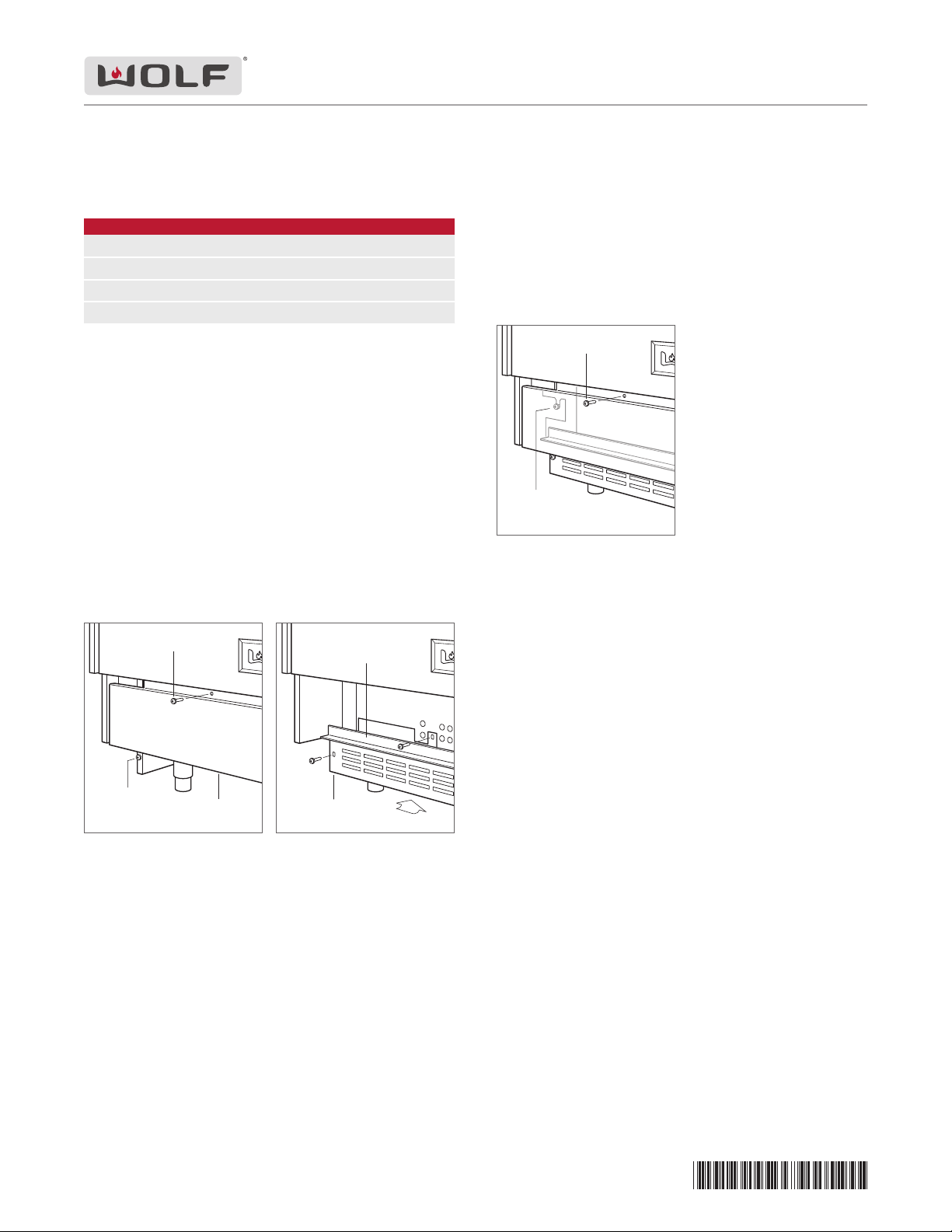

Valance removal.
Kickplate installation.
VALANCE
SUPPORT
VALANCE SCREW
Valance installation.
