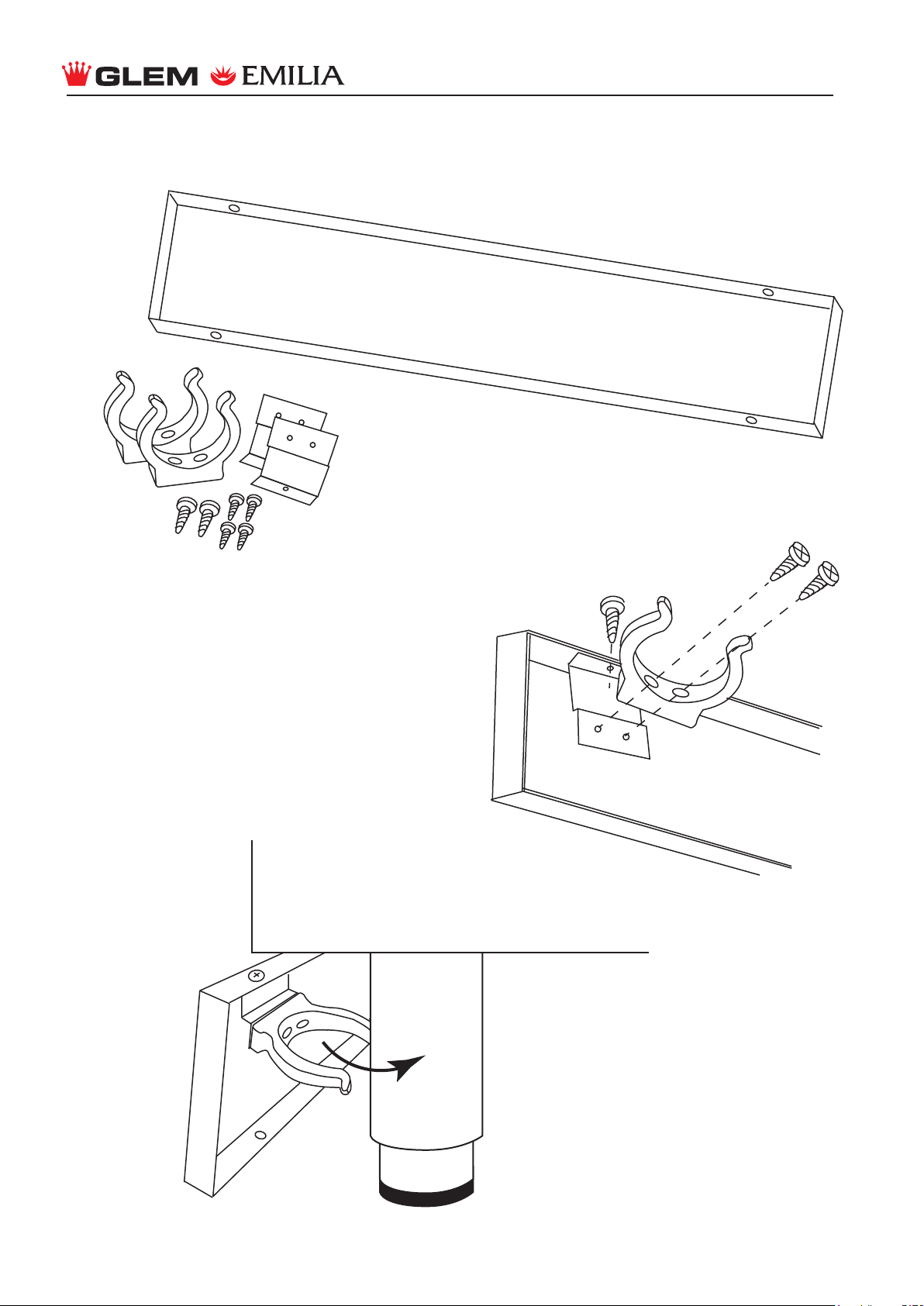

COOKER KICK PLATE KIT ASSEMBLY
Components included:
1 x Kick plate
(not drawn to scale)
2 x Leg clips
2 x Mounting brackets
4 x smaller screws
2 x Larger screws
Assembly
1. Using the smaller screws attach the leg clips onto
the mounting brackets.
2. Using the larger screw attach the mounting
bracket to the kick plate.
3. The assembled kick plate attaches to the
cooker by snapping the leg clips onto the legs
of the cooker. The cooker height may need to be
adjusted to suit the height of the kickplate (140mm).
