User Manual Fisher & Paykel KICKOR30X1

Documents for Fisher & Paykel KICKOR30X1

The following documents are available:
User Manual Photos
KICKOR30X1 photo

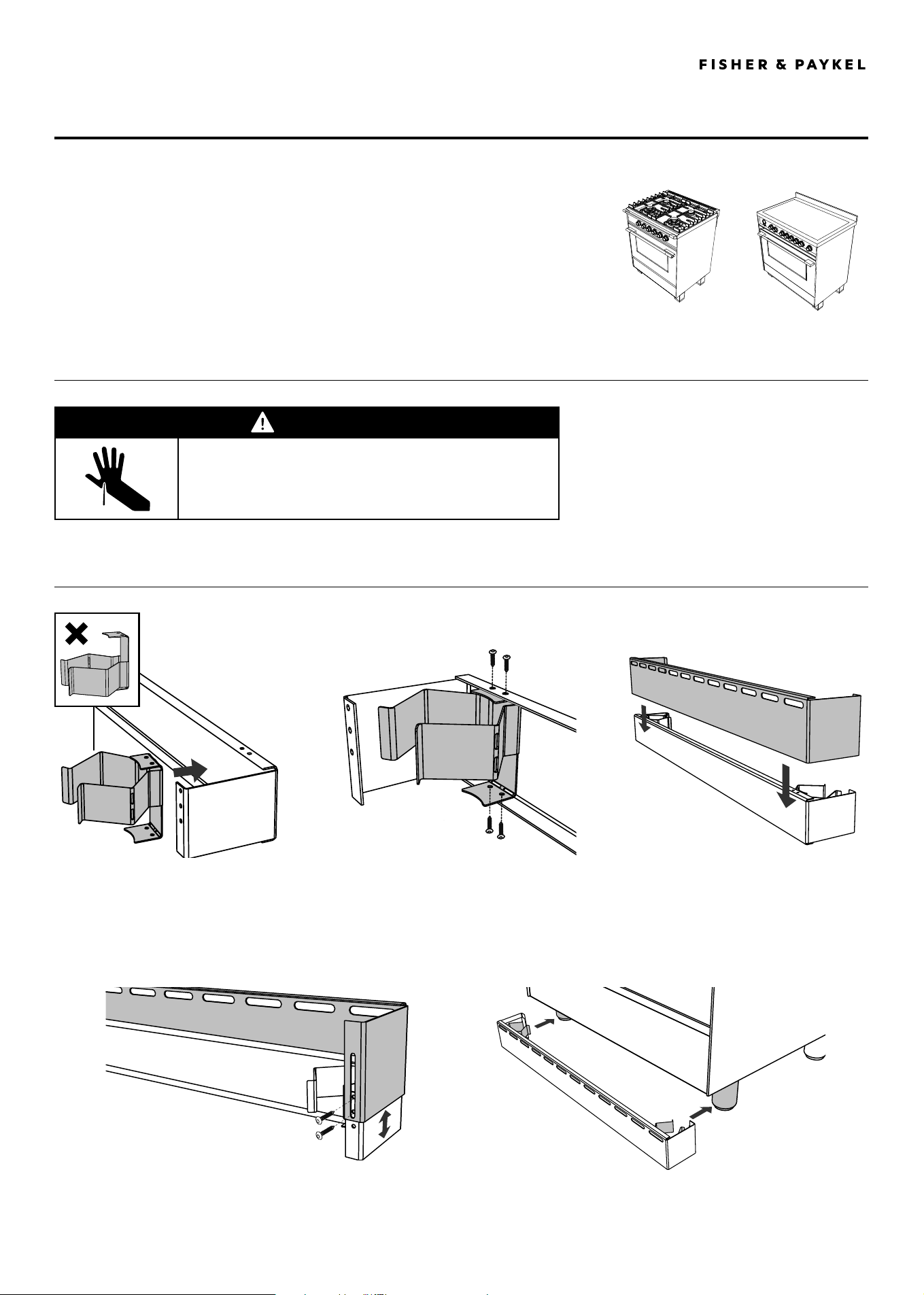

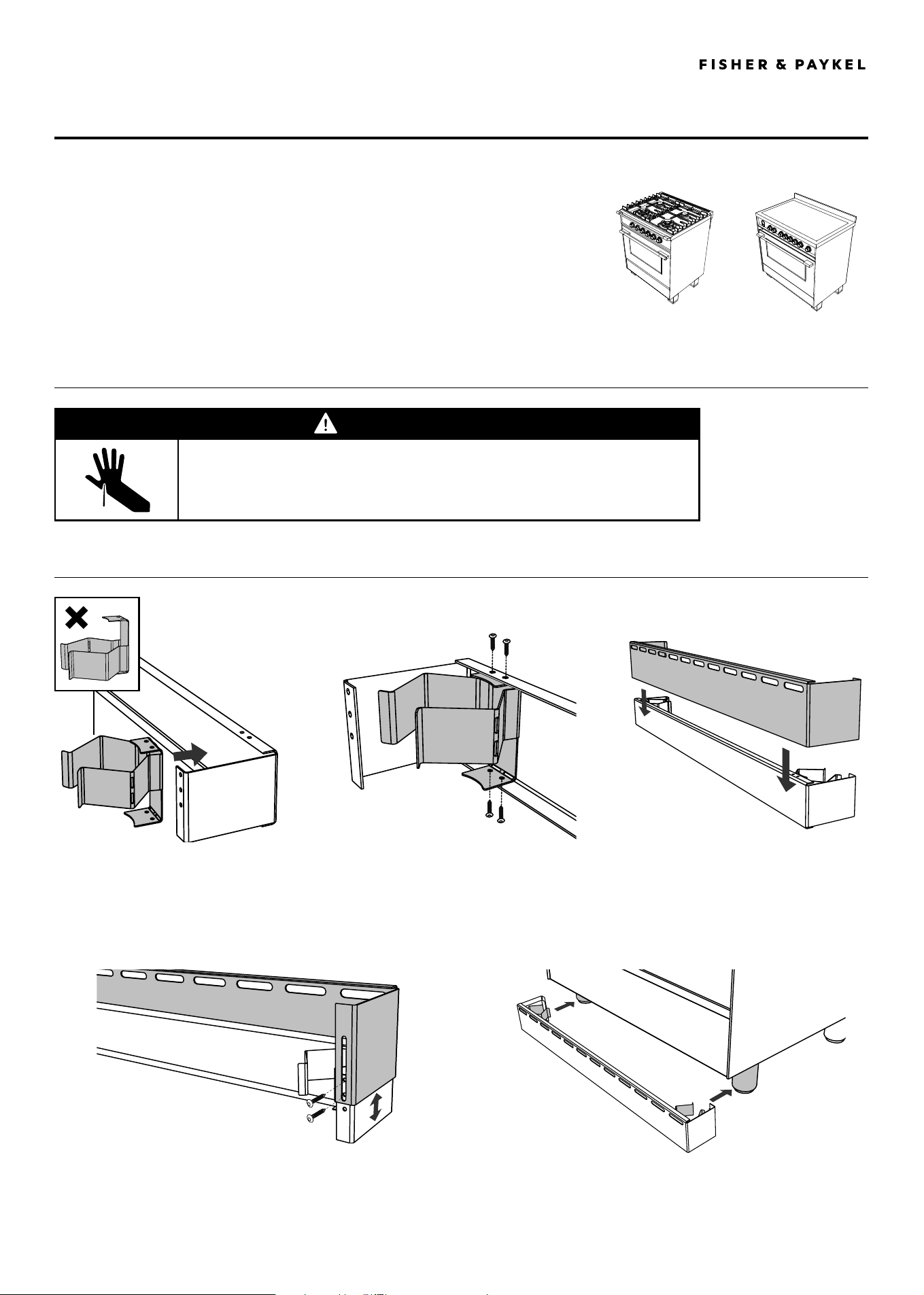

1 Align the brackets to the mounting
holes located along the tabs at the
top and bottom of the inner panel.
Ensure brackets are
correctly oriented.
2 Secure each bracket to the panel via
the mounting holes using four screws
per bracket as shown.
3 Slot the kick-strip cover over the
outside of the inner panel.
5
Align the as
sembled kick-strip panel with the range
feet and push firmly to clip into place.
591555A / 1105688-ß0 11.17
4 Adjust the height of the kick-strip cover to suit the
height of the feet on your range. Secure at either
end of the kick-strip.
INSTALLATION INSTRUCTIONS
Keep this document handy for easy reference.
For detailed information on the features of your product, see your ‘User guide’,
paying special attention to the ‘Safety and warnings’ section.
For contact information or if you require service, assistance or replacement parts,
see your ‘Service & warranty’ booklet or visit fisherpaykel.com
PRODUCT COMPATIBILITY:
OR30S models
Features may vary
OR36S models
OR90S models
US CA NZ AU GB IE
FREESTANDING RANGE - KICK-STRIP ATTACHMENT
INSTALLATION GUIDE
SAFETY AND WARNINGS
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
