FB150 Folding Bike
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW FOLDING BIKE
FITNESS
Table Of Contents
1
2
4
11
13
Product Registration
Important Safety Instructions
FB150 Assembly Instructions
Operation of Your Console
Manufacturer’s Limited Warranty
Thank you for your purchase of this quality Folding Bike from XTERRA Fitness. Your new
Folding Bike has been manufactured by one of the leading tness manufacturers in the world.
XTERRA Fitness will do all we can to make your ownership experience as pleasant as
possible for many years to come. If you have questions, or if parts are missing or damaged,
or you require customer service, call (870) 333-5500. Please have your model number and
serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new Folding Bike.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Folding Bike and Welcome to the XTERRA Fitness Family!
FB150_VER9_20210422
FB150 Folding Bike
1
Manufacture’s One-Year Limited Warranty
ATTENTION
THIS FOLDING BIKE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR
THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warranty
to register online.
Product Registration
Purchase Location
Purchase Date
Your Xterra Folding Bike is warranted for one year from the date of purchase against
defects in material when used for the purpose intended, under normal conditions and
provided it receives proper care. Any part found defective or missing will be sent at no cost
when returned in accordance with the terms of this warranty.
This warranty is not transferable and is extended only to the original owner.
The warranty shall not apply to exercise units which are (1) used for commercial or other
income producing purposes, or (2) subject to misuse, neglect, accident or unauthorized
repair and alterations.
This warranty provided herein is lieu of all other express warranties, any implied warran-
ties, including any implied warranties of merchantability of tness for particular purpose,
are limited in duration to the rst 12 months from date of purchase. All other obligations or
liabilities, including liability for consequential damages are hereby excluded.
2
FB150 Folding Bike
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and
equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for
persons over the age of 35 or persons with pre-existing health conditions.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may aect the
accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart
rate trends in general.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
• Weight Limit: 225 LBS.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
WARNING - To reduce the risk of burns, re electric shock, or injury to persons:
1. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury
to persons.
2. This exercise equipment is not intended for use by persons with reduced physical, sensory or mental capa-
bilities, or lack of experience and knowledge.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
4. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being use or where oxygen is being administered.
8. The appliance is intended for household use.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
CAUTION!! Please be careful when unpacking the carton.
Failure to follow all guidelines may compromise the eectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
FB150 Folding Bike
3
Before you begin
Thank you for selecting our revolutionary XTERRA FB150 Fitness Folding Bike. A Folding Bike is an eective
exercise for increasing cardiovascular tness, building endurance, and toning the body. Our tness Folding
Bike provides an impressive selection of features designed to make your workouts at home more eective and
enjoyable.
For your benet, read this manual carefully before you use the FB150 Fitness Folding Bike. To help us assist
you, note the product model number and serial number before contacting us. Before reading further, please

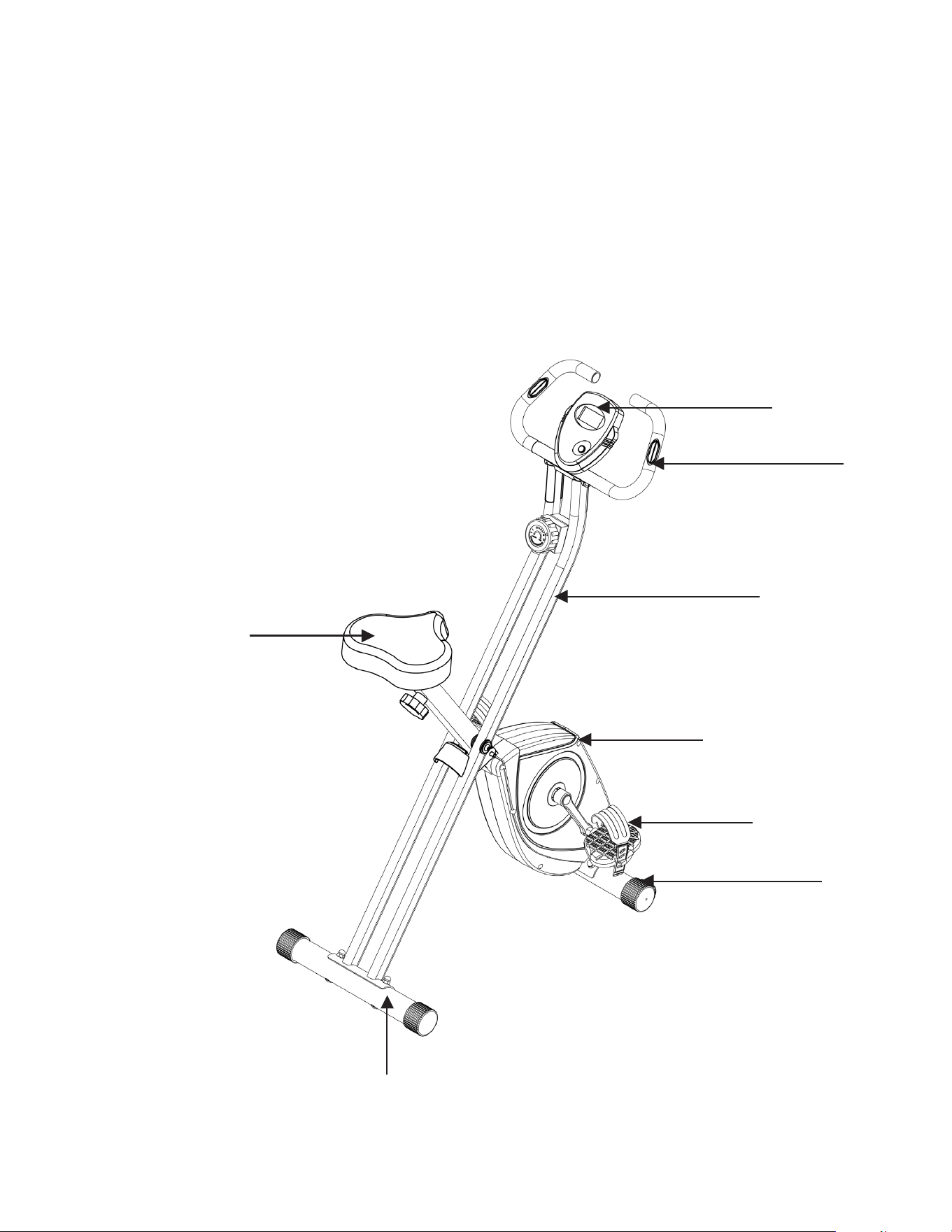

familiarize yourself with the parts that are labeled in the drawing below.
Console
Hand Pulse Grips
Front Support Tube
Pedals
Shroud
Seat
Rear Stabilizer
Front Stabilizer
4
FB150 Folding Bike

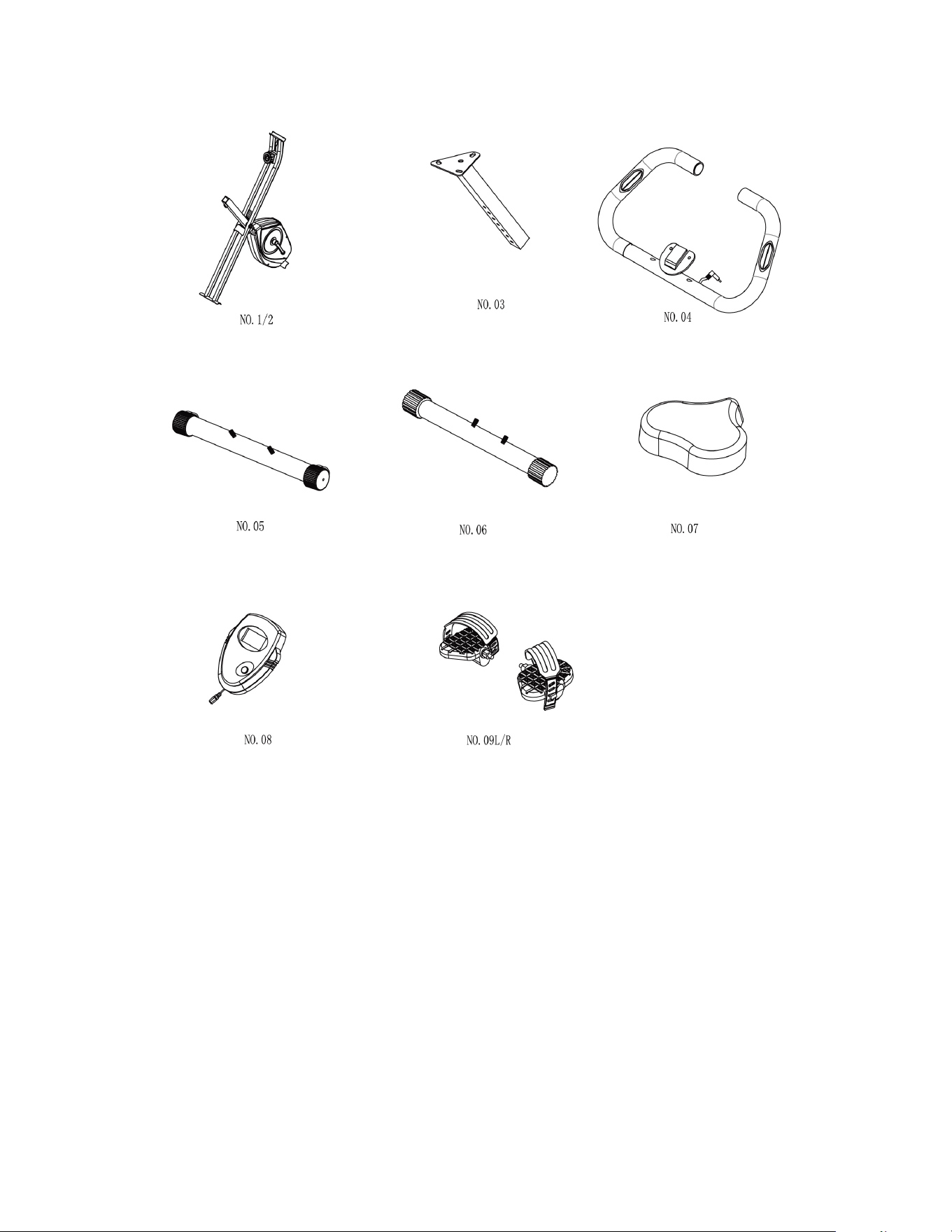

FB150 Assembly Part Checklist
1/2 Main Frame 1
3 Seat Support Tube 1
4 Handlebar Tube 1
5 Front Stabilizer 1
6 Rear Stabilizer 1
7 Seat 1
8 Computer 1
9 Pedal (L/R) 1
Hardware Bag 1
Manual 1
Part No. Description Q’TY
FB150 Folding Bike
5
FB150 Assembly Pack Checklist
Part No Description Q’ty
10 Club Knob 1
Allen Key 1
Hex Head Wrench 1
Note: Above parts are all needed to assemble this machine. Before you start to assemble, please check the
hardware packing to make sure they are included. Some of the parts for this machine are preassembled on the
unit. Please read your manual to ensure everything is there.
6
FB150 Folding Bike

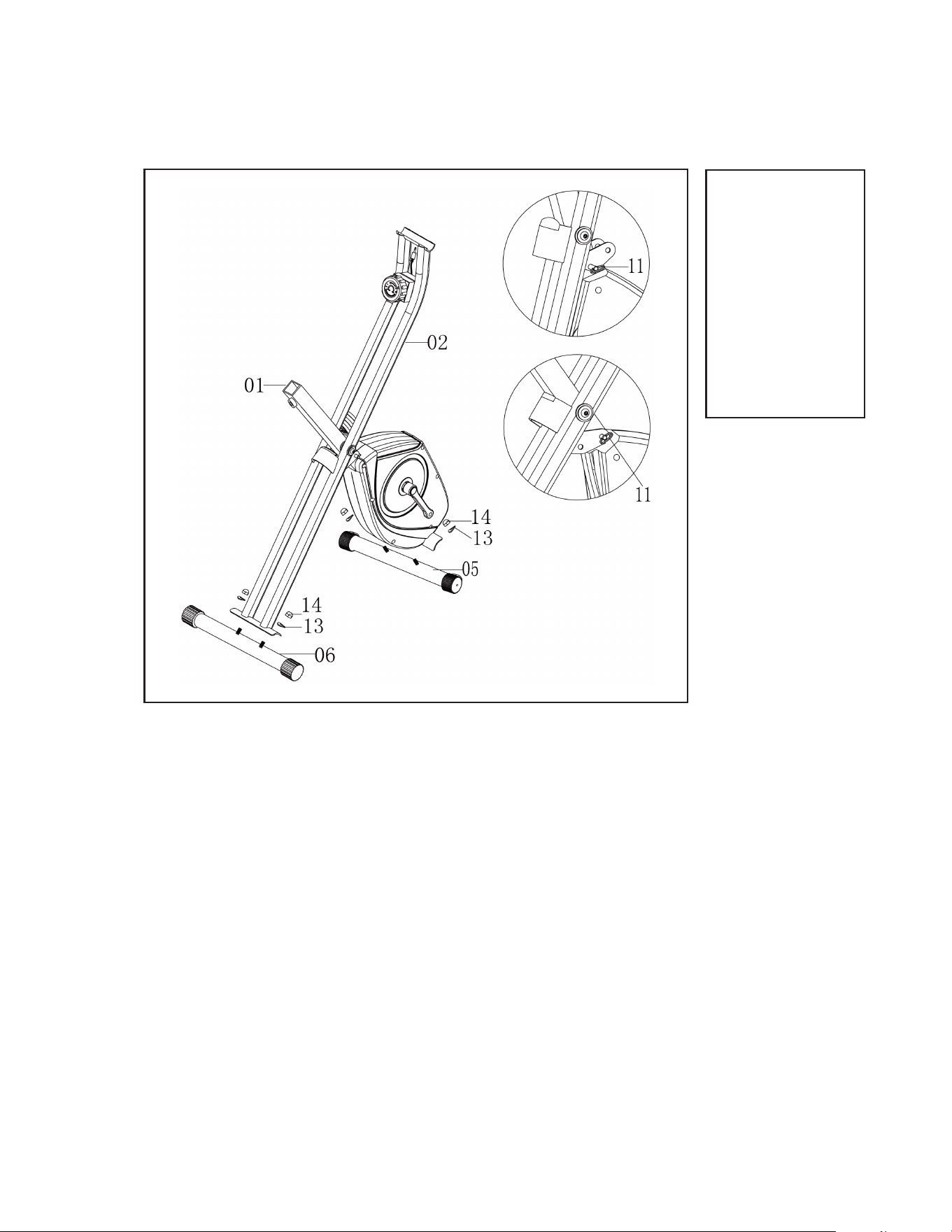

1. Pull out the lock pin (11) from the main frame (01) and adjust
main frame (01) to the correct position then insert lock pin
(11) to tighten the main frame (01).
2. Attach the front stabilizer tube (has wheels) (05) to the main
frame (01), tighten with 2 curved washers (13) and 2 domed
nuts (14).
3. Repeat the procedure for rear stabilizer tube (06).
FB150 Assembly Instructions
Hardware Step 1
Front Stabilizer and Rear Stabilizer
Pre-assembled on
Main Frame:
1 Lock pin (#11)
Pre-assembled
on Front & Rear
Stabilizer:
4 Curved washers
(#13)
4 Domed nuts (#14)
1
FB150 Folding Bike
7
Pedals
2

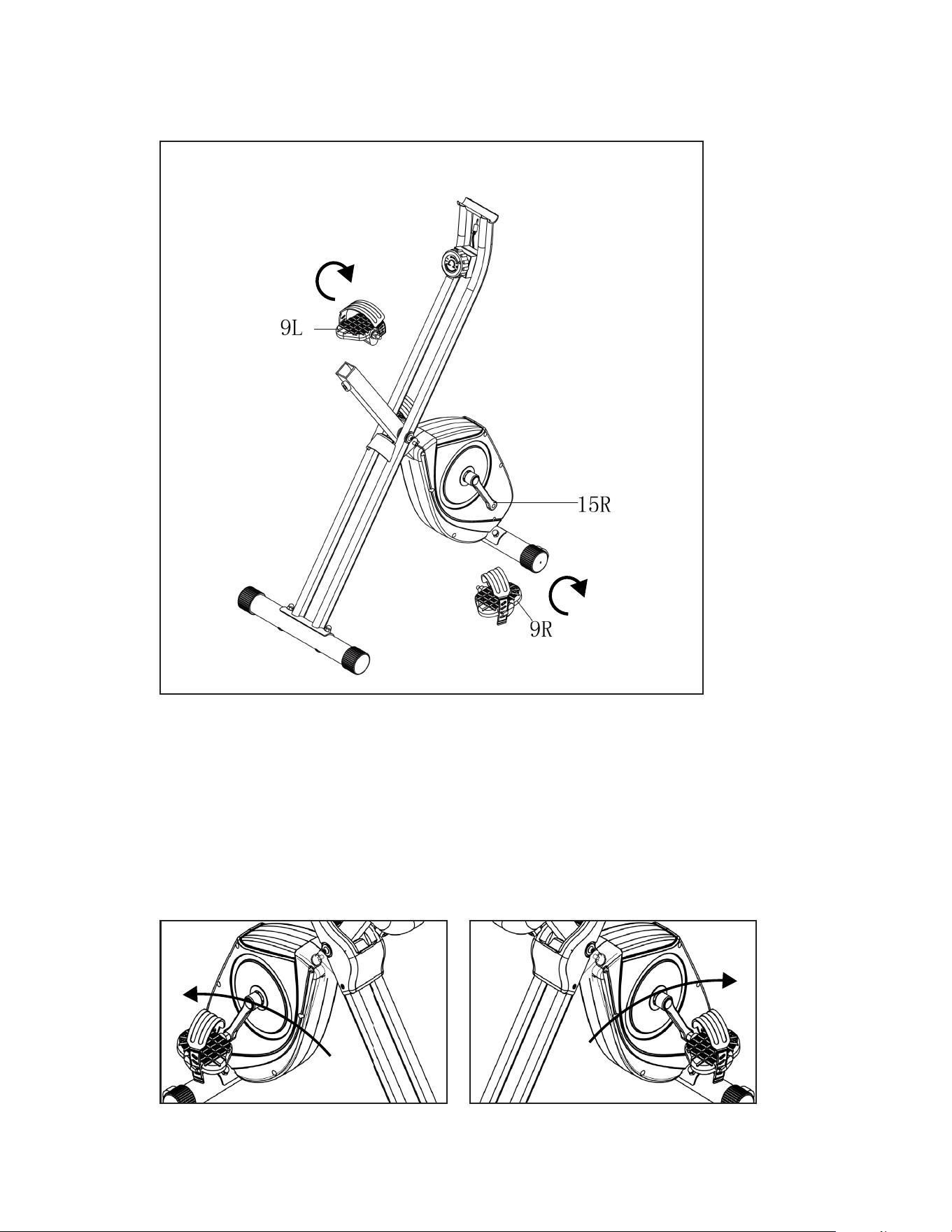

1. Connect the left and right pedal (09L) &(09R) to their appropriate crank arm
(15). The right pedal is on the right hand side of the cycle as you sit on it.
2. The left pedal should turn towards the front of the machine
(counterclockwise) when screwing them on.
3. Note that the right pedal (09R) should be threaded on clockwise and the left
pedal (09L) on counter-clockwise.
Left pedal assembly Right pedal assembly
8
FB150 Folding Bike

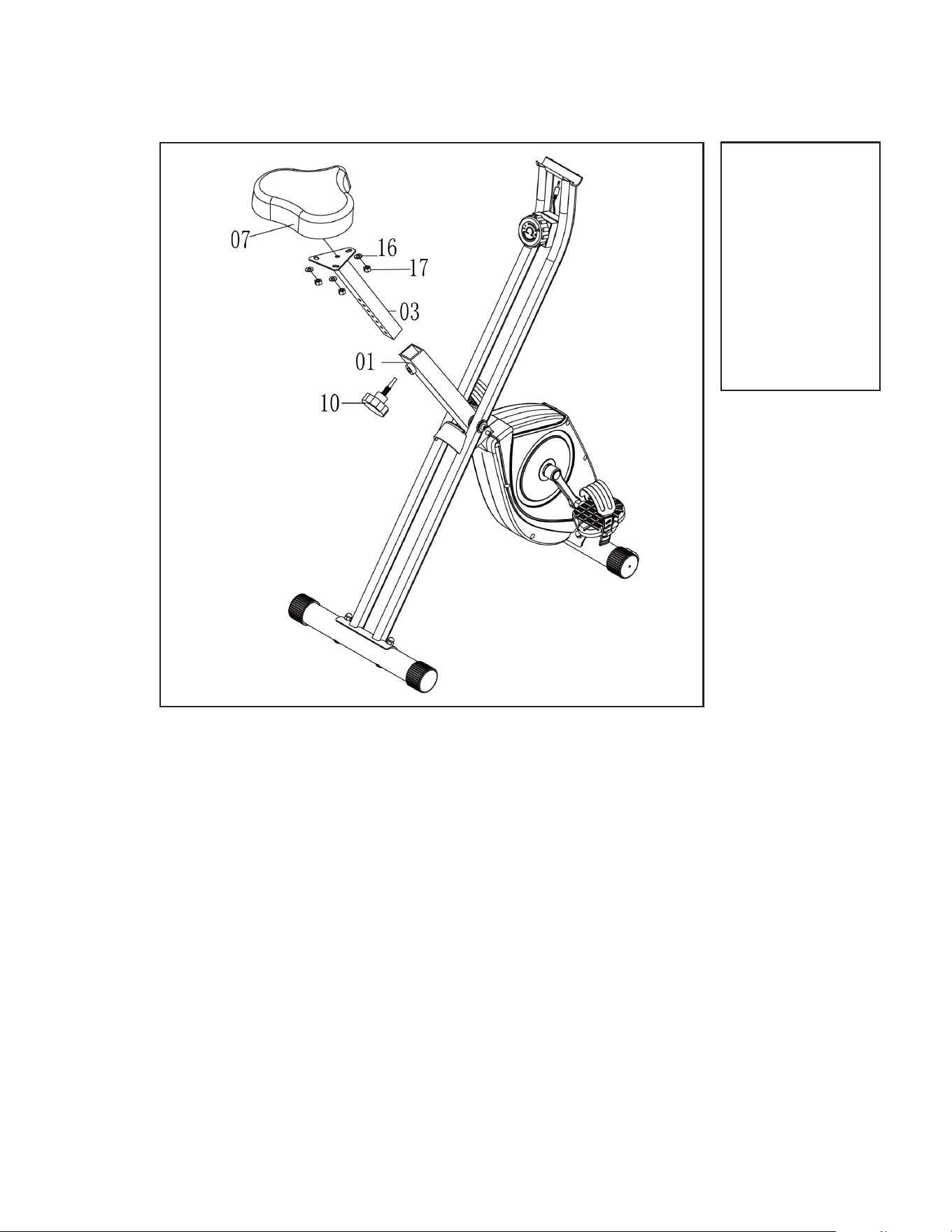

1. Screw o 3 at washers (16) and 3 nylon nuts (17) the back
of seat (07).Attach the seat (07) to the seat post tube (03),
tighten with3 at washers (16) and 3 nylon nuts (17).
2. Insert the seat support tube (3) to the main frame (01), fasten
with a club knob (10).
1 Club Knob (#10)
Pre-assembled on
seat:
3 Flat Washers (#16)
3 Nylon Nuts (#17)
Seat
3
Hardware Step 3
FB150 Folding Bike
9
Pre-assembled on
main frame:
2 Allen Screws (#12)
Handlebar
4
Hardware Step 4

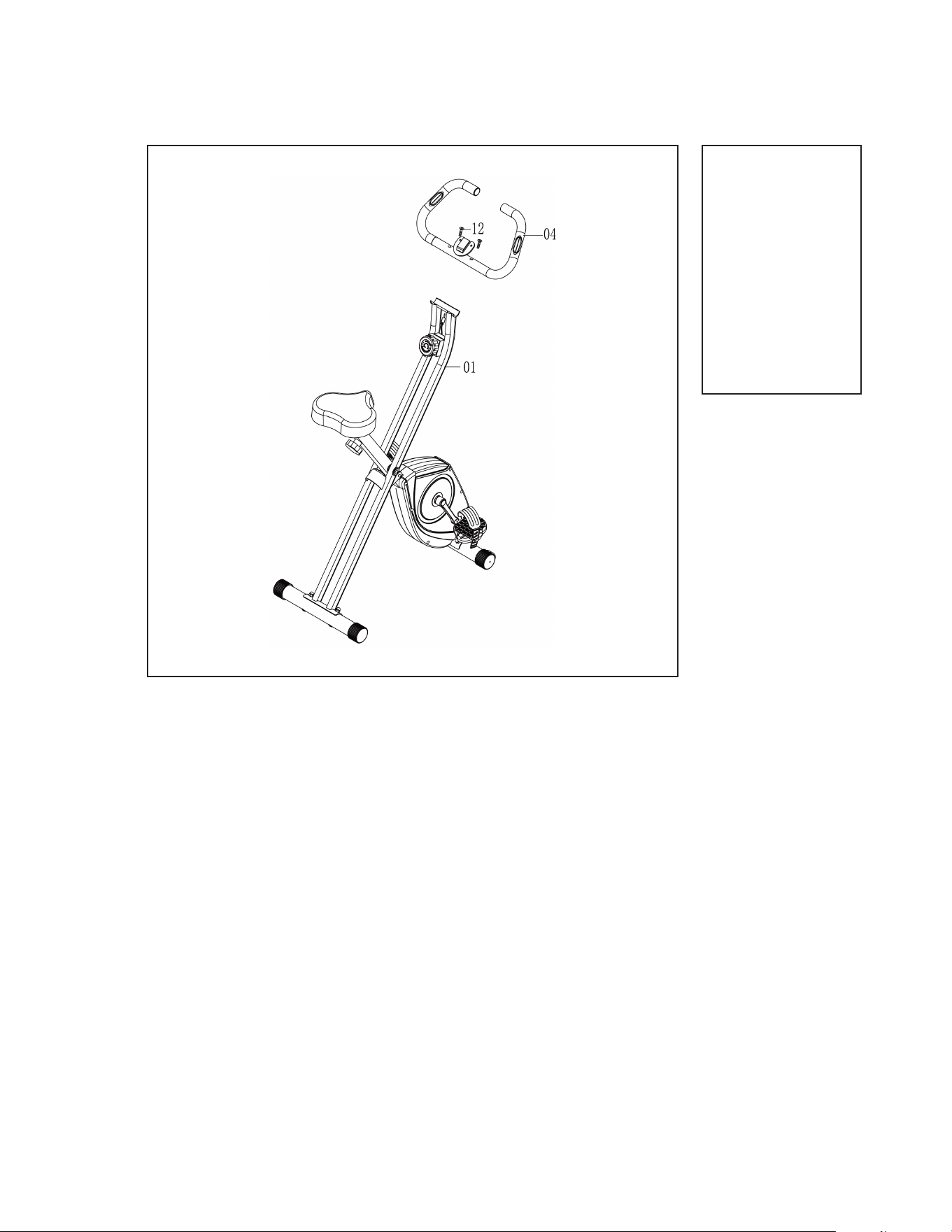

1. Remove 2 allen screws (12) from main frame (01).Attach the
handlebar (04) to main frame (01) tighten with 2 allen screws
(12).
10
FB150 Folding Bike
Console
5

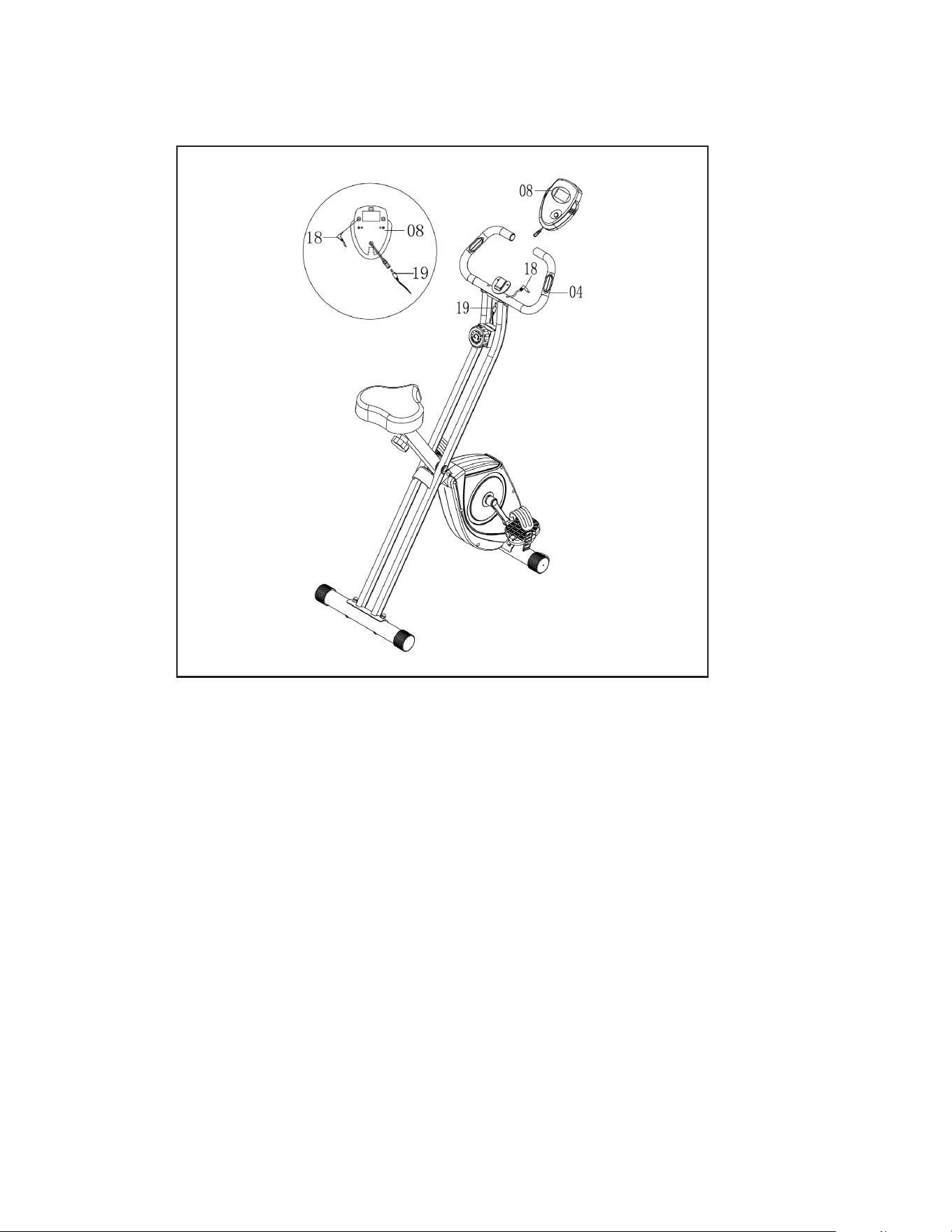

1. Insert the computer wire (8) into the handlebar (4), connect
the middle sensor wire (19) with the computer (08).
2. Plug hand pulse wire (18) into the back of computer (8).
FB150 Folding Bike
11
Operation of Your Console

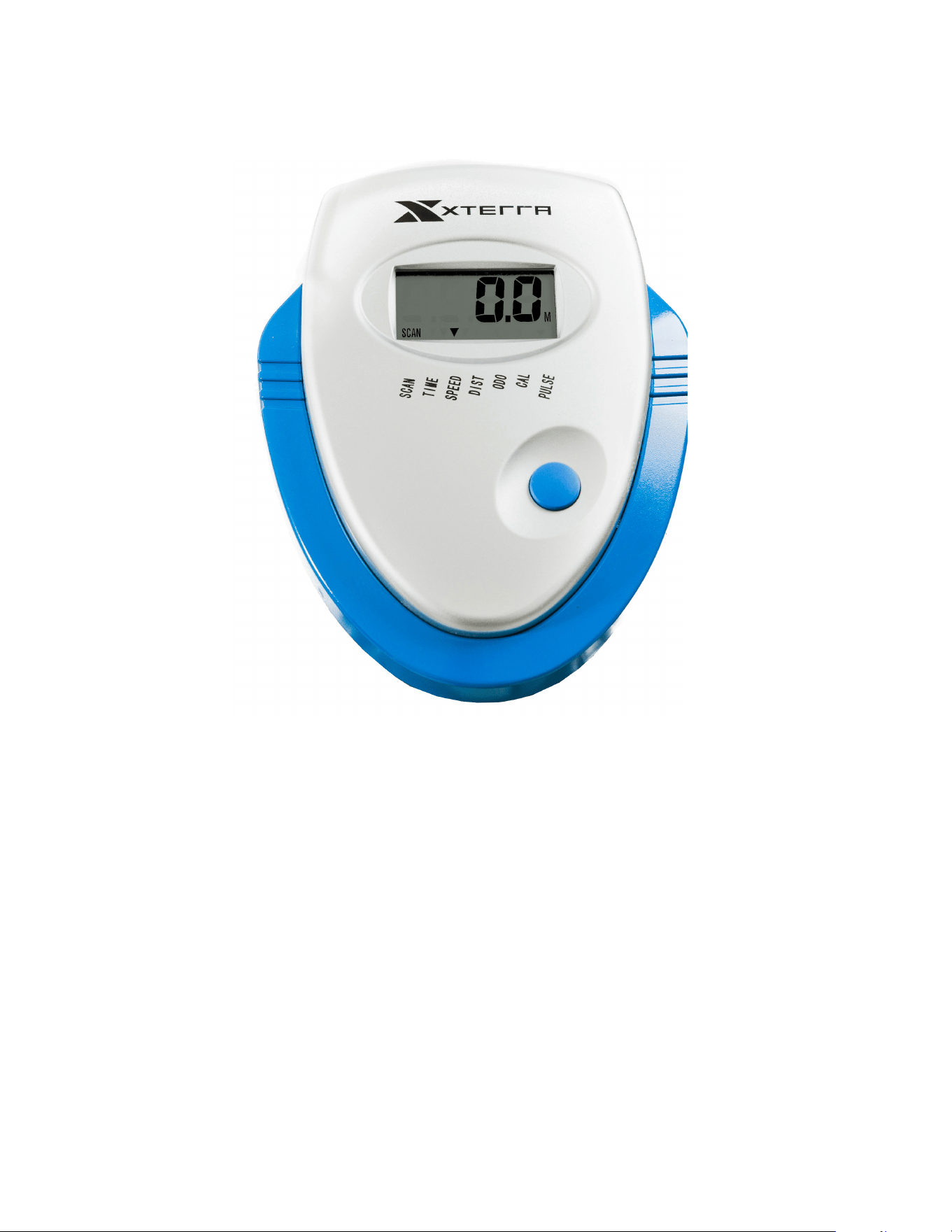

FB150 Console
FUNCTIONAL BUTTON:
MODE – Press to show dierent Functions.
– Hold down for 6 seconds to reset all data.
FUNCTIONS AND OPERATIONS
1. SCAN: Press MODE button until “▼” appears at SCAN position, monitor will rotate through
the following functions: speed, distance, time, calorie, ODO, and pulse, each display will be
hold 4 seconds.
2. TIME: Shows your elapsed workout time up to 99:59.
3. SPEED: Display current speed. The maximum value is 999.9 M/H
4. DISTANCE: Count the distance from exercise start to end. The maximum value is 99.99
MILE.
5. CALORIE: Count the total calories from exercise start to end. The maximum value is
999.9.
Key Functions
12
FB150 Folding Bike
6. ODOMETER: Monitor will display the total accumulated distance. The maximum value is
999.9 MILE.
7. PULSE RATE: Press MODE button until “▼” appears at PULSE position.
Before measuring your pulse rate, please place your palms of your hands on both of your
contact pads and the monitor will show your current heart beat rate in beats per minute(BPM)
on the LCD after 6~7 seconds.
Remark: During the process of pulse measurement, because of the contact jamming, the
measurement value may be higher than the virtual pulse rate during the rst 2~3 seconds,
then will return to normal level. The measurement value cannot be regarded as the basis of
medical treatment.
NOTE
1. If the display is faint or shows no gures, please replace the batteries.
2. The monitor will automatically shut o if there is no signal received after 4 minutes.
3. The monitor will be auto-powered on when starting to exercise push button w/signal in.
4. The monitor will automatically start calculating when you start to exercise and will stop cal-
culating when you stop exercising for 4 seconds
USER DIRECTION
HOW TO MOVE THE FOLDING BIKE
To move the Folding Bike, grasp the rear stabilizer and carefully lift it until the exercise Fold-
ing Bike can be moved on the front wheels. Carefully move the Folding Bike to the desired
location and then lower it.
Maintenance
The safety of this produce can be maintained only if regular periodic checks are made. Most
checks can be performed once a week. However some checks should be made before each
workout, and are indicated as such below.
Checks
• Check that seat nuts are secure, check before each workout.
• Check that pedals are tight, pedals can work loose over time.
• Check that stabilizer bolts are tight, check before each workout this.
• Check that handlebar is secure, if not, tighten, check before each workout this.
• Should a part become defective, replace it immediately. Do not allow use of the equipment
until it has been repaired.
Cleaning
A damp cloth is sucient to clean most surfaces of this unit. Be careful not to drip water on
the monitor. A mild liquid soap may be added if needed.
FB150 Folding Bike
13
Manufacturer’s Limited Warranty
Eective August 21, 2018 - Folding Bike LIMITED WARRANTY
Home Use Limited Warranty
Frame
1 Year
Parts
1 Year
XTERRA Fitness Inc. warrants all its home use Folding Bike parts for a period of time listed below, from the date of retail sale, as determined
by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’
responsibilities include providing new or remanufactured parts, at XTERRA Fitness’ option, and technical support to our independent dealers
and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA Fitness
directly to a consumer. The warranty period applies to the following components:
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at the XTERRA Fitness website.
2. Proper use of the Folding Bike in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sucient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the Folding Bike accessible for servicing, including any item that was not part of the Folding Bike at the time it
was shipped from the factory.
5. Damages to the Folding Bike nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSESRESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow
the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period,
for Folding Bikes not requiring component replacement, or Folding Bikes not in ordinary household use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been; sold, transferred, bartered, or given to a third party.
6. Products that are used as store display models.
7. Products that do not have a warranty registration on le at XTERRA Fitness Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
8. Product use in any environment other than a residential setting.
9. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870)333-5500
4. XTERRA Fitness’ obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’ option, the product through one
of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service center
freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the product is
under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer will be respon-
sible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not include Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Labor
None
www.xterrafitness.com
©2018 All RIghts Reserved. FB150 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611
