English - 1

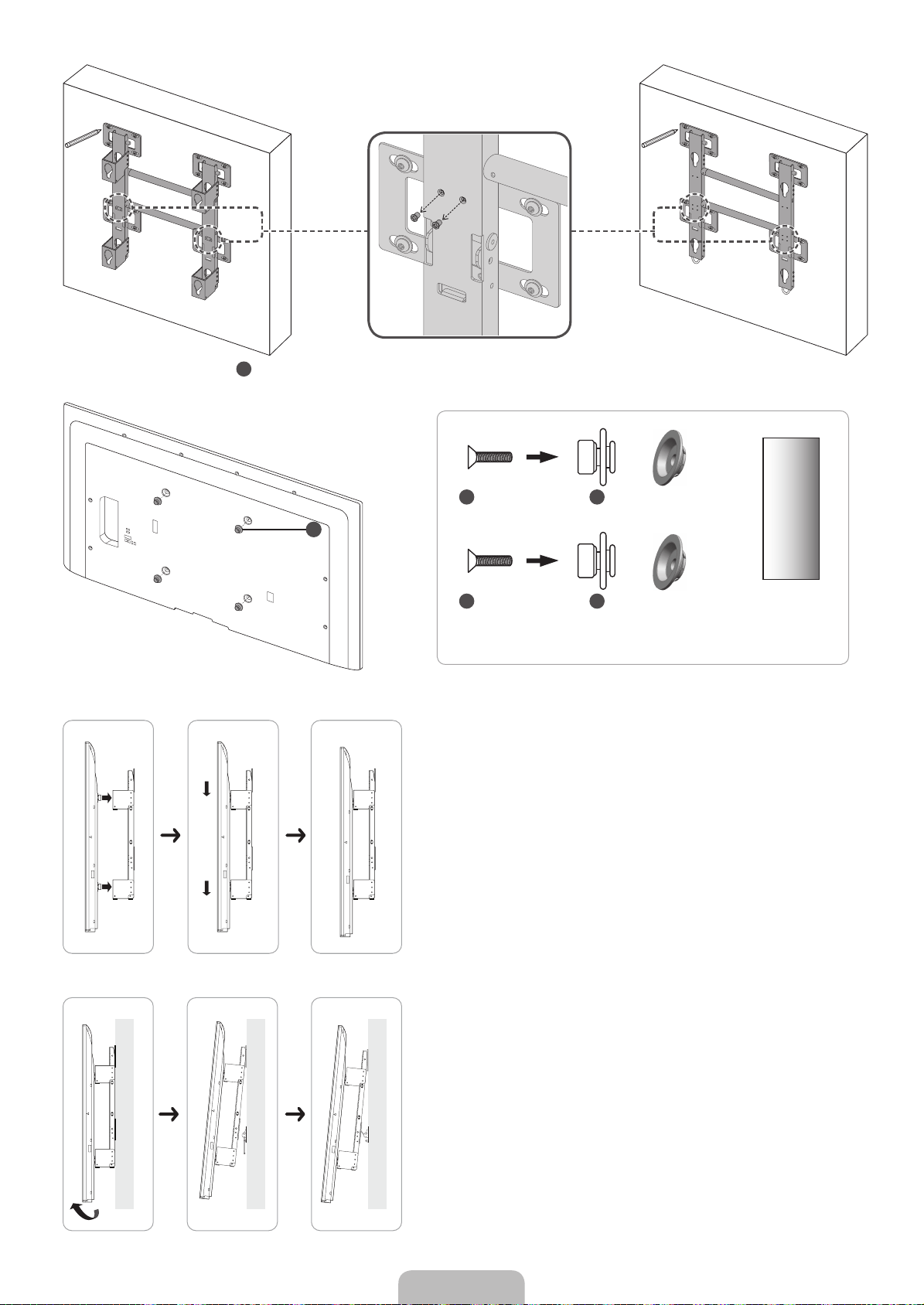

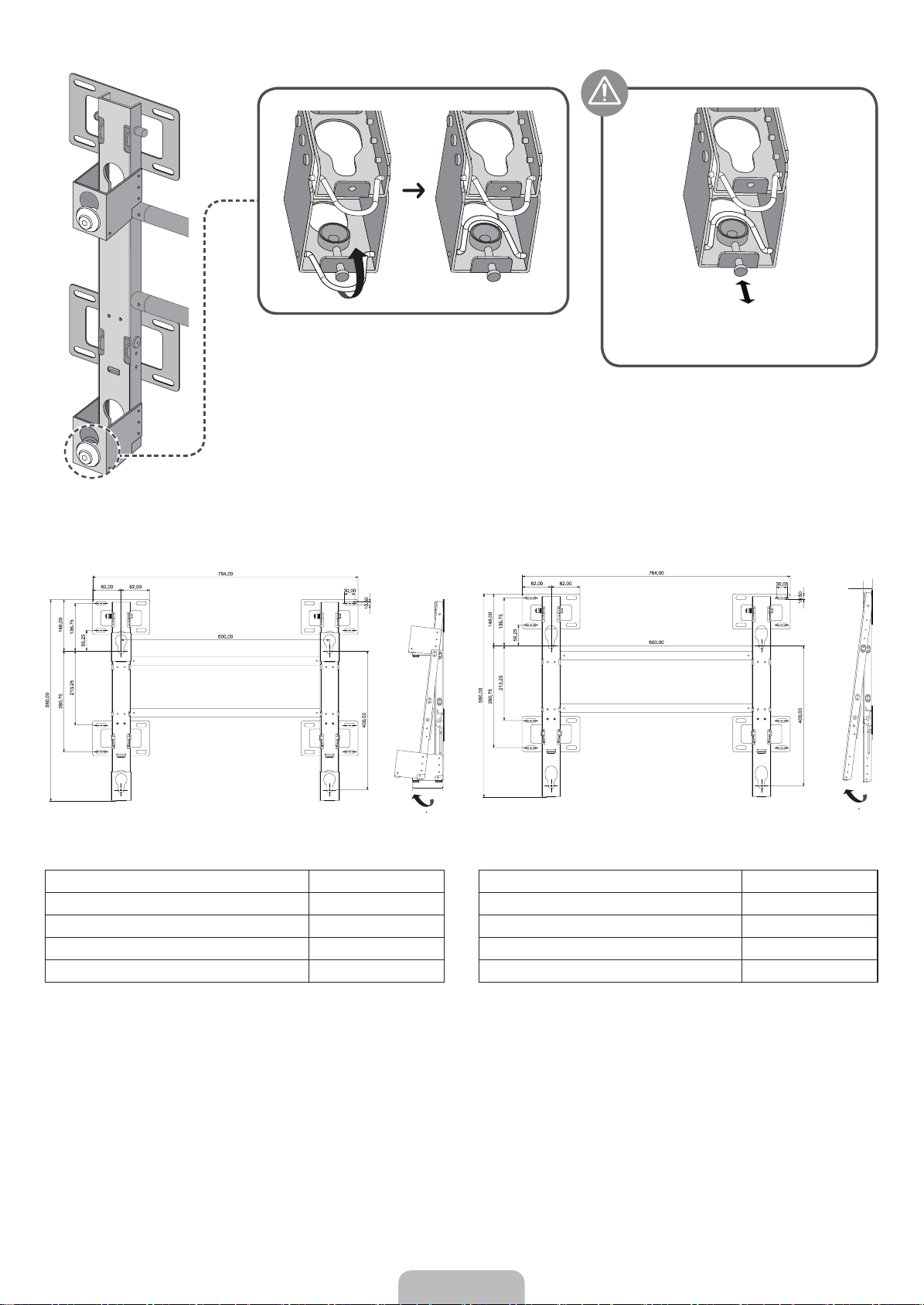

Wall Mount Installation Precautions

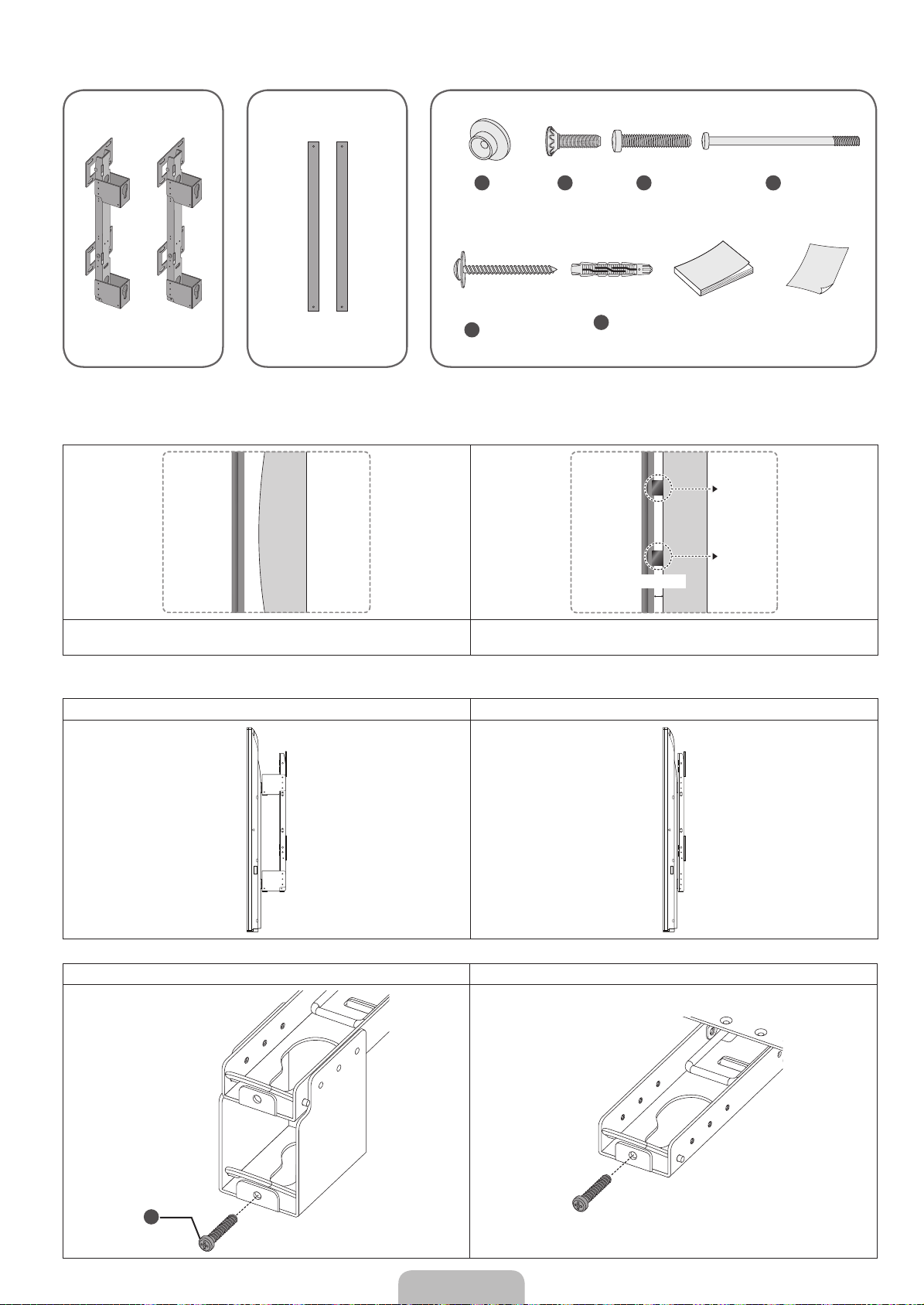

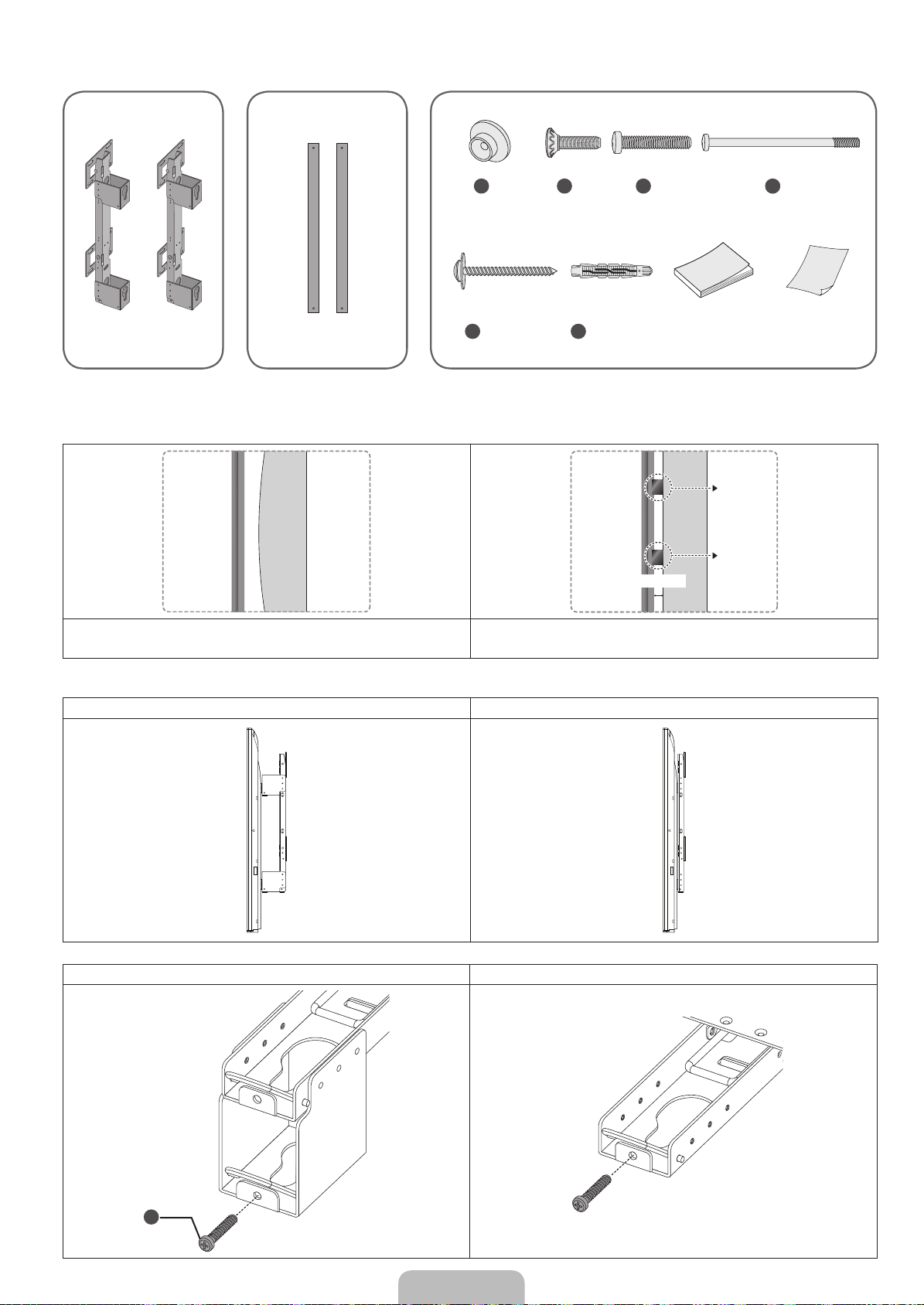

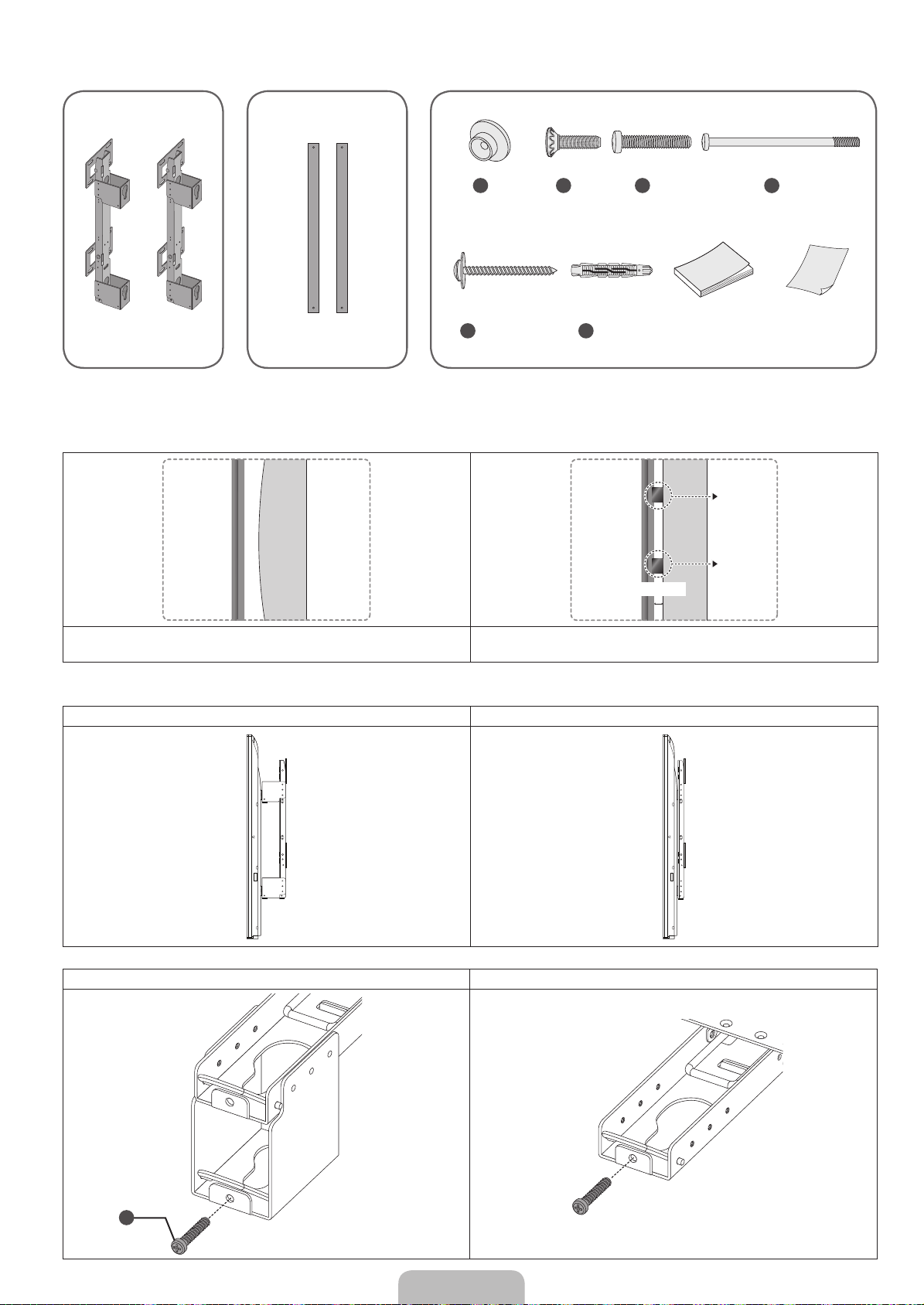

• Use only the provided accessories and parts to install the wall mount.
• Do not install on any surface other than a vertical wall.
• In order to ensure the product’s performance and prevent malfunctions, do not install it in the following areas:
- Areas with strong vibration and/or impact: Can cause the product to fall and become damaged.
- In the vicinity of a fire sprinkler: Heat generated by the product may trigger the sprinkler.
- In the vicinity of a high-voltage cable: Interference from the cable can prevent the TV from displaying images correctly.
- In the vicinity of a heater: Can cause the product to overheat and malfunction.
- Check the stability of the wall.
- Weak walls will need to be reinforced before the TV can be mounted.
• Do not hollow out a wall and install the TV inside it.
• Connect all the external devices to the TV before installing the wall mount.
• If intending to mount on a non-concrete wall, contact a professional installer and verify first.
• Once installed, maintain a distance of at least 28mm between the wall surface and the TV.
• Check the model of your TV, the corresponding installation guide on the back, and the types of walls the TV can be mounted on.
[ Check the type of the wall before installing.

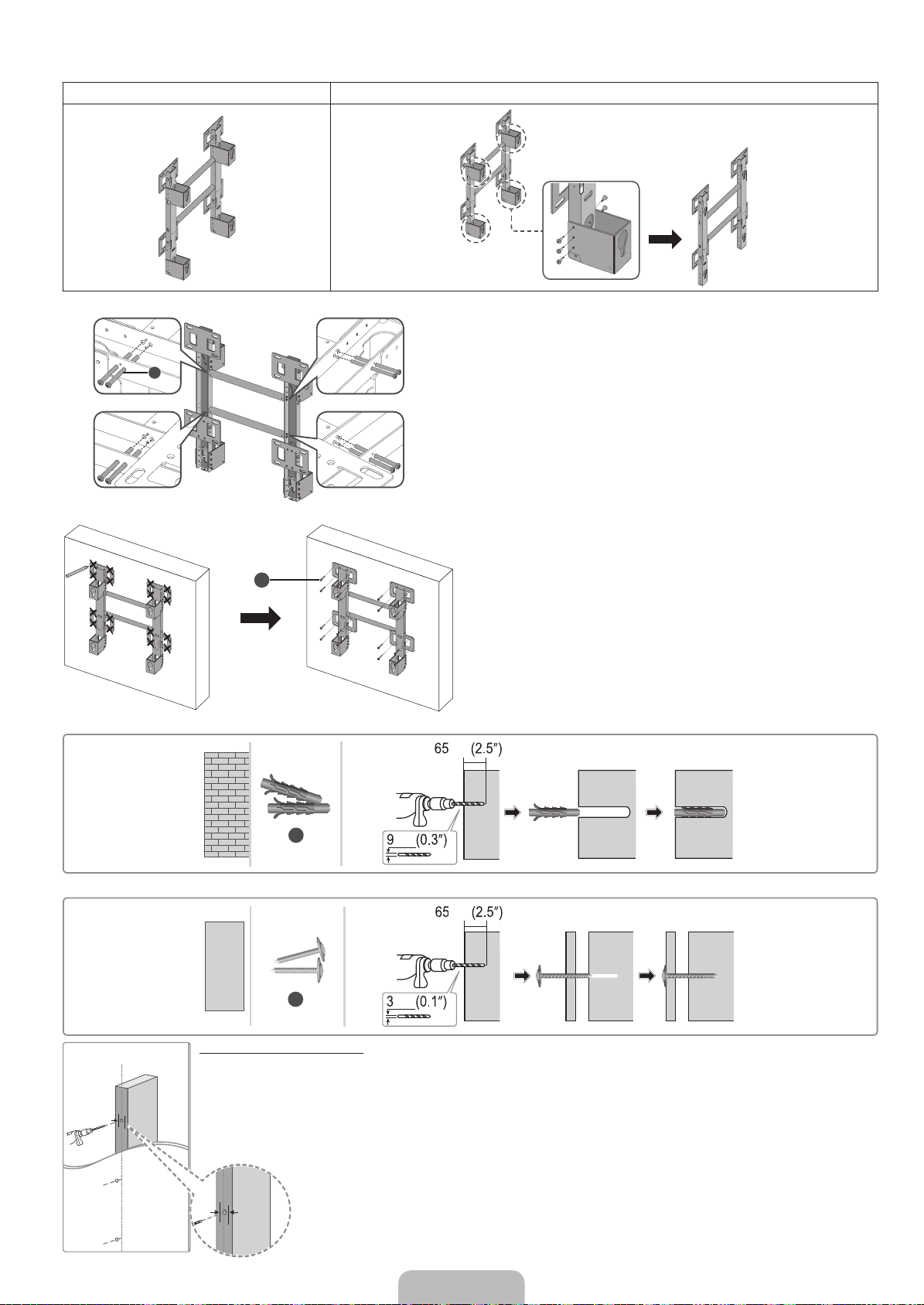

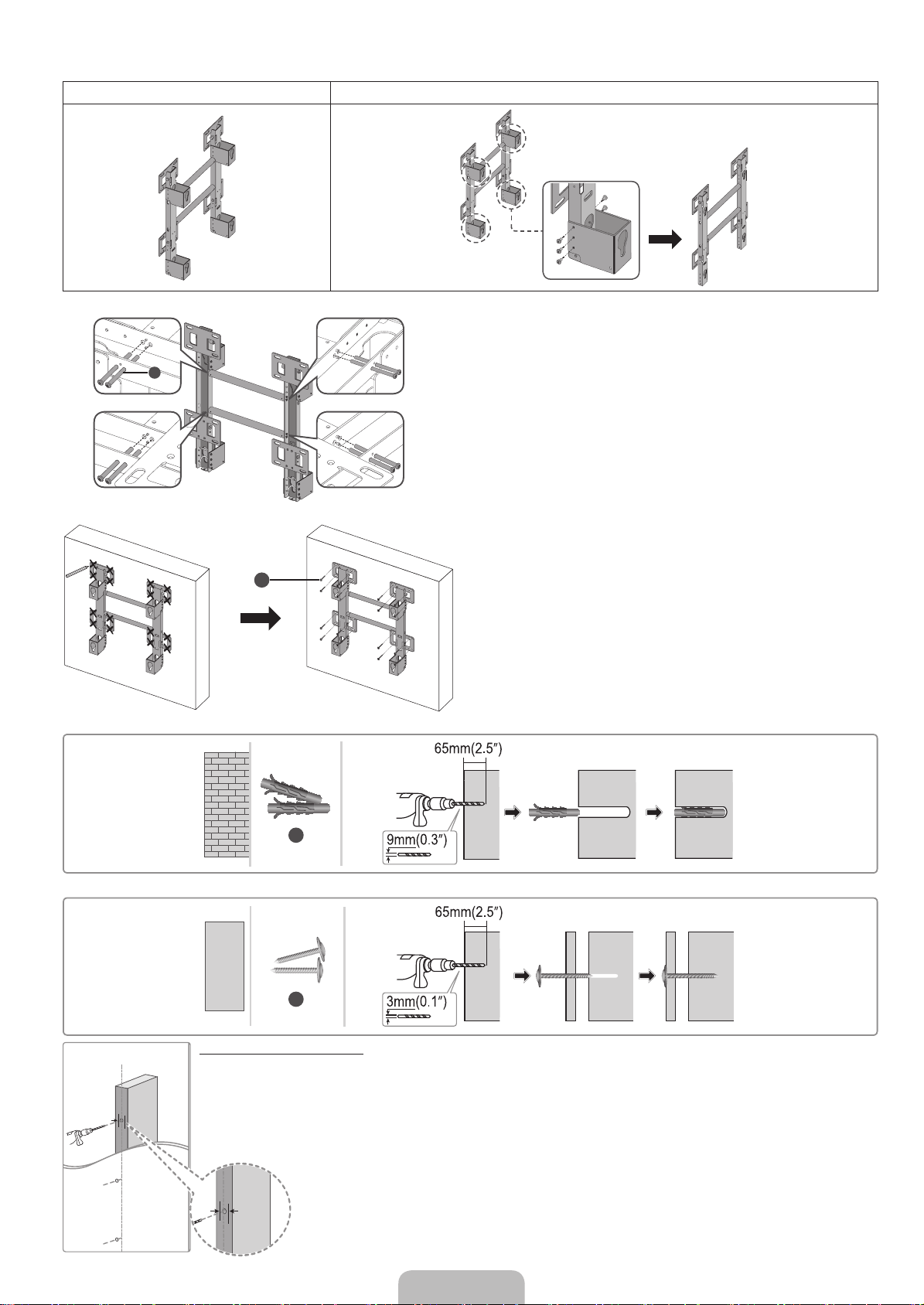

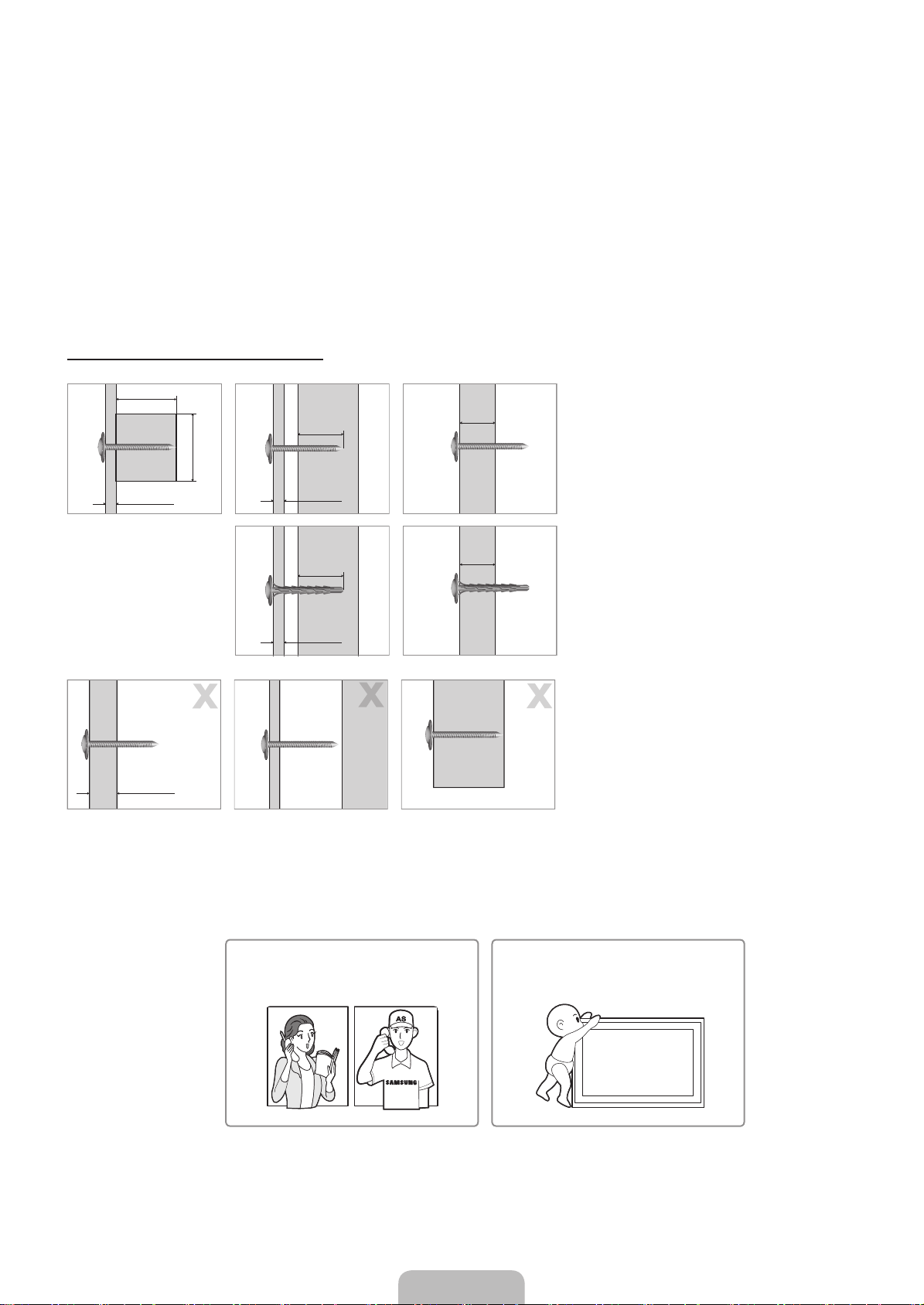

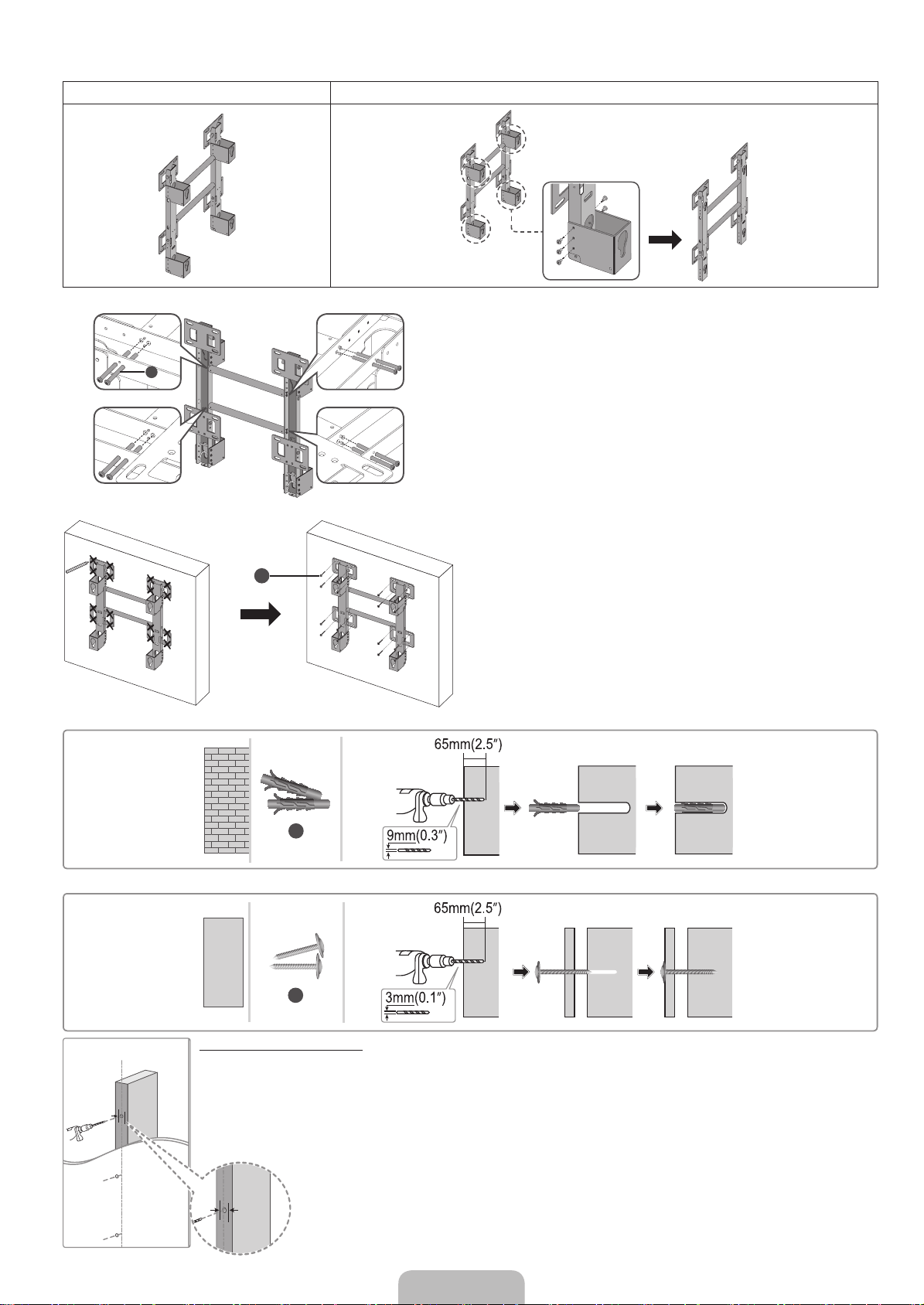

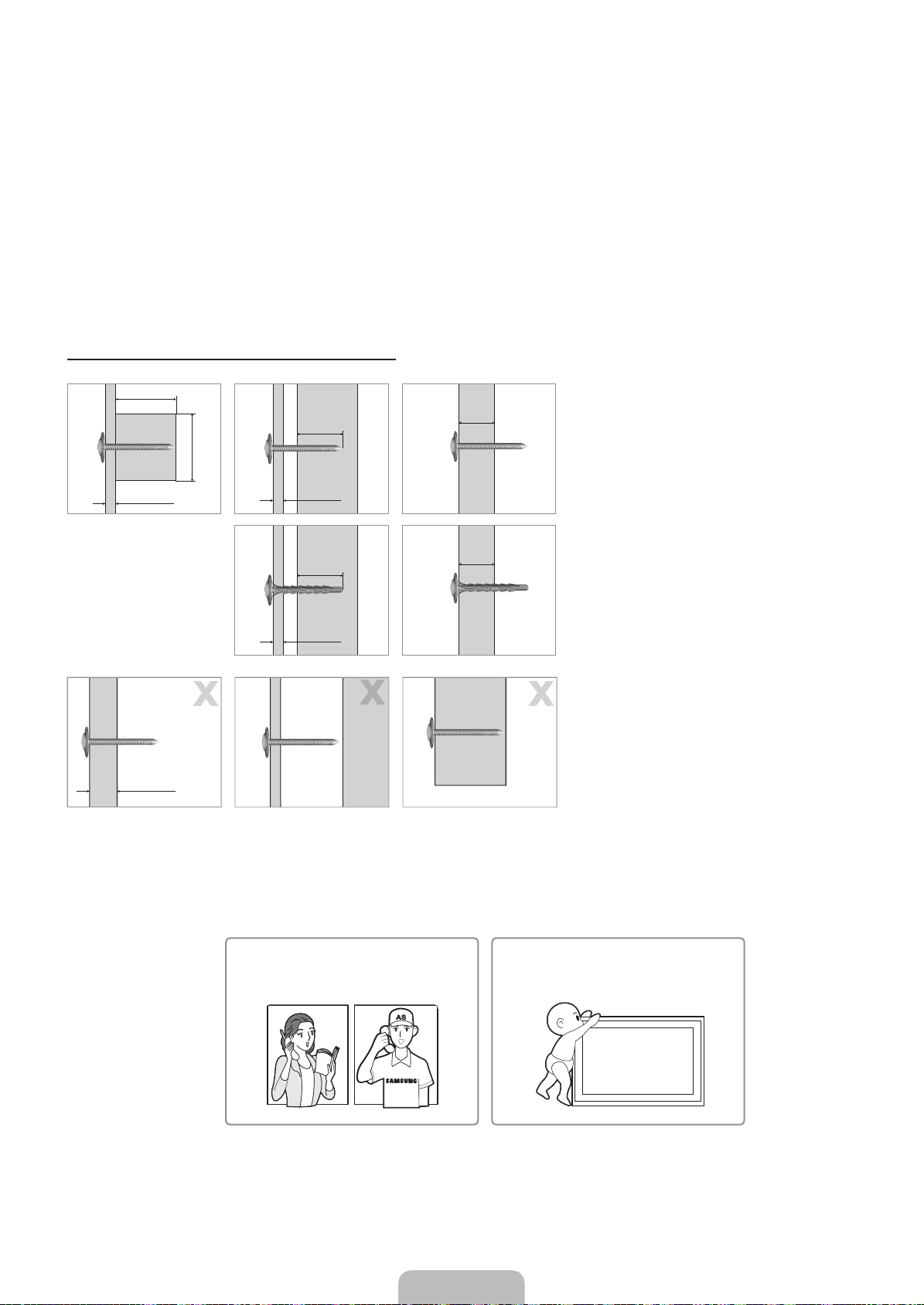

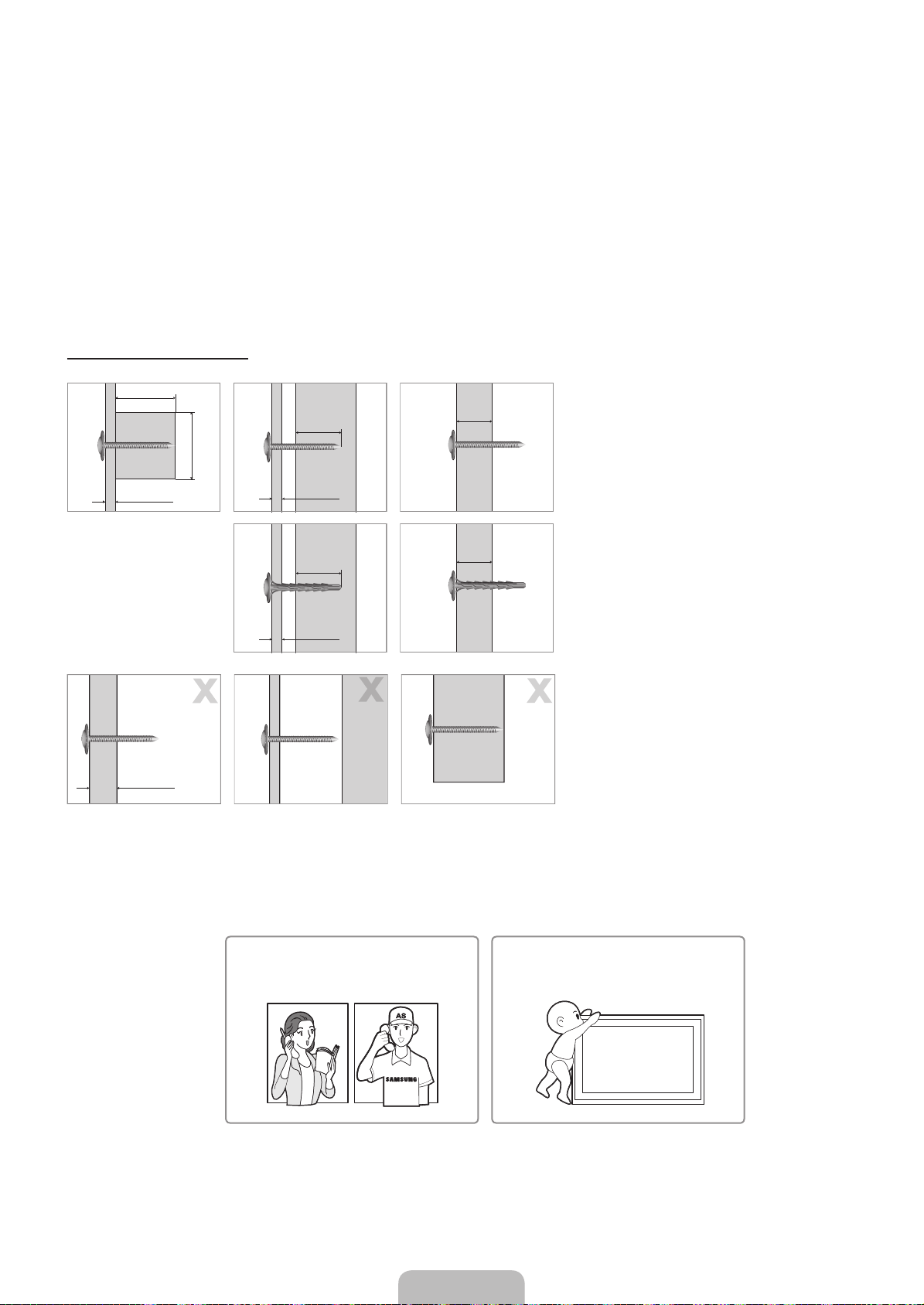

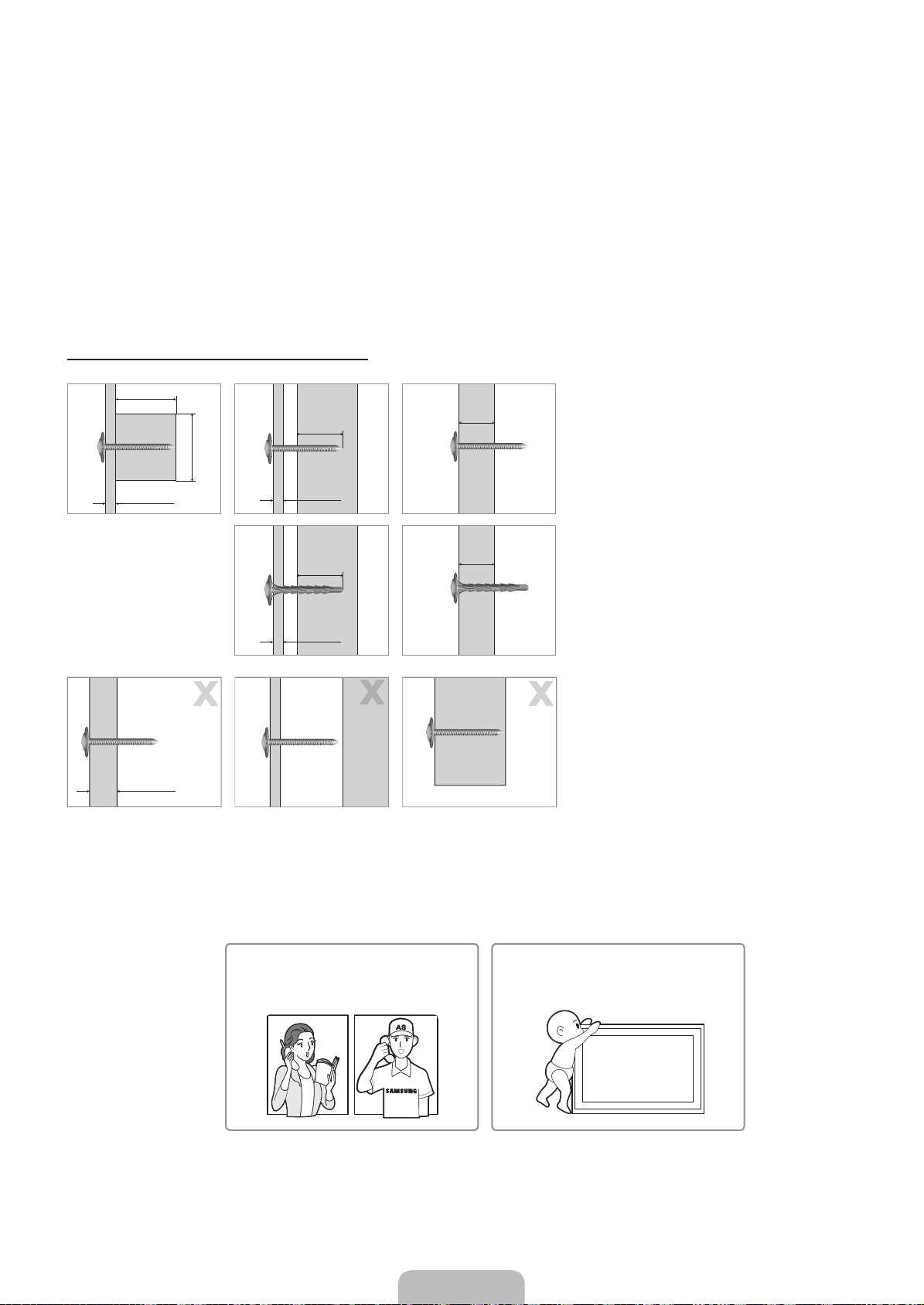

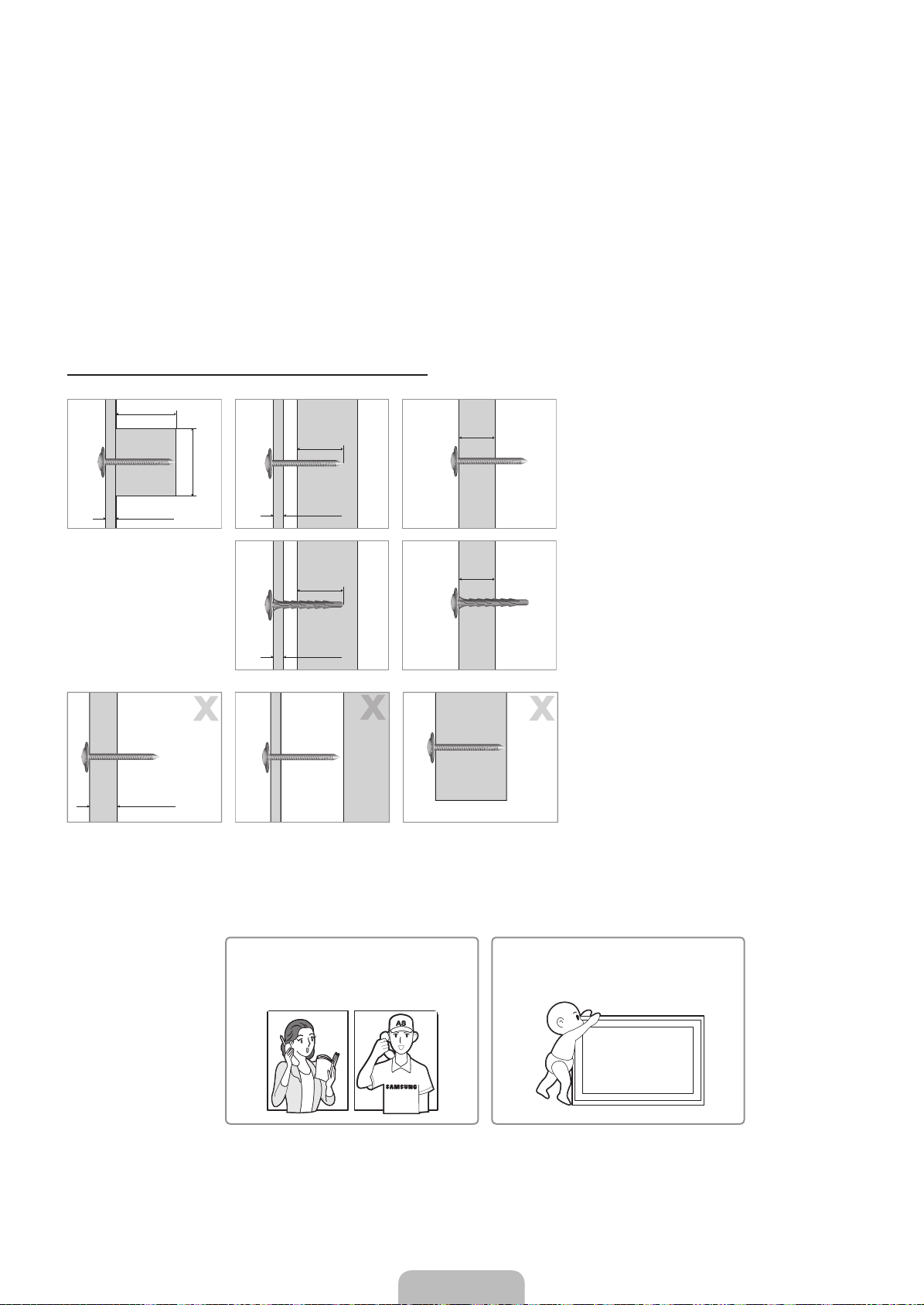

Standard Installation Requirements by Wall Type
• Can only be mounted on a concrete or interior wall of sufficient thickness. Refer to the diagrams below.
Min. 50mm
Min. 10mm
MDF, PW
Min. 10mm
MDF, PW
Min. 10mm
MDF, PW
MDF, PW
Concrete
MDF, PW
(Exc. drywall
thickness)
Mixed Concrete
Wall (Exc. drywall
thickness)
Art Wall
Art Wall
Min. 30mm
Min. 30mm
Min.
25mm
Min.
25mm
MDF
PW, etc.
With reinforcement
Min.
50mm
✎ NOTE
MDF = Medium Density Fiberboard
PW = Plywood
• Cannot be mounted on unreinforced wall or drywall surfaces.
0~24mm
MDF, PW,
Concrete
Without
reinforcement
Cannot install on drywall
Drywall
Art Wall
Safety instructions
These safety instruction are intended to protect you and prevent property damage. Read them carefully and comply with these instructions. Failing to
follow them may result in physical injury.
1. This product must be installed by a qualified technician assigned by the retailer.
Install by a non-professional may result in physical injury or product damage.
If you want to move or replace the product
after installation, contact the technician as-
signed by the retailer again.
Do not hang from the installed product or
apply force to it.
2. Do not let children play around the product without supervision.
Children may bump their heads or bodies into the corners, resulting in injury.
3. Do not install the product on a wall that will not support its weight.
The product may fall, resulting in physical injury or product damage.
4. Do not install the product under abnormal or non-standard site conditions. The product may be severely damaged. In these circumstances, contact a local Samsung
service center.
Keep the product away from dust, chemicals, high or low temperatures, humidity, and/or vehicle traffic.
