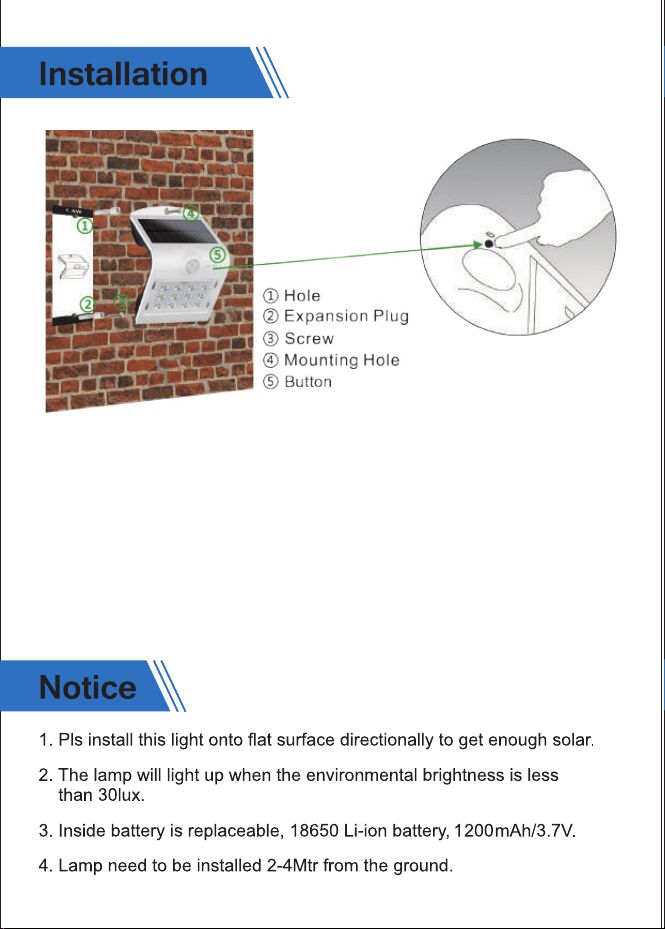

5. Press the button to adjust to demanded working mode.
4. Straighten the whole lamp and fasten the upper screw.
3. Fix a screw to the lower expansion plug with a spare space, insert the
notch onto the screw.
2. Fix 2 expansion plugs into the holes.
1. Pls use the card to measure hole position correctly and drill 2 holes.
WEEE Number:80133970
5. Press the button to adjust to demanded working mode.
4. Straighten the whole lamp and fasten the upper screw.
3. Fix a screw to the lower expansion plug with a spare space, insert the
notch onto the screw.
2. Fix 2 expansion plugs into the holes.
1. Pls use the card to measure hole position correctly and drill 2 holes.
WEEE Number:80133970
60°
60°
60° 60°
Pls press the Button to adjust working mode:
Press 1st time for Mode A.
Press 2nd time for Mode B.
Press 3rd time for off.
Mode A:Automatically turns on to
full brightness (220lm) when motion
is detected in the range ≤6 mtrs and
then turns to weak brightness (front
light on & back light on) in 10 seconds
of no motion.
Mode B:Automatically turns on to
full brightness (220lm) when motion
is detected in the range ≤6 mtrs and
then turns to weak brightness (front
light off & back light on) in 10 seconds
of no motion.
60°
60°
60° 60°
Pls press the Button to adjust working mode:
Press 1st time for Mode A.
Press 2nd time for Mode B.
Press 3rd time for off.
Mode A:Automatically turns on to
full brightness (220lm) when motion
is detected in the range ≤6 mtrs and
then turns to weak brightness (front
light on & back light on) in 10 seconds
of no motion.
Mode B:Automatically turns on to
full brightness (220lm) when motion
is detected in the range ≤6 mtrs and
then turns to weak brightness (front
light off & back light on) in 10 seconds
of no motion.
