INSTRUCTION MANUAL
SOLAR LED WALL LIGHT WITH SENSOR
INTRODUCTION & WARRANTY
TECHNICAL DATA
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
MODEL VT-408CCT
SKU
LUMEN
24293/24294/24295
S 2×450 LM
BEAM ANGLE 0-90° (Adjustable)
SOLAR PANEL DC: 5V, 3×0.75W Monocrystalline
BATTERY 2600mAh, Li-ion Battery,DC:3.7V
CHARGING TIME 8 Hours
WORKING TIME Max 30 Hours
SENSOR DETECTION
ANGLE
120°
SOLAR PANEL POWER 3x0.75 W
SENSOR RANGE 4-5 M
COLOR TEMPERATURE 3000K / 4000K / 6000K
DIMENSION 100x100x100mm
BODY TYPE Plastic+Stainless Steel+Glass
, 3×0.75W Monocrystalline
7V
, 3×0.75W Monocrystalline
7V
This marking indicates that this
product should not be disposed of
with other household wastes.
WARNING
INSTALLATION DIAGRAM
1.
before starting the installation.
2. Installation should be done by certified
electrician.
2
1
6000K
3
2
4
5
6
Red light on
INSTALLATION INSTRUCTION

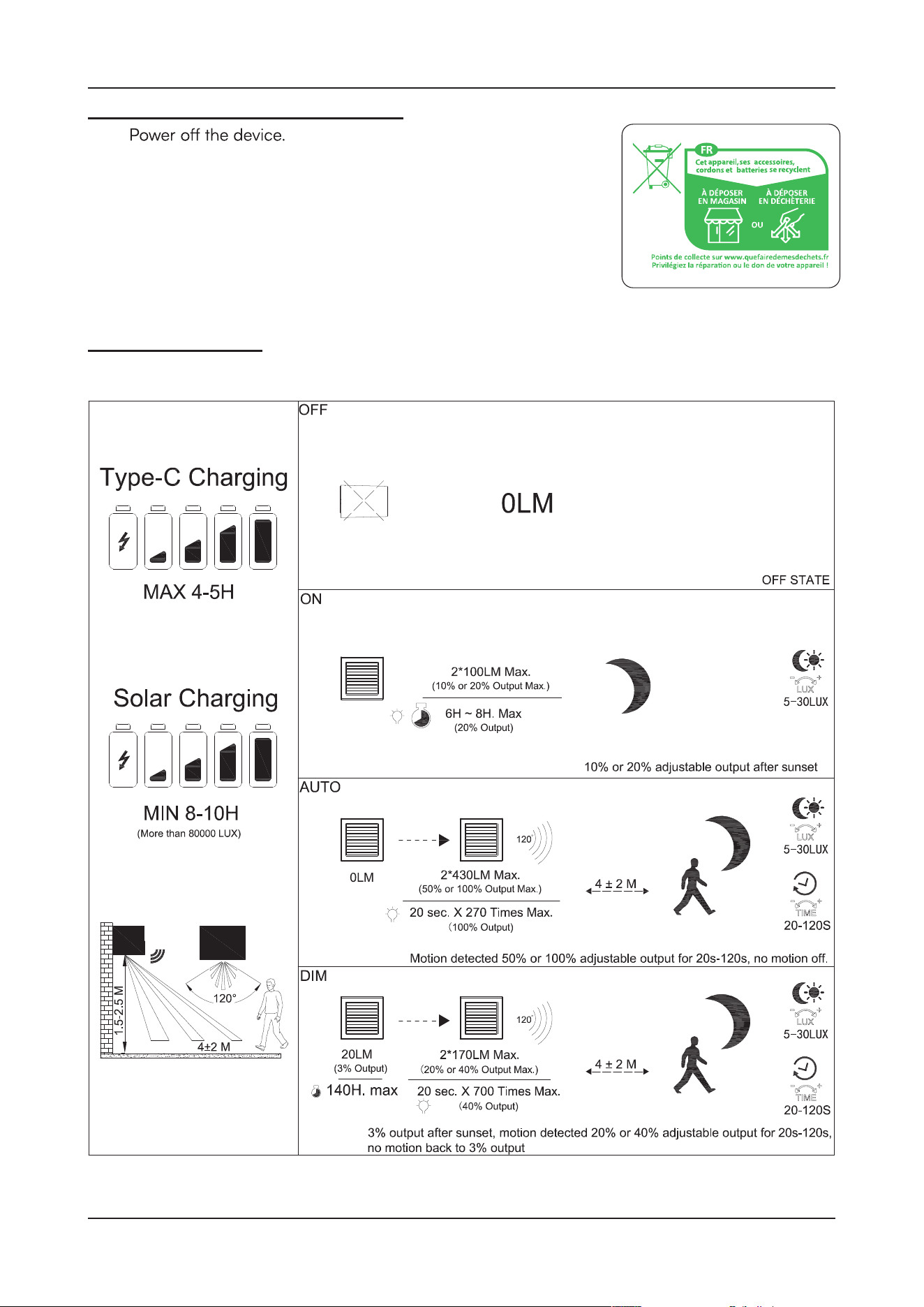

SENSOR MODES
1.
2. Drill the hole to the required depth of 30mm.
3. Insert the plastic cap, Place the plastic cap into the hole.
4. Attach the base plate, Secure the base plate to the wall using the
provided screw.
your needs
5. Slide the device up and down to
fi
ts
securely onto the base plate.
6. Adjust the Sensor detection angle. Modify the angle according to
.
7. Power on and test the device.
30
100
120
1.5% output after sunset, motion detected 100% output for
30s, no motion back to 1.5% output
13LM
800LM
30
4±2 M
30
230
120
Motion detected 100% output for 30s, no motion off.
800LM
4±2 M
0LM
60LM
20
8% output after sunset
0LM
OFF
ON
DIM
AUTO

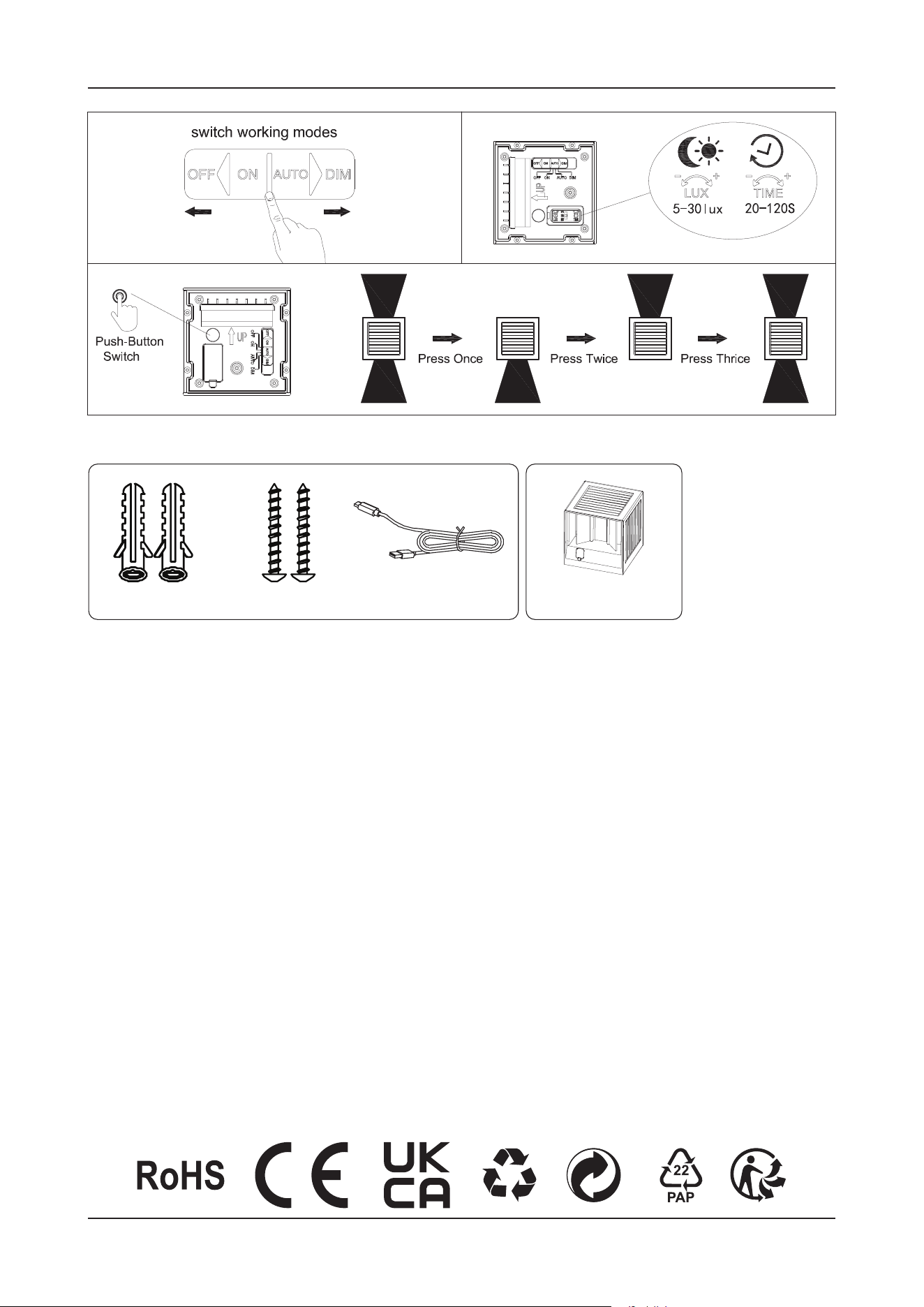

PACKAGE CONTENTS
Screw X 2
Type C
Charging WireX2
LED Solar Light
4±2 M
120°
1.5-2.5 M
switch working modes
CW NW WW
CW NW WW
CW NW WW
3000K
4000K
5000K
Switch color temp
5-15lux
20-120S
Plastic Cap X 2
