INSTALLATION
To insert or release
wire, push in tab with
screwdriver tip.
7/16"
(11 mm)
7/16"
(11 mm)
5 feet (1.5 m)
minimum
GANG BOX
DRYWALL
6ABx1-1/4"
Drywall Anchors
6-32x1"
PROGRAM
13
Unplug the garage door opener. Disconnect the battery (if applicable).
1. Connect the wires to the back of the door control.
2. Secure the door control to the wall.
3. Connect the wires to the garage door opener.
Plug in the garage door opener and reconnect the battery. The command LED on the
door control will blink if installed correctly. To synchronize the garage door opener and
the door control, press the push bar up to 3 times, until the garage door opener
activates.
RED
WHITE
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is NOT connected BEFORE installing door
control.
• Connect ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing
garage door:
• Install door control within sight of garage door, out of reach of
children at a minimum height of 5 feet (1.5 m), and away from
ALL moving parts of door.
• NEVER permit children to operate or play with door control
push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed.
NEVER permit anyone to cross path of closing garage door.
• Unattended devices and features are to be used ONLY with
sectional doors.
MULTI-FUNCTION CONTROL PANEL
(SECURITY+ 2.0
®
) MODEL 882LMW
AND
PREMIUM MOTION-DETECTING
CONTROL PANEL MODELS 881LMW AND 886LMW
For use with Security+ 2.0
®
Garage Door Openers, Wi-Fi
®
enabled
Security+ 2.0
®
Garage Door Openers (indicated by the Wi-Fi logo on
the garage door opener cover) and MyQ
®
accessories.
UNATTENDED OPERATION
The Timer-to-Close (TTC) feature, the MyQ
®
Smartphone Control app,
and MyQ
®
Garage Door and Gate Monitor are examples of unattended
close and are to be used ONLY with sectional doors. Any device or
feature that allows the door to close without being in the line of sight
of the door is considered unattended close. The Timer-to-Close (TTC)
feature, the MyQ
®
Smartphone Control, and any other MyQ
®
devices
are to be used ONLY with sectional doors.
2

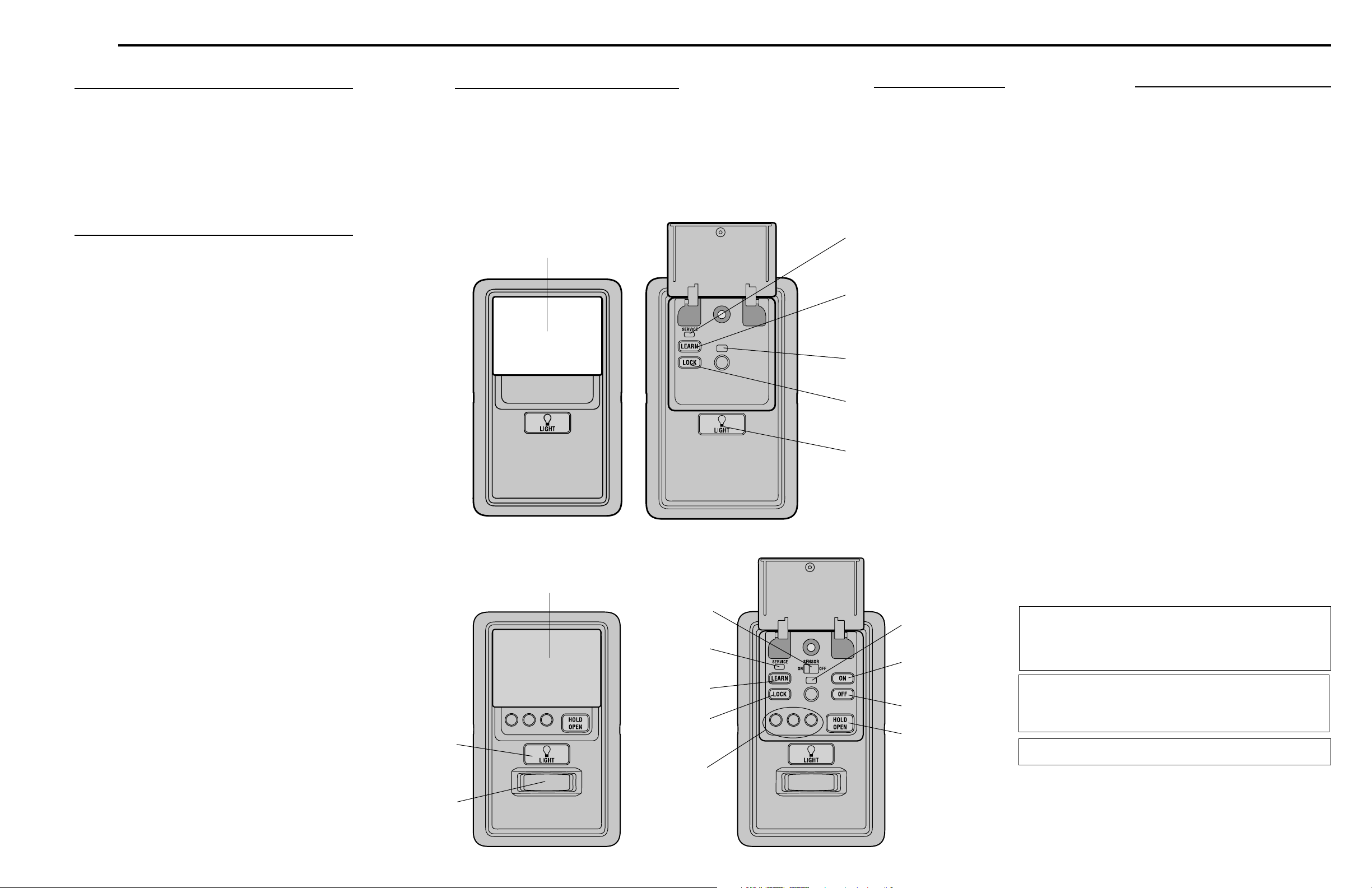

Model 882LMW
Models 881LMW and 886LMW
REMOTE CONTROL
1. Press the LEARN button on the
door control twice. The
Command LED will blink.
2. Press and release the button on
the remote control that you wish
to operate your garage door.
The garage door opener lights will
flash (or two clicks will be heard)
and the Command LED will stop
blinking when the code has been
programmed.
PIN
?? ??
KEYLESS ENTRY
1. Press the LEARN button on the door
control twice. The Command LED will
blink.
2. Enter a 4-digit personal identification
number (PIN) on the keypad. Then
press the ENTER button.
The garage door opener lights will flash (or
two clicks will be heard) and the Command
LED will stop blinking when the code has
been programmed.
1. Lift the push bar on the door control. Press and release the LEARN
button. The garage door opener will beep once and the command LED
on the door control will blink to indicate Wi-Fi learn mode. You have 20
minutes to complete the connection process.
2. On your mobile device, go to Settings > Wi-Fi and select the network
with the “MyQ-” prefi x.
3. Launch the web browser on your smartphone or tablet. Enter setup.myqdevice.com
into the browser address bar. Follow the on screen prompts to connect the garage
door opener to your Wi-Fi network. The MyQ serial number will display on screen.
Write the serial number in the space below.
4. Download the MyQ app from the App Store
®
or Google Play™ store. Sign up for your
MyQ account and add the MyQ serial number to your account.
If you are unsuccessful adding your device, try an alternate web browser or visit
WiFiHelp.LiftMaster.com.
CONNECT YOUR GARAGE DOOR OPENER TO YOUR HOME WI-FI
®
NETWORK
(for Wi-Fi garage door openers ONLY)
Command LED
Command LED
Model
882LMW
Models 881LMW
and 886LMW
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
