User Manual Air Conditioner

CONTROLS

Features and appearance will vary.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

NOTE: When the machine is powered on for the first time, the buzzer will play power-on music, and then the
machine will go into standby status.

1. Power Button

Turn ON/OFF power to the air conditioner.
NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from power supply.
Press the Power button. The Power indicator will illuminate.

2. Mode Button

Press the Mode button to toggle among the operating options. The corresponding indicator will illuminate:
Cool – Cools the room to the set temperature

See other models: AHC18DZ AHTK14AA ATV05LZ AKLK10AA AHTE06AA
Dry – Reduces the humidity in the room
Fan – Circulates the air in the room without cooling

3. + and – Buttons

Press the two keys to change the Temperature or Time.

To Set the Temperature:
Press the + or – button to select the required temperature.
NOTE: The temperature cannot be set when the air conditioner is in either Fan or Dry mode.
To Set the Time:
Press the + or – button to select the required time.

4. Fan Speed Button

In cooling or fan mode, press the Fan button to select high or low fan speed.
NOTE: The fan speed cannot be adjusted when the unit is in Dry mode.

5. Timer Button

Press the Timer button, when the Timer symbol flashes, press the + or – button to select the time.
Program a time from (1 hour to 24 hours) for the air conditioner to turn Off or On.

NOTE: When the inner unit chassis is full of water, the Water Full light will turn on, a buzzer will sound for
several seconds and the compressor will stop.
Refer to the instructions on page 5 for draining the water from the unit.

---

The display will always default to show room temperature. When the air conditioner is turned on, it will automatically start in the last mode and fan settings selected.

---

Frost Protection Function:

In cooling or dry mode, if the temperature of the exhaust hose is too low, the AC will automatically go into a unit protection state. When the temperature rises to a normal temperature, the unit will automatically resume normal operation.

---

Overflow Protection Function:

When water in the water pan exceeds the warning level, the machine will automatically sound an alarm, the FULL indicator light will flash and the unit will shut down. At this point, you need to drain the water from the lower drain (See Drainage instructions for details) After the water is emptied, the machine will automatically resume normal operation.

Automatic Defrosting (on some models)

The machine has an automatic defrosting function.

Protection Function of the Compressor

To increase the service life of the compressor, the AC has a 3-minute delay after the compressor has shut off to protect the compressor.

Drainage Instructions

Draining the unit manually:

Note: Please move the AC carefully, do not spill the water in the water pan at the bottom of the unit.

1. When the machine stops after the water is full, turn off the machine power and unplug the power plug.

2. Place a water container larger than the sump capacity (at least 1-1/2 quart) below the lower rear water outlet on the back side of unit.

3. Unscrew the drainage cover and unplug the water plug, the water will automatically flow into the water container. Note: During drainage, the body can be tilted slightly backwards. If the water container cannot hold all the water, before the water container is full, replace the water plug as soon as possible to prevent water from flowing on to the floor or the carpet.

4. When the water is discharged, secure the water plug, and tighten the drainage cover.

Note: Restart the AC after the water plug is installed, otherwise condensate water from the AC will drain onto the floor or carpet.

Continuous drainage (optional, and only in dry mode)

1. Remove the upper drain plug.

2. Connect a drain hose with an outside diameter of 1/2” to the water outlet.

3. Route drain hose to a bucket or floor drain.

4. Be sure to use a large container (3 gallons or larger is recommended) and monitor the water level in the container continuously. The unit will not shut off when the container is full. An overflowing container can cause flooding and damage to the floor.

Features and appearance may vary. Icons on the remote control indicate the selected settings REMO

CARE AND CLEANING

CLEANING

1. Unplug or disconnect power.

2. Use only a soft cloth dampened with water to clean the cabinet.

NOTE:

• Do not use a liquid or spray cleaner to clean the air conditioner.

• DO NOT use chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or scouring pads. Some of these chemicals/items may damage and/or discolor your air conditioner.

3. Dry thoroughly with a soft cloth.

4. Plug in or reconnect power.

Cleaning the surface

Clean surface of machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc.; otherwise, the surface of the air conditioner will be damaged or the entire unit will be damaged.

Storage

If the unit is not being used for a long period of time: To Empty the Internal Water Tank:

1. Unplug or disconnect power.
2. Drain the water from the water tank. (See “Internal Water Tank section” above.)
3. Use the original packaging to repack the unit to avoid a buildup of dust or dirt.
4. Store the air conditioner in a cool, dry location.

INSTALLATION INSTRUCTIONS

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector’s use.

• IMPORTANT — Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Approximately 1 hour

• We recommend two people to install this product.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

ELECTRICAL REQUIREMENTS

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

CAUTION

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Do not change the plug on the power cord of this air conditioner. Aluminium house wiring may present special problems—consult a qualified electrician.

Location Requirements

• Place the air conditioner on a flat, level surface in a location that is at least 20” (50 cm) from any wall.

NOTE: A minimum clearance of 20” (50 cm) from the air conditioner to the wall must be maintained to ensure proper airflow.

• Maintain a minimum 20” (50 cm) clearance around the air conditioner to not block airflow.
• Keep the air conditioner free of any obstructions such as drapes, curtains, blinds, etc.
• The exhaust hose should be free of any obstructions.
• Do not place the air conditioner on an unstable or raised surface because it could fall and cause damage or injury.
• Do not place the air conditioner in direct sunlight or near a heat source such as baseboard heaters, stoves, etc.
• The window panel can be installed in a window with a minimum 20” (50.8 cm) to a maximum 48” (121.9 cm) opening.



Window Panel Combinations to fit window openings

(Appearance may vary)

Window Opening 20”
Center Panel Only

Window Opening 20”- 23 1/2”
Center Panel + 5 1/2” Extension

Window Opening 23 1/2”- 27”
Center Panel + 9” Extension

Window Opening 23 1/2”- 30 1/2”
Center Panel + 9” and 5 1/2” Extensions

Window Opening 30 1/2” - 34”
Center Panel + 16” Extension

Window Opening 34”- 41”
Center Panel + 9” and 16” Extensions

Window Opening 41”- 48”
Center Panel + (2) 16” Extensions

1. Install Exhaust Nozzle to Main Window Panel

2. Install Main Window Panel and Extension Panels

NOTE: Measure the window opening and use the extension panels as referenced on page 10 to fit your window.

1. Open the window and place the window kit assembly into the window.

NOTE: The window assembly is designed to accommodate either a double hung or sliding window.

2. Adjust the extension panel(s) to the width or height of the window as shown.

3. Depending on the number of extension panels used, turn the knobs to secure the extension panel(s) to the main panel. Install from the back.

NOTE: There are many window types on the market today. Use the foam strips and brackets (provided) to secure the extension panels that will fit the window opening.

4. For vinyl windows only.

Skip to step 6 for wood windows.

Place the two top window brackets and two bottom window brackets where they will best support the extension panels. Use pointed screws to attach top bracket to the support panels.

5. Apply the top foam strip (provided) across the top of the window panel assembly, and then apply the bottom foam strip (provided) across the bottom front edge of the window panel assembly, as shown.

6. Place the window panel assembly in the window, and using the screws provided, fasten the assembly to the window sill and window frame.

7. Using one pointed screw, install the Security bracket to the window. NOTE: The security bracket prevents the window from being opened from the outside.

3. Attach Exhaust Hose to the Exhaust Nozzle

1. Grasp both ends of the exhaust hose and gently pull to expand the hose.

NOTE: Do not attach additional hoses to extend the length. This would decrease cooling efficiency and may damage the air conditioner.

2. Using a clockwise motion, attach the open end of the exhaust hose to the exhaust nozzle.

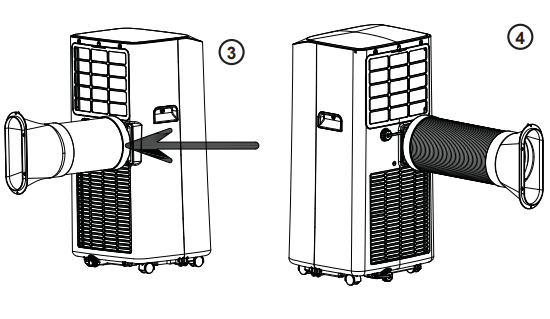

4. Connect Exhaust Hose to the Air Conditioner

NOTE: When connecting the hose, the air conditioner must be close enough to the window that you will not dislodge the window seal plate. Once the hose is connected, move the air conditioner 20” (51 cm) from the wall. 1. Extend the flexible exhaust hose to reach out to the unit. 2. Aim the opening of the hose to the air exhaust outlet and push it hard straight into the outlet until it clicks.
