OWNER’S MANUAL
MICROWAVE OVEN
Read this owner’s manual thoroughly before operating the appliance
and keep it handy for reference at all times.
www.thesignaturekitchen.com
UPMC3084ST
Thank you for purchasing a
SIGNATURE KITCHEN SUITE microwave oven.
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY...
(a) Do not attempt to operate this oven
with the door open since open-
door operation can result in harmful
exposure to microwave energy. It is
important not to defeat or tamper with
the safety interlocks.
(b) Do not place any object between the
oven front face and the door or allow
soil or cleaner residue to accumulate
on sealing surfaces.
(c) Do not operate the oven if it is
damaged.
It is particularly important that the
oven door closes properly and that
there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or
loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or
repaired by anyone except properly
qualified service personnel.
Please record the model number and serial
number of this unit for future reference. We also
suggest you record the details of your contact with
SIGNATURE KITCHEN SUITE concerning this
unit.
Staple your receipt here to prove your retail
purchase.
Model No:
Serial No:
Dealer:
Dealer Phone No:
Customer Relations
SIGNATURE KITCHEN SUITE U.S.A., Inc.
Service Division Bldg. #3
201 James Record Rd.
Huntsville, AL 35824-0126
3
TABLE OF CONTENTS
TABLE OF CONTENTS
4
IMPORTANT SAFETY
INSTRUCTIONS
7
PRODUCT OVERVIEW
7 Location of Model Number
7 Electrical Requirements
7 Grounding Instructions
7 Oven Specifications
8 Microwave Oven Features
8 Accessories
9 Control Panel Overview
11
MICROWAVE COOKING TIPS
16
OPERATION
16 Using the Microwave Oven
16 Clock
16 Child Lock
16 Timer
17 Custom Cook
17 Vent Fan
17 Vent Fan Auto Timeset
18 Turntable On/Off
18 Light On/Off
18 Cooking at High Power Level
18 Custom Set
19 Cooking at Lower Power Levels
19 Cooking with More than One Cook Cycle
20 Cooking Guide for Lower Power Levels
21 Sensor Operating Instructions
21 Sensor Cooking Guide
21 Sensor Reheat
21 Sensor Cook
21 Sensor Popcorn
22 Sensor Reheat Table
22 Sensor Cook Table
23 Tips for Convection Cooking
24 Convection
25 Tips for Combination Cooking
25 Helpful Hints for Combination Cooking
25 Combination Roast
26 Auto Cook
26 Auto Cook Table
27 Soften
27 Soften Table
27 Melt
27 Melt Table
28 Speed Auto Combination
28 Speed Auto Combination Chart
29 Auto Defrost
29 Weight Conversion Table
29 Operating Tips
30 Auto Defrost Table
32 Defrosting Tips
33
COOKING GUIDE
33 Convection Baking Guidelines
35 Meat Roasting Guidelines for Convection
Cooking
36 Combination Roast Cooking Guide
37 Combination Bake Cooking Guide
38 Heating/Reheating Guide
39 Fresh Vegetable Guide
40
SMART FUNCTIONS
40 Application Installation
40 Product Registration
40 Using the Wi-Fi Function
41 FCC Notice (For transmitter module contained in
this product)
41 FCC RF Radiation Exposure Statement
42
SMART DIAGNOSIS™
42 Using Smart Diagnosis™
43
MAINTENANCE
43 Caring for the Microwave Oven
44 Cleaning the Grease Filters
44 Charcoal Filter Replacement
45 Oven Light Replacement
45 Cooktop/Countertop Light Replacement
46 Microwave Utensil Guide
47
TROUBLESHOOTING
47 Frequently Asked Questions
48 Before Calling for Service
49
WARRANTY
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions when using the range to prevent the risk of fire, electric
shock, personal injury, or damage. This guide does not cover all possible conditions that
may occur. Always contact your service agent or manufacturer about problems that you do
not understand.
Download this owner's manual at: www.thesignaturekitchen.com
This is the safety alert symbol. This symbol alerts you to potential hazards that
can result in property damage and/or serious bodily harm or death.
All safety messages will follow the safety alert symbol and either the word
WARNING or CAUTION. These words mean:
WARNING
- Indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
- Indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
The safety instructions below will tell you how to use your oven and avoid harm to yourself
or damage to your oven.
WARNING
•
Read all the instructions before using your oven.
•
As with any appliance, close supervision is necessary when used by children.
•
Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY found on page 2.
•
Do not use corrosive chemicals or vapors, such as sulfide and chloride, in this
appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
•
Do not store this appliance outdoors. Do not use this product near water - for example,
near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
•
Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
•
Clean Ventilating Hoods Frequently – Grease should not be allowed to
accumulate on hood or filter.
•
Use care when cleaning the vent hood filters. Corrosive cleaning agents, such as lye-
based oven cleaners, may damage the filters.
•
Do not tamper with the built-in safety switches on the oven door. The oven has
several built-in safety switches to make sure the power is off when the door is open.
•
When flaming foods under the hood, turn the fan on.
•
Suitable for use above both gas and electric cooking equipment 36 inches wide or less.
•
Do not use this oven for commercial purposes. It is made for household use only.
•
When cleaning surfaces of door and oven that come together on closing the
door, use only mild, nonabrasive soaps, or detergents applied with a sponge or
soft cloth.
•
If your oven is dropped or damaged, have it thoroughly checked by a qualified
service technician before using it again.
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
•
To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend to the microwave oven when paper, plastic
or other combustible materials are placed inside the oven to facilitate cooking.
- Do not use the cavity for storage purposes.
Do not leave paper products, cooking utensils or food in the cavity when not in use.
- Remove wire twist-ties from paper or plastic bags before placing bags in oven.
•
If materials inside the oven ignite:
- Keep oven door closed
- Turn the oven off
- Disconnect the power cord or shut off power at the fuse or circuit breaker
panel
•
To avoid electric shock:
- This appliance must be grounded. Connect only to a properly grounded outlet. See
the electrical GROUNDING INSTRUCTIONS on page 7.
- Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
- Do not immerse the electrical cord or plug in water.
- Keep cord away from heated surfaces.
- Do not let cord hang over edge of table or counter.
•
Take care when the door is opened to avoid injury.
•
To avoid improperly cooking some foods.
- Do not heat any types of baby bottles or baby food. Uneven heating may occur
and possibly cause personal injury.
- Do not heat small-necked containers, such as syrup bottles.
- Do not deep-fat fry in your microwave oven.
- Do not attempt home canning in your microwave oven.
- Some products such as whole eggs and sealed containers – for example,
closed glass jars – are able to explode and should not be heated in this oven.
•
Do not cover or block any openings on the appliance.
•
Use this appliance only for its intended use as described in the manual.
•
Do not run the oven empty.
•
Secure power cord in the cabinet above the oven.
•
Preserve the oven floor:
- Do not heat the oven floor excessively.
- Do not allow the gray film on special microwave-cooking packages to touch the oven
floor. Put the package on a microwavable dish.
- Do not cook anything directly on the oven floor or turntable. Use a microwavable
dish.
- Keep a browning dish at least 3/16 inch above floor. Carefully read and follow the
instructions for the browning dish. If you use a browning dish incorrectly, you could
damage the oven floor.
•
Install or locate this appliance only in accordance with the provided installation
instructions.
•
This appliance should be serviced only by qualified service personnel. Contact the
nearest authorized service facility for examination, repair, or adjustment.
6
IMPORTANT SAFETY INSTRUCTIONS
•
Liquids, such as water, coffee, or tea can be overheated beyond the boiling point
without appearing to be boiling due to surface tension of the liquid. Visible bubbling or
boiling when the container is removed from the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED
INTO THE LIQUID.
•
To reduce the risk of injury to persons;
- Do not overheat the liquid.
- Stir the liquid both before and halfway through heating it.
- Do not use straight-sided containers with narrow necks.
- After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
- Use extreme care when inserting a spoon or other utensil into the container.
WARNING
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT (U.S.A. ONLY)
This equipment generates and uses ISM frequency energy and if not installed and used
properly, that is in strict accordance with the manufacturer's instructions, may cause
interference to radio and television reception. It has been type tested and found to comply
with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to
provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following:
•
Reorient the receiving antenna of the radio or television.
•
Relocate the Microwave Oven with respect to the receiver.
•
Move the microwave oven away from the receiver.
•
Plug the microwave oven into a different outlet so that the microwave oven and the
receiver are on different branch circuits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this microwave oven. It is the responsibility of the user to correct such
interference.
WARNING
This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Wash hands after handling.
Read all instructions before using the appliance.
SAVE THESE INSTRUCTIONS
7
PRODUCT OVERVIEW
PRODUCT OVERVIEW

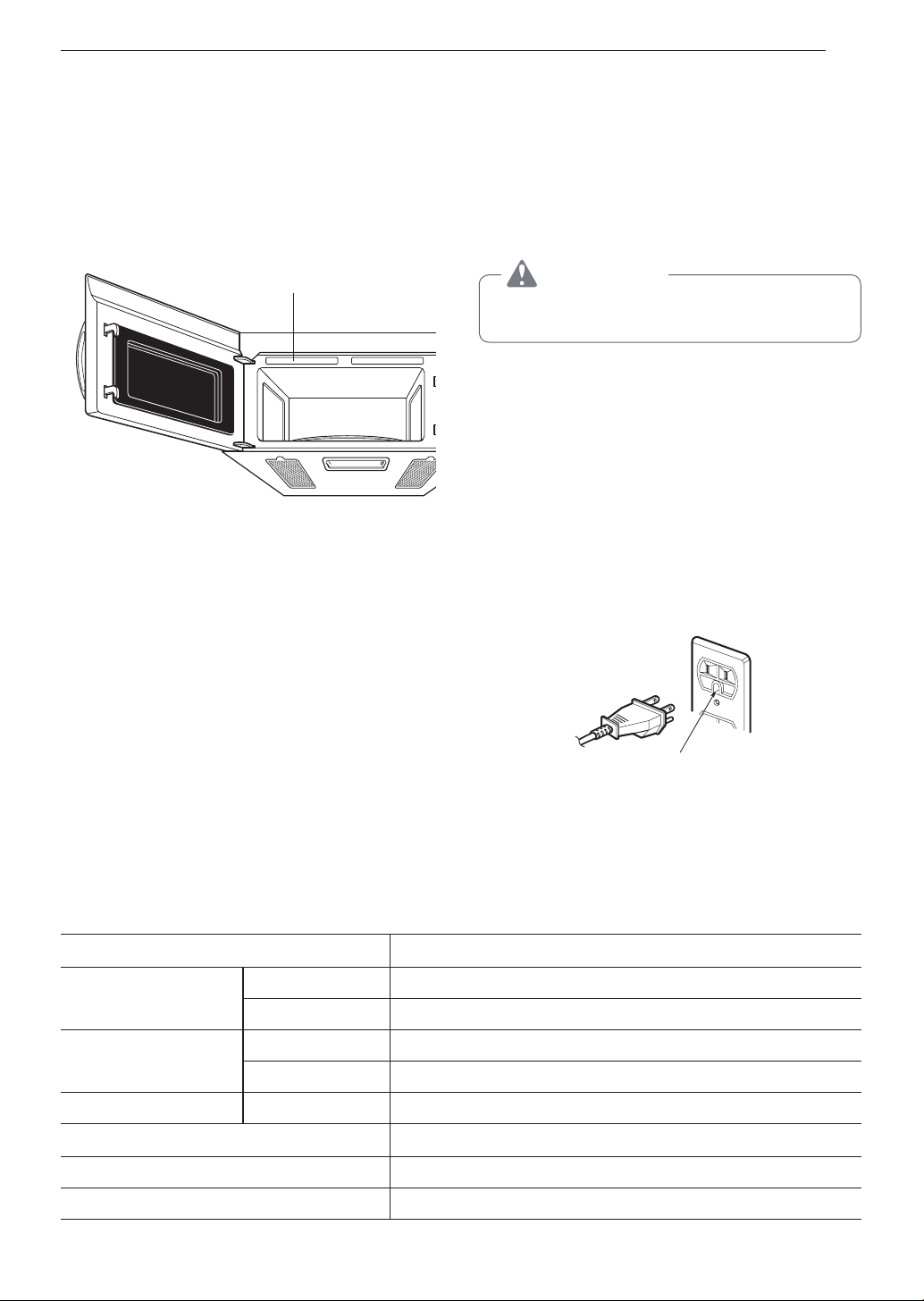

Location of Model Number
To request service information or replacement parts,
the service center requires the complete model
number of your microwave oven. The model number
is on the oven front as shown in the illustration below.
Model number label
Electrical Requirements
The oven is designed to operate on a Standard 120
V/60 Hz household outlet. Be sure the circuit is at
least 15 A or 20 A and the microwave oven is the only
appliance on the circuit. It is not designed for 50 Hz
or any circuit other than a 120 V/60 Hz circuit.
Grounding Instructions
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped
with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING
•
Improper use of the grounding can result in
a risk of electric shock.
Consult a qualified electrician or service person if the
grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is
properly grounded.
Because this appliance fits under the cabinet, it has
a short power-supply cord. Do not use an extension
cord. If the power supply cord is too short, have a
qualified electrician or service person install an outlet
near the appliance. A short power supply cord is
provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
See the separate Installation Instructions for
directions on placing the cord properly.
Ensure proper ground
exists before use
Keep the electrical power cord dry and do not pinch
or crush it in any way.
Oven Specifications
Power Supply 120 V AC, 60 Hz
Rated Current
Microwave 14.0 A
Convection 14.0 A
Rated Power Input
Microwave 1650 W
Convection 1650 W
Power Output Microwave 950 W
Overall Dimensions(WxHxD) 29
15
/
16
" x 16
7
/
16
" x 15
3
/
8
"
Oven Cavity Dimensions (WxHxD) 21
1
/
4
" x 9
9
/
16
" x 14
3
/
16
"
Capacity of Oven Cavity 1.7 cu.ft
8
PRODUCT OVERVIEW

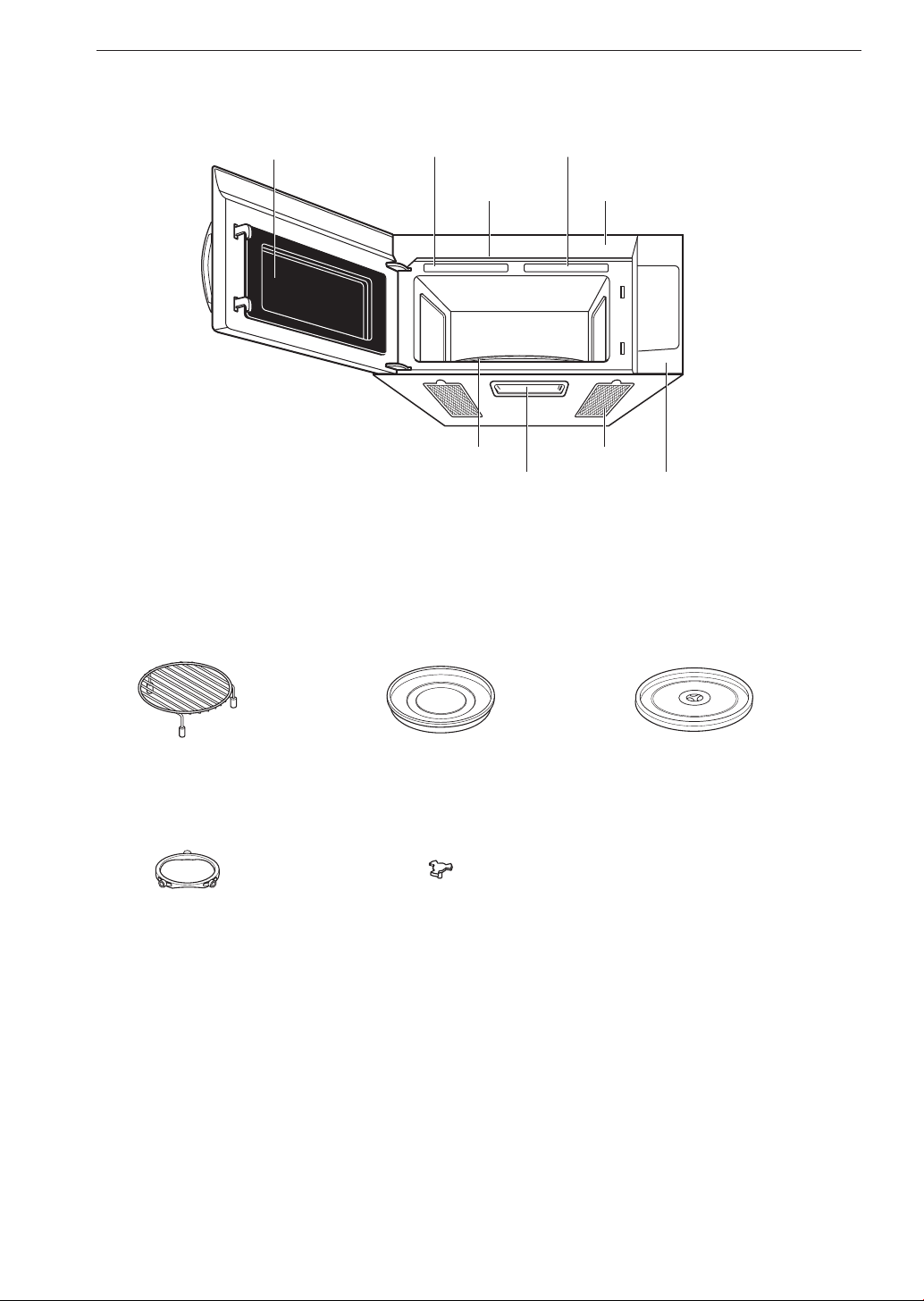

Microwave Oven Features
Metal Shielded
Window
Charcoal Filter Vent Grille
Model and Serial
Number Plate
Glass Tray Grease Filter
Cooktop Light Control Panel
Cooking
Guide Label
Accessories
The turntable rotates in both direction to help food cook more evenly. Do not operate the microwave oven without
the glass tray in place.
Convection Rack Metal Tray / Drip Pan Glass Tray
Rotating Ring Shaft
9
PRODUCT OVERVIEW
Control Panel Overview
Use the control panel to select the desired cooking function quickly and easily. Simply touch a command key to
select the desired function. For more information on these features, see the OPERATION section.
5
8
11
13
14
17
20
1
2
3
4
6
7
9
10
12
15
16
18
19
10
PRODUCT OVERVIEW
1
Display
The Display includes a clock and indicators to
tell you time of day, cooking time settings, and
cooking functions selected.
2
Smart Diagnosis
Hold the mouthpiece of a phone up to this icon
when directed to by service center personnel,
to help diagnose problems with the oven when
calling for service.
3
Sensor Reheat
Touch this key to reheat casseroles, dinner plates,
pizza slices, and soups/sauces. The oven’s
sensor tells the oven how long to cook depending
on the amount of humidity coming from the food.
4
Sensor Cook
Touch this key to cook baked potatoes, frozen
vegetables, fresh vegetables, canned vegetables,
frozen entrées, and rice. The oven’s sensor tells
the oven how long to cook depending on the
amount of humidity coming from the food.
5
Sensor Popcorn
Touch this to pop popcorn. The oven’s sensor
tells the oven how long to cook depending on the
amount of humidity it detects from the popcorn.
6
Custom Cook
Touch this key to recall one cooking instruction
previously programmed into memory.
7
Manual Cook
Select the functions to operate MICROWAVE and
CONVECTION, COMBI.
8
Custom Set
Touch this key to change the oven’s default
settings for sound, clock, display speed, and
defrost weight.
9
Auto Cook
Touch this key to cook bacon, fresh rolls and
muffins, frozen rolls and muffins, beverages,
chicken pieces, and hot cereal.
•
SOFTEN: butter, ice cream, cream cheese, or
frozen juice.
•
MELT: butter, chocolate, cheese, or
marshmallows.
10
Speed Auto Combi
Touch this key when setting weight combination
cooking.
11
Auto Defrost
Touch this key to select food type and defrost food
by weight.
12
Control Dial
Set cooking time, temperature, weight and cooking
categories. Lengthen or shorten the cooking time
at any point by turning the dial(except in defrost
mode). Press on the dial to start a function or
enter all entries.
13
START
Touch the key to start a function, accept
selections, or restart after opening.
14
STOP/CLEAR
Touch this key to stop the oven or to clear all
entries.
15
Light On/Off
Touch this key to turn the cooktop/countertop light
on or off.
16
Turntable On/Off
Touch this key to turn off the turntable. OFF
appears in the display.
NOTE
This option is not available in sensor cook and
defrost modes.
17
Timer On/Off
Touch this key to set the timer.
18
Vent On/Off
Touch this key to turn the fan on/off.
19
VENT 5-SPEED
Touch this key to choose one of 5 fan speeds.
20
VENT AUTO TIMESET(*Connect Hold 3 sec.)
Touch this key when setting the ventilation time. (1,
3, 5, 10, and 30 minutes.)
Press and hold this key for 3 seconds to connect
to a home Wi-Fi network.
NOTE
This key is used when connecting the appliance
to a home Wi-Fi network. See details on page 40.
11
MICROWAVE COOKING TIPS
MICROWAVE COOKING TIPS
Amount of Food
•
If you increase or decrease the amount of food
you prepare, the time it takes to cook that food will
also change. For example, if you double a recipe,
add a little more than half the original cooking time.
Check for doneness and, if necessary, add more
time in small increments.
Starting Temperature of Food
•
The lower the temperature of the food being
put into the microwave oven, the longer it takes
to cook. Food at room temperature reheats more
quickly than food at refrigerator temperature.
Composition of Food
•
Food with a lot of fat and sugar heats faster than
food containing a lot of water. Fat and sugar also
reach a higher temperature than water during the
cooking process.
•
The more dense the food, the longer it takes to
heat. Very dense food like meat takes longer to
heat than lighter, more porous food like sponge
cakes.
Size and Shape
•
Smaller pieces of food cook faster than larger
pieces. Also, same-shaped pieces cook more
evenly than different-shaped pieces.
•
With foods that have different thicknesses,
the thinner parts cook faster than the thicker parts
Place the thinner parts of chicken wings and legs in
the center of the dish.
Stirring and Turning Foods
•
Stirring and turning foods spreads heat quickly
to the center of the dish and avoids overcooking at
the outer edges of the food.
Covering Food
Cover food to:
•
reduce splattering
•
shorten cooking times
•
keep food moist
Releasing Pressure in Foods
•
Several foods (for example: baked potatoes,
sausages, egg yolks, and some fruits) are tightly
covered by a skin or membrane. Steam can build
up under the membrane during cooking, causing
the food to burst. To relieve the pressure and to
prevent bursting, pierce these foods before cooking
with a fork, cocktail pick, or toothpick.
Using Standing Time
•
Always allow food to stand either in or out of the
oven after cooking power stops. Standing time after
defrosting and cooking allows the temperature to
evenly spread throughout the food, improving the
cooking results. For inside oven standing time,
program a 0 power second stage of the cooking
cycle. See Cooking with More than One Cook
Cycle.
•
The length of the standing time depends on how
much food you are cooking and how dense it is.
Sometimes it can be as short as the time it takes
you to remove the food from the oven and take it
to the serving table. However, with larger, denser
food items, the standing time may be as long as 10
minutes.
Arranging Food
For best results, place food evenly on the plate. You
can do this in several ways:
•
If you are cooking several items of the same
food, such as baked potatoes, place them in a ring
pattern for uniform cooking.
•
When cooking foods of uneven shapes or
thickness, such as chicken breasts, place the
smaller or thinner area of the food towards the
center of the dish where it will be heated last.
•
Layer thin slices of meat on top of each other.
•
When you cook or reheat whole fish, score the
skin to prevent cracking.
•
Do not let food or a container touch the top or
sides of the oven. This will prevent possible arcing.
12
MICROWAVE COOKING TIPS
Using Aluminum Foil
Metal containers should not be used in a microwave
oven. However, if you have purchased food which
is prepackaged in an aluminum foil container, refer
to the instructions on the package. When using
aluminum foil containers, cooking times may be
longer because microwaves will only penetrate the
exposed top of the food and not the bottom or the
sides. If using aluminum containers without package
instructions, follow these guidelines:
•
Place the aluminum foil container in a glass bowl
and add water so that it covers the bottom of the
container, but not more than ¼ in. (.64 cm) deep.
This ensures even heating of the container bottom.
•
Always remove the container lid to avoid damage
to the oven.
•
Use only undamaged containers.
•
Do not use containers taller than ¾ in. (1.9 cm).
•
Container must be at least half filled.
•
To avoid arcing, there must be a minimum ¼
in.(.64 cm) between the aluminum container
and the walls of the oven and also between two
aluminum containers.
•
Always place the container on the turntable.
•
Shield parts of food that may cook quickly, such as
wing tips and leg ends of poultry, with small pieces
of aluminum foil.
•
Heating food in aluminum foil containers usually
takes up to double the time compared to reheating
in plastic, glass, china, or paper containers.
The cooking time will vary depending upon the type
of container you use.
•
Let food stand for 2 to 3 minutes after heating so
that heat is spread evenly throughout the container.
Do Not Can or Sterilize in Oven
•
Do not try to can food in the oven. Closed glass
jars may explode, resulting in damage to the oven.
•
Do not use the microwave oven to sterilize objects
(baby bottles, etc.). It is difficult to keep the oven at
the high temperature needed for sterilization.
Removing the Rack
•
When popping commercially packaged
popcorn, remove the rack and drip pan from the
oven.
Do not place the bag of microwave popcorn on
the rack or under the rack. Leave the glass tray in
place at all times.

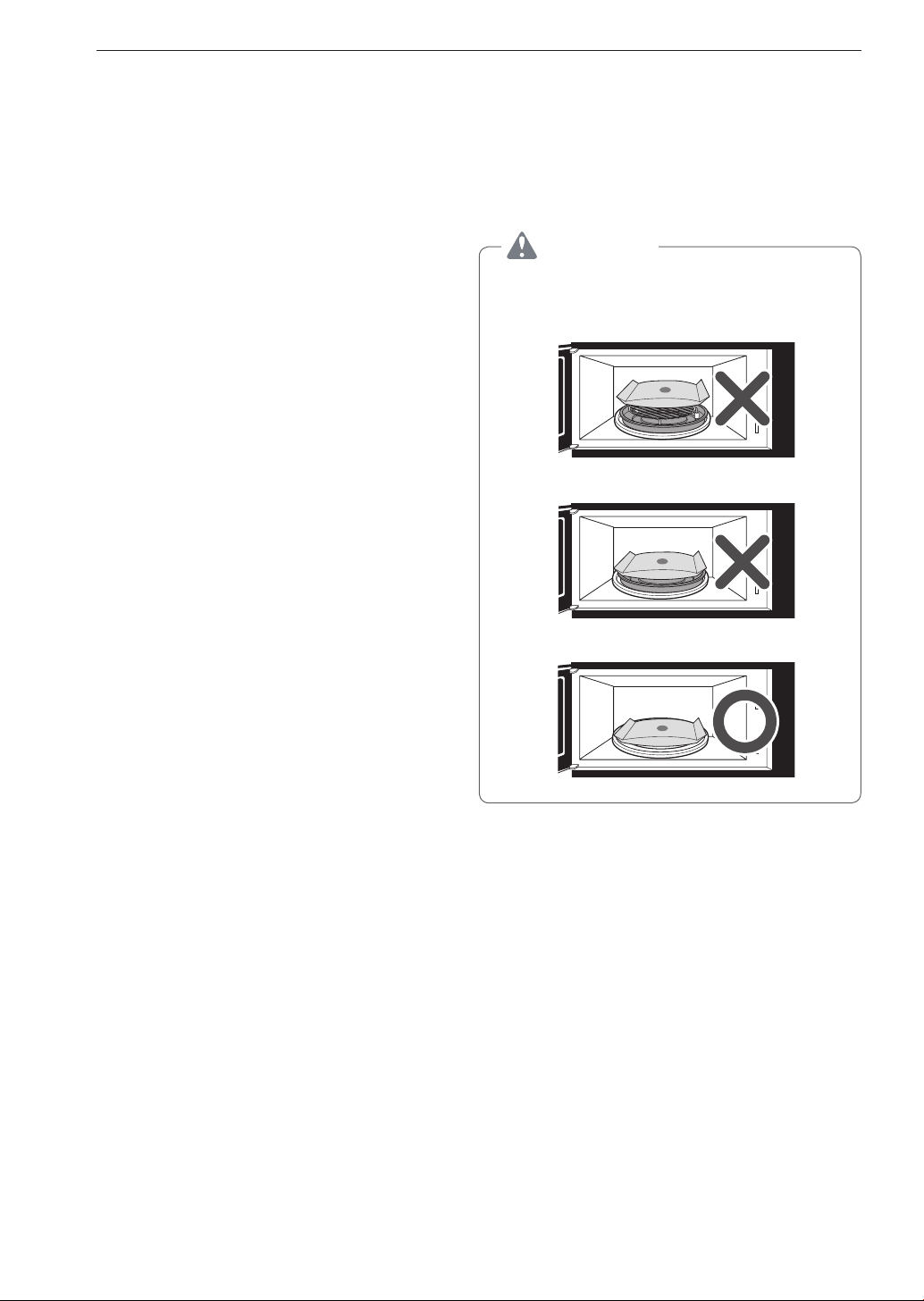

CAUTION
•
Popping microwave popcorn with rack and drip
pan in place can cause fire or damage to the
microwave oven.
13
MICROWAVE COOKING TIPS
Cooking Comparison Guide
Cooking with your new oven offers a wide variety
of food preparation options: microwave cooking,
convection cooking, and combination cooking.
Microwave cooking uses very short, high-frequency
radio waves. The movement of the microwaves
through the food generates heat and cooks most
foods faster than regular methods, while retaining
their natural texture and moisture. Microwave cooking
heats food directly, not the cookware or the interior
of the oven. Reheating is easy and defrosting is
particularly convenient because less time is spent in
food preparation.
Convection cooking constantly circulates heated air
around the food, creating even browning and sealed-
in flavor by the constant motion of hot air over the
food surfaces.
Combination cooking combines microwave energy
with convection to cook with speed and accuracy,
while browning and crisping to perfection.
Timed cooking can be set with microwave cooking,
convection cooking, and combination cooking. Preset
the desired length of cooking time and the oven turns
off automatically.
Microwave Convection Combination
Cooking Method
Microwave energy
is distributed evenly
throughout the oven for
fast, thorough cooking of
food.
Hot air circulates around
food to produce browned
exteriors and sealed-in
juices.
Microwave energy and
convection heat combine
to shorten the cooking time
of regular ovens, while
browning and sealing in
juices.
Heat Source
Microwave energy. Circulating heated air. Microwave energy and
circulating heated air.
Benefits
•
Fast, high efficiency
cooking.
•
Oven and surroundings
do not get hot.
•
Easy clean-up
•
Aids in browning and
seals in flavor.
•
Cooks some foods
faster than regular
ovens.
•
Shortened cooking time
from microwave energy.
•
Browning and crisping
from convection heat.
14
MICROWAVE COOKING TIPS
Cookware Guide
Microwave Cooking
Most heat-resistant, non-metallic cookware is safe for
use in the microwave oven.
Testing Cookware Before Using
1
Place the empty cookware in the microwave
oven.
2
Measure 1 cup of water in a glass measuring cup
and place it in the oven beside the cookware.
3
Microwave on 100% power for 1 minute. If
the dish is warm, it should not be used for
microwave cooking.
Convection Cooking
•
Metal pans are recommended for all types of baked
products, but especially where browning or crusting
is important.
•
Dark or dull finish metal pans are best for breads
and pies because they absorb heat and produce a
crisper crust.
•
Shiny aluminum pans are better for cakes, cookies,
or muffins because these pans reflect heat and
help produce a light, tender crust.
•
Glass or glass-ceramic casserole or baking dishes
are best suited for egg and cheese recipes to
provide easy cleanup.
Combination Cooking
•
Glass or glass-ceramic baking containers are
recommended. Do not use items with metal trim as
they may cause arcing (sparking) with oven wall or
oven shelf, damaging the cookware, the shelf, or
the oven.
•
Heat-resistant plastic microwave cookware (safe to
450°F) may be used, but is not recommended for
foods that require crusting or all-around browning,
because plastic is a poor conductor of heat.
Cookware Microwave Convection Combination
Heat-Resistant Glass, Ceramic Glass Yes Yes Yes
Ceramics, China Yes
(Do not use china
with gold or silver
trim.)
Yes Yes
Metal Cookware No Yes No
Non Heat-Resistant Glass No No No
Microwave-Safe Plastic Yes No Yes*
Plastic Wrap, Wax Paper Yes No No
Paper Products Yes No No
Straw, Wicker, and Wood Yes No No
* Use only microwave cookware that is safe to 450°F
15
MICROWAVE COOKING TIPS

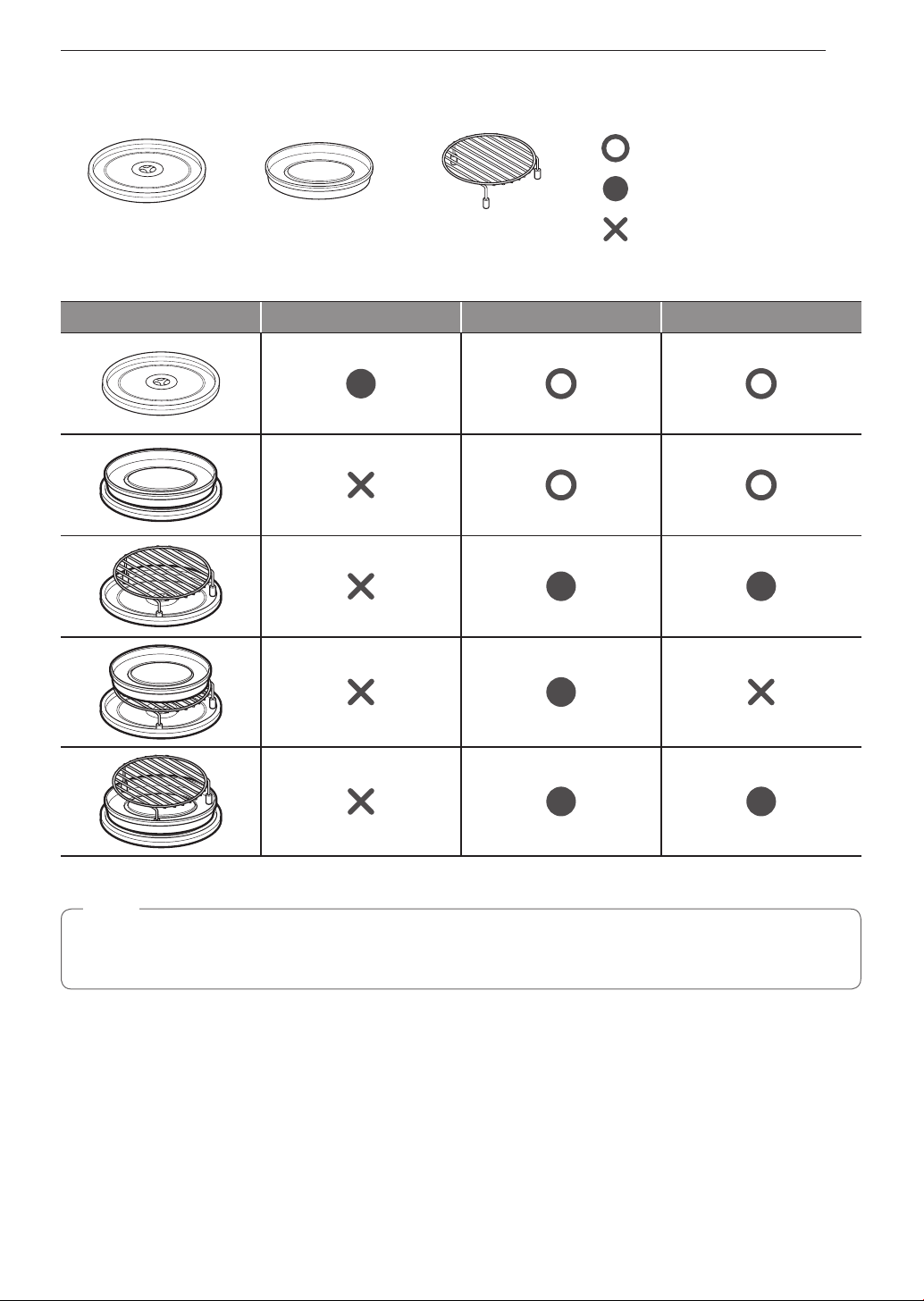

How to use Accessories
: Possible to use
: Recommended method
: Do not use
Glass Tray Metal Tray Convection Rack
Microwave Convection Combination
NOTE
•
Never operate the oven while empty except to preheat in convection mode.
•
NEVER operate the microwave mode while the oven is empty.
16
OPERATION
OPERATION
Using the Microwave Oven
This section discusses the concepts behind
microwave cooking and introduces you to the basics
you need to know to operate your microwave oven.
Please read this information before using your oven.
CAUTION
To avoid risk of personal injury or property
damage, do not use stoneware, metal utensils,
or metal trimmed utensils in the oven.
Audible Signals
Audible signals are available to guide you when
setting and using your oven:
•
A tone will sound each time you touch a key.
•
A melody signals the end of a Timer countdown.
•
A melody signals the end of a cooking cycle.
Clock
When your microwave oven is first plugged in or after
a power failure, the display shows PLEASE SET
TIME OF DAY. If a time of day is not set, a colon (:)
shows on the display until CUSTOM SET is touched.
Example: To set the clock for 10:30(AM).
1
Touch CUSTOM SET.
2
Turn the dial to select the CLOCK SET. Touch
START or press dial to enter.
3
Turn the dial to set the hour 10. Touch START or
press the dial to enter.
4
Turn the dial to set the minute 30.
Touch START or press the dial to enter.
5
Turn the dial to select AM or PM.(AM)
6
Touch START or press the dial to enter.
NOTE
•
If you touch STOP/CLEAR while setting the
clock, the display shows the last time of day set
or a colon (:) if no time of day has been set.
•
If you want to save the power on standby status,
please keep the display with colon (:) mode.
CAUTION
To avoid risk of personal injury or property
damage, do not run oven empty.
Interrupting Cooking
Stop the oven during a cycle by opening the door.
The oven stops heating and the fan stops, but the
light stays on. To restart cooking, close the door and
touch START.
To stop cooking, open the door and touch STOP/
CLEAR.
Child Lock
Use this safety feature to lock the control panel when
cleaning the oven, or so children cannot use the oven
unsupervised.
Example: To set the child lock.
1
Touch and hold STOP/CLEAR until LOCKED
appears in the display and a melody sounds.
(approximately 3 seconds)
Example: To cancel the child lock.
1
Touch and hold STOP/CLEAR until LOCKED
disappears and a melody sounds.
(approximately 3 seconds)
Timer
Use this feature for a a general purpose timer. It can
be used while cooking in the oven. The timer can be
set for up to 99 minutes and 59 seconds.
Example: To set 3 minutes.
1
Touch TIMER ON/OFF.
2
Turn the dial to set the time. (3:00)
3
Touch START or TIMER ON/OFF or press the
dial to enter.
•
When the time is over a melody sounds and
END displays. Press STOP/CLEAR.
•
To cancel, press TIMER ON/OFF.
17
OPERATION
Custom Cook
CUSTOM COOK allows one cooking instruction to be
placed in memory and then recalled quickly.
Example: To memorize a 2-minute microwave
cook.
1
Touch CUSTOM COOK.
2
Touch MANUAL COOK.
3
Turn the dial to select the cooking type
(MICROWAVE). Touch START or press the dial
to enter.
4
Turn the dial to set the power level (POWER
100). Touch START or press the dial to enter.
5
Turn the dial to set the time.(2:00)
6
Touch START or press the dial to enter.
Example: To recall the memory.
1
Touch CUSTOM COOK.
2
Touch START or press the dial to enter.
•
When the cook time is over a melody sounds
and COOK END displays.
Vent Fan
The bottom of the control panel controls the 5-speed
vent fan.
Example: To set Level 4.
1
Touch ON/OFF.
The display defaults to the last level selected.
2
Touch 5 SPEED until LEVEL 4 appears in the
display.
Turn off fan when desired.
NOTE
•
If the temperature from the range or cooktop
below the oven gets too hot, the vent fan in
the vent hood automatically turns on at the
4-Speed setting to protect the oven. It may stay
on up to an hour to cool the oven. When this
occurs, the VENT ON/OFF key does not turn
the fan off. The vent fan cannot be turned off
during microwave cooking.
Vent Fan Auto Timeset
Example: To turn off fan after 30 minutes at level 4.
1
Touch ON/OFF.
2
Touch 5 SPEED until Level 4 appears in the
display.
3
Touch AUTO TIMESET five times.
1 time - 1 minute
2 times - 3 minutes
3 times - 5 minutes
4 times - 10 minutes
5 times - 30 minutes
NOTE
•
AUTO TIMESET button is also used when
connecting the appliance to a home Wi-Fi
network. See details on page 40.
18
OPERATION
Turntable On/Off
1
For best cooking results, leave the turntable
on. It can be turned off for large dishes. Touch
TURNTABLE ON/OFF to turn the turntable on or
off.
NOTE
•
This option is not available in sensor cook and
defrost modes.
•
Sometimes the turntable can become hot to
touch. Be careful when touching the turntable
during and after cooking.
•
Do not run the oven empty.
Light On/Off
1
To turn the hood light on, touch LIGHT ON/OFF
once.
To turn the hood light off, touch LIGHT ON/OFF
again.
Cooking at High Power Level
Example: To cook food for 8 minutes 30 seconds.
1
Turn the dial to select the time. (8:30)
2
Touch START or press the dial to enter.
•
When the cook time is over a melody sounds
and COOK END displays.
Custom Set
Use this key to change settings for the clock, beep
sound, display speed, and defrost weight.
See the following chart for more information.
Category Selection
Clock set
Hours
Minutes
AM/PM
Sound ON/OFF
Sound ON
Sound OFF
Clock ON/OFF
Clock ON
Clock OFF
Scroll speed
Slow speed
Normal speed
Fast speed
Defrost weight mode
Lbs.
Kg.
Example: To change defrost weight mode.(from
Lbs. to Kg.)
1
Touch CUSTOM SET.
2
Turn the dial to select Lbs/Kg Touch START or
press the dial to enter.
3
Turn the selector dial to select Kg.
4
Touch START or press the dial to enter.
19
OPERATION
Cooking at Lower Power
Levels
HIGH power cooking does not always give the best
results with foods that need slower cooking, such as
roasts, baked goods, or custards. The oven has 10
power settings in addition to HIGH.
Example: To cook food for 7 minutes 30 seconds
at 70% power.
1
Touch MANUAL COOK.
2
Turn the dial to select MICROWAVE. Touch
START or press the dial to enter.
3
Turn the dial to set the power level (POWER 70).
Touch START or press the dial to enter.
4
Turn the dial to set the time.(7:30)
5
Touch START or press the dial to enter.
•
When the cook time is over a melody sounds
and COOK END displays.
Cooking with More than One
Cook Cycle
For best results, some recipes call for one power
level for a certain length of time, and another power
level for another length of time. The oven can be
set to change from one power level to another
automatically, for up to three cycles if the first heating
cycle is defrost.
Example: To cook food for 3 minutes at 100%
power and then 70% power for 7 minutes 30
seconds.
1
Turn the dial to select the time. (3:00)
2
Touch MANUAL COOK.
3
Turn the dial to set the power level (POWER 70).
Touch START or press the dial to enter.
4
Turn the dial to set the time.(7:30)
5
Touch START or press the dial to enter.
•
When the cook time is over a melody sounds
and COOK END displays.
When the first stage is over a melody sounds as the
oven begins the second cook stage.
Example: To cook at 70% for 3 minutes and then
at 50% for 10 minutes.
1
Touch MANUAL COOK.
2
Turn the dial to select MICROWAVE. Touch
START or press the dial to enter.
3
Turn the dial to set the power level (POWER 70).
Touch START or press the dial to enter.
4
Turn the dial to set the time (3:00).
5
Touch MANUAL COOK.
6
Turn the dial to set the power level (POWER 50).
Touch START or press the dial to enter.
7
Turn the dial to set the time (10:00).
8
Touch START or press the dial to enter.
•
When the cook time is over, a melody sounds
and COOK END displays.
When the first stage is over, a melody sounds as the
oven begins the second cook stage.
20
OPERATION
Cooking Guide for Lower Power Levels
The nine power levels in addition to HIGH provide a choice of the best level for the food being cooked. Below
are listed all the power levels.
Power Level Microwave Output Use
100
HIGH
100%
•
Quick heating many convenience foods and
foods with high water content, such as soups and
beverages.
•
Cooking tender cuts of meat, ground meat
90 90%
•
Heating cream soups
80 80%
•
Heating rice, pasta, or casseroles
70 70%
•
Cooking and heating foods that need a cook
power lower than high (for example, whole fish
and meat loaf) or when food is cooking too fast
•
Reheating a single serving of food
60 60%
•
Cooking requiring special care, such as cheese
and egg dishes, pudding, and custards
•
Finishing cooking casseroles
50 50%
•
Cooking ham, whole poultry, and pot roasts
•
Simmering stews
40 40%
•
Melting chocolate
•
Heating pastries
30 30%
•
Manually defrosting foods, such as bread, fish,
meats, poultry, and precooked foods
20 20%
•
Softening butter, cheese, and ice cream
10 10%
•
Keeping food warm
•
Taking the chill out of fruit
00 0%
•
Standing time in oven
21
OPERATION
Sensor Operating
Instructions
Sensor Cook cooks favorite foods without selecting
cooking times and power levels.
The oven automatically determines required cooking
time for each food item. When the internal sensor
detects a certain amount of humidity coming from
the food, it tells the oven how much longer to heat.
The display shows the remaining heating time. For
best results when sensor cooking, follow these
recommendations.
1
Food cooked with the sensor system should be
at normal storage temperature.
2
The glass tray and the outside of the container
should be dry to assure best cooking results.
3
Foods should always be covered loosely with
microwavable plastic wrap, waxed paper, or a
lid.
4
Do not open the door or touch STOP/CLEAR
during the sensing time. When sensing time is
over, the oven beeps and the remaining cooking
time will appear in the display window.
At this time you can open the door to stir, turn, or
rearrange the food.
Sensor Cooking Guide
Appropriate containers and coverings help assure
good sensor cooking results.
1
Always use microwavable containers and cover
them with lids or vented plastic wrap.
2
Never use tight-sealing plastic covers. They can
prevent steam from escaping and cause food to
overcook.
3
Match the amount to the size of the container.
Fill containers at least half full for best results.
4
Be sure the outside of the cooking container and
the inside of the microwave oven are dry before
placing food in the oven. Beads of moisture
turning into steam can mislead the sensor.
Sensor Reheat
Use SENSOR REHEAT to reheat common
microwave-prepared foods without selecting cooking
times and power levels.
Example: To reheat slices of pizza.
1
Touch REHEAT.
2
Turn the dial to select PIZZA SLICE.
3
Touch START or press the dial to enter.
•
When the cook time is over a melody sounds
and COOK END displays.
Sensor Cook
Use SENSOR COOK to heat common microwave-
prepared foods without needing to program times and
power levels. SENSOR COOK has preset programs
for 6 food categories.
Example: To cook rice.
1
Touch COOK.
2
Turn the dial to select RICE.
3
Touch START or press the dial to enter. After a
slight delay, cooking begins.
•
When the cook time is over a melody sounds
and COOK END displays.
Sensor Popcorn
POPCORN lets you pop commercially packaged
microwave popcorn. Pop only one package at a time.
For best results, use fresh bags of popcorn.
Example: To pop popcorn.
1
Touch POPCORN.
•
When the cook time is over a melody sounds
and COOK END displays.
22
OPERATION
Sensor Reheat Table
Category Direction Amount
Dinner Plate Place on a low plate. Cover with vented plastic wrap.
Let stand 3 minutes after cooking.
1 to 2 servings
Soup/Sauce Place in shallow microwavable casserole. Cover with vented
plastic wrap. After cooking, stir and let stand 3 minutes.
1 - 4 cups
Casserole Place in a microwavable bowl or casserole. Cover with vented
plastic wrap. After cooking, stir and let stand 3 minutes.
1 - 4 cups
Pizza Slice This function is for re-heating pizza that was cooked
previously. It is NOT for raw, ready-to-bake, or frozen pizza.
Place the pizza slice(s) on a paper towel or microwave safe
plate.
1 - 4 slices
Sensor Cook Table
Category Direction Amount
Baked Potato Pierce each potato with a fork and place on the oven tray
around the edge, at least one inch apart.
After cooking, allow to stand for 5 minutes.
1 - 4 medium
(approx. 8 to 10 oz.
each)
Frozen Vegetable Remove from package, rinse off frost under running water.
Place in an appropriately sized microwave container. Add
amount of water according to the quantity (1 - 2 cups: 2
tablespoons, 3 - 4 cups: 4 tablespoons). Cover with plastic
wrap and vent. After cooking, stir and allow to stand for 3
minutes.
1 - 4 cups
Fresh Vegetable Prepare as desired, wash, and leave residual water on
the vegetables. Place in an appropriately sized microwave
container. Add amount of water according to the quantity (1 -
2 cups: 2 tablespoons, 3 - 4 cups: 4 tablespoons). Cover with
plastic wrap and vent. After cooking, stir and allow to stand for
3 minutes.
1 - 4 cups
Canned
Vegetable
Remove from the can. Place in an appropriately sized
microwave container, cover with plastic wrap, and vent. After
cooking, stir and allow to stand for 3 minutes.
1 - 4 cups
Frozen Entrée Remove from outer package. Slit cover. If not in microwave-
safe container, place on a plate. Cover with plastic wrap and
vent the plastic film by piercing with a fork (3 times). After
cooking, allow to stand for 3 minutes.
10 to 21 oz.
Rice Place rice and twice as much liquid (water, chicken or
vegetable stock) in a 2-quart microwave dish. Cover with
plastic wrap and vent. After cooking, allow to stand for 10
minutes. Stir for fluffier rice.
½ - 2 cups
Use medium or long
grain rice.
Cook instant rice
according to directions
on the package.
23
OPERATION
Tips for Convection Cooking
This section provides cooking instructions and
procedures for each convection function.
Convection cooking circulates hot air through the
oven cavity with a fan. The constantly moving air
surrounds the food to heat the outer portion quickly,
creating even browning and sealed-in flavor through
the constant motion of hot air over the food surfaces.
To use convection cooking, turn the dial to select the
Convection or Combination modes. DO NOT USE
THE OVEN WITHOUT THE TURNTABLE IN PLACE.
1
Always use the metal rack on the turntable
when convection cooking.
2
Do not cover the turntable or metal rack with
aluminum foil. It interferes with the flow of a
3
Use convection cooking for items like
soufflés, breads, cookies, angel food cakes,
pizza, and for some meat and fish.
4
The oven comes equipped with a metal tray
which can be used for cooking in convection
mode or combination mode.
5
No special techniques are necessary to
adapt favorite oven recipes to convection
cooking; but reduce the oven temperature by
25°F from the recommended temperature when
cooking packaged foods in convection mode.
6
When baking cakes, cookies, breads, rolls,
or other baked foods, most recipes call for
preheating. Preheat the empty oven just as
with a regular oven. You can start heavier
dense foods such as meats, casseroles, and
poultry without preheating.
7
All heatproof cookware or metal utensils can
be used in convection cooking.
8
As in conventional cooking, the distance of
the food from the heat source affects cooking
results. Refer to the charts in this owner's
manual.
9
Use metal utensils only for convection
cooking. Never use for microwave or
combination cooking since arcing and damage
to the oven may occur.
10
After preheating, if the door remains closed,
the oven automatically holds at the preheated
temperature for 30 minutes.
CAUTION
•
The oven cavity, door, turntable, roller rest,
metal tray, metal rack, and cooking utensils
become very hot.
USE THICK OVEN GLOVES when removing the
food, cooking utensils, metal rack, metal tray, and
turntable from the oven after convection cooking.
•
Do not use lightweight plastic containers, plastic
wraps, or paper products during any convection
cycle.
24
OPERATION
Convection
During convection cooking, a heating element is used
to raise the temperature of the air inside the oven.
Convection cooking temperature ranges from 100°F
to 450°F.
It is best to preheat the oven when convection
cooking.
NOTE
Reduce oven temperature by 25°F from the
temperature recommended on packaged
foods. The baking time may vary according to
the food condition or individual preference.
Example: To set for convection cooking at 325°F
for 45 minutes with preheating.
1
Touch MANUAL COOK.
2
Turn the dial to select CONVECTION. Touch
START or press the dial to enter.
3
Turn the dial to set the temperature (325°F).
Touch START or press the dial to enter.
4
Touch START or press the dial to begin
preheating.(Do not enter the time.)
5
When the melody sounds, Place the food in the
oven.
6
Turn the dial to set the time. (45:00)
7
Touch START or press the dial to enter.
NOTE
•
When the oven reaches the set preheat
temperature, a melody will sound and the
display scrolls the message PREHEAT END.
The oven automatically holds that temperature
for 30 minutes.
•
The oven temperature drops very quickly when
the door is opened; however, this should not
prevent food from being fully cooked during
normal cooking time.
•
During convection cooking, the vent fan in the
vent hood automatically turns on at the 1-speed
(lowest speed) setting to protect the oven.
Example: To set for convection cooking at 375°F
for 30 minutes without preheating.
1
Touch MANUAL COOK.
2
Turn the dial to select CONVECTION. Touch
START or press the dial to enter.
3
Turn the dial to set the temperature (375°F).
Touch START or press the dial to enter.
4
Turn the dial to set the time. (30:00)
5
Touch START or press the dial to enter.
NOTE
•
The temperature range has 10 steps from
100°F to 450°F.
25
OPERATION
Tips for Combination
Cooking
This section provides instructions for each
combination cooking function. Combination
microwave-convection cooking shortens the cooking
time for foods that normally need a long time to cook.
It also leaves meat juicy on the inside and crispy on
the outside. In combination cooking, the convection
heat and microwave energy alternate automatically.
The oven has three preprogrammed settings that
make it easy to use combination cooking.
Helpful Hints for Combination
Cooking
1
Meats can be roasted directly on the metal rack
or in a shallow roasting pan placed on the rack.
When using the metal rack, check the cooking
guide for information on proper use.
2
Less tender cuts of beef can be roasted and
tenderized using oven cooking bags.
3
When baking, check for doneness after cooking
time is up. If not completely done, let stand in
oven for a few minutes to complete cooking.
CAUTION
•
All cookware used for combination cooking
must be BOTH microwave-safe and oven-safe.
•
During combination baking, some baking
cookware may cause arcing when it comes in
contact with the oven walls or metal accessory
racks. Arcing is a discharge of electricity that
occurs when microwaves come in contact with
metal.
−
If arcing occurs, immediately stop the cooking
cycle and place a heat resistant dish between
the pan and the metal rack.
−
Use the metal tray supplied with the oven. It
has rubber feet that help prevent arcing.
−
If arcing occurs with other baking cookware,
do not use them for combination cooking.
Combination Roast
Example: To roast with combination cooking for
45 minutes at 400°F.
1
Touch MANUAL COOK.
2
Turn the dial to select COMBI. Touch START or
press the dial to enter.
3
Turn the dial to select Co-1.
4
Turn the dial to set the temperature. (400°F)
5
Turn the dial to set the time. (45:00)
6
Touch START or press the dial to enter.
NOTE
•
The temperature range has 9 steps from 250°F
to 450°F.
•
During combination cooking, the exhaust fan
in the vent hood automatically turns on at the
1-speed (lowest) setting to protect the oven.
Combi Category Default Temperature
Co-1 Combination
ROAST
Convection 375°F
Co-2 Combination
BAKE
Convection 325°F
26
OPERATION
Auto Cook
Use Auto Cook to heat common microwave-prepared
foods without selecting cooking times and power
levels.
Auto Cook has preset programs for 6 food functions.
Example: To cook bacon 2 slices.
1
Touch AUTO COOK.
2
Turn the dial to select AUTO COOK. Touch
START or press the dial to enter.
3
Turn the dial to select BACON. Touch START or
press the dial to enter.
4
Turn the dial to select 2 SLICES.
5
Touch START or press the dial to enter.
Auto Cook Table
Category Direction Amount
Bacon Place bacon strips on a microwave bacon rack for best
results. (Use dinner plate lined with paper towels if rack is not
available).
2 - 6 slices
Fresh Roll/Muffin Remove from package and place on plate. (If muffins are over
3 oz. each, count each as two when entering quantity).
1 - 6 pieces
(2 - 3 oz. each)
Frozen
Roll/Muffin
Remove from display package and place on plate. (If muffins
are over 3 oz. each, count each as two when entering
quantity).
1 - 6 pieces
(2 - 3 oz. each)
Beverage Use a wide-mouth mug. Do not cover.
(Be careful. The beverage will be very hot! Sometimes liquids
heated in cylindrical containers will splash out when the cup is
moved).
1 - 2 cups
Chicken Pieces Place the chicken pieces in an appropriately sized
microwavable container, cover with plastic wrap, and vent.
0.5 - 2 lbs.
(0.2 - 0.9 kg)
Hot Cereal Prepare as directed on package and cook.
Stir well before eating.
Use only instant hot cereal.
1 - 6 servings
NOTE
•
Do not use recycled paper products in the microwave oven.
They sometimes contain impurities that cause arcing and sparking.
•
NEVER use paper products in the convection oven.
27
OPERATION
Soften
The oven uses low power to soften foods (butter, ice
cream, cream cheese, and frozen juice).
See the following table.
Example for quart of ice cream.
1
Touch AUTO COOK.
2
Turn the dial to select SOFTEN. Touch START
or press the dial to enter.
3
Turn the dial to select ICE CREAM. Touch
START or press the dial to enter.
4
Turn the dial to select QUART.
5
Touch START or press the dial to enter.
•
When the cook time is over a melody sounds
and COOK END displays.
Soften Table
Category Direction Amount
Butter Unwrap and place
in microwavable
container.
Butter will be at room
temperature and ready
for use in recipe.
1, 2 or 3
sticks
Ice Cream Place container in
oven. Ice cream will
be soft enough to
make scooping easier.
Pint, Quart,
Half gallon
Cream
Cheese
Unwrap and place
in microwavable
Container.
Cream cheese will be
at room temperature
and ready for use in
recipe.
3 or 8 oz.
Frozen
Juice
Remove top.
Place in oven.
Frozen juice will be
soft enough to mix
easily with water.
6, 12 or
16 oz.
Melt
The oven uses low power to melt foods (butter,
chocolate, processed cheese food, or marshmallows).
See the following table.
Example for 8 oz. of chocolate.
1
Touch AUTO COOK.
2
Turn the dial to select MELT.
Touch START or press the dial to enter.
3
Turn the dial to select CHOCOLATE. Touch
START or press the dial to enter.
4
Turn the dial to select 8 Oz.
5
Touch START or press the dial to enter.
•
When the cook time is over a melody sounds
and COOK END displays.
Melt Table
Category Direction Amount
Butter Unwrap and place
in microwavable
container. No need to
cover butter.
Stir at the end of
cooking to complete
melting.
1, 2 or 3
sticks
Chocolate Chocolate chips or
squares of baking
chocolate may
be used. Unwrap
squares and place
in microwavable
container. Stir at
the end of cycle to
complete melting.
4 or 8 oz.
Cheese Use processed
cheese food only.
Cut into cubes. Place
in a single layer
in microwavable
container. Stir at the
end of cooking to
complete melting.
8 or 16 oz.
Marshmallows
Large or miniature
marshmallows may be
used.
Place in microwavable
container. Stir at
the end of cycle to
complete melting.
5 or 10 oz.
28
OPERATION
Speed Auto Combination
Use to cook food without entering cooking time or
power level on combination mode. SPEED AUTO
COMBINATION has 4 food categories.
See the SPEED AUTO COMBINATION CHART on
this page for the settings available.
For best results, place food on the rack. When
cooking meats, use the metal tray/drip pan to
catch drippings.
Example: To cook 2 lb. roast pork.
1
Touch SPEED AUTO COMBI.
2
Turn the dial to select ROAST PORK. Touch
START or press the dial to enter.
3
Turn the dial to select 2.0 Lbs.
4
Touch START or press the dial to enter.
Speed Auto Combination Chart
Category Direction Amount
Whole Chicken Thoroughly wash inside and outside of chicken with cold
water. Pat chicken dry with paper towels, secure the legs with
kitchen twine. Brush outside of chicken with melted butter or
margarine. Place chicken breast side down on metal rack on
metal tray. After cooking, loosely tent chicken with aluminum
foil. Let stand for 10 minutes after cooking.
2.0 - 4.0 lbs.
(0.9 - 1.8 kg)
Roast Pork Pat dry with paper towels. Place roast on metal rack on metal
tray. After cooking, loosely tent roast with aluminum foil and
let stand 5 to 10 minutes.
2.0 - 4.0 lbs.
(0.9 - 1.8 kg)
Frozen Lasagna Remove from outer package. Remove film cover. If lasagna is
not in an ovenproof container, place it on an ovenproof dish.
Place on metal rack on metal tray. Let stand for 5 minutes
after cooking.
10 or 21 oz.
Baked Potatoes Pierce each potato several times with a fork and place on
metal rack on metal tray.
1 - 4 ea
29
OPERATION
Auto Defrost
Five defrost sequences are preset in the oven.
The auto defrost feature provides the best defrosting
method for frozen foods. The Auto Defrost Table
shows which defrost sequence is recommended.
For added convenience, Auto Defrost includes a built-
in beep mechanism as a reminder to check, turn over,
separate, or rearrange food to get the best defrost
results. Five different defrost settings are provided.
1 MEAT
2 POULTRY
3 FISH
4 BREAD
5 QUICK DEFROST
Example: To defrost 1.2 lbs. of meat.
1
Touch AUTO DEFROST..
2
Turn the selector dial to select the food category.
(Meat)
•
Category: Meat, Poultry, Fish, Bread, Quick
3
Turn the dial to select the weight. (1.2 Lbs)
4
Touch START or press the dial to enter.
NOTE
•
When you touch the START or press the
dial, the display changes to the defrost time
count down. When the oven beeps during
the DEFROST cycle, open the door and turn,
separate, or rearrange the food. Remove
any portions that have thawed. Return frozen
portions to the oven and touch START to
resume the defrost cycle.
Weight Conversion Table
Most food weights are given in pounds and ounces.
If using pounds, food weights must be entered
into Auto Defrost in pounds and tenths of pounds
(decimals).
Use the following table if necessary to convert food
weights to decimals.
Equivalent Weight
OUNCES
1.6
3.2
4.8
6.4
8.0
9.6
11.2
12.8
14.4
16.0
DECIMAL WEIGHT
.10
.20
.30
.40
.50 One-Half Pound
.60
.70
.80
.90
1.00 One Pound
Operating Tips
•
For best results, remove fish, shellfish, meat, and
poultry from its original closed paper or plastic
package (wrapper). Otherwise, the wrap will hold
steam and juice close to the foods, which can
cause the outer surface of the foods to cook.
•
For best results, shape the ground meat into
the form of a doughnut before freezing. When
defrosting, scrape off thawed meat when the beep
sounds and continue defrosting.
•
Place foods in a shallow container or on a
microwave roasting rack to catch drippings.
•
For more defrost help, read Defrosting Tips
following the Auto Defrost Table.
For best results, loosen or remove coverings on food.
FOOD
WEIGHTS YOU CAN SET
(tenths of a pound)
Meat 0.1 to 6.0 (0.1 - 4 kg)
Poultry 0.1 to 6.0 (0.1 - 4 kg)
Fish 0.1 to 6.0 (0.1 - 4 kg)
Bread 0.1 to 1.0 (0.1 - 0.5 kg)
Quick Defrost Only 1 lb (0.5 kg only)
30
OPERATION
Auto Defrost Table
Meat setting
Food Setting At Beep Special Instructions
BEEF Meat of irregular shape and large, fatty
cuts of meat should have the narrow
or fatty areas shielded with foil at the
beginning of a defrost sequence.
Ground Beef,
Bulk
MEAT Remove thawed portions with fork
Turn over. Return remainder to
oven.
Do not defrost less than ¼ lb.
Freeze in doughnut shape.
Ground Beef,
Patties
MEAT Separate and rearrange. Do not defrost less than 2 oz. patties.
Depress center when freezing.
Round Steak MEAT Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
Tenderloin
Steak
MEAT Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
Stew Beef MEAT Remove thawed portions with fork.
Separate remainder.
Return remainder to oven.
Place in a microwavable baking dish.
Pot Roast,
Chuck Roast
MEAT Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
Rib Roast MEAT Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
Rolled Rump
Roast
MEAT Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
LAMB
Cubes for Stew MEAT Remove thawed portions with fork.
Return remainder to oven.
Place in a microwavable baking dish.
Chops
(1 inch thick)
MEAT Separate and rearrange. Place on a microwavable roasting rack.
PORK
Chops
(½ inch thick)
MEAT Separate and rearrange. Place on a microwavable roasting rack.
Hot Dogs MEAT Separate and rearrange. Place on a microwavable roasting rack.
Spareribs
Country-style
Ribs
MEAT Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
Sausage, Links MEAT Separate and rearrange. Place on a microwavable roasting rack.
Sausage, Bulk MEAT Remove thawed portions with fork.
Turn over. Return remainder to
oven.
Place in a microwavable baking dish.
Loin Roast,
Boneless
MEAT Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
31
OPERATION
Poultry setting
Food Setting At Beep Special Instructions
CHICKEN
Whole
(up to 6 lbs.)
POULTRY Turn over (finish defrosting
breastside down). Cover warm
areas with aluminum foil.
Place chicken breast-side up on a
microwavable roasting rack. Finish
defrosting by immersing in cold water.
Remove giblets when chicken is
partially defrosted.
Cut-up Separate pieces and rearrange. Place on a microwavable roasting rack.
Turn over. Cover warm areas with
aluminum foil.
Finish defrosting by immersing in cold
water.
CORNISH
HENS
Whole
POULTRY
Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
Finish defrosting by immersing in cold
water.
TURKEY
Breast
(up to 6 lbs.)
POULTRY Turn over. Cover warm areas with
aluminum foil.
Place on a microwavable roasting rack.
Finish defrosting by immersing in cold
water.
Fish setting
Food Setting At Beep Special Instructions
FISH
Fillets FISH Turn over. Separate fillets when
partially thawed if possible.
Place in a microwavable baking dish.
Carefully separate fillets under cold
water.
Steaks FISH Separate and rearrange. Place in a microwavable baking dish.
Run cold water over to finish defrosting.
Whole FISH Turn over. Place in a microwavable baking dish.
Cover head and tail with foil; do not let
foil touch sides of microwave. Finish
defrosting by immersing in cold water.
SHELLFISH
Crabmeat
Lobster tails
Shrimp
Scallops
FISH
FISH
FISH
FISH
Break apart. Turn over.
Turn over and rearrange.
Separate and rearrange.
Separate and rearrange.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
32
OPERATION
Bread setting
Food Setting At Beep Special Instructions
BREAD Turn over and rearrange. Place on 3 sheets of paper towel.
Bagel
Dinner Roll
BREAD
BREAD
Note:
Do not use recycled paper products in
the microwave oven. They sometimes
contain impurities that cause arcing and
sparking.
NEVER use paper products in the
convection oven.
Defrosting Tips
•
When using Auto Defrost, the weight to be entered
is the net weight in pounds and tenths of pounds
(the weight of the food minus the container).
•
Before starting, remove the metal twist-ties which
often come with frozen food bags, and replace
them with strings or elastic bands.
•
Open containers such as cartons before they are
placed in the oven.
•
Always slit or pierce plastic pouches or packaging.
•
If food is foil wrapped, remove foil and place the
food in a suitable container.
•
Slit the skins, if any, of frozen food such as
sausage.
•
Bend plastic pouches of food to ensure even
defrosting.
•
Always underestimate defrosting time. If
defrosted food is still icy in the center, return it to
the microwave oven for more defrosting.
•
The length of defrosting time varies according to
how solidly the food is frozen.
•
The shape of the package affects how quickly
food will defrost. Shallow packages will defrost
more quickly than a deep block.
•
As food begins to defrost, separate the pieces
Separated pieces defrost more easily.
•
Use small pieces of aluminum foil to shield parts
of food such as chicken wings, leg tips, fish tails,
or areas that start to get warm. Make sure the foil
does not touch the sides, top, or bottom of the
oven. The foil can damage the oven lining.
•
For better results, let food stand after defrosting.
(For more information on standing time, see the
Microwave Cooking Tips section.)
•
Turn over food during defrosting or standing time
Break apart and remove food as required.
33
COOKING GUIDE
COOKING GUIDE
Convection Baking Guidelines
1
Always use the metal rack when convection
baking.
Place food directly on rack or place in metal tray
and then place tray on rack.
2
Aluminum pans conduct heat quickly. For most
convection baking, light, shiny finishes give best
results because they prevent overbrowning in
the time it takes to cook the center areas. Pans
with dull (satin-finish) bottoms are recommended
for cake pans and pie pans for best bottom
browning.
3
Dark or non-shiny finishes, glass, and
pyroceramic absorb heat which may result in dry,
crisp crusts.
4
Preheating the oven is recommended when
baking foods by convection.
5
To prevent uneven heating and save energy,
open the oven door to check food as seldom as
possible.
Food Oven Temp. Time, Min. Comments
Breads Refrigerated Biscuits
Corn Bread
Muffins
Popovers
Nut Bread or Fruit
Bread
Yeast Bread
Plain or Sweet Rolls
375°F
350°F
425°F
325°F
325°F
375°F
350°F
11 to 14
35 to 40
18 to 22
45 to 55
60 to 70
16 to 23
13 to 16
Allow additional time for large biscuits.
Remove from pans immediately and cool
slightly on wire rack.
Pierce each popover with a fork after
removing from oven to allow steam to escape.
Interiors will be moist and tender.
Lightly grease baking sheet.
Cakes Devil’s Food
Fudge brownies
Coffee Cake
Cup Cakes
Fruit Cake (loaf)
Gingerbread
Butter Cakes, Cake
Mixes
9 x 13 inch
Tube Cake
Pound Cake
350°F
350°F
325°F
325°F
275°F
300°F
325°F
325°F
325°F
325°F
35 to 40
26 to 30
30 to 35
20 to 25
90 to 100
25 to 30
35 to 45
35 to 45
30 to 40
45 to 55
Place cake pan on rack.
Bake 2 layers of brownies at a time.
Interior will be moist and tender.
Turn end for end half way through baking.
Grease and flour pan.
Cool in pan 10 minutes before inverting on
wire rack.
Cookies Chocolate Chip
Sugar
350°F
350°F
11 to 14
11 to 14
Place metal tray on rack. Allow extra time for
frozen cookie dough.
Place metal tray on rack.
Fruits,
Other
Desserts
Baked Apples or Pears
Bread Pudding
Cream Puffs
Meringue Shells
350°F
300°F
400°F
300°F
35 to 40
35 to 40
30 to 35
30 to 35
Bake in cookware with shallow sides.
Pudding is done when knife inserted near
center comes out clean.
Puncture puffs twice with toothpick to release
steam after 25 minutes of baking time.
When done, turn oven off and let shells
stand in oven 1 hour to dry.
34
COOKING GUIDE
Food Oven Temp. Time, Min. Comments
Pies,
Pastries
Frozen Pie
Meringue-Topped
Two-Crust
Quiche
Pastry Shell
400°F
450°F
400°F
350°F
400°F
50 to 60
9 to 11
50 to 55
30 to 35
10 to 16
Place metal tray on rack and place in cold
oven. Preheat oven, tray and rack to 400°F.
When preheated, place frozen pie on metal
tray and bake according to package time or
until crust is browned and filling is hot.
Follow package directions for preparation.
Follow package directions for preparation.
Let stand 5 minutes before cutting.
Pierce pastry with fork to prevent shrinkage.
Casseroles
Meat, Chicken,
Seafood Combinations
Pasta
Potatoes, scalloped
Vegetable
350°F
350°F
350°F
350°F
20 to 40
25 to 45
55 to 60
25 to 35
Cook times vary with casserole size and
ingredients.
Cook times vary with casserole size and
ingredients.
Let stand 5 minutes before serving.
Cook times vary with casserole size and
ingredients.
Convenience
Foods
Frozen Bread Dough
Frozen Entrée
Frozen Pizza Rising
Crust
Frozen Pizza
French Fries Crinkle
Cut
Frozen Waffle
Frozen Cheese Sticks
Frozen Turnovers
350°F
325°F
400°F
400°F
450°F
400°F
450°F
450°F
30 to 35
70 to 80
25 to 35
17 to 21
15 to 19
5 to 7
6 to 8
18 to 22
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation.
Pizza should not extend over the rack.
Follow package directions for preparation.
Pizza should not extend over the rack.
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation.
Main
Dishes
Meat Loaf
Oven-Baked Stew
Swiss Steak
Stuffed Peppers
400°F
325°F
350°F
350°F
30 to 40
80 to 90
60 to 70
40 to 45
Let stand 5 minutes after cooking.
Brown meat before combining with liquid and
vegetables.
Let stand 2 minutes after cooking.
Use green, red, or yellow peppers.
Vegetables
Acorn Squash Halves
Baked Potatoes
Twice-Baked Potatoes
375°F
425°F
400°F
55 to 60
50 to 60
25 to 30
Pierce skin in several places. Add ½ cup
water to dish. Turn squash halves cut side
up after 30 minutes of cook time and cover.
Pierce skin with fork before baking.
Pierce skin with fork before baking.
NOTE
•
The oven temperature indicated in the chart above is recommended over the package instruction
temperature.
•
The baking time in the chart above is only a guideline for reference. Adjust time according to the food
condition or your preference. Check doneness at the minimum time.
35
COOKING GUIDE
Meat Roasting Guidelines for Convection Cooking
Food Oven Temp. Time, Min./Lb.
Beef Ribs (2 to 4 lbs.)
Rare
Medium
Well
Boneless Ribs, Top Sirloin
Rare
Medium
Well
Beef Tenderloin
Rare
Medium
Pot Roast (2½ to 3 lbs.)
Chuck, Rump
Meat Loaf (2 lbs.)
300°F
300°F
300°F
300°F
300°F
300°F
300°F
300°F
300°F
400°F
45 to 50
50 to 55
55 to 60
53 to 58
58 to 63
63 to 68
28 to 32
32 to 36
83 to 88
65 to 75
Ham Canned (3-lb. fully cooked)
Butt (5-lb. fully cooked)
Shank (5-lb. fully cooked)
325°F
325°F
325°F
20 to 25
20 to 25
17 to 20
Lamb Bone-in (2 to 4 lbs.)
Medium
Well
Boneless (2 to 4 lbs.)
Medium
Well
300°F
300°F
300°F
300°F
42 to 47
47 to 52
50 to 55
55 to 60
Pork Bone-in (2 to 4 lbs.)
Boneless (2 to 4 lbs.)
Pork Chops (½ to 1-inch thick)
2 chops
4 chops
6 chops
300°F
300°F
325°F
325°F
325°F
48 to 52
56 to 61
42 to 45
45 to 48
48 to 55
Poultry Whole Chicken (2½ to 3½ lbs.)
Chicken Pieces (2½ to 3½ lbs.)
Duckling (4 to 5 lbs.)
Turkey Breast (4 to 6 lbs.)
375°F
425°F
375°F
325°F
25 to 35
10 to 12
19 to 21
21 to 25
Seafood Fish, whole (3 to 5 lbs.)
Lobster Tails (6 to 8-oz. each)
400°F
350°F
13 to 18
12 to 17
NOTE
•
The roasting time in the chart above is only a guideline for reference. Adjust time according to the food
condition or your preference. Check doneness at the minimum time.
36
COOKING GUIDE
Combination Roast Cooking Guide
Food Oven Temp. Time, Min./Lb.
Beef Turn over after half of cooking time.
Ribs (2 to 4 lbs.)
Rare
Medium
Well
Boneless Ribs, Top Sirloin
Rare
Medium
Well
Beef Tenderloin
Rare
Medium
Chuck, Rump or Pot Roast (2½ to 3 lbs.)
(Use cooking bag for best results.)
375°F
375°F
375°F
375°F
375°F
375°F
375°F
375°F
300°F
9 to 13
11 to 15
13 to 17
9 to 13
11 to 15
13 to 17
16 to 18
18 to 20
18 to 20
Ham Turn over after half of cooking time.
Canned (3-lb. fully cooked)
Butt (5-lb. fully cooked)
Shank (5-lb. fully cooked)
300°F
300°F
300°F
15 to 18
15 to 18
15 to 18
Lamb Turn over after half of cooking time.
Bone-in (2 to 4 lbs.)
Medium
Well
Boneless (2 to 4 lbs.)
Medium
Well
300°F
300°F
300°F
300°F
13 to 18
18 to 23
14 to 19
19 to 24
Pork Turn over after half of cooking time.
Bone-in (2 to 4 lbs.)
Boneless (2 to 4 lbs.)
Pork Chops (¾ to 1-inch thick)
2 chops
4 chops
6 chops
300°F
300°F
350°F
305°F
305°F
17 to 20
19 to 22
10 to 13
13 to 16
16 to 19
Poultry Turn over after half of cooking time.
Whole Chicken (2½ to 6 lbs.)
Chicken Pieces (2½ to 6 lbs.)
Cornish Hens (untied)
Unstuffed
Stuffed
Duckling
Turkey Breast (4 to 6 lbs.)
375°F
375°F
425°F
375°F
375°F
300°F
15 to 17
15 to 18
15 to 18
22 to 25
15 to 18
11 to 15
37
COOKING GUIDE
Food Oven Temp. Time, Min./Lb.
Seafood Fish
1-lb. fillets
Lobster Tails (6 to 8-oz. each)
Shrimp (1 to 2 lbs.)
Scallops (1 to 2 lbs.)
350°F
350°F
350°F
350°F
7 to 10
10 to 15
9 to 14
8 to 13
NOTE
•
The roasting time in the chart above is only a guideline for reference. Adjust time according to the food
condition or your preference. Check doneness at the minimum time.
Combination Bake Cooking Guide
Food Oven Temp. Time, Min. Comments
Pies, Pastries Quiche 425°F 15 to 17 Let stand 5 minutes before cutting.
Convenience
Foods
Frozen Entrée
Frozen Pizza
Rolls, Egg Rolls
Pizza
375°F
450°F
450°F
39 to 43
4 to 6
23 to 26
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation.
Vegetables Baked Potatoes 450°F 36 to 40 Pierce skin with a fork before baking.
Place on rack.
38
COOKING GUIDE
Heating/Reheating Guide
To heat or reheat successfully in a microwave oven, follow these guidelines: Measure the amount of food in
order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room
temperature food will heat faster than refrigerated food. Canned foods should be taken out of the can and placed
in a microwave-safe container. The food will heat more evenly if covered with a microwave-safe lid or vented
plastic wrap. Remove the cover carefully to prevent steam burns. Use the following chart as a guide for reheating
cooked food.
Items Cook Time (At High) Special Instructions
Sliced meat
3 slices (¼ -inch thick)
1 - 2 minutes Place sliced meat on microwavable plate.
Cover with plastic wrap and vent.
Note: Gravy or sauce helps to keep meat juicy.
Chicken pieces
1 breast
1 leg and thigh
2 - 3½ minutes
1½ - 3 minutes
Place chicken pieces on microwavable plate.
Cover with plastic wrap and vent.
Fish fillet (6 - 8 oz.) 2 - 4 minutes Place fish on microwavable plate.
Cover with plastic wrap and vent.
Lasagna
1 serving (10½ oz.)
4 - 6 minutes Place lasagna on microwavable plate.
Cover with plastic wrap and vent.
Casserole
1 cup
4 cups
1 - 3½ minutes
5 - 8 minutes
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Casserole – cream or cheese
1 cup
4 cups
1½ - 3 minutes
3½ - 5½ minutes
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Sloppy Joe or
Barbecued Beef
1 sandwich (½ cup meat
filling)without bun
1 - 2½ minutes
Reheat filling and bun separately.
Cook filling covered in microwavable casserole.
Stir once.
Heat bun as directed in chart below.
Mashed potatoes
1 cup
4 cups
1 - 3 minutes
5 - 8 minutes
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Baked beans
1 cup 1½ - 3 minutes
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Ravioli or pasta in sauce
1 cup
4 cups
2½ - 4 minutes
7½ - 11 minutes
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Rice
1 cup
4 cups
1½ - 3½ minutes
4 - 6½ minutes
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Sandwich roll or bun
1 roll 15 - 30 seconds
Wrap in paper towel and place on glass
microwavable rack.
Vegetables
1 cup
4 cups
1½ - 2½ minutes
4 - 6 minutes
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Soup
1 serving (8 oz.) 1½ - 2½ minutes
COOK covered in microwavable casserole.
Stir once
39
COOKING GUIDE
Fresh Vegetable Guide
Vegetable Amount
Cook Time
At High
(Minute)
Instructions
Standing
Time
Artichokes
(8 oz.each)
2 medium
4 medium
5 - 8
10 - 13
Trim. Add 2 tsp water and 2 tsp juice. Cover. 2 - 3 minutes
Asparagus,
Fresh, Spears
1 Ib. 3 - 6 Add ½ cup water. Cover. 2 - 3 minutes
Beans, Green
and Wax
1 Ib. 7 - 11 Add ½ cup water in 1½ qt. casserole. Stir halfway
through cooking.
2 - 3 minutes
Beets, Fresh 1 Ib. 12 - 16 Add ½ cup water in 1½ qt. covered casserole.
Rearrange halfway through cooking.
2 - 3 minutes
Broccoli, Fresh,
Spears
1 Ib. 4 - 8 Place broccoli in baking dish. Add ½ cup water. 2 - 3 minutes
Cabbage, Fresh,
Chopped
1 Ib. 4 - 7 Add ½ cup water in 1½ qt. covered casserole.
Stir halfway through cooking.
2 - 3 minutes
Carrots, Fresh,
Sliced
2 cups 2 - 4 Add ¼ cup water in 1 qt. covered casserole. Stir
halfway through cooking.
2 - 3 minutes
Cauliflower,
Fresh, Whole
1 lb. 7 - 11 Trim and add ¼ cup water in 1 qt. covered
casserole. Stir halfway through cooking.
2 - 3 minutes
Flowerettes,
Fresh Celery,
Fresh, Sliced
2 cups
4 cups
2½ - 4½
6 - 8
Slice and add ½ cup water in 1½ qt. covered
casserole. Stir halfway through cooking.
2 - 3 minutes
Corn, Fresh 2 ears 5 - 9 Husk and add 2 tbsp water in 1½ qt. baking dish.
Cover.
2 - 3 minutes
Mushrooms,
Fresh, Sliced
½ Ib. 2 - 3½ Place mushrooms in 1½ qt. covered casserole.
Stir halfway through cooking.
2 - 3 minutes
Parsnips,
Fresh, Sliced
1 Ib. 4 - 8 Add ½ cup water in 1½ qt. covered casserole.
Stir halfway through cooking.
2 - 3 minutes
Peas, Green,
Fresh
4 cups 7 - 10 Add ½ cup water in 1½ qt. covered casserole.
Stir halfway through cooking.
2 - 3 minutes
Sweet Potatoes
Whole Baking
(6-8 oz.each)
2 medium
4 medium
5 - 10
7 - 13
Pierce potatoes several times with fork.
Place on 2 paper towels.
Turn over halfway through cooking.
2 - 3 minutes
2 - 3 minutes
White Potatoes
Whole Baking
(6-8 oz.each)
2 potatoes
4 potatoes
5 - 8
10 - 14
Pierce potatoes several times with fork.
Place on 2 paper towels.
Turn over halfway through cooking.
2 - 3 minutes
2 - 3 minutes
Spinach, Fresh,
Leaf
1 Ib. 4 - 7 Add ½ cup water in 2 qt. covered casserole. 2 - 3 minutes
Squash, Acorn or
Butternut, Fresh
1 medium 6 - 8 Cut squash in half. Remove seeds.
Place in 8 x 8-inch baking dish. Cover.
2 - 3 minutes
Zucchini, Fresh,
Sliced
1 Ib. 4½ - 7½ Add ½ cup water in 1½ qt. covered casserole.
Stir halfway through cooking.
2 - 3 minutes
Zucchini, Fresh,
Whole
1 Ib. 6 - 9 Pierce. Place on 2 paper towels. Turn over and
rearrange halfway through cooking.
2 - 3 minutes
40
SMART FUNCTIONS
SMART FUNCTIONS
Application Installation
Search for the SIGNATURE KITCHEN SUITE
application from the Google Play Store on a smart
phone. Follow instructions to download and install the
application.
Product Registration
1
Run the SIGNATURE KITCHEN SUITE
application on a smart phone.
2
Create an account and sign in.
3
Select Register.
4
Select Microwave oven.
5
Follow the instructions on the smart phone to
register the appliance and connect it to a Wi-Fi
network.
•
To verify the Wi-Fi connection, check the Wi-Fi
icon
on the control panel is lit.
NOTE
•
SIGNATURE KITCHEN SUITE is not
responsible for any network connection
problems or any faults, malfunctions, or errors
caused by network connection.
•
The machine supports 2.4 GHz Wi-Fi networks
only.
•
If the appliance is having trouble connecting
to the Wi-Fi network, it may be too far from
the router. Purchase a Wi-Fi repeater (range
extender) to improve the Wi-Fi signal strength.
•
The Wi-Fi connection may not connect or may
be interrupted because of the home network
environment.
•
The network connection may not work properly
depending on the internet service provider.
•
The surrounding wireless environment can
make the wireless network service run slowly.
•
This information is current at the time of
publication.
The application is subject to change for
appliance improvement purposes without notice
to users.
Using the Wi-Fi Function
Communicate with the appliance from a smart phone
using the convenient smart features.
Using the Application
1
Select the appliance in the application and
connect it to a Wi-Fi network.
2
Select the menu on the upper right side to
access settings and features.
Monitoring
Check the current status, cook mode, settings,
remaining cook time, and cook end time for the
appliance on a single screen.
Push Alert
Turn on the Push Alerts to receive appliance status
notifications.
The notifications are triggered even if the Signature
Kitchen Suite application is off.
Smart Diagnosis
Smart Diagnosis™ helps troubleshoot and diagnose
issues with the appliance based on how the product
is used. The smart phone application can record and
analyze the Smart Diagnosis™ signal without waiting
for a technician.
Settings
Set various options on the appliance and in the
application.
Interworking Function
The appliance automatically turns on/off the vent fan
and cooktop lamp when paired with Signature Kitchen
Suite cooktops. Both products must be registered
through the Signature Kitchen Suite application and
have an interworking function.
NOTE
•
The appliance is not intended to be operated by
means of remote control system.
•
Vent or Light functions which are automatically
activated by an interworking cooktop can be
turned off by pressing Vent On/Off or Light On/
Off on the appliance.
•
To disconnect the appliance from the Wi-
Fi network, delete the microwave oven from
the list of registered products in the Signature
Kitchen Suite application.
41
SMART FUNCTIONS
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product, please visit http://opensource.
thesignaturekitchen.com. In addition to the source
code, all referred license terms, warranty disclaimers
and copyright notices are available for download.
SIGNATURE KITCHEN SUITE will also provide open
source code to you on CD-ROM for a charge covering
the cost of performing such distribution (such as the
cost of media, shipping, and handling) upon email
request to [email protected].
This offer is valid for three (3) years from the date on
which you purchased the product.
Wireless module (LCW-003) Specifications
Frequency
Range
2412~2462 MHz
Output Power
(max.)
IEEE 802.11 b : 14 dBm
IEEE 802.11 g : 15 dBm
IEEE 802.11 n : 14 dBm
FCC Notice (For transmitter
module contained in this
product)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment
and the receiver.
•
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modifications in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
FCC RF Radiation Exposure
Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with
minimum distance 20 cm (7.8 inches) between the
antenna and your body. Users must follow the specific
operating instructions for satisfying RF exposure
compliance.
42
SMART DIAGNOSIS™
SMART DIAGNOSIS™
Using Smart Diagnosis™
Should you experience any problems with the
appliance, it has the capability of transmitting
data to a smart phone using the SIGNATURE
KITCHEN SUITE application or via the phone to the
SIGNATURE KITCHEN SUITE call center.
Smart Diagnosis™ can not be activated unless the
appliance is connected to power. If the appliance is
unable to turn on, then troubleshooting must be done
without using Smart Diagnosis™.
Smart Diagnosis™ Using a Smart
Phone
1
Open the SIGNATURE KITCHEN SUITE
application on the smart phone.
2
Select the appliance and then the menu on
upper right side.
3
Select the Smart Diagnosis, then press Start
Smart Diagnosis button.
NOTE
•
If the diagnosis fails several times, use the
following instructions.
4
Select the Audible Diagnosis.
5
Follow the instructions on the smart phone.
6
Keep the phone in place until the tone
transmission has finished. View the diagnosis on
the phone.
NOTE
•
The Smart Diagnosis™ function depends on
the local call quality.
•
The communication performance will improve
and you can receive better service if you use
the home phone.
•
If the Smart Diagnosis™ data transfer is poor
due to poor call quality, you may not receive the
best Smart Diagnosis™ service.
Smart Diagnosis™ Through the
Customer Information Center
1
Call the SIGNATURE KITCHEN SUITE call
center at: 1-855-790-6655
2
When instructed to do so by the call center
agent, hold the mouthpiece of your phone over
the Smart Diagnosis™ logo on the machine.
Hold the phone no more than one inch from (but
not touching) the machine.
NOTE
Do not touch any other buttons or icons on the
display screen.
3
Press and hold the Start button for three
seconds.
4
Keep the phone in place until the tone
transmission has finished. The display will count
down the time.
5
Once the countdown is over and the tones have
stopped, resume your conversation with the call
center agent, who will then be able to assist you
in using the information transmitted for analysis.
NOTE
•
For best results, do not move the phone while
the tones are being transmitted.
•
If the call center agent is not able to get an
accurate recording of the data, you may be
asked to try again.
43
MAINTENANCE
MAINTENANCE
Caring for the Microwave
Oven
To make sure the microwave oven looks good and
works well for a long time, maintain it properly. For
proper care, follow these instructions carefully.
For interior surfaces: Wash often with warm, sudsy
water and a sponge or soft cloth. Use only mild,
nonabrasive soaps or a mild detergent. Keep the
areas clean where the door and oven frame touch
when closed.
Wipe well with a clean cloth. Over time, stains can
occur on the surfaces as the result of food particles
spattering during cooking. This is normal.
For stubborn soil, boil a cup of water in the oven for 2
to 3 minutes. Steam will soften the soil. To get rid of
odors inside the oven, boil a cup of water with some
lemon juice or vinegar in it.
For exterior surfaces and control panel: Use a soft
cloth sprayed with glass cleaner.
Apply the glass cleaner to the soft cloth; do not spray
directly on the oven.
NOTE
•
Abrasive cleansers, steel wool pads, gritty
wash cloths, some paper towels, etc., can
damage the control panel and the interior and
exterior oven surfaces.
To clean the glass tray and rotating ring, wash in
mild, sudsy water.
For heavily soiled areas use a mild cleanser and
scouring sponge.
The glass tray and rotating ring are dishwasher safe.
Convection Rack
Metal Tray
Glass Tray
Rotating Ring
44
MAINTENANCE
Cleaning the Grease Filters
1
Unplug the microwave oven.
2
To remove grease filters, slide each filter to the
side. Pull filters downward and push to the other
side. The filter will drop out.
3
Soak grease filters in hot water and a mild
detergent. Scrub and swish to remove
embedded dirt and grease. Rinse well and
shake to dry. Do not clean filters with
ammonia, corrosive cleaning agents such
as lye-based oven cleaners, or place them
in a dishwasher. The filters will turn black or
could be damaged.
4
To replace grease filters, slide filter in the frame
slot on one side of the opening. Push filter
upward and push to the other side to lock into
place.
5
Plug in the microwave oven.
Charcoal Filter Replacement
1
Unplug the microwave oven.
2
Remove the vent grille mounting screws.
Vent Grille
3
Tip the grille forward, then lift out to remove.
4
Remove the charcoal filter.
5
Slide a new charcoal filter into place.
The filter should rest at the angle shown.
6
Slide the bottom of the vent grille into place.
Push the top until it snaps into place.
Replace the mounting screws.
7
Plug in the microwave oven.
45
MAINTENANCE

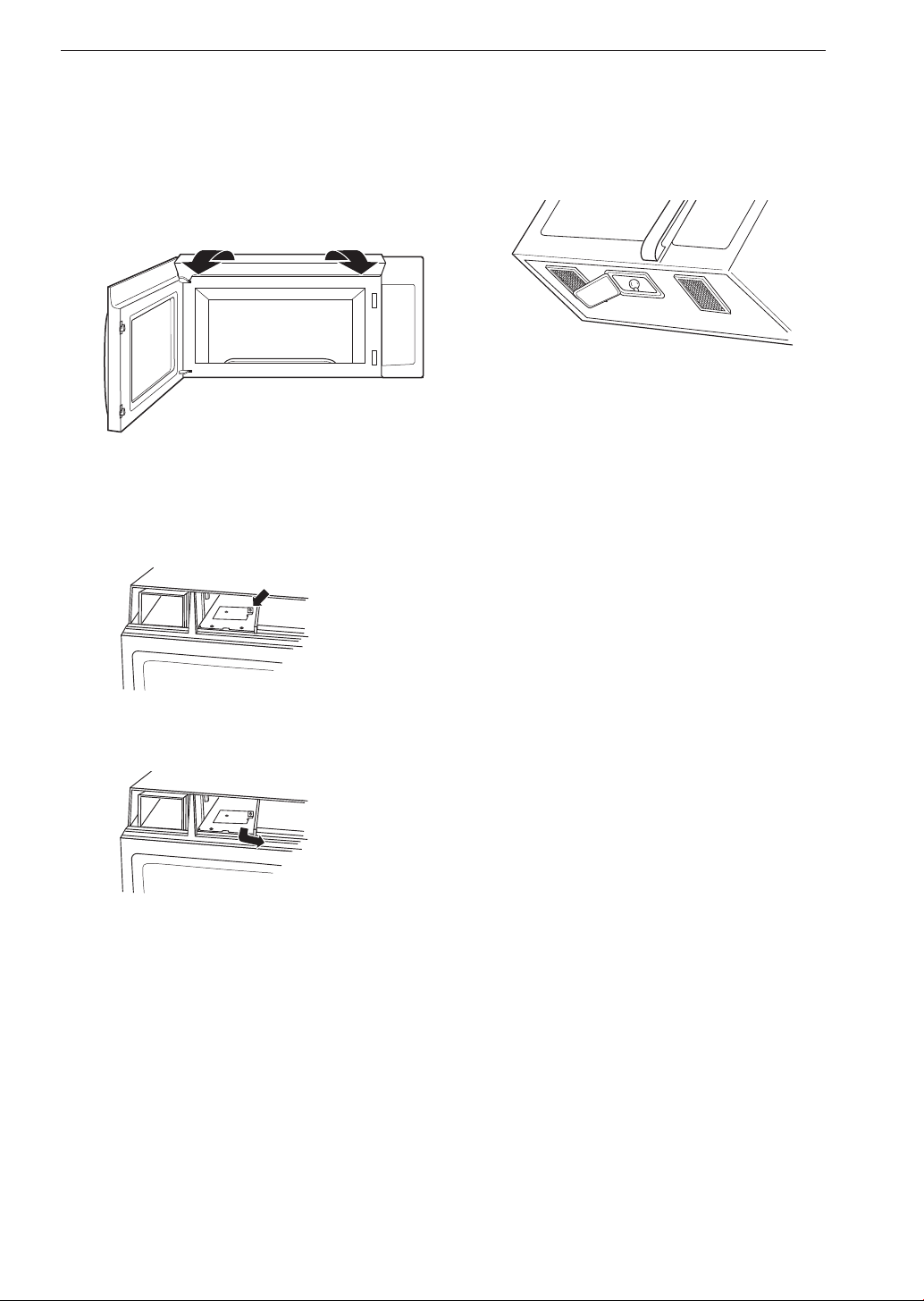

Oven Light Replacement
1
Unplug the microwave oven.
2
Remove the vent grille mounting screws.
3
Tip the grille forward, then lift out to remove.
4
Remove charcoal filter.
5
Remove the screw holding the lamp shield in
place.
6
Pull the lamp shield out.
7
Replace the bulb with a candelabra-base 50
watt bulb.
8
Return the lamp and lamp shield to original
position and replace screw and charcoal filter.
9
Replace the mounting screws.
10
Plug in the microwave oven.
Cooktop/Countertop Light
Replacement
1
Unplug the microwave oven.
2
Remove the bulb cover mounting screws.
3
Replace bulb(s) with candelabra-base 50 watt
bulb.
4
Replace bulb cover and mounting screw.
5
Plug in the microwave oven.
46
MAINTENANCE
Microwave Utensil Guide
Use Do Not Use
OVENPROOF GLASS
(treated for high intensity heat):
utility dishes, loaf dishes, pie plates, cake
plates, liquid measuring cups, casseroles
and bowls without metallic trim.
CHINA:
bowls, cups, serving plates, and platters
without metallic trim.
PLASTIC:
Plastic wrap (as a cover)- lay the plastic
wrap loosely over the dish and press it to
the sides.
Vent plastic wrap by turning back one edge
slightly to allow excess steam to escape.
The dish should be deep enough so that
the plastic wrap will not touch the food. As
the food heats it may melt the plastic wrap
wherever the wrap touches the food.
Use plastic dishes, cups, semi-rigid freezer
containers and plastic bags only for
short cooking time. Use these with care
because the plastic may soften from
the heat of the food.
PAPER:
Paper towels, waxed paper, paper
napkins, and paper plates with no metallic
trim or design. Look for the manufacturer's
label for use in the microwave oven.
Note:
Do not use recycled paper products in the
microwave oven. They sometimes contain
impurities that cause arcing and sparking.
NEVER use paper products in the
convection oven.
METAL CONTAINERS::
Metal shields the food from microwave energy and produces
uneven cooking. Also avoid metal skewers, thermometers, or
foil trays. Metal containers can cause arcing, which can damage
the microwave oven.
METAL DECORATION:
Metal-trimmed or metal-banded dinnerware, casserole dishes,
etc. The metal trim interferes with normal cooking and may
damage the oven.
ALUMINUM FOIL:
Avoid large sheets of aluminum foil because they hinder
cooking and may cause harmful arcing. Use small pieces of
foil to shield poultry legs and wings. Keep ALL aluminum foil at
least 1 inch from the side walls and door of the oven.
WOOD:
Wooden bowls and boards will dry out and may split or crack
when you use them in the microwave oven. Baskets react in the
same way.
TIGHTLY COVERED UTENSILS:
Be sure to leave openings for steam to escape from covered
containers. Pierce plastic pouches of vegetables or other food
items before cooking. Tightly closed pouches could explode.
BROWN PAPER:
Avoid using brown paper bags.
They absorb too much heat and could burn.
FLAWED OR CHIPPED UTENSILS:
Any container that is cracked, flawed, or chipped may break in
the oven.
METAL TWIST TIES:
Remove metal twist ties from plastic or paper bags.
They become hot and could cause a fire.
47
TROUBLESHOOTING
TROUBLESHOOTING
Frequently Asked Questions
Can I use a rack in my microwave oven to reheat
or cook on two levels at once?
Only use the rack that is supplied with your
microwave oven. Use of any other rack can result
in poor cooking performance and/or arcing and may
damage your oven.
Can I use either metal or aluminum pans in my
microwave oven?
Usable metal includes aluminum foil for shielding (use
small, flat pieces), and shallow foil trays (if tray is ¾
inch deep and filled with food to absorb microwave
energy). Never allow metal to touch walls or door.
Sometimes the door of my microwave oven
appears wavy. Is this normal?
This appearance is normal and does not affect the
operation of your oven.
The glass tray does not move.
The glass tray is not correctly in place. It should be
correct-side up and sitting firmly on the center hub.
The support is not operating correctly. Remove the
glass tray and restart the oven. Cooking without the
glass tray can give you poor results.
Why does the dish become hot when I microwave
food in it? I thought that this should not happen.
As the food becomes hot it will conduct the heat to
the dish. Use hot pads to remove food after cooking.
What does standing time mean?
Standing time means that food should be taken out
of the oven and covered for additional time after
cooking. This process allows the cooking to finish,
saves energy, and frees the oven for other purposes.
Can I pop popcorn in my microwave oven?
How do I get the best results?
Yes. Pop packaged microwave popcorn following
manufacturer’s guidelines or use the preprogrammed
Popcorn key.
Do not use regular paper bags. Use the listening test
by stopping the oven as soon as the popping slows
to a pop every one or two seconds. Do not try to
repop unpopped kernels. You can also use special
microwave poppers. When using a popper, be sure to
follow manufacturer’s directions. Do not pop popcorn
in glass utensils.
Why does steam come out of the air exhaust
vent?
Steam is normally produced during cooking. The
microwave oven has been designed to vent steam
out of the top vent.
48
TROUBLESHOOTING
Before Calling for Service
Check the following list to be sure a service call is really necessary. A quick reference of this manual as well as
reviewing additional information on items to check may prevent an unneeded service call.
Symptoms Possible Causes / Solutions
If nothing on the oven
operates:
•
Check for a blown circuit fuse or a tripped main circuit breaker.
•
Check if oven is properly connected to electric circuit in house.
•
Check that controls are set properly.
If the oven interior
light does not work
•
The light bulb is loose or defective.
If oven will not cook:
•
Check that control panel was programmed correctly.
•
Check that door is firmly closed.
•
Check that start was pressed.
•
Check that timer wasn’t started instead of a cook function.
If oven takes longer
than normal to cook
or cooks too rapidly:
•
Be sure the power level is programmed properly.
If the time of day
clock does not always
keep correct time:
•
Check that the power cord is fully inserted into the outlet receptacle.
•
Be sure the oven is the only appliance on the electrical circuit.
If food cooks
unevenly:
•
Be sure food is evenly shaped.
•
Be sure food is completely defrosted before cooking.
•
Check placement of aluminum foil strips used to prevent overcooking.
If food is
undercooked:
•
Check recipe to be sure all directions (amount, time, and power levels) were
correctly followed.
•
Be sure microwave oven is on a separate circuit.
•
Be sure food is completely defrosted before cooking.
If food is overcooked:
•
Check recipe to be sure all directions (amount, power level, time, size of dish)
were followed.
If arcing (sparks)
occur:
•
Be sure microwavable dishes were used.
•
Be sure wire twist ties weren’t used.
•
Be sure oven wasn’t operated when empty.
•
Make sure metal rack (if used) is properly installed on 4 supports.
If the display shows
a time counting down
but the oven is not
cooking:
•
Check that door is firmly closed.
•
Check that timer wasn’t started instead of a cooking function.
49
WARRANTY
WARRANTY(USA)
SIGNATURE KITCHEN SUITE will repair or replace your product, at SIGNATURE KITCHEN SUITE'S option, if it
proves to be defective in material or workmanship under normal use, during the warranty period set forth below,
effective from the date of original consumer purchase of the product. This warranty is good only to the original
purchaser of the product and effective only when used in the United States, including U.S Territories.
Warranty Period HOW SERVICE IS HANDLED
LABOR: Three Years from the Date of Purchase*.
PARTS(except as listed below): Three Years from the
Date of Purchase*.
MAGNETRON: Ten Years from the Date of
Purchase*.
Replacement Units and Repair Parts are warranted
for the remaining portion of the original unit's
warranty period.
* Retain your Sales Receipt to prove the date of
purchase. A copy of your Sales Receipt must be
submitted at the time warranty service is provided.
Please call 1-855-790-6655 and choose the
appropriate option. (Phones are answered 24 hours
a day, 365 days per year.) Please have the product
type (Microwave) and your ZIP code ready.
Or visit our website at: www.thesignaturekitchen.com
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILIYT OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO
THE EXPRESS WARRANTY PERIOD ABOVE. SIGNATURE KITCHEN SUITE WILL NOT BE LIABLE FOR
ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE,
INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER
BASED IN CONTRACT, TORT, OR OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above exclusion or limitation may nto apply to yor. This warranty gives you
specific legal rights and yor may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
•
Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation of
tService trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or
correct wiring, or correction of unauthorized repairs.
•
Damages or operating problems that result from misuse, abuse, operation outside environmental specifications
or contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire, flood, improper
installation, acts of God, unauthorized modification or alteration, incorrect electrical current or voltage, or
commercial use, or use for other than intended purpose.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
50
WARRANTY
Problem Cause Solution
Microwave oven
Installation issue
•
Vibration noise
•
Unit is not level
•
Installation damage
1. Mounting bracket screw not fixed
completely
2. Mounting plate not aligned
Check with installer first
C
B
A
Wall
Mounting
Plate
Space More Than Wall Thickness
Bolt
En
d
Toggle Bolt
Toggle Wings1
3/16 Hole on Studs
5/8 Hole on Drywall Only
Minimum 66
From the Floor
For Wall -
Venting Only
Draw Lines
on Studs
Draw
Center Line
Center Line
Mounting Plate
Support Tab
Support Tab
3. Product carried/installed improperly
Spark / Arcing Aluminum foil or metal utensil used in
microwave mode
DO NOT use aluminum foil or
metal utensils in microwave
mode
•
Check user instructions
Unit has no power 1. House power turned off (power supply)
2. Tripped breaker
3. The power cord is not installed properly
1. Check house power supply
2. Check proper power cord
connection
3. Check extension cord
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
51
WARRANTY
Problem Cause Solution
Vent is not working
•
Weak or no ventilation
•
Abnormal noise during
operation
•
Product overheating
1. Improper blower unit direction or installation
2. Improper ductwork or damper connection
1. Check blower unit direction
and reinstall if necessary.
2. Properly align the exhaust
ports and blower plate
opening.
Slide exhaust
adapter into
guides on
rear panel.
Exhaust Adapter
Damper
(hinge side up)
Locking
Tabs
Guides
3. Blower unit exhaust ports
should be completely exposed
to the outside
4. After installation, check the air
ventilation path
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMER INTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product
Information, or Dealer or Authorized Service
Center location:
Call 1-855-790-6655 (24 hours a day, 365 days per year)
and select the appropriate option from the menu.
Or visit our website at:
www.thesignaturekitchen.com
Customer Information Center
For inquires or comments, call;
1-855-790-6655 USA
