User Manual Jbl Wave 100TWS True Wireless In-Ear Headphones

• User Manual - (English)

• Spec Sheet English - (English)
• Declaration of Conformity - (English)

Table of contents

• WHAT’S IN THE BOX
• HOW TO WEAR
• FIRST TIME USE
• POWER ON & CONNECT
• DUAL CONNECT
• BUTTON COMMAND
• POWER OFF
• MANUAL CONTROLS
• CHARGING
• LED BEHAVIORS
• FEATURES AND BENIFITS
• Technical specifications

QUICK START GUIDE

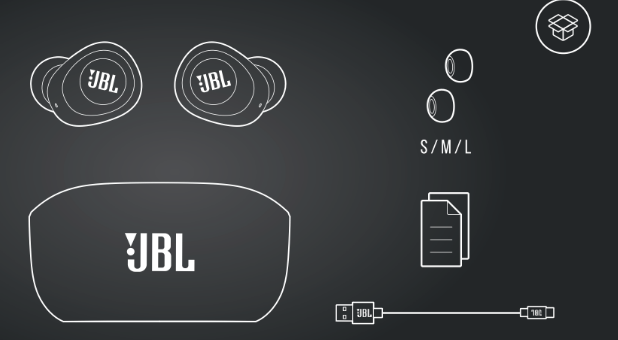

WHAT’S IN THE BOX

HOW TO WEAR

ATTACH EAR TIPS AND ENHANCERS

1. Try different sizes of eartips for best fit and seal.

2.

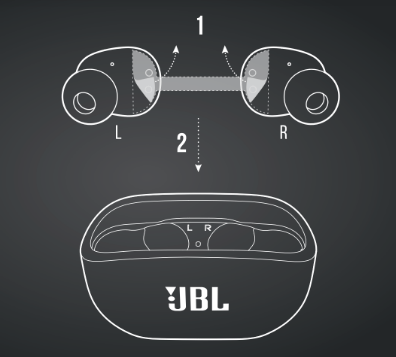

FIRST TIME USE

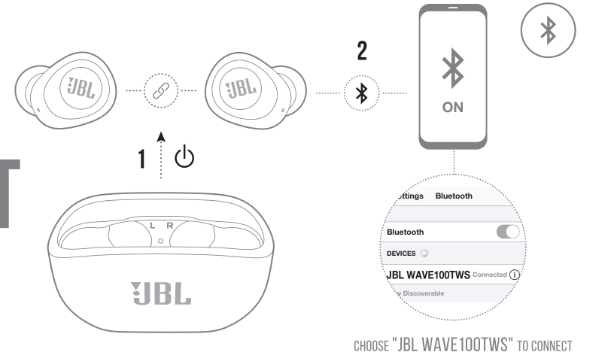

POWER ON & CONNECT

DUAL CONNECT

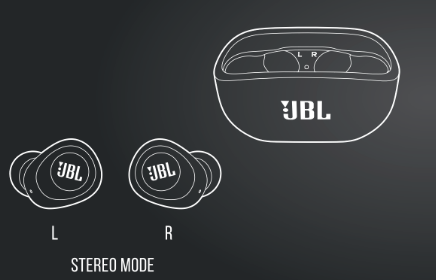

Stereo Mode

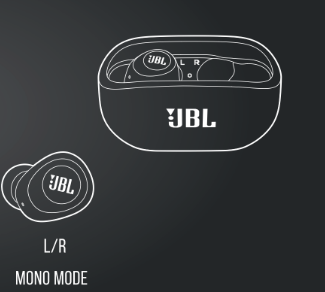

Mono Mode

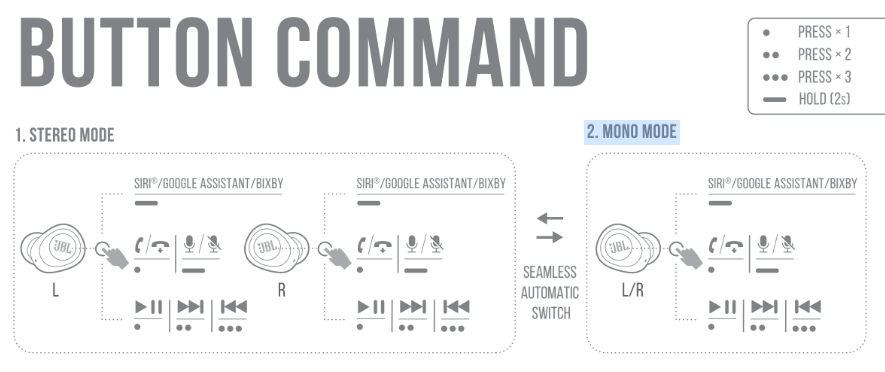

BUTTON COMMAND

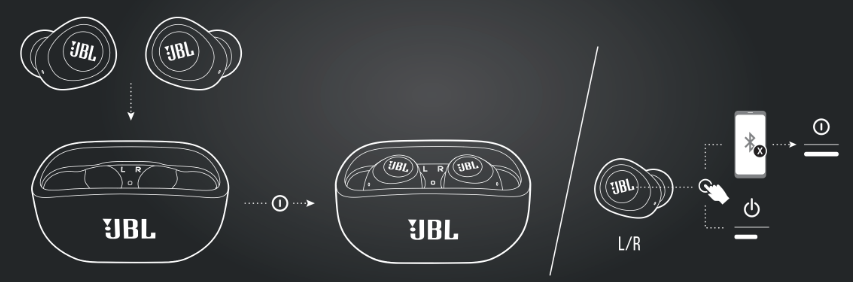

POWER OFF

MANUAL CONTROLS

Connect to a new Bluetooth device

RECONNECT LEFT & RIGHT

RESET

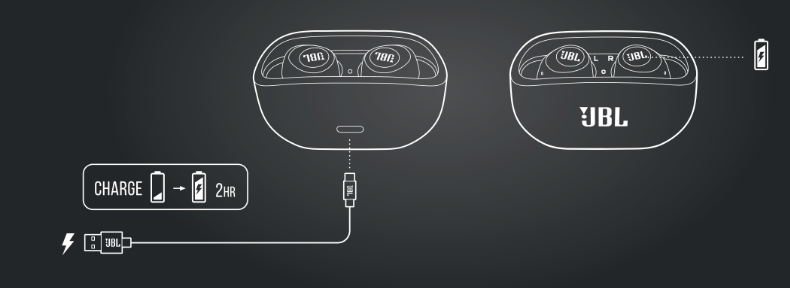

CHARGING

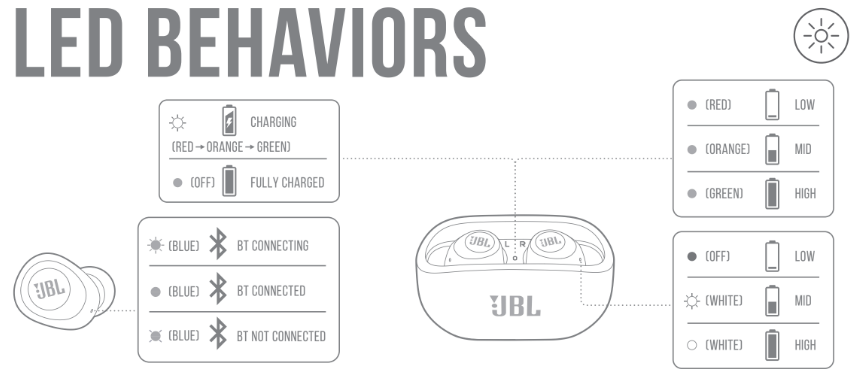

LED BEHAVIORS

FEATURES AND BENIFITS

JBL Deep Bass Sound

The sound of your last concert, for your ears only. Enjoy deep bass powered by the 8mm drivers. hours of combined playback

With 5 hours in the earbuds and 15 hours in the case, the JBL Wave 100TWS can keep up with your rhythm all day long.

Either ear, or both

Left ear, right ear, both ears? The power of Dual Connect gives you the choice to seamlessly enjoy music or make calls with either one or both buds. And the battery life keeps up with you, as you can keep one earbud charging while using the other one.

Hands-free calls

Calls and sound are easily managed from the earbuds, as is the access to your device’s voice assistant.

Comfort-fit

Ergonomically shaped, the JBL Wave 100TWS fit gently in your ears even after hours of listening pleasure. The ear tips in 3 sizes ensure a perfect seal for extra comfort and sound clarity.

Pocket friendly

They go where you go. Small and lightweight in and out of the case, the JBL Wave 100TWS easily fit in your pocket.

Technical specifications

• Driver size: 8mm/0.31" Dynamic Driver
• Power supply: 5V 1A
• Weight: 46.3g/0.102 lbs
• Earpiece: 5.1g/0.011 lbs (10.2g/0.022 lbs combined)
• Charging case: 36.1g/0.08 lbs
• Headset battery type: Lithium-ion Battery (46mAh/3.7V)
• Charging case battery type: Lithium-ion Battery (550mAh/3.7V)
• Charging time: 2 hrs from empty
• Music playtime with BT on: up to 5 hrs
• Frequency Response: 20Hz – 20kHz
• Impedance: 16 ohm Sensitivity: 105.5dBSPL@1kHz
• Maximum SPL: 94dB
• Microphone sensitivity: -11.3dBV@1kHz/Pa
• Bluetooth version: 5.0
• Bluetooth profile version: A2DP V1.3 AVRCP V1.6 HFP V1.7
• Bluetooth transmitter frequency range: 2.4 – 2.4835GHz
• Bluetooth transmitter power: 10dbm
• Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8-DPSK
• Maximum operation temperature: 45°C
