Product Owner's Manual
100i
Commercial Adaptive Motion Trainer
Important Safety Instructions
When using Precor equipment, always take basic precautions,
including the following:
y
y
y
y
y
y
y
y
y
y
y
y
Read all instructions before using the equipment. These
instructions are written to educate patrons and other users in
the proper use of the equipment.
Other sections in this manual provide more details of safety
features. Be sure to read these sections and observe all safety
notices.
Before beginning any fitness program, make sure all users see a
physician for a complete physical examination.
Il est conseillé de subir un examen médical complet avant
d’entreprendre tout programme d’exercise. Si vous avez des
étourdissements ou des faiblesses, arrêtez les exercices
immédiatement.
DANGER
Before cleaning it, always unplug the
equipment from its power source to reduce
the risk of electric shock. Before cleaning
self-powered equipment, disconnect the
optional power adapter.
WARNING
To reduce the risk of burns, fire, electric shock,
or injury, take the following precautions:
Do not allow children or people unfamiliar with its operation on
or near the equipment. Do not leave children unsupervised
around the equipment.
Never leave the equipment unattended when it is plugged in.
Unplug the equipment from the power source when it is not in
use, before cleaning it, and before providing authorized service.
Note: The optional power adapter is considered an electrical
power source for self-powered equipment.
Keep all electrical components away from liquids to prevent
shock.
Assemble and operate the equipment on a solid, level surface.
Locate the equipment a few feet from walls or furniture.
Maintain the equipment in good working condition. Refer to
Maintenance.
If you plan to move the equipment, obtain help and use proper
lifting techniques. For more information, refer to Moving the
Equipment.
Use the equipment only for its intended purpose as described in
this manual. Do not use accessory attachments that are not
recommended by the manufacturer, as such attachments may
cause injuries.
Never operate the equipment if it is damaged, not working
properly, when it has been dropped, or has been immersed in
water. Return the equipment to a service center for examination
and repair.
Keep the power cord or optional power adapter and plug away
from heated surfaces.
Product Owner's Manual: Important Safety Instructions 1
y
y
y
y
y
y
y
y
Do not operate the equipment where aerosol (spray) products
are being used or where oxygen is being administered.
Do not use outdoors.
Do not attempt to service the equipment yourself except to
follow the maintenance instructions found in this manual.
Never drop or insert objects into any opening. Keep hands away
from moving parts.
Do not set anything on the stationary handrails or handlebars,
display console, or covers. Place liquids, magazines, and books
in the appropriate receptacles.
Safety Approval
When identified with the ETL-c logo, the equipment has been
tested and conforms to the requirements of
CAN/CSA-E-335-1/3-04, EN 60335-1: 2002 Safety of Household
and Similar Electrical Appliances. This equipment is a Class S/B or
C certified machine according to applicable EN957 standards.
Educating Users
Take time to educate users on the safety instructions found in both
the User’s Reference Manual and Product Owner’s Manual.
Explain to your club or facility patrons that they should:
Hold onto a stationary handrail or handlebar while stepping onto
the equipment or when getting comfortably seated on the cycle.
Face the display at all times.
Hold on to a stationary handrail or handlebar with one hand
whenever reaching with the other hand to touch the display
keys.
Hazardous Materials and Proper
Disposal
The self-powered equipment has an internal battery which contains
materials that are considered hazardous to the environment. Proper
disposal of the battery is required by federal law.
If you plan to dispose of your equipment, contact Precor
Commercial Products Customer Support for information regarding
battery removal. Refer to Obtaining Service.
Product Recycling and Disposal
This equipment must be recycled or discarded according to
applicable local and national regulations.
Product labels, in accordance with European Directive
2002/96/EC concerning waste electrical and electronic equipment
(WEEE), determine the framework for the return and recycling of
used equipment as applicable throughout the European Union. The
WEEE label indicates that the product is not to be thrown away,
but rather reclaimed upon end of life per this Directive.
In accordance with the European WEEE Directive, electrical and
electronic equipment (EEE) is to be collected separately and to be
reused, recycled, or recovered at end of life. Users of EEE with the
WEEE label per Annex IV of the WEEE Directive must not dispose
of end of life EEE as unsorted municipal waste, but use the
collection framework available to customers for the return,
recycling, and recovery of WEEE. Customer participation is
important to minimize any potential effects of EEE on the
environment and human health due to the potential presence of
hazardous substances in EEE. For proper collection and treatment,
refer to Obtaining Service.
Product Owner's Manual: Important Safety Instructions 2
Radio Frequency Interference (RFI)
Federal Communications Commission, Part 15
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a commercial installation. The equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the owner’s manual
instructions, may cause harmful interference to radio
communications.
WARNING
Per FCC rules, changes or modifications not
expressly approved by Precor could void the
user’s authority to operate the equipment.
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.
ATTENTION: Haute Tension
Débranchez avant de réparer
European Applications
This product is compliant to:
y
y
y
y
y
y
2004/108/EC Electromagnetic Compatibility Directive.
2006/95/EC Low Voltage Directive.
2002/95/EC Restriction of Hazardous Substances Directive.
This product conforms to the requirements of the European
Council Directive 89/336/EEC, 2004/108/EC Electromagnetic
Compatibility and has been tested to the following standards:
EN55022, Limits & Methods of Measurement of Radio
Interference, Information Technology Equipment.
EN55024, Immunity of Information Technology Equipment.
This product also conforms to the requirements of the European
Council Directive 73/23/EEC, 2006/95/EC Low Voltage Directive
and has been tested to the following standard:
IEC 335-1, EN60335-1 Safety of Household and similar
Electrical Appliances.
Product Owner's Manual: Important Safety Instructions 3
Product Owner's Manual: Important Safety Instructions 4
Obtaining Service
You should not attempt to service the equipment except for
maintenance tasks described in this manual. For information about
product operation or service, see the Precor web site at
www.precor.com. Should you need more information regarding
customer support numbers or a list of Precor authorized service
centers, visit the Precor web site at www.precor.com/corp/contact.
For future reference, write the model, serial number, and date of
purchase for all your equipment in the space provided. The serial
number is printed on a label located near the power cord
connection (treadmills) or receptacle (self-powered equipment).
Model #: _______ Base Serial #: _______________________
Display Serial #: _______________________
Date purchased: _______________________
Model #: _______ Base Serial #: _______________________
Display Serial #: _______________________
Date purchased: _______________________
Model #: _______ Base Serial #: _______________________
Display Serial #: _______________________
Date purchased: _______________________
Model #: _______ Base Serial #: _______________________
Display Serial #: _______________________
Date purchased: _______________________
Table of Contents
Important Safety Instructions............................................1
Safety Approval .............................................................................. 2
Educating Users.............................................................................2
Hazardous Materials and Proper Disposal...............................2
Product Recycling and Disposal ................................................2
Radio Frequency Interference (RFI)........................................... 3
European Applications.................................................................. 3
Obtaining Service ..........................................................................4
AMT Safety Features............................................................6
Self-Powered Features........................................................7
Informational Displays Prior to Shutdown................................. 7
Symptoms of a Low Battery.........................................................8
Using the Optional Power Adapter............................................ 8
The Optional Power Adapter Kit................................................. 9
Replacing the Battery.................................................................... 9
Club Features.......................................................................10
Club Programming Tips..............................................................10
Accessing Club Programming Mode and
Changing the Settings................................................................11
Choosing a Language.................................................................13
Selecting a U.S. Standard or Metric Display.........................13
Setting an Exercise Session Time Limit..................................13
Setting a Pause Time Limit........................................................14
Setting a Cool-Down Time Limit ..............................................14
Informational Displays.................................................................15
User ID Entry with CSAFE Equipment....................................18
Maintenance.........................................................................19
Daily Inspection............................................................................19
Daily Cleaning...............................................................................19
Moving the Equipment................................................................19
Storing the Chest Strap .............................................................20
Long-Term Storage .....................................................................20
Precor Commercial Equipment
Limited Warranty.................................................................21
Product Owner's Manual: Table of Contents 5
AMT Safety Features
Before allowing users on Precor equipment, review the safety
instructions found at the beginning of this manual. You should also
teach your patrons how to safely use the equipment. Explain to your
patrons that they should:
y
y
y
Stand on the rear pedestal and grasp an arm or a stationary
handlebar for stability when preparing to step on or off the
equipment.
Hold on to a stationary handlebar with one hand whenever
reaching with the other hand to touch the display keys.
Stay clear of the foot plates and rear pedestal when someone is
using the equipment.
Product Owner's Manual: AMT Safety Features 6
Self-Powered Features
On self-powered equipment, the battery initializes and displays the
Precor banner when a user starts exercising. A minimum rate of
motion must be maintained for the banner to appear, as shown in
the following table. When a person meets the requirements, the
power that is generated allows the equipment to function properly.
Table 1. Minimum requirements for operation
Equipment Rate of Motion
AMT 56 strides per minute (SPM)
EFX 40 strides per minute (SPM)
Climber 30 steps per minute
Cycle 20 revolutions per minute (RPM)
Informational displays appear when the battery is low or when the
rate of motion drops below the minimum requirements. The display
explains what to do to retain power. If the messages are ignored,
the equipment begins shutdown procedures to maintain the charge
of the battery. Refer to Informational Displays Prior to Shutdown.
An optional power adapter can be purchased and provides
sustained power to the equipment. If you plan to change the club
settings, the power adapter is highly recommended. To purchase
the optional power adapter, check with your dealer. Refer to
Obtaining Service.
Informational Displays Prior to
Shutdown
The equipment saves its battery charge by moving into a shutdown
mode. If the user does not maintain the minimum rate of motion, a
30-second shutdown process begins.
Dots appear in the display and all key presses are ignored. If no
movement is detected or the rate of motion remains below the
minimum, the dots steadily disappear as the countdown continues.
Note: The user can resume exercising if he or she begins before
the countdown period elapses.
Important: If the equipment is connected to a CSAFE master
device, a slightly different scenario occurs. When ten seconds
remain before the equipment shuts off, the exercise session ends.
RESETTING
appears in the display while the equipment
disconnects from the CSAFE master device. All key presses are
ignored.
Product Owner's Manual: Self-Powered Features 7
Symptoms of a Low Battery
If no one has used the equipment for an extended period of time,
the battery may need recharging.
Symptoms of a low battery include:
y
y
A flickering or erratic display
User and program information is lost once the user stops
exercising. No workout summary or notification of pending
shutdown occurs.
Important: To maintain a constant power source, use the optional
power adapter.
Using the Optional Power Adapter
After connecting the power adapter to the equipment, plug the
opposite end into the appropriate power source 120 V or 240 V.
CAUTION: When the optional power adapter is in use, make sure
that the power supply cord does not create a safety hazard. Keep
it out of the way of traffic and moving parts. If the power supply
cord or power conversion module is damaged, it must be
replaced.
The display functions differently when the power adapter is
connected. Because the power adapter provides a constant source
of power, a user can pause for brief periods without initiating
shutdown procedures. When the pause time limit expires and the
user has not resumed exercising, the display returns to the Precor
banner. Refer to Setting a Pause Time Limit. To learn how to install
the power adapter, refer to The Optional Power Adapter Kit.
Product Owner's Manual: Self-Powered Features 8
Product Owner's Manual: Self-Powered Features 9
The Optional Power Adapter Kit
If you purchase the optional power adapter, you must also
purchase the internal cable kit. The kit supplies the cable, bracket,
and fasteners that connect the power adapter to the lower
electronics board.
CAUTION: The internal cable kit must be installed by authorized
service personnel. Do not attempt installation on your own as
you could void the Precor Limited Warranty. For more
information, refer to Obtaining Service.
Once the internal cable kit is installed, you can plug the optional
power adapter into the equipment. Plug the opposite end into the
appropriate power source for your equipment 120 V or 240 V.
Review the safety instructions found at the beginning of this manual
before using the power adapter.
Replacing the Battery
The equipment’s battery is built to last for a long time. However, if
you feel that the battery may need replacing, check with an
authorized service technician. Refer to Obtaining Service.
CAUTION: The battery stored inside the equipment contains
hazardous materials and must be disposed of according to
Hazardous Waste Regulations. Refer to Hazardous Materials
and Proper Disposal.
Club Features
These next few pages explain how to customize the equipment for
your club or facility and view useful product information. All these
features remain hidden to the patrons and can only be accessed
using special key presses. Read this section if you want to:
y
y
y
y
y
y
y
y
y
y
y
y
y
Change the display to a different language
Change the display to show U.S. standard or metric
measurements
Set the maximum exercise and pause times
Set a cool-down time limit
View the odometer
Display the number of hours the equipment has been in use
View the software versions and part numbers
Display the serial number
Check the program usage and error logs
Note: To review the club programming prompts and factory
default settings that can be changed through club programming
mode, refer to the following table.
Club Programming Tips
Always start at the Precor banner.
Electrical power must be supplied. For self-powered equipment,
a constant power source is available if you use the optional
power adapter, otherwise you will have to maintain the minimum
rate of motion. Refer to Self-Powered Features. If you plan to
program self-powered equipment, purchasing the optional
power adapter is highly recommended.
Note: If you do not use the optional power adapter during club
programming mode, and the rate of motion falls below the
minimum requirements, no warning is given when the equipment
moves into its 30-second shutdown procedure.
The club programming mode is accessed by pressing the
RESET key at the Precor banner. The remaining key presses
must occur quickly and without pause.
Note: Keys that can be used interchangeably in club
programming mode are OK and ENTER.
The changes made in club programming mode become the
default settings whenever the display resets to the Precor
banner.
Product Owner's Manual: Club Features 10
Table 2. Club custom features and settings
Club Programming
Prompt
Factory
Default
Setting
Changes you can make
SELECT
LANGUAGE
English
Several languages affect the display
prompts. Choose one.
SELECT UNITS
U.S.
Two standard units of measure affect
the display prompts. Choose between
U.S. or Metric.
SET MAX
WORKOUT TIME
60 minutes
Exercise session time limits range from
1 to 240 minutes. NO LIMIT is
accessible beyond 240 minutes.
SET MAX
PAUSE TIME
120 seconds
Pause time limits range from 1 to 120
seconds (2 minutes). Restrictions exist
for self-powered units.
SET COOL
DOWN TIME
5 minutes
Cool-down time limits range from 0 to 5
minutes.
Note: If a user changes the language or unit of measure during an exercise
session, the display resets to the club preferences when a user’s workout ends.
Accessing Club Programming Mode
and Changing the Settings
Read the Club Programming Tips to identify useful information
about customizing your Precor equipment.
To access the available menus and change the program settings,
perform the following steps:
1. At the Precor banner, press the following keys in sequence
without pausing between selections:
RESET, 5, 6, 5, 1, 5, 6, 5
The club programming prompts appear sequentially and in a
menu format. The following table describes which keys to use in
club programming mode.
Product Owner's Manual: Club Features 11
Table 3. Club Programming Mode keys
Key Description Function
▲
or
▼
Navigational arrow
keys
Moves you through the programs and
selections.
OK OK key
Lets you choose or accept the
displayed selection.
CLEAR
Number keypad
CLEAR key
Returns to the previous menu level
without saving any changes.
RESET RESET key
Exits Club Programming Mode and
returns to the Precor banner.
Note: The number keypad is disabled once you enter club
programming mode.

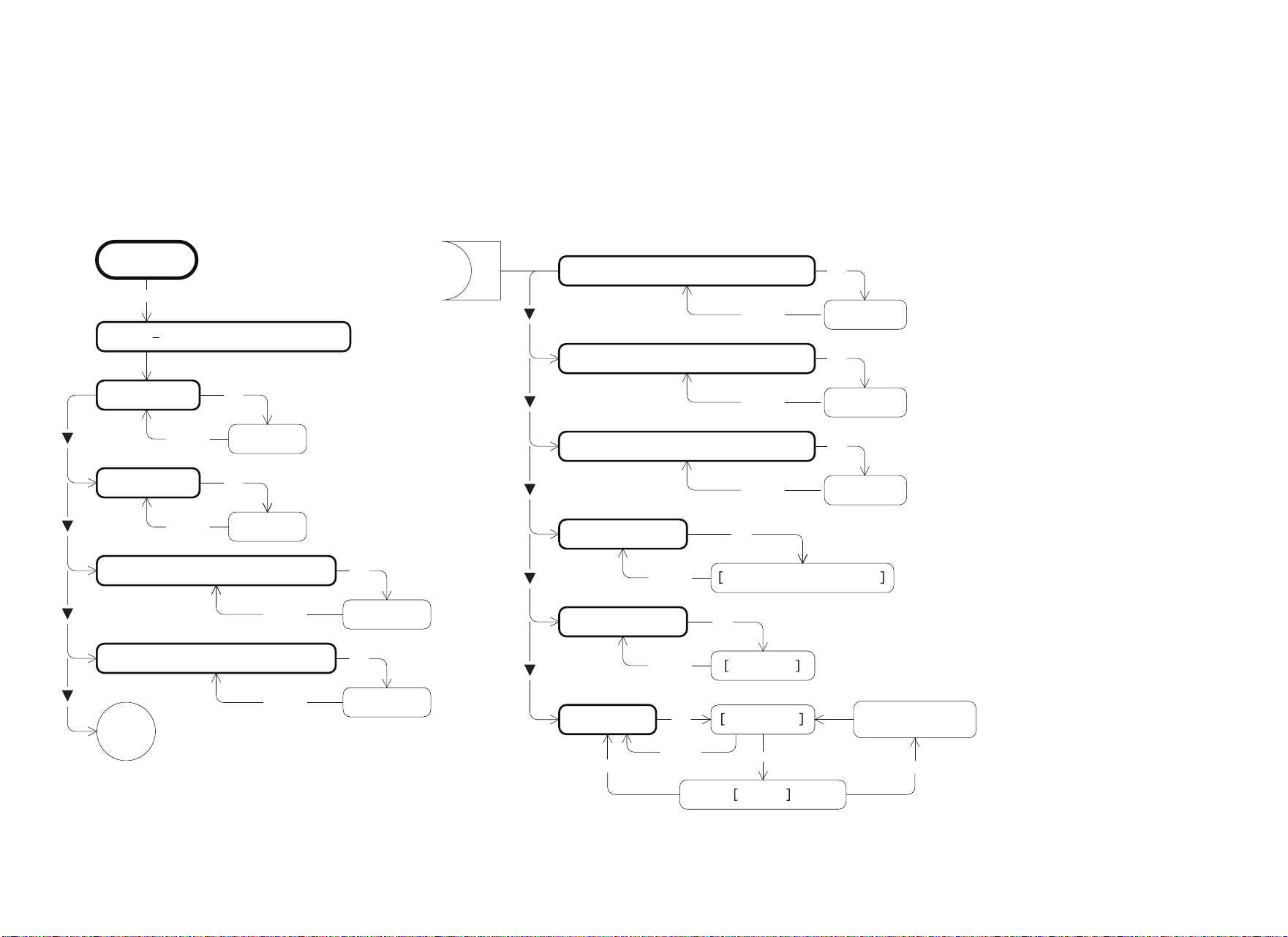

Use the following flowchart to navigate through the menu settings.
SELECT UNITS
SET MAX PAUSE TIME
SET MAX WORKOUT TIME
RESET, 5, 6, 5, 1, 5, 6, 5
SELECT LANGUAGE
OK
[ ENGLISH]
[ U.S.]
[ 60 MIN]
[ 120 SEC.]
OK
▼
OK
OK
▼
OK
OK
▼
▼
PRECOR
SET COOL DOWN TIME [ 5 MIN.]
DIAGS – SET CLUB PARAMETERS
OK
OK
OK
Product Owner's Manual: Club Features 12
Choosing a Language
The equipment can display user prompts, text, and user entries in
several different languages. When the equipment is shipped from
the factory, it is set to display English.
Note: Programming prompts are not affected by language
selection. The prompts in this section continue to appear in
English.
1.
2.
1.
2.
1.
2.
At the
SELECT LANGUAGE
prompt, press OK. Use the
navigational arrow keys to choose a language.
When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.
Selecting a U.S. Standard or Metric
Display
The equipment can display measurements in either Metric or U.S.
Standard. The default factory setting is to display U.S. Standard. To
change this setting, perform the following steps:
At the
SELECT UNITS
prompt, press OK. Use the navigational
arrow keys to select a unit of measure (
US
or
METRIC
).
When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.
Setting an Exercise Session Time Limit
You can limit how long a user can exercise on the equipment. For
example, if you set the time limit to 20 minutes, users can only enter
a session time between 1 and 20 minutes.
Note: The automatic cool-down period is appended to the end of
any time-based program, so adjust the time limit accordingly.
You can also let a user exercise indefinitely by selecting
NO LIMIT
.
However, you will need to instruct users that once they select a
program, they must press the TIME +/- key. A workout time blinks
in the display. They need to use the Number Keypad to type in 240,
press the up arrow key to display
NO LIMIT
, and then press OK.
The exercise session times available are between 1 and 240
minutes.
At the
SET MAX WORKOUT TIME
prompt, press OK. Use the
navigational arrow keys to change the displayed time limit.
Note: When you press and hold a navigational arrow key, the
number increments by five, for example, 1, 5, 10, 15, 20. When
you tap an arrow key, the number increments by one.
When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.
Product Owner's Manual: Club Features 13
Product Owner's Manual: Club Features 14
1.
2.
1.
2.
Setting a Pause Time Limit
You can limit how long a user can pause while exercising on the
equipment by entering a time between 1 and 120 seconds (two
minutes). For example, if you set a pause time limit of 60 seconds,
the display automatically resets to the Precor banner if no
movement is detected and no key press occurs for one minute.
Important: The optional power adapter must be connected on
self-powered equipment to establish a definitive pause time limit. If
the optional power adapter is not attached and the rate of motion
drops below the minimum requirements, the equipment begins its
30-second shutdown, effectively eliminating pause mode. Refer to
the table in Self-Powered Features.
At the
SET MAX PAUSE TIME
prompt, press OK. Use the
navigational arrow keys to change the time limit. Choose
between 1 and 120 seconds (two minutes).
When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.
Setting a Cool-Down Time Limit
You can limit how long a user cools down after exercising on the
equipment by entering a time between 0 and 5 minutes.
Important: It is highly recommended that you set the cool-down
period at or above three minutes. It takes time for a user’s heart
rate to return to a resting state after vigorous exercise. An effective
cool-down period also reduces the amount of lactic acid in muscle
tissue.
At the
SET COOL DOWN TIME
prompt, press OK. Use the
navigational arrow keys to display the available time limits.
Choose between 0 and 5 minutes. The default setting is 5
minutes.
When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.
Informational Displays
The equipment provides information about its use (odometer and hour meter), as well as software versions and part numbers, serial number,
usage log, and error log. In general, you would only access this information if directed to do so by Precor Customer Support.
To navigate through the informational displays, use the following flowchart. Descriptions for these displays are shown in the following table.
Note: The CLEAR key is located on the Number Keypad and the RESET key is located on the Navigational Keypad.
DIAGS INFORMATIONAL DISPLAY
HOUR METER
UPPER BASE SW PART NUMBER
UPPER BOOT SW PART NUMBER
SERIAL NUMBER
ODOMETER
SERIAL NUMBER NONE
USAGE LOG
PROGRAM
ERROR LOG
ERRORS
ERROR
HOLD TO
CLEAR ERRORS
PRECOR
STRIDE DIAL SW PART NUMBER
METRICS BOARD SW PART NUMBER
LOWER BASE SW PART NUMBER
RESET, 6, 5
OK
CLEAR
###
OK
CLEAR
###
OK
CLEAR
#####-###
OK
CLEAR
#####-###
OK
CLEAR
#####-###
OK
CLEAR
#####-###
OK
CLEAR
#####-###
OK
CLEAR
OK
CLEAR
CLEAR
CLEAR
OK
OK
QUICKSTART
#
Product Owner's Manual: Club Features 15
Table 4. Informational Displays
Product Display Description
All
ODOMETER
The odometer value correlates to the type of Precor product and the standard of units, U.S. or Metric, selected in the
club programs.
Treadmill shows the number of cumulative miles or kilometers logged to date.
EFX or AMT shows the number of total strides logged to date.
Cycle shows the number of total revolutions logged to date.
Climber indicates the number of floors climbed.
All
HOUR METER
The number of hours that the equipment has been in use. The equipment tracks the elapsed minutes, but the value that
appears is truncated to the nearest full hour.
All
U-BOOT SW
Upper board application software part number and version.
Note: Some displays show
UPPER BOOT SW PART NUMBER
.
All
U-BASE SW
Upper base application software version.
Note: Some displays show
UPPER BASE SW PART NUMBER
.
All
LOWER SW
Lower application software version.
Note: Some displays show
LOWER BASE SW PART NUMBER
.
534i, 532i,
AMT
METRICS BOARD SW
PART NUMBER
Metrics board software part number and version.
AMT
STRIDE DIAL SW PART
NUMBER
Stride dial software part number.
All
SER. NUMBER
The serial number is helpful when you contact Customer Support. You can also find the serial number located on a label
on the front hood (treadmills) or optional power receptacle (self-powered equipment) if one does not appear in the
display.
Note: Some displays show
SERIAL NUMBER
.
All
USAGE LOG
The software logs the number of times each program has been used and displays the associated cumulative minutes.
The usage log is helpful in determining user preferences in program selection.
All
ERROR LOG
The error log displays any error codes that may have been detected by the software. Copy the error code information to
paper so you can provide it to Customer Support, if needed. Be sure to copy it exactly as shown. Refer to Error Log.
Product Owner's Manual: Club Features 16
Error Log
Quick access to the informational display is available if error
messages have appeared on the display and have been recorded
in the error log. This feature is usually reserved for service
personnel. At the Precor banner, press and hold RESET for 4
seconds. If
DIAGS - INFORMATION DISPLAY
or
ERROR LOG
appears, press OK.
If no errors are logged,
STOP KEY
or
STUCK KEY
appears.
When you release the key, the Precor banner returns.
Erasing the Error Log
When you no longer need the error log information, you may erase
all entries in the error log by pressing the QUICKSTART key while
any error description is scrolling across the display. Continue to
maintain light pressure on the key until the message,
HOLD TO
CLEAR ERRORS
, scrolls off the display. When the key is
released,
NO ERRORS
appears on the display, which indicates the
error log has been deleted.
Important: You cannot retrieve the error log once you have deleted
it. You may want to resolve any issues you are experiencing with
the equipment before erasing the error log.
When you are ready, press RESET to return to the Precor banner.
Product Owner's Manual: Club Features 17
Product Owner's Manual: Club Features 18
User ID Entry with CSAFE Equipment
The equipment is fully compatible with CSAFE protocols. When the
equipment is connected to a CSAFE master device, the user is
prompted to press ENTER and begin an identification process.
The user ID is displayed as five zeros and indicates the starting
point. The following table describes key functions while in CSAFE
mode.
Table 5. CSAFE access keys
Keypad Description
Number keypad
Use the number keys to enter a user ID. The number
that is pressed appears on the right. As the user
continues, the numbers fill in the display from right to
left. When all five numbers are in place, the user must
press ENTER or OK to submit the user ID.
CLEAR or
BACK
Erases individual numbers in the user ID from right to
left.
ENTER or OK Submits the user ID.
Note: User ID entry is bypassed when the user enters
five zeros. No workout statistics are recorded.
RESET or
PAUSE/RESET
Resets the display to the banner.
A message appears on the display and indicates when the user ID
is accepted by the CSAFE master device. Once program selection
is complete, the user can begin exercising.
To review information about CSAFE specifications, visit the web
site at: www.fitlinxx.com/csafe
If you have questions or need technical support, refer to Obtaining
Service.
Maintenance
It is important to perform the minor maintenance tasks described
below. Failure to maintain the equipment as described in this
section could void the Precor Limited Warranty.
DANGER
To reduce the risk of electrical shock, always
unplug the equipment from its power source (an
optional power adapter in the case of
self-powered equipment) before cleaning it or
performing any maintenance tasks.
Daily Inspection
Look and listen for slipping belts, loose fasteners, unusual noises,
worn or frayed power cords, and any other indications that the
equipment may be in need of service. If you notice any of these,
obtain service.
Important: If you determine that the equipment needs service,
disconnect any power connections and move the equipment away
from the exercising area. Place an OUT OF SERVICE sign on it
and make sure all patrons and users know that they must not use
the equipment.
To order parts or to contact a Precor authorized service provider in
your area, refer to Obtaining Service.
Daily Cleaning
Precor recommends the equipment be cleaned before and after
each exercise session. Use mild soap and water to dampen a
clean, soft cloth and wipe all exposed surfaces. This helps remove
dust and dirt.
CAUTION: Do not use any acidic cleaners. Doing so will weaken
the paint or powder coatings and void the Precor Limited
Warranty. Never pour water or spray liquids on any part of the
equipment. Allow the equipment to dry completely before using.
Frequently vacuum the floor underneath the equipment to prevent
the accumulation of dust and dirt, which can affect the smooth
operation of the equipment. Use a soft nylon scrub brush to clean
the running belt on treadmills or the grooves on equipment with
foot pedals.
Moving the Equipment
It is important, if you plan to move the equipment, that you obtain
adult help and use proper lifting technique. The equipment is very
heavy. Take advantage of the roller wheels on the equipment when
moving it to a new location. Do not grasp any plastic parts while
lifting or moving the equipment. The plastic parts are not
structurally linked to the equipment and will break.
Product Owner's Manual: Maintenance 19
Product Owner's Manual: Maintenance 20
Storing the Chest Strap
If you purchased the optional heart rate chest strap, store it in a
place where it remains free of dust and dirt (for example, in a closet
or drawer). Be sure to protect the chest strap from extremes in
temperature. Do not store it in a place that may be exposed to
temperatures below 32° F (0° C).
To clean the chest strap, use a sponge or soft cloth dampened in
mild soap and water. Dry the surface thoroughly with a clean towel.
Long-Term Storage
When the equipment is not in use for any length of time, make sure
it is turned Off (treadmill only) and the power cord or optional
power adapter (self-powered equipment) is unplugged from its
power source and is positioned so that it will not become damaged
or interfere with people or other equipment.
Precor Commercial Equipment Limited Warranty
PLEASE READ THESE WARRANTY TERMS AND CONDITIONS CAREFULLY
BEFORE USING YOUR PRECOR INCORPORATED PRODUCT. BY USING
THE EQUIPMENT, YOU ARE CONSENTING TO BE BOUND BY THE
FOLLOWING WARRANTY TERMS AND CONDITIONS.
Limited Warranty.
Precor Incorporated warrants all new Precor products to be free from defects in
materials and manufacture for the warranty periods set forth below. The warranty
periods commence on the invoice date of the original purchase. This warranty
applies only against defects discovered within the warranty period and extends
only to the original purchaser of the product. Parts repaired or replaced under
the terms of this warranty will be warranted for the remainder of the original
warranty period only. To claim under this warranty, the buyer must notify Precor
or your authorized Precor dealer within 30 days after the date of discovery of any
nonconformity and make the affected product available for inspection by Precor
or its service representative. Precor’s obligations under this warranty are limited
as set forth below.
Warranty Periods and Coverage.
Commercial Cardiovascular Products, also known as C-Series Products,
(excluding StretchTrainer, Strength Products).
Seven years frame, five years display face assembly, three years motor
controller, one year durable wear parts, two years parts, one year labor.
For treadmills, five years drive motor.
For self-powered ellipticals and bikes, one year battery.
For InSite, one year parts and labor.
Labor coverage for options as defined below.
StretchTrainer
Five years frame, two years parts, 90 days upholstery, no labor.
Strength Products (S3.45 and S3.25 only)
Ten years frame; three years bearings, guide rods, cams, pulleys; one year belts,
cables, hand grips, miscellaneous parts; 90 days upholstery; no labor.
Options / Accessories / Battery-powered or Self-Operated Devices
Many options or accessories have components that are connected internally or
mounted inside the electronic console. The following guidelines determine the
warranty for these components. If the internal components are installed by the
factory or by an authorized dealer as part of the original sale and delivery, they
have a warranty that is identical to the warranty of the equipment in which they
are connected or mounted. If the internal components are not installed by the
factory or by an authorized dealer as part of the original sale and delivery, they
have a 90 days parts and labor limited warranty. All components that are not
internally connected have a 90 days parts only limited warranty. Satisfactory
proof of purchase is required in all cases.
Conditions and Restrictions.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the Precor product only while
a. it remains in the possession of the original purchaser and proof of
purchase is demonstrated,
b. it has not been subjected to accident, misuse, abuse, improper service,
or non-Precor modification.
c. claims are made within the warranty period.
2. Certain products are warranted for standard commercial use only (defined
as use in non-fee paying clubs or facilities and less than 6 hours daily use.
Unapproved use voids the warranty. Current standard commercial products
include C936i, C932i, EFX524i, EFX534i.).
3. This warranty does not cover damage or equipment failure caused by
electrical wiring not in compliance with electrical codes or Precor owner’s
manual specifications, or failure to provide reasonable and necessary
maintenance as outlined in the owner’s manual.
4. Except in Canada, Precor does not pay labor outside the United States.
5. Warranties outside the United States and Canada may vary. Please contact
your local Dealer for details.
Product Owner's Manual: Precor Commercial Equipment Limited Warranty 21
Product Owner's Manual: Precor Commercial Equipment Limited Warranty 22
This Limited Warranty shall not apply to:
1. Software (PROM) version upgrades.
2. Normal wear and tear, consumables and cosmetic items, including, but not
limited to the following: grips, seats, and labels.
3. Repairs performed on Precor equipment missing a serial number or with a
serial tag that has been altered or defaced.
4. Service calls to correct installation of the equipment or instruct owners on
how to use the equipment.
5. Pickup and delivery involved with repairs.
6. Any labor costs incurred beyond the applicable labor warranty period.
Disclaimer and Release.
The warranties provided herein are the exclusive warranties given by Precor and
supersede any prior, contrary or additional representations, whether oral or
written. ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT
APPLY TO ANY PARTS DESCRIBED ABOVE ARE LIMITED IN DURATION TO
THE PERIODS OF EXPRESS WARRANTIES GIVEN ABOVE FOR THOSE
SAME PARTS. PRECOR HEREBY DISCLAIMS AND EXCLUDES THOSE
WARRANTIES THEREAFTER. Some States do not allow limitations on how long
an implied warranty lasts, so the above limitation may not apply to you. PRECOR
ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS
OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE,
WITH RESPECT TO ANY NONCONFORMANCE OR DEFECT IN ANY
PRODUCT, INCLUDING BUT NOT LIMITED TO: (A) ANY OBLIGATION,
LIABILITY, RIGHT, CLAIM OR REMEDY IN TORT, WHETHER OR NOT
ARISING FROM THE NEGLIGENCE OF PRECOR OR ITS SUPPLIERS
(WHETHER ACTIVE, PASSIVE OR IMPUTED); AND (B) ANY OBLIGATION,
LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OF OR DAMAGE TO ANY
EQUIPMENT. This disclaimer and release shall apply even if the express
warranty set forth above fails of its essential purpose.
Exclusive Remedies.
For any product described above that fails to conform to its warranty, Precor will
provide, at their option, one of the following: (1) repair; (2) replacement; or
(3) refund of the purchase price. Precor Limited Warranty service may be
obtained by contacting the authorized dealer from whom you purchased the item.
Precor compensates Servicers for warranty trips within their normal service area
to repair commercial equipment at the customer’s location. You may be charged
a trip charge outside the service area. THESE SHALL BE THE SOLE AND
EXCLUSIVE REMEDIES OF THE BUYER FOR ANY BREACH OF WARRANTY.
EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL
DAMAGES.
PRECOR AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR
LIABILITY, WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY),
TORT (INCLUDING ACTIVE, PASSIVE, OR IMPUTED NEGLIGENCE AND
STRICT LIABILITY), OR OTHERWISE, FOR DAMAGE TO THE EQUIPMENT,
PROPERTY DAMAGE, LOSS OF USE, REVENUE OR PROFIT, COST OF
CAPITAL, COST OF SUBSTITUTE EQUIPMENT, ADDITIONAL COSTS
INCURRED BY BUYER (BY WAY OF CORRECTION OR OTHERWISE) OR
ANY OTHER INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, WHETHER RESULTING FROM NONDELIVERY OR FROM THE
USE, MISUSE OR INABILITY TO USE THE PRODUCT. This exclusion applies
even if the above warranty fails of its essential purposes and regardless of
whether such damages are sought for breach of warranty, breach of contract,
negligence, or strict liability in tort or under any other legal theory. Some states
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Complete this portion and keep for your records.
Purchased From: _______________________________________
(Dealer or store name)
Phone Number: _______________________________________
(Dealer or store telephone number)
Product/Model: : _______________________________________
(For example: EFX534i or C966i)
Serial Number: : _______________________________________
(The serial number is found on the shipping container.)
Effective 27 March, 2006
P/N 36286-112
We are confident that you will be pleased with your purchase and
that your new Precor equipment will help satisfy your customers’
fitness needs, while helping you meet your business goals.
To allow us to serve you better, please take a
few moments to complete and return your warranty registration.
YOU MAY ALSO REGISTER ONLINE AT
www.precor.com/warranty
If you have questions or need additional information, contact
your local dealer or call Precor Commercial Products Customer
Support at 888-665-4404.
Thank You and Welcome to Precor
Precor Incorporated
20031 142nd Avenue NE
PO Box 7202
Woodinville, WA 98072-4002
PLACE
STAMP
HERE
Fold along dotted line and tape closed before mailing.
COMM.
Which best describes this purchase (check all that apply):
❑ First Precor product ❑ Replaces a Precor product of the same type
❑ Replaces same type of product – different brand ❑ Enhancement to equipment already owned
How did you FIRST become aware of this product (choose only one):
❑ Authorized Precor dealer ❑ Precor sales representative ❑ Trade show/conference
❑ Internet ❑ News report or product review ❑ Club/fitness magazine advertisement
❑ Trade/consumer magazine article ❑ Other ________________________________________________________
What factors MOST influenced your decision to purchase this product (choose up to three):
❑ Precor reputation ❑ Prior product experience ❑ Design/appearance ❑ Value for the price
❑ Special product features ❑ Warranty ❑ Service ❑ Rebate or sale price
TELL US ABOUT YOUR NEW PRECOR PRODUCTS
Please indicate the type and number of products purchased:
❑ #: ______ Elliptical Fitness CrossTrainer (EFX
®
)
❑ #: ______ Treadmill ❑ #: ______ Stair Climber
❑ #: ______ Cycle ❑ #: ______ Strength Station
❑ #: ______ StretchTrainer
TM
Date of Purchase:
❑ Mr.
❑ Mrs.
❑ Ms.
Name of Facility
Please detach and mail in the warranty registration within ten days of purchase.
Contact Person — First Name
Zip CodeCity
State
How many members do you have?
❑ Less than 100 ❑ 100 – 500 ❑ 500 – 1000 ❑ 1000 – 2000 ❑ 2001 +
What percentage of floor space do you allocate for cardio equipment?
❑ 0% to 20% ❑ 20% to 40% ❑ 40% to 60% ❑ 60% to 80% ❑ 80% to 100%
What type of equipment makes up your cardio offering (check all that apply)?
❑ Treadmills ❑ Ellipticals ❑ Cycles ❑ Stair Climbers ❑ Rowing Machines ❑ Other _____________
What other brands of cardio equipment do you currently offer (check all that apply):
❑ Life Fitness ❑ Tr ue ❑ Cybex ❑ StarTrac ❑ Other ______________________________
What other Precor equipment do you currently offer (check all that apply):
❑ EFX ❑ Cycle ❑ StretchTrainer
TM
❑ Treadmill ❑ Stair Climber ❑ Strength Machine ❑ Other ______________________________
Month
Day
Year
Your Business Email Address
Area Code
Facility Telephone Number
Purchased from (Dealer name):
Product Serial Number(s):
Apt./SuiteFacility Address
The serial number is located on the shipping box and on the product.
TELL US ABOUT YOUR FACILITY
Last Name
TELL US ABOUT YOUR PURCHASE
Add additional sheets of paper or register online at www.precor.com/warranty
P/N 45622-101 Effective 30 June 2002
100i POM 49735-104, en
Warranty # 36286-112, en
Registration Card# 45622-101, en
03 March 2008
Precor, C, CrossRamp, EFX, M, Move Beyond, and SmartRate are registered trademarks of Precor Incorporated.
AMT, Adaptive Motion Trainer, Crosstrainer, QuickStart, and StretchTrainer are trademarks of Precor Incorporated.
Copyright 2008 Precor Incorporated.
Specifications subject to change without notice.
www.precor.com
NOTICE:
Precor is widely recognized for its innovative, award winning designs of exercise equipment. Precor aggressively
seeks U.S. and foreign patents for both the mechanical construction and the visual aspects of its product design.
Any party contemplating the use of Precor’s product designs is hereby forewarned that Precor considers the
unauthorized appropriation of its proprietary rights to be a very serious matter. Precor will vigorously pursue all
unauthorized appropriation of its proprietary rights.
Precor Incorporated
20031 142nd Ave NE
P.O . B ox 7202
Woodinville, WA USA 98072-4002
1-800-347-4404
User's Reference Manual
100i
Commercial Adaptive Motion Trainer
Important Safety Instructions
When using Precor equipment, always take basic precautions,
including the following:
y
y
y
y
y
y
y
y
y
y
y
y
y
Read all instructions before using the equipment. These
instructions are written for your safety and to protect the
equipment.
Other sections in this manual provide more details of safety
features. Be sure to read these sections and observe all safety
notices.
Take time to discuss proper safety and exercise equipment
etiquette with the fitness facility manager.
Before beginning any fitness program, see your physician for a
complete physical examination.
Il est conseillé de subir un examen médical complet avant
d’entreprendre tout programme d’exercise. Si vous avez des
étourdissements ou des faiblesses, arrêtez les exercices
immédiatement.
Do not overexert yourself or work to exhaustion. If you feel any
pain or abnormal symptoms, stop your workout immediately and
consult your physician.
Do not allow children or people unfamiliar with its operation on
or near the equipment. Do not leave children unsupervised
around the equipment.
Wear proper exercise clothing and shoes for your workout and
avoid loose clothing. Do not wear shoes with heels or leather
soles. Check the soles of your shoes and remove any dirt and
embedded stones. Tie long hair back.
For safety, hold onto a stationary handrail or handlebar while
using the equipment.
Keep your body and head facing forward. Never attempt to turn
around on the equipment.
Do not rock the equipment. Do not stand on the handrail(s),
display console, or covers.
Use care when getting on or off the equipment. Stand on the
rear pedestal and then place one foot in the lower foot plate.
Grasp an arm or a stationary handlebar for stability while you
step into the other foot plate.
The rear pedestal provides an elevated platform for stepping on
and off the equipment. It also indicates the buffer zone that
people must stay clear of when someone is using the
equipment.
Never place your hands or feet in the path of the foot plates
because injury may occur to you or damage may occur to the
equipment.
Obtaining Service
The fitness facility manager can help you with most questions
regarding the equipment. For additional information about product
operation or exercise routines, refer to the Precor web site at
www.precor.com.
User's Reference Manual: Important Safety Instructions 1
Table of Contents
Important Safety Instructions............................................1
Obtaining Service ..........................................................................1
AMT Features.........................................................................3
Adaptive Motion..............................................................................3
Moving Handlebars Support the Total Body Workout ..........3
Using the Stationary Handrails....................................................3
Self-Powered Features .................................................................4
Heart Rate Features .............................................................5
Important Use and Safety Information ....................................... 5
Wearing a Chest Strap................................................................. 7
Using the Touch-Sensitive Grips................................................ 8
Using SmartRate ............................................................................ 8
Exercise to Your Target Heart Rate .........................................10
Heart Rate Analysis .....................................................................10
Troubleshooting Heart Rate.......................................................11
Display Console...................................................................12
More Information about the Upper Display ............................14
Stride Length Display..................................................................15
More Information about the Center Display ...........................15
More Information about the Lower Display ...................>.........16
Keypads..........................................................................................17
Workout Options.................................................................21
Choosing QUICKSTART ...........................................................22
Selecting a Program....................................................................23
Storing Workout Statistics ........................................................24
Setting Display Preferences Before Exercising ....................25
Cooling Down After a Workout................................................26
Pausing During a Workout or the Cool-Down Period.........26
Ending a Workout........................................................................27
Programs...............................................................................28
Choosing a Program...................................................................28
Program Tips.................................................................................28
Manual Program...........................................................................29
Interval Program ...........................................................................29
Heart Rate Program ....................................................................30
Fat Burner Program.....................................................................31
Exercise Session .................................................................32
Changing Programs in Mid-session ........................................32
Changing the Workout Time.....................................................33
Adjusting Program Goals...........................................................33
Changing Your Workout Display Options .............................34
Changing the Units of Measure................................................36
Selecting a Language.................................................................36
User's Reference Manual: Table of Contents 2
AMT Features
The AMT is equipped with certain items that, when used properly,
help sustain an enjoyable workout. These items include:
y
y
y
y
Adaptive Motion™
Moving handlebars for a total body workout
Using the Stationary Handrails
Self-powered features
Important: Before exercising, review the safety instructions found
at the beginning of this manual.
Adaptive Motion
The technology behind the Adaptive Motion, low-impact, cardio
trainer adapts to your movements and lets you shift from short
strides to long strides, walking and running, or move in to deep
lunges.
Moving Handlebars Support the Total
Body Workout
The handlebars provide an upper-body workout which helps
increase cardiovascular fitness. By adding the total body movement
to your cross training workout, you are actually increasing your
work effort and enhancing your overall fitness level.
Using the Stationary Handrails
To maintain your balance, always grasp a stationary handrail when
you step on or off the equipment and when you use the keypads.
To learn more about the touch-sensitive grips, refer to Heart Rate
Features.
User's Reference Manual: AMT Features 3
User's Reference Manual: AMT Features 4
Self-Powered Features
The equipment does not require an electrical power connection. It
has an internal battery that is recharged every time you exercise for
a reasonable period of time. Meeting the minimum requirements for
operation causes the Precor banner to appear. You can press
QUICKSTART or select a program to begin exercising. For more
information, refer to Workout Options.
If you do not meet the minimum requirements for operation, a
30-second shutdown process begins. Dots appear in the display
and all key presses are ignored. If no movement is detected, the
dots steadily disappear as the countdown continues.
If you wish to resume exercising, you need to do so before the dots
disappear from the display.
Heart Rate Features
CALORIES
WARMUP FATBURN CARDIO PEAK HIGH
HEART RATE
SmartRate
Heart rate and SmartRate
®
features are available when you wear
the chest strap or grasp both touch-sensitive grips. When a
heartbeat is detected, the HEART RATE display shows your heart
rate and, if your age has been entered, the SmartRate LED blinks
and indicates your target zone.
Important Use and Safety Information
Read the following before using the heart rate or SmartRate
features.
y
y
y
y
Consult your physician before engaging in any vigorous
exercise. Do not use the heart rate programs until authorized by
your physician.
Know your heart rate and your physician-recommended heart
rate target zone. Individual heart rates vary according to several
physiological factors and may not correspond directly with the
following figure.
Always face forward on the equipment and use the stationary
handrail or handlebars for balance.
On self-powered equipment, maintain a comfortable rate of
motion above the minimum requirements. Check with the facility
manager to determine the requirements to maintain power.
User's Reference Manual: Heart Rate Features 5
20 25 30 35 40 45 50 55 60 65 70 75
70
80
90
100
120
130
140
150
160
170
180
190
200
110
Heart Rate Target Zones
Yo ur Heart Rate
High
Peak
Cardio
Fat Burn
Warmup
Yo ur Age
Recommended Cardiovascular Zone
Recommended Weight Loss Zone
Figure 1: Heart rate target zones
y
y
y
y
y
The calculation used for the heart rate target zone is:
(220 minus your age) multiplied by a percent.
For example:
Warmup range: (220 minus your age) multiplied by 55%
Peak range: (220 minus your age) multiplied by 85%
After you put on the chest strap, face the display console for a
minimum of 15 seconds. This allows the receiver in the console
to recognize the signal from the chest strap.
If Hr blinks in the HEART RATE display, it is detecting a signal,
but has not yet determined your heart rate. Make sure the chest
strap is positioned properly around your chest and against your
skin.
If you prefer to use the touch-sensitive grips, grasp both and
wait five to ten seconds. Make sure both hands are moist (not
dry).
When a signal is detected, a number flashes in the
HEART RATE display and indicates your heart rate.
User's Reference Manual: Heart Rate Features 6
3.

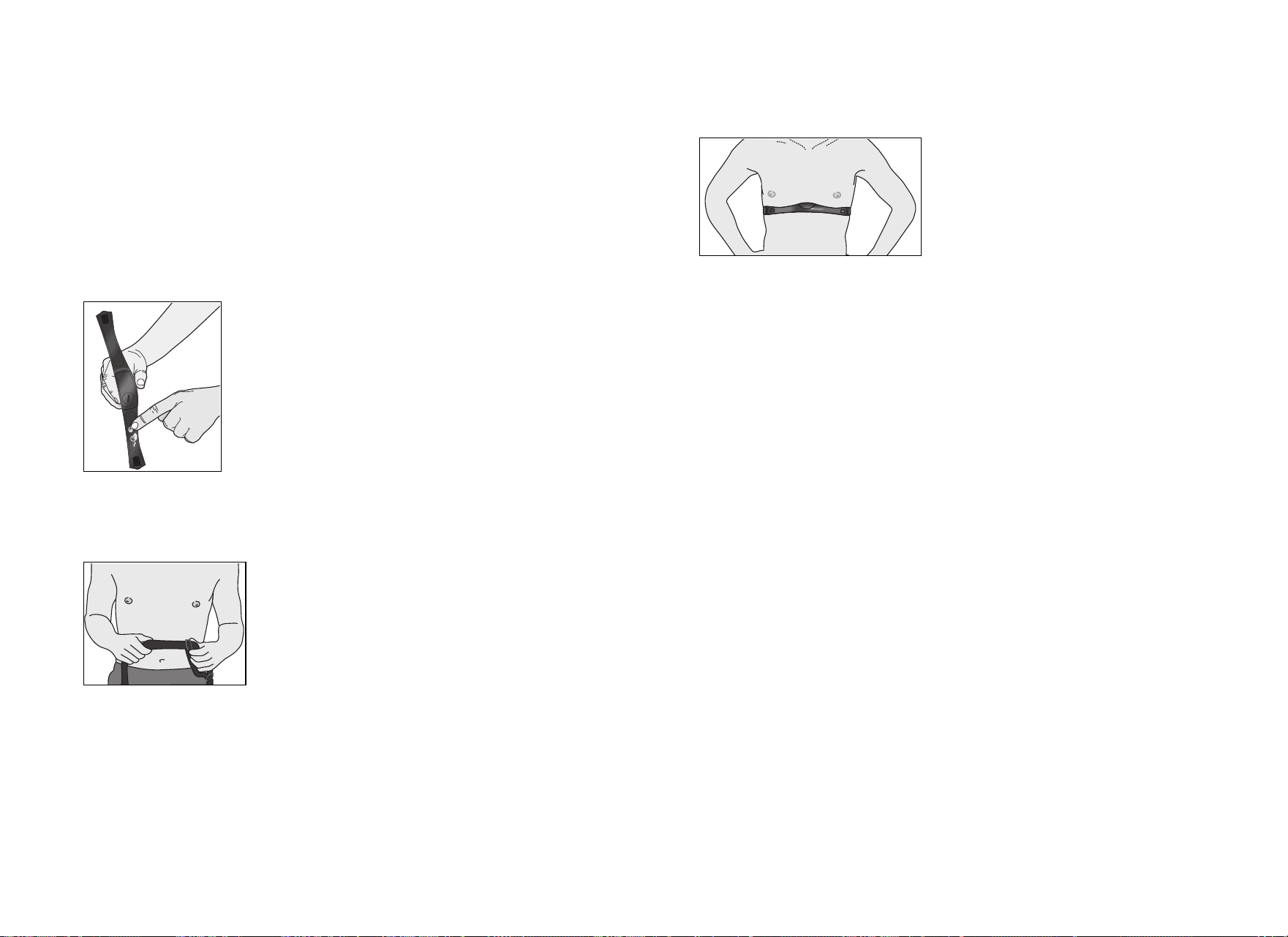

Wearing a Chest Strap
During a workout, the heart rate features appear on the display
when you wear a chest strap. To receive an accurate reading, the
chest strap needs to be in direct contact with your skin.
1. Carefully dampen the back of the strap with tap water Refer to
the following figure.
Note: Do not use deionized water. It does not have the proper
minerals and salts to conduct electrical impulses.
Figure 2: Moisten chest strap
2. Adjust the strap and fasten it around your chest. The strap
should feel snug, not restrictive. Refer to the following figure.
Figure 3: Adjust chest strap
Make sure that the chest strap is right side up, lies horizontally
across your chest, and is centered in the middle of your chest.
Refer to the following figure.
Figure 4: Fasten chest strap
After you put on the chest strap, face the display console for a few
seconds. This allows the receiver in the console to recognize the
signal from the chest strap.
User's Reference Manual: Heart Rate Features 7

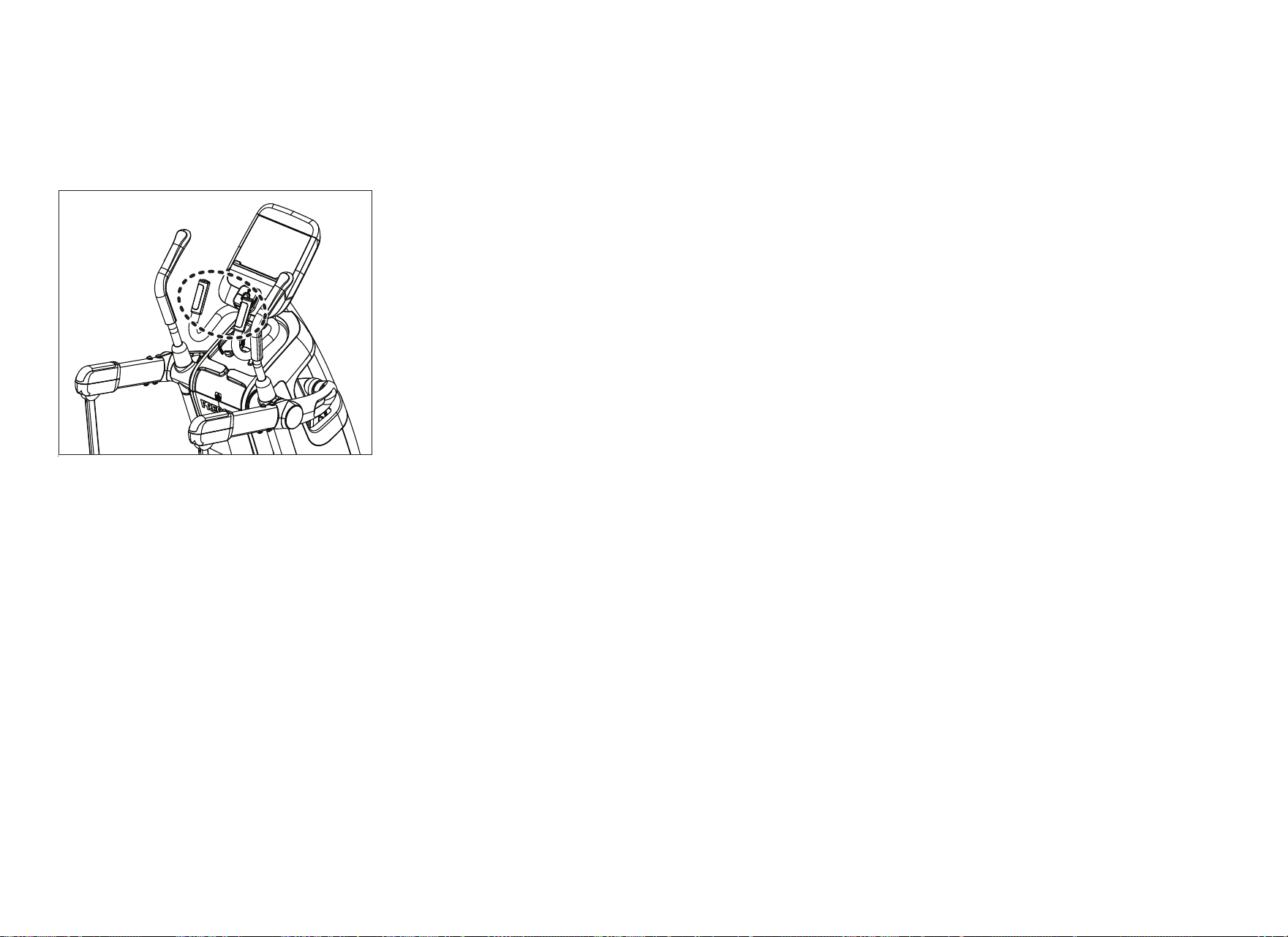

Using the Touch-Sensitive Grips
While exercising, you must grasp both touch-sensitive grips for a
minimum of five to ten seconds to transmit your heart rate to the
display. Refer to the following figure.
Figure 5: Touch-sensitive grips
Usually, the concentration of salts in a person’s perspiration
provides enough conductivity to transmit a signal to the receiver
inside the display console. However, some people, because of
body chemistry or erratic heart beats, cannot use the
touch-sensitive grips. A chest strap may provide better results.
Important: While exercising, do not wear a chest strap and grasp
the touch-sensitive grips at the same time. Using both features may
cause erratic heart rate readings.
Using SmartRate
The SmartRate feature helps you monitor and maintain your heart
rate in the target zone best suited to your specific needs. When a
heart rate signal is detected, a single LED blinks and indicates the
zone that your heart rate is in.
Important: To use the SmartRate feature, you must enter your age
during program selection. Refer to Selecting a Program.
The following table shows the percents used in calculating the
heart rate target zones. While your heart rate remains within these
zones, the corresponding light blinks and provides a visual cue.
CAUTION: Your heart rate should never exceed 85% of your
maximum aerobic heart rate or go above PEAK. If it does,
immediately reduce the intensity of your workout to return your
heart rate to your physician-recommended target zone.
User's Reference Manual: Heart Rate Features 8
Table 1. Heart rate target zones and SmartRate LEDs
Heart Rate Zone
Percent
LED Lit LED Blinking Zone Label
Below 50 First Orange WARMUP
50 to 54 Second Orange WARMUP
55 to 59 Third Green FAT BURN
60 to 64 Fourth Green FAT BURN
65 to 69 Fifth Green FAT BURN
70 to 74 Sixth Green CARDIO
75 to 79 Seventh Green CARDIO
80 to 84 Eighth Green CARDIO
85 to 87 Ninth Orange PEAK
Above 87 Tenth Orange HIGH
The SmartRate indicator lights do not blink when:
y
y
You do not wear or improperly position the chest strap. Or, you
fail to grasp both touch-sensitive grips for five to ten seconds.
You do not enter your age during an exercise session.
For example, pressing QUICKSTART at the Precor banner
causes the Manual Program to begin. Your age has not been
entered and is considered a null value. Your heart rate will
appear in the HEART RATE display when you hold onto the
touch-sensitive grips or wear a chest strap, but none of the
SmartRate LEDs blink because the appropriate calculations
have not been made.
Note: You can remedy this situation by choosing a program
using one of the PROGRAMS keys and entering your time,
weight, and age.
User's Reference Manual: Heart Rate Features 9
Exercise to Your Target Heart Rate
A dedicated window displays your heart rate while you exercise. To
view your heart rate (beats per minute) on the display, either wear a
chest strap or grasp both touch-sensitive grips.
The Precor web site (www.precor.com) has several suggestions for
workouts with varying levels of intensity. It provides many workout
details that include the appropriate target heart rate.
The equipment includes one or more heart rate programs that let
you exercise based on a specified target heart rate. As you
exercise, the programs monitor your heart rate and automatically
maintain it within a few beats per minute of your selected target. To
use these programs, press the PROGRAMS HEART RATE key.
For more information, refer to
–
Programs.
Heart Rate Analysis
Every time you complete a program using the chest strap or
touch-sensitive grips, the display provides a heart rate analysis after
the workout summary. Refer to Ending a Workout.
Your average heart rate appears followed by the maximum heart
rate achieved during your workout. A third display appears, if you
entered your age, and indicates the amount of time your heart rate
remained between the target zones shown.
The heart rate analysis is based on how often your heart rate signal
is received while exercising. If you use the chest strap, the average
heart rate will be more accurate than if you occasionally grasp the
touch-sensitive grips.
User's Reference Manual: Heart Rate Features 10
User's Reference Manual: Heart Rate Features 11
Troubleshooting Heart Rate
The following table may help you understand and troubleshoot
erratic heart rate readings.
Important: A heart rate can only be detected when the Precor
heart rate receiver is properly installed in the display. A user must
wear the chest strap or grasp both touch-sensitive grips.
Table 2. Erratic heart rate readings
What
appears
on the
display
Cause What to do
Nothing
The heart rate receiver is
not installed or it has
been disconnected.
Call Customer Support. Refer to
Obtaining Service.
HR or Hr
A signal is being
detected through the
chest strap or the
touch-sensitive grips, but
a valid heart rate is not
yet established.
Be sure that the chest strap is
moist, centered, and in direct
contact with your skin. If you are
using the touch-sensitive grips,
continue to grasp both of them.
Wait a few moments for your
heart rate to appear.
Note: To conduct electrical impulses from a user’s heart, both
touch-sensitive grips must be grasped firmly for five to ten seconds.
Usually, the concentration of salts in a person’s perspiration
provides enough conductivity to transmit a signal to the receiver in
the display console. However, because of body chemistry or erratic
heartbeats, some people cannot use the touch-sensitive grips. A
chest strap may provide better results.

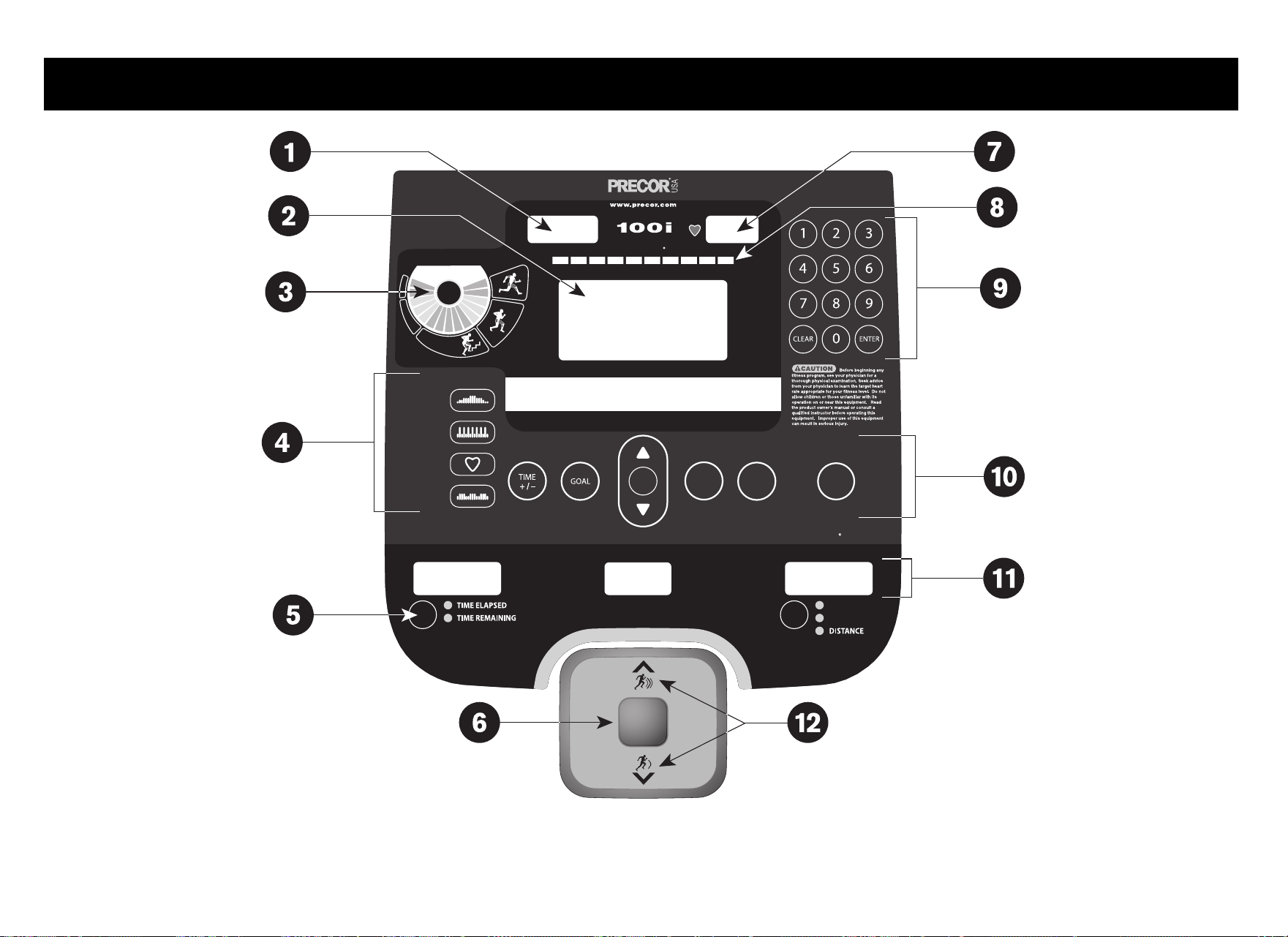

Display Console
QUICK
START
STRIDES / MIN
CAL / MIN
OK RESET
UNITS/
LANG.
METRICS
CALORIES
WARMUP FATBURN CARDIO PEAK HIGH
HEART RATE
SmartRate
2007 Precor Incorporated, en
RESISTANCE
PROGRAMS
INTERVAL
MANUAL
FAT BURNER
HEART RATE
STRIDE LENGTH
User's Reference Manual: Display Console 12
CALORIES display: The estimated cumulative number of
calories being burned appears.
Upper display: Initially shows the Precor banner. It changes
to the program profile when you select a program or press
QUICKSTART. A blinking column in the profile indicates
your position.
STRIDE LENGTH display: A lighted pendulum swings
according to your stride length. The pendulum swings to the
left as you move your left leg and to the right as you stride
forward with your right leg. The icons indicate which muscle
groups are affected.
Center display and the PROGRAMS keypad: When you
press a PROGRAMS key, the program profile appears in the
upper display and the program name appears in the center
display. During your session, additional information appears
in the center display depending on program and user
selections.
Selection keys: Press the key to move through the
information in each column, so you can choose what you
want to display during your session. Indicator lights appear
next to the item that is displayed.
QUICKSTART: Press QUICKSTART to begin your workout
immediately.
HEART RATE display: If a heart rate is detected, this area
displays your heart rate.
SmartRate display: A blinking LED lights when you choose
a program and enter your age during the setup prompts.
Number keys: When you begin a program, you can use the
number keys to answer the setup prompts, such as your
weight and age. During an exercise session, use the number
keys to update information. If the entertainment option is
attached, the number keys act as TV channel controls.
Navigational keys: These keys let you display or change
exercise information and end your session. For more
information, refer to Navigational Keypad.
Lower display: While you exercise, three sets of numbers
show information about your session. For more information,
refer to Lower Display Keypad and the Selection Keys.
RESISTANCE keys: Use these keys to adjust the
resistance.
User's Reference Manual: Display Console 13
User's Reference Manual: Display Console 14

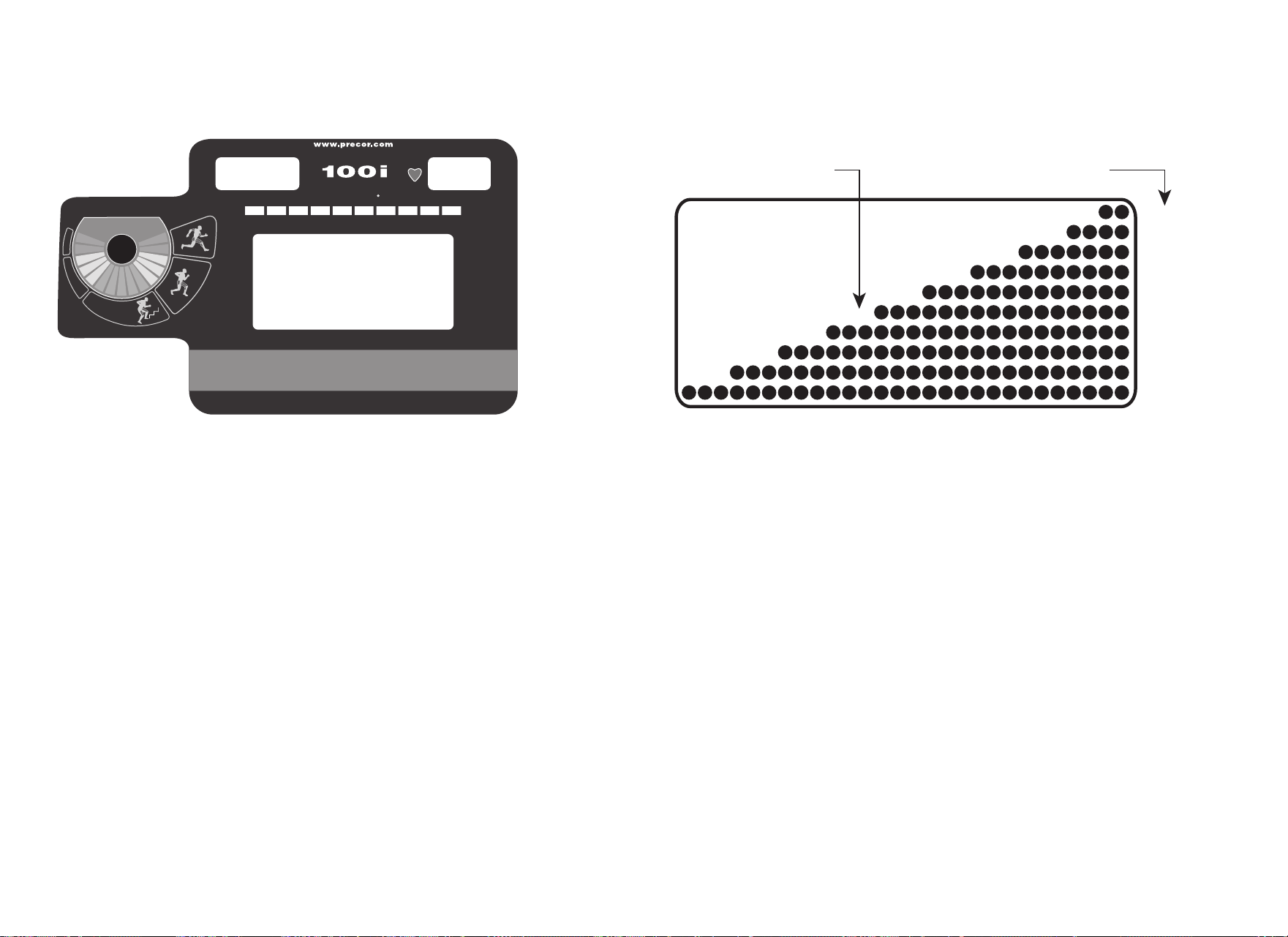

More Information about the Upper
Display
CALORIES
WARMUP FATBURN CARDIO PEAK HIGH
HEART RATE
SmartRate
STRIDE LENGTH
The upper display includes the CALORIES, HEART RATE,
SmartRate, and a program profile display. The following
descriptions explain what appears in the displays.
CALORIES—indicates the estimated cumulative number of calories
being burned.
HEART RATE—displays your heart rate when you wear a chest
strap or grasp both touch-sensitive grips. Refer to Heart Rate
Features.
SmartRate—displays your heart rate as a blinking segment which
indicates the zone your heart rate is in when you enter your age and
wear a chest strap or grasp both touch-sensitive grips. Use this
display as a visual aid to keep your heart rate in your preferred
zone. Refer to Using SmartRate.
Program profile—appears during your exercise session. A blinking
segment in the profile indicates your position. In most programs,
the RESISTANCE setting affects the column height as shown in
the following figure. The profile raises or lowers according to which
RESISTANCE key is pressed.
1 – 2
3 – 4
5 – 6
7 – 8
9 – 10
11 – 12
13 – 14
19 – 20
17 – 18
15 – 16
Column height
Resistance settings
Figure 6: Column height in the program profile

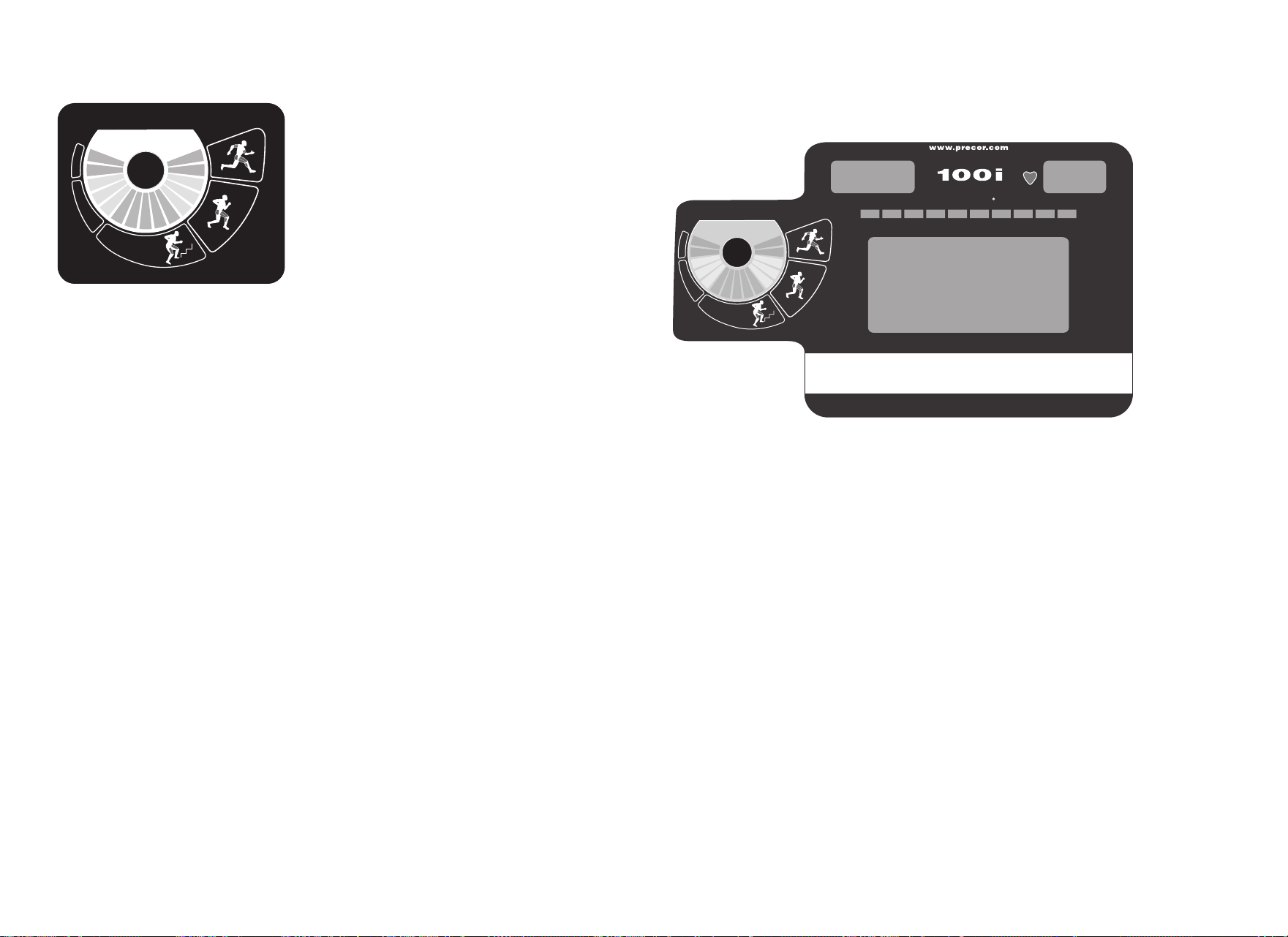

Stride Length Display
STRIDE LENGTH
The STRIDE LENGTH display presents a visual representation of
the length of your stride. The lighted pendulum swings to the right
as you stride forward with your right leg and swings to the left as
your left leg moves forward.
The icons indicate which muscle groups are affected by the length
of your stride. To view the actual measurement (inches or
centimeters) of the length of your stride, choose STRIDE LENGTH
through the METRICS key. Refer to Changing Your Workout
Display Options.
As you lengthen your stride, the lighted pendulum should
consistently reach the same level on the right as on the left.
This indicates that you are expending the same amount of energy
and affecting the same muscle groups with your right leg as with
your left.
More Information about the Center
Display
CALORIES
WARMUP FATBURN CARDIO PEAK HIGH
HEART RATE
SmartRate
STRIDE LENGTH
The center display presents the program name when you select a
program. During an exercise session, the center display becomes a
message bar showing additional information depending on user
selections and program interludes. For more information about the
selections that can appear in this display, refer to Exercise Session.
User's Reference Manual: Display Console 15

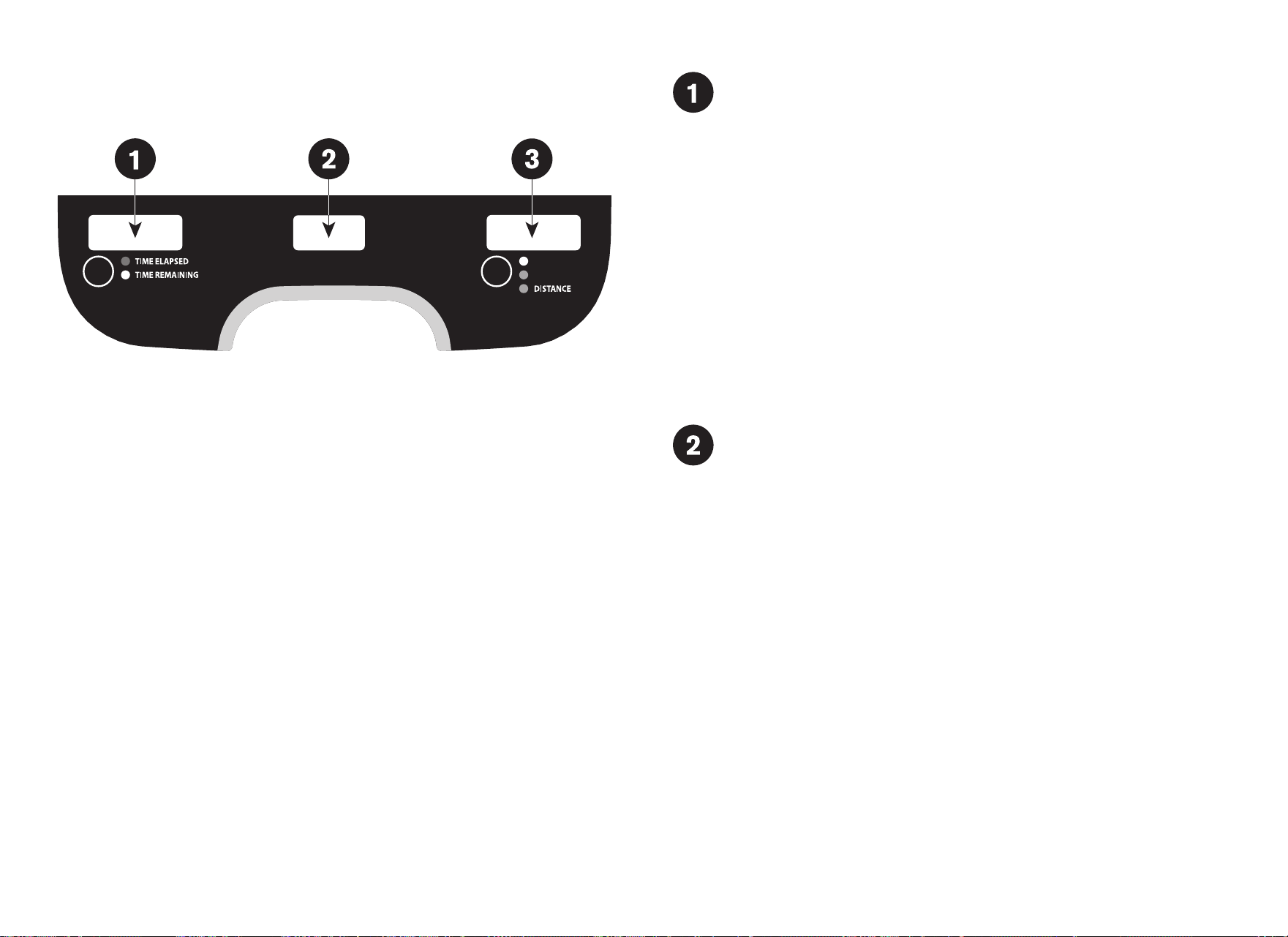

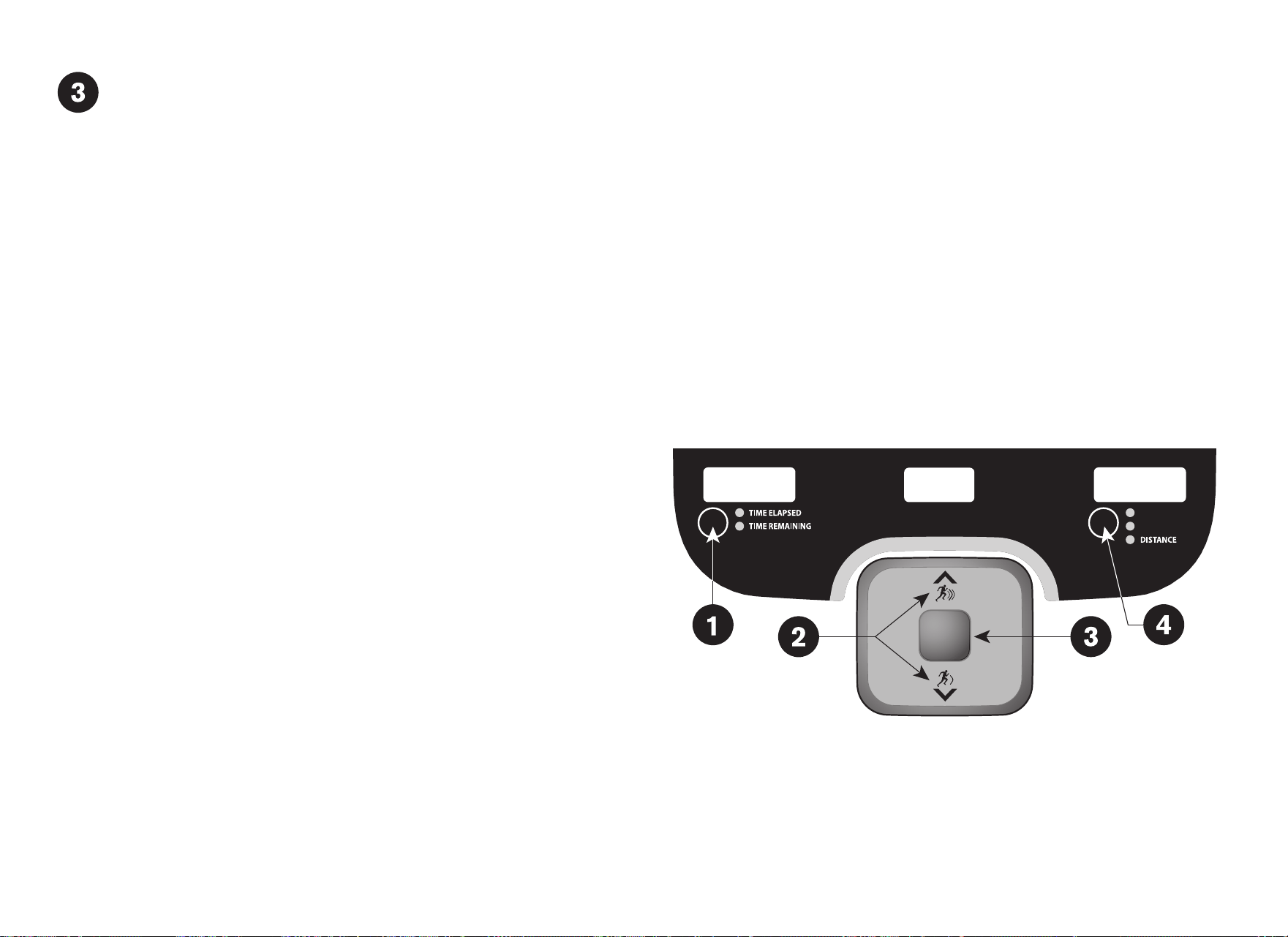

More Information about the
Lower Display
STRIDES / MIN
CAL / MIN
RESISTANCE
The lower display provides information about your workout session.
Pressing the keys beneath each window affects what appears in
the displays. Each display provides information about your workout
statistics and is described in the list below.
Note: If you choose to rest a book or magazine on the display, you
can still view these workout statistics.
TIME ELAPSED and TIME REMAINING
TIME ELAPSED—displays time in minutes and seconds and
indicates the amount of time you have been exercising.
When you exceed 60 minutes during a single session, the
display converts to hours and minutes.
Note: The fitness facility can place limits on workout time.
TIME REMAINING—shows the amount of time remaining in
a workout. If the selected time is less than 60 minutes, the
display shows time in minutes and seconds. If you select a
time greater than 60 minutes, the display reflects hours and
minutes until the countdown reaches 60 minutes, at which
time the display reverts to minutes and seconds.
RESISTANCE
RESISTANCE—displays the resistance you feel against your
stride. The RESISTANCE keys let you set a resistance level
between 1 and 20.
User's Reference Manual: Display Console 16
CALORIES/MIN, STRIDES/MIN, and
DISTANCE
CAL/MIN—displays the approximate number of calories
burned per minute.
STRIDES/MIN—displays the number of strides you
complete in a minute up to a maximum value of 510 strides
per minute. A stride is an exaggerated walking movement. If
you start in a position with one foot plate forward, a stride is
completed when you move the rear foot plate all the way
forward while the other foot plate moves to the rear. Two
strides create one complete revolution of the flywheel. So,
the value that appears on the display is always an even
number between 56 and 510.
DISTANCE—shows linear distance in either miles or
kilometers.
Keypads
Use the keypads to enter your exercise session selections and
display preferences.
Distinct keypads exist on the display and are discussed in this
section:
y
y
y
y
Lower Display keypad and the selection keys
Navigational keypad in the center of the display
PROGRAMS keypad
Number keypad with the ENTER and CLEAR keys
Lower Display Keypad and the Selection Keys
QUICK
START
STRIDES / MIN
CAL / MIN
RESISTANCE
User's Reference Manual: Display Console 17
Left selection key: Every time you press this key, the
display reflects either the amount of time elapsed since you
began your exercise session or it shows the time remaining.
An LED lights and indicates which information is being
displayed.
RESISTANCE: Press and hold a RESISTANCE key to
increase or decrease the force applied against your stride
from 1 to 20.
QUICKSTART: Press QUICKSTART to start your exercise
session immediately using the Manual Program. Refer to
Choosing QUICKSTART.
Right selection key: Every time you press this key, the
display reflects the calories per minute, the strides per
minute, or the distance travelled since you began your
exercise session. An LED lights and indicates which
information is being displayed.

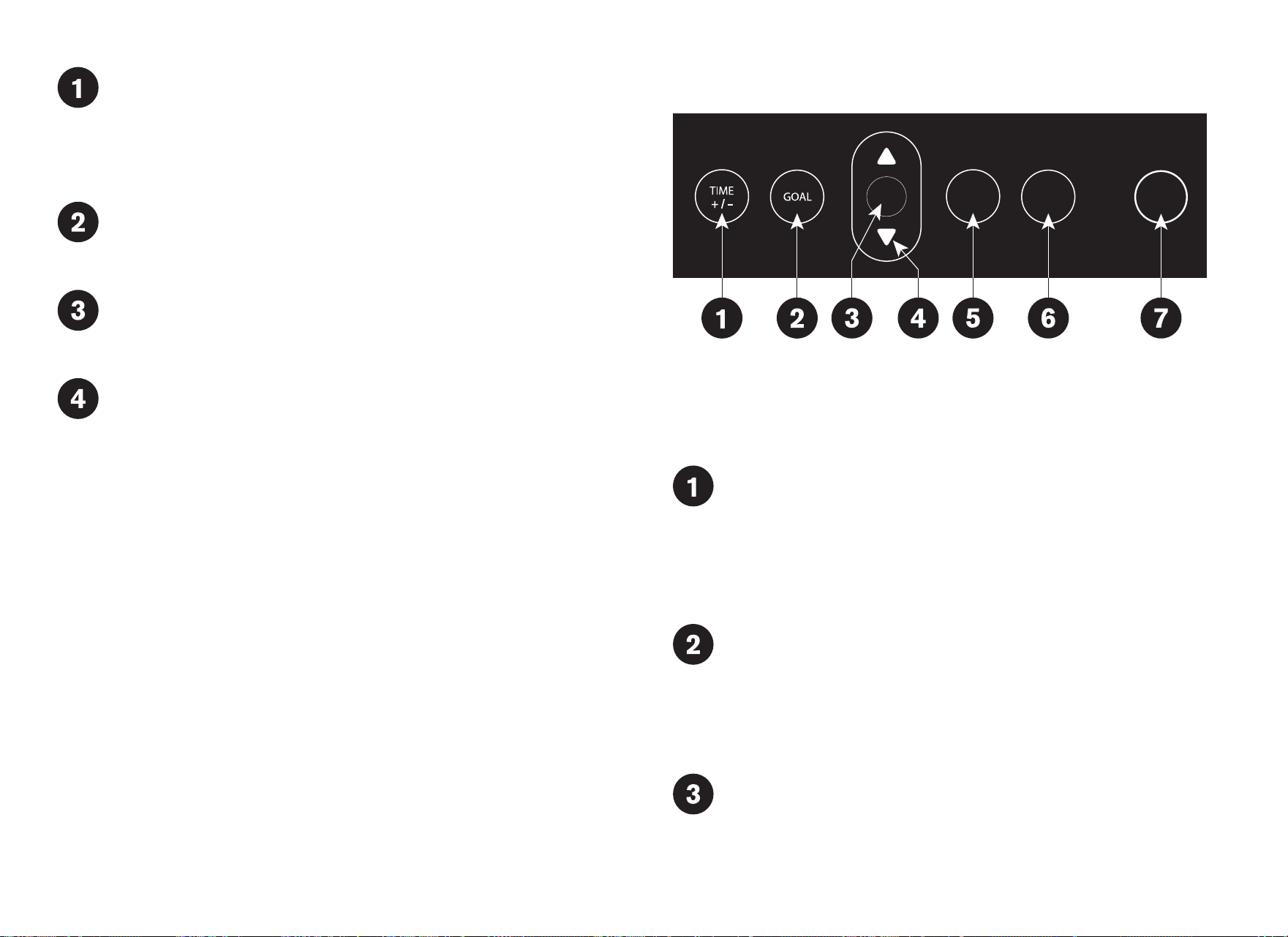

Navigational Keypad
OK RESET
UNITS/
LANG.
METRICS
The navigational keypad provides several ways to change your
exercise session and to display various workout statistics. The OK
key, which allows you to confirm display selections, is also part of
the navigational keypad.
TIME +/-: You can change the workout time, while you are
exercising, by pressing the TIME +/- key. A blinking number
appears in the display. You can change the number using
the navigational arrow keys or enter a different time using
the number keys. Refer to Changing Your Workout Display
Options.
GOAL: Press the GOAL key to change the goal setting from
time, distance, or calories when using the Manual, Interval,
or Heart Rate Programs. Refer to Adjusting Program Goals.
Note: You cannot change the goal during the warm up
phase of the Heart Rate Program.
OK: Use the OK key to confirm responses to specific
prompts.
User's Reference Manual: Display Console 18
Up and Down Arrows: These keys present the available
selections and affect what appears on the display.
Throughout this manual they are referred to as the
navigational arrow keys.
METRICS: The METRICS key provides menu selections that
let you customize the display with specific workout statistics
after you are already engaged in exercising. Refer to
Changing Your Workout Display Options.
UNITS/LANG.: You can change the units of measure or
select one of several different languages by pressing this
key. The display reflects your selections after you press the
OK key. For more information, refer to Changing the Units of
Measure or Selecting a Language.
RESET: Press this key to end the workout session and view
your workout summary. An exception to this rule exists if you
have entered the 30-second shutdown period. When you
press RESET, the display returns to the Precor banner.
Refer to Pausing During a Workout or the Cool-Down
Period or Self-Powered Features.

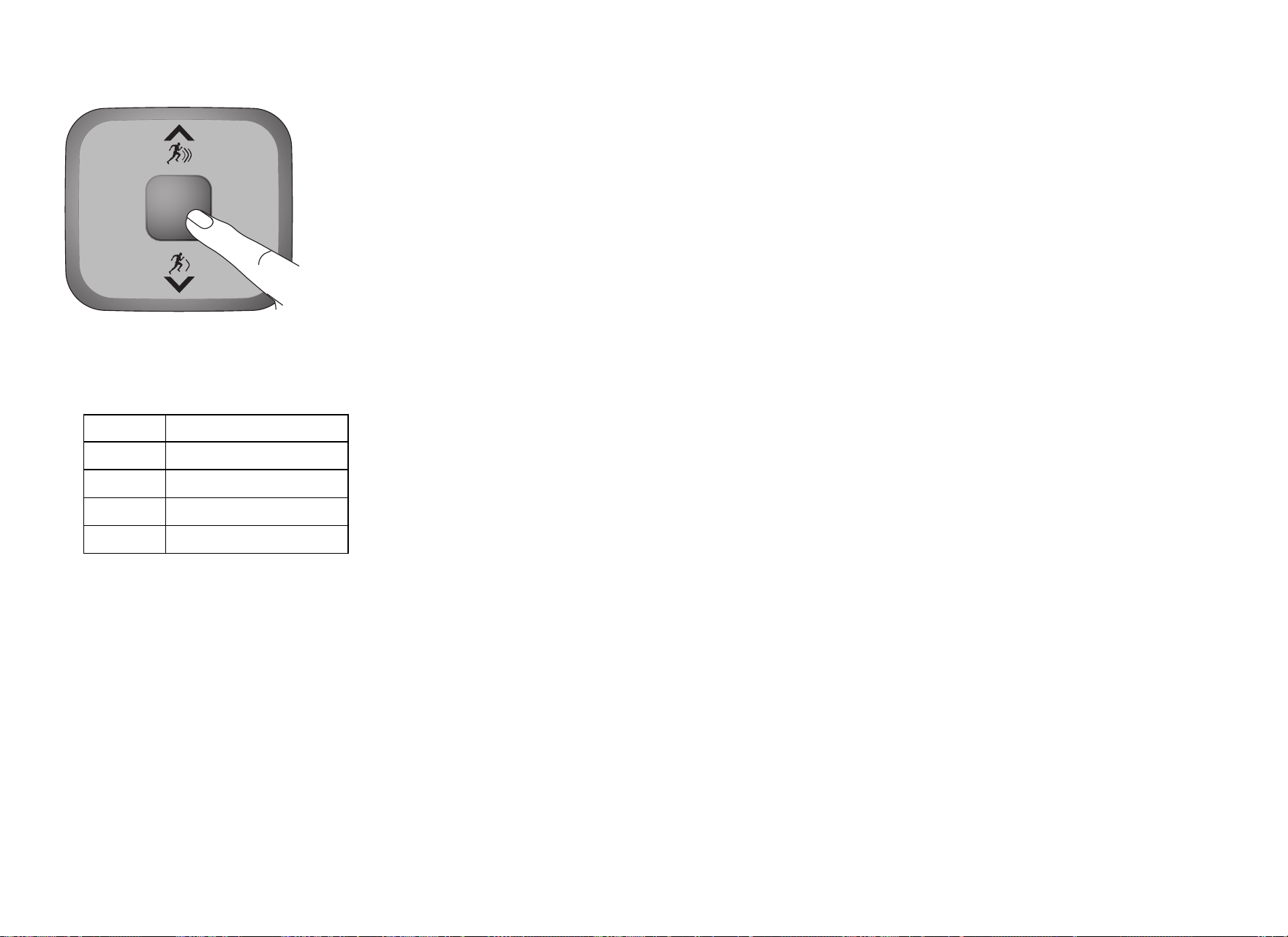

PROGRAMS Keypad
PROGRAMS
INTERVAL
MANUAL
FAT BURNER
HEART RATE
The PROGRAMS keypad provides access to all the exercise
programs. Press the center of the key to view the top level program
in its menu. Pressing the key again displays the next program in the
menu, if one is available, as shown in the following table. For a
description of each program, refer to Programs.
Note: Use the OK key to confirm your selection. For more
information, refer to Workout Options.
Table 3. Available programs
PROGRAMS key Program Menu
MANUAL
MANUAL
INTERVAL
INTERVAL
HEART RATE*
BASIC HRC*
FAT BURNER
FAT BURNER
* Use of a chest strap or the touch-sensitive grips is required.
User's Reference Manual: Display Console 19
User's Reference Manual: Display Console 20
Note: The OK and ENTER keys are usually interchangeable and
provide the same function when no peripheral devices are attached
to the equipment. However, when answering prompts that originate
from a CSAFE device or computer connection, use the ENTER key.
ENTER: Use the ENTER key to accept the number being displayed.
CLEAR: Use the CLEAR key to remove the last number being
displayed.
The CLEAR and ENTER keys provide the following functions:
Connection Description
Computer
(CSAFE
compatible)
If a computer is attached to the CSAFE
connection on the equipment, the number keypad
lets you enter your user ID and answer other setup
prompts.
Entertainment
Option
If an entertainment option is connected to the
display, the number keypad acts as a remote
control which you use to select the available
channels. You can also enter number values in
answer to exercise session prompts.
Nothing
Whether or not peripheral devices are attached to
the equipment, the keypad lets you enter number
values in answer to exercise session prompts. You
need to press ENTER or OK to confirm the
selection.
The number keypad has several functions depending on what is
connected to the equipment.
ENTERCLEAR
123
456
789
0
Number Keypad
Workout Options
CAUTION: Before beginning any fitness program, see your
physician for a complete physical examination. Know your
physician-recommended heart rate target zone.
1.
2.
3.
4.
Stand on the rear pedestal and face the display.
Place one foot in the lower foot plate and grasp an arm or a
stationary handlebar for stability while you step into the other
foot plate.
When you are comfortably situated, begin climbing.
CAUTION: Hold on to a handrail to balance yourself.
Select one of the following options:
Option... Steps...
To start exercising
immediately
•
•
Use the QUICKSTART key.
Refer to Choosing
QUICKSTART.
To select a program
•
•
Press a PROGRAMS key.
Refer to Selecting a Program.
To enter a user ID
•
•
Use the ENTER key.
Refer to Storing Workout
Statistics.
To set display preferences
in units of measure or
language
•
•
Use the UNITS/LANG. key.
Refer to Setting Display
Preferences Before Exercising.
Note: The QUICKSTART key is disabled when you press a
PROGRAMS key. You need to confirm each exercise session
selection (program, time, weight, and age) using the OK key.
User's Reference Manual: Workout Options 21
Choosing QUICKSTART
QUICK
START
1. While the Precor banner scrolls, press QUICKSTART to begin
the Manual Program.
QUICKSTART applies the following defaults:
Prompts Default Value
Program Manual
Time Fitness Facility setting
Weight 150 lb (68 kg)
Age 0
2.
3.
Use the RESISTANCE keys to change the resistance.
Maintain a comfortable and consistent stride rate while
exercising.
Note: To use the SmartRate feature, you need to specify your
age and wear a chest strap or grasp both touch-sensitive grips.
In this case, press MANUAL and then press OK. Follow the
prompts to enter your weight and age. You can use the
navigational arrow keys or the number keypad to change the
blinking prompts. Press OK to confirm the entries.
User's Reference Manual: Workout Options 22
Selecting a Program
PROGRAMS
INTERVAL
MANUAL
FAT BURNER
HEART RATE
1.
2.
3.
4.
While the Precor banner scrolls, press one of the PROGRAMS
keys, and then press OK.
A time prompt blinks in the display. Use the navigational arrow
keys or the number keys to adjust the minutes (1–240), and
then press OK. (Or, press CLEAR to return to the default time
limit).
Note: The fitness facility can set limits for workout, pause, and
cool-down times. So, selecting an unlimited workout time may
not be allowed. Check with your fitness facility manager.
To access the
NO LIMIT
option at the time prompt, use the
number keypad and type in 240, then press the up arrow key.
When
NO LIMIT
appears, press OK.
If you choose this option, the automatic cool-down period is
eliminated. You will need to incorporate a cool-down period by
accessing the Manual Program.
Enter your weight (1–999), and then your age (1–99) when
prompted.
Note: To change a value (program, time, weight, or age) that
you have already entered, press RESET to return to the Precor
banner. Select a program and re-enter the appropriate values.
Maintain a comfortable and consistent stride rate while
exercising.
User's Reference Manual: Workout Options 23
Storing Workout Statistics
Many fitness facilities connect Precor equipment to a computer so
you can easily retrieve your workout statistics and determine how
well you are meeting your fitness goals. If you are interested in
maintaining workout statistic information, ask the manager to create
a user account and a user ID for you. A user ID entry is required to
store your statistics.
Note: If the display is blank, you will need to maintain the minimum
rate of motion to supply power. If the Precor banner appears, the
equipment is not connected to a computer. Refer to Selecting a
Program or Choosing QUICKSTART.
If the equipment is connected to a computer, the following
appears:
CHOOSE QUICKSTART, ENTER, OR A PROGRAM TO BEGIN
To save the statistics generated during your exercise session, take
the following steps:
1.
2.
3.
4.
Press ENTER.
Use the number keypad to specify your 5-digit user ID. If you
make a mistake, press the CLEAR key and reenter the correct
number.
When your user ID is shown, press ENTER.
A message appears and indicates when the user ID is accepted
by the computer.
To begin your exercise session, select a program. Refer to
Selecting a Program.
Note: To bypass the user ID entry, press ENTER while all five
zeros appear in the user ID field. The statistics generated during
your exercise session will not be added to your file.
User's Reference Manual: Workout Options 24
Setting Display Preferences Before
Exercising
While the Precor banner scrolls, you have the opportunity to set
units of measure and language display preferences.
Once you set your display preferences, you have a 5-second
window to select a program. If you do not select a program from
the PROGRAMS menu or press QUICKSTART within the
5-second window, the preferences return to the fitness facility
settings.
1.
2.
3.
4.
As the Precor banner scrolls, press UNITS/LANG. Continue
pressing the key to view the two menu options:
UNITS
and
LANGUAGE
.
When you are ready, press OK to select the displayed menu
option.
Use the navigational arrow keys to display each menu option or
preference. Press OK to select it.
Follow the prompts on the display and return to the Precor
banner.
Menu Option Preferences Effect
UNITS U.S. or METRIC
Determines which
units of measure
appear on the
display.
L
ANGUAGE ENGLISH, DEUTSCH,
ESPANOL, FRANCAIS,
NEDERLANDS,
PORTUGUES, RUCCKIJJ,
and ITALIANO.
Causes the display
messages and
prompts to appear
in the chosen
language.
Note: The selections that you make prior to a workout reset to
the fitness facility’s default settings once your program or the
pause time limit ends.
User's Reference Manual: Workout Options 25
Cooling Down After a Workout
Incorporate a cool-down period into your workout to help lower
your heart rate and minimize muscle stiffness or soreness.
When you complete a program with a time limit or specified goal,
you automatically enter a cool-down period. The settings change to
help reduce the intensity of your workout.
Note: You cannot switch to a different program, goal, or workout
time during the cool-down period. Any pressure on the
PROGRAMS keys is ignored.
A workout summary appears at the end of the cool-down period.
Refer to Ending a Workout.
A cool-down period will not be appended to your exercise session
if the following occurs:
y
y
y
1.
2.
The fitness facility allows an unlimited time goal. A user must
enter a time goal of
NO LIMIT
to access this option. Refer to
Selecting a Program.
The fitness facility sets a cool-down time of zero, which
eliminates the cool-down phase.
You exit a program before completing it.
If you specify an unlimited time or the fitness facility removed the
cool-down phase, remember to incorporate a cool-down period at
the end of your exercise session.
Pausing During a Workout or the
Cool-Down Period
If your rate of motion drops below minimum requirements while
exercising or during the cool-down period, a 30-second shutdown
is initiated. You cannot pause for a longer period of time or change
to a different program unless the fitness facility has the optional
power adapter attached to the equipment.
When the optional power adapter is attached, you can pause for a
set time, usually two minutes. If you do not resume exercising
during that time, the display returns to the banner.
To pause, slow to a stop.
To exit pause mode, resume exercising.
Note: In pause mode, you have the ability to change your program
selection or display options if the optional power adapter is
attached. Refer to Changing Programs in Mid-session and
Changing Your Workout Display Options.
User's Reference Manual: Workout Options 26
User's Reference Manual: Workout Options 27
1.
2.
3.
4.
Ending a Workout
CAUTION: Hold on to a stationary handrail when you near the
end of your exercise session.
To view your workout summary, maintain the minimum rate of
motion when you complete the cool-down period. Refer to
Self-Powered Features.
The workout summary appears and shows your cumulative
statistics including warm-up and cool-down periods. You can
review your statistics as long as you maintain power with the
minimum rate of motion.
End your session by pressing the RESET key to return to the
Precor banner.
Slow your movement to a stop.
Hold on to a stationary handrail as you step off the equipment.
Note: If the optional power adapter is attached, you do not have to
continue the minimum rate of motion to view your workout
statistics. When you complete the cool-down period, the workout
summary appears. When you are ready, press RESET to return to
the Precor banner.
If you hold on to the touch-sensitive grips or wear a chest strap
while exercising, a heart rate analysis appears during the workout
summary. Refer to Heart Rate Analysis.
Programs
This section describes the programs available on the equipment.
Use this section as a reference tool to better understand each
program’s purpose.
Choosing a Program
Choosing a program depends on your goals. If you are a beginner
or returning to regular exercise, you can start a cardio-conditioning
program to slowly return your body to a comfortable level of
exercise. If you have been exercising and feel that you have an
intermediate or advanced fitness level, you probably have
established goals. The Precor web site (www.precor.com) can give
you many ideas about fitness routines and advice from the experts.
Several of the exercise choices on the equipment are
preprogrammed with recommended settings. However, you have
the option to override the suggested settings, with some
exceptions. If changes are not allowed, a message scrolls across
the display explaining your options.
If your level of exertion becomes too great, reduce your level of
intensity by overriding each upcoming segment in the program
profile. When you complete a program that contains a time limit or
goal period, an automatic cool-down period begins.
Program Tips
y
y
y
y
y
y
y
Begin at the Precor banner and choose a program by pressing a
PROGRAMS key or QUICKSTART. Refer to Workout Options.
While exercising, you need to sustain your exercise motion.
Stopping any movement causes the equipment to shut down to
conserve battery power.
A blinking column indicates your position as you progress
through a program.
Prior to choosing a program, you may press the UNITS/LANG.
key to access units of measure or language settings. After
pressing OK to confirm new settings, you must select a program
within five seconds for the changes to become effective. Refer
to Setting Display Preferences Before Exercising.
To use the SmartRate feature, you need to specify your age and
wear a chest strap or hold on to the touch-sensitive grips. For
more information, refer to Changing Your Workout Display
Options.
In some programs, an unlimited time setting may be an available
option. Refer to Selecting a Program.
The fitness facility can set limits on workout, pause, and
cool-down times and customize other aspects of your exercise
session. Check with your manager to learn if any limits are in
place that might affect your program selections.
User's Reference Manual: Programs 28
Manual Program
The Manual Program profile, available by pressing the MANUAL
key, begins as a flat line. You control resistance settings using the
RESISTANCE keys. The program profile reflects any changes. The
blinking column indicates your position in the program.
A cool-down period occurs automatically when you end your
workout. An exception to the cool-down period exists if the fitness
facility allows it. Refer to Cooling Down After a Workout for more
information.
Note: To change the workout time, press the TIME +/- key. Refer to
Changing the Workout Time. To change to a distance or calorie
goal, press the GOAL key. Refer to Changing Your Workout
Display Options.
Interval Program
The Interval Program, available by pressing the INTERVAL key, is
among the best for conditioning your cardiovascular system. The
program raises and lowers your level of exertion repeatedly for the
specified period of time.
The program lets you choose the rest and work intervals according
to your training regimen.
While exercising, you can vary your stride rate and the resistance.
To change the preset resistance settings, use the RESISTANCE
keys. The settings are repeated throughout the remainder of the
program. The display lets you know when the resistance is about to
change and it indicates the levels of the next interval.
The initial settings for resistance are:
Rest interval resistance: 1
Work interval resistance: 4
If you prefer to set a calorie or distance goal, use the GOAL key.
Refer to Changing Your Workout Display Options.
User's Reference Manual: Programs 29
Heart Rate Program
The Basic HRC Program, available by pressing the HEART RATE
key, lets you set a target for your heart rate. The program adjusts
the resistance to maintain your heart rate within two beats per
minute of the target heart rate while you exercise. To use this
program, you must enter your age and wear a chest strap so your
heart rate can be monitored throughout the session.
Important: Consult your physician to determine the appropriate
target heart rate for your age and fitness level. If your physician
recommends a different target heart rate than the one that appears
on the display, use the navigational arrow keys to change the
target heart rate once you finish the warm-up period. Do not
exercise over the recommended range.
Heart Rate Program Tips
The Basic HRC Program enhances your overall cardiovascular
fitness levels to help you achieve your weight loss and fitness
goals. Read through the following tips before selecting the Basic
HRC Program. These tips provide general information regarding
how the program functions. For more information and exercise
suggestions, refer to the Precor web site at www.precor.com.
Important: Maintain a rate of motion above the minimum
requirements. Refer to Self-Powered Features. Automatic
adjustments to the resistance cannot take place if you drop below
the minimum requirements for operation.
y
y
y
The program provides a 3-minute warm-up period. During this
time, you may change the resistance, but you cannot change the
goal setting.
Note: When your target heart rate is achieved or the 3-minute
period elapses, the warm-up period ends and the program
begins at which point, you may change to a distance or calorie
goal.
The program automatically adjusts the resistance to keep your
heart rate at the selected target. After the warm-up period,
pressing the RESISTANCE keys no longer affects the
resistance levels. Check the SmartRate display to see if you are
maintaining your preferred zone. Check the HEART RATE
display to determine your actual heart rate. For information
about understanding your target heart rate, refer to Heart Rate
Features.
You can change the target heart rate, but doing so affects how
well your target heart rate remains in the preferred zone. It takes
time to readjust the resistance so that your heart rate remains on
target.
User's Reference Manual: Programs 30
User's Reference Manual: Programs 31
y
y
y
The Fat Burner Program, available by pressing the FAT BURNER
key, is a fairly intense 28-minute program designed to burn fat and
increase your cardiovascular conditioning. Review the program
profile on the display to determine the ascent and descent levels of
the program.
Anytime during a workout, you can override the settings by
pressing the RESISTANCE keys. The changes raise or lower the
columns on the remaining portion of the program profile.
Fat Burner Program
The workout time is set to the fitness facility limit. To adjust the
time, press the TIME +/- key and use the navigational arrow keys
followed by OK to change the workout time.
If you wish to quit the Basic HRC Program, you can make a
mid-session transfer to another program, but you cannot return
or transfer mid-session to the Basic HRC Program.
If you are having difficulty with the heart rate features, talk to your
fitness facility manager.
A cool-down period is automatically added to the end of the
program.
Exercise Session
This section describes how to access the following attributes
through the use of the navigational keypad. Any display selections
set during the course of your exercise session are reset to the
fitness facility settings when you end your session and return to the
Precor banner.
While exercising, you can:
y
y
y
y
y
y
change the program you are using
change the workout time
choose between time-, distance-, or calorie-based goals
display more workout statistics
choose between U.S. standard and Metric units of measure
display messages and prompts in a different language
Note: Prior to selecting a program, you can select preferences for
language and units of measure. Refer to Setting Display
Preferences Before Exercising.
When you enter a navigational key menu such as UNITS/LANG. or
TIME +/-, you have 30 seconds to make your selection. If no
selection is made during those 30 seconds, the display
automatically returns to the program session.
Important: Do not press the RESET key, during those 30 seconds,
in an attempt to return to your program because you will
inadvertently exit your program. A workout summary appears when
you exit the program.
Changing Programs in Mid-session
You can change programs in the middle of a session by selecting a
new program from the PROGRAMS key menu. All accumulated
workout statistics are transferred to the new program as you
continue exercising.
Certain programs are not available for mid-session transfers due to
set goals and program preferences. If this occurs, a message
scrolls across the display.
Note: You cannot select a different program if your rate of motion
drops below the minimum requirements and the equipment begins
its 30-second shutdown. Refer to Pausing During a Workout or the
Cool-Down Period.
User's Reference Manual: Exercise Session 32
Changing the Workout Time
To change the duration of your program, take the following steps:
1.
2.
3.
1.
2.
Press TIME +/-.
A workout time blinks in the display. Use the navigational arrow
keys or the number keys to adjust the time.
Press OK.
A message scrolls across the display indicating that the new
workout time has been accepted.
The fitness facility can limit the duration of exercise sessions and
certain programs have fixed time goals which do not allow
adjustments. If your attempt to change the workout time is not
accepted, display messages scroll and indicate the reasons.
Adjusting Program Goals
To designate a distance, calories, or time goal while exercising take
the following steps:
Press GOAL. Continue pressing the key to scroll through the
available options:
TIME
,
DISTANCE
or
CALORIES
.
When you are ready, press OK to select the displayed goal.
Selection Description
TIME
A time-based goal is the setting for all programs. If you
want to exercise for a set time, select this goal.
DISTANCE
A distance-based goal lets you select a set distance
between 1 and 50 miles or kilometers (km).
CALORIES
A calories-based goal lets you exercise until you reach
a set calorie amount between 1 and 1000.
3.
4.
A blinking number appears indicating that the system is ready
for adjustments to the goal. Use the number keys or navigational
arrow keys to change the setting.
When you are ready, press OK. If the program you are using
allows changes to goal settings, a prompt scrolls across the
display indicating that your selection has been accepted. The
TIME REMAINING display changes according to the goal being
set.
User's Reference Manual: Exercise Session 33
User's Reference Manual: Exercise Session 34
1.
2.
3.
Changing Your Workout Display
Options
During an exercise session, the display becomes a message bar. It
can show additional workout statistics depending on user
selections accessed through the METRICS menu.
To display more workout statistics or choose one among them, take
the following steps:
Press METRICS.
Scroll through all the available workout statistic displays by
continually pressing the METRICS key. The following table
describes which displays are available.
When you are ready, press OK to select a displayed metric or
display the entire menu consecutively, by selecting
SHOW ALL
.
Note: To remove a scrolling statistic from the message bar, you
need to reenter the METRICS menu and select a different
workout statistic display or select the
OFF
option.
Table 4. Workout statistics using OPTIONS or METRICS key
Equipment Menu Description
All
% COMPLETE
Shows how much of the program goal you have completed.
All
TIME IN ZONE
Displays the total time that your heart rate is within the range of 55% to 84% of your target heart rate.
All
SEGMENT TIME
REMAINING
Indicates the amount of time, in minutes and seconds, that remain in the highlighted column of the profile before the
next column begins blinking.
AMT, climber
AVERAGE SPEED
Displays the average strides per minute.
Treadmills
AVERAGE SPEED
Displays the average miles or kilometers per hour. The number that appears is determined by dividing the total
distance traveled by the elapsed time.
All
CALS/MIN
Displays the approximate number of calories burned per minute.
All
CALS/HR
Displays the approximate number of calories burned per hour.
All
WATTS
Shows your current energy expenditure level.
All
METS
Shows the metabolic units associated with your current energy expenditure level, derived from the calories per
minute value and adjusted for your weight.
All
TARGET HR
Shows the current target heart rate setting.
All
AVG HEART RATE
Displays your average heart rate. The number is based on systematic sampling taken while you are exercising. A
chest strap will give you a more accurate heart rate average than if you occasionally use the touch-sensitive grips. If
no heart rate reading occurred during your exercise session, an analysis will not appear in the workout summary.
AMT
STRIDE LENGTH
Shows the current length of your stride in inches or centimeters.
Climber, treadmills
ELEVATION GAIN
Presents the cumulative steps (climber) or incline (treadmills) converted into elevation gained over the course of the
program.
Treadmills
PACE
Displays your target speed in minutes and seconds per mile (or kilometer). For example, the number
4:23
indicates that your pace (speed at which you are moving) is 4 minutes and 23 seconds per mile.
All
SHOW ALL
Presents all the workout statistics in this menu in consecutive order.
All
OFF
Stops scrolling the workout statistics, found in this table, across the message bar.
User's Reference Manual: Exercise Session 35
Changing the Units of Measure
Display measurements can appear in either Metric or U.S.
Standard. To change this setting, perform the following steps:
1.
2.
3.
4.
1.
2.
3.
4.
Press UNITS/LANG. The word
UNITS
appears on the display.
Press OK.
UNITS
scrolls across the display and is replaced by
one of two options:
U.S.
or
METRIC
.
Toggle between the two options by pressing the down arrow
key on the navigational keypad.
When you are ready, press OK to select the displayed unit of
measure. A message scrolls across the display indicating that
the unit of measure has changed.
Selecting a Language
You can choose to display text messages in several different
languages. To select a different language before or during an
exercise session, take the following steps:
Press UNITS/LANG. Press the key a second time and
LANGUAGE
appears and scrolls across the display.
Note: When you press the UNITS/LANG. key a third time, you
exit the menu and return to the Precor banner. The center
display appears blank. To reenter the menu, press
UNITS/LANG. again.
While
LANGUAGE
scrolls across the display, press OK to
select it.
Scroll through the available language options by continually
pressing the down key on the navigational keypad.
When you are ready, press OK to select the displayed
language. A message scrolls across the display indicating that
the language has been changed.
User's Reference Manual: Exercise Session 36
100i URM 49737-104, en
03 March 2008
Precor, C, CrossRamp, EFX, M, Move Beyond, and SmartRate are registered trademarks of Precor Incorporated.
AMT, Adaptive Motion Trainer, Crosstrainer, QuickStart, and StretchTrainer are trademarks of Precor Incorporated.
Copyright 2008 Precor Incorporated.
Specifications subject to change without notice.
www.precor.com
NOTICE:
Precor is widely recognized for its innovative, award winning designs of exercise equipment. Precor aggressively seeks
U.S. and foreign patents for both the mechanical construction and the visual aspects of its product design. Any
party contemplating the use of Precor’s product designs is hereby forewarned that Precor considers the unauthorized
appropriation of its proprietary rights to be a very serious matter. Precor will vigorously pursue all unauthorized
appropriation of its proprietary rights.
Precor Incorporated
20031 142nd Ave NE
P.O. B ox 7202
Woodinville, WA USA 98072-4002
100i Commercial Adaptive Motion Trainer
Product Specifications
Product Features
Length 74 in (199 cm)
Width 28 in (72 cm)
Height 69 in (176 cm)
Weight 445 lb (202 kg)
Shipping weight 520 lb (236 kg)
Power Self-powered
Frame Powder-coated steel
Regulatory Approvals FCC, ETL, CE, EN957
CSAFE Compatible
Entertainment Option Available
Heart Rate Telemetry
QuickStart
TM
SmartRate
®
Touch Heart Rate
Programs
Manual
Interval
Heart Rate
Basic HRC*
Fat Burner
Electronic Readouts
✳ Use of a chest strap or the touch-sensitive handlebar grips is required.
% Complete Resistance
Average Heart Rate* Segment Time Remaining
Average Speed SmartRate*
Calories Stride Length
Calories Per Minute Strides Per Minute
Calories Per Hour Target Heart Rate
Distance Time
Heart Rate* Time Elapsed
Heart Rate Analysis* Time in Zone*
Language Time Remaining
Maximum Heart Rate* Units
METS Watts
Profile Workout Summary
100i
Assembly Guide
Commercial Adaptive Motion Trainer
100i Commercial AMT Assembly Guide 1
Thank you for choosing Precor. For proper installation, please read this guide
thoroughly and follow the assembly instructions. If you do not assemble the
AMT according to these guidelines, you could void the Precor Limited
Warranty.
Obtaining Service
You should not attempt to service the AMT except for maintenance tasks as
described in the Product Owner’s Manual. If any items are missing, contact
your dealer. Should you need more information regarding customer support
numbers or a list of Precor authorized service centers, visit the Precor web site
at www.precor.com/corp/contact.
Unpacking the Equipment
Ask for help from two or more people to unpack and assemble the AMT.
Required Tools
• Wire tie cutter
• Phillips-head screwdriver
• SAE Standard socket set
• Rubber mallet
Cardio Theater PVS
Assembly Instructions
If the Cardio Theater Personal Viewing System (PVS) accompanies this Precor
unit, review the PVS assembly instructions found in the Cardio Theater box.
Alleviate additional assembly or disassembly steps by combining the two
assemblies as needed.
Installation Requirements
Follow these installation requirements when assembling the unit:
• Assemble the unit near the location where you plan to use it.
• Provide ample space around the unit.
Open space around the unit allows for easier access.
• Set up the AMT on a solid, flat surface.
A smooth, flat surface under the unit helps keep it level. A level unit has
fewer malfunctions.
• Open the box and assemble the components in the sequence
presented in this guide.
• Insert all fasteners with your fingers.
Use your fingers to properly align and thread the fasteners. This helps
alleviate cross-threading. Do not fully wrench tighten fasteners until
instructed to do so.
Important: When wrench tightening, the head of the fastener should be
flush with the product. If it is not, cross-threading has occurred. Do not
attempt to rework the assembly as more damage to the equipment will
occur. Contact Customer Support. Refer to Obtaining Service.
• If you plan to move the unit, obtain help. Do not grasp any plastic parts
while lifting or moving the unit. The plastic parts are not capable of
supporting the weight of the unit and they may break.
100i Commercial AMT Assembly Guide 2

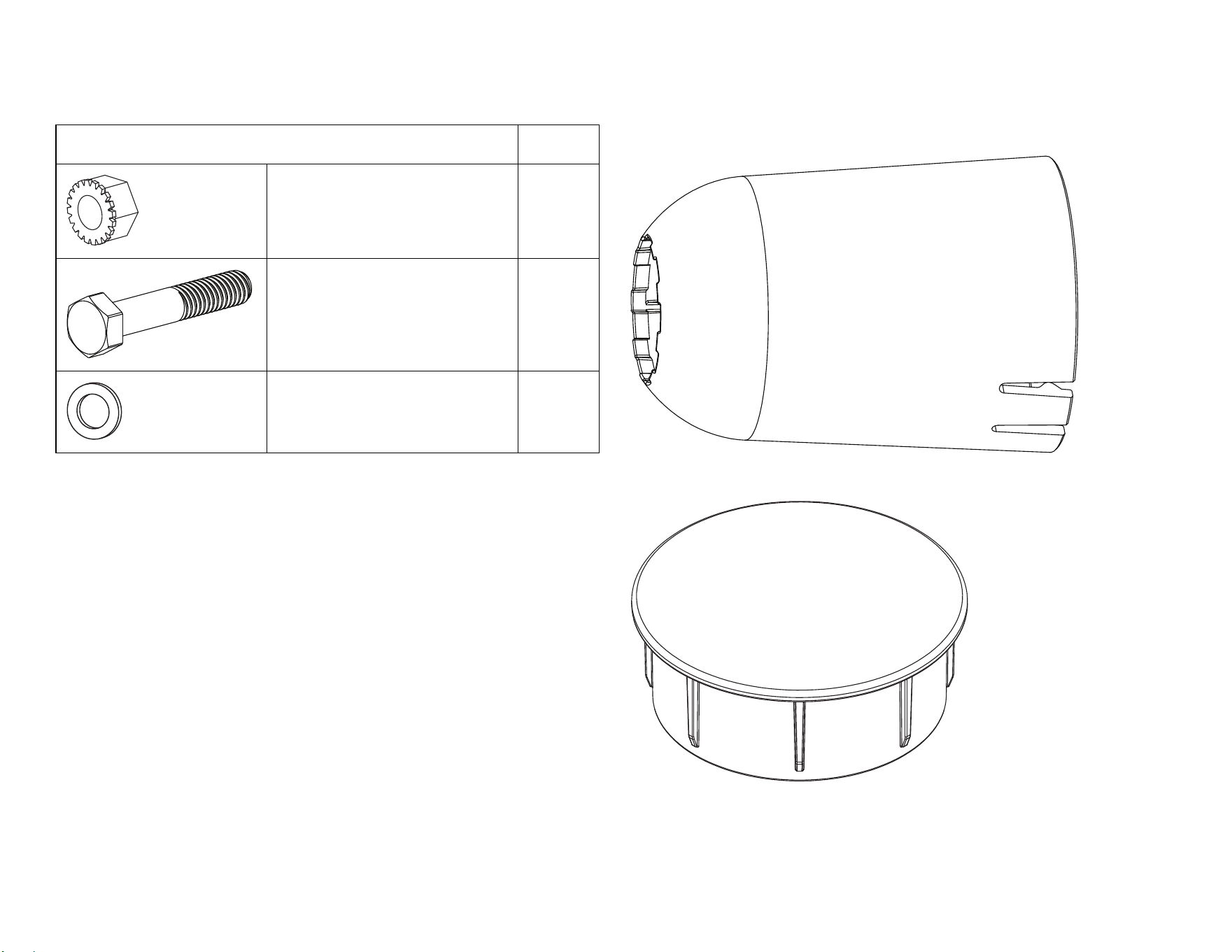

Hardware Kit
Fasteners Qty.
(A) Locknut (⁵⁄₁₆-inch) 8
(B) Hex head screw (1¾-inch) 4
(C) Flat washer (⁵⁄₁₆-inch) 8
2 — Plastic boot (D)
2 — End caps (E)
100i Commercial AMT Assembly Guide 3
Assembly Steps

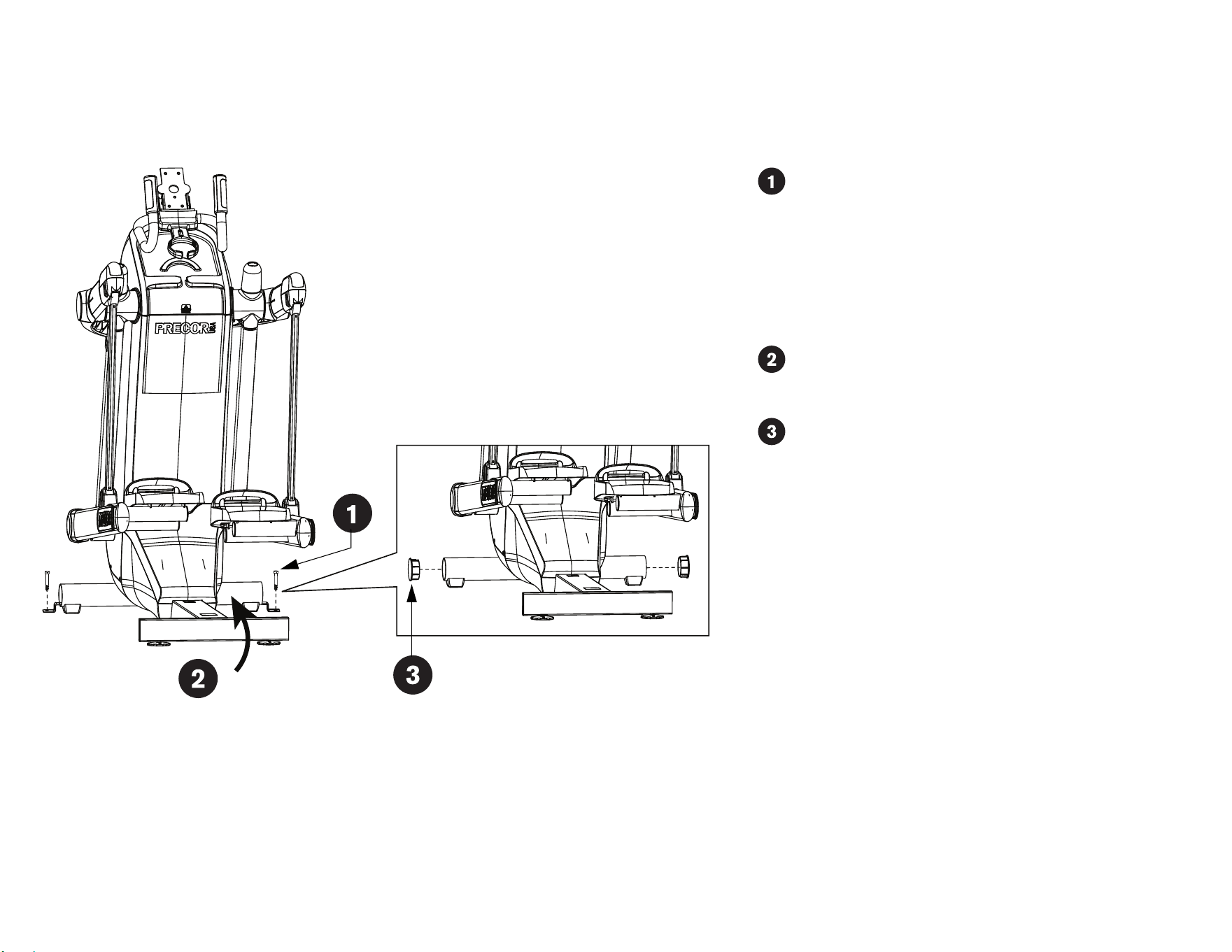

Remove the two side fasteners that hold the front frame
tube to the shipping pallet. Cut the tie wraps that secure
the rear base.
CAUTION: Ask for an assistant to help you roll the
AMT off its pallet. Also, do not install the handlebars
at this time. The handlebars provide an alternative
handhold and, during assembly, may cause injury
due to increased foot plate movement.
Lift the rear base and roll the AMT forward while your
assistant stabilizes the front and guides it off the pallet.
Move the AMT to the location where you plan to use it.
Insert the end caps (E) into the front frame tube. Align
the end caps and, if necessary, use a rubber mallet to
secure them in place.
100i Commercial AMT Assembly Guide 4

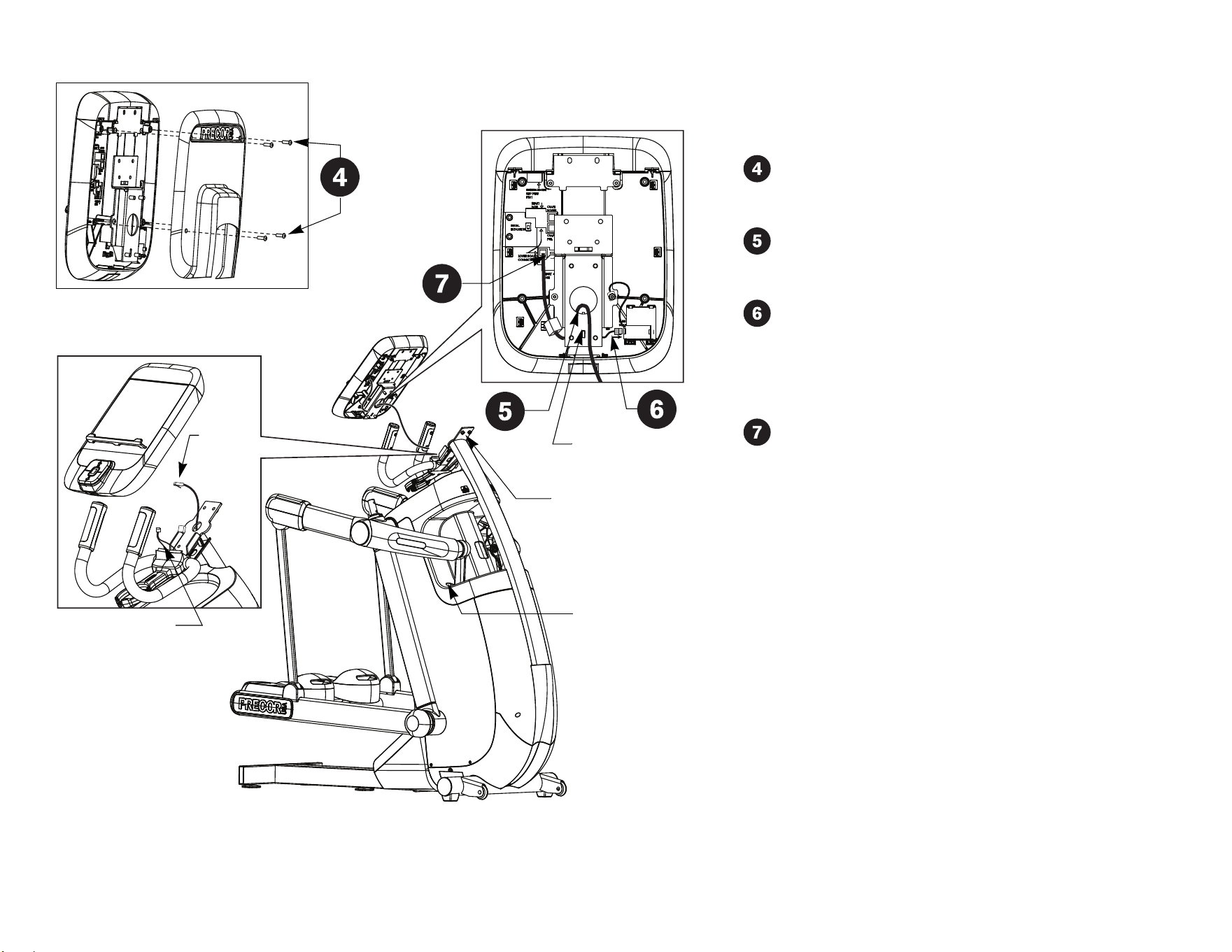

Important: Temporarily cover the pivot arm holes on the
front covers with packing material so fasteners or tools do
not inadvertently fall inside.
Use a Phillips-head screwdriver to remove the four screws
that secure the back console plate to the display console.
Set the fasteners and cover aside.
Hold the display console above its mounting bracket on
the AMT. Feed the lower board cable through the hole and
out the base of the display console bracket.
Connect the heart rate cable to the 4-prong receptacle on
the electronics board.
Important: Make sure to move the lower board and heart
rate cables out of the way as you place the display
console onto its mounting bracket.
Connect the lower board (RJ45) cable to its receptacle.
Lower
board
cable
Heart rate cable
Mounting bracket
Pivot arm hole
Display console
bracket
100i Commercial AMT Assembly Guide 5

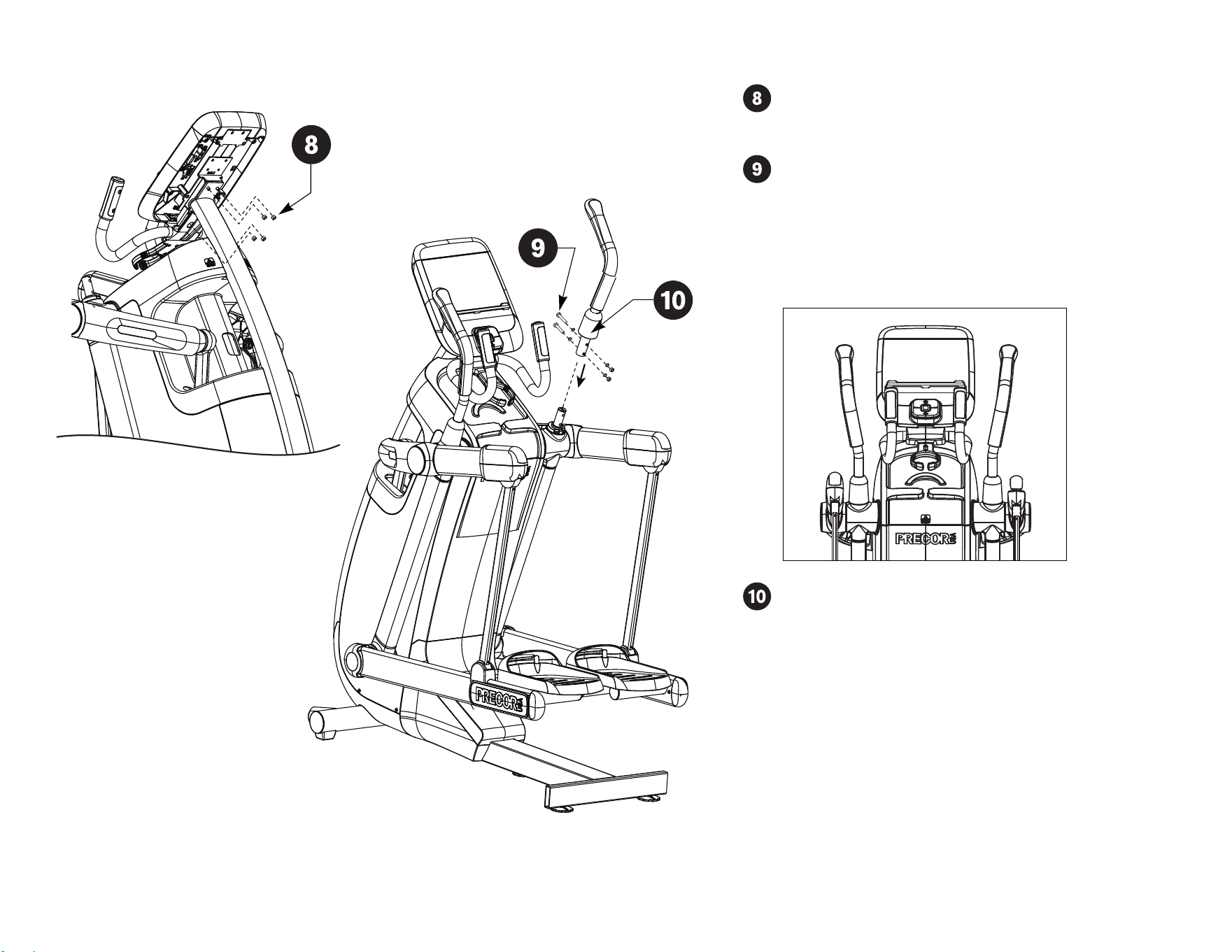

Thread four locknuts (A) onto the bolts to secure the
display console onto its bracket. Wrench tighten using a
½-inch socket wrench.
Slide a plastic boot (D) onto each handlebar. As you face
the display, note which handlebar mounts on the right and
on the left pivot arm stubs. Attach the handlebars using
four 1¾-inch hex head screws (B), eight washers (C),
four locknuts (A). Wrench tighten.
Note: When the handlebars are mounted correctly, each
bends slightly outward.
Cover the fasteners with a plastic boot. Rotate the plastic
boot so its tab aligns with the cutout. Apply downward
pressure to secure the plastic boots in place.
100i Commercial AMT Assembly Guide 6

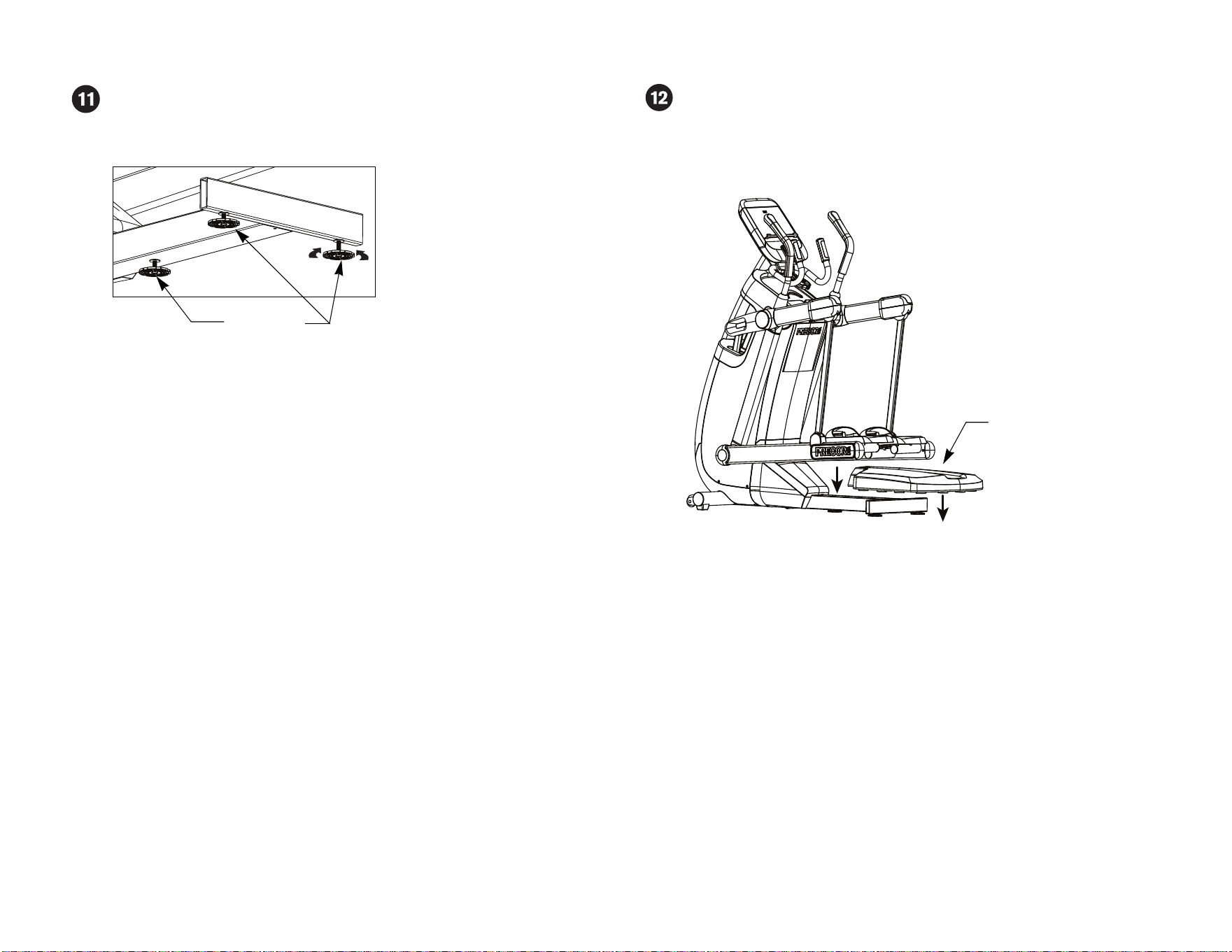

Level the AMT.
Before allowing users on the AMT, make sure it does not wobble from
side to side.
To remove any side-to-side movement, take the following steps:
1. Ask your assistant to tip the unit forward to expose the three
levelers on the rear base.
2. Rotate the levelers to raise or lower the unit.
Important: If the unit is placed on a slightly uneven surface,
rotating the levelers can help, but will not compensate for extremely
uneven surfaces.
3. When you are finished adjusting the AMT, ask your assistant to
gently lower the unit to the floor.
Levelers
Install the rear pedestal over the rear crosspiece.
Important: The rear pedestal lays flat on the floor. It provides a
mounting platform for stepping onto the AMT and also indicates the
buffer zone that patrons must stay clear of when someone is using
the AMT.
Rear pedestal
100i Commercial AMT Assembly Guide 7

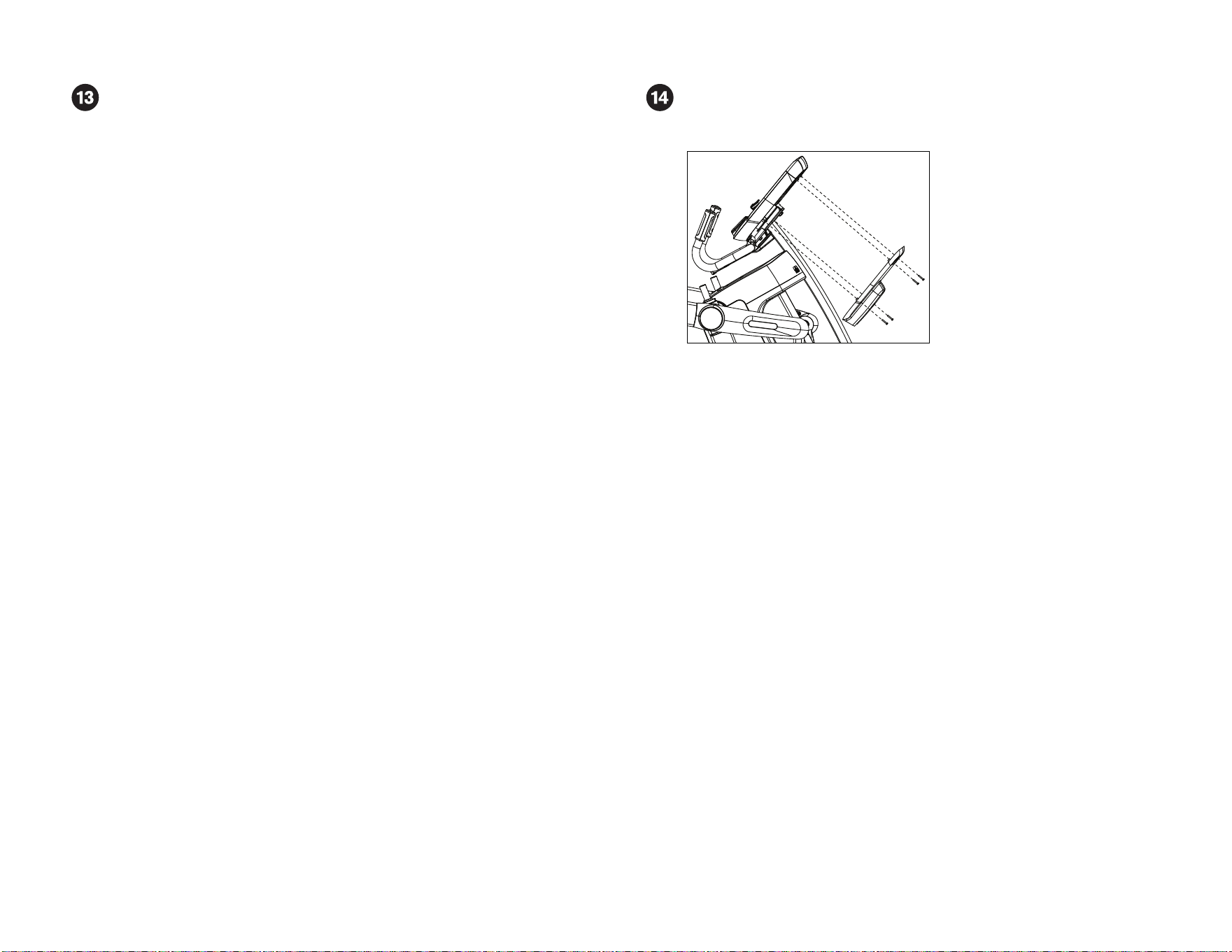

Replace the back console plate onto the display console using the four
screws removed in step 4. Secure the fasteners with a Phillips-head
screwdriver.
Verify that the heart rate display is operational.
1. Stand on the rear pedestal and face the display.
2. Place one foot in the lower foot plate and grasp an arm or a
stationary handlebar for stability while you step into the other foot
plate.
3. When you are comfortably situated, begin climbing.
4. Grasp both touch-sensitive handlebar grips.
5. Look at the HEART RATE display. After a few seconds, a number
appears indicating your heart rate.
Note: If a number does not appear in the HEART RATE display, check
the 4-prong heart rate cable to make sure it is properly connected.
100i Commercial AMT Assembly Guide 8
Notes:
©2008 Precor Incorporated
www.precor.com
100i AG 49736-106, en
28 March 2008
Precor Incorporated
20031 142nd Avenue NE
P.O. B ox 7202
Woodinville, WA USA 98072-4002
