Arc ME-706 M y Regenerating Recumbent Exercise Bike

User Manual - Transcript

• Page 1 - English - : NOTE Please read all instructions carefully before using this product Table of Contents Safety Notice Important Assembly Information Care and Maintenance Parts List Warranty Ordering Parts Model ME706 Retain This Manual for Reference OWNERS MANUAL REGENERATING MAGNETIC RECUMBENT BIKE ME706 IMPORTANT Please read this manual before commencing assembly of this product IMPEX INC 2801 S Towne Ave Pomona CA 91766 Tel 800 9998899 Fax 626 9619966 wwwmarcyprocom supportimpexfitnesscom
• Page 2 - English - : IMPEX INC wwwmarcyprocom TABLE OF CONTENTS BEFORE YOU BEGIN 1 IMPORTANT SAFETY NOTICES 2 EXERCISE GUIDELINES 3 WARNING LABEL PLACEMENT 5 IMPORTANT ASSEMBLY INFORMATION 6 CARE AND MAINTANENCE WEIGHT CAPACITY OPERATING NOTES 7 CONSOLE INSTRUCTIONS 8 PARTS LIST 15 EXPLODED DIAGRAM 18 WARRANTY 22 ORDERING PARTS 22 BEFORE YOU BEGIN Thank you for selecting the MARCY REGENERATING MAGNETIC RECUMBENT BIKE ME706 by IMPEX INC For your safety and benefit read this manual carefully before using the equipment As a manufacturer we are committed to provide you complete customer satisfaction If you have any questions or find there are missing or damaged parts we guarantee you complete satisfaction through direct assistance from our factory To avoid unnecessary delays please call our TOLLFREE customer service number Our Customer Service Agents will provide immediate assistance to you TollFree Customer Service Number 18009998899 Mon Fri 9 am 5 pm PST wwwmarcyprocom supportimpexfitnesscom
• Page 3 - English - : IMPEX INC wwwmarcyprocom IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise bike is built for optimum safety However certain precautions apply whenever you operate a piece of exercise bike Be sure to read the entire manual before you assemble or operate your bike In particular note the following safety precautions Keep children and pets away from the machine at all times DO NOT leave children unattended in the same room with the bike 1 Only one person at a time should use the bike 2 If the user experiences dizziness nausea chest pain or any other abnormal symptoms STOP the workout at once CONSULT A PHYSICIAN IMMEDIATELY 3 Position the machine on a clear leveled surface DO NOT use the bike near water or outdoors 4 Keep hands away from all moving parts 5 Always wear appropriate workout clothing when exercising DO NOT wear robes or other clothing that could become caught in the bike Running or aerobic shoes are also required when using the bike 6 Use the machine only for its intended use as described in this manual DO NOT use attachments not recommended by the manufacturer 7 Do not place any sharp object around the bike 8 Disabled person should not use the bike without a qualified person or physician in attendance 9 Before using the bike to exercise always do stretching exercises to properly warm up 10 Never operate the machine if the bike is not functioning properly 11 Read all warnings posted on the exercise bike 12 Inspect the exercise bike for worn or loose component prior to use Tightenreplace any 13 loose or wore components prior to use 14 Care should be taken in mounting or dismounting the exercise bike 15 This exercise bike is for consumer and home use only WARNING BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR PHYSICIAN THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PREEXISTING HEALTH PROBLEMS READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT IMPEX INC ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT SAVE THESE INSTRUCTIONS
• Page 4 - English - : IMPEX INC wwwmarcyprocom EXERCISE GUIDELINES Building Muscle and Gaining Weight Unlike aerobic exercise which emphasizes endurance training anaerobic exercise focuses on strength training A gradual weight gain can occur while building the size and strength of muscles While developing muscle mass your body adapts to the stress placed upon it You can modify your diet to include foods such as meat fish and vegetables These foods help muscles recover and replenish important nutrients after a strenuous workout Muscle Strength and Endurance To achieve the greatest benefit from exercise it is important to develop an exercise program that allows you to work all of the major muscle groups equally To increase muscles strength follow this principle Increasing resistance and maintaining the number of repetitions of an exercise results in increased muscle strength To tone your body follow the principle Decreasing resistance plus increasing the number of repetitions of an exercise results in increased body tone Once you feel comfortable with an exercise you can change the resistance the number of repetitions or the speed at which you do the exercise It is not necessary to change all three variables For example lets say that you are training at 50 lbs and performing the exercise 10 times in 3 minutes When this becomes too easy you may decide to move up lifting 60 lbs for the same number of repetitions in the same amount of time Lifting more weights fewer times most often develops muscle strength To gain both muscle strength and endurance it is recommended that you perform each exercise 15 to 20 reps per set Training Intensity How hard you begin to train depends on your overall level of fitness The soreness you experienced can be lessened by decreasing the load you place on your muscles and by performing fewer sets To avoid injury you should gradually work into an exercise program and set the load to your individual fitness level The load should increase as your fitness level increases Muscle soreness is common especially when you first start exercising If you are painfully sore for a long time it may be time to change your program Eventually your muscle system will become accustomed to the stress and strain placed on it
• Page 5 - English - : IMPEX INC wwwmarcyprocom Beginning a Strength Building Program Warming Up To begin strength training it is important to stretch and perform light exercise for 5 to 10 minutes This helps prepare the body for more strenuous exercise by increasing circulation raising your body temperature and developing more oxygen to your muscles Workout Each workout to keep in mind that muscle soreness that lasts for a long period in not desirable and may mean that injury has occurred Cool Down At the end of each workout perform slow stretching exercises for 5 to 10 minutes Ease into each stretch only going as far as you can This stage allows your muscles wind down after training To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is performed in addition to the strength training Drinking Water For the body to function properly it must be properly hydrated If you are exercising you should increase your fluid intake The reason for this is that the water you take in will leave your system through the sweating mechanism that cools your body during exercise The water you lose through exercise must be replaced so that the muscles can recover properly Rest Day Although you may not feel like doing it taking a rest day at least once a week is important because it gives you body a chance to heal it self Continuously working your muscle will result in over training which will not benefit in the long run

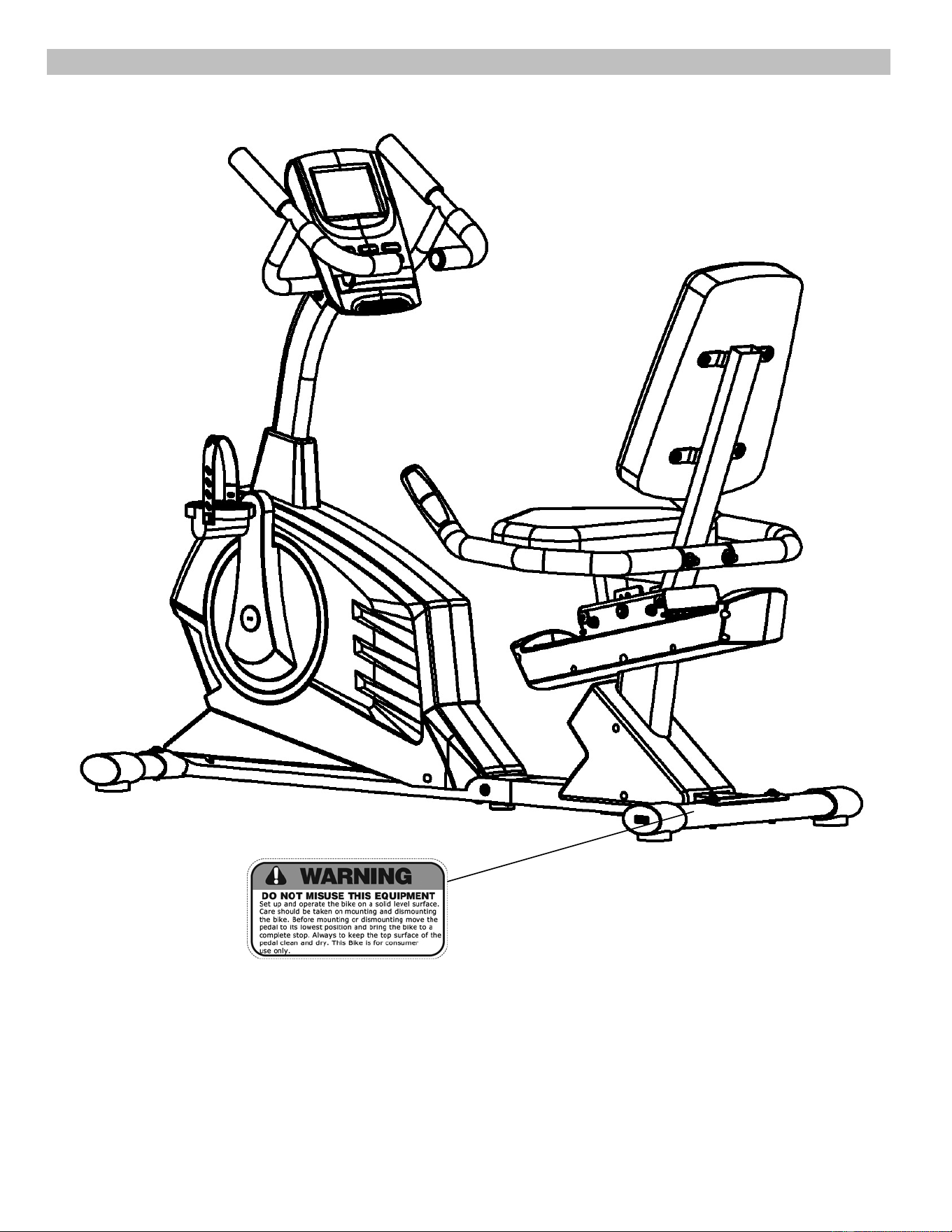

• Page 6 - English - : IMPEX INC wwwmarcyprocom WARNING LABEL PLACEMENT The warning labels shown here have been placed on the Base Frame If the labels are missing or illegible please call customer service at 18008888899 for replacements Apply the labels in the location shown
• Page 7 - English - : IMPEX INC wwwmarcyprocom IMPORTANT ASSEMBLY INFORMATION Tools Required for Assembling the Bench Two Adjustable Wrenches and Allen Wrenches NOTE It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be assembled Attach washer only to end of the Carriage Bolt Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to be assembled Always wait until all bolts are assembled onto the bench before tightening the bolts Do not tighten each bolt right after it is installed Fasten Nuts and Bolts Securely tighten all Nuts and Bolts after all components have been assembled in current and previous steps NOTE Do not over tighten any component with pivoting function Make sure all pivoting components are able to move freely Do not tighten all Nuts and Bolts in this step
• Page 8 - English - : IMPEX INC wwwmarcyprocom CARE AND MAINTENANCE 1 Lubricate moving parts with WD40 or light oil periodically 2 Inspect and tighten all parts before using the equipment 3 The equipment can be cleaned using a damp cloth and mild nonabrasive detergent DO NOT use solvents 4 Examine the equipment regularly for signs of damages or wear 5 Replace any defective components immediately andor keep the equipment out of use until repair 6 Failure to examine regularly may affect the safety level of the equipment WEIGHT CAPACITY AND DIMENSION 1 Maximum User weight 300 lbs 2 Assembled Dimension 57quotx24quotx42quot

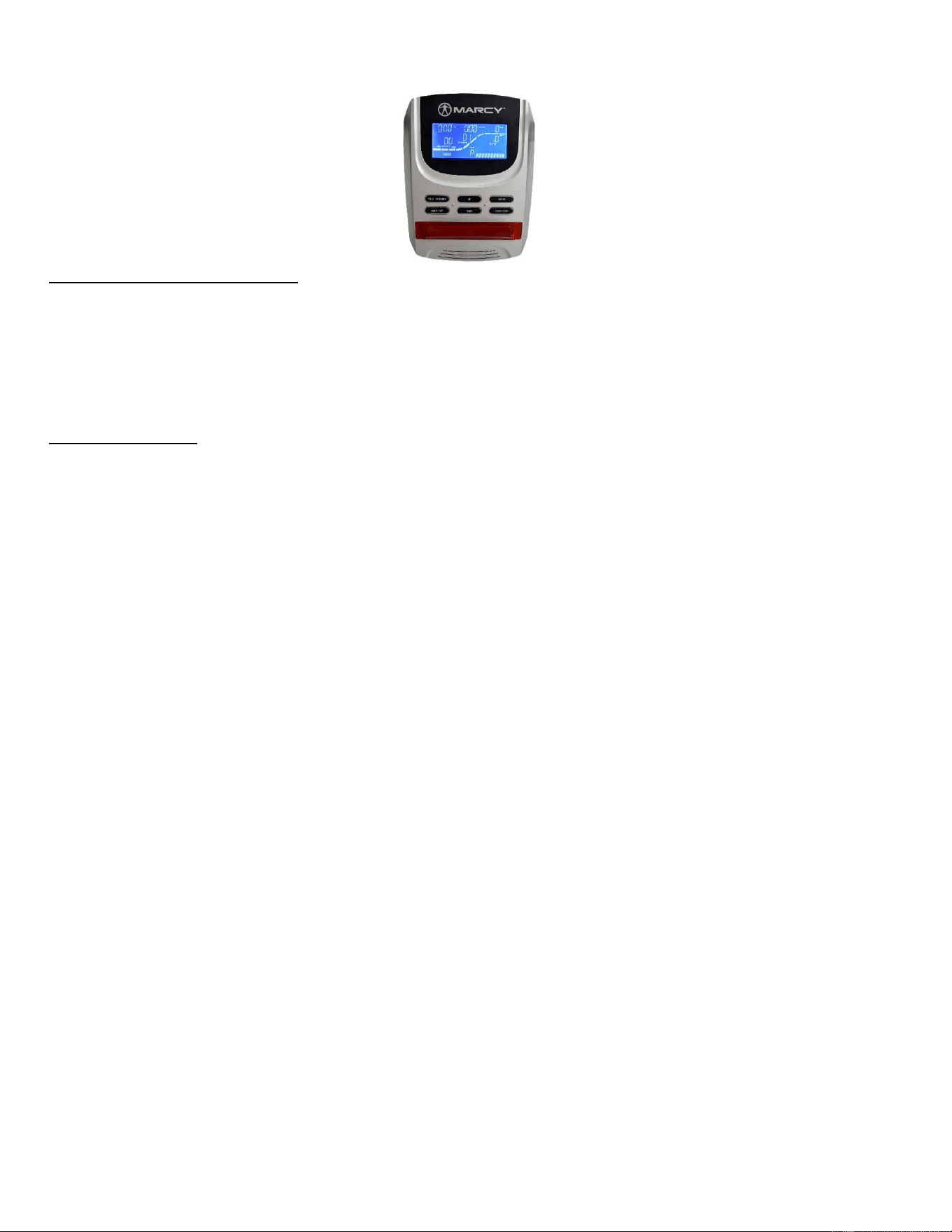

• Page 9 - English - : IMPEX INC wwwmarcyprocom CONSOLE INSTRUCTIONS A Program select and setting value 1 Use the UP or DOWN keys to select program mode then press ENTER to confirm your exercise mode 2 In the Manual mode use the UP or DOWN keys to set up your exercise TIME DISTANCE CALORIES PULSE 3 Press the STARTSTOP key to start exercise 4 When you reach the target the computer will beep then stop 5 If you set up more than one target and you would like to reach next target press STARTSTOP key to keep on exercising B WakeUp Function The monitor will enter SLEEP mode LCD off after 4 minutes of inactivity Press any button to start the monitor Functions and Features 1 TIME Shows your elapsed workout time in minutes and seconds Your computer will automatically count up from 000 to 9959 in one second intervals You can also program your computer to count down from a set value by using the UP and DOWN keys If you continue exercising once the time has reached 000 the computer will begin beeping and reset itself to the original time set letting you know your workout is completed 2 DISTANCE Displays the cumulative distance traveled during each workout up to a maximum of 999 MILE 3 RPM Your pedaling speed 4 WATT The amount of mechanical power the computer is receiving from your exercise 5 SPEED Displays your workout speed value in MILES per hour 6 CALORIES Your computer will estimate the cumulative calories burned at any given time during your workout 7 PULSE Your computer displays your pulse rate in beats per minute during your workout Pulse function works with hand pulse and chest belt not included The receiver inside of meter is compatible with Polar 5kHZchest belt 8 AGE Your computer is ageprogrammable from 10 to 99 years If you do not set an age this function will always default to age 35 9 TARGET HEART RATE TARGET PULSE The heart rate you should maintain is called your Target Hear Rate in beats per minute 10 PULSE RECOVERY During the START stage leave the hands holding on grips or leave the chest transmitter attached and then press PULSE RECOVERY key time starts counting from 0060 0059 to 0000 As soon as 0000 is reached the computer will show your heart rate recovery status with the grade F10 to F60 10 means OUTSTANDING 10F20 means EXCELLENT 20F29 means GOOD 30F39 means FAIR 40F59 means BELOW AVERAGE 60 means POOR Note If no pulse signal input then the computer will show P on the PULSE window If the computer shows ERR on the message window please press the PULSE RECOVERY key and place your hands on the pulse grip 11 DISTANCE BAR Every bar indicates 100 meter or 01 mile
• Page 10 - English - : IMPEX INC wwwmarcyprocom Key function There are 6 buttons as follows 1 STARTSTOP key a Quick Start function Allows you to start the computer without selecting a program Manual workout only Time automatically begins to count up from zero b During the exercise mode press the key to STOP exercise c During the stop mode press the key to START exercise 2 UP key a Press the key to increase the resistance during exercise mode b During the setting mode press the key to increase the value of Time Distance Calories Age and select Gender and Program 3 DOWN key a Press the key to decrease the resistance during exercise mode b During the setting mode press the key to decrease the value of Time Distance Calories Age and select Gender and Program 4 ENTER key a During the setting mode press the key to accept the current data entry b At the stop mode by holding this key for over two seconds the user can reset all values to zero or default value c During setting the Clock press this key can accept the setting hour and setting minute 5 BODY FAT key Press the key to input your HEIGHT WEIGHT GENDER and AGE then to measure your body fat ratio 6 PULSE RECOVERY key Press the key to activate heart rate recovery function Program Introduction amp Operation Manual Program Manual P1 is a manual program User can start exercise by pressing STARTSTOP key The default resistance level is 5 Users may exercise in any resistance level Adjusting by UPDOWN keys during the workout with a period of time or a number of calories or a certain distance Operations 1 Use UPDOWN keys to select the MANUAL P1 program 2 Press the ENTER key to enter MANUAL program 3 The TIME will flash and you can press UP or DOWN keys to set your exercise TIME Press ENTER key to confirm your desired TIME 4 The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE Press ENTER key to confirm your desired DISTANCE 5 The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES Press ENTER key to confirm your desired CALORIES 6 The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE Press ENTER key to confirm your desired Pulse 7 Press the STARTSTOP key to begin exercise Preset Program Steps Hill Rolling Valley Fat Burn Ramp Mountain Intervals Random Plateau Fartlek Precipice Program PROGRAM 2 to PROGRAM 13 is the preset programs Users can exercise with different level of loading in different intervals as the profiles show Users may exercise in any desirous of resistance level Adjusting by UPDOWN keys during the workout with a period of time or a number of calories or a certain distance Operations 1 Use UPDOWN keys to select one of the above programs from P2 to P13 2 Press the ENTER key to enter your workout program 3 The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME Press ENTER key to confirm your desired TIME 4 The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE Press ENTER key to confirm your desired DISTANCE 5 The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES Press ENTER key to confirm your desired CALORIES 6 The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE Press ENTER key to confirm your desired Pulse
• Page 11 - English - : IMPEX INC wwwmarcyprocom 7 Press the STARTSTOP key to begin exercise User Setting Program User 1 User 2 User 3 User 4 Program 14 to 17 is the user setting program Users are free to create the values in the order of TIME DISTANCE CALORIES and the resistance level in 10 columns The values and profiles will be stored in the memory after setup Users may also change the ongoing loading in each column by UPDOWN keys and they will not change the resistance level stored in the memory Operations 1 Use UPDOWN keys to select the USER program from P14 to P17 2 Press the ENTER key to enter your workout program 3The column 1 will flash and then use the UPDOWN keys to create your personal exercise profile Press ENTER to confirm your first column of exercise profile The default level is load 1 4The column 2 will flash and then use the UPDOWN keys to create your personal exercise profile Press ENTER to confirm your second column of exercise profile 5 Follow the above description 5 and 6 to finish your personal exercise profiles Press ENTER to confirm your desired exercise profile 6 The TIME will flash and you can press UP or DOWN keys to set your exercise TIME Press ENTER key to confirm your desired TIME 7 The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE Press ENTER key to confirm your desired DISTANCE 8 The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES Press ENTER key to confirm your desired CALORIES 9 The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE Press ENTER key to confirm your desired Pulse 10 Press the STARTSTOP key to begin exercise Heart Rate Control Program 55 HRC 65 HRC 75 HRC 85 HRC Target HRC Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program Program 18 is the 55 Max HRC Target HR 220 AGE x 55 Program 19 is the 65 Max HRC Target HR 220 AGE x 65 Program 20 is the 75 Max HRC Target HR 220 AGE x 75 Program 21 is the 85 Max HRC Target HR 220 AGE x 85 Program 22 is the Target HRC Workout by your target heart rate value Users can exercise according to your desired Heart Rate program by setting your AGE TIME DISTANCE CALORIES or TARGET PULSE In these programs the computer will adjust the resistance level according to the heart rate detected For example the resistance level may increase every 20 seconds while the heart rate detected is lower than the TARGET HRC Also the resistance level may decrease every 20 seconds while the heart rate detected is higher than the TARGET HRC Operations 1 Use UPDOWN keys to select one of the heart rate control program from P18 to P22 2 Press the ENTER key to enter your workout program 3 The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set your AGE The default age is 4 At program 22 the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180 The default TARGET PULSE is 120 5 The TIME will flash and you can press UP or DOWN keys to set your exercise TIME Press ENTER key to confirm your desired TIME 6 The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE Press ENTER key to confirm your desired DISTANCE 7 The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES Press ENTER key to confirm your desired CALORIES 8 Press the STARTSTOP key to begin exercise Watt Control Program Watt Control Program 23 is a Speed Independent Program Press ENTER key to set up the values of TARGET WATT TIME DISTANCE and CALORIES During the exercise mode the level of resistance is not adjustable For example the level of resistance may increase while the speed is too slow Also the level of resistance may decrease while the speed is too fast As a result the calculated value of WATT will close to the value of TARGET WATT setup by users
• Page 12 - English - : IMPEX INC wwwmarcyprocom Operations 1 Use UP or DOWN key to select the WATT CONTROL P23 program 2 Press ENTER key to enter your workout program 3 The TIME will flash and you can press UP or DOWN key to set your exercise TIME Press ENTER key to confirm your desired TIME 4 The DISTANCE will flash and you can press UP or DOWN key to set your target DISTANCE Press ENTER key to confirm your desired DISTANCE 5 The WATT will flash and you can press UP or DOWN key to set your target WATT value Press ENTER key to confirm your target WATT The default WATT value is 100 6 The CALORIES will flash and you can press UP or DOWN key to set your exercise CALORIES Press ENTER key to confirm your desired CALORIES 7 The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE Press ENTER key to confirm your desired Pulse 8 Press the STARTSTOP key to begin exercise NOTE 1 WATT TORQUE KGM RPM 103 2 In this program the WATT value will keep constant value It means that if you peddle quickly the resistance level will decrease and if you peddle slowly the resistance level will increase Always try to keep you in the same watt value Body Fat Program Body Fat Program 24 is a special program design to calculate users body fat ratio and to offer a specific loading profile for users There are 3 body types divided according to the FAT calculated Type1 BODY FAT gt 27 Type2 27 BODY FAT 20 Type3 BODY FAT lt 20 The computer will show the test results of FAT PERCENT Operations 1 Use UPDOWN keys to select the BODY FAT P24 program 2 Press the ENTER key to enter your workout program 3 The HEIGHT will flash and you can press UP or DOWN keys to set your HEIGHT Press ENTER key to confirm your HEIGHT The default HEIGHT is 170cm or 507 5feet 7 inches 4 The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT Press ENTER key to confirm your WEIGHT The default WEIGHT is 70kgs or 155lbs 5 The GENDER will flash and you can press UP or DOWN keys to select your sex Number 1 means man and number 0 means female Press ENTER key to confirm your Gender The default sex is 1 MAN 6 The AGE will flash and you can press UP or DOWN keys to set your AGE Press ENTER key to confirm your AGE The default AGE is 35 7 Press the STARTSTOP key to begin body fat measurement If the window show E on the window please make sure your hands are attached well on the grips or the chest belt is touch well on your body Then press the STARTSTOP key again to begin body fat measurement 8 After finished your measurement the computer will show the values of FAT PERCENT on the LCD display 9 Press STARTSTOP key to begin exercise Operation guide 1 Sleep Mode The computer will enter the sleep mode when there is no signal input and no keys be pressed after 4 minutes You can press any key to wake up the computer
• Page 13 - English - : IMPEX INC wwwmarcyprocom Error Message E1 ERROR 1 Normal state During workout when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1 Power on state The gear motor will return to zero automatically when the signal of motor cannot be detected for more than 4 seconds then the gear motors driver will be cut off immediately and show the E1 on the LCD display All the other digital and function mark are blank and the output signals are cut off also E2 ERROR 2 When the monitor read the memory data if the ID code is not correct or the memory IC damages then the monitor will show E2 immediately at power on E3 ERROR 3 After 4 seconds by start mode the computer detects the faulty motor did not leave the zero point then the LCD bar displays E3 LCD Workout Graphics PRESET PROGRAM PROFILES PROGRAM 1 PROGRAM 2 PROGRAM 3 MANUAL STEPS HILL PROGRAM 4 PROGRAM 5 PROGRAM 6 ROLLING VALLEY FAT BURN PROGRAM 7 PROGRAM 8 PROGRAM 9 RAMP MOUNTAIN INTERVALS PROGRAM 10 PROGRAM 11 PROGRAM 12 RANDOM PLATEAU FARTLEK PROGRAM 13 PRECIPICE USER SETTING PROGRAM PROGRAM 14 USER 1 PROGRAM 15
• Page 14 - English - : IMPEX INC wwwmarcyprocom USER 2 PROGRAM 16 USER 3 PROGRAM 17 USER 4 HEART RATE PROGRAM PROFILES PROGRAM 18 55 HRC PROGRAM 19 65 HRC PROGRAM 20 75 HRC PROGRAM 21 85 HRC PROGRAM 22 TARGET HRC WATT CONTROL PROGRAM PROGRAM 23 WATT CONTROL
• Page 15 - English - : IMPEX INC wwwmarcyprocom BODY FAT TEST PROGRAMS PROGRAM 24 BODY FAT STOP MODE BODY FAT START MODE One of the Following Six Profiles Will Display Automatically after Measuring Your BODY FAT Workout Time 40 minutes Workout Time 40 minutes Workout time 20 minutes Workout Time 40 minutes Workout Time 40 minutes Workout time 20 minutes
• Page 16 - English - : IMPEX INC wwwmarcyprocom PARTS LIST Part Description Qty Main frame Front stabilizer Rear stabilizer Front post Handlebar L amp R 11 Computer Rear support tube Front post cover Middle computer wire Front extension hand pulse wire Upper foam grip for stationary handlebar Screw M5 x ½quot End cap for handlebar Allen bolt M8 x ⅝quot Curved washer Φ8 x ¾quot Flat washer Φ⅜quot Middle extension hand pulse wire Lower computer wire Pedal LampR 11 End cap for front stabilizer LampR 11 Allen bolt M8 x 2⅛quot Rear extension hand pulse wire Left Right cover for sliding tube 11 End cap for rear stabilizer 11 Level adjustment Self taping screw ST5 x ½quot Bumper Screw M5 x ⅜quot Quick release handle Lower foam grip for handlebar End cap for seat support bracket Seat support bracket Seat cushion Back cushion Ball end cap End cap for rear handlebar Rear handlebar Upper hand pulse sensor Lower hand pulse sensor Screw M25 Foam grip for rear handlebar
• Page 17 - English - : IMPEX INC wwwmarcyprocom Hand pulse wire Carriage bolt M8 x 2quot Acorn nut M8 Grommet End cap for pedal cover Flange screw Pedal cover Left support tube for pedal cover LampR 11 Back cover for pedal cover Self tapping screw ST5 x ⅜quot Phillip screw M5 x ⅜quot Fixed plate Allen bolt M6 x ¾quot Self tapping screw ST5 x ¾quot Left Right chain cover 11 Flange nut Cclip Φ½quot Axle for flywheel Flywheel Magnet assembly Aircraft nut M8 Allen bolt M8 x 2⅛quot Cclip Φ⅝quot Bearing 6203 Hex bolt M6 x 1quot Hex nut M6 Spring for magnet assembly Spring for idler wheel Eye bolt Nut M8 Idler wheel Powder spacer Pulley Aircraft nut M6 Axle for pulley Allen bolt M6 x ⅝quot Sensor bracket Belt Bushing for seat post Bolt M8 x ¾quot Motor Power wire Sensor wire Motor cable Screw for generator Generator End cap for sliding tube
• Page 18 - English - : IMPEX INC wwwmarcyprocom Support bracket for sliding tube Sliding wheel Bearing Allen bolt M8 x 1½quot Sleeve for wheel Brake bracket Bushing Phillip screw M6 x ⅜quot Rear support tube Cover LampR 11 Locking Washer Audio wire

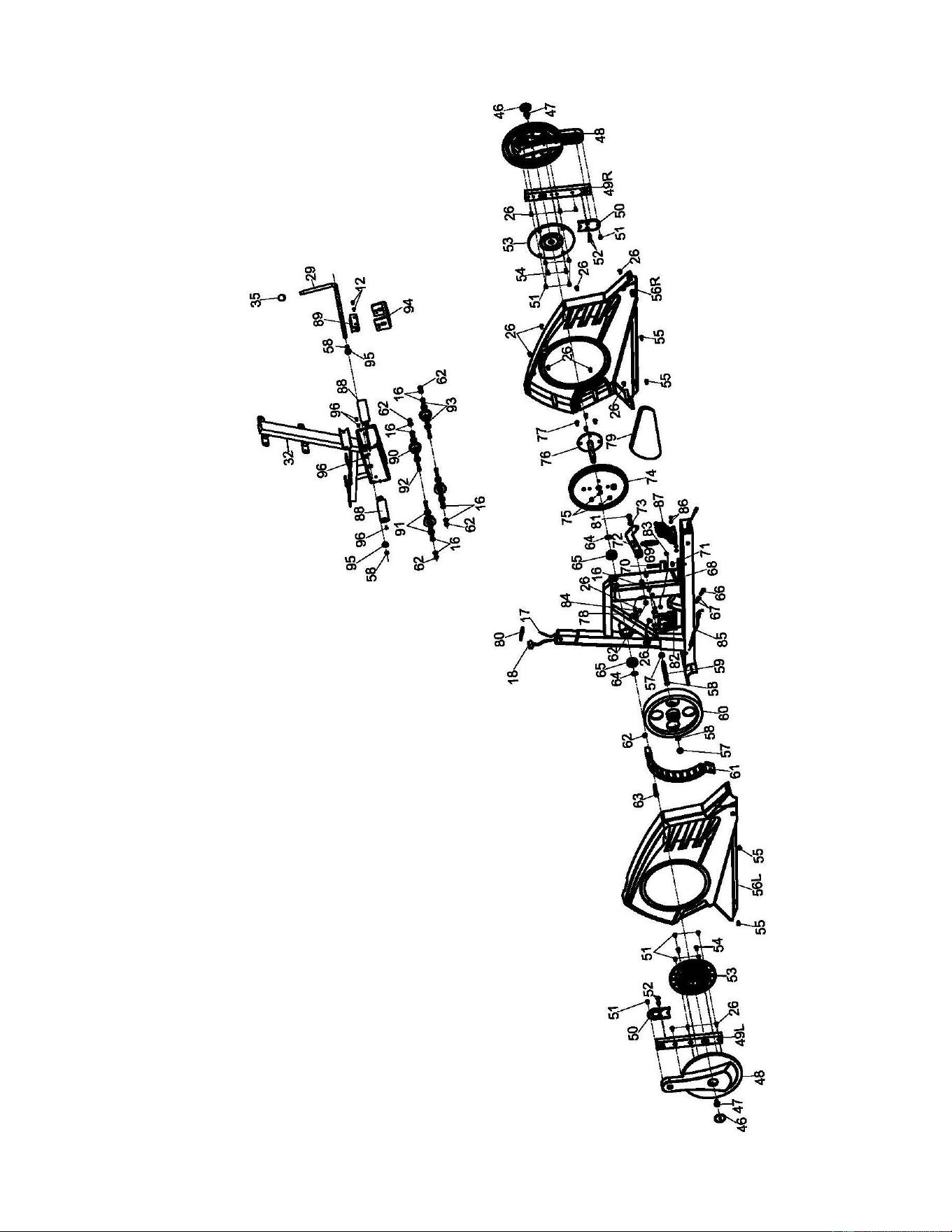

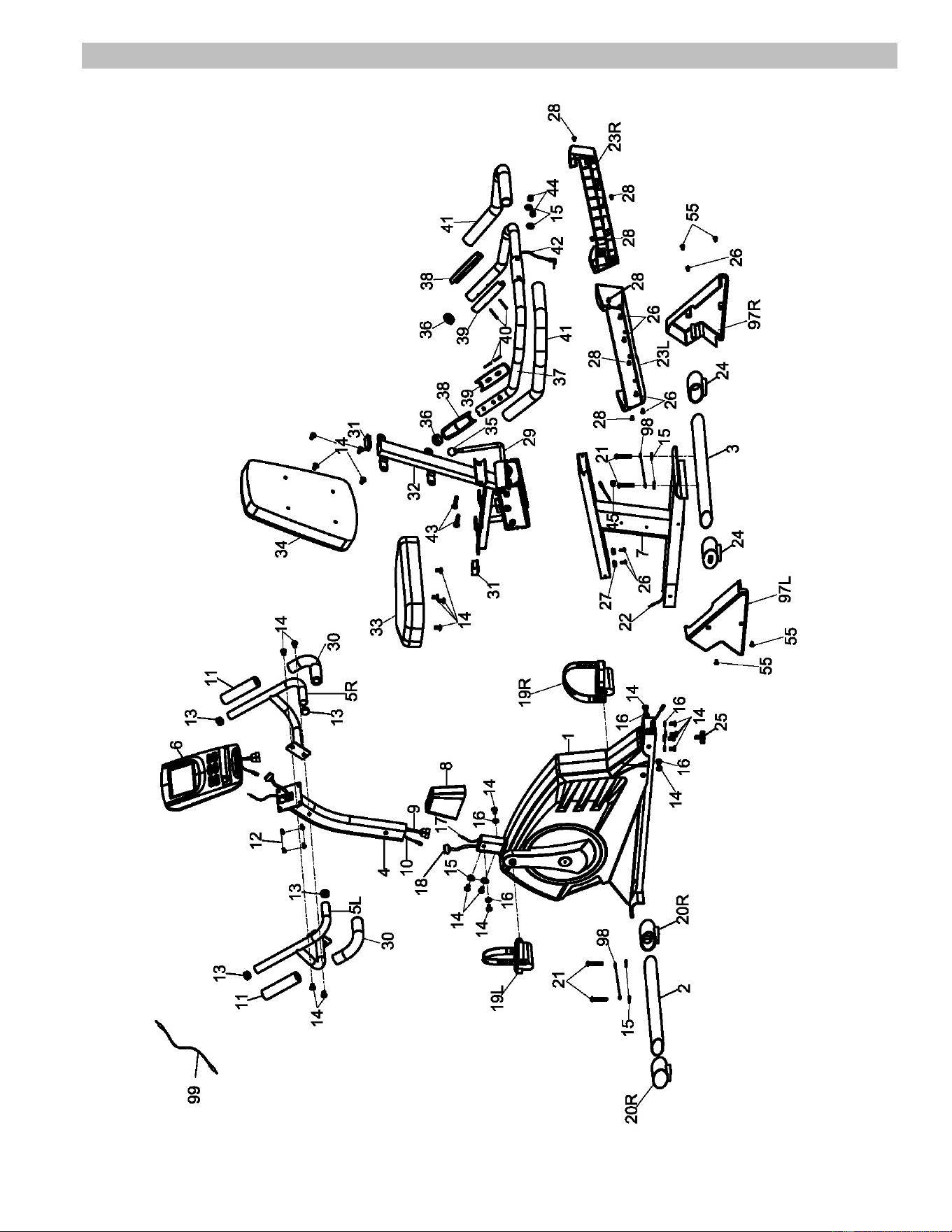

• Page 19: IMPEX INC wwwmarcyprocom EXPLODED DIAGRAM

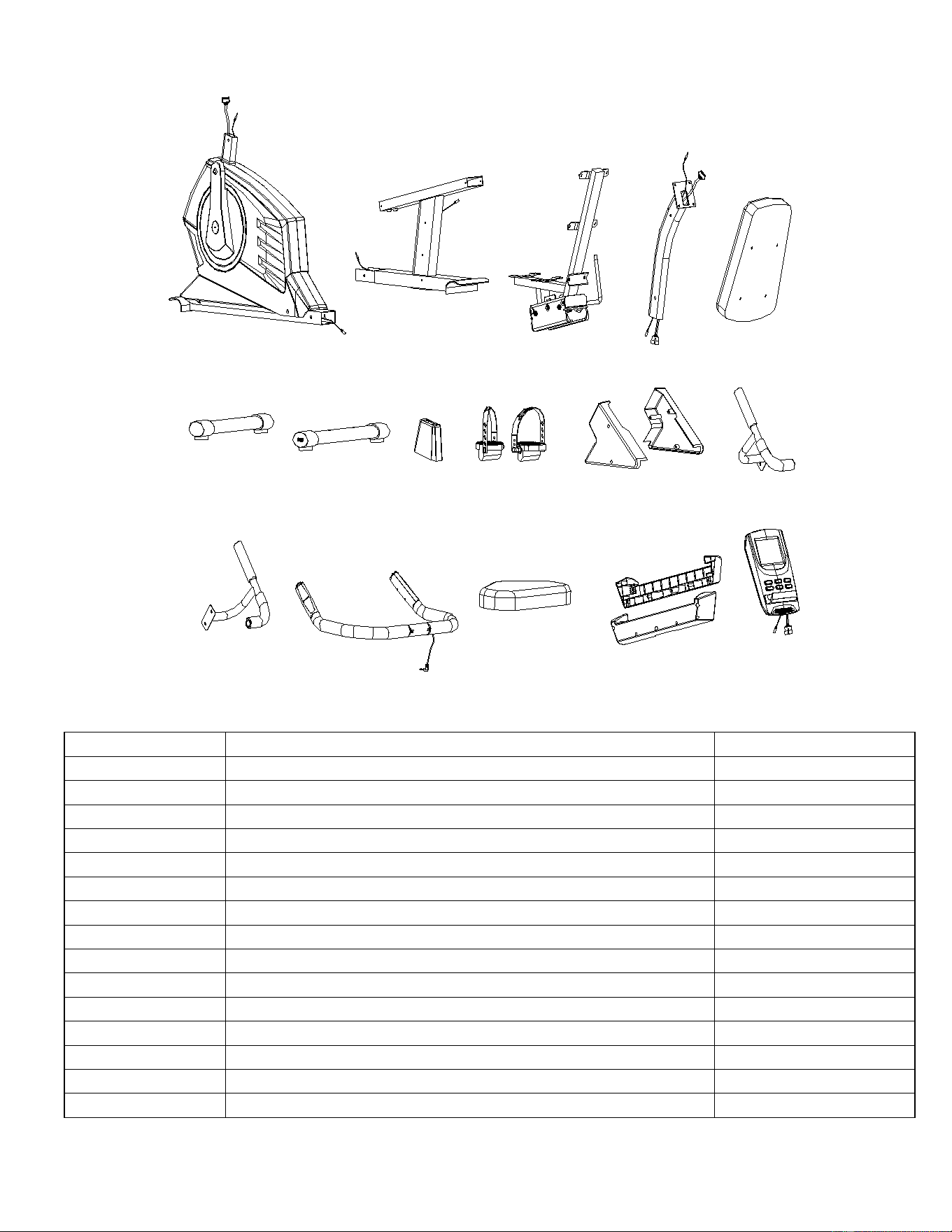

• Page 21 - English - : IMPEX INC wwwmarcyprocom PREASSEMBLY CHECK LIST NO1 NO7 NO32 NO4 NO34 NO2 NO5R NO8 NO19LR NO3 NO5L NO33 NO23LR NO6NO37 NO97LR Part No Description Qty 1 Main frame 1 Rear support tube 32 Seat support bracket 1 Front post Back cushion Front stabilizer Rear stabilizer Front post cover 19LR Pedal LampR 97LR Rear support tube Cover LampR 5LR Handlebar L amp R Rear handlebar Seat cushion 23LR Left Right cover for sliding tube Computer
• Page 22 - English - : IMPEX INC wwwmarcyprocom HARDWARE PARTS LIST No Description Drawing Qty 14 Allen bolt M8 x ⅝quot 15 Curved washer Φ8 x ¾quot 16 Flat washer Φ⅜quot 21 Allen bolt M8 x 2⅛quot 25 Level adjustment 1 35 Ball end cap 43 Carriage bolt M8 x 2quot 44 Acorn nut M8 98 Locking Washer 4 Allen Wrench Crossing Wrench Above described parts are all the parts you need to assemble this machine Before you start to assemble please check the hardware packing to make sure they are included
• Page 23 - English - : IMPEX INC wwwmarcyprocom IMPEX INC LIMITED WARRANTY IMPEX Inc quotIMPEX quot warrants this product to be free from defects in workmanship and material under normal use and service conditions for a period of two years on the Frame from the date of purchase This warranty extends only to the original purchaser IMPEXs obligation under this Warranty is limited to replacing or repairing at IMPEXs option All returns must be preauthorized by IMPEX Preauthorization may be obtained by calling IMPEX Customer Service Department at 18009998899 All freights on products returned to IMPEX must be prepaid by the customer This warranty does not extend to any product or damage to a product caused by or attributable to freight damage abuse misuse improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes No other warranty beyond that specifically set forth above is authorized by IMPEX IMPEX is not responsible or liable for indirect special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss loss of property loss of revenues or profits loss of enjoyments or use costs of removal installation or other consequential damages or whatsoever natures Some states do not allow the exclusion or limitation of incidental or consequential damages Accordingly the above limitation may not apply to you The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein Some states do not allow limitations on how long an implied warranty lasts Accordingly the above limitation may not apply to you This warranty gives you specific legal right You may also have other rights which vary from state to state Register online at wwwmarcyprocom IMPEX INC 2801 S Towne Ave Pomona CA 91766 ORDERING REPLACEMENT PARTS Replacement parts can be ordered by calling our Customer Service Department tollfree at 18009998899 during our regular business hours Monday through Friday 9 am until 5 pm Pacific standard time supportimpexfitnesscom When ordering replacement parts always give the following information 1 Model 2 Description of Parts 3 Part Number 4 Date of Purchase
