Owner's Manual
When calling for parts or
service, please specify
the following numbers
:
Model#: 15-1348
S/N: _____________
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Quickstart Guide

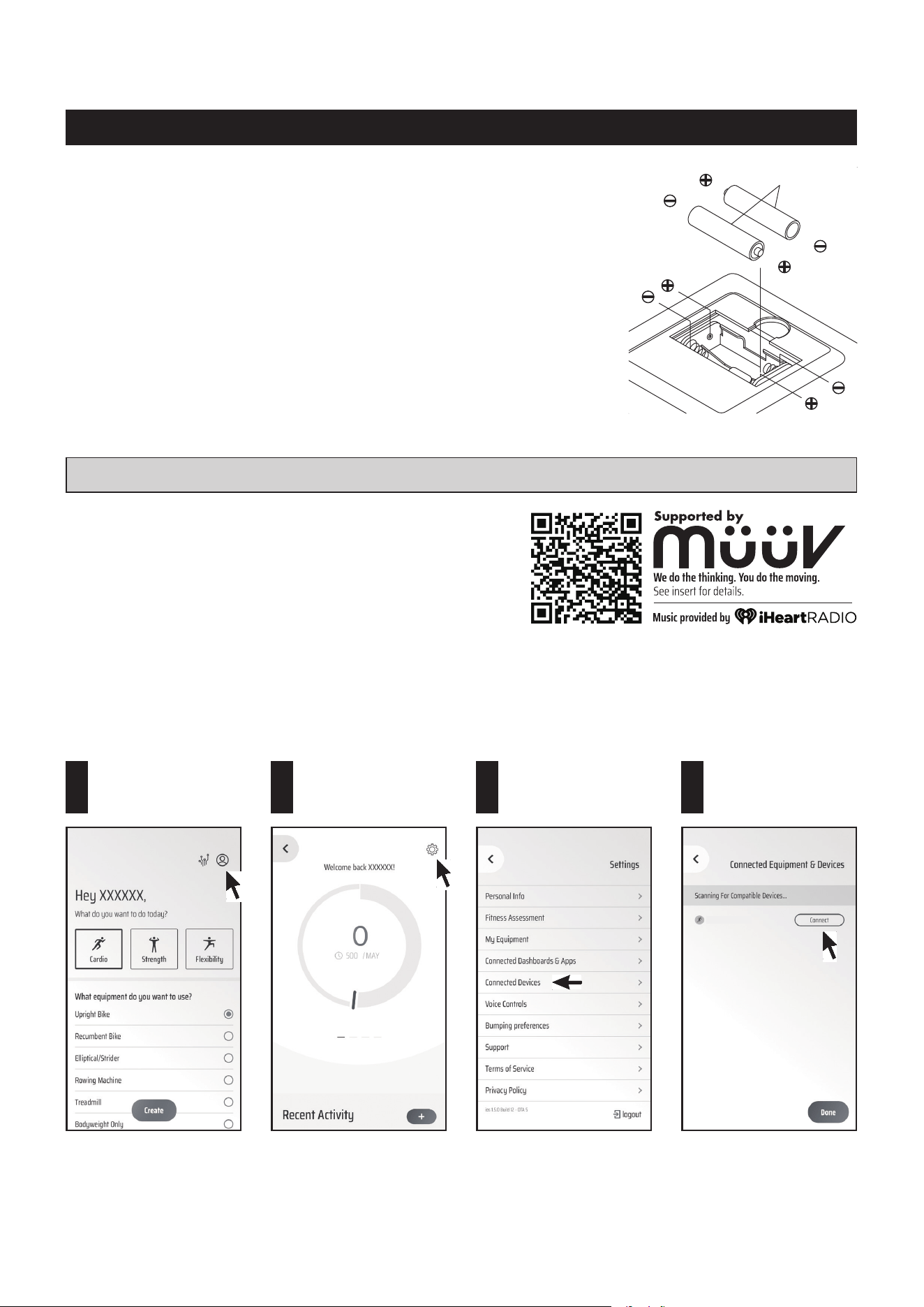

Go to the App Store on your device or
scan the QR Code for quick access.
The müüv app provides the ability to:
Assemble Your Bike
Control Your Bike
See How You’re Doing
Receive SMART
Audio Coaching
Watch the short video for easy set-up.
View your RPMs, resistance, speed, time lapsed and time remaining while you
ride.
We use your profile information, preferences, and real-time performance & bike data
to provide you with smart and adaptive training to help you reach your goals.
Connect your smart phone via Bluetooth to start, stop, or pause your workouts and
adjust your resistance as you ride.
Download the app and get moving!
IMPORTANT
✓
✓
✓
✓
Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC.
TABLE OF CONTENTS
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning, Caution & Notice Labels
... 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Set Up Instructions ................................... 12
Operational Instructions ........................... 13
Storage ....................................................... 16
Maintenance ............................................... 16
Conditioning Guidelines ........................... 17
Warm-Up and Cool-Down ......................... 18
Warranty ..................................................... 19
Product Parts Drawing .............................. 20
Parts List .................................................... 21
Fax/Mail Ordering Form ............................ 23
SAFETY INSTRUCTIONS
3
1. Save these instructions and ensure that other exercisers read this manual prior to using the Stamina®
Recumbent Exercise Bike 348 for the rst time.
2. Read all warnings and cautions posted on the Stamina® Recumbent Exercise Bike 348.
3. The Stamina® Recumbent Exercise Bike 348 should only be used after a thorough review of the Owner’s
Manual. Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the Stamina® Recumbent Exercise Bike 348. Do not allow children to use or
play on the Stamina® Recumbent Exercise Bike 348. Keep children and pets away from the Stamina®
Recumbent Exercise Bike 348 when it is in use.
6. The Stamina® Recumbent Exercise Bike 348 is not a freewheeling exercise bike; therefore, pedal speed
should be reduced in a controlled manner to prevent injury from spinning pedals.

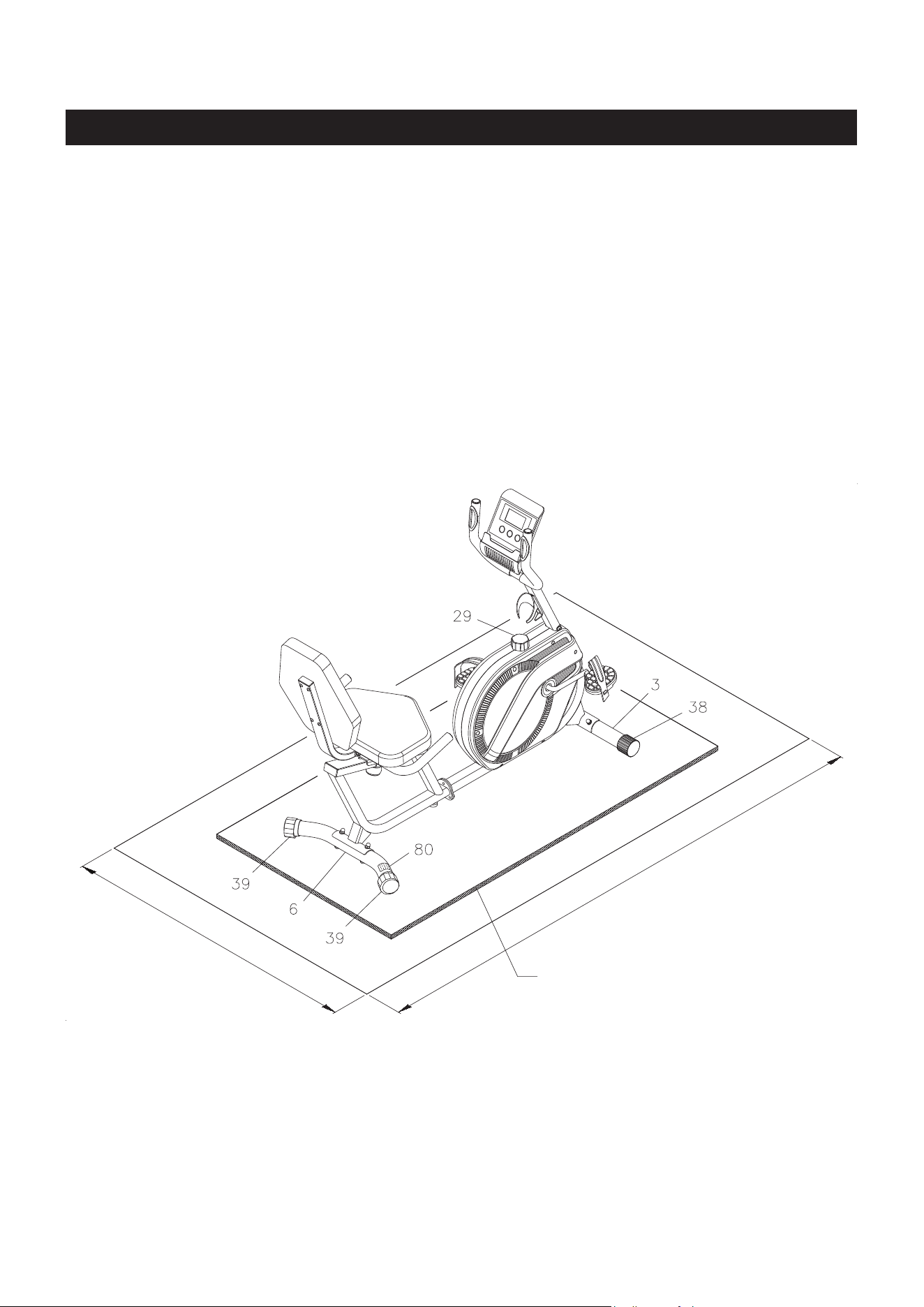

7. It is recommended that you place this exercise equipment on an equipment mat.
8. Set up and operate the Stamina® Recumbent Exercise Bike 348 on a solid level surface. Do not position
the Stamina® Recumbent Exercise Bike 348 on loose rugs or uneven surfaces.
9. Make sure that adequate space is available for access to and around the Stamina® Recumbent Exercise
Bike 348.
10. Adjust the Leveling Caps(39) on the Rear Stabilizer(6) so that the bike sits on the oor without rocking.
11. Before using, inspect the Stamina® Recumbent Exercise Bike 348 for worn or loose components, and
securely tighten or replace any worn or loose components prior to use.
12. Before using, always check the Seat Frame(65) to be sure it is secure. The Locking Knob(74) must be
tightened.
13. Each user should adjust the seat per instructions on page 13.
14. Do not attempt to adjust the seat while you are on the Stamina® Recumbent Exercise Bike 348.
15. Consult a physician prior to commencing an exercise program and follow his/her recommendations in
developing your tness program. If at any time during exercise you feel faint, dizzy, or experience pain, stop
and consult your physician.
16. Always choose the workout which best ts your physical strength and exibility level. Know your limits and
train within them. Always use common sense when exercising.
17. Do not wear loose or dangling clothing while using the Stamina® Recumbent Exercise Bike 348.
18. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or cross
training shoes that t well, provide foot support, and feature non-skid rubber soles.
19. Be careful to maintain your balance while using, mounting, dismounting, or assembling the Stamina®
Recumbent Exercise Bike 348, loss of balance may result in a fall and serious bodily injury.
20. The Stamina® Recumbent Exercise Bike 348 should not be used by persons weighing over 300 pounds.
21. The Stamina® Recumbent Exercise Bike 348 should be used by only one person at a time.
22. The Stamina® Recumbent Exercise Bike 348 is for consumer use only. It is not for use in public or
semipublic facilities.
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the Stamina® Recumbent Exercise Bike 348.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
Seat
Rear Stabilizer
Rear Frame
Wheel Cap
Meter
Crank
Right Cover
Back Cushion
Leveling Cap
Seat Frame
Right Handrail
Right Pedal
Tension Knob
Front Frame
Stand
Locking Knob
BEFORE YOU BEGIN
5
Handlebar
Right Pedal
Strap
Upright
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY :
Allen Wrench (6mm)
Allen Wrench (5mm)
Combination Wrench
Front Stabilizer
Pulse Sensor
Plate
Caution Label
Serial Decal
Pulse Sensor Plate
Water Bottle Holder
Thank you for choosing the Stamina®
Recumbent Exercise Bike 348. We take great
pride in this quality product and hope it will provide
many hours of quality exercise to make you feel
better, look better, and enjoy life to its fullest.
It's a proven fact that a regular exercise
program can improve your physical and mental
health. Too often, our busy lifestyles limit our
time and opportunity to exercise. The Stamina®
Recumbent Exercise Bike 348 provides a
convenient and simple method to begin your
journey of getting your body in shape and
achieving a happier and healthier lifestyle.

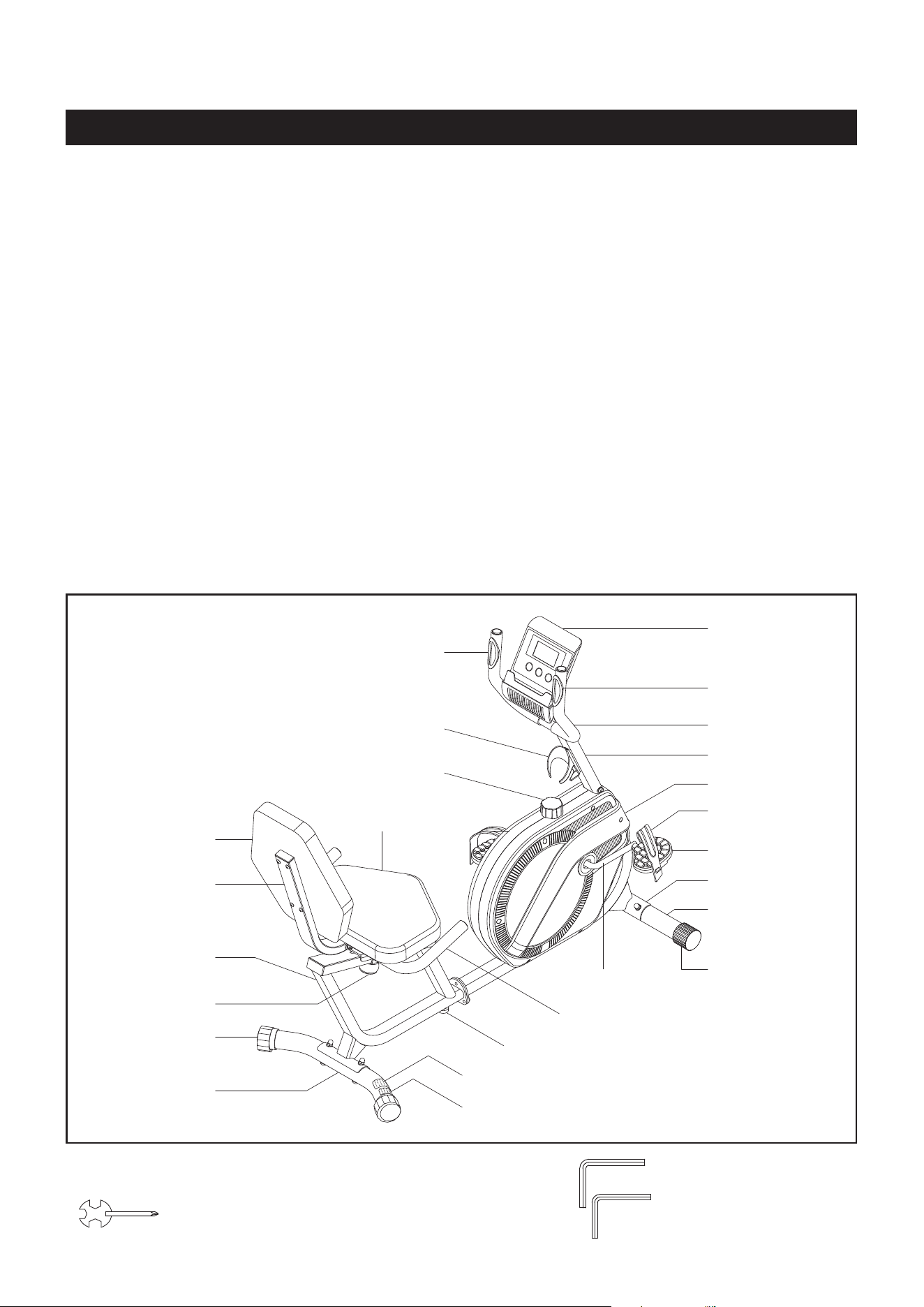

Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See the
next page for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
Stamina® Recumbent Exercise Bike 348.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be
a missing or incorrectly sized part. If you have
any questions or problems with the parts included
with your Stamina® Recumbent Exercise Bike
348, please do not return the product. Contact us
FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com. Our Customer Care Sta is
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
This chart is provided to help identify the warning, caution, and notice labels on the Stamina®
Recumbent Exercise Bike 348. Please take a moment to familiarize yourself with all of the warning,
caution, and notice labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
6
CAUTION LABEL(80)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(81)
Part Number and Description Qty
7
length
length
mm.
in.
INCHES

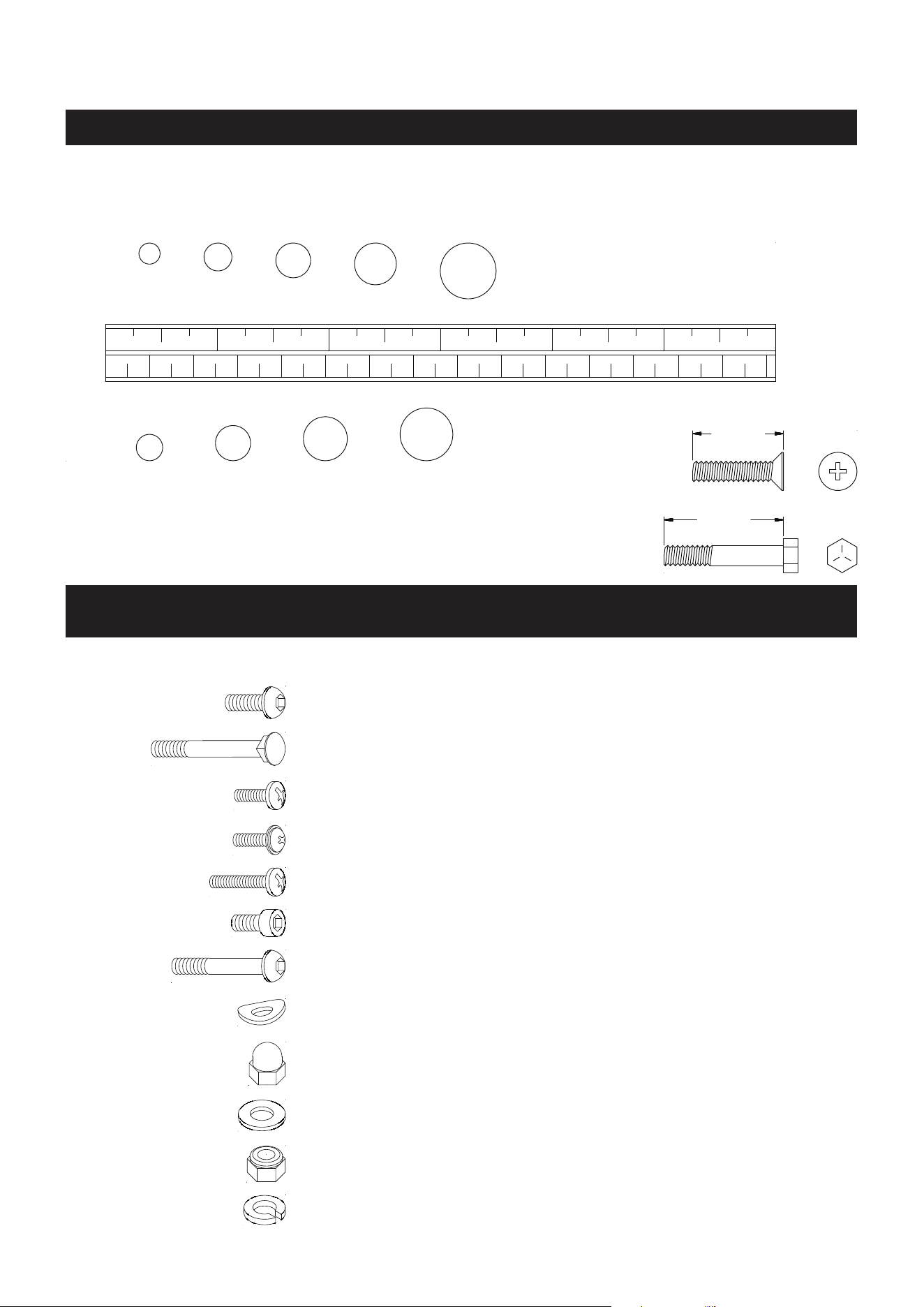

This chart is provided to help identify the fasteners used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following
fasteners. Some fasteners may be already attached to the parts.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
49 Carriage Bolt (M8 x 1.25 x 65mm) 4
45 Bolt, Button Head (M8 x 1.25 x 15mm) 6
50 Acorn Nut (M8 x 1.25) 4
59 Washer (M8) 11
68 Washer (M6) 8
46 Arc Washer (M8) 6
48 Bolt, Round Head (M6 x 1 x 15mm) 4
63 Screw, Round Head (M5 x 0.8 x 12mm) 4
71 Lock Washer (M8) 13
60 Nylock Nut (M8 x 1.25) 2
53 Screw, Washer Head (M5 x 0.8 x 12mm) 2
67 Bolt, Round Head (M6 x 1 x 35mm) 4
69 Bolt, Socket Head (M8 x 1.25 x 15mm) 3
70 Bolt, Button Head (M8 x 1.25 x 75mm) 2
ASSEMBLY INSTRUCTIONS

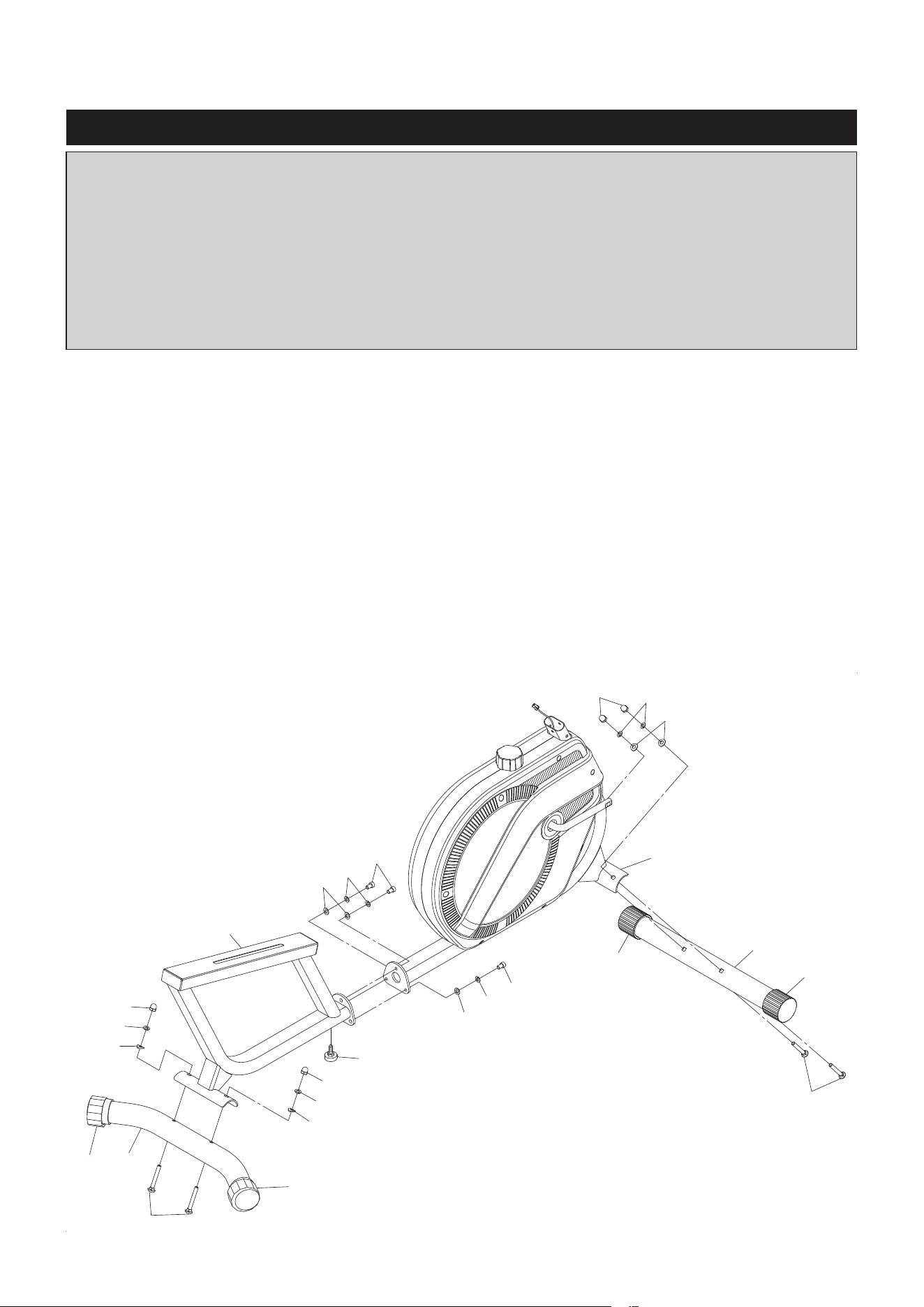

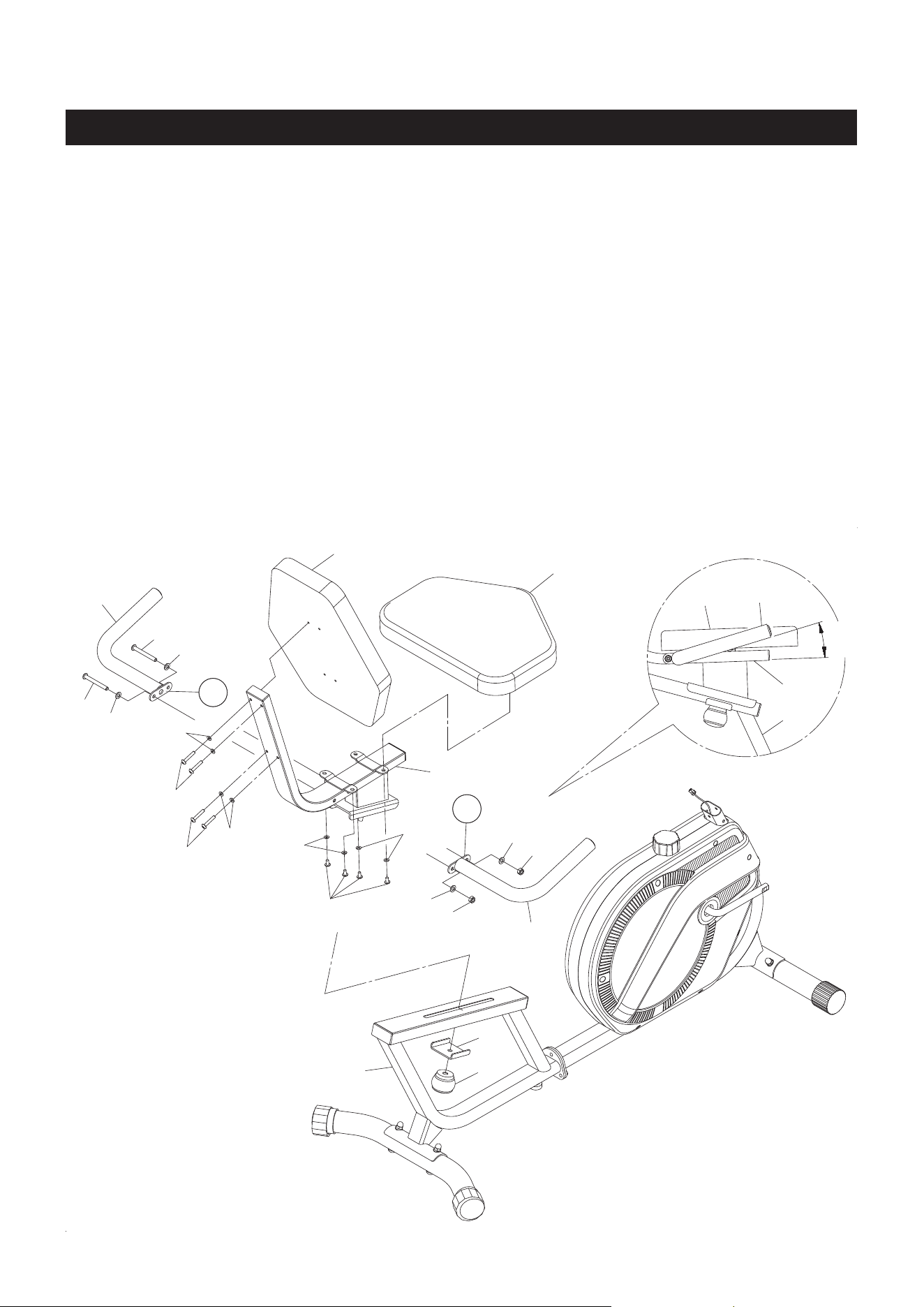

STEP 1: Position the Wheels in the WHEEL CAPS(38) on the FRONT STABILIZER(3) facing the
front. Attach the FRONT STABILIZER(3) to the front of the FRONT FRAME(1) with CARRIAGE BOLTS
(M8x1.25x65mm)(49), ARC WASHERS(M8)(46), LOCK WASHERS(M8)(71), and ACORN NUTS(M8x1.25)
(50).
STEP 2: Screw the STAND(75) to the bottom of the REAR FRAME(64). Connect the REAR FRAME(64)
to the FRONT FRAME(1) with SOCKET HEAD BOLTS(M8x1.25x15mm)(69), LOCK WASHERS(M8)(71),
and WASHERS(M8mm)(59).
STEP 3: Attach the REAR STABILIZER(6) to the back of the REAR FRAME(64) with CARRIAGE
BOLTS(M8x1.25x65mm)(49), ARC WASHERS(M8)(46), LOCK WASHERS(M8)(71), and ACORN
NUTS(M8x1.25)(50).
NOTE: You can adjust the LEVELING CAPS(39) on the REAR STABILIZER(6) to keep the Recumbent
Bike stable.
8
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
50
46
49
3
71
38
38
1
59
71
69
59
71
69
46
71
50
46
71
50
75
39
49
6
39
64
ASSEMBLY INSTRUCTIONS
STEP 4
Attach the SEAT(37) to the SEAT FRAME(65) with ROUND HEAD BOLTS(M6x1x15mm)(48) and
WASHERS(M6)(68).
STEP 5
There is an “R” decal on the RIGHT HANDRAIL(5), and an “L” decal on the LEFT HANDRAIL(4).
Refer to the detail view A. Note the correct position of the HANDRAILS(4, 5), the HANDRAILS(4, 5)
should be assembled with angled upward. Attach the LEFT and RIGHT HANDRAILS(4, 5) to the SEAT
FRAME(65) with BUTTON HEAD BOLTS(M8x1.25x75mm)(70), WASHERS(M8)(59), and NYLOCK
NUTS(M8x1.25)(60).
STEP 6

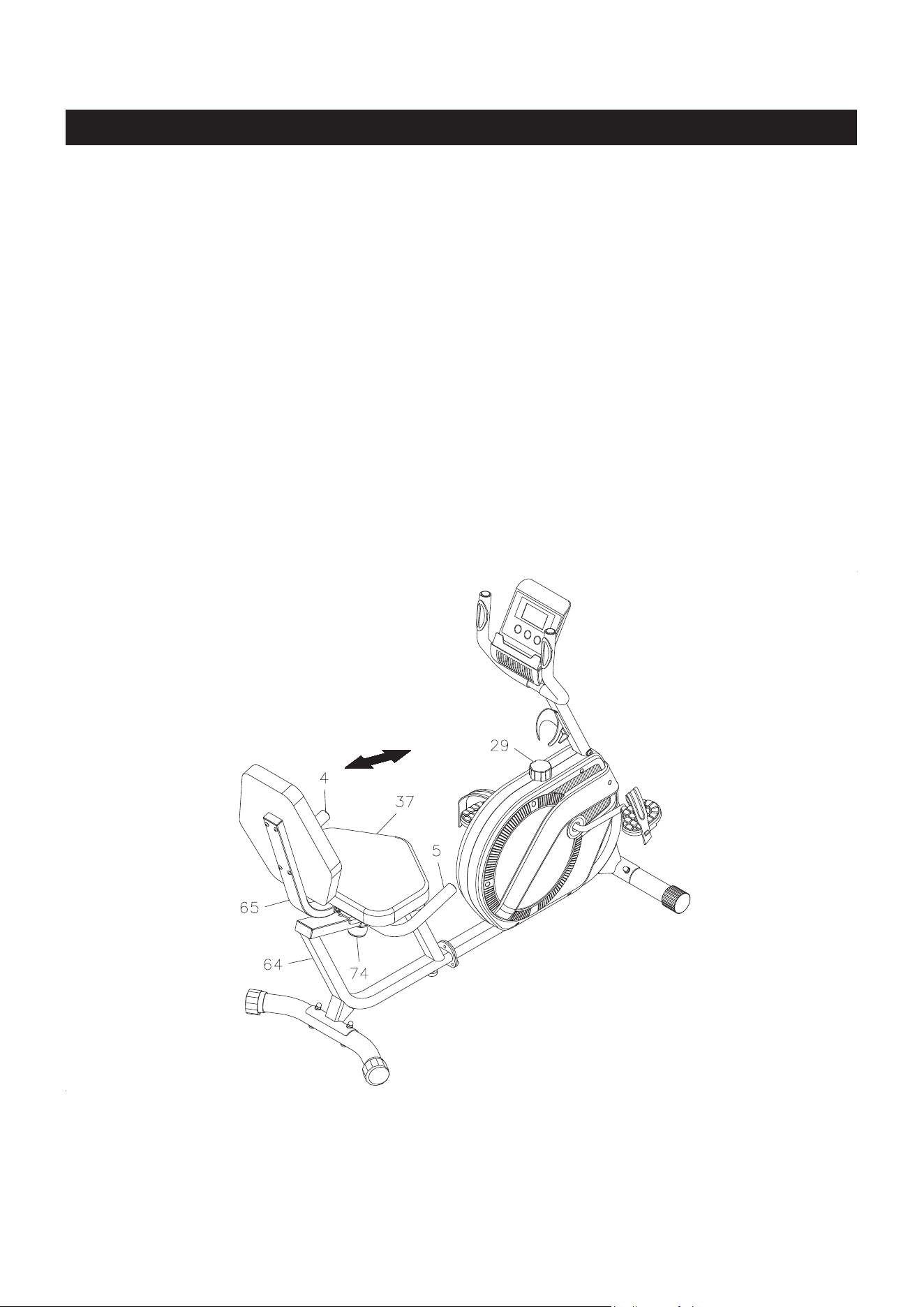

Attach the SEAT FRAME(65) to the REAR FRAME(64) with the SUPPORT BRACKET(73) and
LOCKING KNOB(74). Attach the BACK CUSHION(32) to the SEAT FRAME(65) with ROUND HEAD
BOLTS(M6x1x35mm)(67) and WASHERS(M6)(68).
9
67
59
60
59
60
5
65
70
70
32
37
68
59
67
68
59
48
68
68
4
74
73
64
15°
37
5
65
64
L
R
A.
33
35
34
36
71
46
45
9
71
45
46
71
59
45
13
8
2
1
ASSEMBLY INSTRUCTIONS
STEP 7

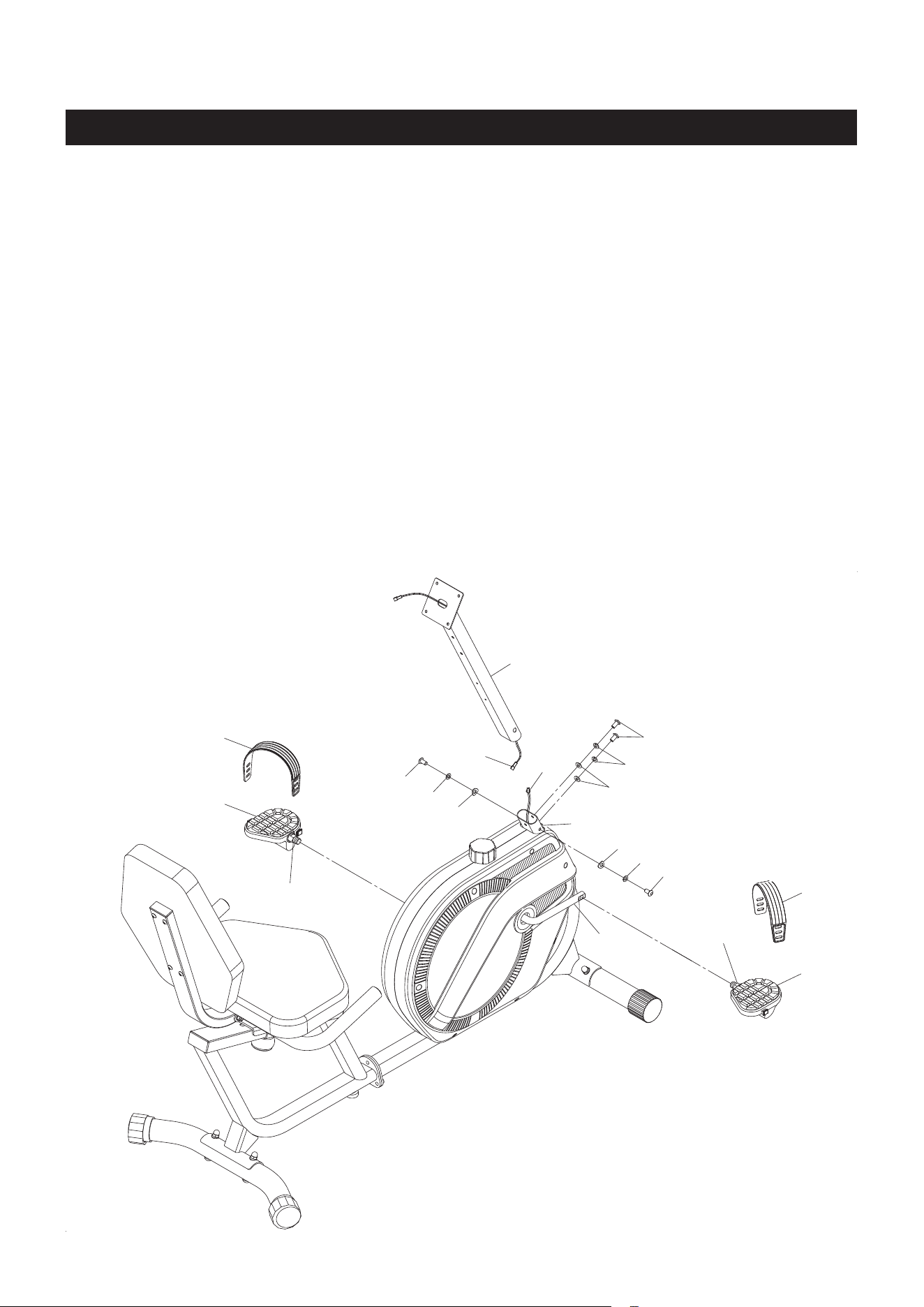

NOTE: The RIGHT PEDAL(34) has an R stamped on the end of the pedal shaft. The RIGHT PEDAL(34)
has right hand threads and is tightened by turning clockwise. The LEFT PEDAL(33) has an L
stamped on the end of the pedal shaft. The LEFT PEDAL(33) has left hand threads and is tightened
by turning counterclockwise.
Thread the RIGHT PEDAL(34) into the right side of the CRANK(13) as shown. Tighten the pedal securely.
The shoulder of the PEDALS(33, 34) should be in contact with the CRANK(13) when securely tightened.
Select the RIGHT PEDAL STRAP(36) which has an R marked on it. Snap the three hole end to the inside
edge of the RIGHT PEDAL(34). Snap the other end of the strap to the hook on the outside edge of the
RIGHT PEDAL(34). Select adjustment holes which allow your foot to be easily removed from the pedals.
Use the same procedure to attach the LEFT PEDAL(33) to the CRANK(13) and to attach the LEFT PEDAL
STRAP(35) to the LEFT PEDAL(33).
STEP 8
Connect the EXTENSION WIRE(8) to the SENSOR WIRE(9). Insert the UPRIGHT(2) onto the FRONT
FRAME(1) and secure with BUTTON HEAD BOLTS(M8x1.25x15mm)(45), LOCK WASHERS(M8)(71),
WASHERS(M8)(59), and ARC WASHERS(M8)(46).
10
Shoulder
Shoulder
ASSEMBLY INSTRUCTIONS
11
STEP 9

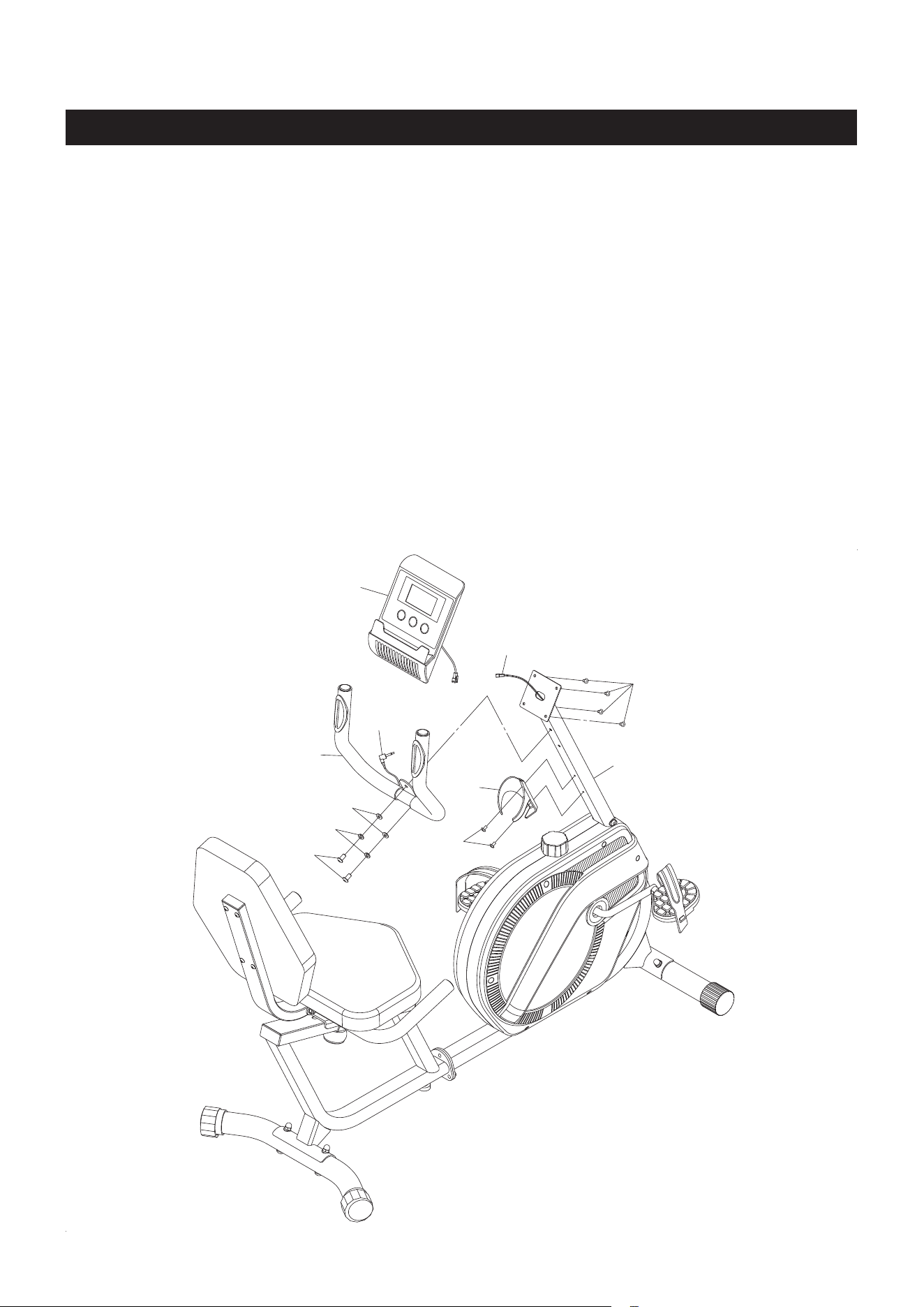

Attach the HANDLEBAR(66) to the UPRIGHT(2) with BUTTON HEAD BOLTS(M8x1.25x15mm)(45),
LOCK WASHERS(M8)(71), and WASHERS(M8)(59).
STEP 10
Install two AAA batteries into the METER(11), the batteries are not included. See page 15 for detailed battery
installation instructions. Plug the EXTENSION WIRE(8) into the connecting wires of the METER(11), and
push the excess wires back into the UPRIGHT(2). Attach the METER(11) to the plate on the UPRIGHT(2)
with ROUND HEAD SCREWS(M5x0.8x12mm)(63). Plug the PULSE SENSOR WIRES(26) into the back
of the METER(11).
NOTE: Be careful not to damage the wires when attaching the METER(11).
STEP 11
Attach the WATER BOTTLE HOLDER(41) to the UPRIGHT(2) with WASHER HEAD SCREWS
(M5x0.8x12mm)(53).
2
63
53
41
59
71
45
26
11
8
66
4 feet
7 feet
Place the Stamina® Recumbent Exercise Bike 348 in the area where it will be used. It is recommended
that the Stamina® Recumbent Exercise Bike 348 be placed on an equipment mat. The Stamina®
Recumbent Exercise Bike 348 is approximately 57.7 inches long (max.) x 21.1 inches wide x 42.3
inches tall. (These dimensions may vary up to one inch.) An area 4 feet wide x 7 feet long is required
for safe operation of the Stamina® Recumbent Exercise Bike 348. Make sure that adequate space is
available for access to and passage around the Stamina® Recumbent Exercise Bike 348.
EQUIPMENT MAT
LEVELING: Adjust the LEVELING CAPS(39) on the REAR STABILIZER(6) so that the Stamina®
Recumbent Exercise Bike 348 sits on the oor without rocking.
MOVING: The Stamina® Recumbent Exercise Bike 348 has a pair of Wheels in the WHEEL
CAPS(38) on the FRONT STABILIZER(3). Lift up the REAR STABILIZER(6) to move the
Stamina® Recumbent Exercise Bike 348.
FUNCTION INSPECTION:
Visually inspect the Stamina® Recumbent Exercise Bike 348 to verify that assembly is as shown in the
above illustration. Check the function of the Stamina® Recumbent Exercise Bike 348 by turning the
crank slowly through one complete revolution to verify that the drive train functions properly. Adjust the
TENSION KNOB(29) and verify that it functions properly and the resistance changes.
CAUTION: Locate and read the CAUTION LABEL(80) on the Stamina® Recumbent Exercise Bike
348. Make sure that all users read the CAUTION LABEL(80) before using the product.
SET UP INSTRUCTIONS
12
SEAT ADJUSTMENT
LOAD ADJUSTMENT
CAUTION:
1.
Do not attempt to adjust the seat while you are on the Stamina® Recumbent Exercise Bike 348.
2. Always tighten the LOCKING KNOB(74) after adjusting the seat to a new position.
1. Rotate the LOCKING KNOB(74) counterclockwise until the SEAT FRAME(65) can be moved. Slide
the SEAT FRAME(65) to the desired position. Lock the SEAT FRAME(65) in position by rotating the
LOCKING KNOB(74) clockwise to lock the SEAT FRAME(65) securely.
2. Sit on the seat and place your feet on the pedals. You should be able to move through a complete
pedal stroke without locking your knees or shifting your hips on the seat. The seat is too close to the
pedals if you have more than a slight bend in your knees at the bottom of the pedal stroke. The seat
is too far from the pedals if you have to completely straighten your knees at the bottom of the pedal
stroke.
Proper seat adjustment is important. There is a slot in the REAR FRAME(64) to allow users to adjust the
position of the seat for ecient exercise.
To increase the load, turn the TENSION KNOB(29) clockwise. To decrease the load, turn the TENSION
KNOB(29) counterclockwise. There are eight levels for the load adjustment.
OPERATIONAL INSTRUCTIONS
13
CAUTION:
Do not use the HANDRAILS(4, 5) to
raise or lower your full body weight.
14
NOTE:
1.
You may preset values for several functions. The preset function values will start to count down. When you
complete one of the preset functions, the value of this completed function will start to count up, while the other
preset functions will continue to count down.
2. The Meter will shut off automatically after 4 minutes of inactivity. All function values will be kept. You can
continue to work out with these function values. Or, press the RESET or MODE button and hold it down for two
seconds to reset all functions to zero, except ODOMETER. The ODOMETER will be reset to zero after batteries
are removed for battery replacement or storage of the unit.
OPERATIONAL INSTRUCTIONS
In the STOP mode, press to set target values for TIME,
DISTANCE, and CALORIES. Press the button and hold it
down for two seconds, the meter will continue to add the
values, release the button to stop.

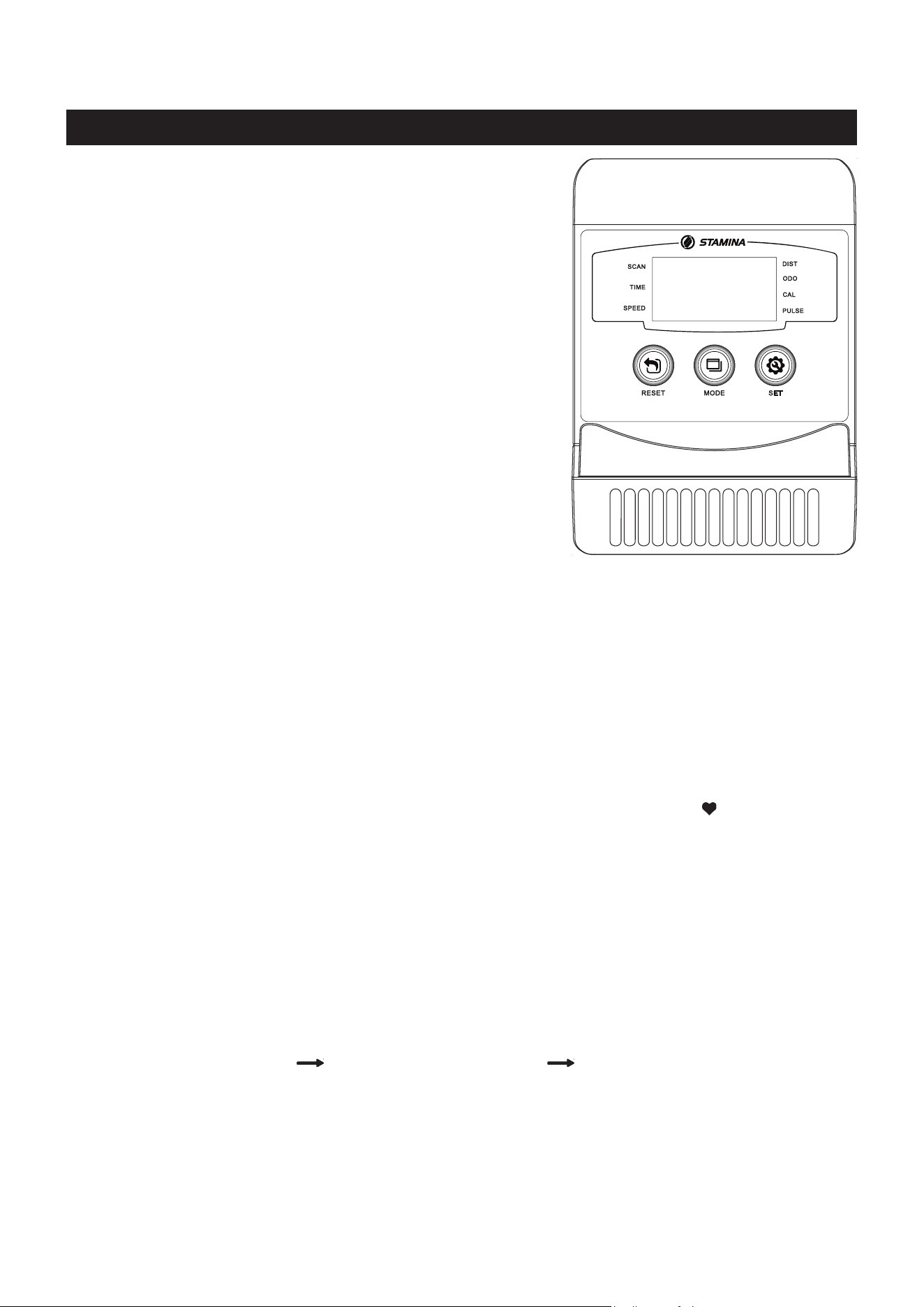

USING THE FITNESS METER
POWER OFF:
Automatically shuts o after 4 minutes of inactivity.
POWER ON:
FUNCTIONS:
FUNCTION BUTTONS :
MODE :
Press and release to select functions for display or to preset
target values.
Press the button and hold it down for two seconds to reset
all functions to zero, except ODOMETER.
In the STOP mode, press the button to reset the setting
values to zero.
Press the button and hold it down for two seconds to reset
all functions to zero, except ODOMETER.
RESET :
Move the pedals or press any button.
PRESET VALUES OPERATION:
You can begin pedaling to power on the meter and workout with the meter directly. Or, you can preset the function
values for counting down. Press and release the MODE button until “SCAN” does not appear on display, the meter
will enter setting mode. Use SET and RESET buttons to input the values, and press MODE button to conrm. Or, just
press the MODE button to skip the setting and move on to the next function. After all the desired settings are chosen,
begin pedaling to start the workout.
Time (1:00 to 99:00)
Distance (1.00 to 999.0 mile) Calories (1.0 to 999.0 Kcal)
SET :
Automatically scans TIME, SPEED, DISTANCE, CALORIES, ODOMETER, and PULSE in
sequence with a change every six seconds. Press and release the MODE button until “SCAN”
appears on display.
Displays the time from 1 sec. up to 99:59 minutes. Counts down from preset value.
Displays the current speed from zero to 999.9 miles per hour.
Displays distance from zero to 999.9 Miles. Counts down from preset value.
Displays the total accumulated distance you have traveled from zero to 999.9 miles. The total
accumulated distance is retained when the meter is turned o, until the batteries are removed.
Displays the calories burned from zero to 999.9 Kcal. Counts down from preset value.
The calorie readout is an estimate for an average user. It should be used only as a comparison
between workouts on this unit.
Displays your pulse rate in beats per minute. To display pulse, select the PULSE mode and grasp
the pulse sensors on the handlebar, one in each hand. The heart symbol “ “ will begin ashing
when the meter senses your pulse. Your pulse will be displayed approximately ve (5) seconds after
the heart symbol is displayed. If the heart symbol does not appear, relax your grip or change your
grip on the pulse sensors.
NOTE: The pulse function is a great tool to optimize your workout, but should be used as a
reference only.
SCAN:
TIME:
SPEED:
DISTANCE:
ODOMETER:
CALORIES:
PULSE:
15
OPERATIONAL INSTRUCTIONS
HOW TO INSTALL AND REPLACE BATTERIES:
1. Open the Battery Door on the back of the meter.
2. The meter operates with two AAA batteries (1.5V each), the batteries are
not included. Refer to the illustration to install or replace the batteries.
1. Do not mix a new battery with an old battery.
2. Use the same type of battery. Do not mix an alkaline battery with
another type of battery.
3. Rechargeable batteries are not recommended.
4. Ultimate disposal of battery should be handled according to
all state and federal laws and regulations.
5. Do not dispose of batteries in re.
NOTE:
AAA Batteries
müüv
CONNECTION OPERATION
NOTE:
1. To fully operate your Stamina® Recumbent Exercise
Bike 348 you will need to download the free müüv app.
2. You will need to enable bluetooth in your phone settings
rst.
Power on the Meter on your Stamina® Recumbent Exercise Bike 348. Open the müüv app and follow
the following process to connect the Meter to the müüv app. It will make your Stamina® Recumbent
Exercise Bike 348 work with the müüv application and many others. For more details and information,
go visit https://müüv.t.
NOTE: Under low battery conditions, the METER(11) may still work, but may make the müüv app unable
to nd the bluetooth device to connect. Please pay attention to the issue and replace the battery
promptly.
Tap on the Dashboard
icon.
1
Tap on the Gear icon.
2
Tap on Connected
Devices.
3
Tap on Connect next
to the "SERU-202101"
to connect.
4
SERU-202101
1. To store the Stamina® Recumbent Exercise Bike 348, simply keep it in a clean dry place.
2. Adjust the SEAT FRAME(65) to the shortest position. The Stamina® Recumbent Exercise Bike 348
is approximately 49.4 inches long x 21.1 inches wide x 42.3 inches tall. These dimensions will vary.
Please measure your Stamina® Recumbent Exercise Bike 348 if exact dimensions are needed.
3. To move the Stamina® Recumbent Exercise Bike 348, lift up the REAR STABILIZER(6) and use
the Wheels on the FRONT STABILIZER(3).
4. To avoid damage to the electronics, remove the batteries before storing the Stamina® Recumbent
Exercise Bike 348 for one year or more.
The safety and integrity designed into the Stamina® Recumbent Exercise Bike 348 can only be
maintained when the Stamina® Recumbent Exercise Bike 348 is regularly examined for damage and
wear. Special attention should be given to the following:
1. Adjust the TENSION KNOB(29) and verify that it functions properly and the resistance changes.
2. Use a wrench to verify that the pedals are tightened securely. If tightening is required, remember that
the left pedal has left hand threads and is tightened by turning counterclockwise.
3. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Tighten loose nuts and bolts.
4. Verify that the CAUTION LABEL(80) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(80) if it is missing or damaged.
5. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
6. Worn or damaged components must be replaced immediately or the Stamina® Recumbent Exercise
Bike 348 removed from service until repair is made.
7. Only Stamina Products supplied components should be used to maintain/repair the Stamina®
Recumbent Exercise Bike 348.
8. Keep your Stamina® Recumbent Exercise Bike 348 clean by wiping it o with an absorbent cloth
after use.
STORAGE
MAINTENANCE
16
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
17
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
18
LIMITED WARRANTY
WARRANTY
MODEL 15-1348
19
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and one
year on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These warranties
are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any implied warranty, Stamina
reserves the right to require the product to be returned for inspection, at the purchaser’s expense, to
Stamina’s premises in Springfield, Missouri. Return of the enclosed warranty registration card is not
required for warranty coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.

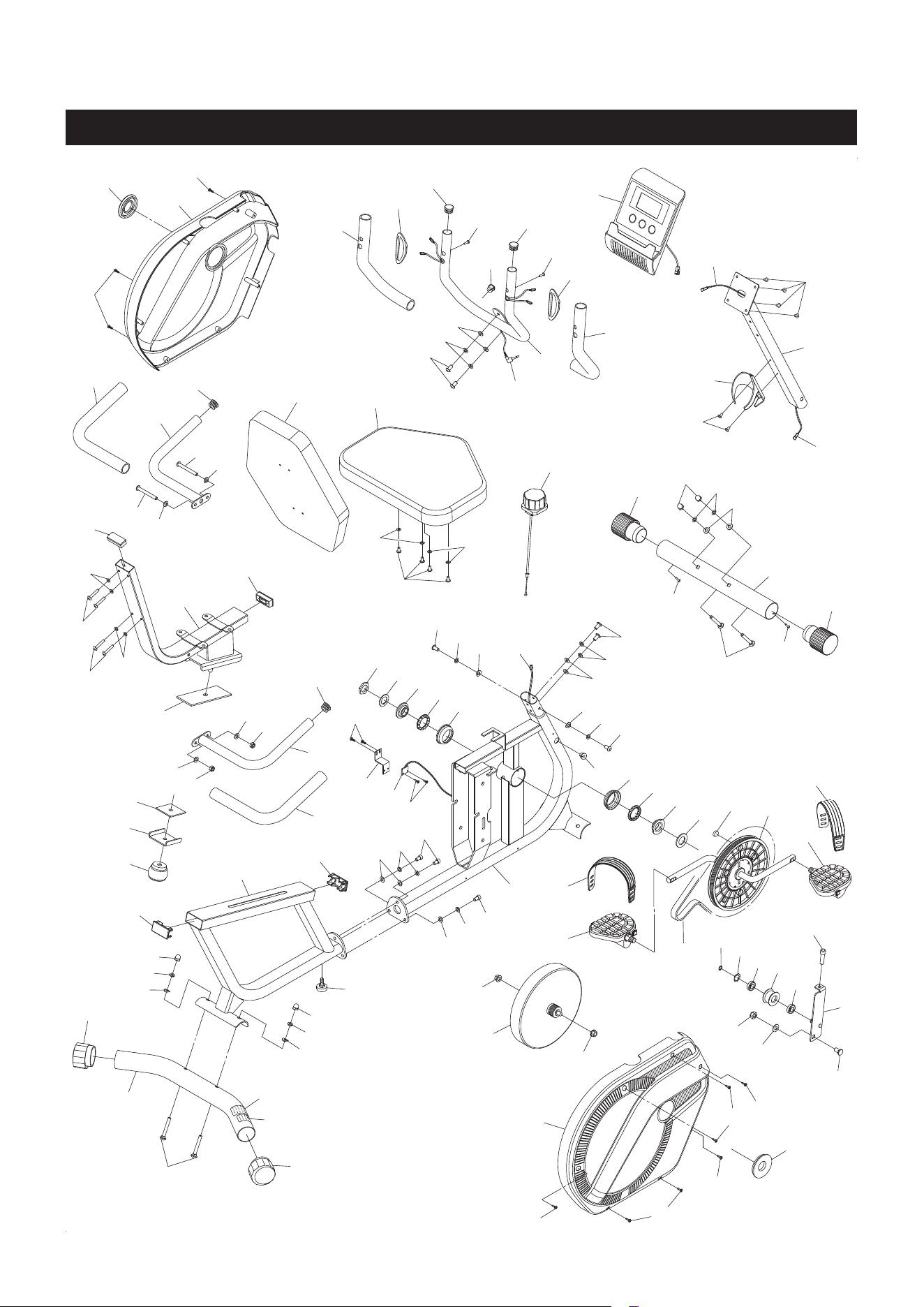

PRODUCT PARTS DRAWING
20
FRONT
BACK
18
19
23
22
20
33
35
8
71
46
8
17
16
17
79
45
44
43
43
44
24
27
47
9
54
43
14
18
19
72
21
44
34
36
43
43
27
25
46
71
50
46
71
50
75
52
12
52
64
31
31
80
81
39
39
49
6
59
71
69
59
71
69
1
9
67
59
60
59
60
40
74
73
5
65
15
13
71
45
46
30
40
4
28
70
70
32
37
30
48
68
68
29
56
57
58
7
55
71
59
45
28
59
71
45
50
46
49
51
51
38
38
76
62
28
10
28
42
26
66
62
10
42
11
63
53
41
2
3
77
78
68
59
61
67
68
59
71
76
PART# PART NAME QTY
PARTS LIST
21
1 Front Frame 1
2 Upright 1
3 Front Stabilizer 1
4 Left Handrail 1
5 Right Handrail 1
6 Rear Stabilizer 1
7 Idler Arm 1
8 Extension Wire 1
9 Sensor Wire 1
10 Pulse Sensor Plate 2
11 Meter 1
12 Magnetic Unit 1
13 Crank w/ Pulley 1
14 Sensor Bracket 1
15 V-Ribbed Belt (320-J5) 1
16 Idler Wheel 1
17 Bearing (6000zz) 2
18 Bearing Housing 2
19 Ball Bearing 2
20 Bearing Nut 1
21 Bearing Washer 1
22 Bearing Snap Washer 1
23 Outside Bearing Collar 1
24 Right Cover 1
25 Left Cover 1
26 Pulse Plug Wire 1
27 Crank Cap 2
28 Round Plug (25mm) 4
29 Tension Knob 1
30 Rectangular Plug (23.5mm x 53.5mm) 2
31 Rectangular Plug (30mm x 60mm) 2
32 Back Cushion 1
33 Left Pedal 1
34 Right Pedal 1
35 Left Pedal Strap 1
36 Right Pedal Strap 1
37 Seat 1
38 Wheel Cap 2
39 Leveling Cap 2
40 Handrail Foam Tube 2
41 Water Bottle Holder 1
42 Handlebar Foam Tube 2
43 Screw, Round Head Self-Drilling (ST4.2 x 16mm) 8
44 Screw, Round Head (ST4.2 x 16mm) 4
45 Bolt, Button Head (M8 x 1.25 x 15mm) 6
46 Arc Washer (M8) 6
47 Screw, Washer Head Self-Drilling (ST3.5 x 16mm) 2
PART# PART NAME QTY
PARTS LIST
22
48 Bolt, Round Head (M6 x 1.0 x 15mm) 4
49 Carriage Bolt (M8 x 1.25 x 65mm) 4
50 Acorn Nut (M8 x 1.25) 4
51 Screw, Round Head (ST4.2 x 20mm) 2
52 Flange Nut (M10 x 1.0) 2
53 Screw, Washer Head (M5 x 0.8 x 12mm) 2
54 C Ring (ø10mm) 1
55 Carriage Bolt (M10 x 1.5 x 20mm) 1
56 Washer (M10) 1
57 Nylock Nut (M10 x 1.5) 1
58 Bolt, Socket Head (M10 x 1.5 x 35mm) 1
59 Washer (M8) 11
60 Nylock Nut (M8 x 1.25) 2
61 Magnet 1
62 Screw, Flat Head (ST4.2 x 20mm) 2
63 Screw, Round Head (M5 x 0.8 x 12mm) 4
64 Rear Frame 1
65 Seat Frame 1
66 Handlebar 1
67 Bolt, Round Head (M6 x 1.0 x 35mm) 4
68 Washer (M6) 8
69 Bolt, Socket Head (M8 x 1.25 x 15mm) 3
70 Bolt, Button Head (M8 x 1.25 x 75mm) 2
71 Lock Washer (M8) 13
72 Inside Bearing Collar 1
73 Support Bracket 1
74 Locking Knob 1
75 Stand 1
76 Grommet Plug 2
77 Larger Non-Skid Pad 1
78 Small Non-Skid Pad 1
79 Wave Washer (S10) 1
80 Caution Label 1
81 Serial Decal 1
82 Allen Wrench (6mm) 1
83 Allen Wrench (5mm) 1
84 Combination Wrench 1
85 Manual 1
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
