1
Questions or Concerns? support@etekcity.com • (855) 686-3835
Digital Kitchen Scale
Model: EK5250
2
Thank you for purchasing the
Digital Kitchen Scale by Etekcity.
If you have any questions or concerns, please
reach out to our helpful Customer Support Team
at support@etekcity.com. We hope you enjoy your
new digital kitchen scale!
BECOME AN ETEKCITIZEN
Get exclusive deals, giveaways, and product
registration. Better products for better living.
Find us at etekcity.com
3
Table of Contents
Package Contents
Specifications
Increments
Safety Information
Function Diagram
Digital Display
Setup
Scale Operation
• Measurement
• Tare Function
Maintenance
Troubleshooting
Warranty Information
Customer Support
3
3
3
4
5
6
6
7
7
8
8
9
10
11
1 x Digital Kitchen Scale
1 x Plastic Bowl
2 x 1.5V AAA Batteries (Pre-Installed)
1 x Quick Start Guide
Specifications
Increments
Package Contents
Weight Capacity 176 oz / 11 lb / 5000 g / 5000 mL
Units oz / lb:oz / fl’oz (water/milk) /
g / mL (water/milk)
Auto-Off 120 seconds
Battery 2 x 1.5V AAA batteries
Dimensions Scale 8.4 x 6.7 x 1.3 in /
21.4 x 16.9 x 3.3 cm
Bowl 8.9 x 7.1 x 1.7 in /
22.5 x 18.1 x 4.2 cm
Measurement
Unit
Item Weight Increment
g
< 1000 g 0.1 g
1000–5000 g 1 g
oz
< 35 oz 0.01 oz
35–176 oz 0.05 oz
4
Safety Information
Scale Batteries
• Do not exceed the 11 lb / 5000 g weight capacity,
as this will damage the scale. An error indicator
will appear on the LCD display if the limit is
exceeded.
• Do not immerse the scale in water or any
liquid. If liquid is spilled on the digital display or
buttons, immediately wipe the scale dry with a
soft cloth to avoid internal damage.
• Handle with care. This scale is not intended for
commercial or heavy-duty use.
• Keep the scale in a cool, dry place. Avoid
exposure to damp environments or extreme
temperatures.
• Household use only.
• Do not mix new and old batteries.
• If the low battery indicator (“ ”) appears on
the display, replace the batteries.
• If the scale is not in use for an extended period
of time, remove the batteries to conserve
battery life and extend the lifetime of the scale.
To avoid damage to this scale, please read and follow all instructions and safety guidelines in this manual.
5
Function Diagram
A. Bowl
B. Digital Scale
C. Weighing Surface
D. Unit Switching Button
E. Digital Display
F. Power/TARE Button
G. Battery Compartment
H. Anti-Skid Padding
A
B
C
D E
F
G
H
Note: Do not put the plastic
bowl in a dishwasher.
6
Digital Display Setup
1. Remove rubber pieces around the scale before
using.
2. Open the battery compartment on the underside
of the scale.
3. Remove the insulation strip to activate the
batteries. [Figure 1.1]
4. Replace the battery cover.
5. Press to turn on the scale.
Figure 1.1
AAA batteries
A. Tare Function
B. Weight Measurement
C. Negative Weight Value
D. Weighing Mode
E. Measurement Unit
A
C
D
B
E
AAA
AAA
7
Scale Operation
• For accurate results, always place the scale on a
hard, dry, flat surface, and keep the scale away
from dirt, dust, vibration, wind, air currents, and
electromagnetic interference.
• When you turn on the scale, choose units, or use
the tare function, always wait for the scale to
read “ ” before attempting measurement.
Tips
1. Press to turn on the scale. Press UNIT to
select your desired measuring unit, which will
show at the top of the display.
a. Weight: Choose between grams (“g”) or both
pounds and ounces (“lb:oz”).
b. Volume: Scale measures in milliliters (“mL”)
and fluid ounces (“fl’oz”). Select the water
( ) or milk ( ) option. [Figure 2.1]
Measurement
Note: If you’re using the bowl or another container to
hold the items or liquid you’re measuring, first place
the empty container on the scale. Press to tare the
container’s weight (see Tare Function, page 8)
2. Gently place your item on the scale. The display
will show the weight or volume.
3. Press and hold for 3 seconds to turn off the
scale.
Note:
• To reset the scale, remove all weight from the platform
and press .
• To conserve battery power, the scale will automatically
turn off after 2 minutes of inactivity.
Figure 2.1
Water Milk Solid
8
Maintenance
• Use a slightly damp cloth to clean the surface
of the scale, followed by a dry, soft cloth to wipe
away any moisture.
• You can use a dry, soft cloth to wipe dust off the
scale.
• Do not wash the plastic bowl in the dishwasher.
Hand wash only.
Figure 3.3

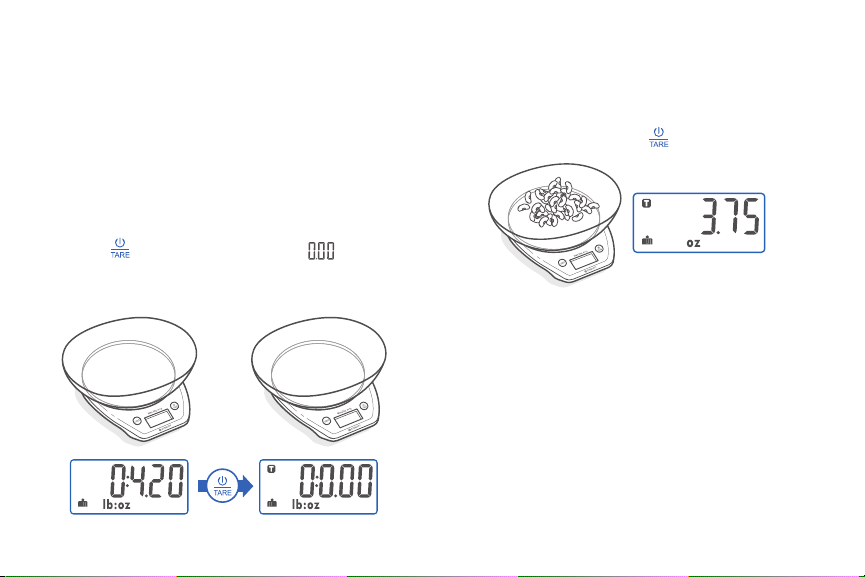

1. Place the bowl on the scale. The display will
show the bowl’s weight. [Figure 3.1]
2. Press . The display will show “ ” again.
[Figure 3.2]
Whenever you measure items or liquids inside
the included bowl, you can use the tare function
to remove the bowl’s weight from the final
measurement. You can also use other containers in
place of the bowl.
Tare Function
Figure 3.1 Figure 3.2
3. Place liquid or items in the bowl. The scale will
measure the liquid or items without including
the weight of the bowl. [Figure 3.3]
4. When you’re done, reset the scale by removing
all weight and pressing again.
9
Troubleshooting
Problem Possible Solution
LCD display shows “ ”.
Battery power is low. Install 2 new 1.5V AAA batteries.
Scale does not turn on.
Batteries may not be properly installed. Insert batteries under the correct
polarity as marked in battery compartment.
Battery power is low. Install 2 new 1.5V AAA batteries.
Display shows “ ”.
Maximum weight capacity has been exceeded. Remove items from scale to
avoid damage.
Reading is inaccurate.
Scale may not be level. Place scale on a level surface.
Reset the scale’s tare measurement, making sure it reads “0” before
measuring (see Tare Function, page 8).
If your problem is not listed, please contact Customer Support (page 11).
10
Warranty Information
Terms & Policy
Etekcity Corporation warrants all products to be of the highest quality
in material, craftsmanship, and service, effective from the date of
purchase to the end of the warranty period.
Etekcity Corporation will replace any product found to be defective due
to manufacturer flaws based on eligibility. Refunds are available within
the first 30 days of purchase. Refunds are only available to the original
purchaser of the product. This warranty extends only to personal use
and does not extend to any product that has been used for commercial,
rental, or any other use for which the product is not intended. There are
no warranties other than the warranties expressly set forth with each
product.
This warranty is non-transferrable. Etekcity Corporation is not
responsible in any way for any damages, losses, or inconveniences
caused by equipment failure or by user negligence, abuse, or use
noncompliant with the user manual or any additional safety or use
warnings included in the product packaging and manual.
This warranty does not apply to the following:
• Damage due to abuse, accident, alteration, misuse, tampering,
or vandalism.
• Improper or inadequate maintenance.
• Damage in return transit.
• Unsupervised use by children under 18 years of age.
Etekcity and its subsidiaries assume no liability for damage caused
by the use of the product other than for its intended use or as
instructed in the user manual. Some states do not allow this exclusion
or limitation of incidental or consequential losses so the foregoing
disclaimer may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which may vary from state
to state.
ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Extend Your Warranty by 1 Year
Register your product at www.etekcity.com/warranty to extend your
1-year warranty by an additional year.
Please fill out all required fields and include your order ID, place of
purchase, and purchase date, if applicable.
Defective Products & Returns
If your product proves defective within the specified warranty period,
please contact Customer Support via support@etekcity.com with
your order ID. DO NOT dispose of your product before contacting us.
Once Customer Support has approved your request, please return the
unit with a copy of the invoice or your order ID.
Product Name Digital Kitchen Scale
Model Number EK5250
Default Warranty Period 1 year
For your own reference, we strongly recommend that you record
your order ID and date of purchase.
Order ID
Date of Purchase
11
Customer Support
If you have any questions or concerns about your new product, please contact
our helpful Customer Support Team.
Etekcity Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
Email: support@etekcity.com
Toll-Free: (855) 686-3835
Support Hours
Monday - Friday
9:00 am - 5:00 pm PST/PDT
*Please have your invoice and order ID ready before
contacting Customer Support.
Connect with us @Etekcity
Building on better living.
AU032020AL-M1-0320EK5250_us
