Wi-Fi
®
Garage Door Openers
Chain Drive Models - 8160W 8160WB 8164W 8165W
Belt Drive Models - 8155W
FOR RESIDENTIAL USE ONLY
• Please read this manual and the safety materials carefully!
• The door WILL NOT CLOSE unless the Protector System
®
is
connected and properly aligned.
• Periodic checks of the garage door opener are required to
ensure safe operation.
• This garage door opener is ONLY compatible with myQ
®
and Security+ 2.0
®
accessories.
• DO NOT install on a one-piece door if using devices or
features providing unattended close. Unattended devices
and features are to be used ONLY with sectional doors.
• Attach warning labels to the location indicated on label.
LiftMaster
300 Windsor Drive
Oak Brook, IL 60523
2
Table of Contents
Preparation 3
Carton Inventory: Models 8160W, 8160WB, 8164W, and 8165W 6
Carton Inventory: Model 8155W 7
Assembly 8
Models 8160W, 8160WB, 8164W*, and 8165W 8
Model 8155W 9
Installation 10
Install the Door Control 19
Install the Protector System 22
Power 26
Adjustments 29
Battery Backup 32
Operation 34
Maintenance 42
Troubleshooting 43
Accessories 45
Warranty 46
Automatic Garage Door Opener Safety & Maintenance Guide 47
Repair Parts 49
Models 8160W, 8160WB, 8164W and 8165W 49
Model 8155W 52
3
Preparation
myQ
®

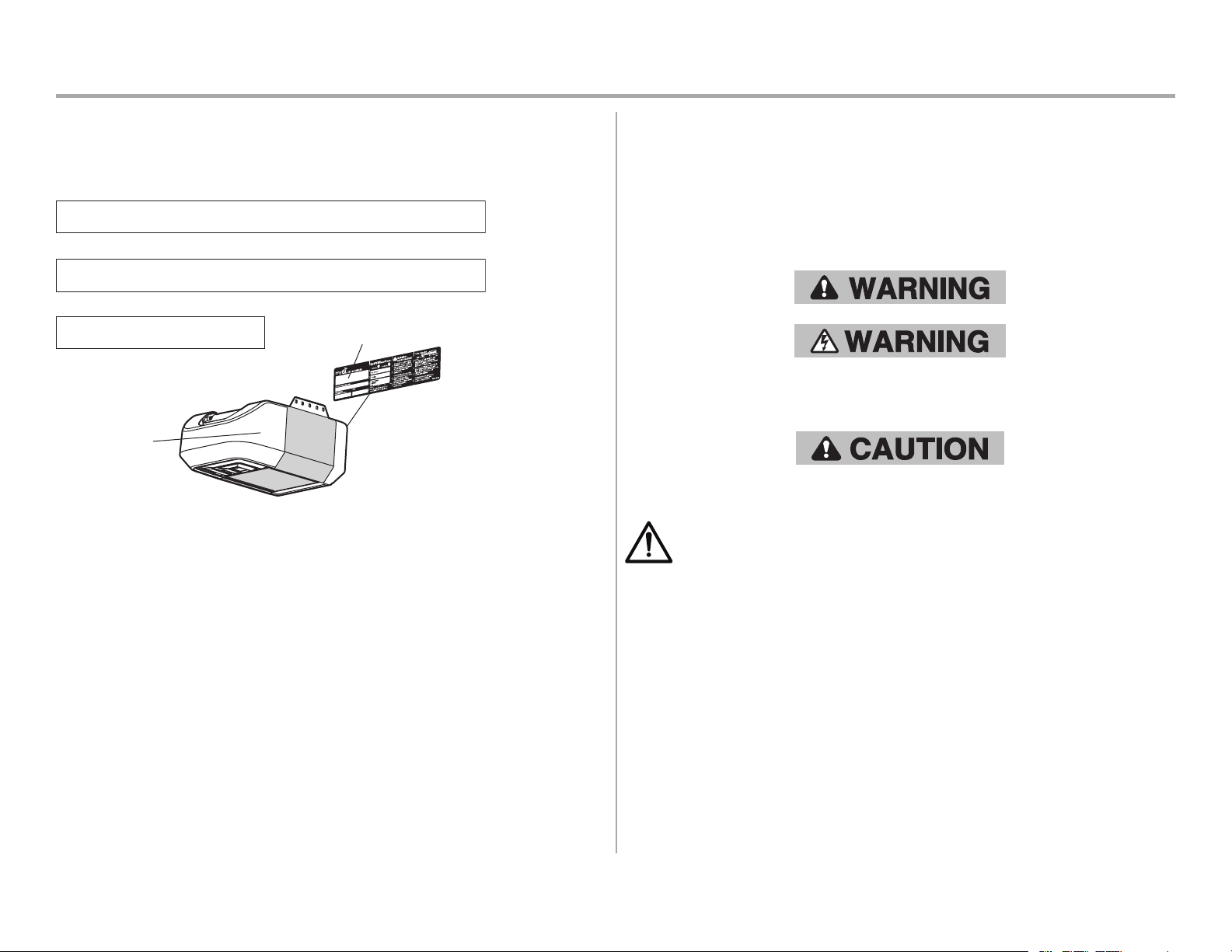

Serial Number
Write down the following information for future reference:
myQ
®
Serial Number:
Serial Number
myQ
®
Serial Number
Product Serial Number:
Date of Purchase:
/ /
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed,
operated, maintained and tested in strict accordance with the instructions and warnings contained in
this manual.
When you see these Safety Symbols and Signal Words on the following pages, they will alert you to
the possibility of serious injury or death if you do not comply with the warnings that accompany
them. The hazard may come from something mechanical or from electric shock. Read the warnings
carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages, it will alert you to the possibility of damage
to your garage door and/or the garage door opener if you do not comply with the cautionary
statements that accompany it. Read them carefully.
WARNING: This product can expose you to chemicals including lead, which are known to
the State of California to cause cancer or birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov
Unattended Operation
The Timer-to-Close (TTC) feature, the myQ
®
App, and myQ
®
Garage Door and Gate Monitor are
examples of unattended close and are to be used ONLY with sectional doors. Any device or feature
that allows the door to close without being in the line of sight of the door is considered unattended
close. The Timer-to-Close (TTC) feature, the myQ
®
App, and any other myQ
®
devices are to be used
ONLY with sectional doors.
4
Preparation
Before You Connect with Your Smartphone
Monitor and control your garage door from anywhere using the myQ
®
App.
You will need:
• Wi-Fi enabled smartphone, tablet or laptop
• Broadband Internet Connection
•
Wi-Fi signal in the garage (2.4 GHz, 802.11b/g/n required)
• Password for your home network (router's main account, not guest network)

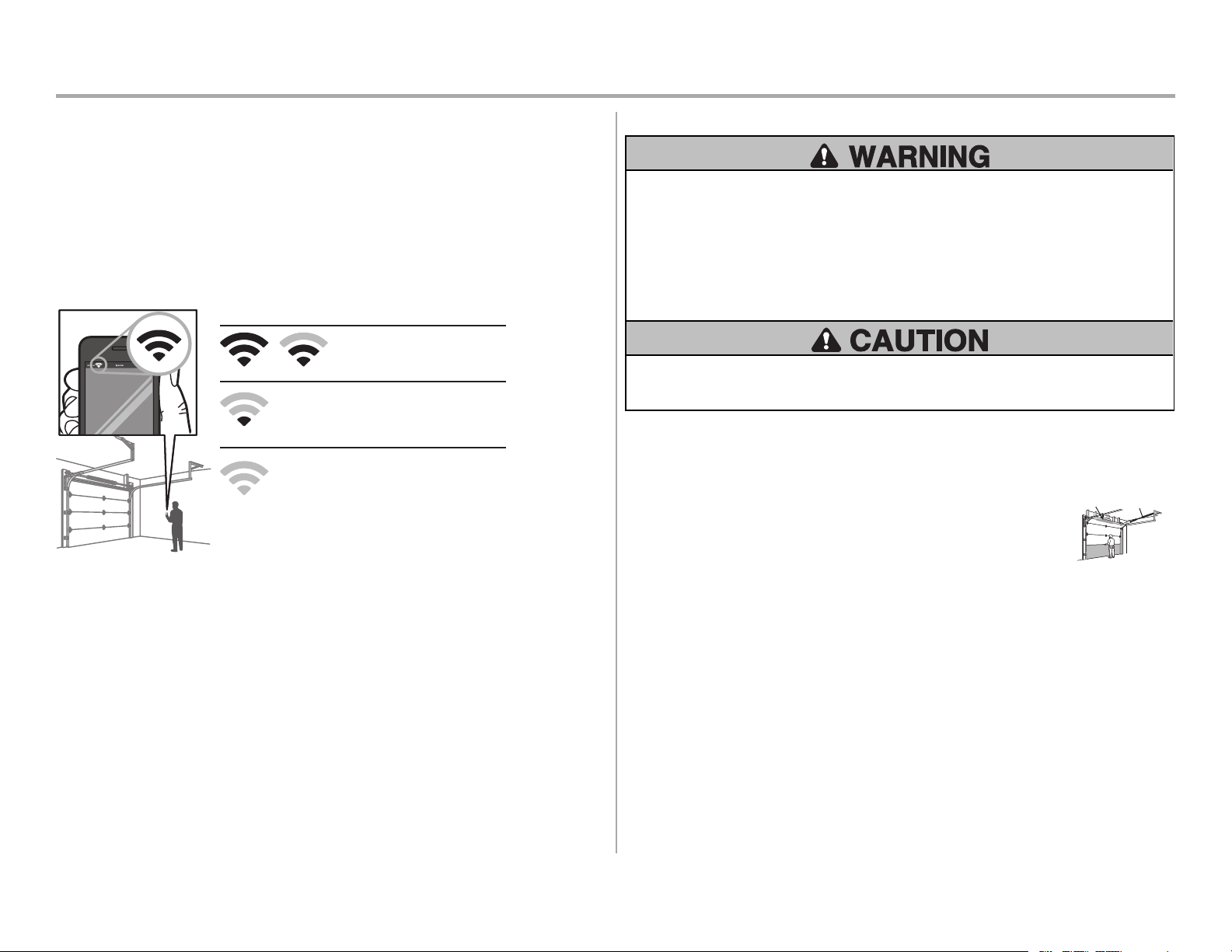

TEST THE WI-FI SIGNAL STRENGTH
Make sure your mobile device is connected to your Wi-Fi network. Hold your mobile device in the
place where your garage door opener will be installed and check the Wi-Fi signal strength.
Check Signal Strength. If you see:
Wi-Fi signal is strong.
The garage door opener will
connect to your Wi-Fi network.
Wi-Fi signal is weak.
The garage door opener may connect to your
Wi-Fi network. If not, try one of the options
below to improve the Wi-Fi signal:
No Wi-Fi signal.
The garage door opener will not be able to
connect to your Wi-Fi network. Try one of the
options below to improve the Wi-Fi signal:
• Move your router closer to the garage door opener to minimize
interference from walls and other objects
• Buy a Wi-Fi range extender
Visit support.chamberlaingroup.com for more details.
See page 36 to connect the garage door opener to a mobile device.
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of
balance. An unbalanced garage door may NOT reverse when required.
• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets
or their hardware, ALLof which are under EXTREME tension.
• Disable ALLlocks and remove ALLropes connected to garage door BEFORE installation
and operating garage door opener to avoid entanglement.
• DO NOT install on a one-piece door if using devices or features providing unattended
close. Unattended devices and features are to be used ONLY with sectional doors.
To prevent damage to garage door and opener:
• ALWAYS disable locks BEFORE installing and operating the opener.
• ONLY operate garage door opener at 120V, 60Hz to avoid malfunction and damage.
Before you begin:
1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should stay in
place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If your door
binds, sticks, or is out of balance, call a trained door systems technician.
4. Check the seal on the bottom of the door. Any gap between the floor and
the bottom of the door must not exceed 1/4" (6 mm). Otherwise, the
safety reversal system may not work properly.
5. The opener should be installed above the center of the door. If there is a
torsion spring or center bearing plate in the way of the header bracket, it
may be installed within 4feet (1.2 m) to the left or right of the door
center. See page 11.
Torsion
Spring
Extension
Spring
OR
5
Preparation
Tools Needed
3/16
5/32
5/16
7/16
1/2
5/8
9/16
1/4
7/16
6
Preparation

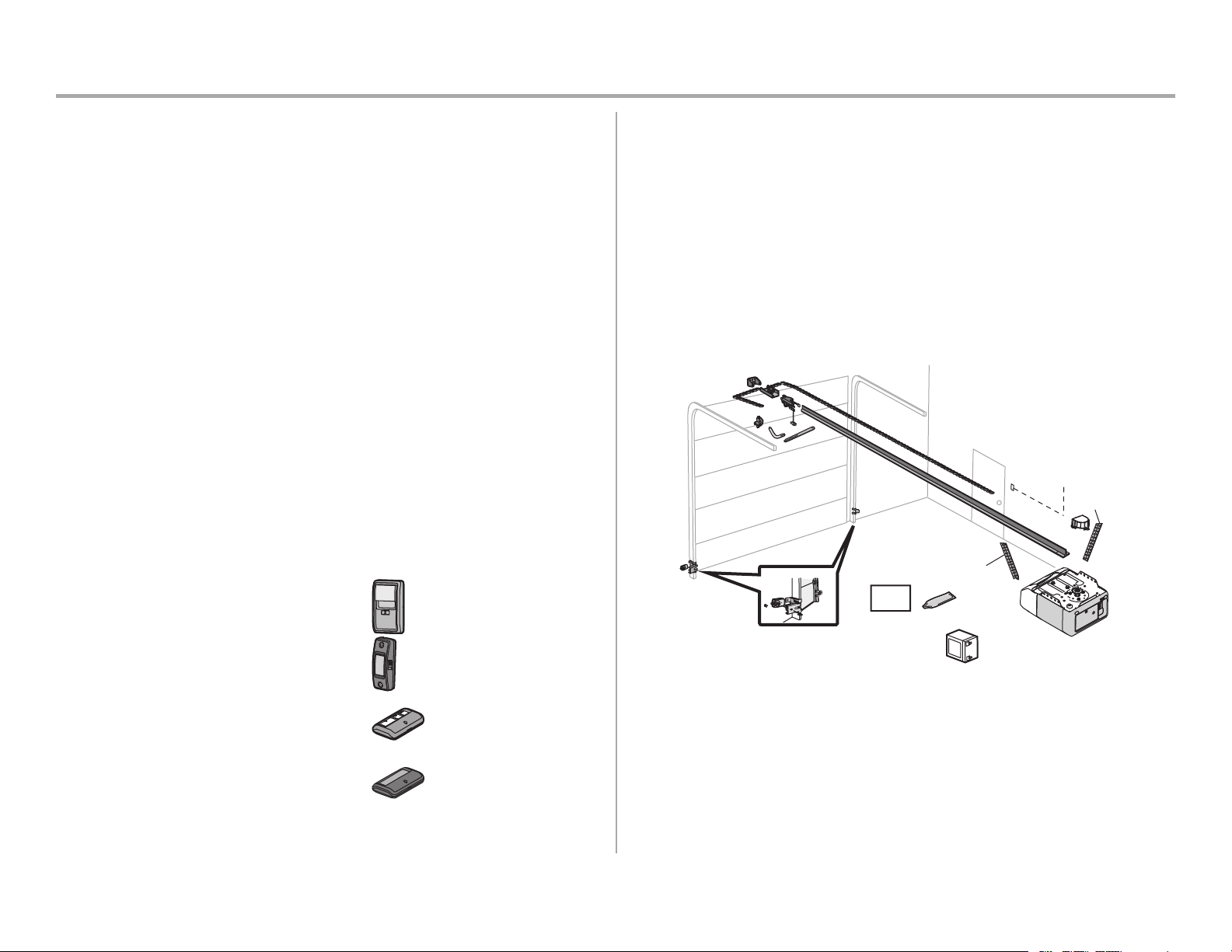

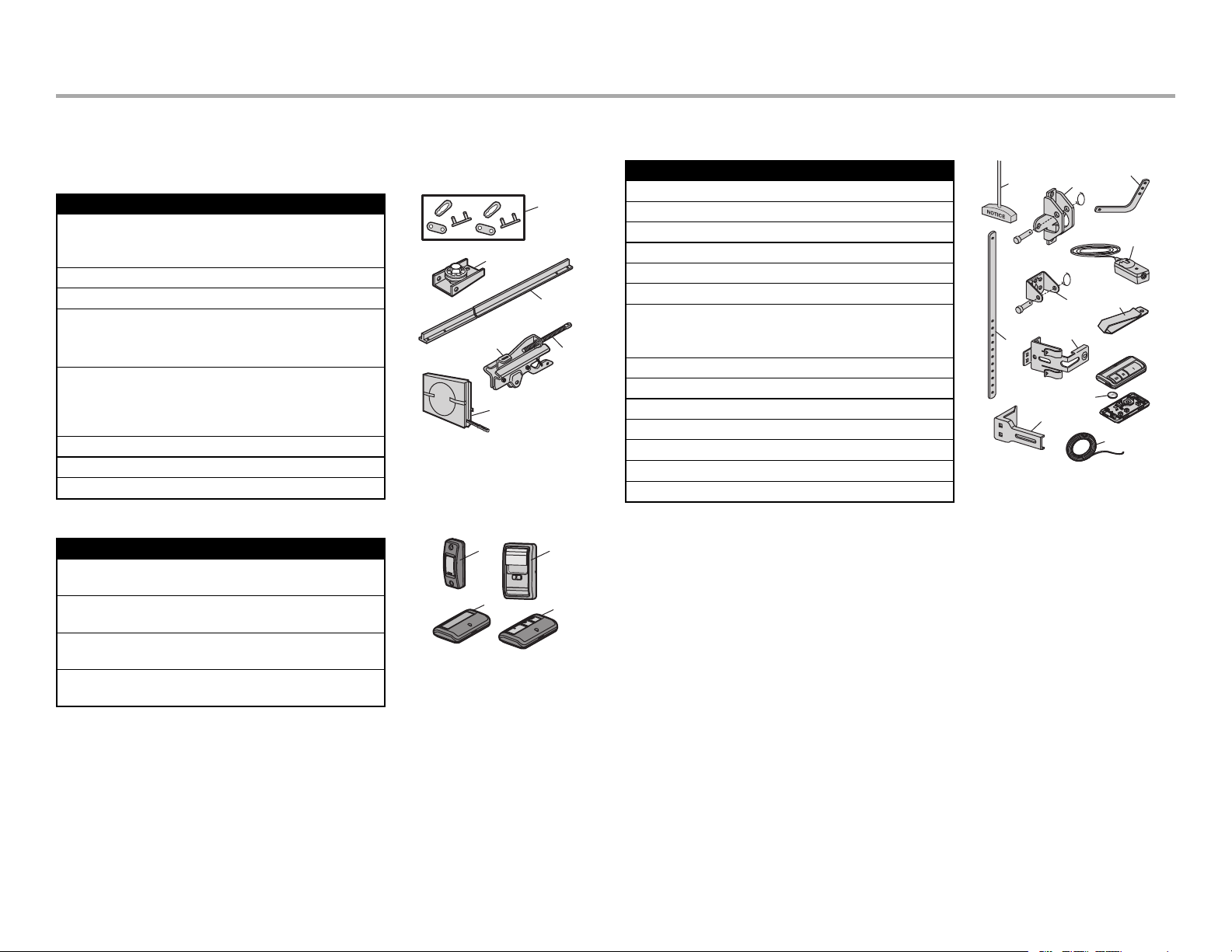

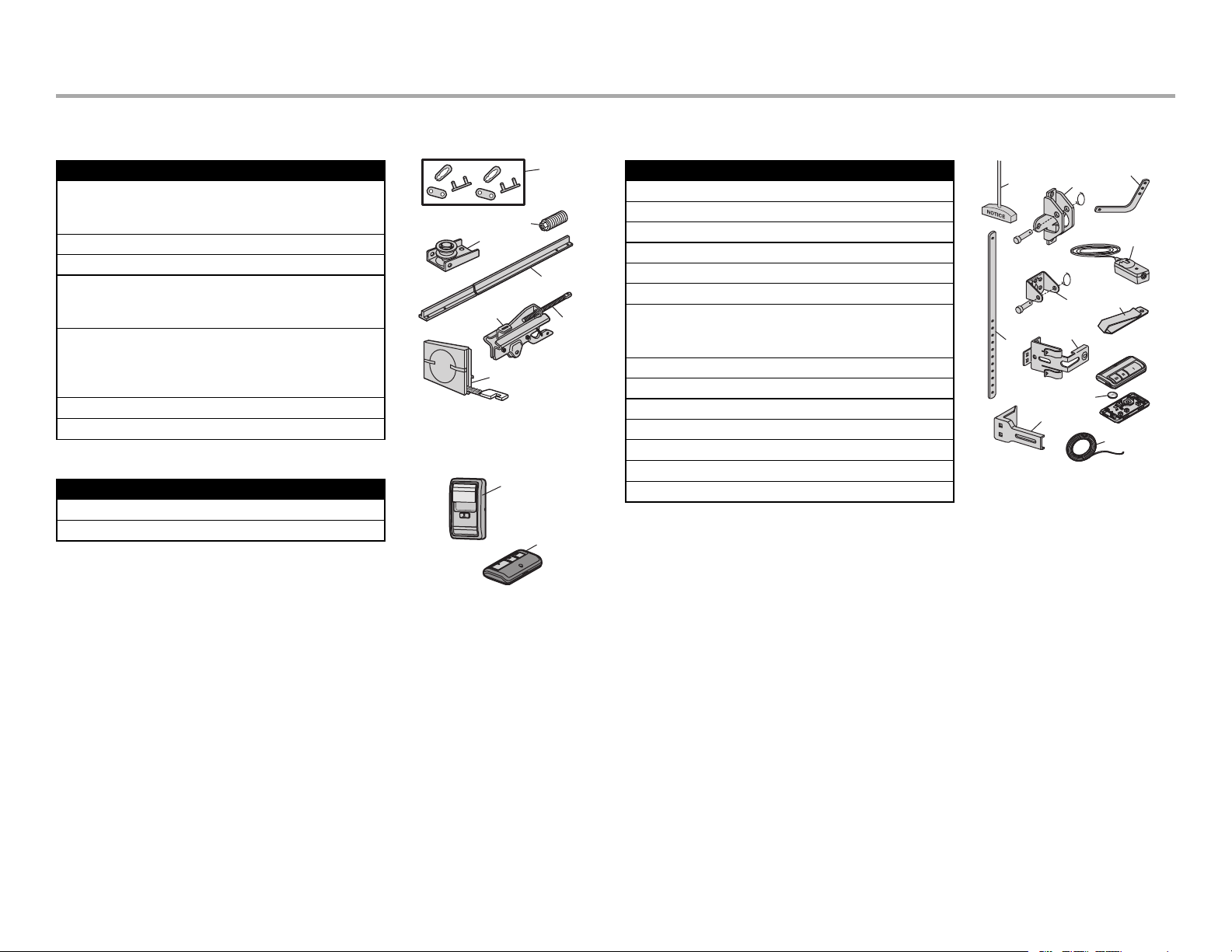

Carton Inventory: Models 8160W, 8160WB, 8164W, and 8165W
Accessories will vary depending on the garage door opener model purchased. Depending on your
specific model, other accessories may be included with your garage door opener. The instructions for
these accessories will be attached to the accessory and are not included in this manual. The images
throughout this manual are for reference and your product may look different.
For Square Rail see instructions included with the rail kit model LMSSRKIT.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover
K. Chain
L. Door control
M. White and red/white wire
N. The Protector System
®
Safety reversing sensors with white and white/black wire attached: Sending Sensor (1)
Receiving Sensor (1) and Safety Sensor Brackets (2)
O. Safety labels and literature
P. Rail grease
Q. Battery Backup (Model 8160WB only)
SECURITY+ 2.0
®
ACCESSORIES
882LMW
Multi-Function Door Control
Models: 8160W, 8160WB, 8165W
883LMW
Push Button Door Control
Models: 8164W
893LM
Remote Control
Models: 8160W, 8160WB, 8165W
891LM
Remote Control
Model: 8164W
HARDWARE
Installation Door Control Hardware
Hex bolt 5/16"-18 x 7/8" (4) Screw 6AB x 1" (2)
Lag screw 5/16"-9 x 1-5/8" (2) Screw 6-32 x 1" (2)
Clevis Pin 5/16" x 2-3/4" (1) Drywall anchors (2)
Clevis Pin 5/16" x 1-1/4" (1)
Clevis Pin 5/16" x 1" (1)
Nut 5/16"-18 (4)
Lock washer 5/16" (4)
Self-threading screw 1/4"-14 x 5/8" (2)
Ring fastener (3)
Carriage bolt 1/4"-20 x 1/2" (2)
Wing nut 1/4"-20 (2)
A
B
C
J
N
I
O
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
P
Q
7
Preparation

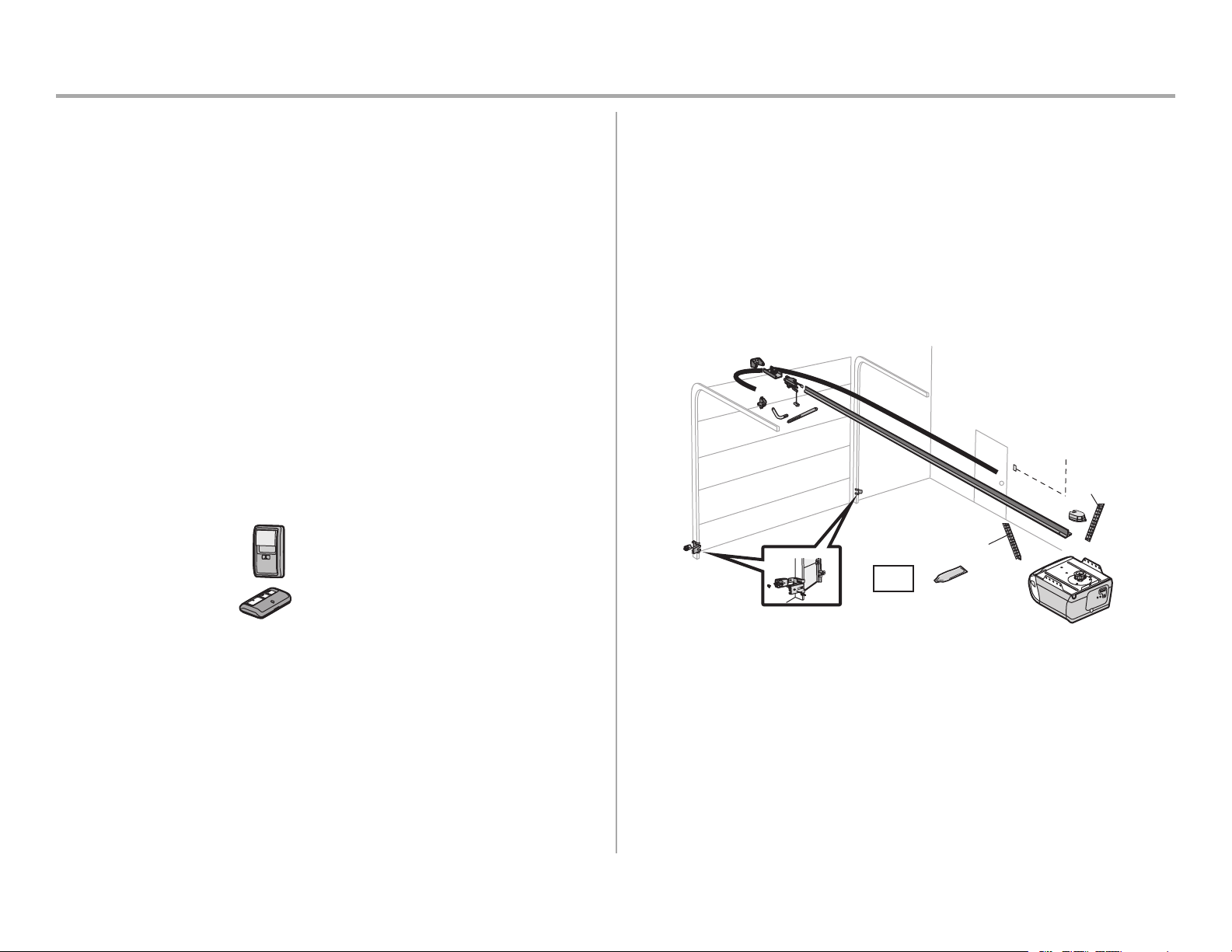

Carton Inventory: Model 8155W
Accessories will vary depending on the garage door opener model purchased. Depending on your
specific model, other accessories may be included with your garage door opener. The instructions for
these accessories will be attached to the accessory and are not included in this manual. The images
throughout this manual are for reference and your product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover with hex screws
K. Belt
L. Door control
M. White and red/white wire
N. The Protector System
®
Safety reversing sensors with white and white/black wire attached: Sending Sensor (1)
Receiving Sensor (1) and Safety Sensor Brackets (2)
O. Safety labels and literature
P. Rail grease
SECURITY+ 2.0
®
ACCESSORIES
882LMW
Multi-Function Door Control
893LM
Remote Control
INSTALLATION HARDWARE
Hex bolt 5/16"-18 x 7/8" (4) Lock washer 5/16" (4)
Lag screw 5/16"-9 x 1-5/8" (2) Self-threading screw 1/4"-14 x 5/8" (2)
Clevis Pin 5/16" x 2-3/4" (1) Ring fastener (3)
Clevis Pin 5/16" x 1-1/4" (1) Carriage bolt 1/4"-20 x 1/2" (2)
Clevis Pin 5/16" x 1" (1) Wing nut 1/4"-20 (2)
Nut 5/16"-18 (4)
DOOR CONTROL HARDWARE
Screw 6AB x 1" (2)
Screw 6-32 x 1" (2)
Drywall anchors (2)
A
B
C
J
N
I
O
P
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
8
Assembly

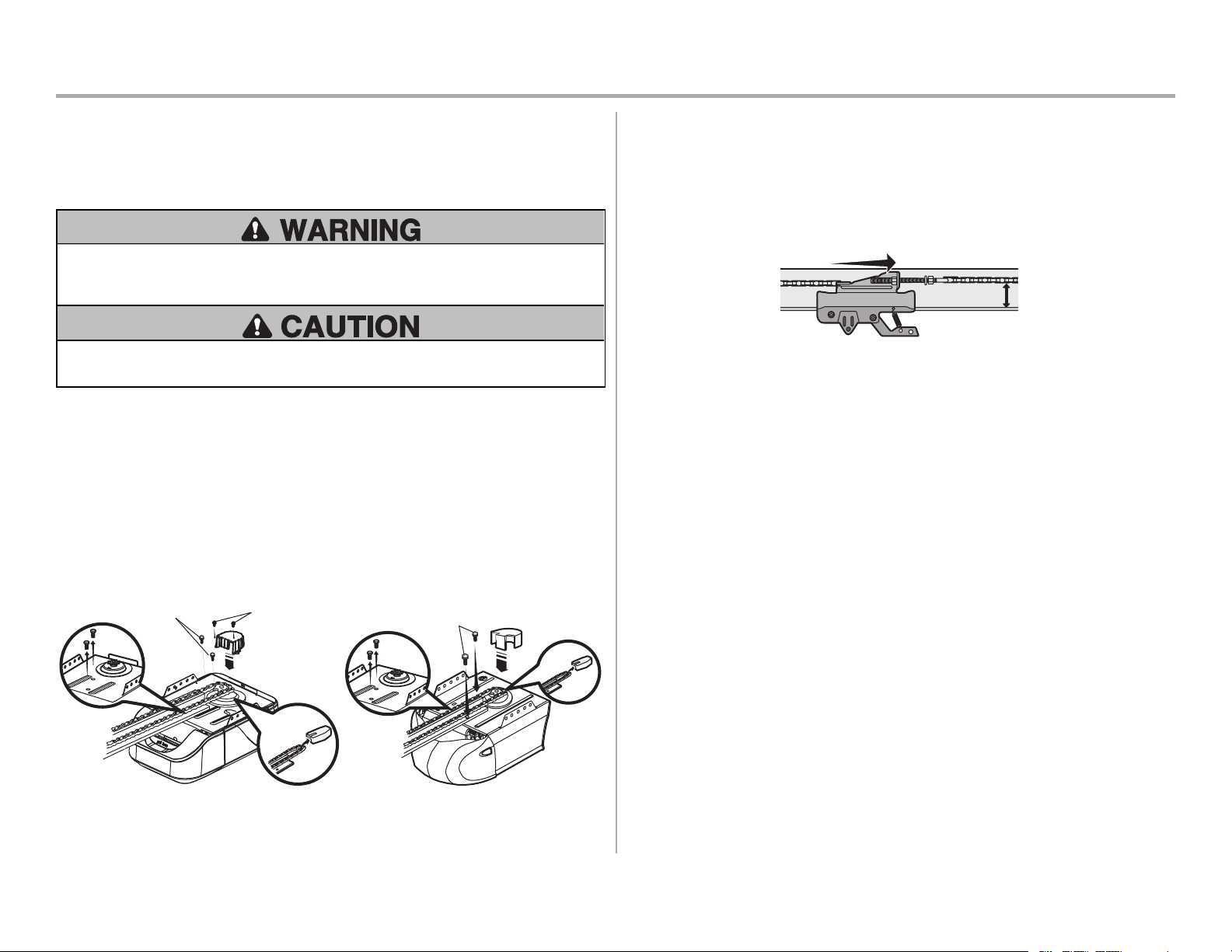

1 Attach the Rail to the Garage Door Opener
MODELS 8160W, 8160WB, 8164W*, AND 8165W
* Can be installed with a T-Rail or a Square Rail. For Square Rail assembly steps, see instructions
provided with the rail kit model LMSSRKIT. Once completed, return to this manual for the installation
instructions.

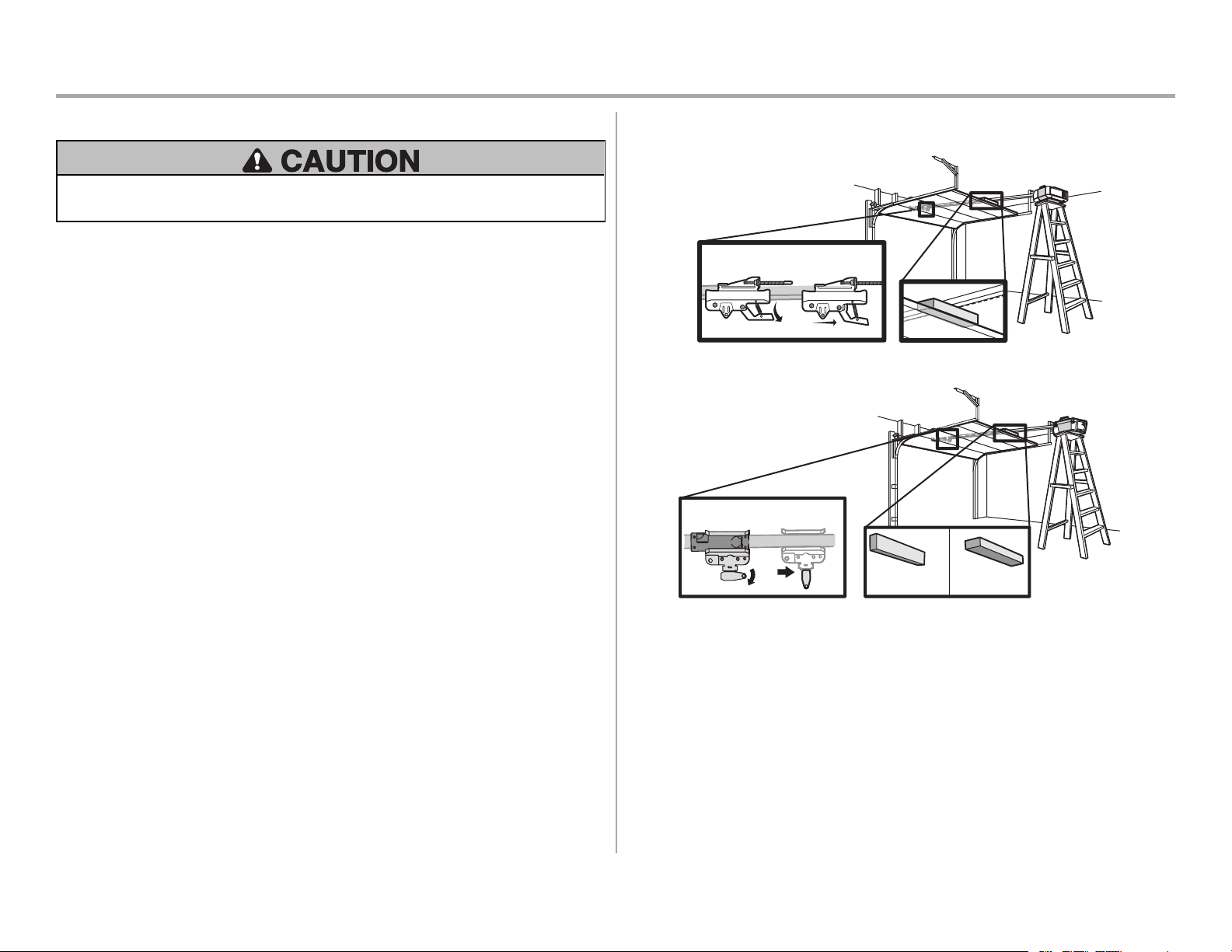

To avoid possible SERIOUS INJURY to finger from moving garage door opener:
• ALWAYS keep hand clear of sprocket while operating opener.
• Securely attach sprocket cover BEFORE operating.
To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the
top of the opener.
NOTE: ONLY use the bolts removed from the garage door opener. Place the garage door opener on
the packing material to prevent scratching.
1. Remove the two bolts from the top of the garage door opener.

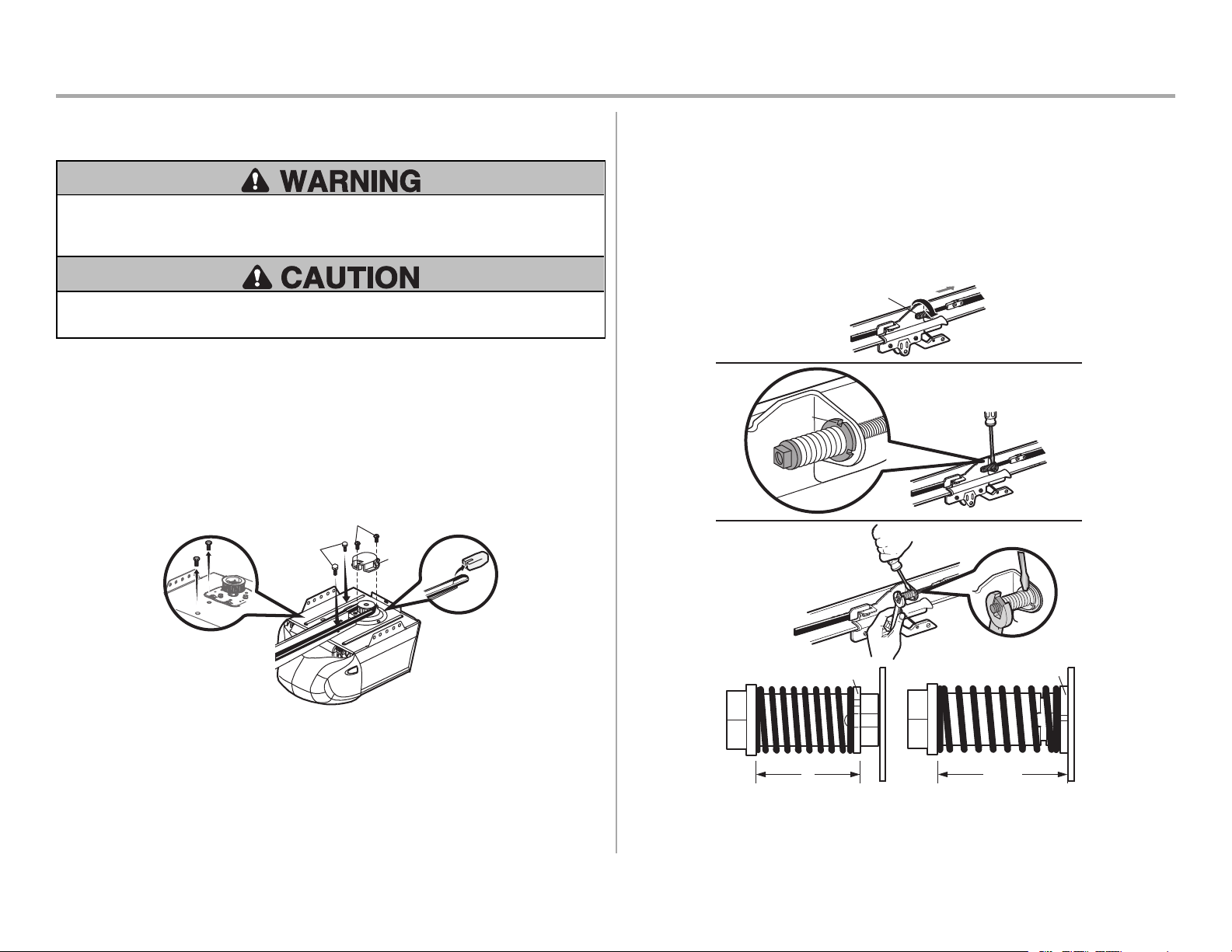

2. Align the rail and the styrofoam over the sprocket. Cut the tape from the rail, chain, and
styrofoam.
3. Fasten the rail with the previously removed bolts.
4. Position the chain around the garage door opener sprocket.
5.
Models 8160W and 8160WB: Attach the sprocket cover over the garage door opener
sprocket and attach with hex screws.
Models 8164W and 8165W: Install the sprocket cover by squeezing the sides and inserting
the tabs into the slots on the garage door opener.
Washered Bolt
5/16"-18x1/2"
Hex Screw
#8x3/8"
Washered Bolt 5/16"-18 x 1/2"
(Mounted in the garage door opener)
Models 8160W and 8160WB Models 8164W and 8165W
2 Tighten the Chain
1. Loosen the inner nut and lock washer on the trolley threaded shaft.
2. Tighten the outer nut until the chain is a 1/2" above the base of the rail at the midpoint
oftherail.
3. Re-tighten the inner nut.
Slack in the chain is normal when the door is closed. No readjustment is necessary.
1/2" (13 mm)
9
Assembly
1 Attach the Rail to the Garage Door Opener
MODEL 8155W
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
• ALWAYS keep hand clear of sprocket while operating opener.
• Securely attach sprocket cover BEFORE operating.
To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the
top of the opener.
NOTE: ONLY use the bolts removed from the garage door opener. Place the garage door opener on
the packing material to prevent scratching.
1. Remove the two bolts from the top of the garage door opener.
2. Align the rail and the styrofoam over the sprocket. Cut the tape from the rail, belt, and
styrofoam.
3. Fasten the rail with the previously removed bolts.
4. Position the belt around the garage door opener sprocket.
5. Attach the sprocket cover over the garage door opener sprocket and attach with hex screws.
Washered Bolts
5/16"-18 x 1/2"
(Mounted in
the garage
door opener)
Hex Screws 8 x 3/8"
Sprocket
Cover
2 Tighten the Belt
1. By hand, thread the spring trolley nut on the threaded shaft until it is finger tight against the
trolley. Do not use any tools.
2. Insert a flathead screwdriver tip into one of the nut ring slots and brace it firmly against the
trolley.
3. Tighten the spring trolley nut with an adjustable wrench or a 7/16" open end wrench about a
quarter turn until the spring releases and snaps the nut ring against the trolley. This sets the
spring to optimum belt tension.
Spring Trolley Nut
(To motor unit)
Nut ring
slot
Nut Ring
Nut Ring
AFTER RELEASE
1-1/4"
(3.18 cm)
BEFORE
1"
(2.5 cm)
1
2
3
10
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and lubricated garage door. An
improperly balanced door may NOT reverse when required and could result in SEVERE
INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained
door systems technician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing
opener to avoid entanglement.
5. Where possible, install the door opener 7 feet (2.13 m) or more above the floor.
6. Mount the emergency release within reach, but at least 6 feet (1.83 m) above the floor and
avoiding contact with vehicles to avoid accidental release.
7. NEVER connect garage door opener to power source until instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They
could be caught in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door.
• out of reach of small children at a minimum height of 5feet (1.5m)
above floors, landings, steps or any other adjacent walking surface.
• away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door control in a
prominent location.
11. Place emergency release/safety reverse test label in plain view on inside of
garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse
on contact with a 1-1/2" (3.8cm) high object (or a 2x4 laid flat) on the floor.
13. DO NOT install on a one-piece door if using devices or features providing
unattended close. Unattended devices and features are to be used ONLY with
sectional doors.
11
Installation
1 Determine the Header Bracket Location
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling,
otherwise garage door might NOT reverse when required. DO NOT install header bracket
over drywall.
• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.
• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or
their hardware, ALL of which are under EXTREME tension.
• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of
balance. An unbalanced garage door might NOT reverse when required.
• DO NOT enable the Timer-to-Close functionality if operating either one-piece or swinging
garage doors. To be enabled ONLY when operating a sectional door.
Close the door and mark the inside vertical centerline of the garage door.
Extend the line onto the header wall above the door. You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center only if a torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling when clearance is minimal. (It may be mounted on the wall
upside down if necessary, to gain approximately 1/2" (1 cm). If you need to install the header bracket
on a 2x4 (on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural
supports.
Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the
header wall 2" (5 cm) above the high point. This height will provide travel clearance for the top edge
of the door.
NOTE: If the total number of inches exceeds the height available in your garage, use the maximum
height possible, or refer to page 11 for ceiling installation.
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door
2x4
2x4
Structural
Supports
Level
(Optional)
OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door
12
Installation
2 Install the Header Bracket
You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow
the instructions which will work best for your particular requirements. Do not install the header
bracket over drywall. If installing into masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9x1-5/8"

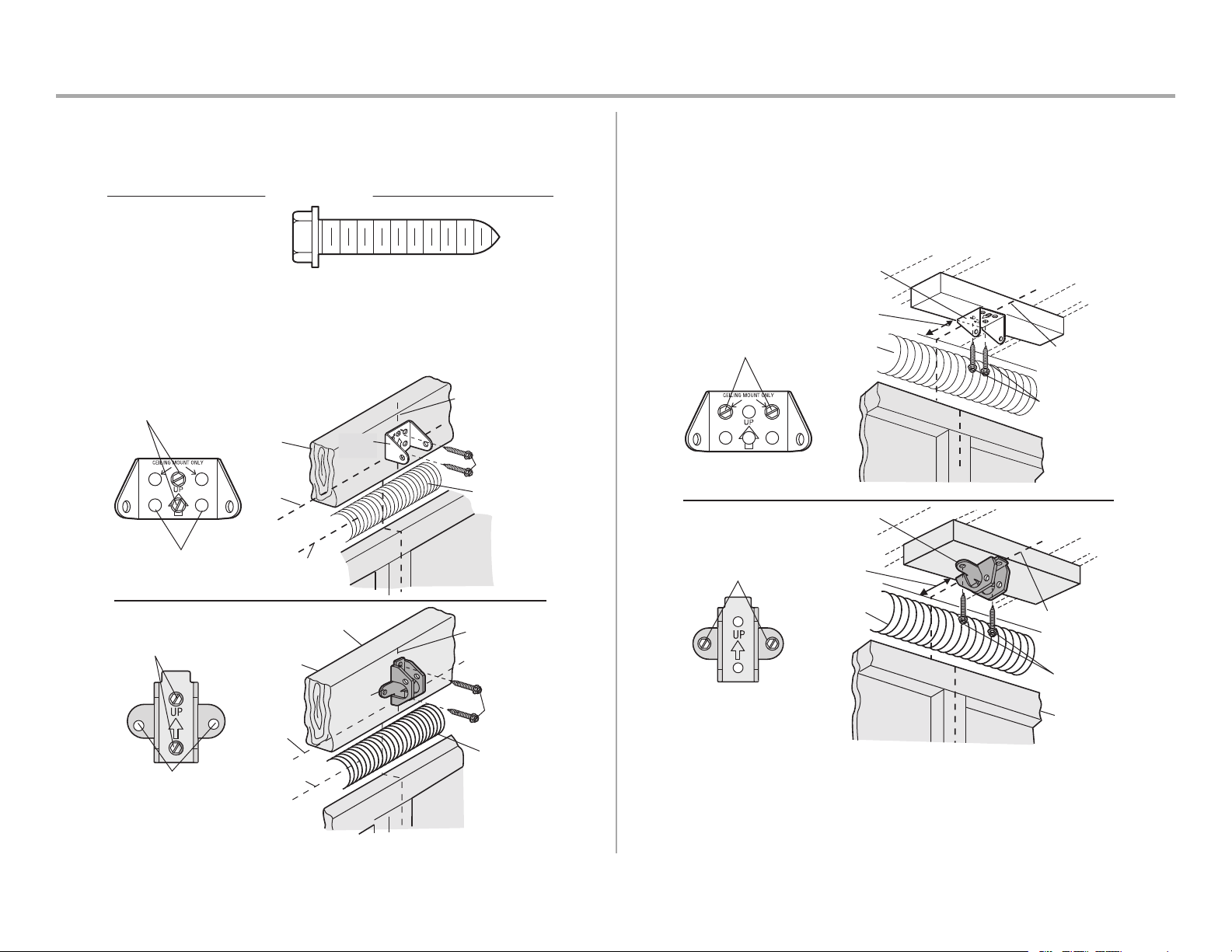

OPTION A - WALL INSTALLATION
1. Center the bracket on the vertical centerline with the bottom edge of the bracket on the
horizontal line as shown (with the arrow pointing toward the ceiling).
2. Mark the vertical set of bracket holes (do not use the holes designated for ceiling mount).
Drill 3/16" pilot holes and fasten the bracket securely to a structural support with lag screws.
Wall Mount
Optional Mounting Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point of
Garage Door Travel
Horizontal
Line
Lag Screw
5/16"-9 x 1-5/8"
Lag Screw
5/16"-9 x
1-5/8"
FOR SQUARE RAIL
FOR T-RAIL
Optional
Mounting
Holes
Header Wall
I
2x4 Structural
Support
Door
Spring
Garage Door
Highest Point of
Garage Door Travel
Horizontal
Line
Center
of Door
Wall Mounting Holes
OPTION B - CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6" (15cm) from the wall. Make sure the
arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when
clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support
with the hardware provided.
(Header Wall)
Ceiling Mounting Holes
Finished Ceiling
Vertical
Centerline of
Garage Door
Header Bracket
Header Bracket
6" (15 cm) Maximum
Door Spring
(Garage Door)
Lag Screw
5/16"-9 x 1-5/8"
FOR SQUARE RAIL
FOR T-RAIL
Header Wall
Lag Screws
Ceiling Mounting
Holes
Finished Ceiling
Center of Door
6" (15 cm)
Maximum
Door Spring
Garage Door
13
Installation
3 Attach the Rail to the Header Bracket
1. Align the rail with the header bracket. Insert the clevis pin through the holes in the header
bracket and rail. Secure with the ring fastener.
NOTE: Use the packing material as a protective base for the garage door opener.
FOR T-RAIL
HARDWARE
Clevis Pin 5/16" x 2-3/4" Ring Fastener
Ring
Fastener
Clevis Pin
5/16" X 2-3/4"
FOR SQUARE RAIL
Clevis Pin
5/16"x1-1/2"
Ring Fastener
Clevis Pin
Ring Fastener
HARDWARE
14
Installation
4 Position the Garage Door Opener
To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of
door.
1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail.
A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall enough
you will need help at this point. If the door hits the trolley when it is raised, pull the trolley release
arm down to disconnect the inner and outer trolley. Slide the outer trolley toward the garage door
opener. The trolley can remain disconnected until instructed.
FOR T-RAIL
Connected Disconnected
FOR SQUARE RAIL
Connected Disconnected
One-piece door
without tracks
2x4 2x4
All other
door types
15
Installation

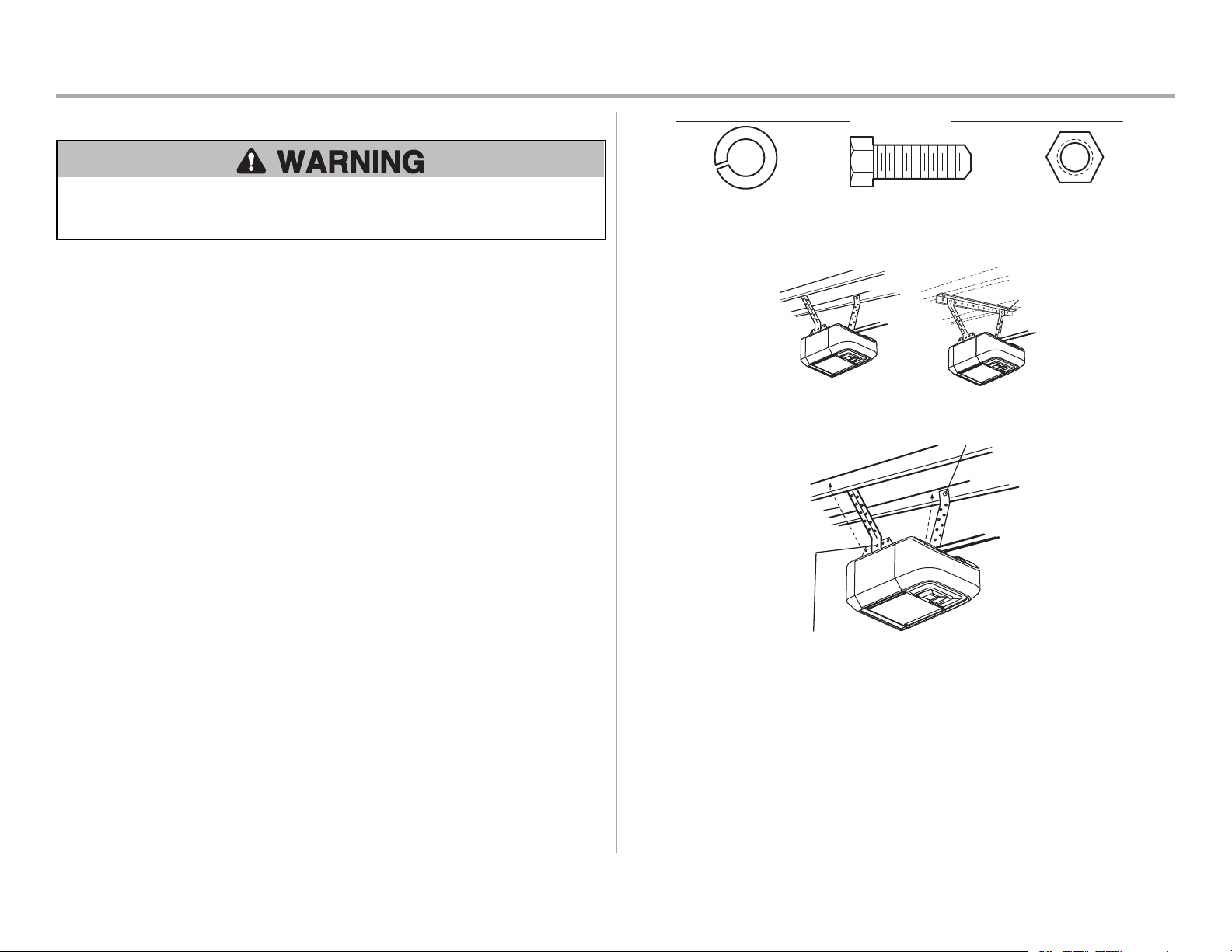

5 Hang the Garage Door Opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to
structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into
masonry.
Hanging your garage door opener will vary depending on your garage. Two representative
installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to
provide rigid support. On finished ceilings (Figure 2), attach a sturdy metal bracket to structural
supports before installing the opener. This bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit to the structural support.
2. Cut both pieces of the hanging bracket to required lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with 5/16"-18 x 1-7/8" lag screws (not provided).
5. Fasten the opener to the hanging brackets with 5/16"-18 x 7/8" hex bolts, lock washers and
nuts.
6. Check to make sure the rail is centered over the door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
FIGURE 1
FIGURE 2
(Not Provided)
Lag Screws
5/16"- 18x1-7/8"
Measure
Distance
Hex Bolt 5/16"- 18x7/8", Lock Washer 5/16", Nut 5/16"-18
FIGURE 3
Not Provided
Finished Ceiling
Unfinished Ceiling
Hex Bolt 5/16"- 18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE
16
Installation

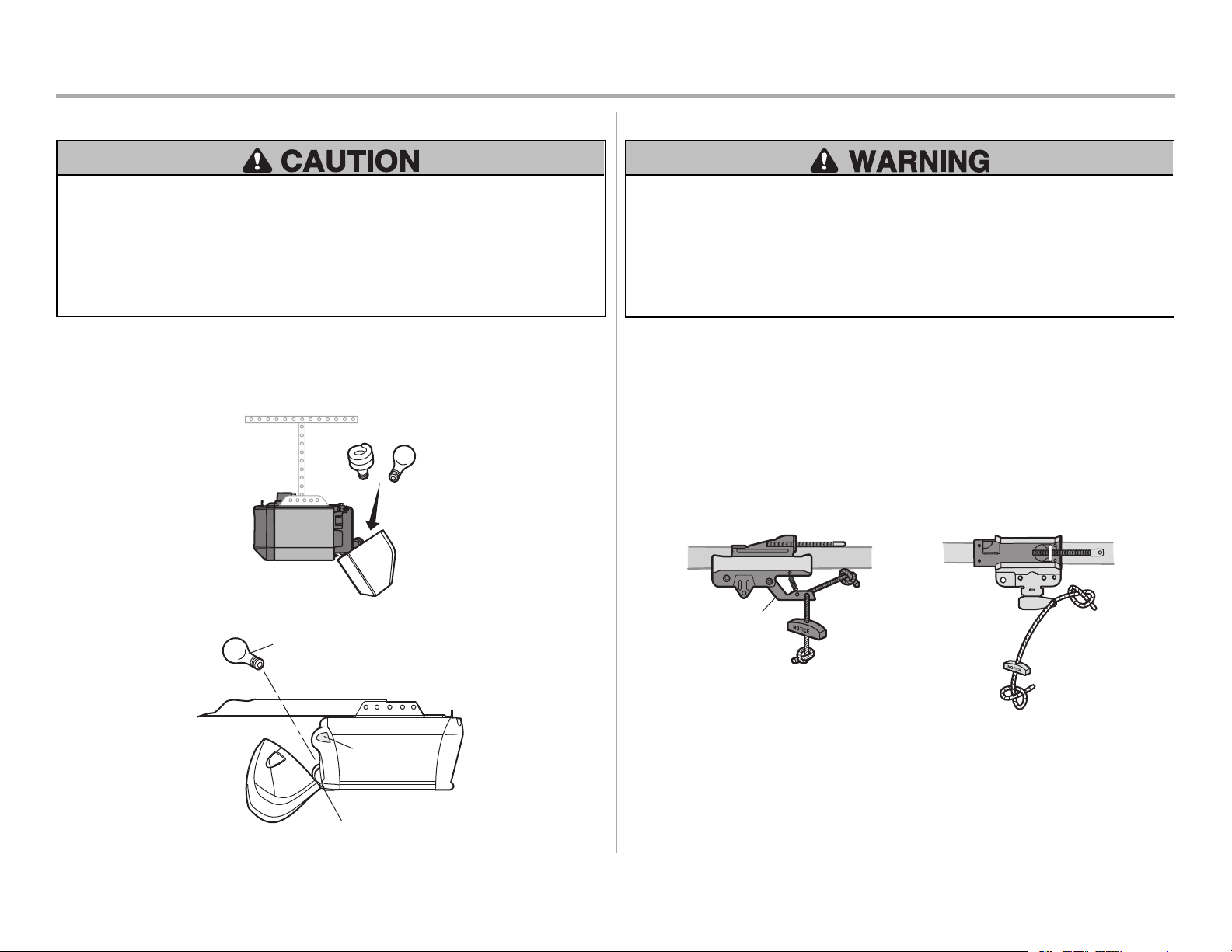

6 Install the Light Bulbs
To prevent possible OVERHEATING of the end panel or light socket:
• Use ONLY A19 light bulbs.
• DO NOT use incandescent bulbs larger than 100W.
• DO NOT use compact fluorescent light bulbs larger than 26W (100W equivalent).
• DO NOT use halogen bulbs.
• DO NOT use short neck or specialty light bulbs.
LED bulbs may cause remote control radio interference. Use ONLY LED bulbs recommended here:
chamberlain.com/bulb.
1. Pull light lens down.
2. Insert light bulb.
3. Close light lens.
MODELS 8160W AND 8160WB
or
MODELS 8155W, 8164W, and 8165W
100 Watt (Max)
Standard Light Bulb
Release Tab
Lens Hinge
7 Attach the Emergency Release Rope and Handle
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
• If possible, use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced door could result in an open door
falling rapidly and/or unexpectedly.
• NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could
fall.
1. Insert one end of the emergency release rope through the handle. Make sure that “NOTICE” is
right side up. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to
prevent slipping.
2. Insert the other end of the emergency release rope through the hole in the trolley release arm.
Mount the emergency release within reach, but at least 6 feet (1.83m) above floor, avoiding
contact with vehicles to prevent accidental release and secure with an overhand knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to
prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to
avoid entanglement.
Trolley
Release Arm
FOR T-RAIL FOR SQUARE RAIL
17
Installation
8 Install the Door Bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE
installation of door bracket. Contact the garage door manufacturer or installing dealer for opener
reinforcement instructions or reinforcement kit. Failure to reinforce the top section as required
according to the door manufacturer may void the door warranty.

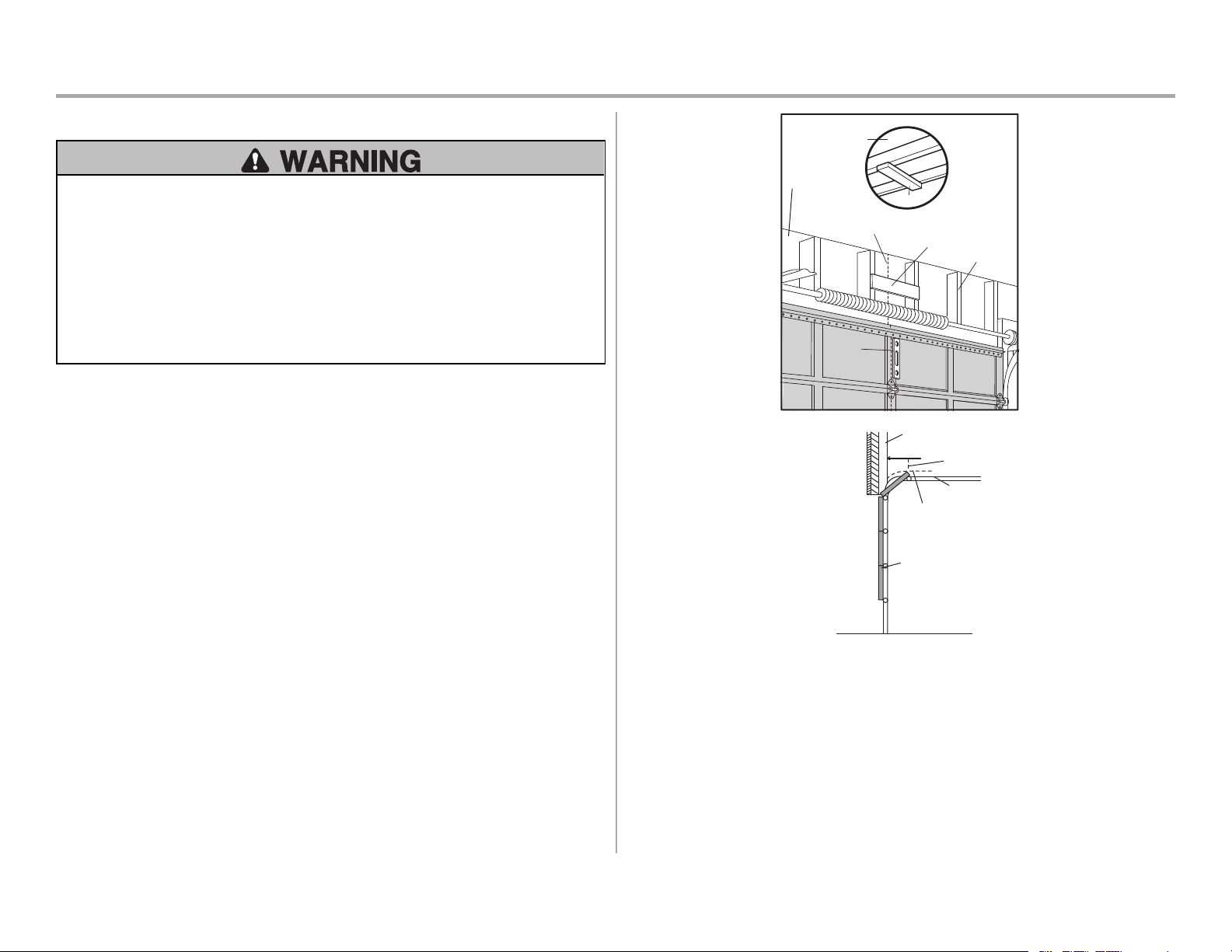

A horizontal and vertical reinforcement is needed for
lightweight garage doors (fiberglass, aluminum, steel,
doors with glass panel, etc.) (not provided). A horizontal
reinforcement brace should be long enough to be
secured to two or three vertical supports. A vertical
reinforcement brace should cover the height of the top
panel. Contact the garage door manufacturer or
installing dealer for opener reinforcement instructions or
reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In
this case you will not need the door bracket; proceed to the next step.
SECTIONALDOORS

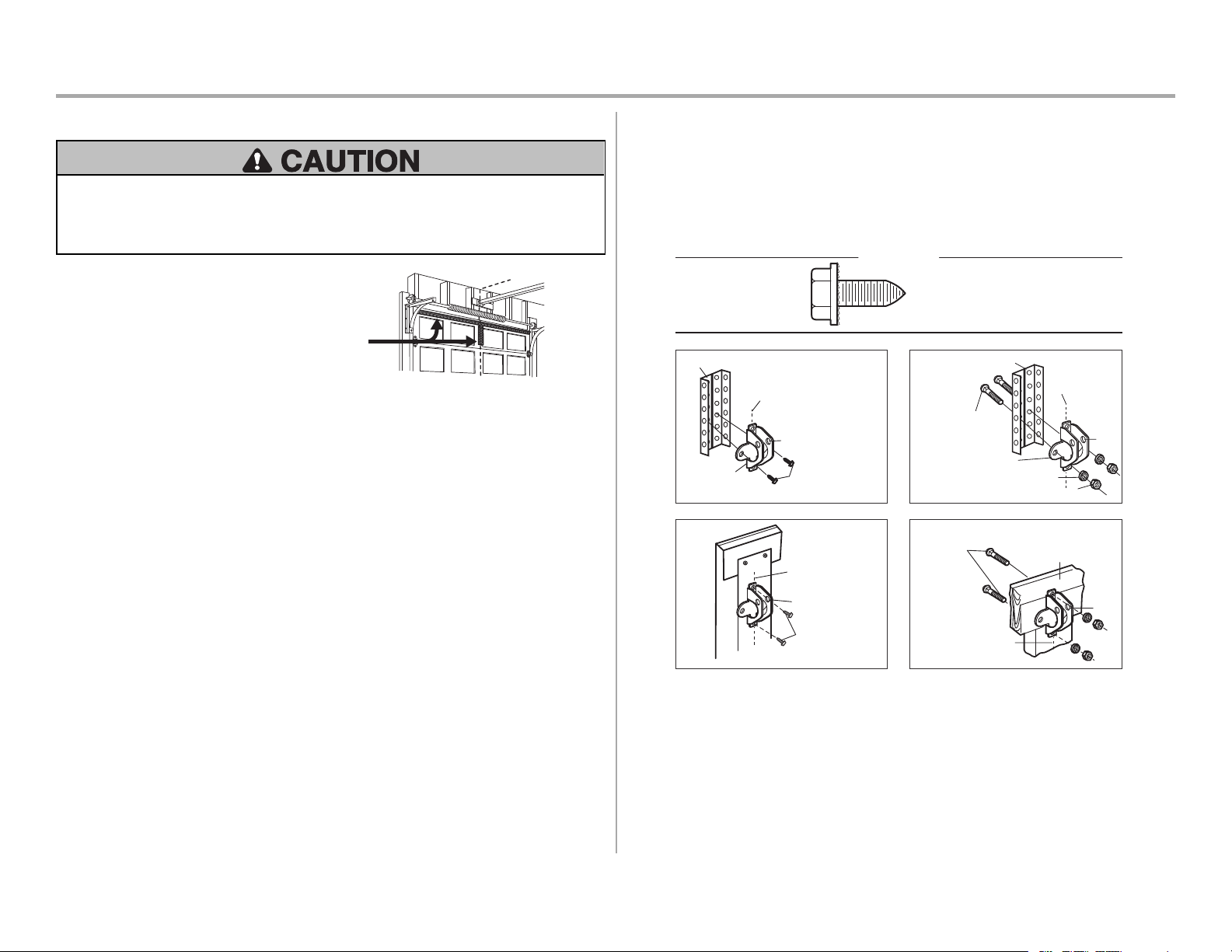

1. Center the door bracket on the previously marked vertical centerline used for the header
bracket installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR
directly below any structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door
panel support and the door bracket:
• Drill 3/16" fastening holes. Secure the door bracket using the two self threading screws.
(Figure1)
• Alternately, use two 5/16"-18x2" bolts, lock washers and nuts (not provided). (Figure2)
Metal, insulated or light weight factory reinforced doors:
• Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws.
(Figure3)
Wood Doors:
• Use top and bottom or side to side door bracket holes. Drill 5/16” holes through the door
and secure bracket with 5/16"-18 x 2" carriage bolts, lock washers and nuts (not provided).
(Figure4)
NOTE: The 1/4"-14 x 5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3
Vertical Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket
Self-Threading Screw
1/4"-14 x 5/8"
Self-Threading
Screw
1/4"-14 x 5/8"
Vertical Centerline
of Garage Door
UP
FIGURE 4
Vertical
Centerline of
Garage Door
Bolt 5/16"-18 x 2"
(Not provided)
UP
Inside Edge of Door or
Reinforcement Board
FIGURE 2
Vertical Reinforcement
Bolt 5/16"-18 x 2"
(Not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical
Centerline
of Garage Door
Self-Threading Screw
1/4"-14 x 5/8"
HARDWARE
18
Installation

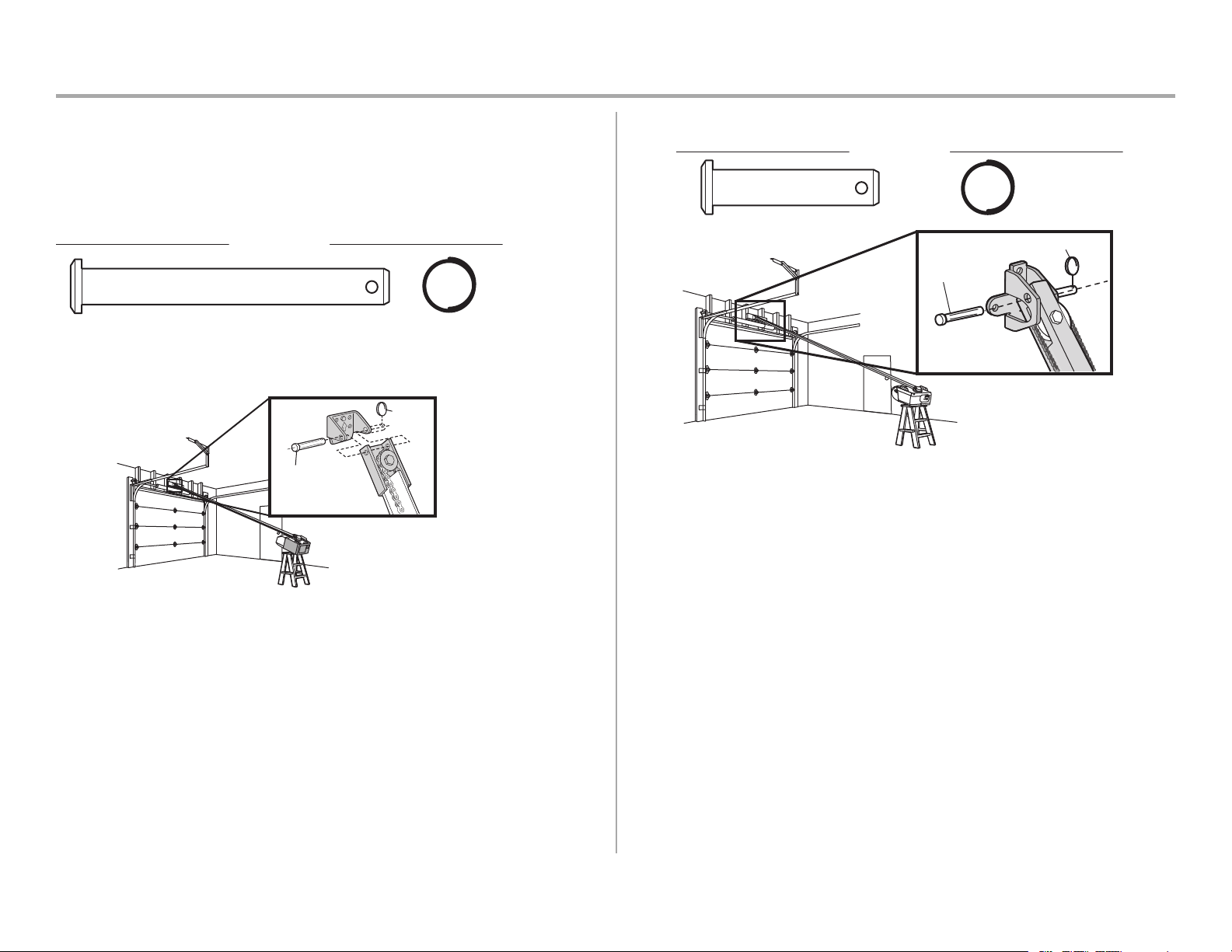

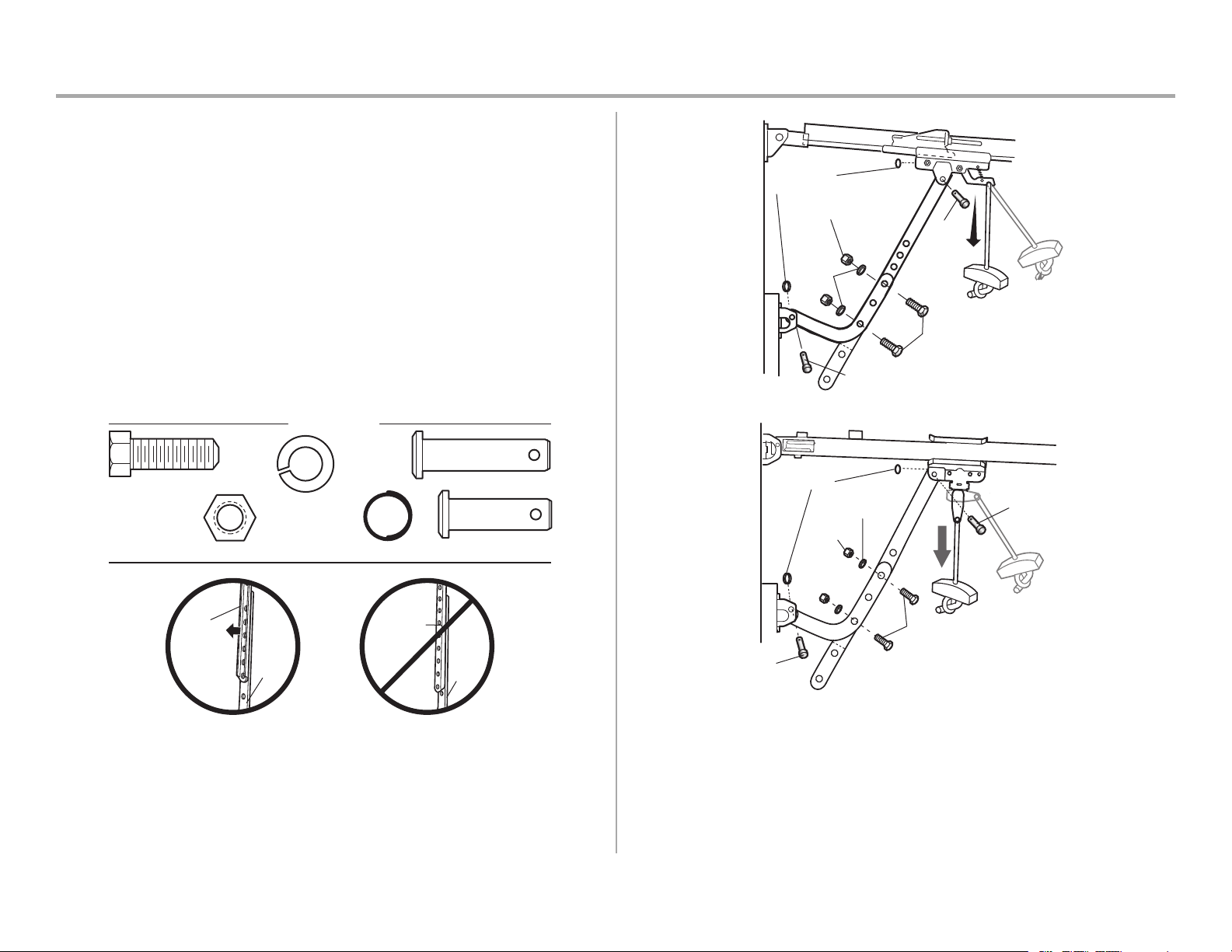

9 Connect the Door Arm to the Trolley
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1.
T-Rail: Close the door. Disconnect the trolley by pulling the emergency release handle.
Slide the outer trolley back (away from the door) about 2" (5 cm).
Square Rail: Close the door. Disconnect the trolley by pulling the emergency release
handle.
2. Attach the straight door arm to the outer trolley using the clevis pin. Attach with the ring
fastener.
3. Attach the curved door arm to the door bracket using the clevis pin. Attach with the ring
fastener.
4. Align the straight door arm with the curved door arm. Select two aligned holes (as far apart
as possible) and attach using the bolts, nuts and lock washers.
NOTE: If the holes do not line up, reverse the straight door arm. Select two aligned holes (as
far apart as possible) and attach using the bolts, nuts and lock washers.
5. Pull the emergency release handle toward the garage door opener until the trolley release
arm is horizontal. The trolley will re-engage automatically when the garage door opener is
activated.
(Groove
facing out)
CORRECT
Straight
Door Arm
Straight
Door Arm
Curved
Door
Arm
Curved
Door
Arm
INCORRECT
HARDWARE
Hex Bolt 5/16"-18 x 7/8"
Nut 5/16"-18
Lock Washer 5/16"
Clevis Pin 5/16" x 1"
Clevis Pin 5/16" x 1-1/4"
Ring Fastener
FOR T-RAIL
FOR SQUARE RAIL
Clevis Pin 5/16" x 1-1/4"
Ring Fastener
Clevis Pin
5/16" x 1"
Nut 5/16"-18
Lock
Washer
5/16"
Hex Bolt
5/16"-18 x 7/8"
Lock Washer
Nut
Hex Bolt
Clevis Pin
5/16"x1-1/4"
Ring Fastener
Clevis Pin
5/16"x1"
19

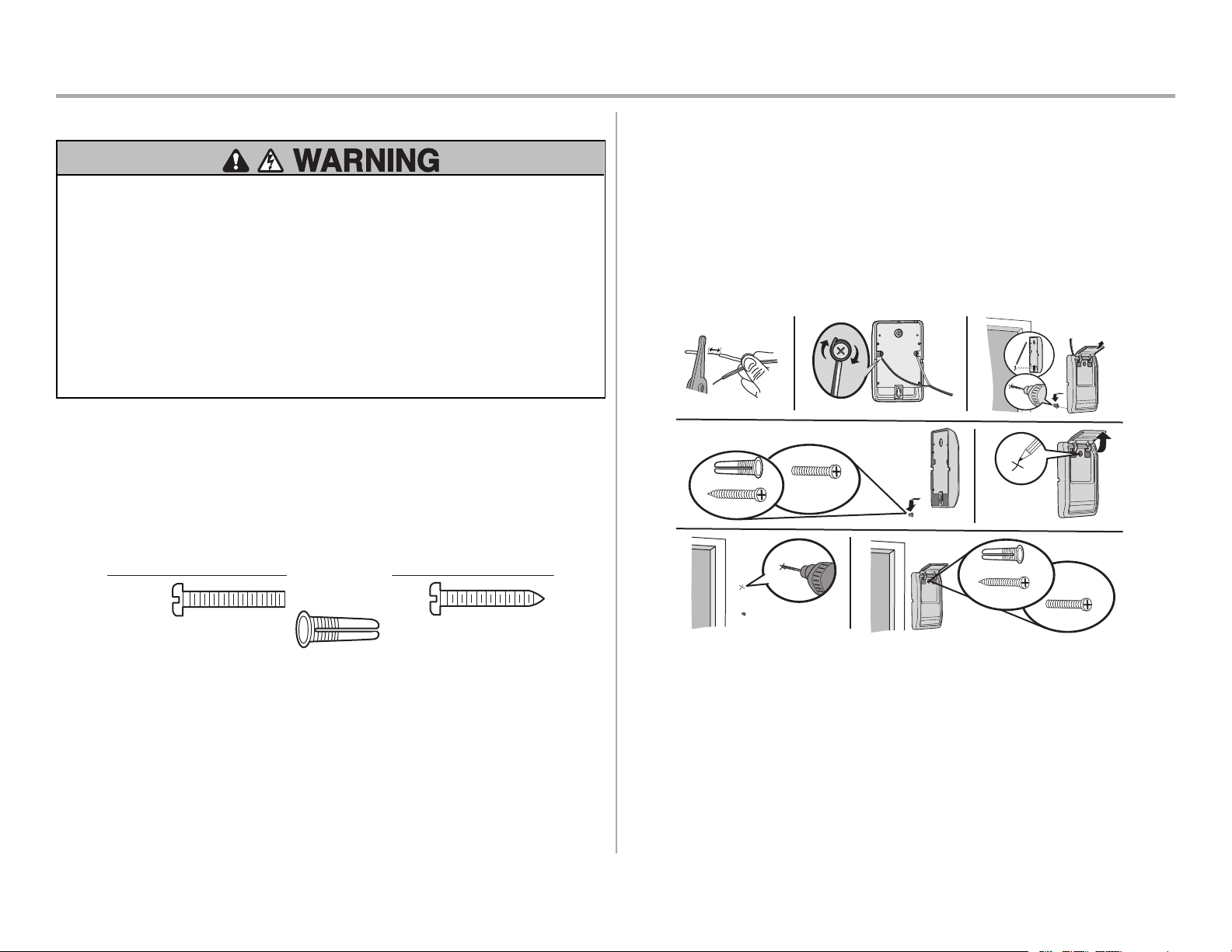

Install the Door Control
1 Install the Door Control - 882LMW
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing door control.
• Connect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
• Install door control within sight of garage door, out of reach of small children at a
minimum height of 5feet (1.5m) above floors, landings, steps or any other adjacent
walking surface, and away from ALL moving parts of door.
• NEVER permit children to operate or play with door control push buttons or remote
control transmitters.
• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no
obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to
cross path of closing garage door.
INTRODUCTION
Compatible with myQ
®
and Security+ 2.0 accessories, see page 45. Your garage door opener is
compatible with up to 2 Smart Control Panels or 4 of any other Security+ 2.0 door controls.
NOTE:Older LiftMaster door controls and third party products are not compatible.
Install door control within sight of garage door, out of reach of small children at a minimum height of
5feet (1.5m) above floors, landings, steps or any other adjacent walking surface, and away from ALL
moving parts of door. For gang box installations it is not necessary to drill holes or install the drywall
anchors. Use the existing holes in the gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw
6AB x 1" (2)
Drywall
Anchors (2)
Screw
6-32 x 1" (2)

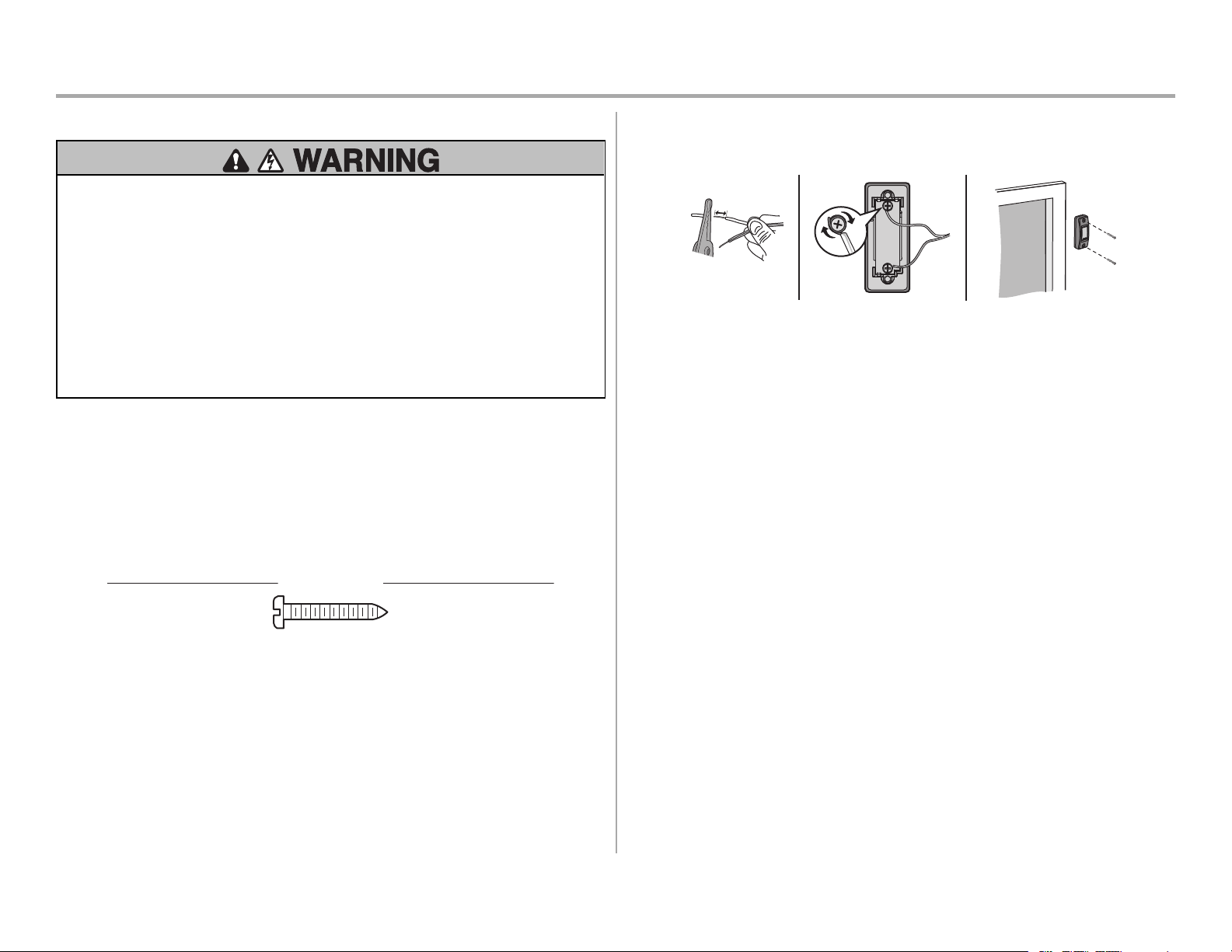

1. Strip 7/16" (11 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The wires can be
connected to either screw.
PRE-WIREDINSTALLATIONS:Choose any two wires to connect, note which wires are used
so the correct wires are connected at the garage door opener in a later step.
3. Mark the location of the bottom mounting hole and drill a 5/32" hole.
4. Install the bottom screw, allowing 1/8" (3 mm) to protrude from the wall.
5. Position the bottom hole of the door control over the screw and slide down into place.
6. Lift the push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32" hole for the top screw.
8. Position the bottom hole of the door control over the screw and slide down into place. Attach
the top screw.
7/16" (11 mm)
Wall
1
2 3
DRYWALL
GANG BOX
6AB x 1"
6-32 x 1"
Drywall Anchor
4-5
6
6-32 x 1"
GANG BOX
8
DRYWALL
6AB x 1"
Drywall Anchor
7
20
Install the Door Control
1 Install the Door Control - 883LMW
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing door control.
• Connect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
• Install door control within sight of garage door, out of reach of small children at a
minimum height of 5feet (1.5m) above floors, landings, steps or any other adjacent
walking surface, and away from ALL moving parts of door.
• NEVER permit children to operate or play with door control push buttons or remote
control transmitters.
• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no
obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to
cross path of closing garage door.
INTRODUCTION
Compatible with myQ
®
and Security+ 2.0 accessories, see page 45. Your garage door opener is
compatible with up to 2 Smart Control Panels or 4 of any other Security+ 2.0 door controls.
NOTE:Older LiftMaster door controls and third party products are not compatible.
Install door control within sight of garage door, out of reach of small children at a minimum height of
5feet (1.5m) above floors, landings, steps or any other adjacent walking surface, and away from ALL
moving parts of door. For gang box installations it is not necessary to drill holes or install the drywall
anchors. Use the existing holes in the gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw 6ABx1" (2)
1. Strip 1/4" (6 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The wires can be
connected to either screw.
3. Mount the door control with the hardware provided.
1/4" (6 mm)
1
2 3
21
Install the Door Control
2 Wire the Door Control to the Garage Door Opener
PRE-WIRED INSTALLATIONS: When wiring the door control to the garage door opener make sure
you use the same wires that are connected to the door control.
1. Run the white and red/white wire from the door control to the garage door opener. Attach the
wire to the wall and ceiling with staples (not applicable for gang box or pre-wired
installations). Do not pierce the wire with the staple as this may cause a short or an open
circuit.
2. Strip 7/16" (11 mm) of insulation from the end of the wire near the garage door opener.
3. Connect the wire to the red and white terminals on the garage door opener. To insert or
release wires from the terminal, push in the tab with screwdriver tip.
7/16" (11 mm)
2
3
1
Staple
RED
WHITE
WHITE
GREY
3 Attach the Warning Labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the
garage door.
22
Install the Protector System
®
Introduction
Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing
sensor.
To prevent SERIOUS INJURY or DEATH from closing garage door:
• Correctly connect and align the safety reversing sensor. This required safety device MUST
NOT be disabled.
• Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage
floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the garage door
opener will move in the down direction.
The sending sensor (with an amber LED) transmits an invisible light beam to the receiving sensor
(with a green LED). If an obstruction breaks the light beam while the door is closing, the door will
stop and reverse to the full open position, and the garage door opener lights will flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully
closed. The sleep mode shuts the garage door opener down until activated. The sleep mode is
sequenced with the garage door opener lights; as the lights turns off, the sensor LEDs will turn off
and whenever the garage door opener lights turn on, the sensor LEDs will light. The garage door
opener will not go into the sleep mode until the garage door opener has completed 5 cycles upon
power up.
When installing the safety reversing sensors check the following:
• Sensors are installed inside the garage, one on either side of the door.
• Sensors are facing each other with the lenses aligned and the receiving sensor lens does not
receive direct sunlight.
• Sensors are no more than 6" (15 cm) above the floor and the light beam is unobstructed.

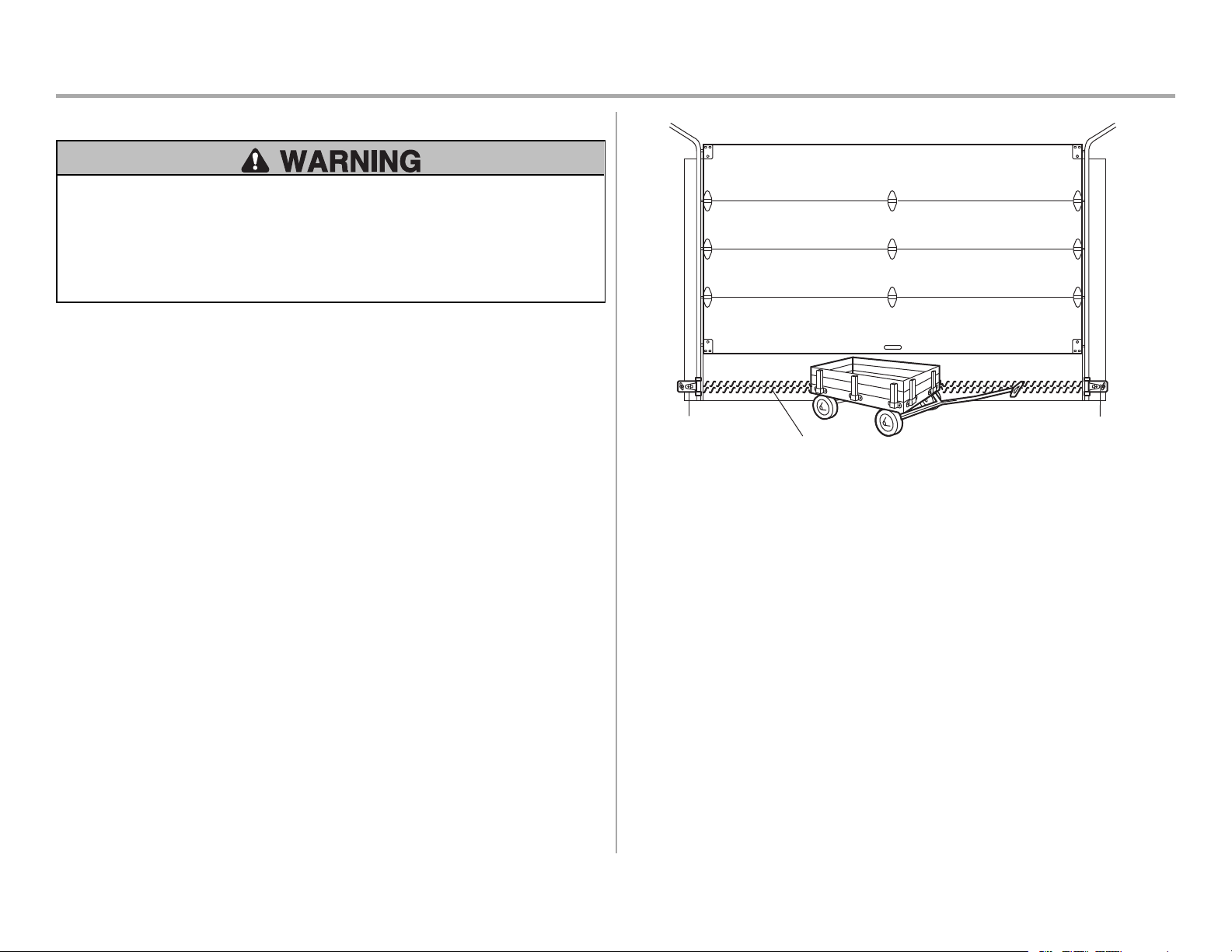

Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor
23
Install the Protector System
®
1 Install the Safety Reversing Sensors
HARDWARE
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20

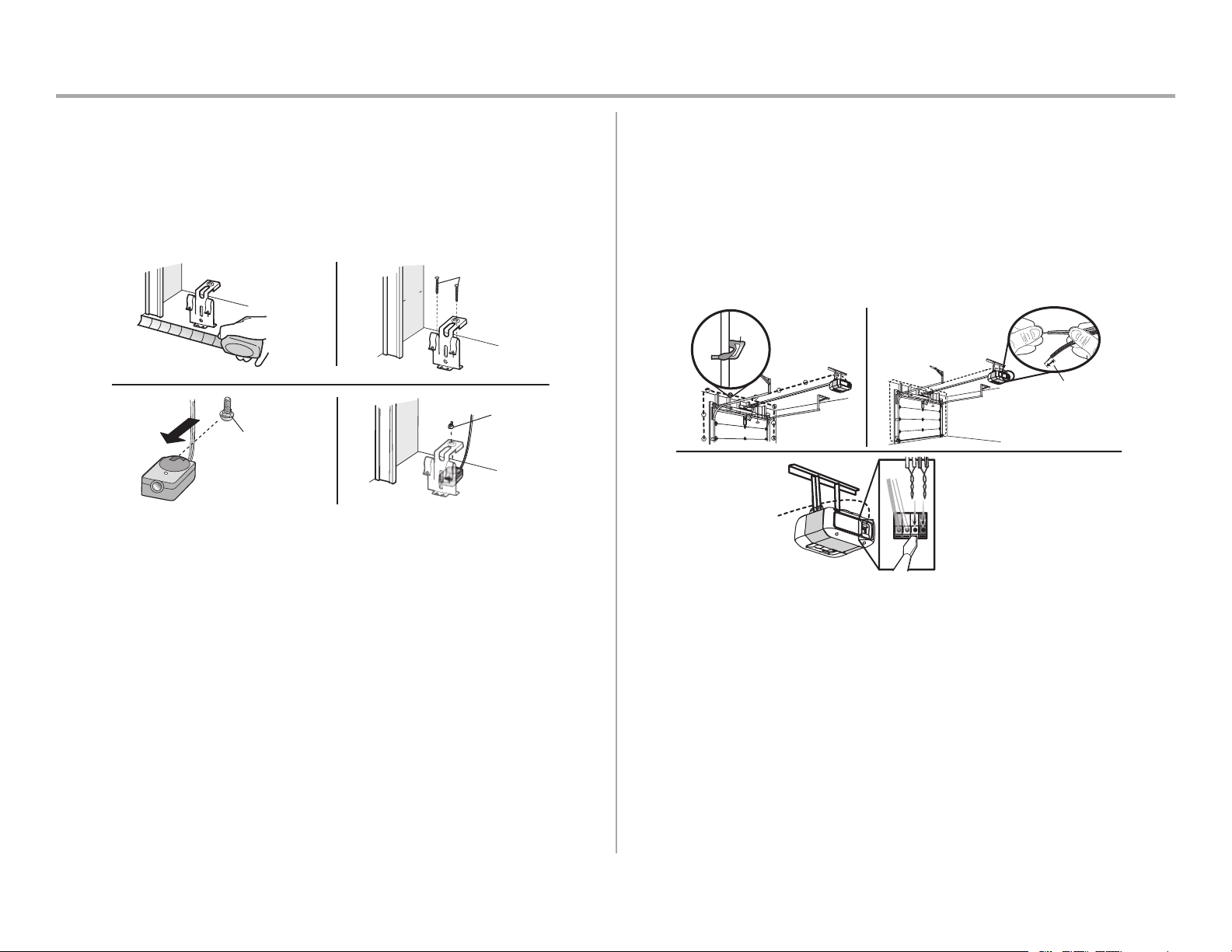

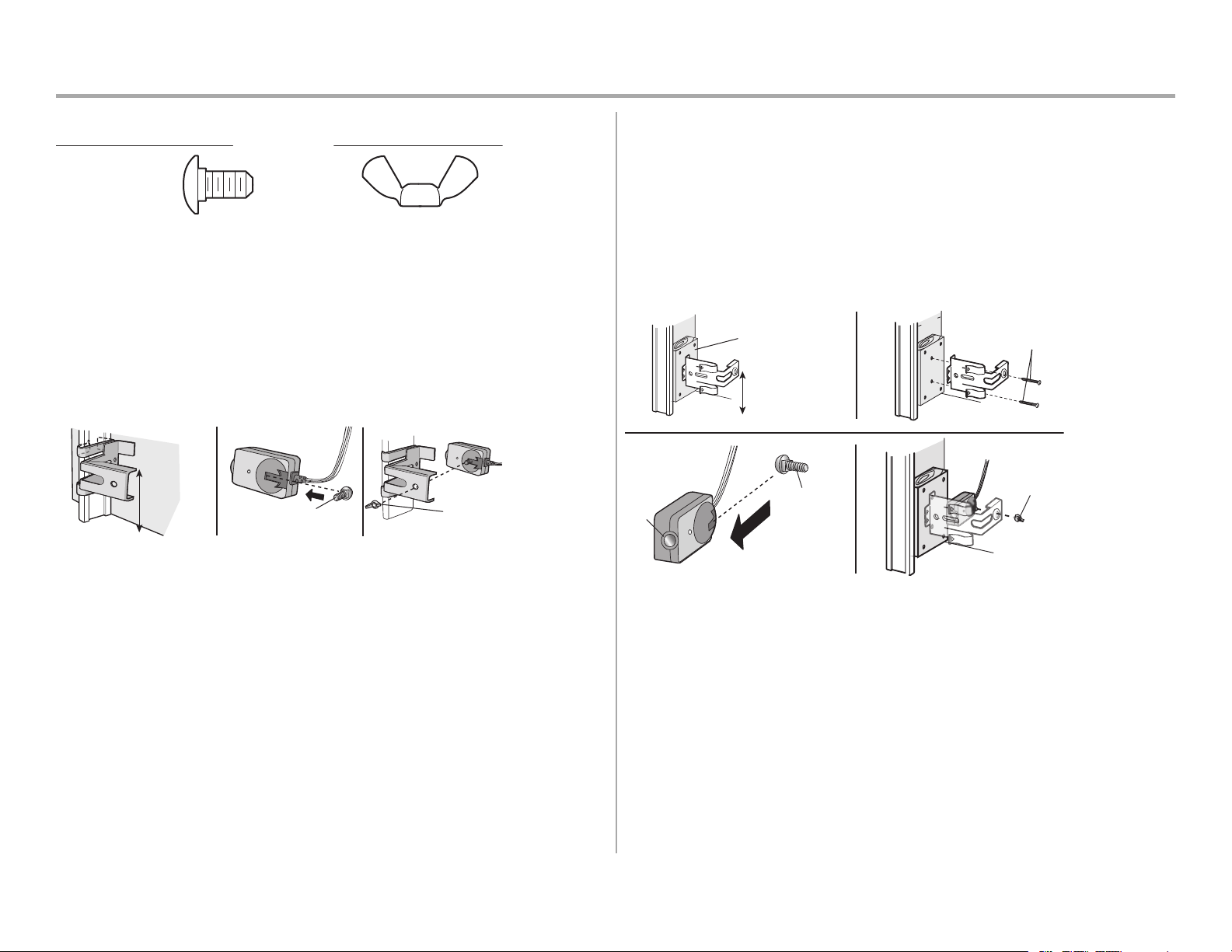

The safety reversing sensors can be attached to the door track, the wall, or the floor. If the door track
will not support the sensor bracket a wall installation is recommended. Choose one of the following
installations.
OPTION A - DOOR TRACK INSTALLATION
1. Slide the curved arms of the sensor bracket around the edge of the door track. Snap into
place so that the sensor bracket is flush against the track.
2. Slide the carriage bolt into the slot on each sensor.
3. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses
on both sensors should point toward each other. Make sure the lens is not obstructed by the
sensor bracket.
No more
than 6"
(15 cm)
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
1
2
3
OPTION B - WALLINSTALLATION
If additional clearance is needed an extension bracket (not provided) or wood blocks can be used.
Make sure each bracket has the same amount of clearance so they will align correctly.
1. Position the sensor bracket against the wall with the curved arms facing the door. Make sure
there is enough clearance for the beam to be unobstructed. Mark holes.
2. Drill 3/16" pilot holes for each sensor bracket and attach the sensor brackets to the wall using
lag screws (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses
on both sensors should point toward each other. Make sure the lens is not obstructed by the
sensor bracket.
(Not provided)
No more than
6" (15 cm)
1
2
Inside
G
arage
Wall
(Not provided)
Lens
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
3
4
24
Install the Protector System
®
OPTION C - FLOOR INSTALLATION
Use an extension bracket (not provided) or wood block to raise the sensor bracket if needed.
1. Carefully measure the position of both sensor brackets so they will be the same distance from
the wall and unobstructed.
2. Attach the sensor brackets to the floor using concrete anchors (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses
on both sensors should point toward each other. Make sure the lens is not obstructed by the
sensor bracket.
I
nsid
e
G
arage
Wa
l
l
(Not provided)
1 2
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
3
4
2 Wire the Safety Reversing Sensors
PRE-WIRED INSTALLATIONS: If your garage already has wires installed for the safety reversing
sensors, see page 25.
OPTION A - INSTALLATION WITHOUT PRE-WIRING
1. Run the wire from both sensors to the garage door opener. Attach the wire to the wall and
ceiling with staples.
2. Strip 7/16" (11 mm) of insulation from each set of wires. Separate the wires. Twist the white
wires together. Twist the white/black wires together.
3. Insert the white wires into the white terminal on the garage door opener. Insert the
white/black wires into the grey terminal on the garage door opener. To insert or remove the
wires from the terminal, push in the tab with a screwdriver tip.
1
2
3
Staple
7/16" (11 mm)
WHITE
WHITE
GREY
RED
25
Install the Protector System
®
OPTION B - PRE-WIRED INSTALLATION

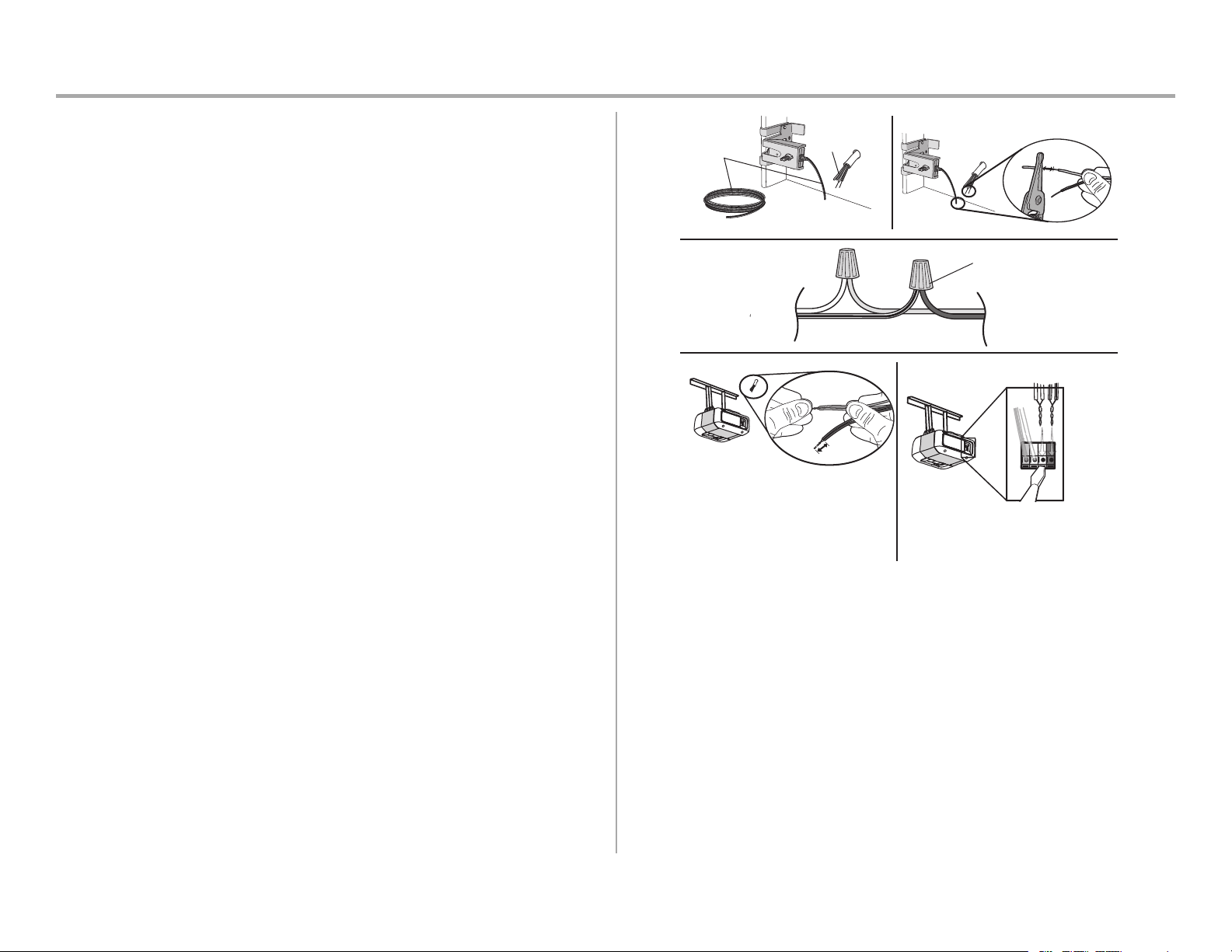

1. Cut the end of the safety reversing sensor wire, making sure there is enough wire to reach the
pre-installed wires from the wall.
2. Separate the safety reversing sensor wires and strip 7/16" (11 mm) of insulation from each
end. Choose two of the pre-installed wires and strip 7/16" (11 mm) of insulation from each
end. Make sure that you choose the same color pre-installed wires for each sensor.
3. Connect the pre-installed wires to the sensor wires with wire nuts making sure the colors
correspond for each sensor. For example, the white wire would connect to the yellow wire
and the white/black wire would connect to the purple wire.
4. At the garage door opener, strip 7/16" (11 mm) of insulation from each end of the wires
previously chosen for the safety reversing sensors. Twist the like-colored wires together.
5. Insert the wires connected to the white safety sensor wires to the white terminal on the
garage door opener. Insert the wires that are connected to the white/black safety sensor wires
to the grey terminal on the garage door opener.
Safety reversing
sensor wires
Pre-installed
wires
White
White/Black
Yellow (for example)
Purple (for example)
Not Provided
Pre-installed wires
Safety reversing
sensor wires
7/16"
(11 mm)
Yellow
Purple
1
3
4
7/16"
(11 mm)
2
Yellow
(for example)
Purple
(for example)
To insert or remove the wires from
the terminal, push in the tab with a
screwdriver tip.
5
RED
WHITE
WHITE
GREY
D
RED
W
RE
WHITE
WHITE
GREY
GREY
26
Power
1 Connect Power
To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:
• Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE
removing cover to establish permanent wiring connection.
• Garage door installation and wiring MUST be in compliance with ALL local electrical and
building codes.
• NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it fit
outlet. Be sure the opener is grounded.
To avoid installation difficulties, do not activate the garage door opener at this time.
To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn’t fit into your
outlet, contact a qualified electrician to install the proper outlet.
THERE ARE TWO OPTIONS FOR CONNECTINGPOWER:
OPTION A - TYPICAL WIRING
1. Plug in the garage door opener into a grounded outlet.
2. DO NOT run garage door opener at this time.
TYPICAL WIRING
OPTION B - PERMANENT WIRING
If permanent wiring is required by your local code, refer to the following procedure. To make a
permanent connection through the 7/8" hole in the top of the motor unit (according to local code):
1. Remove the motor unit cover screws and set the cover aside.
2. Remove the attached 3-prong cord.
3. Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to
the screw on the silver terminal; and the ground wire to the green ground screw. The opener
must be grounded.
4. Reinstall the cover.
Ground Tab
Green
Ground
Screw
Ground
Wire
White Wire
PERMANENT WIRING
Black
Wire
Black
Wire
27
Power

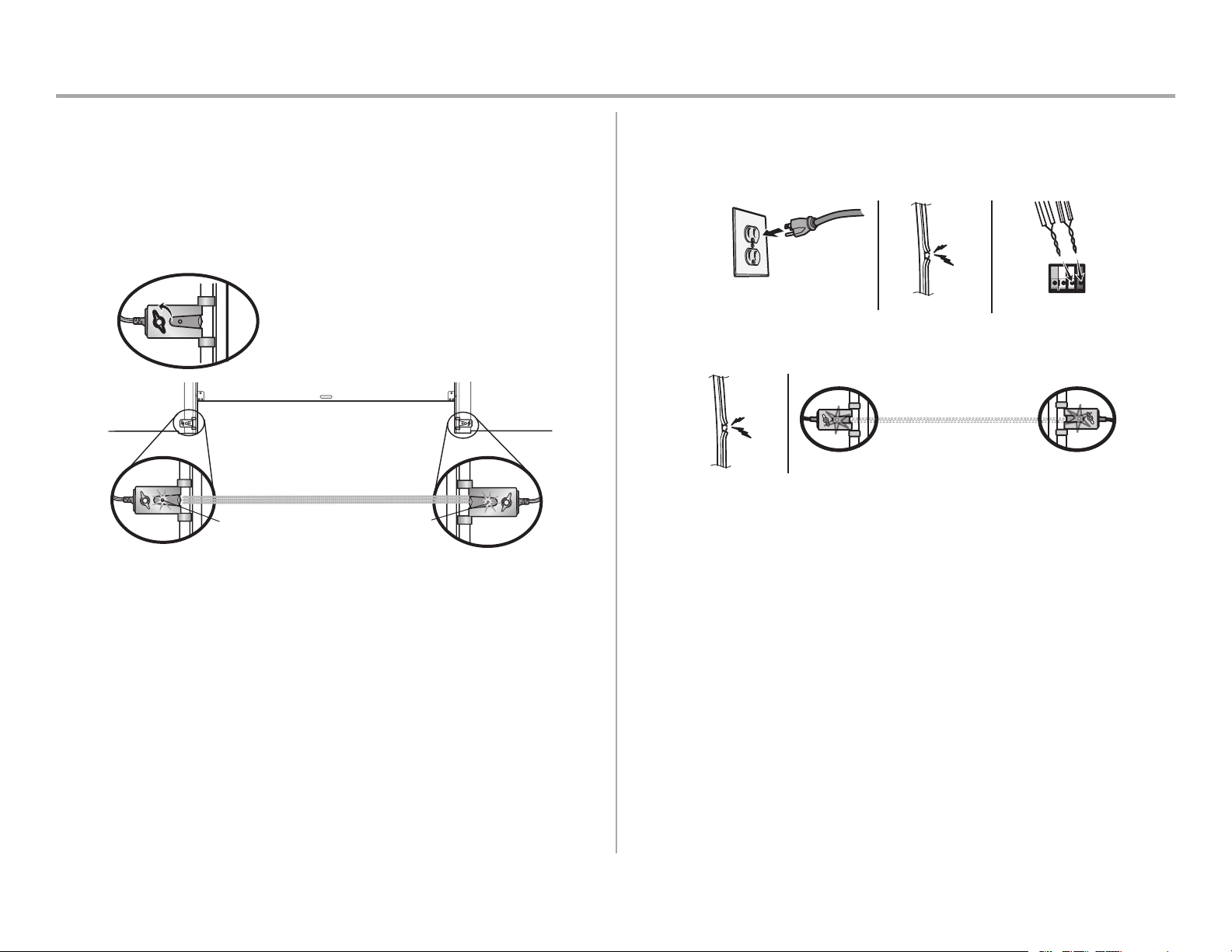

2 Ensure the Safety Reversing Sensors are Aligned
The door will not close if the sensors have not been installed and aligned correctly.
When the light beam is obstructed or misaligned while the door is closing, the door will reverse and
the garage door opener lights will flash ten times. If the door is already open, it will not close. The
sensors can be aligned by loosening the wing nuts, aligning the sensors, and tightening the wing
nuts.
1. Check to make sure the LEDs in both sensors are glowing steadily. The LEDs in both sensors
will glow steadily if they are aligned and wired correctly.
Green LED
Amber LED
If the receiving sensor is in direct sunlight,
switch it with sending sensor so it is on the
opposite side of the door.
(invisible light beam)
SENDING SENSOR RECEIVING SENSOR
IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING:
1. Make sure there is power to the garage door opener.
2. Make sure the sensor wire is not shorted/broken.
3. Make sure the sensor has been wired correctly: White wires to white terminal and white/black
wires to gray terminal.
RED
WHITE
WHITE
GREY
3
2
1
IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:
1. Make sure the sensor wire is not shorted/broken.
2. Make sure the senors are aligned.
1
2
28
Power
3 Ensure the Door Control is Wired Correctly

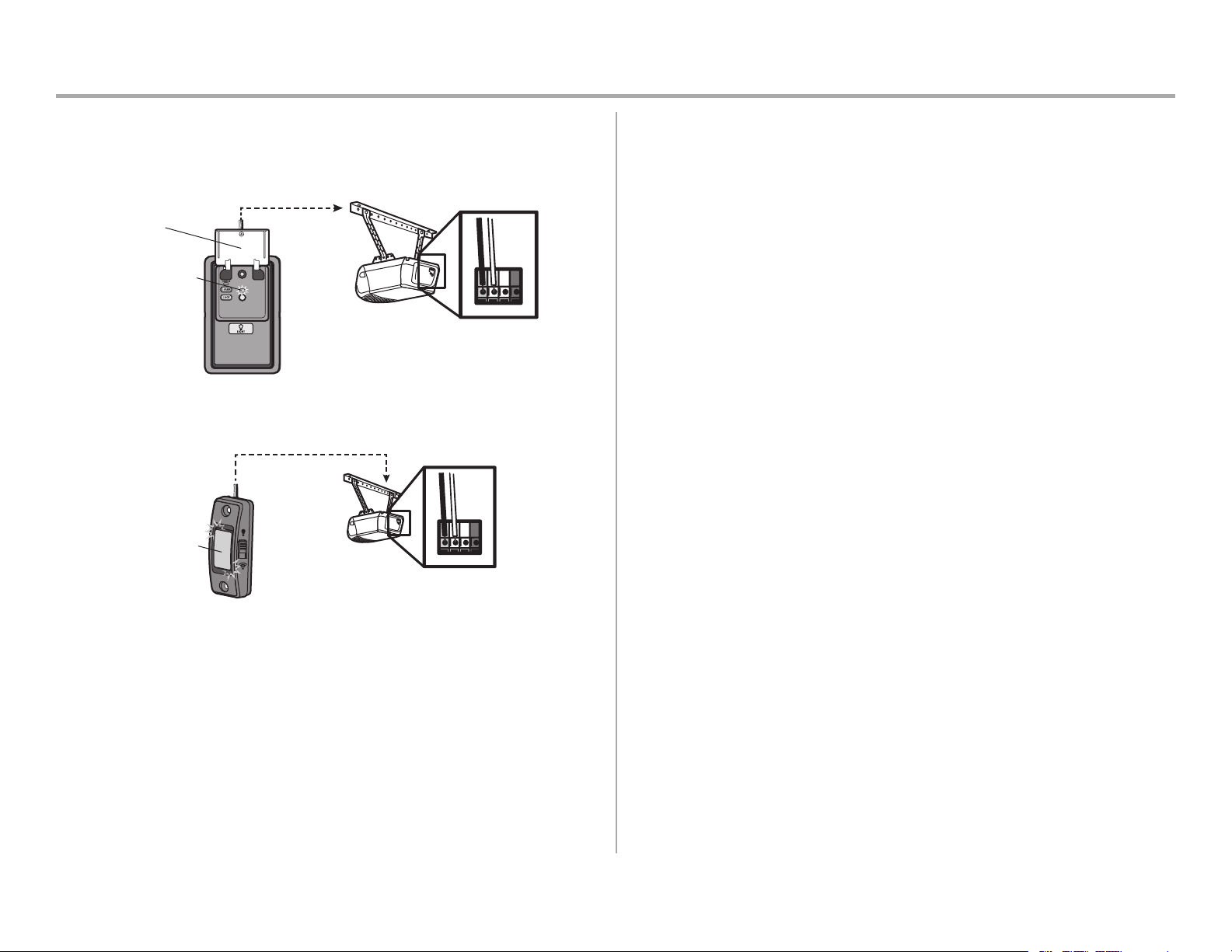

Models: 8155W, 8160W, 8160WB, 8165W
If the door control has been installed and wired correctly, the command LED behind the push bar will
blink.
COMMAND LED
Push bar
RED
WHITE
WHITE
GREY
Models: 8164W
If the door control has been installed and wired correctly, the LED behind the push button will blink
(883LMW).
883LMW
RED
WHITE
WHITE
GREY
Push
Button
29

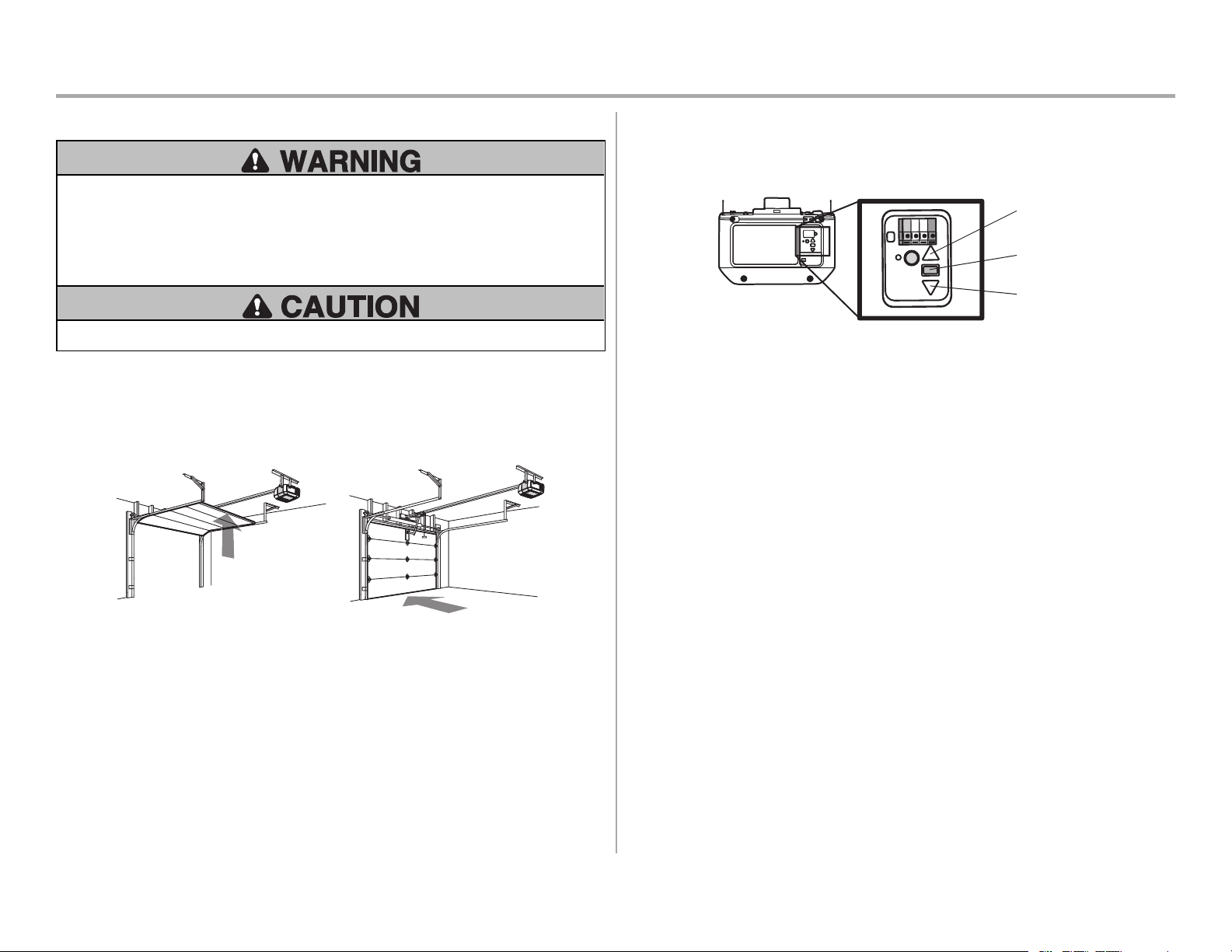

Adjustments
Introduction
Without a properly installed safety reversal system, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
• Incorrect adjustment of garage door travel limits will interfere with proper operation of
safety reversal system.
• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST
reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.
To prevent damage to vehicles, be sure fully open door provides adequate clearance.
Your garage door opener is designed with electronic controls to make setup and adjustments easy.
The adjustments allow you to program where the door will stop in the open (UP) and close (DOWN)
position. The electronic controls sense the amount of force required to open and close the door. The
force is adjusted automatically when you program the travel.
NOTE: If anything interferes with the door’s upward travel it will stop. If anything interferes with the
door’s downward travel, it will reverse.
UP (Open)
DOWN (Close)
PROGRAMMING BUTTONS
The programming buttons are located on the left or back side panel of the garage door opener and are
used to program the travel. While programming, the UP and DOWN buttons can be used to move the
door as needed.
UP Button
Adjustment
Button
DOWN Button
PROGRAMMING BUTTONS
30
Adjustments
1 Program the Travel
Without a properly installed safety reversal system, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
• Incorrect adjustment of garage door travel limits will interfere with proper operation of
safety reversal system.
• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST
reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.
While programming, the UP and DOWN buttons can be used to move the door as needed.

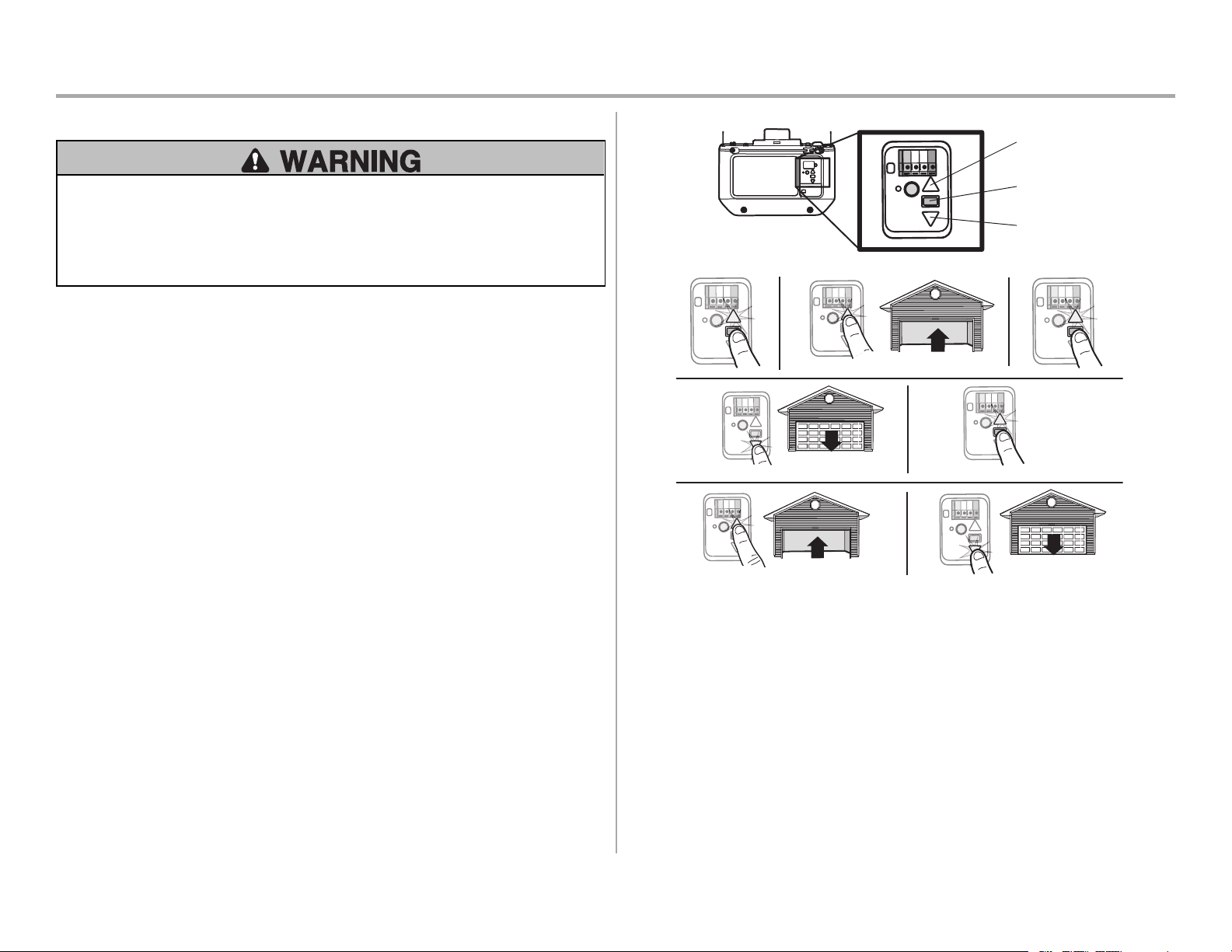

1. Press and hold the Adjustment Button until the UP Button begins to flash and/or a beep is
heard.
2. Press and hold the UP Button until the door is in the desired UP position.
3. Once the door is in the desired UP position press and release the Adjustment Button. The
garage door opener lights will flash twice and the DOWN Button will begin to flash.
4. Press and hold the DOWN button until the door is in the desired DOWN position.
5. Once the door is in the desired DOWN position press and release the Adjustment Button. The
garage door opener lights will flash twice and the UP Button will begin to flash.
6. Press and release the UP Button. When the door travels to the programmed UP position, the
DOWN Button will begin to flash.
7. Press and release the DOWN Button. The door will travel to the programmed DOWN position.
Programming is complete.
If the garage door opener lights are flashing 5 times during the steps for Program the Travel, the
programming has timed out. If the garage door opener lights are flashing 10 times during the steps
for Program the Travel, the safety reversing sensors are misaligned or obstructed (refer to page 27).
When the sensors are aligned and unobstructed, cycle the door through a complete up and down
cycle using the remote control or the UP and DOWN buttons. Programming is complete. If you are
unable to operate the door up and down, repeat the steps for Programming the Travel.
UP Button
Adjustment
Button
DOWN Button
PROGRAMMING BUTTONS
1 2
3
4 5
6 7
31

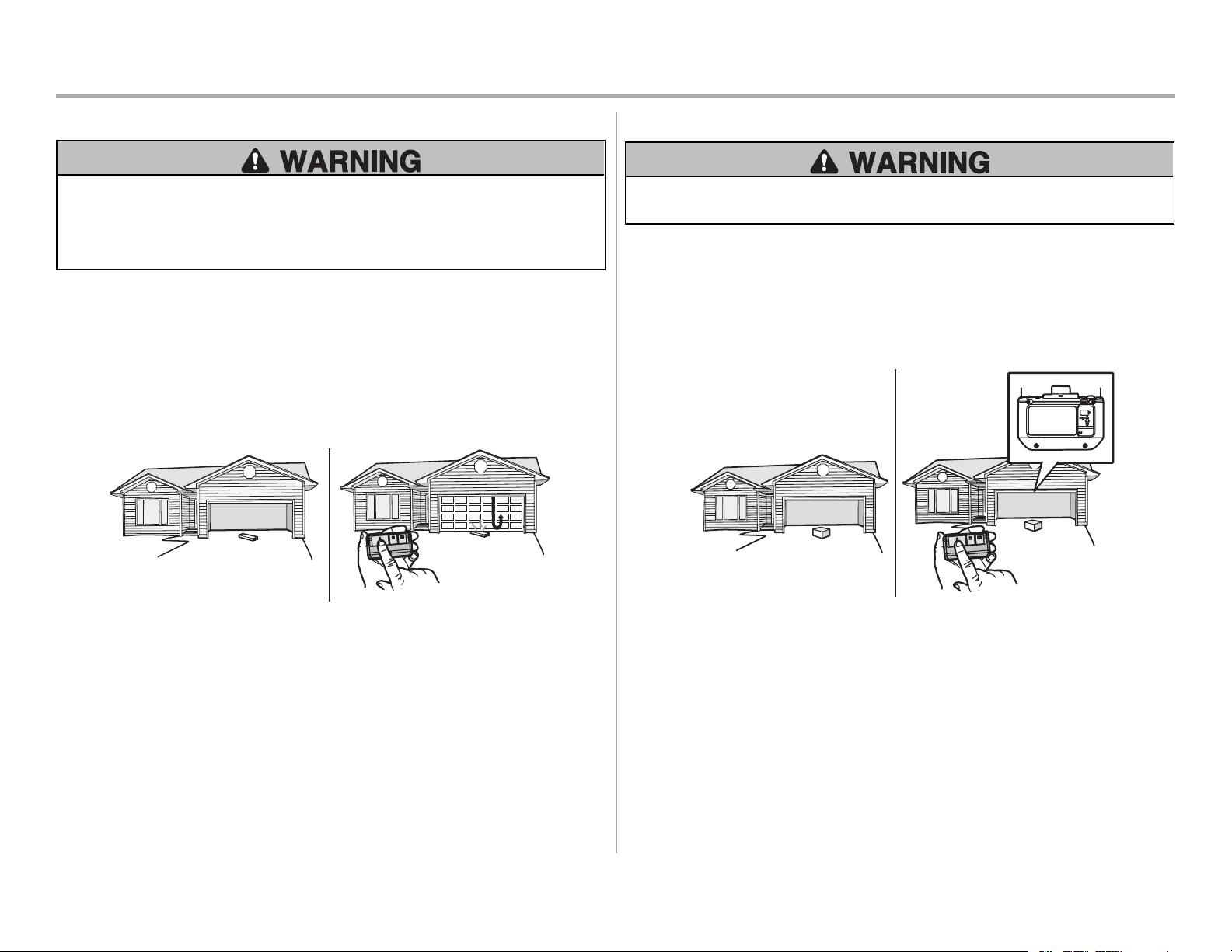

Adjustments
2 Test the Safety Reversal System
Without a properly installed safety reversal system, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
• Safety reversal system MUST be tested every month.
• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST
reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on the floor.
1. With the door fully open, place a 1-1/2" (3.8 cm) board (or a 2x4 laid flat) on the floor,
centered under the garage door.
2. Press the remote control push button to close the door. The door MUST reverse when it
makes contact with the board.
If the door stops but does not reverse:
1. Review the installation instructions provided to insure all steps were followed;
2. Repeat Program the Travel (see Adjustment Step 1);
3. Repeat the Safety Reversal test.
If the test continues to fail, call a trained door systems technician.
1 2
3 Test the Protector System
®
Without a properly installed safety reversing sensor, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
1. Open the door. Place the garage door opener carton in the path of the door.
2. Press the remote control push button to close the door. The door will not move more than 1"
(2.5cm), and the garage door opener lights will flash 10 times.
The garage door opener will not close from a remote control if the LED in either safety reversing
sensor is off (alerting you to the fact that the sensor is misaligned or obstructed). If the garage door
opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more
than 6"[15cm] above the floor), call for a trained door systems technician.
1
2
32

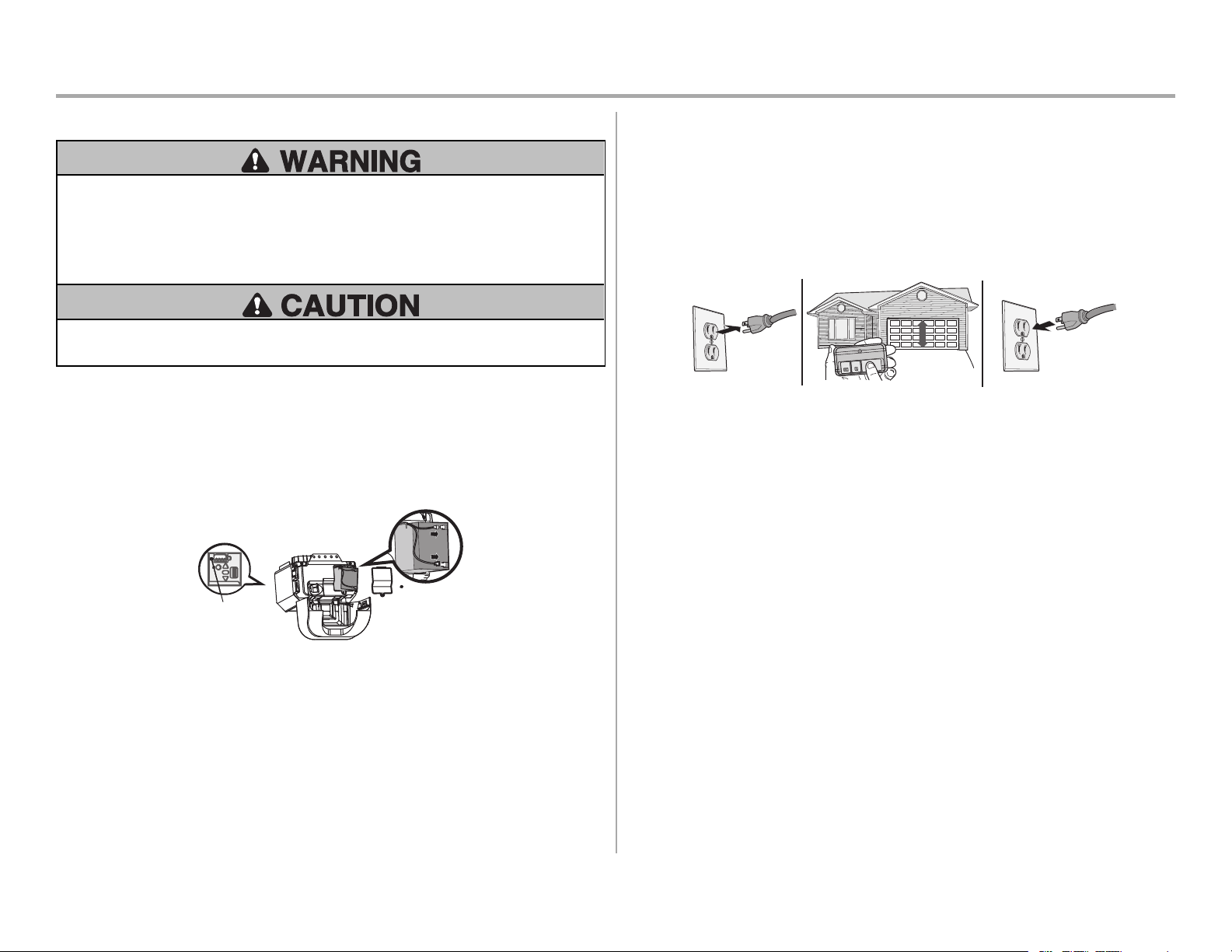

Battery Backup
1 Install the Battery*
To reduce the risk of FIRE or INJURY to persons:
• Disconnect ALL electric and battery power BEFORE performing ANY service or
maintenance.
• Use ONLY LiftMaster part # 485LM for replacement battery.
• DO NOT dispose of battery in fire. Battery may explode. Check with local codes for
disposal instructions.
ALWAYS wear protective gloves and eye protection when changing the battery or working around
the battery compartment.
1. Unplug the garage door opener.
2. Open the light lens of the garage door opener. Use a Phillips head screwdriver to remove the
battery cover on the garage door opener.
3. Partially insert the battery into the battery compartment with the terminals facing out.
4. Connect red (+) and black (-) wires from the garage door opener to the corresponding
terminals on the battery.
5. Replace the battery cover.
6. Plug in the garage door opener.
7. Wait for the green Battery Status LED to start flashing before proceeding to test the battery.
Battery
Status LED
* If applicable.
2 Test the Battery
1. Unplug the garage door opener. The battery status LED will either glow solid orange
indicating opener is operating on battery power or will flash indicating low battery power.
NOTE:Make sure the garage door opener is unplugged.
2.
Open and close the door using the remote control or door control. NOTE: The garage door
opener may run slower if the battery is not fully charged. The battery will take 24 hours to
fully charge.
3. Plug in the garage door opener. Verify the battery status LED is flashing green, indicating the
battery is charging.
1 2
3
33
Battery Backup
3 Charge the Battery*
The battery charges when the garage door opener is plugged into a 120Vac electrical outlet that has
power and requires 24 hours to fully charge. A fully charged battery supplies 12Vdc to the garage
door opener for one to two days of normal operation during an electrical power outage. After the
electrical power has been restored, the battery will recharge within 24 hours. The battery will last
approximately 1 to 2 years with normal usage. Instructions for replacement are provided with the
battery. To obtain maximum battery life and prevent damage, disconnect the battery when the garage
door opener is unplugged for an extended period of time, such as a summer or winter home.
NOTE: When the garage door opener is in battery backup mode the garage door opener lights, Timer-
to-Close, and Remote Close features are unavailable.
* If applicable.
4 Battery Status LED
GREEN LED:
All systems are normal.
• A solid green LED light indicates the battery is fully charged.
• A flashing green LED indicates the battery is being charged.
ORANGE LED:
The garage door opener has lost power and is in battery backup mode.
• A solid orange LED with beep, sounding approximately every 2 seconds, indicates the garage
door opener is operating on battery power.
• A flashing orange LED with beep, sounding every 30 seconds, indicates the battery is low.
RED LED:
The garage door opener's 12V battery needs to be replaced.
• A solid red LED with beep, sounding every 30 seconds, indicates the 12V battery will no
longer hold a charge and needs to be replaced. Replace the battery back up to maintain the
battery backup feature.
NOTE: The Battery Status LED is most visible with the garage door opener light off. Battery does not
have to be fully charged to operate the garage door opener.
Battery Status LED
34
Operation
IMPORTANT SAFETYINSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.
2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate
or play with garage door control push buttons or remote controls.
3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there
are no obstructions to door travel.
4. ALWAYS keep garage door in sight and away from people and objects until completely
closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPENED DOOR.
6. If possible, use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Use caution when using this release with the door open. Weak or broken springs
or unbalanced door could result in an open door falling rapidly and/or unexpectedly and
increasing the risk of SEVERE INJURY or DEATH.
7. NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you
could fall.
9. After ANY adjustments are made, the safety reversal system MUST be tested.
10. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact
with 1-1/2"(3.8cm) high object (or a 2x4 laid flat) on the floor. Failure to adjust the
garage door opener properly increases the risk of SEVERE INJURY or DEATH.
11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 4). An improperly
balanced door may NOT reverse when required and could result in SEVERE INJURY or
DEATH.
12. ALL repairs to cables, spring assemblies and other hardware, ALL of which are under
EXTREME tension, MUST be made by a trained door systems technician.
13. To avoid interference with the proper operation of the garage door opener when using a
welder in the garage, unplug garage door opener before operating welder.
14. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution, disconnect ALL
electric and battery power BEFORE performing ANY service or maintenance.
15. This operator system is equipped with an unattended operation feature. The door could
move unexpectedly. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
16. DO NOT install on a one-piece door if using devices or features providing unattended
close. Unattended devices and features are to be used ONLY with sectional doors.
17. SAVE THESE INSTRUCTIONS.
35
Operation
Features
Your garage door opener is equipped with features to provide you with greater control over your
garage door operation.
ALERT2CLOSE
The Alert2Close feature provides a visual and an audible alert that an unattended door is closing.
TIMER-TO-CLOSE (TTC)
The TTC feature automatically closes the door after a specified time period that can be adjusted using
a TTC enabled door control (Models 881LMW or 880LMW). Prior to and during the door closing the
garage door opener lights will flash and the garage door opener will beep.
MYQ
myQ
®
technology uses a 900MHz signal to provide two-way communication between the garage door
opener and myQ
®
enabled accessories. Your garage door opener is compatible with up to 16 myQ
®
accessories.
SECURITY+ 2.0 REMOTE CONTROLS AND DOOR CONTROLS
Your garage door opener has already been programmed at the factory to operate with your remote
control, which changes with each use, randomly accessing over 100 billion new codes. Compatible
with myQ
®
and Security+ 2.0 accessories, see page 45.
NOTE: Older LiftMaster remote controls, door controls, and third party products are not compatible.
Security+2.0
Accessories
MEMORY CAPACITY
Remote Controls Up to 12
Door Controls Up to 2 Smart Control Panels or 4 of any other Security+2.0 door
controls
Keyless Entries Up to 1
THE PROTECTOR SYSTEM
®
(SAFETY REVERSING SENSORS)
When properly connected and aligned, the safety reversing sensors will detect an obstruction in the
path of the infrared beam. If an obstruction breaks the infrared beam while the door is closing, the
door will stop and reverse to full open position, and the opener lights will flash 10 times. If the door
is fully open, and the safety reversing sensors are not installed, or are misaligned, the door will not
close from a remote control. However, you can close the door if you hold the button on the door
control or keyless entry until the door is fully closed. The safety reversing sensors do not effect the
opening cycle.
ENERGY CONSERVATION
For energy efficiency the garage door opener will enter sleep mode when the door is fully closed. The
sleep mode shuts the garage door opener down until activated. The sleep mode is sequenced with the
garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn off and whenever
the garage door opener lights turn on the sensor LEDs will light. The garage door opener will not go
into the sleep mode until the garage door opener has completed 5 cycles upon power up.
LIGHTS
The garage door opener light bulbs will turn on when the opener is initially plugged in; power is
restored after interruption, or when the garage door opener is activated. The lights will turn off
automatically after 4-1/2 minutes. Use an incandescent A19 light bulb (100 watt maximum).
Light Feature
The garage door opener is equipped with an added feature; the lights will turn on when someone
enters through the open garage door and the safety reversing sensor infrared beam is broken. For
added control over the light bulbs on your garage door opener, see page 39.
USING YOUR GARAGE DOOR OPENER
The garage door opener can be activated through a wall-mounted door control, remote control,
wireless keyless entry or myQ
®
accessory. When the door is closed and the garage door opener is
activated the door will open. If the door senses an obstruction or is interrupted while opening the
door will stop. When the door is in any position other than closed and the garage door opener is
activated the door will close. If the garage door opener senses an obstruction while closing, the door
will reverse. If the obstruction interrupts the sensor beam the garage door opener lights will blink 10
times. However, you can close the door if you hold the button on the door control or keyless entry
until the door is fully closed. The safety reversing sensors do not affect the opening cycle. The safety
reversing sensor must be connected and aligned correctly before the garage door opener will move in
the down direction.
BATTERY BACKUP*
The battery backup system allows access in and out of your garage, even when the power is out.
When the garage door opener is operating on battery power, the garage door opener will run slower,
the light will not function, the Battery Status LED will glow solid orange, and a beep will sound
approximately every 2 seconds.
*if applicable
36

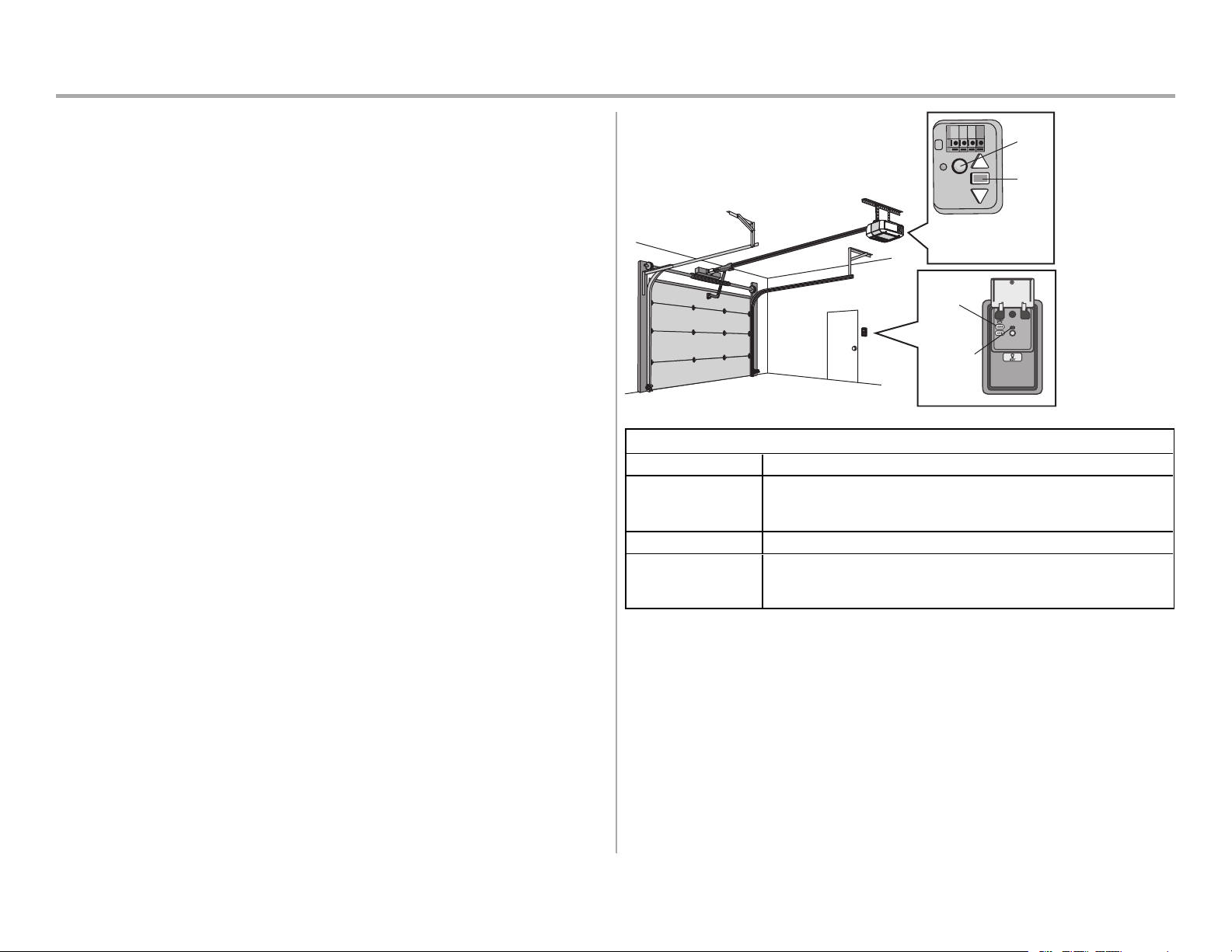

Operation
Connect With Your Smartphone
The Wi-Fi Garage Door Opener is compatible with up to 16 myQ
®
enabled accessories. Up to 10
devices can be paired to the Wi-Fi garage door opener’s internal gateway. These devices can be
controlled with the myQ
®
App. These devices include any combination of myQ
®
garage door
openers, Wi-Fi garage door openers, myQ
®
light controls, myQ
®
gate operators or myQ
®
commercial door operators. A LiftMaster Internet Gateway (828LM) can be added if you need to
control more than 10 devices using the myQ
®
App. Up to 6 devices can be paired to garage door
opener itself (controlled by garage door opener through 900MHz). These devices include any
combination of myQ
®
light controls or a garage door and gate monitor.
YOU WILL NEED:
• Wi-Fi enabled smartphone, tablet or laptop
• Broadband Internet Connection
•
Wi-Fi signal in the garage (2.4 GHz, 802.11b/g/n required), see page 4
• Password for your home network (router's main account, not guest network)
• myQ
®
serial number located on the garage door opener
DOWNLOAD THE myQ
®
APP TO SET UP AN ACCOUNT AND CONNECT
Open and close your door, get alerts and set schedules from anywhere. Connected smart garage door
openers also receive software updates to ensure the opener has the latest operational features.
1. Download the myQ
®
App.
2. Set up an account and connect.
For more information on connecting your garage door opener, visit support.chamberlaingroup.com.
LED
Learn
Button
An LED on the garage door
opener will indicate Wi-Fi
status. See table below.
Learn
Button
Command
LED
WI-FI STATUS
LED Definition
Blue
Off - Wi-Fi is not turned on.
Blinking - Garage door opener is in Wi-Fi learn mode.
Solid - Mobile device connected to the garage door opener.
Blue and Green
Blinking - Attempting to connect to router.
Green
Blinking - Attempting to connect to the Internet server.
Solid - Wi-Fi has been set up and garage door opener is connected to the
internet.
NOTES:
myQ
®
App control WILL NOT work if the garage door opener is operating on battery power.
To erase the Wi-Fi settings, see page 41.
37
Operation
Using the Multi-Function Door Control 882LMW
SYNCHRONIZE THE DOOR CONTROL
To synchronize the door control to the garage door opener, press the push bar until the garage
door opener activates (it may take up to 3 presses). Test the door control by pressing the push bar,
each press of the push bar will activate the garage door opener.
Push Bar
LIGHT Button
SERVICE LED
LOCK Button
COMMAND LED
LEARN Button
PUSH BAR
Press the push bar to open or close the door.
LIGHT BUTTON
Press the LIGHT button to turn the garage door opener lights on or off. When the lights are turned on
they will stay on until the LIGHT button is pressed again, or until the garage door opener is activated.
Once the garage door opener is activated the lights will turn off after the specified period of time (the
factory setting is 4-1/2 minutes). The LIGHT button will not control the lights when the door is in
motion.
The following features are accessible by lifting up the push bar:
LEARN A DEVICE
Any compatible remote controls, wireless keyless entry, or myQ
®
accessories can be programmed to
the garage door opener by pressing the LEARN button of the door control, see page 40.
LOCK
The LOCK feature is designed to prevent activation of the garage door opener from remote controls
while still allowing activation from the door control and keyless entry. This feature is useful for added
peace of mind when the home is empty (i.e. vacation).
AUTOMATIC LIGHT
Light Feature
The lights will turn on when someone enters through the open garage door and the safety reversing
sensor infrared beam is broken.
MAINTENANCE ALERT (MAS)
This feature assists the homeowner in ensuring the garage door opener system stays in good working
condition. When the garage door opener needs to be serviced (approximately 4500 garage door
opener cycles) the command (yellow) and service (red) LEDs will begin to alternately flash back and
forth. The factory setting for the MAS feature is off and can be activated at time of installation. Contact
your installing dealer for service.
38
Operation
Using the Push Button Door Control 883LMW
SYNCHRONIZE THE DOOR CONTROL
To synchronize the door control to the garage door opener, press the push button until the garage
door opener activates (it may take up to 3 presses). Test the door control by pressing the push
button, each press of the push button will activate the garage door opener.
Push Button
LIGHT/LEARN
Button
PUSH BUTTON
Press the push button to open or close the door.
LIGHT/LEARN BUTTON
Press the LIGHT button to turn the garage door opener lights on or off. When the lights are turned on
they will stay on until the LIGHT button is pressed again, or until the garage door opener is activated.
Once the garage door opener is activated the lights will turn off after the specified period of time (the
factory setting is 4-1/2 minutes). The LIGHT button will not control the lights when the door is in
motion.
39
Operation
Using the Door Control
LOCK
Your remote controls will NOT work when LOCK
mode is active however your keyless entry will still
allow access to your garage.
Activate:
Press and hold the LOCK button for 2 seconds.
The command LED will flash as long as the lock
feature is activated and your handheld remote
control will not operate your door at this time.
Deactivate:
Press and hold the LOCK button again for 2
seconds. The command LED will stop flashing
and normal operation will resume.
LOCK Button
Command LED
LIGHT
To change the amount of time the garage door opener lights will stay on:
Press and hold the LOCK button until the garage door opener lights flash.* The time interval is
indicated by the number of flashes.
Number of times garage door opener
lights flash
Time the garage door opener light stays on
1 1-1/2 Minutes
2 2-1/2 Minutes
3 3-1/2 Minutes
4 4-1/2 Minutes
To cycle through the time intervals repeat the step above.
* Approximately 10 seconds
LIGHT FEATURE (Default is Active)
Deactivate:
Press and hold the LIGHT button until the garage
door opener lights turn on, then off again.*
Activate:
Start with the garage door opener lights on. Press
and hold the LIGHT button until the garage door
opener lights turn off, then on again.*
If the command LED is continuously blinking, the
LOCK feature needs to be deactivated.
LOCK Button
LIGHT Button
Command LED
MAINTENANCE ALERT SYSTEM (MAS):
Activate/Deactivate:
Press and hold the LEARN button. Then press the
LIGHT button. The service LED will flash the
status; Active is 2 flashes and deactivated is 3
flashes.
LEARN
Button
LIGHT
Button
Service
LED
40

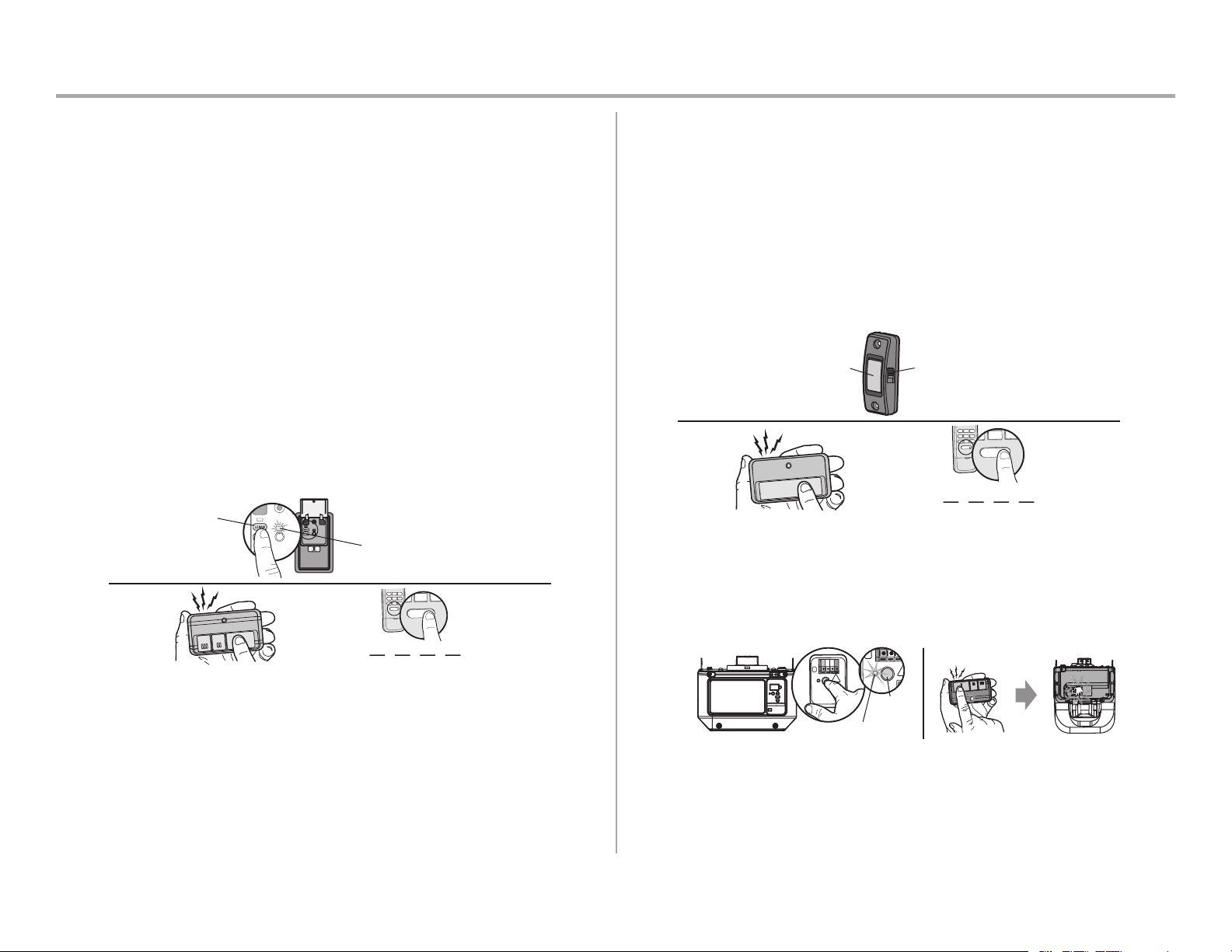

Operation
Remote Control
Your remote control has been programmed at the factory to operate with your garage door
opener.
Older LiftMaster remote controls are NOTcompatible, see page 45 for compatible accessories.
Programming can be done through the door control or the learn button the garage door opener. To
program additional accessories refer to the instructions provided with the accessory or visit
LiftMaster.com. If your vehicle is equipped with a Homelink
®
, you may require an external adapter
depending on the make, model, and year of your vehicle. Visit www.homelink.com for additional
information.
TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL/KEYLESS ENTRY PIN
USING THE PUSH BUTTON DOOR CONTROL - MODEL 882LMW
1.
Press the LEARN button on the door control twice. The Command LED will blink.
2.
Remote Control:
Press the button on the remote control that you wish to operate your garage door.
Keyless Entry:
Enter a 4-digit personal identification number (PIN) of your choice on the keyless entry
keypad. Then press the ENTER button.
The garage door opener lights will flash (or two clicks will be heard) and the Command LED will stop
blinking when the code has been programmed. Repeat the steps above for programming additional
remote controls or keyless entry devices. If programming is unsuccessful, program the remote using
the learn button.
LEARN button
Command LED
1
OR
PIN
? ? ? ?
4
GHI
5
JKL
7
PRS
8
TUV
9
WXY
0
QZ
*
#
ENTER
0
QZ
*
#
ENTER
6
MNO
2
TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL/KEYLESS ENTRY PIN
USING THE MULTI FUNCTION DOOR CONTROL - MODEL 883LMW
1. Press and hold the LIGHT button and the push button until the push button LED begins to
blink.
2.
Remote Control:
Press the button on the remote control that you wish to operate your garage door.
Keyless Entry:
Enter a 4-digit personal identification number (PIN) of your choice on the keyless entry
keypad. Then press the ENTER button.
The garage door opener lights will flash (or two clicks will be heard) when the code has been
programmed. Repeat the steps above for programming additional remote controls or keyless entry
devices. If programming is unsuccessful, program the remote using the learn button.
1
OR
PIN
? ? ? ?
4
GHI
5
JKL
7
P
RS
8
TUV
9
WXY
0
QZ
*
#
E
NT
E
R
0
QZ
*
#
ENTER
6
MNO
2
Push Button
LIGHT/LEARN Button
TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL USING THE LEARN
BUTTON
1. Press and release the LEARN Button on the garage door opener.
2. Press and hold the button on the remote control that you wish to use. Release the button
when the garage door opener lights blink or two clicks are heard.
LEARN LED
LEARN
Button
“click”
“click”
1
2
41
Operation
To Erase the Memory
ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES
1. Press and hold the LEARN button on garage door opener until the learn LED goes out
(approximately 6 seconds). All remote control and keyless entry codes are now erased.
Reprogram any accessory you wish to use.
ERASE ALL DEVICES (INCLUDING myQ
®
ENABLED ACCESSORIES)
1. Press and hold the LEARN button on garage door opener until the learn LED goes out
(approximately 6 seconds).
2. Immediately press and hold the LEARN button again until the learn LED goes out. All codes
are now erased. Reprogram any accessory you wish to use.
ERASE THE Wi-Fi NETWORK FROM THE GARAGE DOOR OPENER
1. Press and hold the black adjustment button on the garage door opener until 3 beeps are
heard (Approximately 6 seconds).
LEARN Button
Black Adjustment Button
To Open the Door Manually
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
• If possible, use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced door could result in an open door
falling rapidly and/or unexpectedly.
• NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could
fall.
FOR T-RAIL
Disconnect the trolley
1. The door should be fully closed if possible.
2. Pull down on the emergency release handle.
Reconnect the trolley
The lockout feature prevents the trolley from reconnecting automatically.
1. Pull the emergency release handle down and back (toward the opener).
The door can then be raised and lowered manually as often as
necessary.
2. To disengage the lockout feature, pull the handle straight down. The
trolley will reconnect on the next UP or DOWN operation, either
manually or by using the door control or remote control.
FOR SQUARE RAIL
Disconnect the trolley
1. The door should be fully closed if possible.
2. Pull down on the emergency release handle so the trolley release arm
snaps to the vertical position. The door can now be raised and lowered
as often as necessary.
Reconnect the trolley
1. Pull the emergency release handle toward the garage door opener so
the trolley release arm snaps to the horizontal position. The trolley will
reconnect on the next UP or DOWN operation, either manually or by
using the door control or remote control.
42

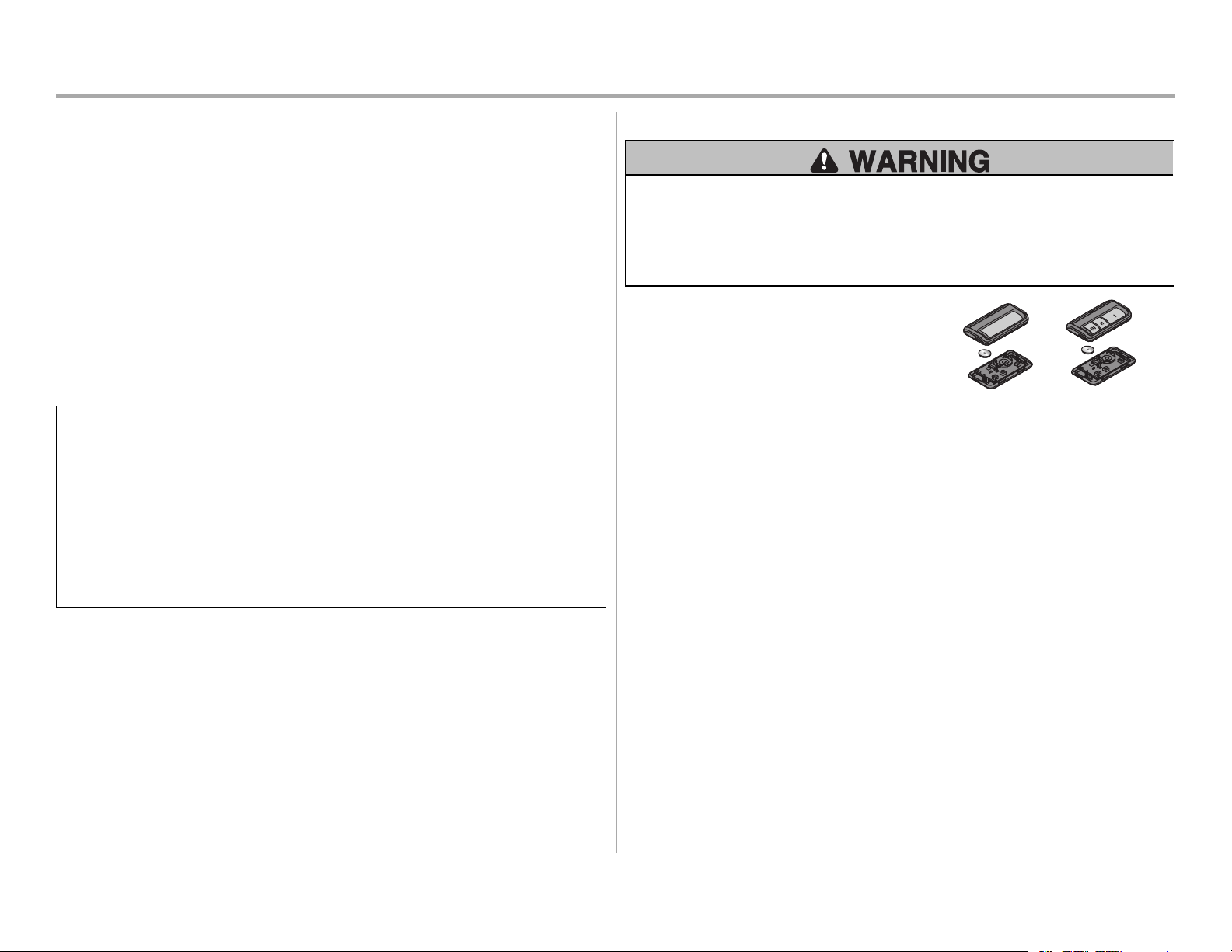

Maintenance
Maintenance Schedule
EVERY MONTH
• Manually operate door. If it is unbalanced or binding, call a trained door systems technician.
• Check to be sure door opens and closes fully. Adjust if necessary, see page 30.
• Test the safety reversal system. Adjust if necessary, see page 31.
EVERY YEAR
• Oil door rollers, bearings and hinges. The garage door opener does not require additional
lubrication. Do not grease the door tracks.
• Test the battery and consider replacing the battery to ensure the garage door opener will
operate during an electrical power outage, see page 32 to test the battery backup.
EVERY TWO TO THREE YEARS - T-RAIL ONLY
• Use a rag to wipe away the existing grease from the garage door opener rail. Reapply a small
layer of white lithium grease to the top and underside of the rail surface where the trolley
slides.
NOTICE: This device complies with part 15 of the FCC rules and Innovation, Science and Economic Development Canada license-exempt
RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between users/bystanders and device.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules and
Industry Canada ICES standard. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The Remote Control Battery
To prevent possible SERIOUS INJURY or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.
To reduce risk of fire, explosion or chemical burn:
• Replace ONLY with 3V CR2032 coin batteries.
• DO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate.
To replace the battery, pry open the case
in the middle, then at each side with the
visor clip. Insert replacement battery
positive side up (+). Replace the batteries
with only 3V CR2032 coin cell batteries.
Dispose of old batteries properly.
891LM 893LM
43
Troubleshooting
Diagnostic Chart
Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes.
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow Flash(es) Down Arrow Flash(es)
1 1 The garage door opener will not close and the light
bulbs flash.
Safety reversing sensors are not installed, connected, or wires may be cut. Inspect sensor wires for
a disconnected or cut wire.
1 2 The garage door opener will not close and the light
bulbs flash.
There is a short or reversed wire for the safety reversing sensors. Inspect safety sensor wire at all
staple and connection points, replace wire or correct as needed.
1 3 The door control will not function. The wires for the door control are shorted or the door control is faulty. Inspect door control wires at
all staple and connection points, replace wire or correct as needed.
1 4 The garage door opener will not close and the light
bulbs flash.
Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors to
ensure both LEDs are steady and not flickering. Make sure nothing is hanging or mounted on the
door that would interrupt the sensor’s path while closing.
1 5 Door moves 6-8" (15-20 cm) stops or reverses. Manually open and close the door. Check for binding or obstructions, such as a broken spring or
door lock, correct as needed. Check wiring connections at travel module and at the logic board.
Replace travel module if necessary.
No movement, only a single click. Manually open and close the door. Check for binding or obstructions, such as a broken spring or
door lock, correct as needed. Replace logic board if necessary.
Opener hums for 1-2 seconds no movement. Manually open and close the door. Check for binding or obstructions, such as a broken spring or
door lock, correct as needed. Replace motor if necessary.
1 6 Door coasts after it has come to a complete stop. Program travel to coasting position or have door balanced by a trained door systems technician.
2 1-5 No movement, or sound. Replace logic board.
3 2 Unable to set the travel or retain position. Check travel module for proper assembly, replace if necessary.
3 3 The battery status LED is constantly flashing green.* Battery backup charging circuit error, replace the logic board. *(if applicable)
44
Troubleshooting
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow Flash(es) Down Arrow Flash(es)
4 1-4 Door is moving stops or reverses. Manually open and close the door. Check for binding or obstructions, such as a broken spring or
door lock, correct as needed. If the door is binding or sticking contact a trained door systems
technician. If door is not binding or sticking attempt to reprogram travel (refer to page 30).
4 5 Opener runs approximately 6-8" (15-20 cm), stops
and reverses.
Communication error to travel module. Check travel module connections, replace travel module if
necessary.
4 6 The garage door opener will not close and the light
bulbs flash.
Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors to
ensure both LEDs are steady and not flickering. Make sure nothing is hanging or mounted on the door
that would interrupt the sensor’s path while closing.
The garage door opener will NOT enter Wi-Fi
®
LEARN mode:
• After the initial installation of the garage door opener, the garage door opener must
complete a full cycle (open and closed) before the Wi-Fi LEARN mode can be activated.
• If there has been a recent power outage, the garage door opener must complete a full cycle
before the Wi-Fi LEARN mode can be activated.
See page 36 to activate Wi-Fi LEARN mode.
Cannot connect garage door opener to home Wi-Fi network:
• Ensure the myQ
®
Serial number was entered correctly and try again. The myQ
®
characters
are between A-F and 0-9 only.
• Weak Wi-Fi signal in the garage. Ensure the Wi-Fi signal is reaching the garage, see page 4
or visit LiftMaster.com/Customer-Support for more information.
My door will not close and the light bulbs blink on my motor unit:
The safety reversing sensor must be connected and aligned correctly before the garage door opener
will move in the down direction.
• Verify the safety reversing sensors are properly installed, aligned and free of any
obstructions.
My garage door opener light(s) will not turn off when the door is open:
The garage door opener is equipped with a feature that turns the light on when the safety reversing
sensors have been obstructed. This feature can be disabled using the door control, see page 39.
My neighbor’s remote control opens my garage door:
Erase the memory from your garage door opener and reprogram the remote control(s).
My vehicle's Homelink
®
is not programming to my garage door opener:
Depending on the make, model, and year of your vehicle an external adapter may be required. Visit
www.homelink.com for additional information.
45

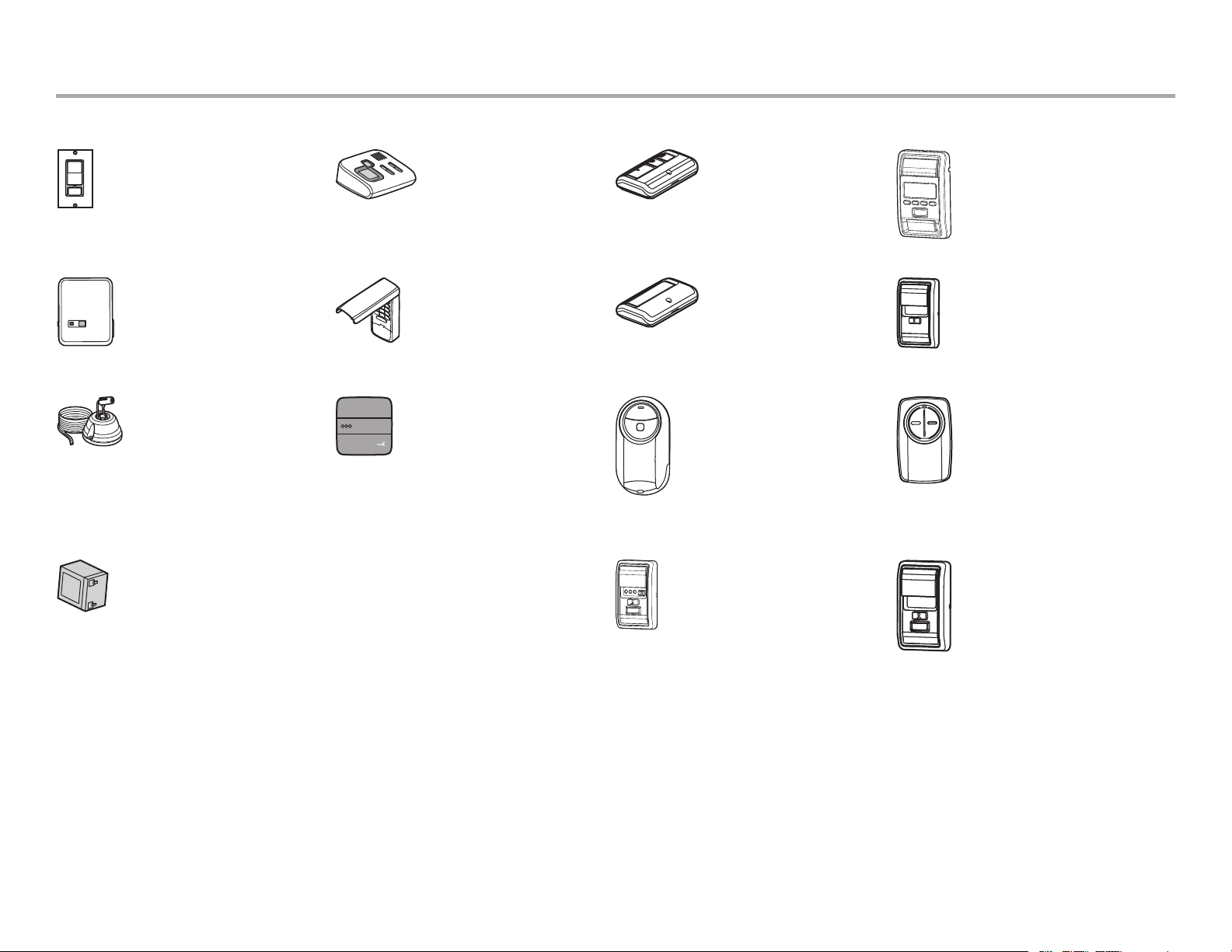

Accessories
823LM Remote Light Switch:
Replace an existing wall switch
to control home lighting using
your smartphone or garage door
opener remote control.
Smartphone control requires a
connected myQ
®
account.
829LM Door and Gate Monitor:
Monitor and close up to 4
myQ
®
enabled garage door
openers or gate operators from
any room in your home.
893MAX 3-Button MAX Remote Control:
Compatible with LiftMaster
garage door openers
manufactured since 1993.
Includes visor clip.
880LMW Smart Control Panel:
Displays temperature, time and
system diagnostics; includes a
push bar to open and close the
door and a lock feature for extra
security. Security+2.0 and Wi-Fi
compatible.
825LM Remote Light Control:
Plug into any interior lamp to
control home lighting using
your smartphone or garage door
opener remote control.
Smartphone control requires a
connected myQ
®
account.
878MAX MAX Wireless Keyless Entry:
For use outside of the home to
enable access to the garage
using a 4-digit PIN. Works with
ALL LiftMaster openers from
1993-present.
891LM Single Button Remote Control:
Compatible with LiftMaster
garage door openers
manufactured since 1993.
Includes visor clip.
882LMW Multi-Function Control Panel:
Security+ 2.0 and Wi-Fi
compatible.
975LM Laser Garage Parking Assist:
Laser enables homeowners to
precisely park vehicles in the
garage.
819LMB myQ
®
Home Bridge:
Add Apple
®
HomeKit™
compatibility to your myQ
®
enabled garage door opener.
Use Siri
®
to open, close and
check the status of your door.
Apple is a trademark of Apple Inc.,
registered in the U.S. and other
countries. HomeKit is a trademark of
Apple Inc.
374UT Mini Universal Remote Control:
The Mini Universal Remote
Control can be programmed to
activate up to two products,
such as a garage door opener,
myQ
®
light controls, gate
operator, or commercial door
operator.
375UT Universal Remote Control:
The Universal Remote Control can
be programmed to activate up to
two products, such as a garage
door opener, gate operator, or
commercial door operator.
485LM 12V Battery for Backup System:
Provides backup power to the
garage door opener.
881LMW Motion Detecting Control Panel
with Timer-to-Close Control:
Multi-function door control with
motion sensor that automatically
turns opener lights on when it
detects a person entering the
garage. Security+2.0 and Wi-Fi
compatible.
886LMW Motion Detecting Control Panel:
Multi-function door control with
motion sensor that automatically
turns opener lights on when it
detects a person entering the
garage. Security+ 2.0 and Wi-Fi
compatible.
46
Warranty
LIFTMASTER
®
LIMITED WARRANTY
LiftMaster
®
(“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defects in materials and/or workmanship for a
specific period of time as defined below (the “Warranty Period”). The warranty period commences from the date of purchase.
WARRANTY PERIOD
Models Parts Motor Accessories Belt Battery Backup*
8160W
8165W
8164W
1 year 4 years 1 year N/A N/A
8160WB 1 year 4 years 1 year N/A 1 year
8155W 1 year 4 years 1 year 10 years N/A
The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure to comply strictly with those instructions
will void this limited warranty in its entirety.
If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. You will be advised of
disassembly and shipping instructions when you call. Then send the product or component, pre-paid and insured, as directed to our service center for warranty repair. Please include a brief description of the
problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and
covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at
Seller’s sole option. [You are responsible for any costs incurred in removing and/or reinstalling the product or any component].
ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE RELATED COMPONENT(S), AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD.
Some States and Provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT
DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY
MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE
ITEMS (E.G., BATTERIES IN REMOTE CONTROL TRANSMITTERS AND LIGHT BULBS), OR UNITS INSTALLED FOR NON-RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY
PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES.
THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR
SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT,
NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE
SALE OF THIS PRODUCT.
Some states and provinces do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you
specific legal rights, and you may also have other rights, which vary from state to state and province to province.
*If applicable
47
Automatic Garage Door Opener Safety & Maintenance Guide
Garage Door Opener Safety – An Automatic Decision
A garage door is the largest moving object in the home. An improperly adjusted garage door and opener can exert deadly force when the door closes – which could lead to entrapment of children or
adults and subsequent injury or death.
Proper installation, operation, maintenance, and testing of the garage door and automatic opener are necessary to provide a safe, trouble-free system. Careless operation or allowing children to play with or
use garage door opener controls are also dangerous situations that can lead to tragic results. A few simple precautions can protect your family and friends from potential harm. Please review the safety and
maintenance tips in this guide carefully and keep it for reference. Check the operation of your garage door and opener to ensure they function in a safe and trouble-free manner. Be sure to read all Important
Safety Information found in your garage door opener’s manual as it provides more details and safety considerations than can be supplied with this guide.

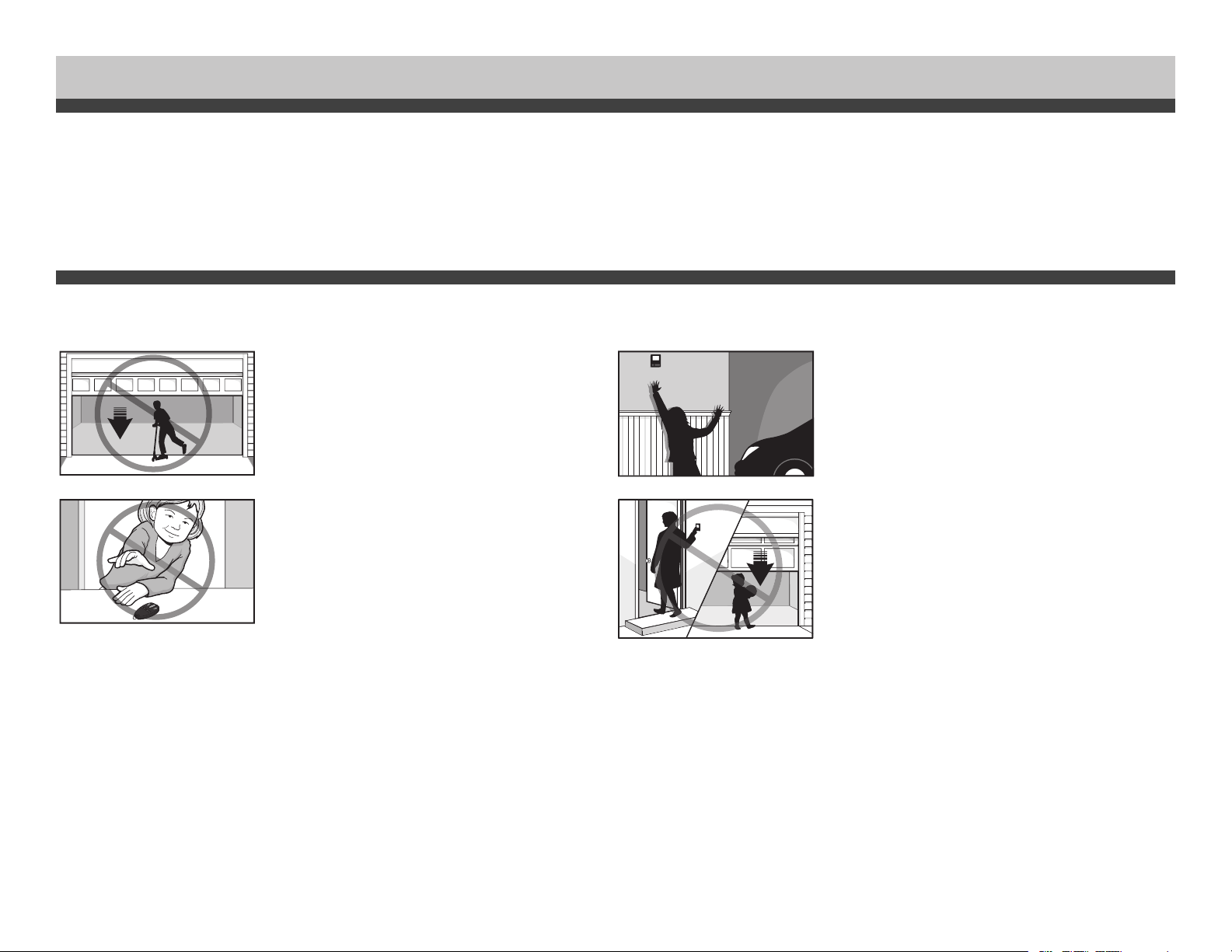

Garage Door Openers are Not Toys
Discuss garage door and opener safety with your children. Explain the danger of being trapped under the door.
Stay away from a moving door. The wall-mounted push button should be out of reach of
children, at least 5feet from the nearest standing surface and
away from all moving parts. Mount and use the button where
you can clearly see the closing garage door.
Keep transmitters and remote controls out of reach of
children. Do not let children play with or use transmitters or
other remote control devices.
Keep the door in sight until it completely closes when using
the wall-mounted push button or transmitter.
48

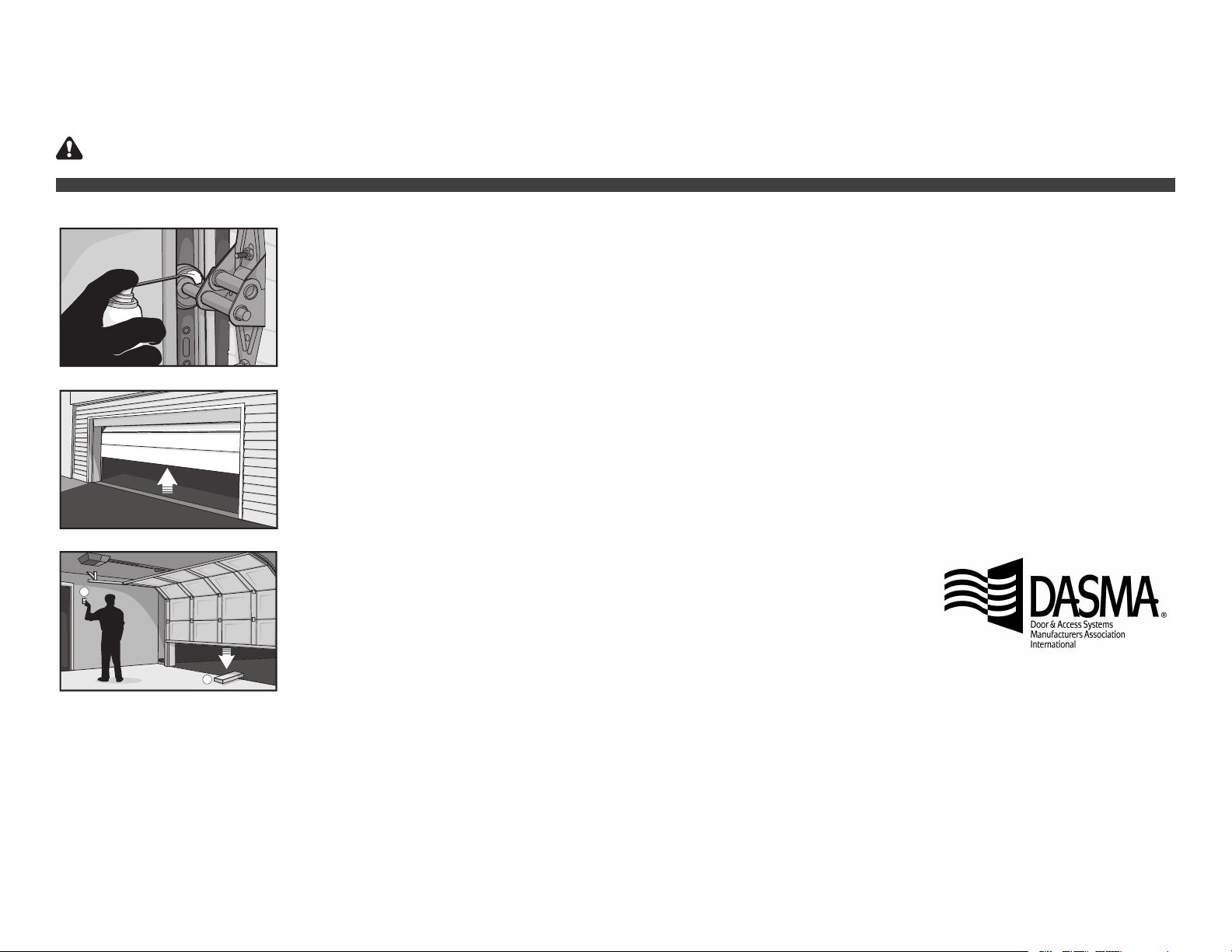

Routine Maintenance Can Prevent Tragedies
Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner’s manual for both the door and door opener. If you don’t have the owner’s
manuals, contact the manufacturer(s) and request a copy for your specific model(s). Look for the opener model number on the back of the power unit.
WARNING – SPRINGS ARE UNDER HIGH TENSION. ONLY QUALIFIED INDIVIDUALS SHOULD ADJUST THEM.
Visually check the door and installation:
• Starting with the door in the closed position, use the manual disconnect on the opener to disconnect the door.
• Look for signs of wear or damage on hinges, rollers, springs, and door panels.
• These parts may require periodic lubrication. Check the owner’s manual for suggested maintenance.
• If any signs of damage are evident, contact a trained door systems technician for assistance.
• Verify the photoeye height is no higher than 6" from the garage floor.
Test the door for proper operation:
• Open and close the door manually using handles or suitable gripping points.
• The door should move freely and without difficulty.
• The door should balance and stay partially open 3–4 feet above the floor.
• If you detect any signs of improper operation, contact a trained door systems technician for assistance.
1
2
Test the opener safety features:
• Reconnect the opener to the door using the manual disconnect and open the door.
• Place a 2x4 board flat in the path of the door (1) and try to close it (2). The door should stop when it comes in
contact with the 2x4 and then reverse direction.
• Block the photoelectric sensor by waving an object in front of the sensor and attempt to close the door. The door
should not close unless the wall-mounted push button is manually held during operation.
• If the opener does not perform as described, contact a trained door systems technician for assistance.
49
Repair Parts
Models 8160W, 8160WB, 8164W and 8165W
For Square Rail see instructions included with the LMSSRKIT.
RAIL ASSEMBLY PARTS
Description Part Number
1
Chain - for 7 foot door
041D3484
Chain - for 8 foot door
041D3483
Chain - for 10 foot door
041D3485
2
Chain Pulley Bracket
041A4813
3
Master link
004A1008
4
One-Piece Rail 7feet (2.1m)
1707LM
One-Piece Rail 8feet (2.4m)
1708LM
One-Piece Rail 10feet (3m)
1710LM
5
Trolley Assembly Includes:
ThreadedShaft(1), Nuts(2), Washer(1),
ClevisPin(1), Ring (1), MasterLink (1),
ChainExtension
041A3489
6
Trolley ThreadedShaft
041A6689
Not Shown
Rail Grease
K083A0011-1
1
3
4
5
6
2
ACCESSORIES
Description Part Number
1 Push Button Door Control
Model 8164W
883LMW
2 Multi-function Control Panel
Models 8160W, 8160WB, and 8165W
882LMW
3 1 Button Remote Control
Model 8164W
891LM
4 3 Button Remote Control
Models 8160W, 8160WB, and 8165W
893LM
1
3
4
2
INSTALLATION PARTS
Description Part Number
1
Curved door arm
041B0035B
2
Door bracket with clevis pinandfastener
041A5047
3
Emergency release ropeand handle
041A2828
4
Header bracket with clevis pinand fastener
041A4353
5
Remote control visor clip
K029B0137
6
Safety sensor bracket
041A5266-3
7
Safety sensor kit with receiving and
sending sensors with 3 feet (.9 m) 2-
conductor wire
041A5034
8
Straight door arm
4178B0034B
9
White and red/white wire
041B4494-1
10
3V CR2032 lithium battery
K010A0020
11
Extension bracket (optional)
041A5281-1
Not Shown
Installation hardwarebag
041A2770-6
User’s Guide
114-5427B
1
2
3
4
6
7
8
10
5
9
11
50

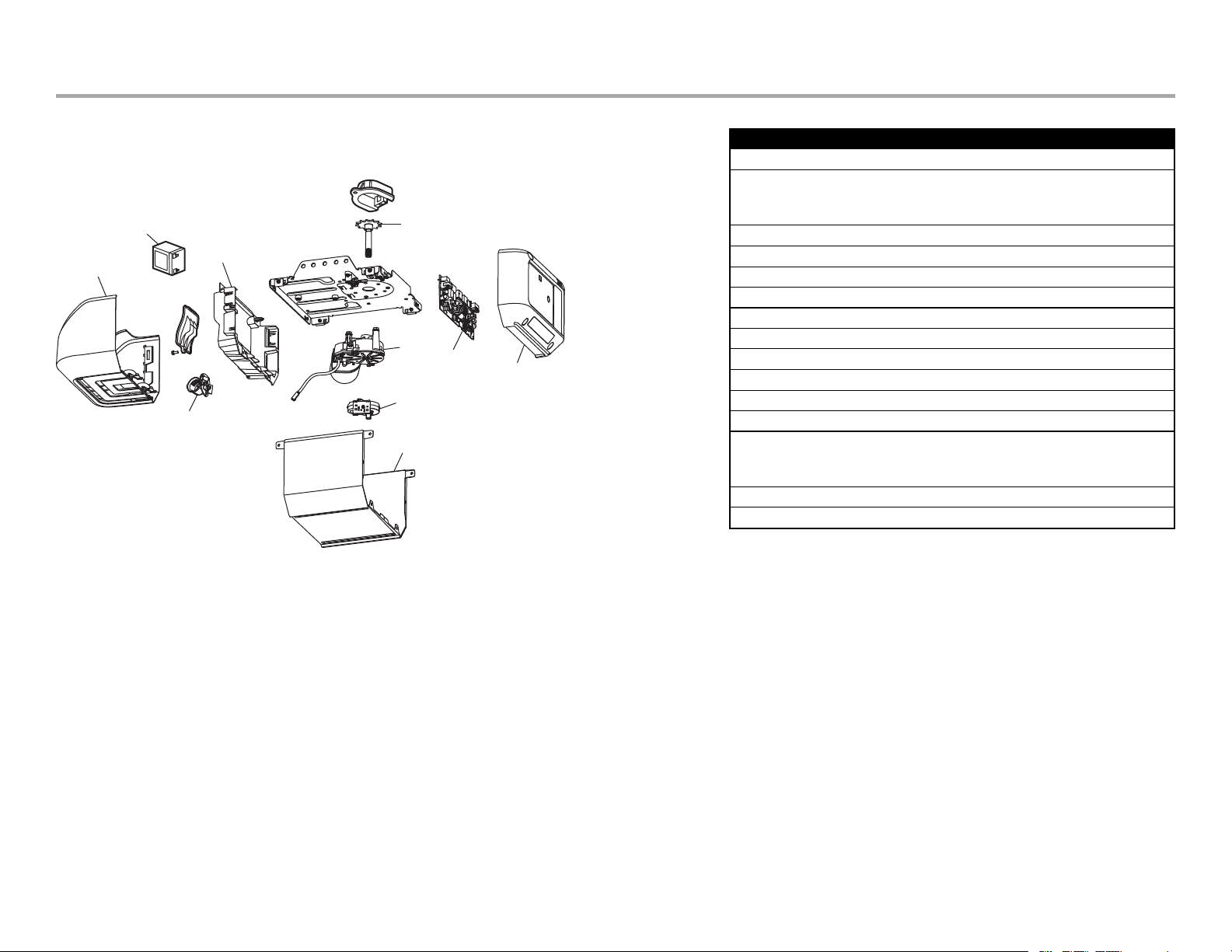

Repair Parts
Models 8160W and 8160WB
GARAGE DOOR OPENER PARTS
1
2
3
8
7
6
4
5
9
10
Description Part Number
1
Sprocket and sprocket cover
041B5348-2
2 End panel with light socket
Model 8160W
041A7756-1
Model 8160WB
041A7618
3
Light Lens
041A7562
4
Light socket
041C0279
5
Cover
041-0133
6
Motor with travel module
041D8006-1
7
Travel Module
041D8071-4
8
Logic board end panel
041D0233-3
9
Logic board
050DCTB
10
Battery Backup(Model 8160WB only)
485LM
Not Shown
Wire Harness
041D9069
Transformer
Model 8160W
041A7635-1
Model 8160WB
041D0277-1
Line cord
041B4245-1
Terminal block
041A3150
51

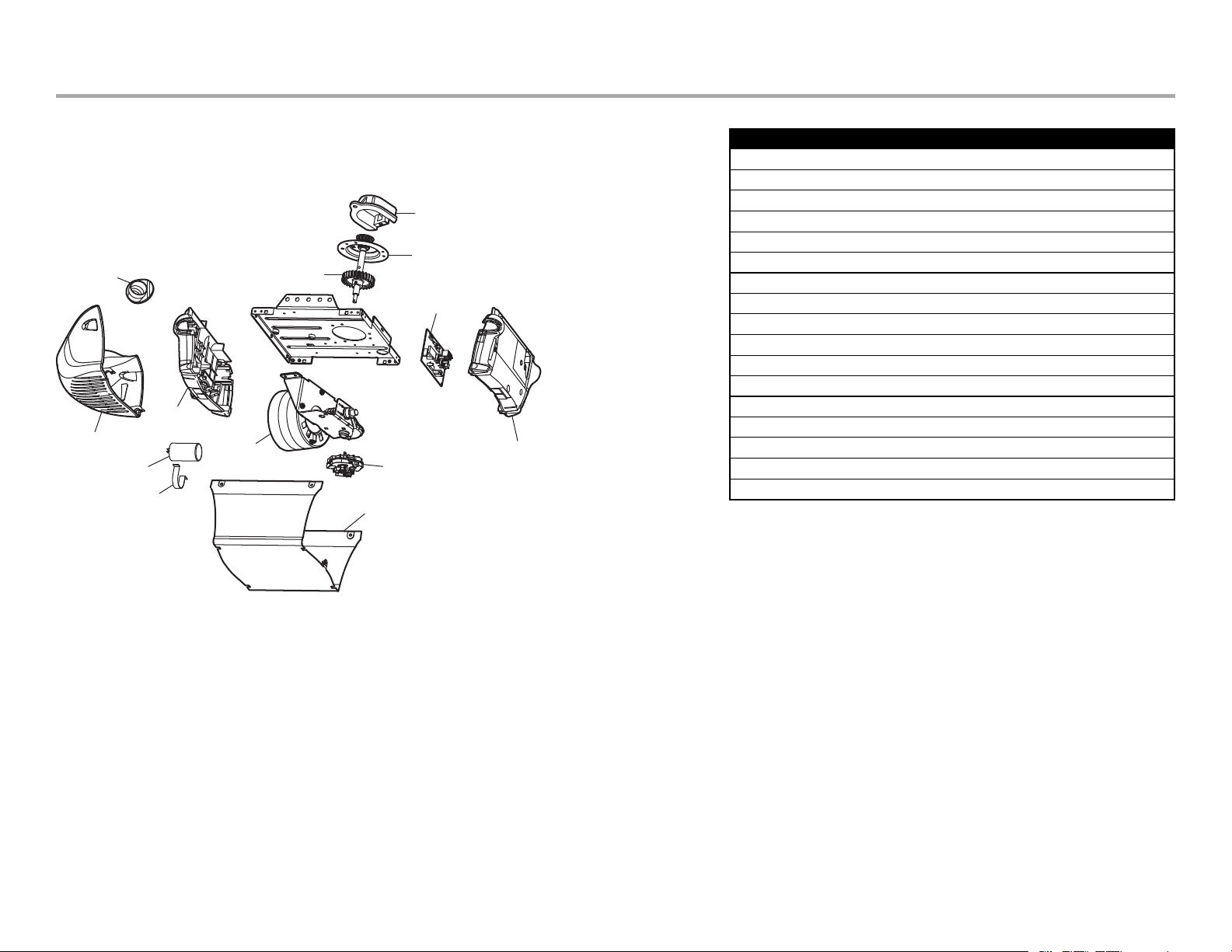

Repair Parts
Models 8164W and 8165W
For Square Rail see instructions included with the LMSSRKIT.
GARAGE DOOR OPENER PARTS
1
2
3
10
12
13
8
7
6
4
5
11
9
Description Part Number
1
Sprocket cover
031D0380M
2
Gear and sprocket
041C4220A
3
DriveandWorm Gear
041A2817
4
Front endpanel with all labels
041A8393
5
Light socket
041C0279
6
Light lens
K108D0079M
7
Capacitor
030B0532-1
8
Capacitorbracket
K012A0373
9
Universal motor
041D7440
10
Travel module
041D7742-7
11
Cover
041D9018
12
Logic board
050ACTWF
13
Logic board end panel
041D0239-1
Not Shown
Line cord
041B4245-1
Terminal block
041A3150
Wire Harness
041A7946
52
Repair Parts
Model 8155W
RAIL ASSEMBLY PARTS
Description Part Number
1
Belt - for 7 foot door
041A5434-11A
Belt - for 8 foot door
041A5434-13A
Belt - for 10foot door
041A5434-14A
2
Belt Pulley Bracket
041B5424
3
Master link
004A1008
4
One-Piece Rail 7feet (2.1m)
G2777
One-Piece Rail 8feet (2.4m)
G2778
One-Piece Rail 10feet (3m)
G2770
5
Trolley Assembly Includes: MasterLink
(2), ClevisPin (1), Ring (1), BeltClip (1),
ThreadedShaft (1), and
TensionerAssembly (1)
041B3869-3A
6
Tensioner Assembly
041B4103
7
Trolley ThreadedShaft
041A6689
1
3
4
5
7
6
2
ACCESSORIES
Description Part Number
1
Multi-function control panel
882LMW
2
3-button remote control
893LM
2
1
INSTALLATION PARTS
Description Part Number
1
Curved door arm
041B0035B
2
Door bracket with clevis pinandfastener
041A5047-1
3
Emergency release ropeand handle
041A2828
4
Header bracket with clevis pinand fastener
041A4353-1
5
Remote control visor clip
K029B0137
6
Safety sensor bracket
041A5266-3
7
Safety sensor kit with receiving and
sending sensors with 3 feet (.9 m) 2-
conductor wire
041A5034
8
Straight door arm
4178B0034B
9
White and red/white wire
041B4494-1
10
3V CR2032 lithium battery
K010A0020
11
Extension bracket (optional)
041A5281-1
Not Shown
Installation hardwarebag
041A2770-6
User’s Guide
114-5427B
1
2
3
4
6
7
8
10
5
9
11
114-5428B
Wi-Fi
®
is a registered trademark of Wi-Fi Alliance.
© 2020, LiftMaster
All Rights Reserved

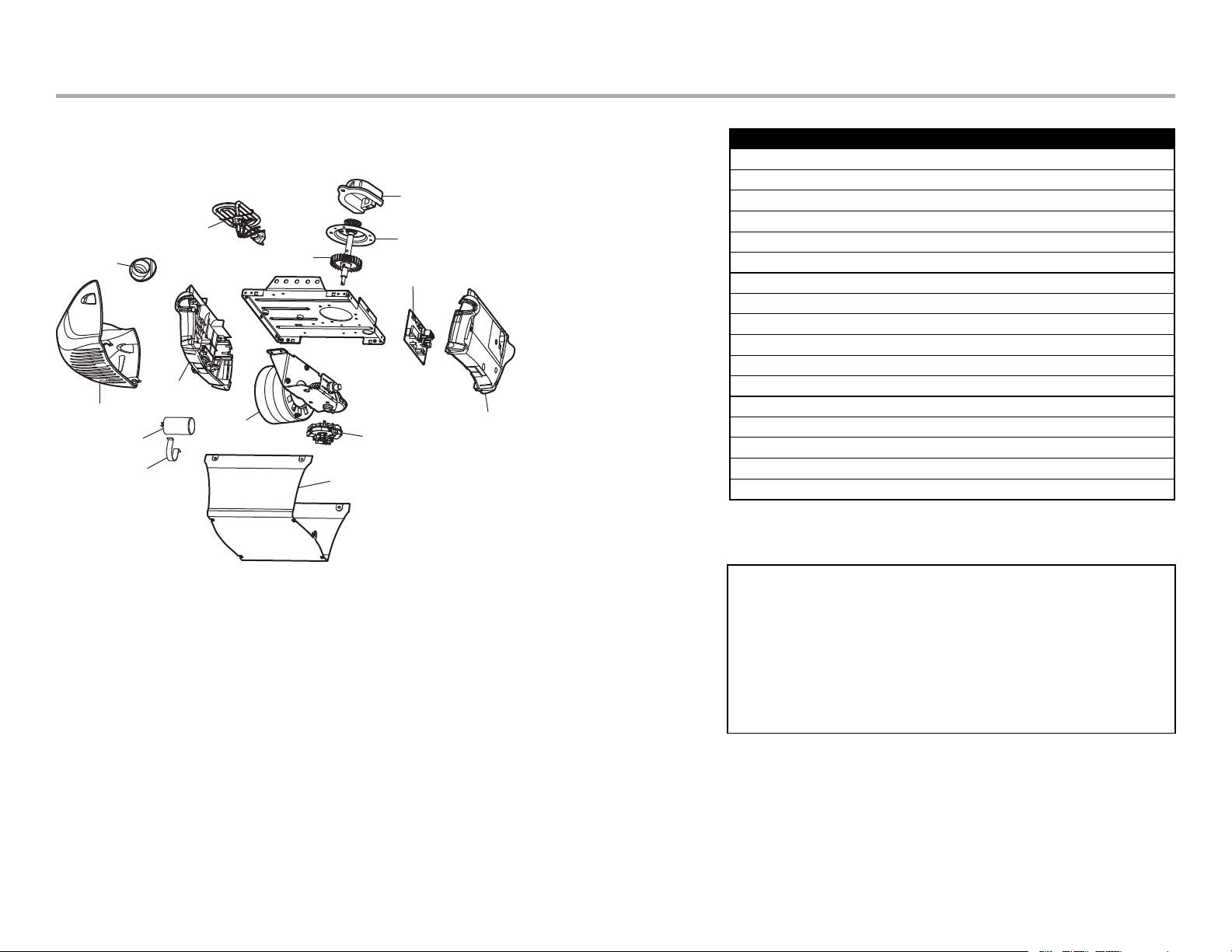

Repair Parts
Model 8155W
GARAGE DOOR OPENER PARTS
1
2
3
10
12
13
14
8
7
6
4
5
11
9
Description Part Number
1
Sprocket cover
041A4371
2
Gear and sprocket
041A4885-4
3
DriveandWorm Gear
041A2817
4
Front endpanel with all labels
041A8393
5
Light socket
041C0279
6
Light lens
K108D0079M
7
Capacitor
030B0532-1
8
Capacitorbracket
K012A0373
9
Universal motor
041D7440
10
Travel module
041D7742-7
11
Cover
041D9018
12
Logic board
050ACTWF
13
Logic BoardEnd Panel
041D0239-1
14
Line cord
041B4245-1
Not Shown
Wire Harness
041A7946
Terminal block
041A3150
CONTACT INFORMATION:
Use your part number, part name or model number to find the information you
need.
For parts, go to:
LiftMaster.com/parts
For help and troubleshooting, go to:
support.chamberlaingroup.com
