User Manual Jbl Clip 3 Portable Bluetooth Speaker

• Owner's manual - (English)

• Spec Sheet English - (English)
• Declaration of Conformity - (English)
• JBL Global Warranty Card - (English)

USER’S GUIDE Portable Bluetooth Speaker Jbl Clip 3

Contents

• Clip and Play
• Features
• Features and Benefits
• Technical specifications

Clip and Play

•  Like no other, the JBL Clip 3 is a unique ultra-portable, ultra-rugged and waterproof Bluetooth® speaker that is small in size but with surprisingly big sound.
• The upgraded durable and fully integrated carabiner clips to your clothes, belt loop or backpack, making the Clip 3 your outdoor companion on every adventure.
• The Clip 3 is IPX7 waterproof and offers 10 hours of playtime, powered by a 1000mAh rechargeable Li-ion battery, allowing you to bring your music with you.
• A built-in noise and echo-cancelling speakerphone gives you crystal clear calls with the press of a button.

Features

• Wireless Bluetooth® Streaming
• 10 Hours of Playtime
• IPX7 Waterproof
• Integrated Carabiner
• Speakerphone
• Lifestyle Material with Durable Design

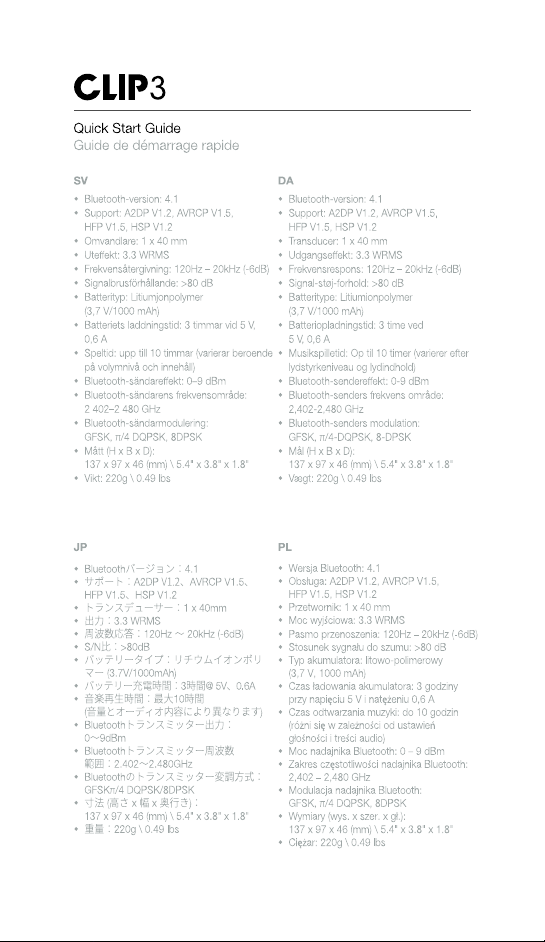

Technical specifications

• Bluetooth® version: 4.1
• Support: A2DP V1.2, AVRCP V1.5, HFP V1.5, HSP V1.2
• Transducer: 1 x 40mm
• Output power: 3.3W RMS
• Frequency response: 120Hz – 20kHz (-6dB)
• Signal-to-noise ratio: >80dB
• Battery type: Lithium-ion polymer (3.7V/1000mAh)
• Battery charge time: 3 hour @ 5V, 0.6A
• Music playing time: up to 10 hours (varies by volume level and audio content)
• Bluetooth® transmitter power: 0 – 9dBm
• Bluetooth® transmitter frequency range: 2.402 – 2.480GHz
• Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• Dimensions: 137 x 97 x 46 (mm) \ 5.4" x 3.8" x 1.8"
• Weight: 220g \ 0.49 lbs
