2010
Honda CBR1000RR/CBR1000RR ABS
OWNER’S MANUAL
０９／０７／０６ １８：２４：３２ ３１ＭＦＬ６２０ ０００２
−
Introduction
Introduction
Congratulations on choosing your Honda
motorcycle.
When you own a Honda, you’re part of a
worldwide family of satisfied customers
people who appreciate Honda’s
reputation for building quality into every
product.
Before riding, take time to get acquainted
with your motorcycle and how it works.
To protect your investment, we urge you
to take responsibility for keeping your
motorcycle well maintained. Scheduled
service is a must, of course. But it’s just as
important to observe the break-in
guidelines, and perform all pre-ride and
other periodic checks detailed in this
manual.
We also recommend that you read this
owner’s manual before you ride. It’s full
of facts, instructions, safety information,
and helpful tips. To make it easy to use,
the manual contains a detailed list of
topics at the beginning of each section,
and both an in-depth table of contents and
an index at the back of the book.
As you read this manual, you will find
information that is preceded by a
symbol. This information is
intended to help you avoid damage to your
Honda, other property, or the environment.
０９／０７／０６ １８：２４：３８ ３１ＭＦＬ６２０ ０００３
Introduction
Introduction
WARNING:
Read the Warranties Booklet (page )
thoroughly so you understand the
coverages that protect your new Honda
and are aware of your rights and
responsibilities.
If you have any questions, or if you ever
need special service or repairs, remember
that your Honda dealer knows your
motorcycle best and is dedicated to your
complete satisfaction.
Please report any change of address or
ownership to your Honda dealer so we
will be able to contact you concerning
important product information.
You may also want to visit our website at
www.honda.com.
Happy riding!
California Proposition 65 Warning
This product contains or
emits chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
249
０９／０７／０６ １８：２４：４４ ３１ＭＦＬ６２０ ０００４
A Few Words About Safety
Safety Messages
Safety Labels
Safety Messages
DANGER, WARNING, CAUTION
Your safety, and the safety of others, is very important. And operating this motorcycle safely
is an important responsibility.
To help you make informed decisions about safety, we have provided operating procedures
and other information on labels and in this manual. This information alerts you to potential
hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all hazards associated with
operating or maintaining a motorcycle. You must use your own good judgment.
You will find important safety information in a variety of forms, including:
–– on the motorcycle.
–– preceded by a safety alert symbol and one of three signal words:
or .
These signal words mean:
０９／０７／０６ １８：２４：４８ ３１ＭＦＬ６２０ ０００５
You WILL be KILLED or SERIOUSLY HURT if you
don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t
follow instructions.
You CAN be HURT if you don’t follow instructions.
A Few Words About Safety
Safety Messages
Safety Headings
Safety Section
Instructions
–– such as Important Safety Reminders or Important Safety Precautions.
–– such as Motorcycle Safety.
–– how to use this motorcycle correctly and safely.
This entire manual is filled with important safety information –– please read it carefully.
０９／０７／０６ １８：２４：５４ ３１ＭＦＬ６２０ ０００６
1
Motorcycle Safety
Motorcycle Safety
This section presents some of the most
important information and
recommendations to help you ride your
motorcycle safely. Please take a few
moments to read these pages. This section
also includes information about the
location of safety labels on your
motorcycle.
.................Accessories & Modifications .
................Important Safety Information .
..........................................Safety Labels .
2
5
7
０９／０７／０６ １８：２５：１９ ３１ＭＦＬ６２０ ００１０
−
2
Important Safety Information
Motorcycle Safety
Always Wear a HelmetYour motorcycle can provide many years
of service and pleasure if you take
responsibility for your own safety and
understand the challenges you can meet
while riding.
There is much that you can do to protect
yourself when you ride. You’ll find many
helpful recommendations throughout this
manual. The following are a few that we
consider to be most important.
It’s a proven fact: helmets significantly
reduce the number and severity of head
injuries. So always wear an approved
motorcycle helmet and make sure your
passenger does the same. We also
recommend that you wear eye protection,
sturdy boots, gloves, and other protective
gear (page ).
56
０９／０７／０６ １８：２５：２４ ３１ＭＦＬ６２０ ００１１
3
Important Safety Information
Motorcycle Safety
Ride Defensively
Take Time to Learn & Practice
Make Yourself Easy to See
You and
Your Motorcycle Riding Tips,
The most frequent motorcycle collision
happens when a car turns left in front of a
motorcycle. Another common situation is
a car moving suddenly into your lane.
Always pay attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop
quickly or make an evasive maneuver. For
other riding tips, see the booklet,
which came
with your new motorcycle (USA only).
Even if you have ridden other motorcycles,
take time to become familiar with how
this motorcycle works and handles.
Practice in a safe area until you build your
skills and get accustomed to the
motorcycle’s size and weight.
Because many crashes involve
inexperienced or untrained riders, we urge
all riders to take a motorcycle operator
course approved by the Motorcycle Safety
Foundation (MSF). See page .
Some drivers do not see motorcycles
because they are not looking for them. To
make yourself more visible, wear bright
reflective clothing, position yourself so
other drivers can see you, signal before
turning or changing lanes, and use your
horn when it will help others notice you.
58
０９／０７／０６ １８：２５：２９ ３１ＭＦＬ６２０ ００１２
4
Ride within Your Limits Keep Your Honda in Safe Condition
Don’t Drink and Ride
Motorcycle Safety
Important Safety Information
Pushing limits is another major cause of
motorcycle crashes. Never ride beyond
your personal abilities or faster than
conditions warrant. Remember that
alcohol, drugs, fatigue, and inattention can
significantly reduce your ability to make
good judgments and ride safely.
It’s important to keep your motorcycle
properly maintained and in safe riding
condition. To help avoid problems, inspect
your motorcycle before every ride and
perform all recommended maintenance.
Never exceed load limits (page ), and
do not modify your motorcycle (page )
or install accessories that would make
your motorcycle unsafe (page ).
Alcohol and riding don’t mix. Even one
drink can reduce your ability to respond to
changing conditions, and your reaction
time gets worse with every additional
drink. So don’t drink and ride, and don’t
let your friends drink and ride either.
6
5
63
０９／０７／０６ １８：２５：３４ ３１ＭＦＬ６２０ ００１３
Improper accessories or
modifications can cause a crash in
which you can be seriously hurt or
killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
5
Accessories
Accessories & Modifications
Motorcycle Safety
Modifying your motorcycle or using non-
Honda accessories can make your
motorcycle unsafe. Before you consider
making any modifications or adding an
accessory, be sure to read the following
information.
We strongly recommend that you use only
Honda Genuine Accessories that have
been specifically designed and tested for
your motorcycle. Because Honda cannot
test all other accessories, you must be
personally responsible for proper selection,
installation, and use of non-Honda
accessories.
Check with your Honda dealer for
assistance and always follow these
guidelines:
Make sure the accessory does not
obscure any lights, reduce ground
clearance and lean angle, limit
suspension travel or steering travel, alter
your riding position, or interfere with
operating any controls. (cont’d)
０９／０７／０６ １８：２５：４０ ３１ＭＦＬ６２０ ００１４
6
Modifications
Accessories & Modifications
Motorcycle Safety
Do not add any electrical equipment
that will exceed the motorcycle’s
electrical system capacity (page ).
A blown fuse can cause a loss of lights
or engine power (page ).
Do not pull a trailer or sidecar with your
motorcycle. This motorcycle was not
designed for these attachments, and
their use can seriously impair your
motorcycle’s handling.
We strongly advise you not to remove any
original equipment or modify your
motorcycle in any way that would change
its design or operation. Such changes
could seriously impair your motorcycle’s
handling, stability, and braking, making it
unsafe to ride.
Removing or modifying your lights,
exhaust system, emission control system,
or other equipment can also make your
motorcycle illegal.
232
213
０９／０７／０６ １８：２５：４６ ３１ＭＦＬ６２０ ００１５
7

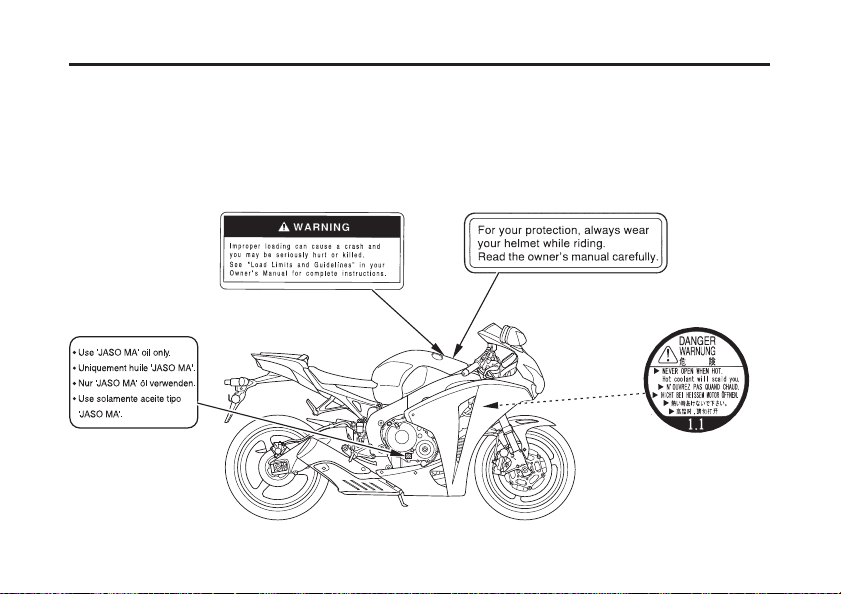

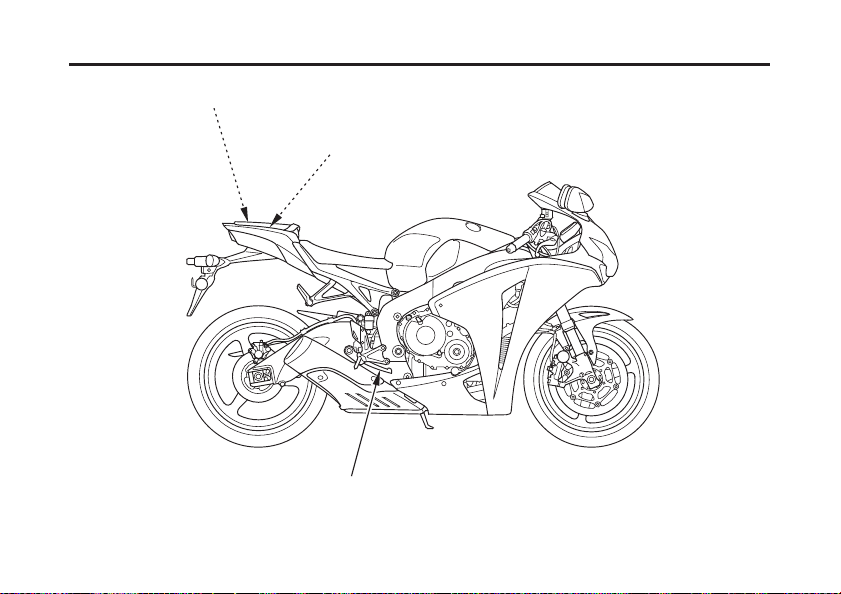

Safety Labels
Motorcycle Safety
Safety labels on your motorcycle either warn you of potential hazards that could cause
serious injury or they provide important safety information. Read these labels carefully and
don’t remove them.
If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.
０９／０７／０６ １８：２５：５５ ３１ＭＦＬ６２０ ００１６
8
Safety Labels
Motorcycle Safety
０９／０７／０６ １８：２６：０３ ３１ＭＦＬ６２０ ００１７
9
Instruments & Controls
Instruments & Controls
This section shows the location of all
gauges, indicators, and controls you would
normally use before or while riding your
motorcycle.
The items listed on this page are described
in this section. Instructions for other
components are presented in other sections
of this manual where they will be most
useful.
(cont’d)
...........Operation Component Locations .
...............Gauges, Indicators & Displays .
.......................Multi-function Display .
...............Coolant Temperature Meter .
Low Oil Pressure Indicator and
..............................Warning Indicator .
High Coolant Temperature Indicator
........................and Warning Indicator .
..................................HESD Indicator .
.......................................Speedometer .
...............Odometer/Tripmeter A & B .
............................Fuel Mileage Meter .
Low Fuel Indicator and Reserve
..............................Fuel Consumption .

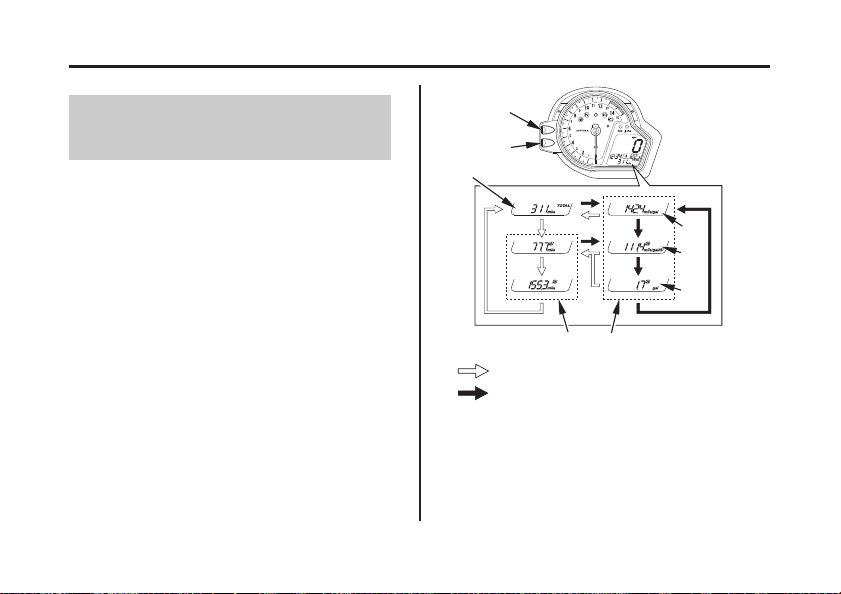

Changing the Indication of
.......................Multi-function Display .
11
14
25
26
28
30
31
32
33
34
35
37
０９／０７／０６ １８：２６：１３ ３１ＭＦＬ６２０ ００１８
10
Instruments & Controls
Instruments & Controls
........Changing the Temperature Unit .
Gauges, Indicators & Displays
Changing the Speed, Mileage and
...............................Fuel Mileage Unit .

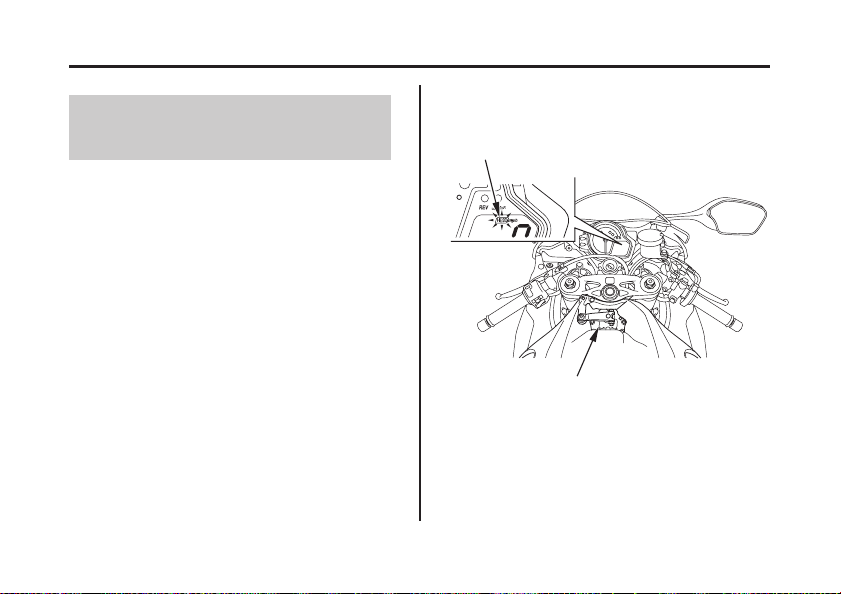

HESD (Honda Electronic Steering
..............................................Damper) .
................................Control Button B .
................................Control Button A .
........................................Horn Button .
.............................Turn Signal Switch .
.................Headlight Dimmer Switch .
............................Engine Stop Switch .
.........................................Start Button .
...................................Ignition Switch .
................................Controls & Features .

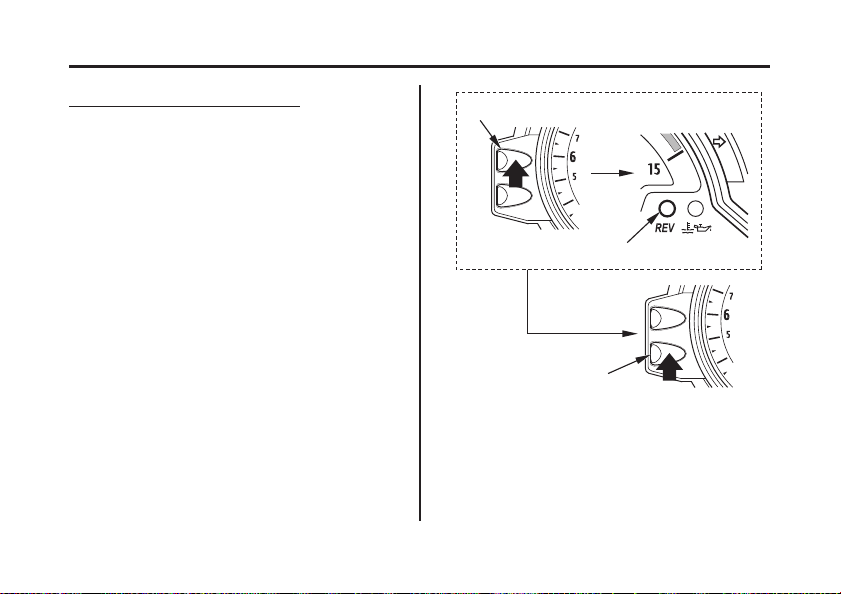

Presetting the Shift Indicator and
..........................Selecting the Display .
Changing the Indication Mode of
.......................................Fuel Mileage .
......................................Digital Clock .
40
41
42
43
46
49
49
50
50
51
51
52
52
53
54
０９／０７／０６ １８：２６：２５ ３１ＭＦＬ６２０ ００１９

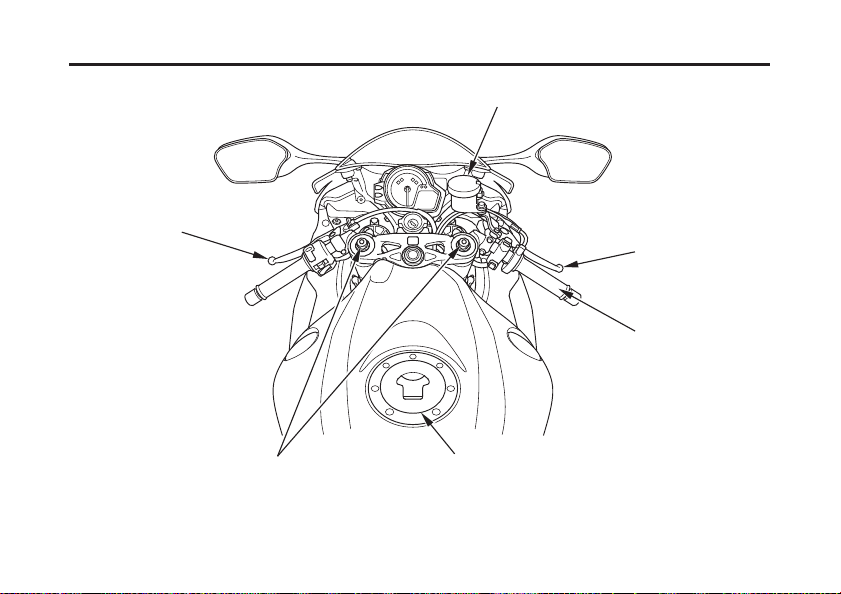

turn signal switch
clutch lever
horn button
start button
headlight dimmer switch
engine stop switch
front brake lever
ignition switch
throttle grip
11
Instruments & Controls
Operation Component Locations
０９／０７／０６ １８：２６：３０ ３１ＭＦＬ６２０ ００２０
rear brake pedal
helmet holders

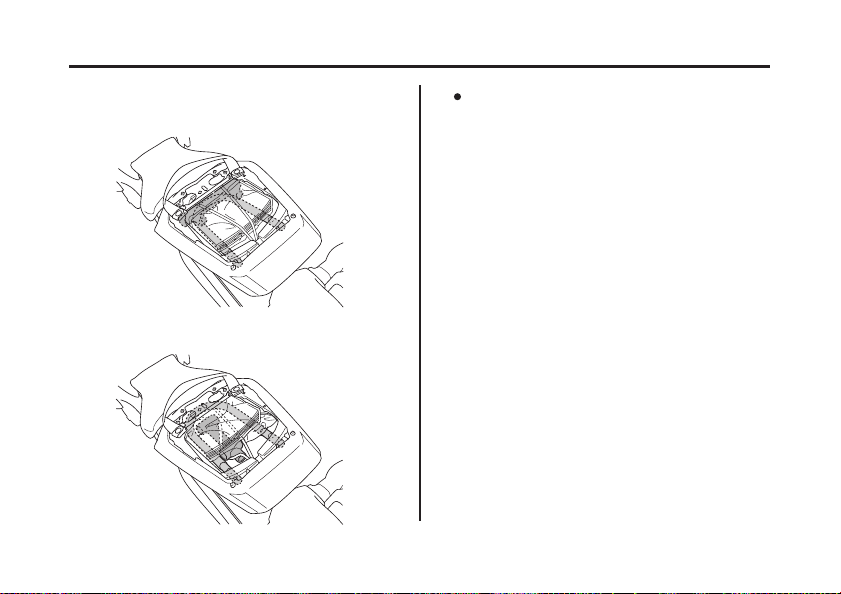

storage compartment for U-shaped lock
12
Instruments & Controls
Operation Component Locations
０９／０７／０６ １８：２６：３４ ３１ＭＦＬ６２０ ００２１
shift lever
13
Instruments & Controls
Operation Component Locations
０９／０７／０６ １８：２６：３８ ３１ＭＦＬ６２０ ００２２
(1) control button A
(2) left turn signal indicator
(3) low fuel indicator
(4) neutral indicator
(5) tachometer
(6) high beam indicator
(7) PGM-FI malfunction indicator lamp
(MIL)
(8) tachometer red zone
(9) shift indicator
(10) right turn signal indicator
(11) warning indicator
(12) multi-function display
(13) Combined ABS indicator
(CBR1000RR ABS only)
(14) control button B
(2)
(3)
(1)
(4)
(12)
(5)
(10)
(11)
(6) (7) (8) (9)
(14) (13)
14
Gauges, Indicators & Displays
Instruments & Controls
The gauges, indicators and displays on
your motorcycle keep you informed, alert
you to possible problems, and make your
riding safer and more enjoyable. Refer to
the gauges, indicators and displays
frequently. Their functions are described
on the following pages.
０９／０７／０６ １８：２６：４４ ３１ＭＦＬ６２０ ００２３
−
15
Gauges, Indicators & Displays
Instruments & Controls
Lamp
Check.
Lamp Check When applicable, the high beam and
neutral indicators come on when you turn
the ignition switch ON and remain on until
you select the low beam or shift out of
neutral.
These indicators are identified in the table
on pages with the words:
If one of these indicators does not come
on when it should, have your Honda dealer
check for problems.
The PGM-FI malfunction indicator lamp
(MIL), low fuel indicator, shift indicator,
high beam indicator, left turn signal
indicator, and right turn signal indicator
light for a few seconds and then go off
when you turn the ignition switch ON.
The warning indicator comes on when you
turn the ignition switch ON so you can
check that it is working. The indicator
remains on until after the engine is started.
The Combined ABS indicator comes on
when you turn the ignition switch ON.
This indicator goes off after you ride the
motorcycle at a speed above 6 mph (10
km/h).
18
(CBR1000RR ABS only)
24
０９／０７／０６ １８：２６：５１ ３１ＭＦＬ６２０ ００２４
16
Gauges, Indicators & Displays
Instruments & Controls
Meter Check.
Meter Check
If the tachometer needle does not swing to
the end of the red zone when it should,
have your Honda dealer check for
problems.
The meter is identified in the table on
page with the words:
The tachometer needle will swing to the
end of the red zone once when you turn
the ignition switch ON.
19
０９／０７／０６ １８：２６：５６ ３１ＭＦＬ６２０ ００２５
−
(1) multi-function display
(1)
17
Gauges, Indicators & Displays
Instruments & Controls
Display
Check.
Display Check
When the ignition switch is turned ON, the
multi-function display ( ) will
temporarily show all the modes and digital
segments so you can make sure the liquid
crystal display is functioning properly.
The displays are identified in the table on
pages with the words:
If any part of these displays does not come
on when it should, have your Honda dealer
check for problems.
1
22 23
０９／０７／０６ １８：２７：０３ ３１ＭＦＬ６２０ ００２６
−
18
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check.
1
2 left turn signal indicator
(green)
Flashes when the left turn signal operates.
Use this button for the following purposes:
To change indication of odometer, tripmeter A,
and tripmeter B (pages , )
To change unit of speedometer, odometer,
tripmeter and fuel mileage meter (page )
To change indication mode of fuel mileage
(page )
To reset tripmeter A and fuel mileage meter
(page )
To reset tripmeter B (page )
To change the reset mode of tripmeter A and fuel
mileage meter (page )
To adjust time (page )
To change the setting of the shift indicator and
selection of the display (pages )
To change unit of the temperature meter
(page )
control button A
33 35
40
36
39
43
46 48
42
36
41
０９／０７／０６ １８：２７：１４ ３１ＭＦＬ６２０ ００２７
0.92 US gal (3.5 )
19
Gauges, Indicators & Displays
Instruments & Controls
Meter Check.
Lamp Check.
Lamp Check.
When this indicator comes on while riding, fuel
reserved in the tank is about:
Shows engine speed in revolutions per minute (rpm).
Lights when the transmission is in neutral.
tachometer
neutral indicator (green)
3
4
5
6 high beam indicator
(blue)
Lights when the headlight is on high beam.
low fuel indicator
(amber)
When this indicator comes on, the lower segment of
the multi-function display switches to the reserve
fuel consumption (page ).28
０９／０７／０６ １８：２７：２３ ３１ＭＦＬ６２０ ００２８
20
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check.
Lamp Check.
tachometer red zone Shows excessive engine rpm range (indicated from
the beginning of the tachometer red zone) in which
operation may damage the engine. Do not let the
tachometer needle enter the red zone.
shift indicator (amber)
7
8
9
PGM-FI malfunction
indicator lamp (MIL)
(amber)
Lights when there is any abnormality in the PGM-FI
(Programmed Fuel Injection) system. If the indicator
comes on at any other time, reduce speed and take
your motorcycle to a Honda dealer as soon as
possible.
Flashes when the tachometer needle enters the red
zone or reaches your selected shift point (page ).46
０９／０７／０６ １８：２７：３０ ３１ＭＦＬ６２０ ００２９
−
−
21
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check.
Lamp Check.
right turn signal
indicator (green)
Flashes when the right turn signal operates.
Lights when coolant is over the specified
temperature, and/or engine oil pressure is below
normal operating range. If the indicator lights, pull
safely to the side of the road. (pages ).
See pages for instructions
and cautions.
10
11 warning indicator (red)
30 31
210 212
０９／０７／０６ １８：２７：３６ ３１ＭＦＬ６２０ ００３０
22
Gauges, Indicators & Displays
Instruments & Controls
Display Check.
multi-function display The display includes the following functions:12
low oil pressure
indicator/high coolant
temperature indicator/
HESD indicator
Lights the low oil pressure indicator and/or high
coolant temperature indicator to notify that there is
an abnormality in engine oil pressure and/or coolant
temperature when the warning indicator lights
(pages , ). Also, lights the HESD indicator to
notify when there is an abnormality in the HESD
(Honda Electronic Steering Damper) (page ).
speedometer Shows riding speed in miles or kilometers per hour
(page ).
digital clock Shows hour and minute (page ).
coolant temperature
meter
Shows coolant temperature (page ).
Fahrenheit (°F) or Centigrade (°C).
30 31
43
26
34
32
０９／０７／０６ １８：２７：４６ ３１ＭＦＬ６２０ ００３１
−
−
23
Gauges, Indicators & Displays
Instruments & Controls
Display Check.
The display includes the following functions:odometer/tripmeter
display
odometer
tripmeter A & B
Shows the total miles or kilometers ridden (page ).
fuel mileage meter
12
Shows the number of miles or kilometers ridden
since you last reset the meter. The tripmeter has two
sub modes, ‘‘A’’ and ‘‘B.’’ To zero (0) the tripmeter,
push and hold control button A (pages ).
Shows current fuel mileage, average fuel mileage, or
fuel consumption. See pages .
When the low fuel indicator comes on, the display is
changed to the reserve fuel consumption (page ).
35
35 36
37 39
28
０９／０７／０６ １８：２７：５４ ３１ＭＦＬ６２０ ００３２
−
−
24
Gauges, Indicators & Displays
Instruments & Controls
Combined ABS Indicator
Lamp Check.
Lights when there is any abnormality in the Combined
ABS (Combined Anti-lock Brake System). Normally, this
indicator comes on when the ignition switch is turned ON,
and goes off after you ride the motorcycle at a speed
above 6 mph (10 km/h). If the indicator comes on while
riding, stop the motorcycle in a safe place and turn off the
engine. Refer to , page . For
information about Combined ABS, see pages .
Combined ABS
indicator (amber)
To change unit of the temperature meter (page )
To change the setting of the shift indicator and
selection of the display (pages )
To adjust time (page )
To change the reset mode of tripmeter A and fuel
mileage meter (page )
To change indication mode of fuel mileage (page )
To change unit of speedometer, odometer, tripmeter
and fuel mileage meter (page )
To change indication of current fuel mileage, average
fuel mileage, and fuel consumption (pages , )
Use this button for the following purposes:control button B
13
14
37
43
39
4846
41
42
40
33
7876
78
(CBR1000RR ABS)
０９／０７／０６ １８：２８：０４ ３１ＭＦＬ６２０ ００３３
(1)
(4) (5)
(9)
(10)
(6)
(7)
(3)(2)
(5) speedometer
(6) coolant temperature meter
(7) digital clock
(8) odometer
(9) tripmeter
(10) fuel mileage meter
(1) multi-function display
(2) high coolant temperature indicator
(3) low oil pressure indicator
(4) HESD indicator
(8)
25
Multi-function Display
Gauges, Indicators & Displays
Instruments & Controls
The multi-function display ( ) includes
the following functions:
odometer
tripmeter
The digital clock will reset if the battery is
disconnected.
fuel mileage meter
1
low oil pressure indicator
high coolant temperature indicator
HESD indicator
speedometer
digital clock
coolant temperature meter
０９／０７／０６ １８：２８：１２ ３１ＭＦＬ６２０ ００３４
−
−
−
−
〈〉
〈〉
Fahrenheit (°F)
Centigrade (°C)
(1)
(1) coolant temperature meter
26
Coolant Temperature Meter
Gauges, Indicators & Displays
Instruments & Controls
The coolant temperature meter ( ) shows
the coolant temperature digitally.
USA : Fahrenheit (°F), or
Centigrade (°C).
Canada : Centigrade (°C), or
Fahrenheit (°F).
Temperature Display
1
Below
94 °F (34 °C)
Between
95 °F 250 °F
(35 °C 121 °C)
Between
251 °F 269 °F
(122 °C 131 °C)
Above
270 °F (132 °C)
‘‘--’’ is displayed
Actual coolant
temperature is
displayed.
Actual coolant
temperature is
displayed and
flashed.
The display remains
on and flashes ‘‘270
°F (132 °C)’’
０９／０７／０６ １８：２８：２０ ３１ＭＦＬ６２０ ００３５
−
〈〉
〈〉
(3)
(2)
(2) high coolant temperature indicator
(3) warning indicator
Fahrenheit (°F)
Centigrade (°C)
27
Gauges, Indicators & Displays
Instruments & Controls
Continuing to ride with an overheated
engine can cause serious engine damage.
Overheating Message:
When the coolant temperature reaches
251°F (122°C), the numbers in the
temperature display start flashing. At the
same time, the high coolant temperature
indicator ( ) and the warning indicator
( ) light.
If this occurs, stop the engine and check
the reverse tank coolant level. Read
pages and do not ride the
motorcycle until the problem has been
corrected.
3
2
125 128
０９／０７／０６ １８：２８：２６ ３１ＭＦＬ６２０ ００３６
0.92 US gal (3.5 )
28
Low Fuel Indicator and
Reserve Fuel Consumption
Gauges, Indicators & Displays
Instruments & Controls
When the remaining fuel reaches the
reserve supply level, the low fuel indicator
( ) comes on and the amount of reserve
fuel used is displayed with blinking to
show that you should refuel.
The amount of fuel left in the tank when
the low fuel indicator lights with the
vehicle set upright is approximately:
The reserve fuel consumption ( ) is
displayed in the lower segment of the
multi-function display ( ) from 0.0 ‘‘gal
(gallon)’’ or ‘‘l (liter).’’.
When the amount of consumed fuel is
more than 0.26 US gal (1.0 Liter) the
display blinks faster.
If you change the display to odometer,
tripmeter and so on (page ), it will
return to the reserve fuel consumption
after about 10 seconds.
2
3
1
33
０９／０７／０６ １８：２８：３３ ３１ＭＦＬ６２０ ００３７
(2)
(1)
(3)
(1) low fuel indicator
(2) reserve fuel consumption
(3) multi-function display
29
Gauges, Indicators & Displays
Instruments & Controls
When the reserve fuel consumption is
displayed you should refill the tank as
soon as possible.
After refueling more than the reserve
amount, the display returns to normal
when the ignition switch has been ON for
about a minute.
The unit of the indication depends on the
unit which you select (page ).
40
０９／０７／０６ １８：２８：３９ ３１ＭＦＬ６２０ ００３８
(2)
(1)
(1) low oil pressure indicator
(2) warning indicator
30
Low Oil Pressure Indicator and
Warning Indicator
Gauges, Indicators & Displays
Instruments & Controls
The low oil pressure indicator ( ) and the
warning indicator ( ) light when engine
oil pressure is low enough to cause engine
damage.
The low oil pressure indicator and warning
indicator should also light when the
ignition switch is turned ON. The warning
indicator and the low oil pressure indicator
stay on until after the engine is started.
If the low oil pressure indicator and the
warning indicator light, pull safely to the
side of the road.
See page for instructions and cautions.
2
1
212
０９／０７／０６ １８：２８：４５ ３１ＭＦＬ６２０ ００３９
−
(1)
(2)
(1) high coolant temperature indicator
(2) warning indicator
31
High Coolant Temperature
Indicator and Warning Indicator
Gauges, Indicators & Displays
Instruments & Controls
Continuing to ride with an overheated
engine can cause serious engine damage.
The high coolant temperature indicator
should also go on for a few seconds and
then go off when the ignition switch is
turned ON.
The high coolant temperature indicator
( ) and the warning indicator ( ) light
when the coolant temperature reaches
251°F (122°C). At the same time, the
numbers in the coolant temperature meter
display start flashing.
If this occurs, stop the engine and check
the reserve tank coolant level. Read
pages and do not ride the
motorcycle until the problem has been
corrected.
12
128125
０９／０７／０６ １８：２８：５１ ３１ＭＦＬ６２０ ００４０
(1)
(1) HESD indicator
32
HESD Indicator
Gauges, Indicators & Displays
Instruments & Controls
The HESD indicator should also go on for
a few seconds and then go off when the
ignition switch is turned ON.
The HESD indicator ( ) lights when there
is any abnormality in the HESD (Honda
Electronic Steering Damper).
If the HESD indicator lights at any other
time, reduce speed and take your
motorcycle to a Honda dealer as soon as
possible.
1
０９／０７／０６ １８：２８：５７ ３１ＭＦＬ６２０ ００４１
(1)
(2) (3)
(4)
(5)
(5) control button B
(6) current fuel mileage
(7) average fuel
mileage
(8) fuel consumption
(1) odometer
(2) tripmeter
(3) fuel mileage
meter
(4) control button A
:press control button A
:press control button B
(6)
(7)
(8)
33
Changing the Indication of
Multi-function Display
Gauges, Indicators & Displays
Instruments & Controls
Change the indication between the
odometer ( ), the tripmeter ( ), and the
fuel mileage meter ( ) by pressing control
button A ( ) or B ( ).
The fuel mileage meter includes the
following functions:
current fuel mileage
average fuel mileage
fuel consumption
5
3
2
4
1
０９／０７／０６ １８：２９：０７ ３１ＭＦＬ６２０ ００４２
(1)
(1) speedometer
34
Speedometer
Gauges, Indicators & Displays
Instruments & Controls
The speedometer ( ) shows riding speed
in miles or kilometers per hour.
1
０９／０７／０６ １８：２９：１２ ３１ＭＦＬ６２０ ００４３
(2)
(3)
(4)
(1)
(1) odometer
(2) tripmeter A
(3) tripmeter B
(4) control button A
35
Odometer/Tripmeter A & B
Gauges, Indicators & Displays
Instruments & Controls
The odometer ( ) shows the total miles or
kilometers ridden.
The tripmeter A ( ) and tripmeter B ( )
show number of miles or kilometers
ridden since you last reset the meter.
To select the odometer, tripmeter A or
tripmeter B, push control button A ( ).
Tripmeter A can be displayed from 0 to
999.9 miles (kilometers). Tripmeter B can
be displayed up to 9,999.9 miles
(kilometers). If Tripmeter A exceeds
999.9 miles (kilometers), or if Tripmeter B
exceeds 9,999.9 miles (kilometers), it will
return to 0 automatically.
The odometer can be displayed from 0 to
999,999 miles (kilometers).
(cont’d)
1
23
4
０９／０７／０６ １８：２９：２０ ３１ＭＦＬ６２０ ００４４
(2)
(5) average fuel
mileage
(6) fuel consumption
or or
reset
or
or
(5)
(4)
(4)
(3)
(6)
36
Gauges, Indicators & Displays
Instruments & Controls
To Reset the Tripmeter
To reset the tripmeter A ( ), average fuel
mileage ( ), and fuel consumption ( )
together, push and hold control button A
( ) when either indication is displayed.
When they are reset, ‘‘0.0’’ is displayed at
each indication. Then, the display returns
to the last selected indication.
To reset the tripmeter B ( ), push and
hold control button A with the display in
the tripmeter B.
Also, after refueling more than the reserve
amount, the tripmeter A, average fuel
mileage, and fuel consumption can be
automatically reset.
You can activate or deactivate the
automatic reset mode by refueling
(page ).
5
4
6
2
3
39
０９／０７／０６ １８：２９：３３ ３１ＭＦＬ６２０ ００４５
(1)
(2)
:press control button A
:press control button B
(3)
(4)
(6)
(5)
(1) fuel mileage meter
(2) current fuel mileage
(3) average fuel
mileage
(4) fuel consumption
(8)
(7)
(5) odometer
(6) tripmeter A
(7) control button B
(8) control button A
37
Fuel Mileage Meter
Gauges, Indicators & Displays
Instruments & Controls
The fuel mileage meter includes the
following functions:
current fuel mileage
average fuel mileage
fuel consumption
When the odometer ( ) or tripmeter A ( )
is displayed, press control button B ( ) to
select any mode of the fuel mileage meter.
Press control button A ( ) to change the
indication to the odometer or tripmeter A.
If the speed and mileage unit is set to
‘‘km/h’’/‘‘km,’’ the indication mode of
the current and average fuel mileage can
be selected km/l or l/100 km (page ).
The unit of the indication depends on the
unit which you select (page ).
(cont’d)
6
7
8
5
40
42
０９／０７／０６ １８：２９：４３ ３１ＭＦＬ６２０ ００４６
−− −
−− −
−−− −
38
Gauges, Indicators & Displays
Instruments & Controls
Current Fuel Mileage
This display shows the current, or instant
fuel mileage you are getting.
When your motorcycle speed is 0.6 mph
(1km/h)orbelow,‘‘ . ’’is
displayed.
Average Fuel Mileage
This number is updated once per 15
seconds since you last reset the tripmeter
A.
When ‘‘ . ’’ is displayed, go to your
Honda dealer for service.
Fuel Consumption
This display shows the fuel consumption
since you last reset the tripmeter A.
When ‘‘ . ’’ is displayed, go to
your Honda dealer for service.
To Reset Average Fuel Mileage and Fuel
Consumption
When the tripmeter A is reset, the average
fuel mileage and fuel consumption are
reset together (page ).
Also, after refueling more than the reserve
amount, the tripmeter A, average fuel
mileage, and fuel consumption can be
automatically reset.
You can activate or deactivate the
automatic reset mode by refueling
(page ).
36
39
０９／０７／０６ １８：２９：５１ ３１ＭＦＬ６２０ ００４７
(1)
(1) control button B (2) lowersegment
(3) control button A
(2)
(3)
activated
deactivated
39
Gauges, Indicators & Displays
Instruments & Controls
To Activate/Deactivate the Automatic
Reset Mode
You can activate or deactivate the
automatic reset by refueling mode.
Initial setting is deactivated.
Press and hold control button B ( ),
and turn on the ignition switch. Keep
control button B pressed until the lower
segment ( ) of the multi-function
display starts to blink.
Press control button A ( ) to activate or
deactivate the automatic reset mode.
The display will stop blinking
automatically and return to the ordinary
conditions if the button is not pressed for
about 30 seconds.
As you turn off the ignition switch during
the presetting procedures, the preset data
just before turning off the ignition switch
will be registered.
To end the selection, press control
button B. The display will return to the
ordinary conditions.
2.
1.
3.
1
2
3
０９／０７／０６ １８：３０：０１ ３１ＭＦＬ６２０ ００４８
(2)
(1) control button A (2) control button B
(1)
40
Changing the Speed, Mileage and
Fuel Mileage Unit
Gauges, Indicators & Displays
Instruments & Controls
Turn the ignition switch ON.
Press and hold both control button A
( ) and control button B ( ) for more
than 2 seconds.
The unit you are setting in the multi-
function display starts to blink.
Press control button A to select ‘‘mile’’/
‘‘mph’’/‘‘gal’’ or ‘‘km’’/‘‘km/h’’/‘‘l.’’
To end the selection, press control
button B.
The display will stop blinking
automatically if the button is not pressed
for about 30 seconds.
As you turn off the ignition switch during
the presetting procedures, the preset data
just before turning off the ignition switch
will be registered.
The speedometer can display ‘‘mph’’ or
‘‘km/h.’’
The odometer/tripmeter can also display
‘‘mile’’ or ‘‘km.’’
The fuel mileage meter can display ‘‘mile/
gal’’/‘‘gal’’ or ‘‘km/l’’/‘‘l/100 km’’/‘‘l.’’
1.
3.
2.
12
4.
０９／０７／０６ １８：３０：１２ ３１ＭＦＬ６２０ ００４９
(1)
(2)
(1) control button A
(2) control button B
41
Changing the Temperature Unit
Gauges, Indicators & Displays
Instruments & Controls
As you turn off the ignition switch during
the presetting procedures, the preset data
just before turning off the ignition switch
will be registered.This function can be operated after the
speed, mileage, and fuel mileage unit
change mode (page ).
The coolant temperature meter displays
both ‘‘°F’’ (Fahrenheit) and ‘‘°C’’
(Centigrade).
Press control button A ( ) to select ‘‘°F’’
or ‘‘°C.’’
To end the selection, press control button
B( ).
The display will stop blinking
automatically if the button is not pressed
for about 30 seconds.
1
40
2
０９／０７／０６ １８：３０：１９ ３１ＭＦＬ６２０ ００５０
(2)
(1)
(1) digital clock
(2) control button B
43
Digital Clock
Gauges, Indicators & Displays
Instruments & Controls
(cont’d)
The digital clock ( ) shows the hour and
minute. To adjust the time, proceed as
follows:
Turn the ignition switch ON.
Press and hold control button B ( ) for
more than 2 seconds. The clock will be
set in the adjust mode with the hour
display blinking.
1.
2.
1
2
０９／０７／０６ １８：３０：３５ ３１ＭＦＬ６２０ ００５２
−
(3)
(3) control button A
44
Gauges, Indicators & Displays
Instruments & Controls
To set the hour, press control button A
( ) until the desired hour is displayed.
The time is advanced by one hour
each time the button is pressed.
Quick setting press and hold the
button until the desired hour appears.
Press control button B. The minute
display will start blinking.
3. 4.
3
０９／０７／０６ １８：３０：４４ ３１ＭＦＬ６２０ ００５３
(1)
(2)
(3)
(1) control button A
(2) tachometer needle
(3) control button B
46
Gauges, Indicators & Displays
Instruments & Controls
Presetting the Shift Indicator and
Selecting the Display
To set the shift indicator:
You may select the rpm activation point
(in the 2,000 rpm to 13,000 rpm range) for
the shift indicator and select the display
used to alert you.
Press and hold control button A ( ),
then turn on the ignition switch. Keep
control button A pressed in until the
initial display is completed. The
tachometer needle moves to its preset
position.
Each time you press control button A,
the tachometer needle ( ) will move by
an increment of 500 rpm.
By pushing and holding control button A
for more than 1 second, the tachometer
needle will move by an increment of 1,000
rpm.
When the needle exceeds the allowable
range, it will automatically return to 2,000
rpm.
After completing the selection, press
control button B ( ), and proceed to the
selecting the display for the indicator.
1.
2.
1
2
3
０９／０７／０６ １８：３０：５９ ３１ＭＦＬ６２０ ００５５
(1)
(2)
(3)
(1) control button A
(2) control button B
(3) shift indicator
47
Gauges, Indicators & Displays
Instruments & Controls
To select the indicator display:
You may choose from 9 different
indicator displays (page ).
Once you reach the display you want,
press control button B ( ). Then turn off
the ignition switch to register your
selection.
Press control button A ( ) repeatedly to
view available displays.
48
1
2
０９／０７／０６ １８：３１：０５ ３１ＭＦＬ６２０ ００５６
Light Brightness
Bright Dark
Lighting
Blinking
(Slow)
Blinking
(Fast)
48
Gauges, Indicators & Displays
Instruments & Controls
Available displays
０９／０７／０６ １８：３１：１３ ３１ＭＦＬ６２０ ００５７
ON
OFF
Electrical circuits on.
No electrical
circuits function.
No electricalcircuits
function. Locks the
steering head.
LOCK
(steering
lock)
FRONT
(1) ignition switch
LOCK
OFF
ON
(1)
Key Position Function
49
Ignition Switch
Controls & Features
Instruments & Controls
To unlock the steering lock, insert and
push down on the key and turn it to the
right to the OFF position.
The ignition switch ( ) is used for starting
and stopping the engine (page ) and to
lock the steering for theft prevention
(page ). Insert the key and turn it to the
right for the ON position. Push down on
the key and turn it to the left to the LOCK
(steering lock) position.
67
81
1
０９／０７／０６ １８：３１：２３ ３１ＭＦＬ６２０ ００５８
(1)
RIGHT HANDLEBAR
(2)
OFF
RUN
(1) start button
(2) engine stop switch
50
Start Button Engine Stop Switch
Controls & Features
Instruments & Controls
Starting Procedure,
The start button ( ) is used for starting the
engine. Pushing the button in starts the
engine. See page .
The engine stop switch ( ) is used to stop
the engine in an emergency. To operate,
push the switch to the OFF position. The
switch must be in the RUN position to
start the engine, and it should normally
remain in the RUN position even when the
engine is OFF.
The engine will not operate if the engine
stop switch is in the OFF position when
the start button is pushed.
When the start button is pushed, the starter
motor will crank the engine; the headlight
will automatically go out, but the running
light, taillight and license light will stay on.
1
2
69
０９／０７／０６ １８：３１：３１ ３１ＭＦＬ６２０ ００５９
(1)
(2)
(1) headlight dimmer switch
(2) turn signal switch
(3) horn button
HI
LO
(3)
51
Turn Signal Switch
Headlight Dimmer Switch
Controls & Features
Instruments & Controls
Theturnsignalswitch( )isusedtosignal
a turn or a lane change. To operate, move
the switch all the way in the proper
direction and release it. The appropriate
turn signal lights will start blinking. To
cancel the light, push the switch in.The headlight dimmer switch ( ) is used
to change between the high and low beams
of the headlight. To operate, turn the
switch to HI for high beam, LO for low
beam.
If your motorcycle is stopped with the
ignition switch ON and the engine stop
switch OFF, the headlight, running light,
taillight and license light will remain on,
resulting in battery discharge.
1
2
０９／０７／０６ １８：３１：３８ ３１ＭＦＬ６２０ ００６０
−
52
Horn Button
Control Button A
Controls & Features
Instruments & Controls
The horn is used to alert other motorists.
To operate, push the horn button ( ).
Control button A is used to:
select the indication of the multi-
function display (pages , )
to reset the tripmeter to zero (0)
(page )
to change the reset mode of tripmeter A
and the fuel mileage meter (page )
to change the speed, mileage and fuel
mileage unit for the speedometer/
odometer/tripmeter/fuel mileage meter
(page )
to change the temperature unit for the
coolant temperature meter (page )
to change the indication mode of the
fuel mileage (page )
to change the shift indicator and its
display (pages )
to set the digital clock (page )
3
46
33 35
39
40
41
42
48
4336
０９／０７／０６ １８：３１：４４ ３１ＭＦＬ６２０ ００６１
−
53
Control Button B
Controls & Features
Instruments & Controls
Control button B is used to:
select the indication of the fuel mileage
meter (pages , )
to change the reset mode of tripmeter A
and the fuel mileage meter (page )
to change the speed, mileage and fuel
mileage unit for the speedometer/
odometer/tripmeter/fuel mileage meter
(page )
to change the temperature unit for the
coolant temperature meter (page )
to change the indication mode of the
fuel mileage (page )
to change the shift indicator and its
display (pages )
to set the digital clock (page )
46
3733
39
40
41
42
48
43
０９／０７／０６ １８：３１：４９ ３１ＭＦＬ６２０ ００６２
(1)
(2)
(1) HESD
(2) HESD indicator
54
HESD (Honda Electronic
Steering Damper)
Controls & Features
Instruments & Controls
This motorcycle is equipped with the
electronically-controlled steering damper.
The HESD ( ) automatically controls the
steering damper characteristics in
accordance with vehicle speed and
acceleration.
If the HESD indicator ( ) lights at any
other time, reduce speed and take your
motorcycle to a Honda dealer as soon as
possible.
1
2
０９／０７／０６ １８：３１：５４ ３１ＭＦＬ６２０ ００６３
55
Before Riding
Before Riding
Before each ride, you need to make sure
you and your Honda are both ready to ride.
To help get you prepared, this section
discusses how to evaluate your riding
readiness, what items you should check on
your motorcycle, and adjustments to make
for your comfort, convenience, or safety.
This section also includes important
information about loading.

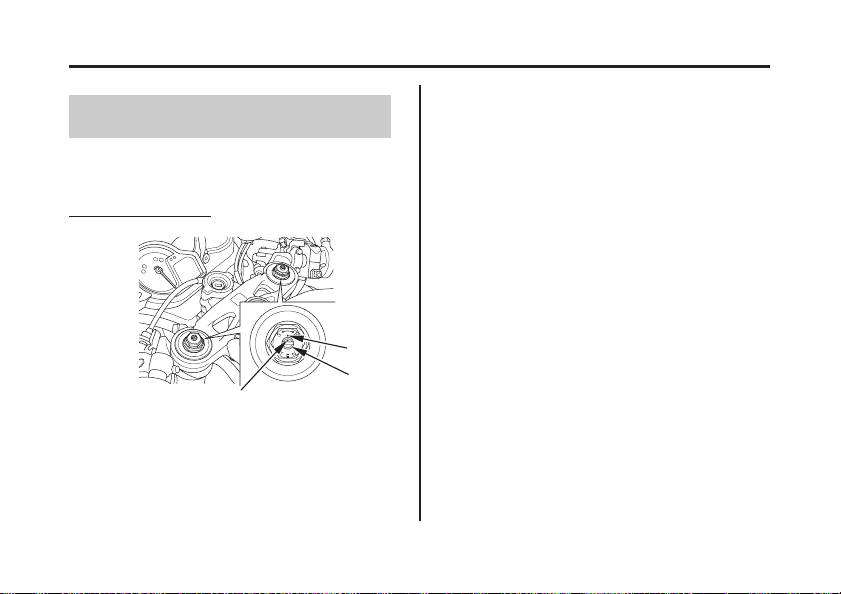

For information about adjusting the
suspension on your Honda, see page .
........................Are You Ready to Ride? .
..............................Protective Apparel .
....................................Rider Training .
......Is Your Motorcycle Ready to Ride? .
.............................Pre-ride Inspection .
......................Load Limits & Guidelines .
...............................................Loading .
........................................Load Limits .
............................Loading Guidelines .
56
56
58
59
59
62
62
63
63
135
０９／０７／０６ １８：３２：０４ ３１ＭＦＬ６２０ ００６４
56
Protective Apparel
Are You Ready to Ride?
Before Riding
Before you ride your motorcycle for the
first time, we urge you to:
Read this owner’s manual.
Make sure you understand all the safety
messages.
Know how to operate all the controls.
You feel well and are in good physical
and mental condition.
Before each ride, be sure: For your safety, we strongly recommend
that you always wear an approved
motorcycle helmet, eye protection, boots,
gloves, long pants, and a long-sleeved
shirt or jacket whenever you ride.
Although complete protection is not
possible, wearing proper gear can reduce
the chance of injury when you ride.
Following are suggestions to help you
choose the proper gear.
Youarewearinganapproved
motorcycle helmet (with chin strap
tightened securely), eye protection, and
other protective clothing.
Make sure your passenger is ready to ride,
too, and is wearing proper gear including a
helmet.
You don’t have any alcohol or drugs in
your system.
If you must carry an extra helmet while
riding, use a commercially available
elastic cord, strap, or net to secure the
helmet to the seat.
０９／０７／０６ １８：３２：１３ ３１ＭＦＬ６２０ ００６５
Not wearing a helmet increases
the chance of serious injury or
death in a crash.
Be sure you and your passenger
always wear a helmet, eye
protection, and other protective
apparel when you ride.
57
Are You Ready to Ride?
Before Riding
(cont’d)
Helmet and Eye Protection
Your helmet is your most important piece
of riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and
securely. A bright-colored helmet and
reflective strips can make you more
noticeable in traffic.
An open-face helmet offers some
protection, but a full-face helmet offers
more. Regardless of the style, look for a
DOT (Department of Transportation)
sticker on any helmet you buy (USA only).
Always wear a face shield or goggles to
protect your eyes and help your vision.
Leather gloves to help protect your
hands.
Sturdy boots with non-slip soles to help
protect your feet and ankles.
In addition to a helmet and eye protection,
we also recommend:
Additional Riding Gear
０９／０７／０６ １８：３２：２１ ３１ＭＦＬ６２０ ００６６
58
Rider Training
Are You Ready to Ride?
Before Riding
Riding Tips
A motorcycle riding suit or jacket for
comfort as well as protection.
Bright-colored and reflective clothing
can help make you more noticeable in
traffic. Avoid loose clothes that could
get caught on any part of your
motorcycle.
Developing your riding skills is an on-
going process. Even if you have ridden
other motorcycles, take time to become
familiar with how this motorcycle works
and handles. Practice riding the
motorcycle in a safe area to build your
skills. Do not ride in traffic until you get
accustomed to the motorcycle’s controls,
and feel comfortable with its size and
weight.
We urge all riders to take a motorcycle
operator course approved by the
Motorcycle Safety Foundation (MSF).
New riders should start with the basic
course, and even experienced riders will
find the advanced course beneficial. For
information about the MSF training course
nearest you, call the national toll-free
number: (800) 446-9227.
Other riding tips can be found in the
booklet that came with your
motorcycle (USA only).
０９／０７／０６ １８：３２：２６ ３１ＭＦＬ６２０ ００６７
Improperly maintaining this
motorcycle or failing to correct a
problem before riding can cause a
crash in which you can be
seriously hurt or killed.
Always perform a pre-ride
inspection before every ride and
correct any problems.
59
Pre-ride Inspection
Before Riding
Is Your Motorcycle Ready to Ride?
Chain
Tires
&
Wheels
Before each ride, it’s important to inspect
your motorcycle and make sure any
problem you find is corrected. A pre-ride
inspection is a must, not only for safety,
but because having a breakdown, or even
a flat tire, can be a major inconvenience.
Check the following items before you get
on the motorcycle:
(cont’d)
Look at the tires. If a tire
appears low, use an air pressure
gauge to check its pressure. Also
look for signs of excessive wear
(page ) or damage to the
tires and wheels.
Check the condition of the chain.
Adjust slack and lubricate as
needed (page ).
152
161
０９／０７／０６ １８：３２：３４ ３１ＭＦＬ６２０ ００６８
60
Is Your Motorcycle Ready to Ride?
Before Riding
Leaks,
Loose
Parts
Lights
Load Limits
Cargo
Adjustments
Walk around your
motorcycle and look for
anything that appears
unusual, such as a leak or
loose cable.
If you are carrying a passenger or cargo,
also check the following:
Make sure you do not
exceed the load limits
(page ).
Check that all cargo is
secure.
Adjust the suspension
(pages , )
according to your load.
Make sure the headlight,
running light, brakelight,
taillight, license light and
turn signals are working
properly.
63
136 140
０９／０７／０６ １８：３２：４３ ３１ＭＦＬ６２０ ００６９
61
Is Your Motorcycle Ready to Ride?
Before Riding
Periodic MaintenanceThrottle
Brakes
Gauge
&
Indicators
If you haven’t ridden the motorcycle in
over a week, you should also check other
items, such as the oil level and other fluids.
See (page ).
Periodic maintenance should also be done
at least once a month, no matter how often
you ride.
Remember, be sure to take care of any
problem you find, or have your Honda
dealer correct it before you ride.
Check these items after you get on the
motorcycle:
Rotate the throttle to check
it moves smoothly without
binding.
Pull the brake lever and
press on the brake pedal to
check that they operate
normally.
Turn the ignition on and
check for normal operation
of the gauge and indicators
(page ).14
95
０９／０７／０６ １８：３２：５１ ３１ＭＦＬ６２０ ００７０
Overloading or improper loading
can cause a crash and you can be
seriously hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
62
Loading
Load Limits & Guidelines
Before Riding
Your motorcycle has been designed to
carry you and one passenger. When you
carry a passenger, you may feel some
difference during acceleration and braking.
But so long as you keep your motorcycle
well-maintained, with good tires and
brakes, you can safely carry loads within
the given limits and guidelines.
However, exceeding the weight limit or
carrying an unbalanced load can seriously
impair your motorcycle’s handling,
braking, and stability. Non-Honda
accessories, improper modifications, and
poor maintenance can also reduce your
safety margin.
How much weight you put on your
motorcycle, and how you load it, are
important to your safety. Anytime you
ride with a passenger or cargo, you should
be aware of the following information.
０９／０７／０６ １８：３２：５６ ３１ＭＦＬ６２０ ００７１
366 lb (166 kg)
31 lb (14 kg)
63
Loading GuidelinesLoad Limits
Load Limits & Guidelines
Before Riding
maximum weight capacity:
maximum cargo weight:
Your motorcycle is primarily intended for
transporting you and a passenger. You
may wish to secure a jacket or other small
items to the seat when you are not riding
with a passenger.
If you wish to carry more cargo, check
with your Honda dealer for advice, and be
sure to read the information regarding
accessories on page .
Following are the load limits for your
motorcycle:
Improperly loading your motorcycle can
affect its stability and handling. Even if
your motorcycle is properly loaded, you
should ride at reduced speeds and never
exceed 80 mph (130 km/h) when carrying
cargo. (cont’d)
includes the weight of the rider,
passenger, all cargo, and all accessories.
The weight of added accessories will
reduce the maximum cargo weight you
can carry.
5
０９／０７／０６ １８：３３：０５ ３１ＭＦＬ６２０ ００７２
64
Load Limits & Guidelines
Before Riding
Follow these guidelines whenever you
carry a passenger or cargo:
To prevent loose items from creating a
hazard, make sure that all cargo is tied
down securely before you ride.
Place cargo weight as low and close to
the center of your motorcycle as
possible.
Balance cargo weight evenly on both
sides.
Check that both tires are properly
inflated (page ).
If you change your normal load, you
may need to adjust the front suspension
(page ) and the rear suspension
(page ).
150
136
140
０９／０７／０６ １８：３３：１２ ３１ＭＦＬ６２０ ００７３
65
Basic Operation & Riding
Basic Operation & Riding
This section gives basic riding instructions,
including how to start and stop your
engine, and how to use the throttle, clutch,
and brakes. It also provides important
information on riding with a passenger or
cargo.
To protect your new engine and enjoy
optimum performance and service life,
refer to Break-in Guidelines (page ).
.........................Safe Riding Precautions .
.............Starting & Stopping the Engine .
.........................................Shifting Gears .
...................................................Braking .
..........................................Preparation .
..............................Starting Procedure .
..................................Flooded Engine .
Bank Angle Sensor Ignition Cut-off
................................................System .
.....................How to Stop the Engine .
To protect the catalytic converter in your
motorcycle’s exhaust system, avoid
extended idling and the use of leaded
gasoline.
..........Riding with a Passenger or Cargo .
........................Theft-prevention Tips .
....................................................Parking .
Combined ABS Indicator
........................().
Combined ABS
........................().
234
66
67
68
69
70
70
71
72
74
76
78
80
83
85
CBR1000RR ABS
CBR1000RR ABS
０９／０７／０６ １８：３３：２４ ３１ＭＦＬ６２０ ００７４
66
Safe Riding Precautions
Basic Operation & Riding
Motorcycle Safety
Before Riding
Before riding your motorcycle for the first
time, please review the
section beginning on page 1, and the
section beginning on
page .
Even if you have ridden other motorcycles,
take time to become familiar with how
this motorcycle works and handles.
Practice in a safe area until you build your
skills and get accustomed to the
motorcycle’s size and weight.
Make sure flammable materials such as
dry grass or leaves do not come in contact
with the exhaust system when riding,
idling, or parking your motorcycle.
55
０９／０７／０６ １８：３３：２９ ３１ＭＦＬ６２０ ００７５
67
Starting & Stopping the Engine
Basic Operation & Riding
Always follow the proper starting
procedure described below.
For your safety, avoid starting or operating
the engine in an enclosed area such as a
garage. Your motorcycle’s exhaust
contains poisonous carbon monoxide gas
which can collect rapidly in an enclosed
area and cause illness or death.
Your motorcycle can be started with the
transmission in gear by pulling in the
clutch lever before operating the starter.
Your motorcycle is equipped with a side
stand ignition cut-off system. If the side
stand is down –– the engine cannot be
started unless the transmission is in neutral.
If the side stand is up –– the engine can be
started in neutral, or in gear with the
clutch lever pulled in. After starting with
the side stand down, the engine will stop if
the transmission is put in gear before
raising the side stand.
０９／０７／０６ １８：３３：３４ ３１ＭＦＬ６２０ ００７６
68
Preparation
Starting & Stopping the Engine
Basic Operation & Riding
Before starting, insert the key, turn the
ignition switch ON, and confirm the
following:
The transmission is in neutral (neutral
indicator is ON).
The engine stop switch is set to RUN.
The high coolant temperature indicator
is OFF.
The HESD indicator is OFF.
The warning indicator is ON.
The low oil pressure indicator is ON.
The PGM-FI malfunction indicator
lamp (MIL) is OFF.
The warning indicator and low oil pressure
indicator should go off a few seconds
after the engine starts. If the warning
indicator and the low oil pressure indicator
light, stop the engine immediately and
check the engine oil level.
The Combined ABS indicator is ON.
The Combined ABS indicator should go
off after you ride the motorcycle at a
speed above 6 mph (10 km/h).
(CBR1000RR ABS only)
(CBR1000RR ABS only)
０９／０７／０６ １８：３３：４３ ３１ＭＦＬ６２０ ００７７
69
Starting Procedure
Starting & Stopping the Engine
Basic Operation & Riding
This motorcycle has a fuel-injected engine
with an automatic fast idle. Follow the
procedure indicated below.
Any Air Temperature
Press the start button with the throttle
completely closed.
The engine will not start if the throttle is
fully open (because the electronic control
module cuts off the fuel supply).
Even if the engine coolant stays below the
specified temperature, the cooling fan
sometimes starts up running when you rev
up the engine, but this is normal.
The operation temperature of each cooling
fan is different.Therefore, it is normal
when only one of the fans operate.
Snapping the throttle or fast idling for
more than about 5 minutes at normal air
temperature may cause exhaust pipe
discoloration.
０９／０７／０６ １８：３３：５０ ３１ＭＦＬ６２０ ００７８
−
70
Flooded Engine Bank Angle Sensor Ignition
Cut-off System
Starting & Stopping the Engine
Basic Operation & Riding
If
Your Engine Quits or Won’t Start,
If the engine fails to start after repeated
attempts, it may be flooded with excess
fuel. To clear a flooded engine:
Leave the engine stop switch set to
RUN.
Open the throttle fully.
Press the start button for 5 seconds.
Follow the normal starting procedure.
If the engine starts, open the throttle
slightly if idling is unstable.
Your motorcycle’s banking (lean angle)
sensor system is designed to automatically
stop the engine and fuel pump if the
motorcycle is overturned.
Before restarting the engine, you must
turn the ignition switch to the OFF
position and then back to ON. The engine
will not restart until you perform this
procedure.If the engine does not start, wait 10
seconds, then follow steps
again.
If the engine still won’t start, refer to
page .
1.
4.
5.
2.
3.
14
191
０９／０７／０６ １８：３４：００ ３１ＭＦＬ６２０ ００７９
71
How to Stop the Engine
Starting & Stopping the Engine
Basic Operation & Riding
Normal Engine Stop
To stop the engine, shift into neutral and
turn the ignition switch OFF.
The engine stop switch should normally
remain in the RUN position even when the
engine is OFF.
Emergency Engine Stop
To stop the engine in an emergency, use
the engine stop switch. To operate, press
the switch to the OFF position.
If your motorcycle is stopped with the
ignition switch ON and the engine stop
switch OFF, the headlight, running light,
taillight and license light will remain on,
resulting in battery discharge.
０９／０７／０６ １８：３４：０６ ３１ＭＦＬ６２０ ００８０
shifting pattern
72
Shifting Gears
Basic Operation & Riding
Learning when to shift gears comes with
experience. Keep the following tips in
mind:
Close the throttle and pull the clutch
lever in completely before shifting.
Improper shifting may damage the
engine, transmission, and drive train.
Learn to recognize the engagement
point as you release the clutch lever. It
is at this point the transmission of
power to the rear wheel resumes.
Upshift to a higher gear or reduce
throttle before engine rpm (speed) gets
too high. Learn the relationship between
engine sound and the normal shifting
points.
As a general rule, shift while moving in
a straight line.
Downshift to a lower gear before you
feel the engine laboring (lugging) at
low rpm.
Your motorcycle has six forward gears in
a one-down, five-up shift pattern which is
coordinated with a cable-operated clutch
system.
０９／０７／０６ １８：３４：１４ ３１ＭＦＬ６２０ ００８１
73
Shifting Gears
Basic Operation & Riding
Shifting Up:
Shifting Down:
Avoid downshifting to help slow your
motorcycle when engine rpm is near its
allowable maximum (near the
tachometer red zone). In this situation,
the rev limiter in the engine ignition
control module may not prevent
excessive engine speed which could
damage the engine.
To prevent transmission damage, do not
coast or tow the motorcycle for long
distances with the engine off.
Recommended Shift Points
Ride in the highest gear that lets the
engine run and accelerate smoothly. This
will give you good fuel economy and
effective emissions control. When
changing gears under normal conditions,
use these recommended shift points:
From 1st to 2nd:
From 2nd to 3rd:
From 3rd to 4th:
From 4th to 5th:
From 5th to 6th:
12 mph (20 km/h)
19 mph (30 km/h)
25 mph (40 km/h)
31 mph (50 km/h)
37 mph (60 km/h)
From 6th to 5th:
From 5th to 4th:
From 4th to 3rd:
28 mph (45 km/h)
22 mph (35 km/h)
16 mph (25 km/h)
Pull the clutch lever in when speed drops
below 12 mph (20 km/h), when engine
roughness is evident, or when engine
stalling is imminent; and shift down to 1st
gear for acceleration.
０９／０７／０６ １８：３４：２３ ３１ＭＦＬ６２０ ００８２
74
Braking
Basic Operation & Riding
Your motorcycle is equipped with disc
braking systems which are hydraulically
activated. Operating the brake lever
applies the two front disc brakes.
Depressing the brake pedal applies the rear
disc brake.
As a general rule, the front braking system
provides about 70 percent of total stopping
power.
For full braking effectiveness, use both
the pedal and lever simultaneously.
Using both braking systems will stop
your motorcycle faster with greater
stability.
To slow or stop, apply the brake lever and
brake pedal smoothly, while downshifting
to match your speed.
Gradually increase braking as you feel the
brakes slowing your speed. The increase
in engine compression from downshifting
will help slow your motorcycle.
To prevent stalling the engine, pull the
clutch lever in before coming to a
complete stop. For support, put your left
foot down first, then your right foot when
you have finished braking.
Applying the brakes too hard may cause
the wheels to lock and slide, reducing
control of your motorcycle. If this happens,
release the brake controls, steer straight
ahead until you regain control, then
reapply the brakes more gently.
０９／０７／０６ １８：３４：３０ ３１ＭＦＬ６２０ ００８３
75
Braking
Basic Operation & Riding
When possible, reduce your speed or
complete braking before entering a turn.
Avoid braking or closing the throttle
quickly while turning. Either action may
cause one or both wheels to slip and
reduce your control of your motorcycle.
Your ability to brake in a turn and to brake
hard in an emergency situation are
important riding skills. We suggest
attending a Motorcycle Safety Foundation
experienced rider training course
(page ) to retain these skills.
When riding in wet or rainy conditions, or
on loose surfaces, the ability to maneuver
and stop will be reduced. All of your
actions should be smooth under these
conditions. Rapid acceleration, braking or
turning may cause loss of control.
For your safety, exercise extreme caution
when braking, accelerating or turning.
Riding with your foot resting on the
brake pedal or your hand on the brake
lever may actuate the brakelight, giving
a false indication to other drivers. It
may also overheat the brakes, reducing
effectiveness.
When descending a long, steep grade,
use engine compression braking by
downshifting, with intermittent use of
both brakes. Continuous brake
application can overheat the brakes and
reduce their effectiveness.
58
０９／０７／０６ １８：３４：３５ ３１ＭＦＬ６２０ ００８４
76
Combined ABS
Basic Operation & Riding
Braking
This model is equipped with Combined
ABS (Combined Anti-lock Brake System).
When the ignition switch is turned ON, the
system performs a self-analysis and when
the vehicle speed reaches 6 mph (10 km/h)
the system starts to operate and remains on
while riding. Combined ABS is self-
checking.
Combined ABS is an electrically
integrated system consisting of the
Combined Brake System and Anti-lock
Brake System. Combined ABS controls
braking force by accurately monitoring the
amount of force applied to the brakes and
wheel speed. It balances the front-to-rear
braking distribution, and has an anti-lock
function designed to help prevent wheel
lock up during hard braking. Moreover,
Combined ABS helps provide more riding
stability when braking hard and suddenly.
Although the wheel may not lock up, if
you are braking too hard in a turn, the
motorcycle can still lose traction causing a
loss of control. In general, you’ll achieve
the best results by braking while running
in a straight line.
Even if the front brake lever and the rear
brake pedal are operated independently,
the brake force is distributed appropriately
to the front and the rear. However, for full
braking effectiveness, use both the lever
and pedal simultaneously, as you would
with a conventional motorcycle braking
system.
(CBR1000RR ABS)
０９／０７／０６ １８：３４：４１ ３１ＭＦＬ６２０ ００８５
77
Braking
Basic Operation & Riding
In some situations, a motorcycle with
Combined ABS may require a longer
stopping distance to stop on loose or
uneven surfaces than an equivalent
motorcycle without Combined ABS.
Combined ABS cannot make up for road
conditions, bad judgment, or improper
operation of the brakes, and cannot stop
rear wheel lift completely. It is still your
responsibility to ride at reasonable speeds
for weather, road surface, and traffic
conditions, and to leave a margin of safety.
The anti-lock brake function of the
Combined ABS may be activated by
riding over a sharp drop or rise in the
road level while operating the brake.
It is important to follow the tire
recommendations (page ). The
Combined ABS computer works by
comparing wheel speed. Non-
recommended tires can affect wheel
speed and may confuse the Combined
ABS computer.
Combined ABS does not function at
low speeds (approximately 4 mph (6
km/h)orbelow).
Combined ABS does not function if the
battery is discharged.
Combined ABS does not function if the
ABS main or the ABS motor fuses are
blown.
(cont’d)
157
０９／０７／０６ １８：３４：４７ ３１ＭＦＬ６２０ ００８６
78
Combined ABS Indicator
Basic Operation & Riding
Braking
When Combined ABS does not
function, the brakes work like a
conventional braking system. On
conventional braking systems, operating
the front brake lever applies the front
brake and operating the rear pedal
applies the rear brake.
You may feel a change in the way the
brake lever/pedal reacts when it is
operated under the following conditions:
Immediately after turning the ignition
switch ON
After braking to a stop
Normally, this indicator comes on when
the ignition is turned ON, and goes off
after you ride the motorcycle at a speed
above 6 mph (10 km/h). If there is a
problem with Combined ABS, the
indicator lights or flashes and remains on.
Combined ABS does not operate when the
Combined ABS indicator is on.
(CBR1000RR ABS)
０９／０７／０６ １８：３４：５２ ３１ＭＦＬ６２０ ００８７
79
Braking
Basic Operation & Riding
If the Combined ABS indicator lights or
flashes and remains on while riding, stop
the motorcycle in a safe place and turn off
the engine.
Turn the ignition ON again. The indicator
should come on, and go off after you ride
the motorcycle at a speeds above 6 mph
(10 km/h). If it does not go off, Combined
ABS is not functioning, but the brakes still
provide normal stopping ability like a
conventional braking system. However,
you should have the system checked by
your Honda dealer as soon as possible.
The Combined ABS indicator may flash
if:
The front wheel leaves the ground for 1
second or more.
Either brake is applied continuously
from 0 mph (0 km/h) to 31 mph (50
km/h).
You turn the rear wheel while the
motorcycle is uplight on the stand.
This is normal but the Combined ABS is
not in operation. To activate the system
again, turn the ignition OFF, then ON
again.
０９／０７／０６ １８：３４：５７ ３１ＭＦＬ６２０ ００８８
80
Parking
Basic Operation & Riding
Catalytic Converter
Look for a level parking area. If you
can’t park on a paved surface, make
sure the ground surface is firm,
especially under the side stand.
If you must park on a hill, leave the
transmission in gear and position the
rear tire against the curb at a 45 degree
angle.
Make sure flammable materials such as
dry grass or leaves do not come in
contact with the exhaust system when
parking your motorcycle. Refer to
,page .
To avoid possible heat damage to your
motorcycle or personal belongings, do not
cover the exhaust muffler with a
protective cover or any clothing within 20
minutes after shutting off the engine.
Use the side stand to support the
motorcycle while parked.
To lower the side stand, use your foot
to guide it down. Remember that
lowering the side stand with the
transmission in gear will stop the
engine, even if the clutch lever is
pulled in. That is a function of the
side stand ignition cut-off system.
Check that the side stand is down all
the way so that the side stand ignition
cut-off system (page ) is activated.
If you have to park on a soft surface,
insert something solid under the side
stand for support.
1. 2.
67
242
０９／０７／０６ １８：３５：０５ ３１ＭＦＬ６２０ ００８９
(1) ignition key
(A)
(B)
(1)
To lock
(A)
(C)
FRONT
To unlock
(A) push in
(B)turntoLOCK
(C)turntoOFF
81
Parking
Basic Operation & Riding
Use the steering lock, which locks the
handlebar in place. Turn the handlebar
allthewaytotheleft.Pushinonthe
ignition key ( ) and turn it to LOCK.
Remove the key.
To unlock the steering lock, insert and
push down on the key and turn it to the
right to the OFF position.
(cont’d)
3.
1
０９／０７／０６ １８：３５：１１ ３１ＭＦＬ６２０ ００９０

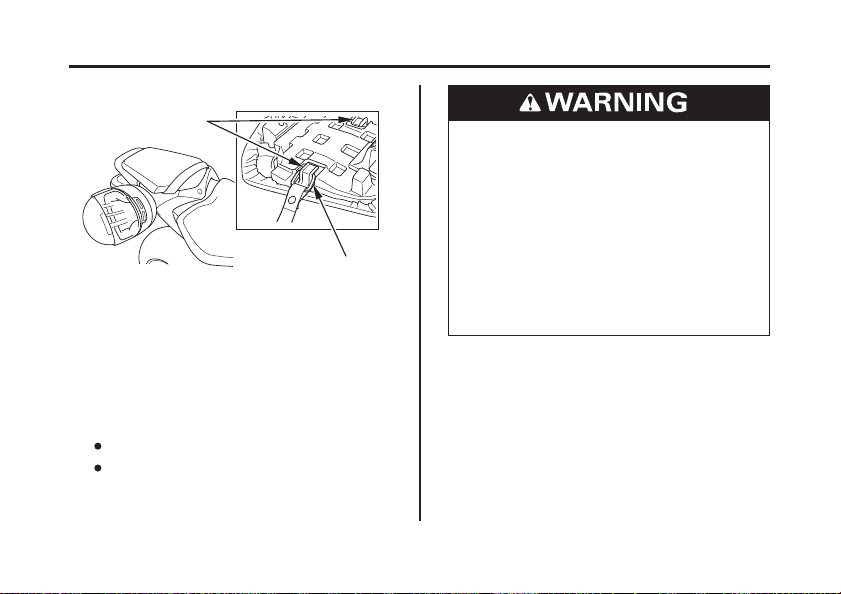

Riding with a helmet attached to
the holder can interfere with the
rear wheel or suspension and
could cause a crash in which you
can be seriously hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
(2)
(3)
(2) helmet holders
(3) D-ring
82
Parking
Basic Operation & Riding
Remove the rear seat (page ).
Use the helmet holders ( ) to secure
your and your passengers helmets to
your motorcycle:
Hook the D-ring ( ) of the helmet
onto the helmet holder and install the
rear seat to lock it.
4.
3
2
110
０９／０７／０６ １８：３５：１７ ３１ＭＦＬ６２０ ００９１
83
Theft-prevention Tips
Parking
Basic Operation & Riding
If you decide to use an anti-theft device,
select one of good quality and be sure to
follow the manufacturer’s instructions.
Park your motorcycle in a locked
garage whenever possible. If a garage
isn’t available, park in a concealed area
or in a well-lit area with enough
pedestrian traffic to discourage a thief.
Always take the ignition key with you.
Always use the steering lock (page ),
even if you’re parking for just a minute
or two. A thief can easily push an
unlocked motorcycle to a waiting truck.
In addition to the steering lock, use a
good quality anti-theft device made
specifically to lock a motorcycle to a
secure object.
The rear fender has a storage
compartment to store a U-shaped lock
under the rear seat. Some U-shaped
locks may not be stored in the
compartment due to their size or design.
(cont’d)
81
０９／０７／０６ １８：３５：２５ ３１ＭＦＬ６２０ ００９２
UNDER REAR SEAT
(CBR1000RR)
(CBR1000RR ABS)
84
Parking
Basic Operation & Riding
Keep your owner’s manual, current
registration, and insurance information
with your motorcycle. This will make it
easier for the authorities to find you if
your motorcycle is stolen and recovered.
０９／０７／０６ １８：３５：３０ ３１ＭＦＬ６２０ ００９３
85
Riding with a Passenger or Cargo
Basic Operation & Riding
Load Limits,
Loading
Guidelines,
Your motorcycle is a high-performance
sport model designed to carry you and one
passenger. Whenever you add a passenger
or cargo, you must be careful not to
exceed the total load limits for this vehicle
( page ). Make sure your
cargo is properly secured (
page ).
Also consider adjusting the suspension
(page ) for the extra load.
Be aware that carrying a passenger or
heavy cargo can affect acceleration,
braking, and handling.
Tell your passenger to hold the seat strap
or your waist, lean with you in the turns,
and keep their feet on the passenger
footpegs at all times, even when the
motorcycle is stopped at a traffic light.
Before riding with a passenger, make sure
your passenger is wearing the proper
protective apparel (page ). Also check
that your passenger is not wearing any
loose apparel that might get caught in the
drive chain.63
63
56
135
０９／０７／０６ １８：３５：３６ ３１ＭＦＬ６２０ ００９４
86
Basic Operation & Riding
０９／０７／０６ １８：３５：３８ ３１ＭＦＬ６２０ ００９５
87
Servicing Your Honda
Servicing Your Honda
Maintenance, replacement or repair of
the emission control devices and
systems may be performed by any
motorcycle repair establishment or
individual using parts that are
‘‘certified’’ to EPA standards.
Before You Service Your Honda
To help keep your motorcycle in good
shape, this section includes a Maintenance
Schedule for required service, a list of
periodic checks you should perform at
least once a month, and step-by-step
instructions for specific maintenance tasks.
You’ll also find important safety
precautions, information on fuels and oils,
and tips for keeping your Honda looking
great.
For information about the exhaust
emission and noise emission requirements
of the U.S. Environmental Protection
Agency (EPA), the California Air
Resources Board (CARB), and
Environment Canada (EC), see page .
(cont’d)
USA only
............The Importance of Maintenance .
................................Maintenance Safety .
.............................Periodic Maintenance .
...........................Maintenance Schedule .
For information about replacing fuses, see
page .
.............Important Safety Precautions .
..........................Maintenance Record .
235
213
90
91
92
94
96
101
０９／０７／０６ １８：３５：４８ ３１ＭＦＬ６２０ ００９６
88
Servicing Your Honda
Servicing Your Honda
Service Preparations
Service Procedures
Engine
...............................................Throttle .
.....................................Clutch System .
Fluids & Filters
.............................Engine Oil & Filter .
................................................Coolant .
...............................................Tool Kit .
...................Owner’s Manual Storage .
......................................Seat Removal .
........................Lower Cowl Removal .
.....................................................Fuel .
Chassis
..........................................Suspension .
.................................................Brakes .
....................................................Tires .
...........................................Side Stand .
........................................Drive Chain .
Electrical
................................................Battery .
................................Appearance Care .
..Maintenance Component Locations . 103
106
107
109
111
112
115
125
129
131
135
144
150
159
160
168
174
０９／０７／０６ １８：３６：０２ ３１ＭＦＬ６２０ ００９７
＊
＊＊
＊
＊＊
89
Servicing Your Honda
Servicing Your Honda
The following table summarizes the three types of inspections and servicing
recommendations for your motorcycle. Both the pre-ride inspection and the scheduled
maintenance at the recommended intervals are necessary to assure safe and dependable
performance. The periodic checks provide additional confidence in your motorcycle’s
performance.
more often if you ride frequently or long distances; or anytime you clean your motorcycle
unless you have the proper tools and service data and are mechanically qualified
Type of Inspection/Service
Maintenance Schedule
Periodic Maintenance
Pre-ride Inspection
Refer to page:
interval on schedule
monthly
before every ride
your Honda dealer
you
you
Who PerformsWhen Performed
59
94
96
０９／０７／０６ １８：３６：１４ ３１ＭＦＬ６２０ ００９８
Improperly maintaining this
motorcycle or failing to correct a
problem before you ride can
causeacrashinwhichyoucanbe
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations
and schedules in this owner’s
manual.
90
The Importance of Maintenance
Servicing Your Honda
Keeping your motorcycle well-maintained
is absolutely essential to your safety. It’s
also a good way to protect your
investment, get maximum performance,
avoid breakdowns, and have more fun. A
properly maintained motorcycle will also
help to reduce air pollution.
Remember, proper maintenance is the
owner’s responsibility. Be sure to inspect
your motorcycle before each ride, perform
the periodic checks, and follow the
Maintenance Schedule in this section.
If your motorcycle overturns or is
involved in a crash, be sure your Honda
dealer inspects all major parts, even if you
areabletomakesomeoftherepairs
yourself.
０９／０７／０６ １８：３６：１９ ３１ＭＦＬ６２０ ００９９
Failure to properly follow
maintenance instructions and
precautions can cause you to be
seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s
manual.
91
Maintenance Safety
Servicing Your Honda
This section includes instructions on how
to perform some important maintenance
tasks. If you have basic mechanical skills,
you can perform many of these tasks with
the tools provided with your motorcycle.
Other tasks that are more difficult and
require special tools are best performed by
professionals. Wheel removal should
normally be handled only by a Honda
technician or other qualified mechanic.
Instructions are included in this manual
only to assist in emergency service.
Some of the most important safety
precautions follow. However, we cannot
warn you of every conceivable hazard that
can arise in performing maintenance. Only
you can decide whether or not you should
perform a given task.
０９／０７／０６ １８：３６：２４ ３１ＭＦＬ６２０ ０１００
92
Important Safety Precautions
Maintenance Safety
Servicing Your Honda
Carbon monoxide poisoning from
engine exhaust.
Burns from hot motorcycle parts.
Injury from moving parts.
Read the instructions before you begin,
and make sure you have the tools and
skills required.
Make sure the engine is off before you
begin any maintenance or repairs. This
will help eliminate several potential
hazards:
Be sure there is
adequate ventilation whenever you
operate the engine.
Let
the engine and exhaust system cool
before touching.
Do not run
the engine unless instructed to do so.
To help prevent the motorcycle from
falling over, park it on a firm, level
surface, using the side stand or a
maintenance stand to provide support.
To reduce the possibility of a fire or
explosion, be careful when working
around gasoline. Use only
non-flammable solvent, not gasoline, to
clean parts. Keep cigarettes, sparks, and
flames away from all fuel-related parts.
０９／０７／０６ １８：３６：２９ ３１ＭＦＬ６２０ ０１０１
93
Maintenance Safety
Servicing Your Honda
Remember that your Honda dealer knows
your motorcycle best and is fully equipped
to maintain and repair it. To ensure the
best quality and reliability, use only new
Honda Genuine Parts or their equivalents
for repair and replacement. If you have the
tools and skills required for additional
maintenance jobs, you can purchase an
official Honda Service Manual
(page ).246
０９／０７／０６ １８：３６：３３ ３１ＭＦＬ６２０ ０１０２
94
Periodic Maintenance
Servicing Your Honda
In addition to the regularly scheduled
maintenance (page ) and daily pre-ride
inspection (page ), consider performing
the periodic checks on the following page
at least once a month, even if you haven’t
ridden your motorcycle, or as often as
once a week if you ride frequently or for
long distances. It’s a good idea to perform
this maintenance any time you clean your
motorcycle.
Check the odometer reading and perform
any scheduled maintenance checks that are
needed (page ). Remember, more
frequent checks may be needed for riding
in severe conditions.
59
96
96
０９／０７／０６ １８：３６：３８ ３１ＭＦＬ６２０ ０１０３
95
Periodic Maintenance
Servicing Your Honda
Tires
&
Wheels
Fluids
Fuses
Check condition, adjust slack, and lubricate as needed (page ).
Lights
Drive Chain
Freeplay
Make sure you have a full supply of spare fuses.
Check the major fasteners and tighten as needed.Nuts & Bolts
Check the freeplay of the clutch lever (page ) and throttle grip
(page ).
Check the air pressure with a gauge and add air if needed (page ).
Examine the tread for wear (page ).
Look closely for nails, embedded objects, cuts, and other types of
damage (page ). Roll your motorcycle so you can inspect the
entire surface.
Check the condition of the wheels.
Check the levels of the engine oil (page ), coolant (page ),
and brake fluid (page ). Add the correct fluid as necessary, and
investigate the cause of any low fluid level.
Make sure the headlight, running light, brakelight, taillight, license
light and turn signals are working properly.
150
152
152
119 126
146
131
129
160
０９／０７／０６ １８：３６：４９ ３１ＭＦＬ６２０ ０１０４
96
Servicing Your Honda
Maintenance Schedule
The required Maintenance Schedule that
follows specifies how often you should
have your motorcycle serviced, and what
things need attention. It is essential to have
your motorcycle serviced as scheduled to
maintain safe, dependable performance
and proper emission control.
Some items in the Maintenance Schedule
can be performed with basic mechanical
skills and hand tools. Procedures for these
items are provided in this manual. Other
items involve more extensive procedures
and may require special training, tools,
and equipment. We recommend that you
have your Honda dealer perform these
tasks unless you have advanced
mechanical skills and the required tools
and equipment. Procedures for such items
in this schedule are provided in an official
Honda Service Manual available for
purchase (page ).
The service intervals in this Maintenance
Schedule are based on average riding
conditions. Some items will need more
frequent service if you ride in unusually
wet or dusty areas or at full throttle.
Consult your Honda dealer for
recommendations applicable to your
individual needs and use.
246
０９／０７／０６ １８：３６：５４ ３１ＭＦＬ６２０ ０１０５
＊＊＊
＊
＊＊
97
Maintenance Schedule
Servicing Your Honda
If you do not feel capable of performing a
given task or need assistance, remember
that your Honda dealer knows your
motorcycle best and is fully equipped to
maintain and repair it. If you decide to do
your own maintenance, use only Honda
Genuine Parts or their equivalents for
repair or replacement to ensure the best
quality and reliability.
Perform the pre-ride inspection (page )
and owner maintenance (page ) at each
scheduled maintenance period.
Each item on the maintenance schedule
requires some mechanical knowledge.
Certain items (particularly those marked
and ) may require more technical
information and tools. Consult your
Honda dealer.
In the interest of safety, we recommend
these items be serviced only by your
Honda dealer.
Should be serviced by your Honda
dealer, unless you have the proper tools
and service data and are mechanically
qualified. Refer to the official Honda
Service Manual (page ).
59
98 246
０９／０７／０６ １８：３７：００ ３１ＭＦＬ６２０ ０１０６
98
Servicing Your Honda
Maintenance Schedule
Summary of Maintenance Schedule Notes
& Procedures:
At higher odometer readings, repeat at
the frequency interval established here.
Maintenance Procedures:
I: inspect and clean, adjust, lubricate,
or replace, if necessary
C: clean
A: adjust
L: lubricate
R: replace
California type only.
Replace every 2 years, or at indicated
odometer interval, whichever comes
first. Replacement requires mechanical
skill. Refer to the official Honda
Service Manual.
Service more frequently when riding in
unusually wet or dusty areas.
NOTES:
1.
2.
3.
4.
０９／０７／０６ １８：３７：０７ ３１ＭＦＬ６２０ ０１０７
×
×
−
−
−
−
−
−
−
−
＊
＊
＊
＊
＊
＊
＊
＊
＊＊
＊
＊＊
1,000 mi
1,000 km
NOTE
2
4
3
0.6
1.0
R
4
6.4
8
12.8
I
I
R
I
I
I
12
19.2
I
I
16
25.6
I
I
I
R
I
I
I
20
32.0
24
38.4
I
I
I
R
R
I
I
I
FUEL LINE
THROTTLE OPERATION
AIR CLEANER
SPARK PLUGS
VALVE CLEARANCE
ENGINE OIL
ENGINE OIL FILTER
RADIATOR COOLANT
COOLING SYSTEM
SECONDARYAIR SUPPLY
SYSTEM
EVAPORATIVE EMISSION
CONTROL SYSTEM
EXHAUST GAS CONTROL
ACTUATOR CABLE
Refer to
page
129
115
120
125
ODOMETER READING (Note 1)
ITEM
FREQUENCY
EVERY 16,000 mi (25,600 km) I
EVERY 16,000 mi (25,600 km) I,
EVERY 32,000 mi (51,200 km) R
EMISSIONS- RELATED ITEMS
INITIAL = 600 mi (1,000 km) or 1month: R
REGULAR = EVERY8,000 mi (12,800km),or12months:R
99
Servicing Your Honda
Maintenance Schedule
In the interest of safety, we recommend these items be serviced only by your Honda dealer.
Should be serviced by your Honda dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).246
０９／０７／０６ １８：３７：１７ ３１ＭＦＬ６２０ ０１０８
×
×
−
−
−
−
−
−
＊
＊
＊
＊
＊＊
＊＊
＊
＊＊
1,000 mi
1,000 km
DRIVE CHAIN
BRAKE FLUID
BRAKE PADWEAR
BRAKE SYSTEM
BRAKE LIGHT SWITCH
HEADLIGHTAIM
CLUTCHSYSTEM
SIDE STAND
SUSPENSION
NUTS, BOLTS, FASTENERS
WHEELS/TIRES
STEERING HEAD
BEARINGS
NOTE
4
0.6
1.0
I
I
I
I
4
6.4
I
I
I
8
12.8
I
I
I
I
I
I
I
I
I
I
I
12
19.2
R
I
I
16
25.6
I
I
I
I
I
I
I
I
I
I
I
20
32.0
I
I
I
24
38.4
R
I
I
I
I
I
I
I
I
I
I
Refer to
page
160
145
148
144
131
159
ODOMETER READING (Note 1)
ITEM
FREQUENCY
EVERY 500 mi (800km) I, L
NON-EMISSION-RELATED ITEMS
100
Maintenance Schedule
Servicing Your Honda
Should be serviced by your Honda dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).
In the interest of safety, we recommend these items be serviced only by your Honda dealer.
246
０９／０７／０６ １８：３７：２８ ３１ＭＦＬ６２０ ０１０９
101
Maintenance Record
Servicing Your Honda
Miles (km) Odometer Date Performed By: Notes
600 (1,000)
4,000 (6,400)
8,000 (12,800)
12,000 (19,200)
16,000 (25,600)
20,000 (32,000)
Keeping an accurate maintenance record will help ensure that your motorcycle is properly
maintained. Retain detailed receipts to verify the maintenance was performed. If the
motorcycle is sold, these receipts should be transferred with the motorcycle to the new owner.
Make sure whoever performs the maintenance completes this record. All scheduled
maintenance, including the 600 mile (1,000 km) initial maintenance, is considered a normal
owner operating cost and will be charged for by your dealer. Use the space under Notes to
record anything you want to remind yourself about or mention to your dealer.
０９／０７／０６ １８：３７：３４ ３１ＭＦＬ６２０ ０１１０
102
Maintenance Record
Servicing Your Honda
Miles (km) Odometer Date NotesPerformed By:
24,000 (38,400)
28,000 (44,800)
32,000 (51,200)
36,000 (57,600)
40,000 (64,000)
44,000 (70,400)
48,000 (76,800)
52,000 (83,200)
56,000 (89,600)
60,000 (96,000)
64,000 (102,400)
68,000 (108,800)
０９／０７／０６ １８：３７：４０ ３１ＭＦＬ６２０ ０１１１
front brake lever
front spring pre-load adjuster/
front rebound damping adjuster
throttle grip
clutch lever
front brake fluid reservoir
fuel filler cap
103
Servicing Your Honda
Maintenance Component Locations
０９／０７／０６ １８：３７：４５ ３１ＭＦＬ６２０ ０１１２
rear brake pedal
engine oil filler cap
front brake caliper
front suspension
compression
damping adjuster
rear brake
fluid reservoir
rear brake
caliper
engine oil
drain bolt
coolant reserve
tank
owner’s manual storage compartment
tool kit/
dipstick engine oil filter
104
Servicing Your Honda
Maintenance Component Locations
０９／０７／０６ １８：３７：５０ ３１ＭＦＬ６２０ ０１１３
drive chain
front brake caliper
front suspension
compression
damping adjuster
rear suspension compression
damping adjuster
rear suspension spring pre-load adjuster/
rear suspension rebound damping adjuster
ABS motor fuse
(CBR1000RR ABS only)
battery/
main fuse/
FI fuse/
fuse box
105
Servicing Your Honda
Maintenance Component Locations
０９／０７／０６ １８：３７：５４ ３１ＭＦＬ６２０ ０１１４
(1) tool kit
(1)
UNDER REAR SEAT
(CBR1000RR)
(1)
(CBR1000RR ABS)
106
Tool Kit
Servicing Your Honda
The tool kit ( ) is stored under the rear
seat (page ).
An optional, larger tool kit may be
available. Check with your Honda dealer’s
parts department.
1
110
０９／０７／０６ １８：３８：００ ３１ＭＦＬ６２０ ０１１５
(1)
UNDER REAR SEAT
(2)
(CBR1000RR)
(1) storage bag
(2) owner’s manual storage
compartment
107
Owner’s Manual Storage
Servicing Your Honda
Be careful not to flood this area when
washing your motorcycle.
Your motorcycle provides storage for the
owner’s manual so you’ll have it with you
for easy reference. Store your owner’s
manual (and other documents) in the
plastic storage bag ( ) in the owner’s
manual storage compartment ( ) under
the rear seat (page ).
(cont’d)
1
2
110
０９／０７／０６ １８：３８：０６ ３１ＭＦＬ６２０ ０１１６
(1)
(2)
(CBR1000RR ABS)
108
Owner’s Manual Storage
Servicing Your Honda
０９／０７／０６ １８：３８：１０ ３１ＭＦＬ６２０ ０１１７
(2)
(3)
(4)
(1)
(5)
(1)
(5)
(1) side covers
(2) grommets
(3) screws
(4) front seat
(5) prongs
(3)
109
Seat Removal
Servicing Your Honda
Safety Precautions Removal:
Installation:
Refer to on page .
The front seat must be removed for
battery or fuse maintenance.
Front Seat Removal
To remove the right and left side covers
( ), release the tabs from the guides,
and carefully pull the cover out from
the grommets ( ).
The right and left side covers can be
removed in the same manner.
Remove the screws ( ), and then pull
the front seat ( ) forward and up.
Insert the prongs ( ) into the seat hooks
and tighten the mounting bolts securely.
Insert the tabs into the guides, and align
the side covers prong with the rubber
grommets.
1.
2.
1.
2.
5
3
4
2
1
92
０９／０７／０６ １８：３８：２１ ３１ＭＦＬ６２０ ０１１８
(6)
(9) (10)
(6) seat strap
(7) ignition key
(8) seat lock
(11)
(7)
((88))
(
9)
rear seat
(10) prong
(11) seat hook
110
Seat Removal
Servicing Your Honda
Removal:
Installation:
Rear Seat Removal
The rear seat must be removed to access
the tool kit and owner’s manual.
Move the seat strap ( ) forward.
Insert the ignition key ( ) into the seat
lock ( ). Turn it clockwise, then pull
the rear seat ( ) up and forward.
To install the seat, insert the prong ( )
into the seat hook ( ), and then push
down on the front of the seat.
Return the seat strap to its normal
position.
Be sure the seat is locked securely in
position after installation.
1.
1.
2.
2.
7
6
9
8
10
11
０９／０７／０６ １８：３８：３１ ３１ＭＦＬ６２０ ０１１９
(2)
(2)
(3)
(4)
(1) bolts A
(2) bolts B
(3) lowercowl
(4) tubes
(1)
(1)
111
Lower Cowl Removal
Servicing Your Honda
Safety PrecautionsRefer to on page .
Installation can be done in the reverse
order of removal.
Installation
Removal
The lower cowl must be removed to adjust
the clutch lever freeplay and to change the
oil filter.
Remove the lower cowl ( ) carefully in
the procedure shown in the illustration,
then pull out the tubes ( ).
Route the tubes through the opening of
the lower cowl.
Remove the bolts A ( ) and bolts B ( ).1.
2.
4
3
92
21
０９／０７／０６ １８：３８：４０ ３１ＭＦＬ６２０ ０１２０
premium unleaded
91 (or higher)
type
pump octane
number
112
Fuel Recommendation
Fuel
Servicing Your Honda
Safety PrecautionsRefer to on page . Your engine is designed to use any
unleaded premium gasoline that has a
pump octane number of 91 or higher.
Gasoline pumps at service stations
normally display the pump octane number.
For information on the use of oxygenated
fuels, see page .
Use of lower octane gasoline can cause
persistent ‘‘pinging’’ or ‘‘spark knock’’ (a
loud rapping noise) which, if severe, can
lead to engine damage. Light pinging
experienced while operating under a heavy
load, such as climbing a hill, is no cause
for concern.
If pinging or spark knock occurs at a
steady engine speed under normal load,
change brands of gasoline. If pinging or
spark knock persists, consult your Honda
dealer.
Use only unleaded fuel in your Honda.
The use of leaded fuel will damage the
catalytic converter(s). If you ride your
Honda in a country where leaded fuel
might be available, take precautions to use
only unleaded fuel.
92
243
０９／０７／０６ １８：３８：４８ ３１ＭＦＬ６２０ ０１２１
4.68 US gal (17.7 )
(2)
(1)
(3) level plate(1) ignition key
(2) fuel filler cap
(3)
113
Refueling Procedure
Fuel Capacity
Fuel
Servicing Your Honda
Safety Precautions
Never use stale or contaminated gasoline
or an oil/gasoline mixture. Avoid getting
dirt, dust, or water in the fuel tank.
Refer to on page .
Insert the ignition key ( ) in the fuel
filler cap ( ) and turn it clockwise.
Fuel tank capacity:
The tank should be refilled as soon as
possible when the low fuel indicator
comes on.
(cont’d)
1.
92
2
1
０９／０７／０６ １８：３８：５７ ３１ＭＦＬ６２０ ０１２２
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling
fuel.
Stop the engine and keep heat,
sparks and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
114
Fuel
Servicing Your Honda
After refueling, push the fuel filler cap
closed until it snaps and locks.
Open the fuel filler cap.
Remove the ignition key from the fuel
filler cap.
Add fuel until the level reaches the
level plate ( ). Avoid overfilling the
tank. There should be no fuel above the
level plate.
2.
3.
5.
4.
3
０９／０７／０６ １８：３９：０３ ３１ＭＦＬ６２０ ０１２３
115
Engine Oil & Filter
Servicing Your Honda
Engine oil quality is a major factor that
affects both the performance and the
service life of the engine.
When running in very dusty conditions, oil
changes should be performed more
frequently than specified in the
maintenance schedule.
Using the proper oil (page ) and filter,
and regularly checking, adding, and
changing oil will help extend your
engine’s life. Even the best oil wears out.
Changing oil helps get rid of dirt and
deposits in the engine. Operating the
engine with old or dirty oil can damage
your engine. Running the engine with
insufficient oil can cause serious damage
to the engine and transmission.
Change the engine oil as specified in the
maintenance schedule on page .
116
99
０９／０７／０６ １８：３９：０９ ３１ＭＦＬ６２０ ０１２４
＊
＊
MA
SG or higher
except oils
labeled as energy
conserving on the
circular API
service label
SAE 10W-30
Pro Honda GN4 4-stroke oil (USA
& Canada), or Honda 4-stroke oil
(Canada only), or an equivalent
motorcycle oil.
API
classification
JASO T 903
standard
viscosity
(weight)
suggested oil
116
Oil Recommendation
Engine Oil & Filter
Servicing Your Honda
Suggested oils are equal in performance
to SJ oils that are not labeled as energy
conserving on the circular API service
label.
０９／０７／０６ １８：３９：１７ ３１ＭＦＬ６２０ ０１２５
OKNOT RECOMMENDED
117
Engine Oil & Filter
Servicing Your Honda
Do not use oils with graphite or
molybdenum additives. They may
adversely affect clutch operation.
Your motorcycle does not need oil
additives. Use the recommended oil.
Other viscosities shown in the following
chart may be used when the average
temperature in your riding area is within
the indicated range.
Do not use API SH or higher oils
displaying a circular API ‘‘energy
conserving’’ service label on the
container. They may affect lubrication
and clutch performance.
Do not use non-detergent, vegetable, or
castor based racing oils.
０９／０７／０６ １８：３９：２５ ３１ＭＦＬ６２０ ０１２６
(1)
(2)
(1) code number of the sales company
of the oil
(2) oil classification
118
Engine Oil & Filter
Servicing Your Honda
JASO T 903 standard
The JASO T 903 standard is an index for
engine oils for 4-stroke motorcycle
engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled
on the oil container. For example, the
following label shows the MA
classification.
Use only MA classification engine oil for
your motorcycle. Using engine oil other
than MA classification oil could result in
damage to the assist-slipper clutch system.
The assist-slipper clutch system helps to
prevent the rear tire from locking up when
the deceleration of your motorcycle
produces a strong engine braking effect. It
also makes the clutch lever operation feel
lighter.
０９／０７／０６ １８：３９：３１ ３１ＭＦＬ６２０ ０１２７
−
−
RIGHT SIDE
(4)
(2)
(3)
(1)
(1) dipstick
(2) upper level mark
(3) lower level mark
(4) oil filler cap
119
Checking & Adding Oil
Engine Oil & Filter
Servicing Your Honda
Safety PrecautionsRefer to on page .
Park your motorcycle on its side stand
on a firm, level surface.
Start the engine and let it idle for 3 5
minutes. Make sure the warning
indicator and low oil pressure indicator
go off. If the indicators remains on, stop
the engine immediately.
Stop the engine and wait 2 3 minutes.
Remove the dipstick ( ) and wipe it
clean.
Hold the motorcycle in an upright
position.
Insert the dipstick until it seats, but don’t
screw it in.
(cont’d)
2.
3.
4.
1.
5.
1
6.
92
０９／０７／０６ １８：３９：４１ ３１ＭＦＬ６２０ ０１２８
120
Changing Engine Oil & Filter
Engine Oil & Filter
Servicing Your Honda
Safety Precautions
Using the wrong oil filter may result in
leaks or engine damage.
Refer to on page .
Your motorcycle’s oil filter has very
specific performance requirements. Use a
new Honda Genuine oil filter or a filter of
equal quality specified for your model.
Check for oil leaks.
Remove the dipstick and check the oil
level.
If the oil is at or near the upper level
mark ( ) –– you do not have to add
oil.
If the oil is below or near the lower
level mark ( ) –– remove the oil
filler cap ( ) and add the
recommended oil until it reaches the
upper level mark. (Do not overfill.)
Reinstall the oil filler cap.
Reinstall the dipstick.
7.
8.
9.
10.
2
3
4
92
０９／０７／０６ １８：３９：５０ ３１ＭＦＬ６２０ ０１２９
−
−
(2) (1)
FRONT, UNDER ENGINE
(1) engine oil drain bolt
(2) sealing washer
121
Engine Oil & Filter
Servicing Your Honda
Drain the Engine Oil:
This procedure requires mechanical skill
and professional tools such as a torque
wrench and oil filter wrench, as well as a
means for disposing of the drained fluid
(page ). If you do not have the skills
or the tools, see your Honda dealer.
Park the motorcycle on its side stand on
a firm, level surface.
Place a drain pan under the crankcase.
If the engine is cold, start it and let it
idle for 3 5 minutes. Turn the engine
off. Wait 2 3 minutes for the oil to
settle.
To drain the oil, remove the oil filler
cap, engine oil drain bolt ( ), and
sealing washer ( ).
Remove the lower cowl (page ).
(cont’d)
1.
2.
3.
4.
5.
2
1
188
111
０９／０７／０６ １８：３９：５９ ３１ＭＦＬ６２０ ０１３０
RIGHT SIDE
RIGHT SIDE
(3) screw
(4) middle cowl
(5) oil filter
(3)
(4)
(5)
122
Engine Oil & Filter
Servicing Your Honda
Install a New Oil Filter: Remove the oil filter ( ) with a filter
wrench and let the remaining oil drain
out. Discard the oil filter in an approved
manner (page ).
Remove the screw ( ) on the right
middle cowl ( ) and pull it outwards.
6.
7.
4
3
5
188
０９／０７／０６ １８：４０：０６ ３１ＭＦＬ６２０ ０１３１
19 lbf·ft (26 N·m , 2.7 kgf·m)
(6) rubber seal
(6)
123
Engine Oil & Filter
Servicing Your Honda
Improper disposal of drained fluids is
harmful to the environment.
Pour the drained oil into a suitable
container and dispose of it in an
approved manner (page ).
Apply a thin coat of engine oil to the
rubber seal ( ) of a new oil filter.
Install the new oil filter and tighten it by
hand.
Using an oil filter wrench attachment
and a torque wrench, tighten the new oil
filter to the specified torque:
(cont’d)
8. 9.
6
188
10.
11.
０９／０７／０６ １８：４０：１４ ３１ＭＦＬ６２０ ０１３２
−
−
22 lbf·ft (30 N·m , 3.0 kgf·m)
3.2 US qt (3.0
)
124
Engine Oil & Filter
Servicing Your Honda
Add Engine Oil:
Start the engine and let it idle for 3 5
minutes.
Stop the engine and wait 2 3 minutes.
Hold the motorcycle upright and check
that the oil level is at the upper level
mark on the dipstick (page ).
Check that there are no oil leaks.
Install the lower cowl (page ).
If a torque wrench is not used for
installation, see your Honda dealer as soon
as possible to verify proper assembly.
Check the condition of the sealing
washer on the engine oil drain bolt.
Replace the washer every other time the
oil is changed.
Install the engine oil drain bolt and
tighten it to the specified torque:
Fill the crankcase with the
recommended oil (page ),
approximately:
Install the oil filler cap.
Install the right middle cowl with screw.
15.
16.
17.
18.
19.
20.
12.
13.
14.
116
119
111
０９／０７／０６ １８：４０：２４ ３１ＭＦＬ６２０ ０１３３
125
Coolant Recommendation
Coolant
Servicing Your Honda
Using coolant with silicate inhibitors may
cause premature wear of water pump
seals or blockage of radiator passages.
Using tap water may cause engine
damage.
Your motorcycle’s liquid cooling system
dissipates engine heat through the coolant
jacket that surrounds the cylinder and
cylinder head.
Use Pro Honda HP coolant or an
equivalent high quality ethylene glycol
antifreeze containing corrosion protection
inhibitors specifically recommended for
use in aluminum engines. Check the
antifreeze container label.
Maintaining the coolant will allow the
cooling system to work properly and
prevent freezing, overheating, and
corrosion.
The factory provides a 50/50 solution of
antifreeze and water in this motorcycle.
This coolant solution is recommended for
most operating temperatures and provides
good corrosion protection.
Use only distilled water as a part of the
coolant solution. Water that is high in
mineral content or salt may be harmful to
the aluminum engine.
０９／０７／０６ １８：４０：３１ ３１ＭＦＬ６２０ ０１３４
RIGHT SIDE
(1) reserve tank
(2) UPPER level mark
(3) LOWER level mark
(4) reserve tank cap
(2)
(1)
(2) (4)
(3)
126
Checking & Adding Coolant
Coolant
Servicing Your Honda
Safety PrecautionsRefer to on page .
Decreasing the concentration of antifreeze
to less than 40% will not provide proper
corrosion protection.
Increasing the concentration of antifreeze
is not recommended because it decreases
cooling system performance. Higher
concentrations of antifreeze (up to 60%)
should only be used to provide additional
protection against freezing. Check the
cooling system frequently during freezing
weather.
92
０９／０７／０６ １８：４０：３８ ３１ＭＦＬ６２０ ０１３５
127
Coolant Replacement
Coolant
Servicing Your Honda
Safety PrecautionsRefer to on page .
If the reserve tank is empty, or if
coolant loss is excessive, check for
leaks and see your Honda dealer for
repair.
Coolant should be replaced by your Honda
dealer, unless you have the proper tools
and service data and are mechanically
qualified. Refer to the official Honda
Service Manual (page ).
With the engine at normal operating
temperature, check the coolant level in
the reserve tank ( ). It should be
between the UPPER ( ) and LOWER
( ) level marks.
Remove the reserve tank cap ( ).
Always add coolant to the reserve tank.
Do not attempt to add coolant by
removing the radiator cap.
Addcoolanttothereservetankas
required to bring the coolant level to the
UPPER level mark.
Install the reserve tank cap.
1.
2.
3.
2
3
4.
1
4
92
246
０９／０７／０６ １８：４０：４６ ３１ＭＦＬ６２０ ０１３６
Removing the radiator cap while
the engine is hot can cause the
coolant to spray out, seriously
scalding you.
Always let the engine and radiator
cool down before removing the
radiator cap.
128
Coolant
Servicing Your Honda
You & the Environment,
Improper disposal of drained fluids is
harmful to the environment.
To properly dispose of drained coolant,
refer to
page .188
０９／０７／０６ １８：４０：５１ ３１ＭＦＬ６２０ ０１３７
−−1/16 1/4 in (2 6 mm)
RIGHT HANDLEBAR
(1)
(3)
(2)
(1) throttle cable boot
(2) adjuster
(3) lock nut
129
Throttle Freeplay
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
Inspection
Check freeplay at the throttle grip flange.
Freeplay:
If necessary, adjust to the specified range.
Adjustment
Slide the throttle cable boot ( ) off the
adjuster ( ).
Tighten the lock nut and return the
throttle cable boot securely over the
adjuster.
After adjustment, check for smooth
rotation of the throttle grip from fully
closed to fully open in all steering
positions.
Loosen the lock nut ( ).
Turn the adjuster.
1.
2.
3.
4.
1
5.
2
3
92
０９／０７／０６ １８：４１：０２ ３１ＭＦＬ６２０ ０１３８
130
Throttle Inspection
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the throttle assembly is
positioned properly and the securing
bolts are tight.
Check for smooth rotation of the
throttle from fully open to fully closed
in all steering positions. If there is a
problem, see your Honda dealer.
1.
2.
92
０９／０７／０６ １８：４１：０８ ３１ＭＦＬ６２０ ０１３９
LEFT HANDLEBAR
(1) clutch lever
(1)
131
Clutch Freeplay
Clutch System
Servicing Your Honda
Safety PrecautionsRefer to on page .
Your motorcycle’s manually activated,
wet, multiplate clutch is part of the
primary drive system. Proper freeplay
adjustment allows a smooth, gradual
engagement when shifting gears.
Improper freeplay adjustment can cause
premature clutch wear.
92
０９／０７／０６ １８：４１：１３ ３１ＭＦＬ６２０ ０１４０
−−
＋
−
＋
−
3/8 13/16 in (10 20 mm)
LEFT HANDLEBAR
(2)
()
()
(2) upper clutch cable adjuster
( ) increase freeplay
( ) decrease freeplay
132
Clutch System
Servicing Your Honda
Inspection
Check freeplay:
If necessary, adjust to the specified
range.
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
Turn the upper clutch cable adjuster ( )
to obtain the specified freeplay.
Check the freeplay again.
1.
2.
3.
2
０９／０７／０６ １８：４１：２２ ３１ＭＦＬ６２０ ０１４１
＋＋
−−
＋
−
RIGH
T SIDE
(( ))
(( ))
(5) lower lock nut
(6) lower adjusting nut
( ) increase freeplay
( ) decrease freeplay(3) screw (4) middle cowl
(3)
(4)
(6)
(5)
133
Clutch System
Servicing Your Honda
Lower Adjustment
If the upper clutch cable adjuster is
threaded out near its limit, or the correct
freeplay cannot be obtained, attempt
adjustment with the lower clutch cable
adjuster.
Turn the upper clutch cable adjuster ( )
all the way in (to provide maximum
freeplay).
Loosen the lower lock nut ( ).
Turn the lower adjusting nut ( ) to
obtain the specified freeplay.
Tighten the lower lock nut and check
the adjustment.Remove the screw ( ) on the right
middle cowl ( ) and pull it outwards.
Remove the lower cowl (page ).
(cont’d)
1.
2.
3.
4.
5.
6.
4
3
2
5
6
111
０９／０７／０６ １８：４１：３３ ３１ＭＦＬ６２０ ０１４２
134
Other Inspections & Lubrication
Clutch System
Servicing Your Honda
Lubricate the clutch cable with a
commercially available cable lubricant
to prevent premature wear and
corrosion.
Check the clutch cable for kinks or
signs of wear. If necessary, have it
replaced.
Check that the clutch lever assembly is
positioned properly and the securing
bolts are tight.
If you cannot get proper adjustment, or the
clutch does not work properly, the cable or
clutch friction discs may be worn. See
your Honda dealer or refer to the official
Honda Service Manual (page ).
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the
engine does not stall and the motorcycle
does not creep. Gradually release the
clutch lever and open the throttle. Your
motorcycle should move smoothly and
accelerate gradually.
Install the lower cowl (page ).
Install the right middle cowl with screw.7.
8.
9.
111
246
０９／０７／０６ １８：４１：４１ ３１ＭＦＬ６２０ ０１４３
135
Suspension
Servicing Your Honda
Your front and rear suspension systems
use springs, hydraulic damping devices,
and linkages (rear only) that suspend your
weight and most of the weight of your
motorcycle.
The spring pre-loads for your front and
rear suspension systems adjust the amount
of force required to begin compression of
the spring.
Consider adjusting your suspension
whenever you change your normal load,
by adding or subtracting a passenger,
cargo, or accessories, or when the road or
riding conditions change.
The oil damper systems hydraulically
control the natural compression and
rebound of the suspension springs so that
traction and comfort are maintained as the
wheels ride over road surfaces.
The way you ride your motorcycle and the
type of ride you want to experience can
also influence your suspension needs.
You may adjust the spring pre-load and
the rebound and compression damping of
both suspension systems.
０９／０７／０６ １８：４１：４７ ３１ＭＦＬ６２０ ０１４４
136
Front Suspension Adjustment
Suspension
Servicing Your Honda
Lower spring pre-load and softer damping
provide a softer ride and are usually
preferred for light loads and smooth roads.
Higher spring pre-load and firmer
damping provide a firmer ride and are
recommended for heavy loads, rough road
conditions, and faster, more challenging
riding.
The front suspension can be adjusted for
rider (and passenger) weight and riding
conditions by changing the spring pre-load
and rebound and compression damping.
To adjust, use an appropriate tool or see
your Honda dealer.
０９／０７／０６ １８：４１：５２ ３１ＭＦＬ６２０ ０１４５
FRONT
(1)
(1) pre-load adjuster
137
Front Suspension Spring
Pre-load
Suspension
Servicing Your Honda
Safety Precautions
To Reduce Spring Pre-load (SOFT):
To Increase Spring Pre-load (HARD):
Refer to on page .
Adjust the spring pre-load by turning the
pre-load adjuster ( ).
To adjust to the standard position:
Turn the adjuster clockwise turns.
This is the standard position.
Make sure that both fork legs are
adjusted to the same position.
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT.
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD.
Turn the spring pre-load adjuster
counterclockwise until it will no longer
turn (lightly seats). This is the full soft
setting.
3.
2.
1.
6
1
92
０９／０７／０６ １８：４２：０２ ３１ＭＦＬ６２０ ０１４６
FRONT
(1)
(1) damping adjuster
(2) punch mark
(3) reference punch
mark
(3)
(2)
138
Front Suspension Damping
Suspension
Servicing Your Honda
Safety Precautions
To Increase Rebound Damping
(HARD):
To Reduce Rebound Damping (SOFT):
Refer to on page .
Rebound Damping
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
Make sure that both fork legs are
adjusted to the same position.
To adjust to the standard position:
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
Turn the adjuster counterclockwise
approximately turns so that the
punch mark ( ) on the adjuster aligns
with the reference punch mark ( ). This
is the standard position.
1.
2.
3.
2
3
1
21/492
０９／０７／０６ １８：４２：１３ ３１ＭＦＬ６２０ ０１４７
(1)
(1) damping adjuster
(2) punch mark
(3) reference punch mark
RIGHT SIDE
(3)
(2)
139
Suspension
Servicing Your Honda
To Increase Compression Damping
(HARD):
To Reduce Compression Damping
(SOFT):
Compression Damping
To adjust to the standard position:
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
Make sure that both fork legs are
adjusted to the same position.
Turn the adjuster counterclockwise
approximately turns ( )
or turns ( )
so that the punch mark ( ) on the
adjuster aligns with the reference punch
mark ( ). This is the standard position.
1.
2.
3.
1
CBR1000RR2
2 1/4 CBR1000RR ABS
2
3
０９／０７／０６ １８：４２：２３ ３１ＭＦＬ６２０ ０１４８
140
Rear Suspension Adjustment
Suspension
Servicing Your Honda
The rear suspension can be adjusted for
rider (and passenger) weight and riding
conditions by changing the spring pre-load
and rebound and compression damping.
The rear shock absorber includes a damper
unit that contains high pressure nitrogen
gas. Do not attempt to disassemble,
service, or dispose of the damper; see your
Honda dealer. The instructions found in
this owner’s manual are limited to
adjustments of the shock assembly only.
To adjust, use an appropriate tool or see
your Honda dealer.
０９／０７／０６ １８：４２：２８ ３１ＭＦＬ６２０ ０１４９
(1)
(2)
LEFT SIDE
(1) spring pre-load adjuster
(2) pin spanner
123456
7
8
9
10
141
Rear Suspension Spring Pre-load
Suspension
Servicing Your Honda
Safety PrecautionsRefer to on page .
The spring pre-load adjuster ( ) has
positions for different load or riding
conditions.
Use a pin spanner ( ) to adjust the rear
shock spring pre-load.
Positions 1 to 3: for a light load and
smooth road conditions.
Position 4: standard position.
Positions 5 to 10: for when the motorcycle
is more heavily loaded. (Also increase
spring pre-load for stiffer rear suspension.)
Always adjust the shock absorber position
in sequence (1-2-3-4-5-6-7-8-9-10 or 10-
9-8-7-6-5-4-3-2-1). Attempting to adjust
directlyfrom1to10or10to1may
damage the shock absorber.
1
10
2
92
０９／０７／０６ １８：４２：３７ ３１ＭＦＬ６２０ ０１５０
(1)
(3)
(1) damping adjuster
(2) punch mark
(3) reference punch mark
(2)
LEFT SIDE
142
Rear Suspension Damping
Suspension
Servicing Your Honda
Safety Precautions
To Reduce Rebound Damping (SOFT):
To Increase Rebound Damping
(HARD):
Refer to on page .
Rebound Damping
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
To adjust to the standard position:
Turn the adjuster counterclockwise
approximately turns so that the
punch mark ( ) on the adjuster aligns
with the reference mark ( ). This is the
standard position.
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
1.
2.
1
92
21/4
2
3
０９／０７／０６ １８：４２：４７ ３１ＭＦＬ６２０ ０１５１
(1)
(2)
(1) damping adjuster
(2) punch mark
(3) reference punch mark
(3)
LEFT SIDE
143
Suspension
Servicing Your Honda
To Reduce Compression Damping
(SOFT):
To Increase Compression Damping
(HARD):
Compression Damping
To adjust to the standard position:
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
Turn the adjuster counterclockwise
approximately turns so that the
punch mark ( ) on the adjuster aligns
with the reference punch mark ( ). This
is the standard position.
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).11.
2.
21/2
2
3
０９／０７／０６ １８：４２：５６ ３１ＭＦＬ６２０ ０１５２
144
Front Brake Lever Adjustment
Brakes
Servicing Your Honda
Safety Precautions
The hydraulic braking systems on your
motorcycle dissipate the heat generated by
the friction of the brake pads on the brake
discs as the wheels are slowed.
As the brake pads wear, the brake fluid
level will drop. A leak in the system will
also cause the level to drop.
Frequently inspect the system to ensure
there are no fluid leaks. Periodically
inspect the brake fluid level and the brake
pads for wear.
If the brake lever or brake pedal freeplay
does not feel within the normal range
while riding, check the brake pads for
wear (page ). Worn pads should be
replaced. If the pads are not worn beyond
the recommended limit, there is probably
air in the brake system. See your Honda
dealer to have the air bled from the system.
Refer to on page .
The distance between the tip of the brake
lever and the grip may be adjusted.
92
148
０９／０７／０６ １８：４３：０３ ３１ＭＦＬ６２０ ０１５３
Honda DOT 4 Brake
Fluid
brake
fluid
(1) adjuster dial
(2) brake lever
RIGHT HANDLEBAR
(3) index mark
(4) numbers
(1)
(2)
(4)
(3)
145
Brake Fluid Recommendation
Brakes
Servicing Your Honda
The recommended brake fluid is Honda
DOT 4 Brake Fluid, or any brake fluid of
equal quality and performance. Use fresh
brake fluid from a sealed container. Be
sure to read the label before opening the
sealed container. An opened container
may be contaminated or may have
absorbed moisture from the air.
Apply the brake, release it, then spin the
wheel and check that it rotates freely.
Repeat this procedure several times.
Align the index mark ( ) on the brake
lever with the numbers ( ) on the
adjuster dial.
Turn the adjuster dial ( ) while pushing
the brake lever ( ) forward.
2.
1.
3.
1
3
4
2
０９／０７／０６ １８：４３：１２ ３１ＭＦＬ６２０ ０１５４
(1)
RIGHT FRONT
(2)
(2) LOWER level mark
(1) UPPER level mark
146
Fluid Level Inspection
Brakes
Servicing Your Honda
Safety Precautions
Brake fluid can damage plastic and
painted surfaces. Handle with care.
Refer to on page .
If your inspection indicates a low fluid
level, have your Honda dealer add the
recommended brake fluid.
Wipe up spills immediately. Avoid brake
fluid contact with skin or eyes. If it comes
in contact with your eyes, wash them out
with clean water and immediately call a
doctor. If it comes in contact with your
skin, wash with clean water and, if
necessary, call a doctor.
Do not add or replace brake fluid, except
in an emergency. If you do add fluid, have
your Honda dealer check the system as
soon as possible.
92
０９／０７／０６ １８：４３：１９ ３１ＭＦＬ６２０ ０１５５
RIGHT SIDE
(1)
(2)
(1) UPPER level mark
(2) LOWER level mark
147
Brakes
Servicing Your Honda
Worn pads should be replaced. If the
pads are not worn beyond the
recommended limit, have your brake
system inspected for leaks.
Check for deterioration or cracks in the
hoses and fittings.
Make sure there are no fluid leaks.
Other Inspections
Check the fluid level. It should be
between the UPPER ( ) and LOWER
( ) level marks. If the level is at or
below the LOWER level mark, check
the brake pads for wear (page ).
Place your motorcycle in an upright
position on a firm, level surface.
1.
2.
2
1
148
０９／０７／０６ １８：４３：２７ ３１ＭＦＬ６２０ ０１５６
(1)
(1)
(1) wear indicatorgrooves
LEFT FRONT (Right side similar)
148
Brake Pad Wear
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Brake pad wear depends upon the severity
of usage, the type of riding, and road
conditions. Generally, the pads will wear
faster on wet and dirty roads. Inspect the
pads at each regular maintenance interval
(page ).
Front Brake
Always inspect both pads in both the right
and left front brake calipers.
Check the wear indicator grooves ( ) in
each pad. If either pad is worn to the
bottom of the grooves, replace both pads
as a set. See your Honda dealer for this
service.
1
92
100
０９／０７／０６ １８：４３：３４ ３１ＭＦＬ６２０ ０１５７
RIGHT REAR
(2)
(2) cutouts
149
Brakes
Servicing Your Honda
Rear Brake Check the cutouts ( ) in each pad. If
either pad is worn to the cutout, replace
both pads as a set. See your Honda dealer
for this service.
2
０９／０７／０６ １８：４３：３９ ３１ＭＦＬ６２０ ０１５８
Using tires that are excessively
worn or improperly inflated can
causeacrashinwhichyoucanbe
seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
150
Air Pressure
Tires
Servicing Your Honda
Safety Precautions
To safely operate your motorcycle, your
tires must be the proper type and size, in
good condition with adequate tread, and
correctly inflated for the load you are
carrying.
The following pages give detailed
informationonhowandwhentocheck
your air pressure, how to inspect your tires
for wear and damage, and our
recommendations for tire repair and
replacement.
Properly inflated tires provide the best
combination of handling, tread life, and
riding comfort. Generally, underinflated
tires wear unevenly, adversely affect
handling, and are more likely to fail from
being overheated. Overinflated tires make
your motorcycle ride harshly, are more
prone to damage from road hazards, and
wear unevenly.
Refer to on page .92
０９／０７／０６ １８：４３：４６ ３１ＭＦＬ６２０ ０１５９
36 psi (250 kPa ,
2.50 kgf/cm
)
42 psi (290 kPa ,
2.90 kgf/cm
)
rear
front
151
Tires
Servicing Your Honda
We recommend that you visually check
your tires before every ride and use an air
pressure gauge to measure the air pressure
at least once a month or any time you
think the tires might be low. Even tires
that are in good condition may lose one to
two psi per month if not checked and
adjusted regularly.
Tubeless tires have some degree of self-
sealing ability if they are punctured.
However, because leakage is often very
slow, you should look closely for
punctures whenever a tire is not fully
inflated.
Always check air pressure when your tires
are ‘‘cold’’, after the motorcycle has been
parked for at least three hours. If you
check air pressure when your tires are
‘‘warm’’ –– even if your motorcycle has
only been ridden for a few miles –– the
readings will be higher. If you let air out
of warm tires to match the recommended
cold pressures, the tires will be
underinflated.
The recommended ‘‘cold’’ tire pressures
are:
０９／０７／０６ １８：４３：５２ ３１ＭＦＬ６２０ ０１６０
(1)
(1) wear indicator
(2) wear indicatorlocation mark
(2)
152
Inspection
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Whenever you check the tire pressures,
you should also look for:
Bumps or bulges in the side of the tire
or the tread. Replace any tire that has a
bump or bulge.
Cuts, slits, or cracks in the tires.
Replace the tire if you can see fabric or
cord.
Nails or other foreign objects embedded
in the side of the tire or tread.
Excessive tread wear.
Also, if you hit a pothole or hard object
while riding, pull to the side of the road as
soon as you safely can and carefully
inspect the tires for damage.
Tread Wear
92
or
０９／０７／０６ １８：４４：０１ ３１ＭＦＬ６２０ ０１６１
×××× ××××
0.06 in (1.5 mm)
0.08 in (2.0 mm)
front
rear
153
Tire Service Life
Tires
Servicing Your Honda
For the best performance, you should
replace a tire before the tread depth at the
center reaches the following limits:
If the wear indicators are visible, replace
the tire immediately as it is no longer safe.
(cont’d)
The service life of your tires is dependent
on many factors, including, but not limited
to, riding habits, road conditions, vehicle
loading, tire pressure, maintenance history,
speed, and environmental conditions (even
when the tires are not in use).
In addition to your regular inspections and
tire pressure maintenance, it is
recommended that you have annual
inspections performed once the tires reach
5 years old. It is also recommended that all
tires be removed from service after 10
years from the date of manufacture,
regardless of their condition or state of
wear.
The last four digits of the TIN (tire
identification number) ( ) are found on
the sidewall of the tire, and indicate the
date of manufacture.
The tire identification number (TIN) is a
group of numbers and letters that look like
the following example. The TIN is located
on the sidewall of the tire.
Tire Identification Number (TIN)
DOT 22 07
(2) (3) (4)
1
０９／０７／０６ １８：４４：１０ ３１ＭＦＬ６２０ ０１６２
−
×××× −
×××× −
−
TIRE LABELING EXAMPLE
(1) tire identification number (TIN)
(1)
154
Tire Repair
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
DOT This indicates that the tire meets
all requirements of the U.S. Department of
Transportation.
Factory code
Tire type code
22 07 Date of manufacture We strongly recommend that you replace,
not repair, any tire that is punctured or
damaged. As discussed below, a tire that is
repaired, either temporarily or
permanently, will have lower speed and
performance limits than a new or
undamaged tire.
(2)
(3)
(4)
Year
Week
92
０９／０７／０６ １８：４４：１７ ３１ＭＦＬ６２０ ０１６３
155
Tires
Servicing Your Honda
If You Have a Flat Tire,
A temporary repair can sometimes be
made in an emergency situation.
However, since a temporary repair may
not hold, you must ride very slowly,
preferably without any cargo or passenger,
and have the tire replaced or permanently
repaired as soon as possible.
(For more information on temporary
repairs, see
page .)
A permanent repair, such as an internal
plug patch, can be made if a tire has only a
small puncture in the tread area. With such
a repair, you should not exceed 50 mph
(80 km/h) for the first 24 hours, or 80 mph
(130 km/h) at any time thereafter. In
addition, you may not be able to safely
carry as much weight. If you choose to
have a tire repaired, be sure the repair
work is performed by a professional and
that the wheel is balanced before you ride.
196
０９／０７／０６ １８：４４：２１ ３１ＭＦＬ６２０ ０１６４
156
Tire Replacement
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
The tires that came on your motorcycle
were designed to match the performance
capabilities of your motorcycle and
provide the best combination of handling,
braking, durability, and comfort.
If you have a tire professionally repaired
at a non-Honda facility, we recommend
that you have the work checked by your
Honda dealer. 92
０９／０７／０６ １８：４４：２６ ３１ＭＦＬ６２０ ０１６５
120/70ZR17M/C (58W)
190/50ZR17M/C (73W)
DUNLOP
Qualifier PTK
BRIDGESTONE
BT015F RADIAL F
DUNLOP
Qualifier NK
BRIDGESTONE
BT015R RADIAL F
radial-ply, tubeless
front
rear
type
Installing improper tires on your
motorcycle can affect handling
and stability. This can cause a
crash in which you can be
seriously hurt or killed.
Always use the size and type of
tires recommended in this owner’s
manual.
157
Tires
Servicing Your Honda
The recommended tires for your
motorcycle are:
When replacing, use the original
equipment tires or equivalent tires of the
same size, construction, speed rating, and
load range as the originals.
０９／０７／０６ １８：４４：３４ ３１ＭＦＬ６２０ ０１６６
158
Tires
Servicing Your Honda
If you have a tire professionally replaced
at a non-Honda facility, we recommend
that you have the work checked by your
Honda dealer.
Important Safety Reminders
Do not install a tube inside a tubeless
tire on this motorcycle. Excessive heat
build-up can cause the tube to burst.
Use only tubeless tires on this
motorcycle. The rims are designed for
tubeless tires, and during hard
acceleration or braking, a tube-type tire
could slip on the rim and cause the tire
to rapidly deflate.
Whenever you replace a tire, remember:
Have the wheel balanced after the tire is
installed.
Have the tire replaced by your Honda
dealer if possible.
０９／０７／０６ １８：４４：４１ ３１ＭＦＬ６２０ ０１６７
LEFT SIDE
(1) side stand spring
(1)
159
Side Stand
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check the side stand ignition cut-off
system:
Sit on the motorcycle and put the
transmission in neutral.
Raise the side stand.
Start the engine.
Pull the clutch lever in.
Shift the transmission into gear.
Lower the side stand all the way.
The engine should stop as you lower the
side stand. If the engine doesn’t stop,
see your Honda dealer for service.
Check that the side stand assembly is
working properly. If the side stand is
stiff or squeaky, clean the pivot area
and lubricate the pivot bolt with clean
grease.
Check the side stand spring ( ) for
damage or loss of tension.
1.
2.
3.
4.
5.
6.
192
０９／０７／０６ １８：４４：５２ ３１ＭＦＬ６２０ ０１６８
160
Drive Chain
Servicing Your Honda
An endless (riveted master link) chain
connects the countershaft and rear wheel
sprockets. The O-ring chain uses rubber
rings between the side plates of the pin
and roller links to seal in the
manufacturer-installed lubricating grease
and keep out moisture and dirt.
Under severe usage, or when the
motorcycle is ridden in unusually dusty or
muddy areas, more frequent maintenance
will be necessary.
The service life of the chain depends on
proper lubrication and adjustment. Poor
maintenance can cause premature wear or
damage to the drive chain or sprockets.
The drive chain should be checked,
adjusted, and lubricated as part of the pre-
ride inspection (page ).
Before servicing your drive chain, turn the
engine OFF, lower the side stand, and
check that your transmission is in neutral.
It is not necessary to remove or replace the
drive chain to perform the recommended
service in the Maintenance Schedule.
59
０９／０７／０６ １８：４４：５８ ３１ＭＦＬ６２０ ０１６９
−−1 1 3/8 in (25 35 mm)
LEFT SIDE
(1) drive chain
(1)
161
Inspection
Drive Chain
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check slack in the lower drive
chain ( ) run midway between the
sprockets. Drive chain slack should
allow the following vertical movement
by hand:
Inspect the drive chain for:
damaged rollers
dry or rusted links
kinked or binding links
excessive wear
improper adjustment
damaged or missing O-rings
(cont’d)
Check drive chain slack at several
points along the chain. The slack should
remain constant. If it isn’t, some links
may be kinked and binding. Lubricating
the chain will often eliminate binding
and kinking.
1.
2.
3.
1
92
０９／０７／０６ １８：４５：０８ ３１ＭＦＬ６２０ ０１７０
worn
sprocket
teeth
REPLACE
damaged
sprocket
teeth
REPLACE
normal sprocket teeth
GOOD
162
Drive Chain
Servicing Your Honda
Use of a new chain with worn sprockets
will cause rapid chain wear.
Inspect the front and rear wheel
sprocket teeth for excessive wear or
damage. If necessary, have your Honda
dealer replace a worn sprocket.
Replace the drive chain (page ) if it
has damaged rollers, loose pins, or
kinks that cannot be freed. Lubricate the
drive chain (page ) if it appears dry
or shows signs of rust. Lubricate any
kinked or binding links and work them
free. Adjust chain slack if needed.
4.
167
166
０９／０７／０６ １８：４５：１３ ３１ＭＦＬ６２０ ０１７１
−−1 1 3/8 in (25 35 mm)
1 15/16 in (50 mm)
LEFT SIDE
(2)
(3)
(2) adjustment plate (3) red zone
163
Adjustment
Drive Chain
Servicing Your Honda
Safety Precautions
Wear Inspection The bottom part of the frame may be
damaged by excessive drive chain slack of
more than:
Drive chain slack should be checked and
adjusted, if necessary, every 500 miles
(800 km). When operated at sustained
high speeds or under conditions of
frequent rapid acceleration, the chain may
require more frequent adjustments.
Refer to on page .
Check the chain wear label when adjusting
the chain. If the front edge of the chain
adjustment plate ( ) enters the red zone
( ) on the label after the chain has been
adjusted to the proper slack, the chain is
excessively worn and must be replaced.
The proper slack is:
3
2
92
０９／０７／０６ １８：４５：２２ ３１ＭＦＬ６２０ ０１７２
−−1 1 3/8 in (25 35 mm)
(3)
(2)
(4)
(1)
(5)
RIGHT SIDE
(1) rear axle nut
(2) lock nut
(3) drive chain
adjusting bolt
(4) chain adjustment
plate
(5) scale
164
Drive Chain
Servicing Your Honda
Loosen the lock nuts ( ) on both sides
of the swingarm.
Place the motorcycle on its side stand
with the transmission in neutral and the
ignition switch OFF.
Loosen the rear axle nut ( ).
Turn both drive chain adjusting bolts
( ) an equal number of turns until the
correct drive chain slack is obtained.
Turn the drive chain adjusting bolts
counterclockwise to tighten the chain.
Turn the drive chain adjusting bolts
clockwise and push the rear wheel
toward the front to provide more slack.
Adjust the chain slack at a point
midway between the front sprocket and
the rear wheel sprocket.
Roll the motorcycle forward. Stop and
place it on its side stand. Recheck chain
slack. Chain slack should allow the
following vertical movement by hand:
1.
2.
3.
4.
2
3
1
０９／０７／０６ １８：４５：２９ ３１ＭＦＬ６２０ ０１７３
83 lbf·ft (113 N·m , 11.5 kgf·m)
165
Drive Chain
Servicing Your Honda
Tighten the drive chain adjusting bolts
lightly by turning it counterclockwise,
then tighten the lock nuts by holding the
drive chain adjusting bolts with a
wrench.
Recheck drive chain slack (page ).
Check rear axle alignment by making
sure the end of the chain adjustment
plate ( ) aligns with the scale
graduations ( ) on both sides of the
swingarm.
Both marks should correspond. If the
axle is misaligned, turn the right or left
adjusting bolt until the marks are
aligned and recheck chain slack.
If a torque wrench is not used for this
installation, see your Honda dealer as
soon as possible to verify proper
assembly. Improper assembly may lead
to a loss of braking capacity.
Torque the rear axle nut to:
7.5.
6.
8.
5
4
161
０９／０７／０６ １８：４５：３６ ３１ＭＦＬ６２０ ０１７４
Pro Honda HP Chain Lube or an
equivalent chain lubricant designed
specifically for use on O-ring chains
166
Lubrication
Drive Chain
Servicing Your Honda
Safety PrecautionsRefer to on page .
Commercial chain lubricants not designed
for motorcycle drive chains may contain
solvents which could damage the O-rings.
Lubricate every 500 miles (800 km) or
sooner if chain appears dry. Lubricant:
92
０９／０７／０６ １８：４５：４２ ３１ＭＦＬ６２０ ０１７５
168
WARNING:
Wash your hands after
handling.
Battery
Servicing Your Honda
Your battery is a maintenance-free type
and can be permanently damaged if the
cap strip is removed.
Battery
Charging,
Battery Storage,
Your motorcycle has a maintenance-free
type battery. You do not have to check the
battery electrolyte level or add distilled
water as you would with a conventional-
type battery.
If you do not expect to ride your
motorcycle for at least two weeks, we
recommend you remove the battery, or at
least disconnect the battery cables
(negative cable first).
Electrical accessories use current from the
battery, even when the ignition is OFF.
Limited operation also allows the battery
to discharge. If you have electrical
accessories on your motorcycle or do not
ride frequently, we recommend that you
charge the battery frequently (see
page ).
If you plan to store your motorcycle, see
page .
If your battery seems weak and/or is
leaking electrolyte (causing slow starting
or other electrical problems), see your
Honda dealer.
Battery posts, terminals and
related accessories contain lead and lead
compounds.
169
172
０９／０７／０６ １８：４５：５８ ３１ＭＦＬ６２０ ０１７７
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
169
Battery Storage
Battery
Servicing Your Honda
Safety Precautions
Battery Charging,
Refer to on page .
If you plan to store your motorcycle, we
recommend you remove the battery and
store it where it can be charged at least
every 30 days to maintain its service life.
If you do not remove the battery, we
recommend disconnecting the battery
cables (negative cable first).
You will get the best storage results from
removing the battery and slow charging it
every 30 days (see
page ).
Before you remove the battery, be sure to
read all the information that follows, as
well as the information on the battery
label.92
172
０９／０７／０６ １８：４６：０４ ３１ＭＦＬ６２０ ０１７８
−
＋
−
＋
(2)
(4)
(5)
(3)
UNDER FRONT SEAT
(1) rings
(2) rubber band
(3) negative ( ) terminal lead
(4) positive ( ) terminal lead
(5) battery
(1)
(1)
(CBR1000RR)
170
Battery
Servicing Your Honda
The battery is located in the battery box
below the front seat.
Pull the battery ( ) out of the battery
box.
Disconnect the negative ( ) terminal
lead ( ) from the battery first, then
disconnect the positive ( ) terminal
lead ( ).
Remove the front seat (page ).
Make sure the ignition switch is OFF.
Removal
Release the rings ( ) and remove the
rubber band ( ).
1.
2.
3.
4.
5.
1
2
5
3
4
109
０９／０７／０６ １８：４６：１４ ３１ＭＦＬ６２０ ０１７９
(1)
(1)
(3)
(5)
(2)
(4)
(CBR1000RR ABS)
171
Battery
Servicing Your Honda
Charge the battery (see following
section), unless you have been riding
regularly.
Store your battery in an easy-to-reach
location off the floor, in an area
protected from freezing temperatures
and direct sunlight.
Clean the battery box after removing
the battery for storage. Dry the battery
box and, if paint is missing, re-paint the
area.
Slow charge the battery (see following
section) once every 30 days.
7.
8.
9.
6.
０９／０７／０６ １８：４６：２１ ３１ＭＦＬ６２０ ０１８０
＋
−
(1)
(1) charger
172
Battery Charging
Battery
Servicing Your Honda
Safety PrecautionsRefer to on page .
Be sure to read the information that came
with your battery charger and follow the
instructions on the battery. Improper
charging may damage the battery.
Installation
Reinstall in the reverse order of removal.
Be sure to connect the positive ( )
terminal first, then the negative ( )
terminal.
Check all bolts and other fasteners are
secure.
92
1.
2.
０９／０７／０６ １８：４６：２８ ３１ＭＦＬ６２０ ０１８１
173
Battery
Servicing Your Honda
We recommend using a charger ( )
designed specifically for your Honda,
which can be purchased from your Honda
dealer. These units can be left connected
for long periods without risking damage to
the battery. However, do not intentionally
leave the charger connected longer than
the time period recommended in the
charger’s instructions.
Avoid using an automotive-type battery
charger. An automotive charger can
overheat a motorcycle battery and cause
permanent damage.
1
０９／０７／０６ １８：４６：３２ ３１ＭＦＬ６２０ ０１８２
−
−
−
−
174
General Recommendations
Appearance Care
Servicing Your Honda
Safety Precautions
Frequent cleaning and polishing will keep
your Honda looking newer longer.
Frequent cleaning also identifies you as an
owner who values your motorcycle. A
clean motorcycle is also easier to inspect
and service.
Refer to on page .
To clean your motorcycle, you may use:
water
a mild, neutral detergent and water
a mild spray and wipe cleaner/
polisher
a mild spray and rinse cleaner/
degreaser and water
Avoid products that contain harsh
detergents or chemical solvents that
could damage the metal, paint, and
plastic on your motorcycle.
If your motorcycle is still warm from
recent operation, give the engine and
exhaust system time to cool off.
Park in a shady area. Washing your
motorcycle in bright sunlight may cause
the finish to fade because water droplets
intensify the sun’s brightness. Spotting
is also more likely because surface
water can dry before you have time to
wipe it off.
Clean your motorcycle regularly to
protect surface finishes.
92
０９／０７／０６ １８：４６：４０ ３１ＭＦＬ６２０ ０１８３
(1)
FRONT
(1) air intakes
175
Appearance Care
Servicing Your Honda
High pressure water (or air) can damage
certain parts of your motorcycle.
We recommend the use of a garden
hose to wash your motorcycle. High
pressure washers (like those at coin-
operated car washes) can damage
certain parts of your motorcycle.
After cleaning, inspect for damage,
wear, and leaks (fuel, oil, coolant, brake,
and clutch fluid).
Do not direct water at the air intakes
( ). The water could enter the air
cleaner or be drawn into the throttle
body.
1
０９／０７／０６ １８：４６：４６ ３１ＭＦＬ６２０ ０１８４
176
Washing Your Motorcycle with a
Mild Detergent
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rinse your motorcycle thoroughly with
cool water to remove loose dirt.
Fill a bucket with cool water. Mix in a
mild, neutral detergent, such as dish
washing liquid or a product made
especially for washing motorcycles or
automobiles.
Wash your motorcycle with a sponge or
a soft towel. As you wash, check for
heavy grime. If necessary, use a mild
cleaner/degreaser to remove the grime.
Clean the headlight, fairing, meter lens
and other plastic parts using a cloth or
sponge dampened with a solution of
mild detergent and water. When
cleaning the plastic headlight lens, use
more care because it will scratch easier
than a glass lens. Rub any soiled area,
gently rinsing it frequently with fresh
water.
Clean the windscreen with a soft cloth
or sponge and plenty of water. Dry with
a soft clean cloth. Remove minor
scratches with a commercially available
plastic polishing compound.
Take care to keep brake fluid or
chemical solvents off the fairing. They
will damage the plastic.
1.
2.
3.
4.
5.
92
０９／０７／０６ １８：４６：５４ ３１ＭＦＬ６２０ ０１８５
177
Spray Cleaning Your Motorcycle
Appearance Care
Servicing Your Honda
Safety Precautions
After washing, rinse your motorcycle
thoroughly with plenty of clean water to
remove any residue. Detergent residue
can corrode alloy parts.
Dry your motorcycle with a chamois or
a soft towel. Leaving water on the
surface to air dry can cause dulling and
water spots. As you dry, inspect for
chips and scratches.
Lubricate the drive chain to prevent
rusting.
Start the engine and let it idle for
several minutes. The engine heat will
help dry moist areas.
As a precaution, ride your motorcycle at
a slow speed and apply the brakes
several times. This will help dry the
brakes and restore normal braking
performance.
Refer to on page .
Avoid using spray cleaner products on the
tires or suspension components.
Suggestions for using spray cleaner(s)
follow:
(cont’d)
8.
9.
7.
6.
10.
92
０９／０７／０６ １８：４７：０２ ３１ＭＦＬ６２０ ０１８６
Apply a spray cleaner/polish and wipe the
paint, chrome, glass, and clear plastic.
Dust and fingerprint smudges.
Light road grime. Spray any difficult-to-reach or very dirty
areas with a spray cleaner/degreaser.
Rinse and dry.
Apply a spray cleaner/polish and wipe with
a non-abrasive cloth.
Use a spray cleaner/degreaser.
If necessary, rub with a sponge. Rinse and
dry.
Apply a spray cleaner/polish and wipe with
a non-abrasive cloth.
Apply a high quality chrome/aluminum
polish and wipe with a non-abrasive cloth.
Heavy grime. Oil leaks. Brake
dust.
Dull, corroded chrome or
aluminum.
Recommended CleaningMotorcycle Condition
178
Appearance Care
Servicing Your Honda
０９／０７／０６ １８：４７：１０ ３１ＭＦＬ６２０ ０１８７
179
Painted Aluminum Wheel
Maintenance
Clean the Matte Painted Surface
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
Aluminum may corrode from contact with
dirt, mud, or road salt. Clean the wheels
after riding through any of these
substances. Use a wet sponge and mild
detergent. Avoid stiff brushes, steel wool,
or cleaners containing abrasives or
chemical compounds.
After washing, rinse with plenty of water
and dry with a clean cloth.
If the paint is chipped, apply touch-up
paint.
Refer to on page .
Use a soft cloth or sponge, plenty of water,
and a mild detergent to clean the matte
paint. Dry with a soft, clean cloth.
Do not use polishing compounds or wax
containing polishing compounds. These
can damage or discolor the paint.
To keep your Honda looking new, clean
and polish it frequently.
92
92
０９／０７／０６ １８：４７：１８ ３１ＭＦＬ６２０ ０１８８
180
Exhaust Pipe and Muffler
Maintenance
Appearance Care
Servicing Your Honda
Safety Precautions
To remove mud or dust, use a wet sponge
and a liquid kitchen abrasive, then rinse
well with clean water. Dry with chamois
or a soft towel.
The exhaust pipe and muffler are stainless
steel but may become stained by mud or
dust.
Refer to on page .
If necessary, remove heat stains by using a
commercially available fine texture
compound. Then rinse by the same
manner as removing mud or dust.
92
０９／０７／０６ １８：４７：２４ ３１ＭＦＬ６２０ ０１８９
181
Finishing Touches
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
After washing your motorcycle, consider
using a commercially available spray
cleaner/polish or quality liquid or paste
wax to finish the job. Use only a non-
abrasive polish or wax made specifically
for motorcycles or automobiles. Apply the
polish or wax according to the instructions
on the container.
If a surface on your motorcycle is chipped
or scratched, your Honda dealer has touch-
up paint to match your motorcycle’s color.
Be sure to use your motorcycle’s color
code (page ) when you buy touch-up
paint.
If the frame has a chip that exposes the
metal, first apply primer (to prevent
corrosion) and then apply the touch-up
paint. Several thin layers of touch-up paint
are better than one thick coat.
92
226
０９／０７／０６ １８：４７：３０ ３１ＭＦＬ６２０ ０１９０
182
Servicing Your Honda
０９／０７／０６ １８：４７：３２ ３１ＭＦＬ６２０ ０１９１
183
Tips
Tips
Here’s a few helpful tips on how to store
and transport your Honda, and how to be
an environmentally responsible
motorcycle owner.
...........................Storing Your Honda .
..........Transporting Your Motorcycle .
.....................You & the Environment .
184
187
188
０９／０７／０６ １８：４７：３７ ３１ＭＦＬ６２０ ０１９２
184
Preparation for Storage
Storing Your Honda
Tips
Safety Precautions
Honda Winter Storage Guide,
If you won’t be riding for an extended
period, such as during the winter,
thoroughly inspect your motorcycle and
correct any problem before storing it. That
way, needed repairs won’t be forgotten
and it will be easier to get your motorcycle
running again.
Refer to on page .
We suggest you perform the following
procedures to keep your motorcycle in top
condition. These storage procedures will
reduce the deterioration that can occur
during storage.
For more information about storage, refer
to the
available from your Honda dealer (USA
only).
Change the engine oil and filter
(page ).
Make sure the cooling system is filled
with a 50/50% antifreeze solution
(page ).
Fill the fuel tank. Make sure the fuel
filler cap is properly installed.
1.
2.
3.
120
125
92
０９／０７／０６ １８：４７：４５ ３１ＭＦＬ６２０ ０１９３
185
Storing Your Honda
Tips
Remove the battery and charge it fully.
Store it in an area protected from
freezing temperatures and direct
sunlight. Slow charge the battery
(page ) once a month.
Lubricate the drive chain (page ).
Inflate the tires to their recommended
pressures (page ).
Store your motorcycle in an unheated
area, free of dampness, away from
sunlight, with a minimum of daily
temperature variation.
Place your motorcycle on blocks to lift
both tires off the floor.
Cover your motorcycle with a porous
material. Avoid using plastic or similar
non-breathing, coated materials that
restrict air flow and allow heat and
moisture to accumulate.
To prevent rusting in the cylinders,
contact your Honda dealer.
Wash and dry your motorcycle. Wax all
painted surfaces (except matte painted
surfaces). Apply rust-inhibiting oil to
the chrome pieces.
5.
6.
4. 7.
8.
9.
10.
11.
150
166
172
０９／０７／０６ １８：４７：５３ ３１ＭＦＬ６２０ ０１９４
186
Removal from Storage
Storing Your Honda
Tips
Safety PrecautionsRefer to on page .
Uncover and clean your motorcycle.
If your motorcycle has been stored for
more than four months –– change the
engine oil (page ).
If your motorcycle has been stored for
more than two months –– ask your
Honda dealer to drain and replace the
fuel.
Charge the battery (page ) as
required. Install the battery.
Lubricate the drive chain (page ).
Perform a pre-ride inspection (page ),
then test-ride your motorcycle at low
speeds.
1.
2.
3.
4.
5.
6. 59
92
120
172
166
０９／０７／０６ １８：４８：０２ ３１ＭＦＬ６２０ ０１９５
187
Transporting Your Motorcycle
Tips
If your motorcycle needs to be transported,
it should be carried on a motorcycle trailer,
or a truck or trailer with a flatbed area. Do
not tow your motorcycle, as towing can
seriously damage the transmission.
When contacting a towing or transporting
service, be sure to ask if they have a
flatbed area, a loading ramp or power
ramp to safely lift the motorcycle, and
motorcycle tie-down straps.
０９／０７／０６ １８：４８：０６ ３１ＭＦＬ６２０ ０１９６
188
Choose Sensible Cleaners.
Recycle Wastes.
You & the Environment
Tips
Owning and riding a motorcycle can be
enjoyable, but you must do your part to
protect nature.
Following are tips on how you can be an
environmentally responsible motorcycle
owner.
Use a
biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray
cleaners that contain
chlorofluorocarbons (CFCs) which
damage the atmosphere’s protective
ozone layer. Don’t throw cleaning
solvents away; see the following
guidelines for proper disposal.
It’s illegal and
thoughtless to put used engine oil in the
trash, down a drain, or on the ground.
Used oil, gasoline, coolant, and
cleaning solvents contain poisons that
can hurt refuse workers and
contaminate our drinking water, lakes,
rivers, and oceans. Before changing
your oil, make sure you have the proper
containers. Put oil and other toxic
wastes in separate sealed containers and
take them to a recycling center. Call
your local or state office of public
works or environmental services to find
a recycling center in your area, and to
get instructions on how to dispose of
non-recyclable wastes.
０９／０７／０６ １８：４８：１１ ３１ＭＦＬ６２０ ０１９７
189
Taking Care of the Unexpected
Taking Care of the Unexpected
This section discusses the more common
problems that can occur with your
motorcycle while you’re riding. It tells
you how to evaluate each problem and
what actions you can take to try to resume
riding. If the problem cannot be safely
solved, this section also gives instructions
on the proper way to have your
motorcycle transported.
For information about transporting your
motorcycle, see page .
.............................General Guidelines .
.If Your Engine Quits or Won’t Start .
......................If You Have a Flat Tire .
......If Your Battery Is Low (or Dead) .
.......................If You Lose Your Key .
.......................................If You Crash .
...................................IfaFuseBlows .
If the Low Oil Pressure Indicator
..................................................Lights .
..................If Your Engine Overheats .
187
190
191
196
210
212
213
220
221
222
０９／０７／０６ １８：４８：２０ ３１ＭＦＬ６２０ ０１９８
190
General Guidelines
Taking Care of the Unexpected
Taking Care of the Unexpected
Should you ever have a problem while
riding, please follow these guidelines:
Always put personal safety first.
Take time to assess the situation and
your options before deciding what to do.
If the problem is relatively minor and
you have the tools, supplies, and skills
to make a temporary repair, be sure to
have permanent repairs made as soon as
possible.
Do not continue riding if you are hurt or
your motorcycle is not in safe riding
condition.
Additional recommendations for specific
problems follow.
Keeping your motorcycle well-maintained
is the best way to reduce the possibility of
having a problem on the road.
Remember to take along your owner’s
manual, the tool kit that came with your
motorcycle, and any other items (such as
tire repair supplies and additional tools)
that might help you solve a problem on
your own.
０９／０７／０６ １８：４８：２７ ３１ＭＦＬ６２０ ０１９９
−
−
191
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
Starter motor doesn’t operate
Starter motor works,
but the engine won’t start
Proper operation and maintenance can
prevent starting and engine performance
problems. In many cases, the cause of the
problem may be a simple operational
oversight.
If you have a problem starting the
engine or experience poor engine
performance the following information
may help you. If you can’t correct the
problem, see your Honda dealer.
If your motorcycle won’t start, listen as
you press the start button. If you don’t
hear the starter motor turning, refer to the
symptom. If
you can hear the starter motor working
normally, refer to the
symptom.
０９／０７／０６ １８：４８：３２ ３１ＭＦＬ６２０ ０２００
SYMPTOM:
WHAT TO DOPOSSIBLE CAUSE
ignition switch OFF Turn the ignition switch ON.
transmission not in neutral Shift into neutral.
side stand down (when
transmission not in neutral)
Put the transmission in neutral or raise the side
stand and pullthe clutch lever in.
blown fuse Replace with a new fuse of the same rating
(page ).
battery lead loose Tighten the battery lead.
low (or dead) battery Charge the battery (page ). If charging doesn’t
help, see yourHonda dealer.
faulty starter motor If all possible causes are negative, the starter
motor may be faulty. See your Honda dealer.
213
172
Starter motor doesn’t operate.
192
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０７／０６ １８：４８：４４ ３１ＭＦＬ６２０ ０２０１
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
weak battery Charge the battery (page ). If charging doesn’t
help, see yourHonda dealer.
loose battery cables Tighten the battery terminal bolts.
loose or unconnected
ignition coil connectors and
ignition coils
See your Honda dealer.
flooded engine See (page ).
out of fuel
engine stop switch OFF
Fill the fueltank.
Turn the engine stop switch to RUN.
70
172
Starter motor works, but the engine won’t start.
Flooded Engine
193
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０７／０６ １８：４８：５５ ３１ＭＦＬ６２０ ０２０２
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
Raise the side stand. Start again.
SYMPTOM:
idles roughly, too fast, stalls
POSSIBLE CAUSE WHAT TO DO
side stand down
overheating Check the coolant temperature meter. Refer to
page .
Check the low oil pressure indicator. Refer to
page .
low oil pressure
runs erratically, misfires May damage catalytic converter.
See your Honda dealer.
blubbers (rich fuel mixture) See your Honda dealer.
See your Honda dealer.
210
212
Engine starts, but stalls as you shift into gear.
Engine starts, but runs poorly.
If
Your Engine Overheats,
If
the Low Oil Pressure Indicator Lights,
194
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０７／０６ １８：４９：０８ ３１ＭＦＬ６２０ ０２０３
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
detonates or pings under
load
afterfires (backfires)
See your Honda dealer.
If applicable, switch to the recommended octane
gasoline (page ) or change your brand of
gasoline. If the problem persists, see your Honda
dealer.
sooty exhaust
(rich fuel mixture)
pre-ignition (runs on after
ignition switched OFF)
See your Honda dealer.
May damage catalytic converter.
See your Honda dealer.
May damage catalytic converter.
112
Engine starts, but runs poorly (cont’d).
195
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０７／０６ １８：４９：１８ ３１ＭＦＬ６２０ ０２０４
196
If You Have a Flat Tire
Taking Care of the Unexpected
A flat tire is always unwelcome,
especially if you are far from help. If you
think you are losing air, or you hit a
pothole or hard object, pull safely to the
side of the road so you can inspect the
tires and assess the situation. (Be sure to
park on a firm, level surface and use the
side stand for support.) You should
examine the tire treads and sidewalls for
foreign objects or damage. If you find a
tire that has been punctured or damaged,
you have two options.
Option 1:
Have Your Motorcycle Transported
If a tire has a major puncture or a cut in
the tread or sidewall, or the bead has come
loose from the rim, there is probably not
much you can do except have your
motorcycle transported to a Honda dealer
or other qualified service facility. Even
with a simple puncture, this may be the
safest and least troublesome solution. For
transporting instructions, see page .
Option 2:
Make a Temporary Roadside Repair
If a tire has only a minor nail puncture and
is not completely flat, you may be able to
make an emergency repair that could
allow you to continue riding to where you
can get the tire replaced or permanently
repaired.
187
０９／０７／０６ １８：４９：２４ ３１ＭＦＬ６２０ ０２０５
Riding your motorcycle with a
temporary tire repair can be risky.
If the temporary repair fails, you
can crash and be seriously injured
or killed.
If you must ride with a temporary
tire repair, ride slowly and
carefully and do not exceed 30
mph(50km/h)untilthetireis
permanently repaired or replaced.
197
Types of Temporary Repairs
If You Have a Flat Tire
Taking Care of the Unexpected
Due to the uncertainty of any temporary
repair, you should ride slowly (not over
30 mph, 50 km/h) and carefully
(preferably without a passenger or cargo)
until the tire is replaced or permanently
repaired. Stop frequently and check the air
pressure. If the tire is losing pressure, it
may be unsafe to continue riding. As the
tire gets low, it will affect the handling of
your motorcycle (especially with a
passenger and cargo), and it may overheat
and blow out.
The following types of temporary repairs
generally require a source of air to inflate
the tire. Possible sources include CO
cartridges or cans of compressed air
designed to inflate a tire.
2
０９／０７／０６ １８：４９：２９ ３１ＭＦＬ６２０ ０２０６
198
Should You Repair or Replace a
Tire?
If You Have a Flat Tire
Taking Care of the Unexpected
Inflate the tire:
Plug the hole:
Tubeless tires have
some self-sealing ability if they are
punctured and the result is usually just a
slow leak. If this is the case, you can try
inflating the tire to see if it will hold air
pressure. If you can see a nail or other
object embedded in the tire tread, do not
remove it at this time.
Theideahereistodo
something to temporarily stop the leak.
If you have a tubeless tire repair kit,
you can pull out the nail and try
insertinganexternalpluginthe
puncture. Follow the instructions that
came with the repair kit and be sure to
inflate the tire to the correct pressure.
We strongly recommend that you replace,
not permanently repair, any tire that is
punctured or damaged, even if the tire has
only a minor puncture. For a full
discussion of repairs and replacement, see
page .154
０９／０７／０６ １８：４９：３５ ３１ＭＦＬ６２０ ０２０７
RIGHT SIDE
(3) fixing bolts
(4) brake caliper assembly
(2)
(3)
(4) (1)
(1) wheel speed sensor
(CBR1000RR ABS only)
(2) bolts (CBR1000RR ABS only)
199
Emergency Front Wheel
Removal/Installation
If You Have a Flat Tire
Taking Care of the Unexpected
Safety PrecautionsRefer to on page .
We recommend wheel removal be done
only by your Honda dealer or another
qualified mechanic. Do not attempt to
remove the wheel on your own. Wheel
removal requires mechanical skill and
professional tools.
(cont’d)
When removing and installing the wheel,
be careful not to damage the wheel speed
sensor and pulser ring.
Park your motorcycle on a firm, level
surface.
Removal
1.
92
(CBR1000RR ABS only)
０９／０７／０６ １８：４９：４３ ３１ＭＦＬ６２０ ０２０８
RIGHT FRONT
(6)
(5)
(5) axle pinch bolts
(6) front axle bolt
200
If You Have a Flat Tire
Taking Care of the Unexpected
Loosen the right and left axle pinch
bolts ( ) and remove the front axle bolt
().
Support the motorcycle securely and
raise the front wheel off the ground
using a safety stand or a hoist.
Avoid getting grease, oil, or dirt on
the disc or pad surfaces. Any
contamination can cause poor brake
performance or rapid pad wear after
reassembly.
To avoid damage to the brake hose
during removal, support the caliper
assembly so that it doesn’t hang from
the hose. Do not twist the brake hose.
Remove the fixing bolts ( ) and
remove the right and left caliper
assemblies ( ) from the fork legs.
Remove the wheel speed sensor ( ) by
removing the bolts ( ).
2.
4
3.
4.
5.
5
6
3
1
2
(CBR1000RR ABS only)
０９／０７／０６ １８：４９：５１ ３１ＭＦＬ６２０ ０２０９
LEFT FRONT
(5) axle pinch bolts
(7) front axle shaft
(5) (7)
201
If You Have a Flat Tire
Taking Care of the Unexpected
Avoid pressing the brake lever when
the wheel is off the motorcycle. This
will force the caliper pistons out of
the cylinders. The result will be loss
of brake fluid. If this occurs, the
brake system will require service. See
your Honda dealer for this service.
Remove the front axle shaft ( ), wheel
and side collars.
6. 7
０９／０７／０６ １８：４９：５６ ３１ＭＦＬ６２０ ０２１０
16 lbf·ft (22 N·m , 2.2 kgf·m)
58 lbf·ft (79 N·m , 8.0 kgf·m)
33 lbf·ft (45 N·m , 4.6 kgf·m)
LEFT FRONT
(10)
(9)
(8)
(8) end of axle shaft
(9) surface of fork leg
(10) front fork
spacers
202
If You Have a Flat Tire
Taking Care of the Unexpected
Tighten the axle pinch bolts on the left
fork leg to the specified torque:
Tighten the front axle bolt to the
specified torque:
Make sure that the front fork spacers
( ) are installed into the caliper bracket
properly.
Install the right and left brake calipers
onto the fork legs.
To avoid damaging the brake pads,
carefully fit the brake disc ( ) between
the pads.
Install the caliper fixing bolts and
tighten to the specified torque:
Install the side collars and position the
wheel between the fork legs. Insert the
front axle shaft from the left side,
through the left fork leg and wheel hub.
Installation
Align the end of axle shaft ( ) with the
surface of fork leg ( ).
4.
2.
3.
5.
6.
7.
1.
8
9
10
11
０９／０７／０６ １８：５０：０６ ３１ＭＦＬ６２０ ０２１１
(12) (12)
(11)
(11) brake disc (12) brake caliper body
203
If You Have a Flat Tire
Taking Care of the Unexpected
Visually check that the clearances
between each surface of the brake disc
and the brake caliper body (not the
brake pads) are symmetrical.
If the clearances are not symmetrical,
loosen the left axle pinch bolts and pull
the left fork outward or push inward to
adjust the clearance. Then follow the
next step.
If the clearances between each surface
of the brake disc and the brake caliper
body ( ) (not the brake pads) are
symmetrical, follow next step.
Operate the front brake and pump the
fork several times. Check for free
wheel rotation after the brake is
released. Recheck the wheel if the brake
drags or the wheel does not rotate freely.
(cont’d)
9.
8.
12
０９／０７／０６ １８：５０：１３ ３１ＭＦＬ６２０ ０２１２
16 lbf·ft (22 N·m , 2.2 kgf·m)
204
If You Have a Flat Tire
Taking Care of the Unexpected
If a torque wrench was not used for
installation, see your Honda dealer as soon
as possible to verify proper assembly.
Improper assembly may lead to loss of
braking capability.
Tighten the axle pinch bolts on the
right fork leg to the specified torque:
Install the wheel speed sensor and
tighten the bolts, then check the
clearance between the wheel speed
sensor and the pulser ring.
10.
11. (CBR1000RR ABS only)
０９／０７／０６ １８：５０：１９ ３１ＭＦＬ６２０ ０２１３
RIGHT REAR
(1)
(3)
(2)
(7)
(1) rear axle nut
(2) drive chain lock nut
(3) drive chain adjusting bolt
(7) right chain adjustment plate
205
Emergency Rear Wheel
Removal/Installation
If You Have a Flat Tire
Taking Care of the Unexpected
Safety PrecautionsRefer to on page .
We recommend wheel removal be done
only by your Honda dealer or another
qualified mechanic. Do not attempt to
remove the wheel on your own. Wheel
removal requires mechanical skill and
professional tools.
(cont’d)
Removal
Park your motorcycle on a firm, level
surface.
When removing and installing the wheel,
be careful not to damage the wheel speed
sensor and pulser ring.
1.
92
(CBR1000RR ABS only)
０９／０７／０６ １８：５０：２７ ３１ＭＦＬ６２０ ０２１４
LEFT REAR
(2)
(3)
(5)
(6)
(4)
(4) drive chain
(5) rear axle shaft
(6) left chain adjustment plate
206
If You Have a Flat Tire
Taking Care of the Unexpected
Remove the drive chain ( ) from the
rear wheel sprocket by pushing the rear
wheel forward.
Support the motorcycle securely, raise
the rear wheel off the ground.
Loosen the rear axle nut ( ).
Loosen the drive chain lock nuts ( )
and turn the drive chain adjusting bolts
( ) so the rear wheel can be moved all
the way forward for maximum drive
chain slack.
Remove the rear axle nut and washer.
6.2.
3.
5.
4.
3
2
1
4
０９／０７／０６ １８：５０：３５ ３１ＭＦＬ６２０ ０２１５
207
If You Have a Flat Tire
Taking Care of the Unexpected
(cont’d)
Installation
Install the side collars and position the
wheel and rear brake bracket.
While installing the wheel, carefully
fit the brake disc between the brake
pads to avoid damaging the pads.
Avoid getting grease, oil, or dirt on
the disc or pad surfaces. Any
contamination can cause poor brake
performance or rapid pad wear after
reassembly.
Remove the rear axle shaft ( ), rear
wheel, left chain adjustment plate ( ),
right chain adjustment plate ( ), rear
brake bracket and side collars from the
swingarm.
To avoid damage to the brake hose
during removal, support the caliper
assembly so that it doesn’t hang from
the hose. Do not twist the brake hose.
Avoid depressing the brake pedal
when the wheel is off the motorcycle.
This will force the caliper pistons out
of the cylinders. The result will be a
loss of brake fluid. If this occurs, the
brake system will require service.
See your Honda dealer for this
service.
1.
7. 5
7
6
０９／０７／０６ １８：５０：４３ ３１ＭＦＬ６２０ ０２１６
83 lbf·ft (113 N·m , 11.5 kgf·m)
(8)
(9)
(10)
(10) swingarm(8) lug
(9) slot
208
If You Have a Flat Tire
Taking Care of the Unexpected
Insert the rear axle shaft from the left
side, through the left swingarm, wheel
hub and rear brake bracket.
Install the drive chain by pushing the
rear wheel forward.
Install the rear axle nut and tighten the
drive chain adjusting bolts.
Refer to drive chain adjustment
(page ).
Tighten the rear axle nut to the
specified torque:
Failure to provide adequate disc-to-rear
brake bracket clearance may damage
the brake discs and impair braking
efficiency.
Make sure that the lug ( ) on the rear
brake bracket is positioned in the slot
( ) on the swingarm ( ).
4.
3.
5.
6.
2. 8
163
910
０９／０７／０６ １８：５０：５２ ３１ＭＦＬ６２０ ０２１７
209
If You Have a Flat Tire
Taking Care of the Unexpected
After installing the wheel, apply the
brakes several times, then recheck both
discs for caliper holder to disc clearance.
Do not operate the motorcycle without
adequate clearance.
If a torque wrench was not used for
installation, see your Honda dealer as soon
as possible to verify proper assembly.
Improper assembly may lead to loss of
braking capability.
7.
０９／０７／０６ １８：５０：５６ ３１ＭＦＬ６２０ ０２１８
210
If Your Engine Overheats
Taking Care of the Unexpected
Continuing to ride with an overheated
engine can cause serious engine damage.
A steaming engine indicates a coolant
leak. Shut the engine off and wait until
the steaming stops. Look for a leak, but
don’t touch the engine or radiator
system. Let everything cool off first.
Normally, the coolant temperature on your
temperature meter will rise and then level
off. Hot weather may cause the
temperature to rise higher than normal. So
will temporary stress such as climbing a
hill. If you’re stuck in stop-and-go traffic,
the temperature may climb some, but the
radiator fan is designed to prevent
overheating. Be aware of these variations
as you monitor the meter.
If there’s no obvious problem, leave the
engine on so the fan and coolant
circulating system can continue
working. Monitor the temperature meter.
The temperature may drop to the
normal range after a brief stop with no
load on the engine.
If the coolant temperature display begins
to flash, and the high coolant temperature
indicator/warning indicator go on for no
apparent reason, pull safely to the side of
the road. If possible, park in a shady area.
０９／０７／０６ １８：５１：０２ ３１ＭＦＬ６２０ ０２１９
211
If Your Engine Overheats
Taking Care of the Unexpected
The operation temperature of each
cooling fan is different. Therefore, it is
normal when only one of the fans operate.
Check the radiator fans.
If either or both are not working, turn
the engine off. Open the fuse box
(page ) and check the radiator fan
fuses. If the fuse is blown, replace it
with the proper (same rating) spare fuse.
Start the engine. If the warning
indicator and the high coolant
temperature indicator go on, turn the
engine off.
If the radiator fans are working,
visually check the coolant level in the
reserve tank, located behind the rear
brake fluid reservoir. It isn’t necessary
to touch the radiator system.
If there’s a mild leak, you can ride for
awhile, carefully watching the meter. Be
prepared to stop and add more coolant or
water. If the leak is bad, transport your
motorcycle to a Honda dealer (page ).
If you are able to resume riding, continue
to monitor the meter frequently.
If the reserve tank is low or empty, don’t
ride without adding coolant (page ).
After adding coolant, turn the engine on
and check the temperature meter.
If the temperature doesn’t drop, do not
ride. The engine needs repair. Transport
your motorcycle to a Honda dealer
(page ).
If the temperature drops to normal,
check the coolant level. If it has gone
down, add more coolant.
126
187
187
216
０９／０７／０６ １８：５１：０８ ３１ＭＦＬ６２０ ０２２０
212
If the Low Oil Pressure Indicator Lights
Taking Care of the Unexpected
Continuing to ride with low oil pressure
can cause serious engine damage.
Check for an oil leak.
Then check the oil level. If necessary,
add the recommended oil (page ) to
the upper level mark. If you must leave
your motorcycle to get oil, secure it as
much as possible.
If you check your engine oil level
regularly, you should never see the low oil
pressure indicator and the warning
indicator go on while riding. Normally,
both will only light momentarily when you
turn the ignition switch ON. Occasionally,
it may flicker at or near idling speed.
Lowoilpressuremaybecausedbyanoil
leak, a low oil level, or some problem in
the engine’s lubrication system.
If the warning indicator and the low oil
pressure indicator light while you’re riding,
don’t ignore them. Pull safely to the side
of the road. If possible, pull in the clutch
lever and coast to a stop. Stop the engine
as soon as it’s safe to do so.
After adding oil, start the engine, and
check that the low oil pressure indicator
and warning indicator go off. Check for
a possible leak.
If the indicators go off and there is no
leak –– resume riding. If there is a leak
–– do not ride the motorcycle until the
leak is repaired by a Honda dealer.
116
０９／０７／０６ １８：５１：１５ ３１ＭＦＬ６２０ ０２２１
30A
20A
10A, 20A
30A
other fuses
FI fuse
main fuse
ABS motor fuses
(CBR1000RR ABS)
213
If a Fuse Blows
Taking Care of the Unexpected
All of the electrical circuits on your
motorcycle have fuses to protect them
from damage caused by excess current
flow (short circuit or overload).
If something electrical on your motorcycle
stops working, the first thing you should
check for is a blown fuse.
Determine from the chart on the circuit
fuse box cover which fuse or fuses control
that component. Check those fuses first,
but check all the fuses before looking
elsewhere for another possible cause of
the problem. Replace any blown fuses and
check component operation.
Recommended Fuses
ThemainfuseandtheFIfuseare
located on the starter motor magnetic
switch ( ) under the front seat.
The circuit fuse box is located under the
front seat.
The spare fuses are located in the fuse
box.
Remove the front seat (page ).
To prevent an accidental short circuit,
turn the ignition switch OFF before
checking or replacing the fuses.
1.
2. 109
2
０９／０７／０６ １８：５１：２６ ３１ＭＦＬ６２０ ０２２２
(3)
UNDER FRONT SEAT
(1)
(1) tabs
(2) starter motor magnetic switch
(3) main fuse
(4) FI fuse
(2)
(4)
(CBR1000RR)
(5)
(4) (3)
(5) main and FI fuse box cover
(CBR1000RR ABS)
214
If a Fuse Blows
Taking Care of the Unexpected
０９／０７／０６ １８：５１：３１ ３１ＭＦＬ６２０ ０２２３
MAIN FUSE,
FI FUSE
(6)
(6) blown fuse
215
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse and FI Fuse Access:
(cont’d)
Install the starter motor magnetic switch
cover.
The spare fuses are located in the fuse
box (page ).
To check or replace the main fuse ( )
and FI fuse ( ), pull out the old fuse.
Look for a burned wire inside the fuse.
If the fuse is blown ( ), replace it with
a spare fuse ( ) of the same rating.
Release the tabs ( ), then remove the
starter motor magnetic switch cover ( ).
Open the main and FI fuse box cover
().
To check or replace the main fuse ( )
and FI fuse ( ), pull out the old fuse.
Look for a burned wire inside the fuse.
If the fuse is blown ( ), replace it with
a spare fuse ( ) of the same rating.
The spare fuses are located in the fuse
box (page ).
Close the main and FI fuse box cover.
3.
4.
5.
(CBR1000RR)
217
6
7
4
2
3
1
3.
4.
5.
6
7
4
217
3
5
(CBR1000RR ABS)
０９／０７／０６ １８：５１：４３ ３１ＭＦＬ６２０ ０２２４
216
If a Fuse Blows
Taking Care of the Unexpected
Circuit Fuse Access:
Replacing a fuse with one that has a
higher rating greatly increases the chance
of damage to the electrical system.
Release the tabs ( ), then remove the
fuse box cover ( ).
Release the tabs by pushing the front
tab backward, then remove the fuse box
cover.
To check or replace a circuit fuse, pull
the old fuse out of its retaining clips.
Look for a burned wire inside the fuse.
If the fuse is blown ( ), replace it with
a spare fuse ( ) of the same rating.
If you do not have a replacement fuse with
the proper rating for the circuit, install one
with a lower rating.
6.
7.
(CBR1000RR)
8
9
10
7
(CBR1000RR ABS)
０９／０７／０６ １８：５１：５０ ３１ＭＦＬ６２０ ０２２５
UNDER FRONT SEAT
(CBR1000RR)
(7) spare fuses
(8) tabs
(9) fuse box cover
(8)
(9)
(7)
(8)
(7)
(9)
(8)
(CBR1000RR ABS)
217
If a Fuse Blows
Taking Care of the Unexpected
(cont’d)
０９／０７／０６ １８：５１：５５ ３１ＭＦＬ６２０ ０２２６
CIRCUIT FUSE
(10) blown fuse
(10)
218
If a Fuse Blows
Taking Care of the Unexpected
If you do not have a spare fuse and you
cannot ride the motorcycle without fixing
theproblem,takeafuseofthesamerating
or a lower rating from one of the other
circuits that you can do without
temporarily.
If you replace a blown fuse with a spare
fuse that has a lower rating, replace the
fuse with the correct rating as soon as you
can. Also remember to replace any spare
fuses that were installed.
If the replacement fuse of the same rating
burns out in a short time, there is probably
a serious electrical problem on your
motorcycle. Leave the blown fuse in that
circuit and have your motorcycle checked
by your Honda dealer.
Install the front seat.
Install the fuse box cover.8.
9.
０９／０７／０６ １８：５２：０３ ３１ＭＦＬ６２０ ０２２７
(11) ABS motor fuses
(11)
219
If a Fuse Blows
Taking Care of the Unexpected
ABS motor fuses:
The ABS motor fuses ( ) are located on
the starter magnetic switch.
To replace these fuses, the fuel tank must
be removed.
The ABS motor fuses should be inspected
by a Honda dealer, unless the owner has
proper tools and service data and is
mechanically qualified. Refer to an
official Honda Service Manual.
11
(CBR1000RR ABS only)
０９／０７／０６ １８：５２：０８ ３１ＭＦＬ６２０ ０２２８
220
If You Crash
Taking Care of the Unexpected
Transporting Your Motorcycle,
Personal safety is your first priority after a
crash. If you or anyone else has been
injured, take time to assess the severity of
the injuries and whether it is safe to
continue riding. Call for emergency
assistance if needed. Also follow
applicable laws and regulations if another
person or vehicle is involved in the crash.
If there is minor damage, or you are
unsure about possible damage, ride slowly
and cautiously. Sometimes, crash damage
is hidden or not immediately apparent, so
you should have your motorcycle
thoroughly checked at a qualified service
facility as soon as possible. Also, be sure
to have your Honda dealer check the
frame and suspension after any serious
crash.
If your motorcycle cannot be ridden, see
page .
If you decide that you are capable of
riding safely, first evaluate the condition
of your motorcycle. If the engine is still
running, turn it off and look it over
carefully; inspect it for fluid leaks, check
the tightness of critical nuts and bolts, and
secure such parts as the handlebar, control
levers, brakes, and wheels.
187
０９／０７／０６ １８：５２：１４ ３１ＭＦＬ６２０ ０２２９
(1) key number plate
(1)
221
If You Lose Your Key
Taking Care of the Unexpected
If you lose your key and aren’t carrying a
duplicate, either get your spare or have
one made. If you don’t know your key
number, call the dealer where you
purchased your Honda. They may have it
listed in their records. If they don’t,
transport your motorcycle to them or the
nearest Honda dealer. The dealer will
probably have to remove the ignition
switch assembly to find the key number so
they can make a key for you.
A lost key won’t be a problem if you take
preventative action. Store one duplicate
key in a safe place at home and carry a
second duplicate in your wallet.
Be sure to record your key number in the
Quick Reference section at the rear of the
manual. You’ll need this number to have a
duplicate key made.
You should receive a key number plate
( ) with your keys. Store this plate in a
safe place.
1
０９／０７／０６ １８：５２：１９ ３１ＭＦＬ６２０ ０２３０
222
If Your Battery Is Low (or Dead)
Taking Care of the Unexpected
Jump starting is not recommended,
especially if you use an automobile battery.
The greater amperage of an automobile
battery when the car engine is running can
damage your motorcycle’s electrical
system.
Bump starting is also not recommended.
If you can’t charge the battery or it
appears unable to hold a charge, contact
your Honda dealer.
０９／０７／０６ １８：５２：２３ ３１ＭＦＬ６２０ ０２３１
223
Technical Information
Technical Information
This section contains dimensions,
capacities, and other technical data, plus
information on government requirements
and how to break-in your motorcycle.
.........................Vehicle Identification .
.....................................Specifications .
...........................Break-in Guidelines .
.................Emission Control Systems .
............................Catalytic Converter .
...............................Oxygenated Fuels .
224
227
234
235
242
243
０９／０７／０６ １８：５２：３０ ３１ＭＦＬ６２０ ０２３２
(1) VIN
(1)
LEFT SIDE
224
Serial Numbers
Vehicle Identification
Technical Information
The VIN and engine serial number are
required when you register your
motorcycle. They may also be required
when ordering replacement parts. You
may record these numbers in the Quick
Reference section at the rear of this
manual.
The VIN (vehicle identification number)
is stamped on the right side of the steering
head and also appears on the Safety
Certification Label attached to the left
side of the frame.
０９／０７／０６ １８：５２：３６ ３１ＭＦＬ６２０ ０２３３
RIGHT SIDE
(3) engine number
(2)
(3)
LEFT SIDE
(2) VIN
225
Vehicle Identification
Technical Information
The engine number ( ) is stamped on the
front of the crankcase.
3
０９／０７／０６ １８：５２：４１ ３１ＭＦＬ６２０ ０２３４
(1) color label
(1)
UNDER REAR SEAT
226
Color Label & Code
Vehicle Identification
Technical Information
The color label ( ) is attached on the rear
fender under the rear seat. Remove the
rear seat (page ) to check the label.
The color code is helpful when ordering
replacement parts. You may record the
color and code in the Quick Reference
section at the rear of this manual.
1
110
０９／０７／０６ １８：５２：４７ ３１ＭＦＬ６２０ ０２３５
81.7 in (2,075 mm)
27.0 in (685 mm)
44.5 in (1,130 mm)
55.5 in (1,410 mm)
5.1 in (130 mm)
overall length
overall width
overall height
wheelbase
ground clearance
Dimensions
227
Specifications
Technical Information
０９／０７／０６ １８：５２：５５ ３１ＭＦＬ６２０ ０２３６
3.2 US qt (3.0 )
3.0 US qt (2.8
)
3.9 US qt (3.7
)
4.68 US gal (17.7
)
Pro Honda HP Chain Lube or an equivalent chain
lubricant designed specifically for use on O-ring chains
3.2 US qt (3.0
)
premium unleaded gasoline, pump octane number of 91
or higher
API Service Classification SG or higher except oils
labeled as energy conserving on the circular API service
label, SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-
stroke oil (Canada only), or an equivalent motorcycle oil
after disassembly:
after draining:
after draining & oil filter change:
engine oil capacity
engine oil
recommendation
fuel tank capacity
fuel
recommendation
drive chain lubricant
cooling system,
capacity
cooling system,
recommendation
Pro Honda HP Coolant or an equivalent high quality
ethylene glycol antifreeze containing corrosion protection
inhibitors specifically recommended for use in aluminum
engines
Fuel & Lubricants
228
Specifications
Technical Information
０９／０７／０６ １８：５３：０５ ３１ＭＦＬ６２０ ０２３７
××
±
operator, one passenger
61.0 cu-in (1,000 cm
)
2.99 2.17 in (76.0 55.1 mm)
12.3 : 1
IMR9E-9HES (NGK)
0.006 in (0.16 mm)
0.012 in (0.30 mm)
1,200 100 rpm
366 lb (166 kg)
rider, passenger, all cargo and accessories
VUH27ES (DENSO)
passenger
capacity
maximum weight
capacity
displacement
bore & stroke
compression ratio
spark plug
(standard)
valve clearance
(cold)
idle speed
intake
exhaust
Capacities
Engine Specifications
229
Specifications
Technical Information
０９／０７／０６ １８：５３：１８ ３１ＭＦＬ６２０ ０２３８
1.717
2.285
1.777
1.500
1.333
1.214
1.137
2.625
16 teeth
42 teeth
DID 50VA11 RK 50HFOZ6
chain
drive (engine) sprocket:
driven (rear wheel) sprocket:
or
primary reduction
gear ratio, 1st
2nd
3rd
4th
5th
6th
final reduction
standard
sprocket sizes
final drive
Power Transmission
230
Specifications
Technical Information
０９／０７／０６ １８：５３：３１ ３１ＭＦＬ６２０ ０２３９
23°
3.8 in (96 mm)
120/70ZR17M/C (58W)
42 psi (290 kPa , 2.90 kgf/cm
)
36 psi (250 kPa , 2.50 kgf/cm
)
190/50ZR17M/C (73W)
BRIDGESTONE
BT015F RADIAL F
BRIDGESTONE
BT015R RADIAL F
DUNLOP
Qualifier PTK
DUNLOP
Qualifier NK
radial, tubeless
caster
trail
tire size, front
tire pressure, rear
(cold)
tire pressure, front
(cold)
tire type
tire size, rear
Chassis & Suspension
231
Specifications
Technical Information
０９／０７／０６ １８：５３：４３ ３１ＭＦＬ６２０ ０２４０
10A, 20A
30A
LED
12V-5W
12V-21W
12V-21W
LED
12V-55W
12V-6 Ah
12V-8.6 Ah
0.37 kW/5,000 rpm
0.420 kW/5,000 rpm
20A
30A
(2 bulbs)
(front)
(rear)
(CBR1000RR)
(CBR1000RR ABS)
(CBR1000RR ABS)
(CBR1000RR)
(CBR1000RR ABS)
battery
ABS motor fuses
other fuses
FI
main
running light
license light
turn signal lights
brake/tail light
headlight
generator
Electrical
Fuses
Lights
232
Specifications
Technical Information
０９／０７／０６ １８：５４：００ ３１ＭＦＬ６２０ ０２４１
22 lbf·ft (30 N·m , 3.0 kgf·m)
19 lbf·ft (26 N·m , 2.7 kgf·m)
58 lbf·ft (79 N·m , 8.0 kgf·m)
33 lbf·ft (45 N·m , 4.6 kgf·m)
16 lbf·ft (22 N·m , 2.2 kgf·m)
83 lbf·ft (113 N·m , 11.5 kgf·m)
engine oil filter
front wheel axle
bolt
front wheel caliper
fixing bolts
front wheel axle
pinch bolts
rear wheel axle nut
engine oil drain bolt
Torque Specifications
233
Specifications
Technical Information
０９／０７／０６ １８：５４：０９ ３１ＭＦＬ６２０ ０２４２
234
Break-in Guidelines
Technical Information
Help assure your motorcycle’s future
reliability and performance by paying
extra attention to how you ride during the
first 300 miles (500 km).
During this period, avoid full-throttle
starts and rapid acceleration.
０９／０７／０６ １８：５４：１２ ３１ＭＦＬ６２０ ０２４３
(2)
(1)
(2) vehicle emission control information
label (Canada only)
(1) vehicle emission control information
label
UNDER REAR SEAT
235
Exhaust Emission Requirements
Emission Control Systems
Technical Information
The U.S. Environmental Protection
Agency (EPA), the California Air
Resources Board (CARB), and
Environment Canada (EC) require that
your motorcycle comply with applicable
exhaust emissions standards during its
useful life, when operated and maintained
according to the instructions provided.
The Vehicle Emission Control
Information label ( ) ( ) is attached on
the rear fender under the rear seat.
12
０９／０７／０６ １８：５４：１８ ３１ＭＦＬ６２０ ０２４４
236
Emission Control Systems
Technical Information
Warranty Compliance
Source of Exhaust EmissionsNoise Emission Requirements
Compliance with the terms of the
Distributor’s Warranties for Honda
Motorcycle Emission Control Systems is
necessary in order to keep the emissions
system warranty in effect. (USA only)
The combustion process produces carbon
monoxide (CO), oxides of nitrogen (NOx)
and hydrocarbons (HC). Control of
hydrocarbons and oxides of nitrogen is
very important because, under certain
conditions, they react to form
photochemical smog when subjected to
sunlight. Carbon monoxide does not react
in the same way, but it is toxic.
Honda Motor Co., Ltd. utilizes various
systems to reduce carbon monoxide,
oxides of nitrogen and hydrocarbons.
The EPA also requires that motorcycles
built after January 1, 1983 comply with
applicable noise emission standards for
one year or 3,730 miles (6,000 km) after
the time of sale to the ultimate purchaser,
when operated and maintained according
to the instructions provided.
０９／０７／０６ １８：５４：２３ ３１ＭＦＬ６２０ ０２４５
237
Emission Control Systems
Technical Information
Ignition Timing Control System
PGM-FI System
Exhaust Emission Control System
The system constantly adjusts the ignition
timing, reducing the amount of HC, CO
and NOx produced.
The PGM-FI system uses dual sequential
fuel injection. It has four subsystems: Air
Intake, Engine Control, Fuel Control, and
Exhaust Control.
The Engine Control Module (ECM) uses
various sensors to determine how much air
is going into the engine. It then controls
how much fuel to inject under all
operating conditions.
The exhaust emission control system
includes an oxidation catalyst, a secondary
air supply system, and a PGM-FI system.
No adjustment to these systems should be
made although periodic inspection of all
components is recommended.
０９／０７／０６ １８：５４：２７ ３１ＭＦＬ６２０ ０２４６
238
Secondary Air Injection System
Evaporative Emission Control System
(California only)
Emission Control Systems
Technical Information
Oxidation Catalytic Converter
The secondary air injection system
introduces filtered air into the exhaust
gases in the exhaust port. The secondary
air injection system helps improve
emission control performance.
This motorcycle complies with the
requirements of the California Air
Resources Board (CARB) evaporative
emission regulations. Fuel vapor from the
fuel tank is directed into the charcoal
canister and air cleaner where it is
absorbed and stored while the engine is
stopped. When the engine is running and
the purge control solenoid valve is open,
fuel vapor in the charcoal canister and air
cleaner is drawn into the engine through
the throttle body.
The oxidation catalytic converter is in the
exhaust system. Through chemical
reactions, they convert HC and CO in the
engine’s exhaust to carbon dioxide (CO )
and water vapor.
2
０９／０７／０６ １８：５４：３２ ３１ＭＦＬ６２０ ０２４７
239
Problems That May Affect Motorcycle
Exhaust Emissions
Crankcase Emission Control System
Emission Control Systems
Technical Information
If you are aware of any of the following
symptoms, have the vehicle inspected and
repaired by your authorized Honda
motorcycle dealer.
Symptoms:
Hard starting or stalling after starting
Rough idle
Misfiring or backfiring during
acceleration
After-burning (backfiring)
Poor performance (driveability) and
poor fuel economy
The engine is equipped with a closed
crankcase system to prevent discharging
crankcase emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the air cleaner and the
intake manifold.
1.
2.
3.
4.
5.
０９／０７／０６ １８：５４：３７ ３１ＭＦＬ６２０ ０２４８
240
Noise Emission Control System
Emission Control Systems
Technical Information
Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust
gases.
Removal of, or puncturing of any part
of the intake system.
Lack of proper maintenance.
Replacing any moving parts of the
vehicle, or parts of the exhaust or intake
system, with parts other than those
specified by the manufacturer.
AMONG THOSE ACTS PRESUMED
TO CONSTITUTE TAMPERING ARE
THE FOLLOWING ACTS:
TAMPERING WITH THE NOISE
CONTROL SYSTEM IS PROHIBITED:
U. S. federal law prohibits, or Canadian
provincial laws may prohibit the following
acts or the causing thereof: ( ) The
removal or rendering inoperative by any
person, other than for purposes of
maintenance, repair or replacement, of any
device or element of design incorporated
into any new vehicle for the purpose of
noise control prior to its sale or delivery to
the ultimate purchaser or while it is in use;
or ( ) the use of the vehicle after such
device or element of design has been
removed or rendered inoperative by any
person.
1.
2.
3.
4.
1
2
０９／０７／０６ １８：５４：４２ ３１ＭＦＬ６２０ ０２４９
241
Emission Control Systems
Fuel Permeation Emission Control
System
Technical Information
This vehicle complies with the Fuel
Permeation Emission Control regulations
of the U.S. Environmental Protection
Agency (EPA), the California Air
Resources Board (CARB), and
Environment Canada (EC). The fuel tank,
fuel hoses, and fuel vapor charge hoses
used on this vehicle incorporate fuel
permeation control technologies.
Tampering with the fuel tank, fuel hoses,
or fuel vapor charge hoses to reduce or
defeat the effectiveness of the fuel
permeation technologies is prohibited by
federal regulations.
０９／０７／０６ １８：５４：４６ ３１ＭＦＬ６２０ ０２５０
242
Technical Information
Catalytic Converter
This motorcycle is equipped with an
oxidation catalytic converter.
The catalytic converter contains precious
metals that serve as catalysts, promoting
chemical reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter acts on HC and
CO. A replacement unit must be an
original Honda part or its equivalent.
The catalytic converter must operate at a
high temperature for the chemical
reactions to take place. It can set fire to
any combustible materials that come near
it. Park your motorcycle away from high
grasses, dry leaves, or other flammables.
A defective catalytic converter contributes
to air pollution, and can impair your
engine’s performance. Follow these
guidelines to protect your motorcycle’s
catalytic converter.
Always use unleaded gasoline. Even a
small amount of leaded gasoline can
contaminate the catalyst metals, making
the catalytic converter ineffective.
Keep the engine in good running
condition. A poorly running engine can
cause the catalytic converter to overheat
causing damage to the converter or the
motorcycle.
If your engine is misfiring, backfiring,
stalling, or otherwise not running
properly, stop riding and turn off the
engine. Have your motorcycle serviced
as soon as possible.
０９／０７／０６ １８：５４：５０ ３１ＭＦＬ６２０ ０２５１
243
Oxygenated Fuels
Technical Information
Some conventional gasolines are being
blended with alcohol or an ether
compound. These gasolines are
collectively referred to as oxygenated
fuels. To meet clean air standards, some
areas of the United States and Canada use
oxygenated fuels to help reduce emissions.
If you use an oxygenated fuel, be sure it is
unleaded and meets the minimum octane
rating requirement.
Before using an oxygenated fuel, try to
confirm the fuel’s contents. Some states/
provinces require this information to be
posted on the pump.
The following are the EPA-approved
percentages of oxygenates:
ETHANOL (ethyl or grain alcohol) 10%
by Volume
You may use gasoline containing up to
10% ethanol by volume. Gasoline
containing ethanol may be marketed
under the name ‘‘Gasohol’’.
MTBE (Methyl Tertiary Butyl Ether) 15%
by Volume
You may use gasoline containing up to
15% MTBE by volume.
(cont’d)
０９／０７／０６ １８：５４：５７ ３１ＭＦＬ６２０ ０２５２
244
Oxygenated Fuels
Technical Information
Oxygenated fuels can damage paint and
plastic. Damage caused by spilled fuel is
not covered by warranty.
Fuel system damage or performance
problems resulting from the use of an
oxygenated fuel containing more than the
percentages of oxygenates mentioned
above are not covered under warranty.
Oxygenated fuels can damage paint and
plastic. Be careful not to spill fuel when
filling the fuel tank. Wipe up any spills
immediately.
If you notice any undesirable operating
symptoms, try another service station or
switch to another brand of gasoline.
METHANOL (methyl or wood alcohol)
5% by Volume
You may use gasoline containing
methanol containing up to 5% methanol
by volume as long as it also contains
cosolvents and corrosion inhibitors to
protect the fuel system. Gasoline
containing more than 5% methanol by
volume may cause starting and/or
performance problems. It may also
damage metal, rubber, and plastic parts
of your fuel system.
０９／０７／０６ １８：５５：０２ ３１ＭＦＬ６２０ ０２５３
245
Consumer Information
Consumer Information
This section contains information on your
warranty and how to get an official Honda
Service Manual.
...........................Authorized Manuals .
............................Warranty Coverage .
................................Warranty Service .
...............................Contacting Honda .
............................Your Honda Dealer .
The Honda Rider’s Club
.........................................(USA only) .
Reporting Safety Defects
.........................................(USA only) .
246
249
250
251
252
253
254
０９／０７／０６ １８：５５：０９ ３１ＭＦＬ６２０ ０２５４
＊
＊
$60.00
$48.00
$16.00
61MFL02
61CM002
31MFL620
2010 CBR1000RR/A Service Manual
Common Service Manual
2010 CBR1000RR/A Owner’s Manual
Publication Item No. Description Price Each
Prices are subject to change without notice and without incurring obligation.
246
Authorized Manuals
Consumer Information
The Service Manual used by your authorized Honda dealer is available from Helm, Inc.
(USA only, Canada: See your Honda dealer to order authorized manuals.)
Also available but not necessary to service your model is the Honda Common Service
Manual which explains theory of operation and basic service information for various systems
common to all Honda motorcycles, motor scooters and ATVs.
These Honda manuals are written for the professional technician, but most mechanically
capable owners should find them easy to use if they have the proper tools and observe proper
safety standards. Special Honda tools are necessary for some procedures.
０９／０７／０６ １８：５５：１７ ３１ＭＦＬ６２０ ０２５５
−−
＊
＊
Prices are subject to change without notice and without incurring
obligation.
Orders are mailed within 10 days. Please allowadequate time for
delivery.
Item DescriptionPublication
Item No.
Total
Price
Price
Each
Qty.
Handling Charge
Grand Total
Sub Total
Purchaser’s Sales Tax
Mich. add 6 %
Calif. add 8.25 %
$3.75
247
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
OR
Consumer Information
(NOTE: For Credit Card Orders Only)
(1-888-292-5393)
Monday Friday 8:00 AM 6:00 PM EST
By completing this form you can order the materials desired. You can pay by check or
money order, or charge to your credit card. Mail to Helm, Inc. at the address shown on the
back of this order form (USA only).
Canada: See your Honda dealer to order authorized manuals.
０９／０７／０６ １８：５５：２５ ３１ＭＦＬ６２０ ０２５６
−
NOTE: Dealers and Companies please provide dealer or company name, and also the nameof the person to whose attention the
shipment should be sent.
Customer Name Attention
Zip CodeStateCity
Daytime Telephone Number
Checkhere if your billing addressis differentfrom the
shipping address shown above.
Check ormoney order enclosed payable to Helm Inc.
U.S. funds only. Do not send cash.
MasterCard
VISA
Discover
Date
These Publications cannot be returned for credit without receiving advance authorization within 14 days ofdelivery. For returns, a restocking fee may
be applied against the original order.
Expiration: Mo. Yr.
Customer Signature
Apartment NumberStreet address/P. O. BOX
Account Number
Security Code
()
P.O. BOX 07280, DETROIT, MICHIGAN 48207
HELM
S
H
I
P
T
O
P
A
Y
M
E
N
T
248
Consumer Information
０９／０７／０６ １８：５５：３９ ３１ＭＦＬ６２０ ０２５７
249
Warranty Coverage
Consumer Information
Your new Honda is covered by these
warranties:
Motorcycle Limited Warranty
Emission Control System Warranty
Noise Control Warranty
There are responsibilities, restrictions, and
exclusions which apply to these warranties.
Please read the Warranties Booklet given
to you by your Honda dealer at the time of
purchase. Be sure to keep your Honda
owner’s card with your Warranties
Booklet (USA only).
It is important to realize that your
warranty applies to defects in material or
workmanship of your Honda. Your
warranty coverage does not apply to
normal wear or deterioration associated
with using the motorcycle.
Your warranty coverage will not be
voided if you choose to perform your own
maintenance. However, you should have
the proper tools and service information
and be mechanically qualified. Failures
that occur due directly to improper
maintenance are not covered.
Almost all of your warranty coverage can
be extended through the Honda Protection
Plan (USA only). For more information,
see your Honda dealer.
０９／０７／０６ １８：５５：４６ ３１ＭＦＬ６２０ ０２５８
250
Warranty Service
Consumer Information
Please remember that recommended
maintenance interval servicing is not
included in your warranty coverage.
Additionally, your warranty does not
apply to the normal wear of items (such as
brakes, tires, etc.).
If you believe you have a problem with
your motorcycle, call the service
department of your Honda dealer. Make
an appointment for an inspection and
diagnosis. Remember, as the owner of the
motorcycle, you will be asked to authorize
that inspection. Your dealer will give you
the results of the inspection. If the
problem is covered under warranty, your
dealer will perform the warranty repairs
for you.
If you have questions about warranty
coverage or the nature of the repair, it is
best to talk to the Service Manager of your
Honda dealer.
Sometimes, in spite of the best intentions
of all concerned, a misunderstanding may
occur. If you aren’t satisfied with your
dealer’s handling of the situation, we
suggest you discuss your problem with the
appropriate member of the dealership’s
management team. If the problem has
already been reviewed with the Service
Manager, Parts Manager, Sales Manager,
etc., contact the Owner of the dealership
or their designated representative.
０９／０７／０６ １８：５５：５０ ３１ＭＦＬ６２０ ０２５９
251
Consumer Information
Contacting Honda
Your owner’s manual was written to cover
most of the questions you might ask about
your Honda. Any questions not answered
in the owner’s manual can be answered by
your Honda dealer. If your dealer doesn’t
have the answer right away, they will get
it for you.
Motorcycle Division, American Honda
Motor Co., Inc., P.O. Box 2200, Torrance,
CA 90509-2200, Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada: Refer to the Warranties Booklet
that was supplied with your vehicle.
Please include the following information
in your letter:
name, address, and telephone number
product model, year, and VIN
date of purchase
dealer name and address
If you have a difference of opinion with
your dealer, please remember that each
dealership is independently owned and
operated. That’s why it’s important to
work to resolve any differences at the
dealership level.
If you wish to comment on your
experiences with your Honda or with your
dealer, please send your comments to the
following address (USA only):
We will likely ask your Honda dealer to
respond, or possibly acknowledge your
comments directly.
０９／０７／０６ １８：５５：５７ ３１ＭＦＬ６２０ ０２６０
252
Consumer Information
Your Honda Dealer
Once you purchase your new Honda, get
familiar with the organization of your
Honda dealer so you can utilize the full
range of services available.
The service department is there to perform
regular maintenance and unexpected
repairs. It has the latest available service
information from Honda. The service
department will also handle warranty
inspections and repairs.
The parts department offers Honda
Genuine Parts, Pro Honda products,
Honda Genuine Accessories (USA only),
and Honda accessories and products
(Canada only). The same quality that went
into your Honda can be found in Honda
Genuine replacement parts. You’ll also
find comparable quality in the accessories
and products available from the parts
department.
The sales department offers the Honda
Protection Plan to extend almost all of
your warranty coverage (USA only).
Your Honda dealer can inform you about
competition and other riding events in
your area. You’ll also find that your dealer
is a source of information about safety
training available in your local area and
the Honda Rider’s Club of America (USA
only).
We’re sure you’ll be as pleased with the
service your Honda dealer continues to
provide after the sale as you are with the
quality and dependability of your Honda.
０９／０７／０６ １８：５６：０３ ３１ＭＦＬ６２０ ０２６１
253
Consumer Information
The Honda Rider’s Club (USA only)
www.hrca.honda.
com.
You may be eligible for a Honda Rider’s
Club of America (HRCA) membership
with the purchase of your new Honda.
You can log on to the HRCA Clubhouse
website for details at
０９／０７／０６ １８：５６：０６ ３１ＭＦＬ６２０ ０２６２
254
Reporting Safety Defects (USA only)
Consumer Information
http://www.safercar.gov
http://www.safercar.gov.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-
9153); go to ;
or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from
０９／０７／０６ １８：５６：１０ ３１ＭＦＬ６２０ ０２６３
255
Consumer Information
０９／０７／０６ １８：５６：１３ ３１ＭＦＬ６２０ ０２６４
256
Index
Index
AB
..................................bank angle sensor . 70
..................................................battery . 168
brakes,
..................................................fluid . 145
.....................front lever adjustment . 144
...........................................pad wear . 148
...................................................braking . 74
..............................break-in guidelines . 234
button,
...........................control button A . 14, 52
...........................control button B . 14, 53
.......................................ABS main fuse . 77
.....................ABS motor fuse . 77, 213, 219
...............................................accessories . 5
..................................air pressure, tires . 150
...............American Honda, contacting . 251
.................................apparel, protective . 56
...................................appearance care . 174
.............................average fuel mileage . 38
０９／０７／０６ １８：５６：１７ ３１ＭＦＬ６２０ ０２６５
257
Index
Index
D
C
.......................................capacity, fuel . 113
..................................care, appearance . 174
...............................catalytic converter . 242
..........................................chain, drive . 160
cleaning,
................................appearance care .174
.............matte color painted surface . 179
...........................................clock, digital .43
.......................................clutch system . 131
............................................color label . 226
......................................Combined ABS . 76
......................Combined ABS indicator . 78
compartment,
...............................owner’s manual . 107
....................................U-shaped lock . 83
.........................consumer information . 245
...............................control button A . 14, 52
...............................control button B . 14, 53
..................................................coolant . 125
.....................coolant temperature meter . 26
cowl removal,
.......................................lower cowl . 111
...............................current fuel mileage . 38
..................................customer service . 251
damping, suspension,
.................................................front . 138
...................................................rear . 142
......................defects, reporting safety . 254
...........................................digital clock . 43
display,
..................................................check . 17
....................................multi-function . 25
...........................................drive chain . 160
０９／０７／０６ １８：５６：２２ ３１ＭＦＬ６２０ ０２６６
258
Index
Index
FE
.....................emission control systems . 235
engine,
...............................................flooded . 70
................................low oil pressure . 212
.............................................number . 225
.....................................................oil . 115
..........................................overheats . 210
.............................................pinging . 112
...............................................starting . 67
.........................................stop switch . 50
..............................................stopping . 71
........................................won’t start . 191
.........................................environment . 188
..................................................flat tire . 196
.......................................flooded engine . 70
fuel,
......................................consumption . 38
....................................mileage meter . 37
.......................................oxygenated . 243
..............................recommendation . 112
..........................reserve consumption . 28
....................................tank capacity . 113
fuel mileage,
...............................................average . 38
................................................current . 38
.....................................................fuses . 213
０９／０７／０６ １８：５６：２７ ３１ＭＦＬ６２０ ０２６７
259
Index
Index
G
H
I
.................................................gasohol . 243
................................................gasoline . 112
................gauges, indicators & displays . 14
.......................headlight dimmer switch . 51
........................................helmet holders . 82
.........................high beam indicator . 14, 19
Honda,
........................................contacting . 251
................................................dealer . 252
.....................................Rider’s Club . 253
.........................Honda service manual . 246
.............................................horn button . 52
..........................identification, vehicle . 224
ignition cutoff system,
..........................................bank angle . 70
...........................................side stand . 67
.......................................ignition switch . 49
................................................indicators . 14
................................inspection, pre-ride . 59
０９／０７／０６ １８：５６：３２ ３１ＭＦＬ６２０ ０２６８
260
Index
Index
MK
L
................................................key, lost . 221
.................................................kit, tool . 106
............................................labels, safety . 7
.............................................lamp check . 15
...........................................limit, weight . 63
..............................................load limits . 63
..................................loading guidelines . 63
..........................................lock, steering . 81
............................low fuel indicator . 14, 19
maintenance,
........................component locations . 103
.........................................importance . 90
..............................................periodic . 94
...............................................record . 101
..................................................safety . 91
.............................................schedule . 96
..malfunction indicator lamp (MIL) . 14, 20
....................................manual, service . 246
..........................maximum weight limit . 63
................matte painted surface, clean . 179
............................................meter check . 16
...........................................modifications . 6
０９／０７／０６ １８：５６：３７ ３１ＭＦＬ６２０ ０２６９
261
Index
Index
O
PN
...............................neutral indicator . 14, 19
.....................................numbers, serial . 224
....................................odometer . 14, 23, 35
oil,
...............................................engine . 115
.....................................low pressure . 212
..................................operating controls . 49
.............operation component locations . 11
...................................overheat, engine . 210
.......................owner’s manual storage . 107
..................................oxygenated fuels . 243
...................................................parking . 80
............................PGM-FI indicator . 14, 20
....................................pinging, engine . 112
pre-load, suspension,
.................................................front . 137
...................................................rear . 141
.................................pre-ride inspection . 59
..........................problems, unexpected . 189
..................................protective apparel . 56
０９／０７／０６ １８：５６：４２ ３１ＭＦＬ６２０ ０２７０
262
Index
Index
SR
removal,
.......................................lower cowl . 111
...................................................seat . 109
.......................reporting safety defects . 254
......................reserve fuel consumption . 28
......................................rider training . 3, 58
............................Rider’s Club, Honda . 253
riding,
...................................basic operation . 65
..............................................clothing . 56
.........................................precautions . 66
....................................................safety . 2
..............................safety precautions . 66
.....................with passenger or cargo . 85
safety,
........................important precautions . 92
....................................................labels . 7
..............................reporting defects . 254
..............................riding precautions . 66
...........................schedule, maintenance . 96
.........................................seat removal . 109
.................................sensor, bank angle . 70
......................................serial numbers . 224
service,
...........................................customer . 251
............................................manuals . 246
...........................................warranty . 250
.........................................shifting gears . 72
...................................shift indicator . 14, 46
.............................................side stand . 159
..........side stand ignition cutoff system . 67
０９／０７／０６ １８：５６：４６ ３１ＭＦＬ６２０ ０２７１
263
Index
Index
..........................................spark knock . 112
.......................................specifications . 227
...............................speedometer . 14, 29, 34
............................................stand, side . 159
.............................................start button . 50
starting,
.................................................engine . 67
................................troubleshooting . 192
...........................................steering lock . 81
................................stop switch, engine . 50
......................................stopping engine . 71
storage,
.......................................motorcycle . 184
...............................owner’s manual . 107
....................................U-shaped lock . 83
suspension,
............front suspension adjustment . 136
...............front suspension damping . 138
.....front suspension spring pre-load . 137
.............rear suspension adjustment . 140
.................rear suspension damping . 142
.......rear suspension spring pre-load . 141
switch,
.........................................engine stop . 50
...............................headlight dimmer . 51
...............................................ignition . 49
..........................................turn signal . 51
０９／０７／０６ １８：５６：４９ ３１ＭＦＬ６２０ ０２７２
264
Index
Index
W
VT
..........vehicle identification no. (VIN) . 224
.............................warning indicator . 14, 21
warranty,
...........................................coverage . 249
...........................................extended . 249
..............................................service . 250
....................washing your motorcycle . 174
............................................weight limit . 63
wheels,
...................................front removal . 199
.....................................rear removal . 205
.......................................tachometer . 14, 19
....................temperature meter, coolant . 26
..............................theft-prevention tips . 83
..................................................throttle . 129
.........tire identification no.(TIN) . 153, 154
tires,
.......................................air pressure . 150
....................................................flat . 196
..........................................replacing . 156
..................................................tool kit . 106
.....................................training, rider . 3, 58
..............transporting your motorcycle . 187
.....................................tripmeter . 14, 23, 35
.............................trouble, unexpected . 189
......................troubleshooting, starting . 192
.................turn signal indicators . 14, 18, 21
０９／０７／０６ １８：５６：５５ ３１ＭＦＬ６２０ ０２７３
How to Avoid Costly Repairs
Quick Reference
Quick Reference
The following is a brief, but important
collection of information you need to
know about your Honda. You’ll also find
space to record important notes. The engine of your Honda can be the most
expensive component to repair. Proper
maintenance, especially the use of the
recommended fluids and filters, prevents
premature wear and damage.
Frequent causes of costly repairs are:
Engine oil –– insufficient quantity,
improper oil.
Air cleaner –– dirty, leaking because of
improper installation (poor seal).
Record important information on the
following page:
０９／０７／０６ １８：５７：０８ ３１ＭＦＬ６２０ ０２７７
Quick Reference
Quick Reference
VIN
Engine No.
Ignition Key No.
Color Label
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Mgr.
０９／０７／０６ １８：５７：１４ ３１ＭＦＬ６２０ ０２７８
4.68 US gal (17.7 )
366 lb (166 kg)
Quick Reference
Quick Reference
Scheduled
Maintenance
Pre-ride
Inspection
Periodic
Checks
Fuel/Capacity
Initial: 600 miles (1,000 km)
Regular: every 4,000 miles (6,400 km)
Check the following items each time before you ride (page ): tires &
wheels, chain, leaks, loose parts, lights, throttle, brakes, indicators.
Engine Oil
Check the following items monthly (page ): tires & wheels, fluids,
lights, freeplay, drive chain, fuses, nuts & bolts.
premium unleaded gasoline, pump octane number 91 or higher
API Service Classification SG or higher except oils labeled as energy
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil or equivalent
rider, passenger, all cargo and accessories
Maximum
Weight
Capacity
59
95
０９／０７／０６ １８：５７：２５ ３１ＭＦＬ６２０ ０２７９
BRIDGESTONE BT015F RADIAL F
BRIDGESTONE BT015R RADIAL F
120/70ZR17M/C (58W)
190/50ZR17M/C (73W)
42 psi (290 kPa , 2.90 kgf/cm
)
36 psi (250 kPa , 2.50 kgf/cm
)
VUH27ES (DENSO)
IMR9E-9HES (NGK)
DUNLOP Qualifier PTK
DUNLOP Qualifier NK
30A
20A
10A, 20A
30A
or
or
radial, tubeless
Quick Reference
Quick Reference
Tires
Fuses
Coolant
ethylene glycol antifreeze (silicate-free) for aluminum engines in 50/50
solution with Pro Honda HP Coolant or an equivalent distilled water
Spark Plugs
Tire Pressure
(cold)
Front:
Rear:
Front:
Rear:
standard:
Type:
main:
FI:
other:
ABS motor (CBR1000RR ABS):
０９／０７／０６ １８：５７：３６ ３１ＭＦＬ６２０ ０２８０
−
−
−
−
Quick Reference
Quick Reference
These symbols are used in Controls & Features section:
SYMBOL SEE PAGECOMPONENT
START button
HI headlight dimmer switch
LO headlight dimmer switch
turn signal switch
horn button
RUN engine stop switch
OFF engine stop switch
50
50
50
51
51
51
52
０９／０７／０６ １８：５７：４５ ３１ＭＦＬ６２０ ０２８１
