Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
To protect your investment, we urge you to
take responsibility for keeping your vehicle
well serviced and maintained. Also, observe
the break-in guidelines, and always perform
the pre-ride inspection and other periodic
checks in this manual.
When service is required, remember that
your Honda dealer knows your vehicle best.
If you have the required mechanical “know-
how” and tools, you can purchase an official
Honda Service Manual to help you perform
many maintenance and repair tasks. 2 P. 173
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities. 2 P. 174
You may also want to visit our website at
www.powersports.honda.com.
Happy riding!
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Safety Guidelines................................................. P. 3
Safety Labels.........................................................P. 7
Safety Precautions............................................... P. 9
Riding Precautions ............................................ P. 11
Accessories & Modifications........................... P. 15
Loading ................................................................ P. 16
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Vehicle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
seat strap or your waist, leaning with you in
turns, and keeping their feet on the footpegs,
even when the vehicle is stopped.
Safety Guidelines
Vehicle Safety
3
Continued
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF) or a state approved training
course. New riders should start with the basic
course, and even experienced riders will find the
advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
Other riding tips can be found in the You and
Your Motorcycle Riding Tips booklet that came
with your vehicle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Safety Guidelines
Vehicle Safety
4
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. The same is true for drug use. Don't drink
or use and ride, and don't let your friends do it
either.
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Inspect your vehicle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 16), and do not modify
your vehicle or install accessories that would
make your vehicle unsafe (2 P. 15).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your vehicle. Inspect for fluid
leaks, check the tightness of critical nuts and
bolts, and check the handlebars, control levers,
brakes, and wheels. Ride slowly and cautiously.
Your vehicle may have suffered damage that is
not immediately apparent. Have your vehicle
thoroughly checked at a qualified service facility
as soon as possible.
Safety Guidelines
Vehicle Safety
5
Continued
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Safety Guidelines
Vehicle Safety
6
Safety Labels
Safety and information labels on your vehicle
provide important safety information and may
warn you of potential hazards that could cause
serious injury. Read these labels carefully and
don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
Safety Labels
Vehicle Safety
7
Continued
Safety Labels
Vehicle Safety
8
Safety Precautions
● Ride cautiously and keep your hands on the
handlebars and feet on the footpegs.
● Keep passenger's hands onto the seat strap
or your waist, passenger's feet on the
footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved helmet, eye protection,
and high-visibility protective clothing. Avoid
wearing loose clothes that could get caught on
any part of the vehicle. Ride defensively in
response to weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head
● Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection
Look for a DOT (Department of Transportation)
certification label on any helmet you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
Safety Precautions
Vehicle Safety
9
Continued
#
Gloves
Full-finger leather gloves with high abrasion
resistance
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
Safety Precautions
Vehicle Safety
10
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
Riding Precautions
Vehicle Safety
11
Continued
#
Anti-lock Brake System (ABS)
CBR1000RA
This model is equipped with an Anti-lock Brake
System (ABS) designed to help prevent the
brakes from locking up during hard braking.
The ABS functions with information provided by
the IMU (Inertia Measurement Unit).
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below 4
mph (6 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
● Always use the recommended front/rear
tires and sprockets to ensure correct ABS
operation.
#
Engine Braking
Engine braking helps slow your vehicle down
when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Riding Precautions
Vehicle Safety
12
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebars and remove the key when
leaving the vehicle unattended.
Use of an anti-theft device is also
recommended.
#
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
4.
Turn the handlebars fully to the left.
u Turning the handlebars to the right
reduces stability and may cause the
vehicle to fall.
5.
Turn the ignition switch to the LOCK
position and remove the key. 2 P. 86
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 172
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Riding Precautions
Vehicle Safety
13
Continued
Honda selectable torque control
When the Honda selectable torque control
(Torque Control) detects rear wheel spin during
acceleration, the system will limit the amount of
torque applied to the rear wheel based on the
Torque Control level selected.
Additionally, the system ease the rapid motion
during the wheelie when accelerating based on
the Torque Control level selected.
Torque Control will allow some wheel spin
during acceleration at the lower Torque Control
levels settings. Select a level that is appropriate
for your skill and riding conditions.
Torque Control does not work during
deceleration and will not prevent the rear wheel
from skidding due to engine braking. Do not
close the throttle suddenly, especially when
riding on slippery surfaces.
Torque Control may not compensate for rough
road conditions or rapid throttle operation.
Always consider road and weather conditions,
as well as your skills and condition, when
applying throttle.
If your vehicle gets stuck in mud, snow or sand,
it may be easier to free it by turning off the
Torque Control temporarily.
Temporarily turning off Torque Control also
may help you maintain control and balance
when riding on off-road terrain.
Always use the recommended tires and
sprockets to ensure correct Torque Control
operation.
Riding Precautions
Vehicle Safety
14
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle be certain the
modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Accessories & Modifications
Vehicle Safety
15
Loading
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity 2 P. 180
● Tie all luggage securely, evenly balanced
and close to the center of the vehicle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Loading
Vehicle Safety
16
Vehicle Safety
17
BLANK PAGE

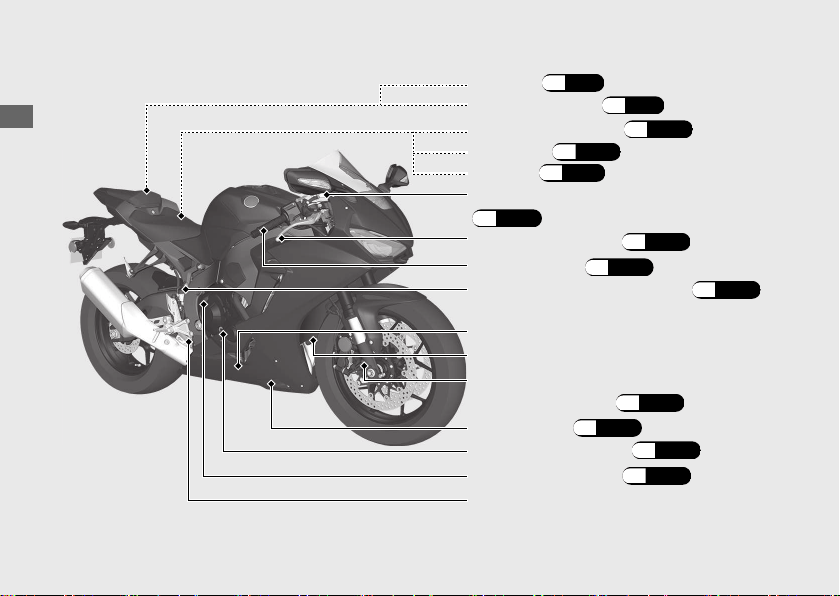

Parts Location
Operation Guide
18
Main fuse/FI fuse (P.154)
Front brake lever (P.138)

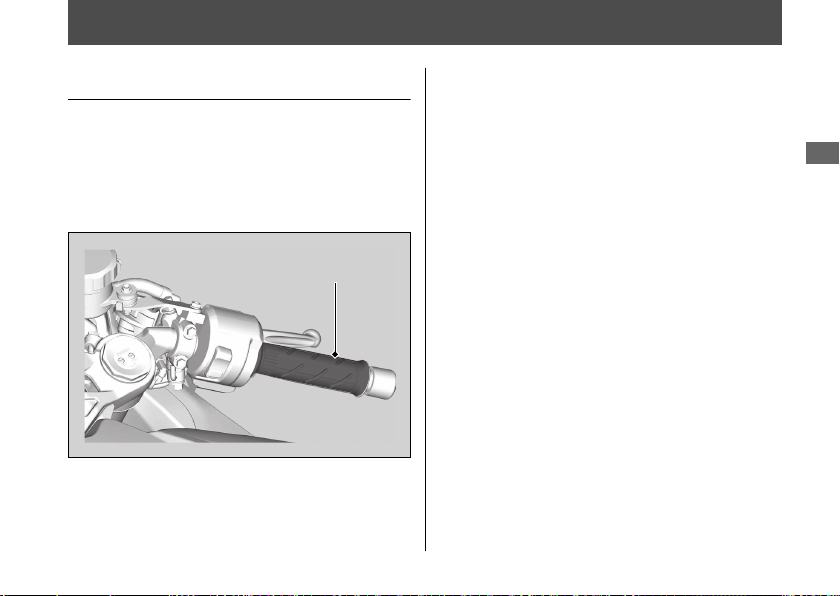

Throttle grip (P.137)
Rear brake fluid reservoir (P.128)
Rear brake pedal
Engine oil fill cap (P.124)
Engine oil dipstick (P.124)
Tool kit (P.97)
Document bag (P.97)
Fuse box (P.153)

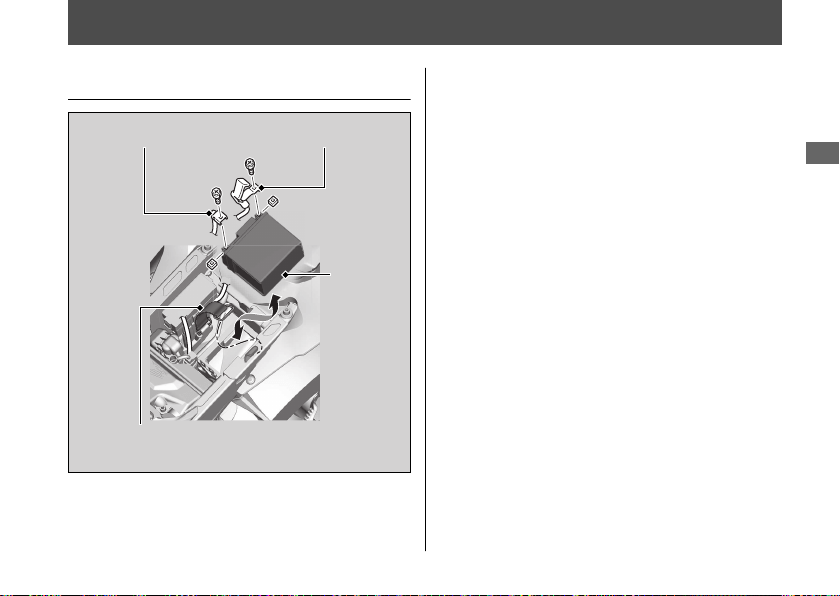

Battery (P.119)
Front brake fluid reservoir
(P.128
)
Front suspension spring
preload adjuster
(P.139
)
Under cowl (P.123)
Engine oil drain bolt
Engine oil filter
Operation Guide
19
Clutch lever (P.133)
Rear suspension spring
preload adjuster
(P.142
)

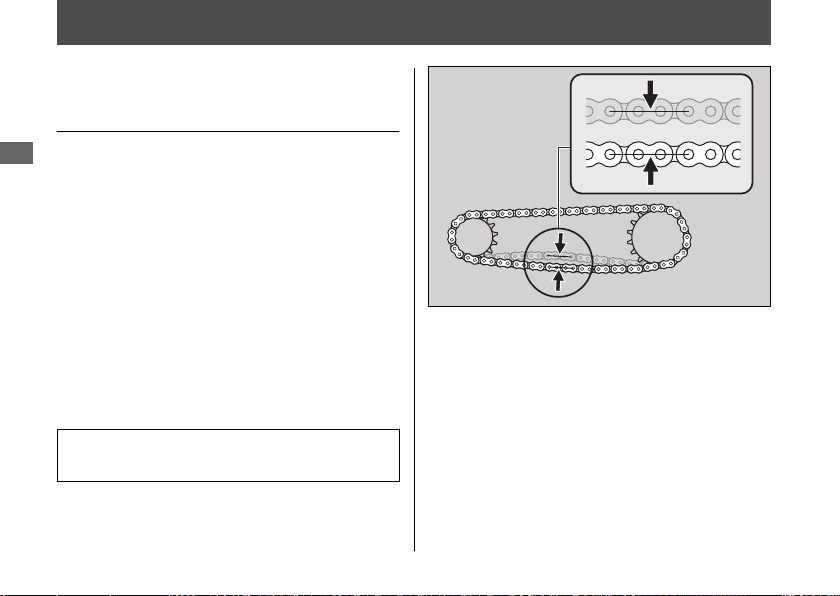

Drive chain (P.132)
Side stand (P.131)
Shift lever (P.94)
Front suspension rebound damping/compression damping
adjusters
(P.140
)
(P.141
)

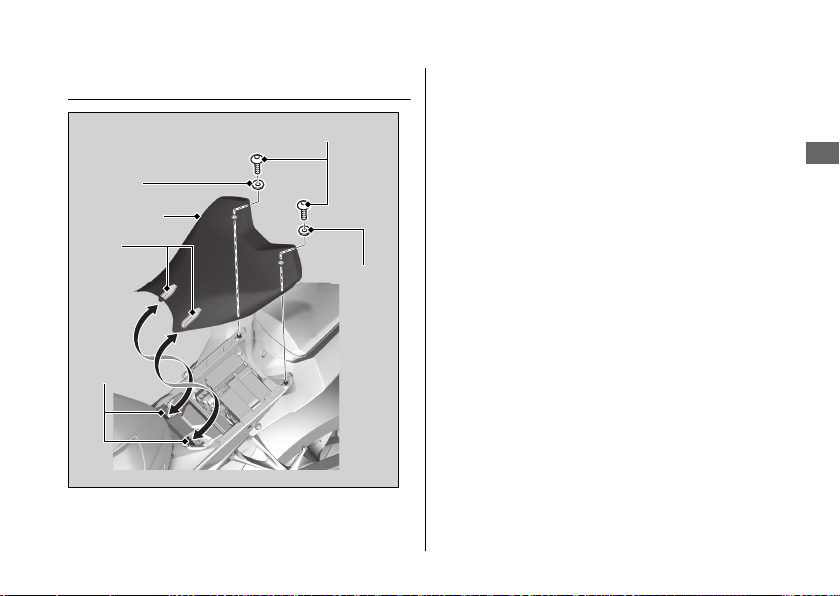

Front seat (P.121)
Coolant reserve tank
(P.126
)
Fuel fill cap (P.95)
Rear seat (P.122)
Front suspension spring preload adjuster (P.139)
Rear suspension compression
damping/Rear suspension
rebound damping adjuster
(P.144) (P.143)
Instruments
Operation Guide
20
Display Check
When the ignition switch is turned to the ON position, the opening symbol will show on the
display. If the display itself does not shows when it should, have your dealer check for
problems.
Street mode
Clock (12-hour display)
To set the clock:
(P.58
)
Speedometer
Tachometer
NOTICE
Do not operate the engine in the
tachometer red zone. Excessive
engine speed can adversely affect
engine life.
You can select the street mode or circuit mode display.
To change the circuit mode:
(P.22
)
Tachometer red zone
(excessive engine rpm range)
Operation Guide
22
Instruments (Continued)
Display Check
When the ignition switch is turned to the ON position, the opening symbol will show on the
display. If the display itself does not shows when it should, have your dealer check for
problems.

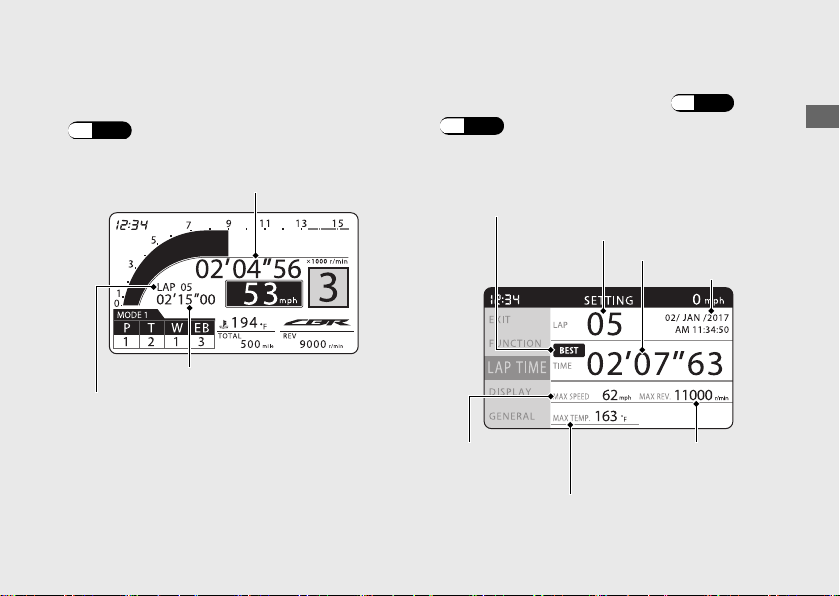

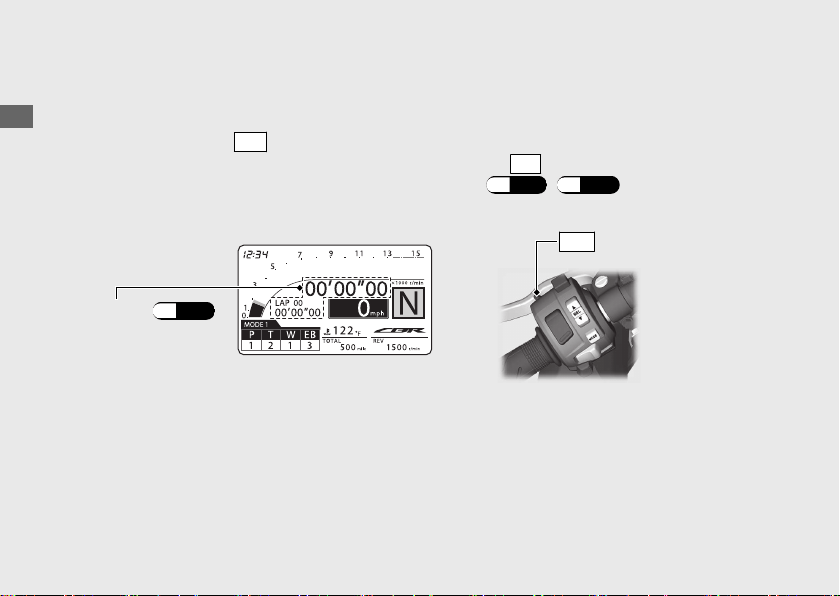

Circuit mode
To change to the circuit mode :
u To return to the street mode display, press and hold the
LAP
button.
● Press and hold the
LAP
button with your vehicle stopped.
● Select the “CIRCUIT” menu on the “DISPLAY” screen. (P.41) (P.47)
u To return to the street mode display, select the “STREET” menu on the “DISPLAY”
Lap timer (P.73)
LAP
button
Multi-information display
Operation Guide
23
Continued
Multi-information display can display the coolant temperature gauge, riding modes, INFO 1,
INFO 2 and INFO 3 displays.
Riding mode (P.87)
INFO 3 display (P.37)
INFO 2 display (P.29)
INFO 1 display (P.26)
You can change the riding modes, INFO 1, INFO 2 and INFO 3 displays of the Multi-
information display.
To switch the multi-information display: (P.25)
Coolant temperature gauge ( )
(P.24
)
Coolant temperature gauge ( )
Display range: 94°F (35°C) to 269°F (132°C)
● 93°F (34°C) or less: “---” is displayed.
● Between 251°F (122°C) and 268°F (131°C):
-
High coolant temperature indicator lights.
-
Coolant temperature digits flash.
● Above 269°F (132°C):
-
High coolant temperature indicator lights.
-
“269°F (132°C)” flashes.
● Even if the engine coolant temperature is low, the cooling fan may start running when you
rev up the engine. This is normal.
Pop-up information
In the following cases, the INFO 3 display, or the INFO 3 display and the coolant temperature
gauge change to a pop-up information display.
● When an inspection time of your vehicle is approaching.
● When your vehicle has helpful information.
● When your vehicle has a problem with the PGM-FI system.
Information of the pop-up information: (P.77)
Operation Guide
24
Instruments (Continued)
Operation Guide
25
Continued

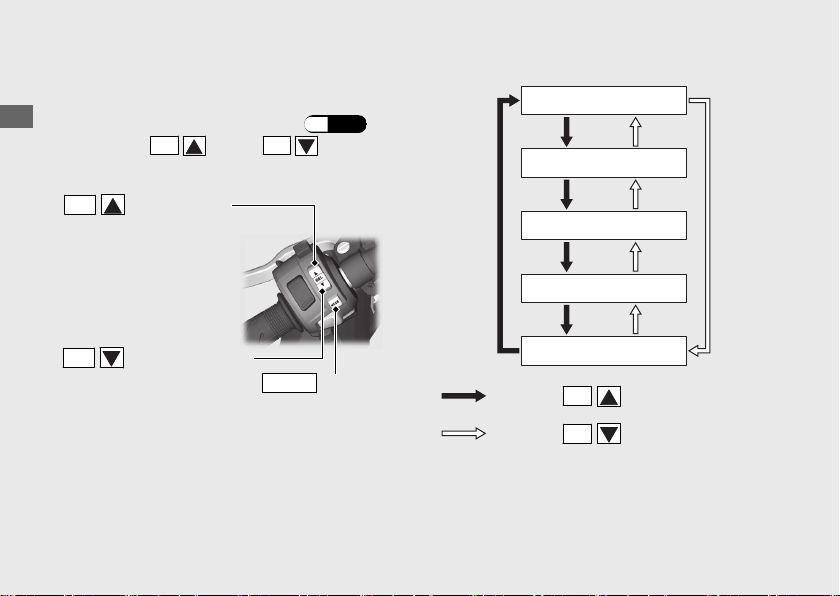

To switch the multi-information display
To select the display area, repeatedly press the
MODE
button.
Press the
MODE
button
SEL
(down) button
SEL
(up) button
MODE
button
Riding mode (P.87)
INFO 1 display (P.26)
INFO 2 display (P.29)
INFO 3 display (P.37)
If the
MODE
button is not pressed within 10
seconds, the display returns to the riding mode
display.
u Can not select the INFO 3 display while pop-up
information displayed. (P.77)
INFO
1
display
You can select the following:
• Odometer [TOTAL]
• Tripmeter [TRIP A/B]
Changing the INFO 1 display
a
Select the INFO 1 display. (P.25
)
b
Press the
SEL
(up) or
SEL
(down)
button until the desired indication is
displayed.
c
Press the
MODE
button. The INFO 1 display
is set, and then the display moves to the
INFO 2 display.
Operation Guide
26
Instruments (Continued)
TOTAL (P.27)
TRIP A (P.27)
TRIP B (P.27)
Press the
SEL
(down) button
Press the
SEL
(up) button
#
To Reset the Tripmeter and Tripmeter
A Fuel Consumption
To reset tripmeter A and tripmeter A fuel
consumption together, press and hold the
MODE
button with the tripmeter A or
tripmeter A fuel consumption displayed.
To reset the tripmeter B, press and hold the
MODE
button with the tripmeter B displayed.
Operation Guide
28
Instruments (Continued)
Tripmeter A Tripmeter A fuel
consumption
or
or
Tripmeter B
INFO
2
display
You can select the following:
• Numerical tachometer display [REV]
• Current fuel mileage [INST. CONS.]
• Average fuel mileage [AVE. CONS.]
• Tripmeter A fuel consumption [TRIP A CONS.]
• Average speed [AVG. SPD.]
• Elapsed time [ELAPSED]
• Available riding distance [RANGE]
•
Amount of remaining fuel [REMAIN]
Changing the INFO 2 display
a
Select the INFO 2 display. (P.25
)
b
Press the
SEL
(up) or
SEL
(down) button until the desired display is displayed.
c
Press the
MODE
button. The INFO 2 display is set, and display moves to the INFO 3 display.
Operation Guide
29
Continued
When the low fuel indicator lights and the low fuel pop-up information appear, INFO 3 display
will automatically switches to the amount of remaining fuel display.
Operation Guide
30
Instruments (Continued)
Numerical tachometer display (P.31)
Current fuel mileage (P.31)
Average fuel mileage (P.32)
Tripmeter A fuel consumption (P.33)
Available riding
distance
(P.34
)
Average speed (P.33)
Elapsed time (P.34)
Amount of remaining
fuel
(P.35
)
Press the
SEL
(up)
button
Press the
SEL
(down)
button
Only when reserve fuel mode: (P.36)
Numerical tachometer Display [REV]
Displays engine revolutions per minutes.
Display range: 0 to 15,400 r/min (rpm)
● Above 15,400 r/min (rpm): “15400” is
displayed.
Current fuel mileage [INST. CONS.]
Displays the current instant fuel mileage.
Display range: 0.0 to 99.9 MPG (mile/L, L/
100km or km/L)
● When your speed is less than 4 mph (7
km/h): “--.-” is displayed.
● Above 99.9 MPG (mile/L or km/L):“99.9” is
displayed.
● Above 99.9 L/100km: “--.-” is displayed.
When “--.-” is displayed except for the
above-mentioned cases, go to your dealer
for service.
Operation Guide
31
Continued
Average fuel mileage [AVG. CONS.]
Displays the average fuel mileage since the
average fuel mileage was reset.
Display range: 0.0 to 99.9 MPG (mile/L, L/
100km or km/L)
● Above 99.9 MPG (mile/L or km/L): “99.9”
is displayed.
● Above 99.9 L/100km: “--.-” is displayed.
● When the average fuel mileage is reset:
“--.-” is displayed.
When “--.-” is displayed except for the
above-mentioned cases, go to your dealer
for service.
#
To Reset the Average Fuel Mileage
Press and hold the
MODE
button with the
average fuel mileage displayed.
Operation Guide
32
Instruments (Continued)
Average fuel
mileage
Tripmeter A fuel consumption [TRIP A
CONS.]
Displays the tripmeter A fuel consumption
since the tripmeter A was reset.
Display range: 0.0 to 300.0 GAL (gallon) or
0.0 to 300.0 L (liters)
● Above 300 GAL (gallon) or 300 L (liters):
“300.0” is displayed.
● When the tripmeter A fuel consumption is
reset: “---.-” is displayed.
When “---.-” is displayed except for the
above-mentioned cases, go to your dealer
for service.
To reset the tripmeter A fuel
consumption:
(P.28)
Average speed [AVG. SPD.]
Displays average speed since the engine was
started.
Display range: 0 to 186 mph (0 to 299 km/h)
● Initial display: “---” is displayed.
● When your vehicle has traveled less than
0.12 mile (0.2 km) since the engine was
started: “---” is displayed.
● When your vehicle operating time is less
than 16 seconds since the engine was
started: “---” is displayed.
When “---” is displayed except for the above-
mentioned cases, go to your dealer for
service.
Operation Guide
33
Continued
Elapsed time [ELAPSED]
Displays operating time since the engine was
started.
Display range: 00:00 to 99:59 (hours:minutes)
● Above 99:59: returns to 00:00.
When the ignition switch is turned to the OFF
position, the elapsed time is reset.
When “--:--” is displayed, go to your dealer
for service.
Available riding distance [RANGE] (Only
reserve fuel mode)
When the low fuel indicator lights and the
low fuel pop-up information appears, the
estimated available riding distance is
indicated.
Display range: 99 to 0 mile (km)
● Above 99 mile (km): “99” is displayed.
● Below 0.2 GAL (1.0 L): “--” is displayed.
The indicated available riding distance is
calculated based on the riding states, and the
indicated figure may not always be the actual
allowable distance.
When “--” is displayed except for the above-
mentioned cases, go to your dealer for
service.
Operation Guide
34
Instruments (Continued)
Amount of remaining fuel [REMAIN]
(Only reserve fuel mode)
When the low fuel indicator lights and the
low fuel pop-up information appears, the
estimated amount of remaining fuel can be
selected.
Display range: 0.9 to 0.2 GAL (gallon) or 4.0
to 1.0 L (liters)
● Below 0.2 GAL (1.0 L): “-.-” is displayed.
The amount of remaining fuel is calculated
based on the riding states.
The indicated amount of remaining fuel may
be different from the actual amount.
When “-.-” is displayed except for the above-
mentioned cases, go to your dealer for
service.
Operation Guide
35
Continued
Reserve Fuel Mode
When the low fuel indicator lights and the
low fuel pop-up information appears, the
available riding distance is indicated, and the
amount of remaining fuel display can be
selected.
You should refill the tank as soon as possible.
Remaining fuel amount turned to the reserve
fuel mode:
1.1 US gal (4.0 L)
After refueling more than the reserve
amount, the display returns to normal when
the ignition switch has been ON position for
about a minute.
Operation Guide
36
Instruments (Continued)
Low fuel pop-up information
Available riding
distance
Low fuel indicator
INFO
3
display
You can select the following:
• CBR Logo
• Shift indicator set value [REV IND NE]
• Throttle grip angle [GRIP ANGLE]
• Battery voltage [VOLTAGE]
• Date [DATE]
• User letter
• Blank display
Changing the INFO 3 display
a
Select the INFO 3 display. (P.25)
b
Press the
SEL
(up) or
SEL
(down)
button until the desired display is displayed.
c
Press the
MODE
button. The INFO 3 display
is set, and then the display moves to the
riding mode display.
Operation Guide
37
Continued
CBR Logo (P.38)
Shift indicator set
value (P.38)
Throttle grip
angle
(P.38)
Blank display (P.39)
User letter (P.39)
Date (P.39)
Battery voltage
(P.38)
Press the
SEL
(up) button
Press the
SEL
(down) button
CBR logo
Displays the CBR logo.
Shift indicator set value [REV IND NE]
Displays the shift indicator set value.
Display range: OFF or 4,000 - 16,600 r/min
To set the shift indicator: (P.49
)
Throttle grip angle [GRIP ANGLE]
Displays the throttle grip angle during
operation.
When “--” is displayed, go to your dealer for
service.
Battery voltage [VOLTAGE]
Displays the current voltage.
Operation Guide
38
Instruments (Continued)
Setting mode
You can perform the following:
● LAP TIME (P.43)
u Checking the lap time
u Resetting the lap time
●
DISPLAY (P.46)
u Changing the display mode
u Setting the shift indicator
u Setting the backlight brightness
u Setting the back ground
u Setting the user letter
u Setting the favorite
● GENERAL (P.57)
u Setting the date and clock
u Setting each meter unit
u Resetting to factory default settings
● SERVICE (P.67)
u Checking the next inspection schedule
u Checking the current problem with the
PGM-FI system.
Operation Guide
40
Instruments (Continued)
#
To Shift to the Setting Mode
Press and hold the
MODE
button and
SEL
(up) or
SEL
(down) button until main
menu screen is displayed with your vehicle
stopped.
Select a menu by pressing the
SEL
(up)
or
SEL
(down) button and press the
MODE
button.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu quickly.
Operation Guide
41
Continued
Main menu screen
To end the setting
Select the “EXIT” menu on the main menu
screen, or press and hold the
MODE
button
and
SEL
(up) or
SEL
(down) button.
Also, the setting mode is ended when your
vehicle speed reaches approximately 1 mph
(1 km/h).
u Press and hold the
MODE
button and
SEL
(up) or
SEL
(down) button to return
to the ordinary display.
Note that doing so cancels the settings left
incomplete.
Operation Guide
42
Instruments (Continued)
Ordinary display
LAP TIME (P.43)
DISPLAY (P.46)
GENERAL (P.57)
SERVICE (P.67)
EXIT
Press the
MODE
button
Press and hold the
MODE
button
and
SEL
(up) or
SEL
(down)
button
Press the
SEL
(up) button
Press the
SEL
(down) button
LAP
TIME
#
To Set the LAP TIME Menu
a
Select the “LAP TIME” menu on the main
menu screen. (P.41)
b
Select the menu by pressing the
SEL
(up) or
SEL
(down) button, and press
the
MODE
button.
To end the setting
Select the (return) on the menu screen.
The display returns to the “LAP TIME” menu
on the main menu screen.
Operation Guide
43
Continued
Press the
MODE
button
Press the
SEL
(up) button
Press the
SEL
(down) button
LAP TIME
LAP DATA (P.44)
(return)
CLEAR DATA (P.45)
"LAP TIME" is selected
#
LAP DATA
The history of recorded lap time and
information are displayed.
To display the other lap information, press
the
SEL
(up) or
SEL
(down) button.
To display the maximum acceleration,
maximum deceleration, maximum left bank
angle and maximum right bank angle
information, press the
LAP
button.
To end the display of lap time history, press
the
MODE
button. The display returns to the
upper level hierarchy.
To use the Lap Timer
(P.73)
Operation Guide
44
Instruments (Continued)
Best icon (Appears when the fastest lap time displayed.)
Lap number
Lap time
Time stamp
Press the
LAP
button
Maximum
vehicle speed
Maximum engine
revolutions
Maximum coolant temperature
Maximum left
bank angle
Maximum right
bank angle
Maximum acceleration
Maximum deceleration

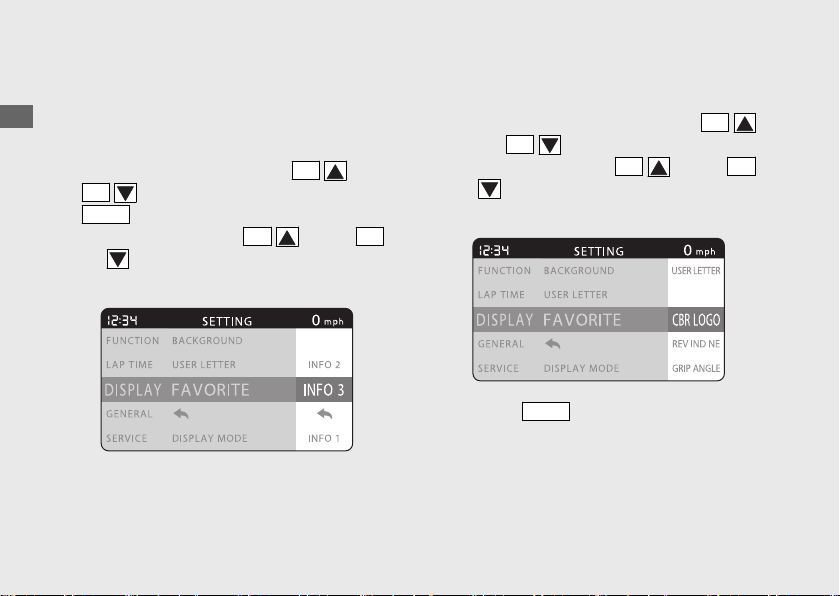

DISPLAY
#
To Set the DISPLAY Menu
a
Select the “DISPLAY” menu on the main
menu screen. (P.41)
b
Select the menu by pressing the
SEL
(up) or
SEL
(down) button and press the
MODE
button.
To end the setting
Select the (return) on the menu screen.
The display returns to the “DISPLAY” menu
on the main menu screen.
Operation Guide
46
Instruments (Continued)
Press the
SEL
(down) button
Press the
SEL
(up) button
Press the
MODE
button
"DISPLAY" is selected
DISPLAY
DISPLAY MODE (P.47)
BRIGHTNESS (P.50)
SHIFT INDICATOR (P.49)
BACKGROUND (P.51)
USER LETTER (P.52)
FAVORITE (P.53)
(return)
#
DISPLAY MODE
a
Select “STREET”, “MECHANIC” or “CIRCUIT”
using the
SEL
(up) or
SEL
(down)
button.
b
When the “STREET” or “CIRCUIT” is selected
Press the
MODE
button. The display mode
setting is set, and then the display returns to
the upper level hierarchy.
When the “MECHANIC” is selected
Press the
MODE
button. The display moves
to the mechanic mode.
c
When the “MECHANIC” is selected
Press the
MODE
button. The mechanic
mode ends, and then the display returns to
the upper level hierarchy.
u The display mode returns to the
previously selected mode.
Operation Guide
47
Continued
Mechanic Mode
Displays the current information of the
vehicle.
Displays the following information:
● Tachometer
● Gear position
● Throttle grip position
● Coolant temperature
● Battery voltage
Operation Guide
48
Instruments (Continued)
Throttle grip position
Tachometer Gear position
Battery voltage
Coolant temperature
#
SHIFT INDICATOR
You can change the setting of the shift
indicators.
a
Select the “OFF” (deactivate) or an engine
revolution at which the shift indicators start
blinking using the
SEL
(up) or
SEL
(down) button.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
u
The value increases by 200 r/min (rpm)
increments.
u
Available setting range:
4,000 - 16,600 r/min (rpm)
b
Press the
MODE
button. The shift indicator
setting is set, and then the display returns to
the upper level hierarchy.
Information of the Shift Indicator:
(P.83)
Operation Guide
49
Continued
#
BRIGHTNESS
You can adjust the backlight brightness to
one of the eight levels or select the auto
adjustment.
Automatic brightness control (P.159)
a
Select the “AUTO” (auto adjustment) or
brightness level using the
SEL
(up) or
SEL
(down) button.
u
Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
b
Press the
MODE
button. The backlight
brightness setting is set, and then the display
returns to the upper level hierarchy.
Operation Guide
50
Instruments (Continued)
#
BACKGROUND
You can change the setting of the
background to one of the four categories or
select the auto adjustment.
a
Select the “AUTO”, “WHITE”, “BLACK”,
“METALLIC” or “CARBON” using the
SEL
(up) or
SEL
(down) button.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
b
Press the
MODE
button. The background
setting is set, and then the display returns to
the upper level hierarchy.
Operation Guide
51
Continued
#
USER LETTER
You can select any 10 characters you like.
a
Select the first character using the
SEL
(up) or
SEL
(down) button until a
desired character appears.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
b
Press the
MODE
button. The cursor moves
to the next position.
c
Repeat the steps a and b to select
characters for the other positions until a
desired word is complete.
d
When the tenth character is selected, the
display returns to the upper level hierarchy.
A list of characters that can be selected
A B C D E F G H I
J K L M N O P Q R
S T U V W X Y Z 0
1 2 3 4 5 6 7 8 9
! ” # $ % & ‘ ’ (
) * + , - . / : ;
< > = ? @ ＾ _
Operation Guide
52
Instruments (Continued)
#
FAVORITE
You can change the indications on the INFO
1, INFO 2, and INFO 3 to the following
information by pressing the
LAP
button while
the street mode is displayed.
INFO 1:
“TOTAL”, “TRIP A” or “TRIP B”
INFO 2:
“REV”, “INST.CONS.”, “AVG.CONS.”, “TRIP A
CONS.”, “AVG.SPD.” or “ELAPSED”
INFO 3:
“CBR LOGO”, “REV IND NE”, “GRIP ANGLE”,
“VOLTAGE”, “DATE”, “USER LETTER” or blank
display
To end the setting
Select the (return) on the menu screen.
The display returns to the “FAVORITE” menu
on the “DISPLAY” menu screen.
Operation Guide
53
Continued
INFO 1
You can select the “TOTAL”, “TRIP A” or “TRIP
B” for INFO 1.
a
Select the “INFO 1” using the
SEL
(up) or
SEL
(down) button, and press the
MODE
button.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
b
Select the “TOTAL”, “TRIP A” or “TRIP B”
using the
SEL
(up) or
SEL
(down)
button.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
c
Press the
MODE
button. The “INFO 1”
setting is set, and then the display returns to
the upper level hierarchy.
Operation Guide
54
Instruments (Continued)
INFO 2
You can select the “REV”, “INST.CONS.”,
“AVG.CONS.”, “TRIP A CONS.”, “AVG.SPD.” or
“ELAPSED” for INFO 2.
a
Select the “INFO 2” using the
SEL
(up) or
SEL
(down) button, and press the
MODE
button.
u
Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
b
Select the “REV”, “INST.CONS.”,
“AVG.CONS.”, “TRIP A CONS.”, “AVG.SPD.”
or “ELAPSED” using the
SEL
(up) or
SEL
(down) button.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
c
Press the
MODE
button. The “INFO 2”
setting is set, and then the display returns to
the upper level hierarchy.
Operation Guide
55
Continued
INFO 3
You can select the “CBR LOGO”, “REV IND
NE”, “GRIP ANGLE”, “VOLTAGE”, “DATE”,
“USER LETTER” or blank display for INFO 3.
a
Select the “INFO 3” using the
SEL
(up) or
SEL
(down) button, and press the
MODE
button.
u
Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
b
Select the “CBR LOGO”, “REV IND NE”, “GRIP
ANGLE”, “VOLTAGE”, “DATE”, “USER
LETTER” or blank display using the
SEL
(up) or
SEL
(down) button.
u Press and hold the
SEL
(up) or
SEL
(down) button to move the menu
quickly.
c
Press the
MODE
button. The “INFO 3”
setting is set, and then the display returns to
the upper level hierarchy.
Operation Guide
56
Instruments (Continued)
GENERAL
#
To Set the GENERAL Menu
a
Select the “GENERAL” on the main menu
screen. (P.41)
b
Select a menu by pressing the
SEL
(up)
or
SEL
(down) button and press the
MODE
button.
To end the setting
Select the
(return) menu on the menu
screen. The display returns to the “GENERAL”
on the main menu screen.
Operation Guide
57
Continued
"GENERAL" is selected
GENERAL
DATE & TIME (P.58)
UNITS (P.59)
RESTORE DEFAULT (P.64)
(return)
Press the
MODE
button
Press the
SEL
(up) button
Press the
SEL
(down) button
#
DATE & TIME
a
Press the
SEL
(up) or
SEL
(down)
button until the desired tens digit of the year
is displayed.
b
Press the
MODE
button. The cursor moves
to the ones digit of the year.
c
Press the
SEL
(up) or
SEL
(down)
button until the desired ones digit of the
year is displayed.
d
Press the
MODE
button. The cursor moves
to the indication of month.
e
Press the
SEL
(up) or
SEL
(down)
button until the desired month is displayed.
f
Press the
MODE
button. The cursor moves
to the indication of date.
g
Press the
SEL
(up) or
SEL
(down)
button until the desired date is displayed.
h
Press the
MODE
button. The cursor moves
to the “AM” or “PM”.
i
Select the “AM” or “PM” using the
SEL
(up) or
SEL
(down) button.
j
Press the
MODE
button. The cursor moves
to the indication of hour.
k
Press the
SEL
(up) or
SEL
(down)
button until the desired hour is displayed.
Operation Guide
58
Instruments (Continued)
l
Press the
MODE
button. The cursor moves
to the indication of minute.
m
Press the
SEL
(up) or
SEL
(down)
button until the desired minute is displayed.
n
Press the
MODE
button. The date and clock
setting is set, and then the display returns to
the upper level hierarchy.
Press and hold the
SEL
(up) or
SEL
(down) button to move the menu quickly.
#
UNITS
You can change the speed and mileage,
temperature, and fuel mileage meter units.
To set each unit
a
Select the “SPEED”, “TEMP.” or “FUEL
CONS.” using the
SEL
(up) or
SEL
(down) button.
b
Press the
MODE
button. The display moves
to each unit setting screen.
The units of the speedometer, odometer,
tripmeter A/B, current fuel mileage, average
fuel mileage, tripmeter A fuel consumption,
average speed, available riding distance and
amount of remaining fuel are changed in
“SPEED” menu.
Operation Guide
59
Continued
The unit of coolant temperature gauge and
information of temperature (lap data history
mode and mechanic mode) is changed by
“TEMP.” menu.
The units of the current fuel mileage, average
fuel mileage and amount of remaining fuel
are changed in “FUEL CONS.” menu.
To end the setting
Select the (return) on the menu screen.
The display returns to the “UNITS” menu on
the “GENERAL” menu screen.
Operation Guide
60
Instruments (Continued)
Speed and mileage unit [SPEED]
a
Select the “mph” or “km/h” using the
SEL
(up) or
SEL
(down) button.
b
Press the
MODE
button. The speed and
mileage unit setting is set, and then the
display returns to the upper level hierarchy.
When selecting the “mph”
● Units of the speedometer and average
speed show “mph”.
● Units of the odometer, tripmeter A/B and
available riding distance show “mile”.
● Units of the current fuel mileage and
average fuel mileage show “MPG” or
“mile/L”.
● Units of the tripmeter A fuel consumption
and amount of remaining fuel show “GAL”
or “L”.
Operation Guide
61
Continued
When selecting the “km/h”
● Units of the speedometer and average
speed show “km/h”.
● Units of the odometer, tripmeter A/B and
available riding distance show “km”.
● Units of the current fuel mileage and
average fuel mileage show “L/100km” or
“km/L”.
● Units of the tripmeter A fuel consumption
and amount of remaining fuel show “L”.
Temperature unit [TEMP.]
a
Select the “°F” or “°C” using the
SEL
(up)
or
SEL
(down) button.
b
Press the
MODE
button. The temperature
unit setting is set, and then the display
returns to the upper level hierarchy.
Operation Guide
62
Instruments (Continued)
Fuel mileage meter unit [FUEL CONS.]
a
When the “mph” of the “SPEED” menu is
selected
Select the “MPG” or “mile/L” using the
SEL
(up) or
SEL
(down) button.
When the “km/h” of the “SPEED” menu is
selected
Select the “L/100 km” or “km/L” using the
SEL
(up) or
SEL
(down) button.
b
Press the
MODE
button. The fuel mileage
meter unit setting is set, and then the display
returns to the upper level hierarchy.
When selecting the “MPG”
● Units of the current fuel mileage and
average fuel mileage show “MPG”.
● Units of the tripmeter A fuel consumption
and amount of remaining fuel show
“GAL”.
When selecting the “mile/L”
● Units of the current fuel mileage and
average fuel mileage show “mile/L”.
● Units of the tripmeter A fuel consumption
and amount of remaining fuel show “L”.
Operation Guide
63
Continued
When selecting the “L/100 km”
● Units of the current fuel mileage and
average fuel mileage show “L/100 km”.
● Units of the tripmeter A fuel consumption
and amount of remaining fuel show “L”.
When selecting the “km/L”
● Units of the current fuel mileage and
average fuel mileage show “km/L”.
● Units of the tripmeter A fuel consumption
and amount of remaining fuel show “L”.
#
RESTORE DEFAULT
The set value can be returned to default
setting.
a
Select the “NO” (not restore) or “YES”
(restore) using the
SEL
(up) or
SEL
(down) button.
b
When the “NO” is selected
Press the
MODE
button. The set value is
maintained, and then the display returns to
the upper level hierarchy.
When the “YES” is selected
Press the
MODE
button. The display
changes to the confirmation screen.
Operation Guide
64
Instruments (Continued)
c
Select the “NO” (not restore) or “YES”
(restore) using the the
SEL
(up) or
SEL
(down) button on the confirmation
screen.
d
When the “NO” is selected
Press the
MODE
button. The set value is
maintained, and then the display returns to
the “RESTORE DEFAULT” menu on the
“GENERAL” menu screen.
When the “YES” is selected
Press the
MODE
button. The set value
return to default setting.
e
Select the “EXIT” by pressing the
MODE
button.
f
The display returns to the “RESTORE
DEFAULT” menu on the “GENERAL” menu
screen.
Operation Guide
65
Continued
Default setting values:
● LAP DATA: Cleared
● DISPLAY MODE: STREET
● SHIFT INDICATOR: OFF
● BRIGHTNESS: AUTO
● BACK GROUND: AUTO
● USER LETTER: CBR1000RR
● FAVORITE: TOTAL, REV, CBR LOGO
● SPEED UNIT: mph
● TEMP UNIT: °F
● FUEL CONS UNIT: MPG
● Riding mode: USER 1 and USER 2 setting
value returns to initial setting values.
(P.88)
Operation Guide
66
Instruments (Continued)
SERVICE
#
To Set the SERVICE Menu
a
Select the “SERVICE” menu on the main
menu screen. (P.41)
b
Select the menu by pressing the
SEL
(up) or
SEL
(down) button and press the
MODE
button.
Operation Guide
67
Continued
Press the
MODE
button
Press the
SEL
(up) button
Press the
SEL
(down) button
MAINTENANCE (P.68)
DTC (P.71)
SPORTS KIT ECU (P.72)
(return)
SERVICE
"SERVICE" is selected
To end the setting
Select the (return) on the menu screen,
and then the display returns to the “SERVICE”
menu on the main menu screen.
#
MAINTENANCE
You can check the next inspection time and
change the setting of next inspection.
To return to the upper level hierarchy, press
the
MODE
button.
Operation Guide
68
Instruments (Continued)
Next engine oil change
Next periodic inspection
Display range:
DISTANCE:
Next periodic inspection:
-8000 to +99950 mile
(-12000 to +99900 km)
Next engine oil change:
-4000 to +99980 mile
(-6000 to +99980 km)
u
Pass 0 mile (km): “-” mark changed to
“+” mark
DATE:
Month: JAN to DEC
Year: 2010 to 2099
When reaching any of the following, the
pop-up information is appears in the
ordinary display. (P.77)
● “-300 mile” or “-500 km” from the next
periodic inspection
● “-60 mile” or “-100 km” from the next
engine oil change
● One month before the set month
Operation Guide
69
Continued
Maintenance
pop-up
information
Next inspection setting
a
Select “ ” (periodic inspection ) or “ ”
(engine oil change) using the
SEL
(up)
or
SEL
(down) button.
b
Press and hold the
MODE
button until the
“DISTANCE” value start flashing.
c
Press the
SEL
(up) or
SEL
(down)
button until the desired distance value is
displayed.
u Available setting range of periodic
inspection:
100 to 4,000 mile (100 to 6,400 km)
u Available setting range of engine oil
change:
100 to 8,000 mile (100 to 12,800 km)
Operation Guide
70
Instruments (Continued)
d
Press the
MODE
button. The cursor moves
to the indication of month.
e
Press the
SEL
(up) or
SEL
(down)
button until the desired month is displayed.
f
Press the
MODE
button. The cursor moves
to the tens digit of the year.
g
Press the
SEL
(up) or
SEL
(down)
button until the desired tens digit of the year
is displayed.
h
Press the
MODE
button. The cursor moves
to the ones digit of the year.
i
Press the
SEL
(up) or
SEL
(down)
button until the desired ones digit of the
year is displayed.
j
Press the
MODE
button. The mileage and
date setting is set, and then the display
returns to the upper level hierarchy.
#
DTC
You can check for a current problem with the
PGM-FI system.
If your vehicle has a problem, the DTC index
is displayed. In this case, the pop-up
information appears in the ordinary display.
(P.77
)
Operation Guide
71
Continued
Reduce speed and have your vehicle
inspected by your dealer as soon as possible.
To return to the upper level hierarchy, press
the
MODE
button.
#
SPORTS KIT ECU
“SPORTS KIT ECU USAGE” is displayed but
not usable.
To return to the upper level hierarchy, press
the
MODE
button.
Operation Guide
72
Instruments (Continued)
DTC indexes
Lap Timer
You can record lap time in the circuit mode.
(P.22)
You can check and clear the recorded lap
time data in the setting mode. (P.43)
(P.44)
Operation Guide
73
Continued
Stopwatch/
difference with the best lap
Previous lap time
Previous lap number
Best icon
(Displayed when the fastest lap
time displayed.)
Lap number
Lap time
Time stamp
Maximum
vehicle
speed
Maximum coolant
temperature
Maximum engine
revolutions
The lap time data includes lap time, maximum
vehicle speed, maximum engine revolutions,
maximum coolant temperature, maximum
acceleration, maximum deceleration, maximum
left bank angle and maximum right bank angle.
(P.44)
Display range:
Previous lap number: 0 to 50
u
Exceeds 50, repeats the “50”
Previous lap time: 00'00"00 to 99'59"99
u Exceeds 99'59"99, returns to the
“00'00"00”
Stopwatch: 00'00"00 to 99'59"99
u Exceeds 99'59"99, returns to the
“00'00"00”
Difference with the best lap:
-99'59"99 to 00'00"00 to +99'59"99
Maximum vehicle speed:
0 to 186 mph (0 to 299 km/h)
Maximum engine revolutions:
0 to 20000 r/min (rpm)
Maximum coolant temperature:
-40 to 302°F (-40 to 150°C)
Maximum acceleration: 0 to 8.0 G
Maximum deceleration: 0 to 4.1 G
Maximum left bank angle:
0 to 90 deg
Maximum right bank angle:
0 to 90 deg
Operation Guide
74
Instruments (Continued)
#
To Measure the Lap Time
a
Press and hold the
LAP
button or select the
“CIRCUIT” menu on the “DISPLAY MODE”
menu screen. (P.22
)
(P.46
)
(P.47
)
b
To start measuring, press the
LAP
button.
u The stopwatch starts measuring.
c
To record lap time, press the
LAP
button at
each lap.
u The stopwatch changes to display the
difference with the best lap.
After 10 seconds, the display will return
to the stopwatch.
u
The previous lap time and previous lap
number change to the information of the
previous lap.
u
If you press the
LAP
button again within
two seconds, lap time is not recorded.
u
When exceeds 50 lap, the previous lap
number repeats the “LAP 50”.
Operation Guide
75
Continued
Stopwatch
d
To end measurement, press and hold the
LAP
button.
To restart the measurement
Press the
LAP
button again. The stopwatch
restarts measuring.
u Measurement starts from the next lap.
#
To Check or Clear the Lap Time
Select the “LAP TIME” menu in the setting
mode. (P.43) (P.45)
Operation Guide
76
Instruments (Continued)
Previous lap number
Previous lap time
Difference with the best lap
Pop-up information
In the following case, the INFO 3 display or
the INFO 3 display and coolant temperature
gauge change to a pop-up information
display.
●
Maintenance information:
When the inspection time of your vehicle
is approaching.
● Helpful information:
When your vehicle has helpful
information.
● Failure information:
When your vehicle has a problem with the
PGM-FI system.
When your vehicle has multiple pieces of
information, each pop-up information display
appears alternately.
If your vehicle has a problem with the PGM-
FI, the failure information is displayed in
priority to other information.
Operation Guide
77
Continued
INFO 3
INFO 3
Pop-up
information
display
Pop-up
information
display
Coolant
temperature
gauge
#
Maintenance Information
Indication Explanation Remedy
When the periodic inspection
time of your vehicle is
approaching.
Have your vehicle inspected by
your dealer.
When the oil change time of
your vehicle is approaching.
Change the engine oil.
#
Helpful Information
Indication Explanation Remedy
When the side stand is down. Raise the side stand.
When remaining fuel is reached
1.1 US gal (4.0 L).
Fill the fuel tank. (P.95)
Operation Guide
78
Instruments (Continued)
#
Failure Information
Indication Explanation Remedy
When your vehicle has a
problem with the PGM-FI
system.
Reduce speed and have your
vehicle inspected by your
dealer as soon as possible.
Operation Guide
79
Indicators
Operation Guide
80
If one of these indicators does not come on when it should, have your dealer check for
problems.
Torque Control indicator
● Comes on when the ignition switch is turned to
the ON position. Goes off when your speed
reaches approximately 3 mph (5 km/h) to
indicate Torque Control is ready to work.
● Blinks when Torque Control is operating.
Torque Control OFF indicator
Comes on when the Torque Control is turned off.
Shift indicators (P.83)
Comes on briefly when the ignition switch is turned
to the ON position.
Right turn signal indicator
Left turn signal indicator
If it comes on while riding: (P.150)
Low oil pressure indicator
Comes on when the ignition switch is
turned to the ON position. Goes off
when the engine starts.
If it comes on while engine is
running:
(P.148)
Operation Guide
81
Continued
Neutral indicator
High coolant temperature indicator
Comes on briefly when the ignition switch is turned
to the ON position.
If it comes on while riding:
(P.147
)
ABS (Anti-lock Brake System) indicator
CBR1000RA
Comes on when the ignition switch is turned to the
ON position. Goes off when your speed reaches
approximately 6 mph (10 km/h).
If it comes on while riding: (P.149)
Comes on when the transmission is in Neutral.
High beam indicator
Low fuel indicator
● Comes on briefly when the ignition switch is turned to the ON position.
● Comes on when there is only reserve fuel left in the fuel tank. Remaining fuel when low
fuel indicator comes on: 1.1 US gal (4.0 L)
If it comes on: (P.36)
Operation Guide
82
Indicators (Continued)
HESD (Honda Electronic Steering Damper)
indicator
Comes on briefly when the ignition switch is
turned to the ON position.
If it comes on while engine is running:
(P.149)
PGM-FI (Programmed Fuel Injection) malfunction indicator lamp (MIL)
Comes on briefly when the ignition switch is turned to the ON position with the engine stop
switch in the
(Run) position. Comes on when the ignition switch is turned to the ON
position with the engine stop switch in the (Stop) position.
If it comes on while engine is running: (P.148)
Shift Indicators
The shift indicators light or blink by the
engine revolutions. The first indicator lights
when the engine revolutions reach 800 r/min
(rpm) below a preset revolution number.
The second, third and fourth indicators will
light with each 200 r/min (rpm) rise.
All indicators will blink when engine
revolutions is reached the set value.
Setting of the shift indicators
You can change the engine revolutions at
which the shift indicators start blinking.
Initial setting: OFF
Available setting range:
4,000 - 16,600 r/min (rpm)
Example set value: 11,600 r/min (rpm)
0 to 10,800 r/min (rpm)
All indicators go off
10,800 r/min (rpm)
First indicator comes on
11,000 r/min (rpm)
Second indicator comes on
11,200 r/min (rpm)
Third indicator comes on
11,400 r/min (rpm)
Fourth indicator comes on
11,600 r/min (rpm)
All indicators blink
Operation Guide
83
Switches
Operation Guide
84
Headlight dimmer switch/Passing light control switch
• : High beam
• : Low beam
Turn signal switch
Horn button
u Pressing the switch turns
the turn signal off.
Hazard switch
Switchable when the ignition switch is on. Can be
turned to off regardless of the ignition switch
position.
u The signals continue flashing with the ignition switch
is OFF or LOCK after the hazard switch is on.
LAP
button
Operate the lap timer
• : Flashes the high beam headlight.
Operation Guide
85
Continued
Ignition Switch
Switches the electrical system on/off, locks
the steering.
u Key can be removed when in the OFF or
LOCK position.
ON
OFF
Turns electrical system
on for starting/riding.
Turns engine off.
LOCK
Locks steering.
Engine stop switch/ Start button
Should normally remain in the (Run) position.
u In an emergency, switch to the (Stop) position to stop the engine.
Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebars all the way to the left.
b
Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebars if the lock is
difficult to engage.
c
Remove the key.
#
Unlocking
Insert the key, push it in, and turn the ignition
switch to the OFF position.
Operation Guide
86
Switches (Continued)
Turn
Push
Ignition key
b
a
Riding mode
You can change the riding mode.
The riding mode consists of the following
parameters.
P: Engine output level
T: Torque control level
W: Wheelie control level
EB: Engine brake level
When “-” is displayed, go to your dealer for
service.
Operation Guide
87
Continued
Current riding mode
P value
T value
EB value
W value
Initial setting
Riding modes
P value T value W value EB value
MODE 1 1 2 1 3
MODE 2 2 5 2 3
MODE 3 5 8 3 1
USER 1 1
*1
5
*1
2
*1
1
*1
USER 2 2
*1
5
*1
2
*1
2
*1
Notes:
*1 : Value can be changed.
Riding mode has five modes.
Available riding mode: MODE 1, MODE 2,
MODE 3, USER 1 and USER 2.
MODE 1, MODE 2 and MODE 3
u MODE 1 is suitable for track riding.
u MODE 2 is suitable for winding roads.
u MODE 3 is suitable for street riding.
Each value can not be changed.
USER 1 and USER 2
Each value can be changed.
Operation Guide
88
Riding mode (Continued)
P value (Engine output level)
P value has five setting levels.
Available setting range: 1 to 5
u Level 1 has the most power.
u Level 5 has the least power.
T value (Torque control level)
T value has ten setting levels.
Available setting range: 0 to 9
u Level 1 is the minimum Torque Control level.
u
Level 9 is the maximum Torque Control level.
u Level 0 deactivates/turns off the Torque
Control.
u When the T value is set to 0, the W value
automatically changes 0.
W value (Wheelie control level)
W value has four setting levels.
Available setting range: 1 to 3
u
Level 1 is the minimum Wheelie Control level.
u
Level 3 is the maximum Wheelie Control level.
u
Level 0 deactivates/turns off the Wheelie
Control.
EB value (Engine brake level)
EB value has three setting levels.
Available setting range: 1 to 3
u
Level 1 has the strongest engine braking effect.
u
Level 3 has the weakest engine braking effect.
Operation Guide
89
Continued
Selecting the riding mode
a
Stop the vehicle.
b
Select the riding mode display. (P.25)
c
Press the
SEL
(up) or
SEL
(down)
button with the throttle fully closed.
Operation Guide
90
Riding mode (Continued)
SEL
(up) button
SEL
(down) button
MODE
button
Press the
SEL
(up) button
Press the
SEL
(down) button
MODE 1
MODE 2
MODE 3
USER 1
USER 2
Setting the riding mode
You can change the P, T, W and EB values on
the USER 1 and USER 2 of the riding mode.
a
Stop the vehicle.
b
Select the USER 1 or USER 2 in the riding
mode you want to set.
(P.90)
c
Press and hold the
MODE
button until P
value is selected.
d
Press the
SEL
(up) or
SEL
(down)
button until the desired value is displayed.
e
Press the
MODE
button until T value is
selected.
f
Press the
SEL
(up) or
SEL
(down)
button until the desired value is displayed.
u T value can be changed to level 0 by
pressing and holding the
SEL
(down)
button at the time of level 1.
g
Press the
MODE
button until W value is
selected.
h
Press the
SEL
(up) or
SEL
(down)
button until the desired value is displayed.
i
Press the
MODE
button until EB value is
selected.
j
Press the
SEL
(up) or
SEL
(down)
button until the desired value is displayed.
k
Press and hold the
MODE
button until
ordinary display is displayed.
You can stop setting the riding modes at any
time by pressing and holding the
MODE
button.
Operation Guide
91
Continued
Operation Guide
92

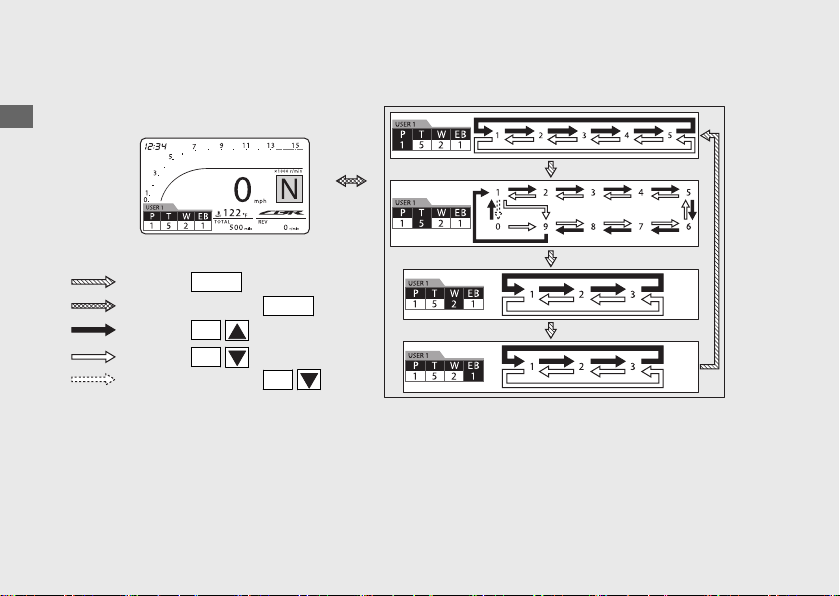

Riding mode (Continued)
Press the
MODE
button
Press and hold the
MODE
button
Press the
SEL
(up) button
Press the
SEL
(down) button
Press and hold the
SEL
(down)
button
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
•
If the engine does not start within 5 seconds, turn the
ignition switch to the OFF position and wait 10 seconds
before trying to start the engine again to recover
battery voltage.
•
Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
•
Snapping the throttle or fast idling for more than about
5 minutes may cause exhaust pipe discoloration.
•
The engine will not start if the throttle is fully open.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the ON position.
c
Shift the transmission to Neutral (
N
indicator comes on). Alternatively, pull in the
clutch lever to start your vehicle with the
transmission in gear so long as the side
stand is raised.
d
Press the start button with the throttle
completely closed.
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying steps a & b again.
#
If Engine Will Not Start (P.146
)
Operation Guide
93
a
b
c
d
Shifting Gears
Your vehicle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the vehicle in gear with the side
stand down, the engine will shut off.
#
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 28 mph (45 km/h)
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or
towing the vehicle for long distances with the
engine off can damage the transmission.
Operation Guide
94
1
2
3
4
5
6
N
Refueling
Do not fill with fuel above the level plate.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 91 or higher.
Tank capacity:
4.28 US gal (16.2 L)
#
Refueling and Fuel Guidelines (P.13)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refueling, push the fuel fill cap closed
until it locks.
b
Remove the ignition key and close the lock
cover.
u The ignition key cannot be removed if
the fuel fill cap is not locked.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Operation Guide
95
Ignition key
Level plate
Fuel fill cap
Lock cover
Storage Equipment

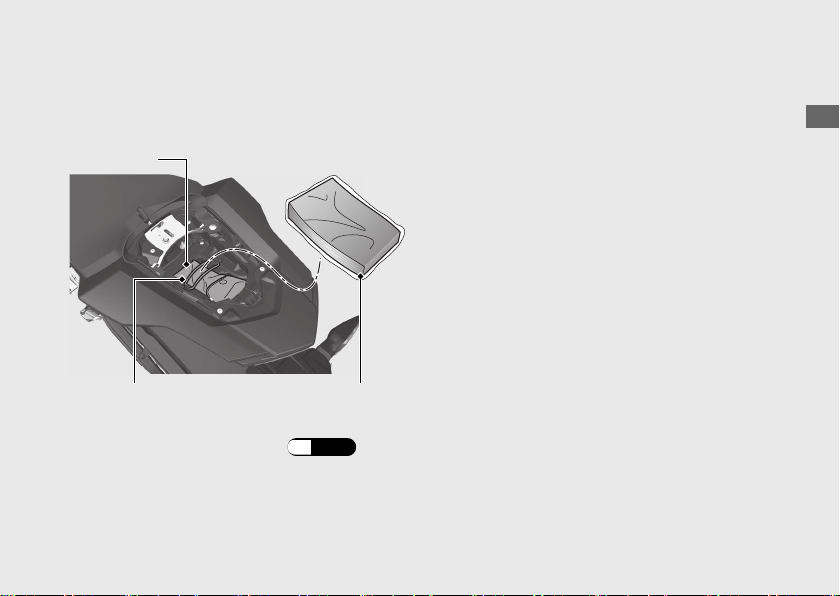

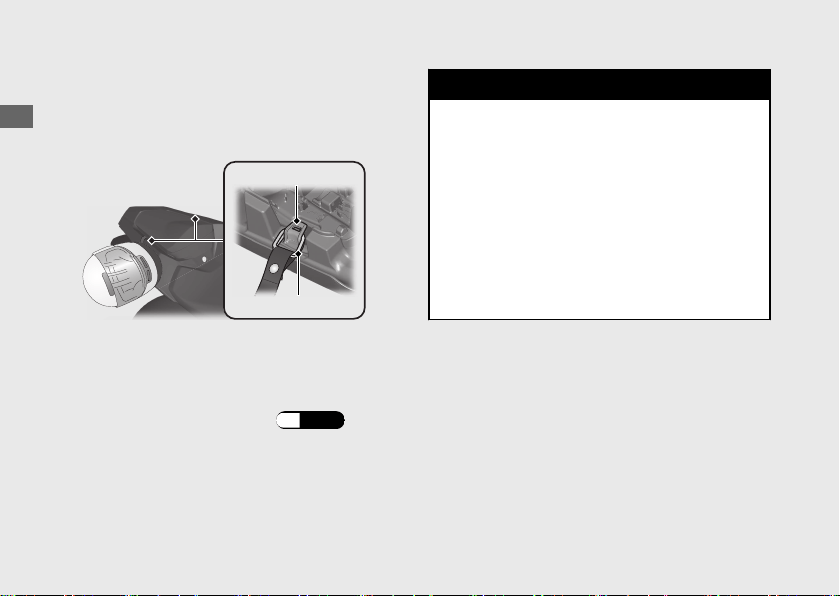

Helmet Holder
The helmet holders are located on the
underside of the rear seat.
u
Use the helmet holder only when parked.
#
Removing the Rear Seat (P.122)
3WARNING
Riding with a helmet attached to the
holder can interfere with your ability to
safely operate the vehicle and could
lead to a crash in which you can be
seriously hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Operation Guide
96
Helmet holder
Helmet D-ring
Importance of Maintenance ........................... P. 99
Maintenance Schedule................................... P. 101
Maintenance Record ...................................... P. 104
Maintenance Fundamentals .........................P. 105
Removing & Installing Body
Components ...................................................P. 119
Battery.................................................................. P. 119
Front Seat............................................................ P. 121
Rear Seat ............................................................. P. 122
Under Cowl......................................................... P. 123
Engine Oil.......................................................... P. 124
Coolant .............................................................. P. 126
Brakes.................................................................P. 128
Side Stand ......................................................... P. 131
Drive Chain ....................................................... P. 132
Clutch ................................................................. P. 133
Throttle .............................................................. P. 137
Other Adjustments.......................................... P. 138
Adjusting the Brake Lever...............................P. 138
Adjusting the Front Suspension ....................P. 139
Adjusting the Rear Suspension...................... P. 142
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride, and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 101
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), and the
California Air Resources Board (CARB). 2 P. 167
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any vehicle repair
establishment or individual using parts
that are “certified” to EPA standards.
Maintenance
99
Maintenance Safety
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
●
Stop the engine and remove the key.
●
Place your vehicle on a firm, level surface
using the side stand or a maintenance stand
to provide support.
●
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
●
Run the engine only when instructed, and
do so in a well-ventilated area.
Importance of Maintenance
Maintenance
100
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. All scheduled maintenance is
considered a normal owner operating cost and
will be charged to you by your dealer. Keeping
an accurate maintenance record will help
ensure your vehicle is properly maintained.
2 P. 104
Make sure whoever performs the scheduled
maintenance completes the maintenance
record. Retain all service documents. If you sell
your vehicle, these service documents should
be transferred with the vehicle to the new
owner.
Maintenance
101
Continued
Items
Frequency
*1
Regular
Replace
Refer to
page
× 1,000 mi 0.6 4 8 12 16 20 24
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-related Items
Fuel Line –
Throttle Operation 137
Air Cleaner
*2
–
Spark Plug
Every 16,000 mi (25,600 km): Every 32,000 mi (51,200 km):
–
Valve Clearance –
Engine Oil 1 Year –
Engine Oil Filter –
Engine Idle Speed –
Radiator Coolant
*4
3 Years 126
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System
*3
–
Exhaust Gas Control Actuator Cable –
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 173).
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Replace
Lubricate
: Technical. In the interest of safety, have your vehicle
serviced by your dealer.
Maintenance Schedule
Maintenance
102
Items
Frequency
*1
Regular
Replace
Refer to
page
× 1,000 mi 0.6 4 8 12 16 20 24
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-related Items
Drive Chain
Every 600 mi (1,000 km): ,
132
Brake Fluid
*4
2 Years 128
Brake Pads Wear 129
Brake System 105
Brake light Switch 130
Headlight Aim –
Clutch System 133
Side Stand 131
Suspension 139
Nuts, Bolts, Fasteners –
Wheels/Tires 115
Steering Head Bearings –
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : 50 STATE (meets California).
*
4 : Replacement requires mechanical skill.
Maintenance Schedule
Maintenance
103
Maintenance Record
Distance Odometer Date Performed By: Notes
600 miles (1,000 km)
4,000 miles (6,400 km)
8,000 miles (12,800 km)
12,000 miles (19,200 km)
16,000 miles (25,600 km)
20,000 miles (32,000 km)
24,000 miles (38,400 km)
28,000 miles (44,800 km)
32,000 miles (51,200 km)
36,000 miles (57,600 km)
40,000 miles (64,000 km)
44,000 miles (70,400 km)
48,000 miles (76,800 km)
52,000 miles (83,200 km)
56,000 miles (89,600 km)
60,000 miles (96,000 km)
64,000 miles (102,400 km)
68,000 miles (108,800 km)
Maintenance
104
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your vehicle:
● Tire tread wear and air pressures are within
limits. 2 P. 115
●
Lights, horn, and turn signals operate normally.
●
Check the condition of the drive chain.
Adjust slack and lubricate as needed.
2 P. 113
Check the following items if you are carrying a
passenger or cargo:
●
Combined weight is within load limits. 2 P. 180
●
Cargo is secured properly.
● Suspension is adjusted to suit load. 2 P. 139,
2 P. 142
Check the following items after you get on your
vehicle:
● Throttle action moves smoothly without
binding. 2 P. 137
● Brake lever and pedal operate normally.
● Refuel when needed. 2 P. 13, 2 P. 95
● Engine stop switch functions properly.
2 P. 84
Check the following items at regular intervals:
●
Oil level is between the upper and lower
level marks. 2 P. 124
●
Brake fluid level is
Front: between the UPPER and LOWER level
marks. 2 P. 128
Rear: between the UPPER and LOWER level
marks. 2 P. 128
●
Engine coolant level is between the UPPER
and LOWER level marks. 2 P. 126
●
Side stand functions properly. 2 P. 131
Maintenance
105
Tires and wheels
Check the air pressure (2 P. 115), examine tread for wear and damage
(2 P. 115), and check the wheels for damage.
Fluid levels
Check the engine oil level (2 P. 124), engine coolant level (2 P. 126),
and brake fluid level (2 P. 128).
Lights
Check that the headlight, position light, brake light, taillight, turn
signals and license plate light are working properly.
Controls
Check the freeplay of the clutch lever (2 P. 133) and throttle grip
(2 P. 137).
Drive chain
Check the slack (2 P. 132), adjust the slack, and lubricate (2 P. 113) as
needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 101
Maintenance Fundamentals
Maintenance
106
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label.
The color label is attached on the inside of the
left duct.
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
Maintenance Fundamentals
Maintenance
107

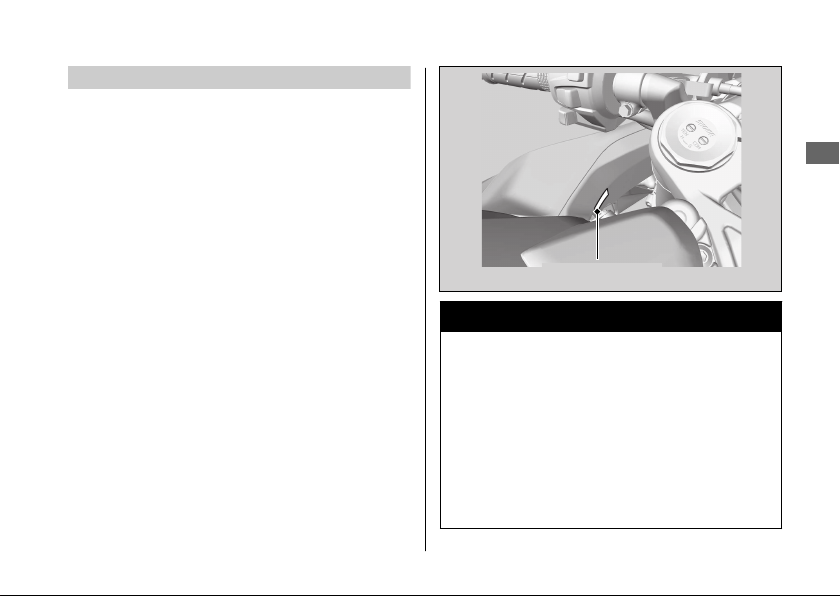

Color label
Battery
Your vehicle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
#
What to do in an emergency
If any of the following occur, immediately see
your doctor.
●
Electrolyte splashes into your eyes:
u
Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
Maintenance Fundamentals
Maintenance
108
Continued
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 119
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
Maintenance Fundamentals
Maintenance
109
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Maintenance Fundamentals
Maintenance
110
Continued
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 153
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 182
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil or
old oil should be changed as soon as possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 181
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
●
JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SG or higher
Maintenance Fundamentals
Maintenance
111
Blown fuse
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
Maintenance Fundamentals
Maintenance
112
Oil code
Oil classification
Not recommended Recommended
Continued
Drive Chain
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration. 2 P. 132
If the chain does not move smoothly, makes
strange noises, has damaged rollers, has loose
pins, has missing O-rings, or kinks, have the
chain inspected by your dealer.
Also inspect the drive sprocket and driven
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
#
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a dry
cloth with chain cleaner designed specifically for
O-ring chains, or neutral detergent. Use a soft
brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
Maintenance Fundamentals
Maintenance
113
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the vehicle.
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
NOTICE
Using coolant not specified for aluminum engines
or tap/mineral water can cause corrosion.
Maintenance Fundamentals
Maintenance
114
Continued
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
Even if the direction of the valve stem is
changed, do not return it to the original
position. Have your vehicle inspected by your
dealer.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
exposes fabric or
cords, or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
Maintenance Fundamentals
Maintenance
115
Right side
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
Maintenance Fundamentals
Maintenance
116
Wear indicator
location mark
or TWI
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 181
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
●
Do not install a tube inside a tubeless tire on
this vehicle. Excessive heat build-up can
cause the tube to burst.
●
Use only tubeless tires on this vehicle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3WARNING
Installing improper tires on your vehicle
can adversely affect handling and
stability, and can cause a crash in which
you can be seriously hurt or killed.
Always use the size and type of tires
recommended in this owner's manual.
Maintenance Fundamentals
Maintenance
117
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S. Department
of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
Maintenance Fundamentals
Maintenance
118
Tire Labeling Example
Tire identification
number (TIN)
Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1.
Remove the front seat. 2 P. 121
2.
Unhook the rubber strap from left side.
3.
Disconnect the negative - terminal from
the battery.
4.
Disconnect the positive + terminal from
the battery.
5.
Remove the battery taking care not to
drop the terminal nuts.
Maintenance
119
Continued

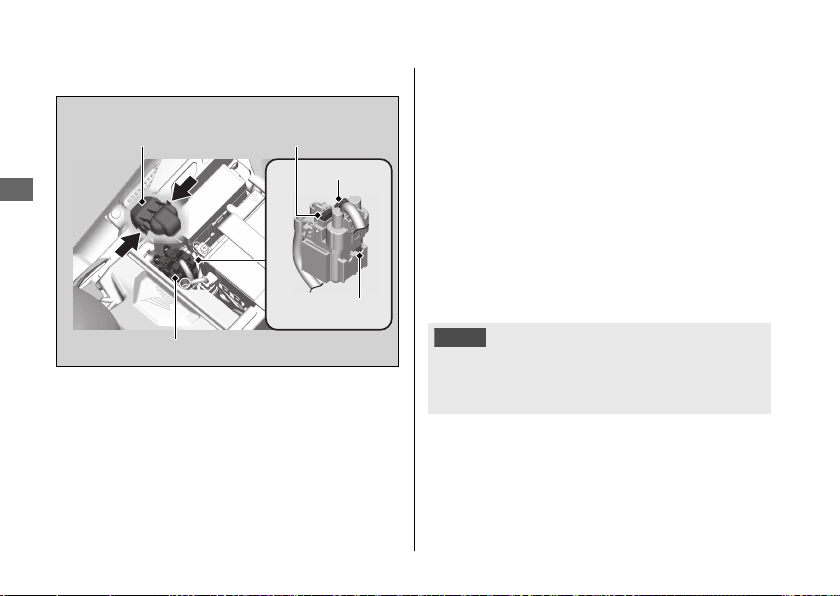

Rubber strap
Positive terminal
Negative terminal
Battery
#
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
Make sure the clock information is correct
after the battery is reconnected. 2 P. 58
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 108
“Battery Goes Dead.” 2 P. 152
Removing & Installing Body Components u Battery
Maintenance
120
Front Seat
#
Removal
Remove the mounting bolts and washers,
and then pull the front seat back and up.
#
Installation
1.
Install the front seat while inserting the
tabs into the recesses.
2.
Install the washers and mounting bolts.
3.
Tighten the mounting bolts securely.
Make sure that the seat is locked securely
in position by pulling it up lightly.
Removing & Installing Body Components u Front Seat
Maintenance
121
Tabs
Front seat
Recesses
Mounting bolts
Washer
Washer
Rear Seat
#
Removal
1.
Move the seat strap forward.
2.
Insert the ignition key into the seat lock.
3.
Turn the ignition key clockwise, then pull
the rear seat forward and up.
#
Installation
1.
Insert the tab into the recess.
2.
Push down on the front of the rear seat.
Make sure that the seat is locked securely
in position by pulling it up lightly.
3.
Move the seat strap to its original
position.
The seat locks automatically when closed.
Take care not to lock your key in the
compartment under the rear seat.
Removing & Installing Body Components u Rear Seat
Maintenance
122
Rear seat
Seat lock
Ignition key
Tab
Recess
Seat strap
Under Cowl
#
Removal
1.
Remove the pan screws and under cowl
bolts.
2.
Remove the under cowl carefully by
releasing the guides from the hooks of
the middle cowl side as shown in the
illustration.
#
Installation
1.
Install the under cowl using reverse of the
removal procedure.
2.
Route the tubes through the opening of
the lower cowl.
3.
Install and tighten the under cowl bolts
securely.
4.
Install and tighten the pan screws
securely.
Removing & Installing Body Components u Under Cowl
Maintenance
123
Pan
screws
Under
cowl bolts
Hooks
Under
cowl
Guides
Tubes
Under cowl bolts
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your vehicle in an upright position
on a firm, level surface.
4.
Remove the dipstick and wipe it clean.
5.
Insert the dipstick until it seats, but don't
screw it in.
6.
Check that the oil level is between the
upper level and lower level marks on the
dipstick.
7.
Securely install the dipstick.
Maintenance
124

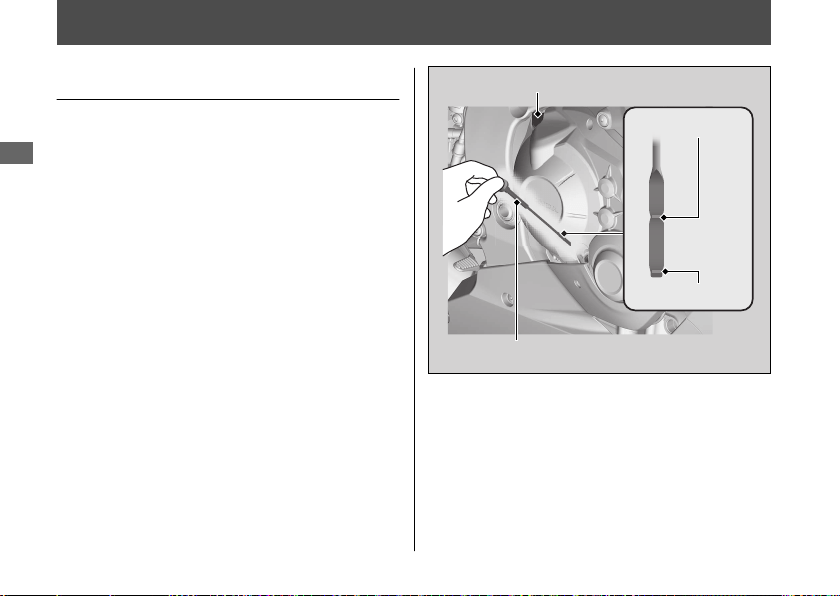

Oil fill cap
Upper level
Lower level
Dipstick
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 111, 2 P. 181
1.
Remove the oil fill cap. Add the
recommended oil until it reaches the
upper level mark.
u Place your vehicle in an upright
position on a firm, level surface when
checking the oil level.
u
Do not overfill above the upper level
mark.
u
Make sure no foreign objects enter the
oil filler opening.
u
Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 111
Engine Oil u Adding Engine Oil
Maintenance
125
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your vehicle on a firm, level surface.
2.
Hold your vehicle in an upright position.
3.
Check that the coolant level is between
the UPPER level and LOWER level marks
on the reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your vehicle inspected by
your dealer.
Maintenance
126
UPPER level
LOWER level
Reserve tank
Reserve tank cap
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 114) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
1.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the UPPER level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
2.
Securely reinstall the reserve tank cap.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Coolant u Adding Coolant
Maintenance
127
Brakes
Checking Brake Fluid
1.
Place your vehicle in an upright position
on a firm, level surface.
2.
Check that the brake fluid reservoir is
horizontal and that the fluid level is
between the LOWER level and UPPER
level marks.
If the brake fluid level in either reservoir is
below the LOWER level mark or the brake
lever and pedal freeplay becomes excessive,
inspect the brake pads for wear.
If the brake pads are not worn, you most
likely have a leak. Have your vehicle
inspected by your dealer.
Maintenance
128
Front brake fluid reservoir
UPPER level mark
LOWER level mark
Rear brake fluid reservoir
Front Rear
LOWER level mark
UPPER level mark
Inspecting the Brake Pads
Check the condition of the brake pad wear
indicators.
Front
The pads need to be replaced if a
brake pad is worn to the bottom of the
indicator.
Rear
The pads need to be replaced if a brake
pad is worn to the indicator.
1.
Front
Inspect the brake pads from in front
of the brake caliper.
u Always inspect both left and right
brake calipers.
2.
Rear
Inspect the brake pads from the rear
right of the vehicle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
Brakes u Inspecting the Brake Pads
Maintenance
129
Front Rear
Pads
Disc
Wear
indicator
Pads
Wear indicator
Disc
Wear indicator
Wear indicator
Adjusting the Brake Light
Switch
Check the operation of the brake light switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
Brakes u Adjusting the Brake Light Switch
Maintenance
130

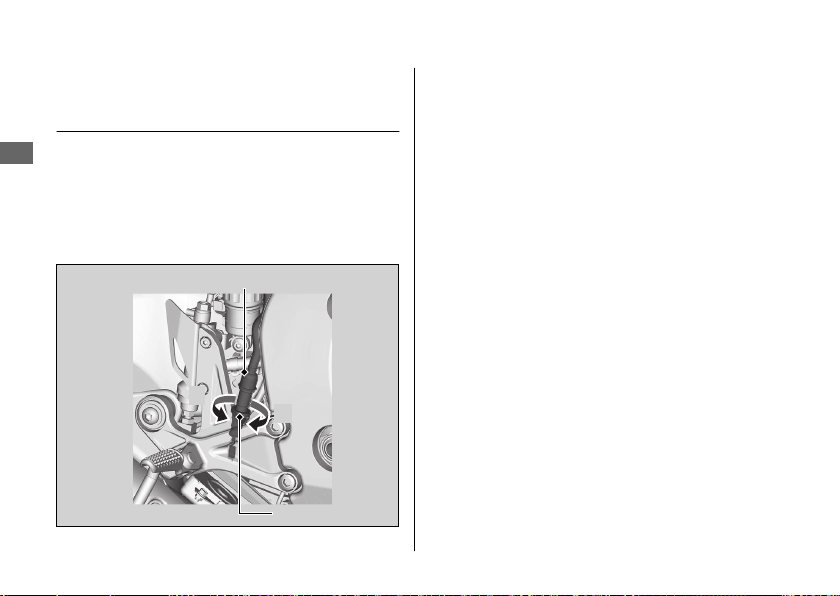

Brake light switch
Adjusting nut
B
A
Side Stand
Checking the Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the vehicle, shift the transmission to
Neutral, and raise the side stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your vehicle inspected by your dealer.
Maintenance
131
Side stand
spring
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your vehicle on its side stand on a
firm, level surface.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
Drive chain slack:
1.0 - 1.4 in (25 - 35 mm)
u
Do not ride your vehicle if the slack
exceeds 2.0 in (50 mm).
4.
Roll the vehicle forward and check that
the chain moves smoothly.
5.
Inspect the sprockets. 2 P. 113
6.
Clean and lubricate the drive chain.
2 P. 113
Maintenance
132
Clutch
Checking the Clutch
#
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Freeplay at the clutch lever:
0.4 - 0.8 in (10 - 20 mm)
Check the clutch cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause
premature clutch wear.
Maintenance
133
Clutch lever
Freeplay
Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
Turn the clutch cable adjuster until the
freeplay is 0.4 - 0.8 in (10 - 20 mm).
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
134

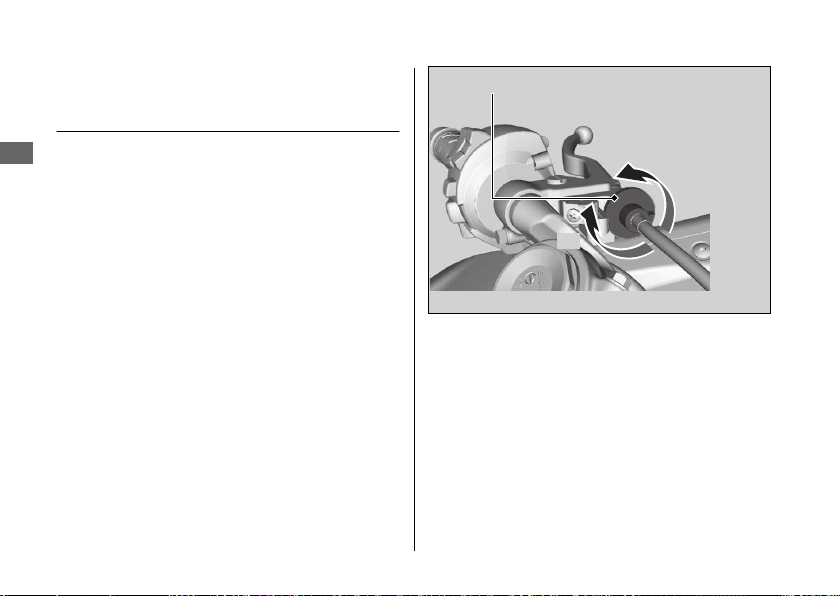

Upper clutch cable adjuster
＋
－
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
1.
Turn the upper clutch cable adjuster all
the way in (to provide maximum freeplay).
2.
Remove the under cowl. 2 P. 123
3.
Remove the pan screw and under cowl
bolt.
4.
Remove the rear under cover.
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
135
Continued
Pan screw
Under cowl
bolt
Rear under
cover
5.
Loosen the lower lock nut.
6.
Turn the adjusting nut until the clutch
lever freeplay is 0.4 - 0.8 in (10 - 20 mm).
7.
Tighten the lower lock nut and check the
clutch lever freeplay.
8.
Install the rear under cover using reverse
of the removal procedure.
9.
Install and tighten the under cowl bolt
and pan screw securely.
10.
Install the under cowl. 2 P. 123
11.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the vehicle does not
creep. Gradually release the clutch lever
and open the throttle. Your vehicle should
move smoothly and accelerate gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
136
Lower lock nut Adjusting nut
+
–
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open. If the throttle does not move smoothly,
close automatically, have the vehicle
inspected by your dealer.
Maintenance
137
Throttle
Other Adjustments

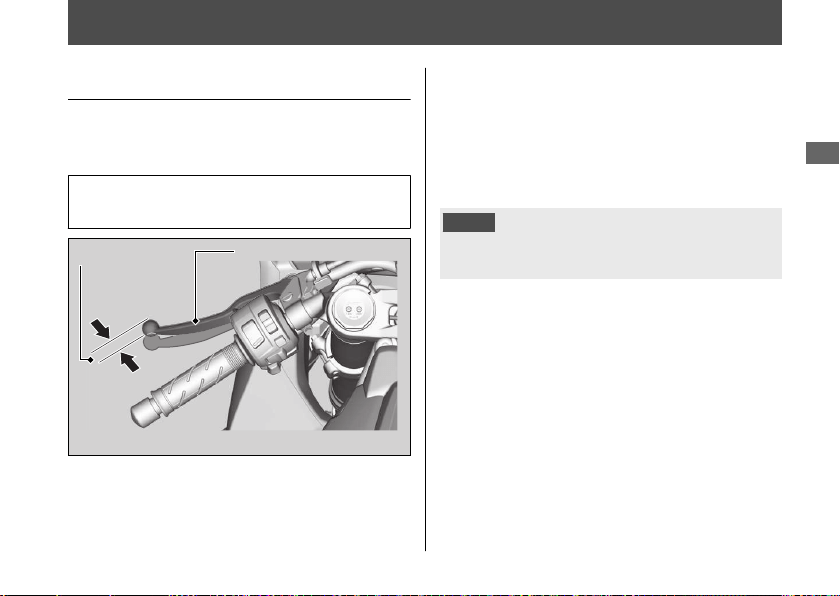

Adjusting the Brake Lever
You can adjust the distance between the tip
of the brake lever and handle grip.
#
Adjustment method
Turn the adjuster until the numbers align with
the index mark while pushing the lever
forward in the desired position.
After adjustment, check that the lever
operates correctly before riding.
NOTICE
Do not turn the adjuster beyond its natural limit.
Maintenance
138
Index mark
Adjuster
Forward
Brake lever
Handle grip
Adjusting the Front Suspension
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
The spring preload adjuster has 15 turns.
Turn clockwise to increase spring preload
(hard), or turn counterclockwise to decrease
spring preload (soft). The standard position is
7 1/2 turns from the full soft position.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right forks to the same
spring preload.
Other Adjustments u Adjusting the Front Suspension
Maintenance
139
Continued
Adjuster
#
Rebound Damping
You can adjust the rebound damping by the
TEN adjuster to suit the load or the road
surface.
The TEN adjuster has 5 1/2 turns.
Turn clockwise to increase rebound damping
(hard), or turn counterclockwise to decrease
rebound damping (soft). The standard
position is 4 turns from the full hard position.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right forks to the same
rebound damping.
Other Adjustments u Adjusting the Front Suspension
Maintenance
140

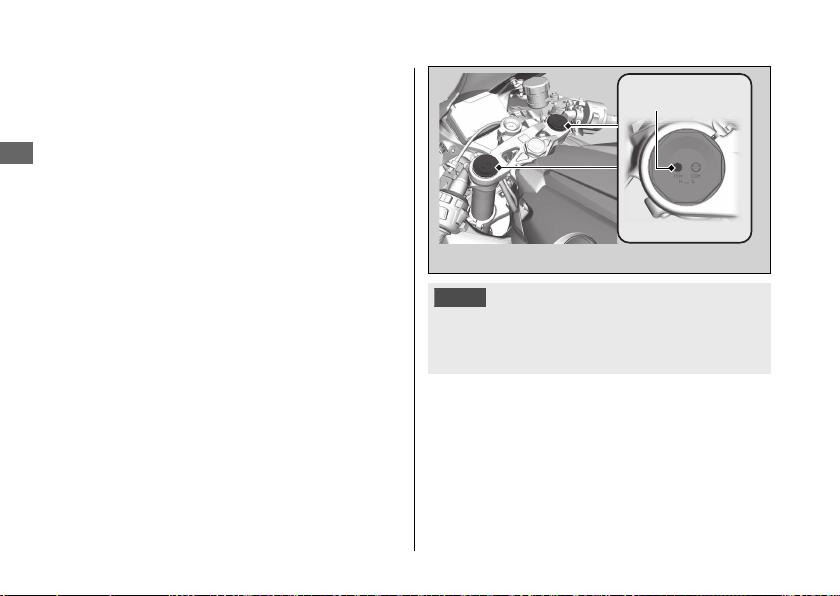

TEN adjuster
#
Compression Damping
You can adjust the compression damping by
the COM adjuster to suit the load or the road
surface.
The COM adjuster has 7 turns.
Turn clockwise to increase compression
damping (hard), or turn counterclockwise to
decrease compression damping (soft). The
standard position is 5 turns from the full hard
position.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right forks to the same
compression damping.
Other Adjustments u Adjusting the Front Suspension
Maintenance
141
COM adjuster
Adjusting the Rear Suspension
Adjusting the suspension requires a pin
spanner. We recommend that you have your
vehicle serviced by your dealer.
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Turn the adjuster using the pin spanner.
The preload adjuster has 9 positions.
Positions 1 to 3 are for a decrease spring
preload (soft), or turn the position 5 to 9
increase spring preload (hard). The standard
position is 4.
NOTICE
Do not turn the adjuster beyond its limits.
Attempting to adjust directly from 1 to 9 or 9 to 1
may damage the shock absorber.
NOTICE
The rear shock absorber damper unit contains
high pressure nitrogen gas. Do not attempt to
disassemble, service, or improperly dispose of
the damper. See your dealer.
Other Adjustments u Adjusting the Rear Suspension
Maintenance
142
1
2 3 4 5 6 7 8
9
Pin spanner
Adjuster
#
Rebound Damping
You can adjust the rebound damping by the
TEN adjuster to suit the load or the road
surface.
The TEN adjuster has 4 turns.
Turn clockwise to increase rebound damping
(hard), or turn counterclockwise to decrease
rebound damping (soft).
The standard position is 2 1/2 turns from the
full hard position.
NOTICE
Do not turn the adjuster beyond its limits.
NOTICE
The rear shock absorber damper unit contains
high pressure nitrogen gas. Do not attempt to
disassemble, service, or improperly dispose of
the damper. See your dealer.
Other Adjustments u Adjusting the Rear Suspension
Maintenance
143
Continued

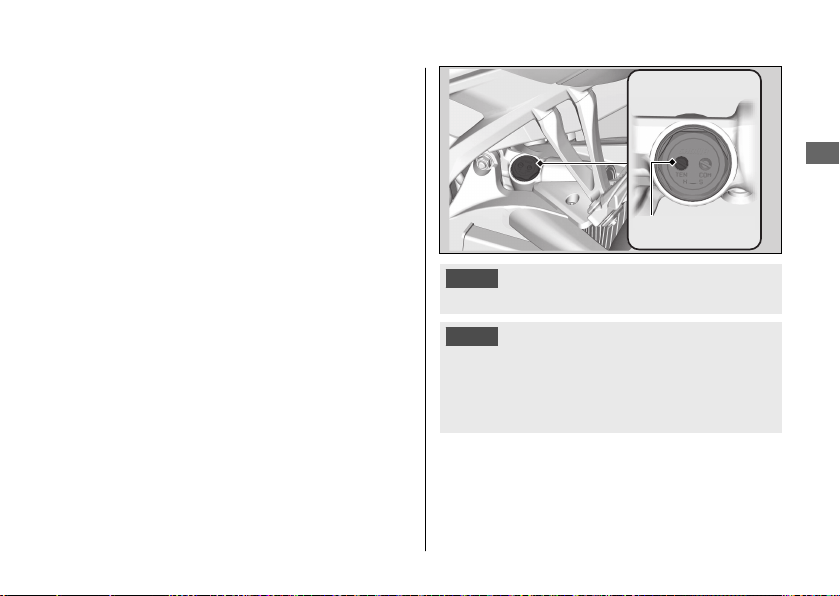

TEN adjuster
#
Compression Damping
You can adjust the compression damping by
the COM adjuster to suit the load or the road
surface.
The COM adjuster has 4 1/2 turns.
Turn clockwise to increase compression
damping (hard), or turn counterclockwise to
decrease compression damping (soft).
The standard position is 3 turns from the full
hard position.
NOTICE
Do not turn the adjuster beyond its limits.
NOTICE
The rear shock absorber damper unit contains
high pressure nitrogen gas. Do not attempt to
disassemble, service, or improperly dispose of
the damper. See your dealer.
Other Adjustments u Adjusting the Rear Suspension
Maintenance
144
COM adjuster
Engine Will Not Start......................................P. 146
Overheating (High coolant temperature
indicator is on)............................................... P. 147
Warning Indicators On or Flashing............. P. 148
Low Oil Pressure Indicator .............................. P. 148
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL)............... P. 148
ABS (Anti-lock Brake System) Indicator ....... P. 149
HESD (Honda Electronic Steering Damper)
Indicator ............................................................ P. 149
Torque Control Indicator................................. P. 150
Tire Puncture .................................................... P. 151
Electrical Trouble............................................. P. 152
Battery Goes Dead............................................P. 152
Burned-out Light Bulb .....................................P. 152
Blown Fuse.......................................................... P. 153
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 93
●
Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator lamp is on, contact
your dealer as soon as possible.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 93
●
Make sure engine stop switch is in the
(Run) position. 2 P. 84
● Check for a blown fuse. 2 P. 153
●
Check for a loose battery connection
(2 P. 119) or battery terminal corrosion
(2 P. 108).
● Check the condition of the battery.
2 P. 152
If the problem continues, have your vehicle
inspected by your dealer.
Troubleshooting
146
Overheating (High coolant temperature indicator is on)
The engine is overheating when the following
occurs:
● High coolant temperature indicator
comes on.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following
procedure.
Extended fast idling may cause the high
coolant temperature indicator to come on.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
If the fan is not operating:
Suspect a fault. Do not start the engine.
Transport your vehicle to your dealer.
If the fan is operating:
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 126
If there is a leak:
Do not start the engine. Transport your
vehicle to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 126
u
Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the high
coolant temperature indicator.
Troubleshooting
147
Warning Indicators On or Flashing
Low Oil Pressure Indicator
If the low oil pressure indicator comes on,
pull safely to the side of the road and stop
the engine.
NOTICE
Continuing to ride with low oil pressure can
cause serious damage to the engine.
1.
Check the engine oil level, and add oil as
necessary. 2 P. 124, 2 P. 125
2.
Start the engine.
u
Only continue riding if the low oil
pressure indicator goes off.
Rapid acceleration may momentarily cause
the low oil pressure indicator to come on,
especially if the oil is at or near the low level.
If the low oil pressure indicator stays on when
the oil level is at the proper level, stop the
engine and contact your dealer.
If the engine oil level goes down rapidly, your
vehicle may have a leak or another serious
problem. Have your vehicle inspected by
your dealer.
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your vehicle
inspected by your dealer as soon as possible.
Troubleshooting
148
ABS (Anti-lock Brake System)
Indicator
CBR1000RA
If the indicator operates in one of the
following ways, you may have a serious
problem with the ABS. Reduce your speed
and have your vehicle inspected by your
dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the ON position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while the rear wheel is lifted off
the ground. In this case, turn the ignition
switch to the OFF position, and then to the
ON position again. The ABS indicator will go
off after your speed reaches 19 mph (30
km/h).
HESD (Honda Electronic
Steering Damper) Indicator
If the indicator comes on while riding, you
may have a serious problem with the HESD.
Reduce speed and have your vehicle
inspected by your dealer as soon as possible.
Warning Indicators On or Flashing u ABS (Anti-lock Brake System) Indicator
Troubleshooting
149
Torque Control Indicator
If the indicator operates in one of the
following ways, you may have a serious
problem with the Torque Control. Reduce
your speed and have your vehicle inspected
by your dealer as soon as possible.
●
Indicator comes and stays on (solid) while
riding.
●
Indicator does not come on when the
ignition switch is turned to the ON position.
●
Indicator does not go off at speeds above
3 mph (5 km/h).
Even when the Torque Control indicator is
on, your vehicle will have normal riding ability
without Torque Control function.
u
When the indicator comes on while the
Torque Control is in operation, you will
have to completely close the throttle to
regain normal riding ability.
The Torque Control indicator may come on if
you rotate the rear wheel while your vehicle
is lifted off the ground. In this case, turn the
ignition switch to the OFF position, and then
to the ON position again. The Torque
Control indicator will go off after your speed
reaches 3 mph (5 km/h).
CBR1000RR
The Torque Control indicator come on when
the front or rear wheel locks. In this case, the
Torque Control will not function.
In this case, turn the ignition switch to the OFF
position, and then to the ON position again.
The Torque Control indicator will go off after
your speed reaches 3 mph (5 km/h).
Warning Indicators On or Flashing u Torque Control Indicator
Troubleshooting
150
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your vehicle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your vehicle with a temporary
tire repair can be risky. If the temporary
repair fails, you can crash and be
seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
Troubleshooting
151
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the vehicle before
charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended.
Bump starting is also not recommended.
Burned-out Light Bulb
All light bulbs on the vehicle are LEDs. If
there is an LED which is not turned on, see
your dealer for servicing.
Troubleshooting
152
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 111
#
Fuse Box Fuses
1.
Remove the front seat. 2 P. 121
2.
Remove the fuse box cover.
3.
Pull the fuses out one by one with the
fuse puller in the tool kit and check for a
blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
4.
Reinstall the fuse box cover.
5.
Reinstall the front seat.
Electrical Trouble u Blown Fuse
Troubleshooting
153
Continued
Fuse box cover
Spare fuses
#
Main Fuse & FI Fuse
1.
Remove the front seat. 2 P. 121
2.
Remove the starter magnetic switch
cover.
3.
Pull the main fuse and FI fuse out one by
one and check for a blown fuse. Always
replace a blown fuse with a spare of the
same rating.
u Spare main fuses are provided in the
fuse box. 2 P. 153
4.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your vehicle inspected
by your dealer.
Electrical Trouble u Blown Fuse
Troubleshooting
154
Starter magnetic switch
Main fuse
FI fuse
Starter magnetic
switch cover
Spare FI fuse
Keys..................................................................... P. 156
Instruments, Controls, & Other Features... P. 157
Caring for Your Vehicle.................................. P. 159
Storing Your Vehicle....................................... P. 163
Transporting Your Vehicle ............................P. 164
You & the Environment .................................P. 165
Vehicle Identification Number..................... P. 166
Emission Control Systems ............................. P. 167
Catalytic Converter .........................................P. 171
Oxygenated Fuels............................................ P. 172
Authorized Manuals ....................................... P. 173
Warranty Coverage and Service .................. P. 174
Honda Contacts ............................................... P. 177
Reporting Safety Defects .............................. P. 179
Information
Keys
Ignition Key
This vehicle has two ignition keys and a key tag
with a key number and a bar code. Store the
spare key and the key tag in a safe location. To
make a duplicate key, take the spare key and
the key tag to your dealer or a locksmith.
If you lose all ignition keys and the key tag, the
ignition switch assembly will probably have to
be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Keys
Information
156
Ignition key Key tag
Key number and bar code
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
Odometer
The display locks at 999,999 when the read-out
exceeds 999,999.
Tripmeter
The tripmeters return to 0.0 when each read-
out exceeds 9,999.9.
Document Bag
The owner’s manual, registration, and insurance
information can be stored in the plastic
document bag on the underside of the rear
seat. 2 P. 97, 2 P. 122
Instruments, Controls, & Other Features
Information
157
Continued
Ignition Cut-off System
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the vehicle
falls over. To reset the sensor, you must turn the
ignition switch to the OFF position and back to
the ON position before the engine can be
restarted.
HESD
The Honda Electronic Steering Damper (HESD)
automatically controls the steering damper
characteristics in accordance with vehicle speed
and acceleration.
HESD Indicator Comes On 2 P. 149
Assist-slipper Clutch System
The assist-slipper clutch system helps to prevent
the rear tire from locking up when the
deceleration of your vehicle produces a strong
engine braking effect. It also makes the clutch
lever operation feel lighter.
Use only MA classification engine oil for your
vehicle. Using engine oil other than MA
classification oil could result in damage to the
assist-slipper clutch system.
Throttle by Wire System
This model is equipped with a Throttle by Wire
System.
Do not put magnetized items or items
susceptible to magnetic interference near the
right handlebar switches.
Instruments, Controls, & Other Features
Information
158
Automatic Brightness Control
The backlight brightness of the meter will be
controlled automatically when “AUTO” is
selected on the brightness setting.
Ambient brightness is detected by the
photosensor.
Do not damage or cover the photosensor.
Otherwise, the automatic brightness control
may not work properly.
Caring for Your Vehicle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean vehicle
makes it easier to spot potential problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your vehicle thoroughly
after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the windscreen, headlight lens,
panels, and other plastic components
with extra care to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
Caring for Your Vehicle
Information
159
Continued
Photosensor
3.
Thoroughly rinse your vehicle with plenty of
clean water and dry with a soft, clean cloth.
4.
After the vehicle dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the vehicle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your vehicle.
Keep the wax clear of the tires and
brakes.
u If your vehicle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other
belongings.
Caring for Your Vehicle
Information
160
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
● Do not use wax or polishing compounds on
matte painted surface:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
Caring for Your Vehicle
Information
161
Continued
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
Windscreen
Using plenty of water, clean the windscreen with
a soft cloth or sponge. (Avoid using detergents
or any kind of chemical cleaner on the
windscreen.) Dry with a soft, clean cloth.
NOTICE
To avoid possible scratching or other damage, use
only water and a soft cloth or sponge to clean the
windscreen.
For a dirtier windscreen, use a diluted neutral
detergent with a sponge and plenty of water.
Make sure to wash off all the detergent.
(Detergent residue may cause windscreen
cracks.)
Replace the windscreen if scratches cannot be
removed and they obstruct clear vision.
Take care to keep battery electrolyte, brake
fluid, or other chemical solvents off the
windscreen and screen garnish. They will
damage the plastic.
Caring for Your Vehicle
Information
162
Exhaust Pipe and Muffler
The exhaust pipe and muffler are titanium and
stainless steel but may become stained by mud
or dust.
To remove mud or dust, use a wet sponge and
a liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing
mud or dust.
NOTICE
Even though the exhaust is made of titanium and
stainless steel, it can become stained. Remove all
marks and blemishes as soon as they are noticed.
Storing Your Vehicle
If you store your vehicle outdoors, you should
consider using a full-body cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your vehicle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 113
● Place your vehicle on a maintenance stand
and position a block so that both tires are
off the ground.
●
After rain, remove the body cover and allow
the vehicle to dry.
Storing Your Vehicle
Information
163
Continued
● Remove the battery (2 P. 119) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
After removing your vehicle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
For more information about storage, refer to
the Honda Winter Storage Guide, available from
your dealer.
Transporting Your Vehicle
If your vehicle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your vehicle with a
wheel or wheels on the ground.
NOTICE
Towing your vehicle can cause serious damage
to the transmission.
Transporting Your Vehicle
Information
164
You & the Environment
Owning and riding a vehicle can be enjoyable,
but you must do your part to protect the
environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your vehicle. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
You & the Environment
Information
165
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your vehicle and are required in order
to register your vehicle. They may also be
required when ordering replacement parts.
You should record these numbers and keep
them in a safe place.
Vehicle Identification Number
Information
166
VIN
VIN
Engine number
Emission Control Systems
Your vehicle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Exhaust Emission Requirements
The U.S. Environmental Protection Agency (EPA)
and the California Air Resources Board (CARB)
require that your vehicle comply with applicable
exhaust, crankcase, and fuel permeation
emission standards during its useful life, when
operated and maintained according to the
instructions provided.
CARB also requires that your vehicle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor's
Warranties for Honda Motorcycle Emission
Control Systems is necessary in order to
maintain a valid emissions system warranty.
The Vehicle Emission Control Information label
is located on the left side of the swingarm.
Emission Control Systems
Information
167
Continued

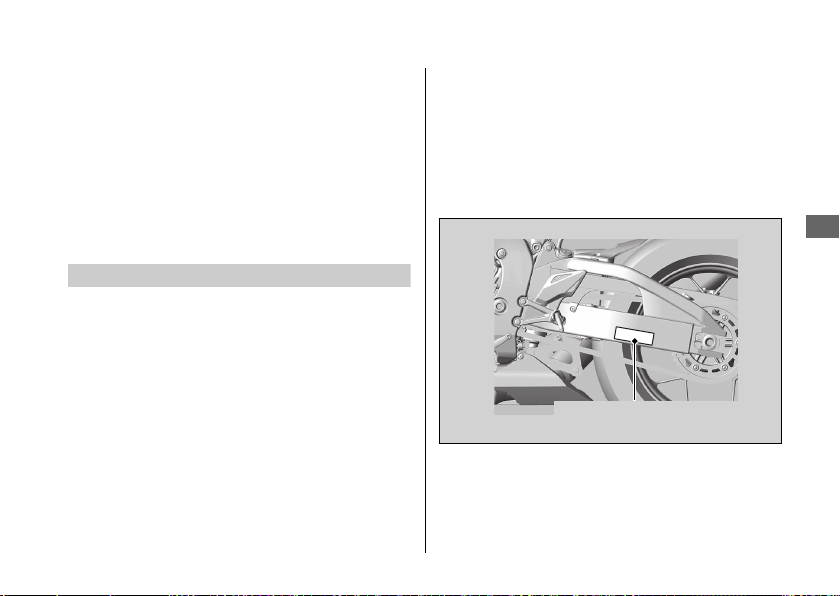

Vehicle emission control
information label
Noise Emission Requirements
The EPA requires that vehicles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Exhaust Emission Control System
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
#
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems. The
engine control module (ECM) uses sensors to
determine how much air enters the engine, and
then controls how much fuel to inject.
#
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
#
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
#
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
Evaporative Emission Control System
50 STATE (meets California)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Emission Control Systems
Information
168
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the air cleaner housing and
throttle body.
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits the following acts or
the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Emission Control Systems
Information
169
Continued
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems Affecting Vehicle Exhaust
Emissions
Have your vehicle inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
Emission Control Systems
Information
170
Catalytic Converter
This vehicle is equipped with a three-way
catalytic converter. The catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your vehicle's
catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the vehicle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
vehicle serviced as soon as possible.
Catalytic Converter
Information
171
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends have been approved
for use in your vehicle:
●
Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
●
Do not use gasoline containing methanol
(methyl alcohol).
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
Oxygenated Fuels
Information
172
Description
2021 CBR1000RR/RA Service Manual
Common Service Manual (61CSM00)
Winter Storage Guide (S9507)
2021 CBR1000RR/RA Owner’s Manual
Authorized Manuals
The Service Manual used by your authorized
dealer is available from your Honda dealer or
Helm, Inc.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and ATV.
The Winter Storage Guide in conjunction with
the Owner's Manual and Service Manual can
help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Order online: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM EST
Authorized Manuals
Information
173
Warranty Coverage and
Service
Coverage
Your new Honda is covered by the following
warranties:
● Vehicle Limited Warranty
● Emission Control System Warranty
● Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner's card with your
Warranties Booklet.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
vehicle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
You can extend almost all of your warranty
coverage through the Honda Protection Plan.
For more information, see your Honda dealer.
Warranty Coverage and Service
Information
174
Statement on Warranty Coverage for
Aftermarket and Recycled Parts
New Jersey
The Magnuson-Moss Warranty Act, 15 U.S.C. s.
2301 et seq., makes it illegal for motor vehicle
manufacturers to void a motor vehicle warranty
or deny warranty coverage solely because an
aftermarket or recycled part has been used to
repair the vehicle or someone other than the
authorized service provider performed service
on the vehicle. This provision does not apply to
a new motor vehicle purchased solely for
commercial or industrial use.
Under federal law, a manufacturer may deny
warranty coverage and charge for repairs to a
vehicle if it is discovered that an aftermarket or
recycled part installed on the vehicle is defective
or was installed incorrectly and caused damage
to another part of the vehicle otherwise covered
under warranty. The Federal Trade Commission
requires that a manufacturer demonstrate that
an aftermarket or recycled part or service
performed by a person other than an
authorized service provider caused damage to
another part of the vehicle otherwise covered
under warranty before denying warranty
coverage. Additionally, federal law allows a
manufacturer to void a motor vehicle warranty
or deny warranty coverage if the manufacturer
provides the article or service to consumers free
of charge under the warranty or the
manufacturer has secured a waiver from the
Federal Trade Commission.
Service
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
Warranty Coverage and Service
Information
175
Continued
If you believe you have a problem with your
vehicle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs. If you
have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren't
satisfied with your dealer's handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership's management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Warranty Coverage and Service
Information
176
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your vehicle
or with your dealer, please send your comments
to the following address:
Powersports Customer Relations
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4W-5F,
Telephone: (866) 784-1870
Website: https://powersports.honda.com/
contact-us
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
Honda Contacts
Information
177
Continued
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and unexpected repairs. It has the
latest available service information from Honda
and also handles warranty inspections and
repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products and Honda Genuine
Accessories that provide the same quality that
went into your vehicle.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage.
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area.
Honda Contacts
Information
178
Reporting Safety Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov.
Reporting Safety Defects
Information
179
Specifications
■ Main Components
Overall length 81.3 in (2,065 mm)
Overall width 28.3 in (720 mm)
Overall height 44.3 in (1,125 mm)
Wheelbase 55.3 in (1,405 mm)
Minimum
ground
clearance
5.1 in (130 mm)
Caster angle 23.3°
Trail 3.8 in (96 mm)
Curb weight
CBR1000RR
430 lb (195 kg)
CBR1000RA
434 lb (197 kg)
Maximum
weight capacity
*1
366 lb (166 kg)
Passenger
capacity
Rider and 1 passenger
Minimum turning
radius
10.5 ft (3.20 m)
Displacement 61.0 cu-in (1,000 cm
3
)
Bore x stroke 2.99 x 2.17 in (76.0 x 55.1 mm)
Compression
ratio
13.0:1
Fuel
Unleaded gasoline
Recommended: 91 PON or higher
Tank capacity 4.28 US gal (16.2 L)
Battery
YTZ7S
12 V-6 Ah (10 HR)
Gear ratio
1st 2.285
2nd 1.777
3rd 1.500
4th 1.333
5th 1.214
6th 1.137
Reduction ratio
(primary / final)
1.717 / 2.688
*1 : Including rider, passenger, all luggages, and accessories
Specifications
180
■ Service Data
Tire size
Front 120/70ZR17M/C (58W)
Rear 190/50ZR17M/C (73W)
Tire type Radial, tubeless
Recommended
tire
Front
BRIDGESTONE S21F E
DUNLOP D214F Y
Rear
BRIDGESTONE S21R E
DUNLOP D214 Y
Tire air pressure
Front
36 psi (250 kPa, 2.50 kgf/
cm
2
)
Rear
42 psi (290 kPa, 2.90 kgf/
cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plug (standard)
IMR9E-9HES (NGK) or
VUH27ES (DENSO)
Spark plug gap
0.03 - 0.04 in (0.8 - 0.9 mm)
Idle speed
(non-
adjustable)
1,200 ± 100 rpm
Recommended
engine oil
API Service Classification SG or higher except
oils labeled as energy conserving or resource
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA, Pro
Honda GN4 4-stroke oil (USA & Canada) or
Honda 4-stroke oil, or an equivalent
motorcycle oil
Engine oil
capacity
After draining
2.6 US qt (2.5 L)
After draining &
engine oil filter
change
2.9 US qt (2.7 L)
After
disassembly
3.6 US qt (3.4 L)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Cooling system
capacity
2.94 US qt (2.78 L)
Recommended
coolant
Pro Honda HP Coolant
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube or equivalent
Drive chain slack 1.0 - 1.4 in (25 - 35 mm)
Standard drive
chain
RK525ROZ7
No. of links 116
Standard
sprocket size
Drive sprocket 16T
Driven
sprocket
43T
Specifications
Specifications
181
■ Bulbs
Headlight LED
Brake light/Taillight LED
Front turn signal LED
Rear turn signal LED
License plate light LED
■ Fuses
Main fuse 30 A
Other fuse
CBR1000RR
20 A, 15 A, 10 A
CBR1000RA
30 A, 20 A, 15 A, 10 A
Specifications
Specifications
182
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
183
California Proposition 65 Warning
WARNING: Operating, servicing and maintaining a passenger vehicle
or off-highway motor vehicle can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead, which are known
to the State of California to cause cancer and birth defects or other
reproductive harm. To minimize exposure, avoid breathing exhaust, do not
idle the engine except as necessary, service your vehicle in a well-
ventilated area and wear gloves or wash your hands frequently when
servicing your vehicle. For more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
