Welcome
Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda’s reputation for building quality into
every product.
To ensure your safety and riding pleasure:
●
Read this owner’s manual carefully.
●
Follow all recommendations and
procedures contained in this manual.
●
Pay close attention to safety messages
contained in this manual and on the
motorcycle.
To protect your investment, we urge you to
take responsibility for keeping your
motorcycle well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that
your Honda dealer knows your motorcycle
best. If you have the required mechanical
“know-how” and tools, you can purchase an
official Honda Service Manual to help you
perform many maintenance and repair tasks.
2
P. 145
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities.
2
P. 146
You may also want to visit our website at
www.powersports.honda.com.
www.honda.ca.
Happy riding!
California Proposition 65 Warning
WARNING: This product contains or emits
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm.
Canada
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgment.
You will find important safety information in
a variety of forms, including:
●
Safety labels on the motorcycle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3
DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your motorcycle,
other property, or the
environment.
Motorcycle Safety
This section contains important information for safe riding of your motorcycle.
Please read this section carefully.
Safety Guidelines .........................................P. 3
Safety Labels ................................................P. 7
Safety Precautions .......................................P. 9
Riding Precautions .....................................P. 11
Accessories & Modifications......................P. 15
Loading .......................................................P. 16
Suspension Settings for Race Track
(experienced riders only) .........................P. 17
Safety Guidelines
3
continued
Motorcycle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
●
Perform all routine and regular inspections
specified in this manual.
●
Stop the engine and keep sparks and flame
away before filling the fuel tank.
●
Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in exhaust
gases is toxic and can kill you.
It’s a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel.
2
P. 9
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs.
Check that you and your passenger are both
wearing an approved motorcycle helmet and
protective apparel. Instruct your passenger on
holding onto the seat strap or your waist,
leaning with you in turns, and keeping their feet
on the footpegs, even when the motorcycle is
stopped.
Check that you are wearing an approved
motorcycle helmet and protective apparel.
Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle’s
size and weight.
Always Wear a Helmet
Before Riding
Take Time to Learn & Practice
CBR1000RR/RA
CBR1000S
Safety Guidelines
4
Motorcycle Safety
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your motorcycle.
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
There are no handholds, seat, or footrest carry a
passenger.
Make yourself more visible, especially at night,
by wearing bright reflective clothing,
positioning yourself so other drivers can see
you, signaling before turning or changing lanes,
and using your horn when necessary.
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Ride Defensively
USA
Never Carry a passenger
Make Yourself Easy to See
Ride within Your Limits
CBR1000S only
Safety Guidelines
5
continued
Motorcycle Safety
Alcohol and riding don’t mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. Don’t drink and ride, and don’t let your
friends drink and ride either.
It’s important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (
2
P. 16), and do not modify
your motorcycle or install accessories that
would make your motorcycle unsafe (
2
P. 15).
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
If you decide to continue riding, first evaluate
the condition of your motorcycle. If the engine
is still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, control levers, brakes,
and wheels. Ride slowly and cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.
Don’t Drink and Ride
Keep Your Honda in Safe Condition
If You are Involved in a Crash
Safety Guidelines
6
Motorcycle Safety
Exhaust contains poisonous carbon monoxide,
a colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could contain
a dangerous amount of carbon monoxide.
Never run your motorcycle inside a garage or
other enclosure.
Carbon Monoxide Hazard
3
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill you.
Avoid any areas or activities that
expose you to carbon monoxide.
Safety Labels
7
continued
Motorcycle Safety
Safety Labels
Safety and information labels on your
motorcycle provide important safety
information and may warn you of potential
hazards that could cause serious injury. Read
these labels carefully and don’t remove them.
If a label comes off or becomes hard to read,
contact your Honda dealer for a replacement.
CBR1000RR/RA
CBR1000S
Safety Labels
8
Motorcycle Safety
CBR1000RR/RA
CBR1000S
Safety Precautions
9
continued
Motorcycle Safety
Safety Precautions
●
Ride cautiously and keep your hands on the
handlebars and feet on the footpegs.
●
Keep passenger’s hands onto the seat strap
or your waist, passenger’s feet on the
footpegs while riding.
●
Always consider the safety of your passenger,
as well as other drivers and riders.
●
Always consider the safety of other drivers
and riders.
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
Make sure that you are wearing an approved
motorcycle helmet, eye protection, and high-
visibility protective clothing. Ride defensively in
response to weather and road conditions.
CBR1000RR/RA only
CBR1000RR/RA
CBR1000S
Protective Apparel
CBR1000RR/RA
CBR1000S
Safety Precautions
10
Motorcycle Safety
❙
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head
●
Must fit comfortably but securely, with the
chin strap fastened
●
Face shield with unobstructed field of vision
or other approved eye protection
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
❙
Gloves
Full-finger leather gloves with high abrasion
resistance
❙
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
❙
Jacket and Pants
Protective, highly visible, long-sleeved jacket and
durable long pants for riding (or a protective suit).
3
WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
USA
CBR1000RR/RA
3
WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you always wear an
approved helmet and protective
apparel.
CBR1000S
Riding Precautions
11
continued
Motorcycle Safety
Riding Precautions
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your
motorcycle’s future reliability and performance.
●
Avoid full-throttle starts and rapid
acceleration.
●
Avoid hard braking and rapid down-shifts.
●
Ride conservatively.
Observe the following guidelines:
●
Avoid excessively hard braking and down-
shifts.
u Sudden braking can reduce the
motorcycle’s stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
●
Exercise caution on low traction surfaces.
u The tires slip more easily on such surfaces
and braking distances are longer.
●
Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
●
For full braking effectiveness, operate both
the front and rear brakes together.
Break-in Period
Brakes
Riding Precautions
12
Motorcycle Safety
❙
Combined ABS
Even when the brake lever and brake pedal are
applied separately, the combined ABS
distributes braking pressure between the front
and rear wheels according to braking force and
wheel speed to enhance your stopping power
and stability. The system also controls braking
pressure to prevent wheel lockup. To get the
best results, operate the lever and pedal
together and perform most of your braking in a
straight line to avoid sliding out in a turn.
●
Combined ABS cannot make up for road
conditions, bad judgment, or improper
operation of the brakes, and cannot stop rear
wheel lift completely.
u Never ride faster than conditions permit
and always leave enough space to safely
brake to a stop.
●
When Combined ABS does not function, the
brakes work like a conventional braking
system. On conventional braking systems,
operating the front brake lever applies the
front brake and operating the rear brake
pedal applies the rear brake.
u The system is always turned off at speeds
less than 4 mph (6 km/h).
●
It is important to follow the tire
recommendations (
2
P. 152), because the
Combined ABS computer works by
comparing wheel speed. Incorrect tires can
affect wheel speed and confuse the system.
●
Combined ABS may not always reduce
stopping distance over a motorcycle
equipped with conventional brakes.
●
Combined ABS does not operate when the
battery level is discharged.
●
Combined ABS does not operate when the
ABS main or ABS motor fuses are burned out.
You may feel a change in the way the brake
lever/pedal reacts when it is operated under the
following conditions:
●
Immediately after turning the ignition switch
to ON.
●
After braking to a stop and applying the
brakes again.
CBR1000RA only
Riding Precautions
13
continued
Motorcycle Safety
❙
Engine Braking
Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
❙
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Riding Precautions
14
Motorcycle Safety
●
Park on a firm, level surface.
●
If you must park on a slight incline or loose
surface, park so that the motorcycle cannot
move or fall over.
●
Make sure that high-temperature parts
cannot come into contact with flammable
materials.
●
Do not touch the engine, muffler, brakes and
other high-temperature parts until they cool
down.
●
To reduce the likelihood of theft, always lock
the handlebars and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.
❙
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.
4.
Turn the handlebars fully to the left.
u Turning the handlebars to the right
reduces stability and may cause the
motorcycle to fall.
5.
Turn the ignition switch to the LOCK position
and remove the key.
2
P. 45
Follow these guidelines to protect the engine
and catalytic converter:
●
Use only unleaded gasoline.
●
Use recommended octane number. Using
lower octane gasoline will result in decreased
engine performance.
●
Do not use fuels containing a high
concentration of alcohol.
2
P. 144
●
Do not use stale or contaminated gasoline or
an oil/gasoline mixture.
●
Avoid getting dirt or water in the fuel tank.
Parking
Refueling and Fuel Guidelines
Accessories & Modifications
15
Motorcycle Safety
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your motorcycle by Honda or
make modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads and highways. Before
deciding to install accessories on your
motorcycle be certain the modification is safe
and legal.
Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your motorcycle’s handling.
Do not attempt to modify the motorcycle to
carry a passenger. The sub-frame was not
designed to carry the additional weight of a
passenger.
3
WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding accessories and
modifications.
CBR1000S only
Loading
16
Motorcycle Safety
Loading
●
Never carry a passenger. Your motorcycle
was not designed to carry a passenger.
●
Carrying extra weight affects your
motorcycle’s handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
●
Avoid carrying an excessive load and keep
within specified load limits.
2
Maximum weight capacity / Maximum
luggage weight P. 151
●
Tie all luggage securely, evenly balanced and
close to the center of the motorcycle.
●
Do not place objects near the lights or the
muffler.
CBR1000S only
3
WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
3
WARNING
Overloading or carrying a passenger
loading can cause a crash and you can
be seriously hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
CBR1000RR/RA
CBR1000S
Suspension Settings for Race Track (experienced riders only) u
17
Motorcycle Safety
Suspension Settings for
Race Track (experienced
riders only)
The suspension settings for race tracks were
developed as a baseline setting for experienced
riders weighing approximately 75 kg (165 lb).
Depending on your skill level and weight, you
may find that slightly softer or stiffer suspension
settings provide better performance. Track
surface conditions and course layout can also
have a large influence on a particular setting or
combination of settings.
Always be sure to return the settings to their
original specifications before resuming street
riding.
2
Adjusting the Front Suspension P. 97
2
Adjusting the Rear Suspension P. 102
CBR1000S only
18
Operation Guide

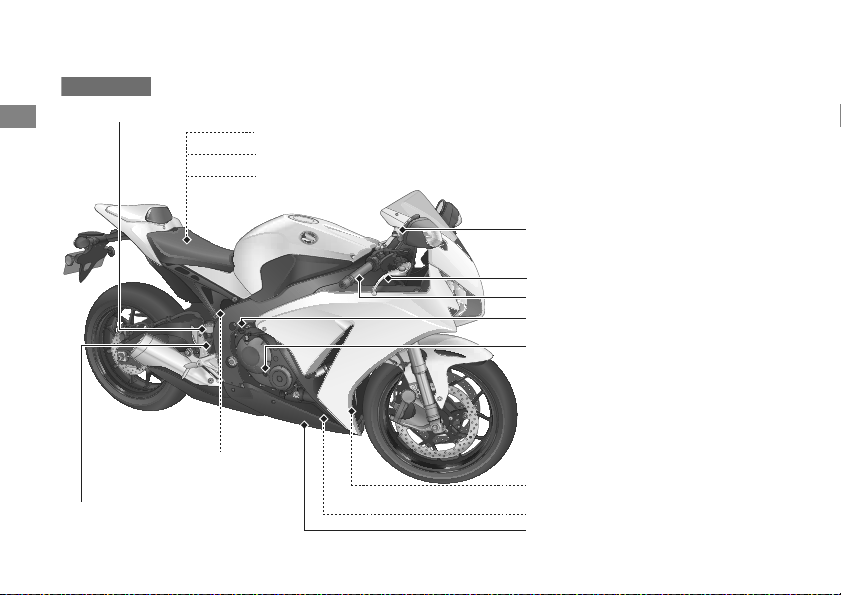

Parts Location
Rear brake fluid reservoir
(P82)
Fuse box
(P123)

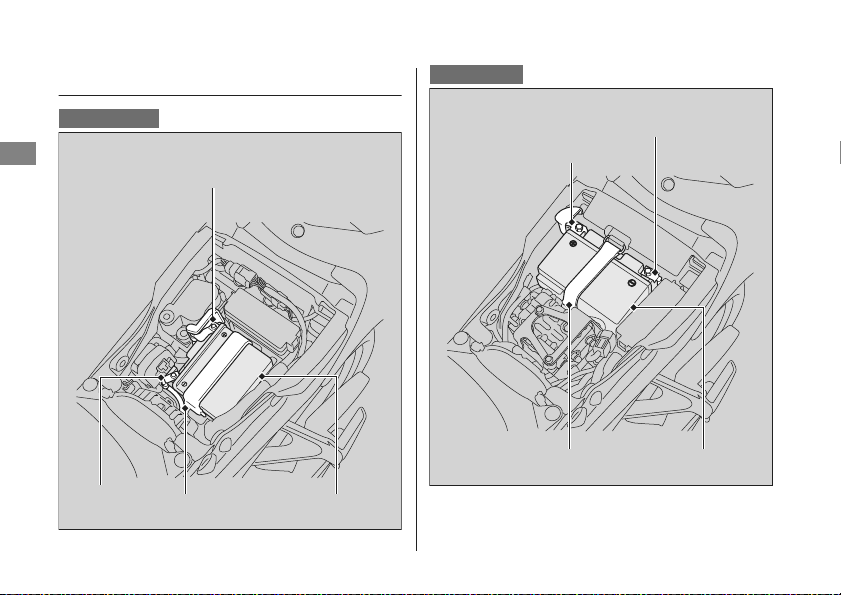

Battery
(P74)
Main fuse
(P124)
Coolant reserve
tank
(P80)
Lower fairing
(P73)
Front brake fluid reservoir
(P82)
Front brake lever
(P94)
Throttle grip
(P93)
Engine oil fill cap
(P76)
Engine oil filter
(P78)
Engine oil dipstick
(P76)
Engine oil drain bolt
(P78)
Front suspension spring
preload adjuster
(P95)
CBR1000RR/RA
Brake light switch
(P84)
19
Operation Guide
continued
Clutch lever
(P90)
Front suspension rebound damping/compression damping
adjuster
(P95)
(P96)
Side stand
(P85)
Shift lever
(P47)
Fuel fill cap
(P48)
Front seat
(P70)
Rear suspension compression
damping adjuster
(P101)

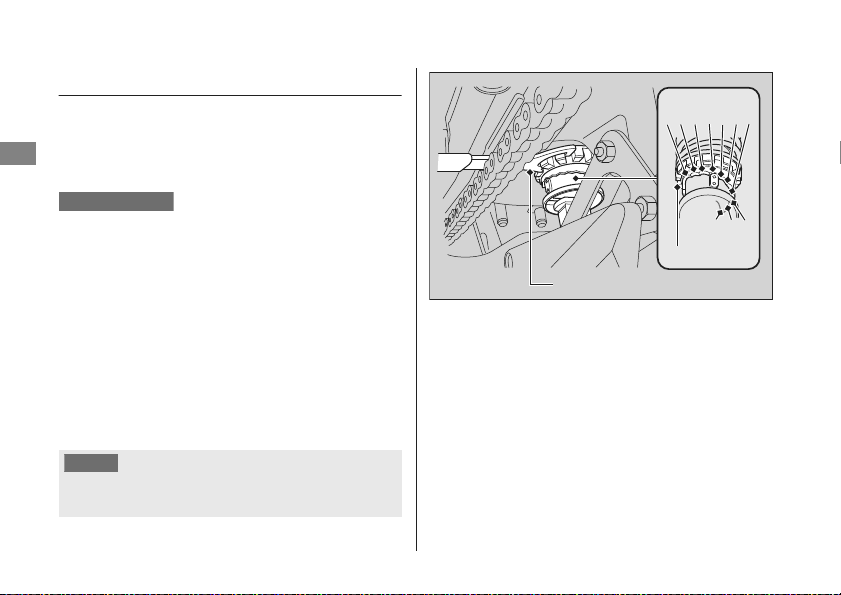

Rear suspension spring
preload adjuster
(P100)

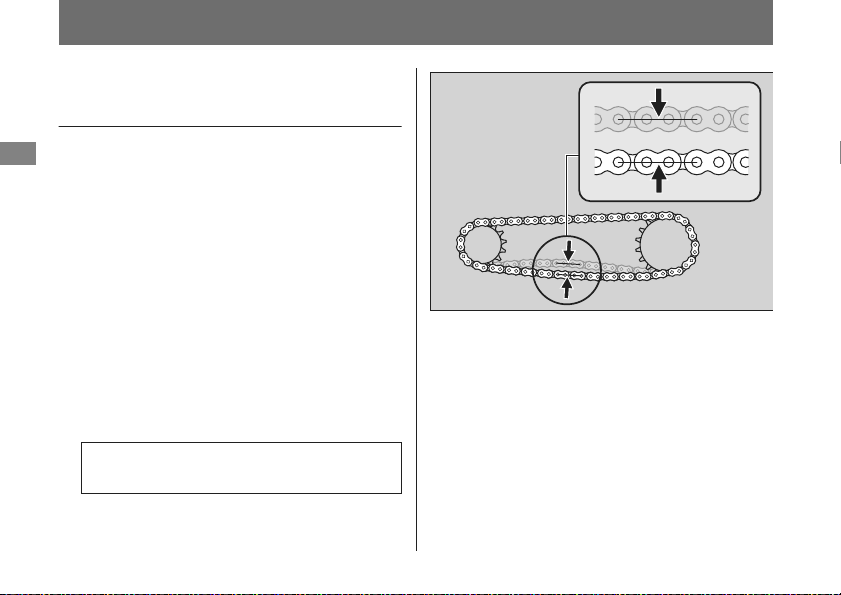

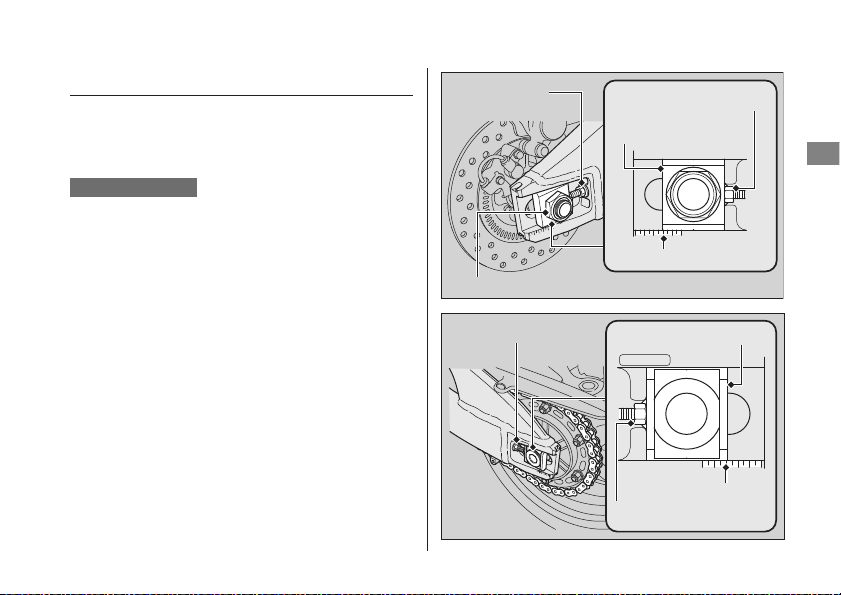

Drive chain
(P86)
Rear suspension rebound
damping adjuster
(P101)
Front suspension spring preload adjuster
(P95)
Rear seat
(P71)
20
Parts Location
(Continued)
Operation Guide
Rear brake fluid reservoir
(P82)
Lower fairing
(P73)
Front brake fluid reservoir
(P82)
Front brake lever
(P94)
Throttle grip
(P93)
Engine oil fill cap
(P76)
Engine oil drain bolt
(P78)
Engine oil filter
(P78)
Engine oil dipstick
(P76)
Fuse box
(P123)
Battery
(P74)
Main fuse
(P124)
CBR1000S
Coolant reserve
tank
(P80)
Brake light switch
(P84)
21
Operation Guide
Front suspension spring preload/rebound damping adjuster
(P97)
(P98)
Shift lever
(P47)
Side stand
(P85)
Fuel fill cap
(P48)
Front seat
(P70)
Rear suspension
compression damping
adjuster
(P103)
Clutch lever
(P90)
Rear suspension rebound
damping adjuster
(P103)
Single seat cowl
(P72)
Rear suspension spring
preload adjuster
(P102)
Front suspension spring preload/compression
damping adjuster
(P97)
(P99)
Drive chain
(P86)
22
Operation Guide

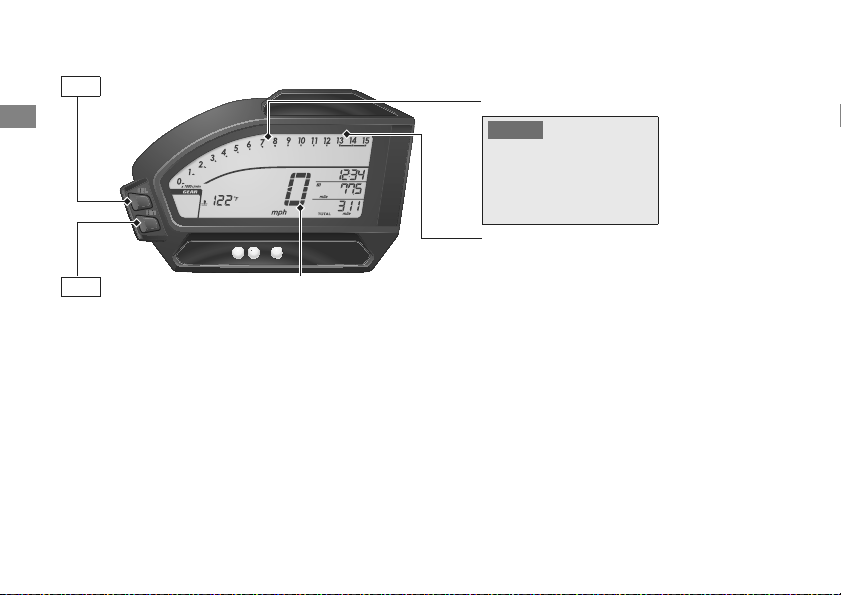

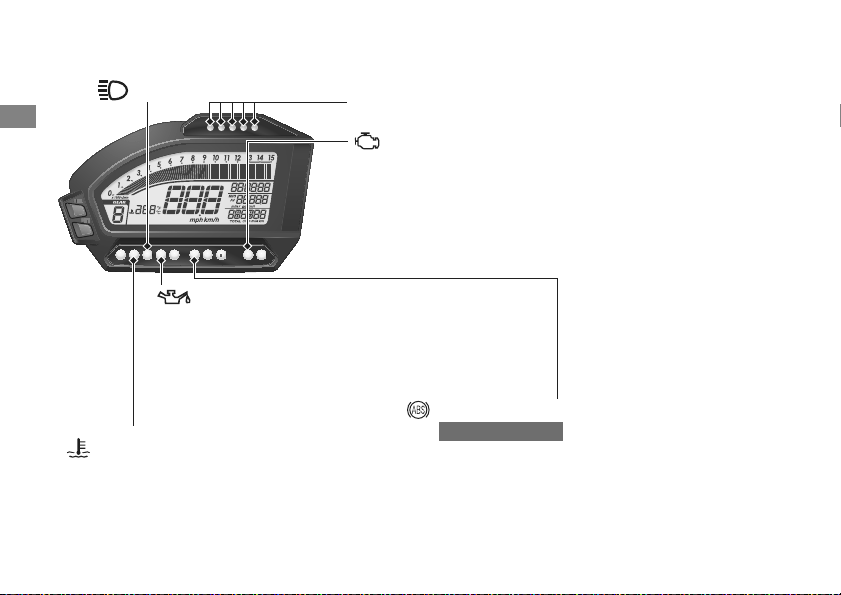

Instruments
Display Check
Alternately displays the contents of two patterns.
Tachometer
NOTICE
Do not operate the engine in
the tachometer red zone.
Excessive engine speed can
adversely affect engine life.
button
SET
button
SEL
Tachometer red zone
(excessive engine rpm range)
Speedometer
Pattern 1
When the ignition switch is turned on, tachometer segment progress to maximum scale and
then disappear.
Pattern 2
When the ignition switch is turned on, all the mode and digital segments will show. If any part
of these displays does not come on when it should, have your dealer check for problems.
23
continued
Operation Guide

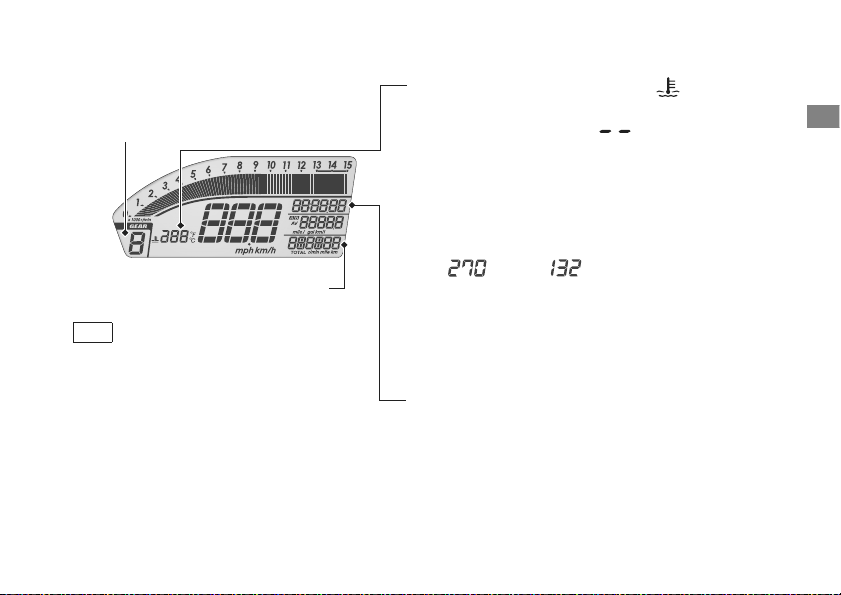

Odometer [TOTAL]/Numerical
tachometer display
button switches between
odometer & numerical tachometer
display.
• Odometer: Total distance ridden.
• Numerical tachometer display:
Shows engine revolutions per
minutes digit.
SET
Gear position indicator
Shows 1st to 6th gear position.
Coolant temperature gauge ( )
Display range: 95 ºF (35 ºC) to 270 ºF (132 ºC)
• Below 94 ºF (34 ºC): “ ” displays
• Between 251 ºF (122 ºC) and 269 ºF (131 ºC):
- High coolant temperature indicator lights
- Coolant temperature digit flash
• Above 270 ºF (132 ºC):
- High coolant temperature indicator lights
- “ ” (ºF) / “ ” (ºC) flashes
u Even if the engine coolant temperature is low,
the cooling fan may start running when you rev
up the engine. This is normal.
Clock (12-hour display)/Lap timer
To set the clock:
(P27)
Lap timer
(P36)
24
Instruments
(Continued)
Operation Guide
Tripmeter [A/B] & Fuel mileage meter & Fuel consumption meter
button selects the tripmeter A, tripmeter B, current fuel mileage, average fuel mileage
and fuel consumption.
u To reset the tripmeter:
(P26)
SEL
Tripmeter A Tripmeter B
Reserve fuel
consumption
(P43)
Current fuel
mileage
Average fuel
mileage
Fuel consumption
25
continued
Operation Guide
The average fuel mileage and fuel consumption will be based on tripmeter A.
• Current fuel mileage:
Current instant fuel mileage. If your speed is 0.6 mph (1 km/h) or less, “ ” is displayed.
• Average fuel mileage:
Average fuel mileage since tripmeter A was reset. When “ ” is displayed, see your
dealer for service.
• Fuel consumption:
Total fuel consumption since tripmeter A was reset. When “ ” is displayed, see your
dealer for service.
u To reset the average fuel mileage and fuel consumption:
(P26)
26
Instruments
(Continued)
Operation Guide
❙
To reset the tripmeter, average fuel
mileage and fuel consumption
!a To reset tripmeter A, average fuel mileage,
and fuel consumption together, press and
hold button.
!b When they are reset, “0.0” is displayed at
each indication.
!c Then, the display returns to the last selected
indication.
!d To reset tripmeter B, press and hold
button with tripmeter B displayed.
Also, after refueling more than the reserve
amount, the tripmeter A, average fuel
mileage, and fuel consumption can be
automatically reset.
You can activate or deactivate the automatic
reset mode by refueling.
(P27)
SEL
Tripmeter A Average fuel
mileage
Fuel
consumption
or or
SEL
Tripmeter B
27
Operation Guide
continued
Display Setting
Setting Mode A
Following items to change sequentially
(P28)
• Clock setting
• Backlight brightness adjustment
• Activating/deactivating of tripmeter A, average fuel mileage and fuel consumption
automatic reset mode
• Changing of speed and mileage unit
• Changing of coolant temperature gauge unit
Setting Mode B
Following items to change sequentially
(P32)
• Setting of REV indicators
(blinking RPM setting, interval RPM setting and REV indicators brightness adjustment)
• Setting display mode of tachometer
28
Instruments
(Continued)
Operation Guide
Setting Mode A
1 To set the clock:
!a Turn the ignition switch to ON.
!b Press and hold button and
button until the hour digits start flashing.
!c Press button until the desired hour is
displayed.
u Press and hold button to advance
the hour fast.
!d Press button. The minute digits start
flashing.
!e Press button until the desired minute is
displayed.
u Press and hold button to advance
the minute fast.
!f Press button. The hour and minute
digits start flashing.
!g If necessary, press button to select the
second display.
!h Press button. The clock is set, and then
the display moves to the backlight
brightness adjustment.
SEL
SET
SEL
SEL
SET
SEL
SEL
SET
SEL
SET
29
Operation Guide
continued
2 Backlight brightness adjustment:
You can adjust the brightness five levels.
!a Press button. The brightness is
switched.
!b Press button. The backlight is set, and
then the display moves to the activating
deactivating of tripmeter A, average fuel
mileage and fuel consumption automatic
reset mode.
SEL
SET
Backlight
brightness
adjustment
To activate/deactivate of
tripmeter A, average
fuel mileage and fuel
consumption automatic
reset mode
or
3 To activate/deactivate of tripmeter A,
average fuel mileage and fuel
consumption automatic reset mode:
You can also activate or deactivate the
automatic reset mode by refueling after low
fuel indicator lights. Deactivation is initially
set.
!a Press button to select “ ” (activate)
or “ ” (deactivate) in the automatic
reset mode.
!b To end the selection, press button.
The activation/deactivation of automatic
reset mode is set, and then the display
moves to the changing of the speed and
mileage unit.
SEL
SET
To activate/
deactivate
automatic reset
mode
Changing of the speed
and mileage unit
30
Instruments
(Continued)
Operation Guide
4 Changing the speed and mileage unit:
!a Press button to select either “mph”
and “mile” or “km/h” and “km”.
When selecting the “mph” and “mile”.
• Fuel mileage unit shows “mile/gal”.
• Fuel consumption unit shows “gal”.
When selecting the “km/h” and “km”.
• Fuel mileage unit shows “km/l”.
• Fuel consumption unit shows “l”.
!b Press button. The speed and mileage
unit is set, and then the display moves to the
changing of the coolant temperature gauge
unit.
SEL
SET
Changing the speed
and mileage unit
Changing the
coolant
temperature
gauge unit
31
Operation Guide
continued
5 Changing the coolant temperature
gauge unit:
!a Press button to select “ºF”
(Fahrenheit) or “ºC”(Centigrade).
!b To end the selection, press button.
The established setting can also be set by
turning the ignition switch to OFF.
The control is automatically switched from
the setting mode A to the ordinary display if
the button is not pressed for about 30
seconds. Even in this case, established setting
is maintained.
SEL
SET
32
Instruments
(Continued)
Operation Guide
Setting Mode B
1 Setting of REV indicators:
You can change the setting of the REV
indicators.
!a To change the setting mode B, turn the
ignition switch to ON while pressing
button until the display check is finished.
The blinking of bar segment in the
tachometer shows the currently applied
blinking RPM, and the numerical
tachometer display shows it. At the same
time, all of the REV indicators blink.
!b Each time button is pressed, the
blinking RPM set value increase by 200 r/min
(rpm) (one segment). When the set value
exceeds the allowable range, the RPM set
value automatically returns to 4,000 r/min
(rpm).
u Press and hold button to advance
the blinking RPM setting value fast.
Available Setting Range
4,000 -to- 13,000 r/min (rpm)
SEL
button
SEL
REV indicators
Tachometer Numerical
tachometer display
SEL
SEL
33
Operation Guide
continued
!c Press button. The blinking RPM is set,
and then the display moves to the setting of
lighting interval RPM.
At the same time, the blinking bar segment
shows the currently applied setting
originated from the blinking RPM and the
numerical tachometer display shows the
interval RPM.
!d Each time button is pressed, the
number of lighting interval RPM is switched
among 0 r/min (rpm), 200 r/min (rpm) and
400 r/min (rpm) in this order. During this
setting, the REV indicators light one by one
from left and when all indicators light, they
go out, and then they start to light from left
again.
SET
SEL
Numerical tachometer
display
Tachometer
0 200
400
34
Instruments
(Continued)
Operation Guide
!e Press button. The interval RPM is set,
and then the display moves to the
brightness adjustment of the REV indicators.
At the same time, the currently applied
brightness level is displayed in the numerical
tachometer display “ ”. The
brightness can be adjusted to five levels by
pressing button.
!f Press button. The brightness of the
REV indicators are set, and then the display
moves to the displaying setting of the
tachometer. At the same time, the
tachometer sweeps from 1,200 r/min (rpm)
to the initial blinking RPM.
2 Changing of tachometer display mode:
You can change the display mode of the
tachometer.
!a Press button to switch the displaying
mode of tachometer.
Ex When blinking RPM is setting 13,000
r/min (rpm) and lighting interval RPM is
200 r/min (rpm).
REV indicators r/min (rpm)
12,000 r/min (rpm)
12,200 r/min (rpm)
12,400 r/min (rpm)
12,600 r/min (rpm)
12,800 r/min (rpm)
13,000 r/min (rpm)
If the lighting interval RPM is 0, the REV
indicators start to blink when reaching to
the blinking RPM.
SET
SEL
SET
SEL
35
Operation Guide
continued
Ex Engine revolutions per minutes 8,000
r/min (rpm)
Conventional display
Reverse display
Peak hold display
Single segment display
!b Press button. The currently selected
displaying mode is set, and the control
returns to the ordinary display.
In setting mode B, this setting is maintained
when the ignition switch is turned off.
If the button is not pressed for about 30
seconds in this mode, the control returns to
the ordinary display and the established
setting is maintained.
SET
36
Instruments
(Continued)
Operation Guide
Lap Timer
You can display and record lap time, fuel
consumption, travel distance, driving time,
and average fuel mileage.
Press button and button at the
same time when the motorcycle is stopped.
The ordinary display switches to the lap time
mode.
(P37)
Press and hold button when the
motorcycle is stopped. The display switches
between the lap time mode and lap time
recall mode.
(P39)
To return to the ordinary display, press
button and button at the same time
when the motorcycle is stopped.
SEL
SET
SEL
SEL
SET
Ordinary display
mode
Lap time
mode
Lap time recall
mode
button press and hold
SEL
button and button press
SEL
SET
37
Operation Guide
continued
Lap time mode
You can display the most recent lap time,
fuel consumption, travel distance, driving
time, and average fuel mileage.
Recordable data
LAP number until 99
LAP time until 59:59.99
Fuel consumption until 99.9
Travel distance until 999.9
Driving time 99 Hr 59:59.99
Switching of displays in lap time
mode
Press button to switch each mode.
Press and hold button to reset the
current displaying items.
SEL
SET
Most recent lap time
Fuel consumption
Most recent lap time
Travel distance
Driving time (Minute
Second Millisecond)
Driving time (Hour)
Most recent lap time
Average fuel mileage
38
Instruments
(Continued)
Operation Guide
Measurement of lap time
!a Switch the display to the lap time mode.
(P36)
!b Press button or start/lap button then
start measuring.
!c Press start/lap button at each lap.
!d Press button to end the measurement.
u During the measurement, switching to
other modes is not available.
button
SET
Start/lap button
!b !d
!b !c
SET
While measuring 1 lap
Lap number
Time (count up display)
In completion of 1 lap
In completion of 21 laps
Number of completed laps
Most Recent lap time
(When driving time display:
After 5 seconds switch to
driving time.)
SET
39
Operation Guide
Lap time recall mode
• The history of recorded lap time and the
fastest lap time is displayed.
• The lap time is reset.
Fastest lap time (F-LAP) is minimum lap time.
Fastest lap time (F-LAP) excludes start and
last lap time.
Each time button is pressed, the display
is switched F-LAP, LAP-01, LAP-02 ~
(ascending sequence).
Each time button is pressed, the display
is switched, F-LAP, ~ LAP-02, LAP-01
(descending sequence).
Lap time reset
Press and hold button to display the
“ ” and then press button,
measured lap time is all reset.
SEL
SET
SET
SET
button
SEL
button
SET
Fastest
lap time
Ascending
sequence
Descending
sequence
40
Operation Guide
Indicators
Combined ABS indicator
Low oil pressure indicator
Comes on when the ignition switch is turned on.
Goes off when the engine starts.
If it comes on while engine is running:
(P108)
High coolant temperature
indicator
Comes on briefly when the ignition
switch is turned on.
If it comes on while riding:
(P107)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
Comes on briefly when the ignition switch is
turned on.
If it comes on while engine is running:
(P108)
High beam indicator
REV indicators
(P42)
CBR1000RA only
Comes on when the ignition switch is turned on.
Goes off when your speed reaches approximately
6 mph (10 km/h).
If it comes on while riding:
(P109)
41
continued
Operation Guide
Right turn signal indicator
Neutral indicator
Comes on when the transmission is in
Neutral.
Left turn signal indicator
Low fuel indicator
• Comes on when the ignition switch is turned
on.
• Comes on when there is only reserve fuel
left in the fuel tank. Remaining fuel when
low fuel indicator comes on:
0.92 US gal (3.5 liters)
Low fuel indicator and reserve fuel
consumption display:
(P43)
HESD (Honda Electronic Steering
Damper) indicator
Comes on briefly when the ignition switch is
turned on.
If it comes on while engine is running:
(P109)
42
Indicators
(Continued)
Operation Guide
REV Indicators
• Comes on briefly when the ignition switch is turned on.
Initial setting
blinking RPM: 13,000 r/min (rpm)
interval RPM: 200 r/min (rpm)
u Setting of REV indicators:
(P27)
REV indicators r/min (rpm)
12,000 r/min (rpm)
12,200 r/min (rpm)
12,400 r/min (rpm)
12,600 r/min (rpm)
12,800 r/min (rpm)
13,000 r/min (rpm)
(red zone)
43
Operation Guide
Low fuel indicator and reserve fuel
consumption display
When the low fuel indicator comes on, the
tripmeter & fuel mileage meter & fuel
consumption meter switches to the reserve
fuel consumption. You should refill the tank
as soon as possible.
Low fuel indicator
Reserve fuel consumption display
• Flashes from “0.0” gal or l.
u When the amount of consumed fuel is
more than 0.26 US gal (1.0 liter) the
display blinks faster.
u If you change the display to tripmeter,
fuel mileage meter and fuel consumption
meter and so on
(P24)
, it will
automatically return to the reserve fuel
consumption display if the buttons are
not pressed for about 10 seconds.
After refueling more than the reserve
amount, the display returns to normal when
the ignition switch has been on for about a
minute.
44
Operation Guide

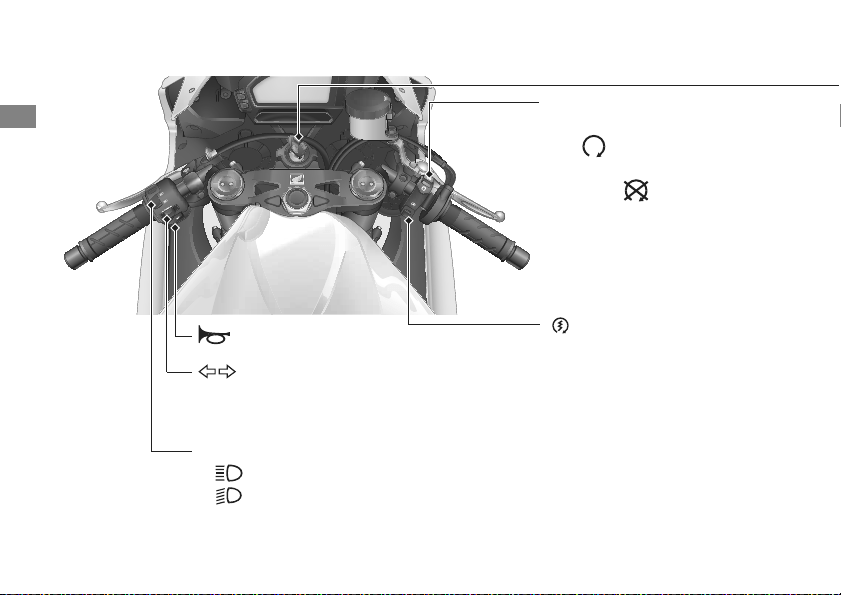

Switches
Engine stop switch
Should normally remain in the
RUN position.
u In an emergency, switch to
the OFF position to stop
the engine.
Headlight dimmer switch
• : High beam
• : Low beam
Horn button
Turn signal switch
u Pressing the switch turns
the turn signal off.
Start/lap button
Headlight turns off when
operating the starter motor.
Also use lap timer
(P38)
45
Operation Guide
Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
❙
Locking
!a Turn the handlebars all the way to the left.
!b Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebars if the lock is difficult
to engage.
!c Remove the key.
❙
Unlocking
Insert the key, push it in, and turn the
ignition switch to the OFF position.
Ignition Switch
Switches the electrical system on/off, locks
the steering.
u Key can be removed when in the OFF or
LOCK position.
ON
Turns electrical system
on for starting/riding.
LOCK
Locks steering.
OFF
Turns engine off.
Push
Ignition key
Turn
!a
!b
46
Operation Guide
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
!a Make sure the engine stop switch is in the
RUN position.
!b Turn the ignition switch to the ON position.
!c Shift the transmission to Neutral (
indicator comes on). Alternatively, pull in
the clutch lever to start your motorcycle
with the transmission in gear so long as the
side stand is raised.
!d Press the start/lap button with the throttle
completely closed.
If the engine does not start:
!a Open the throttle fully and press the start/
lap button for 5 seconds.
!b Repeat the normal starting procedure.
!c If the engine starts, open the throttle slightly
if idling is unstable.
!d If the engine does not start, wait 10 seconds
before trying steps !a & !b again.
❙
If Engine Will Not Start
(P106)
NOTICE
• If the engine does not start within 5 seconds, turn the
ignition off and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
• Snapping the throttle or fast idling for more than about
5 minutes may cause exhaust pipe discoloration.
!c
!b
!a
!d
N
47
Operation Guide

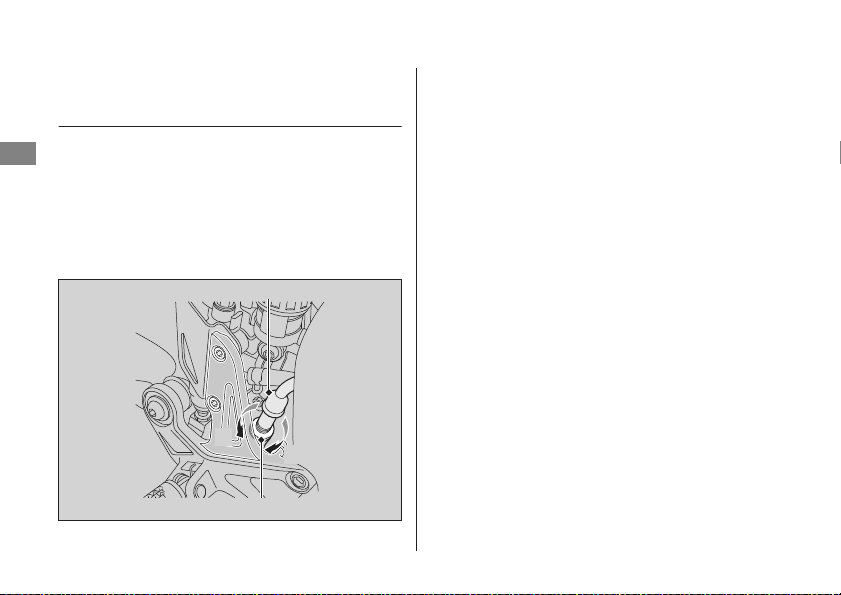

Shifting Gears
Your motorcycle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the motorcycle in gear with the
side stand down, the engine will shut off.
❙
Recommended Shift Points
N
1
3
2
5
4
6
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 31 mph (50 km/h)
From 5th to 4th 25 mph (40 km/h)
From 4th to 3rd 19 mph (30 km/h)
From 3rd to 2nd 12 mph (20 km/h)
NOTICE
Improper shifting can damage the engine, transmission,
and drive train. Also, coasting or towing the motorcycle
for long distances with the engine off can damage the
transmission.
48
Operation Guide
Refueling
Do not fill with fuel above the lower edge of
the filler neck.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 91 or higher.
Tank capacity: 4.49 US gal (17.0 liters)
❙
Refueling and Fuel Guidelines
(P14)

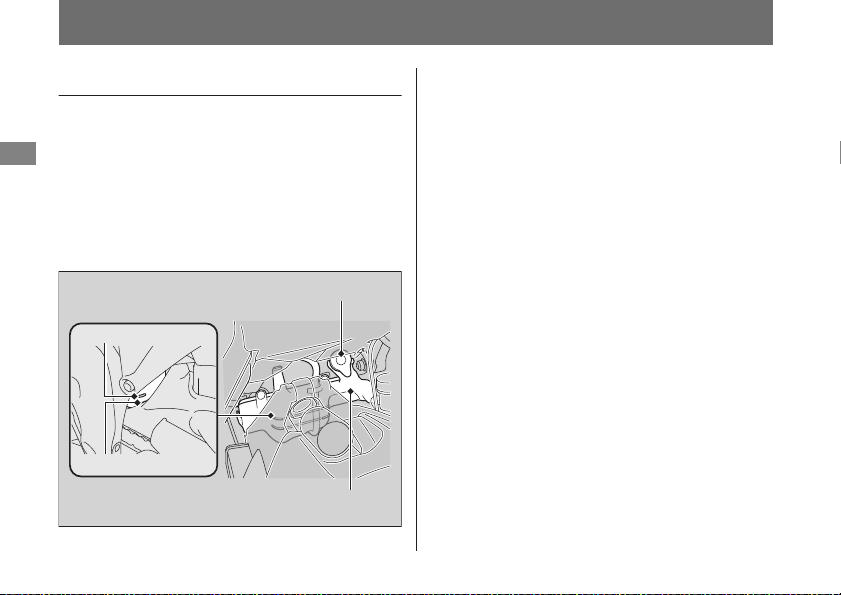

Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
!a After refueling, push the fuel fill cap closed
until it locks.
!b
Remove the ignition key and close the lock cover.
u The ignition key cannot be removed if the
fuel fill cap is not locked.
Fuel fill cap
Ignition key
Lower edge of
filler neck
Lock cover
3
WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
49
continued
Operation Guide

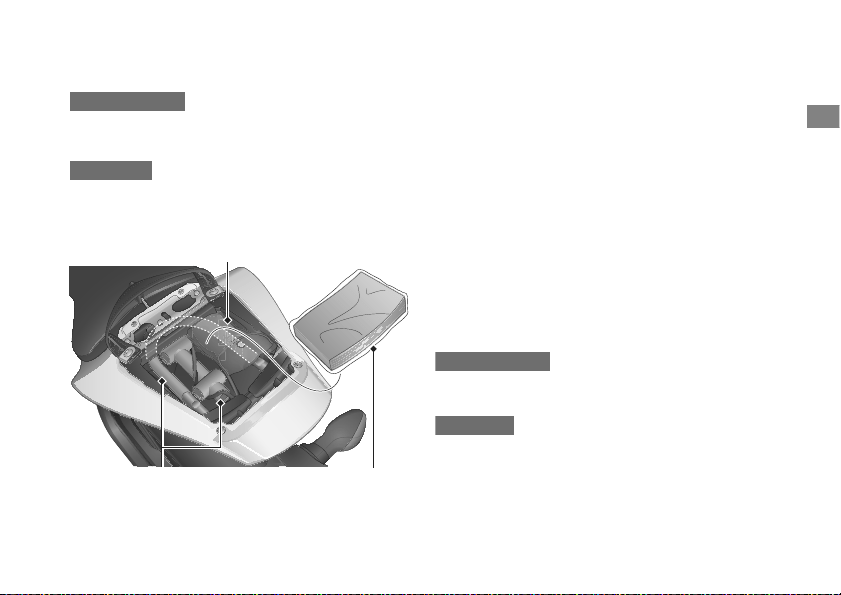

Storage Equipment
Tool Kit/U-shaped Lock/Document Bag
A tool kit, and document bag are located under the rear seat. There is also space to store a U-
shaped lock.
A tool kit, and document bag are located under the single seat cowl. There is also space to
store a U-shaped lock.
CBR1000RR/RA
CBR1000S
Document bag
u The U-shaped lock is held in place above the
rear fender.
u Some U-shaped locks may not fit in the
compartment due to their size or design.
U-shaped lock
Tool kit
❙
Removing the Rear Seat
(P71)
CBR1000RR/RA
❙
Removing the Single Seat Cowl
(P72)
CBR1000S
50
Storage Equipment
(Continued)
Operation Guide

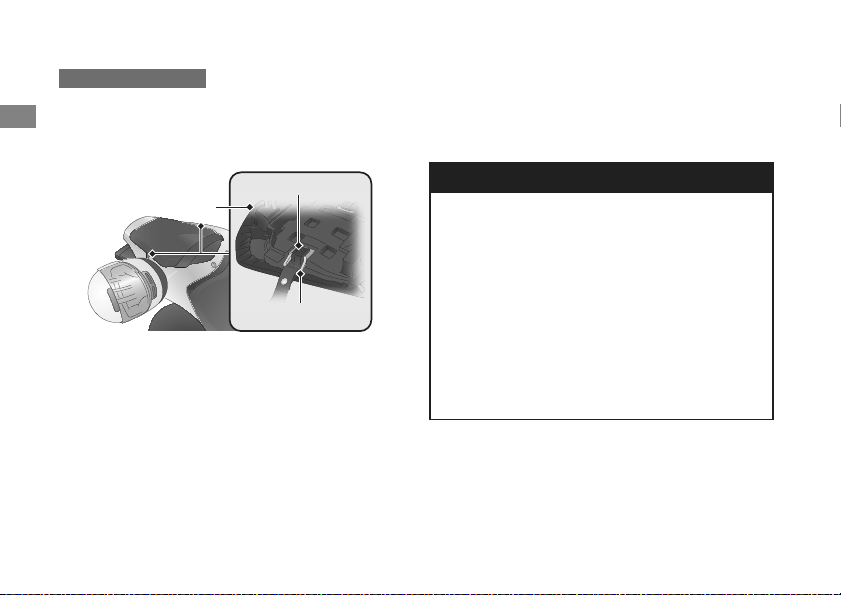

The helmet holders are located underside of
the rear seat.
u Use the helmet holder only when parked.
❙
Removing the Rear Seat
(P71)
CBR1000RR/RA only
Under side of
the rear seat
Helmet holder
Helmet D-ring
3
WARNING
Riding with a helmet attached to the
holder can interfere with the rear
wheel or suspension and could cause a
crash in which you can be seriously
hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals”
carefully before attempting any maintenance. Refer to “Specifications” for service
data.
An optional larger tool kit may be available. Check with your Honda dealer’s parts
department.
Importance of Maintenance ..................... P. 52
Maintenance Schedule .............................. P. 54
Maintenance Fundamentals ..................... P. 57
Removing & Installing Body Components
...
P. 70
Front Seat ................................................. P. 70
Rear Seat .................................................. P. 71
Single Seat Cowl....................................... P. 72
Lower Fairing ............................................ P. 73
Battery...................................................... P. 74
Engine Oil................................................... P. 76
Coolant ....................................................... P. 80
Brakes ......................................................... P. 82
Side Stand...................................................P. 85
Drive Chain .................................................P. 86
Clutch ..........................................................P. 90
Throttle .......................................................P. 93
Other Adjustments ....................................P. 94
Brake Lever ...............................................P. 94
Front Suspension.......................................P. 95
Rear Suspension ......................................P. 100
Headlight Aim .........................................P. 104
52
Maintenance
Importance of Maintenance
Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner’s
responsibility. Be sure to inspect your
motorcycle before each ride, and perform the
periodic checks specified in the Maintenance
Schedule.
2
P. 54
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and
Environment Canada (EC).
2
P. 138
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified“ to EPA standards.
Importance of Maintenance
3
WARNING
Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously
hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
USA
Importance of Maintenance
53
Maintenance
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
●
Stop the engine and remove the key.
●
Park your motorcycle on a firm, level surface
using the side stand or a maintenance stand
to provide support.
●
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
●
Run the engine only when instructed, and do
so in a well-ventilated area.
Maintenance Safety
54
Maintenance
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.
Maintenance work should be performed in
accordance with Honda’s standards and
specifications by properly trained and
equipped technicians. Your dealer meets all
of these requirements. Keep an accurate
record of maintenance to help ensure that
your motorcycle is properly maintained.
Make sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged for by your dealer. Retain all
receipts. If you sell the motorcycle, these
receipts should be transferred with the
motorcycle to the new owner.
Maintenance Schedule
55
continued
Maintenance
Maintenance Level
: Intermediate. We recommend service by your dealer, unless you
have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Service Manual
(
2
P. 145).
: Technical. In the interest of safety, have your motorcycle
serviced by your dealer.
Maintenance Legend
: Inspect (clean, adjust, lubricate, or replace, if necessary)
: Replace : Lubricate
Frequency*
1
Items × 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-related Items
Fuel Line –
Throttle Operation 93
Air Cleaner*
2
–
Spark Plug
Every 16,000 mi (25,600 km):
Every 32,000 mi (51,200 km):
–
Valve Clearance –
Engine Oil
Initial = 600 mi (1,000 km) or 1 month:
Regular = Every 8,000 mi (12,800 km) or 12 months:
76
Engine Oil Filter 78
Engine Idle Speed –
Radiator Coolant*
4
80
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System*
3
–
Exhaust Gas Control Actuator Cable Every 16,000 mi (25,600 km): –
I I I
I I I
I I
I
R
I
R
R
R R R R
I I I I I I I
I I
R
I I I
I I I
I I
I
I
R
Maintenance Schedule
56
Maintenance
Notes:
*1 : At higher odometer readings, repeat at the frequency interval established here.
*2 : Service more frequently when riding in unusually wet or dusty areas.
*3 : 50 STATE (meets California).
*4 : Replace every 2 years, or at indicated odometer intervals, whichever comes first. Replacement requires mechanical skill.
Frequency*
1
Items × 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Chain Every 500 mi (800 km): 86
Brake Fluid*
4
82
Brake Pads Wear 83
Brake System 82
Brake Light Switch 84
Headlight Aim 104
Clutch System 90
Side Stand 85
Suspension 95
Front Fork Oil
CBR1000S
Every 18,000 mi (30,000 km) or 36 months: –
Nuts, Bolts, Fasteners –
Wheels/Tires 66
Steering Head Bearings –
I
I I
R
I I
R
I I I I I I
I I I I
I I I
I I I
I I I I I I I
I I I
I I I
R
I I I I
I I I
I I I I
57
Maintenance
Maintenance Fundamentals
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your motorcycle:
●
Fuel level-Fill fuel tank when necessary.
2
P. 48
●
Throttle-Check for smooth opening and full
closing in all steering positions.
2
P. 93
●
Engine oil level-Add engine oil if necessary.
Check for leaks.
2
P. 76
●
Coolant level-Add coolant if required. Check
for leaks.
2
P. 80
●
Drive chain-Check condition and slack, adjust
and lubricate if necessary.
2
P. 86
●
Brakes-Check operation;
Front and Rear: check brake fluid level and
pad wear.
2
P. 82, 83
●
Lights and horn-Check that lights, indicators
and horn function properly.
●
Engine stop switch-Check for proper
function.
2
P. 44
●
Clutch-Check operation;
Adjust freeplay if necessary.
2
P. 90
●
Side stand ignition cut-off system-Check for
proper function.
2
P. 85
●
Wheels and tires-Check condition, air
pressure and adjust if necessary.
2
P. 66
Pre-ride Inspection
Maintenance Fundamentals
58
Maintenance
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due.
2
P. 54
Periodic Checks
Tires and wheels
Check the air pressure (
2
P. 66), examine tread for wear and
damage (
2
P. 66), and check the wheels for damage.
Fluid levels
Check the engine oil level (
2
P. 76), engine coolant level (
2
P. 80),
and brake fluid level (
2
P. 82).
Lights
Check that the headlight, position light, brake light, taillight, turn
signals and license plate light are working properly.
Controls
Check the freeplay of the clutch lever (
2
P. 90) and throttle grip
(
2
P. 93).
Drive chain
Check the slack (
2
P. 86), adjust the slack (
2
P. 87), and lubricate
(
2
P. 65) as needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Maintenance Fundamentals
59
Maintenance
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label.
The color label is attached to the rear fender
under the rear seat.
2
P. 71
The color label is attached to the rear fender
under the single seat cowl.
2
P. 72
Replacing Parts
CBR1000RR/RA
CBR1000S
3
WARNING
Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously
hurt or killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.

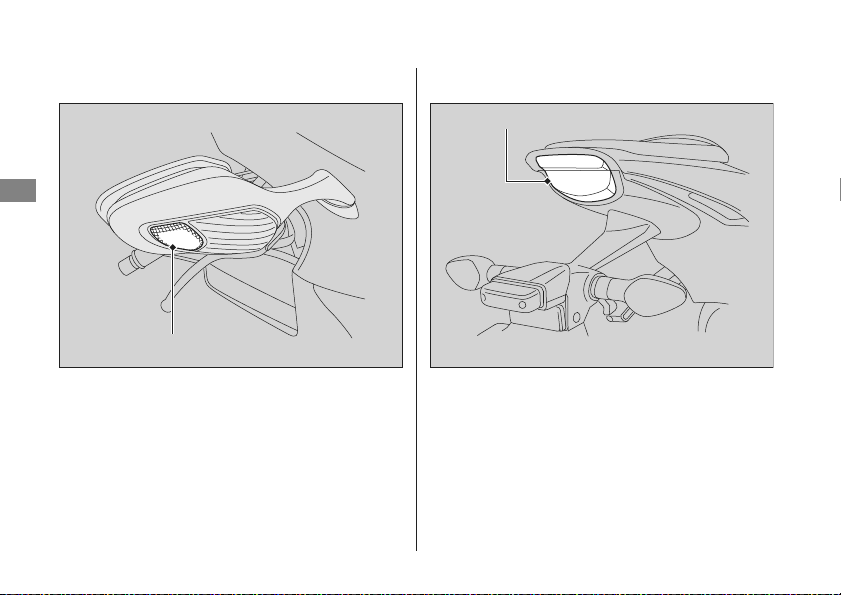

Color label
Maintenance Fundamentals
60
Maintenance
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is no
need to remove the cap when charging.
❙
What to do in an emergency
If any of the following occur, immediately see
your doctor.
●
Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool water
for at least 15 minutes. Using water under
pressure can damage your eyes.
●
Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
●
Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
Battery
3
WARNING
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
Maintenance Fundamentals
61
continued
Maintenance
❙
Cleaning the Battery Terminals
1.
Remove the battery.
2
P. 74
2.
If the terminals are starting to corrode and
are coated with a white substance, wash with
warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
the terminals with a wire brush or sandpaper.
Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with
another maintenance-free battery of the same
type.
❙
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If you can’t
charge the battery or it appears unable to hold a charge,
contact your dealer.
Maintenance Fundamentals
62
Maintenance
Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses.
2
P. 123
❙
Inspecting and Replacing Fuses
Turn off the ignition switch to remove and
inspect fuses. If a fuse is blown, replace with a
fuse of the same rating. For fuse ratings, see
“Specifications.”
2
P. 153
If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.
NOTICE
Jump starting using an automobile battery can damage
your motorcycle’s electrical system and is not
recommended. Bump starting is also not recommended.
NOTICE
Installing non-Honda electrical accessories can overload
the electrical system, discharging the battery and possibly
damaging the system.
Fuses
NOTICE
Replacing a fuse with one that has a higher rating greatly
increases the chance of damage to the electrical system.
Blown fuse
Maintenance Fundamentals
63
Maintenance
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil or
old oil should be changed as soon as possible.
❙
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.”
2
P. 152
If you use non-Honda engine oil, check the label
to make sure that the oil satisfies all of the
following standards:
●
JASO T 903 standard*
1
: MA
●
SAE standard*
2
: 10W-30
●
API classification*
3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
Engine Oil
Oil code
Oil classification
Not recommended Recommended
Maintenance Fundamentals
64
Maintenance
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a sealed
container. If you do add fluid, have the brake
system serviced by your dealer as soon as possible.
The drive chain must be inspected and lubricated
regularly. Inspect the chain more frequently if
you often ride on bad roads, ride at high speed,
or ride with repeated fast acceleration.
If the chain does not move smoothly, makes
strange noises, has damaged rollers or loose
pins or missing O-rings, or kinks, have the chain
inspected by your dealer.
Also inspect the front sprocket and rear wheel
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
Brake Fluid
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
3
WARNING
Clean filler cap before removing. Use
only DOT 4 fluid from a sealed
container.
Drive Chain
NOTICE
User of a new chain with worn sprockets will cause rapid
chain wear.
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
Maintenance Fundamentals
65
continued
Maintenance
❙
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a
dry cloth with chain cleaner designed
specifically for O-ring chains, or neutral
detergent. Use a soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.
Pro Honda HP coolant is a pre-mixed solution of
antifreeze and distilled water.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
Recommended Coolant
Concentration:
50% antifreeze and 50% distilled water
Maintenance Fundamentals
66
Maintenance
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide
better protection in colder climates.
❙
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
❙

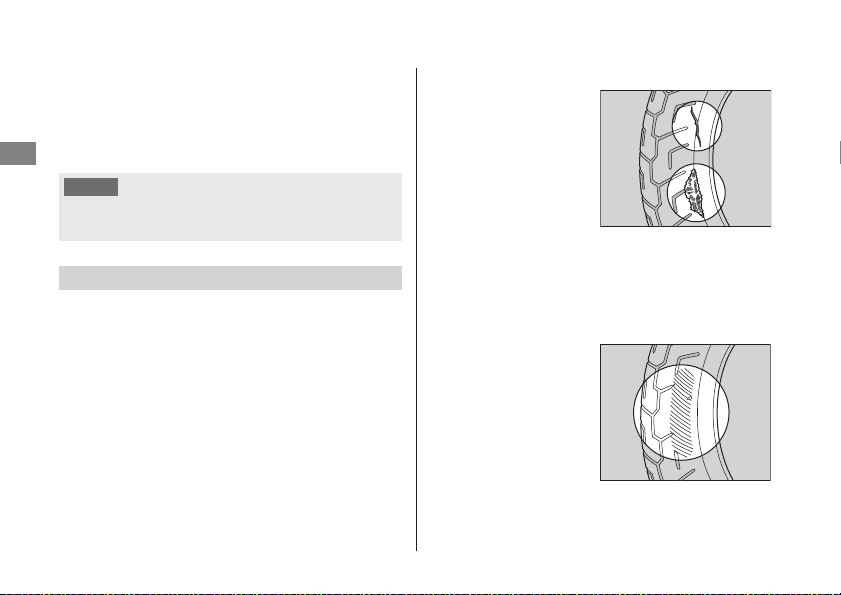

Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks
that exposes fabric or
cords, or nails or
other foreign objects
embedded in the side
of the tire or the
tread. Also inspect
for the bumps or bulges in the side walls of the
tires.
❙
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal
wear on the contact
surface.
NOTICE
Using coolant not specified for aluminum engines or
using ordinary tap water can cause corrosion.
Tires (Inspecting/Replacing)
Maintenance Fundamentals
67
continued
Maintenance
❙
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
Wear indicator
location mark
or TWI
3
WARNING
Riding on tires that are excessively
worn or improperly inflated can cause
a crash in which you can be seriously
hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.
Maintenance Fundamentals
68
Maintenance
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2
P. 152
Follow these guidelines whenever you replace
tires.
●
Use the recommended tires or equivalents of
the same size, construction, speed rating,
and load range.
●
Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
●
Do not install a tube inside a tubeless tire on
this motorcycle. Excessive heat build-up can
cause the tube to burst.
●
Use only tubeless tires on this motorcycle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3
WARNING
Installing improper tires on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously
hurt or killed.
Always use the size and type of tires
recommended in this owner’s manual.
Maintenance Fundamentals
69
Maintenance
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
❙
Tire Identification Number (TIN)
The tire identification number (TIN) is a group of
numbers and letters located on the sidewall of
the tire.
Tire Service Life
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets
all requirements of the U.S.
Department of Transportation.
!
a
XXXX: Factory code
!
b
XXXX: Tire type code
!
c
22 09:
Date of manufacture (week & year).
Example: week 22 in year 09.
!
a
!
b
!
c
Tire Labeling Example
Tire identification
number (TIN)
70
Maintenance
Removing & Installing Body Components
Front Seat
❙
Removal
1.
Remove the right and left side covers by
releasing the tabs from the guides, and
carefully pull the side cover put from the
grommets.
2.
Remove the screws, and then pull the
front seat forward and up.
❙
Installation
1.
Insert the seat prongs into the recess.
2.
Install and tighten the screws securely.
3.
Install the side covers by inserting the tabs
into the guides, and align the side covers
prong with the grommets.
Make sure that the seat is locked securely
in position to pull it up lightly.
Grommets
Seat prongs
Front seat
Side cover
Prong
Screw
Prong
Screw
Side cover
Tab
Guide
Removing & Installing Body Components u Rear Seat
71
Maintenance
Rear Seat
❙
Removal
1.
Move the seat strap forward.
2.
Insert the ignition key into the seat lock.
3.
Turn it clockwise, then pull the rear seat
forward and up.
❙
Installation
1.
Insert the prong into the hook.
2.
Push down on the front of the rear seat.
Make sure that the seat is locked securely
in position to pull it up lightly.
The seat locks automatically when closed.
Take care not to lock your key in the
compartment under the rear seat.
CBR1000RR/RA only
Seat strap
Seat lock
Rear seat
Ignition key
Prong
Hook
Removing & Installing Body Components u Single Seat Cowl
72
Maintenance
Single Seat Cowl
❙
Removal
1.
Insert the ignition key into the single seat
cowl lock.
2.
Turn it clockwise, then pull the single seat
cowl forward and up.
❙
Installation
1.
Insert the prong into the hook.
2.
Push down on the front of the single seat
cowl.
Make sure that the single seat cowl is
locked securely in position to pull it up
lightly.
The single seat cowl locks automatically
when closed.
Take care not to lock your key in the
compartment under the single seat cowl.
CBR1000S
Single seat
cowl lock
Single seat cowl
Ignition key
Prong Hook
Removing & Installing Body Components u Lower Fairing
73
Maintenance

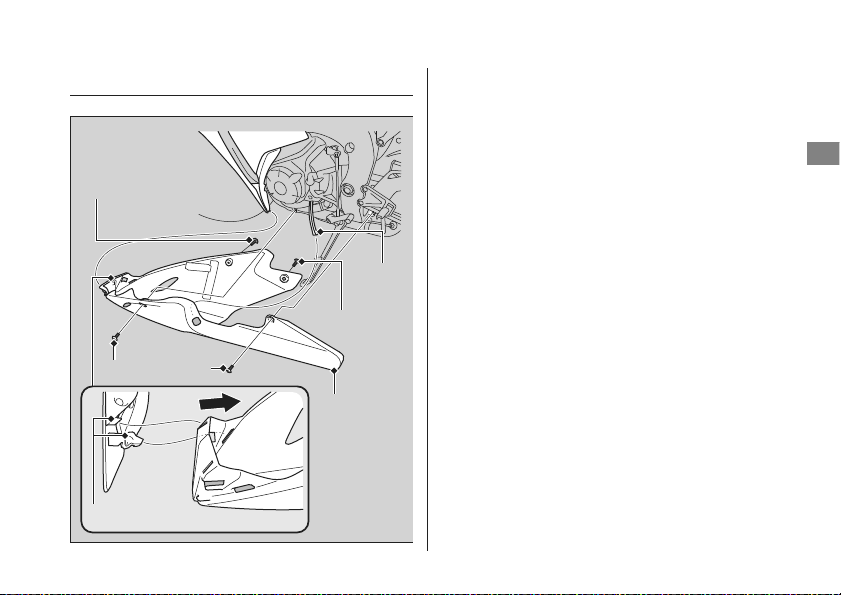

Lower Fairing
The lower fairing must be removed to
change the oil filter.
❙
Removal
1.
Remove the bolts A and bolts B.
2.
Remove the lower fairing carefully release
the guides from hooks of the middle
fairing side as shown in the illustration.
❙
Installation
Install the parts in the reverse order of
removal.
Route the tubes through the opening of the
lower fairing.
Bolt A
Bolt A Bolt B
Hooks
Lower
fairing
Bolt B
Tubes
Removing & Installing Body Components u Battery
74
Maintenance

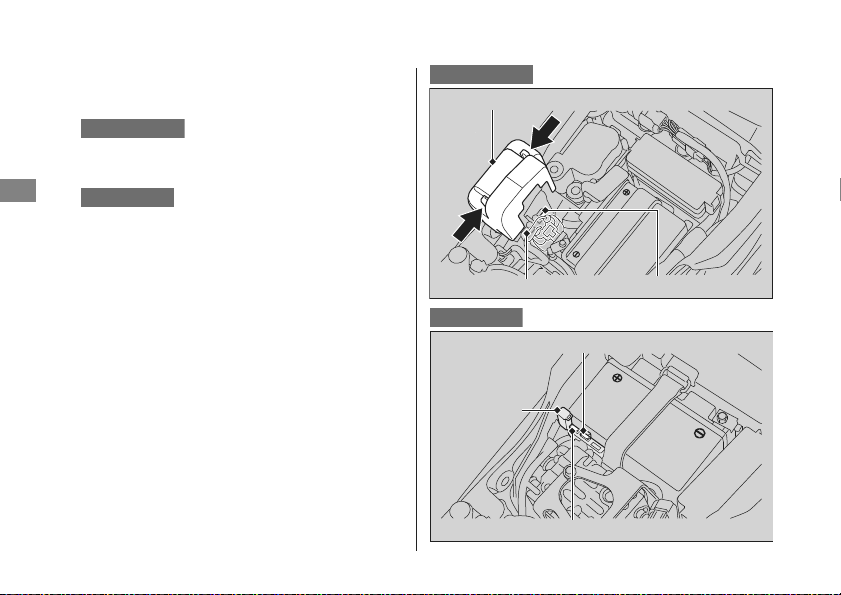

Battery
CBR1000RR/S
Positive terminal
Negative
terminal
Rubber strap Battery
CBR1000RA
Battery
Negative terminal
Positive terminal
Rubber strap
Removing & Installing Body Components u Battery
75
Maintenance
❙
Removal
Make sure the ignition switch is off.
1.
Remove the front seat.
2
P. 70
2.
Unhook the rubber strap.
3.
Disconnect the negative
-
terminal from
the battery.
4.
Disconnect the positive
+
terminal from
the battery.
5.
Remove the battery taking care not to
drop the terminal nuts.
❙
Installation
Install the parts in the reverse order of
removal. Always connect the positive
+
terminal first. Make sure that bolts and nuts
are tight.
Readjust the clock after the battery is
reconnected since the clock goes wrong
once the battery disconnected.
For proper handling of the battery, see
“Maintenance Fundamentals.“
2
P. 60
Battery Goes Dead
2
P. 118
76
Maintenance
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch off, and wait for 2
to 3 minutes.
3.
Remove the dipstick and wipe it clean.
4.
Place your motorcycle in an upright
position on a firm, level surface.
5.
Insert the dipstick until it seats, but don’t
screw it in.
Check that the oil level is between the
upper and lower level marks in the
dipstick.
6.
Securely install the dipstick.
Oil fill cap
Upper level
Lower level
Dipstick
Engine Oil u Adding Engine Oil
77
Maintenance
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2
P. 63
1.
Remove the oil fill cap. Add the
recommended oil until it reaches the
upper level mark.
u Place your motorcycle in an upright
position on a firm, level surface when
checking the oil level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
oil filler opening.
u Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap.
For the recommended oil and oil selection
guidelines, see “Maintenance
Fundamentals.”
2
P. 63
NOTICE
Overfilling with oil or operating with insufficient oil can
cause damage to your engine. Do not mix different brands
and grades of oil. They may affect lubrication and clutch
operation.
Engine Oil u Changing Engine Oil & Filter
78
Maintenance
Changing Engine Oil & Filter
Changing the oil and filter requires special
tools. We recommend that you have your
motorcycle serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
1.
Remove the lower fairing.
2
P. 73
2.
If the engine is cold, idle the engine for 3
to 5 minutes.
3.
Turn the ignition switch off, and wait for
2 to 3 minutes.
4.
Place on a firm, level surface and lower
the side stand.
5.
Place a drain pan under the drain bolt.
6.
Remove the oil fill cap, drain bolt, and
sealing washer to drain the oil.
NOTICE
Using the wrong oil filter can result in serious damage to
the engine.
Drain boltSealing washer
Engine Oil u Changing Engine Oil & Filter
79
Maintenance
7.
Remove the oil filter with a filter wrench
and let the remaining oil drain out. Make
sure the prior seal is not stuck to the
engine.
u Discard the oil and oil filter at an
approved recycling center.
8.
Apply a thin coat of engine oil to the
rubber seal of a new oil filter.
9.
Install the new oil filter and tighten.
10.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
11.
Fill the crankcase with the recommended
oil (
2
P. 63) and install the oil fill cap.
12.
Check the oil level.
2
P. 76
13.
Check that there are no oil leaks.
14.
Install the lower fairing.
Rubber
seal
Oil filter
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).
Required oil
When changing oil & engine oil
filter:
3.2 US qt (3.0 liters)
When changing oil only:
3.0 US qt (2.8 liters)
80
Maintenance
Coolant
Checking the Coolant
1.
Place your motorcycle on a firm, level
surface.
2.
Hold your motorcycle in an upright
position.
3.
Check that the coolant level is between
the upper and lower level marks in the
reserve tank from the inspection window.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your motorcycle inspected
by your dealer.
Reserve tank
Upper level
Lower level
Reserve tank cap
Coolant u Adding Coolant
81
Maintenance
Adding Coolant
If the coolant level is below the lower level
mark, add the recommended coolant
(
2
P. 65) until the level reaches the upper
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
1.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
2.
Securely reinstall the cap.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
3
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator
cool down before removing the
radiator cap.
82
Maintenance
Brakes
Checking Brake Fluid
1.
Place your motorcycle in an upright
position on a firm, level surface.
2.
Check that the brake fluid reservoir is
horizontal and that the fluid level is
between the LOWER level and UPPER level
marks.
If the brake fluid level in either reservoir is
below the LOWER level mark or the brake
lever and pedal freeplay becomes excessive,
inspect the brake pads for wear. If the brake
pads are not worn, you most likely have a
leak. Have your motorcycle inspected by your
dealer.
Front brake fluid reservoir
Rear brake fluid reservoir
UPPER level mark
LOWER level mark
Front
Rear
UPPER level mark
LOWER level mark
Brakes u Inspecting the Brake Pads
83
Maintenance
Inspecting the Brake Pads
Check the condition of the brake pad groove
wear indicators.
The pads need to be replaced if a
brake pad is worn to the bottom of the
indicator.
The pads need to be replaced if a
brake pad is worn to the indicator.
1.
Inspect the brake pads from in
front of the brake caliper.
u Always inspect both left and right
calipers.
2.
Inspect the brake pads from the
rear right of the motorcycle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
Front
Rear
Brake pad Brake pad
Disc Disc
Front
Rear
Wear
indicators
Wear
indicators
Wear
indicator
Wear
indicator
Front
Rear
Brakes u Adjusting the Brake Light Switch
84
Maintenance
Adjusting the Brake Light
Switch
Check the operation of the brake light
switch. Hold the brake light switch and turn
the adjusting nut in the direction A if the
switch operates too late, or turn the nut in
the direction B if the switch operates too
soon.
Brake light switch
A
B
Adjusting nut
85
Maintenance
Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the motorcycle, put the
transmission in Neutral, and raise the side
stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn’t stop, have
your motorcycle inspected by your dealer.
Side stand
spring
86
Maintenance
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Place the transmission in Neutral. Stop the
engine.
2.
Place your motorcycle on the side stand
on a level surface.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
u Do not ride your motorcycle if the slack
exceeds 1 15/16 in (50 mm).
4.
Roll the motorcycle forward and check
that the chain moves smoothly.
5.
Inspect the sprockets.
2
P. 64
6.
Clean and lubricate the drive chain.
2
P. 65
Drive chain slack:
1 to 1 3/8 in (25 to 35 mm)
Drive Chain u Adjusting the Drive Chain Slack
87
continued
Maintenance
Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Place the transmission in Neutral. Stop the
engine.
2.
Place your motorcycle on the side stand
on a level surface.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both adjusting
bolts.
CBR1000RA only
Lock nut
Rear axle nut/washer
Adjusting bolt
Adjusting plate
Scale graduations
Adjusting bolt
Scale graduations
Adjusting plate
Lock nut
Drive Chain u Adjusting the Drive Chain Slack
88
Maintenance
5.
Turn both adjusting bolts an equal
number of turns until the correct drive
chain slack is obtained. Turn the adjusting
bolts counterclockwise to tighten the
chain. Turn the adjusting bolts clockwise
and push the rear wheel toward the front
to provide more slack.
Adjust the slack at a point midway
between the front sprocket and the rear
wheel sprocket.
Check the drive chain slack.
2
P. 86
6.
Check rear axle alignment by making sure
the end of the chain adjusting plate aligns
with the scale graduations on both sides
of the swingarm.
Both marks should correspond. If the axle
is misaligned, turn the right or left
adjusting bolt until the marks are aligned
and recheck chain slack.
7.
Tighten the rear axle nut.
8.
Hold the adjusting bolts and tighten the
lock nuts.
9.
Recheck drive chain slack.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 83 lbf·ft (113 N·m, 11.5 kgf·m).
Torque: 91 lbf·ft (124 N·m, 12.6 kgf·m).
CBR1000RR/RA
CBR1000S
Drive Chain u Adjusting the Drive Chain Slack
89
Maintenance
❙

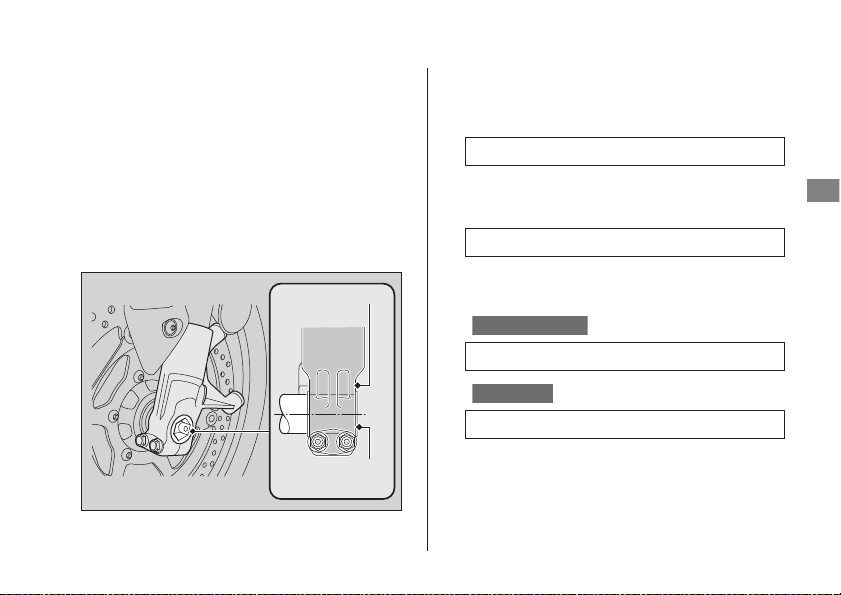

Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the front edge of the
adjusting plate enters the red zone on the
label after the chain has been adjusted to the
proper slack, the chain is excessively worn
and must be replaced.
If necessary have the drive chain replaced by
your dealer.
Chain:
DID 50VA11 or RK 50HFOZ6
Adjusting plate
Red zone
90
Maintenance
Clutch
Checking the Clutch
❙
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Check the clutch cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
Freeplay at the clutch lever:
3/8 to 13/16 in (10 to 20 mm)
Freeplay Clutch lever
Clutch u Adjusting the Clutch Lever Freeplay
91
continued
Maintenance
Adjusting the Clutch Lever
Freeplay
❙
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
Turn the clutch cable adjuster until the
freeplay is 3/8 to 13/16 in (10 to 20 mm).
❙
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment
with the lower adjusting nut.
1.
Turn the upper clutch cable adjuster all
the way in (to provide maximum freeplay).
Adjuster
+
–
Clutch u Adjusting the Clutch Lever Freeplay
92
Maintenance
2.
Loosen the lower lock nut.
3.
Turn the adjusting nut until the clutch
lever freeplay is 3/8 to 13/16 in (10 to 20
mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the motorcycle does not
creep. Gradually release the clutch lever
and open the throttle. Your motorcycle
should move smoothly and accelerate
gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
Lock nut
+
–
Adjusting nut
93
Maintenance
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.
Adjusting the Throttle Freeplay
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
to 3/16 in (2 to 4 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
Freeplay at the throttle grip flange:
1/16 to 3/16 in (2 to 4 mm).
Freeplay
Flange
Throttle grip
Cable boot
AdjusterLock nut
94
Maintenance
Other Adjustments
Adjusting the Brake Lever
You can adjust the distance between the tip
of the brake lever and handle grip.
❙
Adjustment method
Turn the adjuster until the numbers align
with the index mark while pushing the lever
forward in the desired position.
After adjustment, check that the levers
operate correctly before riding.
NOTICE
Do not turn the adjuster beyond its natural limit.
Adjuster
Index mark
Forward
Brake lever
Forward
Other Adjustments u Adjusting the Front Suspension
95
continued
Maintenance
Adjusting the Front Suspension
❙
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Turn clockwise to increase spring preload
(hard), or turn counterclockwise to decrease
spring preload (soft). The standard position is
7 1/2 turns from the full soft position.
❙

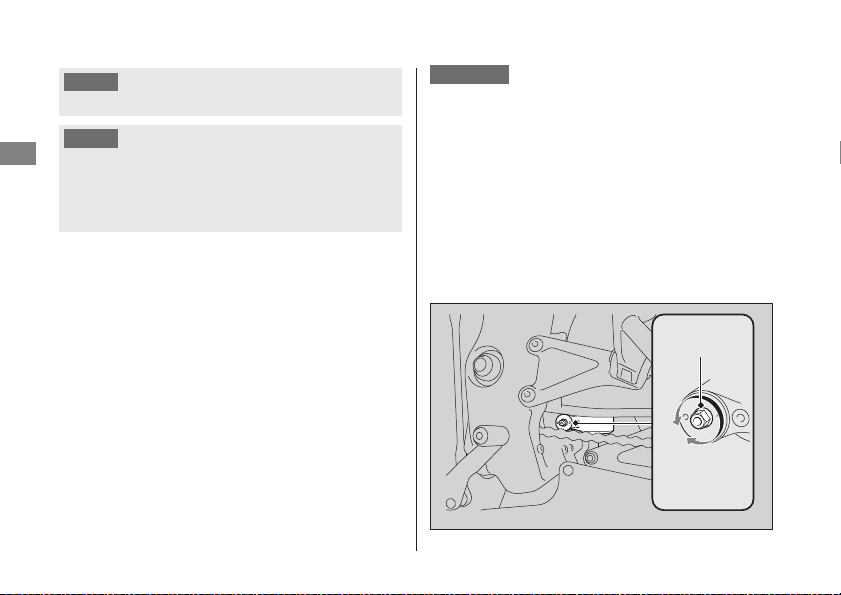

Rebound Damping
You can adjust the rebound damping by the
TEN adjuster to suit the load or the road
surface.
Turn clockwise to increase rebound damping
(hard), or turn counterclockwise to decrease
rebound damping (soft). The standard
position is 4 1/2 turns (except VI A and
VII AC type)/ 4 3/4 turns (VI A and VII AC
type) from the full hard position.
CBR1000RR/RA
Adjuster
TEN adjuster
Other Adjustments u Adjusting the Front Suspension
96
Maintenance
❙
Compression Damping
You can adjust the compression damping by
the COM adjuster to suit the load or the road
surface.
Turn clockwise to increase compression
damping (hard), or turn counterclockwise to
decrease compression damping (soft). The
standard position is 5 1/2 turns from the full
hard position.
COM adjuster
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right forks to the same spring
preload, rebound damping and compression damping.
Other Adjustments u Adjusting the Front Suspension
97
continued
Maintenance
❙
Spring Preload
You can adjust the spring preload by the
PRELOAD adjuster to suit the load or the road
surface.
Turn clockwise to increase spring preload
(hard), or turn counterclockwise to decrease
spring preload (soft).
The standard position is the 6 turns from the
full soft position. Also the position for race
tracks is 6 turns from the full soft position.
u When adjusting, be careful not to damage
the adjuster.
CBR1000S
PRELOAD Adjuster
Other Adjustments u Adjusting the Front Suspension
98
Maintenance
❙
Rebound Damping
You can adjust the rebound damping by the
REB adjuster on the right side of the front
fork to suit the load or the road surface.
Turn clockwise to increase rebound damping
(hard), or turn counterclockwise to decrease
rebound damping (soft).
The standard position is 12 clicks from the
full hard position. The position for race tracks
is 14 clicks from the full hard position.
u When adjusting, be careful not to damage
the adjuster.
REB adjuster
Other Adjustments u Adjusting the Front Suspension
99
Maintenance
❙
Compression Damping
You can adjust the compression damping by
the COMP adjuster on the left side of the
front fork to suit the load or the road surface.
Turn clockwise to increase compression
damping (hard), or turn counterclockwise to
decrease compression damping (soft).
The standard position is 12 clicks from the
full hard position. The position for race tracks
is the 10 clicks from the full hard position.
u When adjusting, be careful not to damage
the adjuster.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right forks to the same spring
preload.
COMP adjuster
Other Adjustments u Adjusting the Rear Suspension
100
Maintenance
Adjusting the Rear Suspension
Adjusting the suspension requires pin
spanner. We recommend that you have your
motorcycle serviced by your dealer.
❙
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use a suitable pin spanner to turn the
adjuster. Positions 1 to 3 are for a decrease
spring preload (soft), or turn the position 5 to
10 increase spring preload (hard). The
standard position is 4.
Attempting to adjust directly from 1 to 10 or
10 to 1 may damage the shock absorber.
NOTICE
Do not attempt to disassemble, service, or improperly
dispose of the damper. See your dealer.
CBR1000RR/RA
Adjuster
Pin spanner
10 9 8
1 2 3 4 5 6 7
Other Adjustments u Adjusting the Rear Suspension
101
continued
Maintenance
❙
Rebound Damping
You can adjust the rebound damping by the
TEN adjuster to suit the load or the road
surface.
Turn clockwise to increase rebound damping
(hard), or turn counterclockwise to decrease
rebound damping (soft). The standard
position is 2 1/2 turns from the full hard
position.
❙
Compression Damping
You can adjust the compression damping by
the COM adjuster to suit the load or the road
surface.
Turn clockwise to increase compression
damping (hard), or turn counterclockwise to
decrease compression damping (soft). The
standard position is 2 turns from the full hard
position.
TEN adjuster
COM adjuster
Other Adjustments u Adjusting the Rear Suspension
102
Maintenance
❙
Spring Preload
You can adjust the spring preload by the
adjuster knob to suit the load or the road
surface. Turn clockwise to increase spring
preload (hard), or turn counterclockwise to
decrease spring preload (soft). The standard
position is 6 turns from the full hard position.
The position for race tracks is 2 turns from
the full hard position.
NOTICE
Do not turn the adjuster beyond its limits.
NOTICE
The rear shock absorber damper unit contains high
pressure nitrogen gas. Do not attempt to disassemble,
service, or improperly dispose of the damper. See your
dealer.
CBR1000S
Adjuster
S
H
Other Adjustments u Adjusting the Rear Suspension
103
continued
Maintenance
❙
Rebound Damping
You can adjust the rebound damping by the
REB adjuster to suit the load or the road
surface.
Turn clockwise to increase rebound damping
(hard), or turn counterclockwise to decrease
rebound damping (soft). The standard
position is 16 clicks from the full hard
position. The position for race tracks is 10
clicks from the full hard position.
❙
Compression Damping
You can adjust the compression damping by
the COMP adjuster to suit the load or the
road surface.
Turn clockwise to increase compression
damping (hard), or turn counterclockwise to
decrease compression damping (soft). The
standard position is 15 clicks from the full
hard position. The position for race tracks is
12 clicks from the full hard position.
REB adjuster
COMP adjuster
Other Adjustments u Adjusting the Headlight Aim
104
Maintenance
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Turn the screw using a
Phillips screwdriver provided in the tool kit
(
2
P. 49) in or out as necessary.
Obey local laws and regulations.
NOTICE
Do not turn the adjuster beyond its limits.
NOTICE
The rear shock absorber damper unit contains high
pressure nitrogen gas. Do not attempt to disassemble,
service, or improperly dispose of the damper. See your
dealer.
Lower
Raise
Lower
Raise
Screw
Low Beam
Screw
High Beam
Troubleshooting
Engine Will Not Start............................... P. 106
Overheating (High coolant temperature
indicator is on) ....................................... P. 107
Warning Indicators On or Flashing ........ P. 108
Low Oil Pressure Indicator ....................... P. 108
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).......... P. 108
Combined ABS Indicator ......................... P. 109
HESD (Honda Electronic Steering Damper)
Indicator ............................................... P. 109
Tire Puncture ............................................P. 110
Electrical Trouble......................................P. 118
Battery Goes Dead ..................................P. 118
Burned-out Light Bulb .............................P. 118
Blown Fuse..............................................P. 123
106
Troubleshooting
Engine Will Not Start
❙
Starter Motor Operates But Engine
Does Not Start
Check the following items:
●
Make sure engine stop switch is RUN
position
2
P. 44
●
Check the correct engine starting
sequence
2
P. 46
●
Check that there is gasoline in the fuel
tank
●
Check if the PGM-FI malfunction indicator
lamp (MIL) is on
u If the indicator light is on, contact your
dealer as soon as possible.
❙
Starter Motor Does Not Operate
Check the following items:
●
Make sure engine stop switch is RUN
position
2
P. 44
●
Check for a blown fuse
2
P. 123
●
Check for a loose battery connection or
battery terminal corrosion
2
P. 74
●
Check the condition of the battery
2
P. 118
If the problem continues, have your
motorcycle inspected by your dealer.
107
Troubleshooting
Overheating (High coolant temperature indicator is on)
The engine is overheating when the
following occurs:
●
High coolant temperature indicator comes
on.
●
Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the high
coolant temperature indicator comes on.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
Suspect a fault. Do not start the engine.
Transport your motorcycle to your dealer.
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2
P. 80
Do not start the engine. Transport your
motorcycle to your dealer.
4.
Check the coolant level in the reserve
tank, and add coolant as necessary.
2
P. 80
5.
If 1-4 check normal, you may continue
riding, but closely monitor the
temperature gauge.
NOTICE
Continuing to ride with an overheated engine can cause
serious damage to the engine.
If the fan is not operating:
If the fan is operating:
If there is a leak:
108
Troubleshooting
Warning Indicators On or Flashing
Low Oil Pressure Indicator
If the low oil pressure indicator comes on,
pull safely to the side of the road and stop
the engine.
1.
Check the engine oil level, and add oil as
necessary.
2
P. 76
2.
Start the engine.
u Only continue riding if the low oil
pressure indicator goes off.
Rapid acceleration may momentarily cause
the low oil pressure indicator to come on,
especially if the oil is at or near the low level.
If the low oil pressure indicator stays on
when the oil level is at the proper level, stop
the engine and contact your dealer.
If the engine oil level goes down rapidly, your
motorcycle may have a leak or another
serious problem. Have your motorcycle
inspected by your dealer.
PGM-FI (Programmed Fuel
Injection) Malfunction Indicator
Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
NOTICE
Continuing to ride with low oil pressure can cause serious
damage to the engine.
Warning Indicators On or Flashing u Combined ABS Indicator
109
Troubleshooting
Combined ABS Indicator
If the Combined ABS indicator operates in
one of the following ways, your brakes will
continue to work as a conventional system,
but without the Combined ABS function.
Reduce your speed and have your motorcycle
inspected by your dealer as soon as possible.
●
Indicator does not come on when the
ignition switch is in the ON position
●
Indicator does not go off at speeds above
6 mph (10 km/h)
●
Indicator comes on or starts flashing while
riding
The Combined ABS indicator may flash if:
●
The front wheel leaves the ground for 1
second or more
●
Either brake is applied continuously from 0
mph (0 km/h) to 31 mph (50 km/h)
●
You turn the rear wheel while your
motorcycle is lifted off the ground
This is normal but the Combined ABS is not
in operation. To activate the system again,
turn the ignition off, then on again.
HESD (Honda Electronic
Steering Damper) Indicator
If the indicator comes on while riding, you
may have a serious problem with the HESD.
Reduce speed and have your motorcycle
inspected by your dealer as soon as possible.
CBR1000RA only
110
Troubleshooting
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your motorcycle with a temporary tire
repair is very risky. Do not exceed 30 mph (50
km/h). Have the tire replaced by your dealer
as soon as possible.
Removing Wheels
Follow these procedures if you need to
remove a wheel in order to repair a puncture.
3
WARNING
Riding your motorcycle with a
temporary tire repair can be risky. If
the temporary repair fails, you can
crash and be seriously injured or
killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and
do not exceed 30 mph (50 km/h) until
the tire is replaced.
Tire Puncture u Removing Wheels
111
continued
Troubleshooting
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
❙
Front Wheel
Removal
1.
Park on a firm, level surface.
2.
Cover both sides of the front wheel and
brake caliper with protective tape or
cloth.
3.
Remove the wheel speed sensor by
removing the bolts.
4.
On the right side, remove the mounting
bolts and remove the brake caliper.
5.
On the left side, remove the mounting
bolts and remove the brake caliper.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on
the disc or pad surfaces.
u Do not pull the brake lever or push the
brake pedal while the brake caliper is
removed.
u Take care to prevent the brake caliper
from scratching the wheel during
removal.
CBR1000RA only
Bolts
CBR1000RA only
Sensor guide
CBR1000RA only
Mounting bolts Brake caliper
Wheel speed sensor
CBR1000RA only
CBR1000RA only
Tire Puncture u Removing Wheels
112
Troubleshooting
6.
Remove the front axle bolt.
7.
Loosen the right axle pinch bolts.
8.
Support your motorcycle securely and
raise the front wheel off the ground
using a maintenance stand or a hoist.
9.
Loosen the left axle pinch bolts.
10.
On the left side, withdraw the front axle
shaft, and remove the side collars and
wheel.
Front axle bolt
Axle pinch bolts
Axle pinch bolts
Front axle shaft
Tire Puncture u Removing Wheels
113
continued
Troubleshooting
Installation
1.
Attach the side collars to the wheel.
2.
On the left side, place the wheel
between the fork legs and insert the
lightly greased front axle shaft to the
end, through the left fork leg and wheel
hub.
3.
Align the end of the front axle shaft with
the surface of the fork leg.
4.
Tighten the left axle pinch bolts to hold
the axle.
5.
Tighten the axle bolt.
6.
Loosen the left axle pinch bolts.
7.
Tighten the right axle pinch bolts.
8.
Install the right brake caliper and tighten
the mounting bolts.
Surface of
fork leg
End of front
axle shaft
Torque: 58 lbf·ft (79 N·m, 8.1 kgf·m).
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m).
Torque: 33 lbf·ft (45 N·m, 4.6 kgf·m).
Torque: 30 lbf·ft (40 N·m, 4.1 kgf·m).
CBR1000RR/RA
CBR1000S
Tire Puncture u Removing Wheels
114
Troubleshooting
9.
Install the left brake caliper and tighten
the mounting bolts.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
u Use new mounting bolts when
installing the brake caliper.
10.
Lower the front wheel on the ground.
11.
Apply the brake lever several times.
Then, pump the fork several times.
12.
Retighten the left axle pinch bolts.
13.
Raise the front wheel off the ground
again, and check that the wheel rotates
freely after you release the brake.
14.
Install the wheel speed sensor, sensor
guide and tighten the bolts, then check
the clearance between the wheel speed
sensor and the pulser ring.
15.
Remove the protective tape or cloth.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 33 lbf·ft (45 N·m, 4.6 kgf·m).
Torque: 30 lbf·ft (40 N·m, 4.1 kgf·m).
NOTICE
When installing the brake calipers into position on
the fork legs, carefully fit the brake disc between the
pads to avoid scratching them.
CBR1000RR/RA
CBR1000S
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m).
CBR1000RA only
Tire Puncture u Removing Wheels
115
continued
Troubleshooting
❙
Rear Wheel
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2.
Loosen the rear axle nut, lock nuts and
turn the adjusting bolts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
3.
Remove the rear axle nut/washer.
4.
Remove the drive chain from the rear
wheel sprocket by pushing the rear wheel
forward.
5.
Remove the rear axle shaft, adjusting
plates.
Adjusting bolt
Rear axle nut/washer
Lock nut
Adjusting
plate
Lock nut
Adjusting
bolt
Adjusting plate
Rear axle shaft
Drive chain
Tire Puncture u Removing Wheels
116
Troubleshooting
6.
Remove the brake caliper bracket, rear
wheel and side collars.
u Support the brake caliper so that it
doesn’t hang from the brake hose. Do
not twist the brake hose.
u Avoid getting grease, oil, or dirt on the
disc to pad surfaces.
u Do not push the brake pedal while the
brake caliper is removed.
Installation
1.
To install the rear wheel, reverse the
removal procedure.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
2.
Make sure that the lug on the brake
caliper bracket is positioned in the slot on
the swingarm.
NOTICE
When installing the brake caliper into position, carefully
fit the brake disc between the pads to avoid scratching
them.
Slot
Swingarm
Brake caliper
bracket
Lug
Tire Puncture u Removing Wheels
117
Troubleshooting
3.
Adjust the drive chain.
2
P. 87
4.
Install and tighten the rear axle nut.
5.
After installing the wheel, apply the brake
pedal several times, then recheck the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 83 lbf·ft (113 N·m, 11.5 kgf·m).
Torque: 91 lbf·ft (124 N·m, 12.6 kgf·m).
CBR1000RR/RA
CBR1000S
118
Troubleshooting
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
before charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage.
If the battery does not recover after
recharging, contact your dealer.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it. Do
not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.“
2
P. 153
NOTICE
Jump starting using an automobile battery is not
recommended, as this can damage your motorcycle’s
electrical system.
Electrical Trouble u Burned-out Light Bulb
119
continued
Troubleshooting
❙
Headlight Bulb
1.
Remove the socket cover by turning it
counterclockwise.
2.
Pull the socket off the bulb without
turning it.
3.
Press the pin down and pull out the bulb
without turning it.
4.
Install a new bulb and parts in the reverse
order of removal.
u Make sure the arrow marks on the
socket cover and headlight housing are
aligned.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
Pin
Bulb
Socket
Socket cover
Arrow mark
Arrow mark
Electrical Trouble u Burned-out Light Bulb
120
Troubleshooting
❙
Position Light
The position light uses several LEDs.
If there is a LED which is not turned on, see
your dealer for this service.
❙
Brake/Taillight
The brake and taillight uses several LEDs. If
there is a LED which is not turned on, see
your dealer for this service.
Position light
Brake/Taillight
Electrical Trouble u Burned-out Light Bulb
121
continued
Troubleshooting
❙

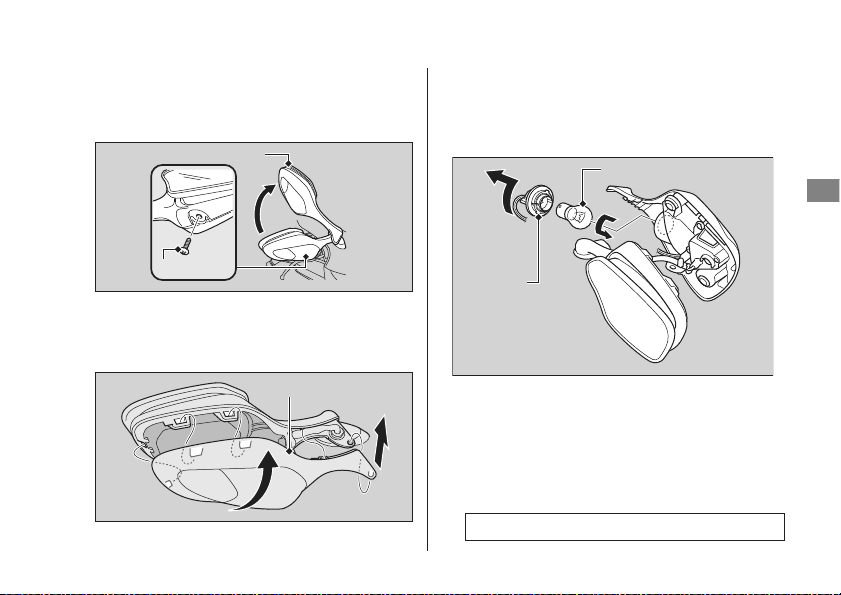

Front Turn Signal Bulb
1.
Remove the screw.
2.
Fold the rearview mirror.
3.
Remove the cover from the rearview
mirror carefully in the procedure shown in
the illustration.
4.
Turn the socket counterclockwise and pull
it out.
5.
Slightly press the bulb in and turn it
counterclockwise.
6.
Install a new bulb in the reverse order of
removal.
u Use only the amber bulb.
7.
Reinstall the cover and install the screw
and tighten.
Rearview mirror
Screw
Cover
!a
!b
!c
Torque: 0.7 lbf·ft (1.0 N·m, 0.1 kgf·m).
Bulb
Socket
Electrical Trouble u Burned-out Light Bulb
122
Troubleshooting
❙

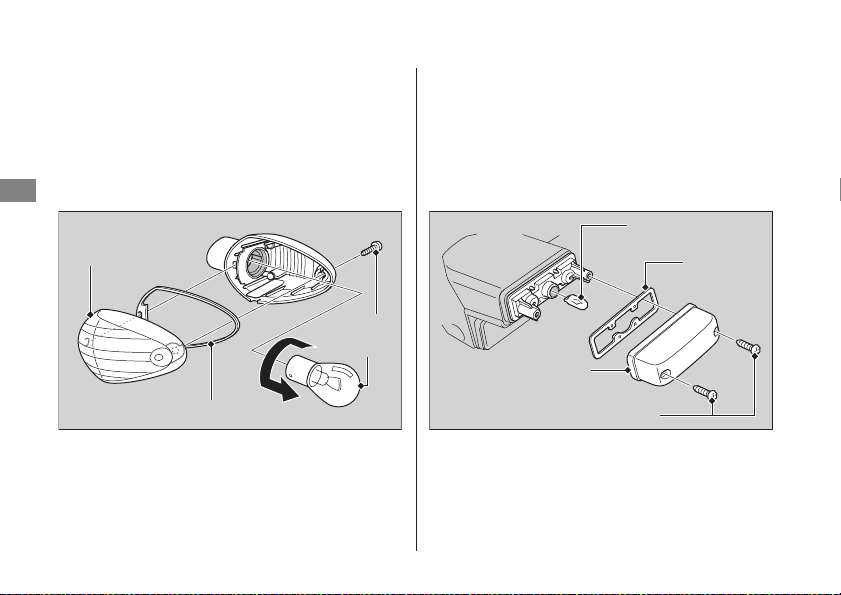

Rear Turn Signal Bulb
1.
Remove the screw.
2.
Remove the turn signal lens and lens
packing.
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb in the reverse order of
removal.
u Use only the amber bulb.
❙
License Plate Light Bulb
1.
Remove the screws.
2.
Remove the license light cover and license
light cover packing.
3.
Pull the bulb out of the socket without
turning it.
4.
Install a new bulb in the reverse order of
removal.
5.
Reinstall the cover
Lens packing
Screw
Turn signal
lens
Bulb
Screws
License light cover
Bulb
Cover
packing
Electrical Trouble u Blown Fuse
123
continued
Troubleshooting
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.”
2
P. 62
❙
Fuse Box Fuses
1.
Remove the front seat.
2
P. 70
2.
Remove the fuse box cover.
3.
Pull the fuses out one by one to check for
a blown fuse. Always replace a blown fuse
with a spare of the same rating.
4.
Reinstall the fuse box cover.
5.
Reinstall the front seat.
CBR1000RR/S
Fuse box cover
Spare fuses
CBR1000RA
Fuse box cover
Spare fuses
Electrical Trouble u Blown Fuse
124
Troubleshooting
❙
Main Fuse & FI Fuse
1.
Remove the front seat.
2
P. 70
2.
Remove the starter magnetic switch
cover.
Open the main and FI fuse box cover.
3.
Pull the main fuse and FI fuse out one by
one and check for a blown fuse. Always
replace a blown fuse with a spare of the
same rating.
u Spare fuses are provided in the fuse
box.
2
P. 123
4.
Reinstall parts in the reverse order of
removal.
CBR1000RR/S
CBR1000RA
CBR1000RR/S
Main fuse FI fuse
Starter magnetic switch cover
CBR1000RA
Main fuse
Main and
FI fuse box
cover
FI fuse
Electrical Trouble u Blown Fuse
125
Troubleshooting
❙
ABS Motor Fuses
The ABS motor fuses are located on the
starter magnetic switch.
To replace these fuses, the fuel tank must be
removed.
The ABS motor fuses should be inspected by
your dealer, unless the owner has proper
tools and service data and is mechanically
qualified. Refer to an official Honda Service
Manual.
CBR1000RA
ABS motor fuse
NOTICE
If a fuse fails repeatedly, you likely have an electrical
problem. Have your motorcycle inspected by your dealer.
Information
Keys...........................................................P. 127
Instruments, Controls, & Other Features
...
P. 128
Caring for Your Motorcycle.....................P. 130
Storing Your Motorcycle .........................P. 134
Transporting Your Motorcycle ................P. 135
You & the Environment ...........................P. 136
Vehicle Identification Number ................P. 137
Emission Control Systems........................P. 138
Catalytic Converter ..................................P. 143
Oxygenated Fuels ....................................P. 144
Authorized Manuals ................................P. 145
Warranty Coverage and Service .............P. 146
Honda Contacts ....................................... P. 148
Reporting Safety Defects ............. P. 150
USA
Keys
127
Information
Keys
This motorcycle has two ignition keys and a key
tag with a key number and a bar code.
Store the spare key and the key tag in a safe
location.
To make a duplicate key, take the spare key and
the key tag to your dealer or a locksmith.
If you lose all keys and the key tag, the ignition
switch assembly will probably have to be
removed by your dealer to determine the key
number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Ignition key
Ignition key
Key tag
Key number and bar code
Instruments, Controls, & Other Features
128
Information
Instruments, Controls, &
Other Features
The headlight is always on when the ignition
switch is ON. Leaving the ignition switch ON
with the engine stopped will drain the battery.
Do not turn the key while riding.
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch off. Failing to do
so will drain the battery.
The display locks at 999,999 when the read-out
exceeds 999,999.
Tripmeter A returns to 0 when the read-out
exceeds 999.9.
Tripmeter B returns to 0 when the read-out
exceeds 9,999.9.
The owner’s manual, registration, and insurance
information can be stored in the plastic
document bag located under the rear seat.
The owner’s manual, registration, and
insurance information can be stored in the
plastic document bag located under the single
seat cowl.
Ignition Switch
Engine Stop Switch
Odometer
Tripmeter
Document Bag
CBR1000RR/RA
CBR1000S
Instruments, Controls, & Other Features
129
Information
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the
motorcycle falls over. To reset the sensor, you
must turn the ignition switch to OFF and back
to the ON position before the engine can be
restarted.
The Honda Electronic Steering Damper (HESD)
automatically controls the steering damper
characteristics in accordance with vehicle speed
and acceleration.
2
HESD Indicator Comes on P. 109
The assist-slipper clutch system helps to prevent
the rear tire from locking up when the
deceleration of your motorcycle produces a
strong engine braking effect. It also makes the
clutch lever operation feel lighter.
Use only MA classification engine oil for your
motorcycle. Using engine oil other than MA
classification oil could result in damage to the
assist-slipper clutch system.
Ignition Cut-off System
HESD
Assist-slipper Clutch System
Caring for Your Motorcycle
130
Information
Caring for Your Motorcycle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean
motorcycle makes it easier to spot potential
problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your motorcycle
thoroughly after riding on coastal or treated
roads.
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your motorcycle thoroughly using a
garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the windscreen, headlight lens,
panels, and other plastic components with
extra care to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your motorcycle with plenty
of clean water and dry with a soft, cloth.
4.
After the motorcycle dries, lubricate any
moving parts.
u Make sure that no lubricant spills onto the
brakes or tires. Brake discs, pads, drum or
shoes contaminated with oil will suffer
greatly reduced braking effectiveness and
can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the motorcycle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These can
damage the metal, paint, and plastic on
your motorcycle.
Keep the wax clear of the tires and brakes.
u If your motorcycle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
Washing
Caring for Your Motorcycle
131
continued
Information
❙
Washing Precautions
Follow these guidelines when washing:
●
Do not use high-pressure washers:
u High-pressure water cleaners can damage
moving parts and electrical parts,
rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
●
Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
●
Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to help
dry them.
●
Do not direct water under the rear seat:
u Water in the under seat compartment can
damage your documents and other
belongings.
●
Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
●
Do not direct water near the headlight:
u Any condensation inside the headlight
should dissipate after a few minutes of
running the engine.
●
Do not use waxes containing compounds at
the matte painted surface:
u Using plenty of water, clean the matte
painted surface with a soft cloth or
sponge. Dry with a soft, clean cloth.
u Use neutral detergent to clean matte
painted surface.
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
●
Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
●
Avoid riding over or scraping against curbs.
Aluminum Components
Caring for Your Motorcycle
132
Information
Follow these guidelines to prevent scratches
and blemishes:
●
Wash gently using a soft sponge and plenty
of water.
●
To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty of
water.
●
Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
The exhaust pipe and muffler are stainless steel
but may become stained by mud or dust.
To remove mud or dust, use a wet sponge and
a liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing
mud or dust.
When the exhaust pipe and muffler are painted,
do not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
Panels
Exhaust Pipe and Muffler
NOTICE
Even though the exhaust is made of stainless steel, it can
become stained. Remove all marks and blemishes as soon
as they are noticed.
Caring for Your Motorcycle
133
Information
Using plenty of water, clean the windscreen
with a soft cloth or sponge. (Avoid using
detergents or any kind of chemical cleaner on
the windscreen.) Dry with a soft, clean cloth.
For a dirtier windscreen, use a diluted neutral
detergent with a sponge and plenty of water.
Make sure to wash off all the detergent.
(Detergent residue may cause windscreen
cracks.)
Replace the windscreen if scratches cannot be
removed and they obstruct clear vision.
Take care to keep battery electrolyte, brake
fluid, or other chemical solvents off the
windscreen and screen garnish. They will
damage the plastic.
Windscreen
NOTICE
To avoid possible scratching or other damage, use only
water and a soft cloth or sponge to clean the windscreen.
Storing Your Motorcycle
134
Information
Storing Your Motorcycle
If you store your motorcycle outdoors, you
should consider using a full-body motorcycle
cover.
If you won’t be riding for an extended period,
follow these guidelines:
●
Wash your motorcycle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
●
Lubricate the drive chain.
2
P. 65
●
Place your motorcycle on a maintenance
stand and position a block so that both tires
are off the ground.
●
After rain, remove the body cover and allow
the motorcycle to dry.
●
Remove the battery (
2
P. 75) to prevent
discharge. Charge the battery in a shaded,
well-ventilated area.
u If you leave the battery in place,
disconnect the negative
-
terminal to
prevent discharge.
After removing your motorcycle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
For more information about storage,
refer to the Honda Winter Storage Guide,
available from your dealer.
USA
Transporting Your Motorcycle
135
Information
Transporting Your
Motorcycle
If your motorcycle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your motorcycle with a
wheel or wheels on the ground.
●
Attach the lower ends of two straps to the
tie-down hooks on truck bed or trailer rail.
Attach the upper ends of the straps to the
seat rails.
u Must be attached to the position indicated
on the illustration.
●
Check that the tie-down straps do not
contact any control cables or electrical wiring.
●
We recommend that you do not transport
your motorcycle on its side. This can damage
the motorcycle, and leaking gasoline could
be a hazard.
NOTICE
Towing your motorcycle can cause serious damage to the
transmission.
CBR1000S only
Right side
Left side
Tie-down straps Seat rails
You & the Environment
136
Information
You & the Environment
Owning and riding a motorcycle can be
enjoyable, but you must do your part to protect
the environment.
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners
that contain chlorofluorocarbons (CFCs) which
damage the atmosphere’s protective ozone
layer.
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
Choose Sensible Cleaners
Recycle Wastes
Vehicle Identification Number
137
continued
Information
Vehicle Identification
Number
The VIN and engine serial numbers uniquely
identify your motorcycle and are required in
order to register your motorcycle. They may also
be required when ordering replacement parts.
The VIN is stamped on the right side of the
steering head and also appears on the Safety
Certification Label attached to the left side of
the frame.
The engine number is stamped on the front of
the crankcase.
You should record these numbers and keep
them in a safe place.
VIN
VIN
Emission Control Systems
138
Information
Emission Control Systems
Your motorcycle engine emits combustion by
products, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Engine number
Emission Control Systems
139
continued
Information
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment Canada (EC) require
that your motorcycle comply with applicable
exhaust, crankcase, and fuel permeation
emission standards during its useful life, when
operated and maintained according to the
instructions provided.
CARB also requires that your motorcycle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor’s
Warranties for Honda Motorcycle Emission
Control Systems is necessary in order to
maintain a valid emissions system warranty
(USA only). The Vehicle Emission Control
Information label is located under the rear seat.
2
P. 71
The EPA requires that motorcycles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Exhaust Emission Requirements
Noise Emission Requirements
Vehicle emission control information label
Vehicle emission control information label
Canada only
Emission Control Systems
140
Information
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your Honda dealer is recommended.
❙
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems.
The engine control module (ECM) uses sensors
to determine how much air enters the engine,
and then controls how much fuel to inject.
❙
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
❙
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
❙
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Exhaust Emission Control System
Evaporative Emission Control System
50 STATE (meets California)
Emission Control Systems
141
continued
Information
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the air cleaner and the intake
manifold.
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions.
Tampering with these components to reduce or
defeat the effectiveness of the fuel permeation
technologies is prohibited.
❙
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of design
incorporated into any new vehicle for the
purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Crankcase Emissions Control System
Fuel Permeation Emission Control
Noise Emission Control System
Emission Control Systems
142
Information
❙
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
●
Removal of, or puncturing the muffler,
baffles, header pipes or any other component
which conducts exhaust gases.
●
Removal of, or puncturing of any part of the
intake system.
●
Lack of proper maintenance.
●
Removing or disabling any emissions
compliance component, or replacing any
compliance component with a non-
compliant component.
Have your motorcycle inspected and repaired by
your dealer if you experience any of the
following symptoms:
●
Hard starting or stalling after starting
●
Rough idling
●
Misfiring or backfiring during acceleration
●
Poor engine performance and poor fuel
economy
Problems Affecting Motorcycle Exhaust
Emissions
Catalytic Converter
143
Information
Catalytic Converter
This motorcycle is equipped with a three-way
catalytic converter. The catalytic converter
contain precious metals that serve as catalysts in
high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine’s
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your
motorcycle’s catalytic converter.
●
Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
●
Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the motorcycle.
●
If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
motorcycle serviced as soon as possible.
Oxygenated Fuels
144
Information
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends are EPA-approved
and have been approved use in your
motorcycle:
●
Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
●
Methanol (methyl alcohol) up to 5% by
volume that contain cosolvents and corrosion
inhibitors to protect the fuel system. Never
use a blend containing more than 5%.
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
NOTICE
Improper use of oxygenated fuels can damage metal,
rubber, and plastic parts of your fuel system.
Oxygenated fuel can also damage paint. Damage caused
by spilled fuel is not covered by warranty.
Authorized Manuals
145
Information
Authorized Manuals
The Service Manual used by your authorized
dealer is available from your Honda dealer or
Helm, Inc.
(USA only, Canada: See your dealer to order
authorized manuals.)
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and all-terrain vehicles.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Publication Item No. Description
61MGP03 2015 CBR1000RR/RA/S Service Manual
61CSM00 Common Service Manual
31MKB600 2015 CBR1000RR/RA/S Owner’s Manual
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday – Friday 8:00 AM – 6:00 PM EST
Warranty Coverage and Service
146
Information
Warranty Coverage and
Service
Your new Honda is covered by the following
warranties:
●
Motorcycle Limited Warranty
●
Emission Control System Warranty
●
Noise Control Warranty (USA only)
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner’s card with your
Warranties Booklet.
Please refer to the Warranty Booklet
posted on our website at www.honda.ca.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
motorcycle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
You can extend almost all of your warranty
coverage through the Honda Protection Plan
(USA only). For more information, see your
Honda dealer.
Coverage
Canada
Warranty Coverage and Service
147
Information
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
motorcycle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs.
If you have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren’t
satisfied with your dealer’s handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership’s management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Service
Honda Contacts
148
Information
Honda Contacts
If you wish to contact Honda directly to
comment on your experiences with your
motorcycle or with your dealer, please send
your comments to the following address:
Honda Canada Inc.
Customer Relations Department,
180 Honda Boulevard
Markham, Ontario
L6C 0H9
Telephone: (888) 946-6329
Fax: (877) 939-0909
E-mail: [email protected]
Please include the following information in your
letter:
●
Name, address, and telephone number
●
Product model, year, and VIN
●
Date of purchase
●
Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
American Honda Motor Co., Inc.
Motorcycle Division,
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada
Honda Contacts
149
Information
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and most repairs. It has the latest
available service information from Honda and
also handles warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Genuine
Accessories (USA only), and Honda accessories
and products (Canada only) that provide the
same quality that went into your motorcycle.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage (USA only).
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area, and
the Honda Rider’s Club of America (USA only).
The Honda Rider's Club of America (HRCA)
sponsors local riding chapters at Authorized
Honda Dealerships across the country. You can
log on to the HRCA Clubhouse website for
more information at www.hrca.honda.com.
Your Honda Dealer
Honda Rider’s Club of America (HRCA)
Reporting Safety Defects
150
Information
Reporting Safety
Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov
.
USA
151
Specifications
Specifications
Specificati ons
■ Main Components
*1 Including rider, passenger, all luggage, and accessories.
*2 Including rider, all luggage, and accessories.
*3 Includes the weight of the luggage and added accessories.
Type SC59
Overall length 81.7 in (2,075 mm)
Overall width 28.3 in (720 mm)
Overall height 44.7 in (1,135 mm)
Wheelbase 55.5 in (1,410 mm)
Minimum ground clearance 5.1 in (130 mm)
Caster angle 23°18’
Trail 3.8 in (96 mm)
Curb
weight
CBR1000RR
49 STATE 441 lb (200 kg)
50 STATE (meets California)
443 lb (201 kg)
CBR1000RA
Canada model 463 lb (210 kg)
50 STATE (meets California)
467 lb (212 kg)
CBR1000S
Canada model 439 lb (199 kg)
50 STATE (meets California)
441 lb (200 kg)
Maximum weight capacity
CBR1000RR/RA*
1
366 lb (166 kg)
CBR1000S*
2
243 lb (110 kg)
Maximum
luggage
weight*
3
CBR1000RR/RA
66 lb (30 kg)
Luggage 31 lb (14 kg)
Accessories 35 lb (16 kg)
CBR1000S
22 lb (10 kg)
Luggage 7 lb (3 kg)
Accessories 15 lb (7 kg)
Passenger
capacity
CBR1000RR/RA
Rider and 1 passenger
CBR1000S
Rider only (no passenger)
Minimum turning radius 10.6 ft (3.2 m)
Displacement 60.9 cu-in (999 cm
3
)
Bore × stroke 2.99 × 2.17 in (76.0 × 55.1 mm)
Compression ratio 12.3:1
Fuel
Unleaded gasoline
Recommended: 91 PON or higher
Tank capacity 4.49 US gal (17.0 liters)
Specifications
152
Specifications
■ Service Data
Battery
CBR1000RR/S
YTZ7S 12V-6Ah (10 HR)
CBR1000RA
YTZ10S 12V-8.6Ah (10 HR)
Gear ratios
1st 2.285
2nd 1.777
3rd 1.500
4th 1.333
5th 1.214
6th 1.137
Reduction ratios
(primary / final)
1.717 / 2.625
Tire size
Front 120/70ZR17M/C (58W)
Rear 190/50ZR17M/C (73W)
Tire type Radial, tubeless
Recommended
Tires
Front
CBR1000RR/RA
BRIDGESTONE S20F G
DUNLOP Qualifier II K
CBR1000S
PIRELLI DIABLO SUPERCORSA SP
Rear
CBR1000RR/RA
BRIDGESTONE S20R G
DUNLOP Qualifier II K
CBR1000S
PIRELLI DIABLO SUPERCORSA SP
Tire air
pressure
Front 36 psi (250 kPa, 2.50 kgf/cm
2
)
Rear 42 psi (290 kPa, 2.90 kgf/cm
2
)
Minimum
tread depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plugs (standard)
IMR9E-9HES (NGK) or
VUH27ES (DENSO)
Spark plug gap
(non-
adjustable)
0.031 to 0.035 in
(0.80 to 0.90 mm)
Idle speed 1,200 ± 100 rpm
Specifications
153
Specifications
■ Bulbs
■ Fuses
Recommended
engine oil
API Service Classification SG or higher except
oils labeled as energy conserving or resource
conserving on the circular API service label, SAE
10W-30, JASO T 903 standard MA, Pro Honda
GN4 4-stroke oil (USA & Canada) or Honda
4-stroke oil, or an equivalent motorcycle oil
Engine oil
capacity
After draining
3.0 US qt (2.8 liters)
After draining
& filter change
3.2 US qt (3.0 liters)
After
disassembly
3.9 US qt (3.7 liters)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Cooling system
capacity
3.2 US qt (3.0 liters)
Recommended
coolant
Pro Honda HP Coolant
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube or equivalent
Drive chain
slack
1 to 1 3/8 in (25 to 35 mm)
Standard drive
chain
DID 50VA11 or RK 50HFOZ6
No. of links 116
Standard
sprocket sizes
Front sprocket 16T
Rear wheel sprocket 42T
Headlight 12V-55W × 2
Brake light LED
Tail light LED
Front turn signal lights 12V-21W × 2
Rear turn signal lights 12V-21W × 2
Position light LED
License plate light 12V-5W
Main fuse 30A
Other fuses
CBR1000RR/S
20A, 10A
CBR1000RA
30A, 20A, 10A
Specifications
154
Specifications
■ Torque Specifications
Engine oil drain bolt 22 lbf·ft (30 N·m, 3.1 kgf·m)
Oil filter 19 lbf·ft (26 N·m, 2.7 kgf·m)
Front wheel axle bolt 58 lbf·ft (79 N·m, 8.1 kgf·m)
Front wheel brake caliper
mounting bolts
CBR1000RR/RA
33 lbf·ft (45 N·m, 4.6 kgf·m)
CBR1000S
30 lbf·ft (40 N·m, 4.1 kgf·m)
Front wheel axle pinch bolts 16 lbf·ft (22 N·m, 2.2 kgf·m)
Rear wheel axle nut
CBR1000RR/RA
83 lbf·ft (113 N·m, 11.5 kgf·m)
CBR1000S
91 lbf·ft (124 N·m, 12.6 kgf·m)
Front turn signal cover screws 0.7 lbf·ft (1.0 N·m, 0.1 kgf·m)
155
Information Record
VIN
Engine No.
Color Label & Code
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Manager
156
Index
Index
Index
A
Accessories ................................................. 15
Authorized Manuals ............................... 145
B
Battery ................................................. 60, 74
Brake Lever................................................ 94
Brake Light Switch .................................... 84
Brakes
Fluid ................................................... 64, 82
Pad Wear ................................................. 83
Braking....................................................... 11
Bulb
Brake/Taillight......................................... 120
Front Turn Signal .................................... 121
Headlight ............................................... 119
License Plate Light .................................. 122
Position Light.......................................... 120
Rear Turn Signal ..................................... 122
C
Caring for Your Motorcycle.................... 130
Clutch System ............................................ 90
Color Label .................................................59
Combined ABS ...........................................12
Combined ABS Indicator ...........................40
Compartment
Owner’s Manual .......................................49
Coolant.................................................65, 80
Coolant Temperature Gauge ....................23
D
Digital Clock Adjustment ....................27, 28
Display Setting ...........................................27
Drive Chain...........................................64, 86
E
Electrical Trouble .....................................118
Emission Control Systems ........................138
Engine
Number ..................................................137
Oil ......................................................63, 76
Oil Filter ....................................................78
Overheats ...............................................107
Starting.....................................................46
Stop Switch ................................44, 46, 128
157
Index
Stopping ................................................ 128
Environment............................................ 136
F
Flooded Engine ......................................... 46
Front Brake Lever Adjustment ................. 94
Front Seat .................................................. 70
Front Suspension....................................... 95
Fuel
Consumption Meter................................. 24
Low Fuel Indicator.............................. 41, 43
Mileage Meter ......................................... 24
Oxygenated ........................................... 144
Recommended......................................... 48
Remaining.......................................... 41, 43
Tank Capacity .......................................... 48
Fuses .................................................. 62, 123
G
Gasohol.................................................... 144
Gasoline..................................................... 48
H
Headlight Aim ......................................... 104
Headlight Dimmer Switch......................... 44
Helmet Holder ........................................... 50
HESD (Honda Electronic Steering
Damper) ................................................. 129
HESD (Honda Electronic Steering
Damper) Indicator ................................... 41
High Beam Indicator ................................. 40
High Coolant Temperature
Indicator ........................................... 40, 107
Honda Contacts ....................................... 148
Horn Button............................................... 44
I
Ignition Cut-off System
Banking Sensor....................................... 129
Side Stand ................................................ 85
Ignition Key ............................................. 127
Ignition Switch ............................ 44, 45, 128
Indicators ................................................... 40
Information Record................................. 155
Instruments................................................ 22
158
Index
L
Labels ........................................................... 7
Lap Timer ................................................... 36
Load Limits................................................. 16
Loading Guidelines ................................... 16
Low Oil Pressure Indicator ........................ 40
M
Maintenance
Fundamentals........................................... 57
Importance............................................... 52
Safety....................................................... 53
Schedule .................................................. 54
Maximum Weight Limit ............................ 16
Modifications............................................. 15
N
Neutral Indicator ....................................... 41
O
Odometer .......................................... 23, 128
Oil
Engine................................................ 63, 76
Overheating .............................................107
Oxygenated Fuels ....................................144
P
Parking .......................................................14
Parts Location ............................................18
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)...40, 108
Protective Apparel.......................................9
R
Rear Seat ....................................................71
Rear Suspension.......................................100
Recommended
Coolant ..............................................65, 80
Fuel ..........................................................48
Oil ............................................................63
Refueling....................................................48
Removal
Battery......................................................74
Front Seat .................................................70
Lower Fairing ............................................73
Rear Seat ..................................................71
159
Index
Repair Kit................................................. 110
Reporting Safety Defects (U.S.).............. 150
REV Indicator....................................... 40, 42
Riding Precautions .................................... 11
S
Safety Labels ............................................... 7
Safety Precautions ...................................... 9
Shifting Gears............................................ 47
Side Stand.................................................. 85
Side Stand Ignition Cut-off System.......... 85
Single Seat Cowl ....................................... 72
Specifications .......................................... 151
Speedometer............................................. 22
Start/lap Button ............................ 38, 44, 46
Starting the Engine................................... 46
Steering Lock............................................. 45
Stopping Engine ..................................... 128
Storage
Equipment ............................................... 49
Owner’s Manual .............................. 49, 128
Storing Your Motorcycle ........................ 134
Switches..................................................... 44
T
Tachometer................................................ 22
Throttle ...................................................... 93
Tires
Air Pressure .............................................. 66
Puncture................................................. 110
Replacing ......................................... 66, 110
Transporting Your Motorcycle ............... 135
Tripmeter ........................................... 24, 128
Turn Signal Indicators ............................... 41
V
Vehicle Identification Number ............... 137
W
Warning Indicators on ............................ 108
Warranty Coverage and Service ............. 146
Washing Your Motorcycle ...................... 130
Weight Limit...................................... 16, 151
Wheels
Front removal ......................................... 111
Rear removal .......................................... 115
