User Manual Eufy EUFYCAM 2C PRO S210 Surveillance Camera

Eufy EUFYCAM 2C PRO S210 Surveillance Camera - Use Manual - Use Guide PDF.
Documents: Go to download!

• User Manual - (English, French, Portuguese, Spanish, German, Arabic, Dutch - Holland, Italian)
• Monitoring sticker - (English)

Table of contents

• WHAT’S INCLUDED
• PRODUCT OVERVIEW
• ADDING EUFYCAM 2C PRO
• Mounting the Camera
• CHARGING EUFYCAM 2C Pro
• NOTICE

User Guide for Camera

WHAT’S INCLUDED

For eufyCam 2C Pro installation

PRODUCT OVERVIEW

eufyCam 2C Pro

1. Lens

2. Light sensor

3. Microphone

4. Motion sensor

5. Spotlight

6. Status LED

7. SYNC button

8. Mounting hole

9. Charging port

10. Speaker

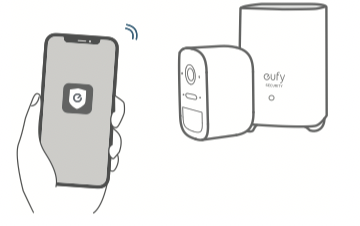

ADDING EUFYCAM 2C PRO

Adding eufyCam 2C Pro to Your Existing System

On eufy Security app, follow the onscreen instructions to add your eufy Security devices. Choose Add Device, then select eufyCam 2C Pro to add it to your system.

Mounting the Camera

Find a Good Mounting Spot

To find a spot to mount eufyCam 2C Pro, you need to test wireless signal strength.

① Open the eufy Security app, go to Camera Settings > Mounting Guide.

② To test the wireless signal strength, take your camera and phone to the location where you want to mount the camera.

③ Move the camera as close to the HomeBase 2 as possible if the wireless.

Select Height and Location

Hang eufyCam 2C Pro 7-10 ft (2-3 m) above the ground. This height maximizes the detection range of the motion sensor of eufyCam 2C Pro. Avoid placing eufyCam 2C Pro under direct sunlight.

Mount the camera

The camera can be mounted both indoors and outdoors.

1. Turn the knob of the mounting bracket clockwise to loosen and disassemble it.

2. Drill holes with a 15/64 inch (5.95mm) drill bit, then insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco.

3.Firmly screw the base of the mounting bracket onto the wall. Fasten the ball knob of the bracket to the base of the bracket.

4. Tighten eufyCam 2C Pro to the mounting bracket and adjust the viewing angle by checking the live stream feed in the eufy Security app.

Tips:

For troubleshooting, check Help on the eufy Security App.

CHARGING EUFYCAM 2C Pro

Charge eufyCam 2C Pro

Method 1

Method 2

NOTICE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site eufylife

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for eufyCam 2C Pro and accessories is -20°C-50°C.

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5°C~25°C.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Wi-Fi Operating Frequency Range:2412~2472MHz ; Wi-Fi Max Output Power:17.9 dBm

Anker Innovations Deutschland GmbH | GeorgMuche-Strasse 3-5, 80807 Munich, Germany Anker Technology (UK) Ltd | Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

IC Statement

This device complies with Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

IC RF Statement:

When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.
