Ed : 09/13 Rev : 02
Codice :
INSTRUCTION
GRLDEVEFTABSM
Assembly Instruction
*Unpack the carton and place all parts on the floor carefully.
*Remove the packing material and check there’s no missing parts..

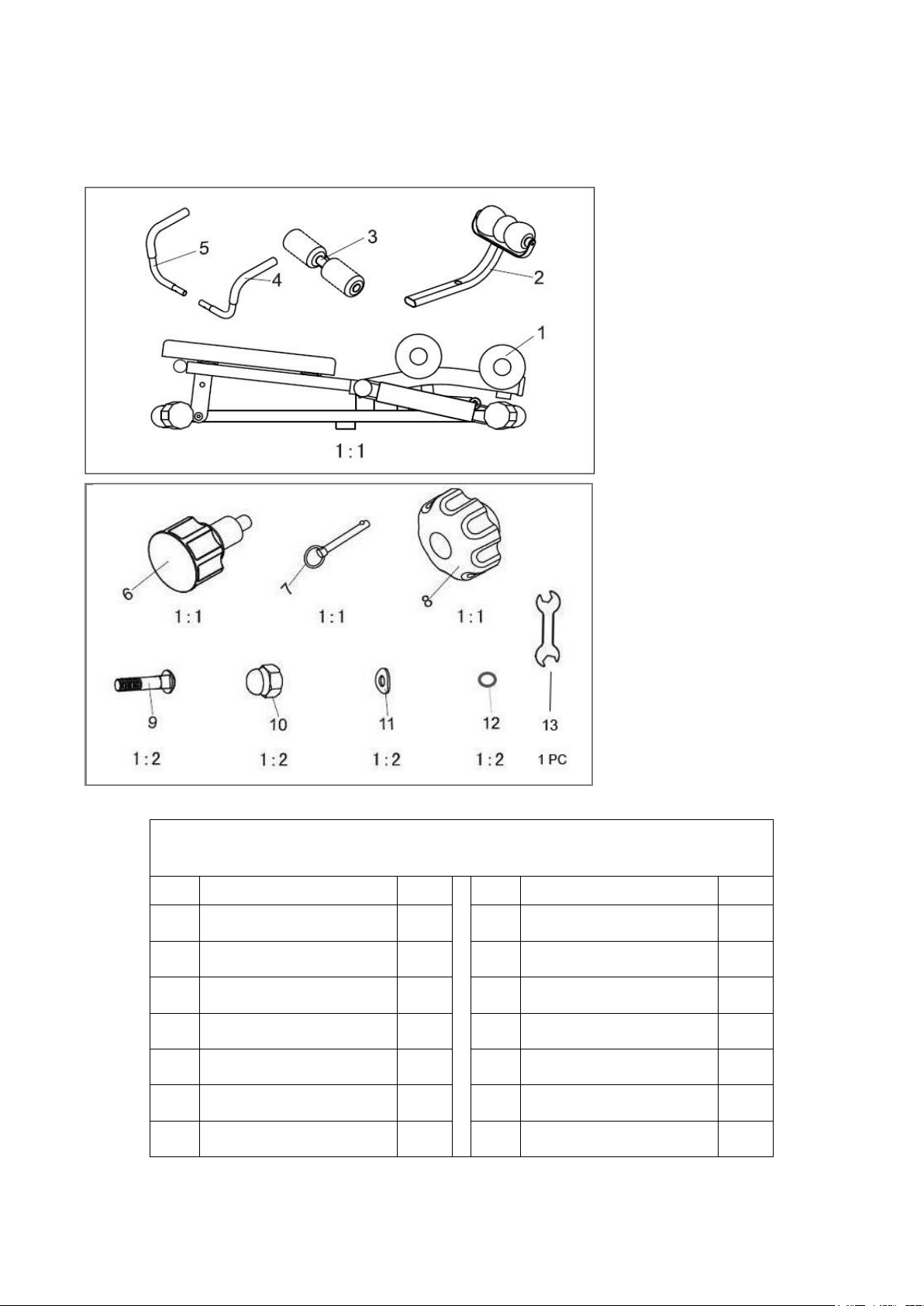

PARTS LIST
NO.
DESCRIPTION
QTY
NO.
DESCRIPTION
QTY
1.
Main frame
1
8.
Knob
1
2.
Head support
1
9.
Bolt
2
3.
Backrest
1
10.
Nut
2
4.
Left handle
1
11.
Washer
2
5.
Right handle
1
12.
Spring washer
2
6.
Quick release knob
1
13.
Tool
1
7.
Pin
1

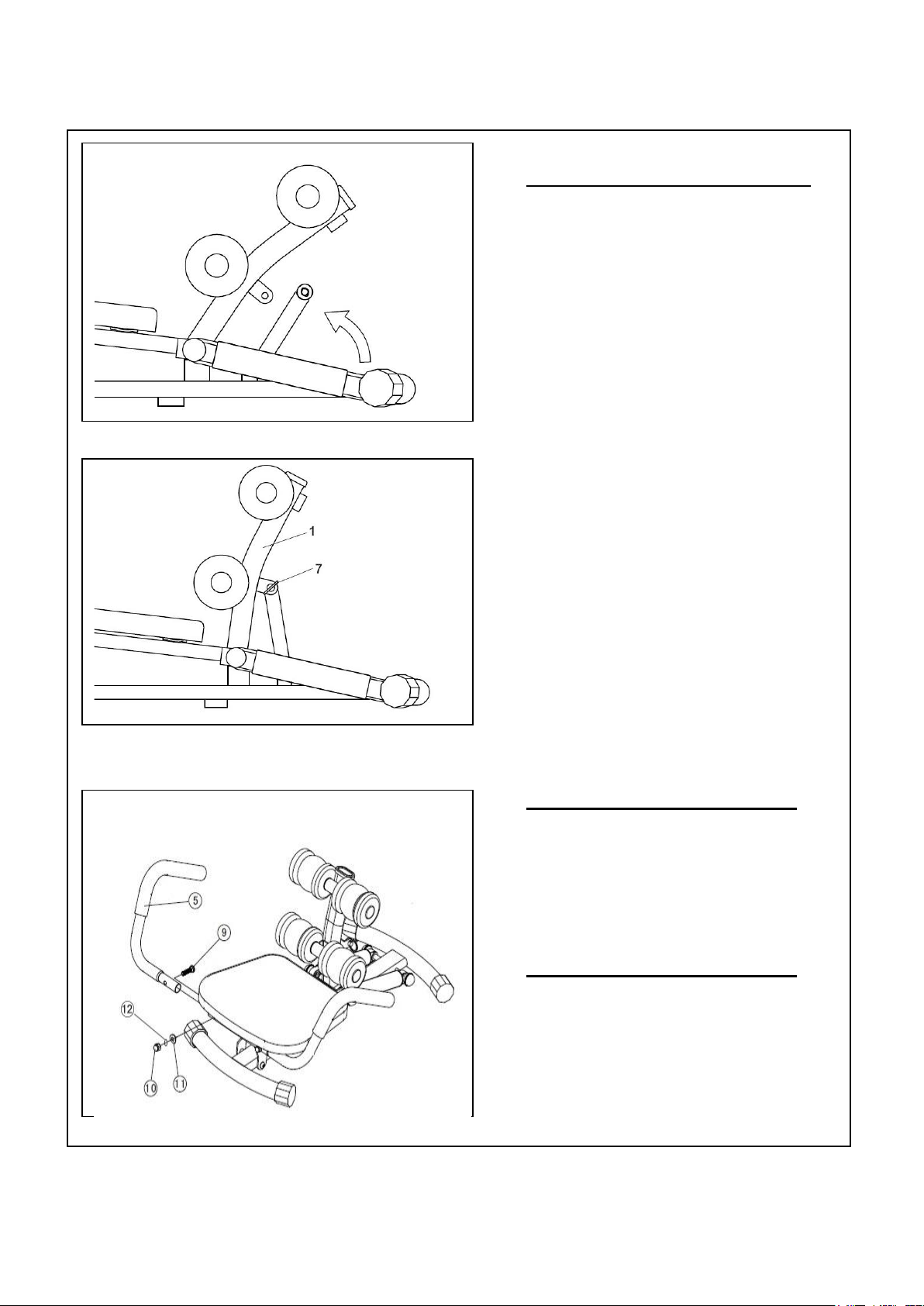

STEP 1
Unfold the Main frame (1) and lock it with
the Pin (7).
STEP 2
Insert the Right handle (5) into the Main
frame (1) and tighten Bolt (9), Nut (10),
Washer (11) and Spring Washer (12) by
tool (13).
STEP 3
Insert the Left handle (4) into the Main
frame (1) and tighten Bolt (9), Nut (10),
Washer (11) and Spring Washer (12) by
tool (13).

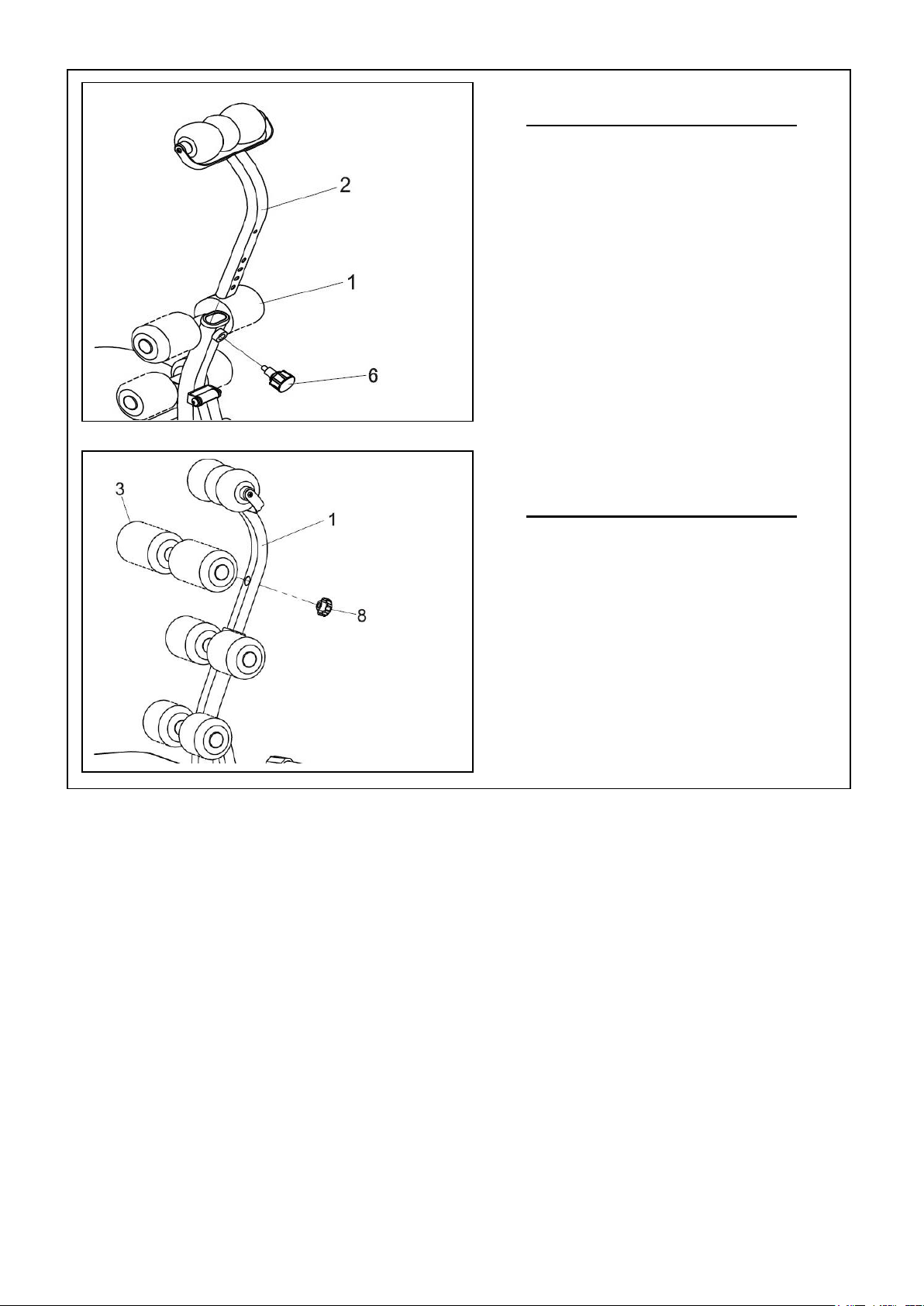

STEP 4
Insert the Head support (2) into the Main
frame (1) and tighten it with Quick
release
knob (6).
STEP 5
Insert the Backrest (3) into the Main
frame (1) and tighten it with Knob (8).
