Miele WWV980WPS W1 Edition Front Load Washing Machine

User Manual - Transcript

• Page 1 - English - : Operating instructions Washing machine To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time enAU NZ MNr 11 016 630
• Page 2 - English - : Contents Caring for the environment 6 Warning and Safety instructions 7 Operating the washing machine 14 Control panel 14 Touch display and sensor controls 14 Main menu 15 Examples on how to operate the appliance 16 Before using for the first time 18 Removing the protective foil and stickers 18 Mielehome 19 1 Setting the language 20 2 Setting up Mielehome 20 3 Setting the clock format 21 4 Removing the transit bars 21 5 Commissioning TwinDos 22 6 Starting the calibration programme 25 Washing environmentally and economically 26 Energy and water consumption 26 Detergent consumption 26 When drying with a tumble dryer 26 EcoFeedback 27 1 Preparing the laundry 28 2 Selecting a programme 29 3 Selecting programme settings 30 4 Loading the washing machine 32 5 Adding detergent 33 TwinDos 33 Detergent dispenser drawer 35 CapDosing 37 6 Starting the programme the end of the programme 39 Spinning 40 Final spin speed in the programme 40 Rinse and interim spin 41
• Page 3 - English - : Contents Programme chart 42 Extras 50 Quick 50 Eco 50 Water plus 50 Extra rinse 50 SingleWash 50 Prewash 50 Soak 51 Intensive 51 AllergoWash 51 Extra gentle 51 Extra quiet 51 Rinse hold 51 Wash programme chart Extras 52 Programme sequence 54 PowerWash 20 56 Changing the programme sequence 57 Cancelling a programme 57 Interrupting a programme 57 Changing a programme 57 Adding or removing laundry 57 Garment care label symbols 58 Favourite programmes 59 Washing assistant 60 Timer 61 SmartStart 62 Detergent 63 The correct detergent 63 Detergent dispensing aids 63 Fabric softeners and liquid starch 63 Miele recommended detergents 65
• Page 4 - English - : Contents Cleaning and care 67 External casing and fascia panel 67 Cleaning the detergent dispenser drawer 67 Cleaning the drum Hygiene info 69 TwinDos maintenance 69 Cleaning the water inlet filter 70 Problem solving guide 71 The programme does not start 71 Fault messages after a programme has been cancelled 72 Fault messages at the end of a programme 73 Messages or faults with the TwinDos system 75 Problems with TwinDos 76 General problems with the washing machine 77 An unsatisfactory wash result 80 The door will not open 81 Opening the door in the event of a blocked drain outlet andor power cut 82 Service 84 Contact in case of fault 84 Optional accessories 84 Warranty 84 Installation and connection 85 Front view 85 Rear view 86 Installation surface 87 Transporting the washing machine to its installation site 87 Removing the transit bars 87 Refitting the transit bars 89 Levelling the machine 90 Screwing out and adjusting the feet90 Installing under a continuous worktop 91 Washer and dryer stack 91 The Miele water protection system 92 Connection to the water supply 94 AllWater 95 Drainage 98 Electrical connection 99 Technical data 100 Consumption data 101 Consumption data for the nominated energy labelling programme according to ASNZS 20401 amp ASNZS 20402 101
• Page 5 - English - : Contents Settings 103 Selecting settings 103 Changing a setting 103 Closing the Settings menu 103 Controls Display 104 Language 104 Consumption 104 Code 104 Memory 105 Clock display 105 Volume105 Display brightness 105 Temperature unit 105 quotDisplayquot off status 105 Programme sequence 106 TwinDos 106 Soiling 106 Water plus level 106 Maximum rinse level 107 Soak duration 107 Longer prewash Cottons 107 Gentle action 107 Anticrease 107 Network 108 Mielehome 108 SmartGrid 109 Remote control 109 RemoteUpdate 110 Appliance parameters 111 Water intake 111 Legal information 111 Installation requirements 112 Low water pressure 112 Suds cooling 112 Temperature reduction 112 Optional accessories 113 Detergent 113 Specialist detergents 114 Fabric care 114 Additives 115 Machine care products 115
• Page 6 - English - : Caring for the environment Disposal of the packing material The transport and protective packaging has been selected from materials which are environmentally friendly for disposal and can normally be recycled Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of babies and young children Danger of suffocation Disposing of your old appliance Electrical and electronic appliances often contain valuable materials They also contain specific materials compounds and components which were essential for their correct function and safety These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly Please do not therefore dispose of your old appliance with your household waste Please dispose of it at your local community waste collection recycling centre for electrical and electronic appliances You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal Please ensure that your old appliance poses no risk to children while being stored prior to disposal
• Page 7 - English - : Warning and Safety instructions This washing machine complies with current safety requirements Inappropriate use can however lead to personal injury and damage to property To avoid the risk of accidents and damage to the machine please read these instructions carefully before using it for the first time They contain important information on its safety use and maintenance Keep these instructions in a safe place and ensure that new users are familiar with the content Pass them on to any future user Correct application This washing machine is designed for domestic use and for use in similar environments by guests in hotel or motel rooms bed amp breakfasts and other typical living quarters This does not include commonshared facilities or commercial facilities within hotels motels or bed amp breakfasts The washing machine is not suitable for outdoor use It must only be used to wash garments which have been declared suitable for washing by the manufacturer indicated on the garment care label Any other use is not permitted Miele cannot be held liable for damage resulting from incorrect or improper use or operation This washing machine is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning its use by a person responsible for their safety
• Page 8 - English - : Warning and Safety instructions Safety with children Young children must not be allowed to use this appliance Older children may only use the appliance when its operation has been clearly explained to them and they are able to use it safely recognising the dangers of misuse Cleaning work may only be carried out by older children under the supervision of an adult Please supervise children in the vicinity of the washing machine and do not let them play with it Technical safety Please observe the instructions in Installation and connection and Technical data Before setting up the washing machine check it for any externally visible damage Do not install or use a damaged machine Before connecting the washing machine ensure that the connection data on the data plate fuse rating voltage and frequency matches the mains electricity supply If in any doubt consult a qualified electrician Reliable and safe operation of this washing machine can only be assured if it has been connected to the mains electricity supply
• Page 9 - English - : Warning and Safety instructions The electrical safety of this washing machine can only be guaranteed when continuity is complete between it and an effective earthing system which complies with current local and national safety regulations It is most important that this basic safety requirement is present and regularly tested and where there is any doubt the household wiring system should be inspected by a qualified electrician Miele cannot be held liable for the consequences of an inadequate earthing system eg electric shock Do not connect the washing machine to the mains electricity supply by a multisocket adapter extension lead or similar These do not guarantee the required safety of the machine fire hazard due to the risk of overheating Faulty components must only be replaced by genuine Miele spare parts Miele can only guarantee the safety of the appliance when Miele replacement parts are used The electrical socket must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary Unauthorised repairs could result in unforeseen dangers for the user for which Miele cannot accept liability Repairs should only be undertaken by a Miele authorised service technician otherwise any subsequent damage will not be covered by the warranty If the connection cable is faulty it must only be replaced by a Miele approved service technician to protect the user from danger
• Page 10 - English - : Warning and Safety instructions In the event of a fault or for cleaning purposes the washing machine is only completely isolated from the electricity supply when it is switched off at the wall socket and the plug is withdrawn or it is switched off at the mains circuit breaker The Miele Waterproof system protects from water damage provided the following conditions have been met The machine is correctly plumbed in and connected to the electricity supply If a fault or damage has been identified the machine must be examined by a competent person before further use and repaired if necessary The water flow pressure must be at least 100kPa and should not exceed 1000kPa This washing machine must not be installed and operated in mobile installations eg on a ship Do not make any alterations to the machine unless authorised to do so by Miele This washing machine is supplied with a special lamp to cope with particular conditions eg temperature moisture chemical resistance abrasion resistance and vibration This special lamp must only be used for the purpose for which it is intended It is not suitable for room lighting Replacement lamps may only be replaced by a Miele authorised technician
• Page 11 - English - : Warning and Safety instructions Correct use Do not install the washing machine in a room where there is a risk of frost Frozen hoses may burst or split The reliability of the electronic control unit may be impaired at temperatures below freezing point Before using the machine for the first time check that the transit bars at the rear of the machine have been removed see Installation and connection Removing the transit bars During spinning a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances Turn off the tap if the machine is to be left for any length of time eg holiday especially if there is no floor drain gully in the immediate vicinity Flooding danger If hooking the drain hose into a wash basin check that the water can drain off quickly enough to prevent the sink from overflowing Make sure the drain hose is secure so that the force of the water flowing out of the hose does not dislodge it Take care to ensure that foreign objects eg nails pins coins paper clips do not find their way into the machine with the laundry These may damage components of the machine eg suds container drum which in turn can result in damage to the laundry
• Page 12 - English - : Warning and Safety instructions Take care when opening the drum door after using the steam function There is a danger of burning due to escaping steam and the high temperature of the surface of the drum as well as the porthole glass Stand back away from the machine and wait until the steam has dissipated The maximum load for this washing machine is 9 kg dry weight See the Programme chart for the maximum recommended loads for individual programmes If the correct amount of detergent is dispensed the machine should not need to be descaled If however you do wish to descale it only use a proprietary natural citric acid based descaling agent Miele recommends using Miele descaler for washing machines which is available to order online at shopmielecom depending on country or from Miele Strictly observe the instructions on the packaging Textiles which have been pretreated in solvent based cleaning agents must be thoroughly rinsed in clean water before being washed in the machine Do not use solvent based cleaning agents eg those containing benzine in this machine as this may result in damage to component parts and create toxic fumes Such agents also pose a fire and explosion hazard Do not use solvent based cleaning agents eg those containing benzine to clean the external surfaces of the machine They can cause damage to plastic surfaces Only use dyes specified by the manufacturer as being suitable for use in a domestic washing machine Always observe the manufacturers instructions carefully
• Page 13 - English - : Warning and Safety instructions Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion Do not use these products in this machine If detergent comes into contact with the eyes rinse them thoroughly with lukewarm water immediately If swallowed seek medical assistance immediately and retain the packaging or label for reference Those with skin problems or sensitive skin should avoid their skin coming into contact with detergent Accessories Only use genuine Miele spare parts and accessories with this appliance If spare parts or accessories from other manufacturers are used this will invalidate the warranty and Miele cannot accept liability A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit available as an optional accessory Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer Miele cannot be held liable for damage caused by noncompliance with these Warning and Safety instructions
• Page 14 - English - : Operating the washing machine Control panel a sensor Takes you back a level in a menu b Touch display c StartStop sensor Touching the StartStop sensor starts the selected programme or cancels a programme that has already been started The sensor flashes slowly as soon as it is possible for a programme to be started and then lights up constantly after the programme has started d Optical interface For service technicians e button For switching the washing machine on and off To save energy the washing machine will switch off automatically This occurs 15 minutes after the end of the programmeAnticrease phase or after being switched on if no further selection is made Touch display and sensor controls The and StartStop sensors and the sensors in the display react to fingertip contact The touch display can be scratched by pointed or sharp objects eg pens Only touch the display with your fingers
• Page 15 - English - : Operating the washing machine Main menu After switching on the washing machine the main menu will appear in the display You access all the important sub menus from the main menu Touch the sensor at any time to return to the main menu Values set previously are not saved 1102 Programmes Favourites MobileControl Help Main menu page 1 You can scroll to the second page of the main menu by swiping your finger across the display 1102 Washing assistant Maintenance Settings Help Main menu page 2 Programmes For selecting the wash programme Favourites You can save up to 12 of your own customised wash programmes see Favourite programmes MobileControl With MobileControl you can operate your washing machine remotely with the Mielemobile App TheRemote control setting must be switched on Touch theMobileControl sensor control and follow the instructions in the display Washing assistant The Washing assistant guides you step by step so that you can select the optimum wash programme for your laundry see Washing assistant Maintenance Maintenance options for the TwinDos system and theClean machine programme are located in the Maintenance menu see Cleaning and care Settings You can alter the washing machines electronics to suit changing requirements in the Settings menu see Settings
• Page 16 - English - : Operating the washing machine Examples on how to operate the appliance Option lists Programme menu single option list 1102 239 259 159 109h h h h Cottons Cottons Delicates Minimum iron Programmes Help You can scroll to the right or the left by swiping your finger across the screen To do this place your finger on the touch display and swipe it in the direction you want The orange bar under the pictures shows that there are further options to choose from Touch a programme name to select the wash programme The display will change to the standard display for that programme Extras menu multiple selection 1102 Quick Eco Water plus Extra rinse Extras OK You can scroll to the right or the left by swiping your finger across the screen To do this place your finger on the touch display and swipe it in the direction you want The orange bar under the pictures shows that there are further options to choose from Touch one or several Extras to select it them Currently selected Extras are marked orange To deselect an Extra simply touch the Extra again Use the OK sensor to activate all selected Extras
• Page 17 - English - : Operating the washing machine Setting numerical values You can set numerical values in some menus 12 00 11 59 10 58 13 01 14 02 Clock display OK Enter the numbers by swiping upwards or downwards Place your finger on the number that you want to change and move your finger in the direction you want Use the OK sensor to accept all set numerical values Useful tip Briefly touching a number will bring up the numerical keypad Once a valid number has been entered the OK sensor will be highlighted green Pulldown menu The pulldown menu can be used to display information eg about a wash programme 1102 40 C 1600 157 Cottons h Overview Temperature Spin speed TwinDos Extras not selectednot selected Timer Save rpm Touch the top edge of the screen in the middle and drag down with your finger Help display With some menus Help appears along the bottom line of the display Touch the Helpsensor to display the text Touch the Closesensor to return to the previous screen Exiting a menu Touch the sensor to return to the previous screen Entries made before this which have not been confirmed withOK will not be saved
• Page 18 - English - : Before using for the first time Damage resulting from incorrect installation and connection Installing and connecting the washing machine incorrectly will cause serious damage to property See Installation and connection This washing machine has undergone a complete functional test at the factory and there will be some residual water in the drum from this process Removing the protective foil and stickers Remove the protective foil from the door any stickers from the front and the lid Please do not remove any labels eg the data plate which are visible when you open the door Remove the detergent cartridges and the drain hose elbow from the drum Two detergent cartridges for automatic detergent dispensing and an elbow piece for the drain hose are stored in the drum Pull open the door Take the two cartridges and the elbow piece out of the drum Shut the door with a gentle swing
• Page 19 - English - : Before using for the first time Mielehome Your washing machine is equipped with an integrated WiFi module In order to use it you need a WiFi network the Mielemobile App a Miele user account The user account can be created via the Mielemobile App The Mielemobile App will guide you as you connect your washing machine to your home WiFi network Once your washing machine is connected to your WiFi network you can use the App for example to carry out the following activities Operate your washing machine remotely Access information about the operating status of your washing machine Access information about a programme sequence on your washing machine Connecting your washing machine to your WiFi network will increase energy consumption even when the washing machine is switched off Before installing the washing machine in its final location ensure the signal strength is sufficient for your WiFi network Mielemobile App You can download the Mielemobile App from the Apple App Store or the Google Play Store free of charge only functional in selected countries
• Page 20 - English - : Before using for the first time Switching on the washing machine Press the button The welcome screen will light up The display will guide you through the 6steps of the initial commissioning process 1 Setting the language You will be asked to select the language you require for the display It is possible to change the language at any time via the Settings menu english AU Language english CA english GB english US español français F OK Scroll to the left or the right until the language you want appears Touch the sensor for the language you want The selected language will be highlighted in orange and the display will change to the menu for setting up Mielehome 2 Setting up Mielehome Skip Continue Set up quotMielehomequot To set up Mielehome now touch the Continue sensor Useful tip To postpone setup until later touch the Skip sensor The following message will then appear in the display It is possible to set up later in quotSettingsquot quotMielehomequot Confirm with OK via WPS via App Which connection method do you want to use Select the connection method you wish to use You will then be guided by the display and the Mielemobile App
• Page 21 - English - : Before using for the first time 3 Setting the clock format The time of day display can be in 12 h or 24 h clock format Select the clock format you want and confirm this with the OK sensor The display will then bring up the screen for setting the time of day Setting the time of day This message only appears if the washing machine has not yet been connected to a WiFi network The time of day is set automatically if connection is established with a WiFi network 12 00 11 59 10 58 13 01 14 02 Clock display OK Place your finger on the number that you want to change and move your finger in the direction you want Confirm with the OK sensor 4 Removing the transit bars Damage resulting from failure to remove the transit bars Failure to remove the transit bars can result in damage to the washing machine and to adjacent cabinetry or appliances Remove the transit bars as described in Installation and connection Confirm that the transit bars have been removed with the OKsensor The following message appears in the display Remove transit bars and observe quotWarning and Safety instructionsquot and quotBefore using for the first timequot in the operating instructions Confirm the message with the OK sensor The display will then change to the screen for setting up TwinDos
• Page 22 - English - : Before using for the first time 5 Commissioning TwinDos Skip Continue Set up quotTwinDosquot Touch the Continue sensor to set up TwinDos straight away Useful tip To postpone setup until later touch the Skip sensor The following message will then appear in the display It is possible to set up later in quotSettingsquot quotTwinDosquot Confirm with OK Settings for compartment The procedure below describes the procedure for Miele UltraPhase1 and Miele UltraPhase2 The procedure for other detergents is similar No agent Agent for comp Miele UltraPhase 1 Universal detergent Colour detergent Delicates detergent Delicates Woollens OK 1102 Touch the Miele UltraPhase 1 sensor The following message will then appear in the display Please enter the dosing recommendation of your detergent for a wash with normal soiling Take note of your water hardness level The dispensing quantity for UltraPhase1 for hardness range I is preset Dosage for comp ml OK 1102 Confirm the preset value with the OK sensor or change the value UltraPhase1 Hardness level I 48 ml Hardness level II 60 ml Hardness level III 72 ml The following appears in the display Insert container

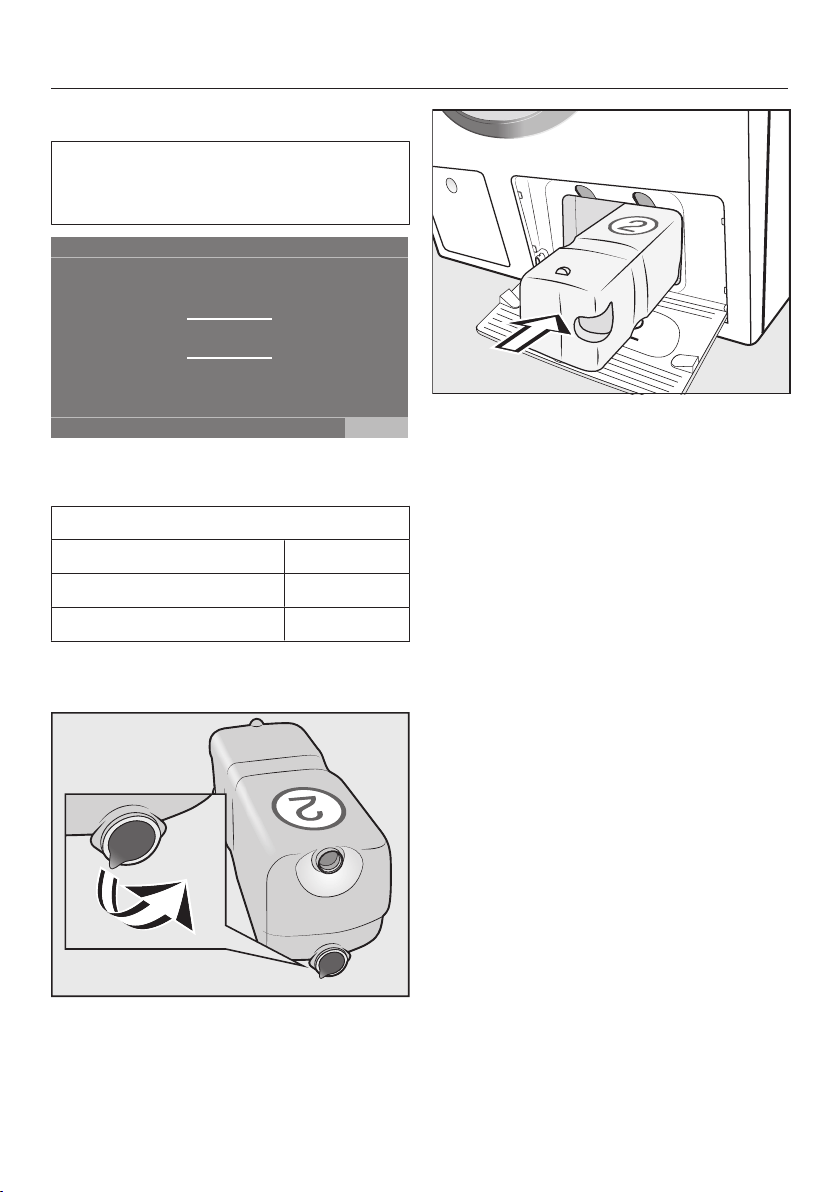

• Page 23 - English - : Before using for the first time Remove the foil from the detergent cartridge Open the access panel for TwinDos Push the UltraPhase1 detergent cartridge into compartment1 until it locks into position The following message will appear in the display Now enter the settings for UltraPhase 2
• Page 24 - English - : Before using for the first time Settings for compartment The dispensing quantity for UltraPhase2 for hardness range I is preset Dosage for comp ml 1102 OK Confirm the preset value with the OK sensor or change the value UltraPhase2 Hardness level I 36 ml Hardness level II 45 ml Hardness level III 54 ml The following appears in the display Insert container Remove the foil from the detergent cartridge Push the UltraPhase2 detergent cartridge into compartment2 until it locks into position When the cartridge is pushed in the display message switches to quotTwinDosquot is set up Changes can be made in quotSettingsquot quotTwinDosquot Confirm with the OK sensor Close the TwinDos access panel The display changes to the calibration programme
• Page 25 - English - : Before using for the first time 6 Starting the calibration programme For optimum water and energy consumption and excellent wash results it is important to calibrate the washing machine To do this the Cottons programme must be run without laundry and without detergent No other programmes can be started until calibration has been carried out The following message appears in the display Turn on the tap and run the Cottons 90C programme without any laundry Confirm with the OK sensor The display will then change to the standard display for the Cottons programme 1102 90 C 1600 157 Cottons h Overview Temperature Spin speed TwinDos Extras not selectedWhites Timer Save rpm Touch the StartStop sensor The calibration programme is started It will take approximately 2hours At the end of the programme the following message will appear in the display Setup completed Take hold of the door and pull it open Useful tip For safety reasons close the door when the washing machine is not in use Otherwise there is a danger of objects being placed inadvertently in the drum If these remain unnoticed and were washed in the next load they could damage the laundry An open door is also a danger to pets and children Switch the washing machine off with the control
• Page 26 - English - : Washing environmentally and economically Energy and water consumption To get the most out of your machine load the maximum dry load for the programme you are using The energy and water consumption will be the lowest in relation to the size of the load When smaller amounts of laundry are washed the Auto load control system will reduce the amount of water and energy used Use the Express20 programme for small lightly soiled loads Modern detergents make it possible to wash at lower temperatures eg 20C Using lower temperature settings will save energy Washing at low temperatures andor using liquid detergents can cause bacteria and odours to build up in the washing machine Miele therefore recommends cleaning the washing machine once every month The washing machine reminds you to do so with the following message in the display Hygiene info Select quotMaintenancequot and start the quotClean machinequot programme Use the hot water connection to save energy or an alternative water supply Detergent consumption For precise dispensing use automatic detergent dispensing Adjust the dosage to the degree of soiling of the laundry Do not exceed the amounts of detergent recommended by the manufacturer on the packaging When drying with a tumble dryer Selecting the highest possible spin speed for the wash programme will save energy when drying in a tumble dryer afterwards
• Page 27 - English - : Washing environmentally and economically EcoFeedback You can view information about the energy and water consumption of your washing machine with the pulldown menu The following information will appear in the display An estimate of the energy and water consumption before the programme begins The actual energy and water consumption during the programme or at the end of the programme 1102 40 C 1600 157 Cottons h Overview Temperature Spin speed TwinDos Extras not selectednot selected Timer Save rpm Open the pulldown menu 1 Estimate The estimated energy and water consumption levels will be displayed as a bar chart on the righthand side The more bars visible the higher the energy or water consumption The estimate will vary depending on the wash programme temperature and any Extras selected 2 Actual consumption You can view the actual amount of energy and water used by a programme both during and at the end of the programme The costs can also be displayed See Settings Consumption for more detailed information on costs The consumption will alter as the programme progresses If the door is opened or the appliance has switched off automatically at the end of the programme the data will revert to the estimated consumption Useful tip You can view the consumption data for the last wash programme and for total consumption see Settings Consumption
• Page 28 - English - : 1 Preparing the laundry Empty all pockets Damage due to foreign objects Nails coins paper clips and so on can cause damage to garments and components in the machine Check the laundry before washing and remove any foreign objects Sorting the laundry Sort the laundry by colour and by care label Most garments have a textile care label in the collar or side seam Useful tip Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load Always wash white and coloured items separately Pretreating stains Badly soiled areas and stains should be cleaned as soon as possible preferably whilst still fresh Spillages should be carefully dabbed off using a soft colourfast cloth Do not rub Useful tip Stains eg blood egg coffee tea can be pretreated using some handy tricks which can be found in the Miele guide to laundry care Please contact Miele to obtain a copy of this booklet Damage due to solventbased cleaning agents Cleaning agents containing benzine stain remover etc can damage plastic parts When pretreating garments make sure that any plastic parts eg buttons do not come into contact with cleaning agent Risk of explosion due to solvent based cleaning agents If solventbased cleaning agents are used an explosive mixture can form Never use solventbased cleaning agents in the washing machine General tips Curtains Remove lead weights first or place in a laundry bag Underwiring and collar stiffeners Any loose wiring in bras shirt collar stiffeners etc should be removed or sewn in Close any zips attach velcro fasteners fasten hooks and eyes etc before washing Fasten duvet covers and pillow cases to prevent small items from being rolled up inside them Do not wash any items in this machine which are specified by the manufacturer as not washable on the care label symbol
• Page 29 - English - : 2 Selecting a programme Switching on the washing machine Press the button The interior drum lighting will come on The drum lighting will go out automatically after five minutes Useful tip To switch the lighting on again open the pulldown menu from the overview menu and then touch the sensor The main menu will then appear in the display Selecting a programme Touch the Programmes sensor 1102 239 259 159 109h h h h Cottons Cottons Delicates Minimum iron Programmes Help Scroll to the right of the display until the programme you want appears Touch the sensor for that programme The display will change to show the Overview menu 1102 40 C 1600 239 Cottons h Overview Temperature Spin speed TwinDos Extras not selectedColour Timer Save rpm There are 3 further ways of selecting a programme 1 Favourites 2 Washing assistant 3 MobileControl
• Page 30 - English - : 3 Selecting programme settings Selecting the temperature You can alter the preset temperature of a wash programme Touch the Temperature sensor Select the desired temperature The display will change to show the Overview menu Selecting a spin speed You can alter the preset spin speed of a wash programme Touch the Spin speed sensor Select the spin speed you want The display will change to show the Overview menu Activating TwinDos TwinDos dispensing is automatically activated for all programmes in which dispensing is possible 1 Switch TwinDos on or off Touch the TwinDos sensor and select Off or On 2 Select the detergent When using Mieles 2phase system you must set the colour of the laundry Select Whites for loads of white items or Colours for loads containing coloured items If you are using a different type of detergent this must be selected Select compartment or Useful tip Only those detergents that can be used with the programme are displayed 3 Select the degree of soiling The display will ask you to enter the degree of soiling of the laundry Select Light Normal or Heavy Confirm your selection with the OK sensor Automatic dispensing is now switched on The display will change to show the Overview menu See 5Adding detergent TwinDos for more information
• Page 31 - English - : 3 Selecting programme settings Selecting Extras You can supplement the wash programmes with Extras Touch the Extras sensor Select one or more Extras Not all Extras can be used with every programme eg Eco and Quick Extras that cannot be combined are greyed out and cannot be selected Confirm with the OK sensor The display will change to show the Overview menu See Extras for further information Activating CapDosing If you can use CapDosing with a wash programme Touch the CapDosing sensor The types of capsules which can be used with the programme will appear in the display Select the type of capsule you want CapDosing is now active The display will change to show the Overview menu See 5Adding detergent CapDosing for more information Stains In order to clean stained laundry more effectively you can choose from a list of various types of stains The wash programme will then adapt to the type of stain selected Touch the Stains sensor Select the type of stains in your load from the list Confirm your selection with the OK sensor With some stains helpful information will also appear in the display when they are selected Confirm the information with OK The display will change to show the Overview menu Timer You can use the Timer to set the finish time or the start time for a wash programme See Timer for further information

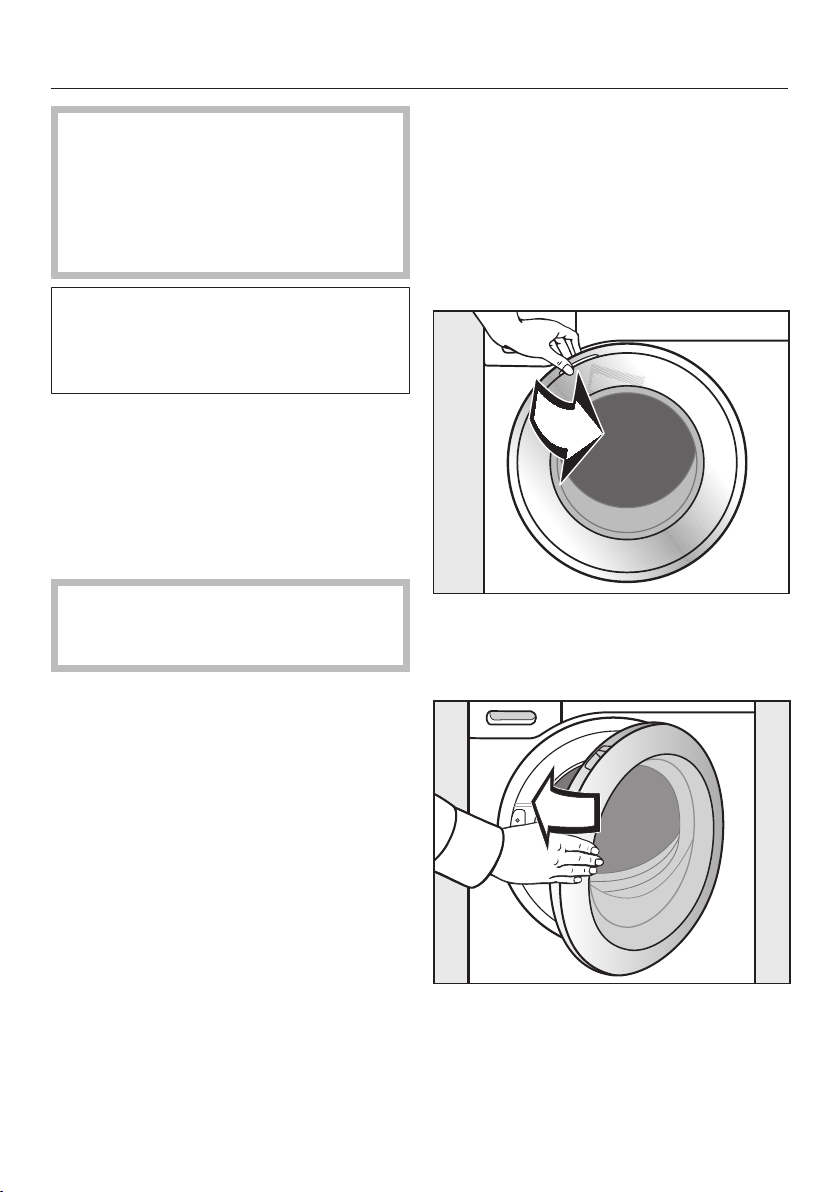

• Page 32 - English - : 4 Loading the washing machine Opening the door Take hold of the door and pull it open Check the drum for pets or foreign objects before loading it with laundry The most efficient use of energy and water is achieved when a full load is washed However do not overload as this reduces cleaning efficiency and causes creasing Unfold the laundry and load loosely in the drum Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning Useful tip The maximum load for the programme selected will appear in the pulldown menu The percentage of the maximum load size in the drum is shown in 25 increments and the amount of detergent to dispense if automatic dispensing is not being used Closing the door Make sure that no items are caught between the door and the seal Shut the door with a gentle swing
• Page 33 - English - : 5 Adding detergent There are several options for adding detergent TwinDos The washing machine is equipped with the TwinDos system TwinDos has to be activated as described in Before using for the first time How UltraPhase1 and UltraPhase2 work UltraPhase1 is a liquid detergent which dissolves dirt and removes the most common stains UltraPhase2 is a bleaching agent and removes stubborn stains For the best washing result these two agents are dispensed at separate times during the wash process UltraPhase1 and UltraPhase2 clean white and coloured fabrics thoroughly UltraPhase1 and UltraPhase2 single use cartridges are available to order from Miele or via the internet at shopmielecom see the end of this booklet for details Activating TwinDos dispensing TwinDos dispensing is automatically activated for all programmes in which dispensing is possible Useful tip The detergent dispensing quantities are preset If too much foam builds up the dispensing quantity can be reduced via the Settings Programme sequence TwinDos menu Changing TwinDos dispensing You can change the suggested colour composition of the laundry Touch the TwinDossensor and select the colour composition of your laundry Deactivating TwinDos dispensing Touch the TwinDos sensor Touch the Off sensor Removing the detergent cartridges Press the yellow button above the cartridge to release the lock Pull out the cartridge
• Page 34 - English - : 5 Adding detergent Degree of soiling The level of soiling in laundry is divided into three settings Light No visible soiling or stains Normal Visibly soiled andor just a few slight stains Heavy Heavily soiled andor stains clearly visible The dispensing amount for TwinDos and the amount of water required for rinsing is preset for the Normal level of soiling Touch the TwinDossensor to select a different level of soiling The amount of detergent and water will be adjusted to suit the selected level of soiling Some programmes will not let you set the level of soiling These programmes are designed for lightly soiled laundry only Using other methods to remove stains If you wish to use additional methods of stain removal you have the following options Using the Booster cap and activating CapDosing Add stain remover to the compartment
• Page 35 - English - : 5 Adding detergent Detergent dispenser drawer Any detergent suitable for automatic front loading washing machines can be used with this appliance Please observe the instructions for use and dosage on the detergent packaging Ensure that TwinDos dispensing is deactivated Add detergent in accordance with the value in the pulldown dosage display The percentage shown relates to the amount of detergent recommended by the manufacturer on the packaging 40 Add slightly less than half the amount recommended 50 Add half the amount recommended 60 Add slightly more than half the amount recommended 75 Add three quarters of the amount recommended 100 Add the full amount recommended Take the hardness level of your water into account Filling with detergent Pull out the detergent drawer and add detergents to the compartments Detergent for the prewash divide the total recommended amount as follows add ⅓ to compartment and ⅔ to compartment Detergent for the main wash and soaking Fabric softener liquid starch or capsules See Detergent for further information Using detergent tablets or pods Always put detergent tablets or pods directly in the drum with the laundry They cannot be added via the detergent dispenser drawer Using liquid detergent with a pre wash Liquid detergent cannot be used for the main wash if the prewash has been selected Use TwinDos dispensing if you are activating the prewash
• Page 36 - English - : 5 Adding detergent Adding fabric softener Add fabric softener or liquid starch to the compartment Do not exceed the maximum level mark It will be automatically dispensed in the final rinse At the end of the programme a small amount of water remains in the fabric softener compartment If starching frequently thoroughly clean the dispenser compartment especially the siphon tube regularly Tips on dosing Adjust the detergent dosage to the level of soiling of the laundry and the size of the load Reduce the amount of detergent with smaller loads eg reduce the amount of detergent by ⅓ when washing a half load Too little detergent results in laundry not getting properly clean and with time it may become grey and hard to the touch a buildup of mould in the washing machine grease not being completely removed from the laundry limescale deposits on the heater elements Too much detergent results in poor wash rinse and spin results a higher water consumption as an extra rinse cycle is automatically activated a greater burden on the environment See Detergent for further information on detergents and dosage
• Page 37 - English - : 5 Adding detergent CapDosing If you selected CapDosing when setting the programme detergent will be dispensed via the capsule for this wash programme Only one capsule can be selected per wash programme Three different types of capsule are available Fabric care eg fabric softener Additives eg detergent enhancers Detergent for the main wash only Depending on the setting selected the detergent additive or fabric care agent will be dispensed via the capsule Each capsule contains the correct amount for one wash cycle Caps are available to order from Miele or from the Miele online shop see the end of this booklet for contact details Capsules pose a health risk The ingredients of capsules can be hazardous to health if they are swallowed or come into contact with skin Keep capsules out of the reach of children Inserting a capsule Open the detergent dispenser drawer Open the lid of the compartment Press the capsule in firmly

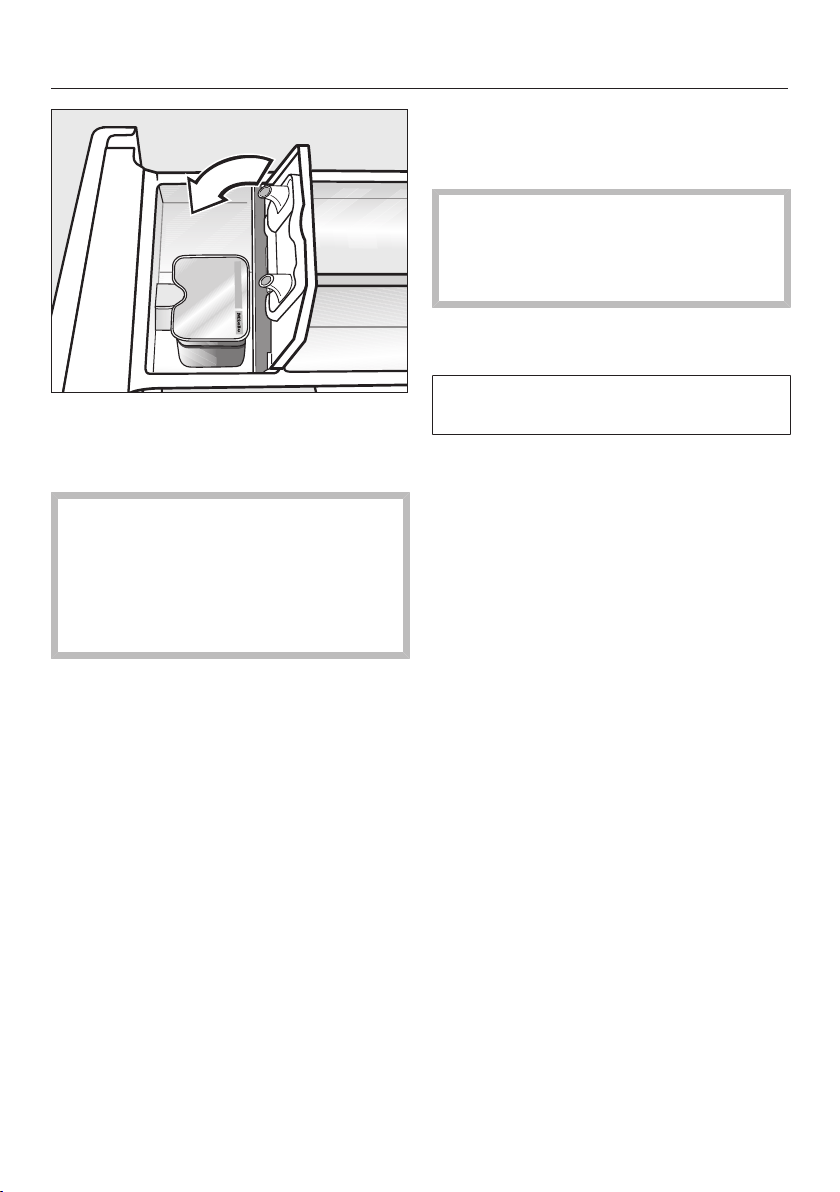

• Page 38 - English - : 5 Adding detergent Close the lid and press it firmly shut Close the detergent dispenser drawer The capsule is opened by the act of inserting it in the detergent dispenser drawer The contents can run out of the capsule if you then remove it from the drawer before it is used Dispose of opened capsules The wash programme will dispense the contents of the capsule at the correct time Water intake to the compartment is solely via the capsule Do not add any additional fabric softener to the compartment Remove the empty capsule at the end of the programme For technical reasons a small amount of water will remain in the capsule
• Page 39 - English - : 6 Starting the programme the end of the programme Starting a programme The programme can be started when the StartStop sensor is flashing on and off Touch the StartStop sensor The door will lock will appear in the display and the programme will start The programme status will appear in the display 1102 Cottons Status Time left h227 Main wash Add laundry The washing machine will keep you updated on the programme status and the time remaining for the programme to run If a Delay start time has been selected this will count down in the display until the programme starts The drum lighting switches off once the programme has started At the end of the programme The door remains locked during the Anticrease phase and FinishAnticrease and Unlock with quotStartStopquot appear in the display Touch the StartStop sensor The door will be unlocked The door unlocks automatically at the end of the Anticrease phase Pull open the door Remove the laundry Items left in the drum could discolour other items in the next wash or become discoloured themselves Remove all items from the drum Check the folds in the door seal for any small articles eg buttons which might be lodged there Useful tip For safety reasons close the door when the washing machine is not in use Otherwise there is a danger of objects being placed inadvertently in the drum If these remain unnoticed and were washed in the next load they could damage the laundry An open door is also a danger to pets and children Switch the washing machine off with the control If applicable remove the used capsule from the detergent dispenser drawer Useful tip Leave the detergent dispenser drawer slightly open to allow it to dry
• Page 40 - English - : Spinning Final spin speed in the programme When a programme is selected the optimum spin speed for this wash programme will appear in the display A faster spin speed can be selected for certain wash programmes The highest selectable spin speed is indicated in the table Programme rpm Cottons 1600 Cottons 1600 Minimum iron 1200 Delicates 900 QuickPowerWash 1600 Automatic plus 1400 Woollens 1200 Silks 600 Express 20 1200 Shirts 900 Denim 900 Dark garments 1200 Sportswear 1200 Trainers 600 Outerwear 800 Proofing 1000 Down filled items 1200 Down duvets 1200 Pillows 1200 Cottons hygiene 1600 Curtains 600 First wash 1200 Separate rinse 1600 Starch 1200 Freshen up Steam care DrainSpin 1600 Clean machine 900
• Page 41 - English - : Spinning Omitting the final spin Rinse hold If Rinse hold is selected the laundry remains in the water following the final rinse cycle This helps prevent creasing if the laundry is not going to be removed from the drum immediately after the end of the programme Select the Rinse hold Extra Starting the final spin You can reduce the spin speed Touch the Change spin speed sensor Select the desired spin speed Start the final spin with the StartStop control Ending the wash programme Select this option if you want to remove the laundry when it is dripping wet and without having been spun Touch the Change spin speed sensor Select Spin speed 0rpm no spin Touch the StartStop sensor The water will be pumped away Rinse and interim spin There is a spin cycle after the main wash and between the rinses A reduction in the final spin speed will also reduce the interim spin speed Omitting interim spin and the final spin Touch the Spin speed sensor Select the 0 rpm setting After the last rinse the water will be pumped away and the Anticrease phase will switch in In some programmes an additional rinse is introduced with this setting
• Page 42 - English - : Programme chart Cottons Cold to 90C Max load 90 kg Items Cottons linens or cotton mix fabrics eg table linen towelling underwear Tshirts etc Notes The Cottons 6040C programme has a shorter programme duration longer temperature holding times and higher energy consumption than the Cottons programme Where particularly high levels of hygiene are required please select a temperature of 60C or higher Cottons Max load 90kg Items Cottons linens or cotton mix fabrics eg table linen towelling underwear Tshirts etc Notes With the actual wash temperature reached will be lower than 60C although the wash performance is the same as with the standard Cottons 60C programme Cottons Max load 90kg Items Normally soiled cotton garments Notes These settings are the most efficient in terms of energy and water consumption for washing cottons Energy labelling programme according to ASNZS 20401 amp ASNZS 20402 Minimum iron Cold to 60C Max load 40kg Items Synthetic mixed fibre and easy care cotton Notes Reduce the spin speed for fabrics which crease easily Delicates Cold to 60C Max load 30kg Items Delicate garments made from synthetic fibre mixed fibre rayon and viscose Notes For items which crease easily deselect the spin
• Page 43 - English - : Programme chart QuickPowerWash 40C 60C Max load 50kg Items Lightly soiled garments which are also suitable for washing in the Cottons programme Notes A special saturation process and wash rhythm ensure that the laundry is cleaned particularly quickly and thoroughly Automatic plus Cold to 40C Max load 60kg Items Mixed loads of garments suitable for the Cottons and Minimum iron programmes Sort according to colour Notes The wash parameters eg water level wash rhythm and spin speed are adjusted automatically in this programme to ensure the best possible care and wash result for each item Woollens Cold to 40C Max load 20kg Items Machinewashable or handwashable wool or wool blend fabric If the care label does not specify a temperature wash using the cold setting Notes Reduce the spin speed for items which crease easily Silks Cold to 30C Max load 10kg Items Silks and other handwashable fabrics with no wool content eg satin lace and silk Notes Place tights bras etc in a washing bag Express 20 Cold to 40C Max load 35 kg Items Cotton garments that have hardly been worn or are only very lightly soiled Notes The Quick Extra is activated automatically
• Page 44 - English - : Programme chart Shirts Cold to 60C Max load 10kg20kg Items Shirts and blouses made of cotton and mixed fibre Notes Pretreat collars and cuffs if necessary Wash silk shirts and blouses in the Silks programme If the preset Preironing option is switched off the maximum load capacity is increased to 20kg Denim Cold to 60C Max load 30kg Notes Wash denim insideout Denim often contains excess dye and may run during the first few washes Wash light and dark coloured items separately Close any zips do up buttons etc before washing Dark garments Cold to 60C Max load 30kg Items Black and dark items made of cotton or mixed fibres Notes Wash insideout Sportswear Cold to 60C Max load 30kg Items Sportswear such as singlets and leggings as well as microfibre and fleece garments Notes Do not use fabric softener Observe the manufacturers care label Trainers Cold to 40C Max 2 pairs of shoes Items Sport shoes only not leather shoes Notes Observe the instructions on the care label Brush coarse soiling off first Close Velcro fasteners Do not use fabric softener Use the drying basket for tumble drying
• Page 45 - English - : Programme chart Outerwear Cold to 40C Max load 25kg Items Performance outerwear eg jackets and trousers made from membrane fabric such as GoreTex SYMPATEX WINDSTOPPER etc Notes Zip up or close jackets before washing Do not use fabric softener If required these garments can also be reproofed using the Proofing programme Proofing should not be done every time the garment is washed Proofing 40C Max load 25kg Items Treating microfibre fabric skiwear and table linen made from mainly synthetic fibres to provide a water and dirt resistant finish Notes The items should be freshly laundered and spun or dried before proofing For best results the items should be heattreated afterwards either in a tumble dryer or by ironing Down filled items Cold to 60C Max load 20kg Items Jackets sleeping bags pillows and other downfilled items Notes Remove air from the items before washing to prevent an excessive buildup of foam To do this either push the items into a narrow laundry bag to compress them or tie the items together with a washable strap Please observe the instructions on the wash care label
• Page 46 - English - : Programme chart Down duvets Cold to 60C Max load 25kg 1 down duvet 220m x 200m Items Quilts duvets and pillows with feather or down filling Notes Remove air from the items before washing to prevent an excessive buildup of foam To do this either push the items into a narrow laundry bag to compress them or tie the items together with a washable strap Please observe the instructions on the wash care label Pillows Cold to 60C 2 pillows 40 x 80cm or 1 pillow 80 x 80cm Items Synthetic filled washable pillows Notes Remove air from the items before washing to prevent an excessive buildup of foam To do this either push the items into a narrow laundry bag to compress them or tie the items together with a washable strap Please observe the instructions on the wash care label Cottons hygiene 60C to 90C Max load 90 kg Items Cotton or linen with direct skin contact or for which special hygiene requirements apply eg underwear bed linen encasing products Notes Temperature holding times are longer than in the Cottons programme Observe the instructions on the care label
• Page 47 - English - : Programme chart Curtains Cold to 40C Max load 20 kg Items Curtains including net curtains specified as machinewashable by the manufacturer Notes To remove dust the Prewash Extra is selected automatically For curtains which crease easily reduce the spin speed or deselect the spin Remove weights from curtains First wash Cold to 40C Max load 20kg Items New items made of cotton towelling and polyester fabric Notes Use this programme to wash any manufacturing residues out of new items Separate rinse Max load 80kg Items For rinsing handwashed items Notes Reduce the spin speed for items which crease easily Starch Max load 80kg Items Starching table cloths serviettes and workwear Notes Reduce the spin speed for items which crease easily Laundry that is to be starched should be washed but not treated with fabric softener
• Page 48 - English - : Programme chart Freshen up Max load 10kg Items Dry clean cotton linen or mixed fibre garments which are slightly creased The garments must be suitable for drying in a tumble dryer and suitable for ironing Notes Smaller loads give a better result Remove garments as soon as the programme has finished and then tumble dry using the Gentle smoothing programme or place on a hanger to dry Not suitable for garments made of wool or wool blend fabric Steam care Max load 20kg Items Reduces the amount of creasing in damp freshly washed and spun cotton or linen garments The garments must be suitable for drying in a tumble dryer and suitable for ironing Notes 56 shirts make up a load of approx 20kg Smaller loads give a better result Remove garments as soon as the programme has finished and then tumble dry using the Gentle smoothing programme or place on a hanger to dry Not suitable for garments made of wool or wool blend fabric DrainSpin Max load 80kg Notes Drain only Select 0 rpm for the spin speed Make sure you select the appropriate spin speed
• Page 49 - English - : Programme chart Maintenance The washing machine has two maintenance programmes 1 Clean machine for cleaning the washing machine 2 Clean quotTwinDosquot for maintenance of the TwinDos compartments See Cleaning and care TwinDos maintenance for more details Clean machine 85C No load With frequent washing at low temperatures there is a danger of a buildup of bacteria in the washing machine Cleaning the washing machine will significantly reduce bacteria mould and biofilm and prevent the buildup of unpleasant odours Notes Optimum results can be achieved by using the Miele IntenseClean machine cleaner Alternatively a universal powder detergent can be used Dispense the washing machine cleaner or universal detergent directly in the drum Do not load any laundry The drum must be empty for this machine maintenance wash
• Page 50 - English - : Extras You can use the Extras sensors to augment the wash programmes Quick The programme duration is reduced Mechanical action and energy usage are increased Eco The Eco Extra helps to save energy The wash temperature is reduced and the wash duration is increased in return The wash programme continues to provide excellent results Water plus The water level in the main wash and the rinses will be increased if the Water plus Extra is selected You can select by how much the water level is increased see Settings Water plus level Extra rinse An additional rinse cycle can be carried out to give a better rinse result SingleWash For efficiently washing a very small load lt1kg in a normal wash programme The wash duration is reduced Please note the following advice Use liquid detergent Reduce the dosage to a maximum of 50 of the amount quoted for a ½load Preironing In order to reduce creasing the laundry undergoes a smoothing process at the end of the programme Reducing the maximum load by 50 will give a better result Follow the instructions in the display Small loads give a better result The garments must be suitable for drying in a tumble dryer and suitable for ironing Prewash For laundry with large amounts of dirt eg dust and sand
