User Manual Greenworks 2531602 Pro 60V 21" Brushless Lawn

Greenworks 2531602 Pro 60V 21" Brushless Lawn Mower w/ 5.0 Ah Battery & Charger - Use Manual - Use Guide PDF.
Documents: Go to download!

Owner's manual - (English)

Table of contents

DESCRIPTION
READ ALL INSTRUCTIONS
SYMBOLS ON THE PRODUCT
RISK LEVELS
PROPOSITION 65
OPERATION
MAINTENANCE
TROUBLESHOOTING
TECHNICAL DATA

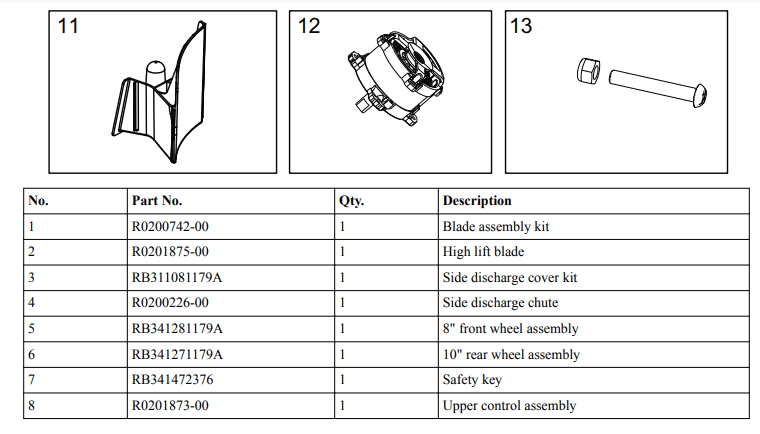

EXPLODED VIEW

User Manual Lawn Mower

DESCRIPTION

PURPOSE

This machine is used for domestic lawn mowing. The cutting blade must be approximately parallel to the ground. All four wheels must touch the ground while you mow.

OVERVIEW

Start button
Start handle
Wheel
Upper handle
Lower handle
Grass catcher
Rear discharge door
Height adjustment lever
Battery door
Mulch plug

PACKING LIST

Lawn mower
Grass catcher
Side discharge chute
High lift blade
Manual

READ ALL INSTRUCTIONS

DANGER :

This machine was built to be operated according to the rules for safe operation included in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe all safety instructions could result in serious injury or death.
NOTE :

When using electric lawn mowers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These basic precautions include the following
CHILDREN AND BYSTANDERS

Tragic accidents can occur if the operator is not alert to the presence of children or bystanders.

Keep the area of operation clear of all persons, particularly small children, and pets.
Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your vision of a child or bystander. Keep children, bystanders, helpers and pets at least 100 feet (30m) from the mower while it is in operation. Stop the machine if anyone enters the area.
Never allow children under 14 years old to operate a power mower. Operators 14 years old and over should fully read and understand the operator’s manual and safety rules. Only responsible individuals who are familiar with these rules of safe operation should be allowed to use this machine.

GENERAL OPERATION

Read this operator’s manual carefully in its entirety before assembling or operating this machine. Read, understand, and follow all instructions on the machine and in the manuals before operation. Familiarize yourself with the controls and proper use of this machine before operation. Save this manual for future and regular reference.
Do not use the lawn mower for any job except that for which it is intended. Your lawn mower has been designed to perform only one job: cut grass. • Never attempt to make a wheel height adjustment while the motor is running.
Don’t force the lawn mower, it will do the job better and more safely at the rate for which it was designed.
Don’t overreach, keep proper footing and balance at all times. Many injuries occur as a result of the mower being pulled over the foot during a fall caused by slipping or tripping. A slip and fall can cause serious personal injury. If you feel you are losing your footing, release the control handle immediately and the blade will stop rotating within three seconds.
Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires, bones, and other foreign objects
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or obstruction, first look down and behind you to avoid tripping, and then follow these steps:
Step back from the mower in order to fully extend your arms.
Be sure that you are well balanced.
Pull the mower back slowly.
Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
Before and while moving backwards with the mower, look behind and down for small children and other people.
Do not operate the mower while under the influence of alcohol or drugs. Stay alert and watch what you are doing at all times. Use common sense and do not operate the lawn mower when you are tired.
Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects that ricochet can cause serious injury to the eyes. Always use a face or dust mask if the operation is dusty.
Keep clear of the discharge opening at all times. Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade can amputate hands and feet.
Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against walls or obstructions, which may cause discharged material to ricochet back toward the operator.
To help avoid the blade or an injury from a thrown objects, stay in the operator zone behind the handles
A missing or damaged discharge cover can cause blade contact or injuries from thrown objects.
Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.
Stop the blade when crossing gravel drives, walks or roads.
Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
If lawn mower strikes a foreign object, follow these steps :
- Release the bail switch to disengage the motor.
- Remove the battery.
- Inspect for damage.
- Repair any damaged parts before restarting and operating the lawn mower.
Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
Dress properly, do not wear loose clothing or jewelry that can be caught in moving parts. Use of safety gloves and proper footwear is recommended when working outdoors. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Shirts and pants that cover the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet, sandals, slippery or lightweight (e.g., canvas) shoes.
Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care
Wear protective hair covering to contain long hair.
Avoid dangerous environments, do not use the lawn mower in damp/wet locations or if it is raining.
Store Idle Lawn Mower Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children. Always remove the battery from the mower before storing.
Mow only in daylight or good artificial light. Walk, never run while operating.
If the equipment should start to vibrate abnormally, immediately stop the motor, remove the battery and check for the cause. Vibration is generally a warning that the machine is not functioning properly.
Check bag frequently for deterioration and wear, and replace worn bags. Check that replacement bags comply with the original manufacturer's recommendations or specifications.
Before cleaning the machine, unclogging or removing the grass bag, mulching insert, or side discharge chute, turn the motor off and wait until the blade comes to a complete stop, then remove the battery pack. The cutting blade continues to rotate for a few seconds after the motor is shut off. Never perform these functions until you are sure the blade has stopped rotating.
Keep cutting edges clean and sharp to ensure best performance.
Periodically inspect safety devices and cords for damage. If damaged do not operate the unit until it has been repaired by an authorized service professional.
Never operate the mower without the proper discharge cover, grass bag, mulching insert, side discharge chute, or other safety devices in place and working. Never operate the mower with damaged safety devices. Failure to do so can result in personal injury.
Use only approved batteries and chargers. Non approved batteries and chargers may cause damage to the mower or injure the operator.
Do not dispose of the battery in a fire. The cells could catch fire or explode. Check with local codes and waste management for proper disposal instructions.
When battery pack is not in use, keep it away from other metal objects, like paper clips,coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Do not open or mutilate the battery. Electrolytes contained within the battery are corrosive and may cause damage to eyes or skin if released. It may be toxic if swallowed.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above130°C may cause explosion.
Exercise care in handling batteries to avoid shorting the battery with conducting materials such as rings, bracelets, keys, etc. The battery or conductor may overheat and cause burns if contact with said materials is made.
Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

SERVICE/MAINTENANCE

Check the blade and the motor (machine) mounting bolts at frequent intervals for proper tightness.
Replace the blade if it is bent or cracked. An unbalanced blade causes vibration that could damage the motor drive unit or cause personal injury.
Keep all nuts, bolts, and screws tight in order to ensure the equipment is in safe working condition.
Do not wash with a hose; avoid getting water in motor and electrical connections.
Never remove or tamper with safety devices. Check their proper operation regularly. Never do anything to interfere with the intended function of a safety device or to reduce the protection provided by a safety device.
Keep machine free of grass, leaves, or other debris build up. Allow machine to cool before storing.
Never make any adjustments or repairs with the motor running.
Always remove battery pack from mowers before adjusting, cleaning, or repairing.
Check grass catcher components and the discharge guard frequently and replace with manufacturer’s recommended parts, when necessary.
Sharpen a dull blade equally at each end to maintain the balance.
Keep guards in place and in working order. Mower blades are sharp, and can cut. Wrap the blades or wear gloves, and use extra caution when servicing.
Clean the blade thoroughly and check its balance by supporting it horizontally on a thin nail through its center hole. The nail should also be in a horizontal position. If either end of the blade rotates downward, remove some metal from the heavy or lower end until the blade is balanced. It is balanced when neither end drops.
Use identical replacement blades only.
Maintain Lawn Mower With Care – Keep cutting edges sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories. Inspect lawn mower cord periodically and if damaged, have it repaired by an authorized service facility.
If situations occur that are not covered in this manual, use care and good judgment or contact Customer Service for assistance.
Never operate the mower without proper guards, plates, or other safety protective devices in place.

The recommended ambient temperature range:

Mower storage temperature range
- 32°F (0°C) - 113°F (45°C)
Mower operation temperature range
- 32°F (0°C) - 113°F (45°C)
Battery charging temperature range
- 39°F (4°C) - 104°F (40°C)
Charger operation temperature range
- 39°F (4°C) - 104°F (40°C)
Battery storage temperature range
- 32°F (0°C) - 113°F (45°C)
Battery discharging temperature range
- 32°F (0°C) - 113°F (45°C)

SLOPE OPERATION

Slopes are a major factor related to slip-and-fall accidents, which can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it.
Do:

Mow across the face of slopes; never mow up and down. Exercise extreme caution when changing direction on slopes.
Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles.

Do not:

Mow excessively steep slopes.
Mow near drop-offs, ditches or embankments; you could lose your footing or balance.
Mow slopes greater than 15 degrees.
Mow on wet grass. Unstable footing could cause slipping.

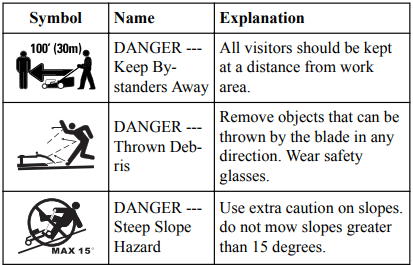

SYMBOLS ON THE PRODUCT

Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

See other models: 2500402 2608602 2608802 2608602T 3703702AZ

RISK LEVELS

The following signal words and meanings are intended to explain the levels of risk associated with this product.

PROPOSITION 65

WARNING

This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints
Crystalline silica from bricks and cement and other masonry products
Arsenic and chromium from chemically treated lumber.

Your risk of exposure to these chemicals varies depending on how often you do this type of work. To reduce your exposure to these chemicals, work in awell-ventilated area, and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.
Save these instructions.

OPERATION

WARNING:

Wear eye protection during operation.

START THE MACHINE

Make sure safety key is inserted into slot.
Push and hold the start button (1).
While you hold the start button (1), grab the start handles (2) in the direction of the handle bar.
Once the machine has started, you can release the start button (1).
Press the Turbo button (29) to speed up to 3,200 RPM

Battery capacity indicator (23)

4 Green Lights

The battery is above 80% capacity

3 Green Lights

The battery is between 80% and 60% capacity

2 Green Lights

The battery is at between 60% and 40% capacity

1 Green Light

The battery is between 40% and 20% capacity

Lights go out

The battery is less than 20% capacity and requires charging immediately

STOP THE MACHINE

1. Release the start handle to stop the machine

WARNING

Wait until the blade fully stops before you start the machine again. Do not quickly turn the machine off and on.

WARNING

Always remove the safety key and battery pack after you complete the work.

LED HEADLIGHTS

When the mower is ready to start, you may grab the start handle (2) to turn on the LED headlights (30).
Release the start handles to turn off the headlights.

EMPTY THE GRASS CATCHER

Stop the machine.
Remove the safety key.
Remove the battery pack.
Open the rear discharge door and hold it.
Hold the grass catcher by its handle and unhook it from the door rod.
Close the rear discharge door.
Empty the grass catcher.

OPERATE ON SLOPES

WARNING: Do not mow on the slopes with incline more than 15°. If you are not comfortable, do not mow on a slope.

Do not go up and down on a slope, mow across the face of the slope. Be careful when you change the direction on a slope.
Monitor the holes, ruts, rocks, and other hidden objects that can cause you to fall. Remove all obstacles such as rocks and tree limbs.
Make sure that your footing is stable. If you are out of balance, release the handle switch immediately.
Do not mow near drop-offs, ditches, or embankments.

OPERATION TIPS

Do not try to override the operation of the start button or start handles.
Do not tilt the machine when you start it.
Do not put hands or feet near or below the turning parts.
Keep the discharge chute clean.
Do not cut wet grass.
Higher blade height is necessary for new or thick grass.
Clean the bottom of the mower deck after each use. Remove grass clippings, leaves, dirt, and other debris.

MAINTENANCE

WARNING:

Remove the safety key and battery pack from the machine before maintenance.

WARNING:

Keep the motor and battery pack free from grass, leaves or too much grease.

CAUTION:

Use only approved replacement parts.

CAUTION:

Do not let brake fluids, gasoline, petroleum-based materials touch the plastic parts. Chemicals can cause damage to the plastic, and make the plastic unserviceable.

CAUTION:

Do not use strong solvents or detergents on the plastic housing or components.

GENERAL MAINTENANCE

Before each use, examine the machine for damaged, missing, or loose parts such as screws, nuts, bolts and caps.
Tighten correctly all the fasteners and caps.
Clean the machine with a dry cloth. Do not use water

REPLACE THE BLADE

WARNING

Use only approved replacement blades.

WARNING

Wear heavy gloves or wind cloth around the blade when you touch the blade.

NOTE:

Stop the machine.
Make sure that the blade (27) is fully stopped.
Remove the safety key and battery pack.
Turn the machine to its side.
Use a piece of wood to prevent the movement of the blade.
Remove the mounting screw (25) and spacer (26) with a wrench or socket.
Remove the blade.
Install the new blade. Make sure that the arrows engage the holes in the blade.
Put in the mounting screw and spacer and tighten them. Recommended tightening torque: 24-27 ft.lbs.

HIGH LIFT BLADE :

This mower comes with an extra high lift blade. Normal stock mower blades perform well on dry, shorter grasses, and are optimized for efficiency, while high lift blades work better in extreme conditions. The high-lift blade has deeper curves on the ends, which increase suction to circulate and expel the clippings. The higher air flow also helps prevent clogging when mowing tall or wet grass.

STORE THE MACHINE

Clean the machine before storage.
Make sure the motor is not hot when you store the machine
Make sure that the machine does not have loose or damaged parts. If it is necessary, do these steps/ instructions:
- Replace the damaged parts.
- Tighten the bolts.
- Speak to a person at an approved service center.
Store the machine in a dry area.
Make sure that children cannot come near the machine.

VERTICAL STORAGE

Remove the grass catcher.
Remove the battery and safety key.
Pull through the handle holes to fold away the handles.
Lock the handles into position.
Stand the machine on end and make sure that the brackets touch the floor.

TROUBLESHOOTING

The handle is not in position.
- The bolts are not engaged correctly.
  - Adjust the height of the handle and make sure that the bolts and nuts are aligned correctly.
The machine does not start.
- The battery capacity is low.
  - Charge the battery pack
- The start handle is defective.
  - Replace the start handle.
- The battery key is not put in.
  - Put in the battery key.
The machine cuts grass unevenly.
- The lawn is rough.
  - Examine the mowing area.
- The blade height is not set correctly.
  - Move the wheels to a higher position.
The machine does not mulch correctly.
- Wet grass clippings attach to the deck.
  - Wait until the grass dries before mowing.
- The mulch plug is missing.
  - Install the mulch plug.
The machine is hard to push.
- The grass is too tall, or the blade height is too low.
  - Increase the blade height.
- The grass catcher and the blade drags in thick grass.
  - Empty the grass clippings from the grass catcher
There is a high vibration in the machine.
- The blade is unbalanced and worn.
  - Replace the blade.
- The motor shaft is bent.
  - Stop the motor.
  - Remove the safety key and battery pack.
  - Disconnect the power source.
  - Inspect for damage.
  - Repair the machine before you start it again.
The machine stops during mowing.
- The blade height is too low.
  - Increase the blade height.
- The battery pack is out of power.
  - Charge the battery pack.
- The grass clippings attach to the deck or the blade.
  - Remove the battery pack and check the deck.
- Operation temperature of the machine is too high.
  - Cool the machine.

* If you cannot find the solution to these problems, go to the service center.

TECHNICAL DATA

Voltage
- 60 V
No load speed
- 2800 RPM / 3200 RPM (Turbo)
Deck Size
- 21"
Height adjustments
- 1 3/8 - 4” (3.5 - 10.2 cm)
Functions
- 3-in-1Rear bag & Side Discharge & Mulch
Weight (without battery pack)
- 59.5 lbs (27 kg)
Battery model
- LB602/LB6025/LB603/ LB604/ LB605/LB606 and other BAC series
Charger model
- CAC801/CH60DP01/ CH60R00/60DPC10A and other CAC series

User Manual Greenworks 2531602 Pro 60V 21" Brushless Lawn Mower w/ 5.0 Ah Battery & Charger
