PERFORMANCE TREADMILL WITH
AUTO INCLINE
SF-T7874
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1 - 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (2.4 M) of free space behind it and 2 feet
(60 CM) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 285 pounds (130 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only, it is not intended for commercial use!
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 9 for instructions on how to
properly apply lubricant.
2
EXPLODED DIAGRAM
3
PARTS LIST
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
1
Main Frame
1
44
Bolt
M8*50
2
2
Left Upright Tube
1
45
Nut
M8
6
3
Right Upright Tube
1
46
Transport Wheel
2
4
Base Frame
1
47
Transport Wheel Plug
2
5
Running Belt
1
48
Flat Pad
4
6
Running Board
1
49
Screw
M6*15
4
7
Bolt
M6*30
2
50
Square Plug
2
8
Bolt
M6*25
4
51
Bolt
M10*50
4
9
Screw
ST4*16
41
52
Square Plug
6
10
Edging Washer
8
53
Incline Frame
1
11
Motor Belt
1
54
Incline Motor
1
12
Screw
M5*8
8
55
Bolt
M8*15
12
13
Screw
ST4*16
8
56L/R
Protective Cover
1 pr.
14L/R
End Cap
1 pr.
57
Foam Grip
2
15
Bolt
M6*55
2
58
Shortcut Key
2
16
Rear Roller
1
59
Safety Key Sensor
1
17
Adjusting Wheel
2
60
Console Bracket
1
18
Washer
Φ8*1.2
18
61
Safety Key Sheet
1
19
Bolt
M8*40
5
62
Safety Key
1
20
Side Rail
2
63
Hand Pulse Upper Cover
2
21
EVA Cushion
2
64
Flat Washer
D4
2
22
Nut
M6
6
65
Light Sensor
1
23
Cushion
4
66
Bolt
M8*90
1
24
Front Roller
1
67
Flat Washer
D6
4
25
Bolt
M6*45
1
68
Screw
M4*8
2
26
Control Board
1
69
Console Rear Cover
1
27
Power Cord Buckle
1
70
Console Upper Cover
1
28
Overload Protector
1
71
Console Button Board
1
29
Switch
1
72
Screw
ST3*9.5
20
30
Power Cord
1
73
Screw
ST2.9*6
2
31
Bolt
M10*40
1
74
Console Linking Wire
1
32
Washer
Φ10*1.2
6
75
Extension Wire
1
33
Nut
M10
6
76
Controller Wire
1
34
Bolt
M10*55
1
77
Bottle Holder
2
35
Bolt
M8*15
4
78L/R
Upright Tube Cover
1 pr.
36
Spring Washer
D8
6
79
Console Panel
1
37
Flat Washer
D8
6
80
Amplifier Board
1
38
Bolt
M8*30
2
81
Washer
Φ6
3
39
Bolt
M8*55
1
82
Light Sensor Bracket
1
40
Motor
1
83
Screw
M4*8
2
41
Motor Cover
1
84
Spring Washer
D4
2
42
Bolt
M8*25
1
85
Plastic Plug
2
43
Cylinder
1
86
Bolt
M4*8
2
PARTS LIST
4
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)
✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [email protected] or 1 - 877 - 90SUNNY (877-907-8669).
87
Bolt
M5*16
4
92
MP3 Connecting Wire
1
88
Plastic Pad
2
93
Loudspeaker
2
89
Filter
1
94
Loudspeaker Platen
2
90
Allen Wrench
S=5
1
95
Audio Jack
1
91
Pulse Bottom Cover
2
96
Spanner
S=13,14,15
1
# 18 Φ8*1.2 12PCS
# 96 S=13,14,15 1PC
# 55 M8*15 12PCS
# 90 S=5 1PC
# 9 ST4*16 2PCS
5
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
STEP 1:
We recommend having two people to do
the assembly.
Open the carton and remove contents.
Place the Main Frame (No. 1) on level
ground, and ensure that you have a work
area that is clean and has adequate
space. Do not cut the Packing Belt (No.
B) until the assembly is complete!
STEP 2:
Lift up the Left Upright Tube (No. 2) and
hold the tube by hand to prevent it from
falling down.
Fix the Left Upright Tube (No. 2) to the
Base Frame (No. 4) with 3 Bolts (No.
55) and 3 Washers (No. 18) using Allen
Wrench (No. 90). Do not fully tighten the
bolts at this time.
Repeat to assemble the Right Upright
Tube (No. 3). Do not fully tighten the bolts
at this time.
Note: Make sure you do not cut or pinch
the wire inside the Right Upright Tube
(No. 3).
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
STEP 3:
Thread the Extension Wire (No. 75)
through Right Upright Tube Cover (No.
78R). Put the Upright Tube Covers (No.
78L/R) on the Left & Right Upright Tubes
(No. 2 & No. 3). Connect the Console
Linking Wire (No. 74) and the Extension
Wire (No. 75).
Attach the Console Bracket (No. 60) to
the Left & Right Upright Tubes (No. 2 &
No. 3) with 6 Bolts (No. 55) and 6
Washers (No. 18) using Allen Wrench
(No. 90). Then tighten all Bolts (No. 55)
and Washers (No. 18) of Left & Right
Upright Tubes (No. 2 & No. 3) tightly.
Make sure to tighten the 6 Bolts (No. 55)
and 6 Washers (No. 18) at the bottom of
the Left & Right Upright Tubes (No. 2 &
No. 3) that were assembled in Step 2.
Note: Make sure you do not cut or pinch
the wire inside the Right Upright Tube
(No. 3).
Remove 4 Screws (No. 9) from Console
Bracket (No. 60). Fix the Upright Tube
Covers (No. 78L/R) to the Console
Bracket (No. 60) with 4 Screws (No. 9)
that were removed. Tighten and secure
with Spanner (No. 96).
Insert the 2 Screws (No. 9) marked in
circles to the Console Bracket (No. 60)
and tighten with Spanner (No. 96). See
Fig. A.
Remove 2 Screws (No. 9) from Left &
Right Upright Tubes (No. 2 & No. 3) and
4 Screws (No. 9) from Base Frame (No.
4). Cover the Protective Covers (No.
56L/R) to the Base Frame (No. 4) and Left
& Right Upright Tubes (No. 2 & No. 3)
with 6 Screws (No. 9) that were removed.
Tighten and secure with Spanner (No. 96).
Now you can cut the Packing Belt (No. B).
Fig. A
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
STEP 4:
Put the Safety Key (No. 62) on the E slot
of Console Button Board (No. 71).
The assembly is complete!
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 9.
8
MAINTENANCE & CARE
General cleaning will help prolong the life and improve performance of your treadmill. Keep the unit
clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides
of the Running Belt (No. 5) will prevent dust from accumulating underneath. Keep your running shoes
clean so that dirt from the shoes does not wear out the Running Board (No. 6) and Running Belt (No.
5). Clean the surface of the Running Belt (No. 5) with a clean damp cloth.
To better maintain the treadmill and prolong its life it is suggested that the machine be powered off for
10 minutes every 2 hours and fully powered off whenever not in use.
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt (No. 5) drifts from
the center.
1. If the Running Belt (No. 5) drifts to the
right, turn the adjusting bolt on the right side
¼ turn clockwise, then turn the left adjusting
bolt ¼ turn counter-clockwise. If the
Running Belt (No. 5) does not move, keep
adjusting ¼ turn at a time until it centers.
Refer to Fig. A.
2. If the Running Belt (No. 5) drifts to the
left, turn the adjusting bolt on the left side ¼
of a turn clockwise, then turn the right
adjusting bolt ¼ turn counter-clockwise. If
the Running Belt (No. 5) does not move,
keep adjusting ¼ turn at a time until it
centers. Refer to Fig. B.
3. Over time the Running Belt (No. 5)
will loosen. To tighten the Running Belt (No.
5) turn the Left & Right side adjusting bolts
one full turn clockwise, check the tension of
the Running Belt (No. 5). Continue this
process until Running Belt (No. 5) is at the
correct tension. Make sure to adjust both
sides equally to ensure correct Running
Belt (No. 5) alignment. Refer to Fig. C.
Fig. A
Fig. B
Fig. C
9
LUBRICATING THE TREADMILL
*IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
Lubricating the Running Board (No. 6) and Running Belt (No. 5) is essential as the friction affects the
life span and operations of the treadmill. Inspect the Running Board (No. 6) and Running Belt (No. 5)
regularly. If you find any wear on the Running Board (No. 6), please contact us at:
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.
HOW TO LUBRICATE:

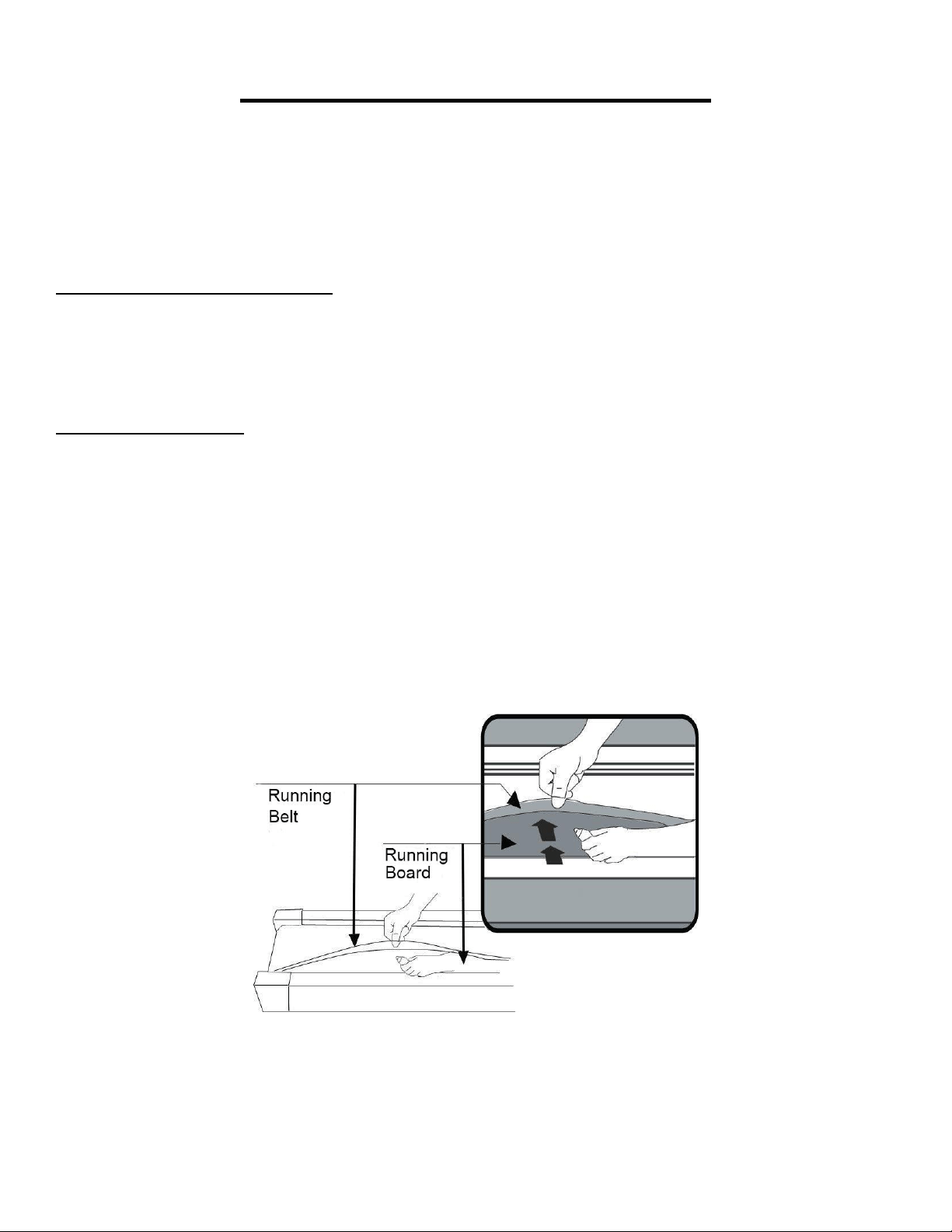

1. Raise the Running Belt (No. 5) up on one side and apply lubricant to the Running Board (No. 6).
Use a rag to thoroughly wipe the lubricant over the Running Board (No. 6). Repeat this process for the
other side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety of
the equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done on
a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENT TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. 5) will result in the runner sliding off during use, while too tight
of a Running Belt (No. 5) will negatively affect the motor’s performance and also create more friction
between the roller and Running Belt (No. 5). The most suitable tightness for the Running Belt (No. 5)
is pulled out 50-75mm from the Running Board (No. 6).
The following time table is recommended:
Light user (less than 3 hours/ week) every five months
Medium user (4-7 hours/ week) every two months
Heavy user (more than 7 hours/ week) every one months
10

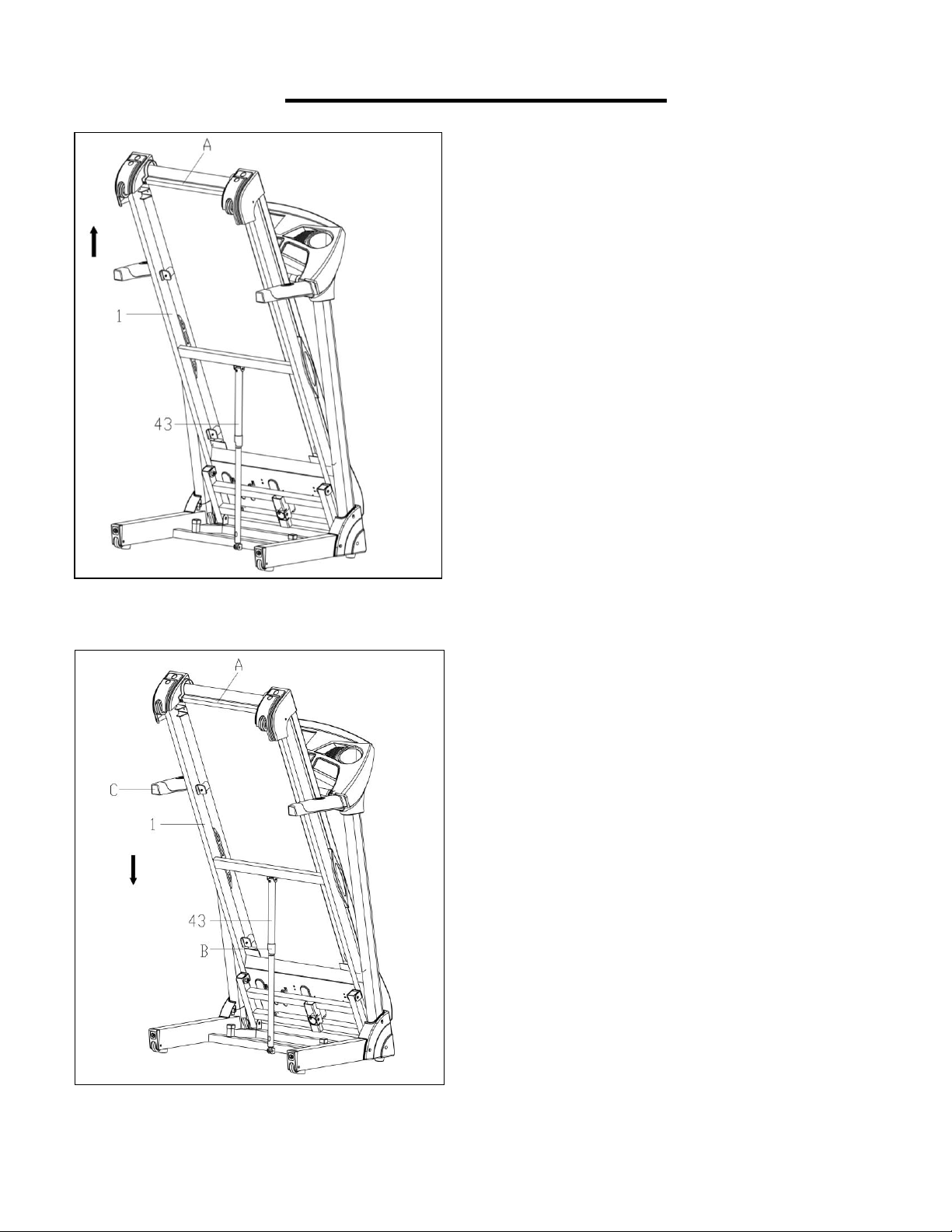

FOLDING INSTRUCTIONS
FOLDING
UNFOLDING:
Turn off the power before folding.
Restore the incline to flat position
(Incline Level 0). Place your hand at
position “A” and lift up on the Main
Frame (No. 1) to push top of the
running board forward until the
Cylinder (No. 43) locks into the tube.
Note: When the Cylinder (No. 43)
successfully locks into the tube you will
hear a clicking sound.
Before lowering the Main Frame (No.
1), ensure that the space directly
underneath it is clear of any objects
and the power is turned off.
Grasp the Main Frame (No. 1) at
position “A” with one hand. Next, using
your foot, firmly push against the
Cylinder (No. 43) and press down on
the Main Frame (No. 1). Once the
Main Frame (No. 1) starts to lower, it
will automatically continue to steadily
lower itself until it reaches level ground.
11
HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, make sure that it has been
properly folded. Unplug the power
cord.
To tilt, start by placing one hand at
position “P” to support the top end of
the treadmill. Next, place one foot at
position “M” to hold the bottom end
of the treadmill steady. With your
foot at “M”, slowly tilt the top of the
treadmill downward towards the
ground. Once the treadmill reaches
a low enough point, the wheels of
the treadmill touch the ground.
To transport, hold the treadmill at
position “P” and tilt until the wheels
“M” are able to move on the ground.
12
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before powering the equipment. Any power source above or below this level could cause significant
damage to the equipment and / or user.
GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet which contains the same
configuration as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check
with a qualified electrician or serviceman if you are unsure whether the product is properly grounded.
Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet a
qualified by an electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) outlet with this treadmill. Route the power cord
away from all moving parts of the treadmill including the elevation mechanism and transport wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any other high humidity environment.
13
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising immediately if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Turn on the power switch.
2. Once you get on, you can stand with your feet on the side rails and stabilize yourself by holding
onto the handrails.
3. Next, attach the clip end of the Safety Key (No. 62) to your clothes and insert the magnetic end
of the Safety Key (No. 62) into the computer console.
4. Press the key “START” to start the treadmill.
5. The treadmill will start at the system default setting speed of 0.6 MPH. when you feel
comfortable, you may slowly increase this speed.
6. When you are finished with your exercise, press the key “STOP” to stop the treadmill or you can
remove the magnetic end of the Safety Key (No. 62) to stop the treadmill.
14

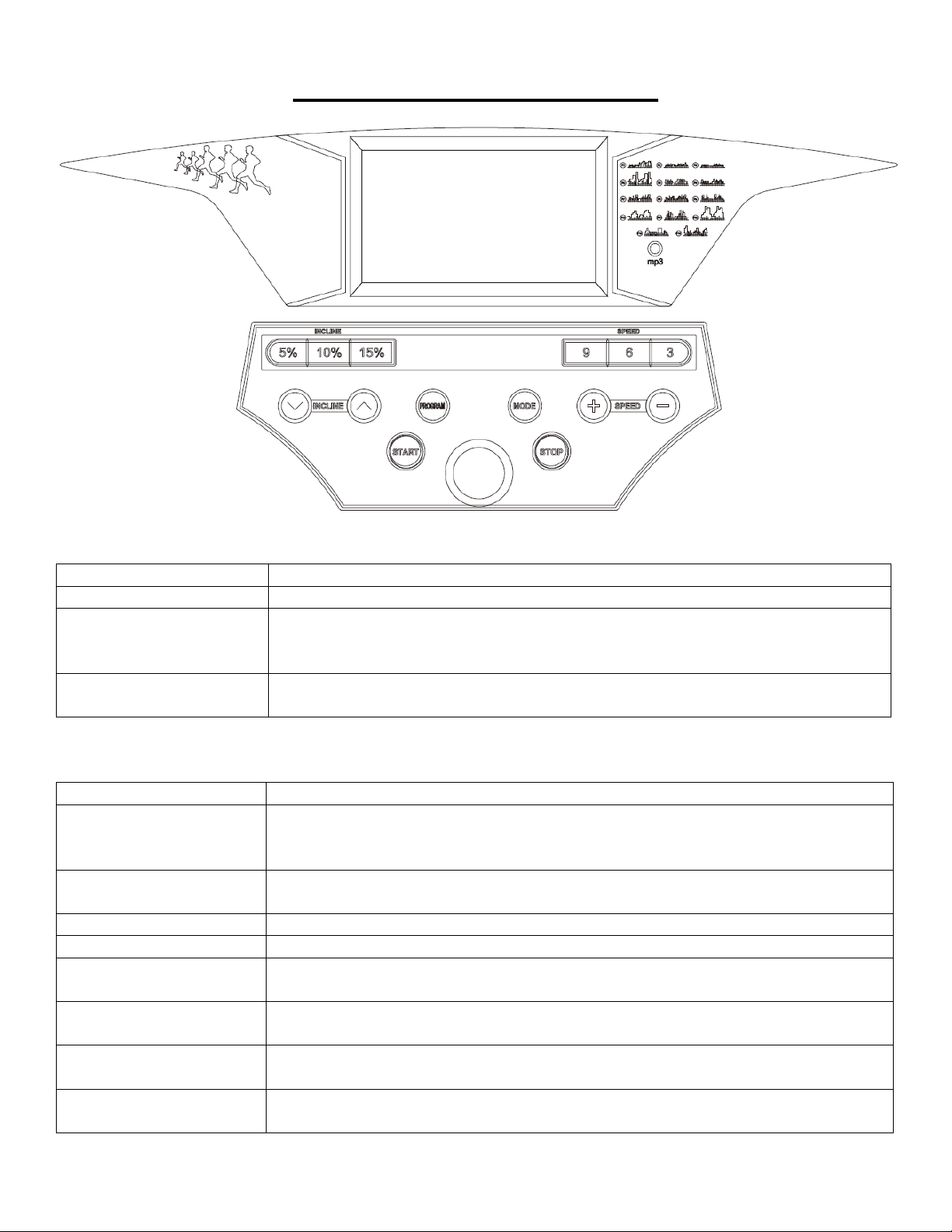

THE DISPLAY CONSOLE
DISPLAYS
FUNCTION KEYS
KEY
DESCRIPTION
PROGRAM
In the stop state, press to select programs in turn: manual mode -P01
-P02- ...-P14 -U01 -U02 -U03
MODE
In the stop state, press to select programs in turn: manual mode (normal
state) - time countdown- distance countdown – calorie countdown
START
In the stop state, press to start up the treadmill
STOP
When the treadmill is running, press to stop the motor
SPEED +
In setting state, press it to increase the set value. When the motor is
running, press it to increase the speed
SPEED -
In setting state, press it to decrease the set value. When the motor is
running, press it to decrease the speed
INCLINE +
In setting state, press it to increase the set value. When the motor is
running, press it to increase the incline
INCLINE -
In setting state, press it to decrease the set value. When the motor is
running, press it to decrease the incline
DISPLAY WINDOW
DESCRIPTION
Speed
Displays the speed (0.6-11.0 mph / 1.0 – 18.0 KM/H)
Time/Heart Rate
Alternates display of heart rate (50-200 bpm)
And time (0:00-99:59 minutes)
Distance/Calorie/Incline
Alternates display of distance (0.00-99.99 mi or km), calorie (0.0 – 999.9
kcal), and incline (0-15)
15
Initial
Initial setting value
Setting range
Display range
Time (m: s)
0:00
30:00
5:00-99:00
0:00-99:59
Speed in metric system
(km/h)
Speed in imperial system
(mi/h)
0.0
N/A
N/A
1.0—18.0 KM/H
0.6-11.0 MPH
Incline (%)
00
N/A
N/A
0-15
Distance (km/mi)
0.0
1.00
0.00—99.9
0.00—99.99
Calorie (kcal)
0
50.0
0.0—999
0.0—999.9
KILOMETERS OR MILES
When the safety key is removed, press PROGRAM and MODE for 3 seconds to change from miles to
kilometers.
PROGRAMS
Manual Mode: includes normal mode, time countdown, calorie countdown and distance countdown
Programs: P01, P02…P14
Customized Programs: U01, U02 and U03.
OPERATING INSTRUCTIONS
1. Insert safety key into the console.
2. Press START and the window will display 3—2—1. The treadmill will beep and then start.
MANUAL MODE
1. Turn on the treadmill. The treadmill is in normal mode. When the treadmill is stopped, press MODE
to select normal mode.
2. To set countdown mode:
a. In manual mode, press MODE to enter time countdown mode; the time window will display the
time and flash. The initial time is 30:00. Set countdown time pressing SPEED + / SPEED - or
INCLINE + / INCLINE -. Time setting range: 5:00-99:00.
b. Press MODE to enter distance countdown mode. The initial distance is 1.00 km/mi. Set the
distance by pressing SPEED + / SPEED - or INCLINE + / INCLINE -. Distance setting range:
0.00—99.9 km/mi. Value is in increment of 0.1 km/mi.
c. Press MODE to enter calorie countdown. The initial calorie will be displayed as 50.0 kcal. Set the
calorie by SPEED + / SPEED - or INCLINE + / INCLINE -. Calorie setting range: 0.0—999 kcal.
Value increases in increment of 1 kcal.
16
OPERATION IN MANUAL MODE
A. Press START and the treadmill will start operating after 3 seconds of countdown. The initial speed
is 1.0 KM/H for metric system or 0.6 MPH for imperial system.
B. Press SPEED + / SPEED - to adjust speed, or press speed shortcuts to change to the speed
marked on the key;
C. Press INCLINE + / INCLINE - to adjust the incline, or press incline shortcuts to change to the
incline marked on the key;
D. When the treadmill is running, press STOP to stop the treadmill;
E. To stop the treadmill immediately, remove the safety key; then, LCD window will display “---” and
the buzzer will beep three times.
F. When the countdown value reaches zero, the buzzer will beep three times. The speed window will
display END. Five seconds later, the treadmill will return to the standby state and the buzzer will
make long alarm beep sound.
G. If a value reaches the set range, it will reset to 0 and the treadmill will stop. In manual mode, the
treadmill will stop when the time accumulates to be more than 99: 59 (100 min).
PROGRAM MODE
1. The initial time is set to be 30 min. Only time can be set. Setting range: 5:00- 99:00. Press SPEED
+ / SPEED - or INCLINE + / INCLINE - to adjust the set value;
2. Press START key. The treadmill will start running and the speed will gradually increase to the
value for the first section of auto program (see details in the table of program parameters);
3. Press SPEED + / SPEED - to adjust speed, or press speed shortcuts to change to the speed
marked on the key;
4. Press INCLINE + / INCLINE - to adjust the incline; or press incline shortcuts to change to the
incline marked on the key;
5. Each program is divided into 20 sections; operating time for each section will be 1/20 of the set
time.
6. The buzzer will sound for three times when switching from one section to another;
7. When the set time goes to zero, the treadmill will slow to a stop. The speed window will display
END; 5 seconds later, the treadmill will return to the standby state; then, the treadmill will beep
three times and then make one long beep when the treadmill is stopped.
8. At any time, if you need to stop the treadmill immediately, remove the safety key. LCD window will
display “---” and the buzzer will beep three times.
17
PROGRAM PARAMETERS
Time
Section
Program
Set time/ 20 =running time for each section
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P01
Speed
1.2
2.5
1.9
2.5
1.9
3.1
2.5
1.2
3.1
1.2
3.7
1.2
4.3
1.2
5.0
1.9
4.3
1.9
5.6
1.9
Incline
1
2
3
3
1
2
2
3
2
5
4
5
6
6
4
5
5
6
5
2
P02
Speed
1.2
3.1
2.5
3.7
2.5
3.7
2.5
1.2
2.5
1.9
1.9
3.7
3.1
4.3
3.1
4.3
3.1
1.9
3.1
1.2
Incline
1
2
3
3
2
2
3
4
2
3
2
3
4
4
3
3
4
5
3
2
P03
Speed
1.2
3.1
2.5
3.1
2.5
3.1
2.5
1.2
1.9
1.9
1.9
3.7
3.1
3.7
3.1
3.7
3.1
1.9
2.5
1.2
Incline
1
2
2
3
1
2
2
2
2
2
2
3
3
4
2
3
3
3
3
1
P04
Speed
1.2
3.7
4.3
2.5
2.5
4.3
2.5
1.2
2.5
1.9
1.9
4.3
5.0
3.1
3.1
5.0
3.1
1.9
3.1
1.2
Incline
4
5
6
6
9
9
1
12
6
4
5
6
7
7
10
10
2
12
7
3
P05
Speed
1.2
2.5
3.7
5.0
4.3
5.0
3.7
1.2
1.9
1.9
1.9
3.1
4.3
5.6
5.0
5.6
4.3
1.9
2.5
1.2
Incline
3
5
4
4
3
4
4
3
3
3
4
6
5
5
4
5
5
4
4
2
P06
Speed
1.2
2.5
3.1
3.1
3.7
3.1
3.7
1.9
1.9
1.9
1.9
3.1
3.7
3.7
4.3
3.7
4.3
2.5
2.5
1.2
Incline
3
5
3
4
2
3
4
2
3
3
4
6
4
5
3
4
5
3
4
2
P07
Speed
1.9
3.7
4.3
3.1
5.0
3.1
5.6
3.7
2.5
1.2
2.5
4.3
5.0
3.7
5.6
3.7
6.2
4.3
2.5
1.9
Incline
2
2
3
3
2
2
4
6
2
3
3
3
4
4
3
3
5
7
3
2
P08
Speed
1.9
3.7
4.3
3.1
5.0
3.7
4.3
3.7
2.5
2.5
2.5
4.3
5.0
3.7
5.6
4.3
5.0
4.3
3.1
1.9
Incline
1
2
4
3
2
2
4
5
2
2
2
3
5
4
3
3
5
6
3
1
P09
Speed
1.2
5.0
3.7
2.5
3.1
5.6
4.3
3.1
2.5
2.5
1.9
5.6
4.3
3.1
3.7
6.2
5.0
3.7
3.1
1.9
Incline
2
2
6
2
3
4
2
2
2
2
3
3
7
3
4
5
3
3
3
1
P10
Speed
1.2
1.9
3.1
1.9
1.9
3.1
1.9
3.7
1.9
2.5
1.9
2.5
3.7
2.5
2.5
3.7
2.5
4.3
2.5
1.9
Incline
4
4
3
6
7
8
8
6
3
4
5
5
4
7
8
9
9
7
4
3
P11
Speed
1.2
3.1
5.0
6.2
3.7
5.6
3.1
1.9
1.2
1.9
1.9
3.7
5.6
6.2
4.3
6.2
3.7
2.5
1.9
1.2
Incline
1
3
5
8
1
7
6
3
2
4
2
4
6
9
2
8
7
4
3
3
P12
Speed
1.2
3.1
3.1
2.5
2.5
3.7
2.5
1.2
1.9
3.1
1.9
3.7
3.7
3.1
3.1
4.3
3.1
1.9
2.5
2.5
Incline
3
5
6
7
12
9
11
11
6
4
4
6
7
8
12
10
11
11
7
3
P13
Speed
1.9
1.9
2.5
2.5
3.7
3.7
4.3
4.3
3.7
3.7
3.1
3.1
2.5
2.5
1.9
1.9
5.0
3.7
3.1
1.2
Incline
3
5
7
5
3
1
2
3
2
1
3
7
7
7
3
2
5
4
3
2
P14
Speed
1.2
2.5
3.1
3.7
4.3
5.0
2.5
1.9
4.3
5.0
5.0
3.7
5.0
3.7
3.1
1.9
5.0
3.7
2.5
1.2
Incline
3
7
9
5
1
3
2
3
3
4
5
7
2
3
3
0
5
6
7
3
CUSTOMIZED PROGRAM
In addition to 14 built-in programs, the treadmill also has 3 customized programs to support the
customized setting based on the user’s specific situation: U01, U02 and U03.
1. Setting of customized program:
In standby state, press PROGRAM to the required customized program (U01~ U03); press MODE
to confirm entering the setting.
Then, set parameters in the first time section. Set speed by pressing SPEED + / SPEED - or speed
shortcuts and set incline by INCLINE + / INCLINE - or incline shortcuts
Press MODE to complete the first time section’s setting and enter the state to set up parameters
18
for the second time section until the completion of setting for all the 20 time sections.
Set parameters will be permanently saved until the next time setting. These parameters will not be
lost until power disconnection.
2. Start of customized program:
A. In standby state, press PROGRAM to the required customized program (U01~ U03). After
setting up the operation time, press START.
B. In the customized program state and after the setting of operation time, press START to
immediately start the treadmill.
3. Instructions to the setting of customized program:
Each program divides its operation time into 20 sections. Be sure to complete the setting for speed,
incline and operation time for all the 20 section before pressing START to start the treadmill.
BODY FAT TEST
1. In standby state, press PROGRAM to enter FAT (physical fitness test) program.
2. Press MODE to enter the program of F—1, F—2, F—3, F—4, F—5 (F—1:gender, F—2:age,
F—3:height, F—4:weight, F—5:physical test),
3. Press SPEED + / SPEED - or INCLINE + / INCLINE to set the parameter of 01-02 (see below
detailed table), then press MODE to enter the program of F—5 for physical test.
4. At this state, hold the handle pulse board for 5-6 seconds and it will display the FAT, check if the
weight matches with your height.
5. FAT is to measure the relevance between height and weight, not the body proportion. The normal
FAT is between 20-24, which means if less than 19 is too thin, and if between 25-29 is overweight
and if more than 30 is obesity.
F--1
Gender
01(man)
02(woman)
F--2
Age
10------------99
F--3
Height
40---80 inch / 100---200 cm
F--4
Weight
44---330 lbs / 20---150kg
F--5
FAT
≦19
Underweight
FAT
=(20--24)
Normal weight
FAT
=(25--29)
Overweight
FAT
≧30
Obesity
19
MP3 FUNCTION (OPTIONAL)
You can plug in an audio device to the treadmill. Sound volume is controlled on the device.
ENERGY-SAVING MODE
The treadmill has energy-saving function. In standby state, after 10 minutes and no key has been
pressed, console will enter the energy-saving mode and automatically turns off the display. Press any
key to turn on the console.
SHUTDOWN
Turn off the treadmill when not in use to avoid damage to the treadmill.
EMERGENCY STOP
If you need to stop the treadmill while it is running, remove the safety key. LCD window will display “---”
and the buzzer will beep three times. When the safety key is removed, the keys will not function.
20
TROUBLE SHOOTING
PROBLEM
POTENTIAL REASONS
SOLUTIONS
-------
Safety key is disconnected
1.Place back the safety key;
2.Replace safety key switch or magnetic sensor in the
console; if the problem still fails to be solved, replace the
console;
ERROR
POSSIBLE REASONS
TEST METHOD
SOLUTIONS
E01
Communicational failure
between the meter and the
controller, and the drive cannot
receive signal from the meter.
Check whether the connector
of the console and the
controller has broken down.
If yes, change the
connector.
Check whether the joint has
been plugged in well.
Pull the joint and plug in
again.
E02
Explosion proof protection
Whether the supply voltage is
50% lower than the normal
voltage.
Use correct voltage
standard and retest.
Whether the control board has
been installed well.
Change the control board.
Whether the controller has
awful smell.
Change the controller.
E03
Failure in inspecting the motor
signal for more than 15 seconds
continuously and speed sensor
for 10 seconds continuously.
Whether the distance and
location of the sensor and the
disc is correct or the sensor is
installed well.
The sensor should be
installed right in the hole
of disc.
Whether the sensor wire has
been open circuited, short
circuited or broken circuited.
Reconnect the motor
interface, and examine
the sensor wire.
Whether the sensor has been
broken down.
Change the sensor.
E04
Lifting learning or self-inspection
fails.
Check whether motor wiring is
damaged to form open circuit.
Re-insert the signal wire
joint to ensure that it is
reliable.
Check whether incline motor's
AC wires are properly
connected.
Incline motor shall be
correctly plugged
according to marks on its
AC controller.
Check whether motor wiring is
damaged to form open circuit.
If yes, replace wires or
replace the incline motor
Check whether the incline
motor is damaged.
If yes, change the incline
motor.
Incline motor fails in learning.
Press the button of
controller for 3 seconds
and relearn again.
E05
Over-current protection
Check whether the controller
match with the standard of
electric engine.
Change the electric
machine or controller and
retest.
E06
Fault of motor’s open circuit
Check whether the motor
interface of the drive is loose.
Re-plug the motor
interface properly.
Check whether the motor is
open-circuited.
Change the motor.
When the motor is idling, if the
current is less than standard, it
will go wrong.
Re-install the motor.
21
E08
Failure of the controller
EEPROM.
The 24C02 from the control board is broken down or you
forgot to install 24C02, change the motor control board.
E09
Controller is in tilted position.
Treadmill is not placed on level
surface when it is powered on
Place treadmill on a level
surface, then start the
treadmill.
E10
Transient current protection
Check if the torsion of
controller is normal.
Adjust the torsion
regulator to normal value.
Check whether the motor is
short-circuited.
Change the motor.
Check whether treadmill’s
transmission part is stuck.
Eliminate the disturbance,
and make sure the
treadmill runs smoothly.
E11
External AC over-voltage
Check whether the external AC voltage is higher than
270VAC, or if it is unstable; if yes, stop using the product
and ask qualified electrician for help.
E13
Communicational failure
between the console and the
controller, and the meter cannot
receive the signal from the drive.
Check whether the wire
between the console and the
controller is broken down.
Change the wire.
Check whether the socket is
plugged in well.
Re-plug the socket and
make sure it is reliable.
E14
External AC under-voltage
Check whether external AC voltage is lower than 160VAC
or if it is unstable, if yes, stop using the product and ask the
qualified electrician for help.
NOTE: If you are unable to resolve an issue using the troubleshooting guide above, please
contact Customer Service at [email protected]
Version 1.2
