Sun Joe SPX2002-MAX-RM Electric Pressure Washer Turbo Lance User Manual

A Division of Snow Joe

, LLC

Model SPX2002-MAX-RM

Form No. SJ-SPX2002-MAX-RM-880E-M-V1

OPERATOR’S MANUAL

, LLC

SAVE THESE INSTRUCTIONS

13A ELECTRIC PRESSURE WASHER

1900 PSI MAX PRESSURE AT INITIAL DISCHARGE PER CSA INTERNAL PRESSURE TESTING

1.6 GPM MAX FLOW WITH NOZZLE OPEN AT MINIMUM PRESSURE

A Division of Snow Joe

, LLC

Model SPX2002-MAX-RM

Form No. SJ-SPX2002-MAX-RM-880E-M-V1

OPERATOR’S MANUAL

, LLC

SAVE THESE INSTRUCTIONS

13A ELECTRIC PRESSURE WASHER

1900 PSI MAX PRESSURE AT INITIAL DISCHARGE PER CSA INTERNAL PRESSURE TESTING

1.6 GPM MAX FLOW WITH NOZZLE OPEN AT MINIMUM PRESSURE

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

mWARNING! This indicates a hazardous situation, which,

if not avoided, could result in death or serious injury.

mCAUTION! This indicates a hazardous situation, which,

if not avoided, could result in minor or moderate injury.

mDANGER! This indicates a hazardous situation, which,

if not followed, will result in death or serious injury.

General Safety

mWARNING! This appliance is not intended for use

by children or by unassisted, unsupervised persons whose

physical, sensory, or mental capabilities prevent them from

using it safely. Children should be supervised to ensure that

they do not play with the appliance.

Before starting up your machine, please check it carefully for

any defects. If you nd any, do not start up your machine.

Contact your authorized Snow Joe

+ Sun Joe

dealer or

call the Snow Joe

+ Sun Joe

customer service center at

1-866-SNOWJOE (1-866-766-9563).

mWARNING! When using the pressure washer, basic

safety precautions should always be followed to reduce the

risk of re, electric shock, and personal injury. These include:

• Know your product – Know how to stop the machine and

bleed pressure quickly. Thoroughly familiarize yourself with

the controls.

• Keep bystanders away – All visitors and pets should be

kept a safe distance away from the work area.

• Use the right product – Do not use this machine for any

job except that for which it is intended.

• Dress properly – Do not wear loose clothing or jewelry.

They can get caught in moving parts. Protective rubber

gloves and non-slip footwear are recommended when

working outdoors.

• mCAUTION! – Exercise caution to avoid slipping or falling.

Wear protective footwear that will protect your feet and

improve your footing on slippery surfaces.

• Stay alert – Watch what you are doing. Use common

sense. Do not operate the pressure washer when you are

tired, or under the inuence of alcohol or drugs.

• Do not overreach – Keep proper footing and balance at

all times.

• Avoid unintentional starting – Do not carry a

plugged-in machine with your nger on the trigger.

Make sure the switch is o before plugging in the machine.

• Do not abuse the cord – Never carry the machine by the

cord or yank the cord to disconnect it from the receptacle.

Keep the cord away from heat, oil, and sharp edges.

• Use safety glasses – Also use safety footwear,

snug-tting clothing, protective gloves, and hearing and

head protection.

• Check the water temperature – This pressure washer is

not meant to pump hot water. NEVER connect it to a hot

water supply as it will signicantly reduce the life of the

pump.

• Store indoors – NEVER store the pressure washer

outdoors or where it could freeze. The pump could be

seriously damaged.

• Ground Fault Circuit Interrupter (GFCI) – GFCI protection

should be provided on the circuits or outlets to be used

for this pressure washer. Receptacles are available having

built-in GFCI protection and may be used for this measure

of safety.

• Inspect electrical cables – The insulation of the power

cord should be perfectly intact. If the power cord is

damaged or shows any signs of wear or tear, do not use the

pressure washer. Contact your authorized Snow Joe

Sun Joe

dealer or call the Snow Joe

+ Sun Joe

customer

service center at 1-866-SNOWJOE (1-866-766-9563).

mWARNING! Do not use this appliance without reading

this instruction manual.

mWARNING! This pressure washer's spray wand is

compatible with the SPX1DT detergent bottle attachment

(sold separately; visit sunjoe.com to purchase). When using

this attachment, be sure to use cleaning agents that are

specically recommended by the manufacturer. The use of

other cleaning agents or chemicals may adversely aect the

safety of the appliance.

mWARNING! Do not use the appliance within range of

other people unless they are wearing protective clothing.

mWARNING! Risk of injection or injury – Do not direct

discharge stream at persons.

mWARNING! High-pressure jets can be dangerous if

subject to misuse. The jet must not be directed at persons,

pets, live electrical equipment, or the appliance itself.

• Do not direct the jet at yourself or others in order to clean

clothes or footwear.

• Risk of explosion – Do not spray ammable liquids.

• Disconnect the tool – Disconnect from the electrical power

supply before performing any maintenance task.

• Keep children away – This high-pressure electric

power washer must not be used by children or untrained

personnel.

• To ensure appliance safety, use only original replacement

parts from the manufacturer or those approved by the

manufacturer.

mWARNING! Water that has owed through backow

preventers is considered to be non-potable.

mWARNING! During cleaning, maintenance, or when

replacing parts, disconnect the machine from its power source

by removing the plug from the socket outlet.

mWARNING! High-pressure hoses, ttings, and

couplings are important for the safe operation of the appliance.

Use only hoses, ttings, and couplings recommended by the

manufacturer.

• Check for damaged parts – Do not use the appliance if

the supply cord or other important parts of the appliance

are damaged (e.g. safety devices, high-pressure hoses,

trigger gun).

mWARNING! If an extension cord is used, the plug and

socket must be of watertight construction.

NOTE: It is not recommended to use an extension cord with

this pressure washer.

mWARNING! Inadequate extension cords can be

dangerous.

• This high-pressure electric power washer must not be used

at temperatures below 32ºF (0°C).

mWARNING! Power cords on drums should always be

completely unwound to prevent the cord from overheating.

• Power cord connections should be kept dry and o the

ground.

• If the power cord is damaged, do not use the appliance.

Contact your authorized Snow Joe

+ Sun Joe

dealer or

call the Snow Joe

+ Sun Joe

customer service center at

1-866-SNOWJOE (1-866-766-9563).

• Keep the machine on a stable, at surface during operation,

handling, transportation, and storage. Sudden overturn of

the machine can cause bodily injury.

• In the event of an accident or breakdown, switch o the

machine immediately (If contact with detergent occurs,

rinse with an abundance of clean water.)

Electrical Safety

ATTENTION: If there are problems with the electrical

MAINS, short voltage drops may appear when starting the

equipment. This can, in turn, inuence other equipment

(e.g. cause a lamp to blink). If the MAINS-IMPEDANCE

Zmax < 0.335 OHM, such disturbances are not expected

(If you require assistance, contact your local supply authority

for further information).

mWARNING! Electrical Shock Hazard – Before starting

up your machine, please check it carefully for any defects.

If you nd any, do not start up your machine. Contact your

authorized Snow Joe

+ Sun Joe

dealer or call the Snow Joe

+ Sun Joe

customer service center at 1-866-SNOWJOE

(1-866-766-9563).

The following should be observed when connecting the

high-pressure electric power washer to the electric supply:

• The electric supply connection should be performed by a

qualied person.

• The electric supply to this appliance should include either

a residual current device that will interrupt the supply if the

leakage current to the earth exceeds 30 mA for 30 ms or a

device that will interrupt the earth circuit (GFCI).

IMPORTANT: Only use water without any impurities.

If there is a risk of running sand into the inlet water (i.e. from

your own well), an additional lter should be installed.

Safety devices

The unloader valve can reduce pressure if it exceeds preset

values. The spray gun features a locking device. When the lock

is activated, the spray gun cannot be operated.

1. Thermal sensor – A thermal sensor protects the motor

against overloading. The machine will restart after a few

minutes when the thermal sensor has cooled.

2. Double insulation – In a double-insulated appliance,

two systems of insulation are provided instead of

grounding. No grounding means is provided on a

double-insulated appliance, nor should a means for

grounding be added to the appliance. Servicing a double-

insulated appliance requires extreme care and knowledge

of the system, and should be performed only by qualied

service personnel at an authorized Snow Joe

Sun Joe

dealer. Replacement parts for a double-insulated

appliance must be identical to the parts they replace.

A double-insulated appliance is marked with the words

“Double Insulation” or “Double Insulated.” The symbol

(square within a square) may also be marked on the

appliance.

3. Ground fault circuit interrupter (GFCI) protection –

This pressure washer is provided with a ground-fault

circuit-interrupter (GFCI) built into the plug of the power-

supply cord. This device provides additional protection

from the risk of electric shock. Should replacement of

the plug or cord become necessary, use only identical

replacement parts that include GFCI protection.

4. It is not recommended to use an extension cord with

this pressure washer. The unit comes standard with a

35 ft GFCI power cable. Using an extension cord may

cause a drop in line voltage resulting in loss of power and

overheating.

If an extension cord is going to be used, use only

extension cords that are intended for outdoor use.

These extension cords are identied by marking

"Acceptable for use with outdoor appliance; store indoors

while not in use". Use only extension cord having an

electrical rating not less than the rating of the product.

Do not use damaged extension cords. Examine extension

cord before using and replace if damaged. Do not

abuse extension cord and do not yank on any cord to

disconnect. Keep cord away from heat and sharp edges.

Always disconnect extension cord from the receptacle

before disconnecting the product from the extension cord.

5. To reduce the risk of electric shock, this appliance has

a polarized plug (i.e. one blade is wider than the other).

The appliance plug will t into a polarized outlet only one

way.

If the appliance plug does not t fully into the outlet,

reverse the plug. If the plug still does not t, make sure

that you are using the correct polarized wall outlet. If the

plug still does not t, contact a qualied electrician to

install the proper wall outlet. Do not modify the appliance

plug, power cord receptacle, or power cord plug in any

way.

mWARNING! To reduce the risk of electrocution, keep

all connections dry and o the ground. Do not touch plug with

wet hand.

6. To prevent the appliance cord from disconnecting from the

extension cord during operation, make a knot with the two

cords as shown in Table 1.

7. Do not abuse the cord. Never pull the pressure washer

by the cord or yank the cord to disconnect it from the

receptacle. Keep the cord away from heat, oil, and

sharp edges.

Risk of electrocution

• Inspect cord before using.

• Do not use if cord is damaged.

• Keep all connections dry and o the ground.

• Do not touch plug with wet hands.

• Keep cord away from heat and sharp edges.

• Do not spray electrical apparatus and wiring.

Risk of explosion

• Do not spray ammable liquids.

• Do not use acids, bases, solvents, or any ammable

material in this product. These substances can cause

physical injuries to the operator and irreversible damage to

the machine.

Additional safety instructions

• High-pressure: keep clear of nozzle.

• Injection hazard: equipment can cause serious injury if the

spray penetrates the skin.

• Do not point the gun at anyone or at any part of the body.

• In case of skin penetration, seek medical aid immediately.

• Before servicing, cleaning, or removing any parts, shut o

the power and relieve pressure.

• This machine is not suitable for connection to the potable

water mains.

m WARNING m

Electric shock may cause SEVERE INJURY or DEATH.

Heed these warnings:

• Do not allow any part of the electric pressure washer

to make contact with water while it is in operation.

If the appliance becomes wet while turned o, wipe

dry before starting.

• Do not use an extension cord over 25 ft. The pressure

washer comes equipped with a 35 ft power cable.

Combined cord length must not exceed 60 ft. Any

extension cord must be 14-gauge (or heavier) to safely

power the pressure washer.

• Do not touch the appliance or its plug with wet hands

or while standing in water. Wearing rubber boots oers

some protection.

EXTENSION CORD CHART

Cord Length:

Min. Wire Gauge (A.W.G.):

25 ft (7.6 m)

(B) Connect plug and receptacle

Cord set Appliance cord

(A) Tie cord as shown

Table 1. Method of Securing Extension Cord

Product Description

Purpose

• This high-pressure electric power washer is intended for

residential use only. It is designed for light-to-medium duty

cleaning jobs on boats, motorcycles, RVs, ATVs, trailers,

decks, barbecues, siding, patio furniture, and more.

Areas of application

• Never use the machine in potentially explosive areas under

any circumstances!

• The operating temperature must be between 32ºF (0ºC) and

104ºF (40ºC).

• The machine consists of an assembly with a pump, which

is encased in a shock-absorbing housing. To provide the

operator with an optimal working position, the machine is

equipped with a spray wand and a non-slip handle grip,

whose shape and conguration comply with applicable

regulations.

• Do not cover or modify the spray wand or the spray nozzle

in any way.

• The high-pressure electric power washer is designed to be

used with cold or lukewarm water; higher temperatures can

damage the pump.

• Do not use water that is dirty, gritty, or contains any

chemical products, as such impurities could impair

operation and shorten the life of the machine.

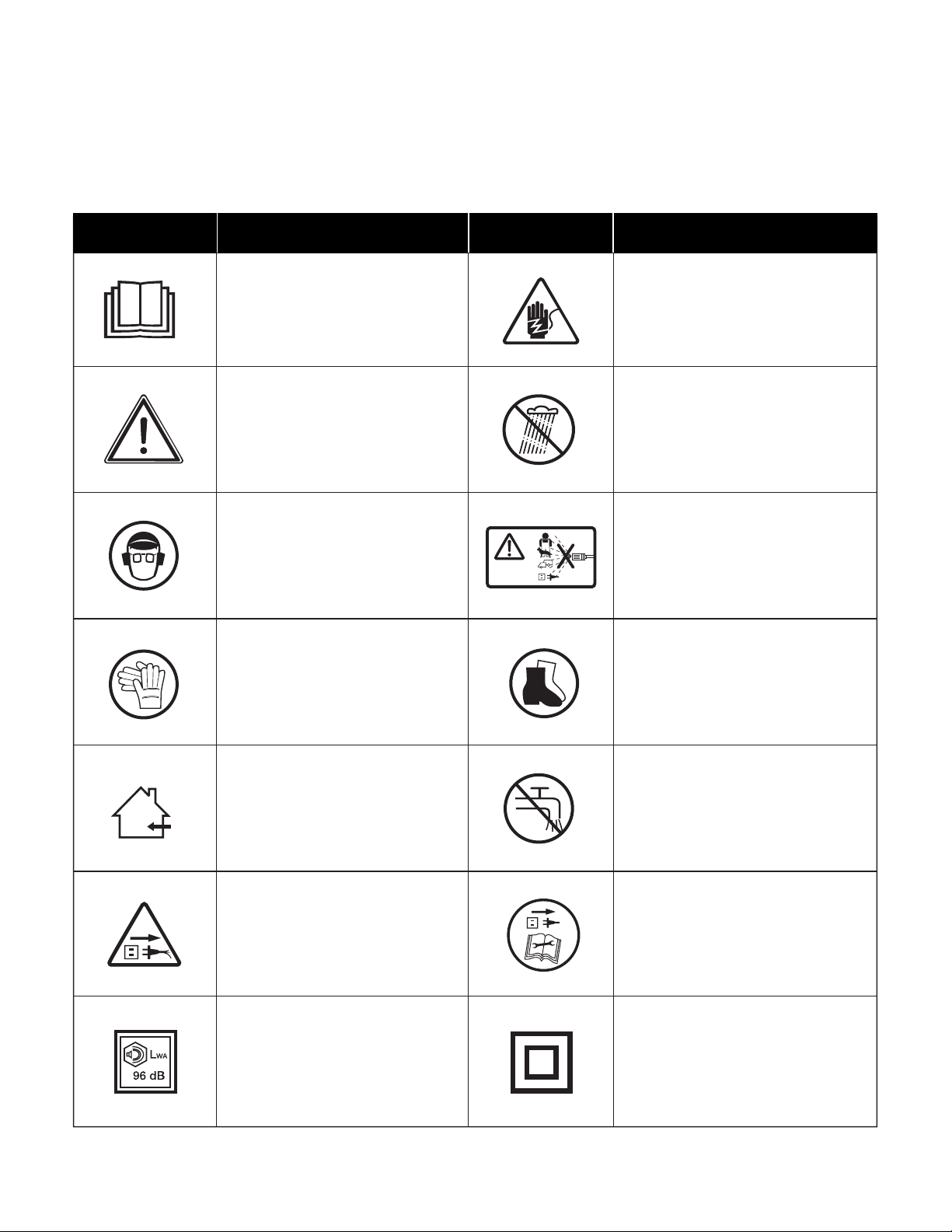

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all

instructions on the machine before attempting to assemble and operate.

To reduce the risk of injury,

user must keep all bystanders at

least 49 ft (15 m) away.

Sound power level is 96 dB(A).

Always keep the power cable

away from heat sources, oils, or

sharp edges. Immediately remove

plug from the mains if the cable is

damaged, frayed, or entangled.

READ THE OPERATOR'S

MANUAL(S) – Read, understand,

and follow all instructions in the

user manual(s) before attempting

to assemble and operate.

SAFETY ALERT – Indicates a

precaution, a warning, or a danger.

WEAR EYE AND HEARING

PROTECTION – For protection

against injury, wear ear defenders

and safety goggles.

Double Insulation – When servicing,

use only identical replacement parts.

WARNING! Do not expose the

unit to rain or wet conditions.

Keep dry.

Machine not suitable for connection

to the potable water mains.

WARNING! Electrical shock hazard.

WARNING! Turn the machine OFF

and disconnect it from the power

supply before inspecting, cleaning,

changing accessories, or conducting

any other maintenance task.

Symbols SymbolsDescriptions Descriptions

Wear non-slip footwear that will

protect your feet and improve your

footing on slippery surfaces.

Wear safety gloves during

use to protect hands.

Store indoors. Never store the

pressure washer outdoors.

If the pump freezes, permanent

damage may result.

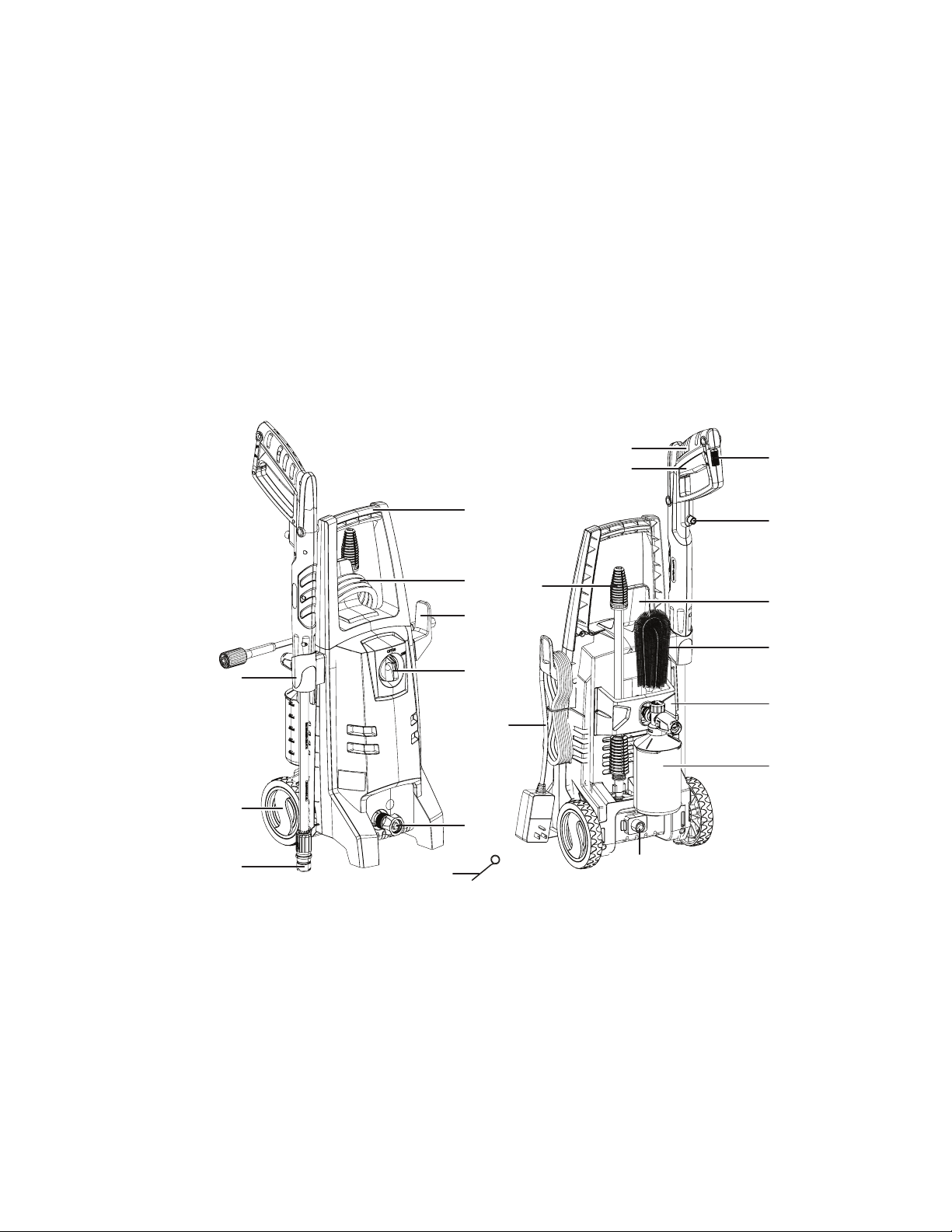

Know Your Electric Pressure Washer

Read the owner’s manual and safety rules carefully before operating the pressure washer. Compare the illustration below to the

pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for

future reference.

1. Transport handle

2. High-pressure hose

3. Cord holder

4. ON/OFF switch

5. Trigger gun holder

6. Wheels (2)

7. Jet lance

8. Water inlet (garden hose connection)

9. Needle clean-out tool

10. Trigger gun

11. Trigger

12. Safety lock

13. High pressure hose connection

14. Turbo lance

15. High pressure hose holder

16. Wheel + rim bristle brush

17. Rear compartment

18. Power cord with GFCI

19. Foamer cannon

20. Water outlet (high-pressure

hose connection)

(FRONT) (REAR)

Technical Data

Rated Voltage .......................................................120 V ~ 60 Hz

Motor .............................................................................. 13-amp

Max Water Inlet Temperature ................................... 104ºF/40ºC

Max Water Inlet Pressure .............................................. 0.7 MPa

Hose Length ................................................................20 ft (6 m)

Power Cord Length ................................................35 ft (10.7 m)

Weight .................................................................. 16 lbs (7.3 kg)

Turbo Nozzle ..................................................................... Rotary

Adjustable Jet Nozzle .................................................... 0º to 45º

Foamer Canon Capacity ............................... 25.4  oz. (750 ml)

Max Pressure at initial discharge ................................ 1900 PSI

per CSA internal pressure testing

Rated Pressure under typical load .............................. 1500 PSI

Max Flow with nozzle open ......................................... 1.6 GPM

at minimum pressure

Rated Flow under typical load ..................................... 1.1 GPM

Unpacking

Carton Contents

• Electric pressure washer

• Transport handle

• Trigger gun

• Turbo lance

• Jet lance

• Wheel + rim bristle brush

• Foamer cannon

• Two (2) large Phillips head screws (for handle)

• Trigger gun holder

• High-pressure hose/cord holder

• Rear compartment

• Two (2) small Phillips head screws (for Rear compartment)

• Needle clean-out tool (included with manual packet)

• High-pressure hose

• Two (2) wheels

• Garden hose adapter (female coupler)

• Manuals with registration card

1. Carefully remove the pressure washer and check to see

that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or

missing parts, DO NOT return the unit to the store. Please

call the Snow Joe

+ Sun Joe

customer service center at

1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging

material until you are ready to use your new electric

pressure washer. The packaging is made of recyclable

materials. Properly dispose of these materials in

accordance with local regulations.

IMPORTANT! The equipment and packaging material are

not toys. Do not let children play with plastic bags, foils,

or small parts. These items can be swallowed and pose a

suocation risk!

mWARNING! Do not connect to power supply until

assembly is complete. Failure to comply could result in

accidental starting and possible serious personal injury.

Assembly

Tools required: Phillips head screwdriver

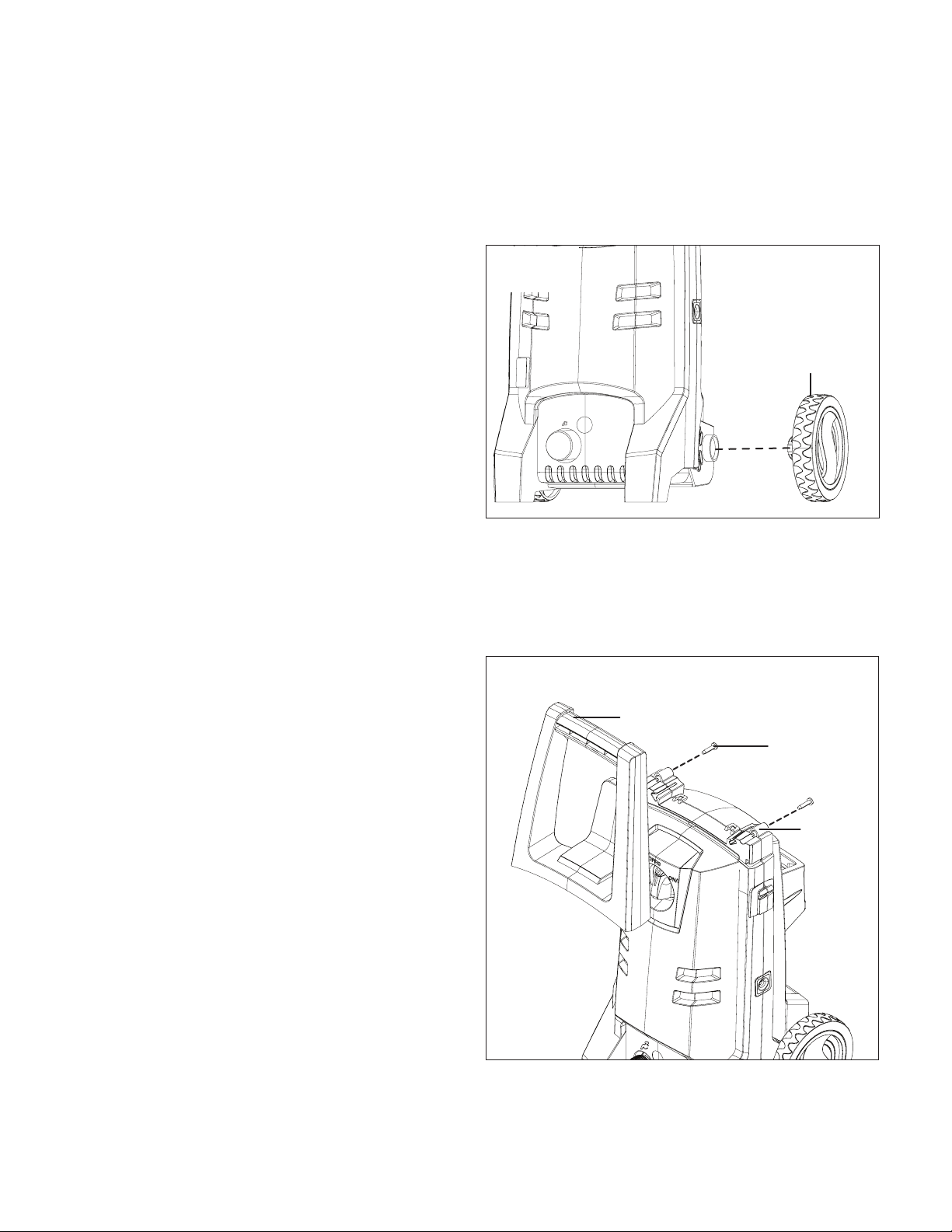

1. Lay unit on its side. Firmly press the wheel onto the unit

body until it locks into place. Repeat on the opposite side

(Fig. 1).

2. Following the alignment grooves at the top of the machine

body, slide the handle into position from the front to the

back, so that the solid side of the handle faces the front

of the washer. Secure the handle using a Phillips head

screwdriver and the two (2) supplied large Phillips head

screws (Fig. 2).

Fig. 1

Wheel

Fig. 2

Handle

Alignment

grooves

Large Phillips

head screws

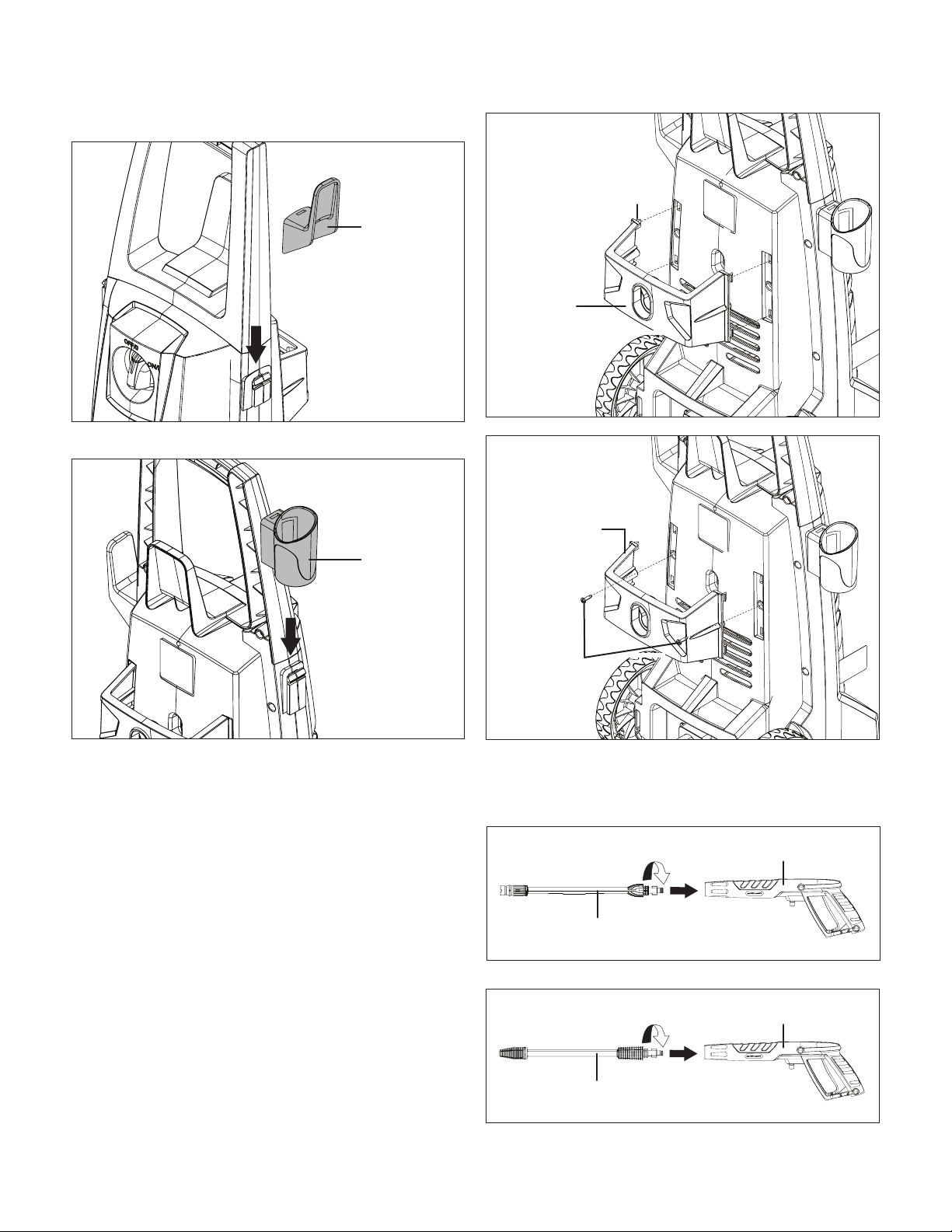

3. Slide the hose/cord holder into position (Fig. 3).

4. Slide the trigger gun holder into position (Fig. 4).

5. Fit the 4 small tabs on the rear compartment into the

holes in the back of the machine. Push inside until the

rear compartment clicks in. Fix the assembly with the two

small Phillips head screws (Figs. 5 – 6).

6. Fit the jet lance or turbo lance into the trigger gun and

rotate until the two parts are completely locked

(Figs. 7 – 8).

Fig. 3

Hose/

cord holder

Fig. 4

Trigger gun

holder

Fig. 5

Rear

compartment

Insert the tab

into the hole

Small Phillips

head screws

Fig. 6

Rear

compartment

Jet lance

Trigger gun

Fig. 7

Turbo lance

Trigger gun

Fig. 8

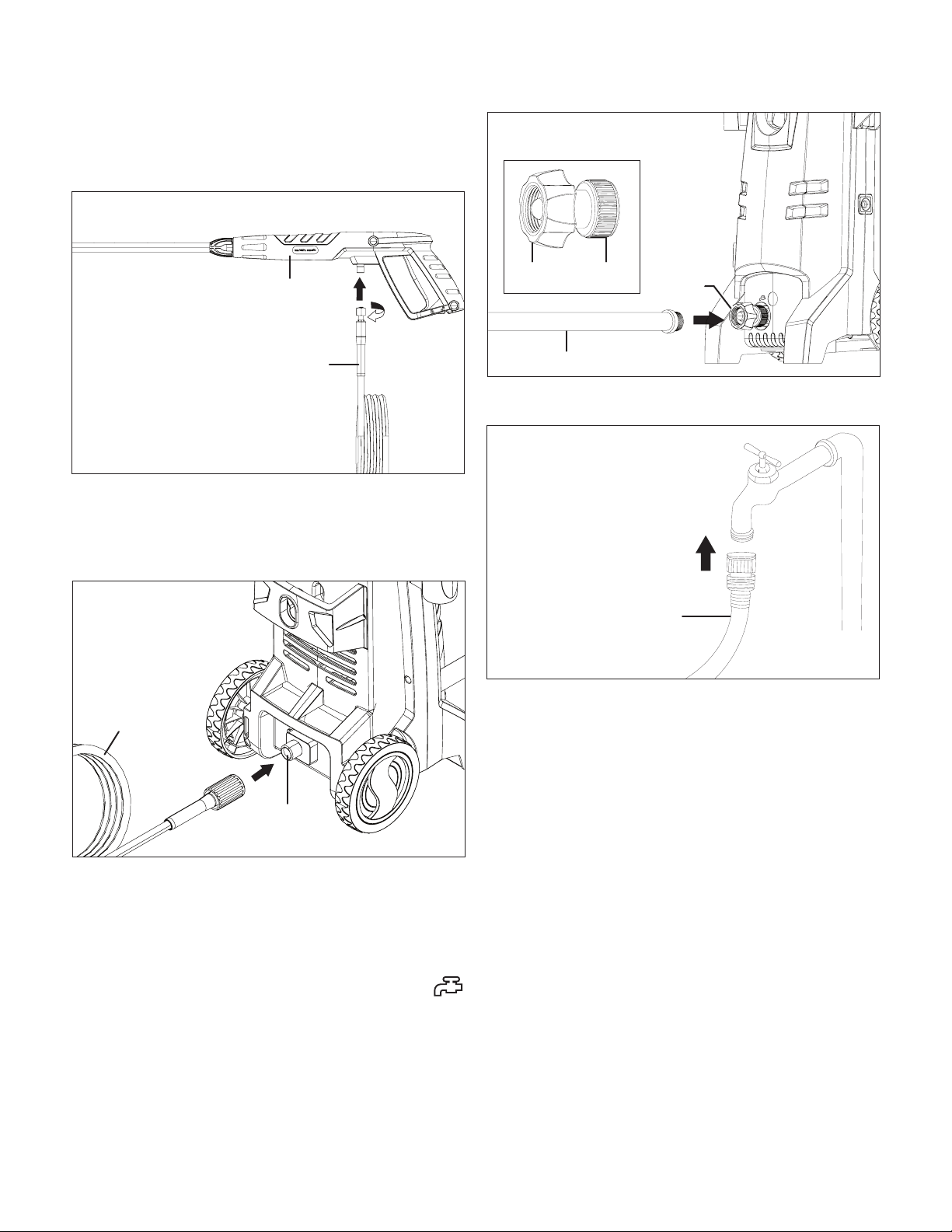

7. Screw the end of the high-pressure hose clockwise into

the trigger gun and tighten securely (Fig. 9). To release the

high-pressure hose from the trigger gun, unscrew the end

of the hose counterclockwise.

8. Connect the other end of the high-pressure hose to

the water outlet on the pressure washer (Fig. 10).

First, push the high-pressure hose end completely onto

the high-pressure water outlet, then screw it on clockwise.

Tighten securely.

mWARNING! Keep hose away from sharp objects.

Bursting hoses may cause injury. Examine hoses regularly and

replace if damaged. Do not attempt to mend a damaged hose.

9. Connect the garden hose adapter (female coupler) to

the water inlet of the pressure washer, then thread your

garden hose (male end) into the garden hose adapter

(Fig. 11). The garden hose must have an internal diameter

of at least 13 mm (1/2 in.) and must be reinforced.

The water supply must be at least equal to the washer

delivery capacity.

NOTE: The machine is not suitable for connection to the

potable water main.

10. Attach garden hose to water supply (Fig. 12).

mWARNING! The intake water temperature must

not exceed 104ºF/40ºC. The water supply must not

exceed 0.7 MPa.

mCAUTION! The washer must only be used with clean

water; use of unltered water containing corrosive chemicals

will damage the washer.

Trigger gun

Fig. 9

High-pressure hose

Fig. 10

(BACK)

High-pressure

water outlet

High-pressure

hose

Fig. 11

(FRONT)

Water inlet

(female

coupler)

Garden hose

(male end)

This end to

water inlet

Fig. 12

Connect to water supply

Garden hose

11. Make sure the motor switch is pushed to the OFF (0)

position before plugging the unit into the power outlet

(Fig. 13).

12. Check that the electrical supply voltage and frequency

(Volt/Hz) correspond to those specied on the pressure

washer rating plate. If the power supply is correct,

you may now plug the pressure washer into the power

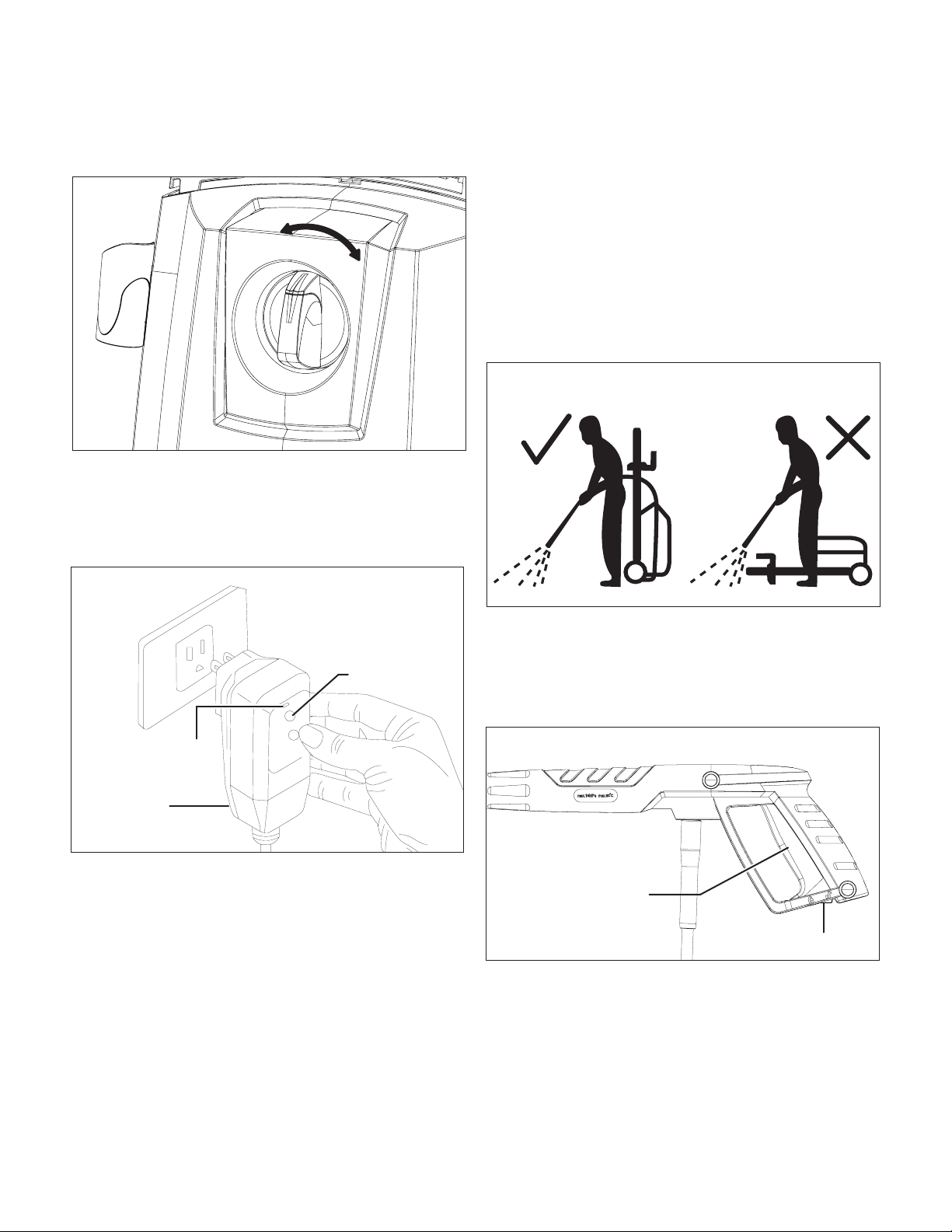

outlet (Fig. 14).

NOTE: The GFCI may need to be reset when rst plugged

into the electric outlet. Press the "Reset" button until the

power light indicator on the GFCI illuminates.

mCAUTION! To prevent damage to the appliance, do not

allow it to operate dry. Before starting the appliance, make

sure that it has proper and stable supply of water.

Operation

mIMPORTANT! This pressure washer is equipped with

a micro-switch sensitive to water ow. This Total Stop System

(TSS) senses water ow in the pump. When the trigger is

released, water stops owing through the pump. The TSS then

automatically turns the motor o to protect the pump from

overheating, thus saving energy and prolonging pump life.

1. Position the washer as CLOSE as possible to the water

supply.

2. The washer must be used on a secure and stable surface

in a standing, upright position (Fig. 15).

3. Turn the water supply tap on completely.

4. Unlock the safety lock, then press the trigger for a few

seconds until the water ow is steady. Operating the

pressure washer in this manner will allow air to escape

and discharge residual pressure in the hose (Fig. 16).

5. Keeping the trigger pressed, turn the switch to the ON (I)

position to start the pressure washer.

6. When re-starting the motor, always keep the trigger

pressed.

NOTE: The motor only runs when the trigger is depressed

and shuts o when the trigger is released.

OFF/0

ON/l

Fig. 13

RESET

TEST

Fig. 14

GFCI

Power light

indicator

Reset

Fig. 15

Fig. 16

Trigger

Safety lock

Using the Adjustable Jet Nozzle Lance

mWARNING! High-pressure jets can be dangerous if

subject to misuse. The jet must not be directed at persons,

pets, live electrical equipment, or the appliance itself.

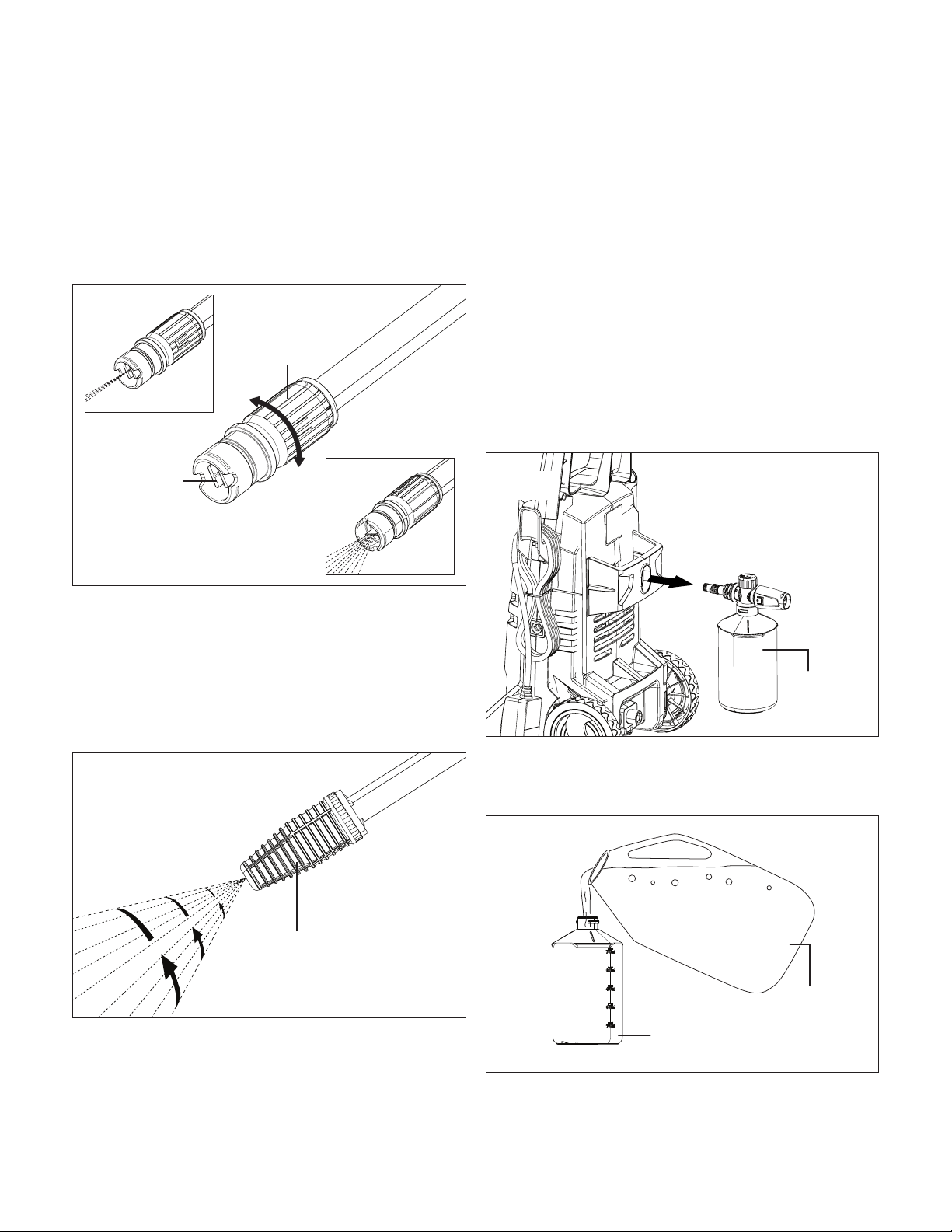

The nozzle tip can be adjusted from jet spray (wide open tip)

to fan spray (narrow tip) by turning the nozzle tip adjustment

knob (Fig. 17).

mWARNING! Do not adjust the nozzle while the trigger

is squeezed. Failure to do so could result in damage.

Using the Turbo Nozzle Lance

Use the turbo nozzle lance for high impact cleaning (Fig. 18).

The powerful oscillating pinpoint jet of water cleans faster than

standard nozzles to destroy dirt, grease, and grime on contact.

Working with Detergents

When cleaning with the pressure washer, some cleaning tasks

can be solved with water alone, but for most tasks cleaning

with detergent allows for more eective dirt removal.

mWARNING! Use only detergents specically designed

for use with pressure washers, such as Sun Joe

HOUSE +

DECK WASH (SPX-HDC1G), Sun Joe

SNOW FOAM AUTO

WASH (SPX-FCS1G), or Sun Joe

HEAVY DUTY CLEANER

(SPX-APC1G). DO NOT USE household detergents, acids,

alkaline solutions, bleaches, solvents, ammable material,

or industrial grade solutions. These could damage the

pressure washer. Many detergents may require mixing prior

to use. Prepare the cleaning solution as instructed on the

solution bottle.

1. Gently pull the foam cannon bottle out of its storage

position (Fig. 19).

2. Remove the cap. Fill the bottle or mix as recommended by

detergent instructions (Fig. 20), and secure the cap back

into place. Replace it back on the unit.

Fig. 17

Jet spray

Fan spray

Nozzle tip

adjustment knob

Nozzle tip

Fig. 18

Turbo nozzle

Fig. 19

Foam

cannon

bottle

Fig. 20

Detergent

for pressure

washer

Foam cannon

bottle

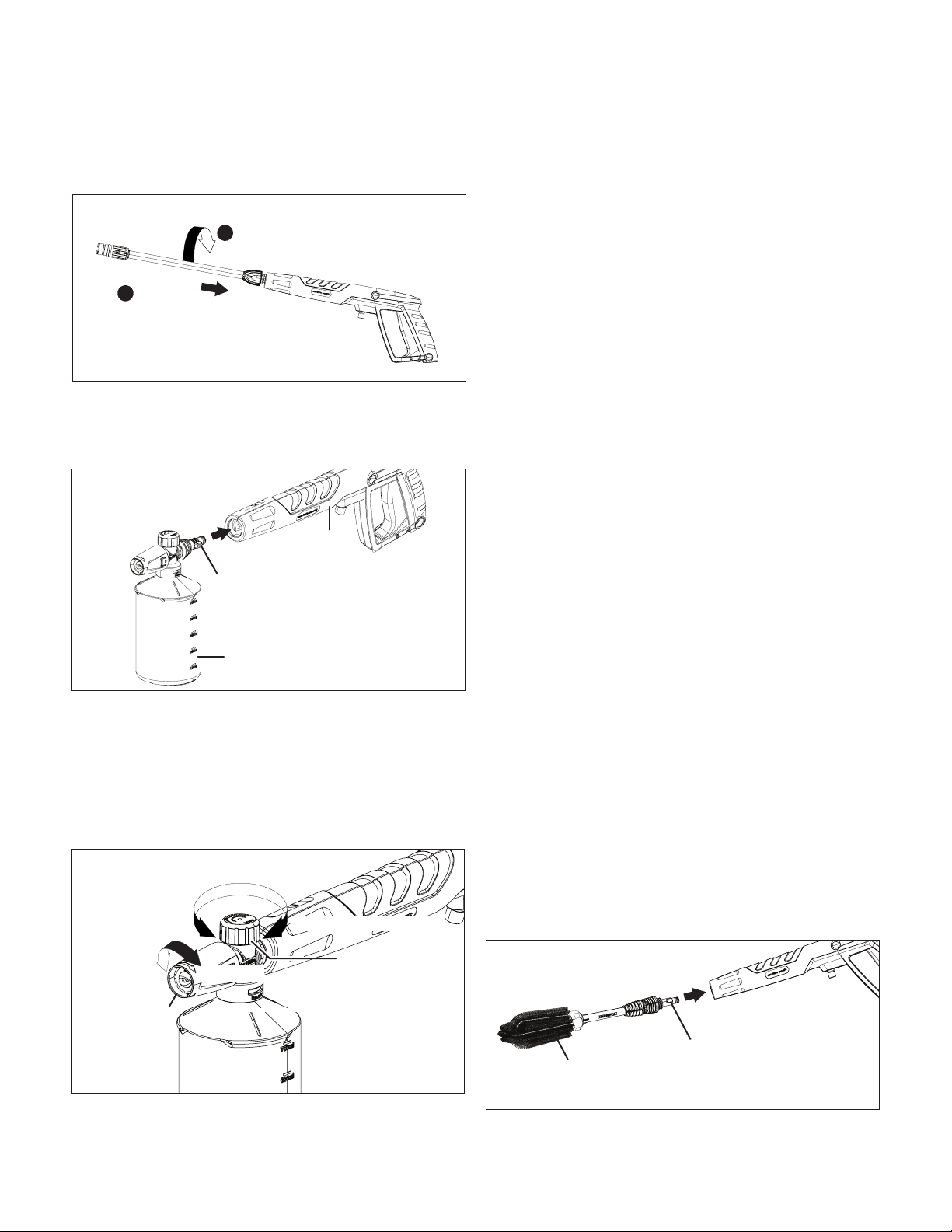

3. Disconnect the spray wand from the trigger gun by

pressing it in rmly and twisting clockwise until the 2

locking tabs of the lance can be removed from the slot

(Fig. 21).

4. To connect the foam cannon with the trigger gun,

press the locking tabs of the foam cannon into the slot

of the trigger gun, then twist counterclockwise until the 2

parts are completely locked (Fig. 22).

5. Turn on the pressure washer. Pull the trigger to operate the

unit. The liquid detergent will automatically mix with water

and be discharged through the nozzle.

NOTE: The spray angle can be adjusted from pencil jet to

fan spray by rotating the foam cannon nozzle. The foam

volume can be adjusted by rotating the adjustable cap, as

indicated below (Fig. 23).

mWARNING! Do not adjust the foamer cannon while the

trigger is squeezed. Failure to do so could result in damage.

mCAUTION! Always test the detergent in an

inconspicuous area before use.

6. Apply detergent from the bottom to the top of the dry

surface to be cleaned.

NOTE: Wetting the surface rst is not recommended as it

dilutes the detergent and reduces its cleaning ability.

7. Allow the detergent to remain on the surface for a short

time before rinsing. Do not allow the detergent to dry on

the surface.

mCAUTION! Damage may occur to painted surfaces if

the detergent is allowed to dry on the surface. Wash and rinse

a small section at a time. Avoid working on hot surfaces or in

direct sunlight.

8. When nished using the pressure washer, you must rst

drain and rinse the foam cannon bottle. Run the pressure

washer until all of the soap is drained from the foam

cannon bottle.

mCAUTION! Failure to follow these cleaning instructions

will cause the injection system to become clogged and

inoperable.

mIMPORTANT! NEVER USE:

• Bleach, chlorine products, and other corrosive chemicals

• Liquids containing solvents (e.g. paint thinners,

gasoline, oils)

• Tri-sodium phosphate products

• Ammonia products

• Acid-based products

These chemicals will harm the unit and will damage

the cleaning surface.

Using the Wheel + Rim Bristle Brush

Sun Joe

wheel + rim bristle brush safely cleans painted,

topcoat, and delicate surfaces. Compatible with all Sun Joe

SPX series pressure washers.

1. If not already done, detach your lance from your trigger

gun (Fig. 21).

2. Take the wheel + rim bristle brush and align the two tabs

with the inside of the trigger gun (Fig. 24).

3. Once aligned, push the wheel + rim bristle brush into the

trigger gun, twist counterclockwise to lock into place.

Fig. 21

Press the lance inside

Twist the lance as shown

Fig. 22

Trigger gun

Foam cannon

Locking tab

Fig. 23

Adjustable cap

Decrease

soap volume

Increase soap volume

Adjustable

nozzle

Pencil jet

Fan spray

Fig. 24

Wheel + rim

bristle brush

Locking tab

Shutting down

1. Turn the switch to the OFF (0) position and unplug the

power cord from the outlet.

2. Turn o the water source.

3. Hold the trigger to release water pressure.

4. Disconnect the garden hose from the water inlet on

the unit.

5. Disconnect the high-pressure hose connection on the

trigger gun handle.

6. Release the trigger and engage the gun safety lock.

mWARNING! Turn o the water supply and squeeze the

trigger to depressurize the unit. Failure to do so could result in

personal injury due to discharge of high-pressure water.

Taking a break

If you are taking a break of ve minutes or more between

cleaning tasks:

1. Engage the gun safety lock (Fig. 16).

2. Turn the switch to the OFF (0) position.

3. Unplug the power cord from the outlet.

Storage

mCAUTION! Always store your pressure washer in a

location where the temperature will not fall below 32ºF (0ºC).

The pump in this machine is susceptible to permanent damage

if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE

WARRANTY.

• Store the pressure washer indoors in a dry, covered area

where it is not subject to adverse weather conditions.

• It is important to store this product in a frost-free area.

• Always empty water from all hoses, the pump, and the

detergent bottle (if using) before storing.

mCAUTION! The use of a pump protector is

recommended to prevent cold weather damage during storage

over the winter months.

Winterizing + long-term storage

If you must store your pressure washer in a location where

the temperature falls below 32ºF (0ºC), you can minimize the

chance of damage to your machine by utilizing the following

procedure:

• Disconnect all water connections.

• Turn on the machine for a few seconds until the remaining

water in the pump exits. Turn o immediately.

• Do not allow the high-pressure hose to become kinked.

• Store the machine and accessories in a room that does

not reach freezing temperatures.

• Do not store near a furnace or other sources of heat that

may dry out the pump seals.

• Operate the pressure washer with non-corrosive/non-toxic

anti-freeze, a pump saver, or a pump protector before

storing for the winter.

mWARNING! Before reusing, completely ush the unit

out with clear water. Anti-freeze products can damage

paintwork, so you must ensure there is no anti-freeze left in the

system before using it again.

Maintenance

mCAUTION! Before working on the pressure washer,

disconnect the plug from the power supply socket.

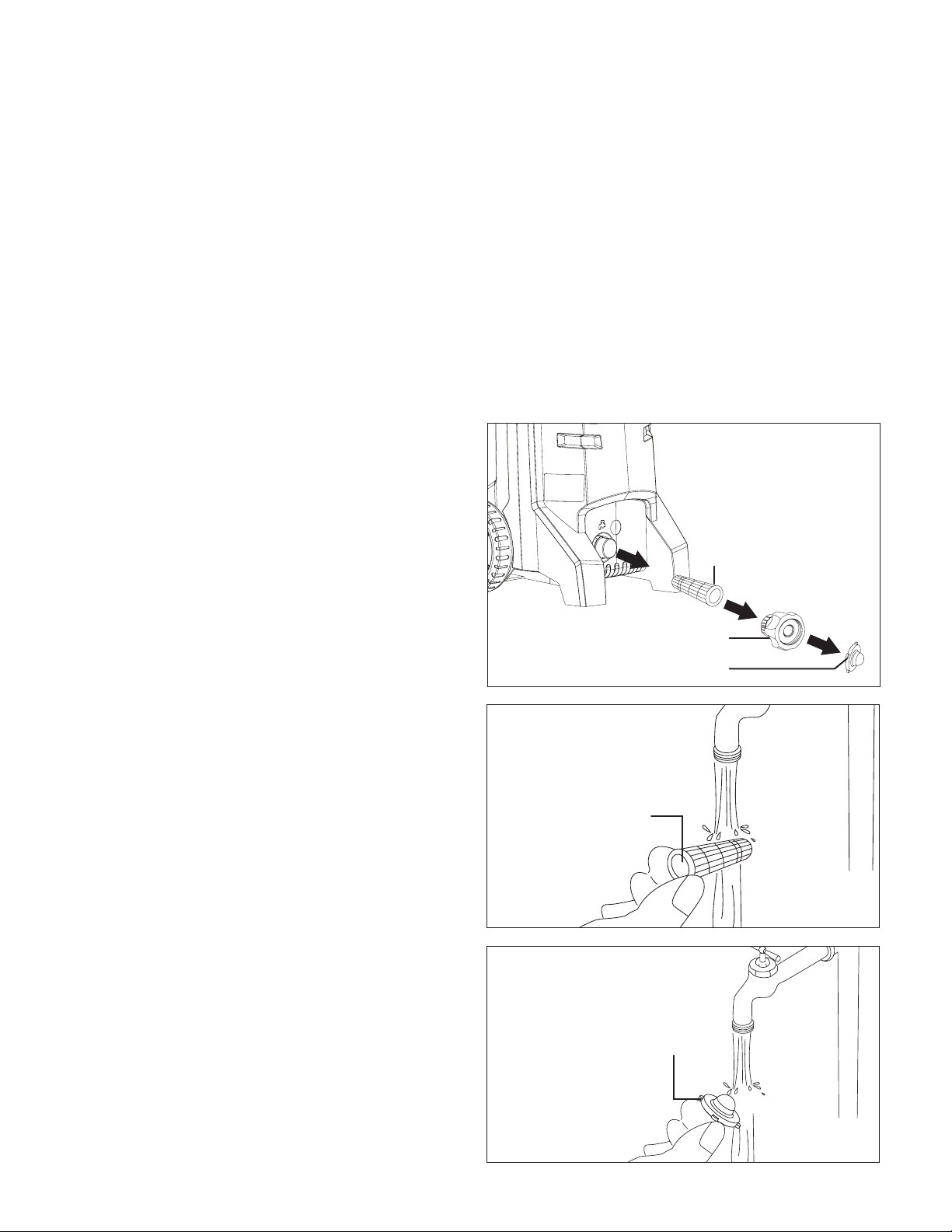

1. To ensure good performance, check and clean the water

inlet lter (Fig. 25). Remove the pre-lter and water inlet

lter and rinse with warm water to prevent any foreign

matter from clogging the pump (Figs. 26 – 27).

Fig. 25

(FRONT)

Garden hose adapter

Waterinletlter

pre-lter

Fig. 26

Inletlter

Fig. 27

Pre-lter

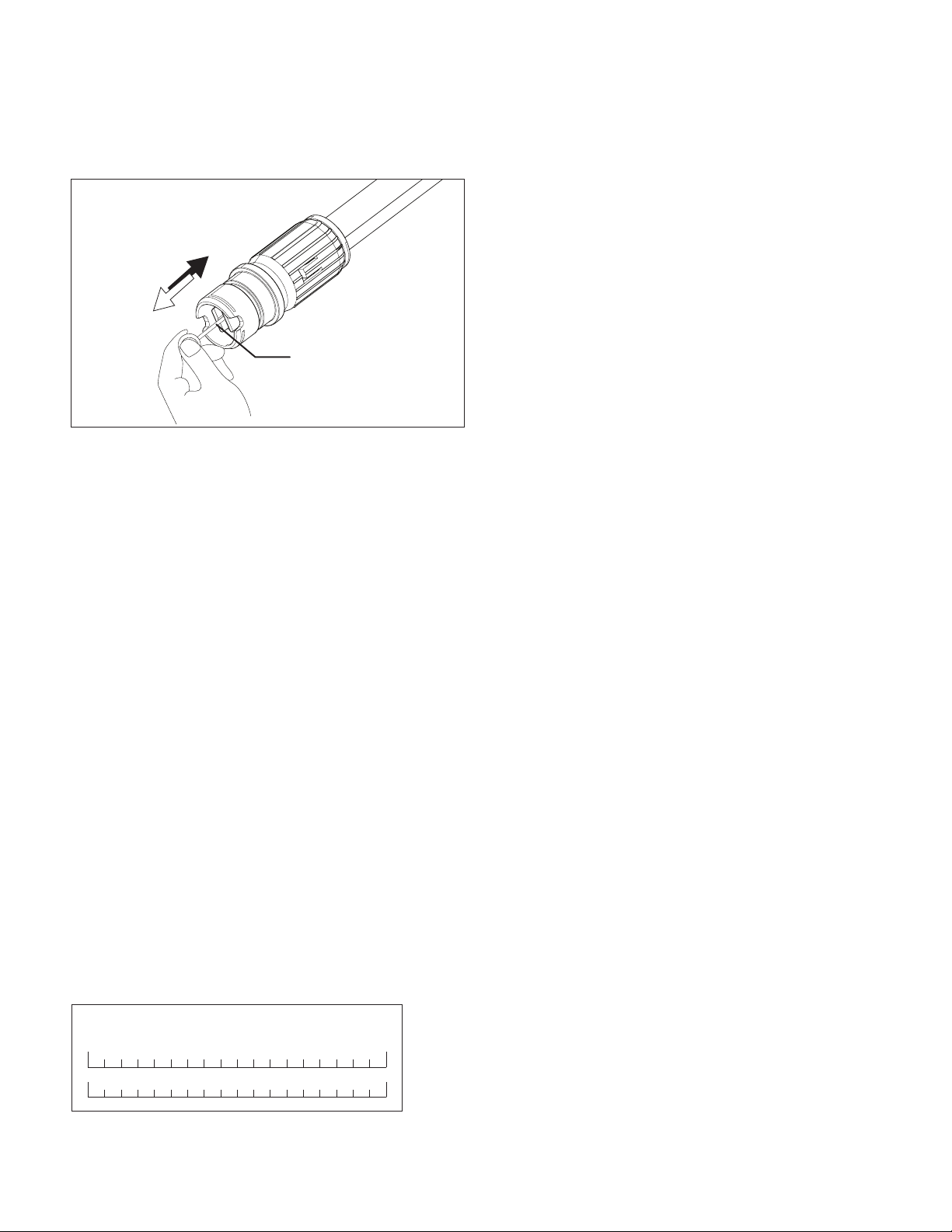

2. Clean the nozzle with the needle clean-out tool provided

(Fig. 28). Remove the spray wand from the gun; remove

any dirt from the nozzle hole and rinse.

Disposal

Recycling the washer

• Do not dispose of electrical appliances as unsorted

municipal waste. Use separate collection facilities.

• Contact your local government agency for information

regarding the collection systems available.

• If electrical appliances are disposed of in landlls

or dumps, hazardous substances can leak into the

groundwater and get into the food chain, damaging your

health and well-being.

• When replacing old appliances with new ones, the retailer

is legally obligated to take back your old appliance for

disposal at least free of charge.

Service + Support

If your Sun Joe

SPX2002-MAX-RM electric pressure washer

requires service or maintenance, please call the Snow Joe

Sun Joe

customer service center at 1-866-SNOWJOE

(1-866-766-9563).

Model + Serial Numbers

When contacting the company, reordering parts, or arranging

service from an authorized dealer, you will need to provide the

model and serial numbers, which can be found on the decal

located on the housing of the unit. Copy these numbers into

the space provided below.

Fig. 28

Needle clean-out tool

Record the following numbers from the housing or handle of your

new product:

SPX2002-MAX-RM

Model #:

Serial #:

Troubleshooting

• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that

its parts are in proper working order.

• To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues.

Problems Possible Cause Possible Solution

Machine refuses

to start

• Power failure/machine not

plugged into a working receptacle.

• Defective socket.

• Fuse has blown.

• Defective extension cord.

• Check to make sure machine is plugged into

a working outlet.

• Check the power cord and reset the GFCI.

Try a dierent outlet.

• Replace fuse. Switch o any other machines

that are using the same circuit.

• Try the unit without an extension cord.

• Check the hoses and connections are airtight.

• Clean or replace valves/seals.

• Please call the Snow Joe

+ Sun Joe

customer

service center at 1-866-SNOWJOE (1-866-766-9563)

for assistance.

• Replace fuse. Switch o other machines using

the same circuit.

• Check that the mains voltage corresponds to

specication on the model tag.

• Leave the washer for 5 minutes to cool down.

• Clean the nozzle.

• Install a fuse with a higher amp rating than the

amp consumption of the machine. Try the unit

without an extension cord.

• Allow machine to run by holding the trigger until

regular working pressure resumes.

• Check that the water supply corresponds to the

specications required.

• WARNING! Avoid using long, thin hoses

(minimum 1/2 in. diameter).

• Clean the nozzle.

• Clean the water inlet lter.

• Straighten out the hose to remove any kinks/blockages.

• Please call the Snow Joe

+ Sun Joe

customer service

center at 1-866-SNOWJOE (1-866-766-9563) for

assistance.

• Wait for pump/hoses or accessories to thaw.

• Connect inlet water.

• Clean the water inlet lter.

• Clean the nozzle.

• Pump sucking air.

• Valves dirty, worn out, or stuck.

• Pump seals worn out.

• Fuse has blown.

• Incorrect mains voltage.

• Thermal sensor activated.

• Nozzle partially blocked.

• Fuse too small.

• Air in inlet hose.

• Inadequate supply of mains water.

• Nozzle partially blocked.

• Water lter blocked.

• Hose kinked.

• Pump/spray gun is leaking.

• Trigger mechanism is broken.

• Pump/hoses or accessories frozen.

• No water supply.

• Water inlet lter blocked.

• Nozzle blocked.

Fluctuating pressure

Machine stops

Fuse blows

Machine pulsating

Machine often starts

and stops by itself

Machine starts, but

no water comes out

Optional Accessories

mWARNING! ALWAYS use only authorized Snow Joe

+ Sun Joe

replacement parts and accessories. NEVER use

replacement parts or accessories that are not intended for use with this electric pressure washer. Contact Snow Joe

+ Sun Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of any

other attachment or accessory can be dangerous and could cause injury or mechanical damage.

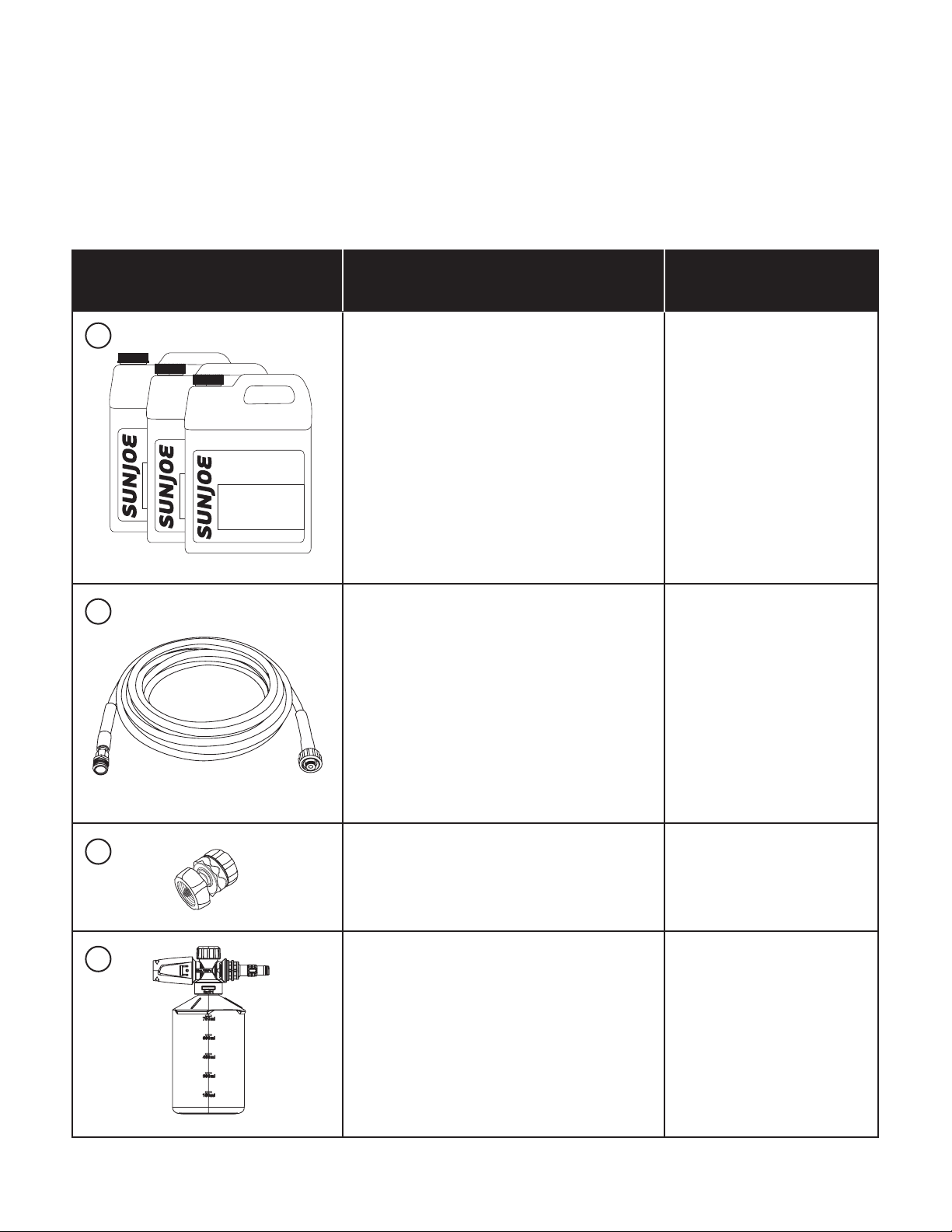

25-Foot Medium-duty Extension Hose for

SPX Pressure Washer Series

Solid Brass Universal Quick Connector

(Garden Hose to Pressure Washer Adapter)

26  oz.Adjustable Snow Foamer Cannon

SPX-25H

SPX-UQC

SPX-FC26

ModelAccessories Item

Sun Joe

House + Deck All-Purpose Pressure

Washer Rated Concentrated Cleaner

Sun Joe

Premium Snow Foam Pressure

Washer Rated Car Wash Soap + Cleaner

Sun Joe

All-Purpose Heavy Duty Pressure

Washer Rated Cleaner + Degreaser

SPX-HDC1G

SPX-FCS1G

SPX-APC1G

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

+ Sun Joe

to provide notice of such

changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

+ Sun Joe

customer

service center at 1-866-SNOWJOE (1-866-766-9563).

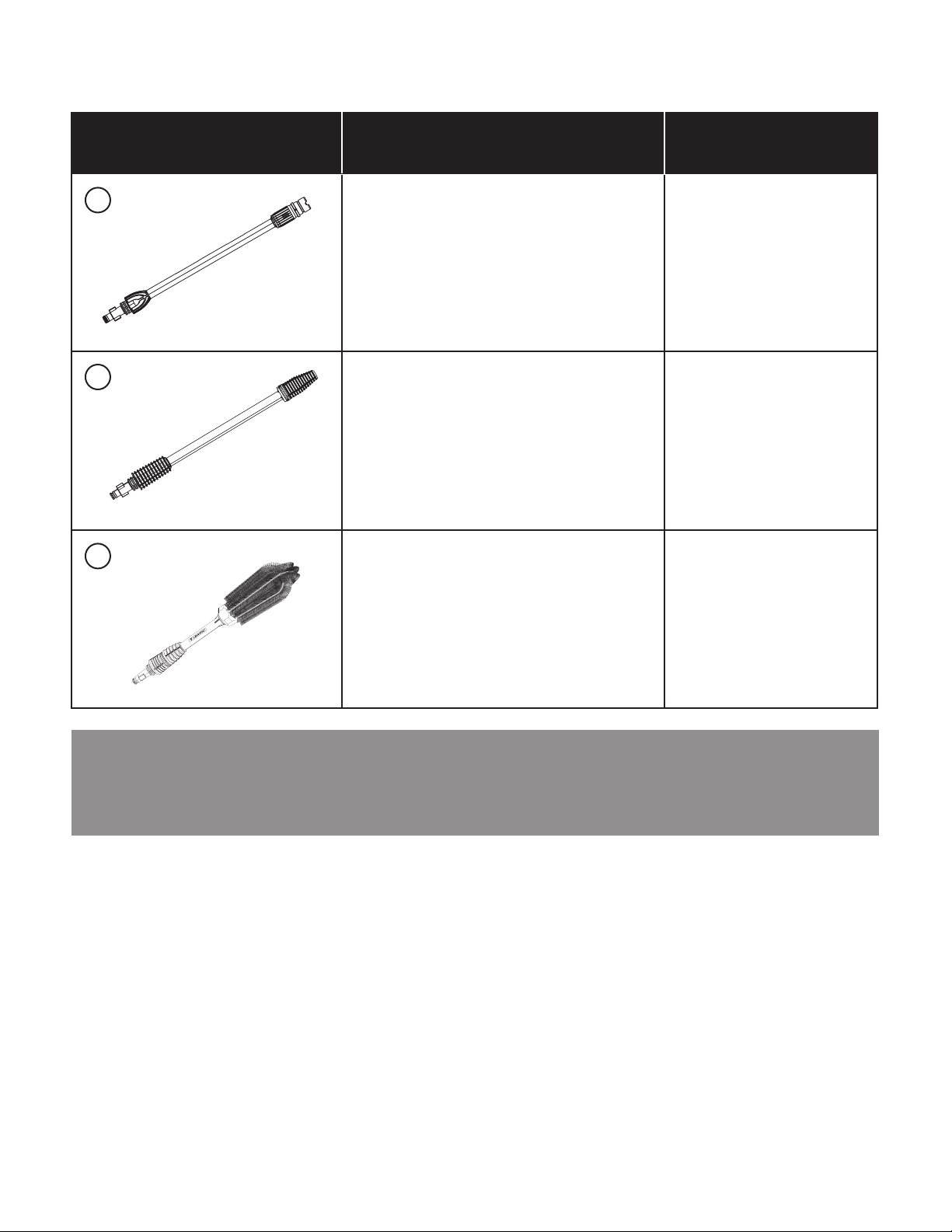

Jet Lance for SPX Pressure Washer Series

Turbo Lance for SPX Pressure Washer Series

Wheel + Rim Bristle Brush for

SPX Pressure Washer Series

SPX-JTL

SPX-TBL

SPX-WB1

ModelAccessories Item

Sun Joe’s complete line of premium pressure washer accessories and attachments

make it easy to get your dirty work done, and also help you get the most out of your model!

SHOP ONLINE now at sunjoe.com

SNOW JOE

+ SUN JOE

REFURBISHED GOODS WARRANTY

GENERAL CONDITIONS:

Snow Joe

+ Sun Joe

operating under Snow Joe

, LLC warrants

this refurbished product to the original purchaser for 90 days

against defects in material or workmanship when used for normal

residential purposes. If a replacement part or product is needed,

it will be sent free of charge to the original purchaser except as

noted below.

The duration of this warranty applies only if the product is put to

personal use around the household. It is the owner’s responsibility

to correctly perform all maintenance and minor adjustments

explained in the owner’s manual.

HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:

To obtain a replacement part or product, please visit

snowjoe.com/help or email us at [email protected] for

instructions. Please be sure to register your unit beforehand

to speed up this process. Certain products may require a serial

number, typically found on the decal afxed to the housing

or guard of your product. All products require a valid proof

of purchase.

EXCLUSIONS:

• Wearing parts like belts, augers, chains and tines are

not covered under this warranty. Wearing parts can be

purchased at snowjoe.com or by calling 1-866-SNOWJOE

(1-866-766-9563).

• Batteries are covered in full for 90-days from the date of

purchase.

Snow Joe

+ Sun Joe

may from time to time change the design of

its products. Nothing contained in this warranty shall be construed

as obligating Snow Joe

+ Sun Joe

to incorporate such design

changes into previously manufactured products, nor shall such

changes be construed as an admission that previous designs

were defective.

This warranty is intended to cover product defects only.

Snow Joe

, LLC is not liable for indirect, incidental or

consequential damages in connection with the use or misuse of

the Snow Joe

+ Sun Joe

products covered by this warranty.

This warranty does not cover any cost or expense incurred

by the purchaser in providing substitute equipment or service

during reasonable periods of malfunction or non-use of this product

while waiting for a replacement part or unit under this warranty.

Some states do not allow exclusions of incidental or consequential

damages so the above exclusions may not apply in all states. This

warranty may give you specic legal rights in your state.

HOW TO REACH US:

We’re here to help Monday through Friday from 9AM to 7PM EST

and Saturday and Sunday 9AM to 4PM. You can reach us at

1-866-SNOWJOE (1 866-766-9563), online at snowjoe/com, via

email at [email protected] or tweet us @snowjoe.

EXPORTS:

Customers who have purchased Snow Joe

+ Sun Joe

products exported from the United States and Canada should

contact their Snow Joe

+ Sun Joe

distributor (dealer) to obtain

information applicable to your country, province or state. If for

any reason, you are not satised with the distributor’s service,

or if you have difculty obtaining warranty information, contact

your Snow Joe

+ Sun Joe

seller. If in the event your efforts are

unsatisfactory, please reach out to us directly.

sunjoe.com

Sun Joe SPX2002-MAX-RM Electric Pressure Washer Turbo Lance Onboard Foam Cannon 1900 PSI Max* 1.6 GPM Max* Certified Refurbished

Product's Documents

User Manual

Specifications

Sun Joe SPX2002-MAX-RM Questions and Answers

Related Products

Sun Joe SPX3160 Electric Pressure Washer 11-Amp Ultra-Portable 360º Rotating Wheels

Sun Joe SPX1050 Electric Pressure Washer, 3-Quick Connect Tips & 11.8 fl oz Foam Cannon

Sun Joe SPX1500 Electric Pressure Washer

Sun Joe SPX3500 Electric Pressure Washer

Sun Joe SPX7000-MAX Electric Pressure Washer 2200 PSI Turbo Nozzle Foam Cannon 15-Amp Efficient Performance

Sun Joe SPX2680-MAX Electric Pressure Washer WFoam Cannon + Extension Wand 13-Amp
