Repeat steps to pair additional Pico remote controls.
Outdoor Smart Plug

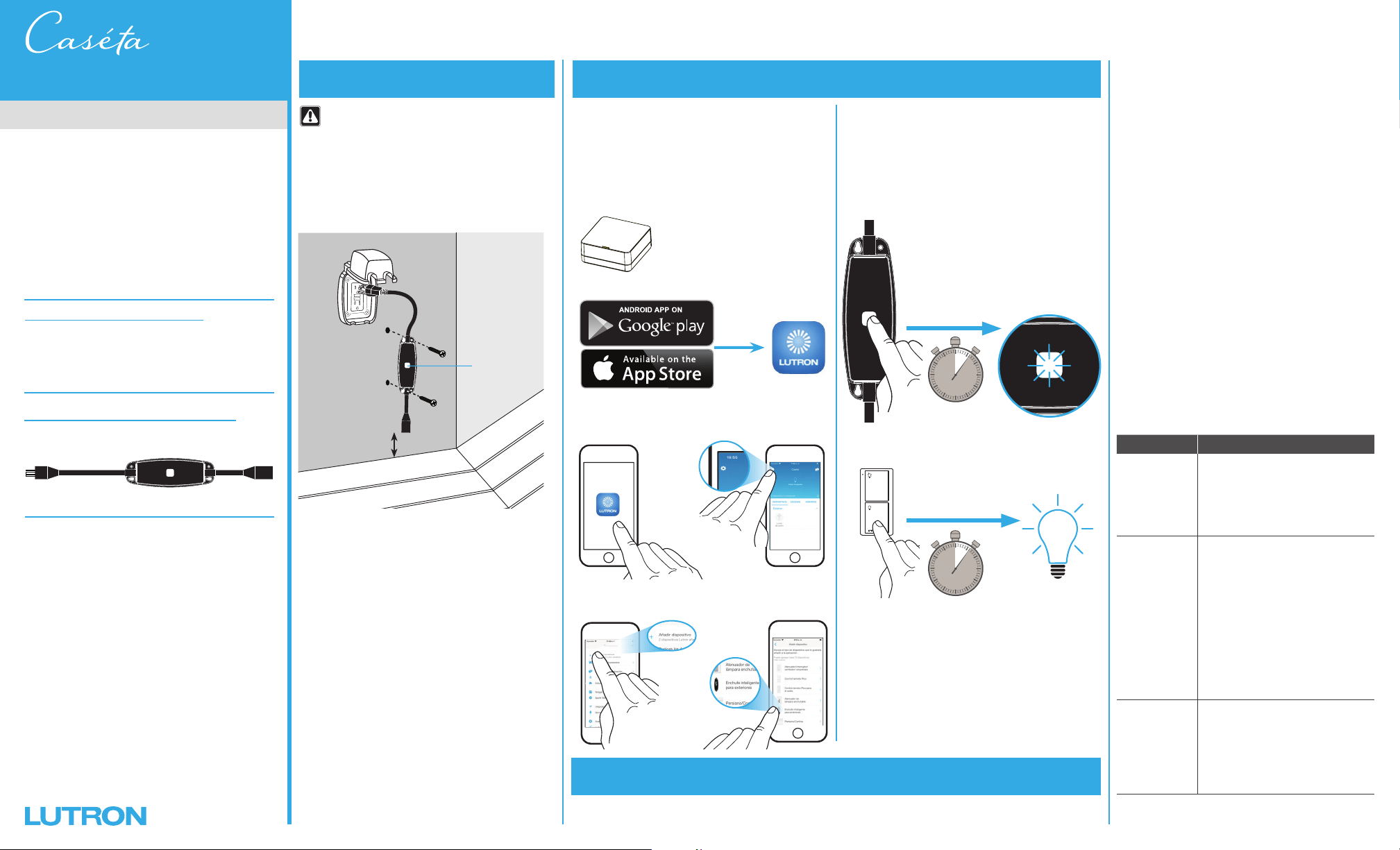

Installing your outdoor smart plug
1
Plug in the device
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
Go to www.lutron.com/casetasupport for
additional troubleshooting suggestions.
Troubleshooting
2
Add a wireless control if desired
Wireless
quick-start guide
This device complies with part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) This device may not cause interference, and (2) this
device must accept any interference, including interference that may cause
undesired operation. Modifications not expressly approved by Lutron
Electronics Co., Inc. could void the user’s authority to operate
this equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC / IC Information
Ensure the end of the cord is at least 3 in (76.2 mm)
above the ground when plugged in.
Optional: Mount the plug using appropriate screws
(not supplied).
3 in
(76.2 mm)
minimum
On / Off
WARNING: ELECTRIC SHOCK HAZARD.
May result in Serious Injury or Death. This device
must be plugged into a GFCI protected circuit.
www.casetawireless.com/LutronApp
Connect to a Caséta System
For advanced features like
scheduling, geo-fencing, and
control by voice or phone (Smart
Bridge required, sold separately)
Lutron
Lutron
Lutron Smart Bridge
a. Download the Lutron App
b. Launch the
Lutron App
Pairing with a Pico
Remote Control
For wireless control from anywhere
in your home (Pico remote control
required, sold separately)
x3
A Pico remote control may also be paired via the
Lutron app (Smart Bridge required).
PJ2-2B-GWH-L01
0
5
10
15
6 sec
0
5
10
15
6 sec
a.
b.
Note: Returning an outdoor smart plug to its factory
settings will remove it from the Caséta system and
unpair it from a Pico remote control.
Note: Unplug all loads from the outdoor smart plug
prior to returning to factory settings.
1: Triple tap the On / Off button on the outdoor smart
plug. DO NOT release the button after the third tap.
2: Keep the On / Off button pressed for approximately
3 seconds until the button flashes quickly.
3: Release the On / Off button and immediately triple
tap it again. This time release the button after the
third tap. The button will flash slowly.
The outdoor smart plug has now been returned to its
factory settings.
Resetting the outdoor smart
plug to its factory settings
The Lutron logo, Lutron, Caséta, and Pico are trademarks or registered
trademarks of Lutron Electronics Co., Inc. in the US and/or other
countries.
Apple is a trademark of Apple Inc., registered in the U.S. and other
countries. AppStore is a service mark of Apple Inc.
All other product names, logos, and brands are property of their
respective owners.
© 2021 Lutron Electronics Co., Inc.
c. Press the Gear Icon
d. Press Add
Device
e. Press the Outdoor
Smart Plug Icon
c.
Symptoms Probable cause and action
Load / light does
not turn on.
• Light bulb(s) is /are burned
out or load does not work.
• Outlet is switched off.
• GFCI is tripped.
Load / light does
not respond
to Pico remote
control.
• The outdoor smart plug failed
to pair with Pico remote
control. See Step 2.
• The Pico remote control is
outside the RF operating
range.
• The Pico remote control
battery is low or installed
incorrectly.
• The Pico remote control
battery is installed incorrectly.
Load/light does
not respond
to the Caséta
system.
• The outdoor smart plug was
not properly added to the
Caséta system. See Step 2.
• The outdoor smart plug is
outside the RF operating
range.
3
Plug in the load and operate
Do not exceed the rating of the outdoor smart plug. Ensure any extension cords are rated for at least 15 A.
Power: 120 V~ 50 / 60 Hz
Load: Up to 15 A lighting loads, up to 1/2 HP
motor loads, or up to 1200 VA (8 A) lighting
transformer / magnetic ballast loads.
RF Operating Range: Guaranteed to work up
to 60 ft (18 m) line-of-sight or 30 ft (9 m) through
walls (longer ranges are possible depending on
conditions).
Install in accordance with all national and local
electrical codes.
Contents supplied
Double your warranty
Outdoor Smart Plug (PD-15OUT-BL)
Register your outdoor smart plug at
www.casetawireless.com/register
P/N 0301978a
For warranty information, please visit
www.casetawireless.com/warranty
