User Manual Braeburn 1020NC Thermostat

This thermostat requires 24 Volt AC Power or two (2) properly installed

“AA” Alkaline batteries for proper operation. When connecting 24 Volt

AC Power the batteries may be installed as a backup.

For use only as described in this manual. Any other use

will void warranty.

1020NC

Single Stage Heat / Cool

Conventional and Heat Pump

Speciﬁcations

About Your Thermostat

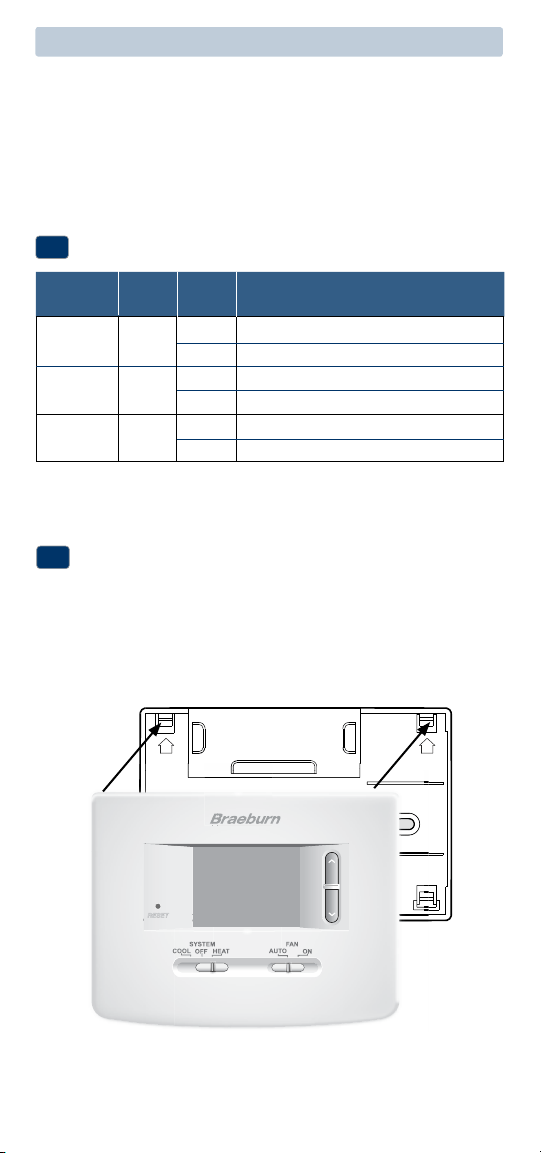

Installation

System Testing

Setting User Options

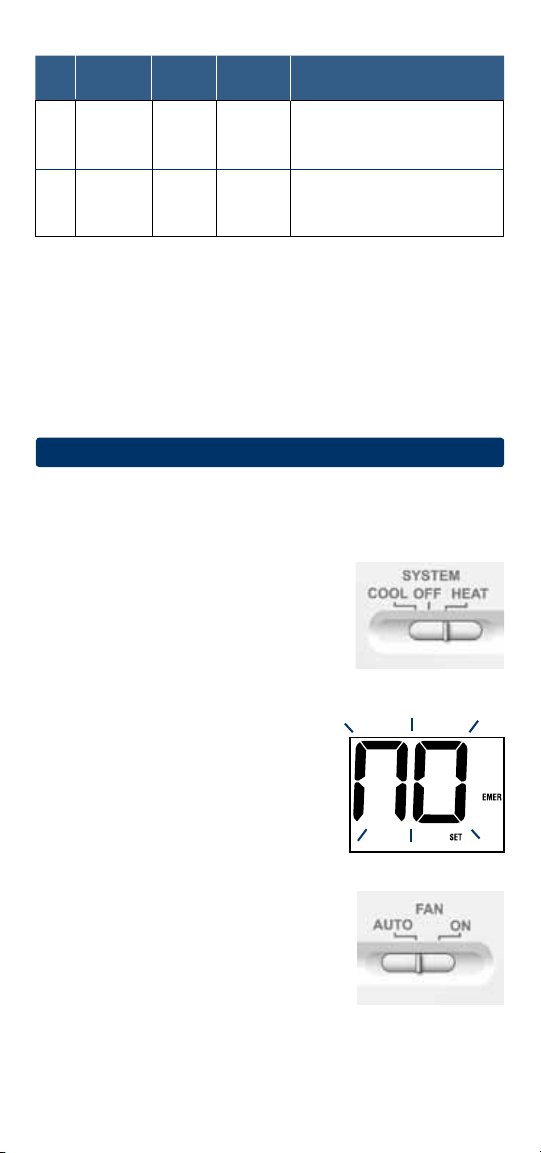

Operating Your Thermostat

Additional Operation Features

Thermostat Maintenance

Warning

Turn off power to the heating or cooling

equipment before installation.

Attention

For installation by experienced service

technicians only.

1220NC

Up to 2 Heat / 1 Cool

Conventional and Heat Pump

Read all instructions before proceeding.

This thermostat is compatible with:

  • Singlestageheat/coolconventionalandheatpumpsystems

  • Conventionalsystemsupto2heat/1cool(1220NConly)

  • Singlecompressorheatpumpsystemswithanauxiliaryheatstage(1220NConly)

  • 250–750millivoltheatonlysystems

Electrical and control speciﬁcations:

 •ElectricalRating:24VoltAC

  •1ampmaximumloadperterminal

  •ACPower:18–30VoltsAC

  •DCPower:3.0VoltDC(2“AA”AlkalineBatteriesIncluded)

  •ControlRange:45°–90°F(7°–32°C)

  •TemperatureAccuracy:+/-1°F(+/-.5°C)

Terminations

  •1020NC–Rc,Rh,O,B,Y1,W1,G,C

  •1220NC–Rc,Rh,O,B,Y1,E/W1,G,W2,C

Speciﬁcations

1020NCW-100-03

Non-Programmable

Thermostats

Model number is located on back of thermostat

Detailed

Installer Guide
