User Manual Dimplex FOR20 Fortrose Optimyst Electric Stove

• Owner's manual - (English)

• Spec Sheet (web) - (English)

User manual Optimyst Stove for Dimplex FOR20

Contents

• Introduction
• Important Safety Advice
• OVERHEATING
• DAMAGE
• LOCATION
• PLUG POSITIONING
• USE OF OTHER CONTROLS
• UNPLUGGING
• OWNER/USER
• ELECTRCITY
• Technical Information
• General Information
• Installation Instructions
• Operating the Fire
• Maintenance
• FILLING THE WATER TANK
• CHANGING LAMPS
• CLEANING
• Additional Information
• Troubleshooting

Installation Instructions

Before installing this appliance in an existing chimney, we recommend that;

1. You have your chimney cleaned by a competent chimney sweep.
2. You block off the chimney flue. This procedure is important for the efficient operation of the heating unit and will also reduce heat loss up the chimney.

BEFORE YOU START

1. Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible future use e.g. in the event of moving house or returning the appliance to your supplier.
2. Before connecting the stove, check that the supply voltage is the same as that stated on the heater.

INSTALLATION

• Place the stove against a wall and connect the stove to your electricity supply.
• Connect the power cable to the appropriate power connector at the back of the fire
• Plug the power cable into a 13amp/240volt outlet. Do not yet switch the appliance on.

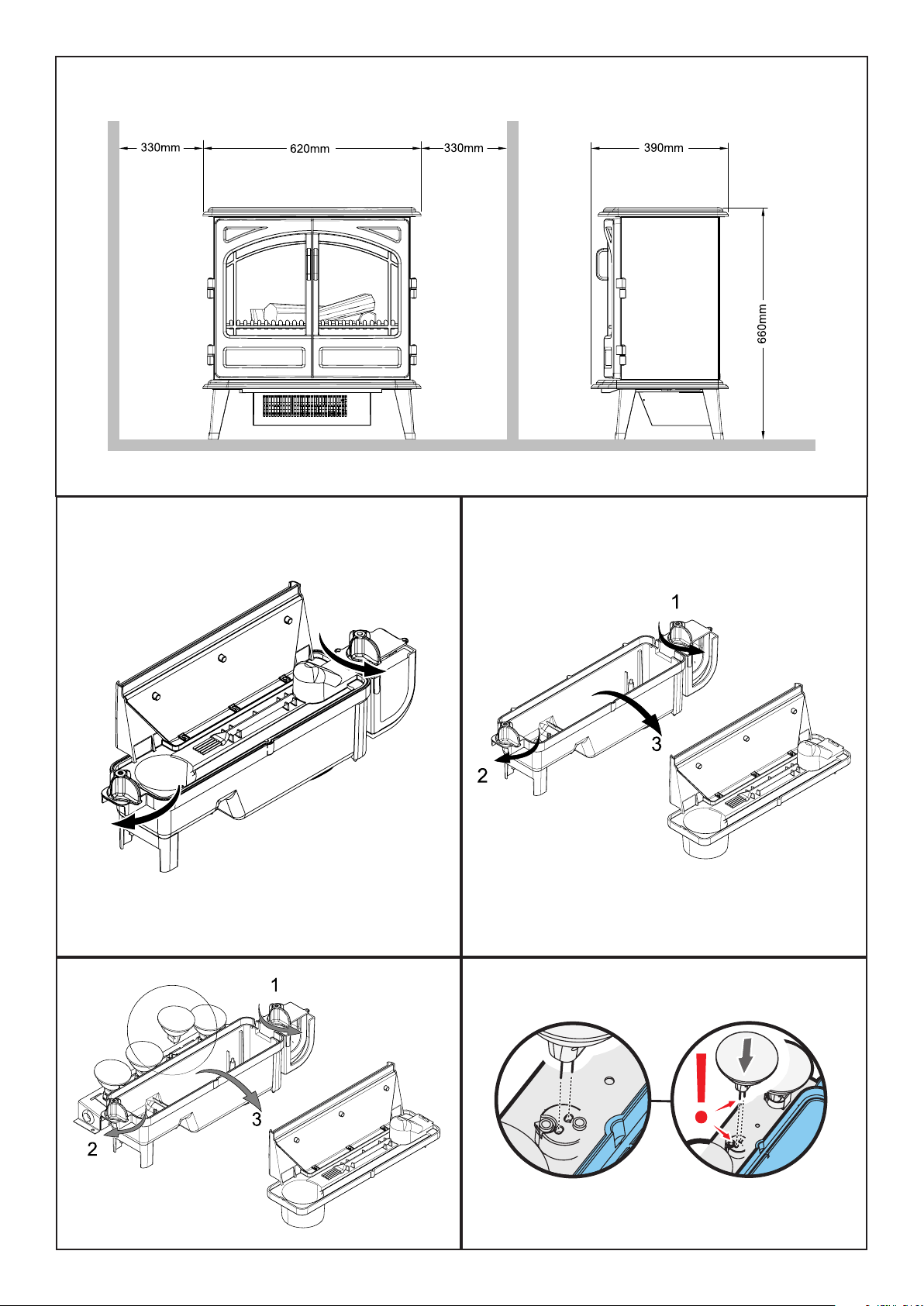

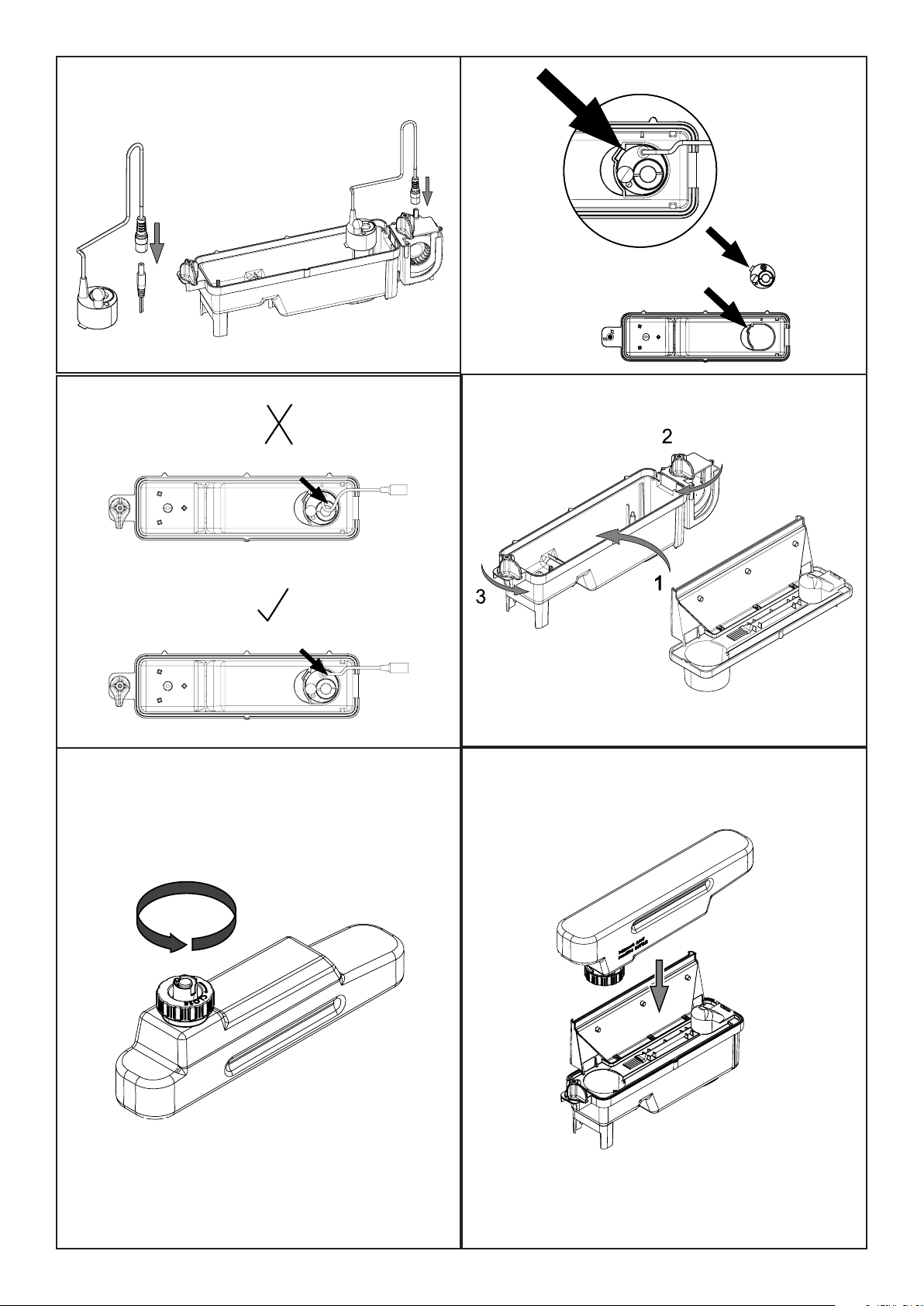

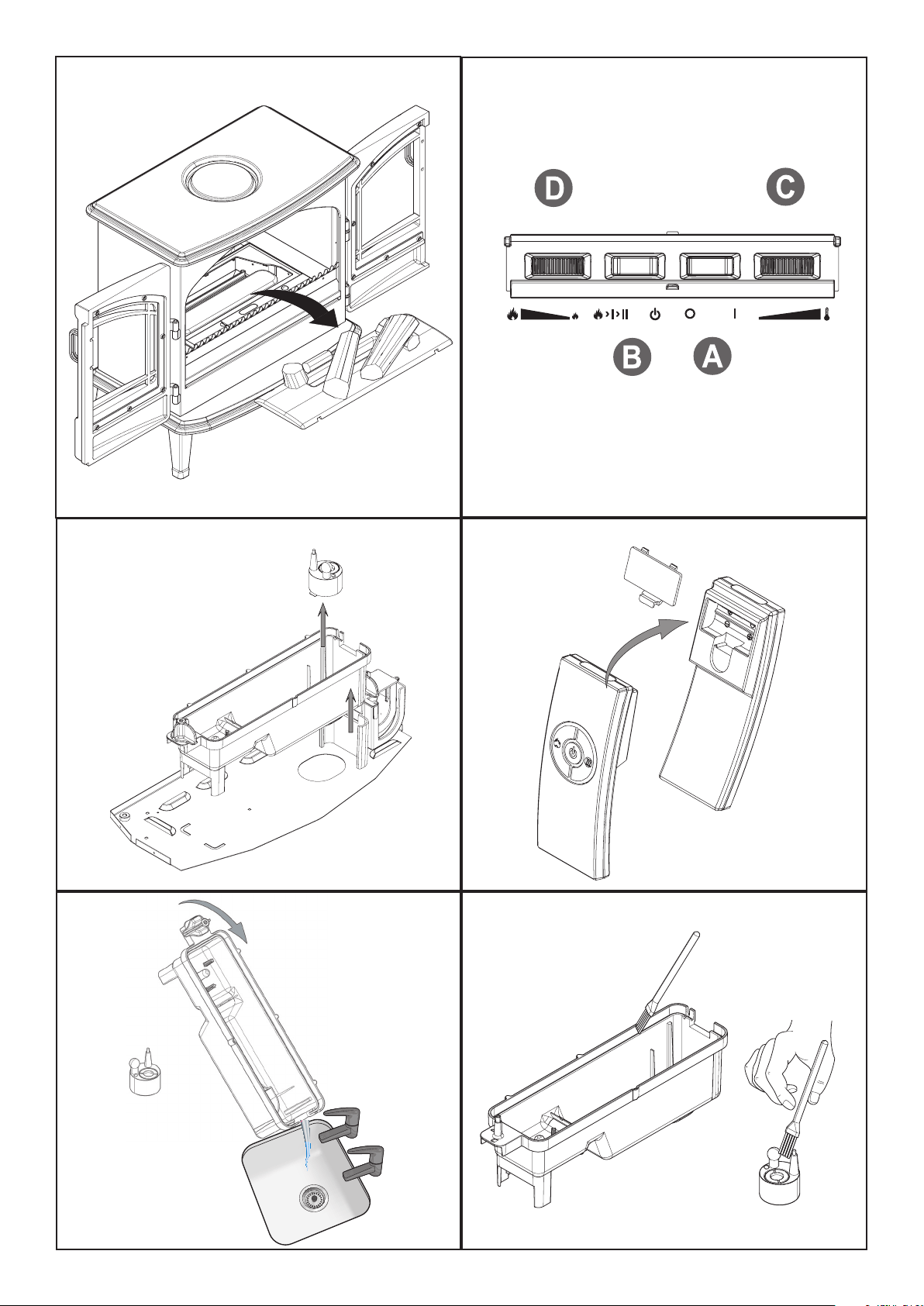

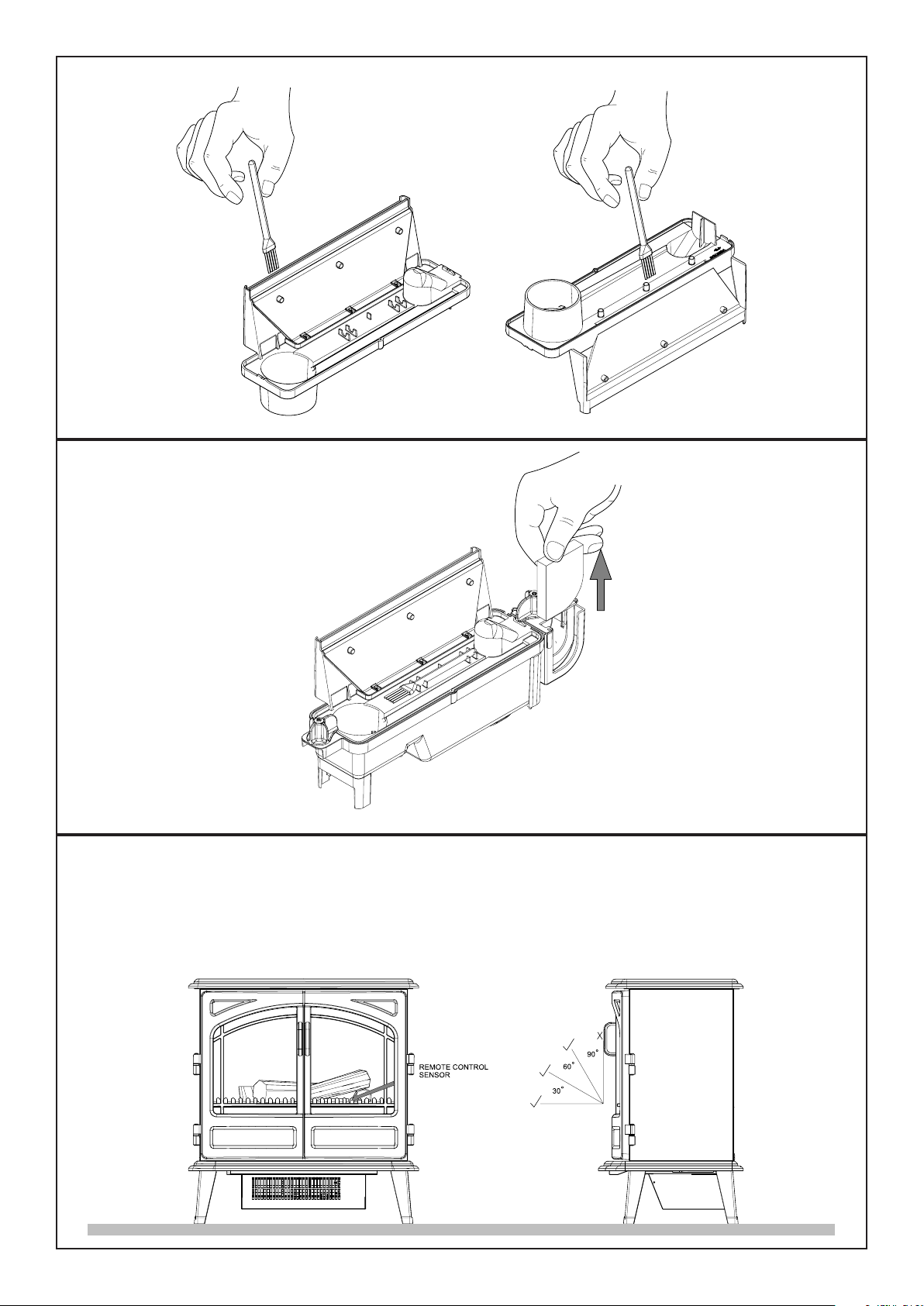

Connecting the Transducer Unit + Lamps

1. Release the two red tabs by turning them by 90 degrees
2. Lift out the Sump Nozzle
3. Insert lamps into lamp holders carefully locating the pins into the holes
4. Push lamps firmly into place
5. Place the Transducer Unit into the sump and join the cable to the connector on the sump
6. To ensure that the Transducer Unit is correctly placed in the sump, the tab on the Transducer Unit should be lined up with the moulded recess in the sump
7. Ensure that the cable is not placed above the disc on the Transducer Unit. To prevent the cable becoming pinched between the nozzle and the sump, place the cable in the slot in the wall of the sump.
8. Replace the Sump Nozzle and secure it by turning the two red tabs by 90 degr
