Dimplex TNG20E Tango Optiflame Electric Stove

User Manual - Transcript

• Page 1 - English - : The product complies with the European Safety Standards EN60335230 and the European Standard Electromagnetic Compatibility EMCEN55014 EN605552 and EN605553 These cover the essential requirements of EEC Directives 200695EC and 2006108EC 08190752 UK Issue 3 TANGO CASPER TNG20 CAS20CAS20N

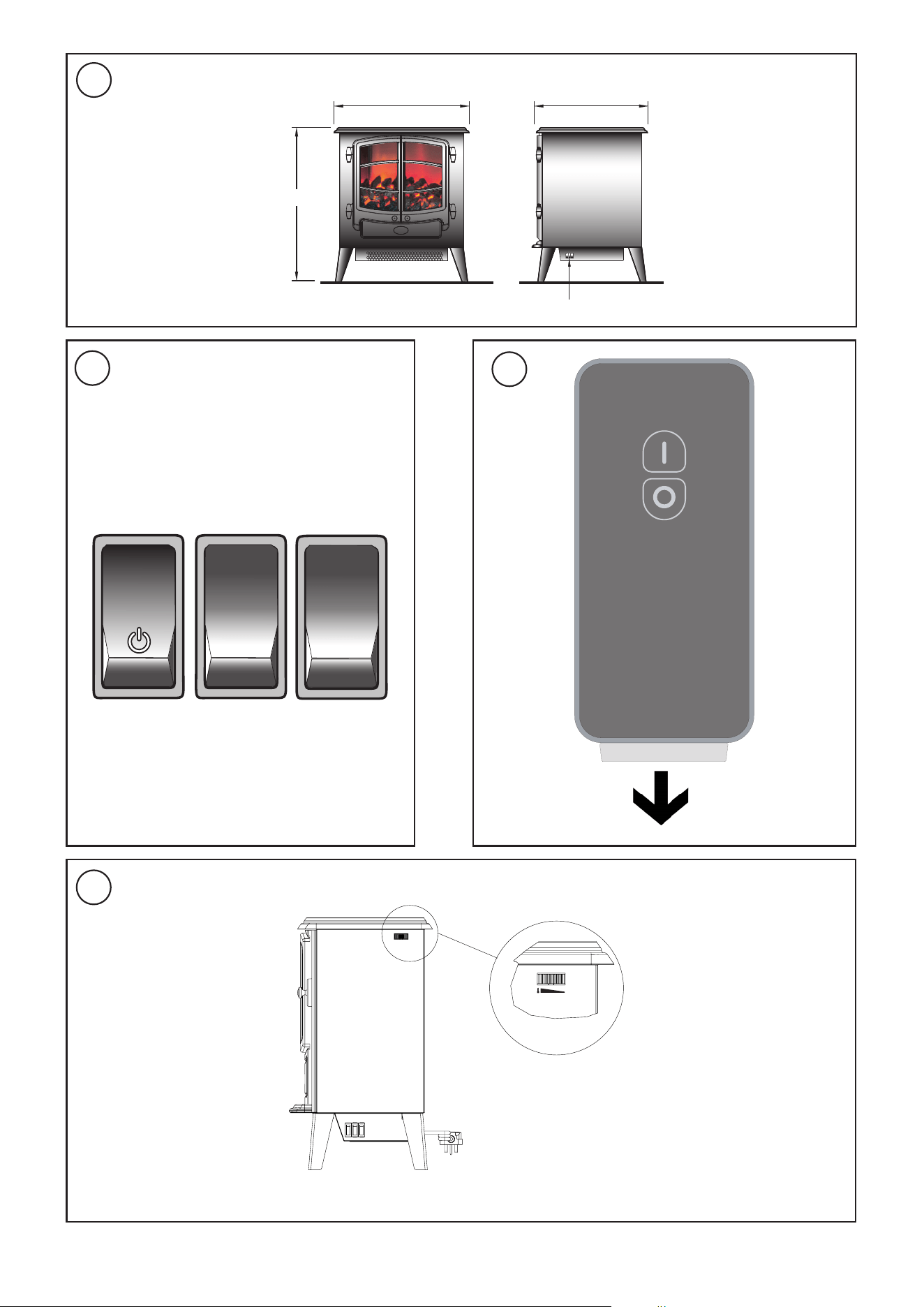

• Page 2: 440 295 TANGO TNG20 CASPER CAS20CAS20N I II II
• Page 3 - English - : General Unpack the heater carefully and retain the packaging for possible future use in the event of moving or returning the fire to your supplier These models are designed to be free standing and are normally positioned against a wall The fire incorporates a flame effect which can be used with or without heati ng so that the comforting effect may be enjoyed at any time of the year Using the flame effect on its own only requires little electricity A choice of 1kW or 2kW heat output is provided by the fan heater which is located at the bottom of the unit Before connecting the heater check that the supply voltage is the same as that stated on the heater On the Springborne model loose coals are packed separately within the carton When the heater is assembled the coals can be placed on top of the fuel bed as required Please note Used in an environment where background noise is very low it may be possible to hear a sound which is related to the operation of the flame effect This is normal and should not be a cause for concern Electrical connection WARNING THIS APPLIANCE MUST BE EARTHED This heater must be used on an AC supply only and the voltage marked on the heater must correspond to the supply voltage Before switching on please read the safety warnings and operating instructions Controls see Fig 2 The heater controls are located on the right hand side of the heater see Fig 1 Three switches provide a choice of heat settings A switch is in the ON position when the side with the markings on ie I I or II is pushed in Switch 1 I Controls the electricity supply to the heater and flame effect Note This switch must be in the ON I position for heater to operate with or without heat Switch 2 I Provides 1kW heat output Switch 3 II Provides 2kW output with switch 2 Lamp Replacement see Fig 3 Fig 4 and Fig 5 The lamps are located behind the back panel To gain access to the lamps the screws indicated in Fig 3 which secure the back panel must be removed Remove and slide out panel as indicated on Fig 4 Remove the defective lamp by unscrewing it as shown in Fig 5 Replace with a 60W E14 SES Clear candle lamp Take care not to overtighten the lamp Refit the back panel and secure with the screws Thermal Safety Cutout The builtin overheat cutout switches off the appliance automatically in the event of a fault Switch off the appliance or disconnect the mains plug from the socket After a short cooling down phase the appliance is ready for use again If the fault should occur again see your local dealer Maintenance WARNING ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE Cleaning WARNING ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE HEATER For general cleaning use a soft clean duster never use abrasive cleaners The glass viewing screen should be cleaned carefully with a soft cloth DO NOT use proprietary glass cleaners To remove any accumulation of dust or fluff the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan heater IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE Important Safety Advice When using electrical appliances basic precautions should always be followed to reduce the risk of fire electrical shock and injury to persons including the following If the appliance is damaged check with the supplier before installation and operation Do not use outdoors Do not use in the immediate surroundings of a bath shower or swimming pool Do not locate the appliance immediately below a fixed socket outlet or connection box This appliance can be used by children aged form 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by Children without supervision Children of less than 3 years should be kept away unless continuously supervised Children aged from 3 years and less than 8 years shall only switch onoff the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understanding the hazards involved Children aged from 3 years and less than 8 years shall not plug in regulate and clean the appliance or perform user maintenance Do not use this appliance in series with a thermal control a program controller a timer or any other device that switches on the heat automatically since a fire risk exists when the appliance is accidentally covered or displaced This appliance is not equipped with a device to control the room temperature Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the room on their own unless constant supervision is provided Ensure that furniture curtains or other combustible material are positioned no closer than 1 metre from the appliance In the event of a fault unplug the appliance Unplug the appliance when not required for long periods Although this appliance complies with safety standards we do not recommend its use on deep pile carpets or on long hair type of rugs The appliance must be positioned so that the plug is accessible If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard Keep the supply cord away from the front of the appliance Warning In order to avoid overheating do not cover the appliance Do not place material or garments on the appliance or obstruct the air circulation around the appliance for instance by curtains or furniture as this could cause overheating and a fire risk Warning In order to avoid a hazard due to inadvertent resetting of the thermal cutout this appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility CAUTION Some parts of this product can become very hot and cause burns Particular attention has to be given where children and vulnerable people are present This instruction can be found at WWWDIMPLEXCOUK TANGO TNG20 CASPER CAS20 CAS20N UK
• Page 4 - English - : DIMPLEX MILLBROOK HOUSE GRANGE DRIVE HEDGE END SOUTHAMPTON SO30 2DF TEL 0844 879 3585 FAX 0844 879 3582 WEBSITE wwwdimplexcouk Republic of Ireland Tel 01 8424833 c GDC Group Ltd All rights reserved Material contained in this publication may not be reproduced in whole or in part without prior permission in writing of Dimplex A division of GDC Group Ltd Recycling For electrical products sold within the European Community At the end of the electrical products useful life it should not be disposed of with household waste Please recycle where facilities exist Check with your Local Authority or retailer for recycling advice in your country After Sales Service Your product is guaranteed for one year from the date of purchase Within this period we undertake to repair or exchange this product free of charge excluding lamps amp subject to availability provided it has been installed and operated in accordance with these instructions Your rights under this guarantee are additional to your statutory rights which in turn are not affected by this guarantee Should you require after sales information or assistance with this product please go to wwwdimplexcouk where you will find our self help guide by clicking on After Sales or ring our helpdesk on 0844 879 3585 UK or 01 842 4833 ROI Spare parts are also available on the website wwwdimplexcouk Please retain your receipt as proof of purchase TANGO TNG20 CASPER CAS20 UK
