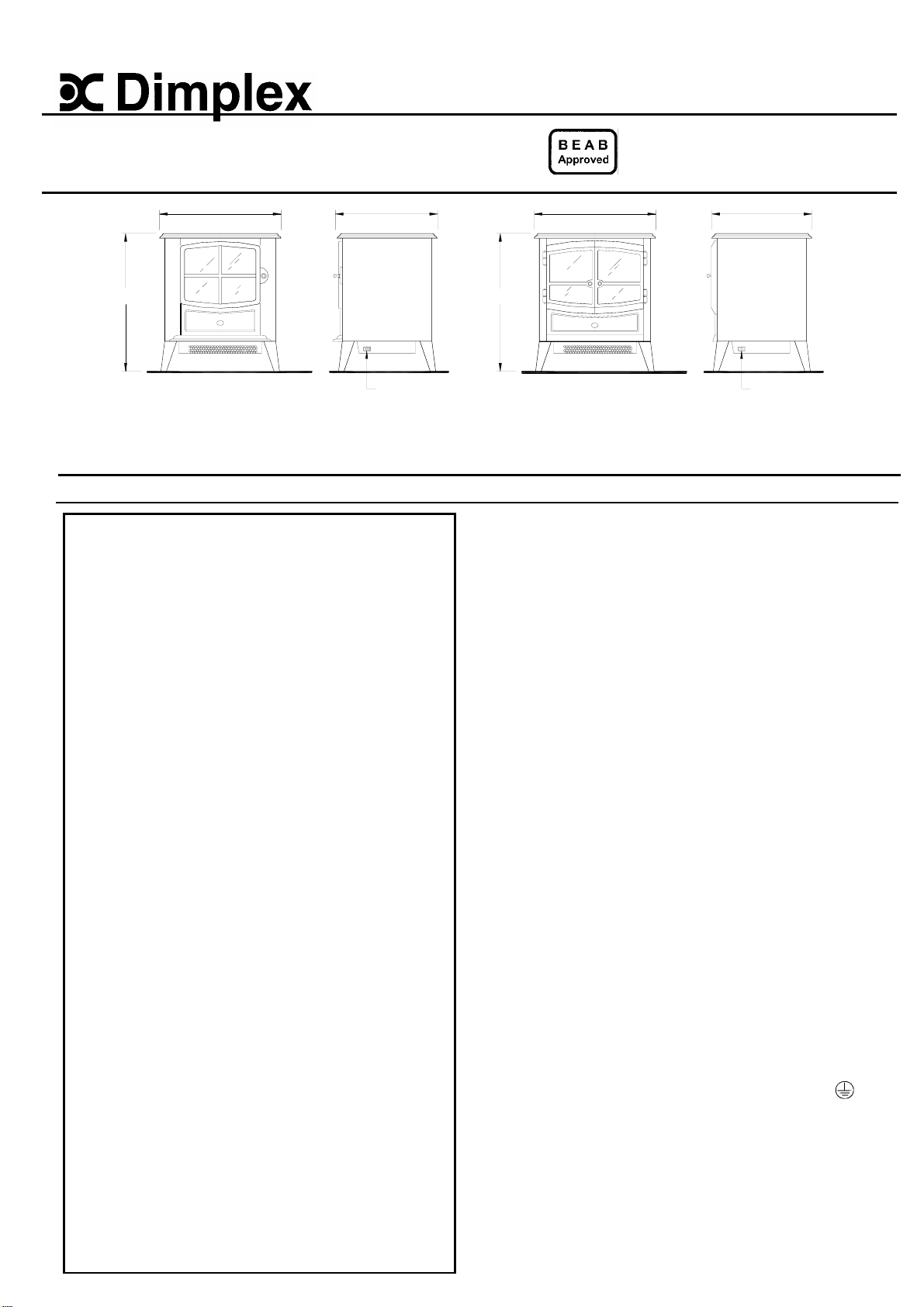

Brayford Model: BFD20
547
440
Springborne Model: SBN20
controls
295
547
440
controls
295
Important Safety Advice:
When using electrical appliances, basic precautions
should be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following :
• If the appliance is damaged, check immediately
with the supplier before installation and operation.
• Do not use this heater in the immediate
surroundings of a bath, shower or swimming pool.
• Do not use outdoors.
• This heater must not be located immediately below
a fixed socket outlet or connection box.
• Do not cover or obstruct in any way the heat outlet
grille located at the bottom of the heater.
Overheating will result if the heater is accidentally
covered.
• Ensure that furniture, curtains or other
combustible materials are positioned no closer
than 1 metre from the heater.
• In the event of a fault unplug the heater.
• Unplug the heater when not required for long
periods.
• Keep supply cord away from the front of the
heater.
• Although this heater complies with safety
standards, we do not recommend its use on deep
pile carpets or on long hair type of rugs.
• This appliance is not intended for use by children
or other persons without assistance or
supervision if their physical, sensory or mental
capabilities prevent them from using it safely.
Children should be supervised to ensure that they
do not play with the appliance.
• The appliance must be positioned so that the plug
is accessible.
• If the supply cord is damaged it must be replaced
by the manufacturer or service agent or similarly
qualified person in order to avoid a hazard.
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

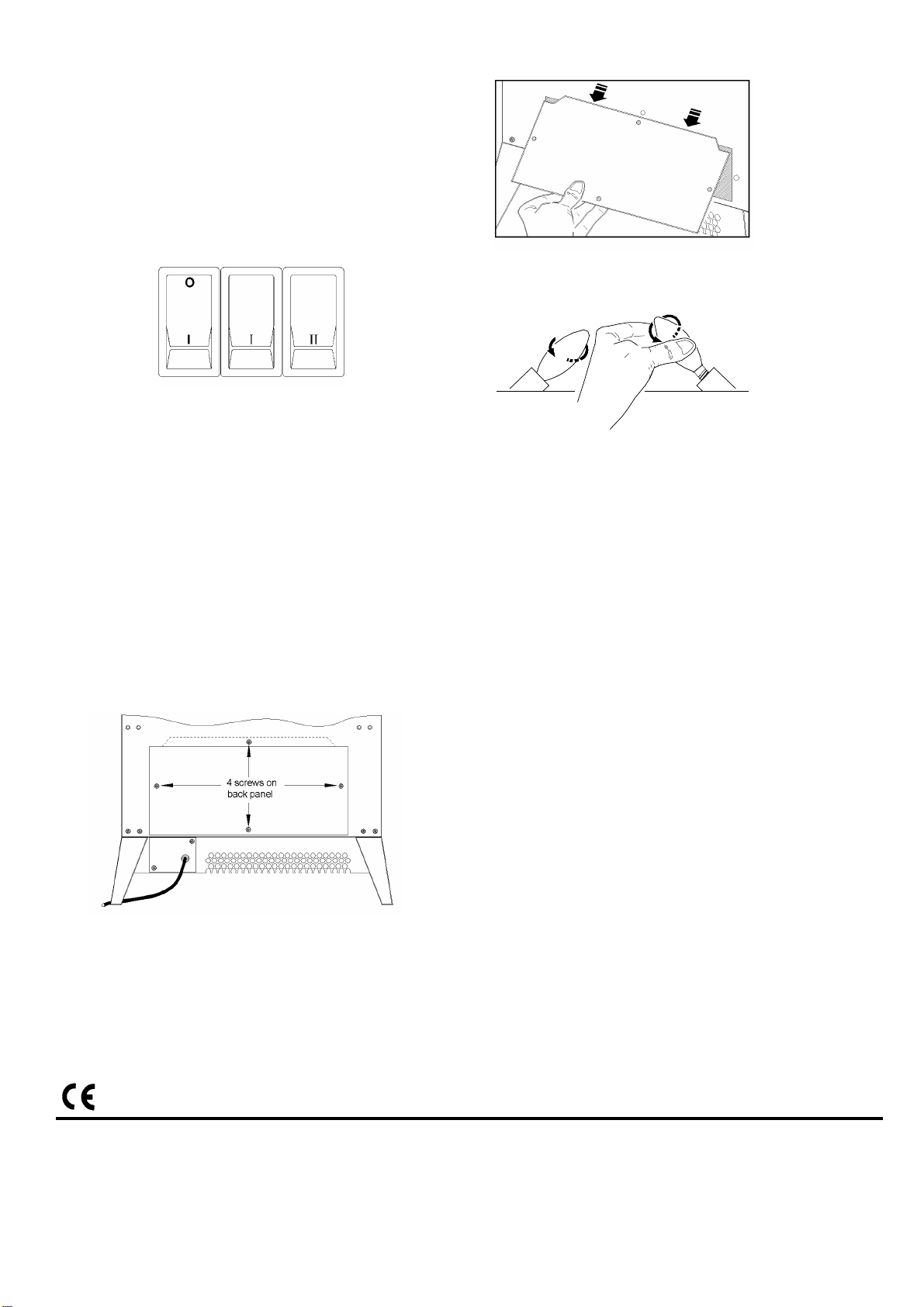

Fig. 1
Fig. 1
General General
Unpack the heater carefully and retain the packaging for possible
future use, in the event of moving or returning the fire to your
supplier.
Unpack the heater carefully and retain the packaging for possible
future use, in the event of moving or returning the fire to your
supplier.
This model is designed to be free standing and is normally
positioned against a wall.
This model is designed to be free standing and is normally
positioned against a wall.
A choice of 1kW or 2kW heat output is provided by the fan heater,
which is located at the bottom of the unit.
A choice of 1kW or 2kW heat output is provided by the fan heater,
which is located at the bottom of the unit.
Before connecting the heater check that the supply voltage is the
same as that stated on the heater.
Before connecting the heater check that the supply voltage is the
same as that stated on the heater.
On the Springborne model loose coals are packed separately within
the carton. When the heater is assembled the coals can be placed
on top of the fuel bed, as required.
On the Springborne model loose coals are packed separately within
the carton. When the heater is assembled the coals can be placed
on top of the fuel bed, as required.
Please note: Used in an environment where background noise
is very low, it may be possible to hear a sound which is related
to the operation of the flame effect. This is normal and should
not be a cause for concern.
Electrical Electrical
WARNING: THIS APPLIANCE MUST BE EARTHED. WARNING: THIS APPLIANCE MUST BE EARTHED.
This fire is suitable for operation on an AC~ electricity supply having
the same voltage as that shown on its rating label.
This fire is suitable for operation on an AC~ electricity supply having
the same voltage as that shown on its rating label.
In the event of replacing the fuse supplied, a 13 amp fuse approved
by ASTA to BS 1362 must be used.
In the event of replacing the fuse supplied, a 13 amp fuse approved
by ASTA to BS 1362 must be used.
If the socket outlets in your home are not of the 13 amp BS1363
type they will not accept the plug connected to this heater, therefore
cut off the plug. When cut off this plug can constitute a shock
hazard if inserted into a socket outlet. It must therefore be disposed
of safely.
If the socket outlets in your home are not of the 13 amp BS1363
type they will not accept the plug connected to this heater, therefore
cut off the plug. When cut off this plug can constitute a shock
hazard if inserted into a socket outlet. It must therefore be disposed
of safely.
Before wiring the appropriate plug please note that the wires in this
mains lead are coloured in accordance with the following code.
Before wiring the appropriate plug please note that the wires in this
mains lead are coloured in accordance with the following code.
GREEN/YELLOW - EARTH GREEN/YELLOW - EARTH
BLUE - NEUTRAL BLUE - NEUTRAL
BROWN - LIVE BROWN - LIVE
Connect the Green/Yellow wire to the terminal marked ‘E’ or the earth symbol or
coloured Green or Green/Yellow.
Connect the Green/Yellow wire to the terminal marked ‘E’ or the earth symbol or
coloured Green or Green/Yellow.
Connect the Brown wire to the terminal marked ‘L’ or coloured Red. Connect the Brown wire to the terminal marked ‘L’ or coloured Red.
Connect the Blue wire to the terminal marked ‘N’ or coloured Black. Connect the Blue wire to the terminal marked ‘N’ or coloured Black.
DO NOT connect the Brown (Live) or the Blue (Neutral) wires to the
Earth terminal of your 13 amp plug. If the terminals of the plug are
unmarked or you are in any doubt, consult a qualified electrician.
DO NOT connect the Brown (Live) or the Blue (Neutral) wires to the
Earth terminal of your 13 amp plug. If the terminals of the plug are
unmarked or you are in any doubt, consult a qualified electrician.
CAUTION: If you use this heater in conjunction with a thermal
control, programme controller, timer or any other device which
switches the heater on automatically observe all safety warnings at
all times
.
CAUTION: If you use this heater in conjunction with a thermal
control, programme controller, timer or any other device which
switches the heater on automatically observe all safety warnings at
all times
.
Installation and Operating Instructions
Brayford Log Stove Model: BFD20 08/18740/3 Issue 3
Springborne Coal Stove Model: SBN20
Please note: Used in an environment where background noise
is very low, it may be possible to hear a sound which is related
to the operation of the flame effect. This is normal and should
not be a cause for concern.
