Smart Watch
User Manual
Downloading and connecting of smart watch with
Da Fit APP
1.
Download and install Da Fit APP
2.

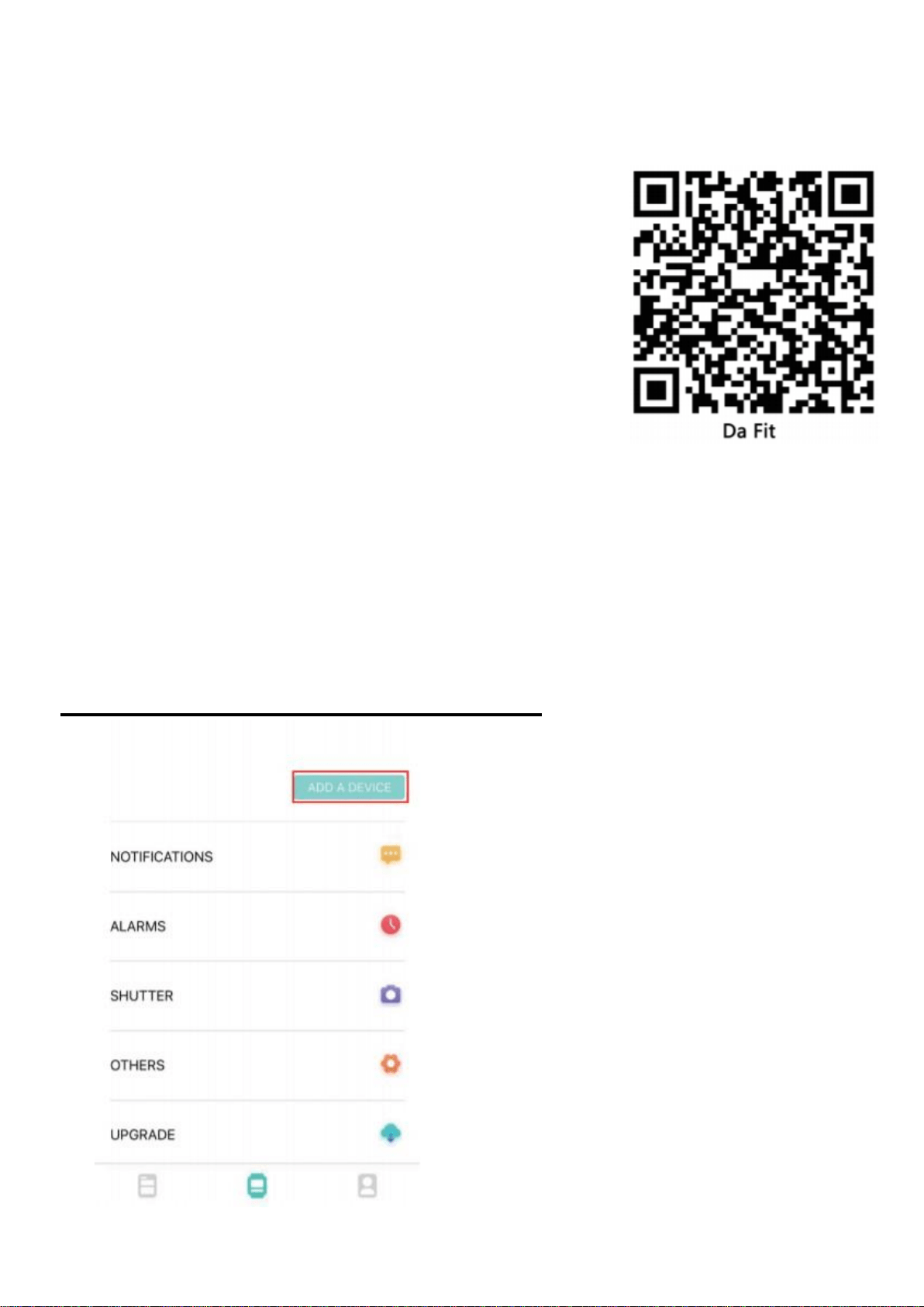

Scan QR code with mobile phone to
download APP.
3.
For IOS system, select APP Store,
search for Da Fit App.
Android system, select Google Play to
download and install Da Fit App. Or scan
QR code to download
Note: your mobile phone must support Android 5.1 or IOS 8.0 or
above, and Bluetooth 4.0 or above.

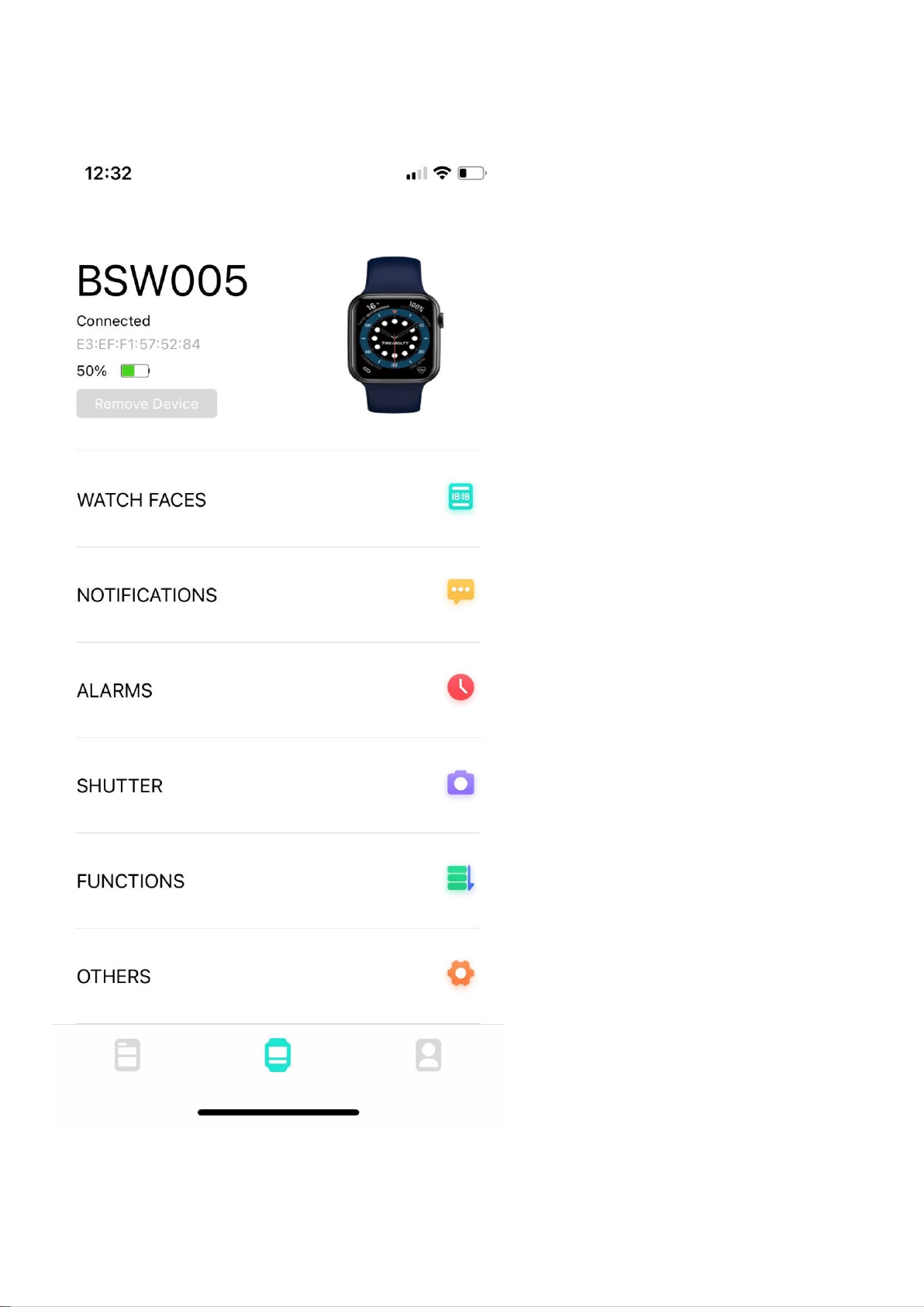

Connect smart watch with Da Fit APP

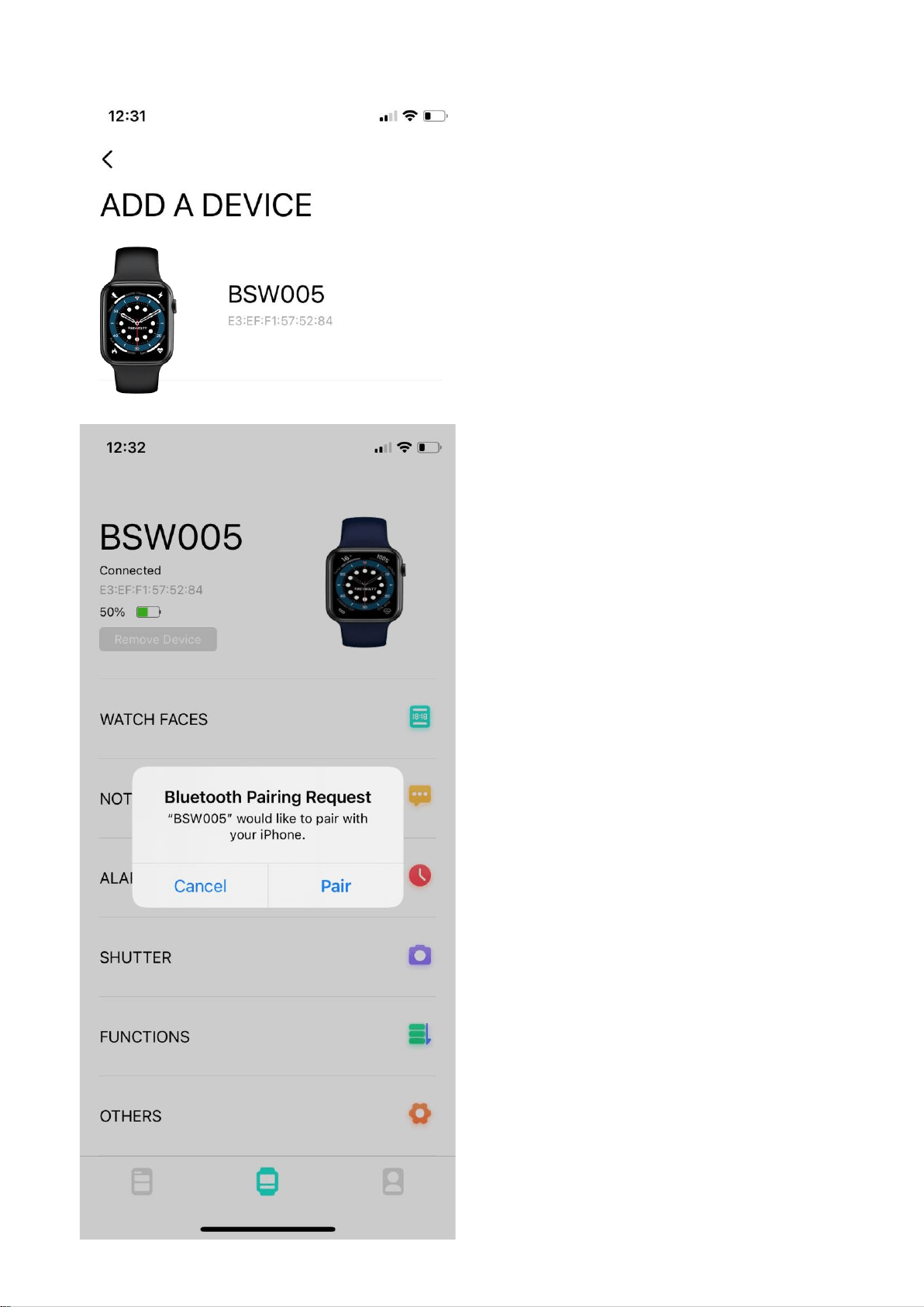

Click on "Add Device" to
connect the smart watch
Click on your device in the
device list scanned. Connect
it directly to Android system.
The IOS system will show a
Bluetooth pairing request
and you can click on
Bluetooth "Pairing" to
confirm.
Successfully connected

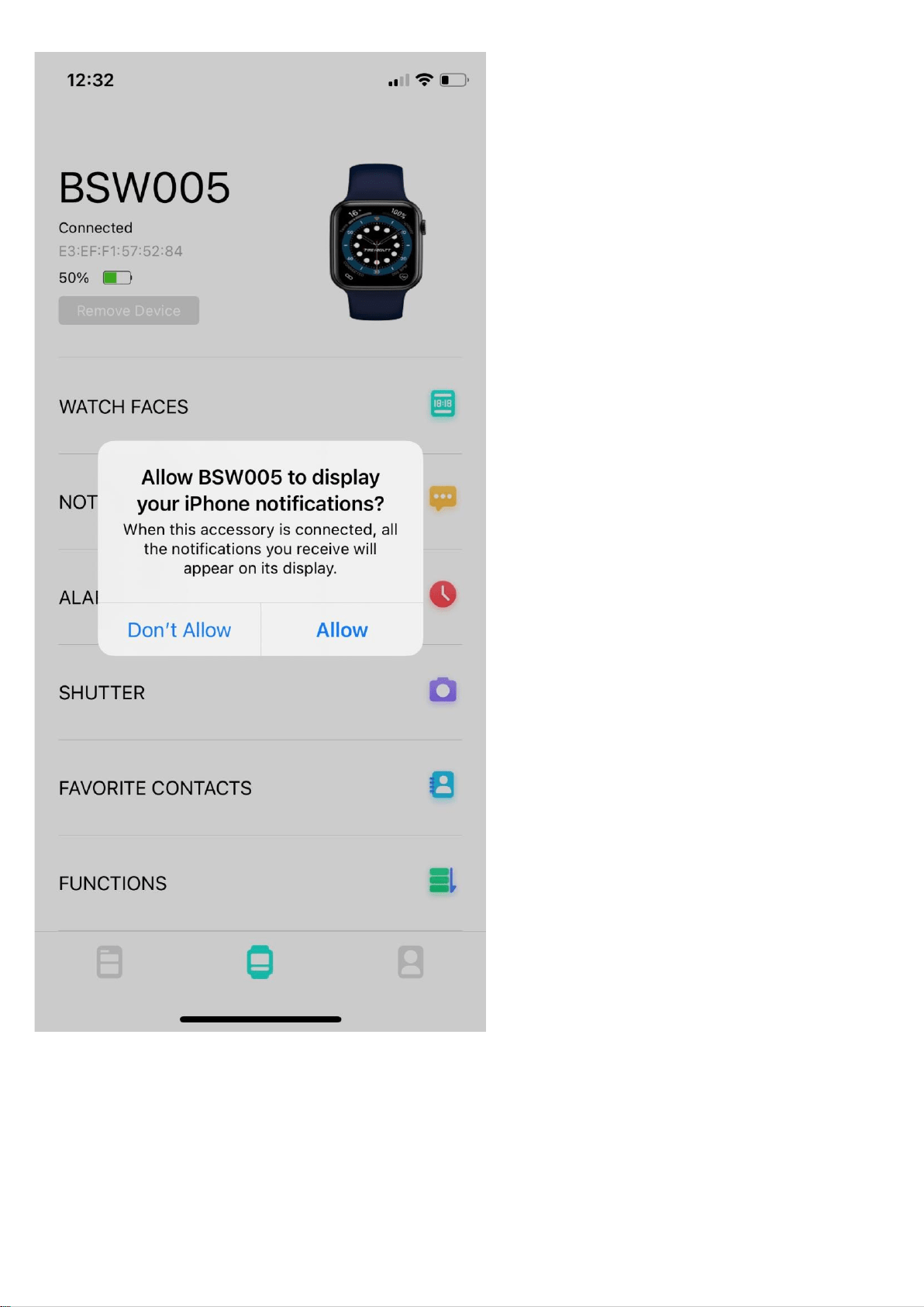

Click on Allow to let the
watch display all the
notification of the phone
For both android & iOS click
on Notifications Tab in the
Dafit app
Enable all the notifications
for the ease of use
BLUETOOTH CALLING FUNCTION
This watch comes with a special feature of Bluetooth calling.
The user can make calls without having to open the phone. You
can also view the call history of the watch. You need to keep
the connection between the watch and the phone stable when
using the Phone Call function.
The watch also has a microphone and a speaker built in for the
ease of talking through the watch and to hear music, phone
calls, and other notifications
Follow the steps to activate the calling function and much more.
Part A - How to connect
Step 1
: After connecting the watch to the Da Fit App, you
need to go the bluetooth settings of the phone and pair the
watch there as shown below.
For iOS
Switch on the bluetooth in
the phone bluetooth settings
and you shall see the
available device as
"Audio_BSW005"
It shall show Connected

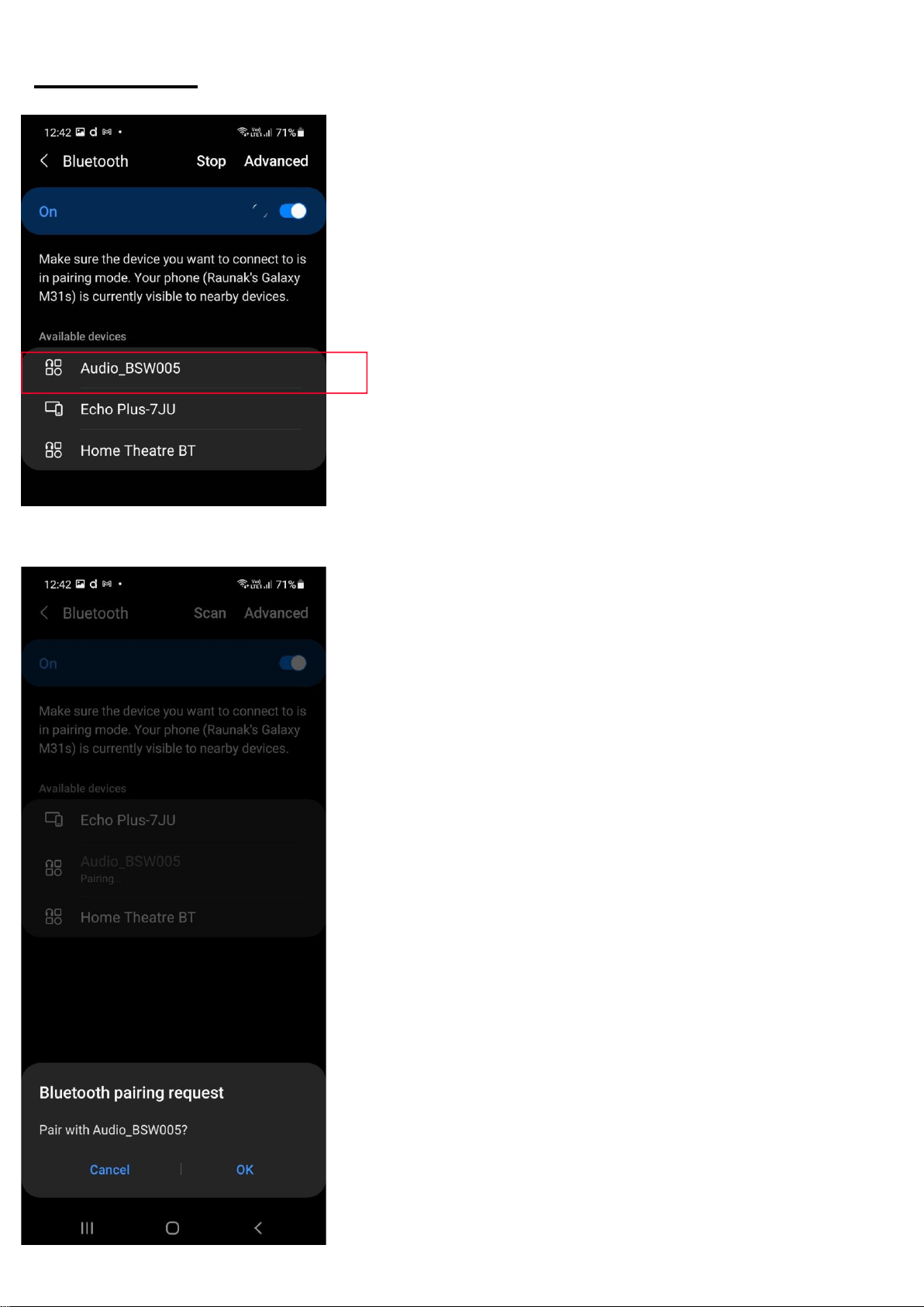

For Android
Switch on the bluetooth in
the phone bluetooth settings
you shall see the available
device as "Audio_BSW005"
Accept the Bluetooth Pairing
Request

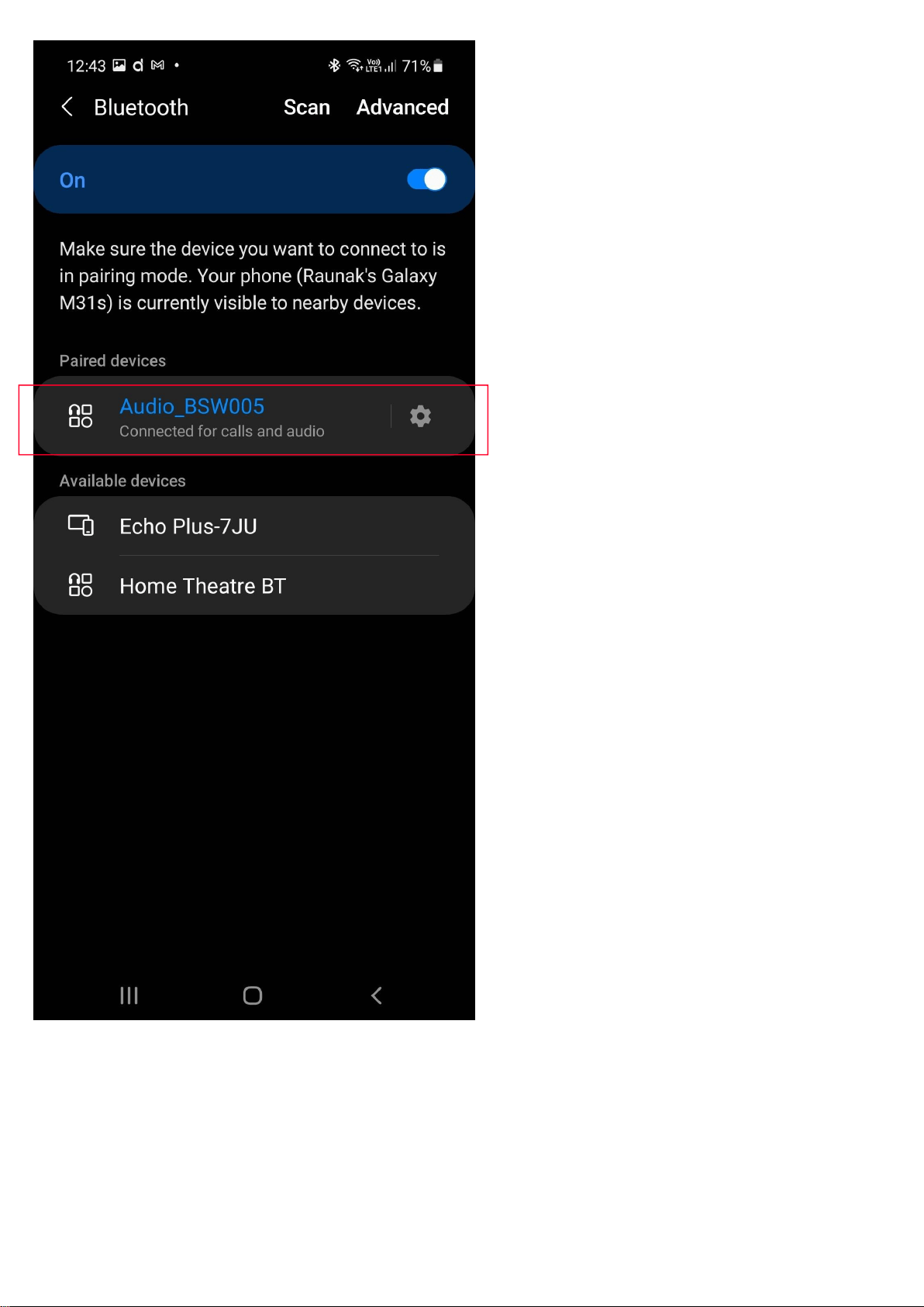

Once accepted you can see
the following screens saying
- "Connected for calls &
audio"
Step 2: Go to the watch and swipe right to the phone
function
After successfully connecting the
bluetooth you will get this screen.
Upon clicking on the recent call you
can see the recent calls of your device
When you click on the dial pad you
shall get this screen on your watch.
Once you dial the number the call
button on the right corner shall
appear.
You click the dial button, you can see
that the number is dialling
Through the microphone available in
the watch you can talk through the
watch and adjust the speaker
volume by the + & - sign on the
watch and disconnect the call.
Part B - How to disconnect
To disconnect the bluetooth calling the user simply has
to go to the phone's bluetooth setting and "unpair" the
Audio_BSW005 device
The Calls button on the extreme left top
helps you to connect/disconnect the
bluetooth calling with one touch
Part C - Add contacts
You can add upto 8 contacts - Add
the contacts from the Dafit App. Go
to "Favourite Contacts" and add
contacts. The selected contacts will
get synced to your watch.
Click on Favorite Contact to
add the contacts
Select the contacts you
want to add
The contacts will get added.
David
Bluetooth turned on
Audio_BS
W005
David
Bluetooth turned off
Audio_BS
W005
Part D - Switch between Phone / Watch
Switch Between Watch / Phone During an Active Call : If
your watch is connected to the Phone via Bluetooth, all calls will
come on the watch by default. If you want to change the call to
the phone, during an active call, simply click on Audio_BSW005
Bluetooth icon to unselect it. The call will then come on your
phone.
Part E - Listen to Music
Listen to Music - You can Listen to Music on your Watch, when
it is connected to your Phone Via Bluetooth Mode. Now Play,
Pause and Listen to your Favourite Songs all on the Watch!
Part F - Battery Advisory
Battery
The battery lasts for 24 hours with bluetooth calling mode
enabled.
If the bluetooth calling mode is disabled then the battery
can last for 5 days.
On standby the battery can stay for as long as 30 days.
Advisory- To conserve battery, It is advised to turn off the
bluetooth when not in use.
Part G - Call Reset in Case Bluetooth Connection is Lost
In case the Bluetooth connection for voice calls gets
disconnected and is not visible in the list of Bluetooth devices on
t
h
e
p
h
o
n
e
i
.
e
.
y
o
u
d
o
n
'
t
s
ee
A
u
d
i
o
_
B
S
W
00
5
,
P
l
e
a
s
e
r
e
s
e
t
t
h
e
call connection by clicking on the call reset button in the main
menu.
Click on the Settings Icon
Click on the Call Reset Icon
Confirm the Reset Process

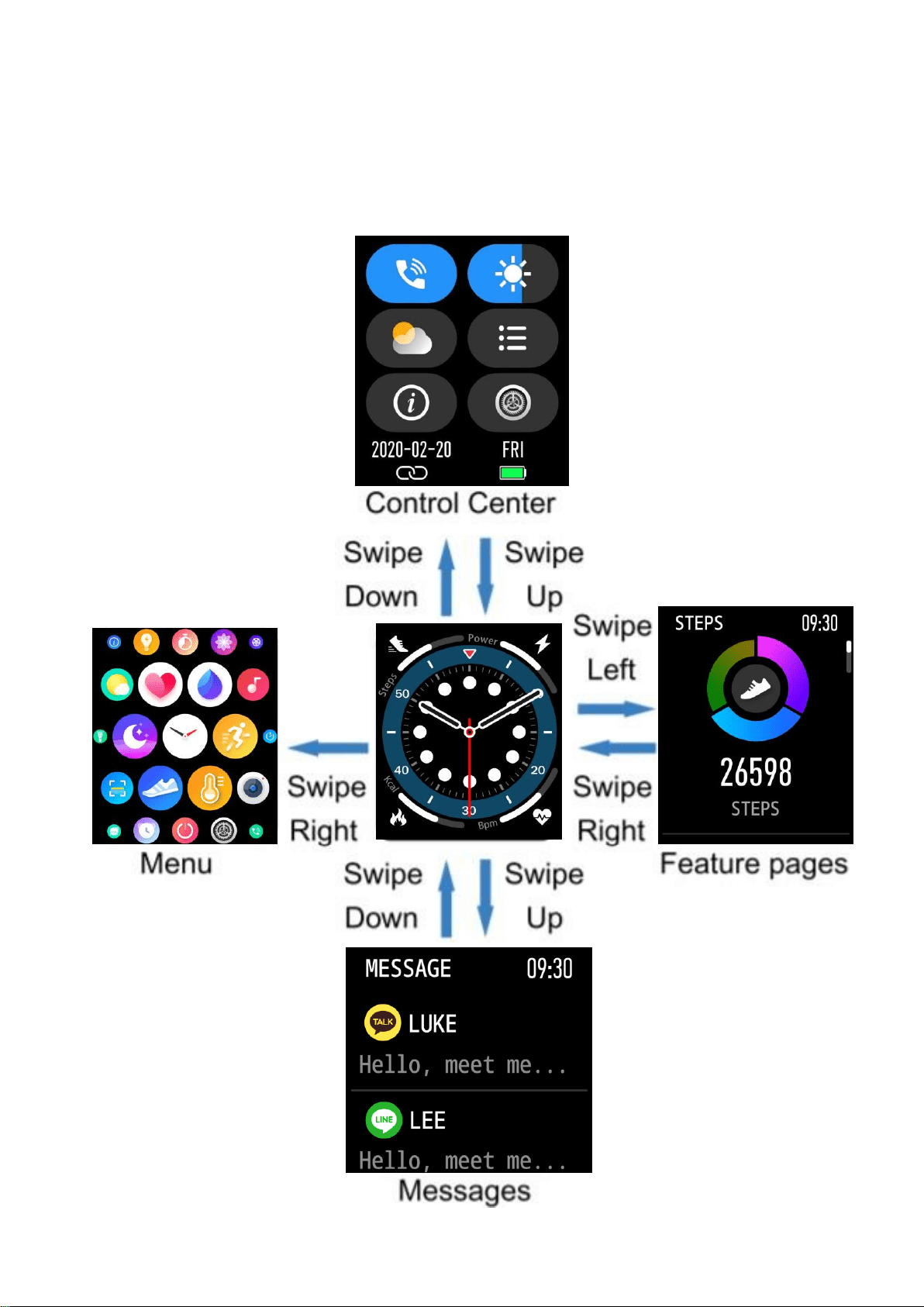

Functions Navigation
The screen can be navigated by sliding left/right or sliding
up/down
Watch Face Functions Navigation and Button Instructions
The watch features a full touch control screen with a reflective
display and a button
Functions Navigation
The screen can be navigated by sliding left/right or sliding
up/down
By default, the watch face page displays, and on the watch
face page, you can:
Slide down to view watch settings.
The Phone Icon needs to be clicked upon to be able to connect
to bluetooth calling
Brightness
Weather
Menu
Info
Settings
Slide up to view messages and other notifications.
Slide left to view quick menu, which allows you to go to any
function with a single click.
a)
Slide right to view phone, music, steps, sleep, heart rate,
SPO2, weather
b)
On each function when you slide down you can view
details.
SPO2
Heart
Rate
b) On each function when you slide down you can view
details.
Steps
Touch Button Operations
Short press from the side button
To unlock the screen in the lock screen status
To return to the watch face page from the first-level menu entry
in the unlocked status
Long press from the side button
To turn on the watch in the power off status
Watch Wearing and Charging
It is recommended to wear the watch with a moderate tightness
at a distance two fingers far from your wrist to ensure that the
optical heart rate monitor works properly
Charging
Plug the charger's USB port into a mobile phone charger or
a computer USB port to charge the watch.
Attach the charging pin to charge the smart watch.
The charging icon will appear on the screen, indicating that
the watch is being charged.
It is recommended to use computer USB ports or brand
mobile phone chargers to charge the watch.
Use of Functions
The watch has a lot of functions, these can be accessed by
swiping left to the menu. A short brief of the functions are as
below:
Stopwatch Breathe
Bluetooth Calling
Weather
Music
Heart Rate
SPO2
Flashlight
Sleep Message
Training
Timer
Settings Steps
Alarm
Shutter
Steps- The watch automatically tracks the step taken on the
screen. Note: Your movement stats reset to 0 at midnight.
Sleep - You need to wear the watch while sleeping, it will
provide the hours slept and quality of sleep stats.
Note: Sleep stats reset to 0 at 8 pm
Exercise - This feature comprises of 8 exercise modes. Track
your fitness goals in a tap. You can view the following
activities: Running, Walking, Cycling, Skipping, Football,
Basketball, Badminton, Swimming.
Heart Rate - The watch will record your heart rate all day.
You can also tap on the page to start measuring
Music - You can remote control the music player of your
phone once the watch is connected to the device
Oxygen Tracking (SPO2) - Tap the SPO2 page to start
measuring. On the SPO2 page you can see the previous
data
Weather - You can know the current weather and the
forecast for tomorrow, this information is synced from your
app. Scroll Up to see the forecast weather. It will not be
updated if the phone is disconnected for a long time.
Camera - You can remote control the camera of your phone
once the watch is connected with your device.
Setting - Check out other features through this tab.
Other Settings

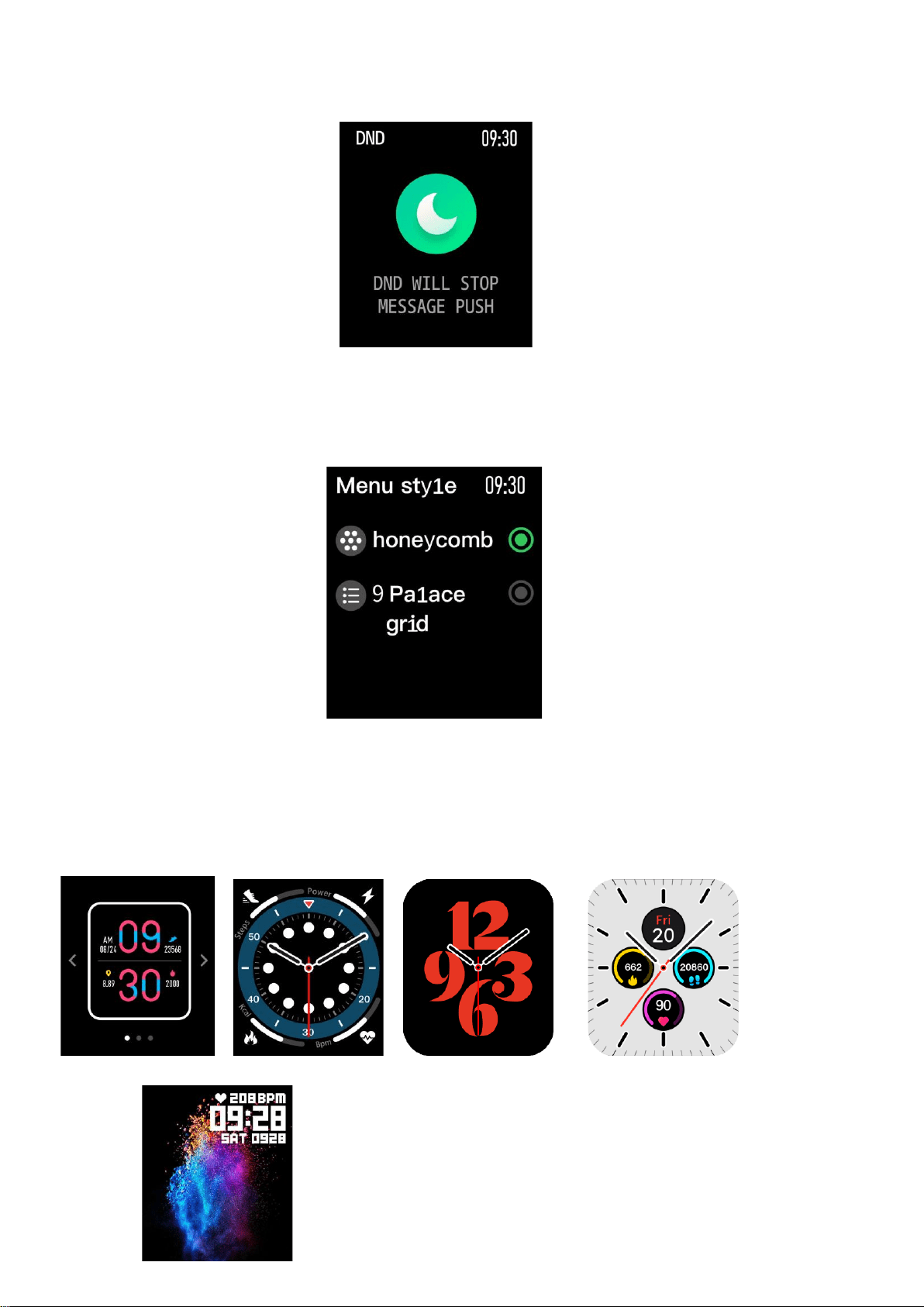

Watch Face
Replace the Watch Face on the Watch:
Long Press the screen, you shall get the options to change
the watch face, scroll left and click on the watch face you
want to select. The watch face will set.
Slide down and go to Settings. Under Settings select Dial
Switch and swipe left and click to select the watch face
Replace the Watch Face on the App:
Tap the Watch face settings entry in the "Profile" ->
"BSW005" page, and then download and sync watch faces
on the Watch Face Store. After that, the replacement is
done
Notifications
Enable Notifications
During use, you need to enable the corresponding "App alerts"
on the Da Fit App, and keep the watch and the mobile phone
connected.
If you are using an iOS device, you need to pair the watch with
the Bluetooth of the mobile phone before use.
If you are using an Android device, you need to include the App
into the whitelist or self-starting list of the mobile phone in
background settings and keep the App running in the
background to protect it from being detected and killed by the
mobile phone's background processes. Such background
processes could disconnect the watch and the App, and as a
result no reminder will be received. See "Profile" -> "BSW005" -
> "Run in background" settings for different mobile phone
systems
View Notifications
When the watch receives a notification alert, it will vibrate to
remind you and automatically display the notification content. If
you do not view the notification immediately, you may slide up in
the watch face page to go to messages and check the
notification
Workout
Sliding left in the watch face page can make the Activity app
items visible. For more information, see the "Introduction to the
Workout Function” section below
Weather
In the weather page, you can view the weather for the day and
the weather information for the next day.
The weather displayed by the watch comes from the server.
Therefore, you need to keep the Bluetooth of your mobile phone
on and connect it with the watch to keep abreast of the latest
weather information changes.
In addition, when a weather alert is received, the watch will
receive the alert as well. You may toggle on the weather alert
switch in the "Profile" -> "BSW005" -> " Weather settings " page
on the Da Fit App
Settings
In the settings page, the settings items of Stopwatch, Alarm,
Countdown, Brightness, Vibration, Theatre, Reset, About, Power
off and App QR Code are provided.
Stopwatch
: You can begin and close any time line and stop the
watch.
Vibration
: This feature allows the user to turn on and off the
vibration of the watch
Timer:
A countdown timer lets you count the time forward and
allows the user to set goals and finish a particular event on time.
Alarm:
When the alarm on the mobile phone rings, the watch
will vibrate to remind you that the alarm is ringing
Phone
: This is a feature allows the user to make calls from the
watch itself
Brightness
: The brightness is a bar that you may click to adjust
Theater
: This is a mode where the brightness will dim and
vibration will shut
Factory reset
: This is a feature to reset all data, and you can
press and hold the touch button to reset, you shall get a
confirmation dialogue box after that. After a reset, you need to
re-connect the watch before use.
BSW005
About
: You can view the firmware version and Bluetooth
address of the watch in the about page.
Power off
: This is a feature to turn off the watch.
App QR Code
: This is a feature helps to download the app as it
gives a QR Code on the watch screen that is scannable.
DND
: The watch can be put into the DND mode meaning Do Not
Disturb Mode
Style
: This is a feature is to change the way the quick menu is
seen
Dial Watch
: This is a feature helps you to change the watch
face with a click
Watch Status Reminder
Incoming Call
When the watch receives incoming calls, it will vibrate to remind
you, also you can answer or reject the call.
Idle alerts
When you are sitting for a long time, the watch will vibrate to
remind you to get up for a while. Before using this function, you
need to enable Idle alerts by tapping "Profile" -> "My devices"
and turning on Idle alerts on the Da Fit App
Goal Notifications
When the number of steps reaches the set goal, the watch will
vibrate to remind you. Before using this function, you need to
enable Goal notifications by tapping "Profile" -> "My devices"
and turning on Goal notifications on the Da Fit App
Watch Alarm Alert
When the alarm on the mobile phone rings, the watch will
vibrate to remind you that the alarm is ringing. Before using this
function, you need to enable Watch alarm alert by tapping
"Profile" -> "My devices" and turning on Watch alarm on the Da
Fit App
Introduction to the Workout Function
Start Workouts
There are two approaches to starting a workout:
Select a workout type in the Activity entry and enable it;
Press and hold the touch button to quickly start the preset
workout
The watch currently supports the following workout modes:
Walking, Running, Cycling, Skipping, Football, Basketball,
Badminton.
Before starting a workout, it is recommended to check whether
the watch storage space is enough.
Daily Maintenance of the Watch
1.
The watch is not resistant to erosive liquids such as seawater,
acidic and alkaline solutions and chemical reagents. Damages
or defects caused by misuse or improper use are not covered
under warranty
2.
Don't use detergents such as soap, hand sanitizer, or bath
foam for cleaning to avoid chemical residues from irritating the
skin or corroding the device.
3.
Don't swim with your smartwatch, we also don't recommend
showering with your smartwatch.
Precautions
The watch has an IP67 water resistant and dustproof rating,
but it is not suitable for swimming or bathing.
Do not operate the watch underwater. After touching water,
do not operate the touch screen or charge the watch until
the watch is wiped by using a soft cloth.
The watch is not resistant to erosive liquids such as
seawater, acidic and alkaline solutions and chemical
reagents. Damages or defects caused by misuse or improper
use are not covered under warranty.
