User Manual Microwave Oven

PRODUCT INTRODUCTION

PRECAUTIONS MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces.

(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1) DOOR (bent)

(2) HINGES AND LATCHES (broken or loosened)

(3) DOOR SEALS AND SEALING SURFACES

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

SPECIFICATIONS

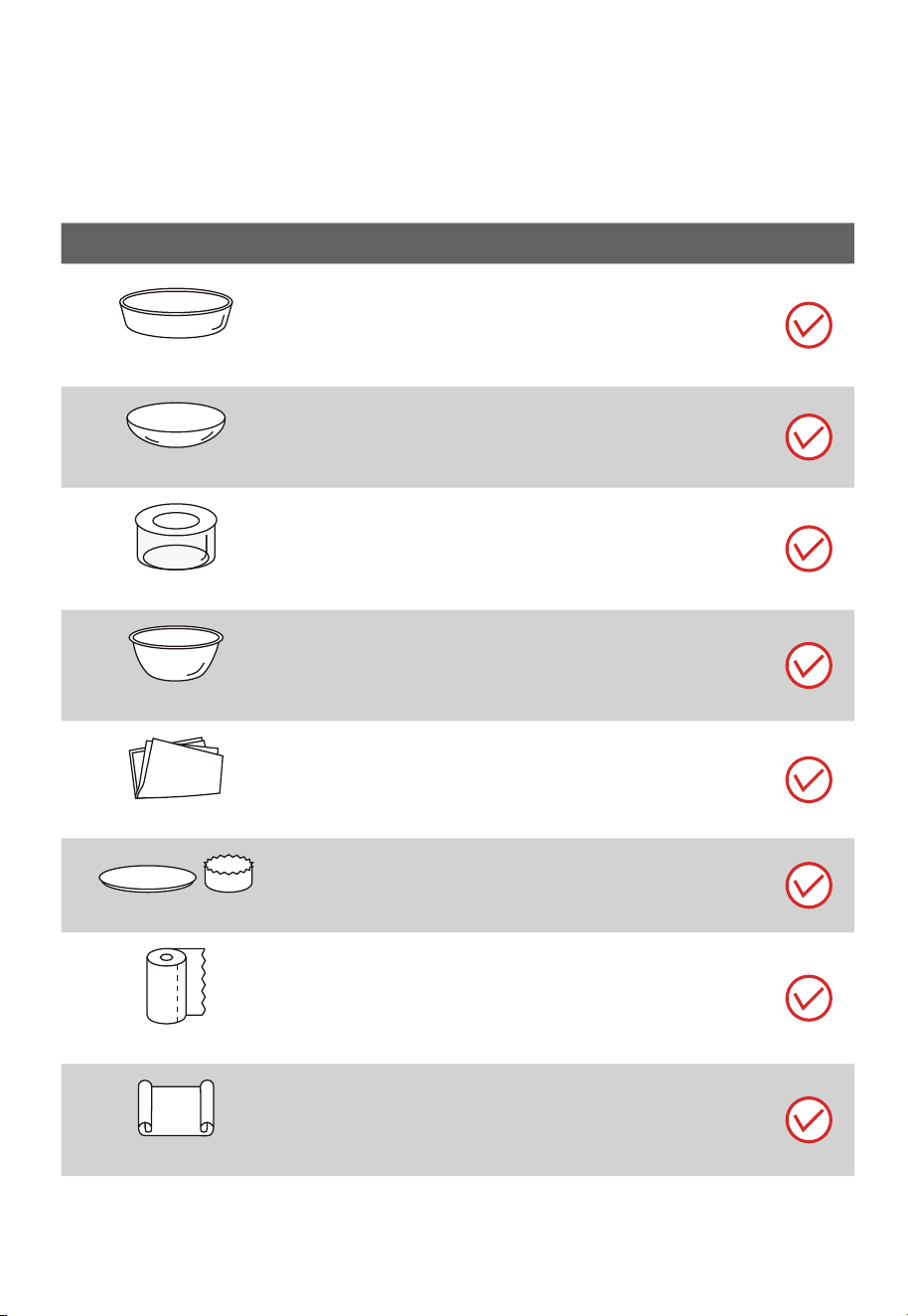

MATERIALS YOU CAN USE IN MICROWAVE OVEN

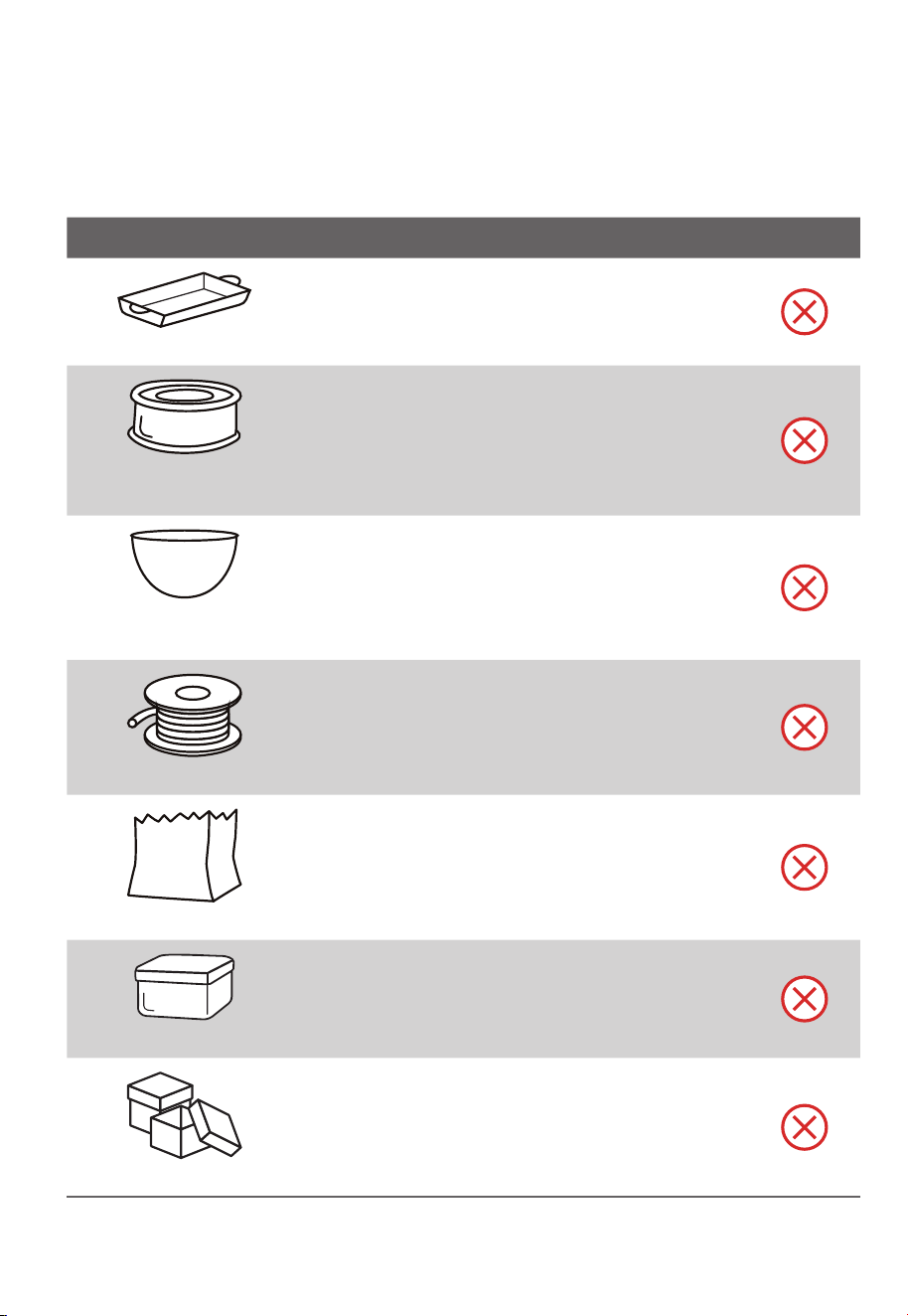

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

MATERIALS TO BE AVOIDED IN VARIOUS MODES

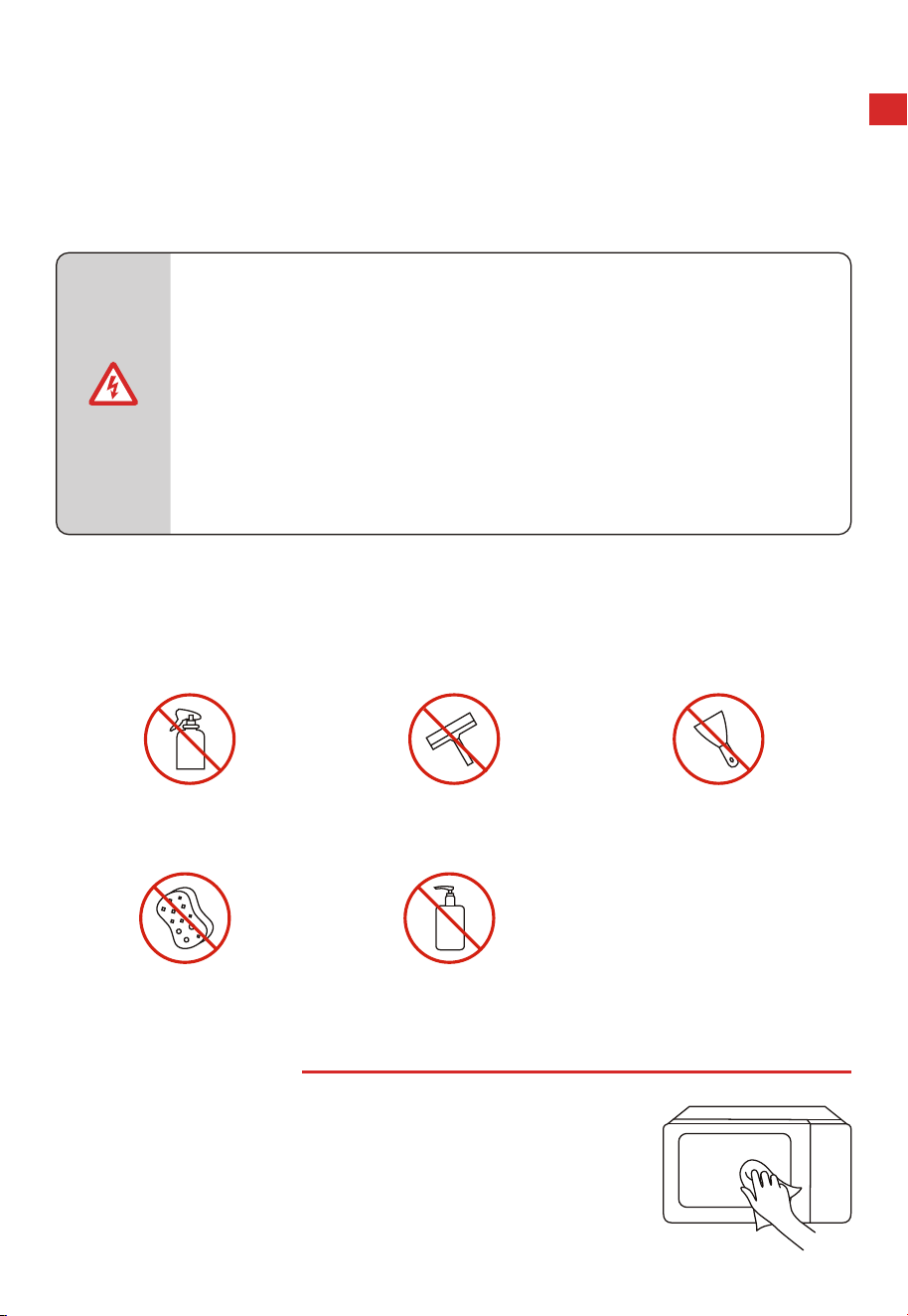

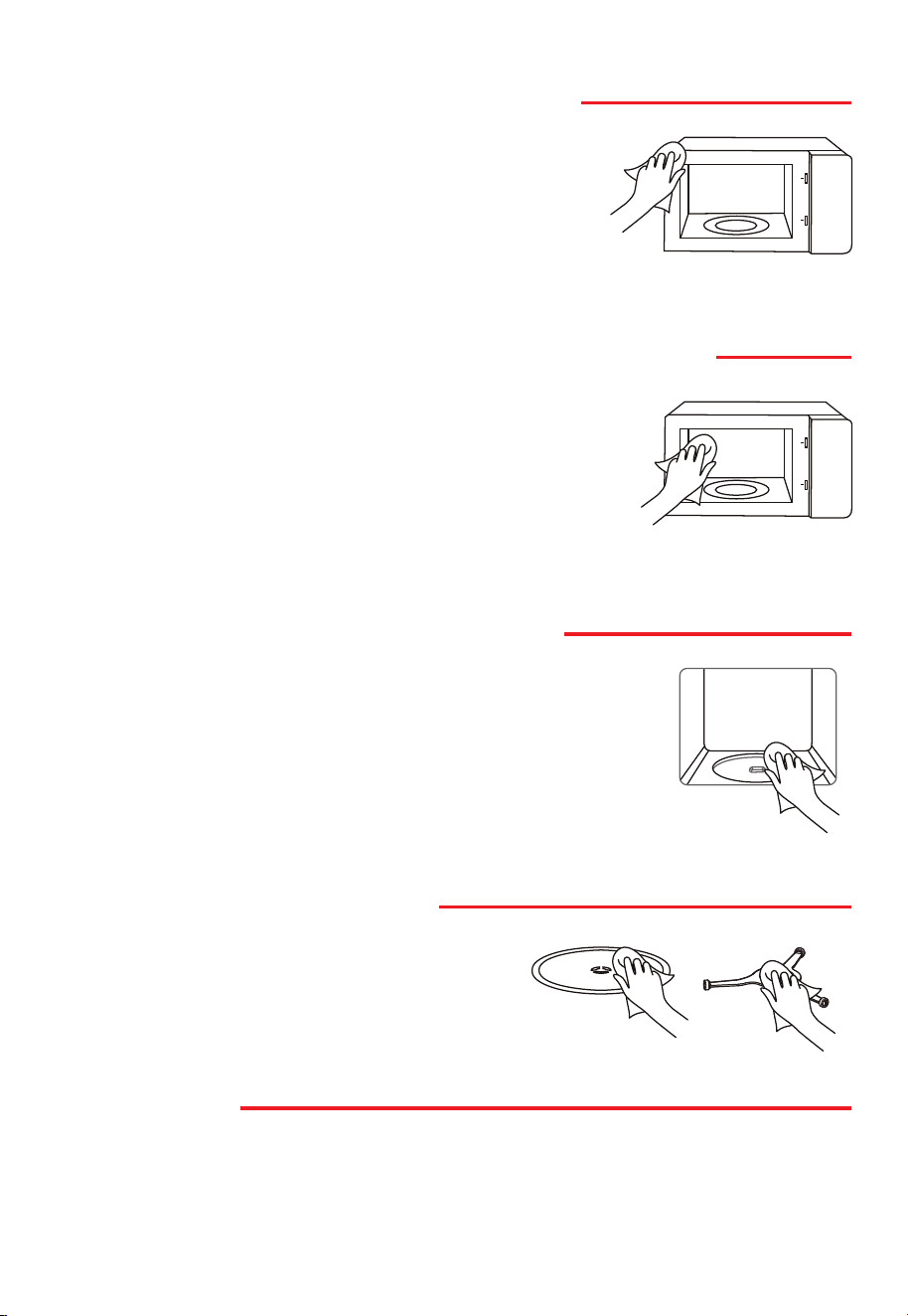

CLEANING

• Be sure to unplug the appliance from the power supply.

1.Clean the cavity of the oven after using with a slightly damp cloth.

2.Clean the accessories in the usual way in soapy water.

3.The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4.Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5.Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

SETTING UP YOUR OVEN

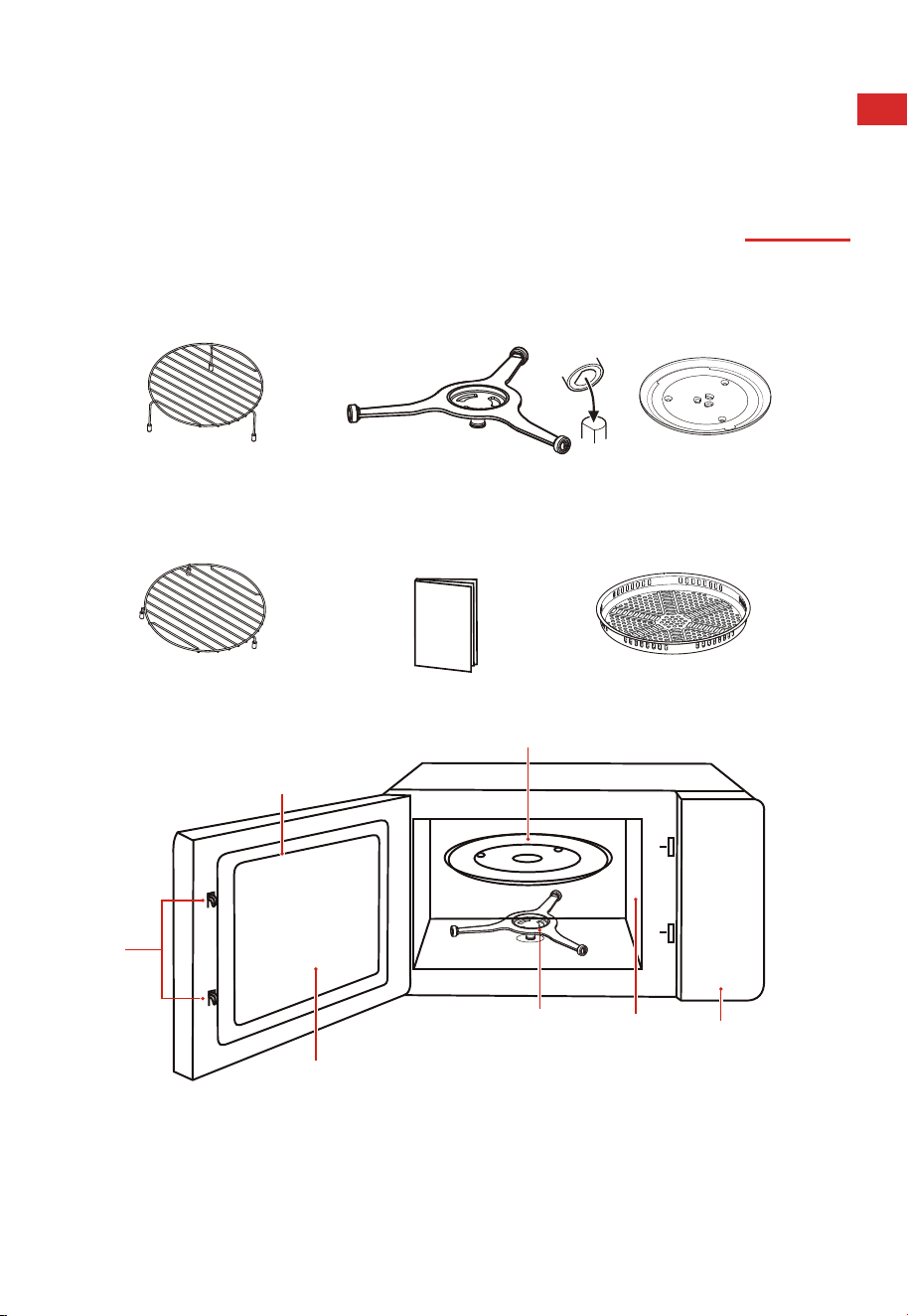

NAMES OF OVEN PARTS AND ACCESSORIES

Throughout this manual, features and appearance may vary from your model. Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

• Glass turntable x 1

• Turntable ring assembly x 1

• Turntable shaft x 1

• Bake rack x 1

• Bake tray x 1

• Instruction manual x 1

A. Control panel — The pads used to operate the oven are located on the control panel.

B. Observation window — Allows cooking to be viewed while keeping microwaves confined in the oven

C. Door seals and sealing surfaces — The oven will not operate unless the door is securely closed.

D. Safety interlock system — The door must be securely latched for the oven to operate.

E. Door handle

F. Oven cavity

G. Control Knob

H. LED Display

You can use the bake rack , bake tray or any other accessories that have been included with the appliance. When using the appliance in combination with the microwave mode, If you use the bake rack or the bake tray, this may create sparks, which may damage the cooking compartment. These accessories are designed especially for use in the microwave oven for convection, fast bake, fast roast or broil cooking. DO NOT USE FOR MICROWAVE ONLY COOKING. Do not substitute similar types of racks for these specially designed ones. Always use oven gloves to remove or put in accessories or ovenware.

Bake Rack (Cannot be used in microwave function and must be placed on the glass turntable)

Bake Tray (Cannot be used in conjunction with microwave function and can be placed on the bake rack)

We suggest the bake rack placed on the bake tray for two-level cooking, such as layer cakes, muffins, etc. Bake tray placed on the turntable and use for roasting or broiling to allow juices to drain away from food.

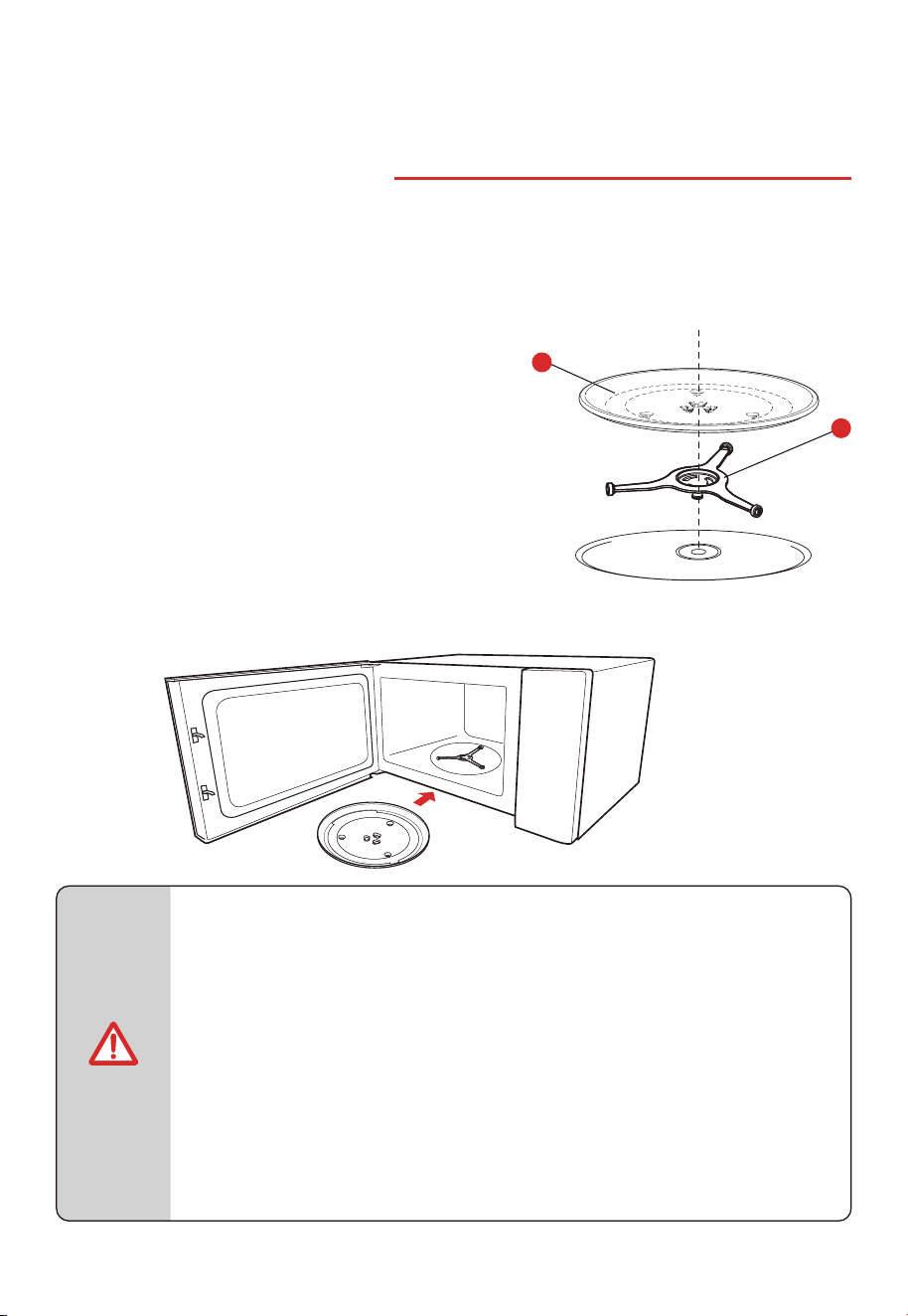

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

How to put the turntable in place

1. Place the roller ring b into the recess in the cooking compartment.

2. Place the glass tray a on the turntable ring. Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the turntable a engages in the turntable shaft c in the center of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

COUNTERTOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 8 inches(20cm) is required between the oven and any adjacent walls.

a. Leave a minimum clearance of 12 inches (30cm) above the oven.

b. Do not remove the legs from the bottom of the oven.

c. Blocking the intake and/or outlet openings can damage the oven.

d. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

e. The minimum installation height is 3 ft (92 cm). ( Information is under guidance of UL Standard for Safety for Microwave Cooking Appliances, UL 923 / 42.1 /) f. The rear surface of the appliance shall be placed against a wall.

2. Place the oven as far away from radios and television sets as possible. Operation of microwave oven may cause interference to your radio or TV reception.

3. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

OPERATION

Control Panel and Features

In this chapter, we will explain the displays and controls. You will also find out about the various functions of your appliance. In the control panel, you can use the various buttons and the Rotary Coding Switch to set the required function of the appliance. The current settings are shown on the display window.

(1) Microwave

(2) Air Fry Presets

(3) Broil

(4) Bake

(5) Homefry

(6) Combination Cooking

(7) Pro Defrost

(8) Auto Menu

(9) Keep Warm

(10) Odor Removal

(11) Yummy Popcorn

(12) Timer/Clock

(13) Stop/Cancel

Lock(hold down for approx. 3 secs)/ECO

(14) Rotary Coding Switch-----A rotary selector with a pressure point.

1. Turn the rotary selector clockwise and anti-clockwise to change the adjustment values shown in the display window.

2. Touch to activate Start/+30Sec (Turn on selected function or add 30Sec. )

(15) Display Window Shows the current settings of the appliance.

Menu format:

Heating Functions: Specials

OPERATION INSTRUCTION

1.Clock Setting

• Suppose you want to enter the correct time of day 12min 30sec.

Procedure

Step	Touch/Display
1. Touch Timer/Clock twice. leftmost “00” flashing
2. Enter the correct time of day by turning the to adjust the hour figures, The input time should be within 1--12 (12-hour). Input “12” at this step.
3. Touch Timer/Clock again. the minute figures will flash.
4. Turn to adjust the minute figures. The input time should be within 0--59. Input “30” at this step.
5. Confirm with Timer/Clock.

2. Stop/Clear

Touch the STOP/CANCEL to:

1. Erase if you make a mistake during programming.

2. Cancel timer.

3. Stop the oven temporarily during cooking.

4. Return the time of day to the display.

5. Cancel a program during cooking, touch twice.

3. Kitchen Timer

To set the length of an operation. To set a countdown. It will automatically monitors how long the function operates.

• Suppose you want to set timer for 5 minutes

Procedure

Step	Touch/Display
1. Touch Timer/Clock .
2. Enter the correct time of day by turning theinput “5” at this step.
3. Confirm with Start/+30Sec .

Your appliance has various operating modes which make your appliance easier to use. You can find more precise descriptions of these in the "Heating Functions: Specials" sections. The microwave function is useful for steaming, as well as the quick and convenient defrosting and reheating of foods. Using lower power levels increases the cooking time which is recommended for foods such as cheese, milk and long slow cooking of meats. There are ten preset power levels are available for Microwave cooking.

One Touch Start / Add 30 seconds

The +30S control instant switches on the microwave oven with maximum microwave power P100(see table below), and a duration of 30 second. Simply touching the Start/+30Sec repeatedly increases the duration in cooking. In standby mode, first turn the rotary coding switch to the left to display "0:05", then right-rotate to increase cooking time, touch Start/+30Sec to start.

4. Microwave Cooking

Follow manufacturer’s directions and the food will be cooked perfectly.

• Suppose you want to cook with 80% microwave power for 5 minutes.

Step	Touch/Display
1. Touch Power.
2. Select desired power level by turning theor touch Power repeatedly. Input “P80” at this step.
3. Confirm with Start/+30Sec.
4. Enter the correct time of day by turning theInput “5” at this step.
5. Touch Start/+30Sec.

The cooking time has elapsed

The cooking compartment stops heating. 0 min 00 s appears on the display ( Current time will display if the clock was previously set ). The temperature indicator bar goes out. To remind you that the food is ready, the buzzer will beeps 5 times until you either open the oven door or touch the Stop/Cancel pad.

5. Grill Cooking

• Suppose you want to cook with grill for 5 minutes.

Step	Touch/Display
1. Touch Broil.
2. Confirm with Start/+30Sec.
3. Enter the correct time of day by turning theInput “5” at this step.
4. Touch Start/+30Sec.

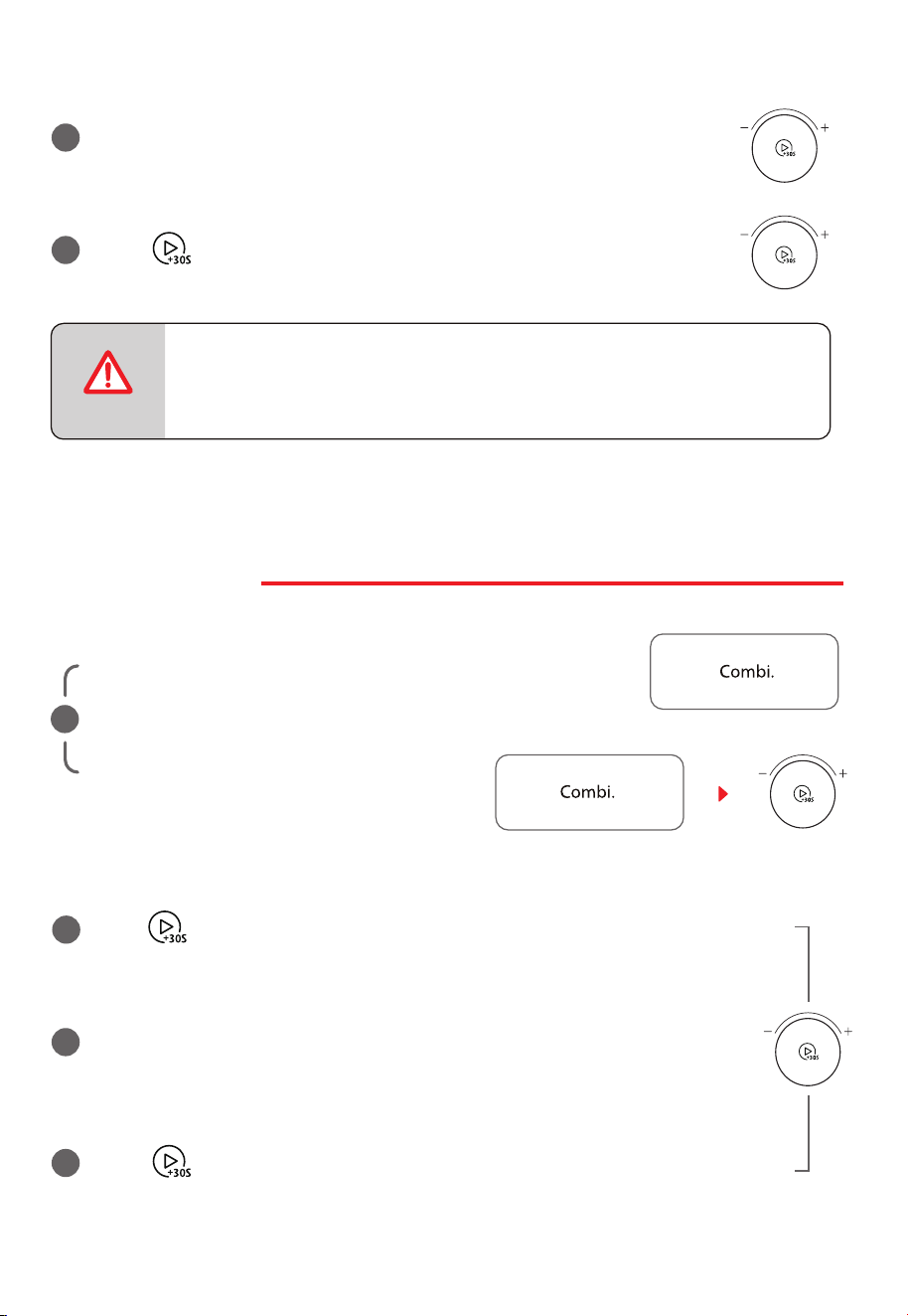

Combination cooking

Various types of heating can be combined with the Microwave operating mode. The appliance heats up and the microwave is switched on at the same time. As a result, the food is ready in a much shorter time. The Combination function allows you to Microwave, Grill and Convection funtion in the same cooking session. You can select from two different combinations:

• Suppose you want to cook with combining the microwave with browning of a grill for 5 minutes.

Step	Touch/Display
1. Touch Combi. twice .
2. Touch Start/+30Sec to confirm.
3. Enter the correct time of day by turning theinput “5” at this step.
4. Touch Start/+30Sec.

6. Convection Cooking

The convection cooking can let you cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven. There are 10 different temperatures are available: 100ºF, 150ºF, 250ºF, 275ºF, 300ºF, 325ºF, 350ºF, 375ºF, 400ºF, 425ºF.

A. To cook with preheat

* Please do not put the food into the oven at the beginning. The oven needs to be preheated first.

Step	Touch/Display
1. Touch Air Fry or Bake.
2. Select desired setting by turning theEx: preheat to 250ºF, input “250ºF” at this step
3. Touch Start/+30Sec to confirm. Touch Start/ +30Sec again to start preheating.
4. Enter the correct time of day by turning theEx: 30 sec input “30” at this step.
5. Touch Start/+30Sec.

After several minutes, when the recommended preheating temperature arrives, Temperature Indicator Bar normal on. The temperature scale and Conventional Cooking sign will flash (Operation continues to run). Once the temperature arrives, door must be opened and then place the food in the oven. Then proceed to step 4

B. Without preheating function

* Placing the food in the oven.

Step	Touch/Display
1. Touch Air Fry or Bake.
2. Select desired temperature by turning theEx: 250ºF, input “250ºF” at this step.
3. Touch Start/+30Sec to confirm.
4. Enter the correct time of day by turning theEx: 30 sec input “30” at this step.
5. Touch Start/+30Sec.

7. Home Fry Presets

Step	Touch/Display
1. Touch Home Fry Presets.
2. Select desired Menu. by turning theEx:Frozen chicken wings, input “H04” at this step.
3. Touch Start/+30Sec.

Home Fry Menu

(Pre-Set Cooking temp. is 425ºF)

8. Low Temp. Cook Presets

Step	Touch/Display
1. Touch Low Temp. Cook.
2. Select desired Menu. by turning theEx: Keep warm, input “L3” at this step.
3. Touch Start/+30Sec to confirm.
4. Select desired temperature by turning theEx: 160ºF, input “160ºF” at this step
5. Touch Start/+30Sec to confirm.
6. Enter the correct time of day by turning theEx: 30 sec input “30” at this step
7. Touch Start/+30Sec.

Low Temp. Cook Menu

Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. After the cooking time has elapsed, the cooling fan can continue to operate until the oven cools down.

9. Mute Function

Long touch " Timer/Clock " for 3 seconds to enable or disable mute mode, and the screen will show “On” or “OFF” for 3 seconds.

10. Other Specification

(1) must be touched to continue cooking if the door is open

(2) A single beep sounds to indicate that a pad is correctly touched. If pad is not correctly touched, no beep sounds.

11. Custom Defrost Function

(1) Touch Pro Defrost pad, "dEF1" will appear in the display.

Turn the rotate selector or touch Pro Defrost repeatedly, "dEF1" , "dEF2", "dEF3", "dEF4" , "dEF5", "dEF6", "dEF7" will display in order. Confirm with .

(2) Use the rotate selector to enter the weight to be defrosted for ‘dEF1’ to ‘dEF6’. Input the weight range between 4 to 100 Oz.

(3) Touch " to start defrosting and the cooking time remaining will be displayed . " , " " indicator will flash.

12. Time Defrost

(1) Touch Pro Defrost once, and than touch Pro Defrost repeatedly, or turn the rotate selector until "dEF7" appears on the screen. Confirm with .

(2) Use the rotate selector to enter the time amount.

(3) Touch (3) Touch to start defrosting, the remaining defrost time will display.to start defrosting, the remaining defrost time will display.

13. Popcorn

(a) Touch Popcorn and turn the rotate selector until the number you wish appears in the display, "2.75", "3.2", "3.5" Oz will display in order. And " " " " and "Oz" will appear in the display.

(b) Touch to start cooking. "Oz" disappears. " " , " " flashes. and time countdown shows in the display.

14. Auto Cook

(a) Touch Auto Menu , "A01" and " " " or or both " will appear in the display

(b) Turn the rotate selector, "A01" to "A10" will display in order. Refer to the Auto Menu Chart below.

(c) Confirm with . Use the rotate selector to select the weight or portion of food item.

(d) Touch to start cooking, menu"A08" and "A09" is starting to preheat " " ," or " flashes. The time countdown shows in the display.

Auto Menu Chart:

15. Inquiring Function

For most cooking modes:

(1) When oven is cooking, touch Timer/Clock for the time of day to appear for three seconds in the display.

(2) When oven is cooking, touch Power pad for cooking power to appear for three seconds in the display.

16. Lock Function

To lock the microwave so that it cannot be operated by children or other unintended users, touch pad for 3 seconds. You will hear a long beep. If the clock has been set, the time of day and "Lock" will appear in the display. Otherwise, only "Lock" will appear. To Unlock, touch for three seconds, you will hear a long beep and "Lock" will disappear.

17. Energy Saver Mode

(1) In standby mode, touch the once (less than 3 seconds to avoid starting the Lock function ) to enter the Energy Saver mode. (the screen is turned off).

(2) Above operation is the only way to start the Energy Saver mode.

(3) In screen off, you can touch any pad or open the oven door to turn on the screen, The first touch is to turn on the screen by default, and the second touch is to execution the cooking program itself.

18. Turntable Reset Function

• When cooking finished, if the turntable is not at the initial position, it will enter the turntable reset function. At this time, the lamp, fan and turntable are working. The oven stops working when the reset is complete. Touch key without releasing, and touch Combi. within 3 seconds to turn on or off the reset function of the turntable. The screen displays ON or OFF.

TROUBLESHOOTING
