Microwave Oven
INSTRUCTION MANUAL
Model:
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you
with many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
MW2-AC26TF(BK)
Welcome to the world of
TOSHIBA
BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE
CONTENTS
OPERATION
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE
ENERGY
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
UTENSILS
SETTING UP YOUR OVEN
TROUBLE SHOOTIHG
2
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Rated Input Power(Grill):
Rated Input Power(Convection):
1450-1500W
Approx. 18.2 kg
900-950W
26 L
315mm
1100-1150W
2100-2250W
513 513
310mm
MW2-AC26TF(BK)
3
230-240V~50Hz
IMPORTANT SAFETY
INSTRUCTIONS WARNING
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.( For appliance with
type Y attachment)
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
4. If the supply cord is damaged, it must be replaced by
before replacing the lamp to avoid the possibility of
electric shock.
5. WARNING: Ensure that the appliance is switched off
1. Read and follow the specific:"PRECAUTIONS TO
3. Keep the appliance and its cord out of reach of children
less than 8 years.
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8
2. This appliance can be used by children aged from 8
and supervised. Children less than 8 years of age shall be
kept away unless continuously supervised.
4
IMPORTANT SAFETY
INSTRUCTIONS WARNING
.ovens
and keep the door closed in order to stifle any flames.
delayed eruptive boiling, therefore care must be taken
when handling the container.
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
12.The contents of feeding bottles and baby food jars
13. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
deposits removed.
14. The oven should be cleaned regularly and any food
11. Microwave heating of beverages can result in
keep an eye on the oven due to the possibility of ignition.
in sealed containers since they are liable to explode.
could lead to deterioration of the surface that could
15. Failure to maintain the oven in a clean condition
7. WARNING: Liquids and other foods must not be heated
10. If smoke is emitted, switch off or unplug the appliance
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
6. WARNING: It is hazardous for anyone other than a
adversely affect the life of the appliance and possibly
result in a hazardous situation.
8. When heating food in plastic or paper containers,
9. Only use utensils that are suitable for use in microwave
5
IMPORTANT SAFETY
INSTRUCTIONS WARNING
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
21.The microwave oven is intended for heating food and
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
decorative door open. (for ovens with a decorative door.)
18.The microwave oven shall not be placed in a cabinet
unless it has been tested in a cabinet.
this oven.(for ovens provided with a facility to use a
17.Only use the temperature probe recommended for
temperature-sensing probe.)
allowed during microwave cooking.
cleaner.
19.The microwave oven must be operated with the
22. Metallic containers for food and beverages are not
23. The appliance shall not be cleaned with a steam
16. The appliance must not be installed behind a
applicable for appliances with decorative door.)
decorative door in order to avoid overheating. (This is not
20.This appliance is intended to be used in household
6
IMPORTANT SAFETY
INSTRUCTIONS WARNING
24.The appliance is intended to be used freestanding.
a wall.
25.The rear surface of appliances shall be placed against
be taken to avoid touching heating elements inside the
oven.
30. During use the appliance becomes hot. Care should
26. Steam cleaner is not to be used.
27. Surface of a storage drawer can get hot.
use. Young children should be kept away.
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously supervised.
29. WARNING: The appliance and its accessible parts
adult supervision due to the temperatures generated.
combination mode, children
should only use the oven under
32. WARNING: When the appliance is operated in the
to clean the oven door glass since they can scratch
which may result in shattering of the glass.
scrapers
the surface,
28. Do not use harsh abrasive cleaners or sharp metal
31. WARNING: Accessible parts may become hot during
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
7
TO REDUCE THE RISK OF
INJURY TO PERSONS
GROUNDING INSTALLATION
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of an
electrical short circuit,
grounding reduces the risk of electric
for the electric current.
This appliance is equipped
with a cord having a
plug must be plugged into
an outlet that is properly
installed and grounded.
shock by providing an escape wire
grounding
wire with a grounding plug. The
Consult a qualified
electrician or serviceman
instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only a 3-wire
extension cord.
if the gronuding
8
TO REDUCE THE RISK OF
INJURY TO PERSONS
GROUNDING INSTALLATION
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set
or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the a[[ppliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
9
TO REDUCE THE RISK OF
INJURY TO PERSONS
GROUNDING INSTALLATION
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
competent person to carry out any
service
or repair operation that involves the removal of
a cover which gives
protection against
exposure to
Utensil T est:
1. Fill a microwave-safe container with 1 cup of cold water
(250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
microwave energy.
not use it for microwave cooking.
10
MATERIALS YOU CAN USE IN MICROWAVE OVEN
UTENSILS REMARKS
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
11
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
UTENSILS REMARKS
12
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
E
D
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
Grill Rack( Can not be used in microwave
function and must be placed on the glass tray )
SETTING
UP
YOUR
OVEN
NAMES OF OVEN PARTS AND ACCESSORIES
Remove the oven and all materials from the carton and oven cavity. Your
oven comes with the following accessories:
13
Installation
1.Select a level surface that
provide enough open space
for the intake and/or outlet vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can damage
the oven.
(5) Place the oven as far
away from radios and TV as
possible. Operation of
microwave oven may cause
interference to your
radio or TV reception.
20cm
30cm
20cm
min85cm
0cm
SETTING UP YOUR OVEN
COUNTERTOP INSTALLATION
Remove all packing material and accessories. Examine the
install if oven is damaged.
Cabinet: Remove any protective film found on the microwave
cover that is attached to the oven cavity to protect the magnetron.
oven for any damage such as dents or broken door. DO not
oven cabinet surface. Do not remove the light brown Mica
14
SETTING UP YOUR OVEN
INSTALLATION
2.Plug your oven into a standard household outlet. Be sure
WARNING
Do not install oven over a range cooktop or other heat-
the oven could be damaged
and the warranty would be avoid.
The accessible surface may
be hot during operation
and the frequecy on the rating label.

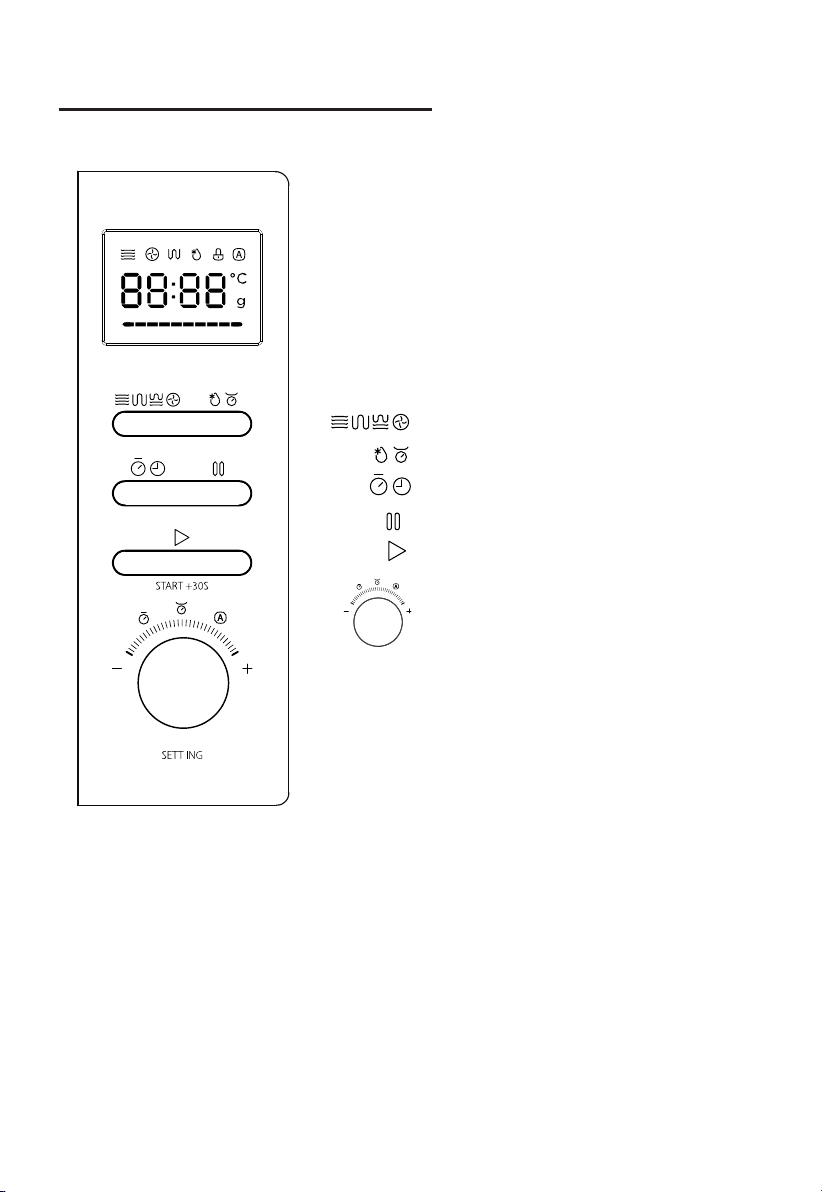

the voltage and the frequency is the same as the voltage
producing appliance.
If installed near or over a heat source,
15
: Micro./Grill/Combi./Conv
: Weight/Time Defrost
: Clock/Kitchen Timer
: Stop/Clear
: Start/+30Sec./Confirm
Turn the knob to select the function you
need and cooking time,weight.
:
OPERATION INSTRUCTIONS
16
OPERATION INSTRUCTIONS
17
2. Microwave Cooking
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " ", the minute figures will flash.
5) Press " " to finish clock setting. ":" will flash.
Note: 1) The clock will not work if is not set when powered.
2) During the process of clock setting, if you press " ", it will
exit the setting state.
1) In waiting state, press "
Hour figures flash.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press
Once
Twice
Thrice
4 times
5 times
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
1) Press the "
" key once , and "P100" display .
2) Press " " for times or turn " " to select the microwave
will display
in order.
3) Press " " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " " to start cooking.
1.Clock Setting
s
P100 P80 P50 P30 P10
Display
Stop/Clear
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Micro./Grill/Combi./Conv.
Micro./Grill/Combi./Conv.
power from 100% to 10%. "P100", "P80", "P50", "P30", "P10"
Clock/Kitchen Timer
Clock/Kitchen Timer
Clock/Kitchen Timer
"once, "00:00" displays.
OPERATION INSTRUCTIONS
18
3. Grill Cooking
4. Combination Cooking
Instructions
Microwave
Grill
Display
Convection
1
2
3
4
1) Press the " " key once, and "P100" displays.
2) Press " " for times or turn " " to select the
grill function.
3) Press " " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press "
" to start cooking.
1) Press the "
2) Press " for times or turn " " to select the
combination function. Stop turning when "C-1","C-2","C-3","C-4" displays.
3) Press "
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " " to start cooking.
C-1
C-2
C-3
C-4
Note: Combination instructions
Note: If half the grill time passes, the oven will sound twice to tell you to turn over the food.
You can just leave it continue. But in order to have a better effect of grilling food, you
should turn the food over, close the door, and then
press" "
to continue cooking.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Micro./Grill/Combi./Conv.
Micro./Grill/Combi./Conv.
When "G-1" displays, it indicates grill function.
Micro./Grill/Combi./Conv.
Micro./Grill/Combi./Conv.
" key once, and "P100" displays.
"
" to confirm.
OPERATION INSTRUCTIONS
19
5. Convection Cooking(With preheating funtion)
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
6. Convection Cooking( Without pre-heating function)
3) Press the " " to confirm the temperature
4) Press the " " to start preheating.When the
preheating temperature arrives, the buzzer will sound twice to remind you to
put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the " " key to start cooking.
3) Press the " " to confirm the temperature
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Press the " " key to start cooking.
1) Press the " " key once, and "P100" displays.
2) Press " " for times or turn " " to select the convection
The temperature can be chosen from 150 degrees to 220 degrees.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound
five times and turn back to waiting states.
temperature. When convection temperature displays, it indicates convection function.
1) Press the " " key once, and "P100" displays.
2) Press " " for times or turn " " to select the convection
The temperature can be chosen from 150 degrees to 220 degrees.
temperature. When convection temperature displays, it indicates convection function.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Micro./Grill/Combi./Conv.
Micro./Grill/Combi./Conv.
Micro./Grill/Combi./Conv.
Micro./Grill/Combi./Conv.
OPERATION INSTRUCTIONS
7.Multi-Stage Cooking
Two stages can be maximumly set. If one stage is defrosting, it be put in the first stage
Note: Auto menu and preheating cannot be set as one of the multi-stage.
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press " " twice, the screen will display "d-2";
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press"
" once;
4) Turn " " to choose 80% microwave power till "P80" display;
will
automatically. The buzzer will ring once after each stage and the next stage will begin.
Micro./Grill/Combi./Conv.
Weight/Time Defrost
5) Press " " to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press " " to start cooking.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
9. Speedy Cooking
1) In waiting state, press "
level for 30 seconds. Each press on the same key can increase 30 seconds. The
maximum cooking time is 94 minutes and 59 seconds.
3) In waiting state, turn " " left to choose cooking time directly then press
" " key to cook with 100% microwave power.
This program can be set as the first one of multi-stage.
Note: this function cannot work under defrost by weight or auto menu cooking.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
2) Turn " " to adjust the timer. The MAX.time is 95 minutes.
3) Press " " to confirm.
1) In waiting state, press "
Note: 1) The kitchen time is different from 24-hour system. Kitchen Timer is a timer.
2) During kitchen timer, any program cannot be set.
8. KITCHEN TIMER
Clock/Kitchen Timer
Clock/Kitchen Timer
" " key
can increase 30 seconds of cooking time.
2) During microwave, grill, convection and combination states, press
Note: this function cannot work under defrost by weight or auto menu cooking.
" twice, "00:00" displays.
" key to cook with 100% power
Start/+30Sec./Confirm
20
OPERATION INSTRUCTIONS
10. Auto Menu
Note: Cake menu is under convection cooking with 180
-warm-up function,
and you should preheat first following the auto menu operation, when the oven
reaches the temperature, it will stop working and sound to remind opening
the door to put cake in, then press " " to start cooking.
1) In waiting state, turn " " right to choose the function wanted,
and "A1","A2","A3"...."A10" will be displayed.
2) Press " " to confirm the menu you need.
3) Turn " " to choose the weight of menu,and "g" indicator will light.
4) Press "
" to start cooking.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
21
OPERATION INSTRUCTIONS
Auto menu Chart
Menu
Weight
Power
A6
Pasta
A1
Reheat
A2
Potato
A3
Meat
A4
Vegetable
A5
Fish
A7
Soup
150g
250g
350g
450g
600g
1 (about 230g)
2 (about 460g)
3 (about 690g)
150g
300g
450g
600g
150g
350g
500g
150g
250g
350g
450g
650g
50g(with water 450ml)
100g(with water 800ml)
150g(with water 1200ml)
200ml
400ml
600ml
475g
200g
300g
400g
500g
750g
1000g
1200g
A8 Cake
A9
Pizza
A10
Chicken
150
250
350
450
600
1
2
3
150
300
450
600
150
350
500
150
250
350
450
650
50
100
150
200
400
600
475
200
300
400
500
750
1000
1200
Display
100%
100%
Preheat at 160 degrees
80%
C-2
100%
80%
100%
C-4
100%
22
OPERATION INSTRUCTIONS
12. Defrost by Time
11. Defrost by W.T.
13. Inquiring Function
1) In cooking state, press " ", the current power will be displayed
for 2-3 seconds.
2) During cooking state, press " " to check the current time.
1) Press " " key twice, the oven will display "d-2" .
2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.
3) Press "
" key to start defrosting.
The defrosting power is P30 and it cannot be changed.
1) Press " " pad once,the oven will display "d-1".
3) Press " " key to start defrosting.
2) Turn " " to select the weight of food.At the same time, "g" will lights,
The weight should be 100-2000g.
Note: If the food weight is no more than 200 grams,please place the food at the edge of the
glass turntable but not the center to be defrosted.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Micro./Grill/Combi./Conv.
Weight/Time Defrost
Weight/Time Defrost
Clock/Kitchen Timer
When cooking finished, if the turntable is not at the initial position, it will enter the turntable
Note:
1) This function only works for one completed cooking. If pause or open the door during
2) Under the reset status, press door open button or stop/cancel button will back to waiting state.
3) Reset position precision: cooking time in 5 minutes and turntable degrees within 30 degrees.
14. Turntable Reset Function
reset function. At this time, the lamp, fan and turntable are working, LED enters dynamic
display. The oven stops working and reminds cooking finished.
cooking or it cannot use the reset function.
23
OPERATION INSTRUCTIONS
16. Specification
1) The buzzer will sound once when turning the knob at the beginning;
2) " " must be pressed to continue cooking if the door is opened
during cooking;
3) Once the cooking programme has been set , " " is not pressed
in 5 minutes. The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no responce.
5) The buzzer will sound five times to remind you when cooking is finished.
15. Lock-out Function for Children
Lock: In waiting state, press " " for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and locked indicator will light. Screen will display
current time or 0:00.
Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep"
denoting that the lock is released, and the locked indicator will disapear.
Stop/Clear
Stop/Clear
Start/+30Sec./Confirm
Start/+30Sec./Confirm
24

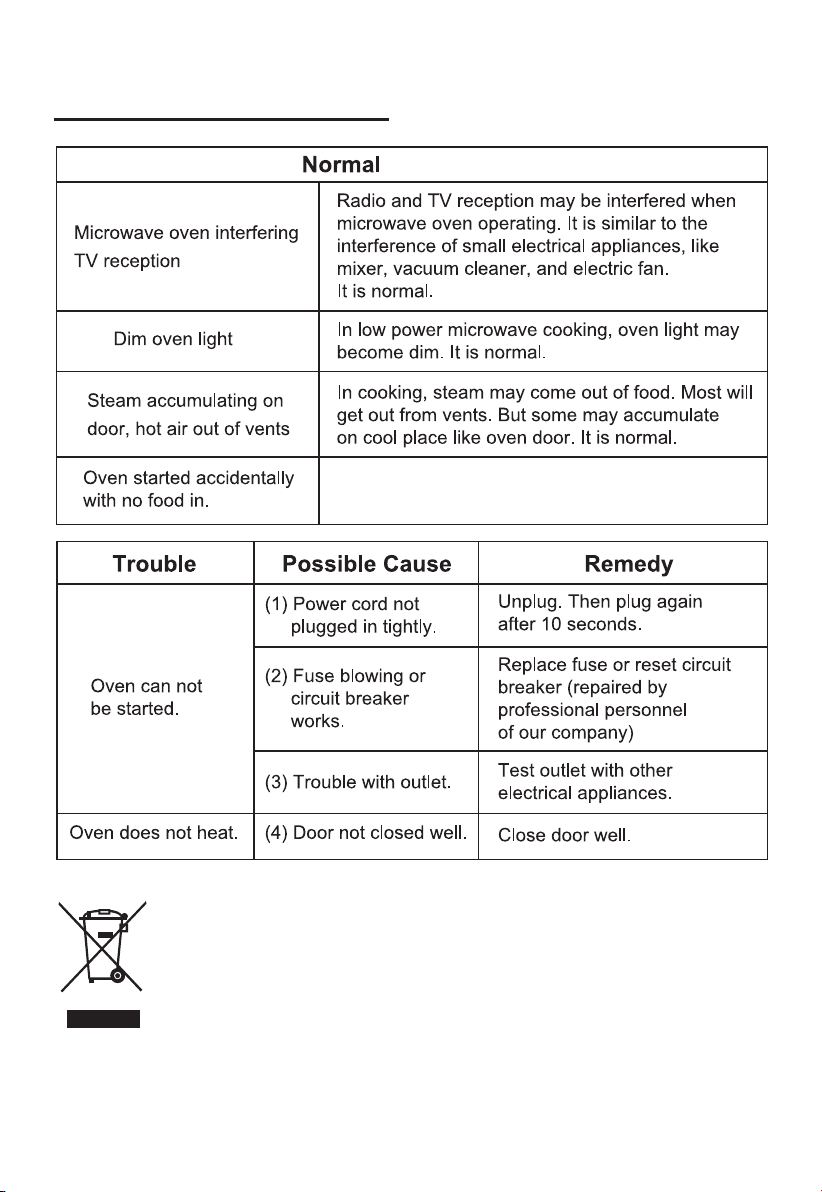

TROUBLE SHOOTING
25
According to W aste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.
PN:16170000A72246
