Owner's Guide Vacuum

PART INCLUDED

1. Carrying Handle
2. Charging Port
3. ON/OFF Switch
4. Power Indicator
5. Unlocking Button
6. Collection Container
7. Filter
8. Filter Holder
9. Charging Base
10. Long Crevice Nozzle
11. Brush Nozzle
12. Liquid Nozzle

Button Functions

1. Power Button
   Push upward for 1 second to start.
2. Unlocking Button
   This button separates the motor from the collection container so that the container can be easily cleaned and maintained.

Nozzle Attachments

• The long crevice nozzle is included for removing the dust in corners and gaps.
• The brush nozzle is included for cleaning furniture, upholstery, and carpet, as well as hair and pet fur.
• Use the liquid nozzle to clean up to 100 ml (3.5 ounces) of liquids. Keep the nozzle pointed downward after vacuuming the liquids, to prevent leaking from the seam between the collection container and the machine, which could damage the motor. Discard liquids immediately

CHARGING AND STORAGE

• Charge the device fully before first use.
• The indicator will turn blue and flash to show when the battery is low and it is time to charge the device.
• Ensure that the device and all parts are completely dry before charging. Insert the vacuum cleaner into the charging base and connect the adapter to a power source to charge.
• The power indicator turns red to show that the device is charging. It will take 2–3 hours to fully charge.
• When charging is finished, the indicator turns blue and flashes for 10 seconds, and then turns off. The device is now fully charged and ready to be used.
• If the battery temperature dips below 0°C / 32°F, the device will stay off to protect the motor and battery. Do not store the device at a temperature below 0°C/ 32°F.
• To extend battery life, please avoid charging immediately after the device is fully discharged, the product needs to be cooled down for a few minutes.

Tips: Avoid using the device when the battery surface is hot. Running the device at a lower temperature helps to extend the working time and service life of the battery.

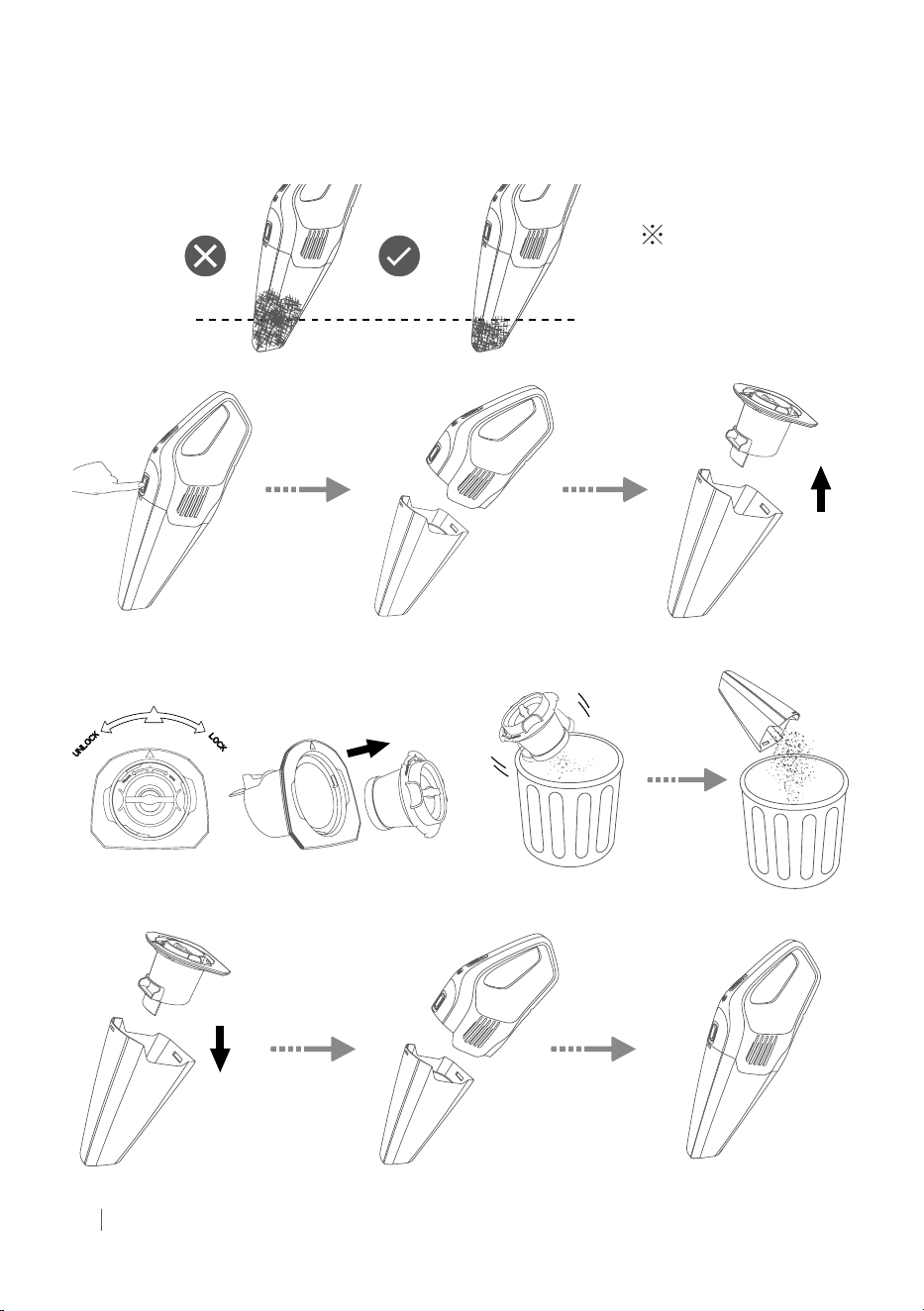

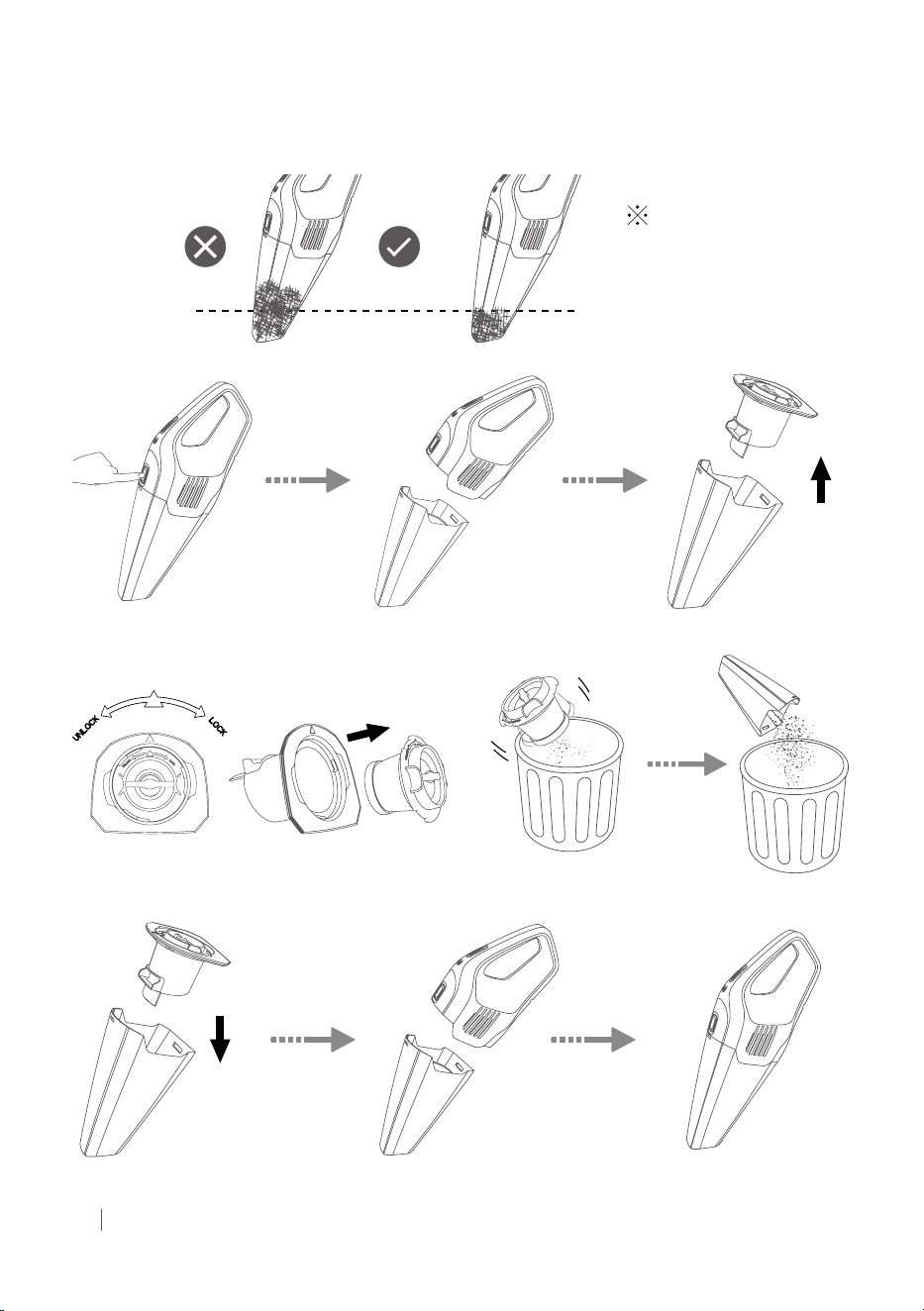

EMPTYING THE COLLECTION CONTAINER

• Empty the collection container immediately once the dust reaches the "MAX" mark.
• Tilt the vacuum cleaner downward and press the unlocking button to remove the collection container.
• Remove the filter and filter bracket, and empty the waste into a sealing trash container.
• Empty the collection container immediately once the dust reaches the "MAX" mark.
• Tilt the vacuum cleaner downward and press the unlocking button to remove the collection container.
• Remove the filter and filter bracket, and empty the waste into a sealing trash container.
• When replacing the filter and filter tray, make sure the collection container and seal are completely dry.
• Reinsert the filter and filter tray into the collection container.
• Push the collection container back into place until it clicks

Warning: Please note that max liquid pick-up capacity is 100ml. Please emtpy the liquid in the dustbin and take the pieces apart and let it dry right after before next use and recharge.

Cleaning and Replacing Collection Container and Filter Parts

TIPS: It is recommended to wash the HEPA after using 20 times.

For optimal performance, empty the collection container each time you use the vacuum cleaner, and wash the collection container, filter tray and filter regularly. The filter must be washed when it becomes dusty or once a month, whichever is sooner. Fine dust may need to be cleaned more frequently.

If the parts are only lightly soiled, you can clean with wet cloth. If they are more heavily soiled, submerge the parts in cold running water and gently agitate by hand until they are clean.

• Before using the device, ensure that the suction head and accessories are clean.
• Depress the unlocking button to remove the collection container.
• Remove the filter and filter bracket. Before washing, tap the filter lightly to remove excess dust and debris. Wash the collection container, filter, and filter tray separately.
• Wash by hand only with water only. Do not use soap or detergent. Do not use any appliances or brushes to clean the filter parts.
• Place the filter in a well ventilated and dry environment for at least 24 hours to allow it to dry thoroughly.
• Ensure that the filter unit is completely dry.
• Reinsert the filter and filter tray into the collection container.
• Push the collection container back into place until it clicks.

TROUBLESHOOTING

• Weak suction.
  • Check that the vacuum has not been used for too long without charging. This vacuum is designed to clean for up to 25 minutes. After it is used for several minutes, the suction will become weaker. If the suction starts off weakly or becomes weak, charge the vacuum fully and try again.
  • Be sure that the filter is clean so that debris is not obstructing the device's suction.
• Vacuum is hot during use.
  • Power off the device and check if the collection container is full. If needed, clean it as instructed above.
  • Check if the filter screen is blocked. If so, clean the filter according to the above instructions.
• Vacuum cleaner isn't suctioning pet fur.
  • Check that the device has full power. A weak charge will cause weak suction that cannot vacuum the pet fur, and it will need to be recharged before resuming use.
  • If the pet fur has stuck to a fabric or carpeted surface after a liquid spill, use the head of the brush nozzle to loosen the hair and clean it before use.
• The device does not turn on.
  • Ensure that the battery is fully charged.
