,QVWUXFWLRQ0DQXDODQG,QVWDOODWLRQ,QVWUXFWLRQV
W
ashing mac
hine
WM14YH89GB
www.devicemanuals.eu/
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Siemens WM14YH89GB:
Washing machine
1
WM14YH89GB
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
Y Main points in brief 24
3
* Getting to know the appliance 25
3
Z Laundry 29
3
C Detergent 30
3
/ Overview of programmes 31
3
0 Programme default settings 37
3
\ Additional programme settings/options (* depending on the model) 39
3
1 Operating the appliance 42
3
a Intelligent dosing system 47
4
o Home Connect 51
4
Q Appliance settings 56
4
H Sensors 57
4
2 Cleaning and maintenance 58
4
3 Faults and what to do about them. 62
4
4 After-sales service 67
4
[ Consumption rates 68
4
J Technical data 69
4
r Aqua-Stop warranty 70
4
8 Intended use
5
Intended use
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
: Warning
6
Risk of death!
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a base or a wooden joist floor
15
Caution!
15
Damage to the appliance
15
Note:
15
Installation on a platform with drawer
15
Installing the appliance in a kitchenette
16
: Warning
16
Danger of death!
16
Notes
16

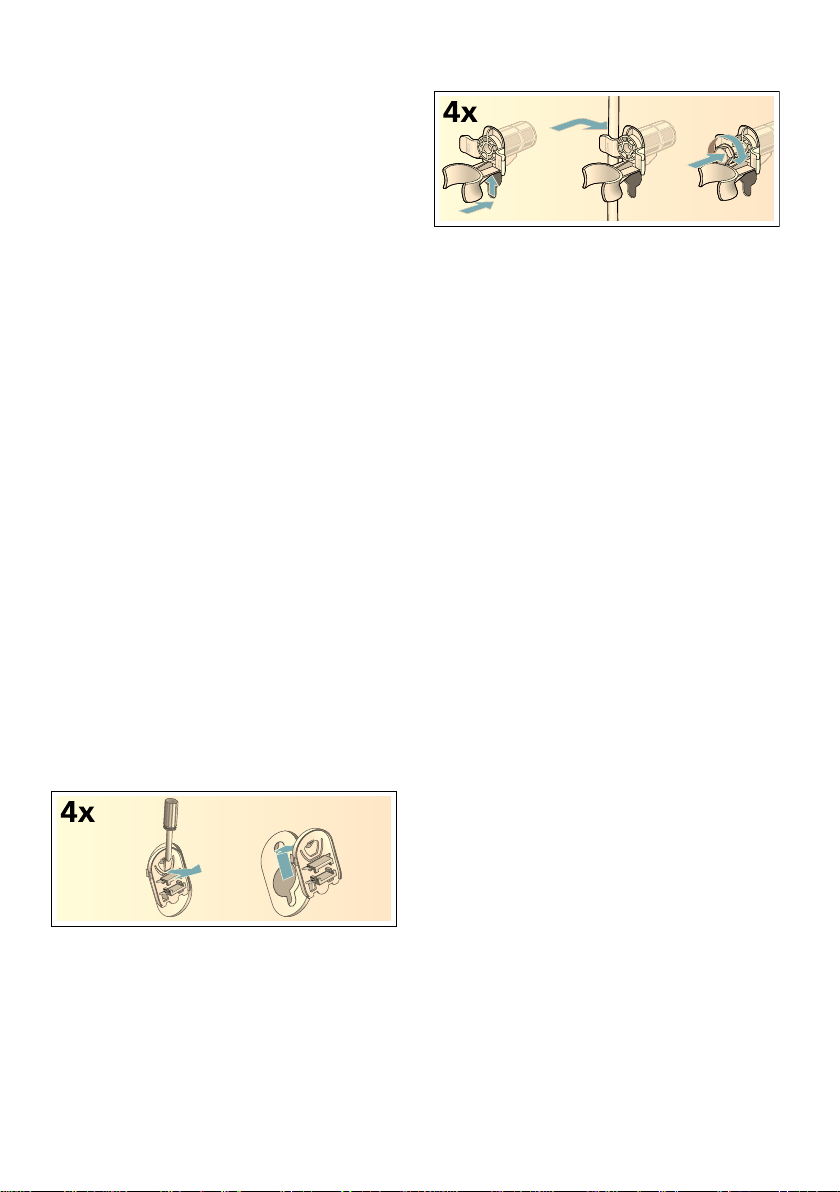

Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
1. Take the hoses out of the holders.
16
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
16
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16

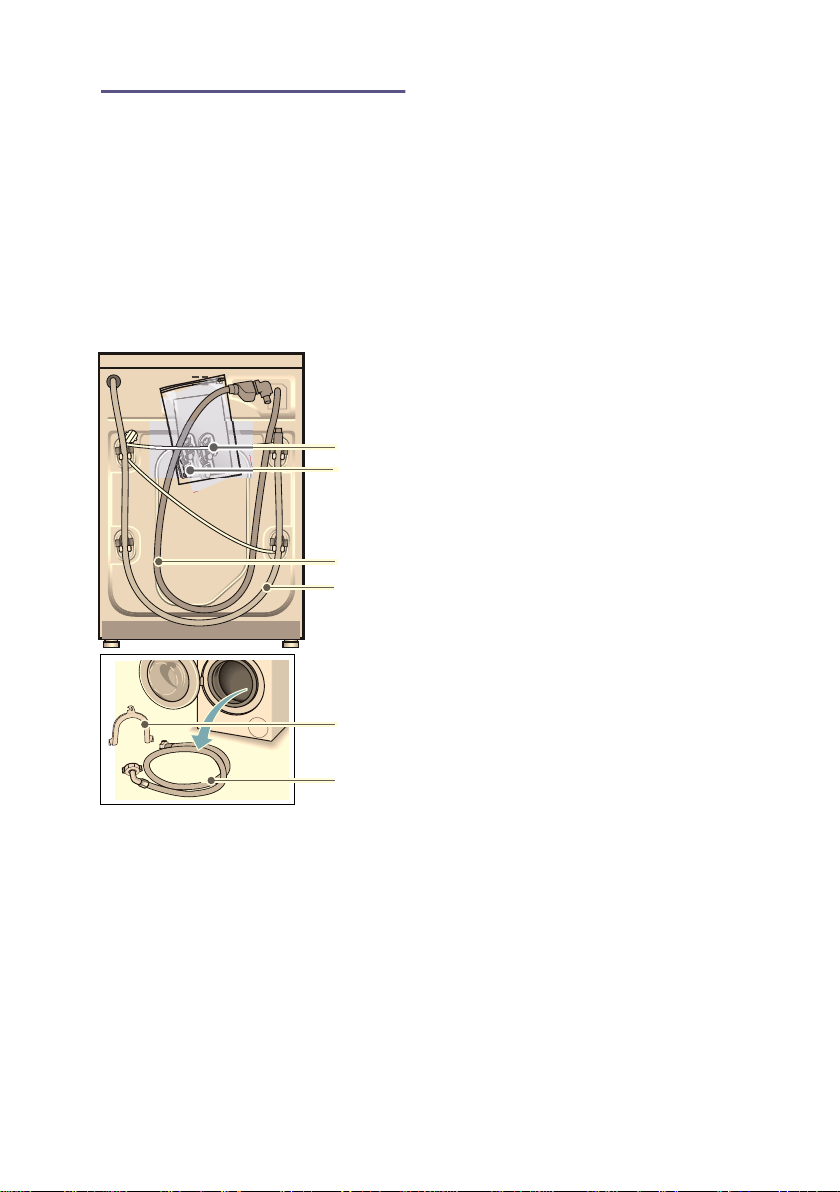

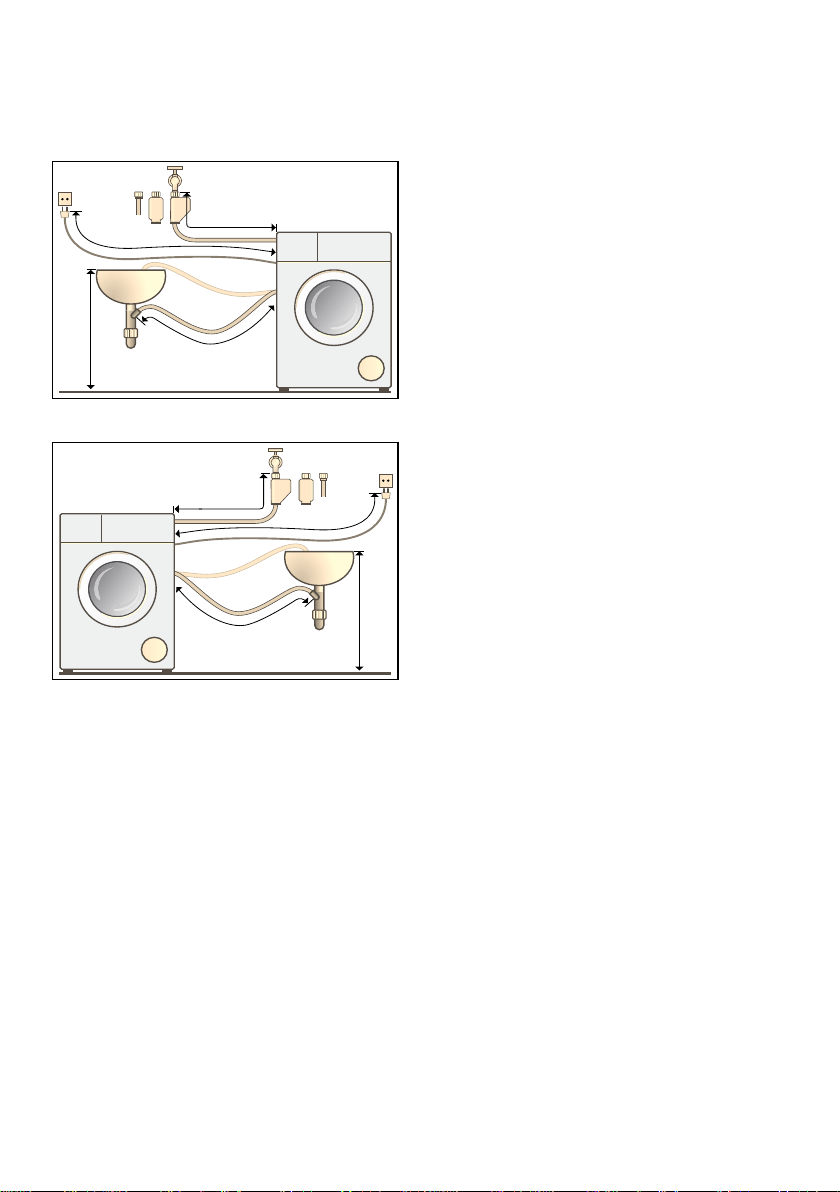

Hose and cable lengths
17
Tip:
17

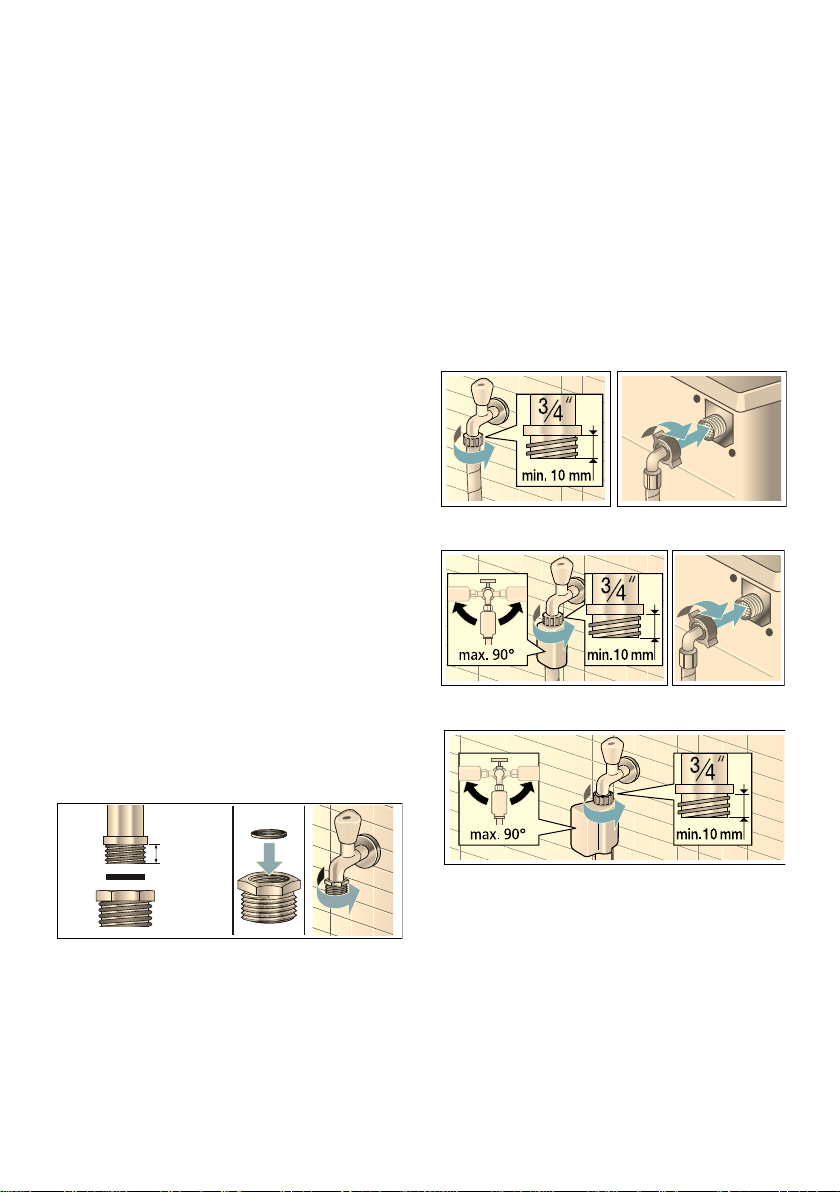

Water inlet
18
: Warning
18
Danger of death!
18
Notes
18
Connection
18
Note:
18

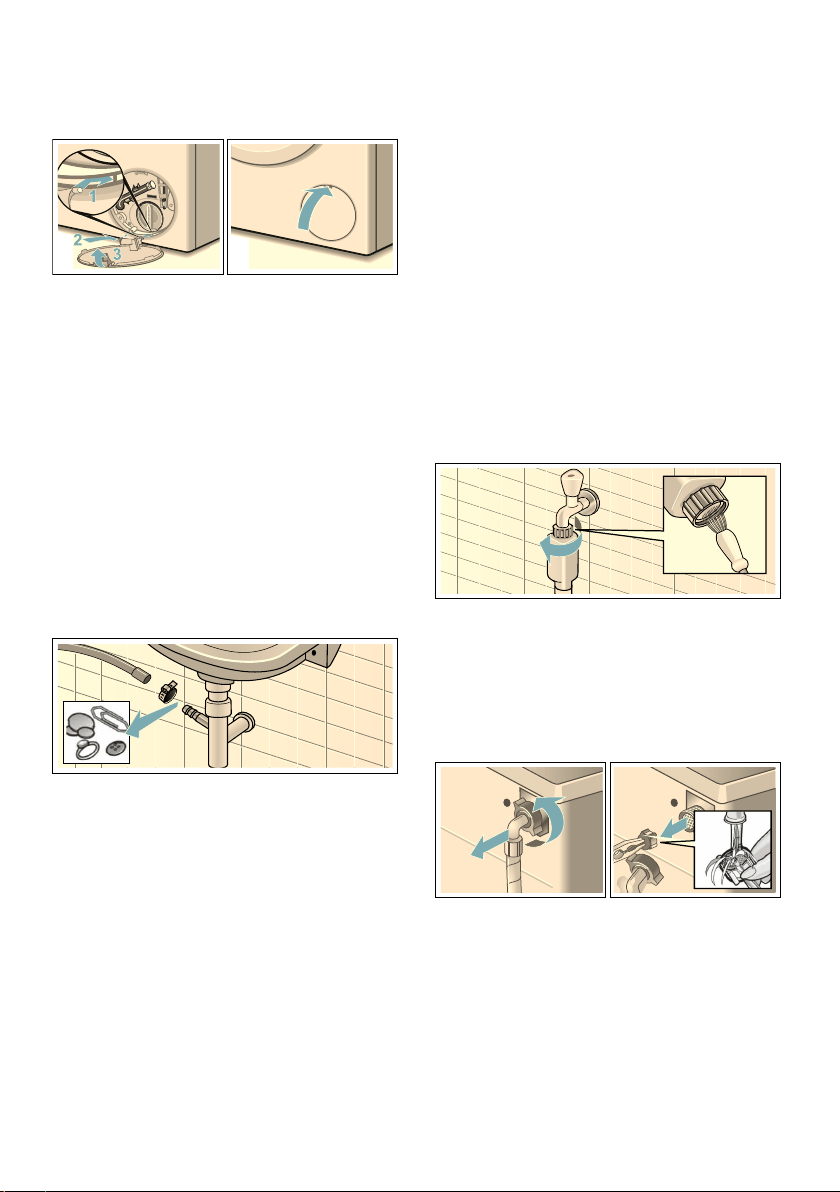

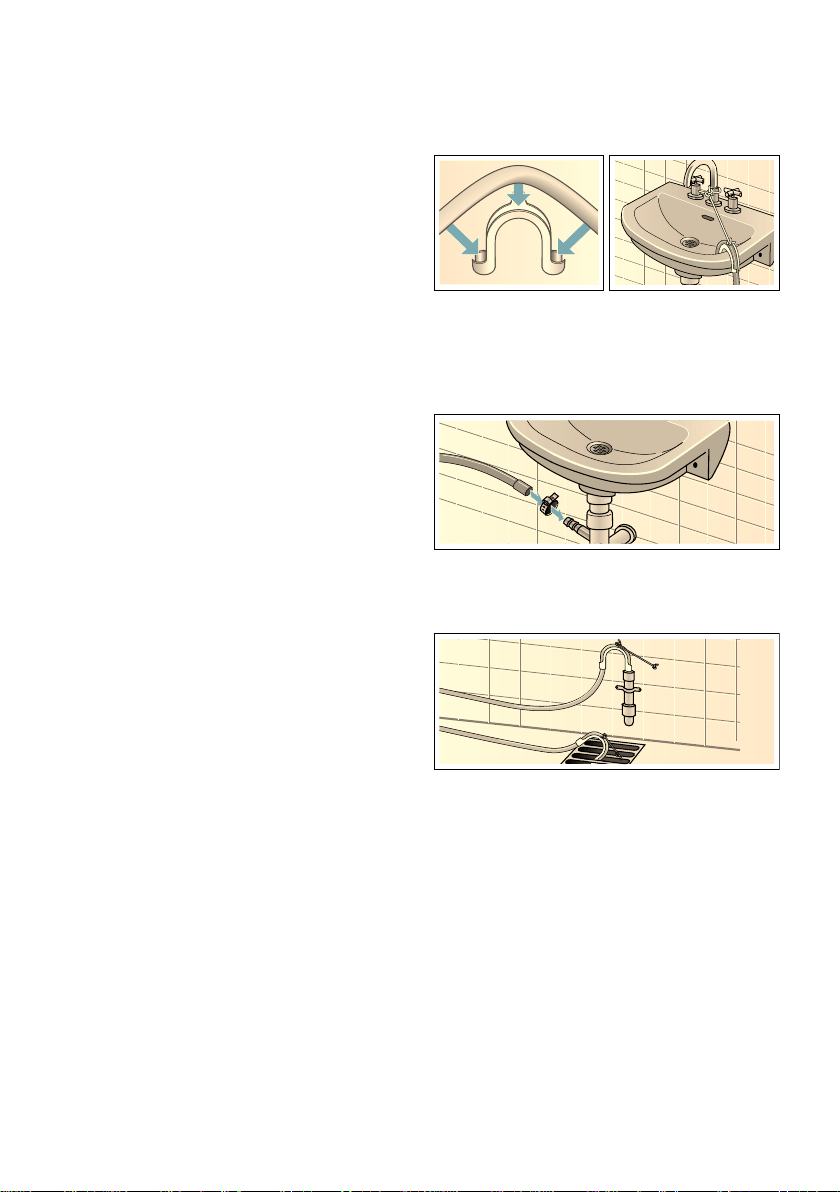

Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Note:
19
Connection
19
Levelling
20
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
20
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
20
Electrical connection
21
: Warning
21
Danger of death!
21
Notes
21
Before washing for the first time
22
Notes
22
Preparatory work:
22
1. Check the machine.
22
2. Fill the dispenser ß and i. ~ Page 47
22
3. Remove the protective film from the control panel.
22
4. Plug into the mains.
22
5. Turn on the tap.
22
Run the programme without laundry:
22
1. Switch on the appliance.
22
2. Close the door (do not load any laundry).
22
3. Set the Drum Clean 90 °C programme.
22
4. Open the detergent drawer.
22
5. Pour approx. 1 litre of water into compartment À Á.
22
6. Pour standard washing powder into compartment À ÁII.
22
Note:
22
7. Close the detergent drawer.
22
8. Press the Ü button.
22
9. Switch off the appliance at the end of the programme.
22
Transportation
23
Caution!
23
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers.
23
1. Turn off the tap.
23
2. Reduce the water pressure in the supply hose: ~ Page 61; cleaning and maintenance – filter in the water supply clogged
23
3. Disconnect the washing machine from the mains.
23
4. Drain any residual water: ~ Page 60; cleaning and maintenance – drain pump blocked, emergency draining
23
5. Remove the hoses.
23
6. Empty the dispensers. ~ Page 59
23
Fitting the transportation securing means:
23
1. Remove the covers and keep them in a safe place.
23
2. Insert all four sleeves.
23
Notes
23

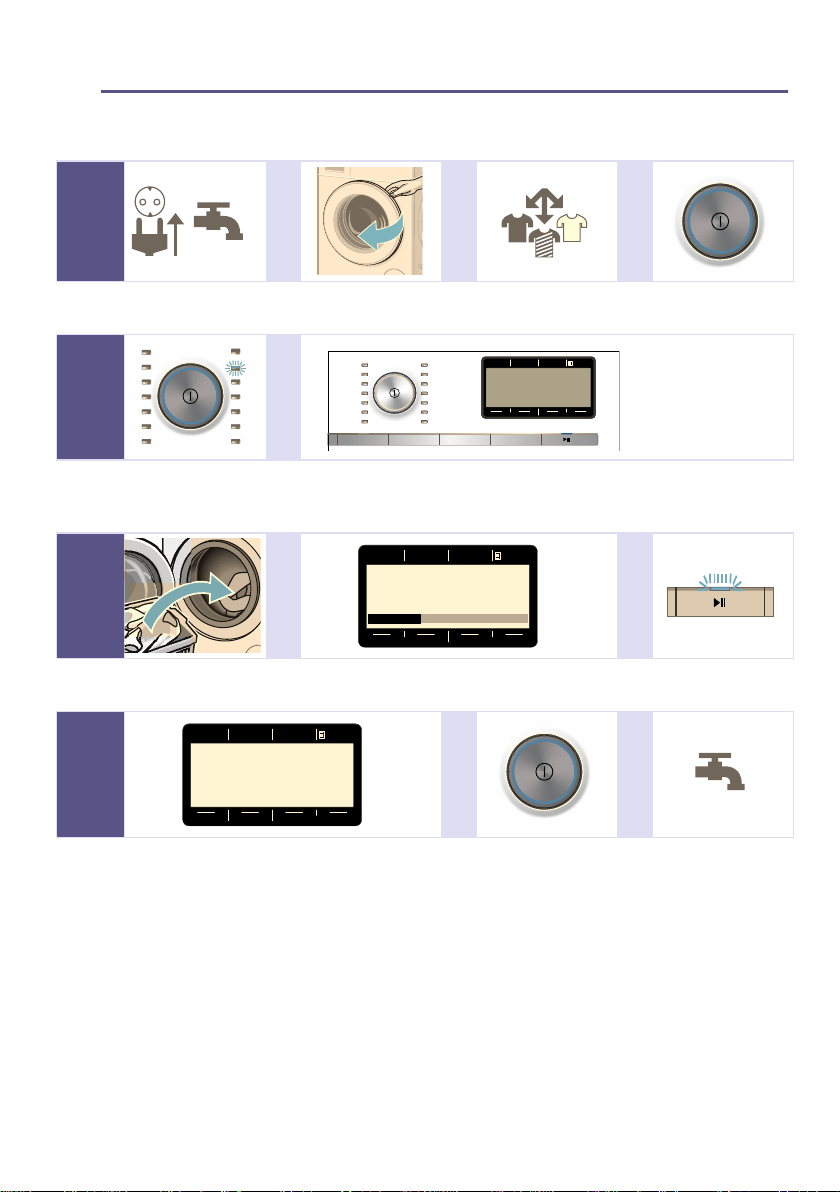

Y Main points in brief
24
Main points in brief
24
* Getting to know the appliance
25
Getting to know the appliance
25
Washing machine
25
Control panel
26
Main switch
26
Programme selector
26
Buttons for changing the programme default settings: ~ Page 37
26
Ü button for:
26
Notes
27
Buttons for selecting additional programme settings
27
Display panel
27
Main menu after selecting the programme
27
Others Programmes selected
27
Use the i-Dos button to select the dispenser and the dosage quantity
28
Options × button selected
28
Basic Settings 3 sec. buttons selected
28
Z Laundry
29
Laundry
29
Prepare the laundry
29
Caution!
29
Damage to the appliance/fabrics
29
Sorting laundry
29
Note:
29
Note:
29
C Detergent
30
Detergent
30
Correct selection of detergent
30
Saving energy and detergent
30
Saving
30
Soiling/note
30
Note:
30
/ Overview of programmes
31
Overview of programmes
31
Programmes on the programme selector
31
Programme/type of laundry/instructions
31
Settings
31
Notes
31
Note:
31
Note:
32
Notes
32
Note:
32
Note:
33
Notes
33
Notes
33
Notes
34
Note:
34
Notes
34
Notes
34
1. Select a programme.
35
2. Add special detergent for outdoor clothing to compartment À Á.
35
3. Press the Ü button. The programme stops before the last rinse cycle. Follow the information on the display panel.
35
4. Add a waterproofing agent (max. 170 ml) to compartment À Á.
35
5. Press the Ü button. After-treat the laundry in accordance with the manufacturer's instructions.
35
Notes
35
Notes
36
Starching
36
Note:
36
1. Switch on the appliance.
36
2. Select the Rinse programme.
36
3. Pour liquid starch into compartment À Á in accordance with the manufacturer's instructions (clean first if necessary).
36
4. Press the Ü button.
36
Dyeing/bleaching
36
0 Programme default settings
37
Programme default settings
37
Temperature
37
Spin speed
37
Finish in
37
Note:
37
1. Press the Ü button.
37
2. Use the Finish in button to change the number of hours.
37
3. Press the Ü button.
37
i-Dos settings
38
i-Dos ô for detergent
38
Dosage strengths
38
i-Dos i for fabric softener
38
Dosage strengths
38
\ Additional programme settings/options (* depending on the model)
39
Additional programme settings/options
39
The settings can be selected:
39
speedPerfect (
39
Note:
39
ecoPerfect ¦
39
Prewash *
39
Notes
39
Extra Rinse *
39
Water Plus *
39
Less Ironing *
40
Note:
40
Soak *
40
Notes
40
1. Select i-Dos or dose detergent in the À Á manual compartment in accordance with the manufacturer's instructions.
40
2. Select the Cotton 30 °C programme and the Ü button.
40
3. Press the Ü button after approx. 10 minutes. The laundry remains in the soaking solution.
40
4. Leave the laundry to soak for as long as required, then either press the Ü button again to continue the programme or change the programme.
40
Note:
40
Rinse Hold *
40
Silent Wash *
40
Note:
40
Stains *
41
Types of stain that can be selected:
41
Select a programme with a stain type:
41
1. Arrange items of washing as usual.
41
2. Select a programme.
41
3. Load the washing machine
41
4. Select a stain type (depending on the selected programme).
41
5. Start the programme.
41
The treatment of two stains explained in the following example:
41
1 Operating the appliance
42
Operating the appliance
42
Preparing the washing machine
42
Note:
42
1. Plug into the mains.
42
2. Turn on the tap.
42
3. Open the washing machine door.
42
4. Check that the drum is completely drained. Drain if necessary. Otherwise, the load display may malfunction. ~ Page 57
42
Switching on the appliance/ selecting a programme
42
Note:
42
Change the programme default settings
42
Note:
42
Select additional programme settings
43
Placing laundry into the drum
43
: Warning
43
Risk of death!
43
Notes
43
Measure and add detergent and care products
43

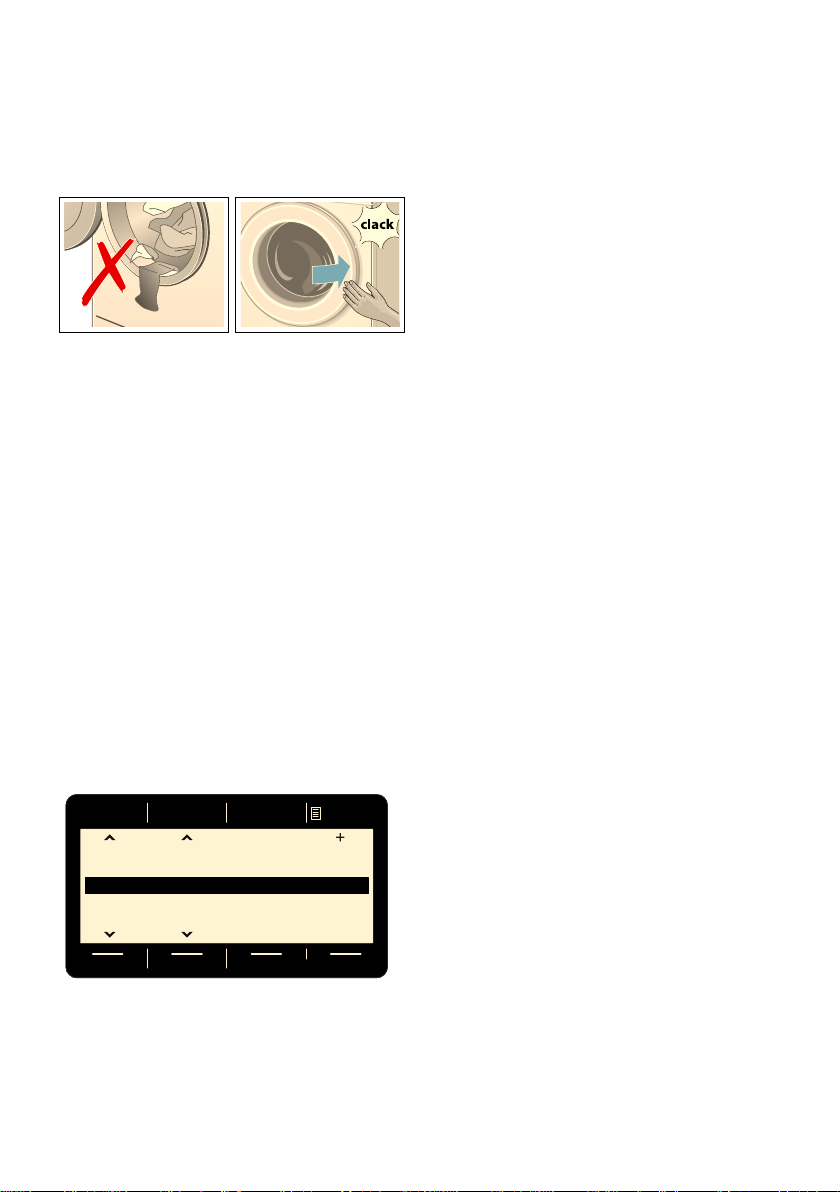

Start the programme
44
Note:
44
Child Lock 3 sec.
44
Notes
44
Adding laundry
45
Notes
45
Changing the programme
45
1. Press the Ü button.
45
2. Select another programme.
45
3. Press the Ü button. The new programme starts from the beginning.
45
Cancel the programme
45
1. Press the Ü button.
45
2. To cool down laundry: Select Rinse.
45
3. Press the Ü button.
45
1. Press the Ü button.
45
2. Select Spin or Drain.
45
3. Press the Ü button.
45
Programme end during rinse hold
45
Programme end
45
Removing laundry/switching off the appliance
46
1. Open the loading door and remove the laundry. Follow the information on the display panel.
46
2. Press the # button. The appliance is switched off.
46
3. Turn off the tap.
46
Note:
46
Notes
46
Notes
46
a Intelligent dosing system
47
Intelligent dosing system
47
Intelligent dosing system in the detergent drawer
47
Initial use/filling the dispensers
47
Notes
47
Filling the dispensers:
47
1. Open the detergent drawer.
47
2. Open the dispenser cover(s).
47
3. Add detergent/fabric softener. Do not fill above the max. marking.
47
4. Close the cover(s).
47
5. Slowly push the detergent drawer in completely.
47
Everyday use
48
Illuminated displays on the drawer handle:
48
(De)selecting intelligent dosage and adjusting the dosage strength:
48
Note:
48
Topping up the detergent/ fabric softener:
48
Base dosage
49
The basic dosages are:
49
My water hardness:
49
Degree of soiling →
49
Water hardness ↓
49
light
49
normal
49
heavy
49
very heavy
49
Notes
49
Changing the basic dosages:
49
Dispenser content for i-Dos iIô
50
Notes
50
Changing the dispenser content:
50
Manual dosage
50
: Warning
50
Eye/skin irritation!
50
Caution!
50
Damage to the appliance
50
Notes
50
Dosing and adding detergent:
51
1. Pull out the detergent drawer.
51
2. Add the correct dosage to compartment À Á depending on:
51
3. Close the detergent drawer.
51
o Home Connect
51
Home Connect
51
1. Install the Home Connect app on your mobile device.
51
2. Register in the Home Connect app.
51
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
51
4. Connect your appliance to the Home Connect app.
51
Notes
51
Calling up the Home Connect menu
52
1. Switch on the appliance.
52
2. Press and hold Remote Start } for at least 3 seconds.
52
Note:
52
Connecting to the home network and the Home Connect app
52
Notes
52
Note:
52
Connecting to your home network automatically
52
1. Press Connect.
52
2. Activate the WPS function on your home network router within the next 2 minutes.
52
Note:
52
Connecting to your home network manually
53
1. Press Man. network log-in.
53
2. Press Connect.
53
3. Call up the Wi-Fi setting on the mobile device.
53
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
53
5. Once you have connected successfully, open the Home Connectؘ app on your mobile device and carry out the steps in the app.
53
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
53
7. Carry out the last steps in the Home Connect app to connect your appliance.
53
Note:
53
Connecting to the Home Connect app
53
1. Press Connect to the app.
53
2. Press Connect app.
53
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
54
Note:
54
Activating/deactivating Wi-Fi
54
1. Press Wi-Fi on/off.
54
2. Press on or off.
54
Notes
54
Resetting your network settings
54
1. Press Network settings.
54
2. Press Reset.
54
Note:
54
Updating the software
55
1. Press Software update.
55
2. Press Install.
55
Note:
55
Note:
55
Information on data protection
55
Note:
55
Declaration of Conformity
55
Q Appliance settings
56
Appliance settings
56
Settings that can be selected:
56
Note:
56
Notes
56
H Sensors
57
Sensors
57
Automatic load sensing
57
Unbalanced load detection system
57
Note:
57
AquaSensor
57
Load sensor/display
57
Note:
57
Dosing recommendation
57
Note:
57
2 Cleaning and maintenance
58
Cleaning and maintenance
58
: Warning
58
Danger of death!
58
: Warning
58
Risk of poisoning!
58
Caution!
58
Damage to the appliance
58
Notes
58
Machine housing/control panel
58
Drum
58
Descaling
58
i-Dos detergent draw and its housing
59
1. Emptying the dispensers:
59
a) Pull out the detergent drawer.
59
b) Pull the catch (A) on the back of the drawer handle (in the centre at the bottom) slightly towards you. This unlocks the drawer handle (B), which you can then pull off by lifting it upwards.
59
c) To empty the dispensers, carefully pull off each of the sealing plugs and empty the contents into a suitable container.
59
d) Then push the sealing plugs back in completely.
59
2. Cleaning the dispensers/detergent drawer:
59
a) Empty the dispensers before removing the drawer.
59
Note:
59
b) Pull out the drawer.
59
c) Press the catch and remove the drawer completely.
59
d) Carefully remove the drawer cover.
59
Caution!
59

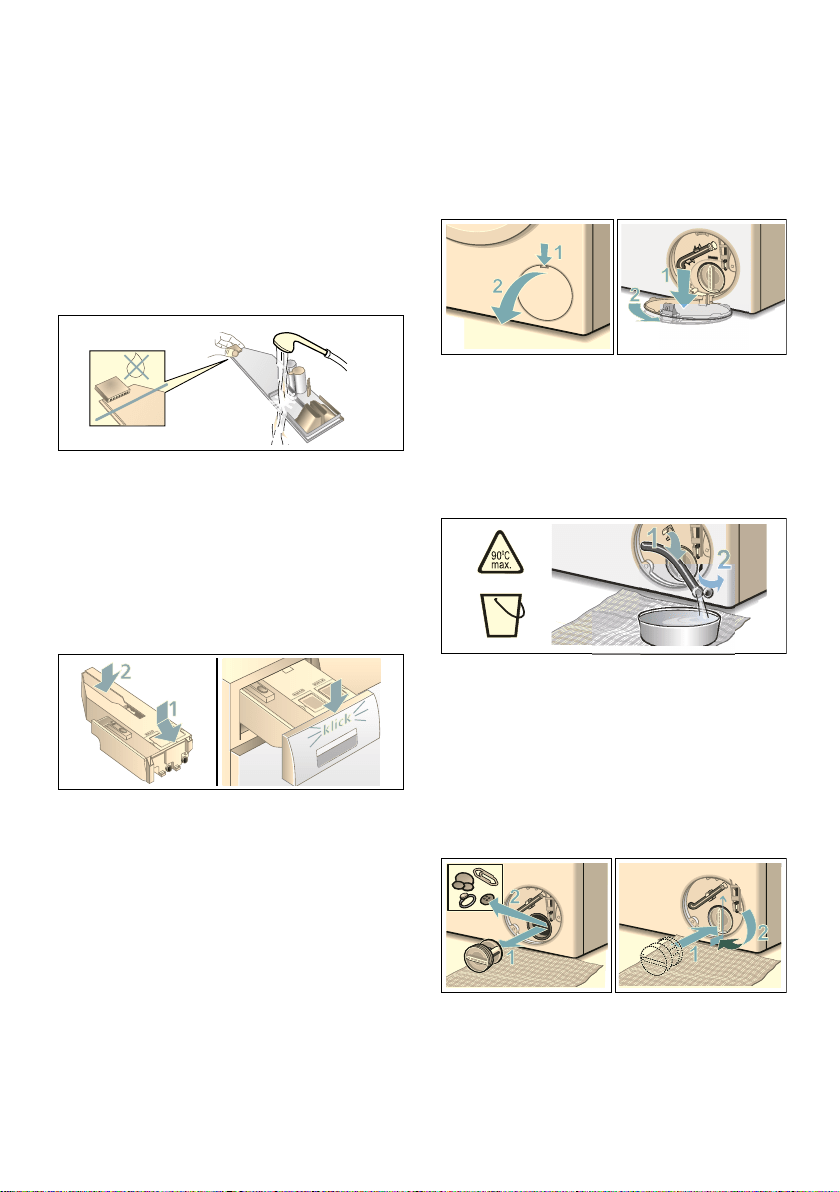

e) Clean the drawer and the cover with a soft, damp cloth or a hand shower. Also clean the inner surfaces with a soft, damp cloth.
60
f) Dry the drawer and the cover and put them back together.
60
g) Push the drawer handle back in from above until you feel it click in place.
60
h) Clean the inside of the detergent- drawer housing.
60
i) Push the detergent drawer in completely.
60
The drain pump is blocked, emergency draining
60
: Warning
60
Risk of scalding!
60
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
60
2. Switch off the appliance. Pull out the mains plug.
60
3. Open and remove the service flap.
60
4. Take the drain hose out of the retainer.
60
5. Carefully unscrew the pump cover; residual water may leak out.
60
6. Put the service flap back on, lock it into place and close it.
61
Note:
61
The drain hose at the siphon is blocked
61
1. Switch off the appliance. Pull out the mains plug.
61
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
61
3. Clean the drain hose and siphon connecting piece.
61
4. Re-attach the drain hose and secure the connection point using the hose clamp.
61
Filter in the water supply blocked
61
First, reduce the water pressure in the supply hose:
61
1. Turn off the tap.
61
2. Select any programme (except Rinse/Spin/Empty).
61
3. Press the Ü button. Allow the programme to run for approximately 40 seconds.
61
4. Press the # button. The appliance is switched off.
61
5. Pull out the mains plug.
61
Then clean the filter:
61
1. Disconnect the hose from the tap.
61
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
61
3. Connect the hose and check for leaks.
61
3 Faults and what to do about them.
62
Faults and what to do about them.
62
Emergency release
62
: Warning
62
Risk of scalding!
62
: Warning
62
Risk of injury!
62
Caution!
62
Water damage
62
1. Switch off the appliance. Pull out the mains plug.
62
2. Drain the water. ~ Page 60
62
3. Pull the emergency release downwards with a tool and release.
62
Information on the display panel
63
Display
63
Cause/remedy
63
Notes
63
Faults and what to do about them.
64
Faults
64
Cause/remedy
64
1. Empty and clean.
64
2. Refill. ~ Page 47
64
Note:
65
4 After-sales service
67
After-sales service
67
[ Consumption rates
68
Consumption rates
68
Energy and water consumption, programme duration and residual moisture for the main washing programmes
68
Programme
68
Load
68
Energy consumption*
68
Water consumption*
68
Programme duration*
68
Programme
68
Approximate information on the residual moisture**
68
WM16Y...
68
WM14Y...
68
WM12Y...
68
WM10Y...
68
Max. 1600 rpm
68
Max. 1400 rpm
68
Max. 1200 rpm
68
Max. 1000 rpm
68
Efficiency test programmes for cotton fabrics
69
The following programmes (standard programmes, indicated by ü) are suitable for cleaning normally soiled cotton fabrics and are the most efficient with respect to combined energy and water consumption.
69
Standard programmes for cottons in accordance with Regulation (EU) no. 1015/2010
69
Programme + temperature
69
Load
69
Approximate programme duration
69
J Technical data
69
Technical data
69
r Aqua-Stop warranty
70
Aqua-Stop warranty
70
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
70
2. The liability guarantee is valid for the service life of the appliance.
70
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
70
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
70
File type: PDF
File name: WM14YH89GB.pdf
File size: 8.94 MB
File Language: English
Pages: 72
Author: Siemens
Updated: 2023-08-08
Download File
Specifications
Brand:
Siemens
Model: WM14YH89GB
Category:
Washers & Dryers
View in the file:
Full Specifications
Download User Manual
Siemens in United States
1-800-241-4453.
Twitter
Fan Page
Website
Related Products
Siemens WM14YH79GB
Siemens WM16YH79GB
Siemens WM14W750GB
Siemens WM14W5H0GB
Siemens WM14T790GB
Siemens WM14N201GB
Siemens WM14U940GB
Siemens WM4UH640GB
Siemens WM16W5H0GB
Siemens WM12N201GB
Siemens WM14W440AU
Siemens WM14W790AU
Siemens WM16XFH5GB
Siemens WM16XFH4GB
Siemens WM16XGH4GB
Table of Contents
×
Washing machine
1
WM14YH89GB
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
Y Main points in brief 24
3
* Getting to know the appliance 25
3
Z Laundry 29
3
C Detergent 30
3
/ Overview of programmes 31
3
0 Programme default settings 37
3
\ Additional programme settings/options (* depending on the model) 39
3
1 Operating the appliance 42
3
a Intelligent dosing system 47
4
o Home Connect 51
4
Q Appliance settings 56
4
H Sensors 57
4
2 Cleaning and maintenance 58
4
3 Faults and what to do about them. 62
4
4 After-sales service 67
4
[ Consumption rates 68
4
J Technical data 69
4
r Aqua-Stop warranty 70
4
8 Intended use
5
Intended use
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
: Warning
6
Risk of death!
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a base or a wooden joist floor
15
Caution!
15
Damage to the appliance
15
Note:
15
Installation on a platform with drawer
15
Installing the appliance in a kitchenette
16
: Warning
16
Danger of death!
16
Notes
16
Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
1. Take the hoses out of the holders.
16
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
16
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
17
Tip:
17
Water inlet
18
: Warning
18
Danger of death!
18
Notes
18
Connection
18
Note:
18
Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Note:
19
Connection
19
Levelling
20
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
20
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
20
Electrical connection
21
: Warning
21
Danger of death!
21
Notes
21
Before washing for the first time
22
Notes
22
Preparatory work:
22
1. Check the machine.
22
2. Fill the dispenser ß and i. ~ Page 47
22
3. Remove the protective film from the control panel.
22
4. Plug into the mains.
22
5. Turn on the tap.
22
Run the programme without laundry:
22
1. Switch on the appliance.
22
2. Close the door (do not load any laundry).
22
3. Set the Drum Clean 90 °C programme.
22
4. Open the detergent drawer.
22
5. Pour approx. 1 litre of water into compartment À Á.
22
6. Pour standard washing powder into compartment À ÁII.
22
Note:
22
7. Close the detergent drawer.
22
8. Press the Ü button.
22
9. Switch off the appliance at the end of the programme.
22
Transportation
23
Caution!
23
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers.
23
1. Turn off the tap.
23
2. Reduce the water pressure in the supply hose: ~ Page 61; cleaning and maintenance – filter in the water supply clogged
23
3. Disconnect the washing machine from the mains.
23
4. Drain any residual water: ~ Page 60; cleaning and maintenance – drain pump blocked, emergency draining
23
5. Remove the hoses.
23
6. Empty the dispensers. ~ Page 59
23
Fitting the transportation securing means:
23
1. Remove the covers and keep them in a safe place.
23
2. Insert all four sleeves.
23
Notes
23
Y Main points in brief
24
Main points in brief
24
* Getting to know the appliance
25
Getting to know the appliance
25
Washing machine
25
Control panel
26
Main switch
26
Programme selector
26
Buttons for changing the programme default settings: ~ Page 37
26
Ü button for:
26
Notes
27
Buttons for selecting additional programme settings
27
Display panel
27
Main menu after selecting the programme
27
Others Programmes selected
27
Use the i-Dos button to select the dispenser and the dosage quantity
28
Options × button selected
28
Basic Settings 3 sec. buttons selected
28
Z Laundry
29
Laundry
29
Prepare the laundry
29
Caution!
29
Damage to the appliance/fabrics
29
Sorting laundry
29
Note:
29
Note:
29
C Detergent
30
Detergent
30
Correct selection of detergent
30
Saving energy and detergent
30
Saving
30
Soiling/note
30
Note:
30
/ Overview of programmes
31
Overview of programmes
31
Programmes on the programme selector
31
Programme/type of laundry/instructions
31
Settings
31
Notes
31
Note:
31
Note:
32
Notes
32
Note:
32
Note:
33
Notes
33
Notes
33
Notes
34
Note:
34
Notes
34
Notes
34
1. Select a programme.
35
2. Add special detergent for outdoor clothing to compartment À Á.
35
3. Press the Ü button. The programme stops before the last rinse cycle. Follow the information on the display panel.
35
4. Add a waterproofing agent (max. 170 ml) to compartment À Á.
35
5. Press the Ü button. After-treat the laundry in accordance with the manufacturer's instructions.
35
Notes
35
Notes
36
Starching
36
Note:
36
1. Switch on the appliance.
36
2. Select the Rinse programme.
36
3. Pour liquid starch into compartment À Á in accordance with the manufacturer's instructions (clean first if necessary).
36
4. Press the Ü button.
36
Dyeing/bleaching
36
0 Programme default settings
37
Programme default settings
37
Temperature
37
Spin speed
37
Finish in
37
Note:
37
1. Press the Ü button.
37
2. Use the Finish in button to change the number of hours.
37
3. Press the Ü button.
37
i-Dos settings
38
i-Dos ô for detergent
38
Dosage strengths
38
i-Dos i for fabric softener
38
Dosage strengths
38
\ Additional programme settings/options (* depending on the model)
39
Additional programme settings/options
39
The settings can be selected:
39
speedPerfect (
39
Note:
39
ecoPerfect ¦
39
Prewash *
39
Notes
39
Extra Rinse *
39
Water Plus *
39
Less Ironing *
40
Note:
40
Soak *
40
Notes
40
1. Select i-Dos or dose detergent in the À Á manual compartment in accordance with the manufacturer's instructions.
40
2. Select the Cotton 30 °C programme and the Ü button.
40
3. Press the Ü button after approx. 10 minutes. The laundry remains in the soaking solution.
40
4. Leave the laundry to soak for as long as required, then either press the Ü button again to continue the programme or change the programme.
40
Note:
40
Rinse Hold *
40
Silent Wash *
40
Note:
40
Stains *
41
Types of stain that can be selected:
41
Select a programme with a stain type:
41
1. Arrange items of washing as usual.
41
2. Select a programme.
41
3. Load the washing machine
41
4. Select a stain type (depending on the selected programme).
41
5. Start the programme.
41
The treatment of two stains explained in the following example:
41
1 Operating the appliance
42
Operating the appliance
42
Preparing the washing machine
42
Note:
42
1. Plug into the mains.
42
2. Turn on the tap.
42
3. Open the washing machine door.
42
4. Check that the drum is completely drained. Drain if necessary. Otherwise, the load display may malfunction. ~ Page 57
42
Switching on the appliance/ selecting a programme
42
Note:
42
Change the programme default settings
42
Note:
42
Select additional programme settings
43
Placing laundry into the drum
43
: Warning
43
Risk of death!
43
Notes
43
Measure and add detergent and care products
43
Start the programme
44
Note:
44
Child Lock 3 sec.
44
Notes
44
Adding laundry
45
Notes
45
Changing the programme
45
1. Press the Ü button.
45
2. Select another programme.
45
3. Press the Ü button. The new programme starts from the beginning.
45
Cancel the programme
45
1. Press the Ü button.
45
2. To cool down laundry: Select Rinse.
45
3. Press the Ü button.
45
1. Press the Ü button.
45
2. Select Spin or Drain.
45
3. Press the Ü button.
45
Programme end during rinse hold
45
Programme end
45
Removing laundry/switching off the appliance
46
1. Open the loading door and remove the laundry. Follow the information on the display panel.
46
2. Press the # button. The appliance is switched off.
46
3. Turn off the tap.
46
Note:
46
Notes
46
Notes
46
a Intelligent dosing system
47
Intelligent dosing system
47
Intelligent dosing system in the detergent drawer
47
Initial use/filling the dispensers
47
Notes
47
Filling the dispensers:
47
1. Open the detergent drawer.
47
2. Open the dispenser cover(s).
47
3. Add detergent/fabric softener. Do not fill above the max. marking.
47
4. Close the cover(s).
47
5. Slowly push the detergent drawer in completely.
47
Everyday use
48
Illuminated displays on the drawer handle:
48
(De)selecting intelligent dosage and adjusting the dosage strength:
48
Note:
48
Topping up the detergent/ fabric softener:
48
Base dosage
49
The basic dosages are:
49
My water hardness:
49
Degree of soiling →
49
Water hardness ↓
49
light
49
normal
49
heavy
49
very heavy
49
Notes
49
Changing the basic dosages:
49
Dispenser content for i-Dos iIô
50
Notes
50
Changing the dispenser content:
50
Manual dosage
50
: Warning
50
Eye/skin irritation!
50
Caution!
50
Damage to the appliance
50
Notes
50
Dosing and adding detergent:
51
1. Pull out the detergent drawer.
51
2. Add the correct dosage to compartment À Á depending on:
51
3. Close the detergent drawer.
51
o Home Connect
51
Home Connect
51
1. Install the Home Connect app on your mobile device.
51
2. Register in the Home Connect app.
51
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
51
4. Connect your appliance to the Home Connect app.
51
Notes
51
Calling up the Home Connect menu
52
1. Switch on the appliance.
52
2. Press and hold Remote Start } for at least 3 seconds.
52
Note:
52
Connecting to the home network and the Home Connect app
52
Notes
52
Note:
52
Connecting to your home network automatically
52
1. Press Connect.
52
2. Activate the WPS function on your home network router within the next 2 minutes.
52
Note:
52
Connecting to your home network manually
53
1. Press Man. network log-in.
53
2. Press Connect.
53
3. Call up the Wi-Fi setting on the mobile device.
53
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
53
5. Once you have connected successfully, open the Home Connectؘ app on your mobile device and carry out the steps in the app.
53
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
53
7. Carry out the last steps in the Home Connect app to connect your appliance.
53
Note:
53
Connecting to the Home Connect app
53
1. Press Connect to the app.
53
2. Press Connect app.
53
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
54
Note:
54
Activating/deactivating Wi-Fi
54
1. Press Wi-Fi on/off.
54
2. Press on or off.
54
Notes
54
Resetting your network settings
54
1. Press Network settings.
54
2. Press Reset.
54
Note:
54
Updating the software
55
1. Press Software update.
55
2. Press Install.
55
Note:
55
Note:
55
Information on data protection
55
Note:
55
Declaration of Conformity
55
Q Appliance settings
56
Appliance settings
56
Settings that can be selected:
56
Note:
56
Notes
56
H Sensors
57
Sensors
57
Automatic load sensing
57
Unbalanced load detection system
57
Note:
57
AquaSensor
57
Load sensor/display
57
Note:
57
Dosing recommendation
57
Note:
57
2 Cleaning and maintenance
58
Cleaning and maintenance
58
: Warning
58
Danger of death!
58
: Warning
58
Risk of poisoning!
58
Caution!
58
Damage to the appliance
58
Notes
58
Machine housing/control panel
58
Drum
58
Descaling
58
i-Dos detergent draw and its housing
59
1. Emptying the dispensers:
59
a) Pull out the detergent drawer.
59
b) Pull the catch (A) on the back of the drawer handle (in the centre at the bottom) slightly towards you. This unlocks the drawer handle (B), which you can then pull off by lifting it upwards.
59
c) To empty the dispensers, carefully pull off each of the sealing plugs and empty the contents into a suitable container.
59
d) Then push the sealing plugs back in completely.
59
2. Cleaning the dispensers/detergent drawer:
59
a) Empty the dispensers before removing the drawer.
59
Note:
59
b) Pull out the drawer.
59
c) Press the catch and remove the drawer completely.
59
d) Carefully remove the drawer cover.
59
Caution!
59
e) Clean the drawer and the cover with a soft, damp cloth or a hand shower. Also clean the inner surfaces with a soft, damp cloth.
60
f) Dry the drawer and the cover and put them back together.
60
g) Push the drawer handle back in from above until you feel it click in place.
60
h) Clean the inside of the detergent- drawer housing.
60
i) Push the detergent drawer in completely.
60
The drain pump is blocked, emergency draining
60
: Warning
60
Risk of scalding!
60
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
60
2. Switch off the appliance. Pull out the mains plug.
60
3. Open and remove the service flap.
60
4. Take the drain hose out of the retainer.
60
5. Carefully unscrew the pump cover; residual water may leak out.
60
6. Put the service flap back on, lock it into place and close it.
61
Note:
61
The drain hose at the siphon is blocked
61
1. Switch off the appliance. Pull out the mains plug.
61
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
61
3. Clean the drain hose and siphon connecting piece.
61
4. Re-attach the drain hose and secure the connection point using the hose clamp.
61
Filter in the water supply blocked
61
First, reduce the water pressure in the supply hose:
61
1. Turn off the tap.
61
2. Select any programme (except Rinse/Spin/Empty).
61
3. Press the Ü button. Allow the programme to run for approximately 40 seconds.
61
4. Press the # button. The appliance is switched off.
61
5. Pull out the mains plug.
61
Then clean the filter:
61
1. Disconnect the hose from the tap.
61
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
61
3. Connect the hose and check for leaks.
61
3 Faults and what to do about them.
62
Faults and what to do about them.
62
Emergency release
62
: Warning
62
Risk of scalding!
62
: Warning
62
Risk of injury!
62
Caution!
62
Water damage
62
1. Switch off the appliance. Pull out the mains plug.
62
2. Drain the water. ~ Page 60
62
3. Pull the emergency release downwards with a tool and release.
62
Information on the display panel
63
Display
63
Cause/remedy
63
Notes
63
Faults and what to do about them.
64
Faults
64
Cause/remedy
64
1. Empty and clean.
64
2. Refill. ~ Page 47
64
Note:
65
4 After-sales service
67
After-sales service
67
[ Consumption rates
68
Consumption rates
68
Energy and water consumption, programme duration and residual moisture for the main washing programmes
68
Programme
68
Load
68
Energy consumption*
68
Water consumption*
68
Programme duration*
68
Programme
68
Approximate information on the residual moisture**
68
WM16Y...
68
WM14Y...
68
WM12Y...
68
WM10Y...
68
Max. 1600 rpm
68
Max. 1400 rpm
68
Max. 1200 rpm
68
Max. 1000 rpm
68
Efficiency test programmes for cotton fabrics
69
The following programmes (standard programmes, indicated by ü) are suitable for cleaning normally soiled cotton fabrics and are the most efficient with respect to combined energy and water consumption.
69
Standard programmes for cottons in accordance with Regulation (EU) no. 1015/2010
69
Programme + temperature
69
Load
69
Approximate programme duration
69
J Technical data
69
Technical data
69
r Aqua-Stop warranty
70
Aqua-Stop warranty
70
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
70
2. The liability guarantee is valid for the service life of the appliance.
70
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
70
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
70
Search:
×
Search
