,QVWUXFWLRQ0DQXDODQG,QVWDOODWLRQ,QVWUXFWLRQV
W
ashing mac
hine
WI...V0
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Siemens WI14W300GB:
Washing machine
1
WI...V0
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
* Getting to know the appliance 29
3
Z Laundry 32
3
C Detergent 34
3
0 Programme default settings 35
3
\ Additional programme settings 36
3
1 Operating the appliance 37
3
H Sensors 42
3
M Setting the signal 43
4
2 Cleaning and maintenance 44
4
3 Faults and what to do about them. 49
4
4 After-sales service 53
4
J Technical data 54
4
r Aqua-Stop warranty 55
4
8 Intended use
5
Intended use
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
: Warning
6
Risk of death!
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14

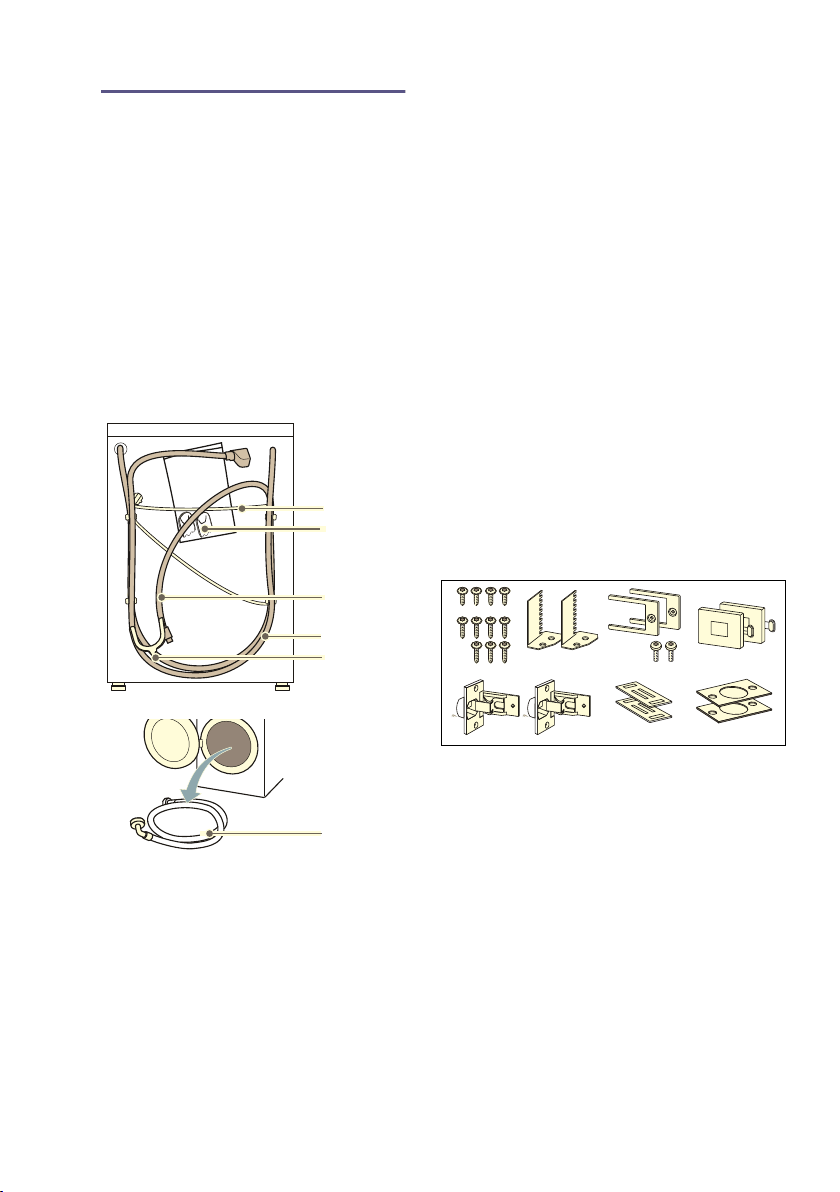

Included with the appliance
14
Note:
14
Components required for installation ~ Page 22
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a slide sheet
15
Tip:
15
Installing the appliance below a high worktop
16
Installation on a base or a wooden joist floor
16
Caution!
16
Damage to the appliance
16
Note:
16
Installation on a platform with drawer
16
Removing the transport locks
17
Caution!
17
Damage to the appliance
17

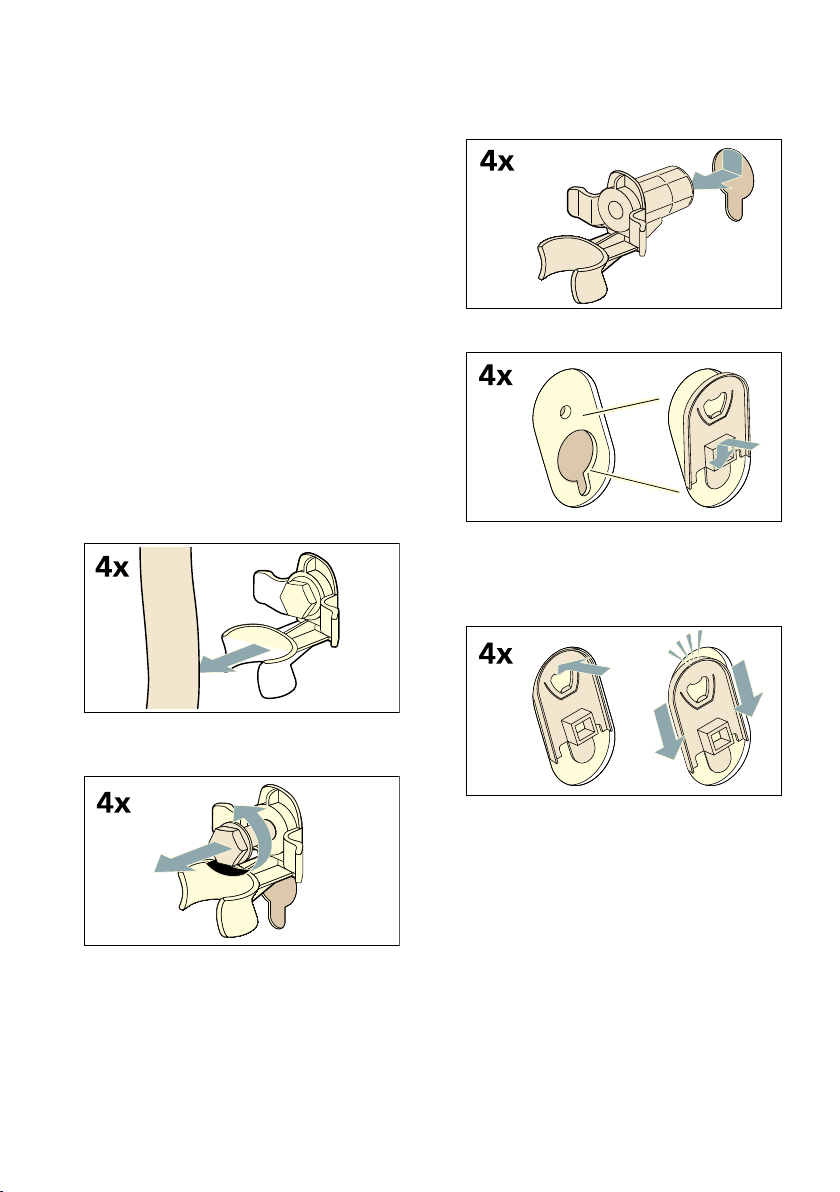

1. Take the hoses out of the holders.
17
2. Use a WAF13 spanner to undo and remove all four transport lock bolts.
17
3. Remove the sleeves. Remove the mains cable from the holders.
17
4. Put on the cover caps.
17
5. Press the cover cap down firmly at the top, while at the same time pushing it downwards until you hear the hooks clicking into place.
17
Hose and cable lengths
18
Tip:
18
Water inlet
19
: Warning
19
Risk of death!
19
Notes
19
Connection
19
Note:
19
Water outlet
20
: Warning
20
Risk of scalding!
20
Caution!
20
Water damage
20
Caution!
20
Damage to the appliance/fabrics
20
Note:
20
Height difference between the installation area and the drain
20
Levelling
20
Electrical connection
21
: Warning
21
Danger of death!
21
Notes
21
Installing the appliance
22
1. To make it easier to push in the appliance's rear feet (a), turn them in until the appliance is on the runners (b).
22
2. Prepare the installation space.
22
3. Lay the mains cable and the hoses. Push the appliance in, moving the mains cable and the hoses with it.
22
Note:
22
4. Connect the hoses. ~ Page 19, ~ Page 20
22
5. The appliance must be standing on all four feet before it can be put into operation. Unscrew the rear feet.
22
6. Align appliance with a spirit level. ~ Page 20
23
7. Hold the cabinet door against the appliance at the required height and mark where the top edge of the appliance comes to on the inside of the door.
23
8. Drill the holes. Use a Forstner bit for the 35 mm hole.
24
9. Put the hinges in the holes and screw them in. Screw in the counter plates for the magnetic catches.
24
10. Put the hinges in the appliance (1 + 2), push on the cover panels (3) and screw them in place (4).
24
11. Put the magnetic catches on the appliance.
25
12. Align the door of the cabinet.
25
13. Put in the spacers for the toe kick.
25
14. Reduce dimension Y.
26
15. Screw the spacers in as per the dimensions.
26
16. Fit the toe kick.
26
Note:
26
17. Plug the plug in the socket.
26
Before washing for the first time
27
Note:
27
Preparatory work:
27
1. Plug the mains plug into the mains.
27
2. Turn on the tap.
27
Run a programme without laundry:
27
1. Switch on the appliance.
27
2. Close the door (do not load any laundry).
27
3. Set the Cottons 90 °C programme.
27
4. Open the detergent drawer.
27
5. Pour approximately 1 litre of water into compartment II.
27
6. Pour standard washing powder into compartment II.
27
Note:
27
7. Close the detergent drawer.
27
8. Press the I button.
27
9. Switch off the appliance at the end of the programme.
27
Transportation
28
Preparatory work:
28
1. Turn off the tap.
28
2. Reduce the water pressure in the supply hose: ~ Page 48; Cleaning and maintenance â filter in the water supply blocked
28
3. Disconnect the washing machine from the mains.
28
4. Drain the remaining water: ~ Page 46; cleaning and maintenance â the drain pump is blocked, emergency draining
28
5. Remove the hoses.
28
Attach the transport locks:
28
1. Use a screwdriver to remove the covers and then keep them in a safe place.
28
2. Insert all four sleeves.
28
3. Insert the transport lock bolts and tighten them with a WAF13 spanner.
28
Notes
28
* Getting to know the appliance
29

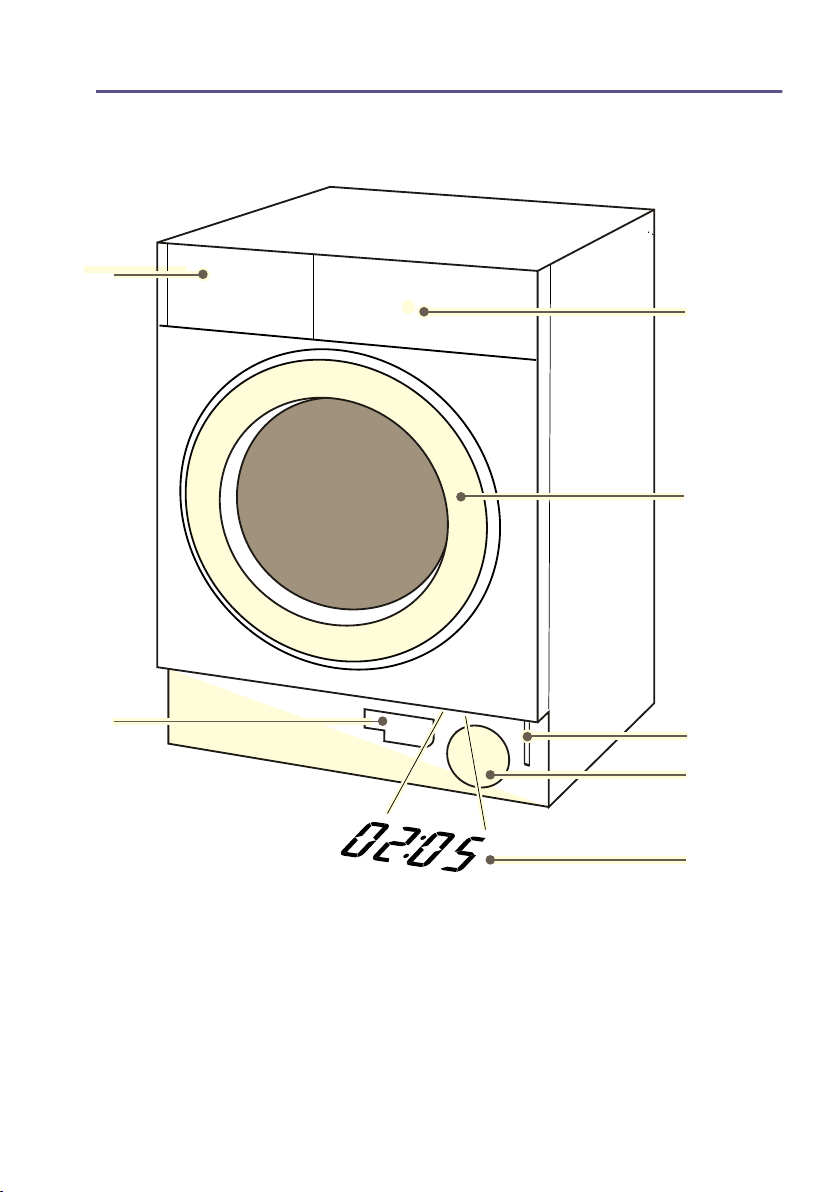

Getting to know the appliance
29
Washing machine
29
timeLight (depends on the model)
29
Control panel
30
Display panel
31
Buttons
31
Indicators and symbols for setting values
31
Setting
31
Other indicators and symbols
31
Information on:
31
Z Laundry
32
Laundry
32
Prepare the laundry
32
Caution!
32
Damage to the appliance/laundry
32
Sorting laundry
32
Note:
32
Note:
32
Starching
33
Note:
33
Dyeing/bleaching
33
Soaking
33
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
33
2. Select the desired programme.
33
3. Press the I button to start the programme.
33
4. After approx. ten minutes, press the I button to pause the programme.
33
5. After the desired soaking time, press the I button again to continue or change the programme.
33
Notes
33
C Detergent
34
Detergent
34
Correct selection of detergent
34
Saving energy and detergent
34
Saving
34
Soiling/note
34
Note:
34
0 Programme default settings
35
Programme default settings
35
Note:
35
Spin speed
35
Ready in
35
1. Select a program.
35
2. Press the Ready in button repeatedly until the required number of hours is displayed.
35
3. Press the I button.
35
Note:
35
1. Press the I button.
35
2. Use the Ready in button to change the number of hours.
35
3. Press the I button.
35
\ Additional programme settings
36
Additional programme settings
36
speed/eco
36
Note:
36
1 Operating the appliance
37
Operating the appliance
37
Preparing the washing machine
37
Note:
37
1. Connect the mains plug.
37
2. Turn on the tap.
37
3. Open the door.
37
4. Check that the drum is completely drained. Drain if necessary.
37
Select programme/switch on the appliance
37
Note:
37
Change the programme default settings
37
Select additional programme settings
37
Placing laundry into the drum
38
: Warning
38
Danger of death!
38
Notes
38
1. Unfold presorted laundry items and place them in the drum.
38
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
38
Measure and add detergent and care products
39
Caution!
39
Damage to the appliance
39
: Warning
39
Eye/skin irritation!
39
Note:
39
1. Pull out the detergent drawer as far as possible.
39
2. Add detergent and/or care products.
39
3. Close the detergent drawer.
39
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
39
2. Slide the measuring aid forwards, fold it down and click it into place.
39
3. Reinsert the drawer.
39
Note:
39
Start the programme
40
Childlock
40
Note:
40
Note:
40
Adding laundry
40
Notes
40
Changing the programme
40
1. Press the I button.
40
2. Select another program.
40
3. Press the I button.The new program starts from the beginning.
40
Cancel the programme
40
1. Press the I button.
40
2. To cool down laundry: Select Rinse.
40
3. Press the I button.
40
1. Press the I button.
40
2. Select Spin.
40
3. Press the I button.
40
Programme end during rinse hold
41
Programme end
41
Removing laundry/switching off the appliance
41
1. Open the door and remove the laundry.
41
2. Turn the programme selector to Off ($). The appliance is now switched off.
41
3. Turn off the tap.
41
Note:
41
Notes
41
H Sensors
42
Sensors
42
Automatic load sensing
42
Unbalanced load detection system
42
Note:
42
VoltCheck
42
Note:
42
M Setting the signal
43
Setting the signal
43
Activating setting mode
43
1. Set the programme selector to the Cottons programme at to position 1. The washing machine is switched on.
43
2. Press the I button while turning the programme selector clockwise to position 2. Release the button.
43
2 Cleaning and maintenance
44
Cleaning and maintenance
44
: Warning
44
Danger of death!
44
: Warning
44
Risk of poisoning!
44
Caution!
44
Damage to the appliance
44
Notes
44
Machine housing/control panel
44
Drum
44
Descaling
44
Detergent drawer and housing
45

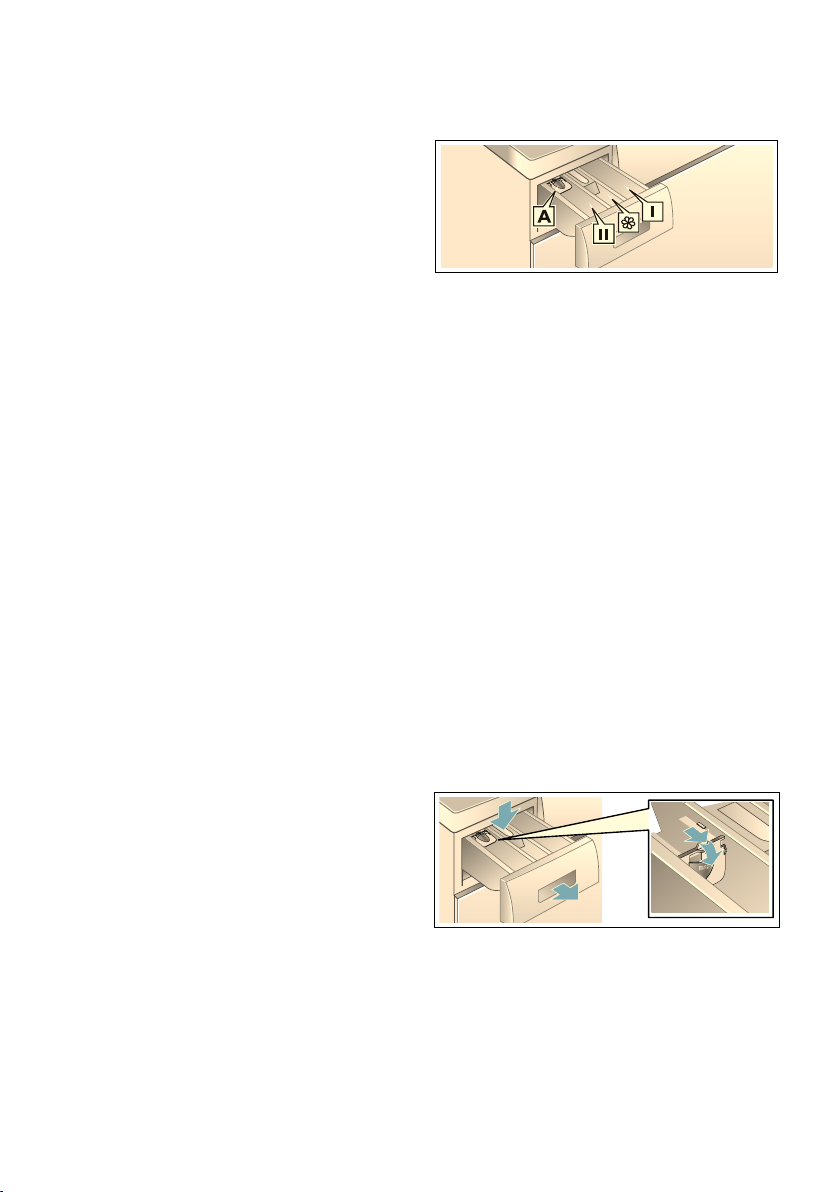

1. Pull out the detergent drawer as far as possible.
45
2. Press the insert down and fully remove the drawer.
45
3. To remove the insert: Push the insert upwards from below with your finger.
45
4. Clean the detergent drawer and insert with water and a brush, then dry them.
45
5. Fit the insert and lock it in place (push the cylinder onto the guide pin).
45
6. Clean the inside of the detergent drawer housing.
45
7. Push in the detergent drawer.
45
Note:
45
The drain pump is blocked, emergency draining
46
: Warning
46
Risk of scalding!
46

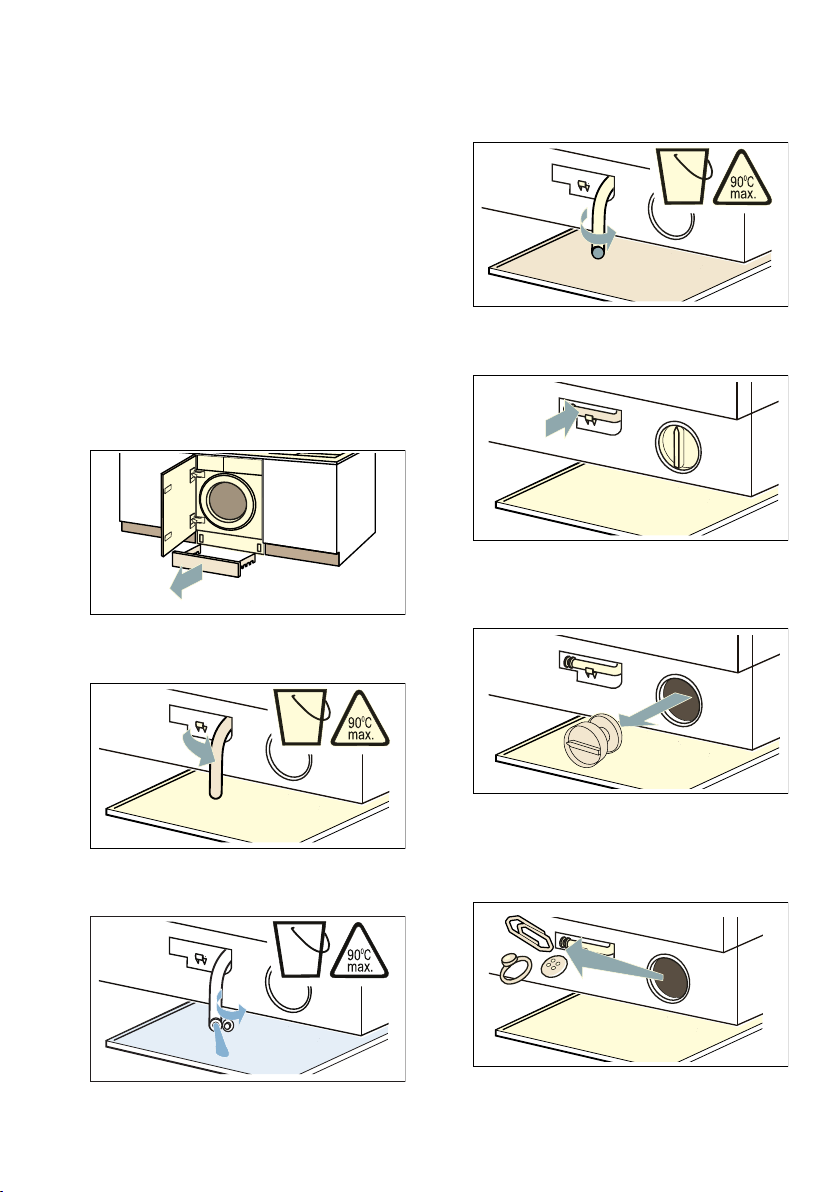

1. Turn off the tap so that no more water can flow in and it has to be drained via the drain pump.
46
2. Switch off the appliance. Pull out the mains plug.
46
3. Remove the toe kick.
46
4. Take the drain hose out of the holder.
46
5. Remove the sealing cap and drain the water into a suitable container.
46
6. Put the sealing cap back on and press down firmly.
46
7. Place the drain hose back in the holder.
46
8. Carefully unscrew the pump cover. Be aware that any remaining water may leak out.
46
9. Clean the inside, the pump cover thread and the pump housing. The impeller in the drain pump must be able to rotate.
46
10. Put the pump cover back on and screw it in. The grip must be vertical.
47
11. Refit the toe kick.
47
Note:
47
The drain hose at the siphon is blocked
47
1. Switch off the appliance. Pull out the mains plug.
47

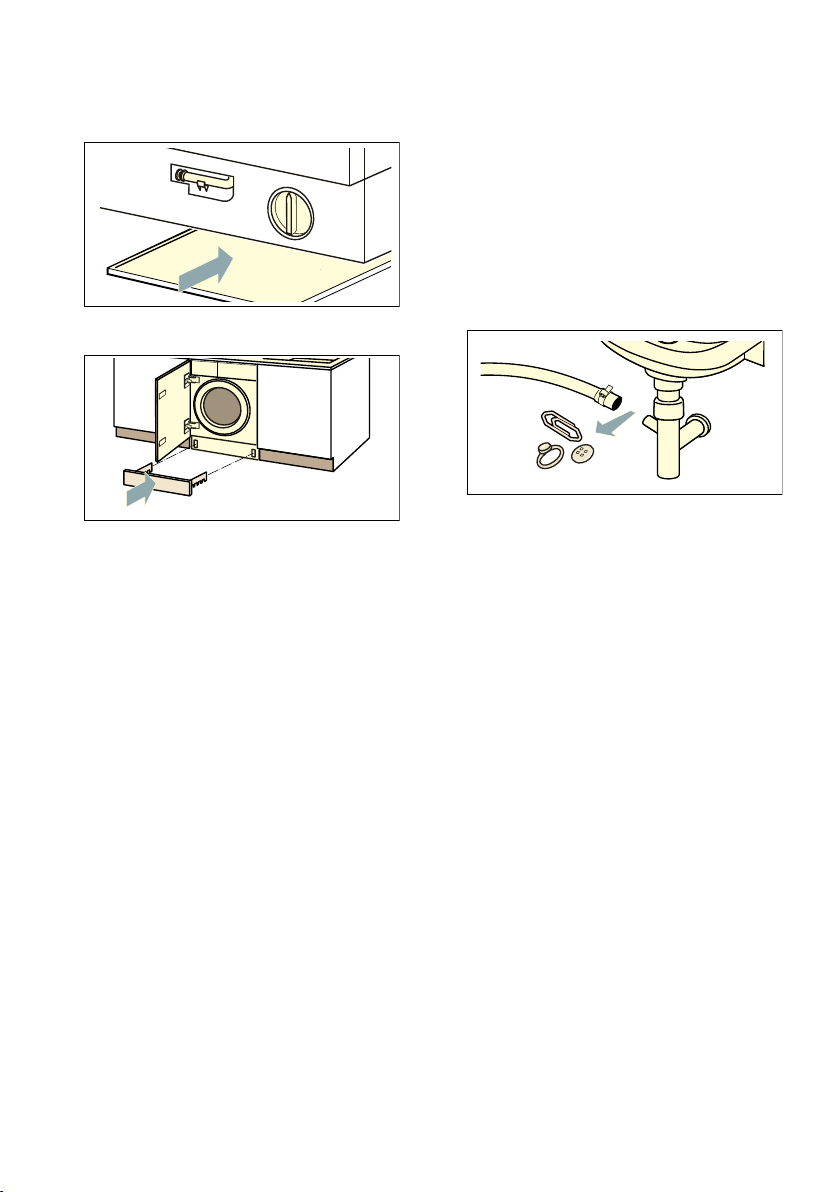

2. Undo the hose clamp. Carefully remove the drain hose. Be aware that any remaining water may leak out.
47
3. Clean the drain hose and siphon connecting piece.
47
4. Re-attach the drain hose and secure the connection point using the hose clamp.
47
Filter in the water supply blocked
48
Relieve the water pressure in the supply hose first:
48
1. Turn off the tap.
48
2. Select any programme (except Rinse/Spin/Empty).
48
3. Start the programme.
48
4. Allow the programme to run for approximately 40 seconds, then switch off the appliance.
48
5. Pull out the mains plug.
48
Then clean the filter:
48
1. Disconnect the hose from the tap.
48
2. Clean the filter with a small brush.
48
3. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
4. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
a) Use pliers to remove the filter.
48
b) Clean the filter.
48
5. Connect the hose and check for leaks.
48
3 Faults and what to do about them.
49
Faults and what to do about them.
49
Emergency release
49
: Warning
49
Risk of scalding!
49
: Warning
49
Risk of injury!
49
Caution!
49
Water damage
49
1. Switch off the appliance. Pull out the mains plug.
49
2. Drain the washing water. ~ Page 46
49

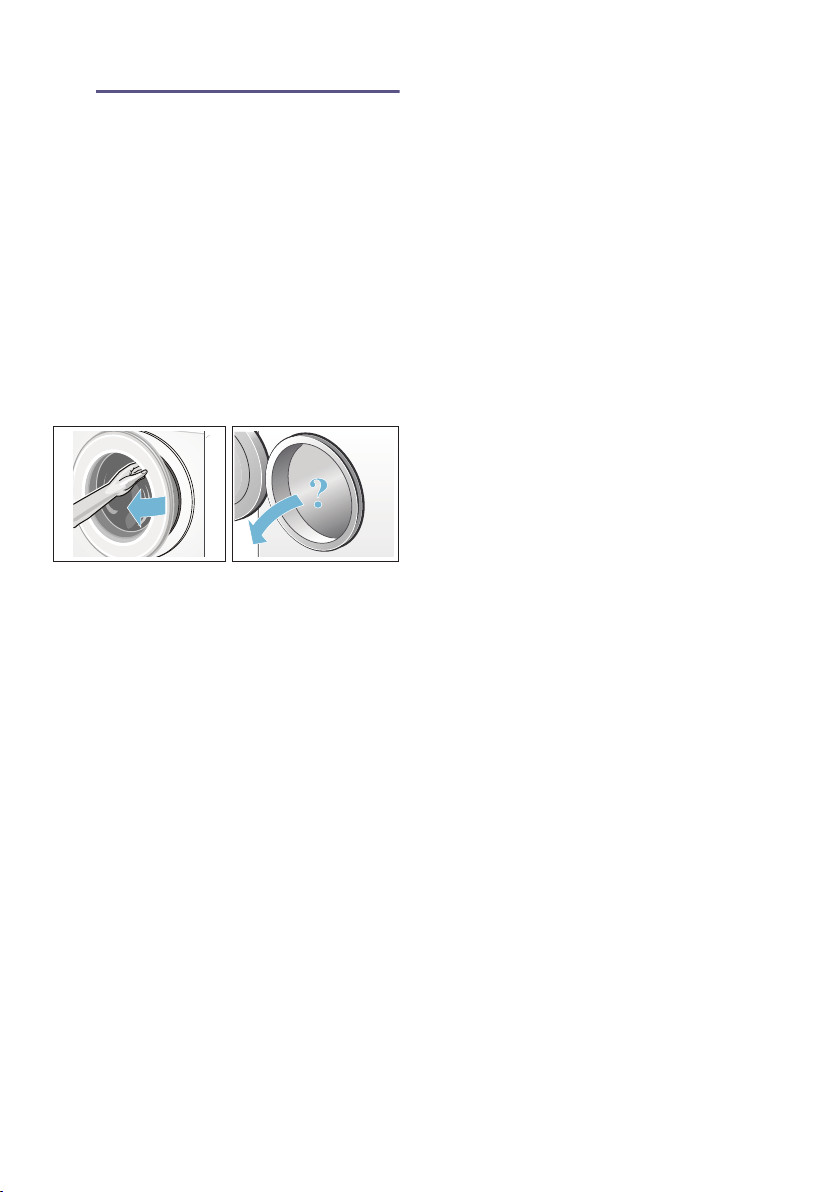

3. Use a tool to pull the emergency release downwards and then release.
49
4. Open the door.
49
Information on the display panel
50
Indicator/symbol
50
Cause/remedy
50
Symbol in timeLight* (display on the floor):
50
*Depends on the model
50
Cause/remedy
50
Faults and what to do about them.
51
Faults
51
Cause/remedy
51
Note:
52
4 After-sales service
53
After-sales service
53
J Technical data
54
Technical data
54
r Aqua-Stop warranty
55
Aqua-Stop warranty
55
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
55
2. The liability guarantee is valid for the service life of the appliance.
55
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
55
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
55
File type: PDF
File name: 9001251744_B.pdf
File size: 2.81 MB
File Language: English
Pages: 56
Author: Siemens
Updated: 2023-08-08
Download File
Specifications
Brand:
Siemens
Model: WI14W300GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WM14T790GB
WM14W5H0GB
WI14W500GB
WM14W750GB
WM16W5H0GB
Download User Manual
Siemens in United States
1-800-241-4453.
Twitter
Fan Page
Website
Related Products
Samsung Q1044
Samsung Q1044A
Samsung Q1244
Samsung Q1244A
Samsung Q844
Samsung Q844A
Samsung R1043
Samsung R1045A
Samsung R1245A
Siemens WI14W500GB
Siemens LC98KLP20
Siemens ED707FQ25E
Siemens WT47Y7W0AU
Siemens WT47W580AU
Siemens ET875LMP1D
Table of Contents
×
Washing machine
1
WI...V0
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
* Getting to know the appliance 29
3
Z Laundry 32
3
C Detergent 34
3
0 Programme default settings 35
3
\ Additional programme settings 36
3
1 Operating the appliance 37
3
H Sensors 42
3
M Setting the signal 43
4
2 Cleaning and maintenance 44
4
3 Faults and what to do about them. 49
4
4 After-sales service 53
4
J Technical data 54
4
r Aqua-Stop warranty 55
4
8 Intended use
5
Intended use
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
: Warning
6
Risk of death!
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Components required for installation ~ Page 22
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a slide sheet
15
Tip:
15
Installing the appliance below a high worktop
16
Installation on a base or a wooden joist floor
16
Caution!
16
Damage to the appliance
16
Note:
16
Installation on a platform with drawer
16
Removing the transport locks
17
Caution!
17
Damage to the appliance
17
1. Take the hoses out of the holders.
17
2. Use a WAF13 spanner to undo and remove all four transport lock bolts.
17
3. Remove the sleeves. Remove the mains cable from the holders.
17
4. Put on the cover caps.
17
5. Press the cover cap down firmly at the top, while at the same time pushing it downwards until you hear the hooks clicking into place.
17
Hose and cable lengths
18
Tip:
18
Water inlet
19
: Warning
19
Risk of death!
19
Notes
19
Connection
19
Note:
19
Water outlet
20
: Warning
20
Risk of scalding!
20
Caution!
20
Water damage
20
Caution!
20
Damage to the appliance/fabrics
20
Note:
20
Height difference between the installation area and the drain
20
Levelling
20
Electrical connection
21
: Warning
21
Danger of death!
21
Notes
21
Installing the appliance
22

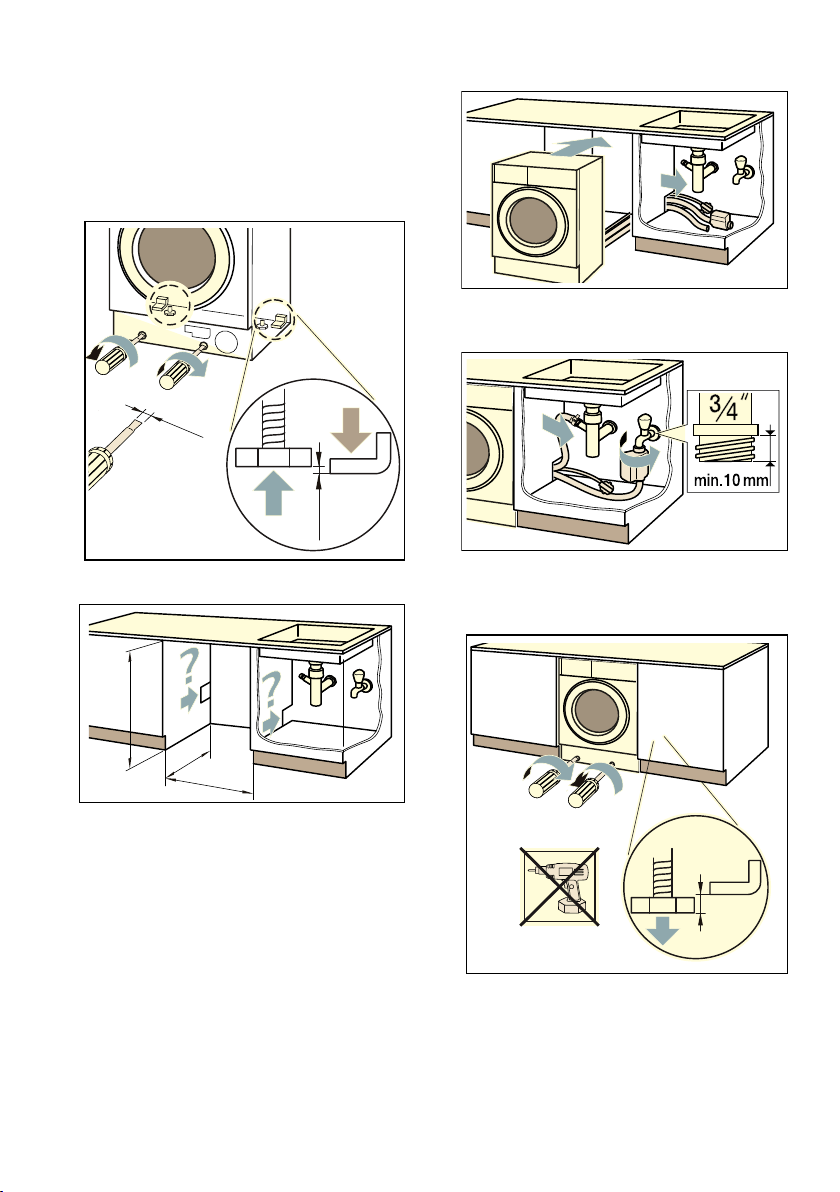

1. To make it easier to push in the appliance's rear feet (a), turn them in until the appliance is on the runners (b).
22
2. Prepare the installation space.
22
3. Lay the mains cable and the hoses. Push the appliance in, moving the mains cable and the hoses with it.
22
Note:
22
4. Connect the hoses. ~ Page 19, ~ Page 20
22
5. The appliance must be standing on all four feet before it can be put into operation. Unscrew the rear feet.
22
6. Align appliance with a spirit level. ~ Page 20
23

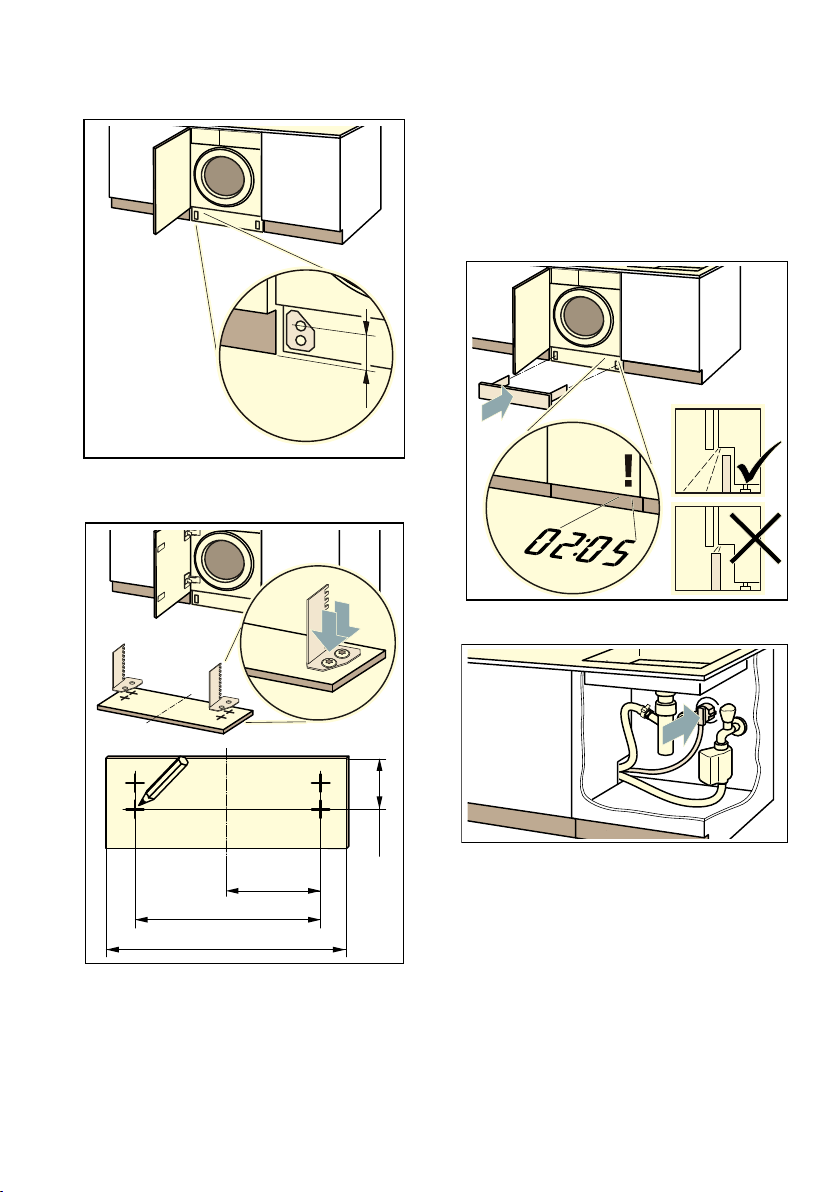

7. Hold the cabinet door against the appliance at the required height and mark where the top edge of the appliance comes to on the inside of the door.
23
8. Drill the holes. Use a Forstner bit for the 35 mm hole.
24
9. Put the hinges in the holes and screw them in. Screw in the counter plates for the magnetic catches.
24
10. Put the hinges in the appliance (1 + 2), push on the cover panels (3) and screw them in place (4).
24
11. Put the magnetic catches on the appliance.
25
12. Align the door of the cabinet.
25
13. Put in the spacers for the toe kick.
25
14. Reduce dimension Y.
26
15. Screw the spacers in as per the dimensions.
26
16. Fit the toe kick.
26
Note:
26
17. Plug the plug in the socket.
26
Before washing for the first time
27
Note:
27
Preparatory work:
27
1. Plug the mains plug into the mains.
27
2. Turn on the tap.
27
Run a programme without laundry:
27
1. Switch on the appliance.
27
2. Close the door (do not load any laundry).
27
3. Set the Cottons 90 °C programme.
27
4. Open the detergent drawer.
27
5. Pour approximately 1 litre of water into compartment II.
27
6. Pour standard washing powder into compartment II.
27
Note:
27
7. Close the detergent drawer.
27
8. Press the I button.
27
9. Switch off the appliance at the end of the programme.
27
Transportation
28
Preparatory work:
28
1. Turn off the tap.
28
2. Reduce the water pressure in the supply hose: ~ Page 48; Cleaning and maintenance â filter in the water supply blocked
28
3. Disconnect the washing machine from the mains.
28
4. Drain the remaining water: ~ Page 46; cleaning and maintenance â the drain pump is blocked, emergency draining
28
5. Remove the hoses.
28
Attach the transport locks:
28
1. Use a screwdriver to remove the covers and then keep them in a safe place.
28
2. Insert all four sleeves.
28
3. Insert the transport lock bolts and tighten them with a WAF13 spanner.
28
Notes
28
* Getting to know the appliance
29
Getting to know the appliance
29
Washing machine
29
timeLight (depends on the model)
29
Control panel
30
Display panel
31
Buttons
31
Indicators and symbols for setting values
31
Setting
31
Other indicators and symbols
31
Information on:
31
Z Laundry
32
Laundry
32
Prepare the laundry
32
Caution!
32
Damage to the appliance/laundry
32
Sorting laundry
32
Note:
32
Note:
32
Starching
33
Note:
33
Dyeing/bleaching
33
Soaking
33
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
33
2. Select the desired programme.
33
3. Press the I button to start the programme.
33
4. After approx. ten minutes, press the I button to pause the programme.
33
5. After the desired soaking time, press the I button again to continue or change the programme.
33
Notes
33
C Detergent
34
Detergent
34
Correct selection of detergent
34
Saving energy and detergent
34
Saving
34
Soiling/note
34
Note:
34
0 Programme default settings
35
Programme default settings
35
Note:
35
Spin speed
35
Ready in
35
1. Select a program.
35
2. Press the Ready in button repeatedly until the required number of hours is displayed.
35
3. Press the I button.
35
Note:
35
1. Press the I button.
35
2. Use the Ready in button to change the number of hours.
35
3. Press the I button.
35
\ Additional programme settings
36
Additional programme settings
36
speed/eco
36
Note:
36
1 Operating the appliance
37
Operating the appliance
37
Preparing the washing machine
37
Note:
37
1. Connect the mains plug.
37
2. Turn on the tap.
37
3. Open the door.
37
4. Check that the drum is completely drained. Drain if necessary.
37
Select programme/switch on the appliance
37
Note:
37
Change the programme default settings
37
Select additional programme settings
37
Placing laundry into the drum
38
: Warning
38
Danger of death!
38
Notes
38
1. Unfold presorted laundry items and place them in the drum.
38
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
38
Measure and add detergent and care products
39
Caution!
39
Damage to the appliance
39
: Warning
39
Eye/skin irritation!
39
Note:
39
1. Pull out the detergent drawer as far as possible.
39
2. Add detergent and/or care products.
39
3. Close the detergent drawer.
39
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
39
2. Slide the measuring aid forwards, fold it down and click it into place.
39
3. Reinsert the drawer.
39
Note:
39
Start the programme
40
Childlock
40
Note:
40
Note:
40
Adding laundry
40
Notes
40
Changing the programme
40
1. Press the I button.
40
2. Select another program.
40
3. Press the I button.The new program starts from the beginning.
40
Cancel the programme
40
1. Press the I button.
40
2. To cool down laundry: Select Rinse.
40
3. Press the I button.
40
1. Press the I button.
40
2. Select Spin.
40
3. Press the I button.
40
Programme end during rinse hold
41
Programme end
41
Removing laundry/switching off the appliance
41
1. Open the door and remove the laundry.
41
2. Turn the programme selector to Off ($). The appliance is now switched off.
41
3. Turn off the tap.
41
Note:
41
Notes
41
H Sensors
42
Sensors
42
Automatic load sensing
42
Unbalanced load detection system
42
Note:
42
VoltCheck
42
Note:
42
M Setting the signal
43
Setting the signal
43
Activating setting mode
43
1. Set the programme selector to the Cottons programme at to position 1. The washing machine is switched on.
43
2. Press the I button while turning the programme selector clockwise to position 2. Release the button.
43
2 Cleaning and maintenance
44
Cleaning and maintenance
44
: Warning
44
Danger of death!
44
: Warning
44
Risk of poisoning!
44
Caution!
44
Damage to the appliance
44
Notes
44
Machine housing/control panel
44
Drum
44
Descaling
44
Detergent drawer and housing
45
1. Pull out the detergent drawer as far as possible.
45
2. Press the insert down and fully remove the drawer.
45
3. To remove the insert: Push the insert upwards from below with your finger.
45
4. Clean the detergent drawer and insert with water and a brush, then dry them.
45
5. Fit the insert and lock it in place (push the cylinder onto the guide pin).
45
6. Clean the inside of the detergent drawer housing.
45
7. Push in the detergent drawer.
45
Note:
45
The drain pump is blocked, emergency draining
46
: Warning
46
Risk of scalding!
46
1. Turn off the tap so that no more water can flow in and it has to be drained via the drain pump.
46
2. Switch off the appliance. Pull out the mains plug.
46
3. Remove the toe kick.
46
4. Take the drain hose out of the holder.
46
5. Remove the sealing cap and drain the water into a suitable container.
46
6. Put the sealing cap back on and press down firmly.
46
7. Place the drain hose back in the holder.
46
8. Carefully unscrew the pump cover. Be aware that any remaining water may leak out.
46
9. Clean the inside, the pump cover thread and the pump housing. The impeller in the drain pump must be able to rotate.
46
10. Put the pump cover back on and screw it in. The grip must be vertical.
47
11. Refit the toe kick.
47
Note:
47
The drain hose at the siphon is blocked
47
1. Switch off the appliance. Pull out the mains plug.
47
2. Undo the hose clamp. Carefully remove the drain hose. Be aware that any remaining water may leak out.
47
3. Clean the drain hose and siphon connecting piece.
47
4. Re-attach the drain hose and secure the connection point using the hose clamp.
47
Filter in the water supply blocked
48
Relieve the water pressure in the supply hose first:
48
1. Turn off the tap.
48
2. Select any programme (except Rinse/Spin/Empty).
48
3. Start the programme.
48
4. Allow the programme to run for approximately 40 seconds, then switch off the appliance.
48
5. Pull out the mains plug.
48
Then clean the filter:
48
1. Disconnect the hose from the tap.
48
2. Clean the filter with a small brush.
48
3. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
4. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
a) Use pliers to remove the filter.
48
b) Clean the filter.
48
5. Connect the hose and check for leaks.
48
3 Faults and what to do about them.
49
Faults and what to do about them.
49
Emergency release
49
: Warning
49
Risk of scalding!
49
: Warning
49
Risk of injury!
49
Caution!
49
Water damage
49
1. Switch off the appliance. Pull out the mains plug.
49
2. Drain the washing water. ~ Page 46
49
3. Use a tool to pull the emergency release downwards and then release.
49
4. Open the door.
49
Information on the display panel
50
Indicator/symbol
50
Cause/remedy
50
Symbol in timeLight* (display on the floor):
50
*Depends on the model
50
Cause/remedy
50
Faults and what to do about them.
51
Faults
51
Cause/remedy
51
Note:
52
4 After-sales service
53
After-sales service
53
J Technical data
54
Technical data
54
r Aqua-Stop warranty
55
Aqua-Stop warranty
55
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
55
2. The liability guarantee is valid for the service life of the appliance.
55
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
55
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
55
Search:
×
Search
